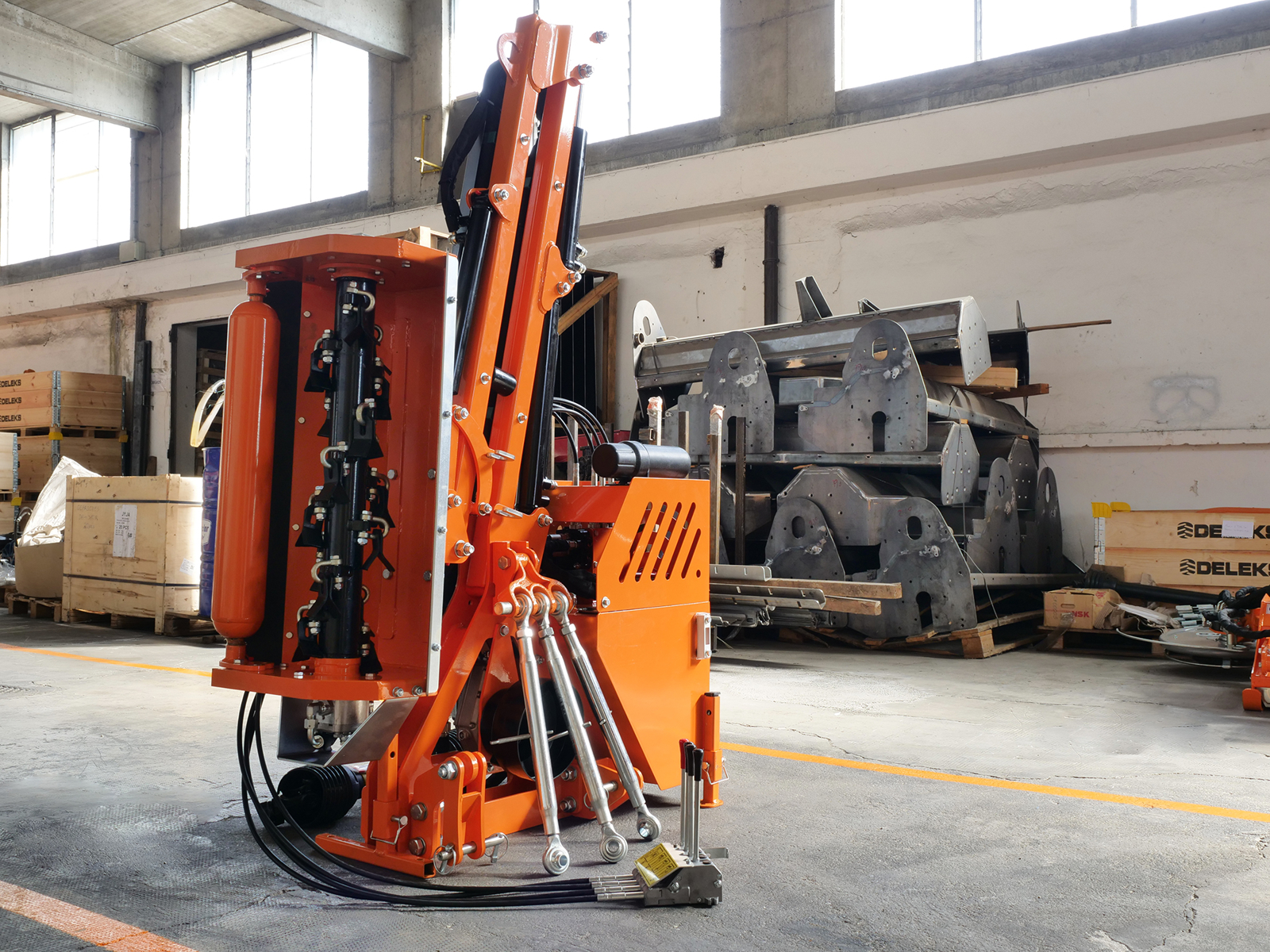

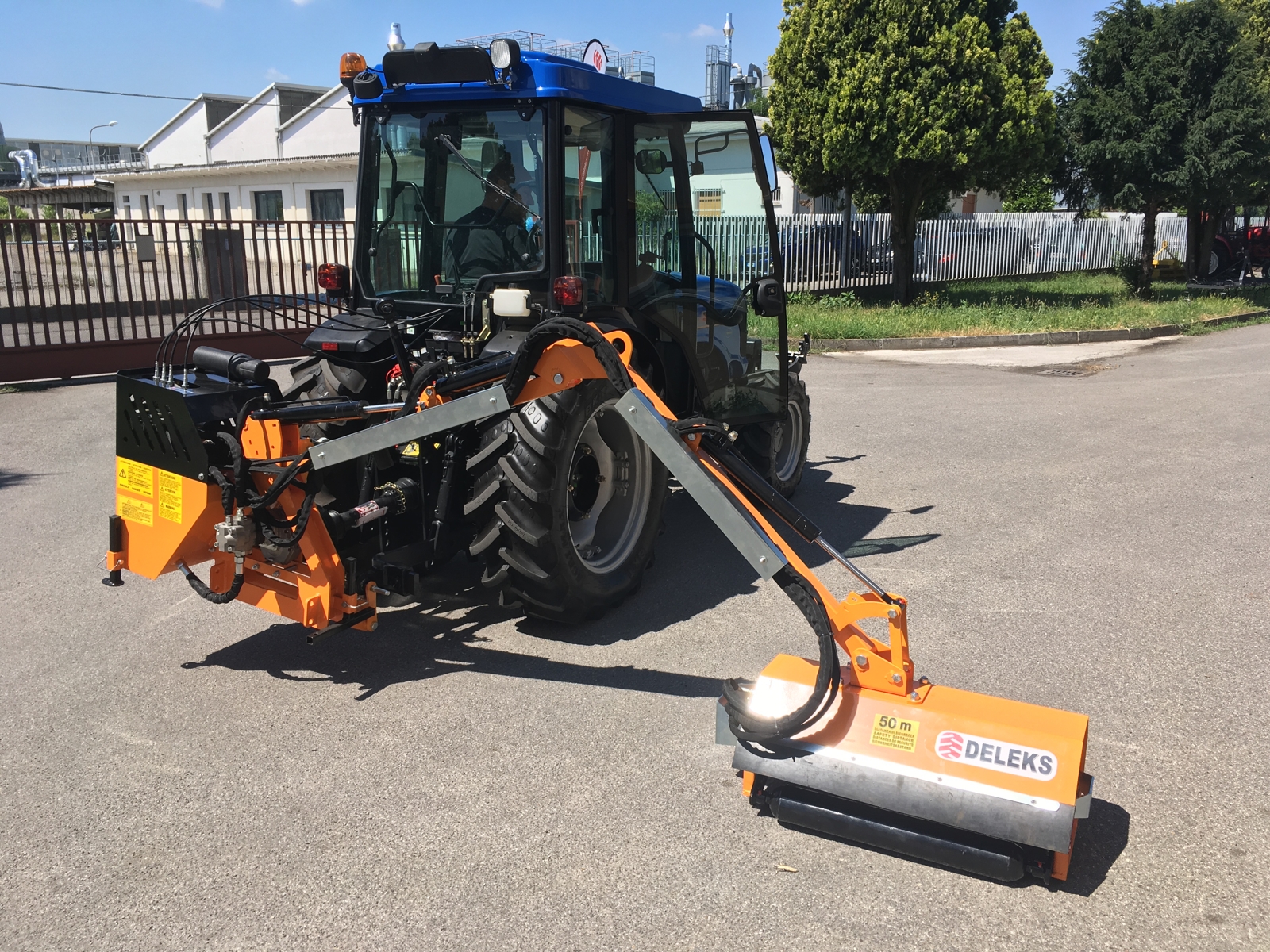

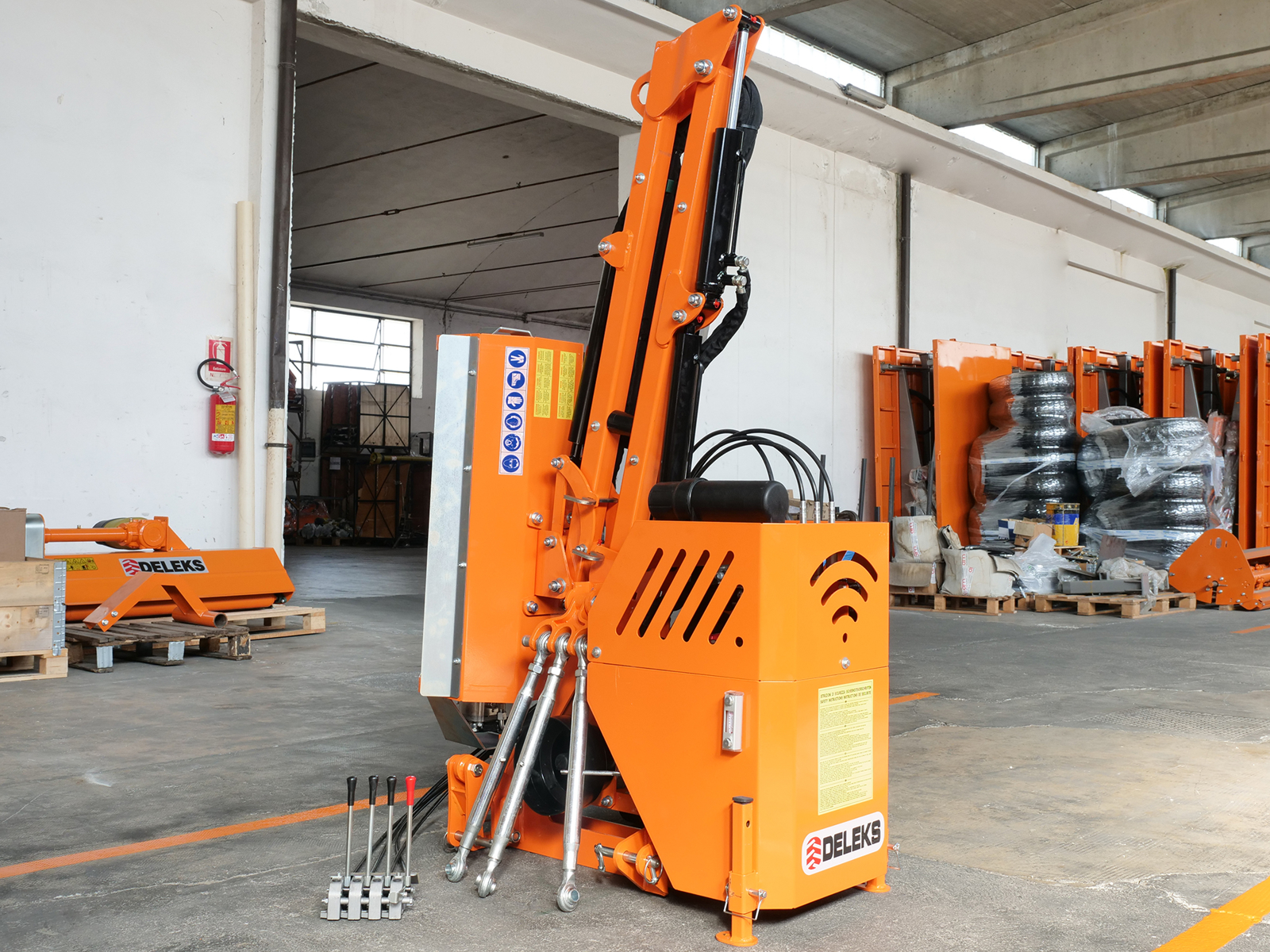

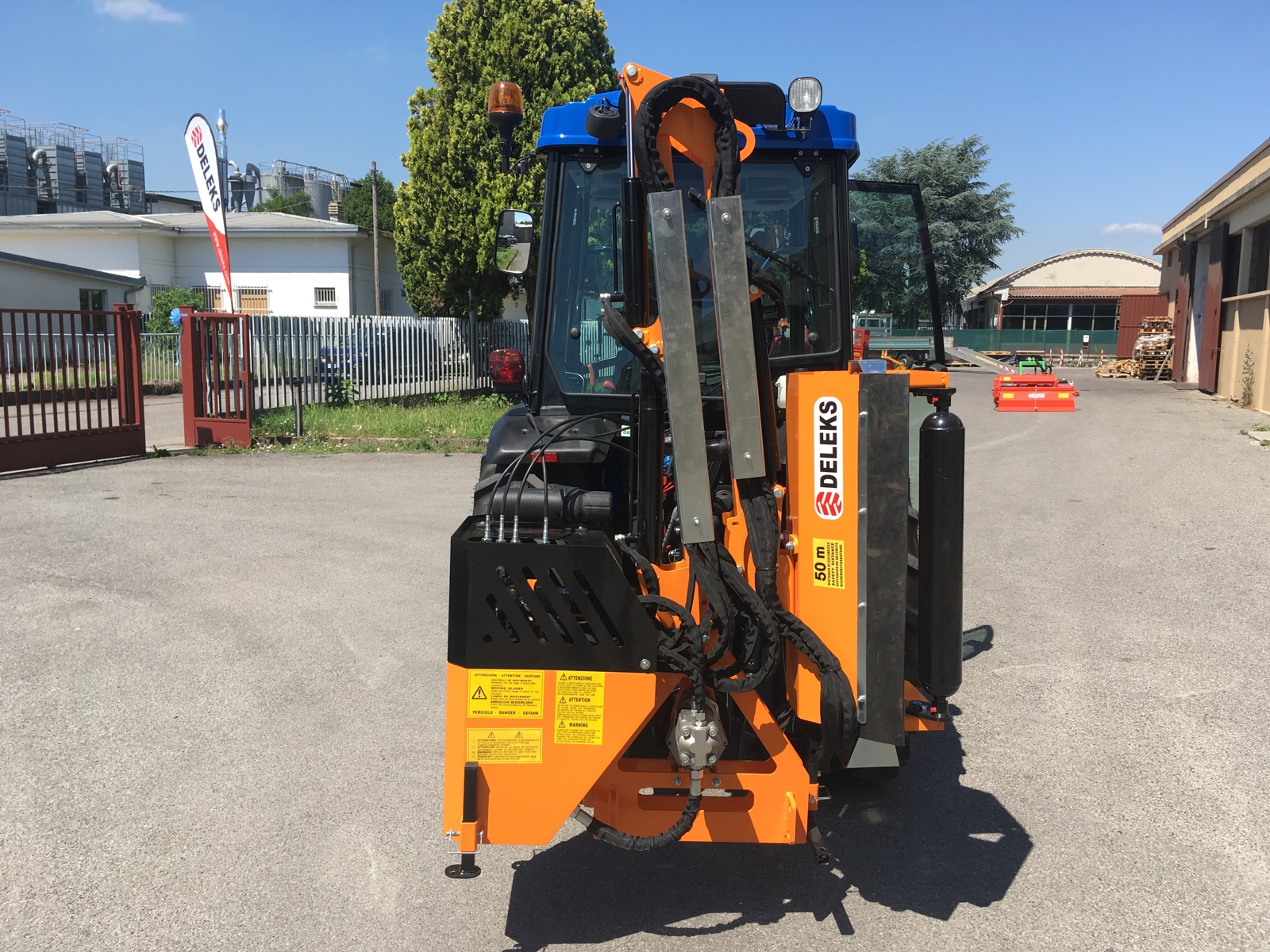

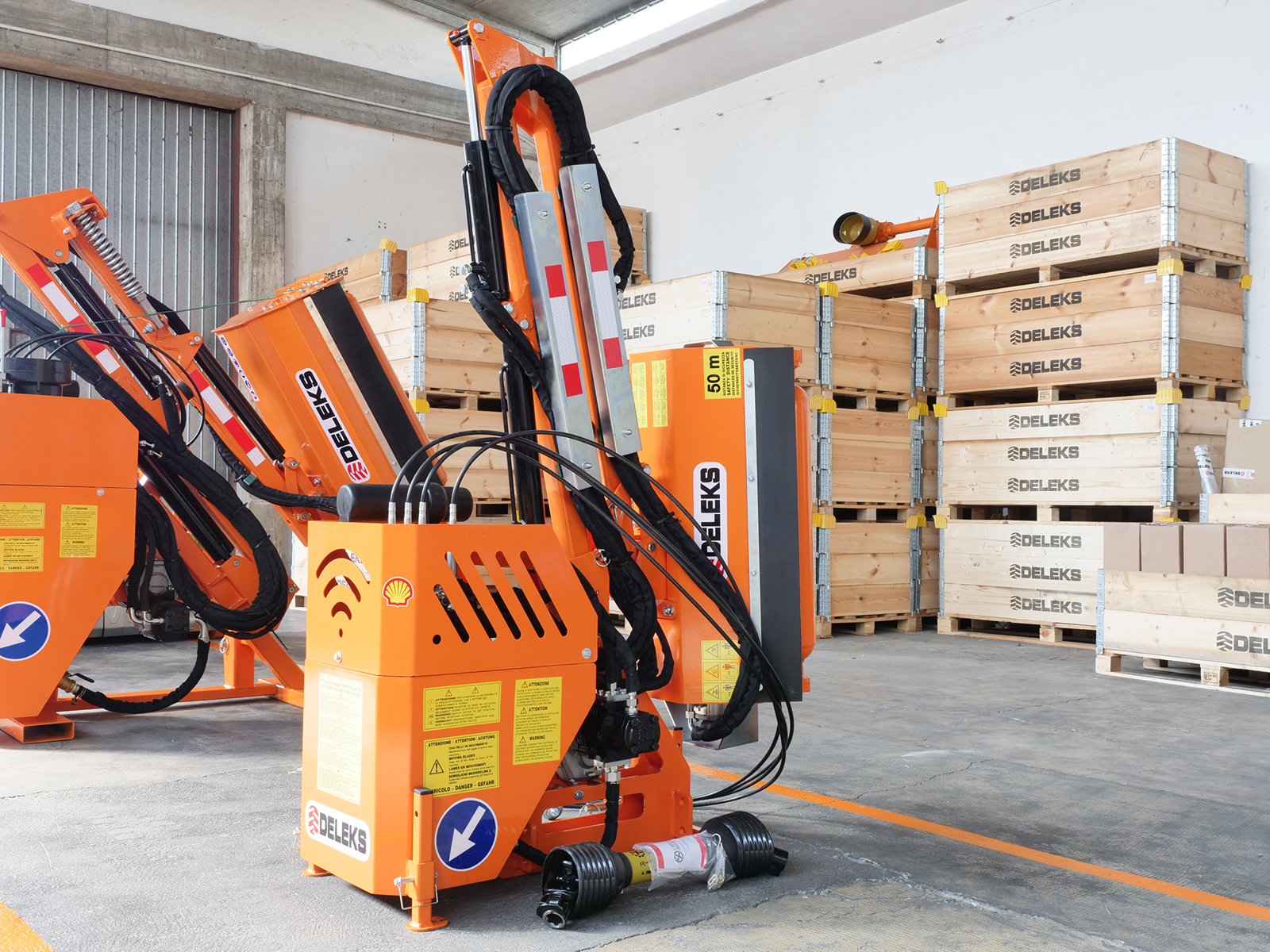

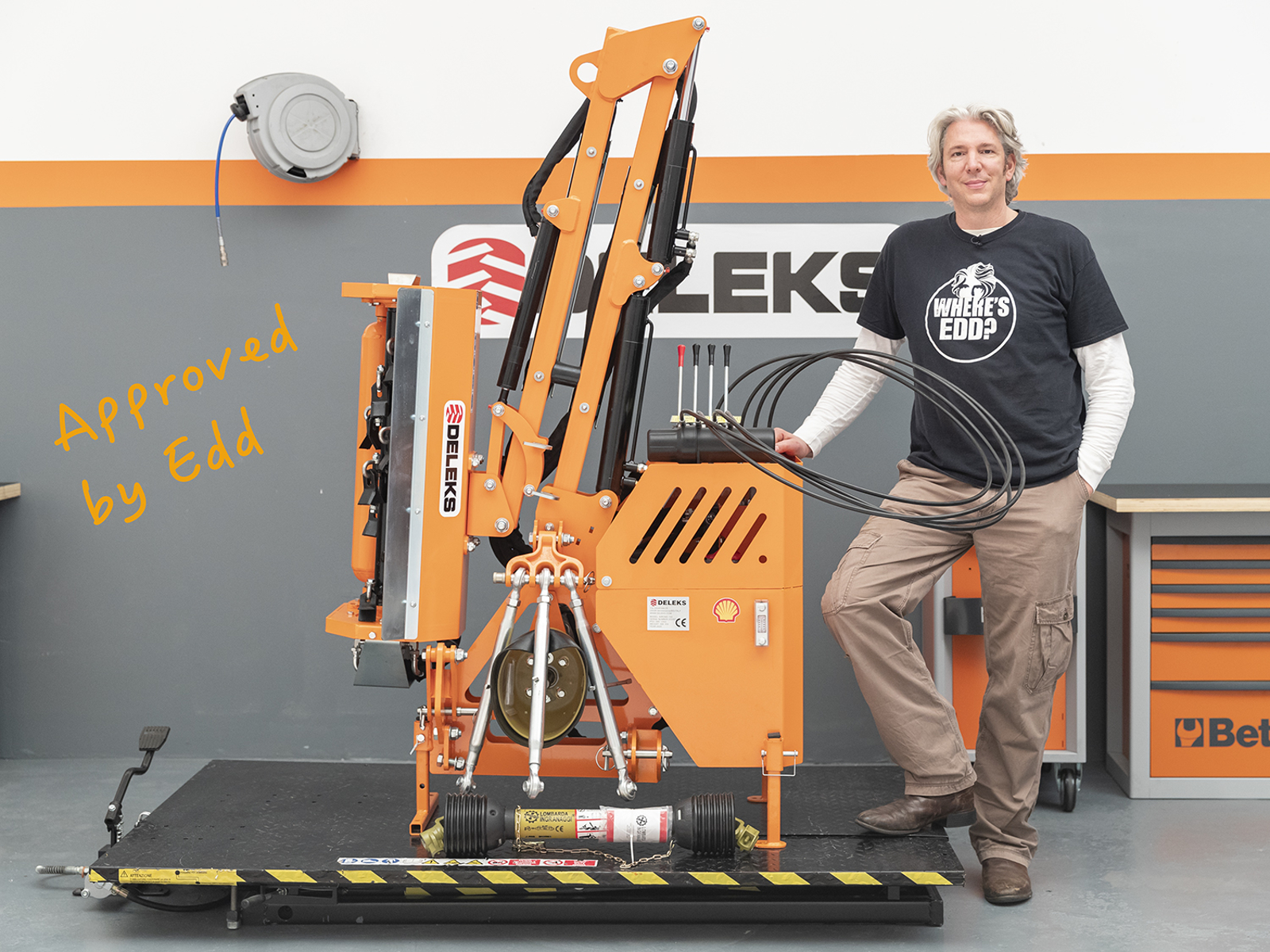

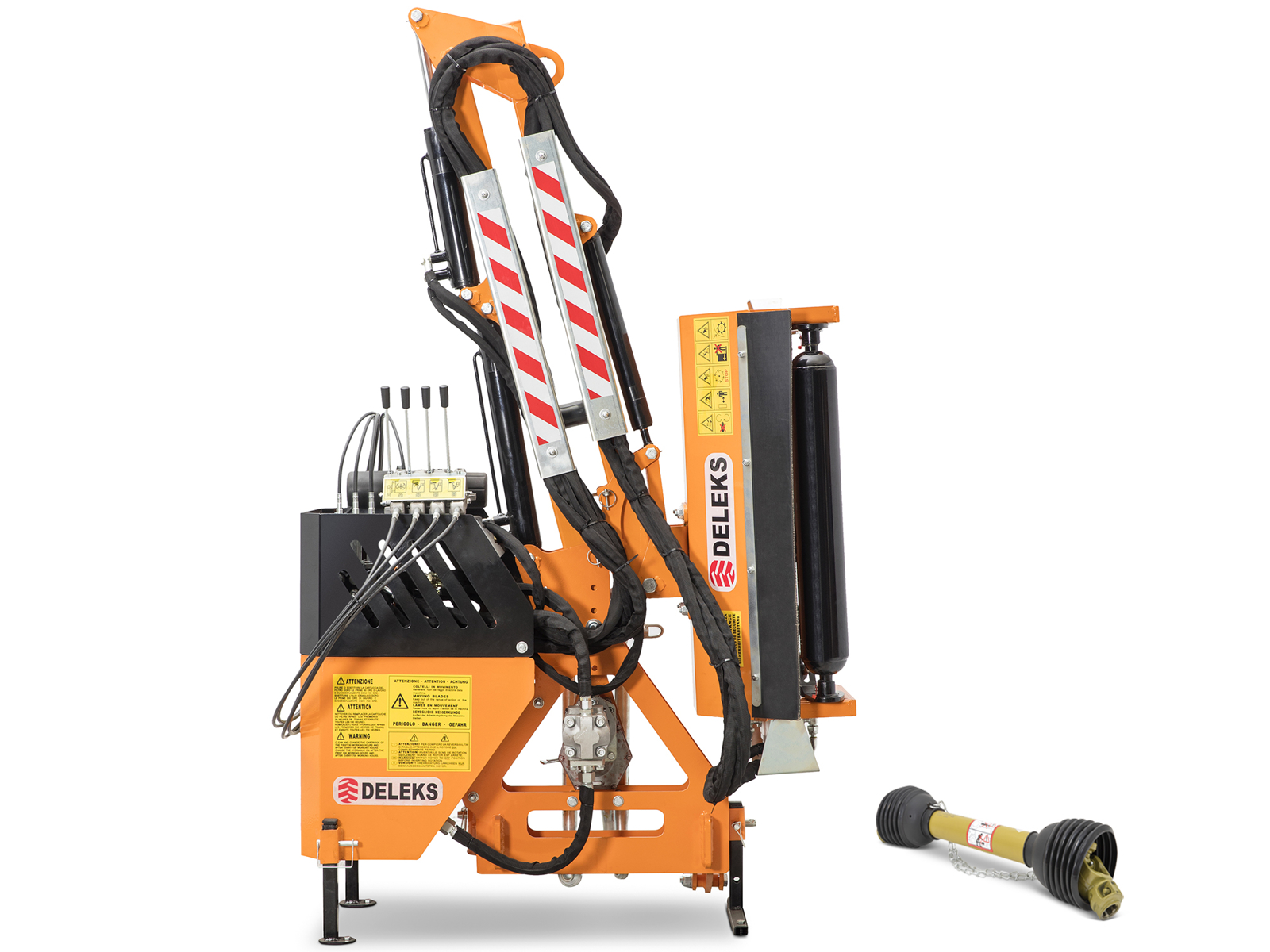

Hedgecutter for tractor, multiple hedge and grass verge rear arm cutter - DELEKS® - own hydraulic system, runs completely off the PTO - Pto shaft CE included.

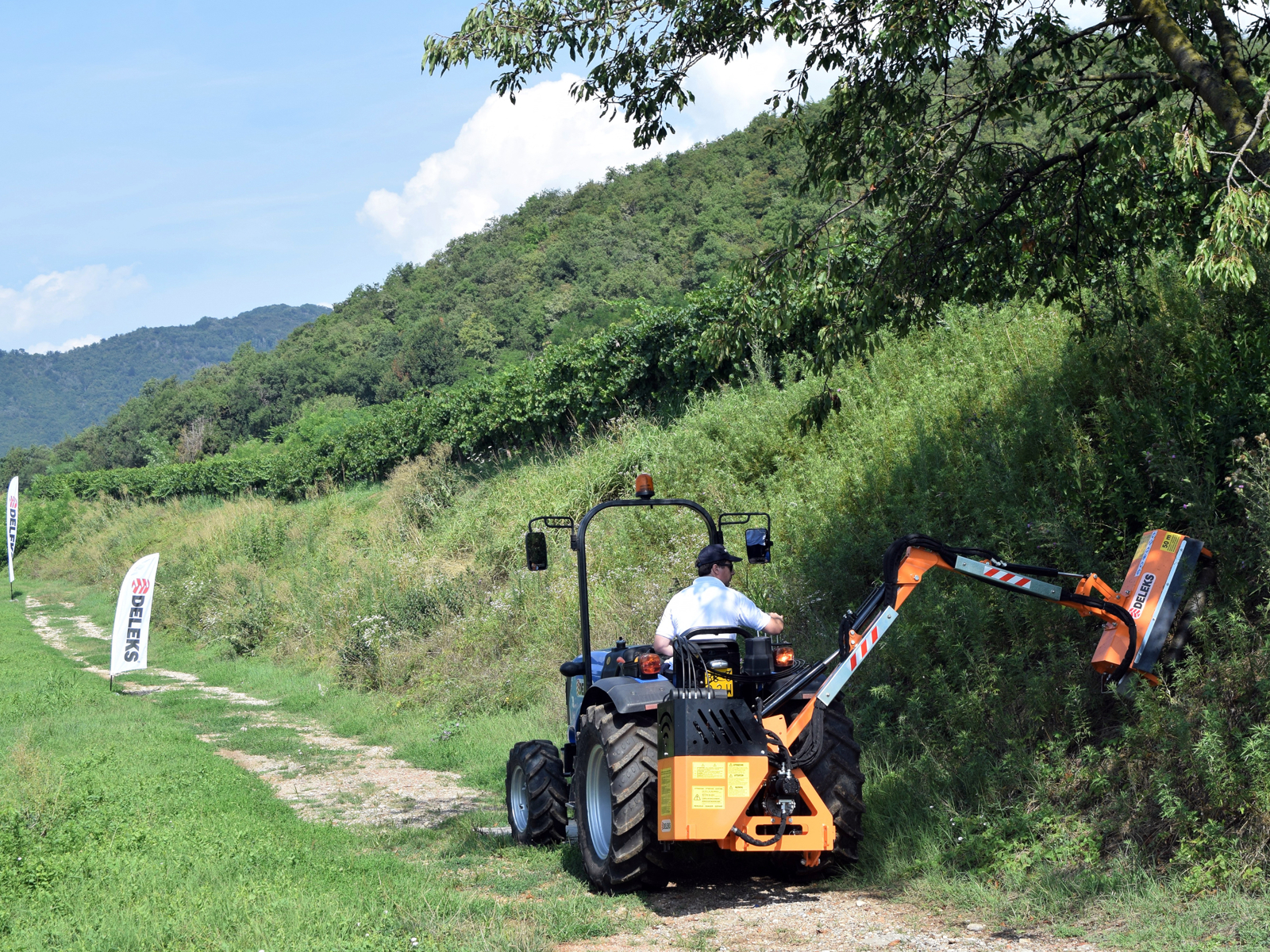

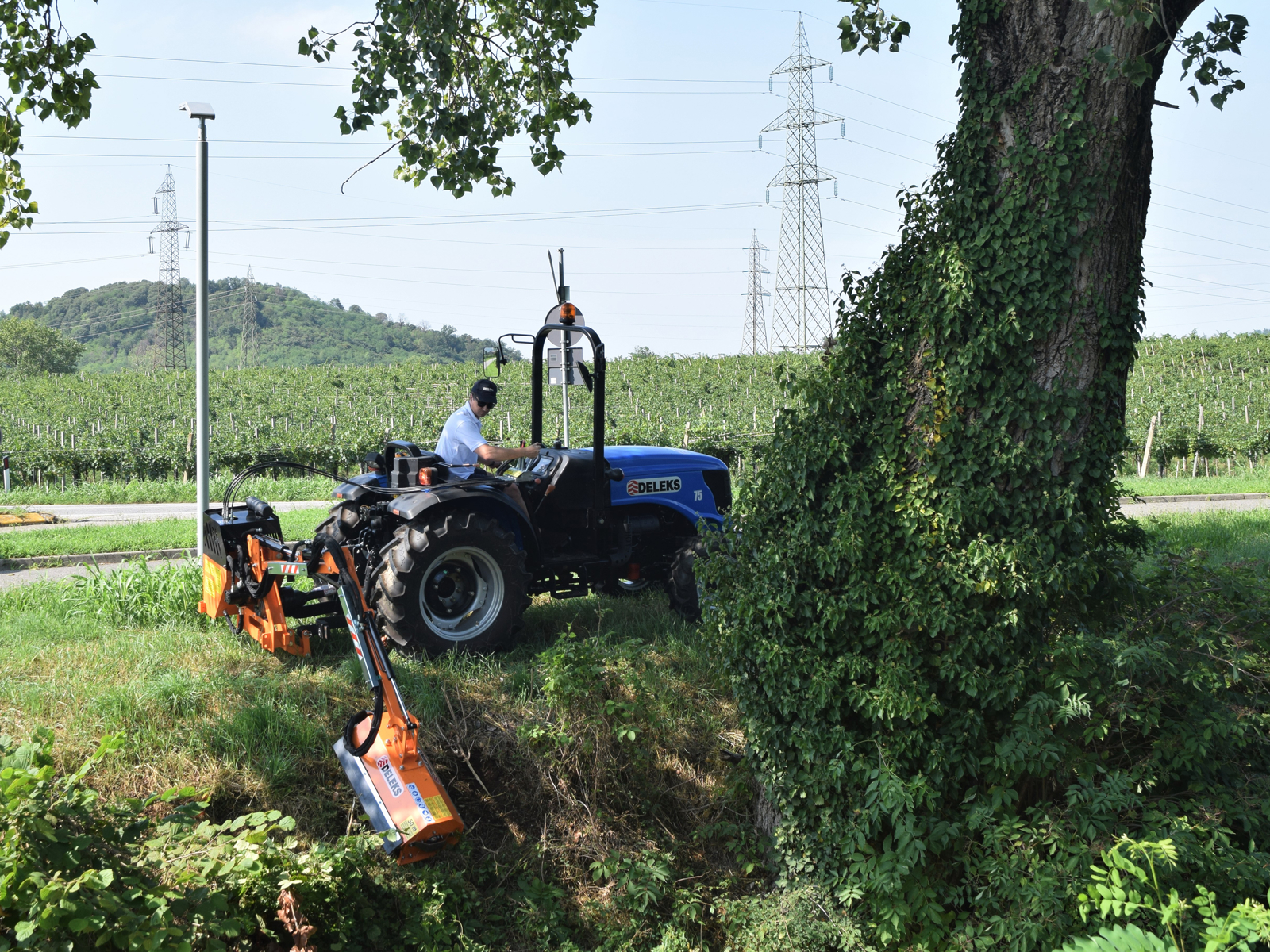

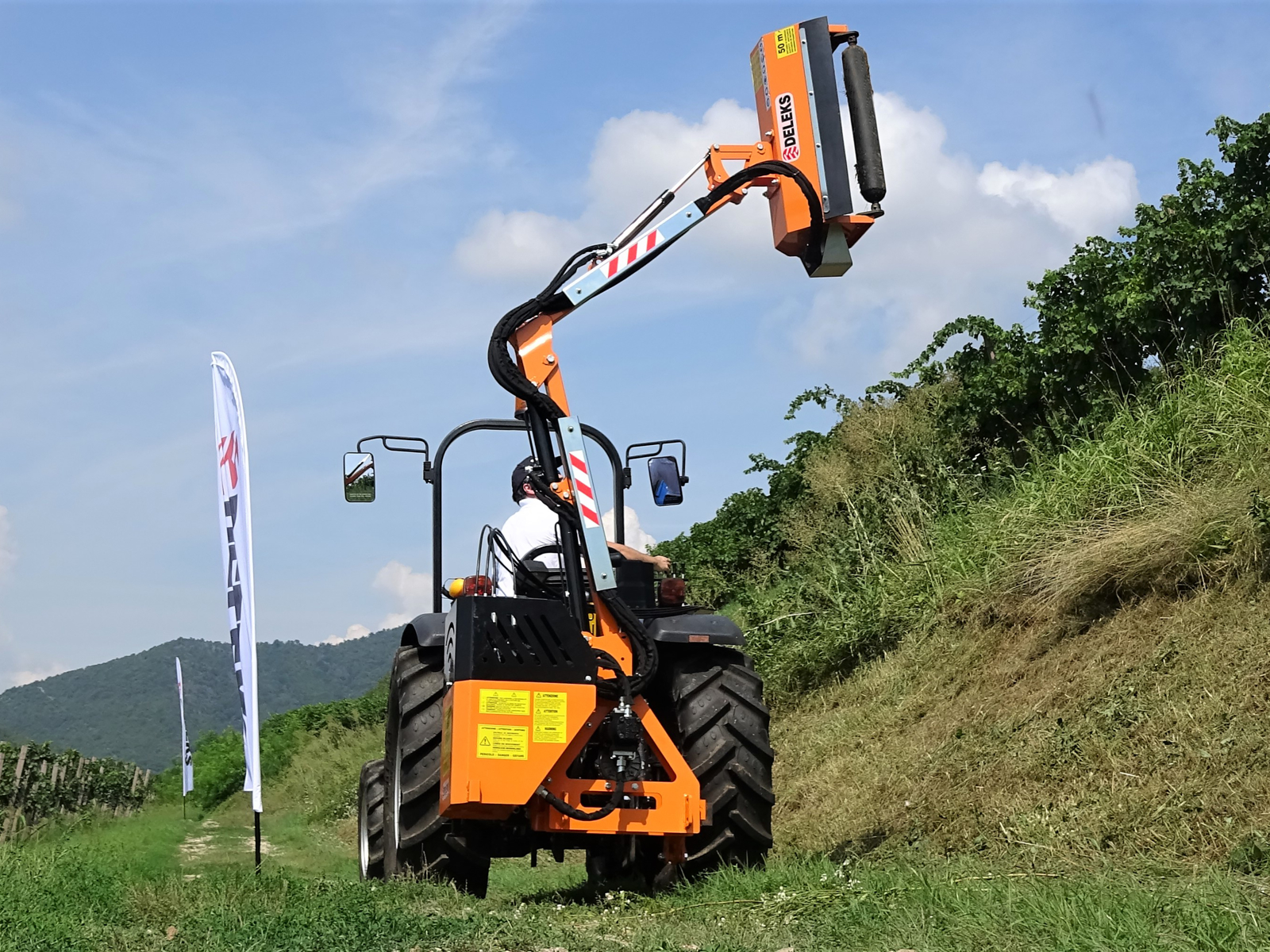

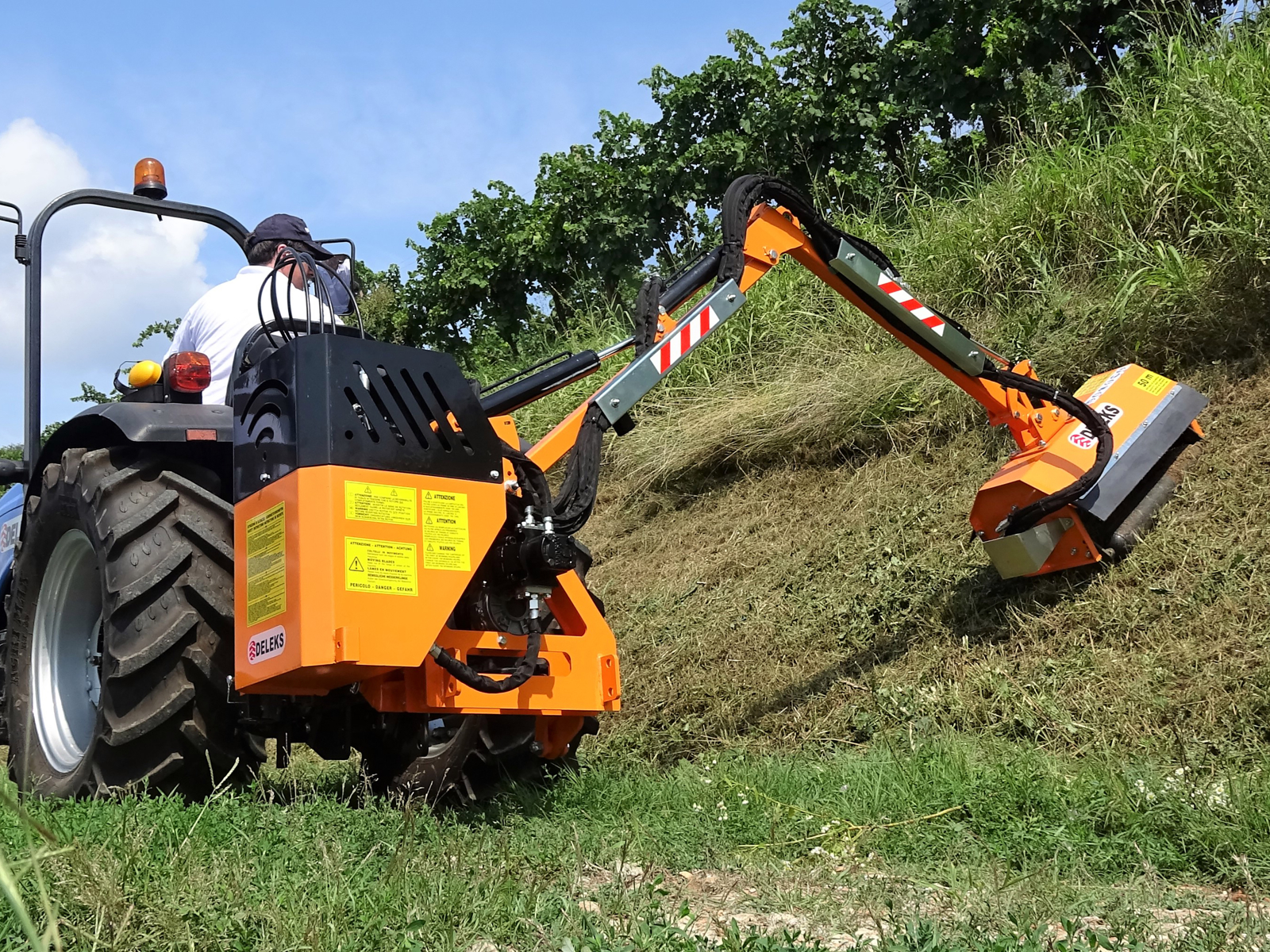

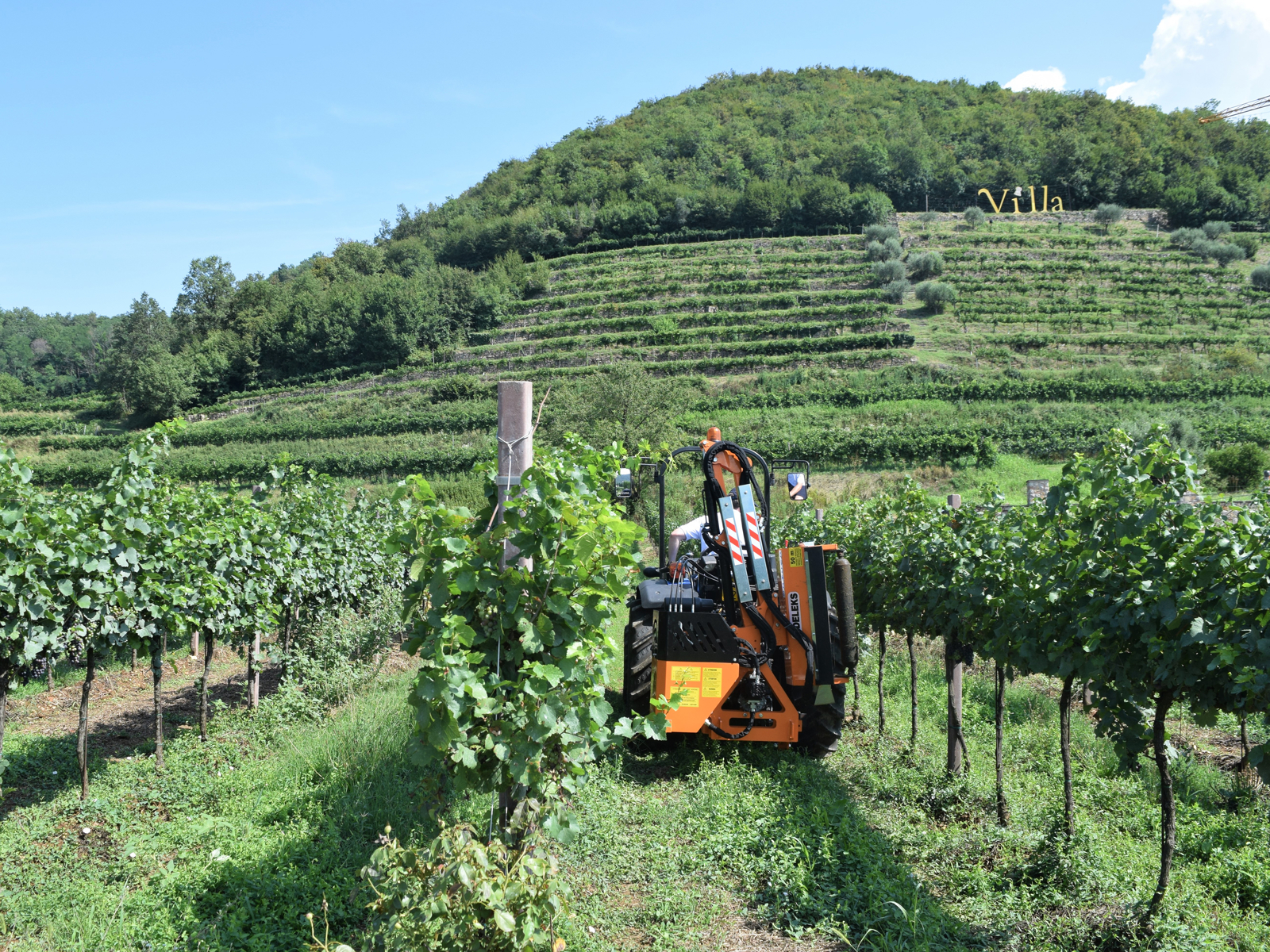

AIRONE-80 Hedge cutter has been engineered for clearing overgrowth from highway medians and for initial land clearing for housing, parks and recreational areas. The AIRONE-80 is ideal for semi professional use, pruning roadside and traffic island hedges, however can also be used for parks, green spaces, gardens, ditches, dykes, and inclines in general. The hedge cutter itself is powered by a PTO shaft (supplied with the machine) and can be used with all 20-60HP compact tractors e.g Kubota, John Deere 2-3, Ford, McCormick, Iseki, Yanmar, Lamborghini, Goldoni.
Minimum weight of the tractor: 1200kg.
BENEFITS AND FEATURES

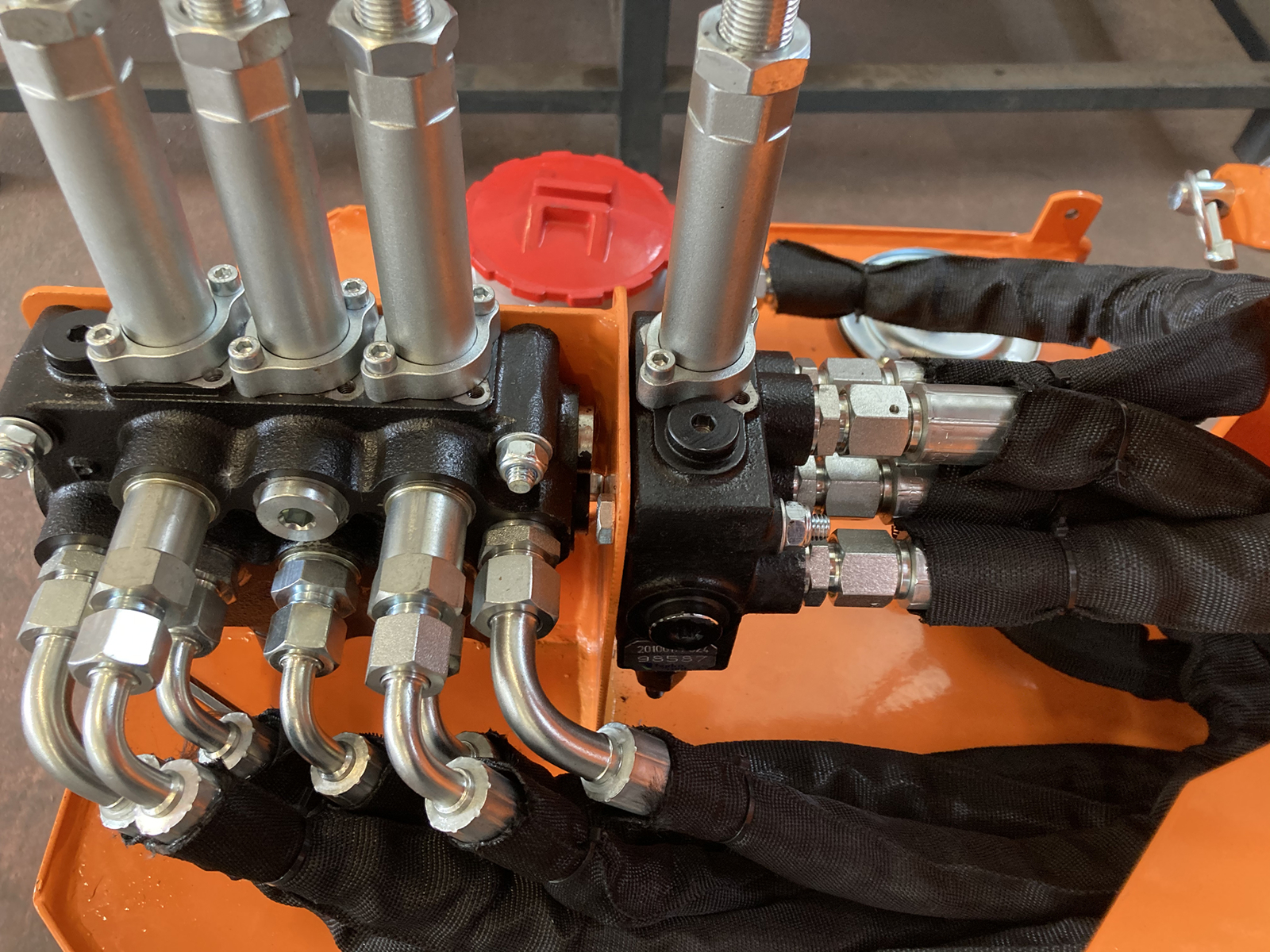

Hydraulic distributor: Hydrocontrol (Made in Italy).

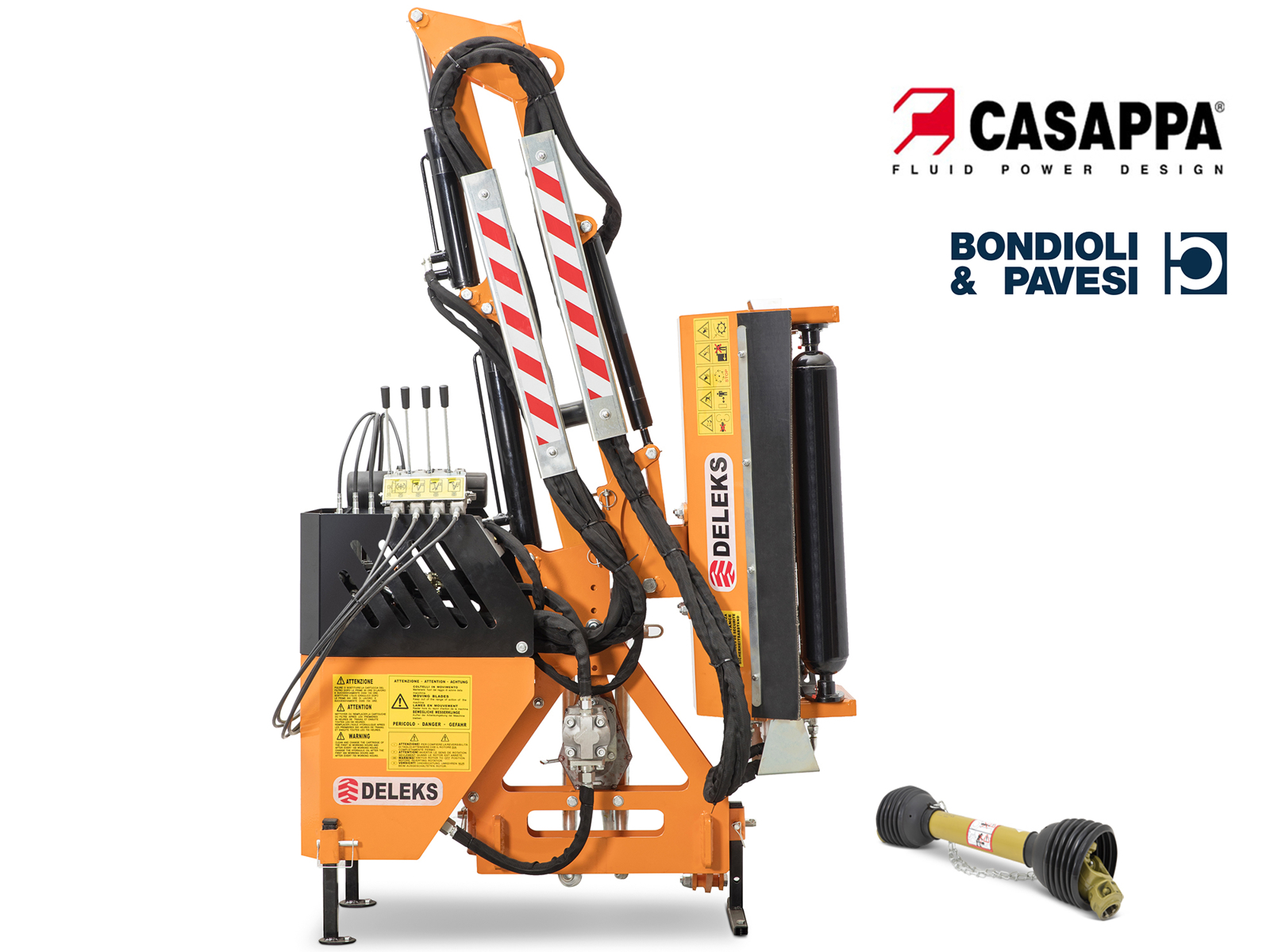

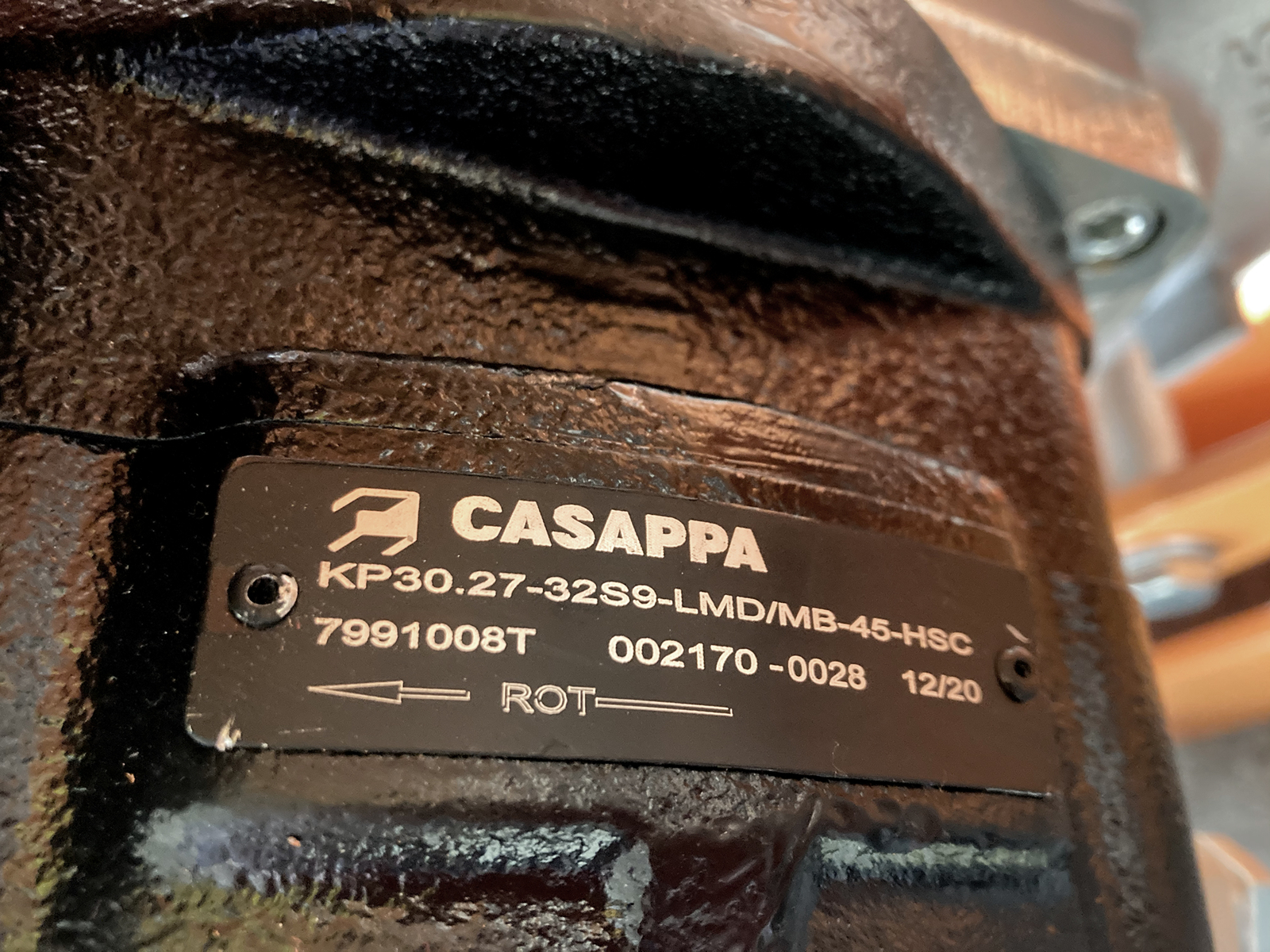

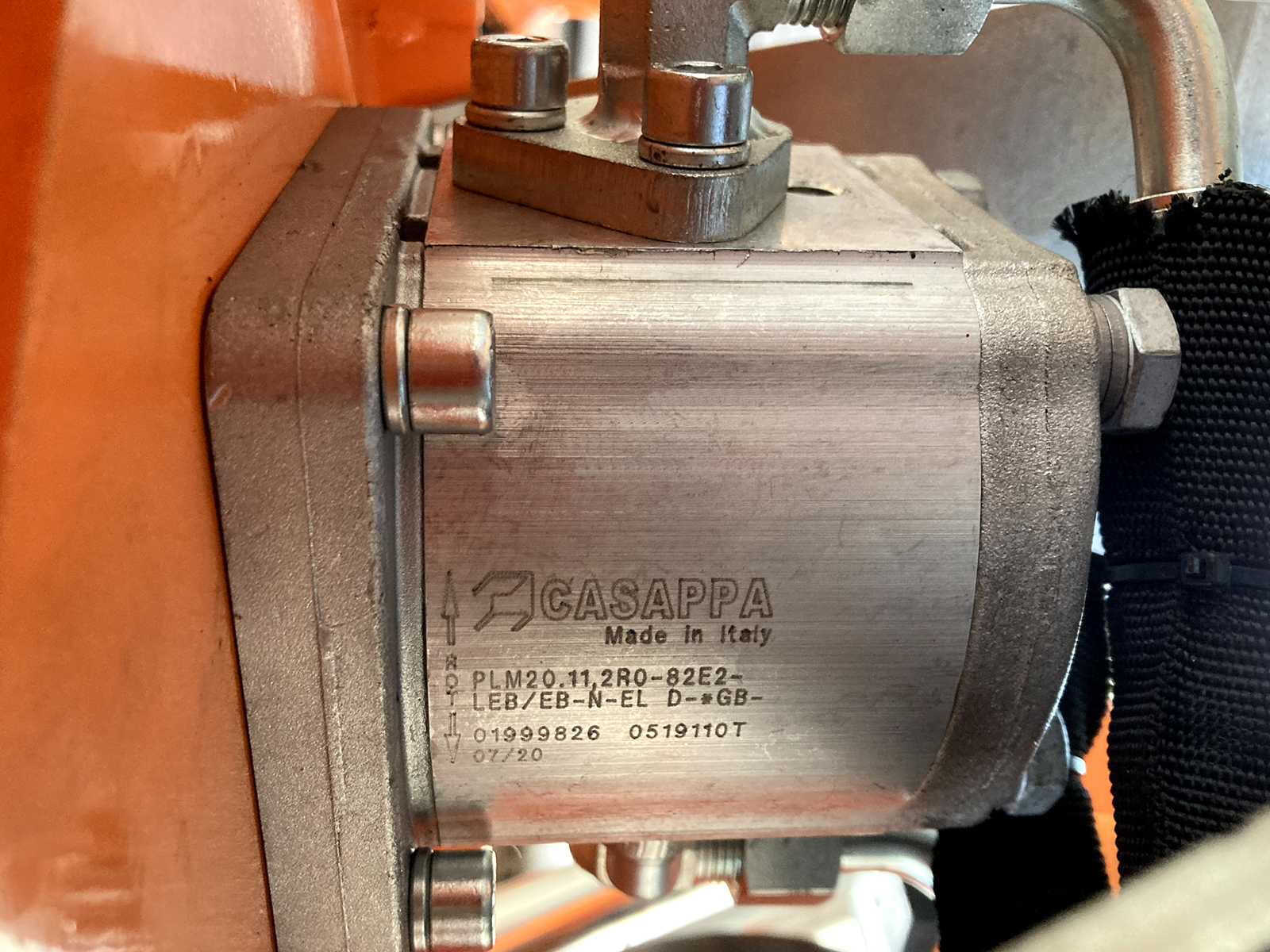

Double hydraulic pump: Casappa (Made in Italy) allows to move together the arm and the mower.

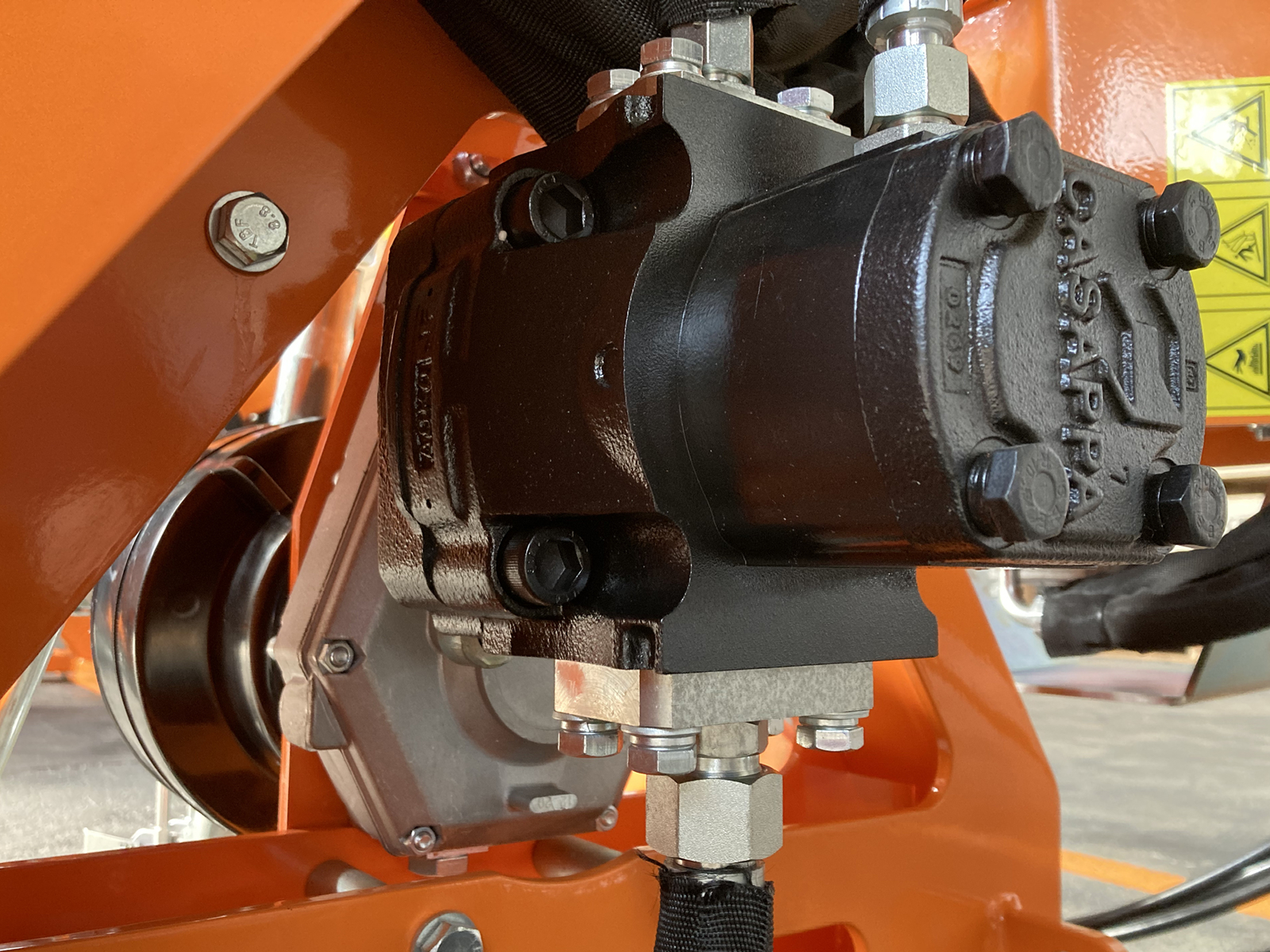

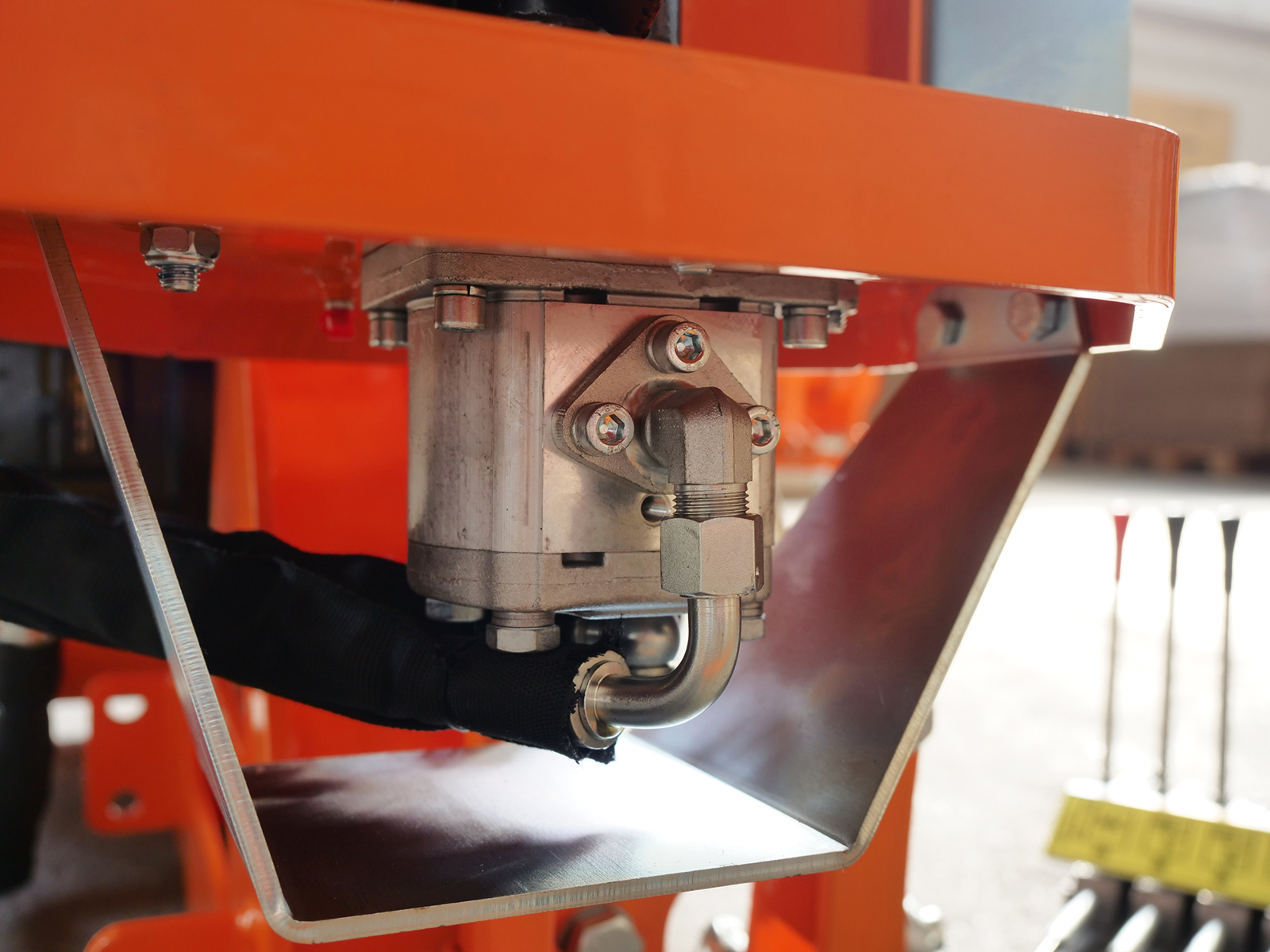

Hydraulic motor (mower): Casappa (Made in Italy).
Hydraulic controller is supplied with the Hedgecutter.
100% hydraulically operated arm to accommodate for any kind of gradient of terrain. If the tractor is on slope the arm will steady itself to reduce downtime.
The lightweight design allows its use on flat ground or on verges.
55 liters oil tank (already supplied level: Shell Tellus 46 S2 MX 46).
Adjustable roller unit.
Pto shaft CE included.
Documentation supplied with this article:
Invoice or Receipt
EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).
|Characteristic||Units metric||Units US|
|Working width||800.0 mm||2.62 ft|
|Overall width||1200.0 mm (closed)||3.94 ft (closed)|
|Min / Max cutting height||20.0 - 80.0 mm||0.8 - 3.15 in|
|Weight||275.0 kg||606.0 lb|
|Overall height||2010.0 mm||6.60 ft|
|Tractor Power Range||20-60 Hp||20-60 Hp|
|3 point linkage||Cat. 1 (ø 19.0-22.0mm)||Cat. 1 (ø 19.0-22.0mm)|
|Hood height||330.0 mm||13.0 in|
|Spacing between the 2 lower points||470.0 - 570.0 mm||18.50 - 22.44 in|
|Maximum cutting diameter||15.0 mm||0.6 in|
|Overall length||1070.0 mm||3.51 ft|
|Distance between pto attachment and ground||400.0 mm||15.75 in|
|Main hood thickness||4.0 mm||0.16 in|
|Transmission: Drive method||Hydraulic||Hydraulic|
|Transmission: PTO||540 r/min||540 r/min|
|Transmission: Rotation of gearbox||Right side||Right side|
|Transmission: Free wheel||√||√|
|Transmission: RPM Rotor speed||1500 r/min||1500 r/min|
|Transmission: Oil in the gearbox||Yes / SAE 120 - ISO 72925||Yes / SAE 120 - ISO 72925|
|Rotor: diameter||78.0 mm||3.07 in|
|Rotor: bearings type and size||GB276-6007||GB276-6007|
|Rotor: sheet thickness||14.0 mm||0.55 in|
|Rear roller: diameter||102.0 mm||4.01 in|
|Rear roller: sheet thickness||4.0 mm||0.16 in|
|Rear roller: bearings type and size||φ25||φ25|
|Hydraulic Hoses||WP 400 Bar||WP 400 Bar|
|Pto shaft||CE 4x700 mm||CE 4x700 mm|
|Hood length||650.0 mm||2.13 ft|
|Number of Blades||32||32|
|Blades: Weight||130.0 g||4.58 oz|
|Blades: Diameter of the hole||13.0 mm||0.52 in|

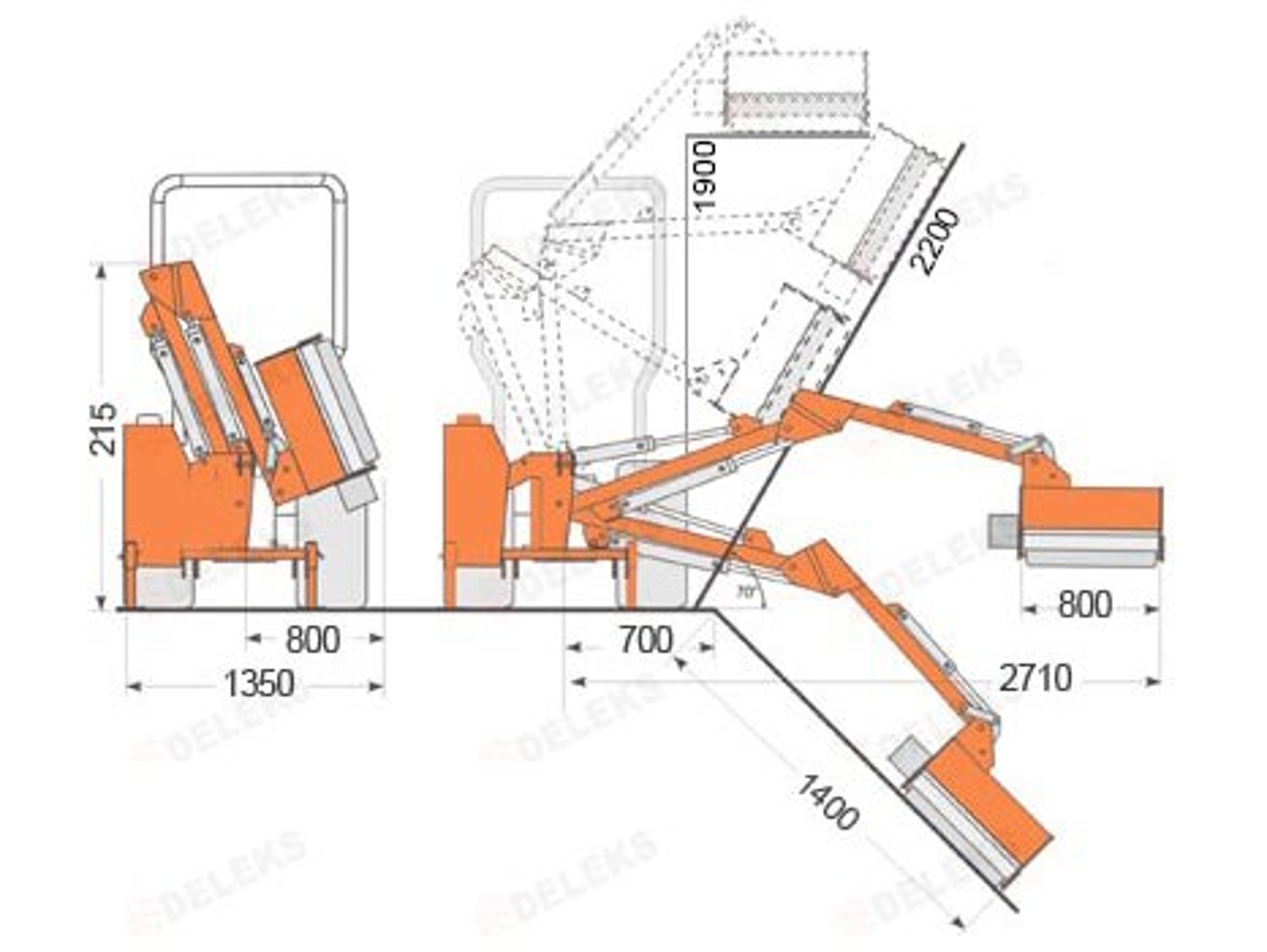

|Displacement||2710.0 mm||8.90 ft|
|Transmission: Oil in the tank||55.0 lt||55.0 lt|
|Blades: base width||50.0 mm||1.97 in|
|Blades: Diagonal||85.0 mm||3.35 in|
|Packing sizes||1280.0*800.0*2150.0 mm||4.20*2.62*7.05 ft|
