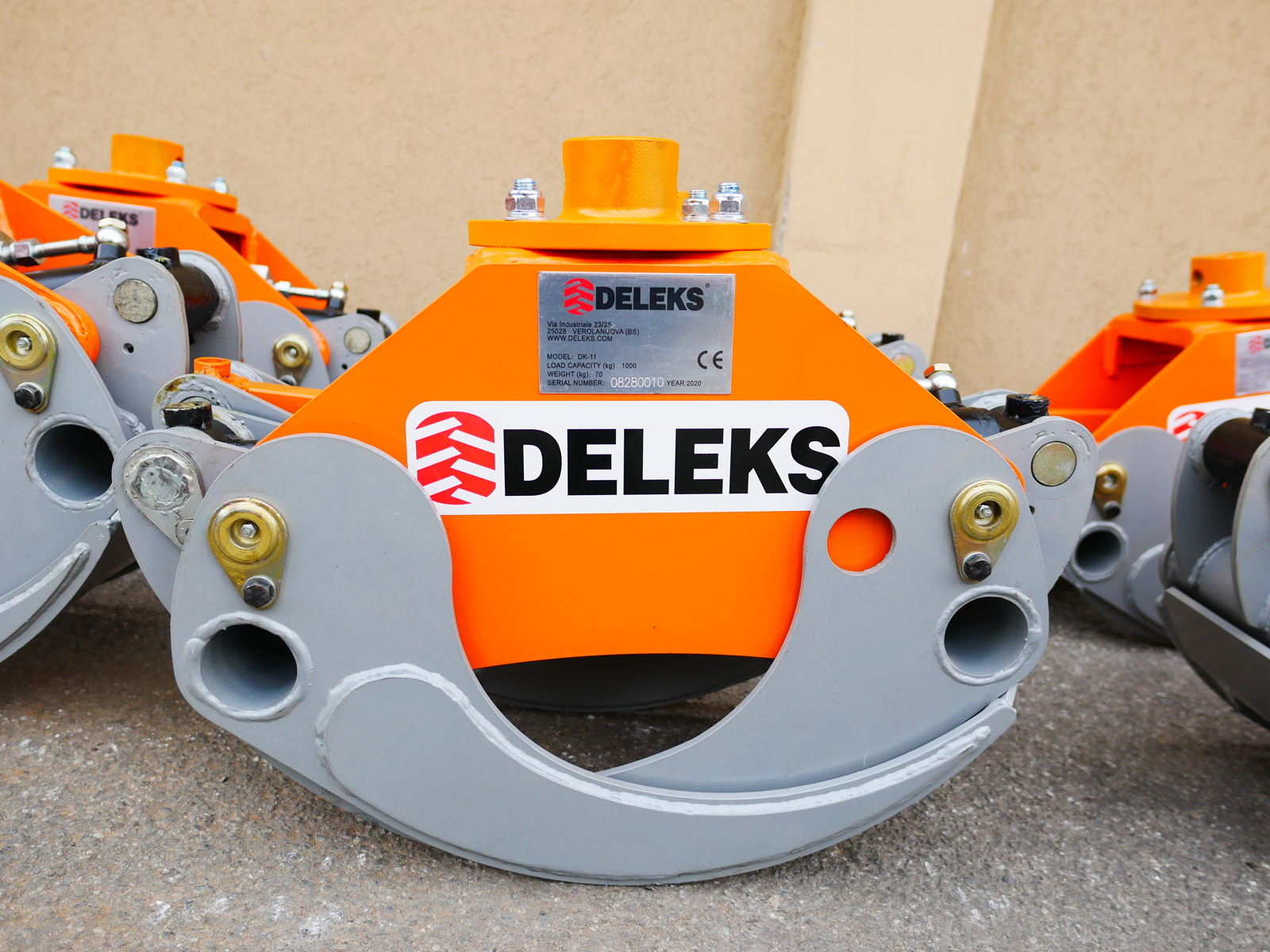

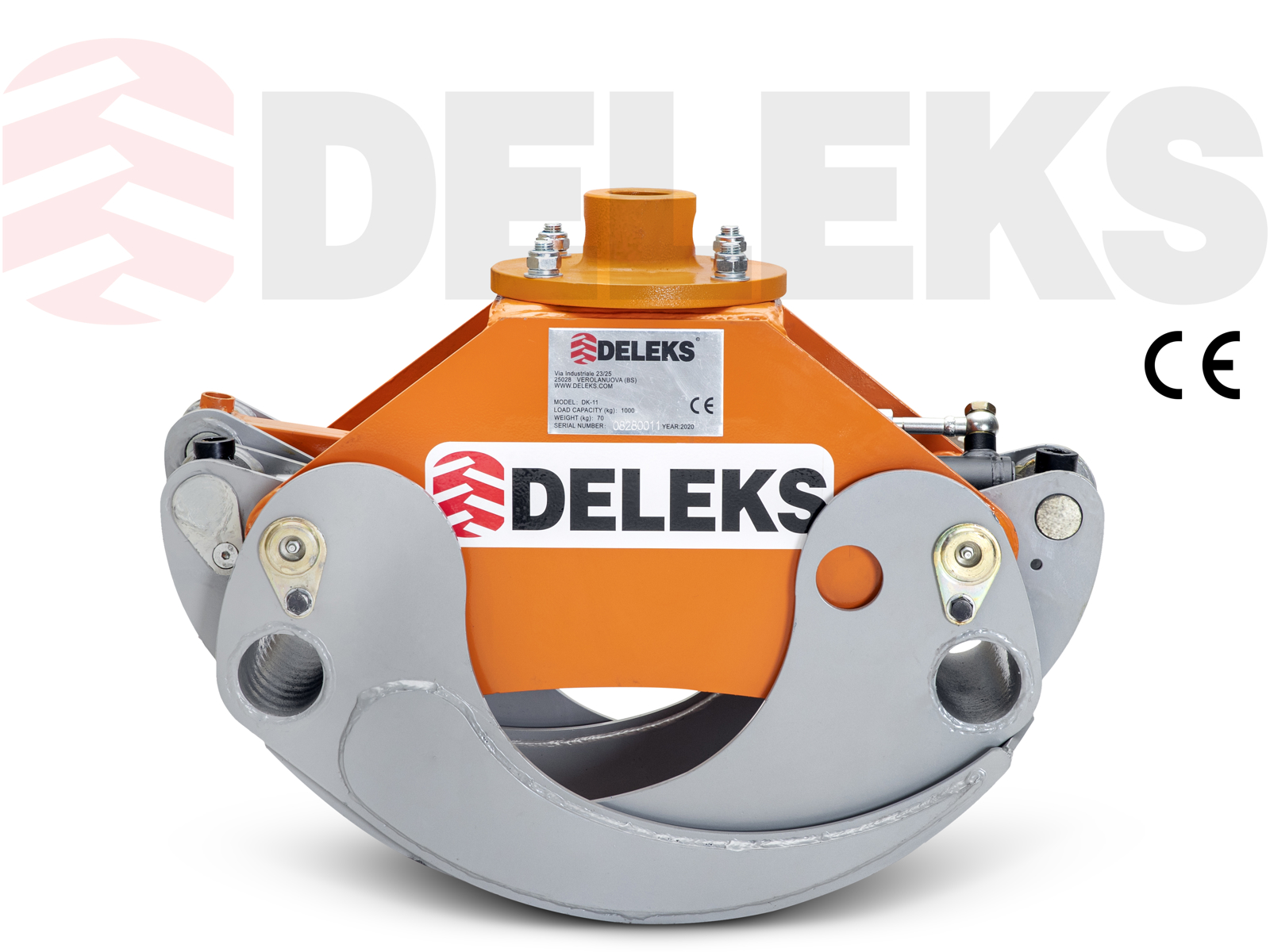

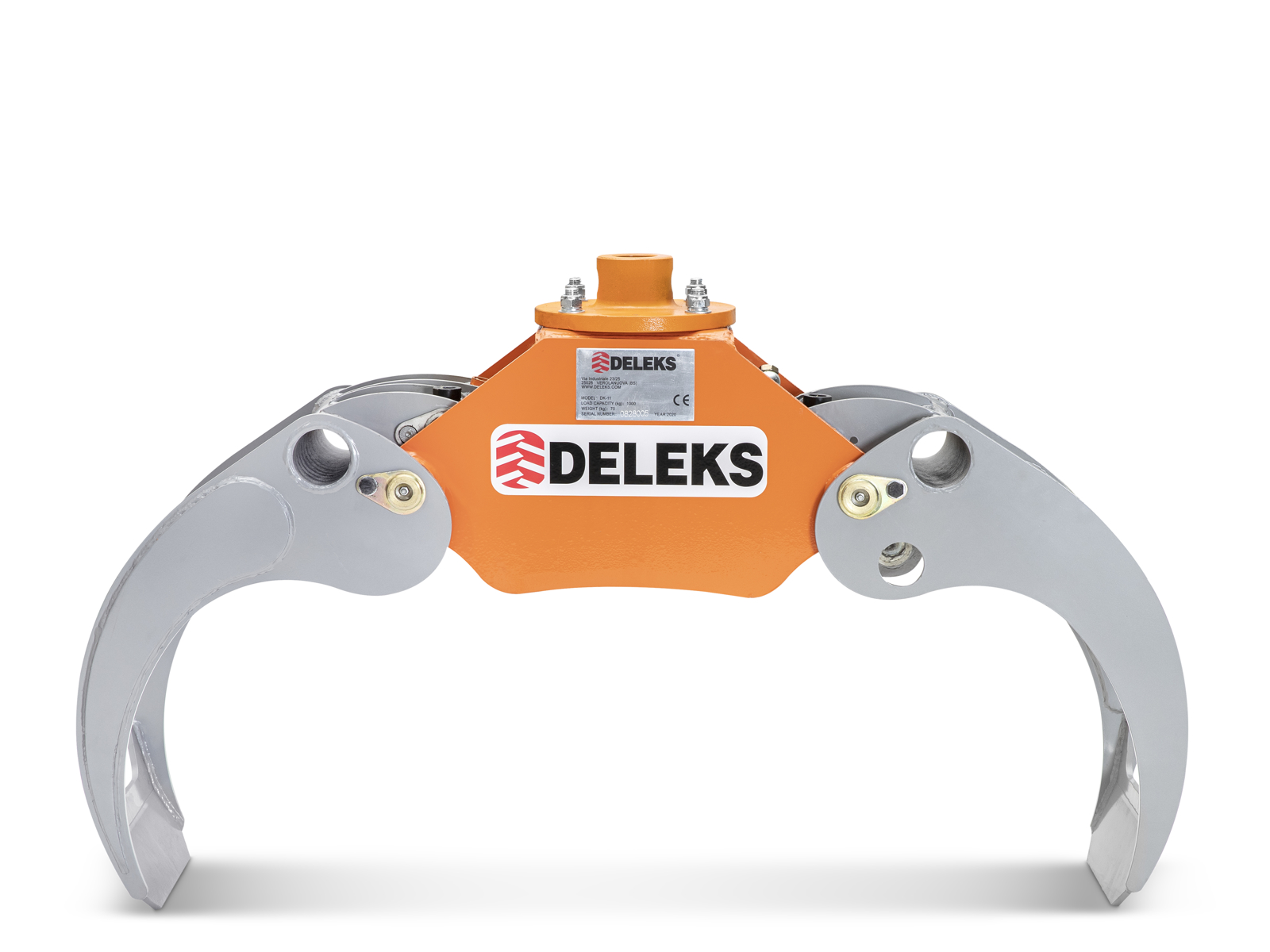

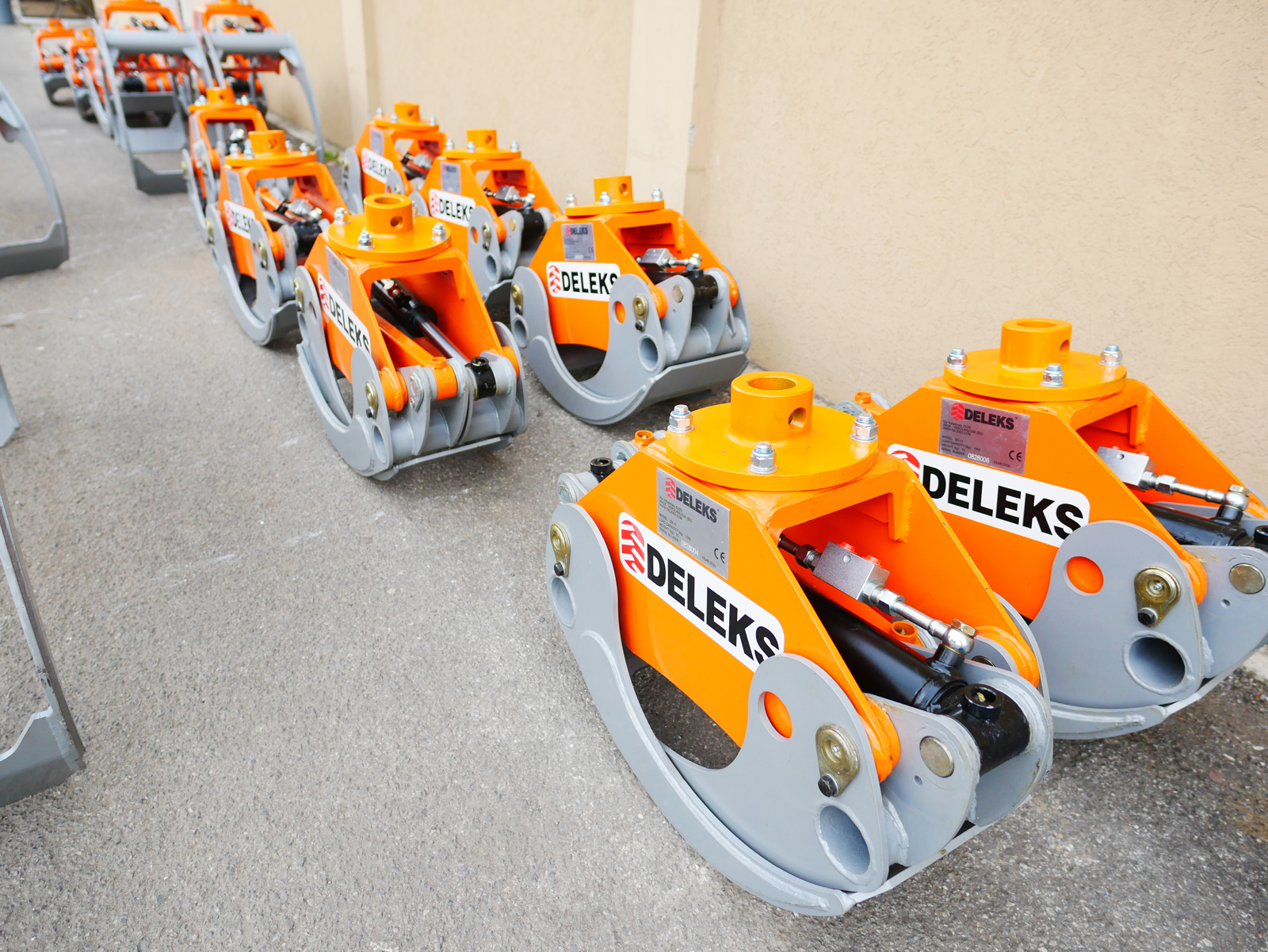

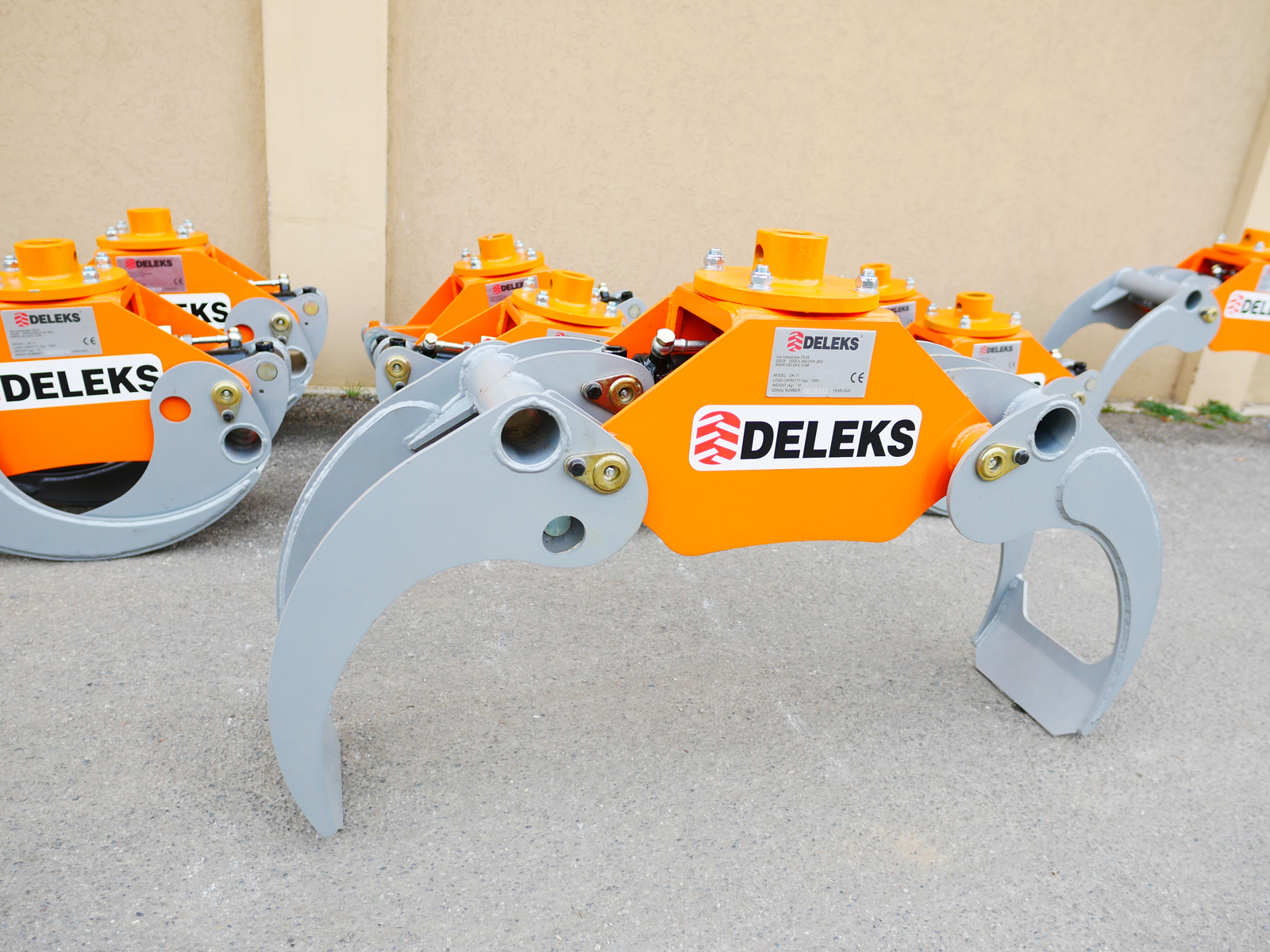

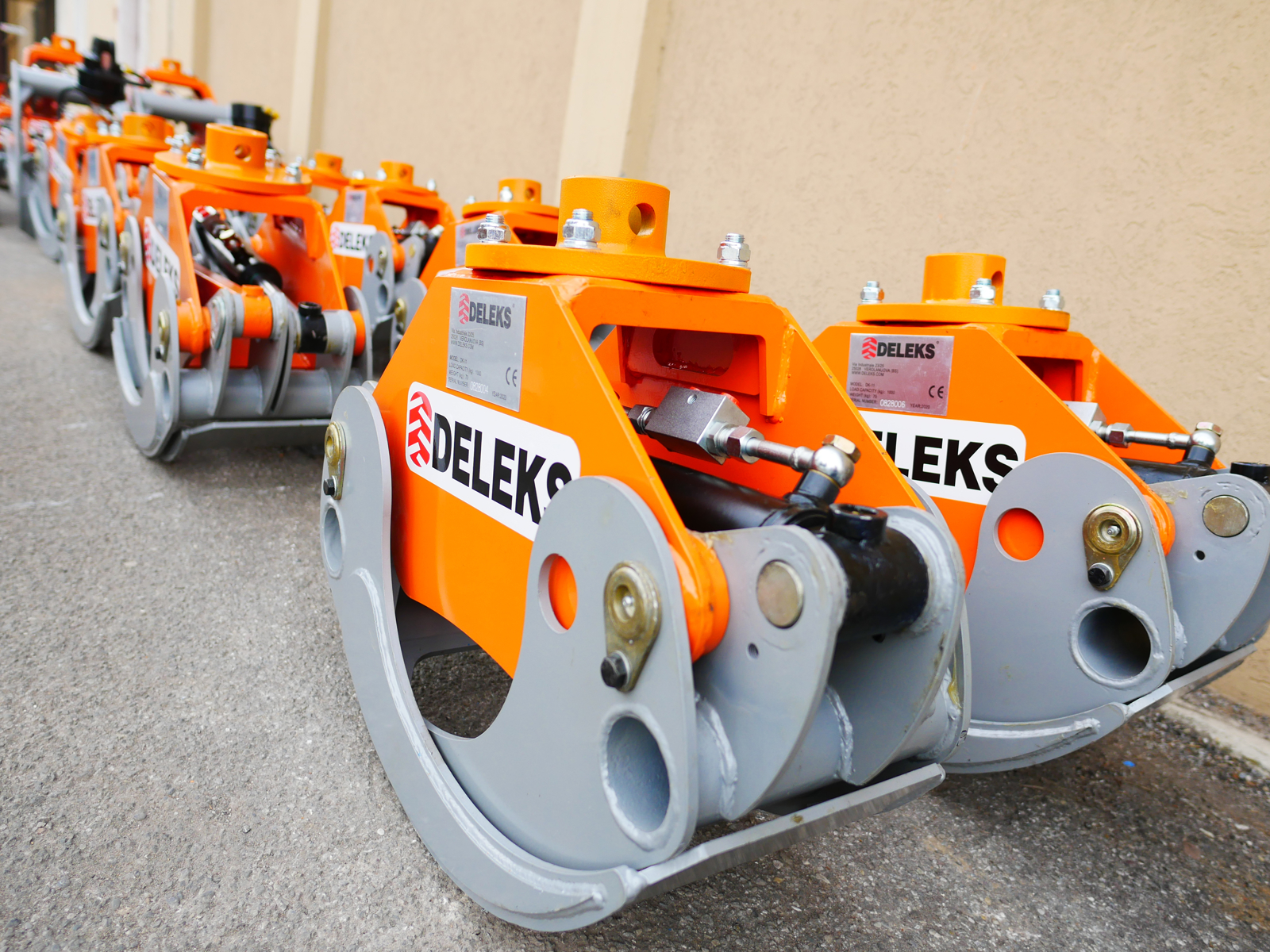

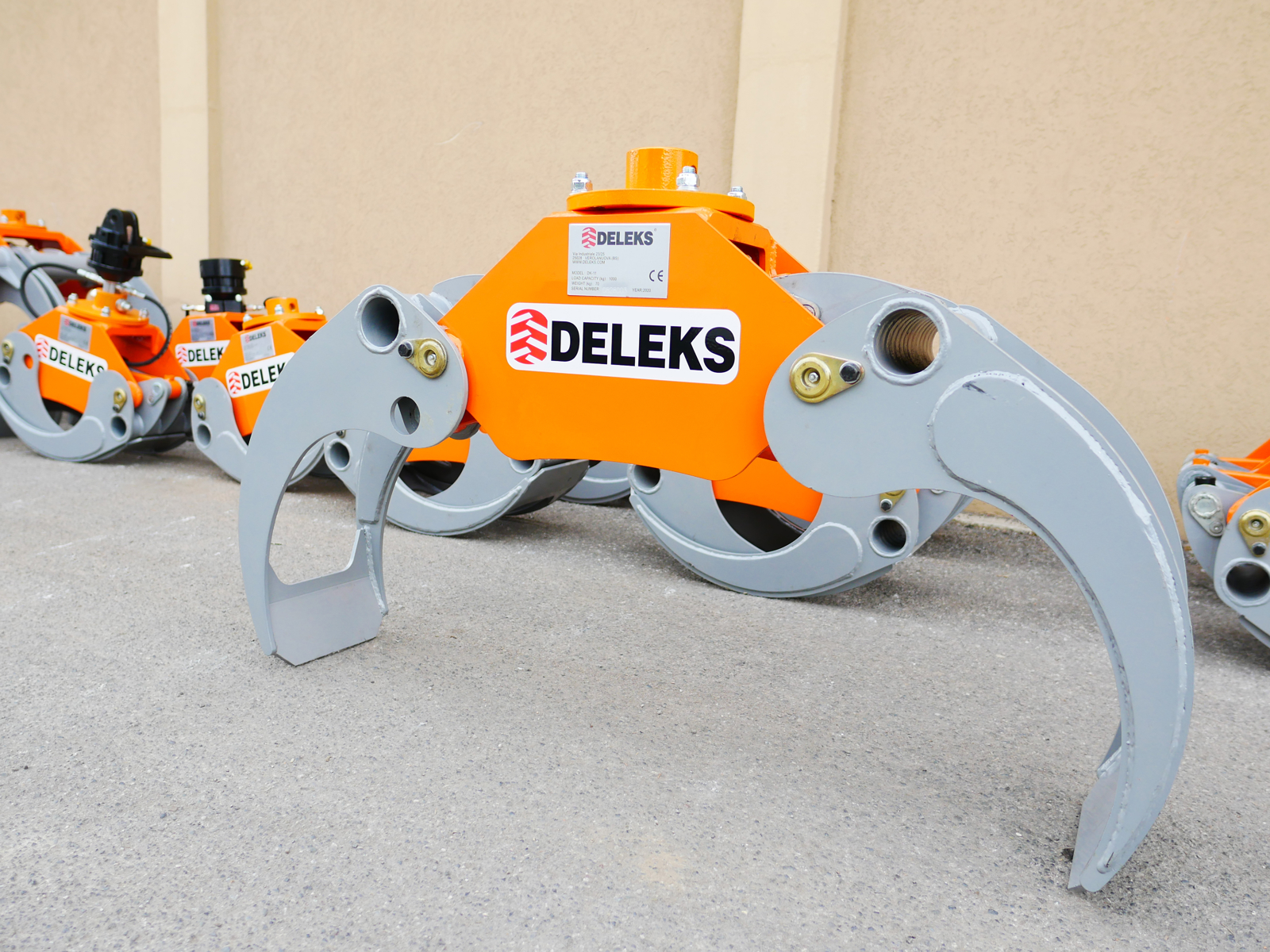

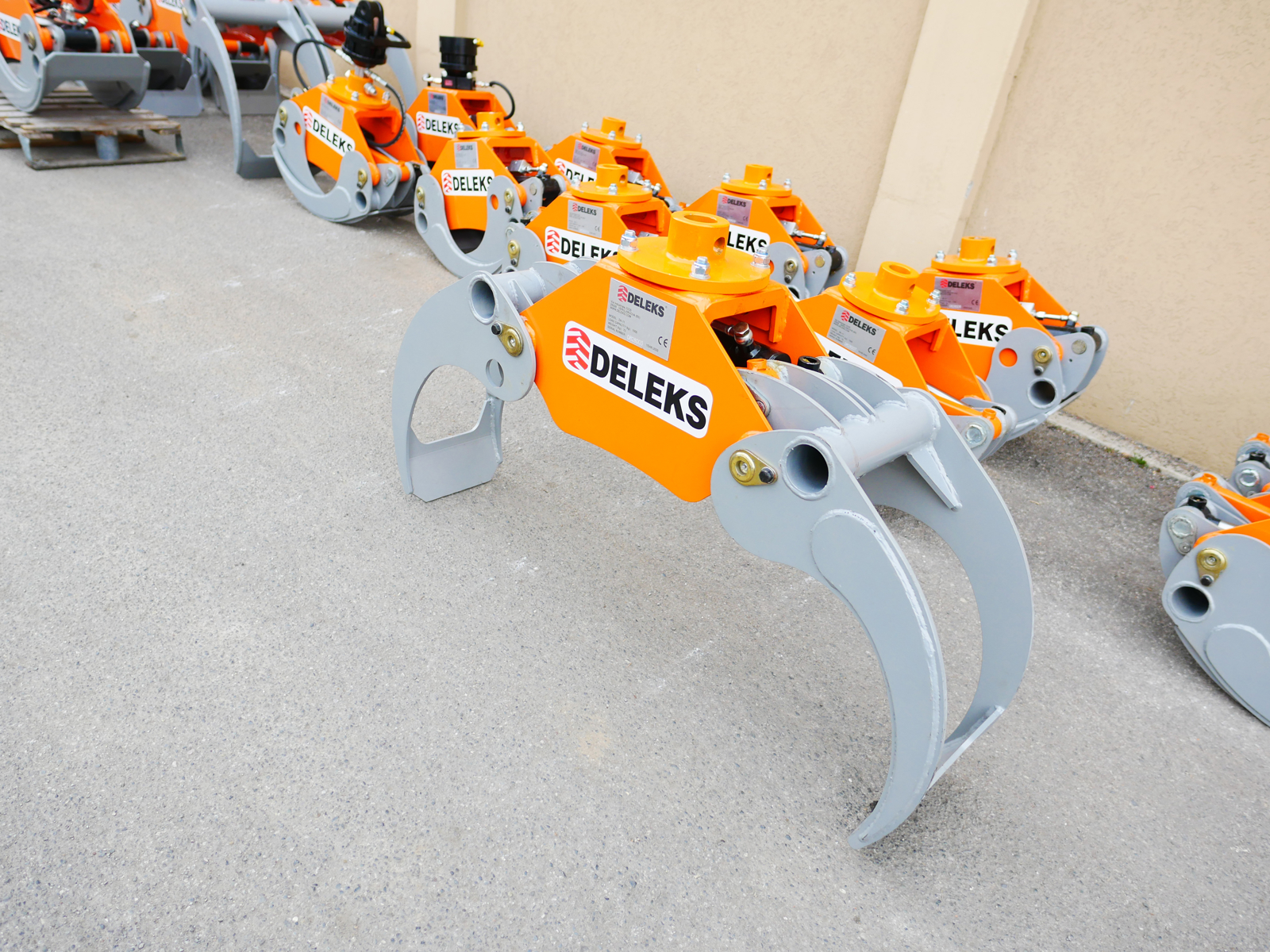

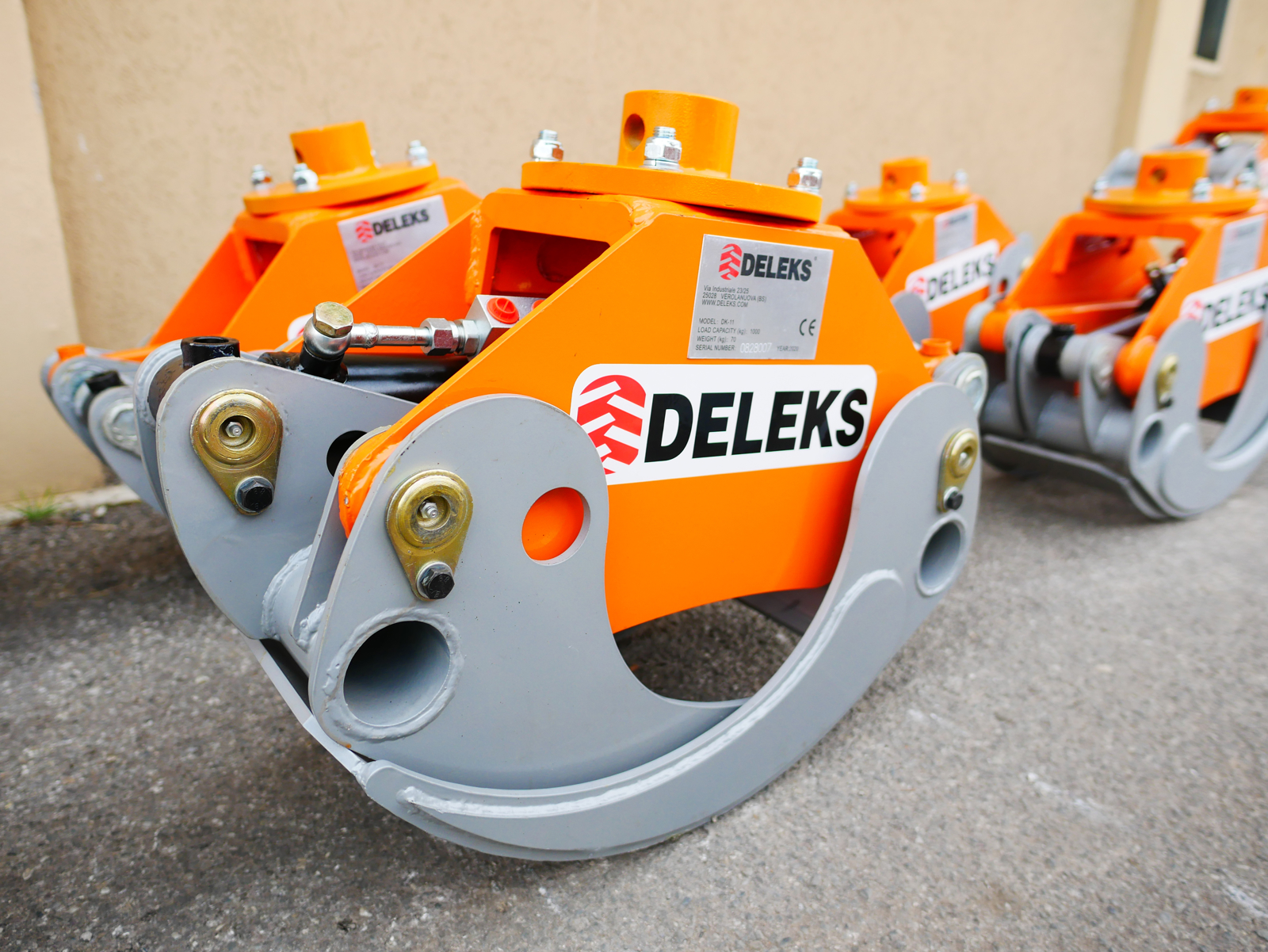

Log Grapple for Mini Diggers and Forest Cranes 1.8 – 3.5 Ton - DELEKS® DK-11-C
OVERVIEW
Lightweight and durable log grapple is perfect for carrying logs, timber and even heavy rocks and boulders making it an essential tool when carrying out forestry work, clearing debris or repairing stone walls.
Maximum load 1000.0 kg.
Gripping area: 0.16m2
Gripping force: 6.2KN
Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi. EC Conformity, 2 Year Warranty.
BENEFITS & FEATURES
Solid steel bolts with bronze bushings.

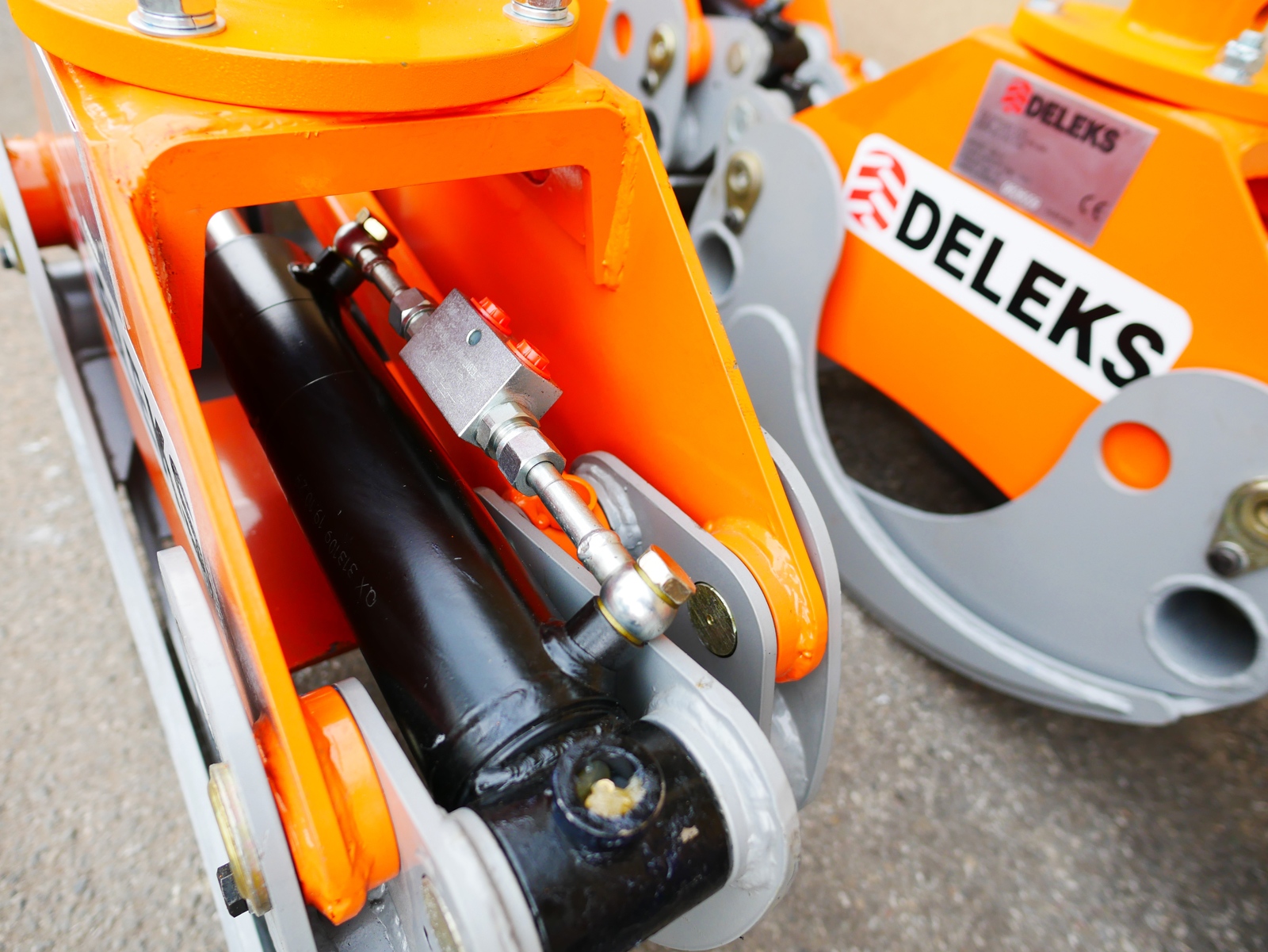

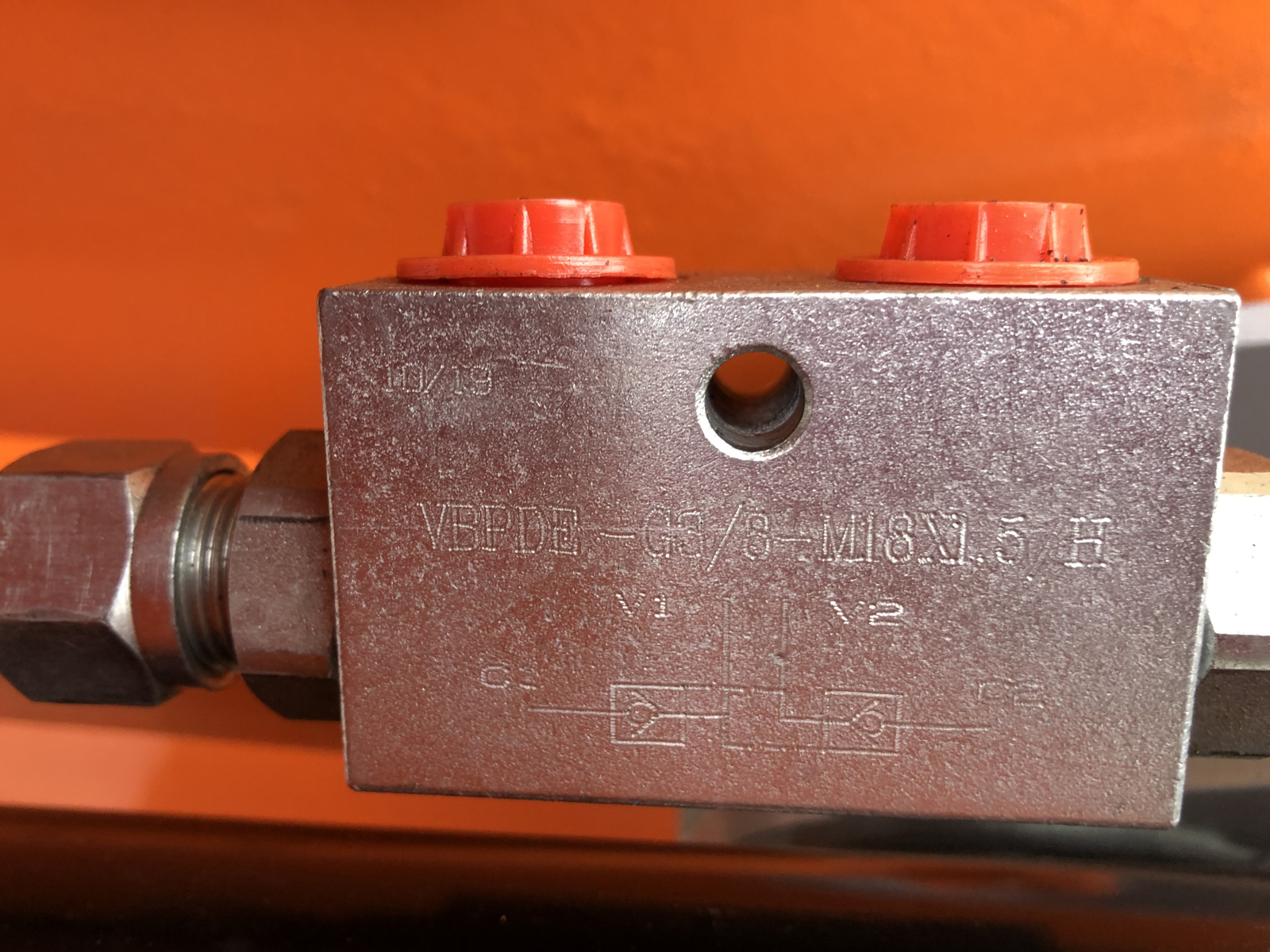

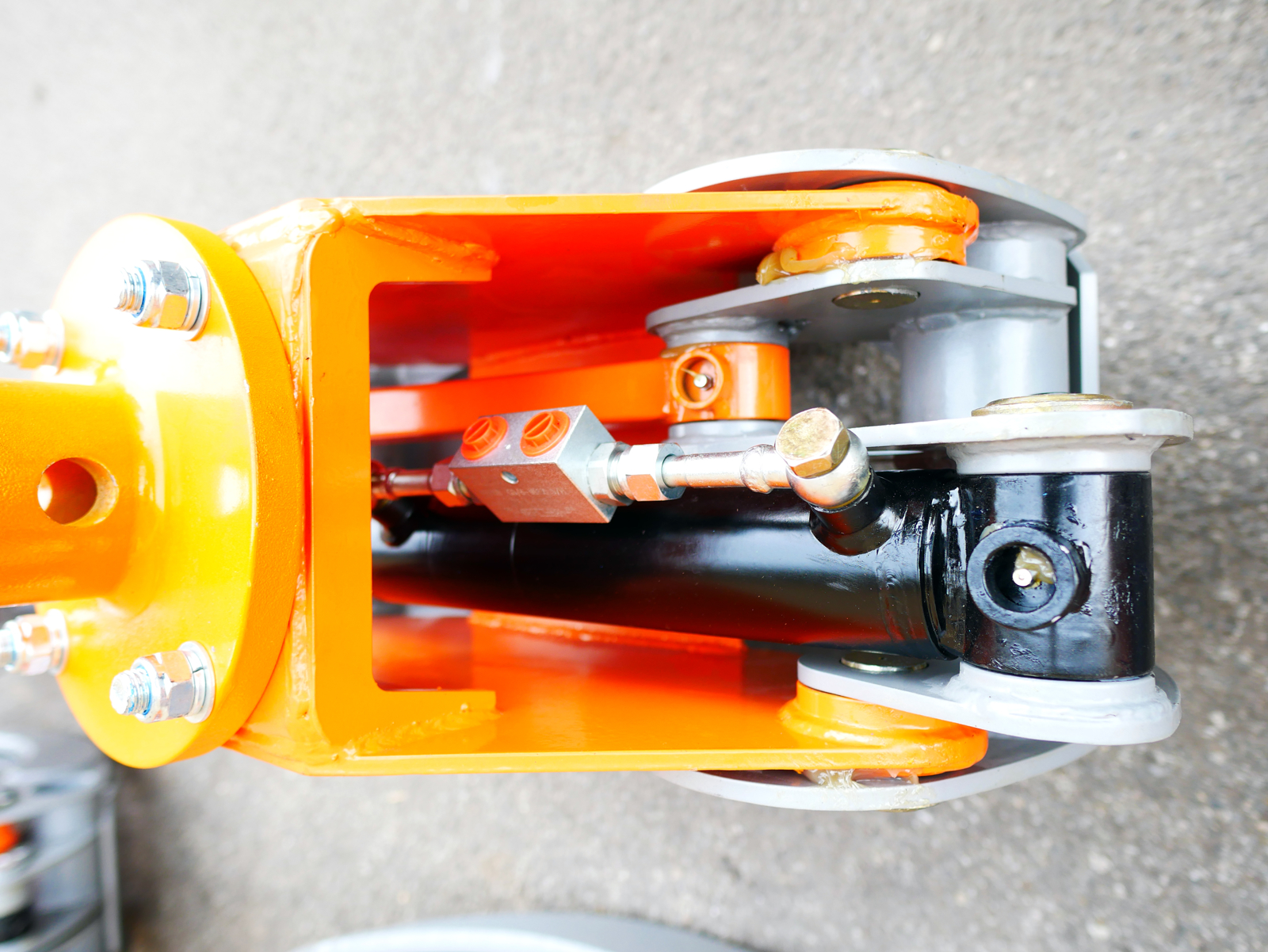

Shut-off valve on the hydraulic cylinder.
Thanks to the DK11-C's unique design it grips timber, boulders or debris tightly.
Steel: S355.
High tensile strength, reinforced grapple tines.

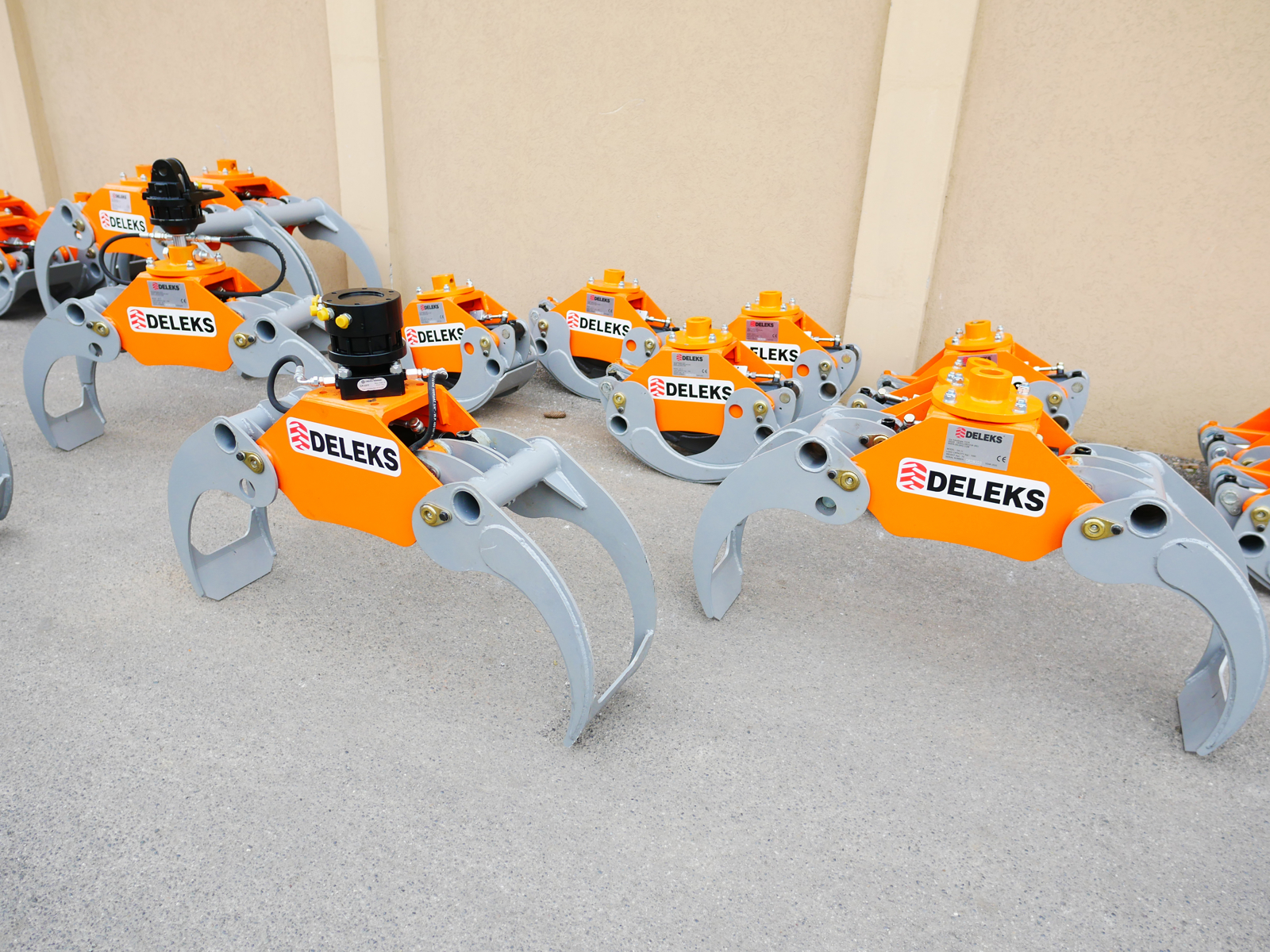

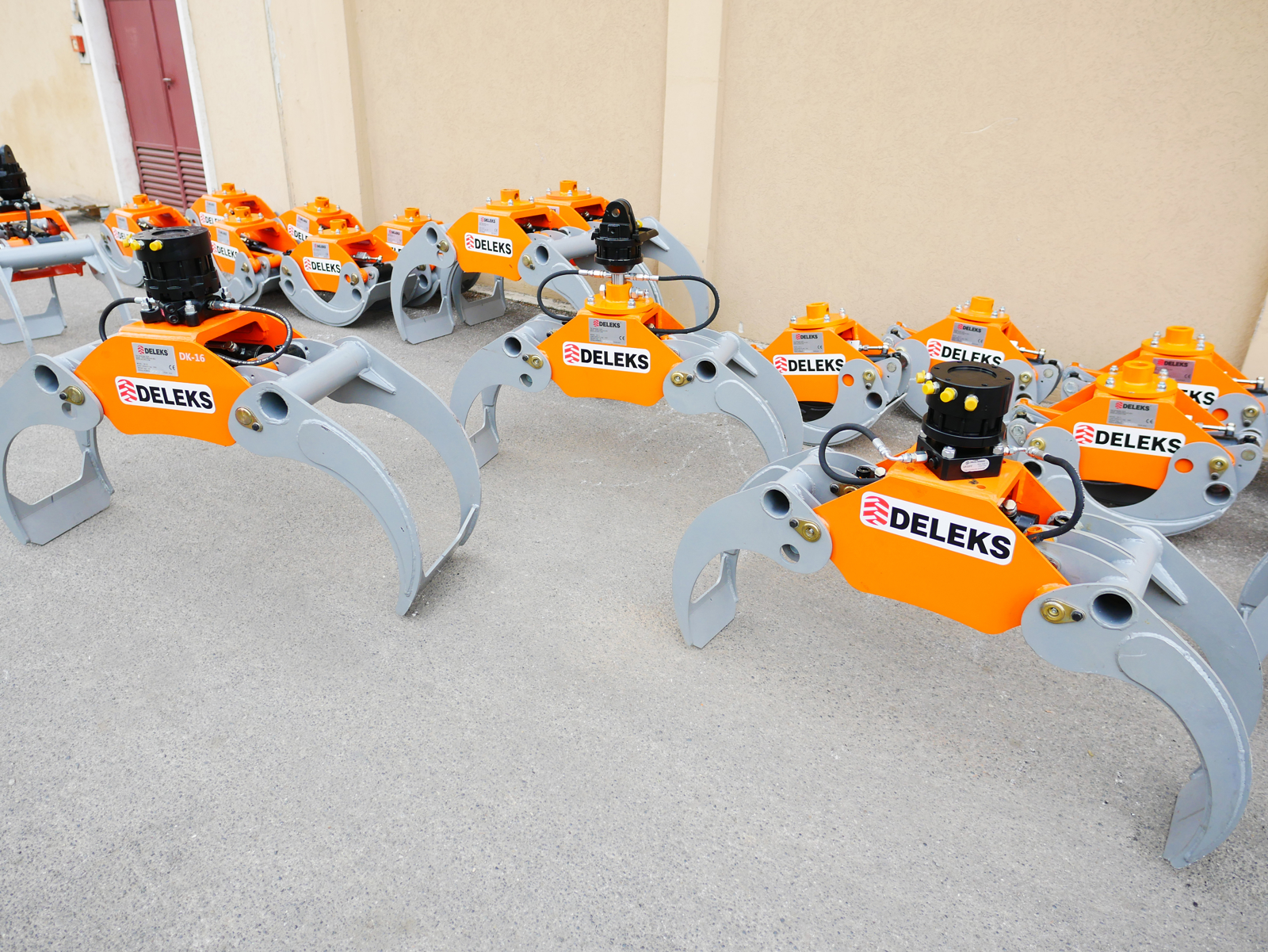

Available with optional hydraulic kit and rotator.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 88.0 kg | 194.0 lb |
| Load capacity | 1000.0 kg | 2200.0 lb |

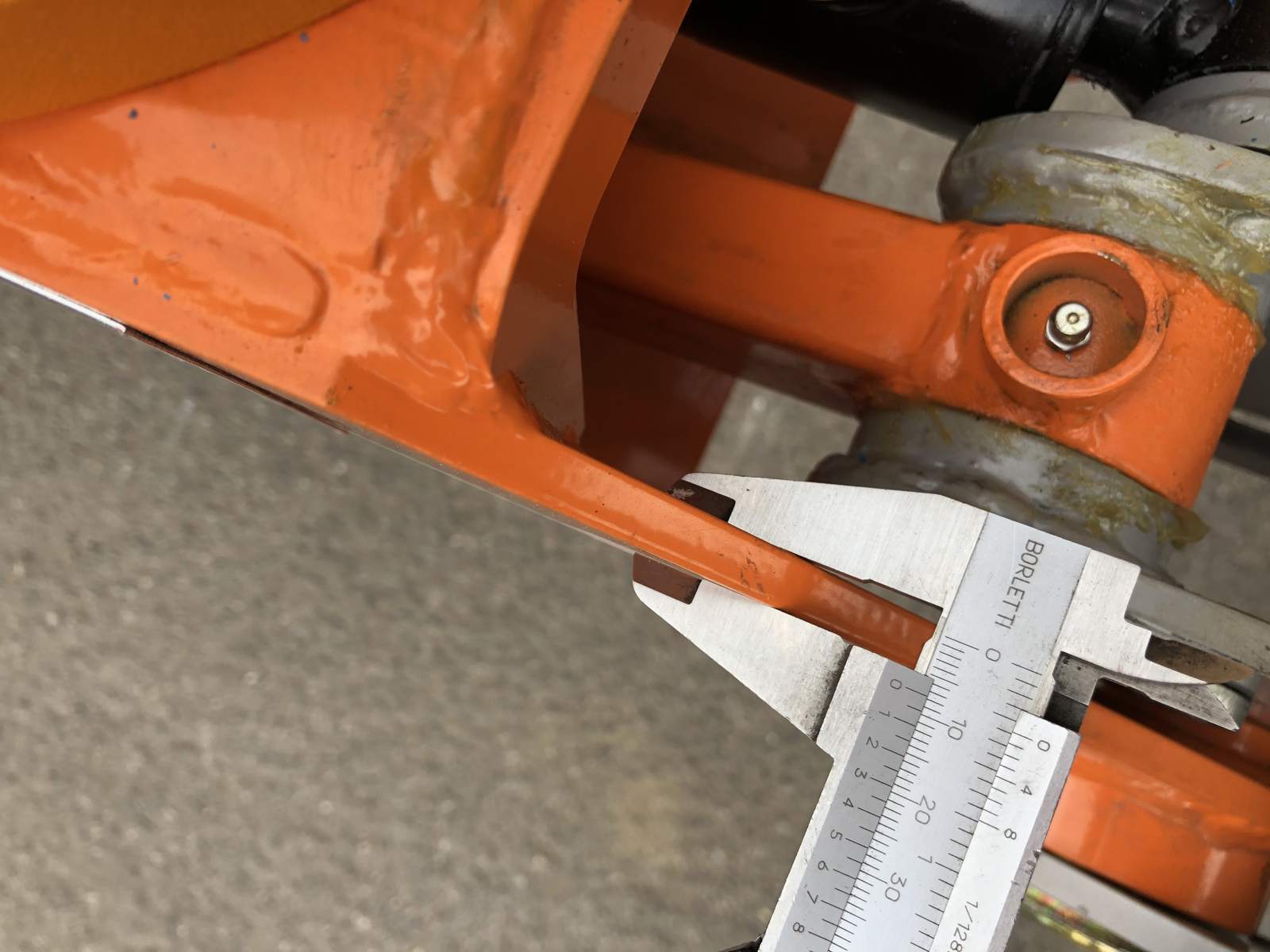

| Main hood thickness | 8.0 mm | 0.31 in |
| Min./Max. Relief Pressure | 80 - 120 bar | 80 - 120 bar |
| Min./Max. Flow | 18 - 22 l/min | 18 - 22 l/min |

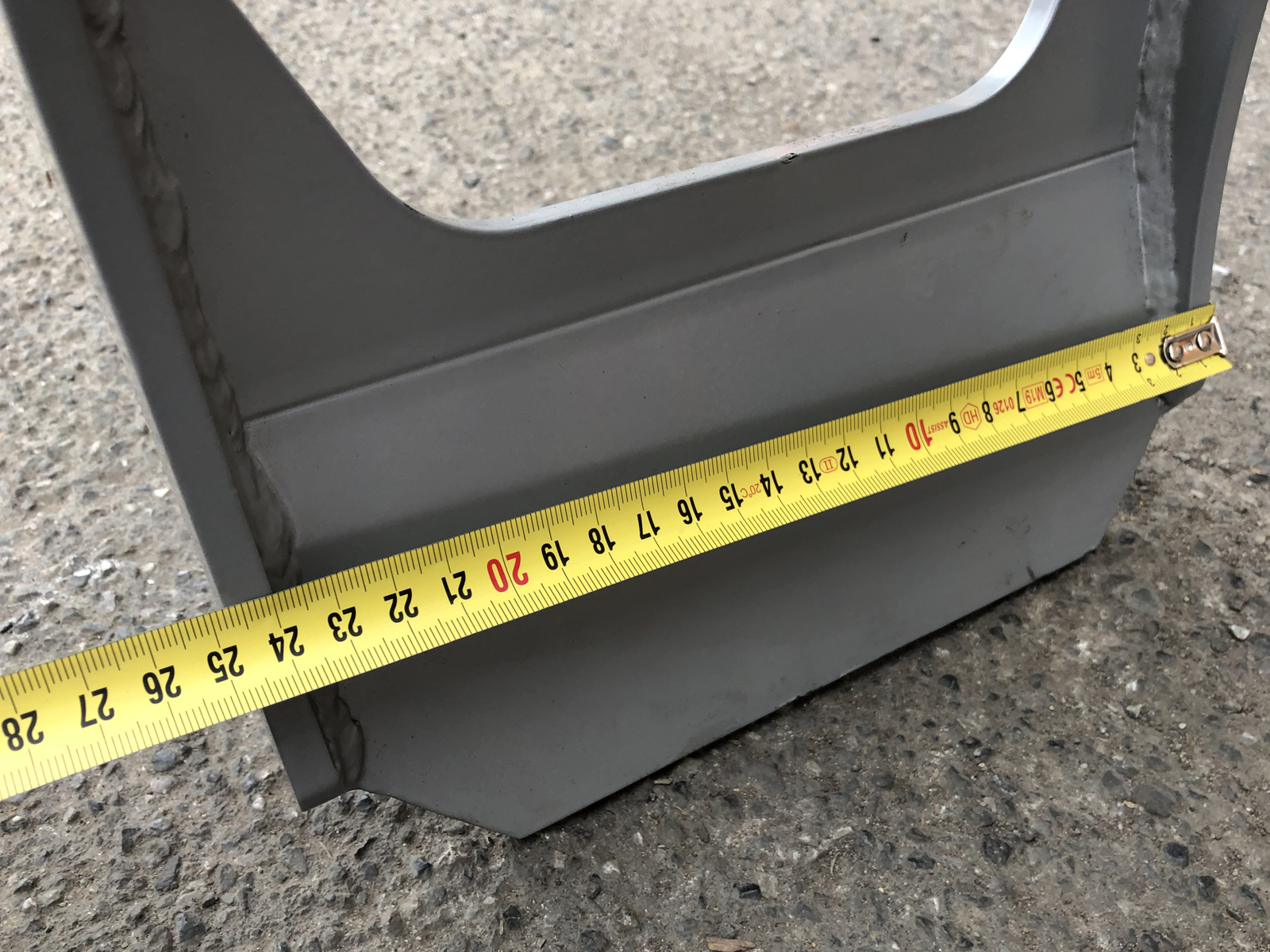

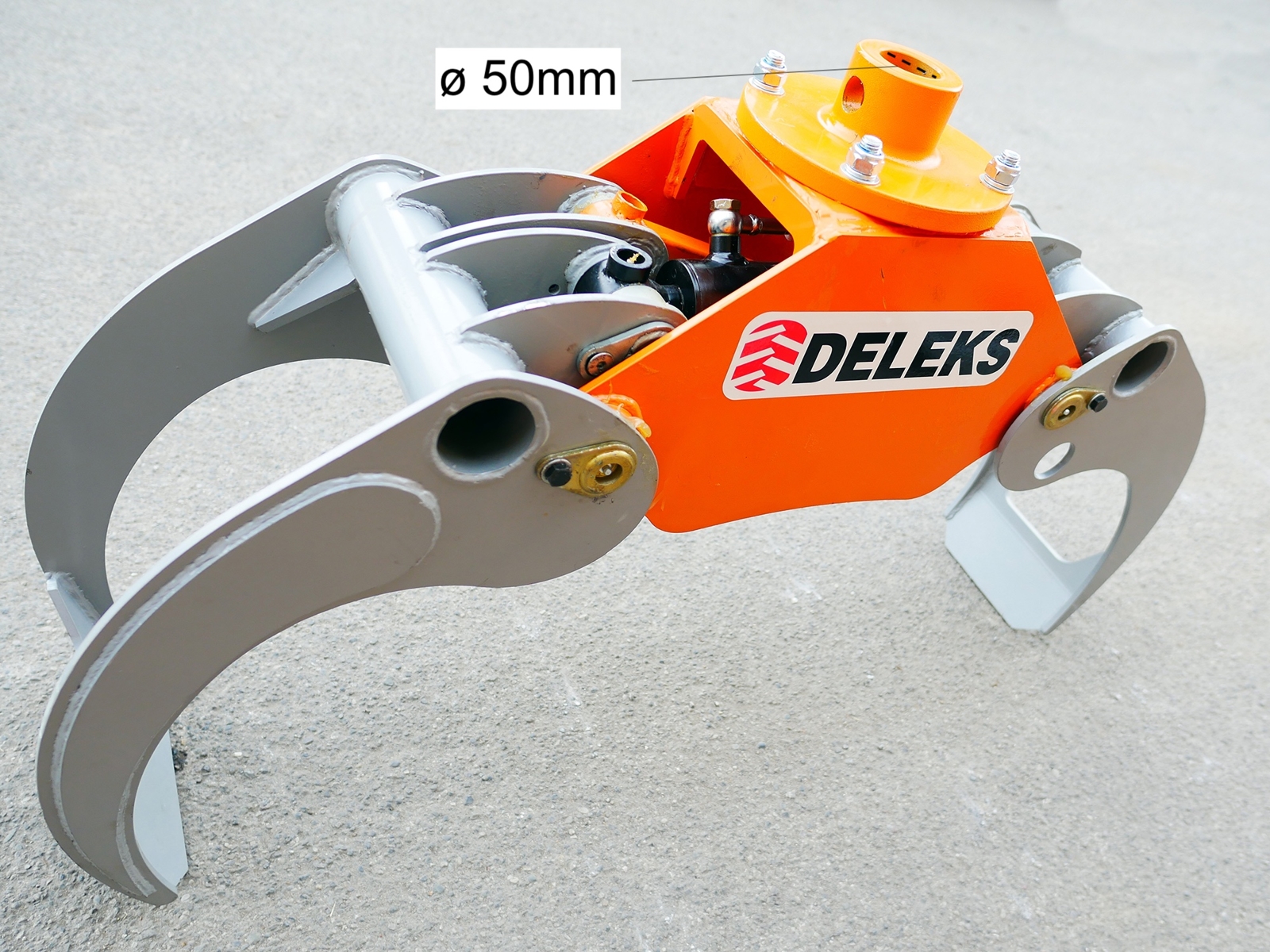

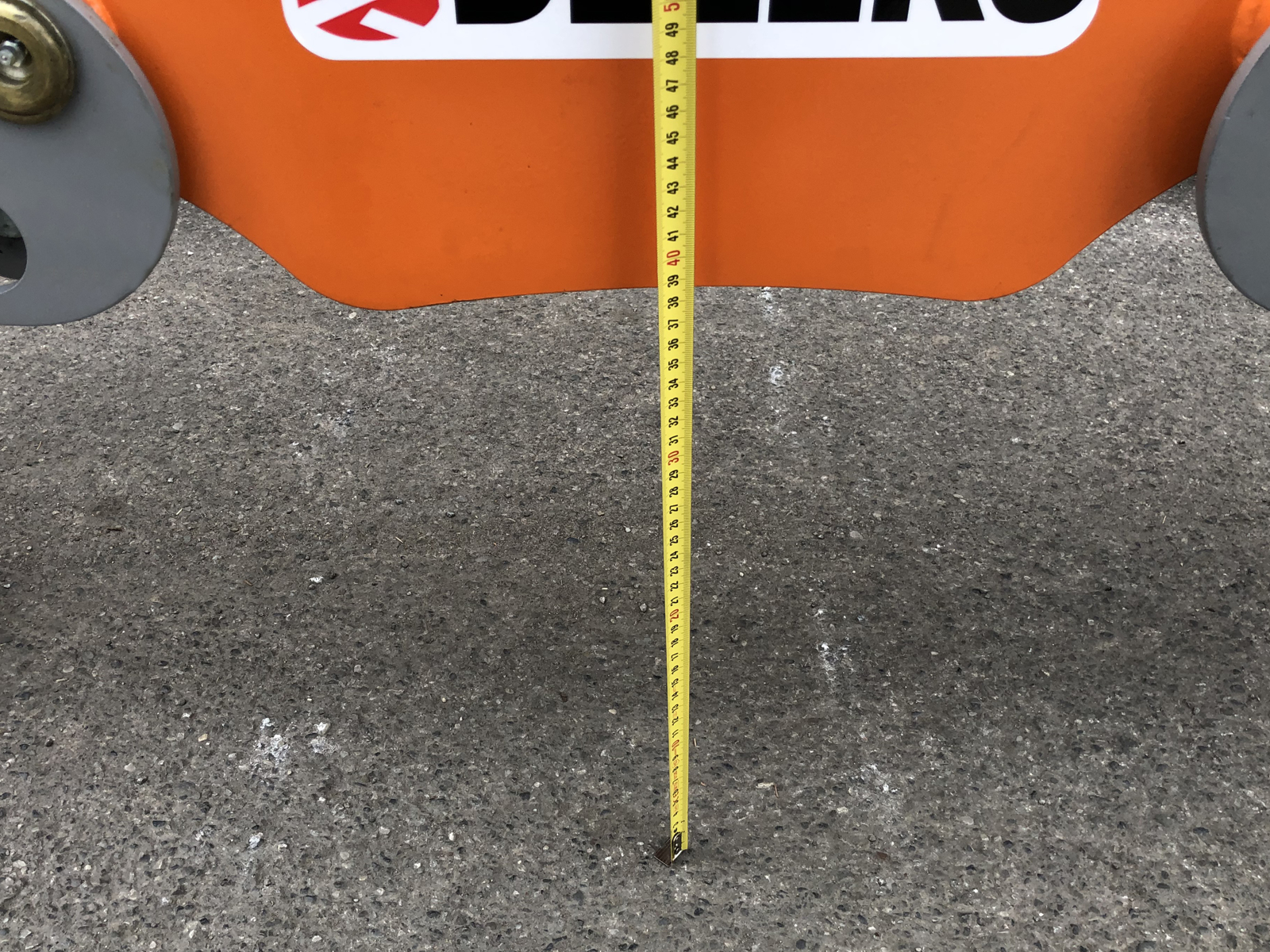

| Other sizes | See pictures | See pictures |
| Hydraulic Hoses | 400 bar pressure | 400 bar pressure |

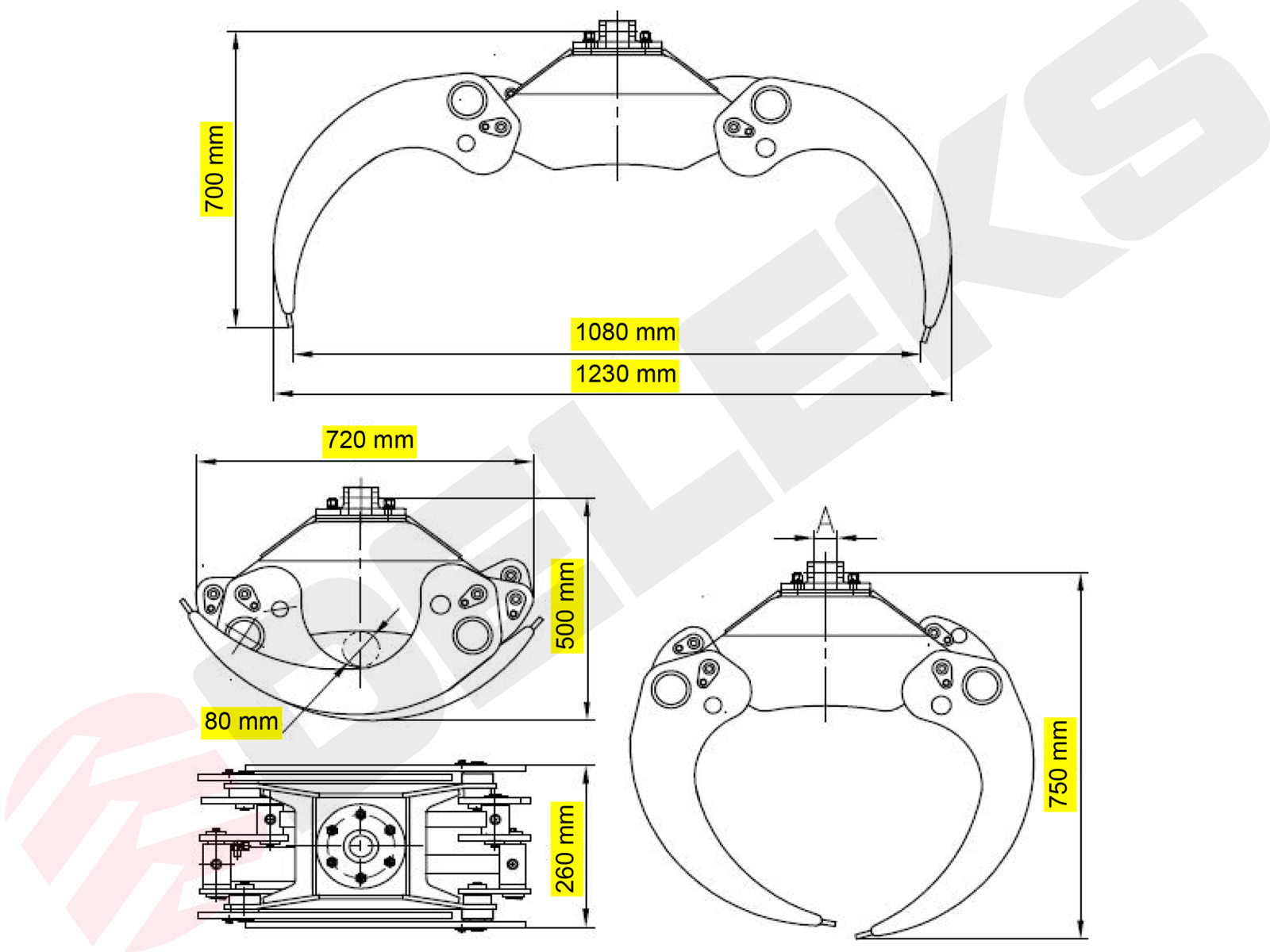

| Max Opening | 1080.0 mm | 3.54 ft |
| Height, grapple open | 700.0 mm | 27.55 in |
| Height, grapple closed | 500.0 mm | 19.70 in |
| Width, grapple open | 1230.0 mm | 4.0 ft |
| Width, grapple closed | 720.0 mm | 2.35 ft |
| Overall depth | 260.0 mm | 0.85 ft |
| Minimum diameter of the log | 40.0 mm | 1.57 in |

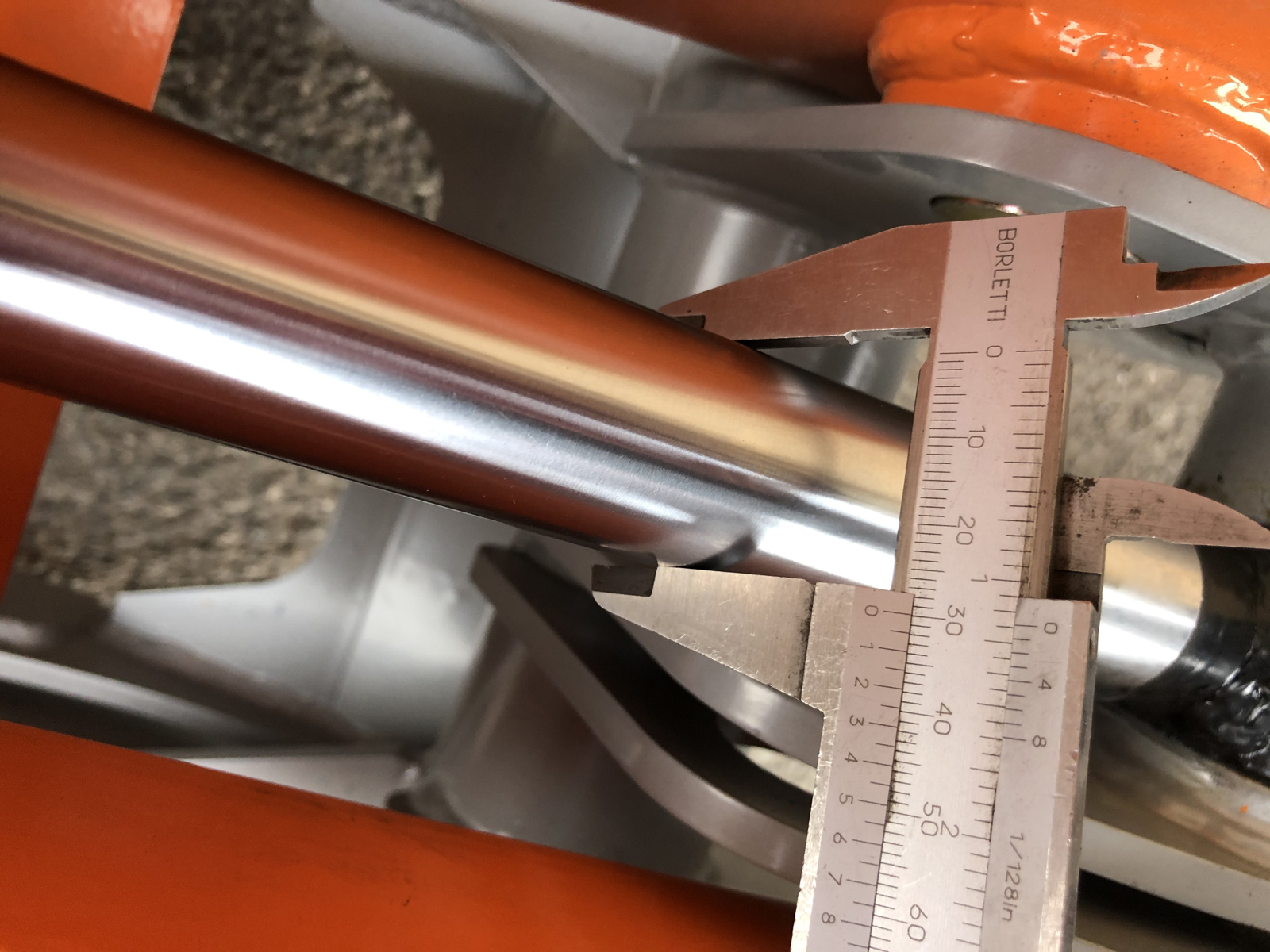

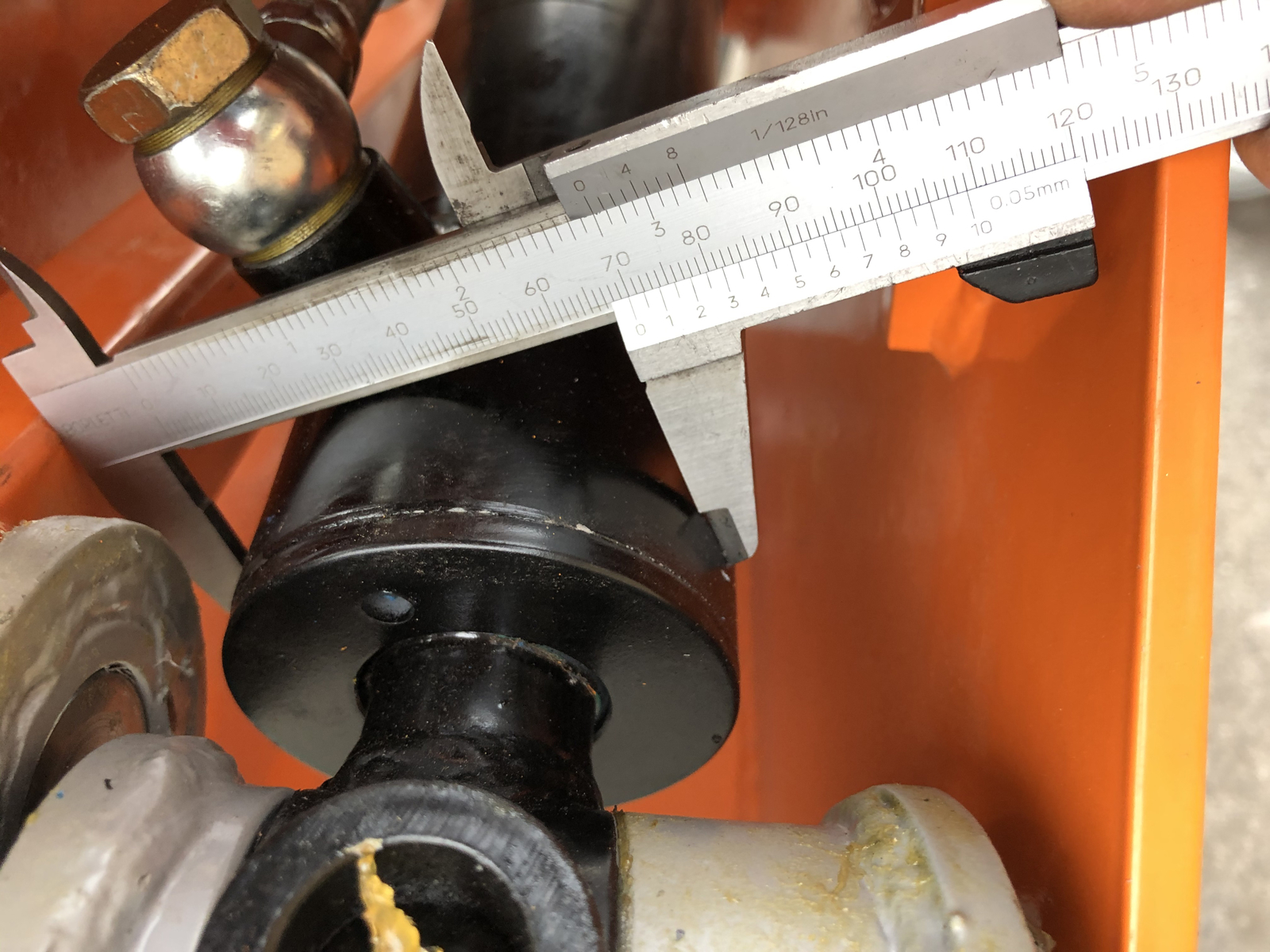

| Hydraulic cilinder diameter | 70.0 - 30.0 mm | 2.75 - 1.20 in |
| Max Pressure | 200 Bar | 200 Bar |
| Compact Excavators Range | 1.8 - 3.5 ton | 1.8 - 3.5 ton |
| Packing sizes | 600.0*800.0*450.0 mm | 1.97*2.62*1.47 ft |
