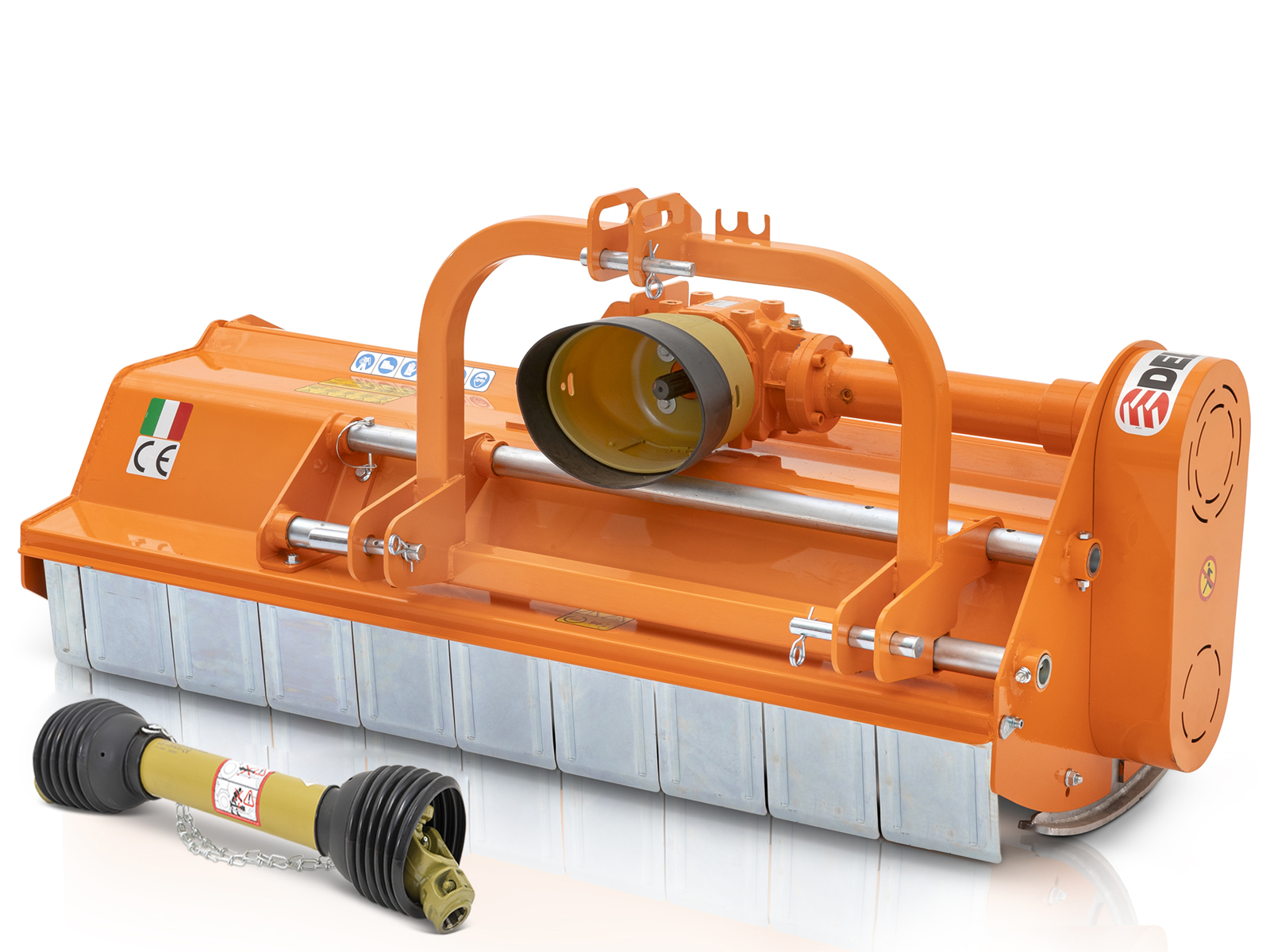

Side-shift hammer flail mower 140 cm (55 in) LEOPARD-140-SP, flail mulcher with manual side shift for 30-70 hp tractors
DETAILS
Side-shift hammer flail mower for tractors with a 140 cm (55 in) cut and 31 cm (12 in) of manual side shift, from the DELEKS® medium series: the LEOPARD-140-SP is the flail mulcher with a double HARDOX skin for tractors from 30 to 70 hp, such as Antonio Carraro, Goldoni, Kubota, Landini and Same, and also works offset, under the canopy and along ditches, fences and field edges. The electronically balanced rotor carries 20 forged hammer flails of 820 g (1.8 lb) and shreds grass, leaves, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick; the 20 cm (8 in) high front opening lets long grass in and the rear hood opens so you can work faster. DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 4-belt drive, SSAB steel frame with a double HARDOX skin, 310 kg (683 lb). Made in Italy, built by DELEKS, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.
Manual side shift of 31 cm (12 in)

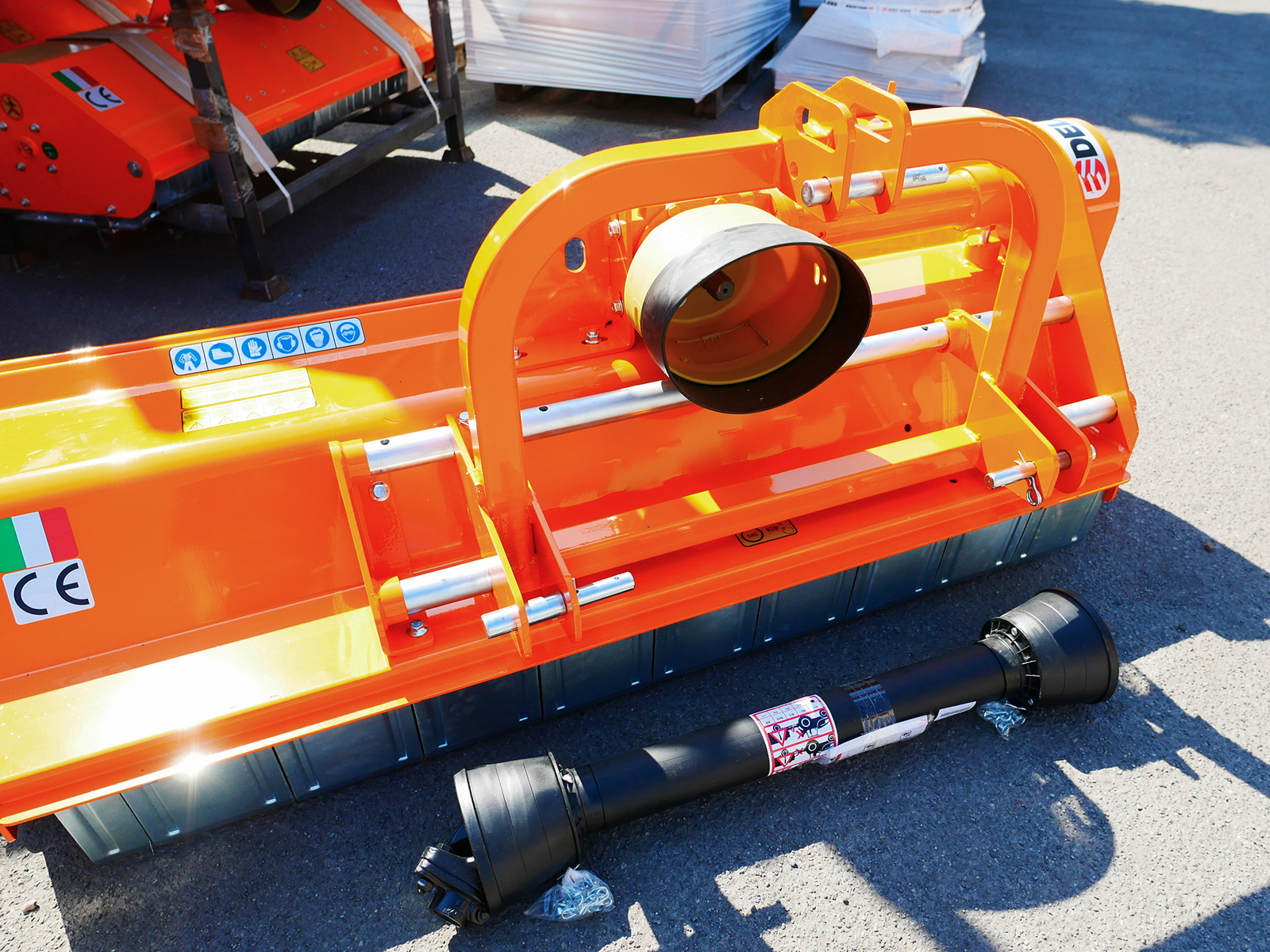

The headstock of the LEOPARD-140-SP slides sideways: the mower moves up to 31 cm (12 in) to one side of the tractor, so you can work offset. The side shift is mechanical and is set by hand with the machine stopped, before you start: centred for open ground, offset to mow under the canopy, tight to a row or along a ditch without bringing the tractor's wheels close to the edge. If you need to change position on the move, the LEOPARD-140-SPH has hydraulic side shift as standard.
Which tractors it fits
The LEOPARD-140-SP cuts 140 cm (55 in) with an overall width of 154 cm (61 in) and is built for tractors from 30 to 70 hp with a 540 rpm PTO and a universal category 1 or 2 three-point linkage (19-22 or 25-28 mm pins, lower link spacing from 560 to 950 mm): Antonio Carraro, Goldoni, Kubota, Landini, Same, Lamborghini, Solis and equivalent tractors. It is the narrowest in the series: the size for the rows of orchards and olive groves. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks.

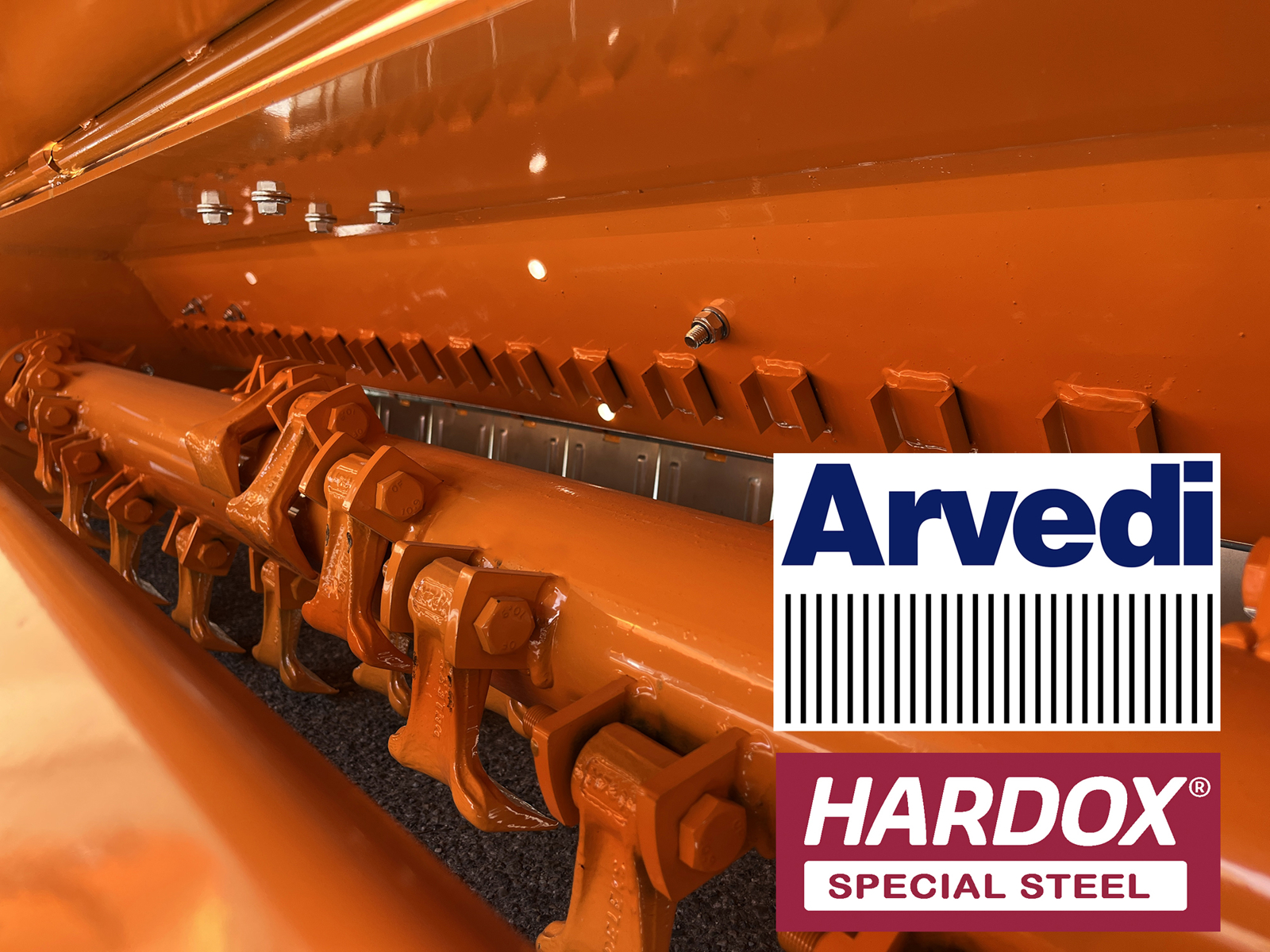

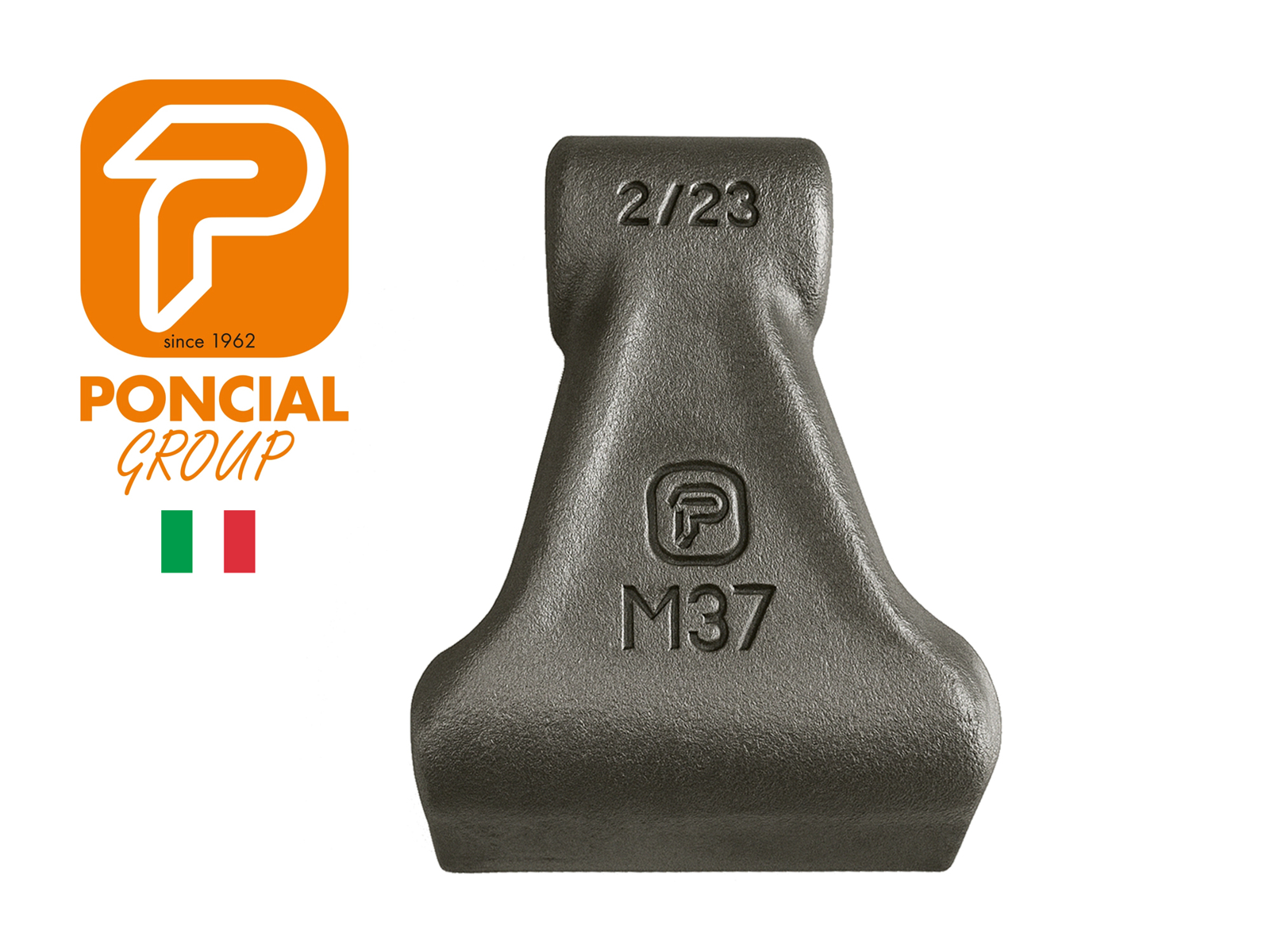

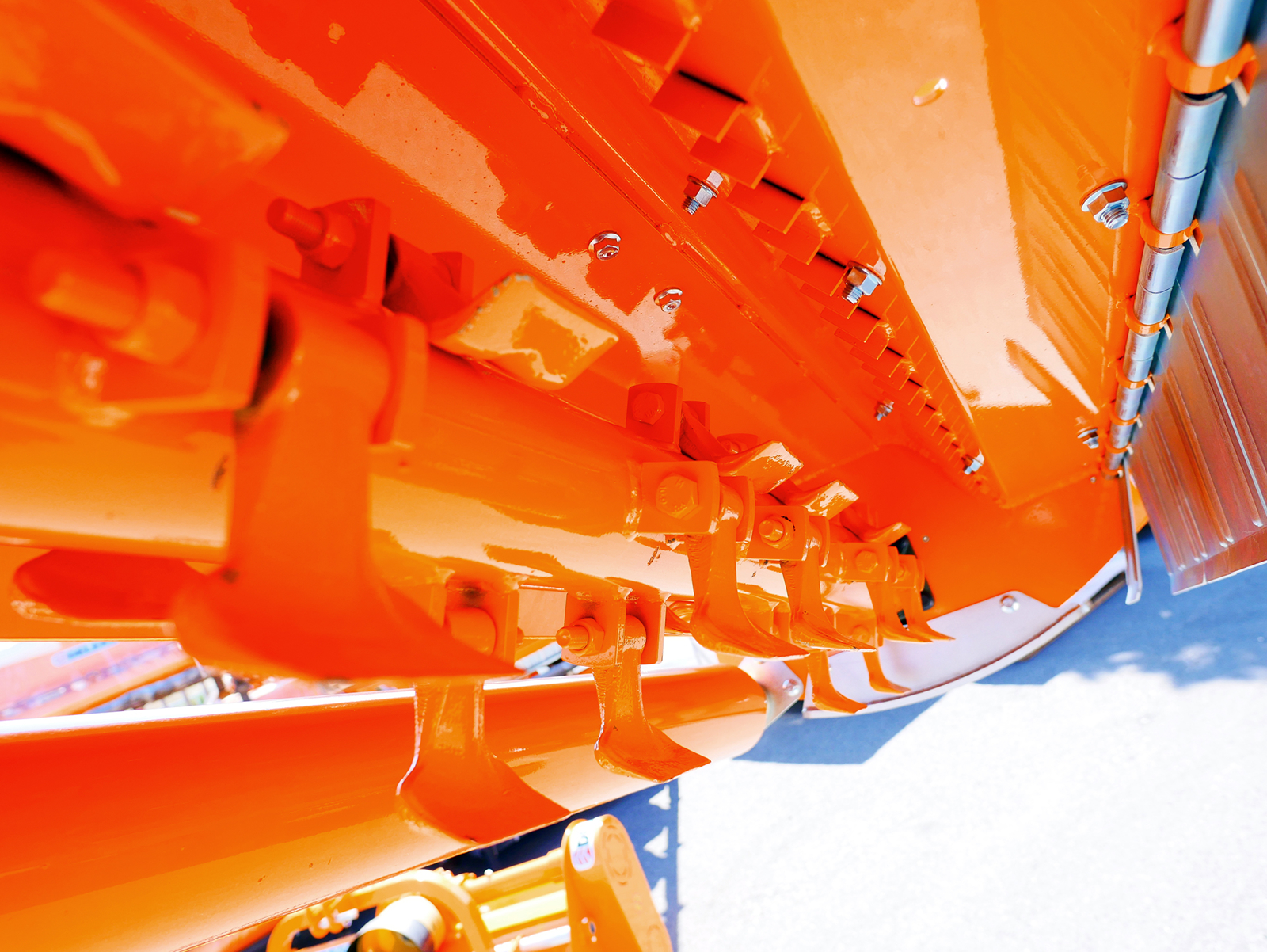

Rotor with 20 forged hammer flails of 820 g (1.8 lb)
The rotor is built from ARVEDI S355 steel tube, 8 mm (5/16 in) thick and 115 mm (4.5 in) in diameter, electronically balanced, and spins at 2,300 rpm on self-aligning SKF bearings. The 20 forged Poncial flails, Made in Italy, weigh 820 g (1.8 lb) each and sit in 2 helical rows on brackets in HARDOX wear-resistant steel: they pulverise grass, leaves, brambles, vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick. The kit of 30 blades (COLTELLI30T) is available as an option, as an alternative to the hammer flails.

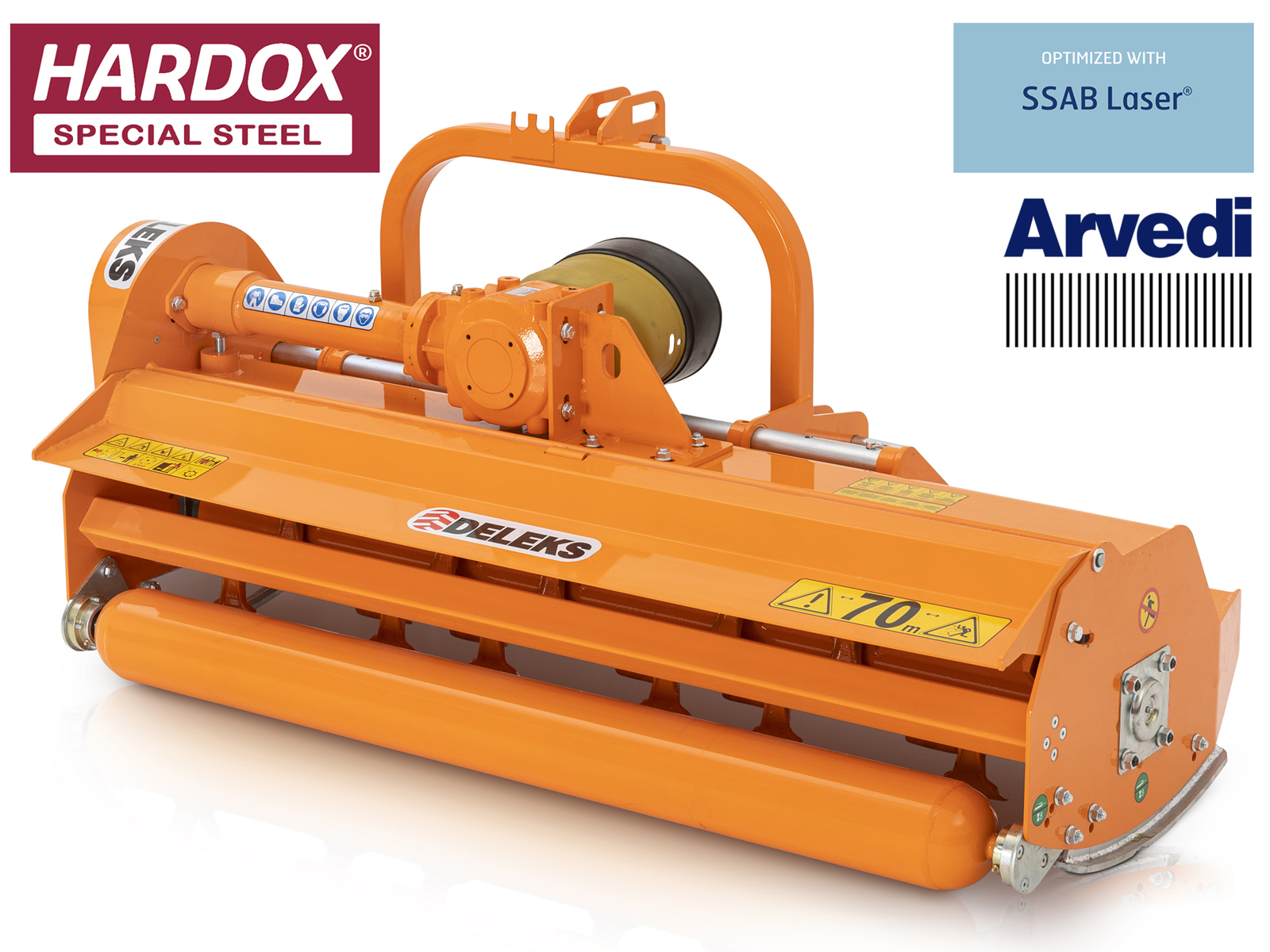

Double HARDOX skin, high front opening and opening hood
The body is double-skinned: the 4 mm SSAB steel shell is backed by a second 6 mm skin in HARDOX wear-resistant steel. The front opening is 20 cm (8 in) high, so long grass is not flattened before it reaches the rotor. The rear hood opens: closed, the material stays in the chamber for longer and is pulverised, for a mulching effect; open, it lowers the pressure in the chamber and lets you travel faster. The hood also opens for servicing.
Roller, skids and cutting height
Cutting height is set from 10 to 45 mm (0.4 to 1.8 in) with the 140 mm (5.5 in) rear roller and the 6 mm side skids: low on grass, higher on stony or uneven ground.

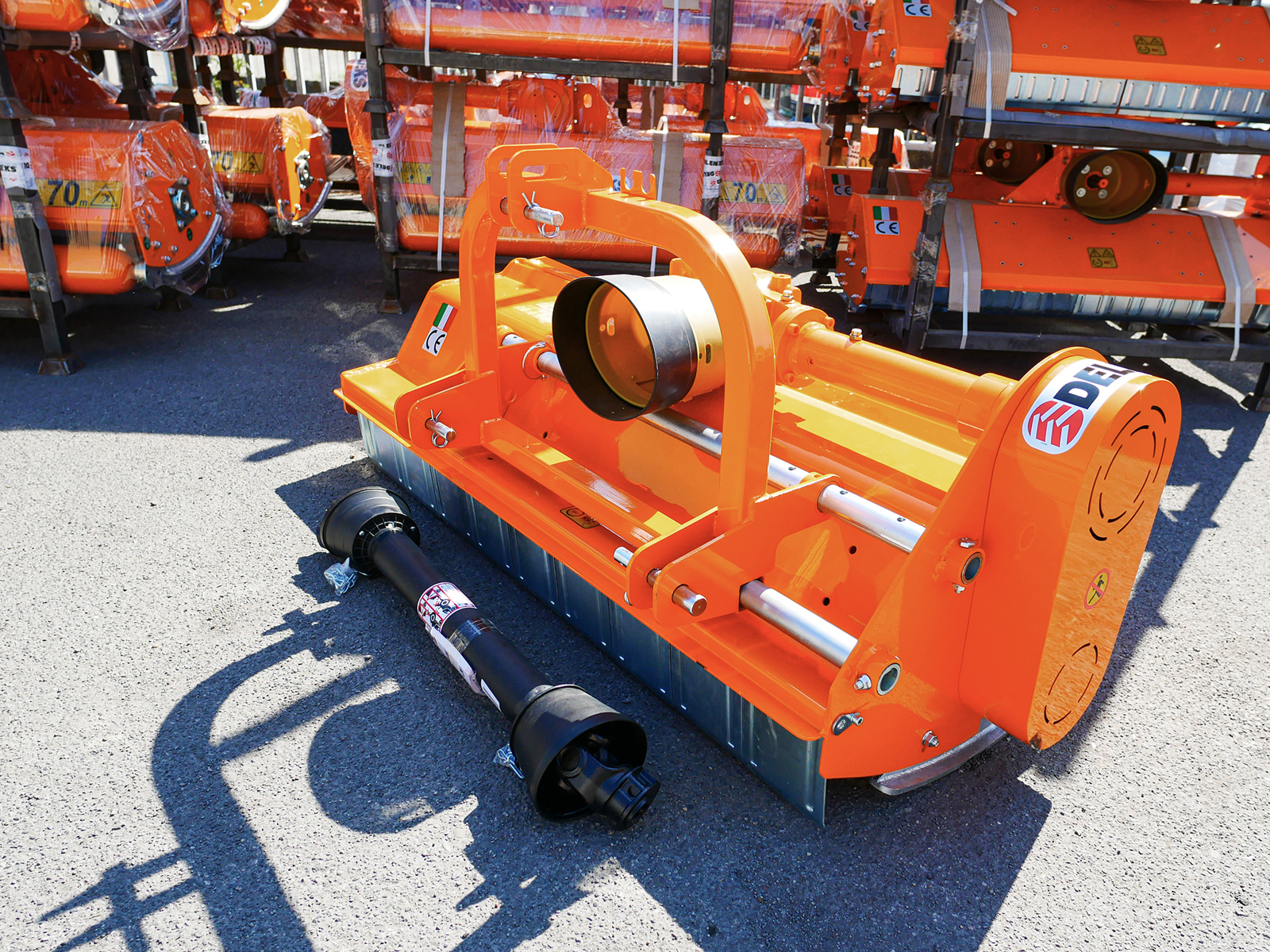

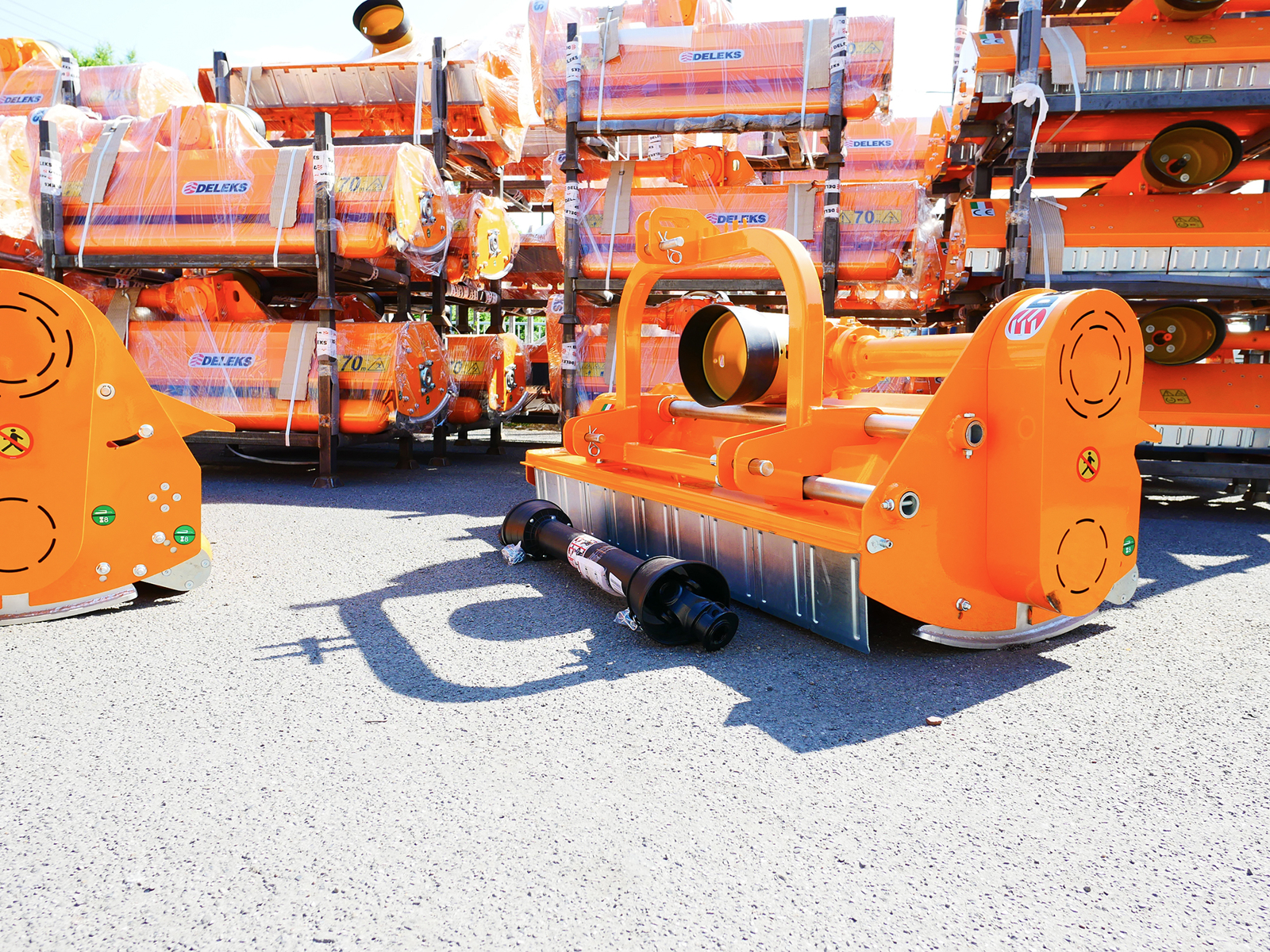

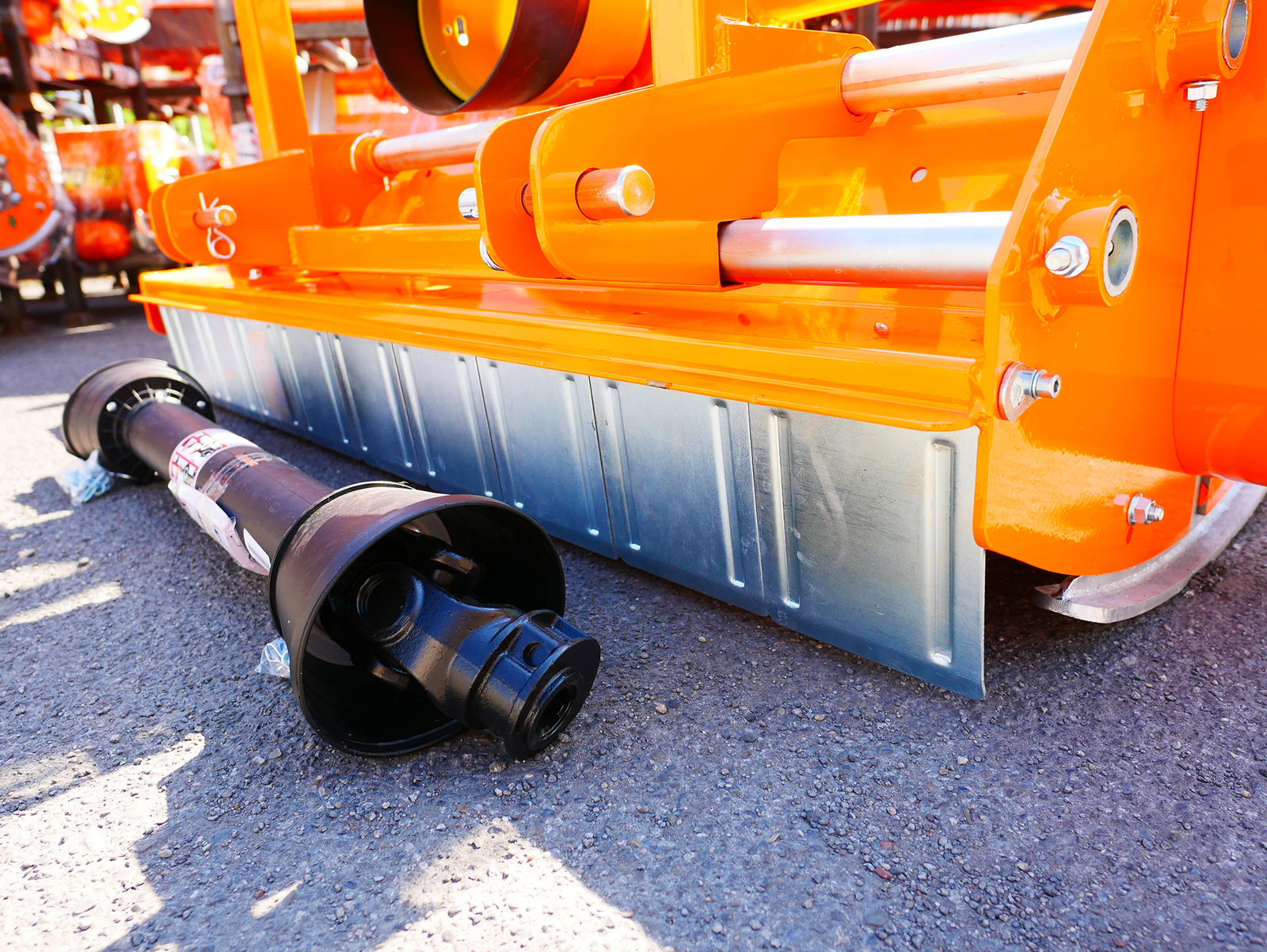

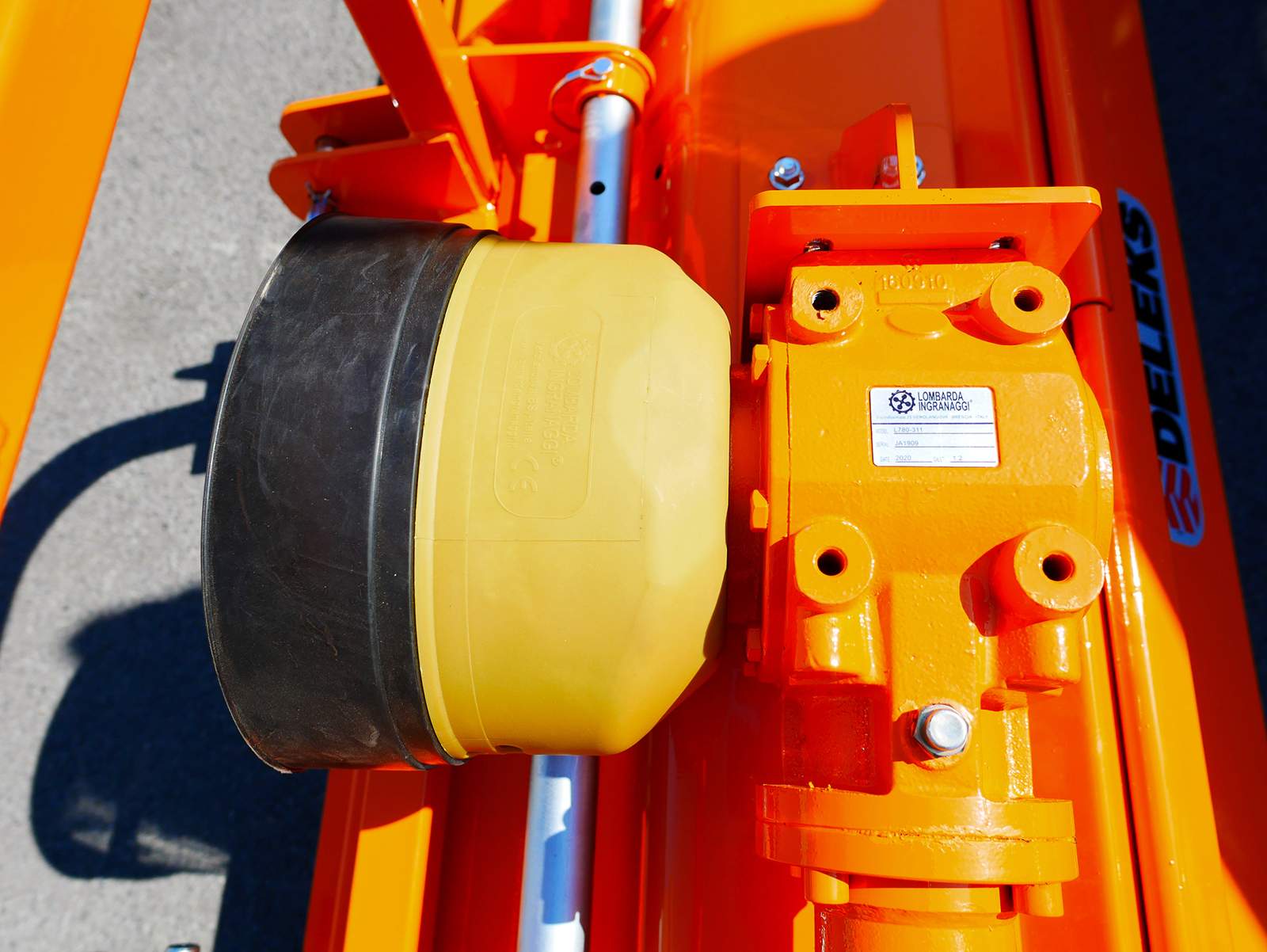

Gearbox with freewheel, 4 belts and PTO shaft
The DELEKS® gearbox for a 540 rpm PTO is uprated, with a built-in freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 BX43 V-belts; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, is included.

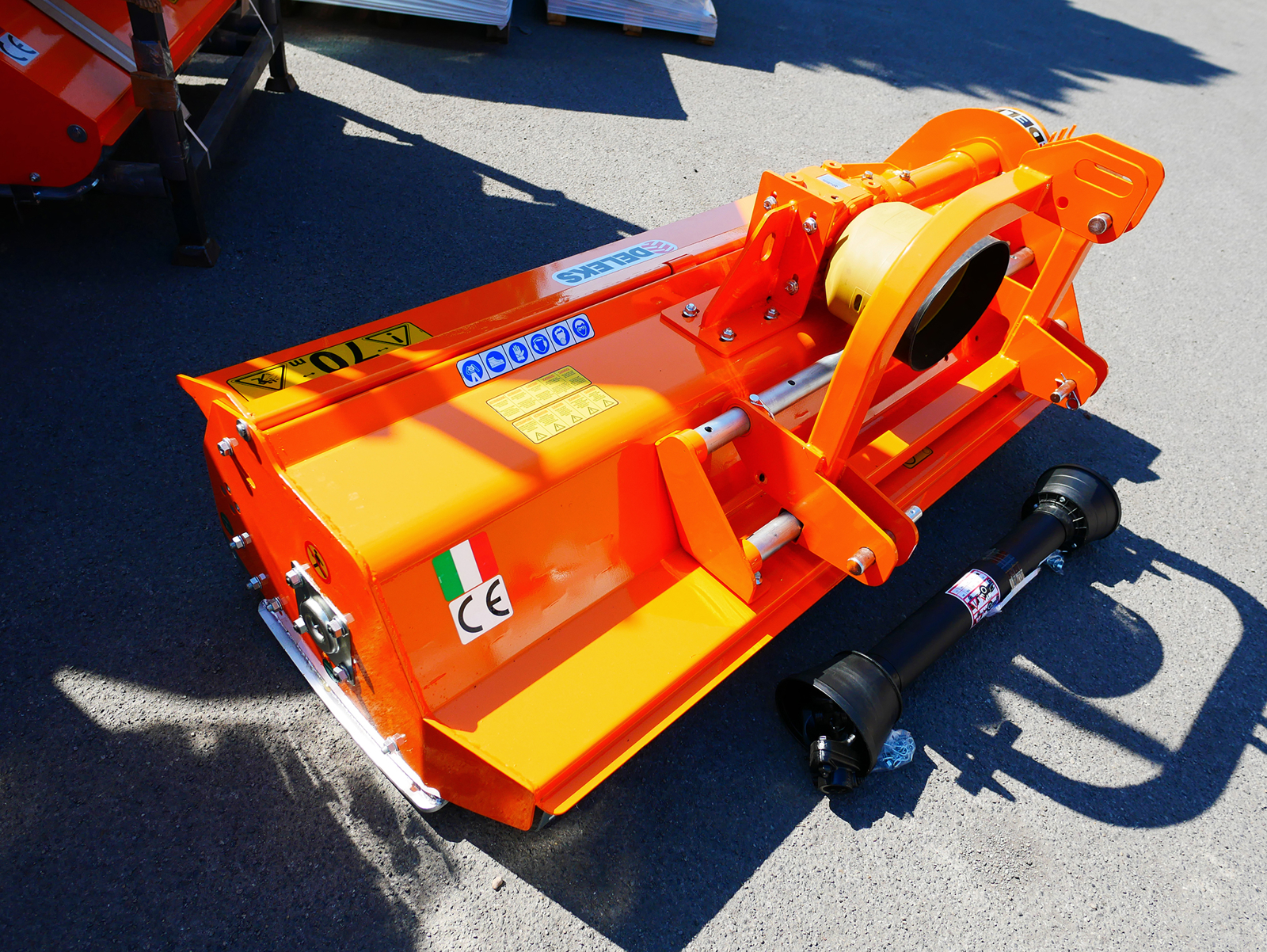

SSAB steel frame, Made in Italy
The frame is made entirely from Swedish SSAB steel, 4 mm thick with 6 mm side plates, and the second skin is HARDOX; the flail brackets are HARDOX too, and the rotor bearings are SKF. The LEOPARD-140-SP is Made in Italy, built by DELEKS. For this product the sheet steel is bought in Italy and worked at a production plant in the European Union.

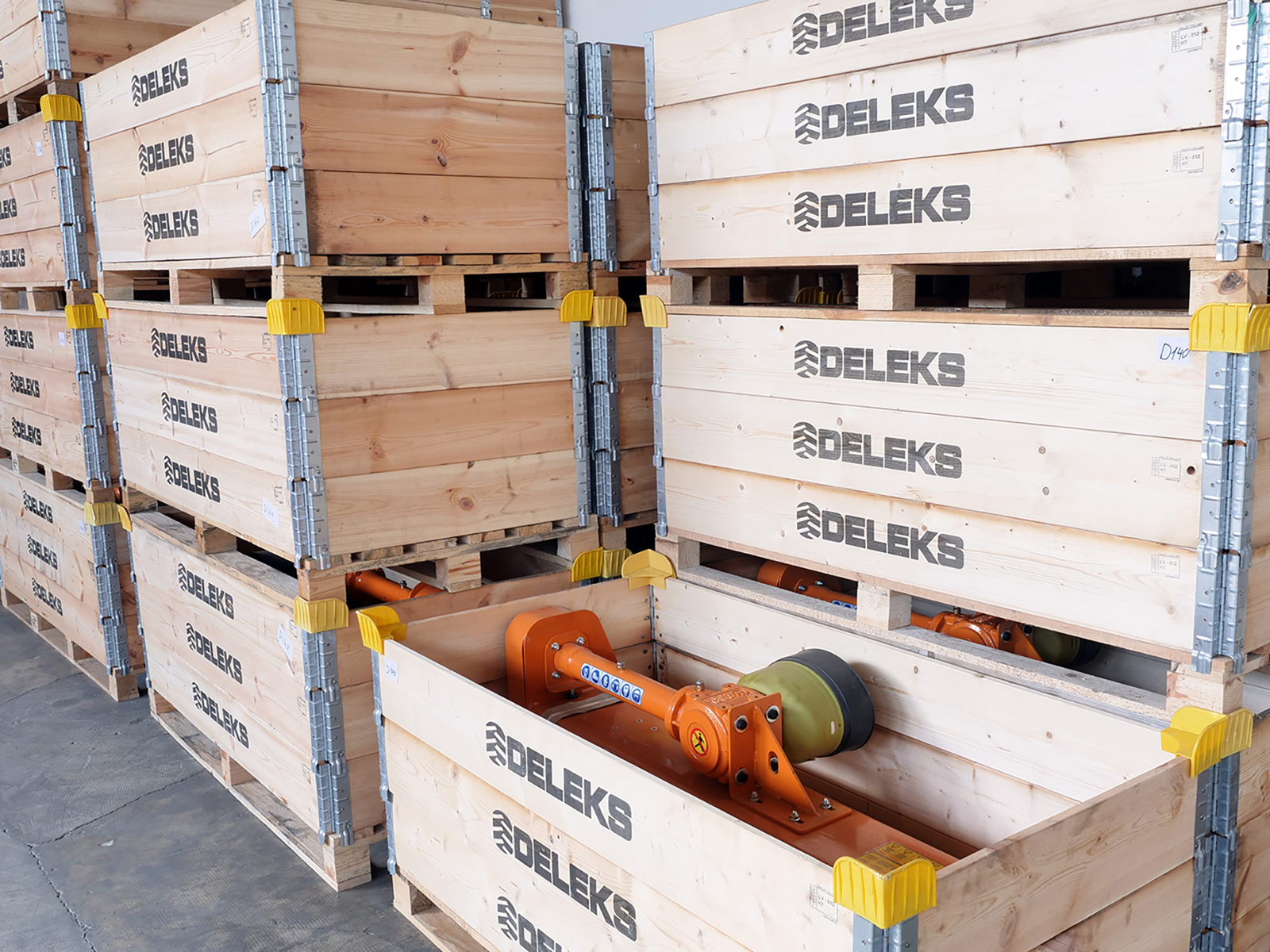

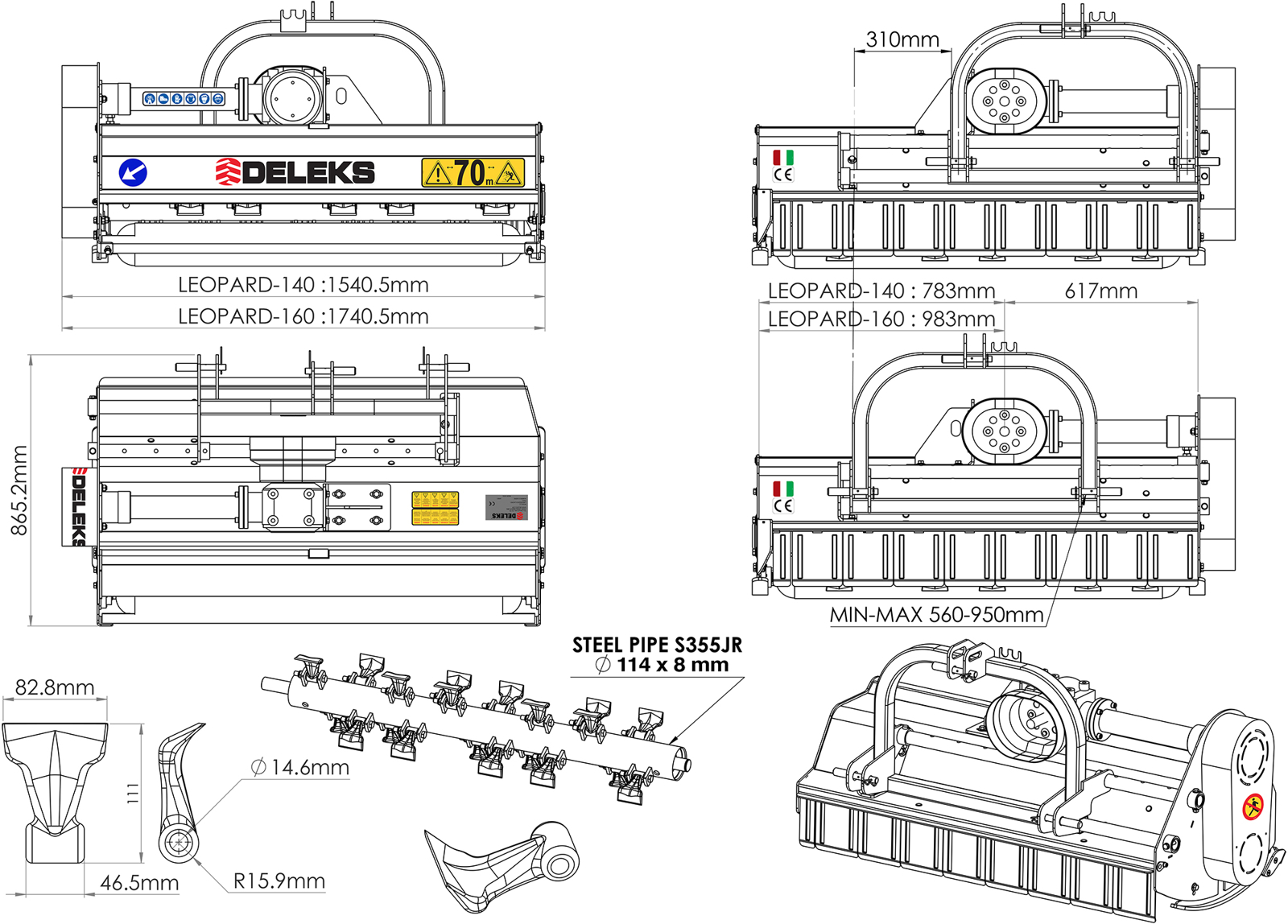

Dimensions, weight and delivery
Working width 1,400 mm (55.1 in), overall width 1,540.5 mm (60.6 in), length 865 mm (34.1 in), height 800 mm (31.5 in), weight 310 kg (683 lb). It ships in packaging measuring 158 × 90 × 80 cm (62 × 35 × 31 in), 366 kg (807 lb) gross, 1.14 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.

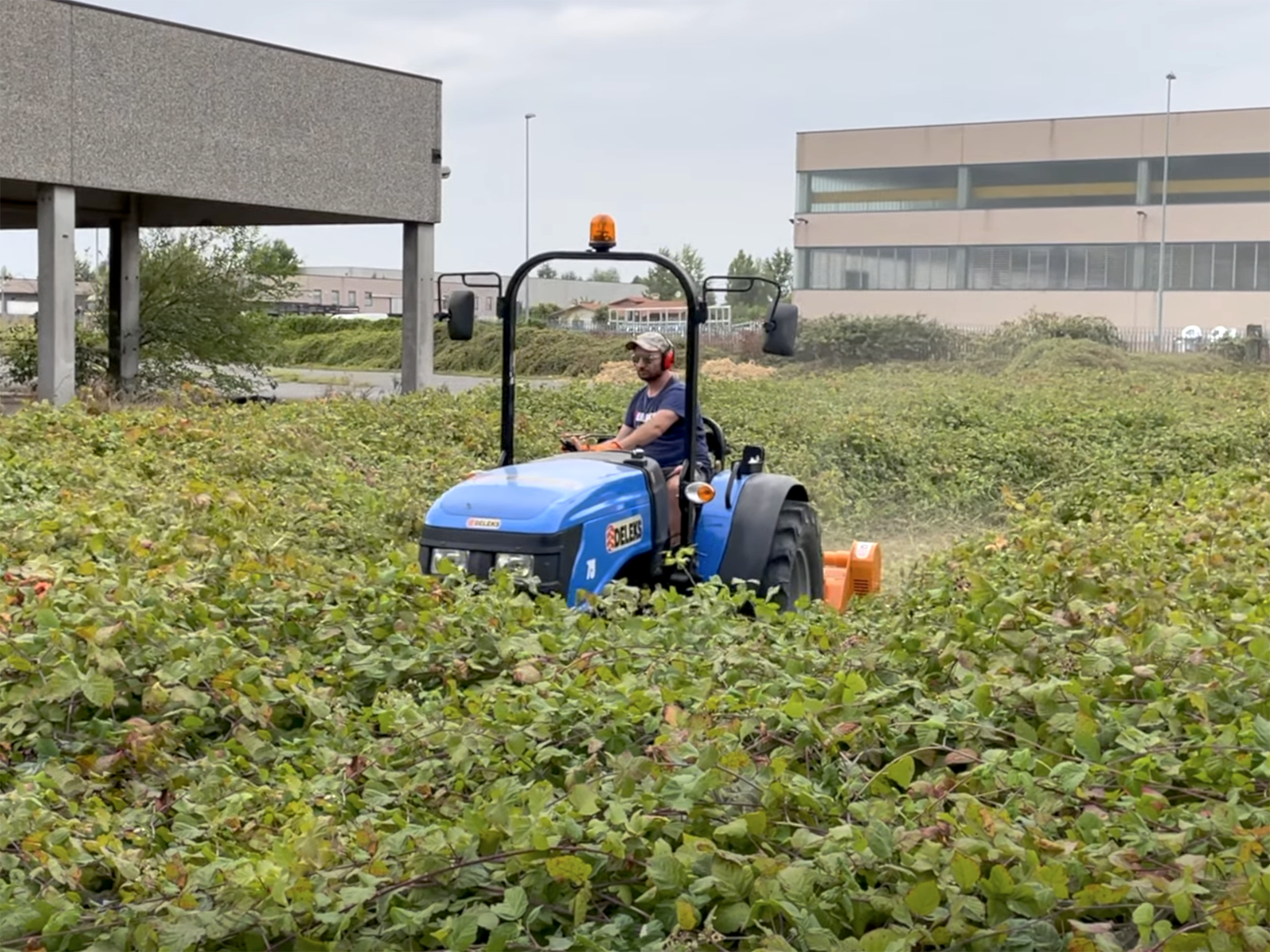

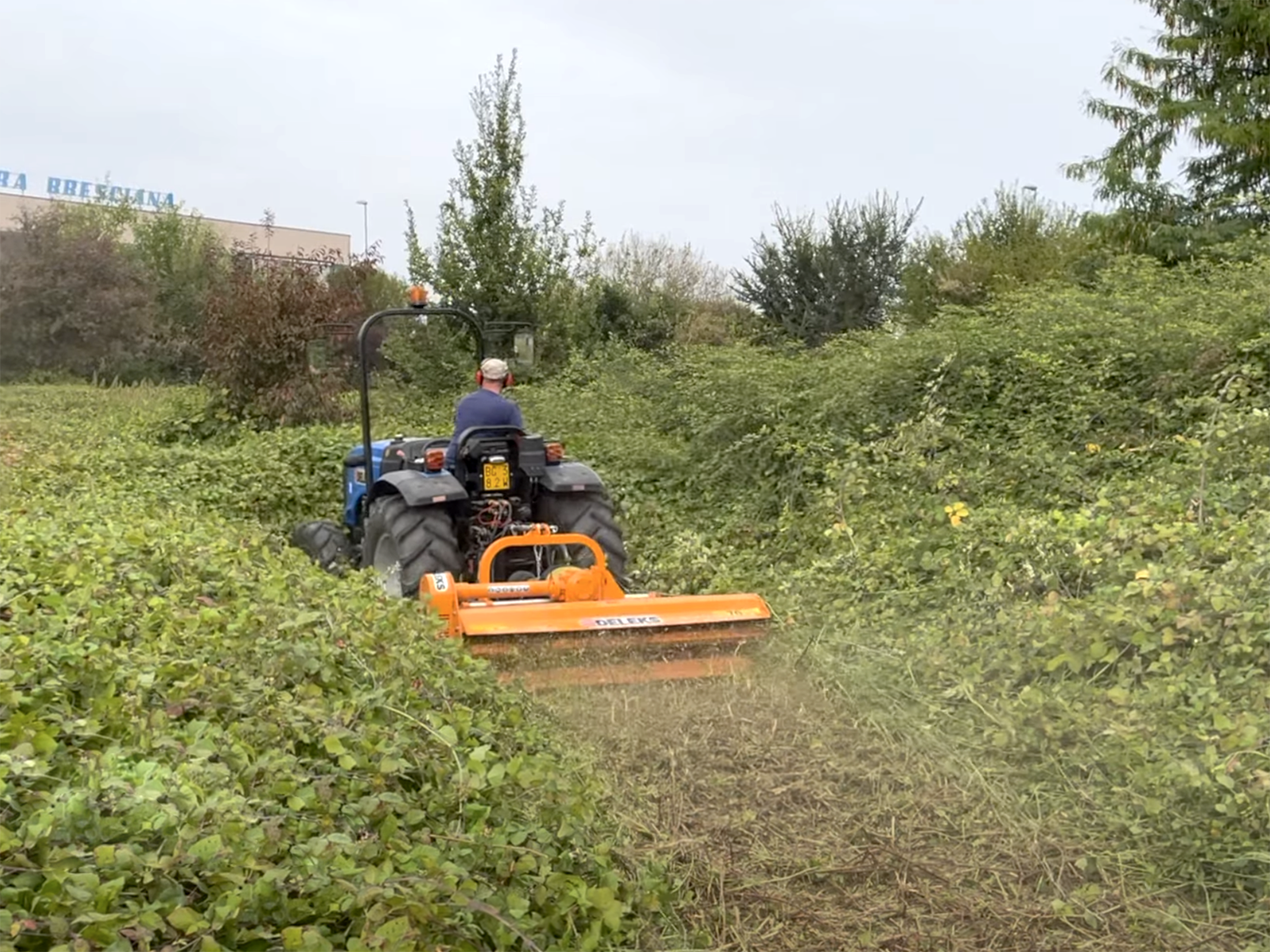

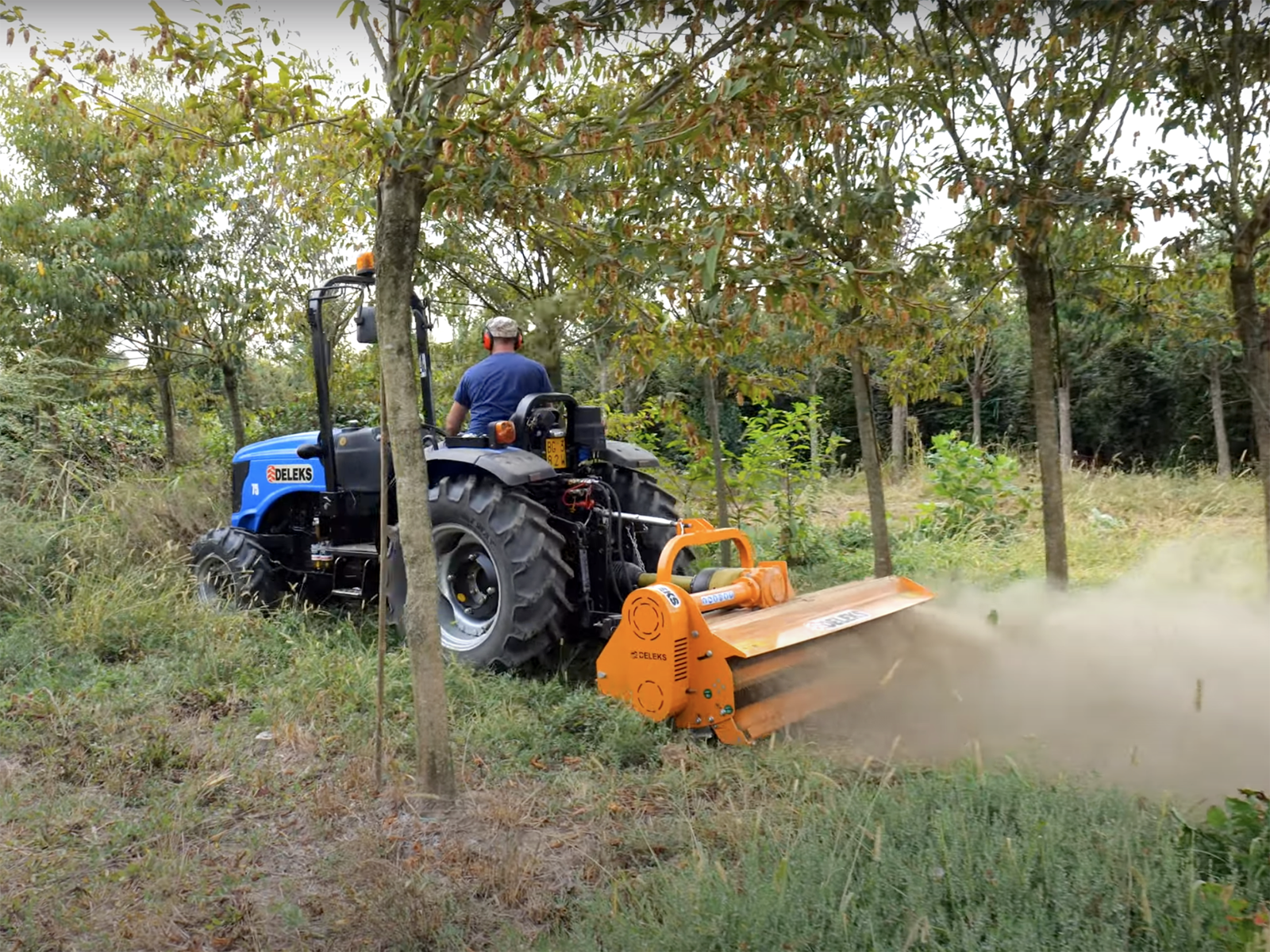

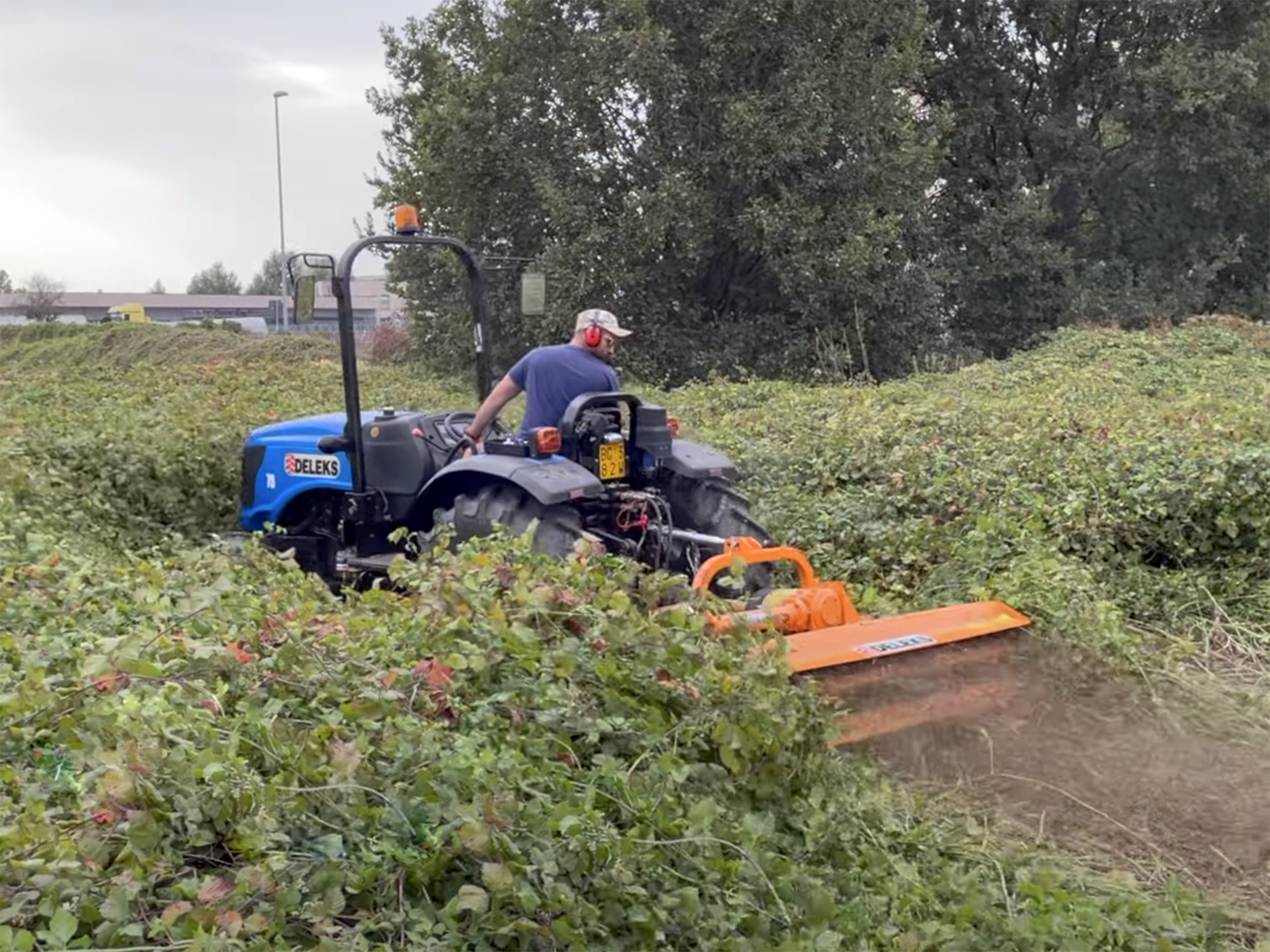

Where it works
- Vineyards, orchards and olive groves: grass between the rows and under the canopy, prunings up to 4-5 cm (1.6-2 in)
- Field edges, ditches and fence lines: working offset, with the tractor kept away from the edge
- Rough ground and headlands: long grass, brambles and reeds
- Open fields: stubble and crop residues
- Farms running tractors from 30 to 70 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10T), the 10 nuts and bolts for the flails (DB10T), the kit of 30 blades (COLTELLI30T), the spare set of 4 belts (CINGHIE4LEOPARD), spare pins for the category 1-2 three-point linkage (3PERNI12), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.
FAQ
How far does the LEOPARD-140-SP shift?
31 cm (12 in) to the side, adjusted by hand with the machine stopped: you set the position before starting work.
Manual or hydraulic side shift?
Manual is enough when you work for long spells in the same position, for example along a ditch or in an orchard with regular spacing. The hydraulic side shift on the LEOPARD-SPH is worked from the seat while you mow: useful between rows and for steering round posts and obstacles.
What size tractor does the LEOPARD-140-SP need?
From 30 to 70 hp, with a 540 rpm PTO and a category 1 or 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 310 kg (683 lb).
What size branches will it shred?
Vine and olive prunings and other prunings up to 4-5 cm (1.6-2 in) thick, as well as grass, leaves and brambles. For branches up to 8 cm (3.1 in) there is the heavy series.

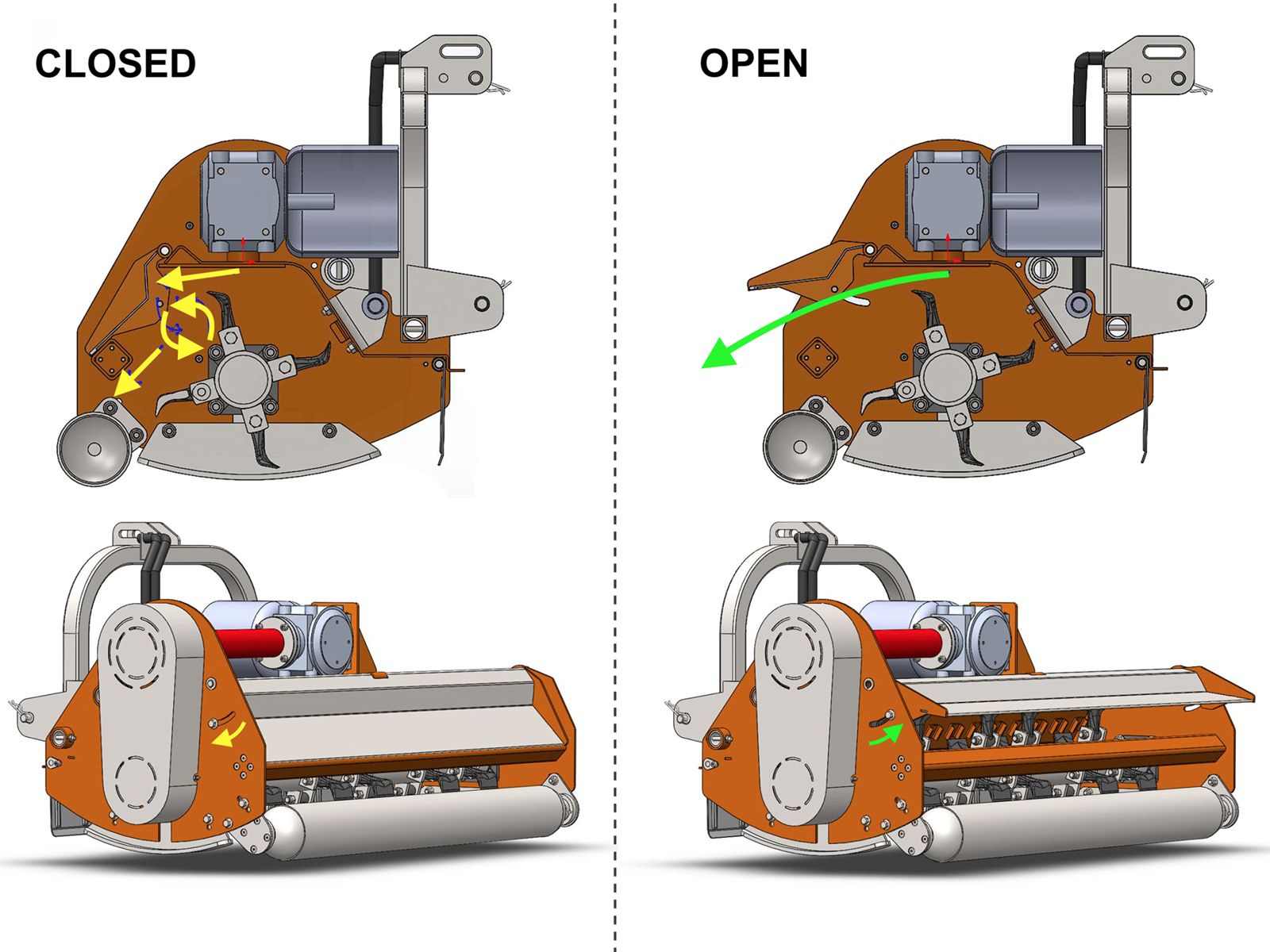

What is the opening hood for?
Closed, it keeps the material in the chamber and pulverises it, for a mulching effect; open, it lowers the pressure in the chamber and lets you travel faster. It also opens for servicing.
Hammer flails or blades?
It comes with 20 forged hammer flails of 820 g (1.8 lb), suited to grass, brambles and prunings. The kit of 30 blades (COLTELLI30T) is available as an option.
How do you set the cutting height?
From 10 to 45 mm (0.4 to 1.8 in), with the rear roller and the side skids.
Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1400.0 mm | 4.60 ft |
| Overall width | 1540.5 mm | 5.05 ft |
| Min / Max cutting height | 10.0 - 45.0 mm | 0.4- 1.77 in |
| Weight | 310.0 kg | 683.0 lb |
| Overall height | 800.0 mm | 2.60 ft |
| Tractor Power Range | 30 - 70 Hp | 30 - 70 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Hood height | 460.00 mm | 18.10 in |
| Spacing between the 2 lower points | 560.0 - 950.0 mm | 22.00 - 37.40 in |
| Number of Hammers | 20 | 20 |
| Maximum cutting diameter | 40.0 - 50.0 mm | 1.57 - 1.97 in |
| Overall length | 865.0 mm | 2.84 ft |
| Distance between pto attachment and ground | 520.0 mm | 20.5 in |
| Main hood thickness | 4.0 + 6.0 mm | 0.16 + 0.23 in |
| Sides thickness | 6.0 mm | 0.23 in |
| Side plates thickness | 6.0 mm | 0.23 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: Gearbox | DELEKS (Italy) (3 year warranty) | DELEKS (Italy) (3 year warranty) |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: RPM Rotor speed | 2300 rpm | 2300 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 180.0 mm | 7.08 in |
| Transmission: Lower pulley ø | 130.0 mm | 5.12 in |
| Transmission: V-Belts quantity | 4 | 4 |
| Transmission: V-Belts size | BX43 | BX43 |
| Rotor: diameter | 115.0 mm | 4.50 in |
| Rotor: bearings type and size | SKF 2208-TVH | SKF 2208-TVH |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 8.0 mm | 0.31 in |
| Hammers: Weight | 820.0 g | 29.0 oz |
| Hammer: øhole | 15.0 mm | 0.6 in |
| Hammer: base width | 82.0 mm | 3.23 in |
| Hammer: top width | 45.0 mm | 1.77 in |
| Hammer: Diagonal | 95.0 mm | 3.74 in |
| Rear roller: diameter | 140.0 mm | 5.51 in |
| Rear roller: sheet thickness | 5.0 mm | 0.2 in |
| Rear roller: bearings type and size | FL206 | FL206 |
| Pto shaft | CE 6x1000 mm | CE 6x1000 mm |
| Effective Displacement | 310.0 mm | 12.20 in |
| Gross shipping weight | 366 kg | 807 lb |
| Package volume | 1.14 m3 | 40.3 cu ft |
| Packing sizes | 1580.0*900.0*800.0 mm | 5.18*2.95*2.62 ft |
