Petrol chipper shredder - DK-500-HONDA

Not available Notify me
CodeDK500HONDA
EAN 8053470235832
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

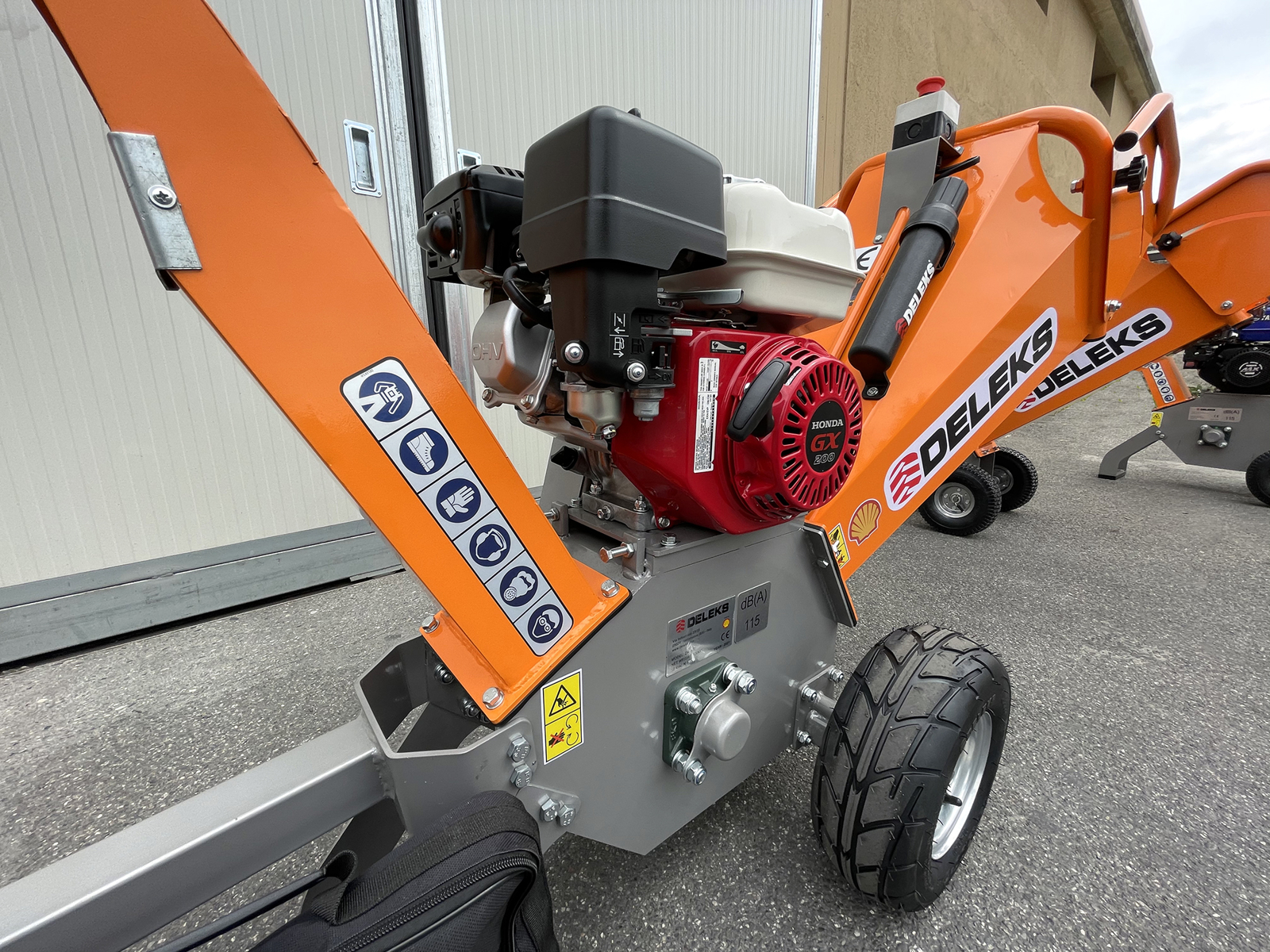

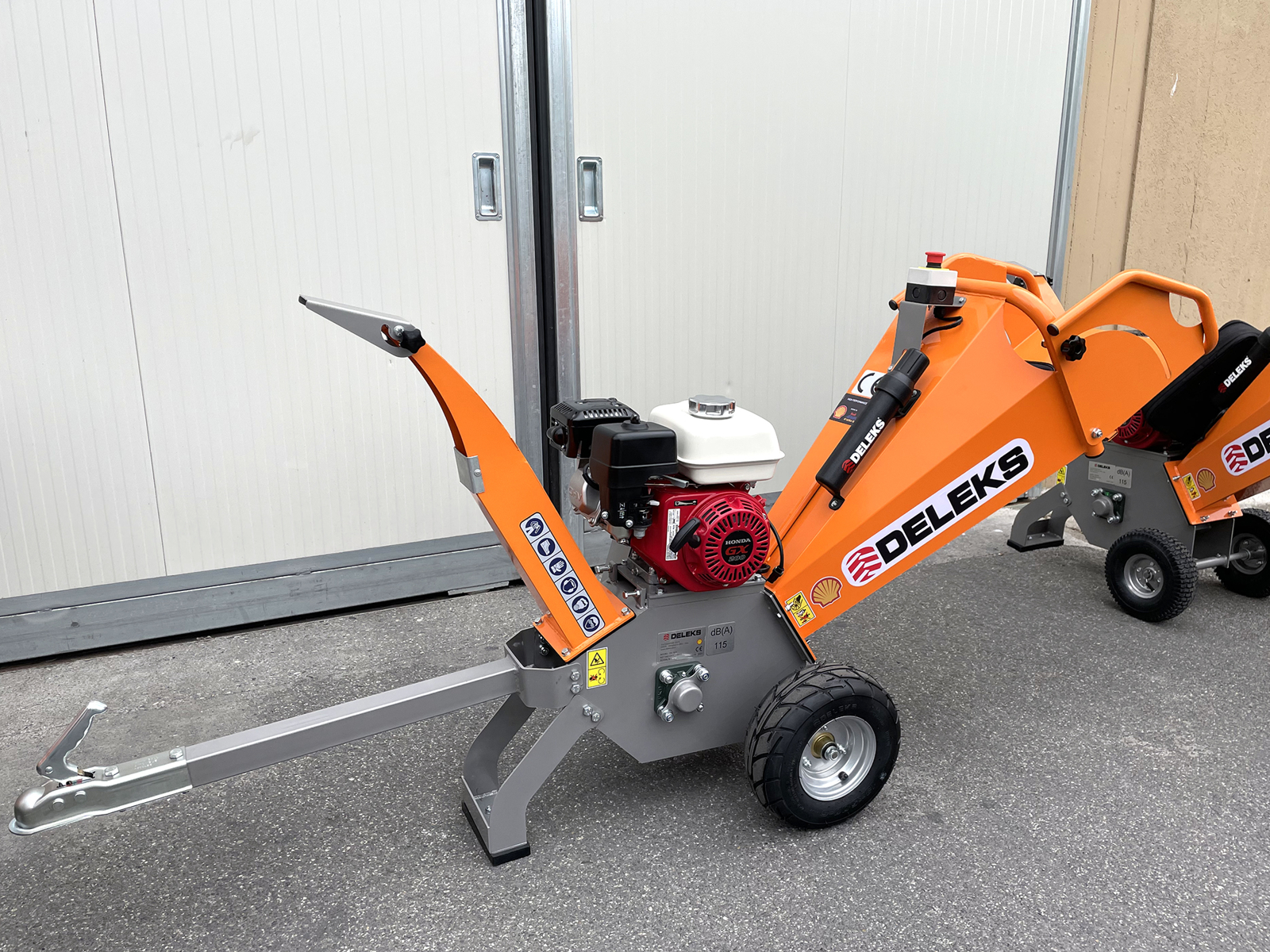

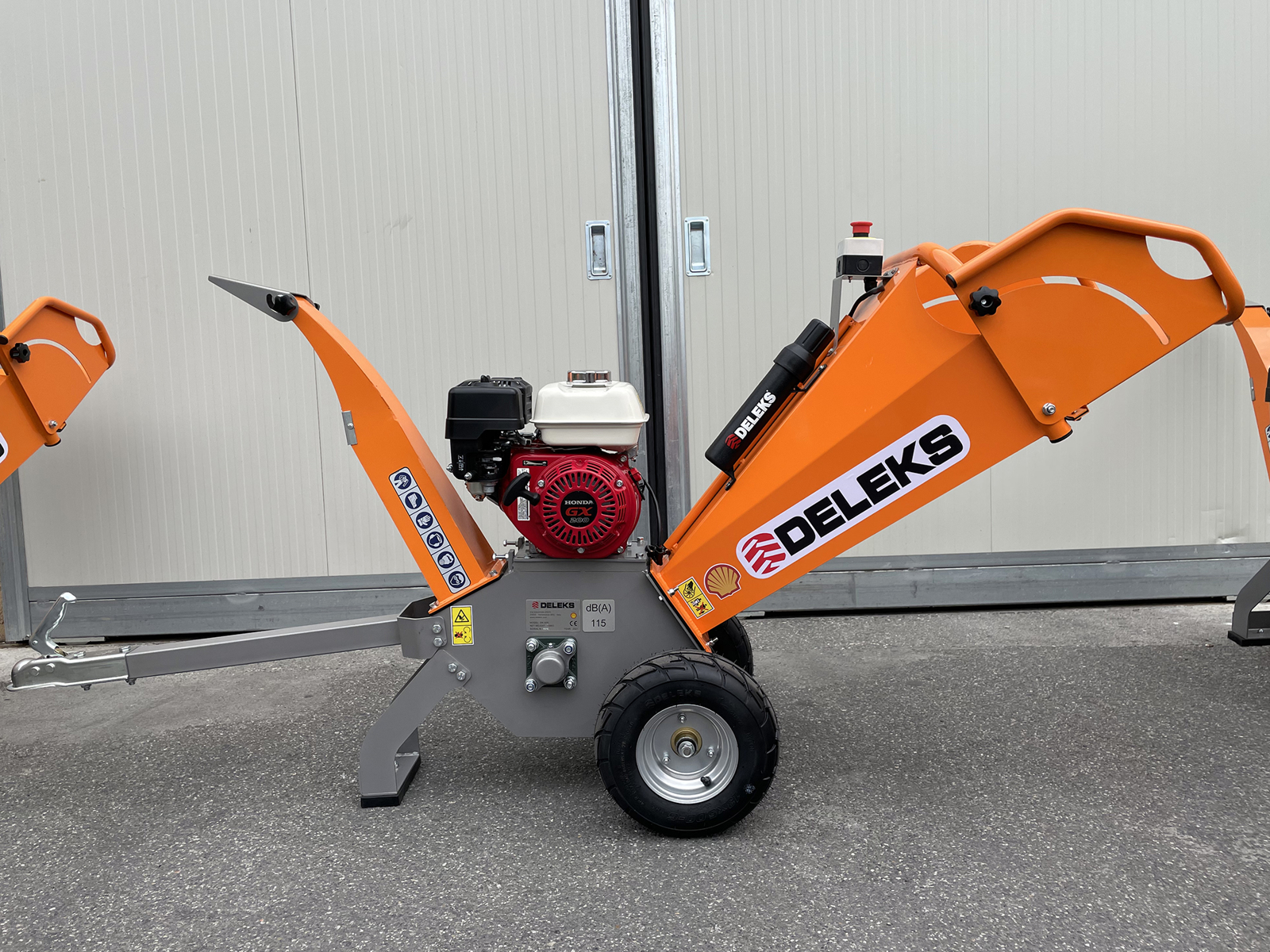

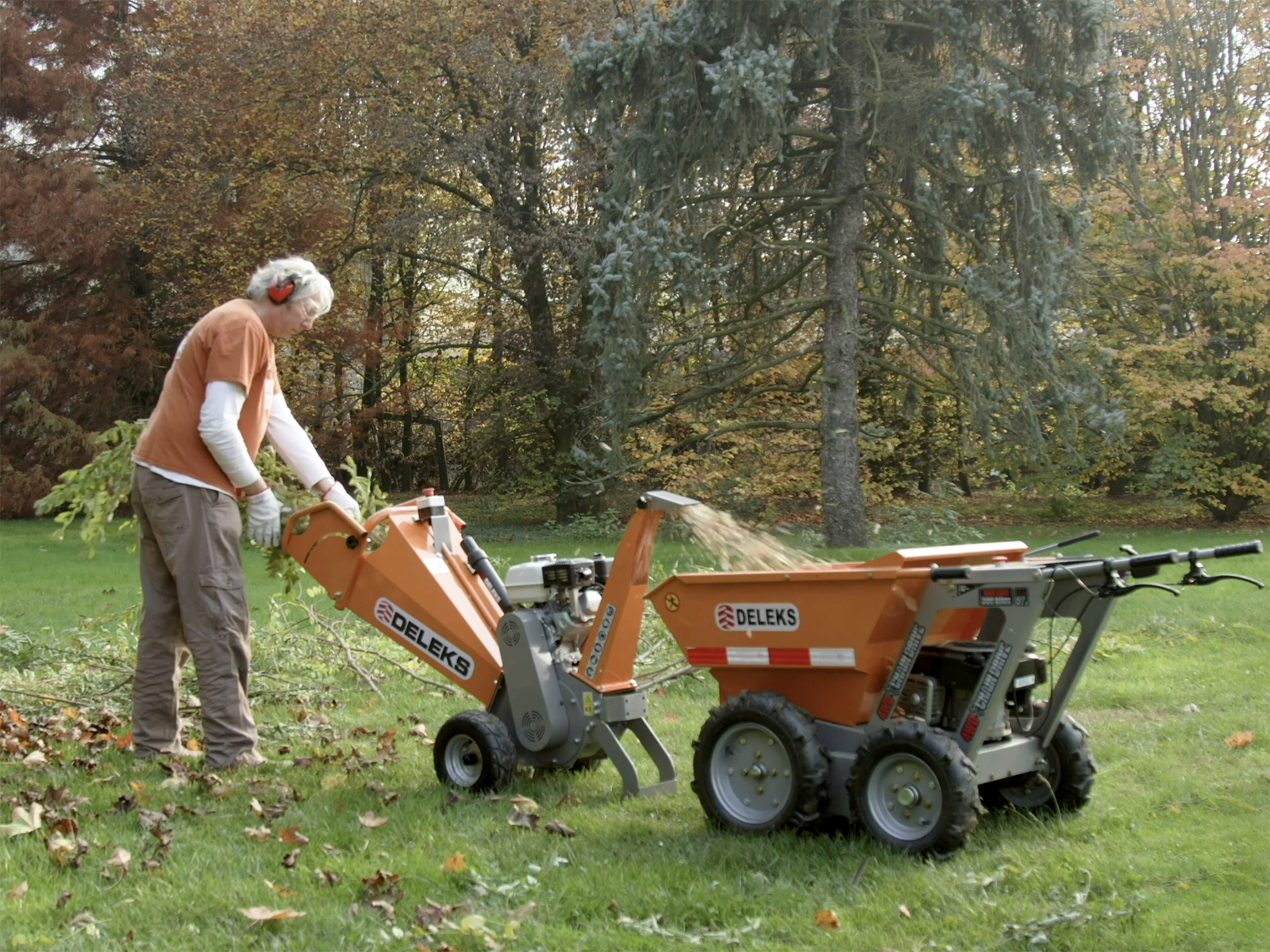

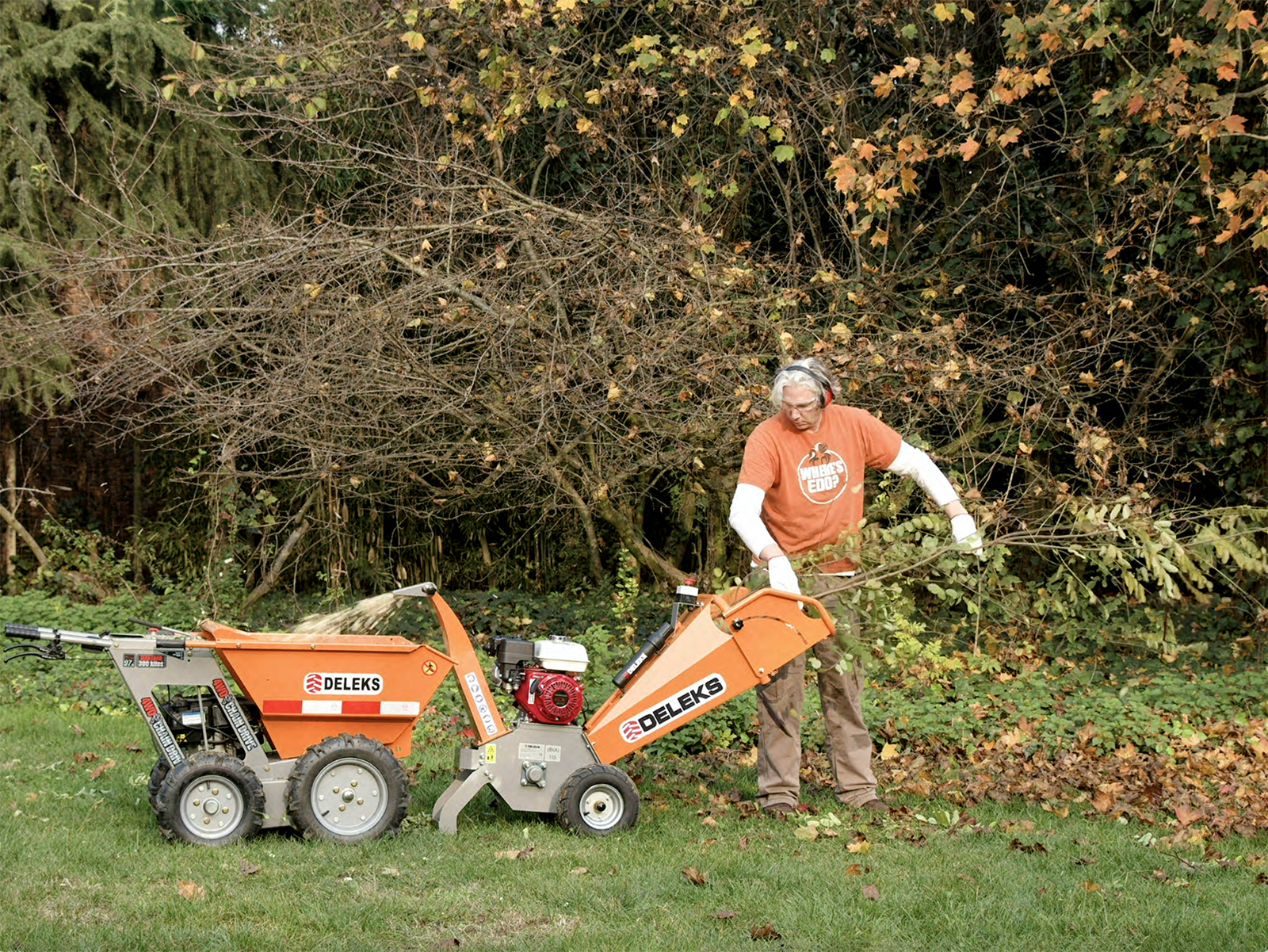

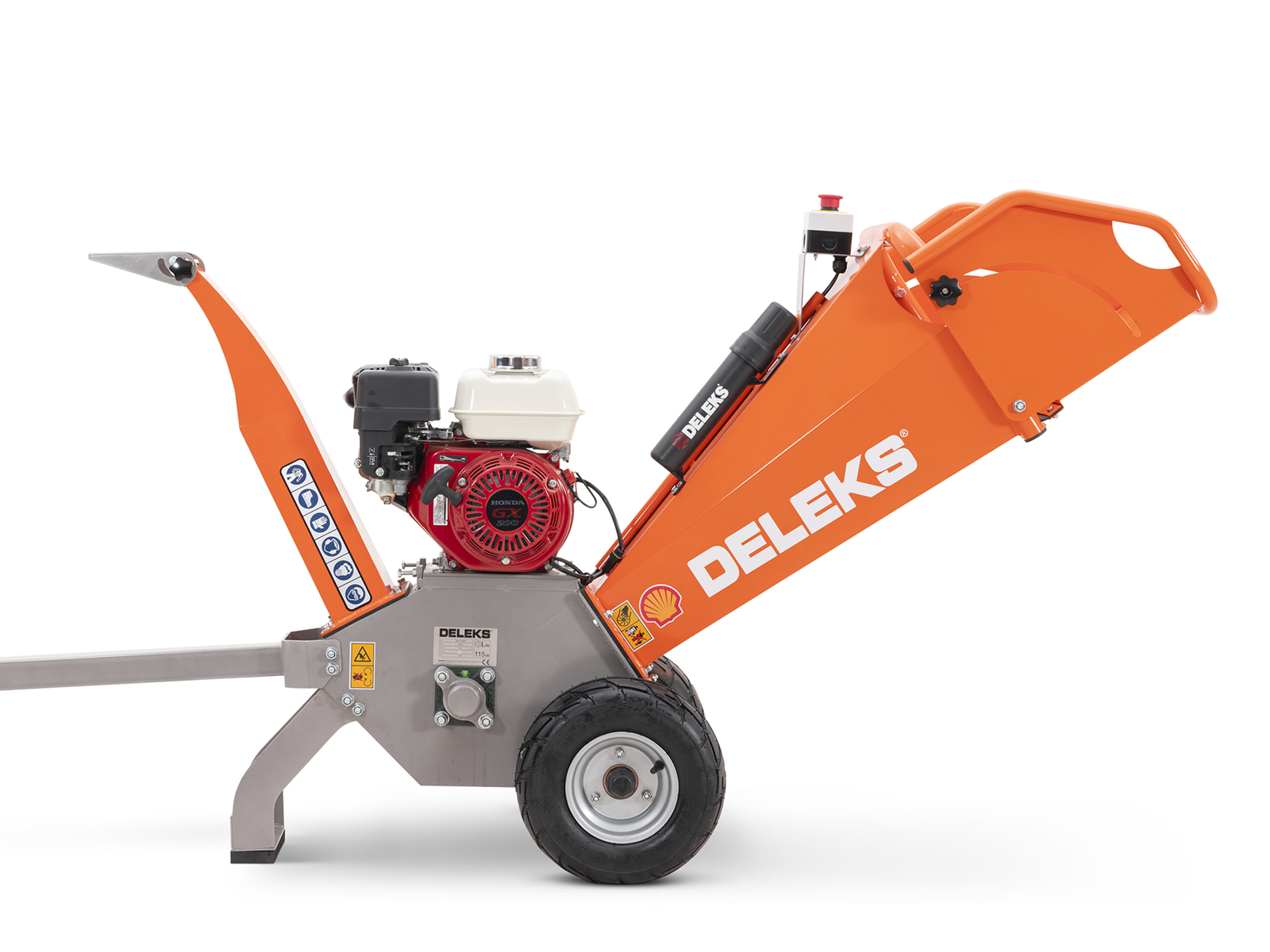

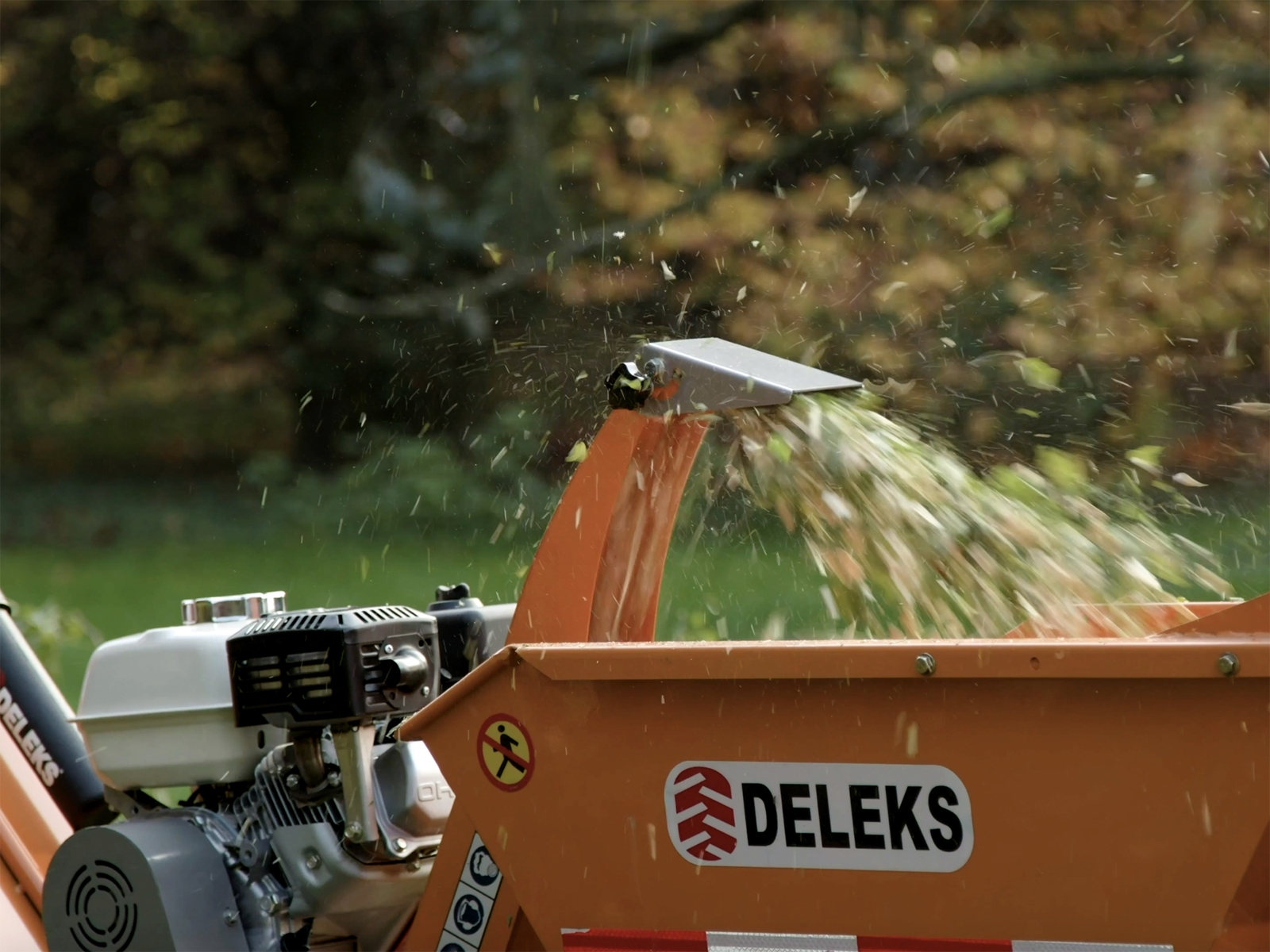

Professional Wood Chipper DELEKS DK-500 with HONDA 6.0 Hp engine, 4 stroke gasoline engine.



OVERVIEW

Chipping drum system shreds vegetation using 2 horizontal blades + 1 counter-fixed blade. Gasoline engine HONDA GX200 - 196cc - 6.0hp (3-Year warranty - Spare parts always available).

Suitable for the chipping of all types of dry and green wood, pruning residues, palm leaves, etc. Ideal for professional/contractor usage.

Maximum cutting diameter: 6-7cm

Chipper produces enough material to make pulp or pellets for industrial use.



CERTIFICATES - GUARANTEE - ASSISTANCE

TÜV SUD certification

HONDA petrol engine with 3-years European warranty


BENEFITS AND FEATURES

The Anti-shock clutch avoids direct motion between the motor and drum, thus facilitates the cold start and in case of jamming or introduction of foreign objects, prevents the crankshaft from damage.

Gasoline engine, air-cooled 4-stroke.

Starter rope;

Ergonomic design;

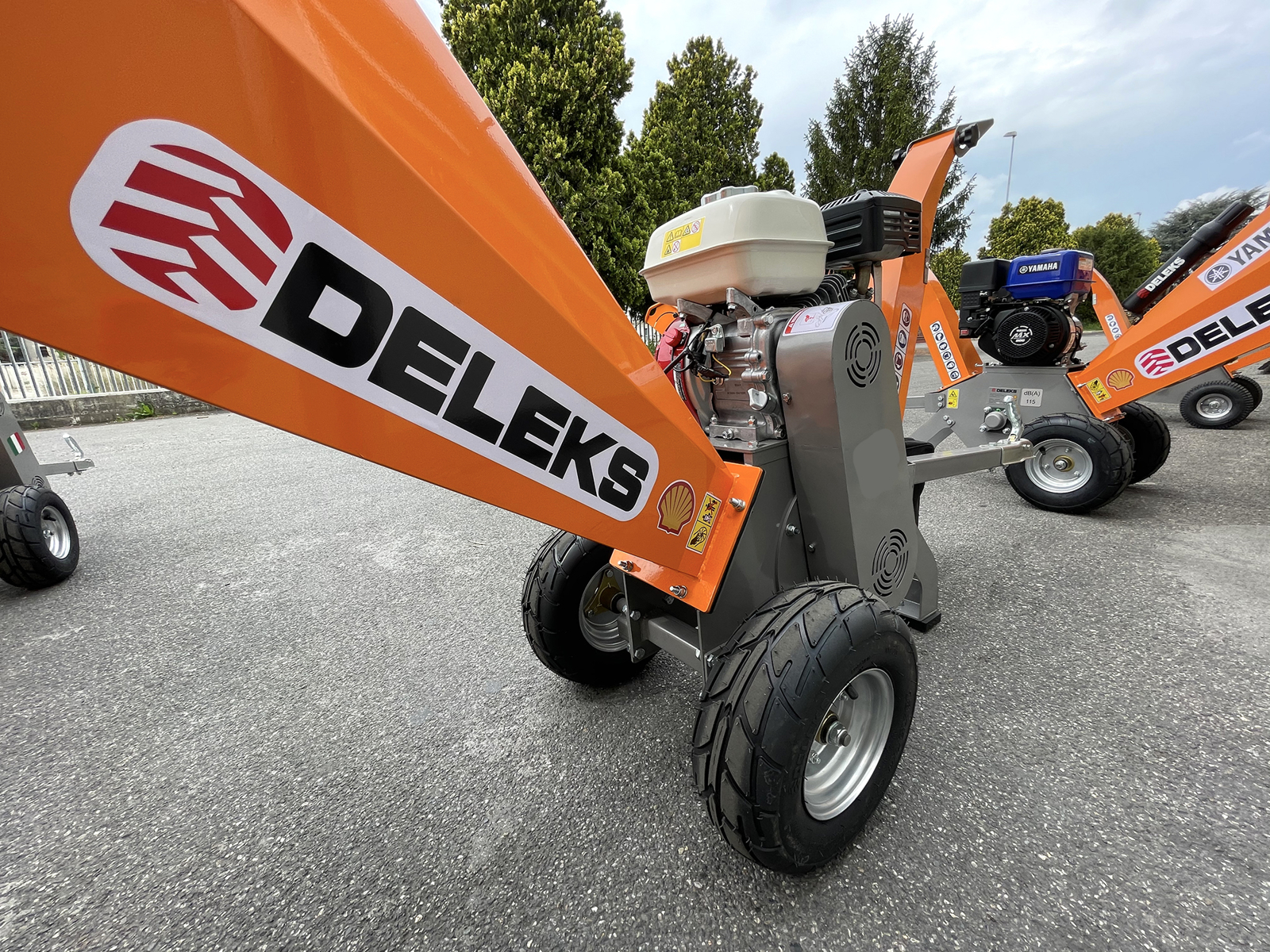

Excellent maneuverability thanks to its 2 wheels;

Solid structure and stable with a low center of gravity.

Headphones and goggles.

Conforms to the CE directive.

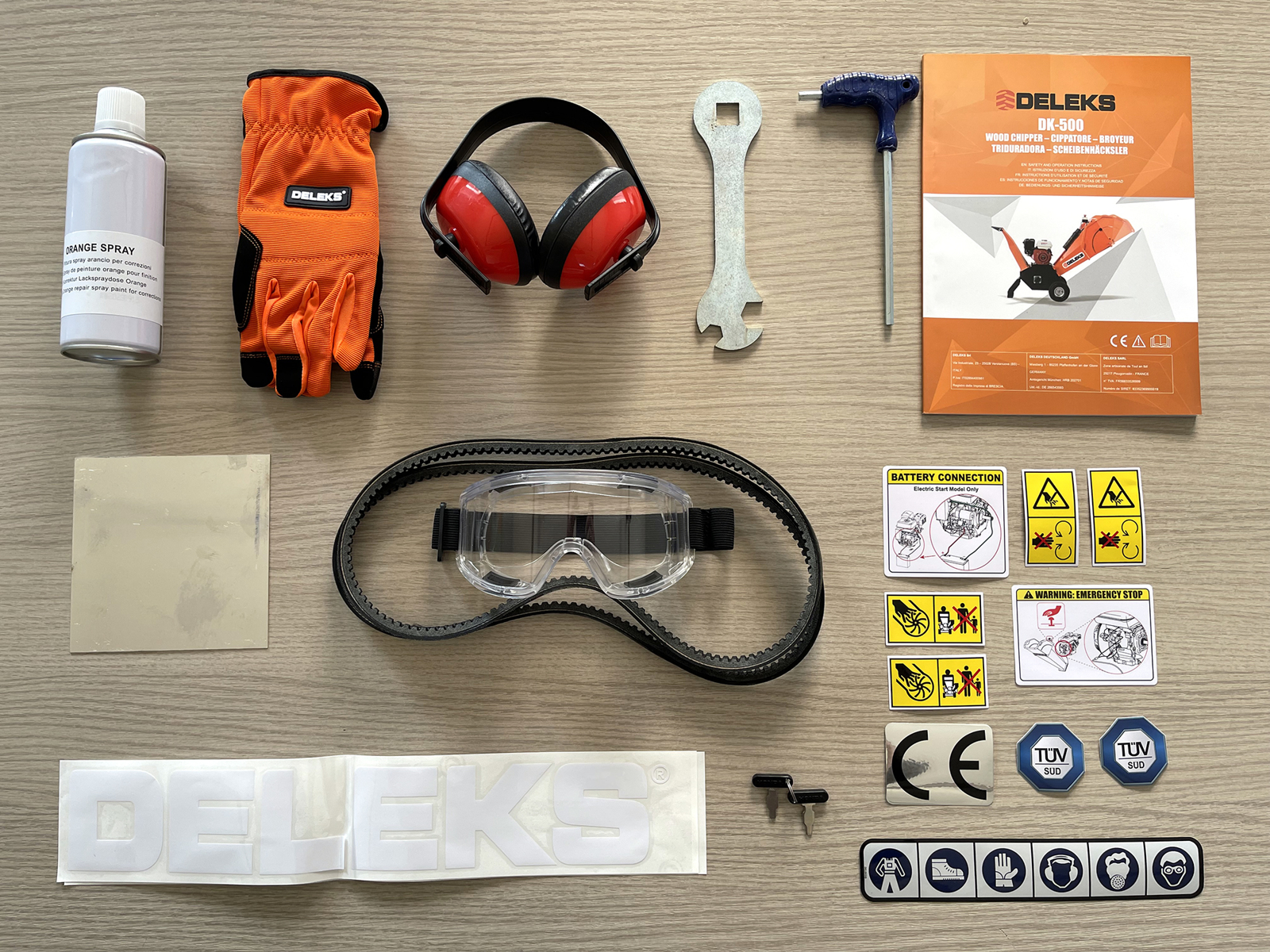

STANDARD EQUIPMENT

Pair of spare blades

Spare counter knife

1 kg of synthetic oil

Set of 2 replacement transmission belts

CE protection caps

CE protective glasses

Use and maintenance manual for the machine

Use and maintenance manual for the HONDA GX200 engine

Orange Spray Paint

Complete set of replacement stickers

Set wrenches for maintenance



Documentation supplied with this article:

Invoice or Receipt
CE Conformity
Maintenance Manual


EC Certification and Risk Analysis (Valid throughout Europe) edited by TÜV SÜD.



CARACTERISTICS

Caracteristic Units metric Units US

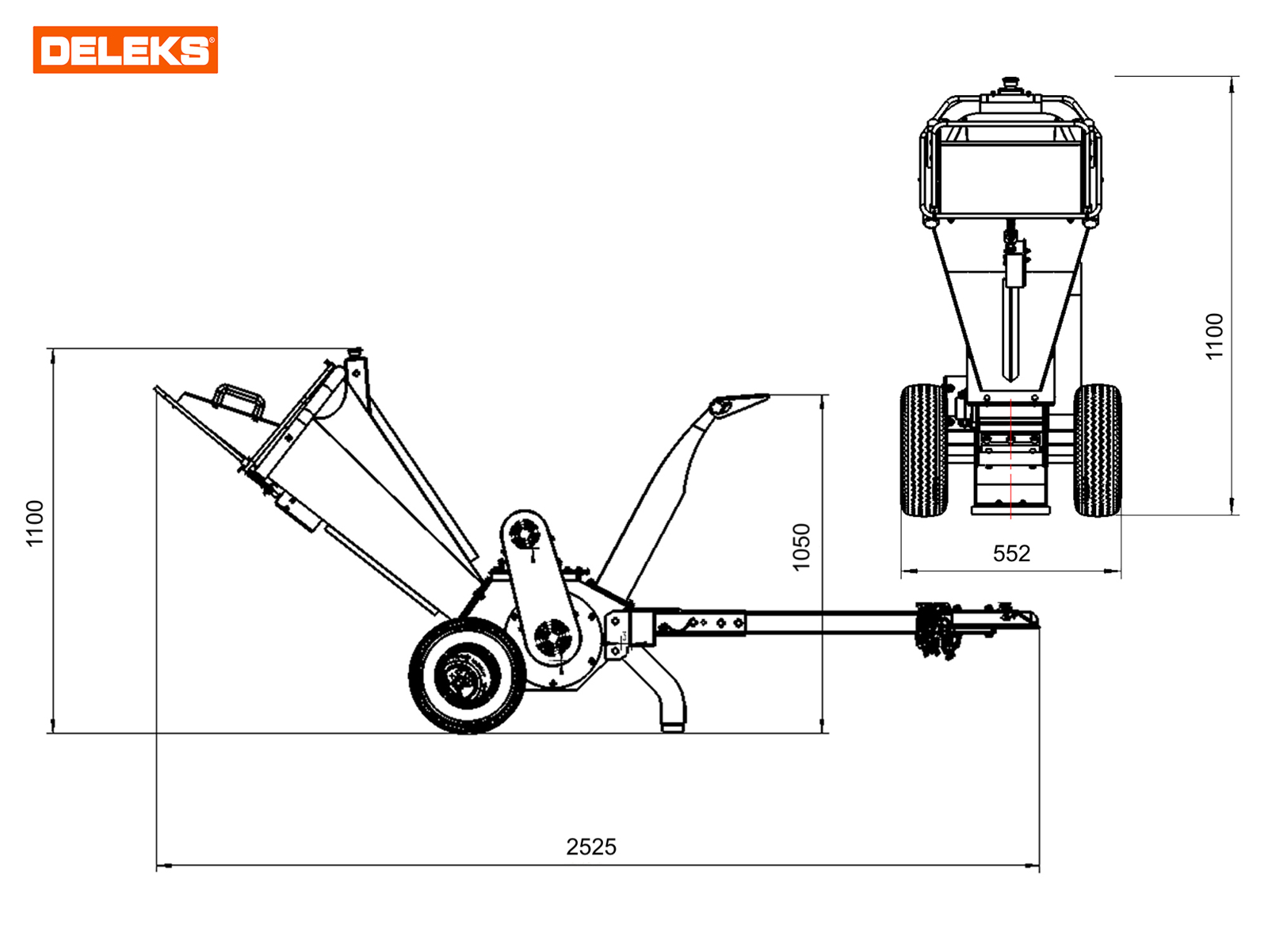

Overall width 550.0 mm 1.80 ft
Weight 100.0 kg 220.0 lb
Overall height 1050.0 mm 3.45 ft
Overall length 1720.0 mm 5.65 ft
Blades: Weight 300.0 g 10.50 oz

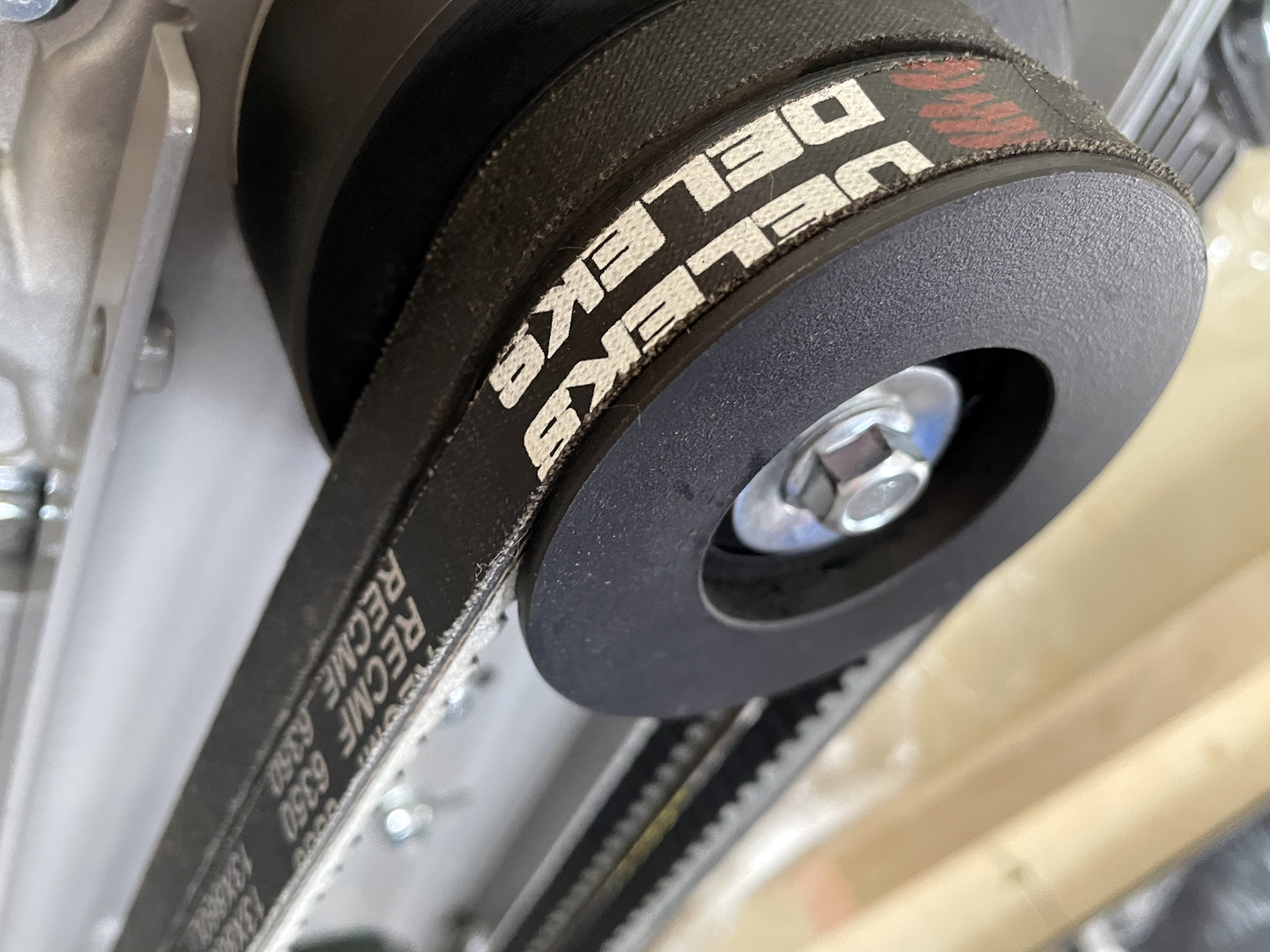

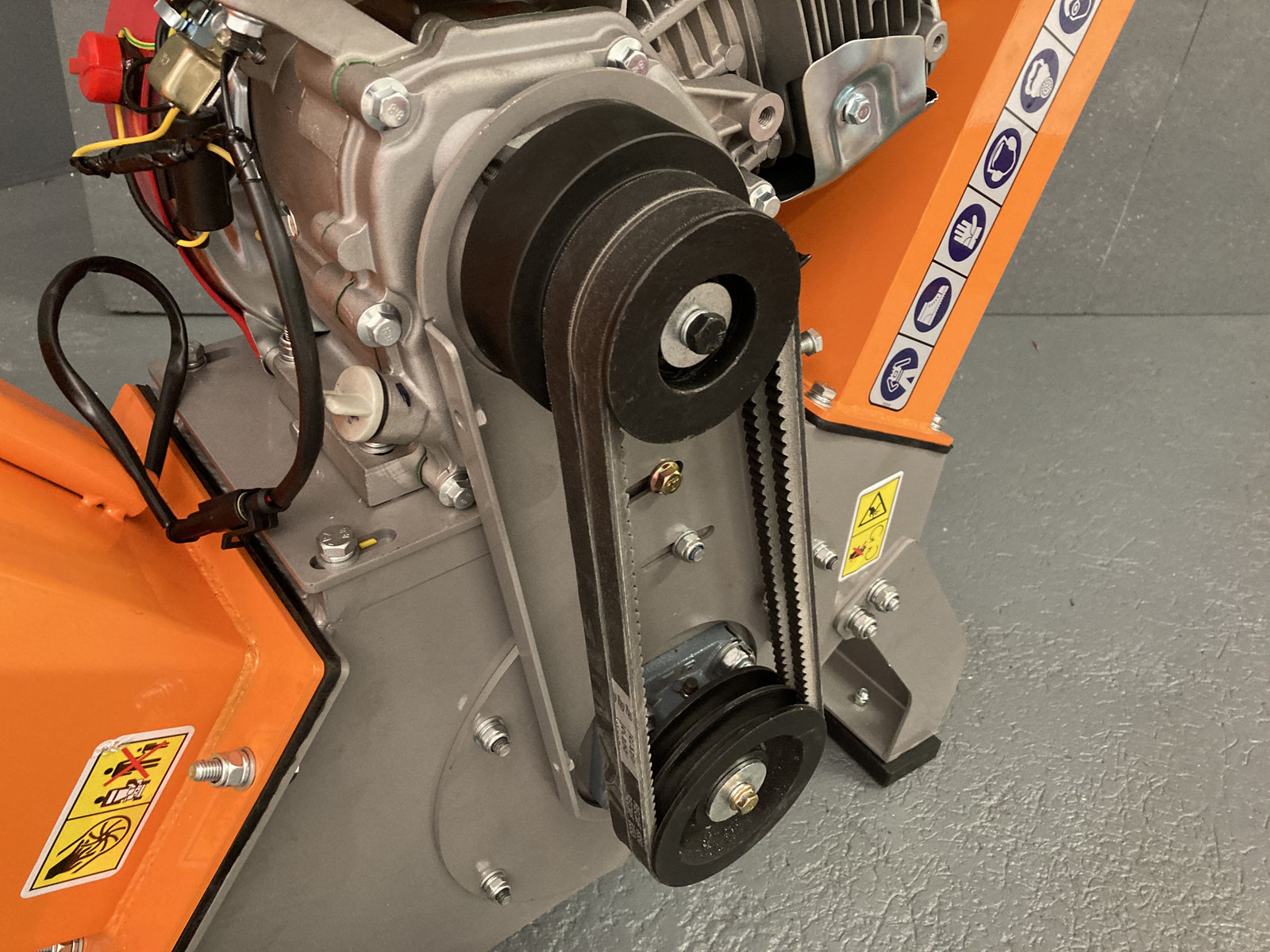

Transmission V Belts V Belts
Working Efficiency 3 m3/h 1.0 sq ft/h
Cutting System Chipping drum with 2 blades + 1 fixed blade Chipping drum with 2 blades + 1 fixed blade
Chipped material size range 5.0 - 15.0 mm 0.20 - 0.60 in

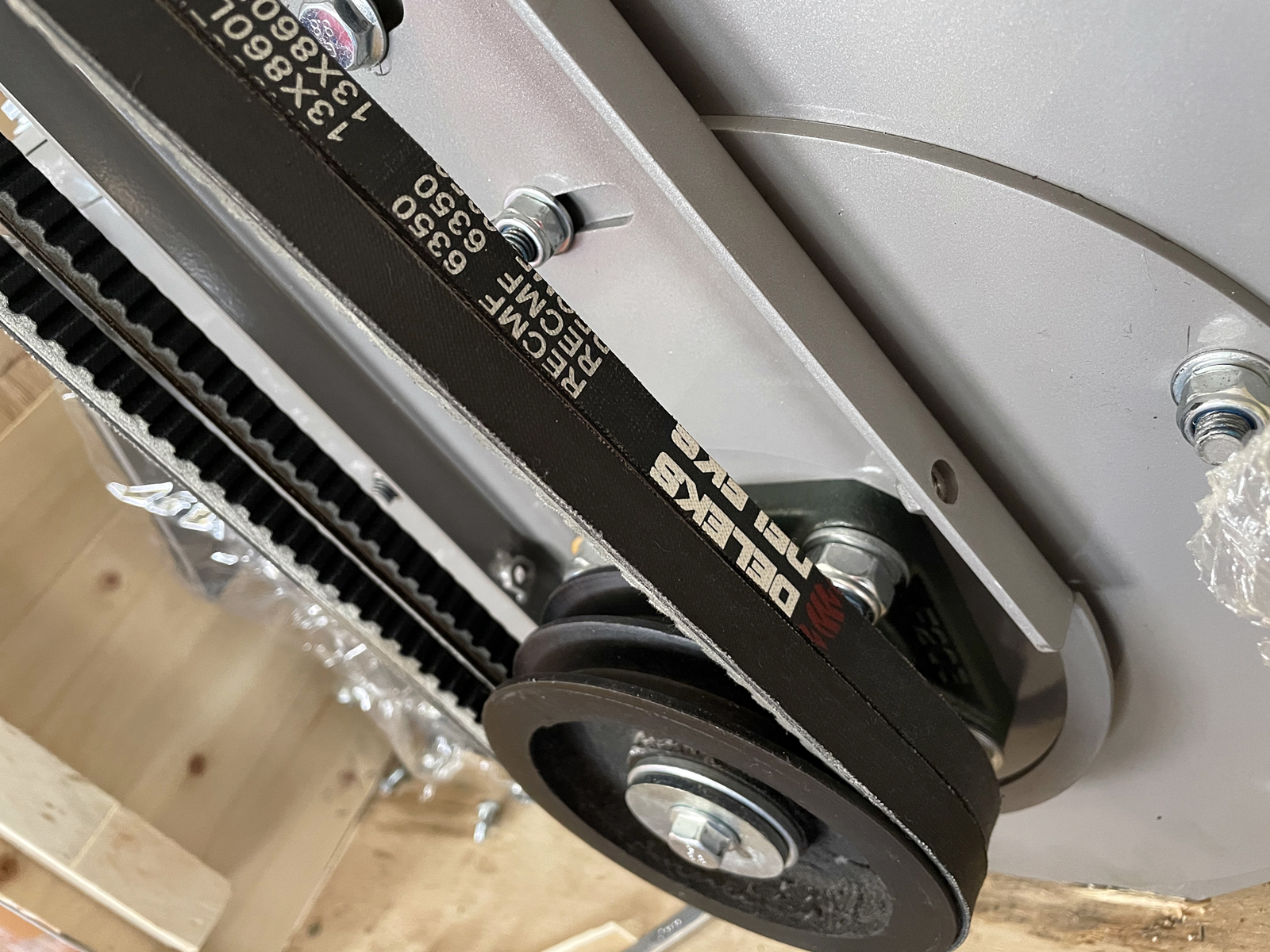

Transmission V-Belts quantity 2 2
Transmission V-Belts sizes 13x860 13x860

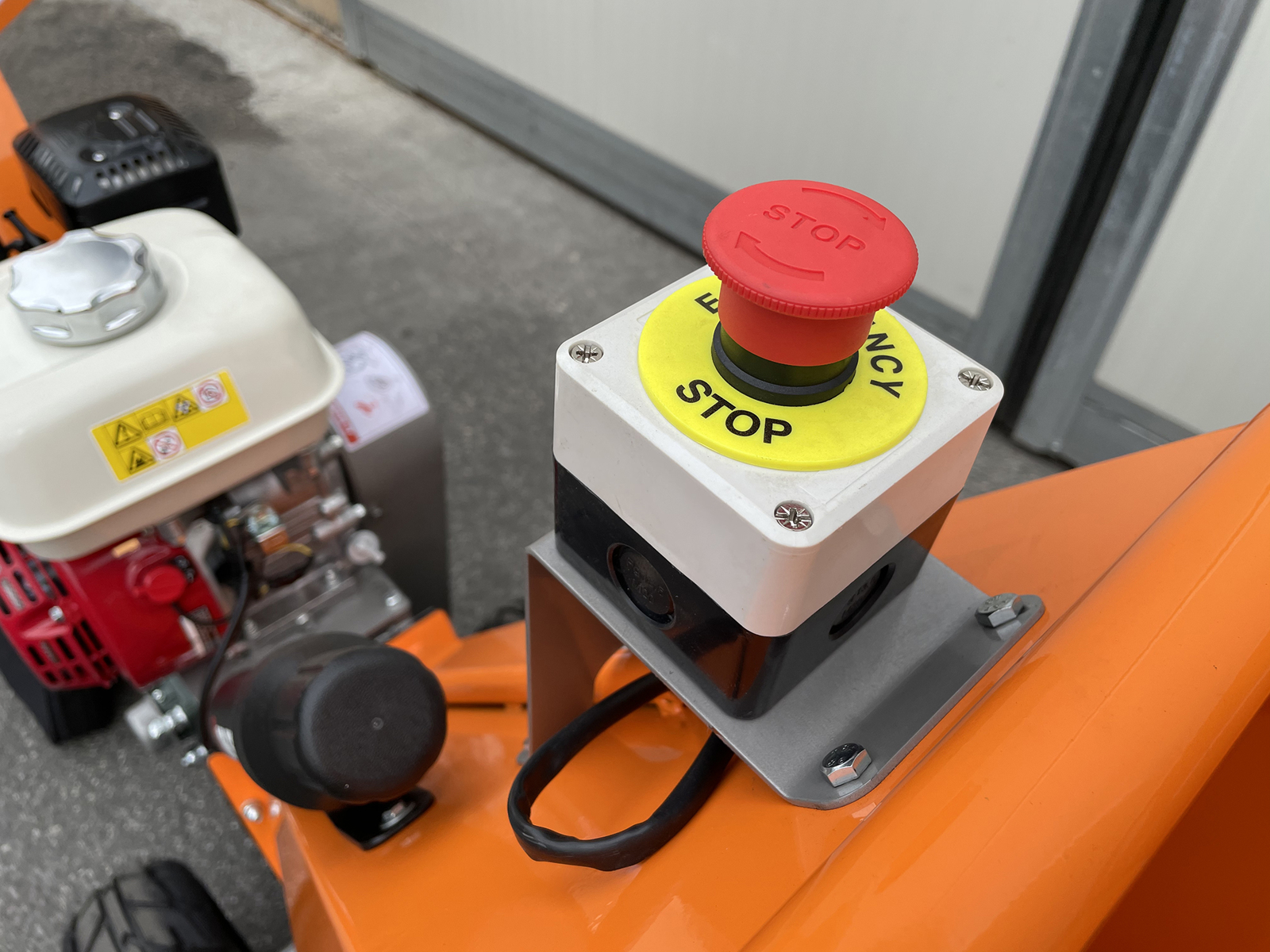

Safety System Emergency button Emergency button
Blades: Sizes 150.0*55.0 mm 5.90*2.16 in
Outlet Tube Sizes 85.0*100.0 mm 3.35*3.94 in
Maximum cutting diameter 60.0 mm 2.35 in

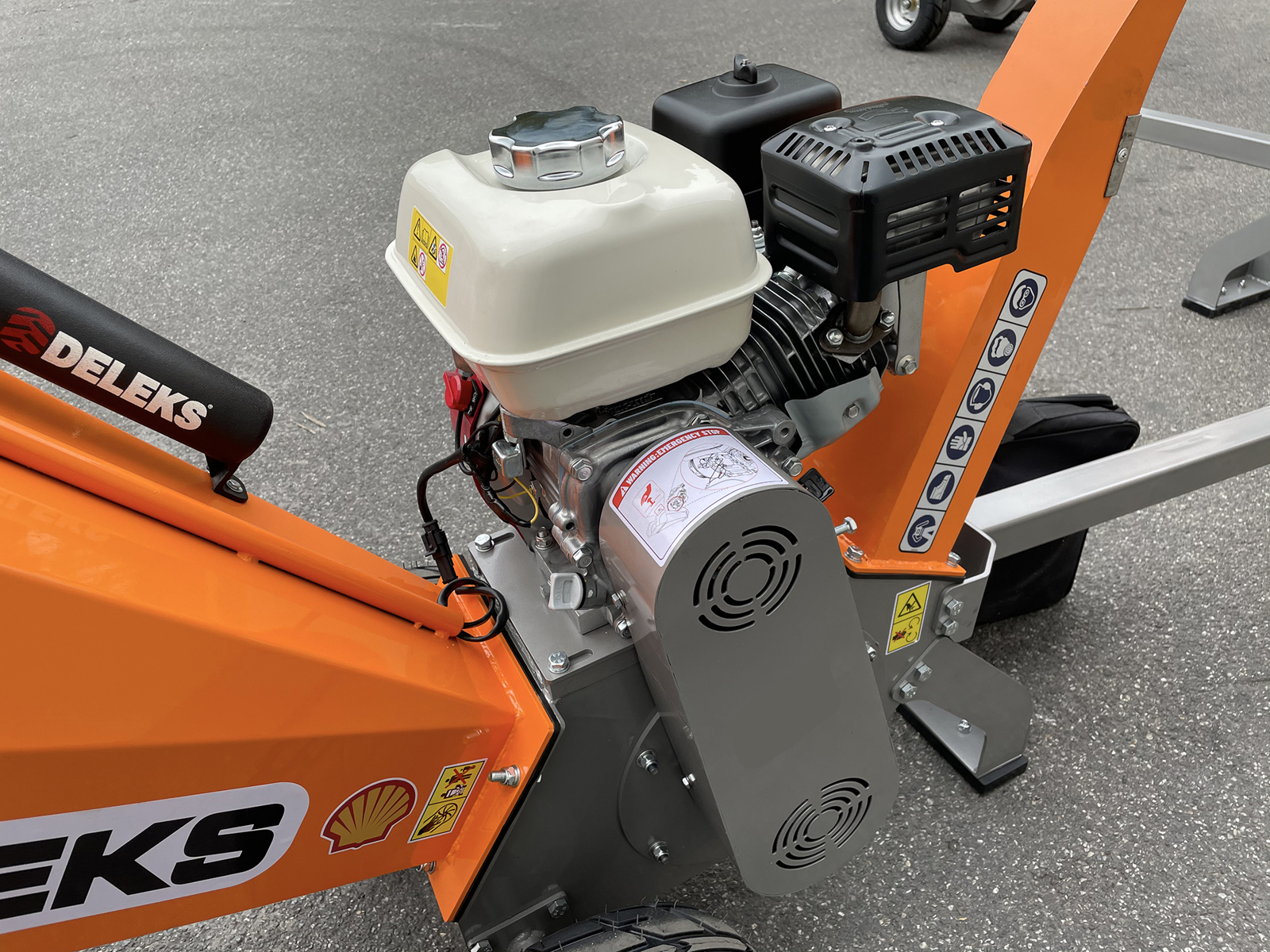

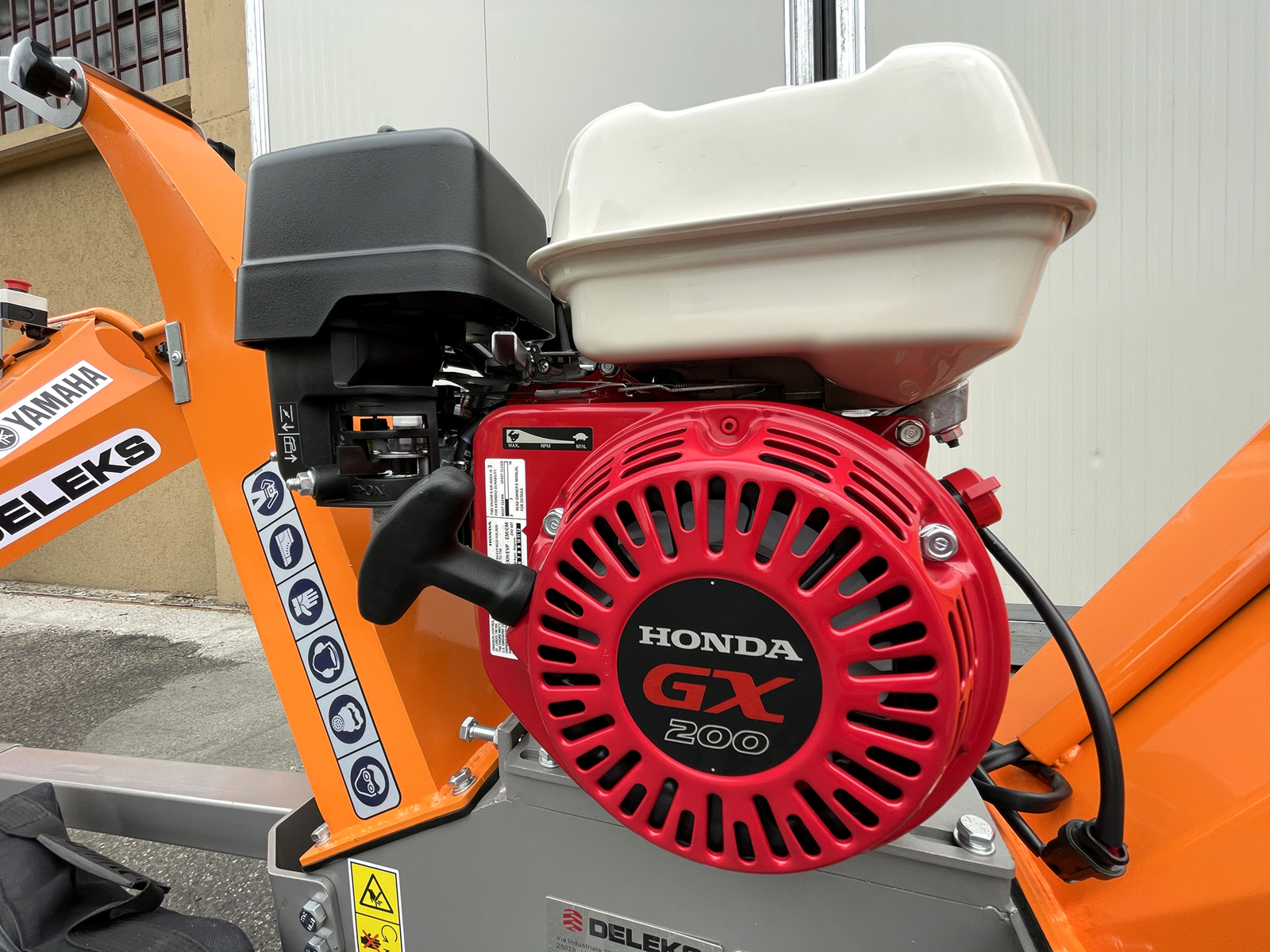

Engine HONDA GX200 - 196cc - 6.0 Hp. HONDA GX200 - 196cc - 6.0 Hp.
Starter Pull cord Pull cord

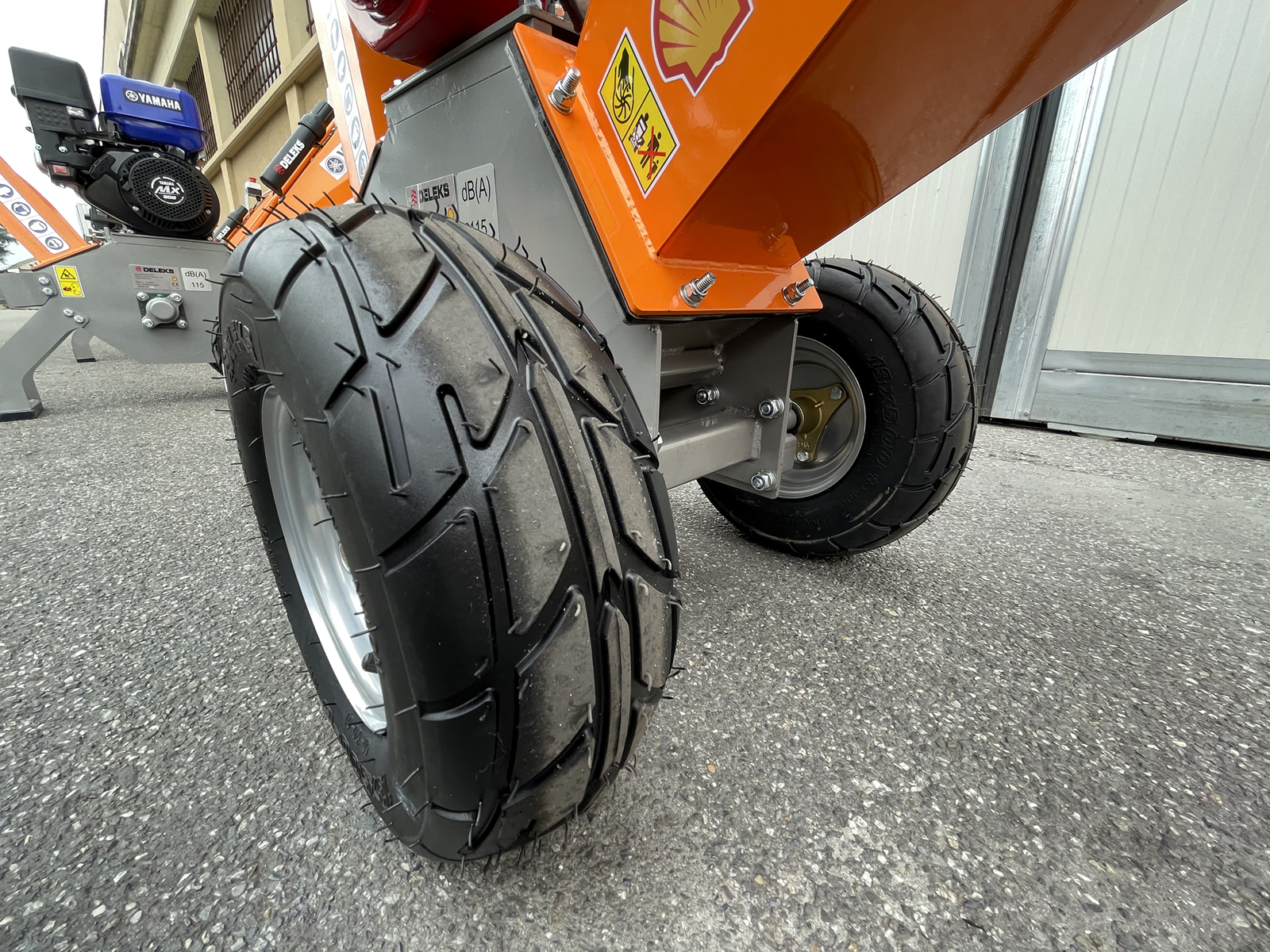

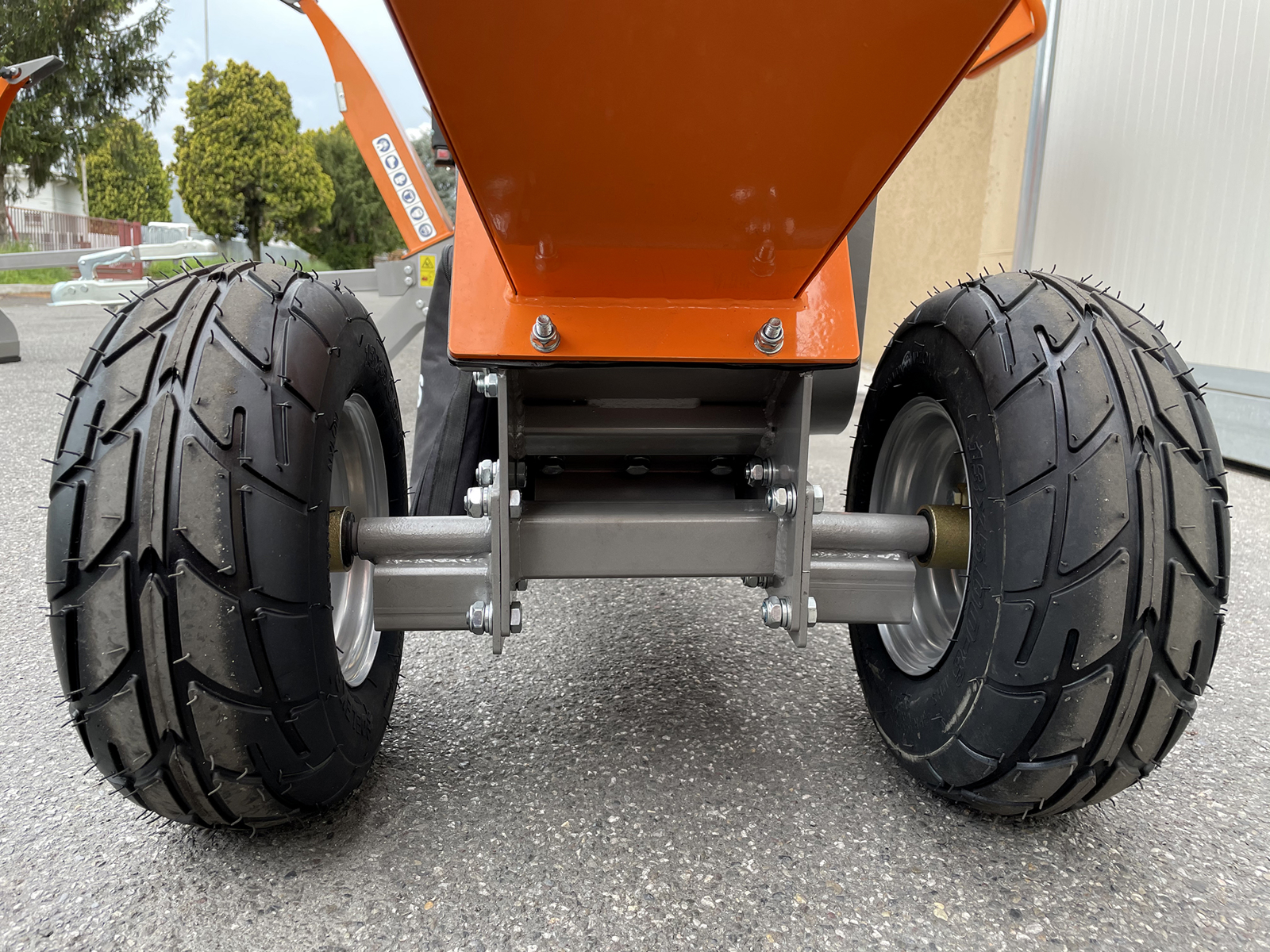

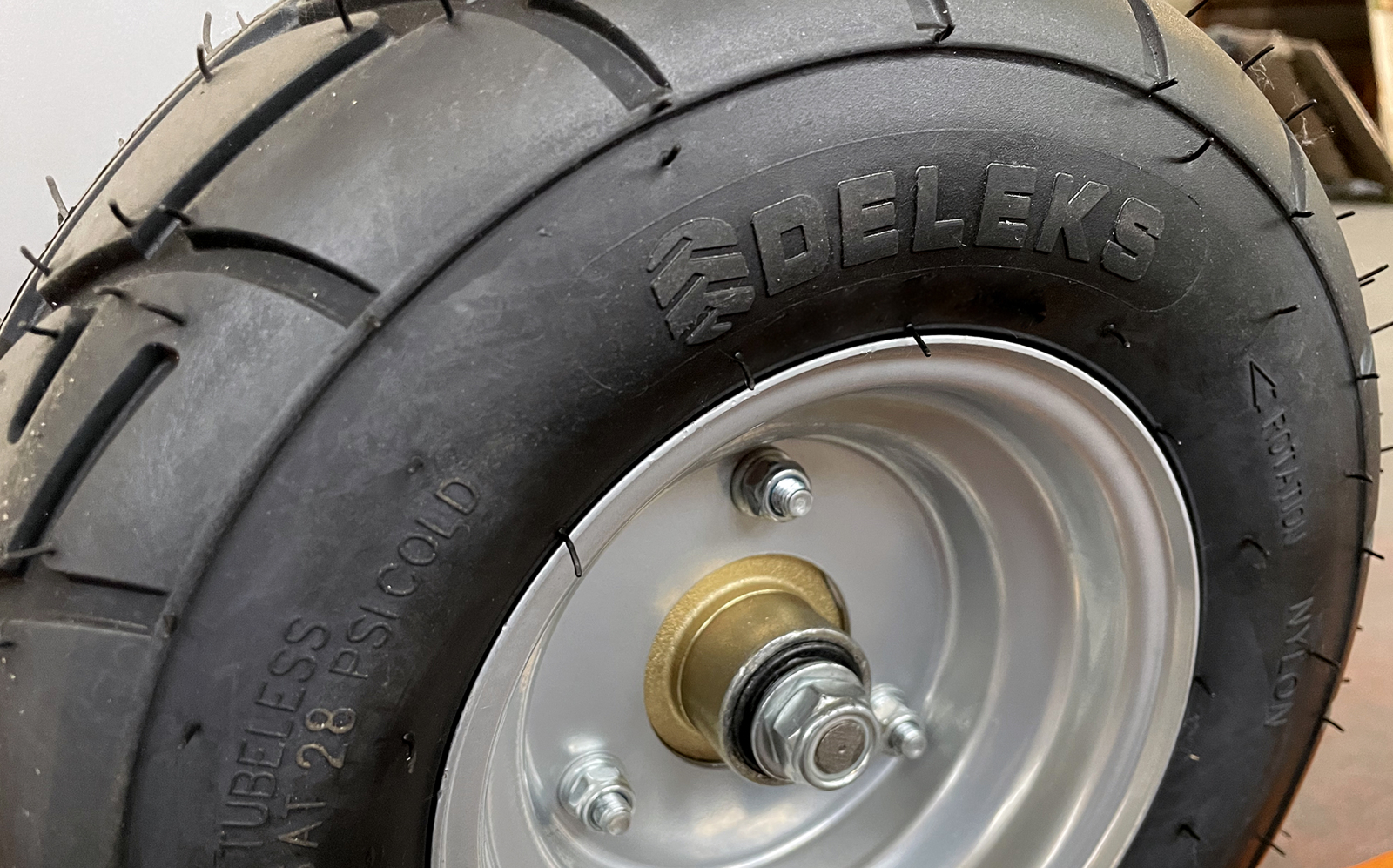

Wheels: sizes 4.10/3.50-4 4.10/3.50-4

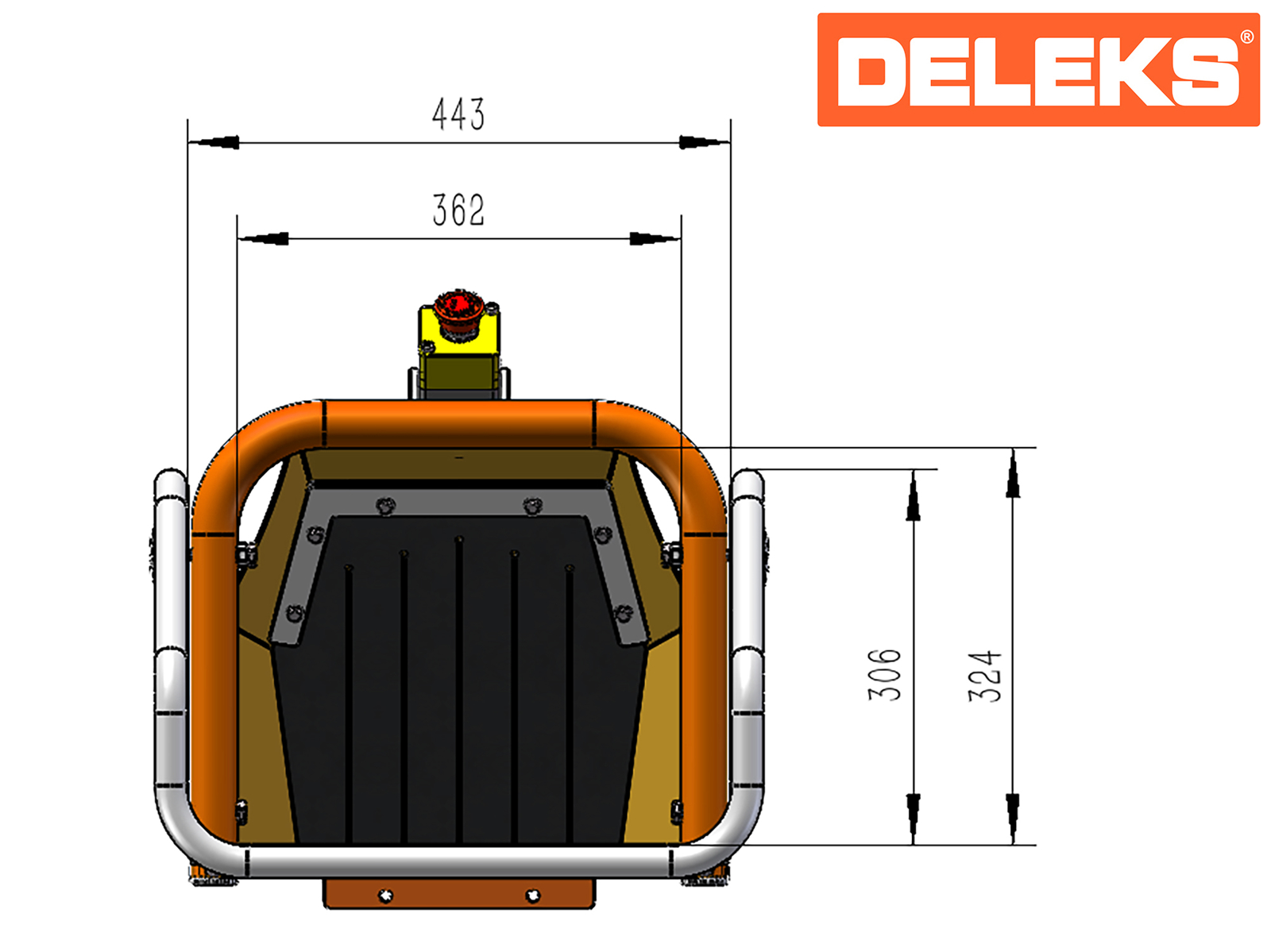

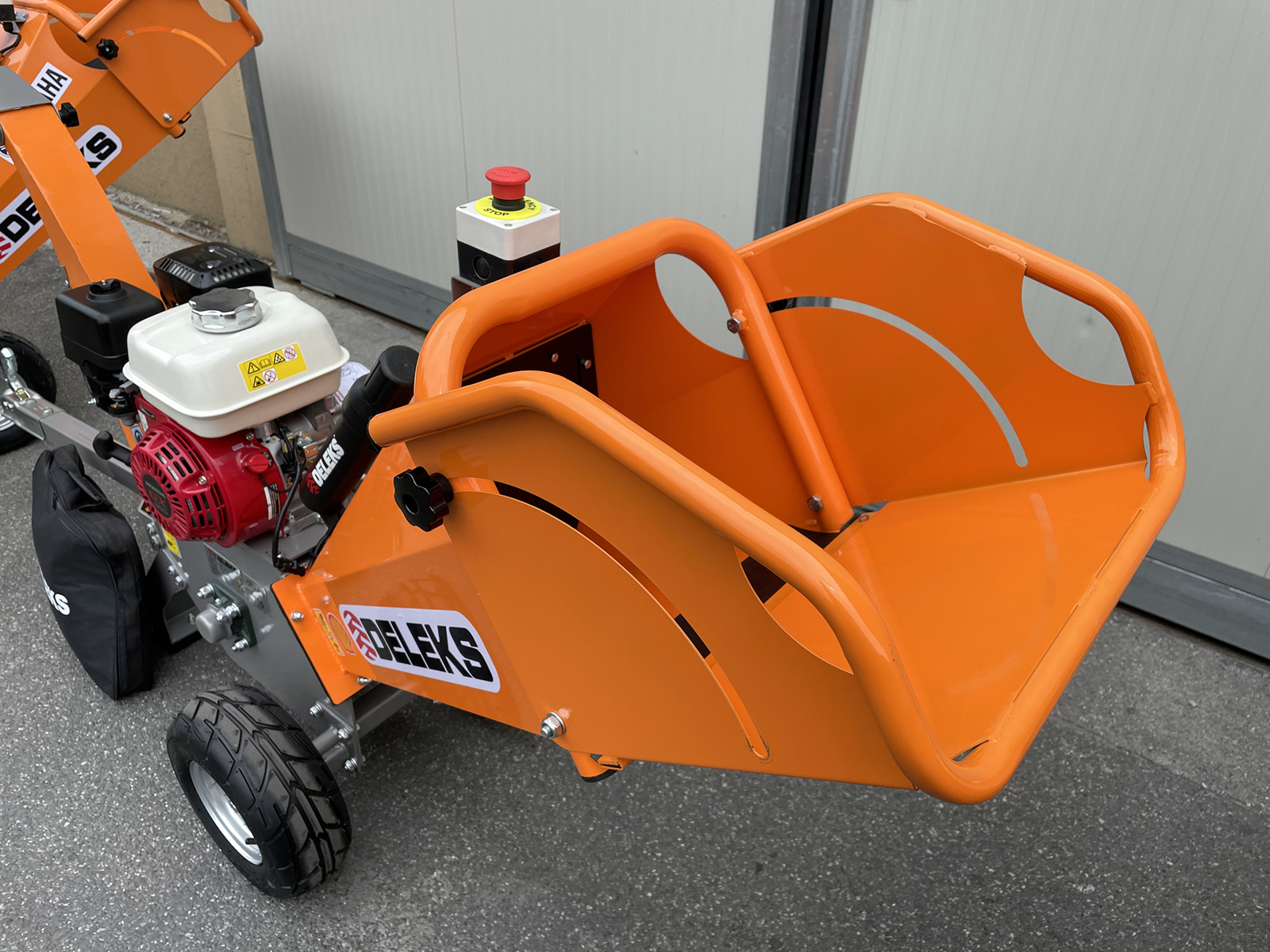

Cutting inlet sizes 150.0*120.0 mm 5.90*4.70 in

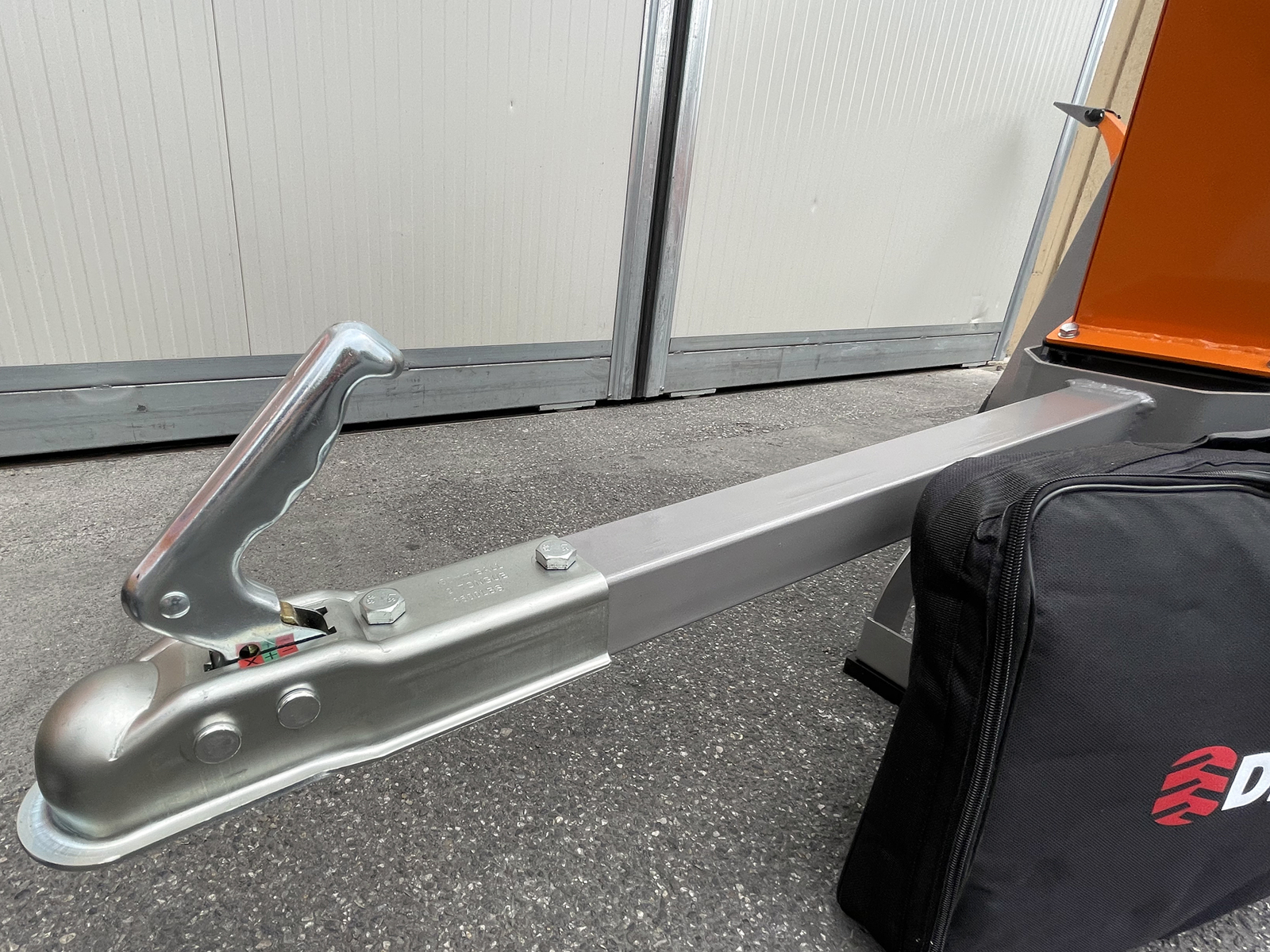

Towing bar x x
Outlet hight 1050.0 mm 5.08 ft
Fuel consumption 0.8 l/h 0.8 l/h
Packing sizes 880.0*580.0*870.0 mm 2.88*1.90*2.85 ft
