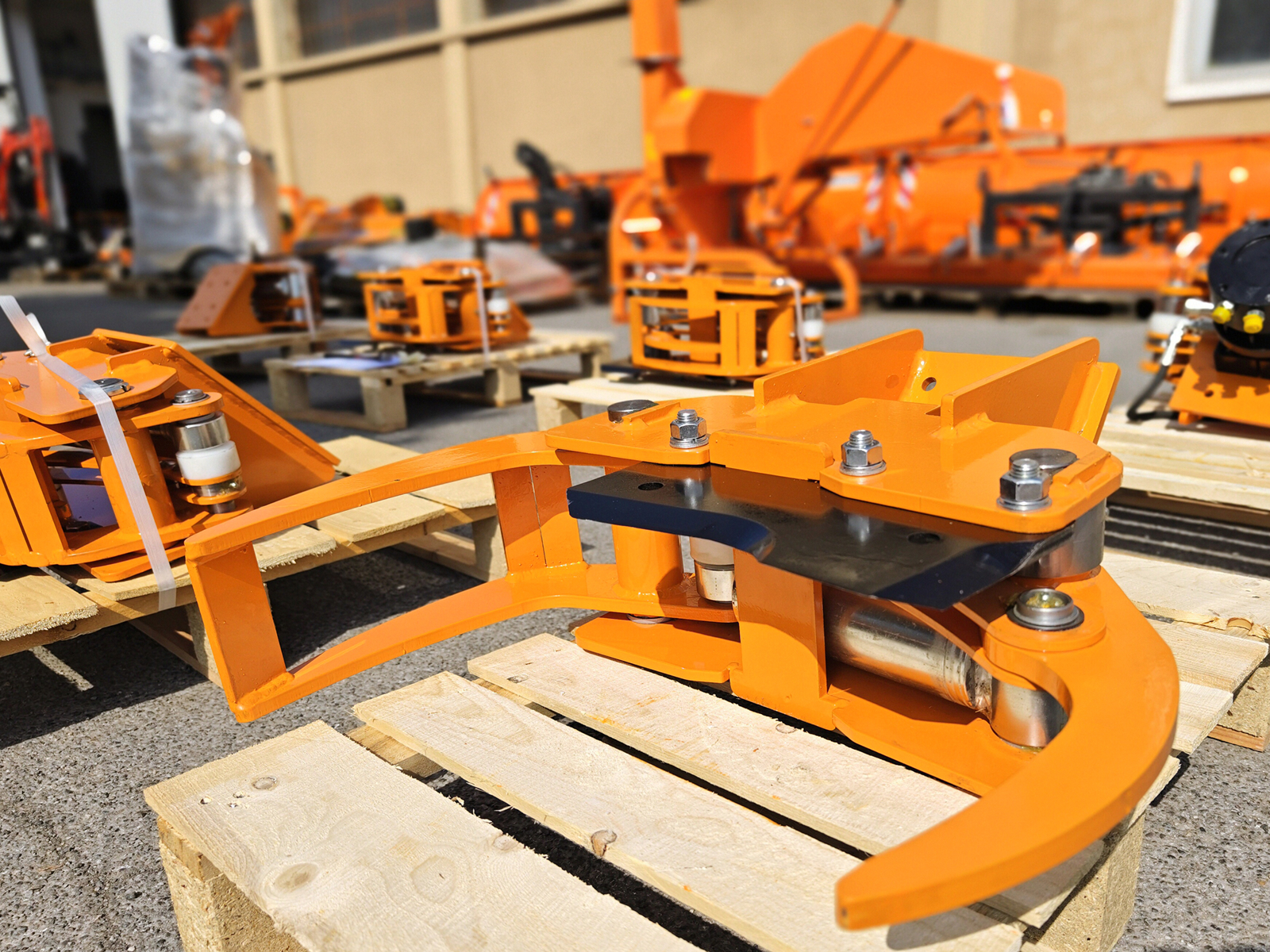

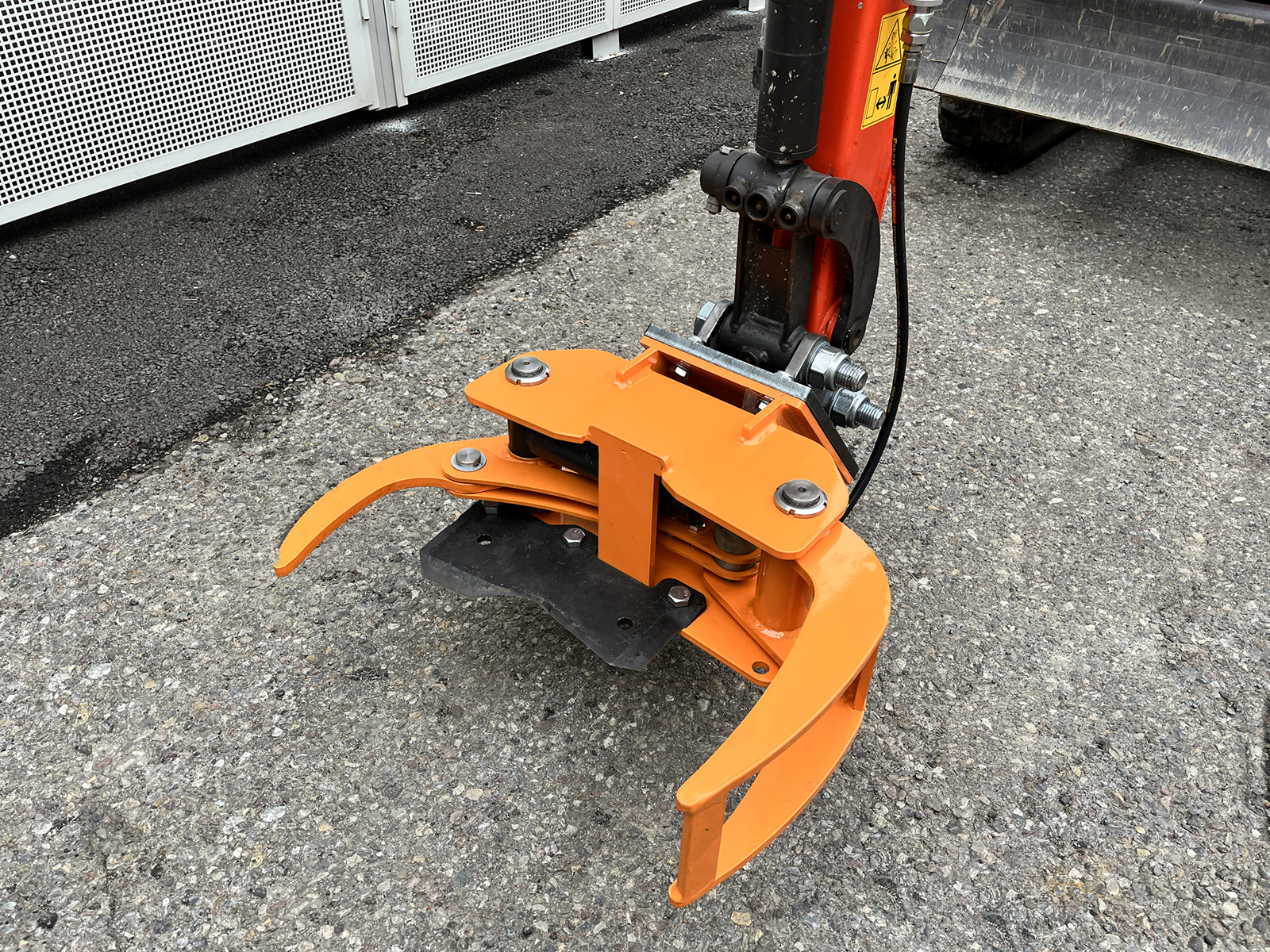

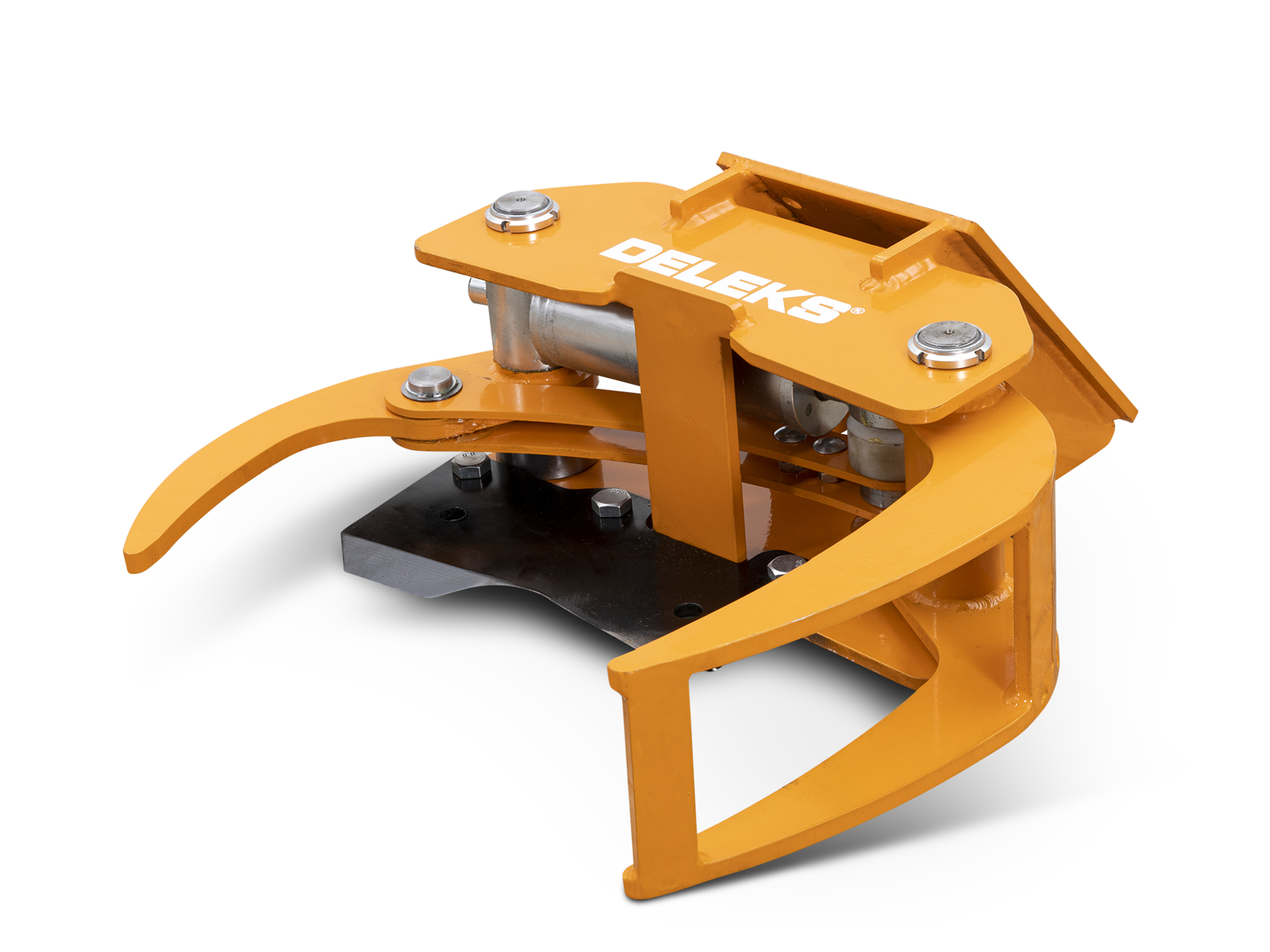

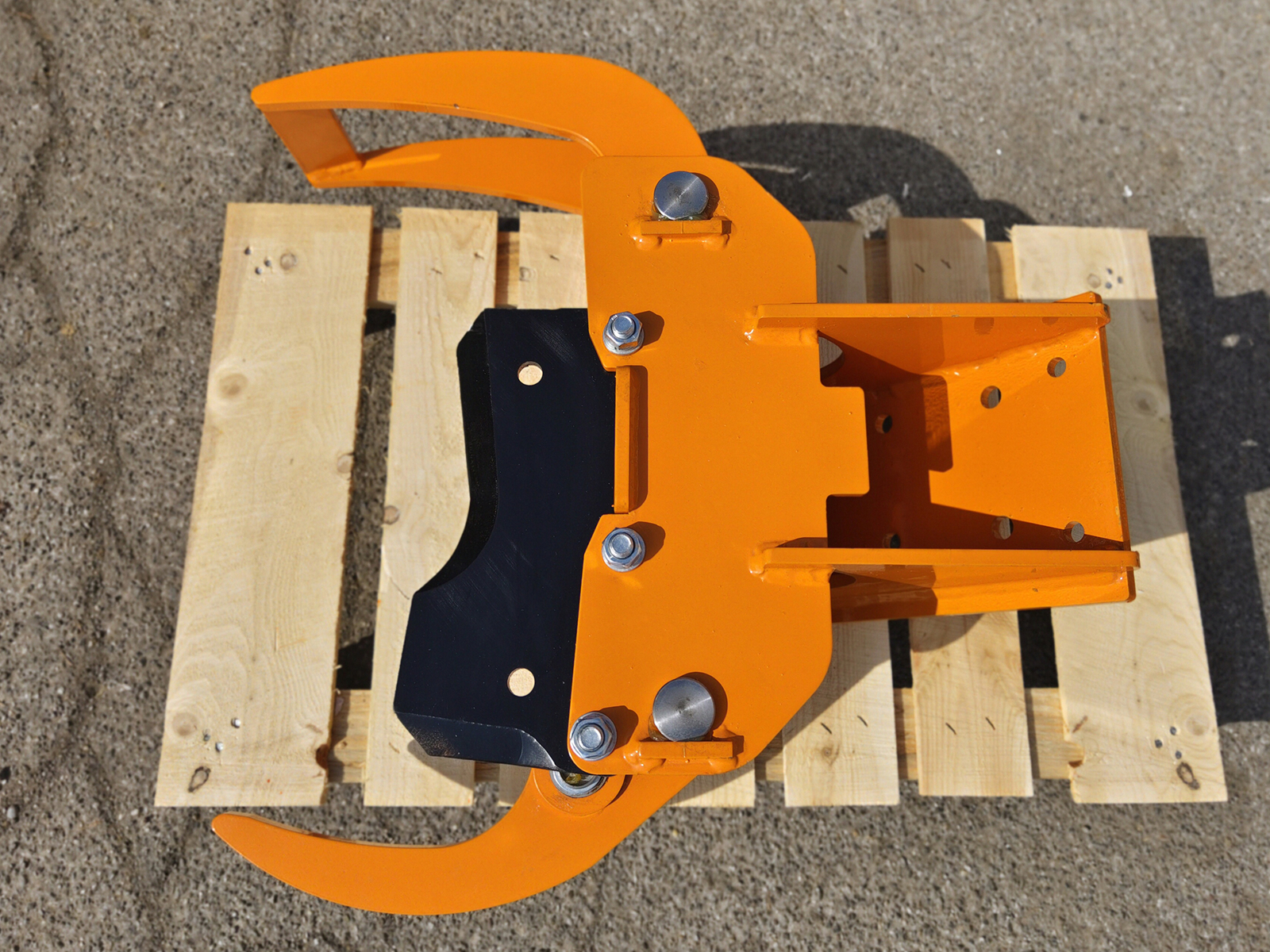

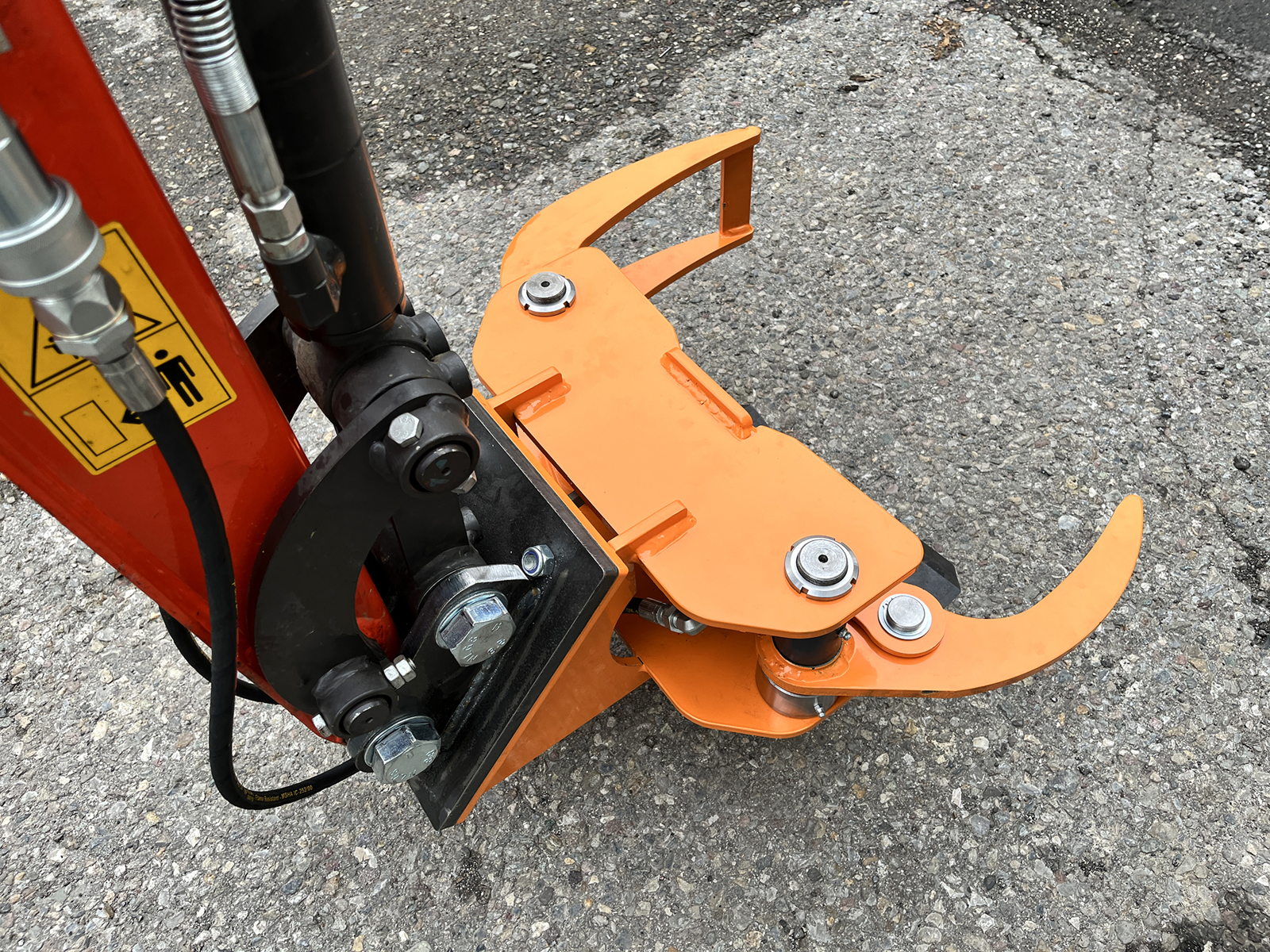

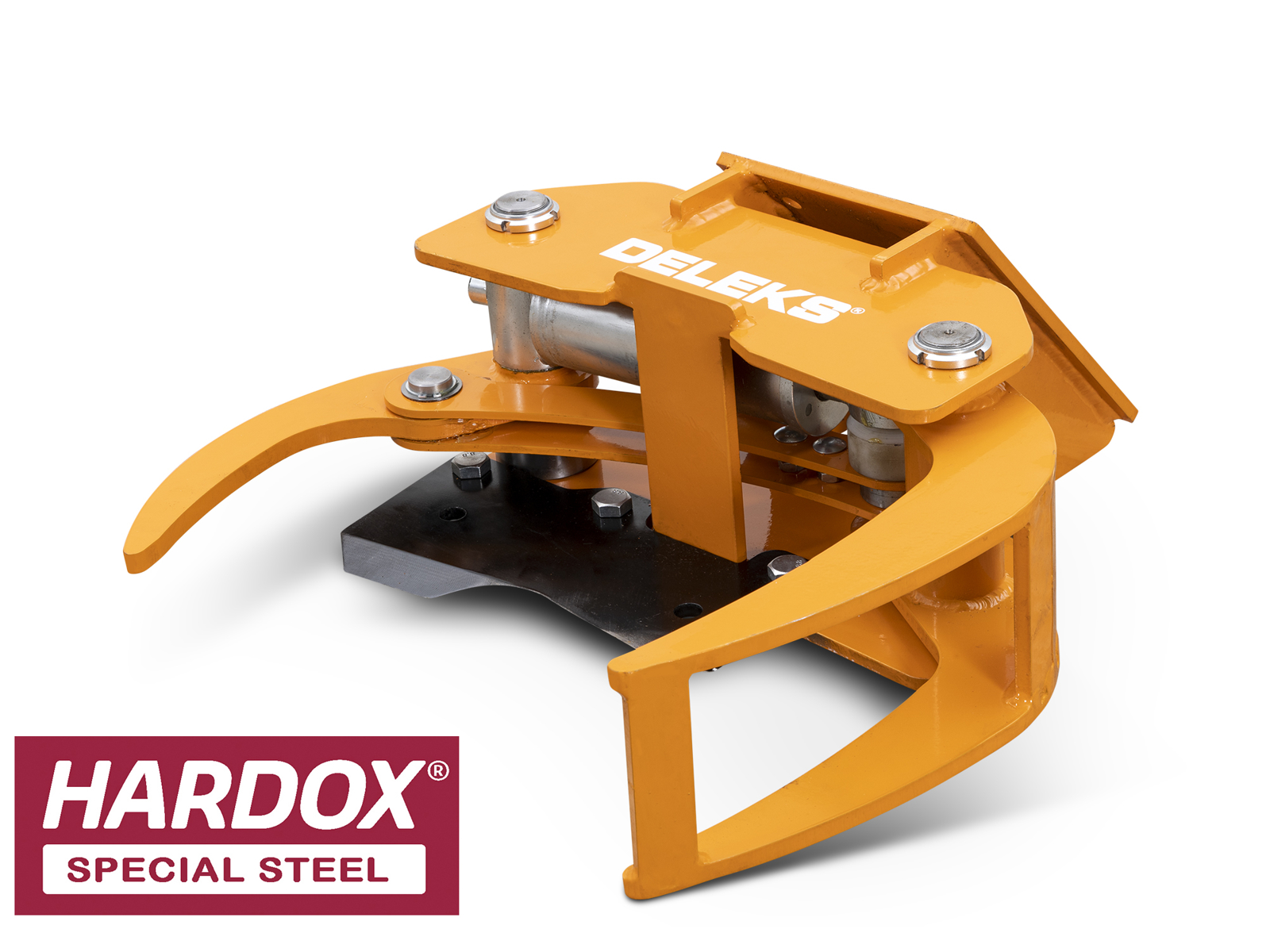

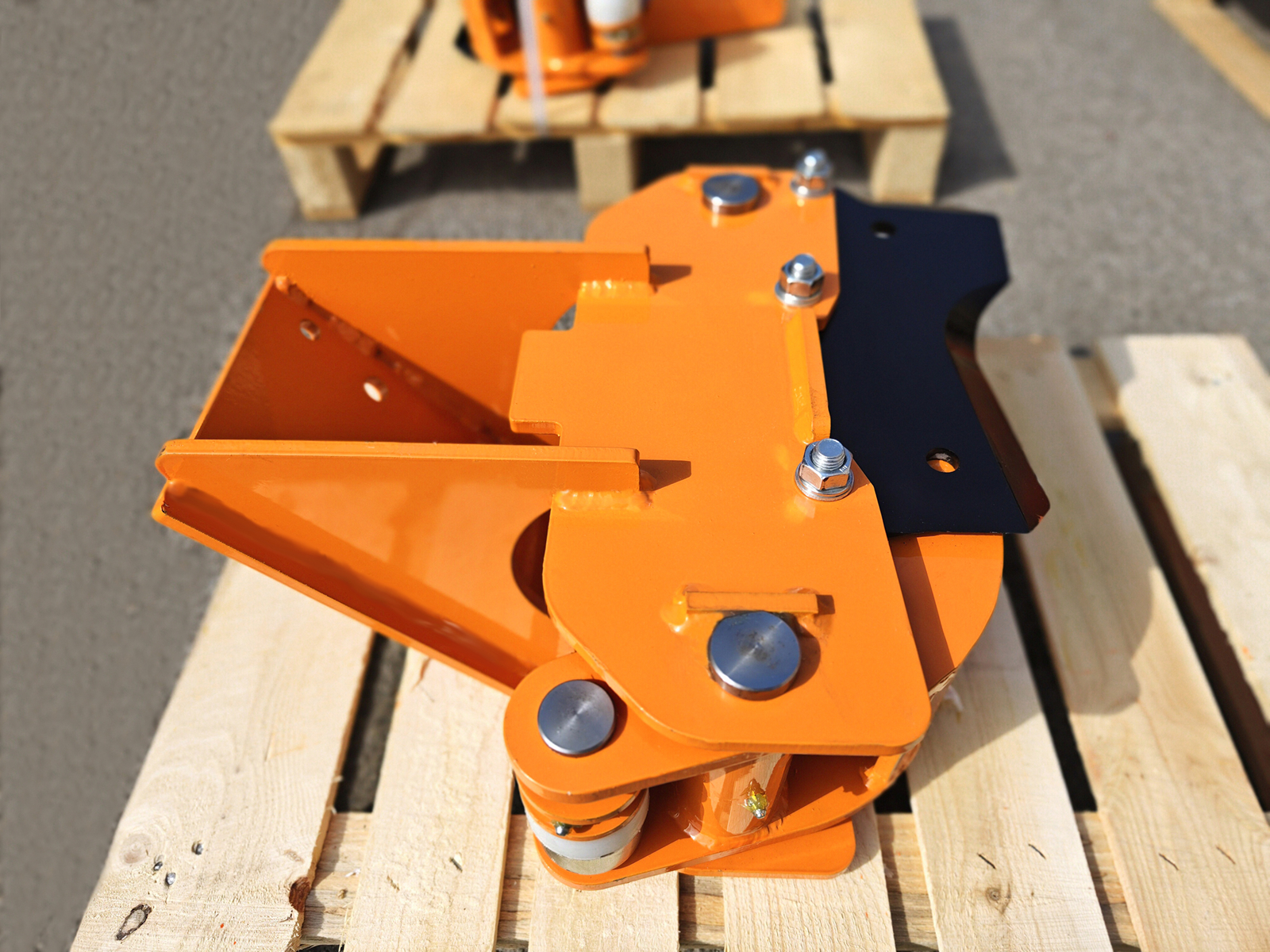

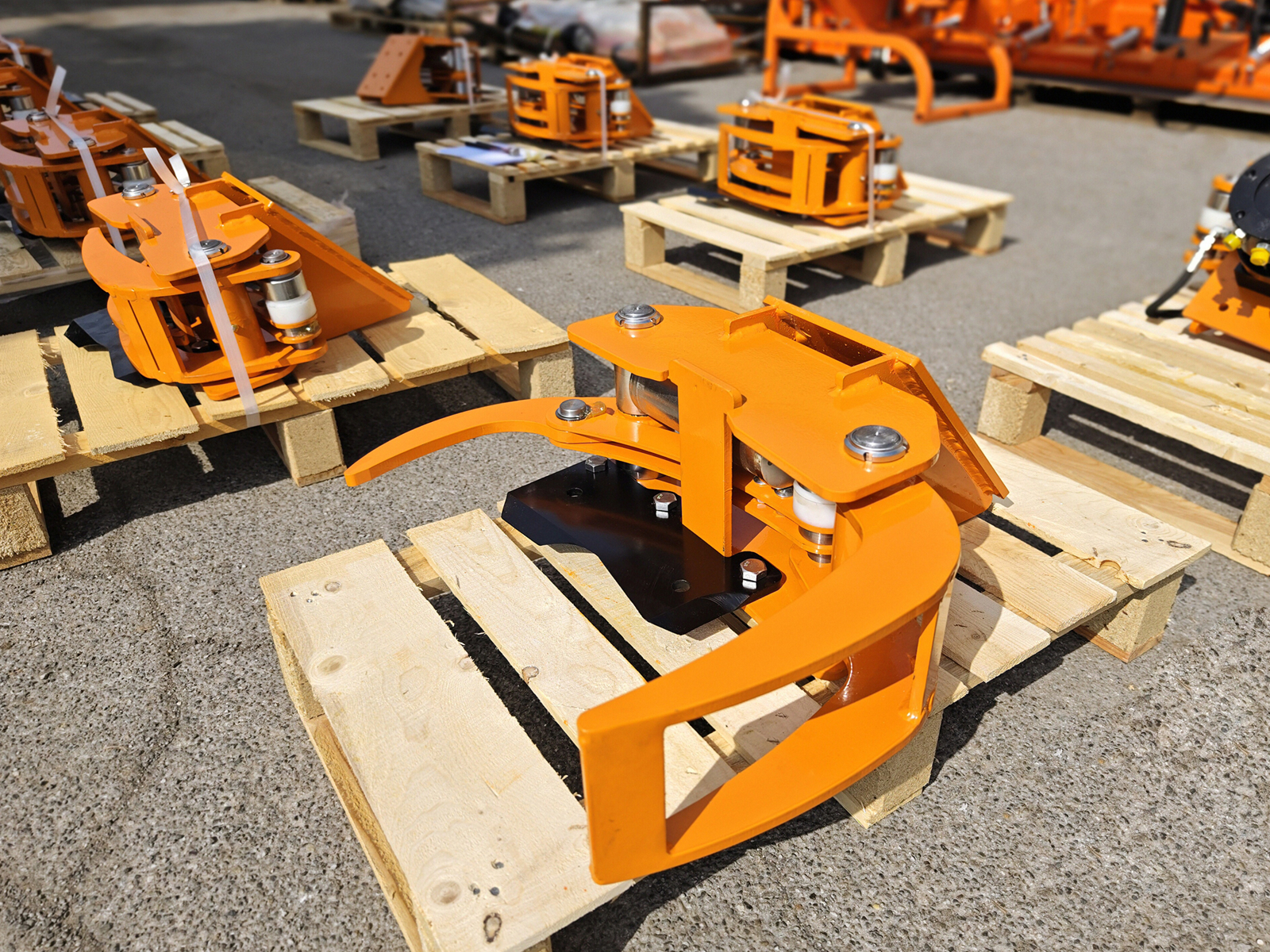

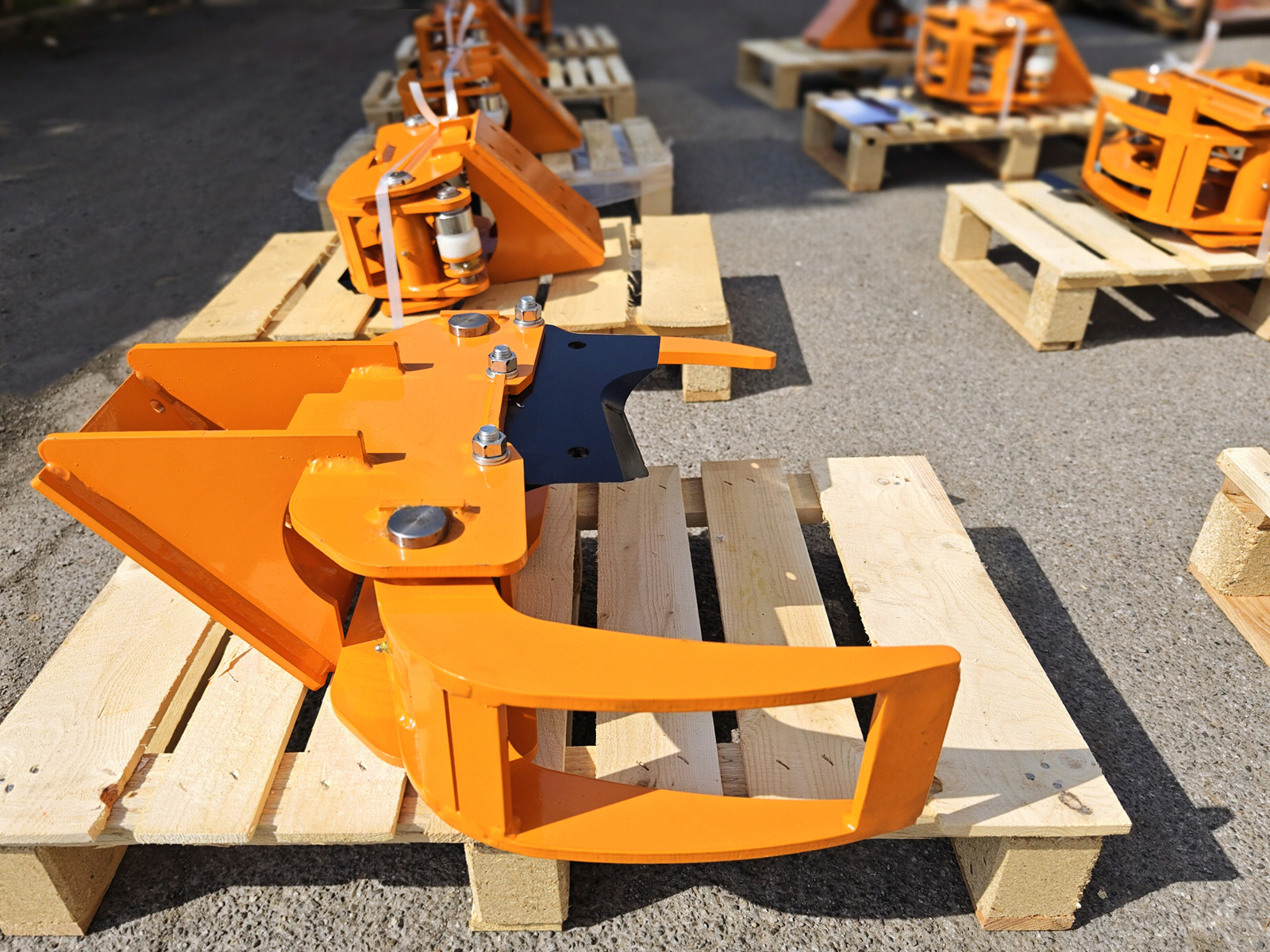

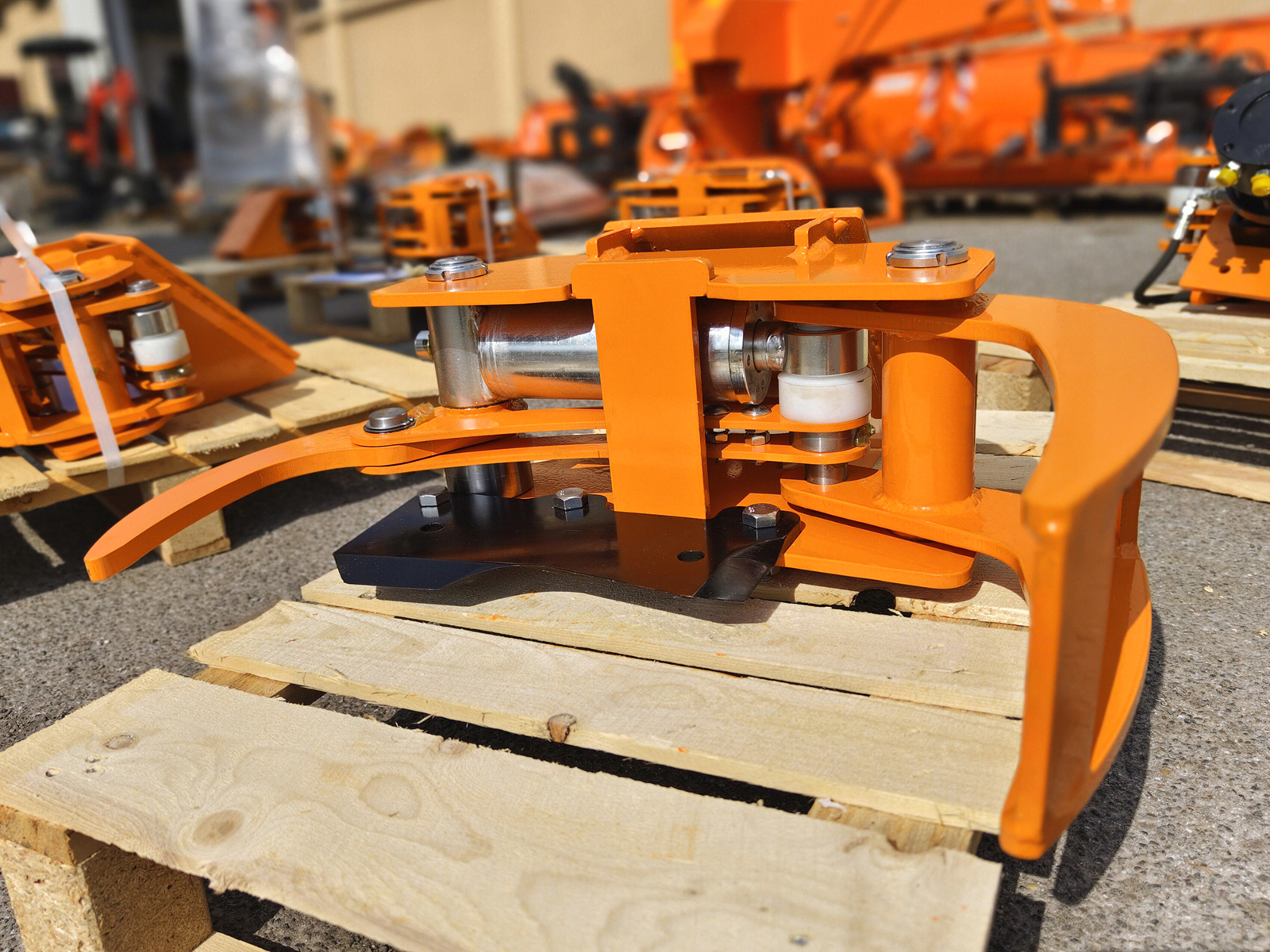

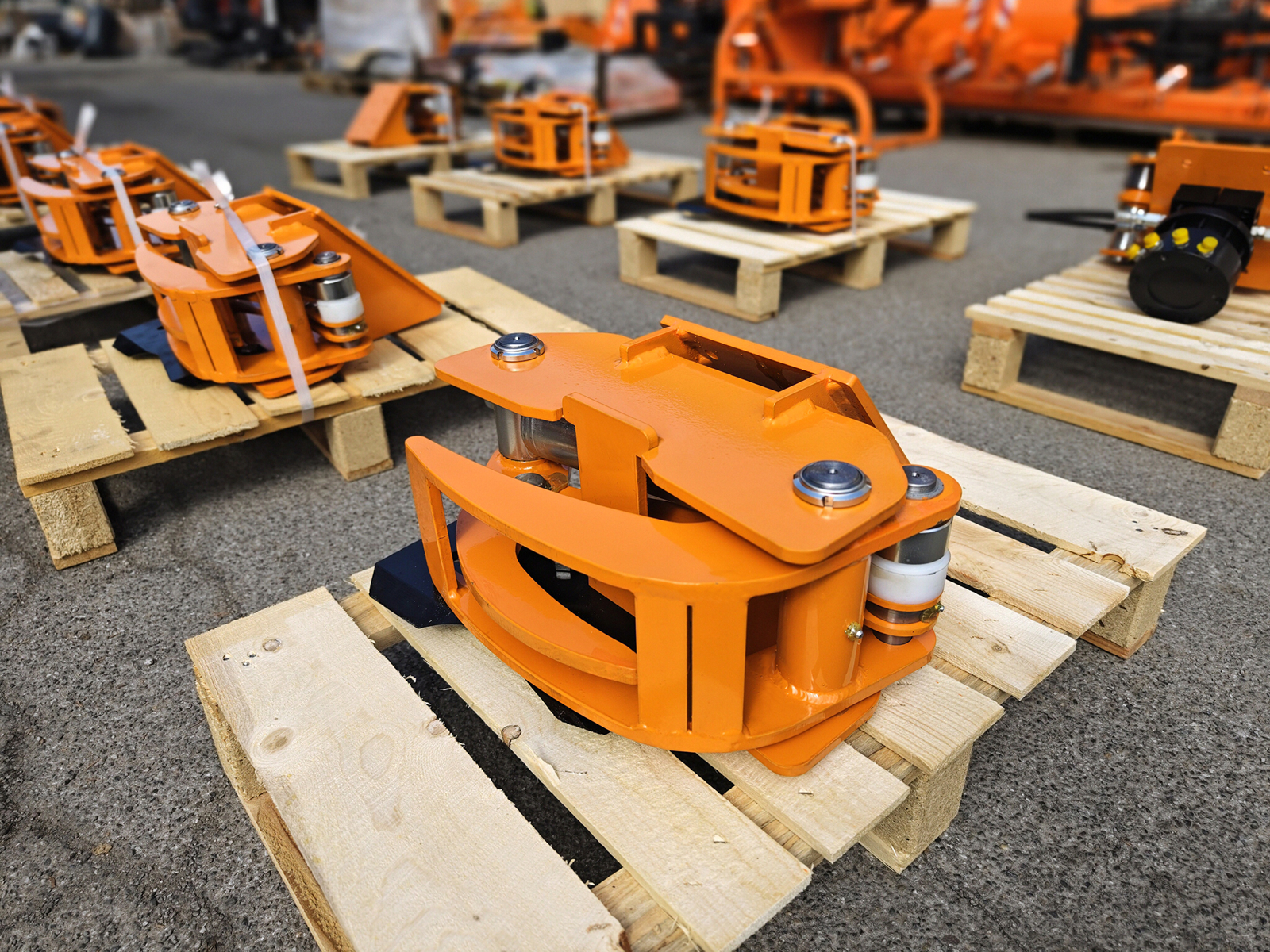

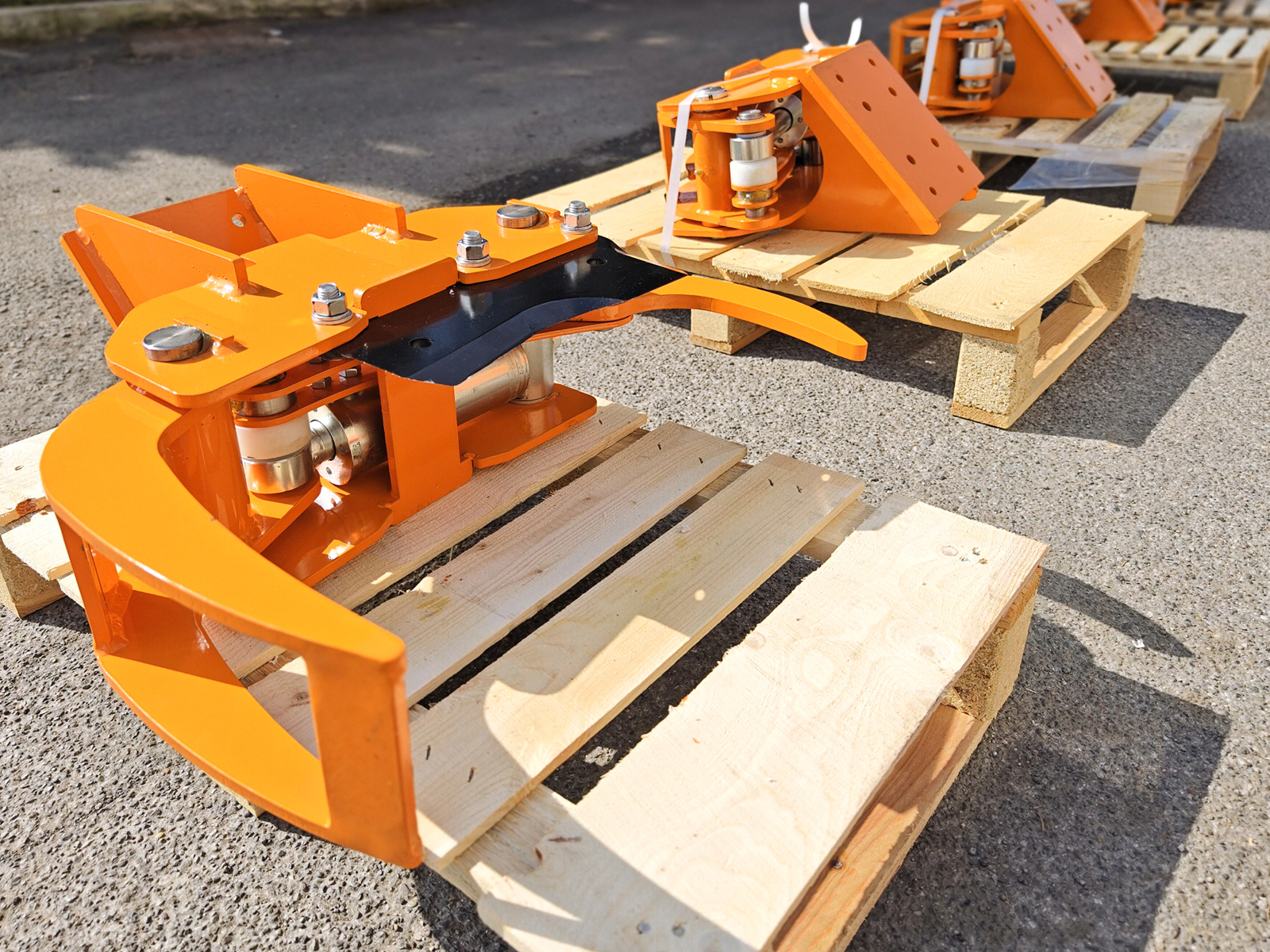

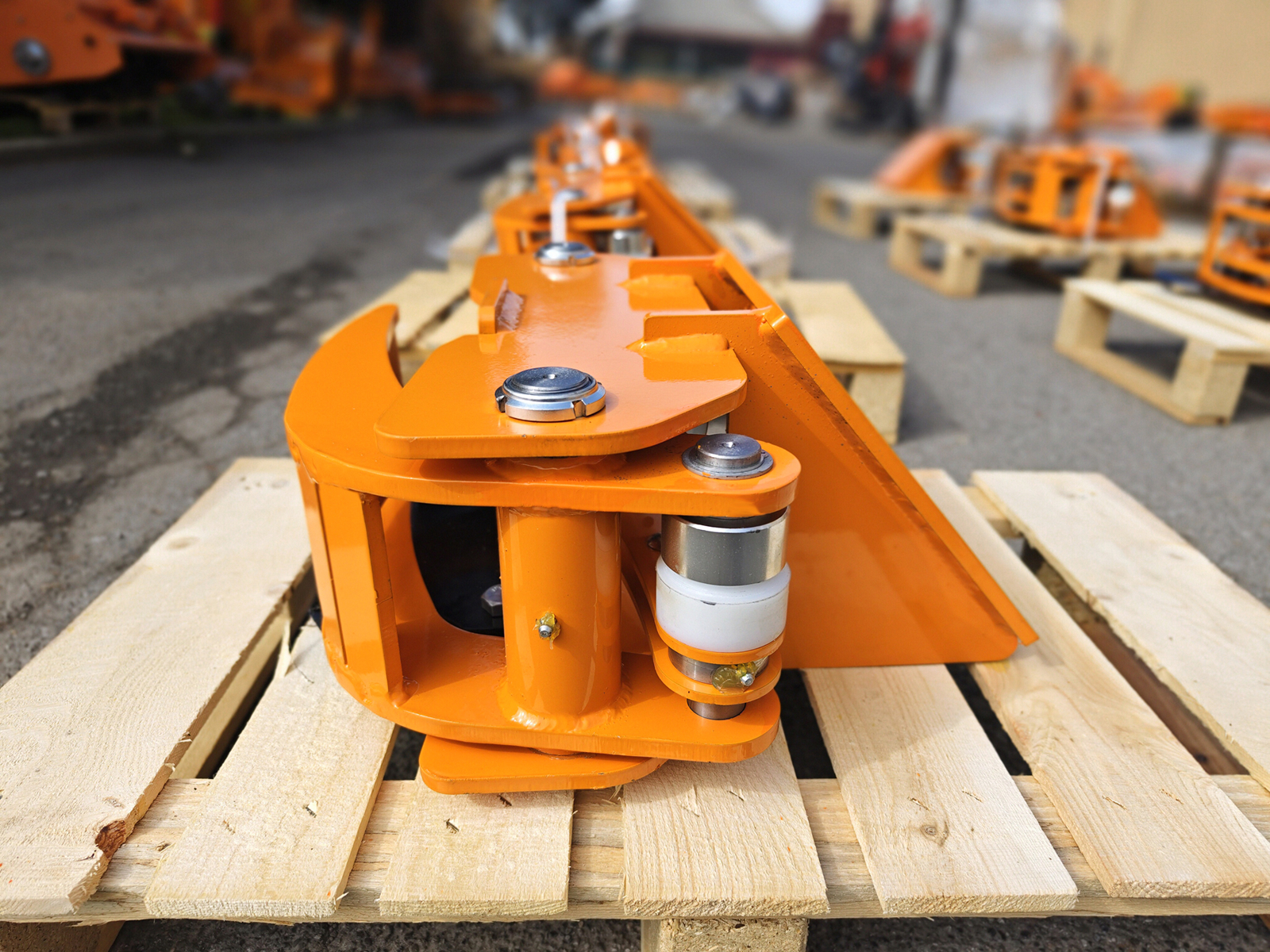

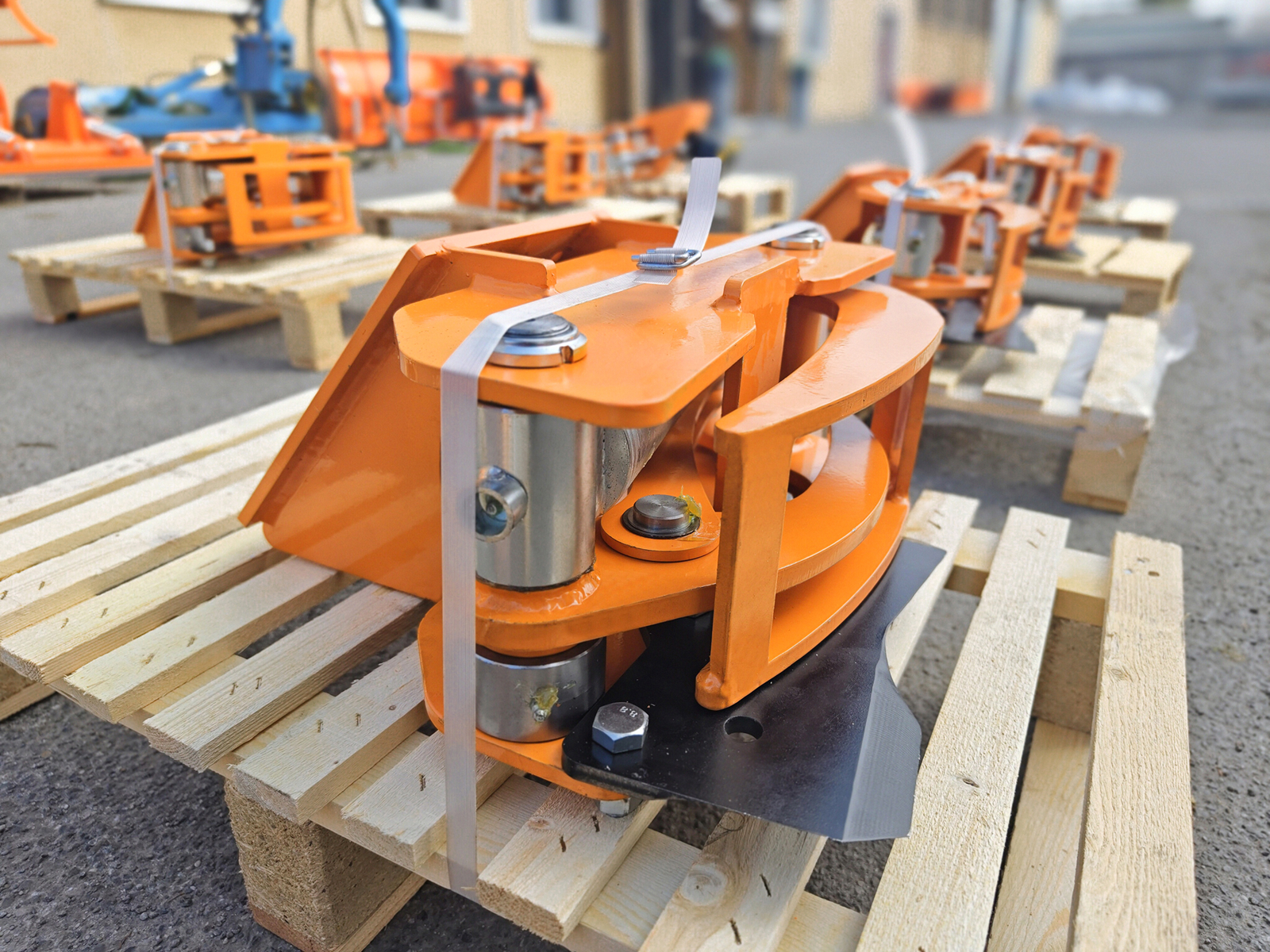

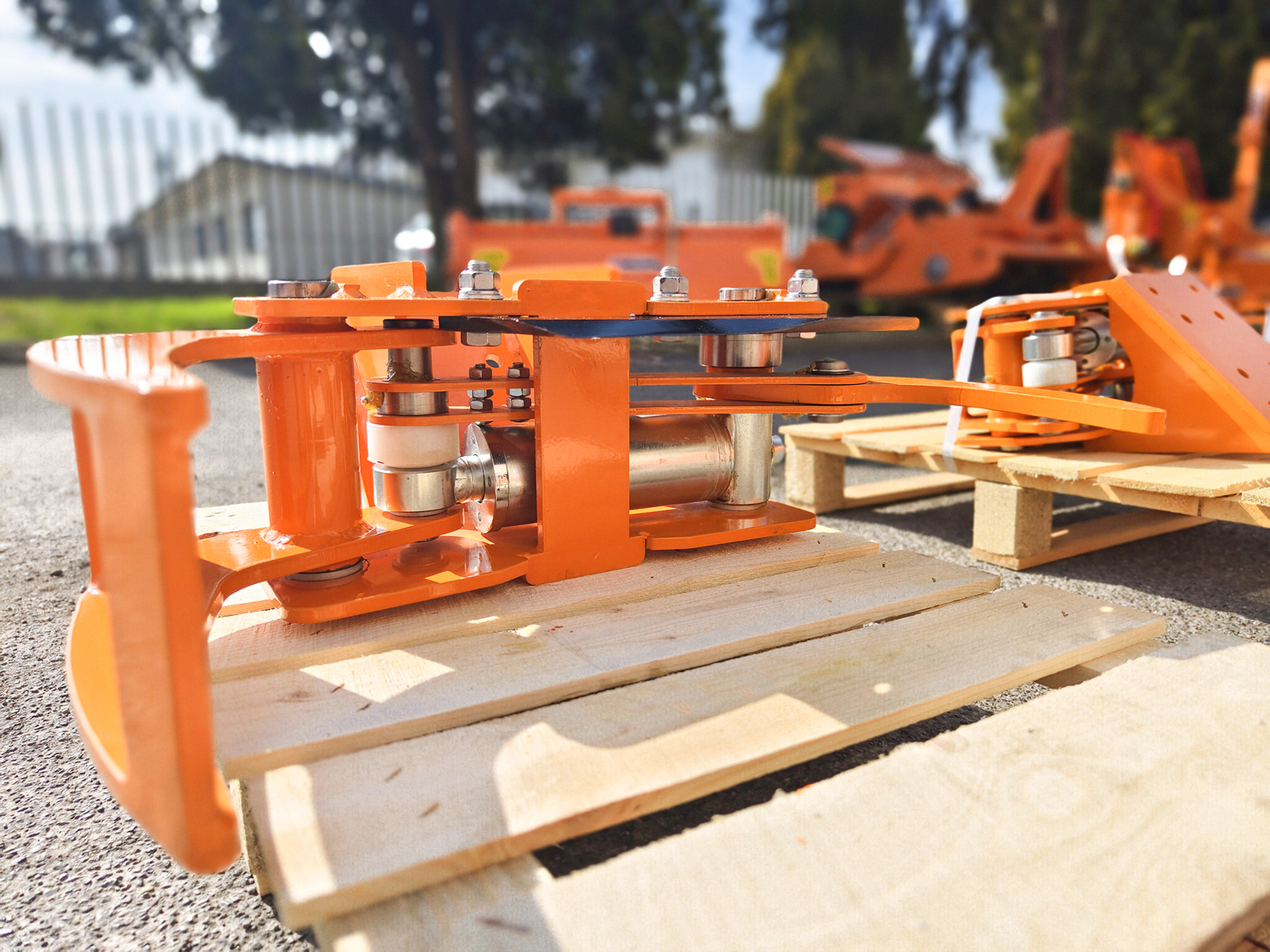

DELEKS® Tree shear designed for versatile professional use, suitable for use in smaller scale excavators up to 2 ton or front mounted on a skid-steer, telescopic or tractor.
CF-10 is ideal for harvesting low-grade timber and energy wood, for clearing fields and roadsides.

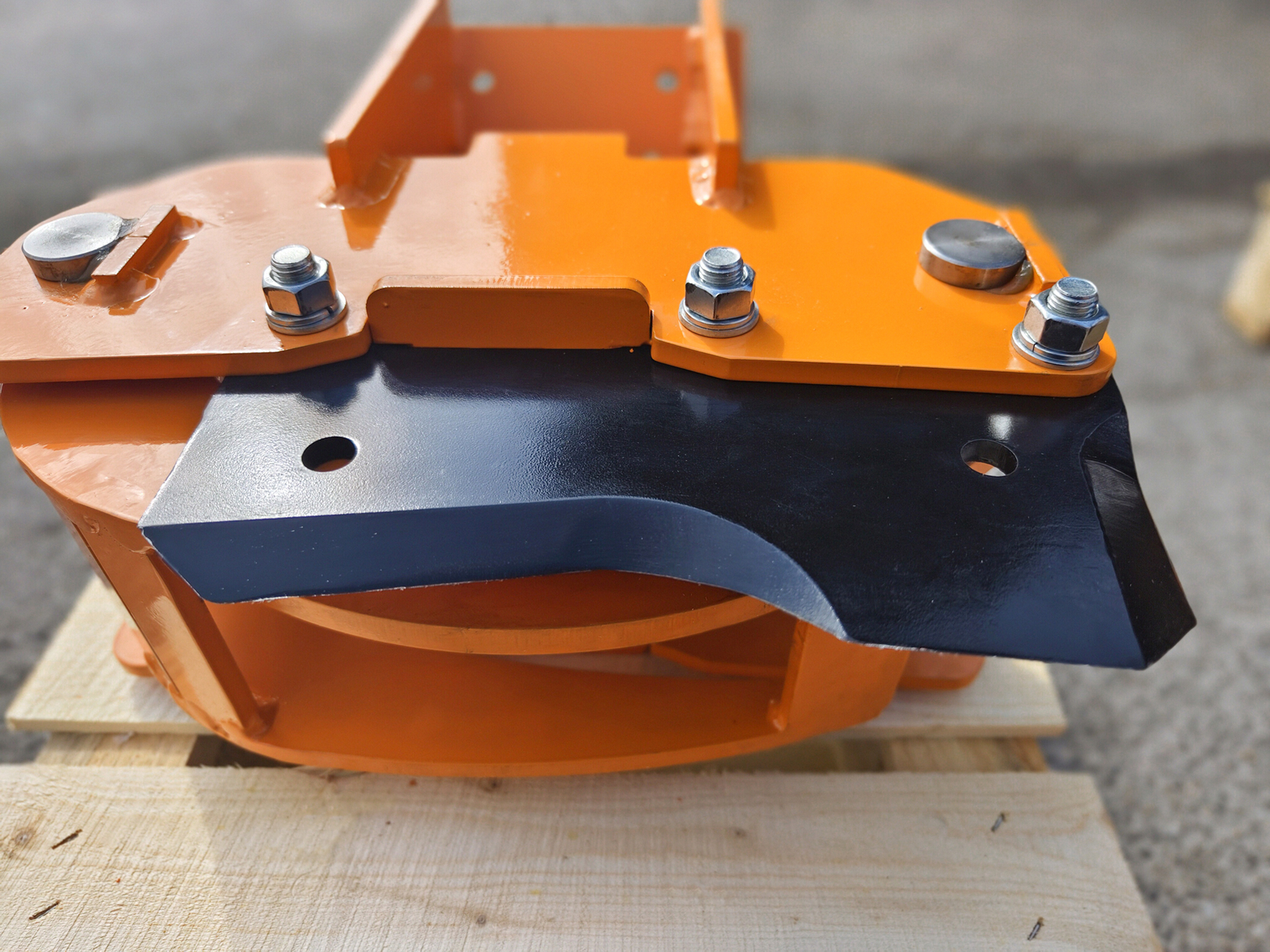

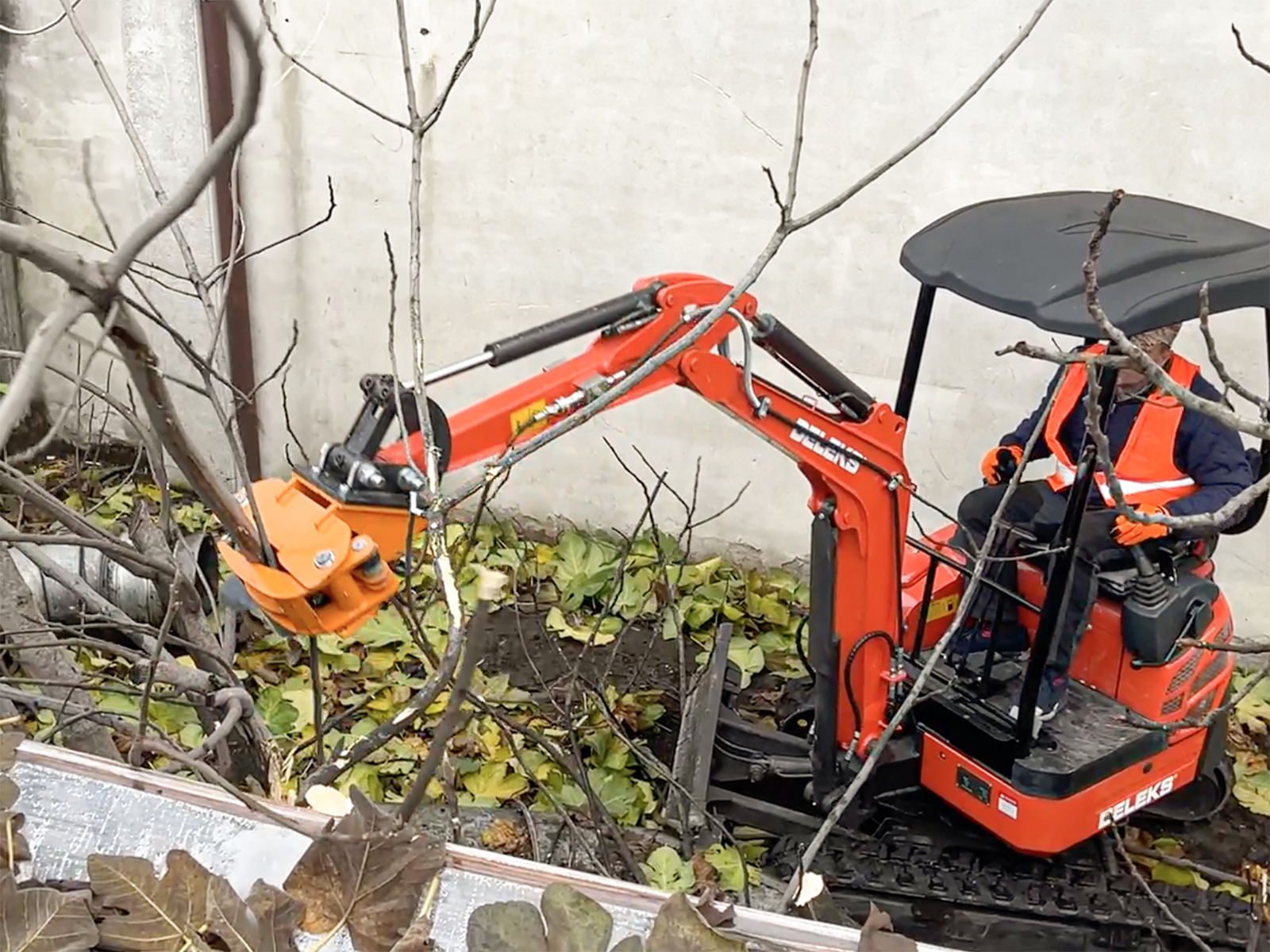

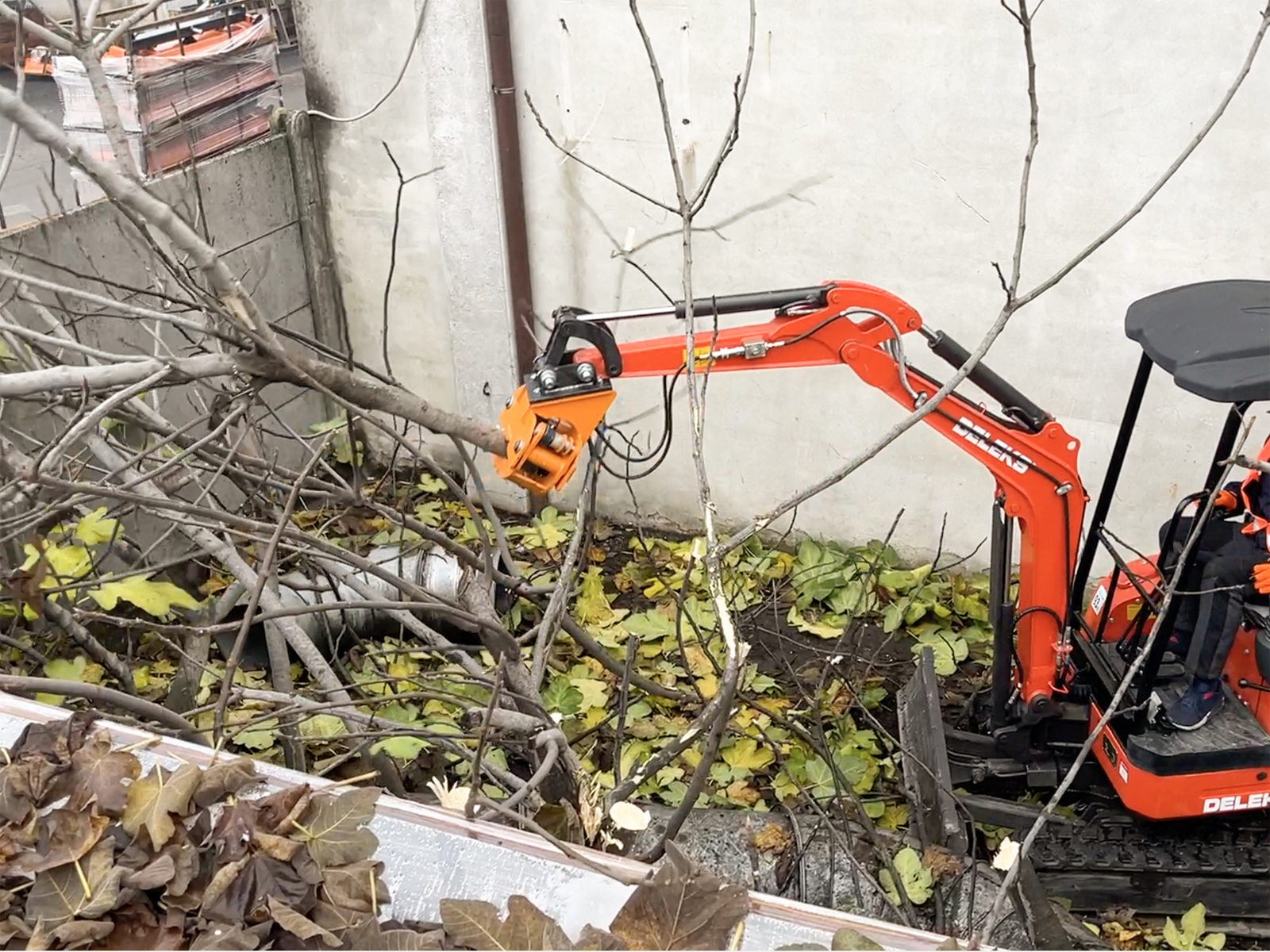

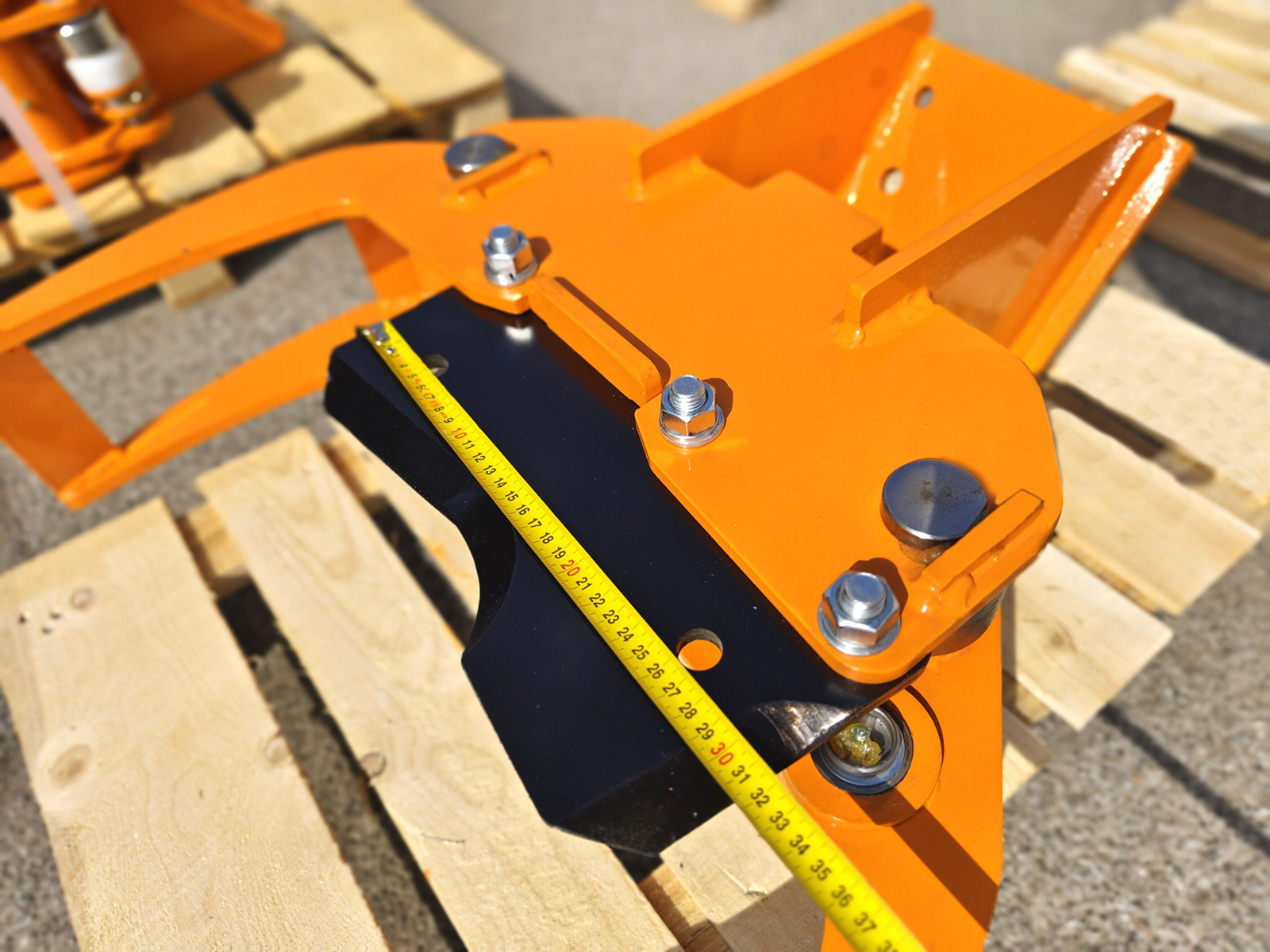

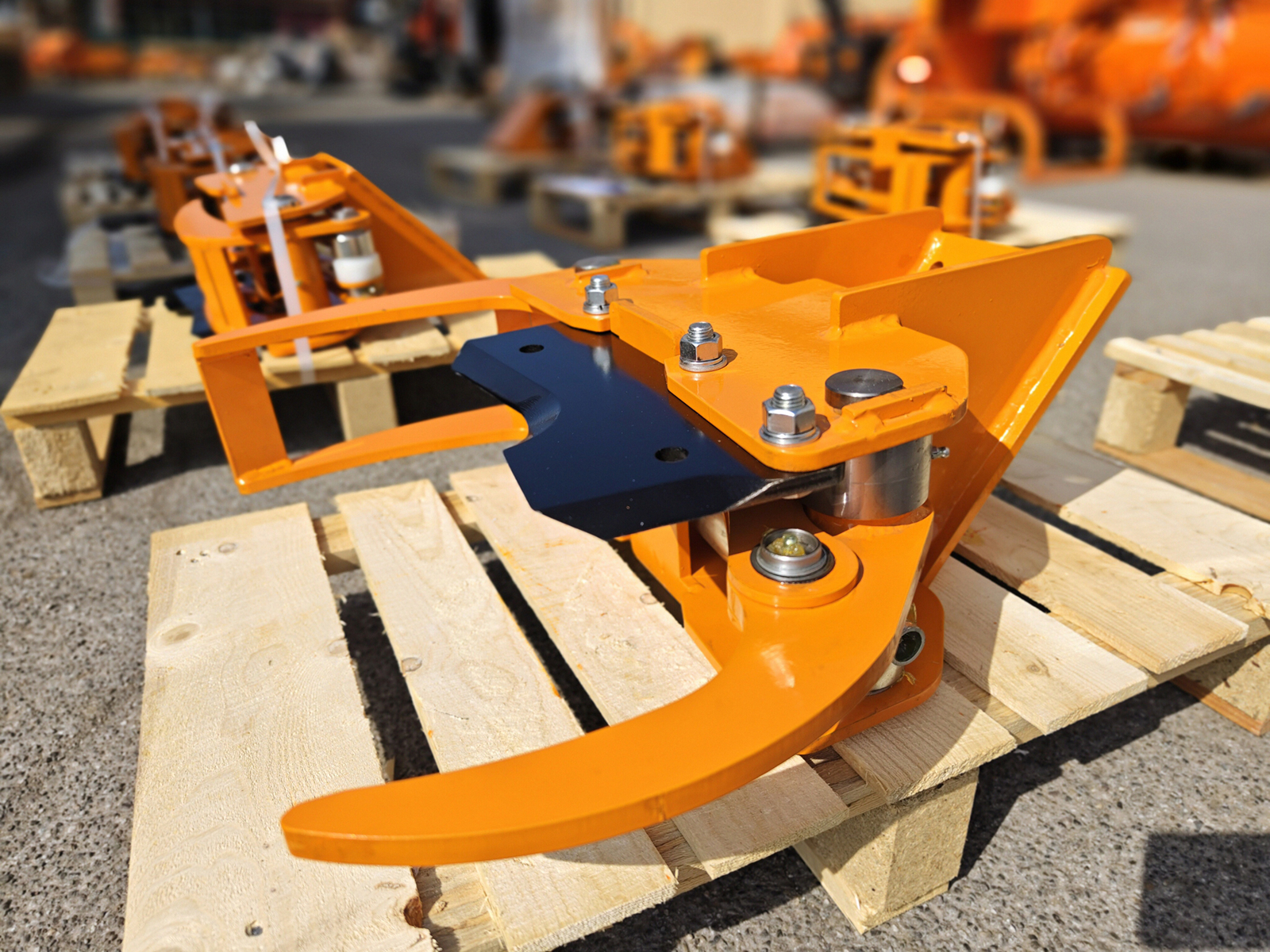

The DELEKS® mini-excavator hydraulic shear is capable of cutting trees or bunching thinner woods together with the grab for cutting. The shear has a powerful hardened blade that will cleanly and safely cut through timber.

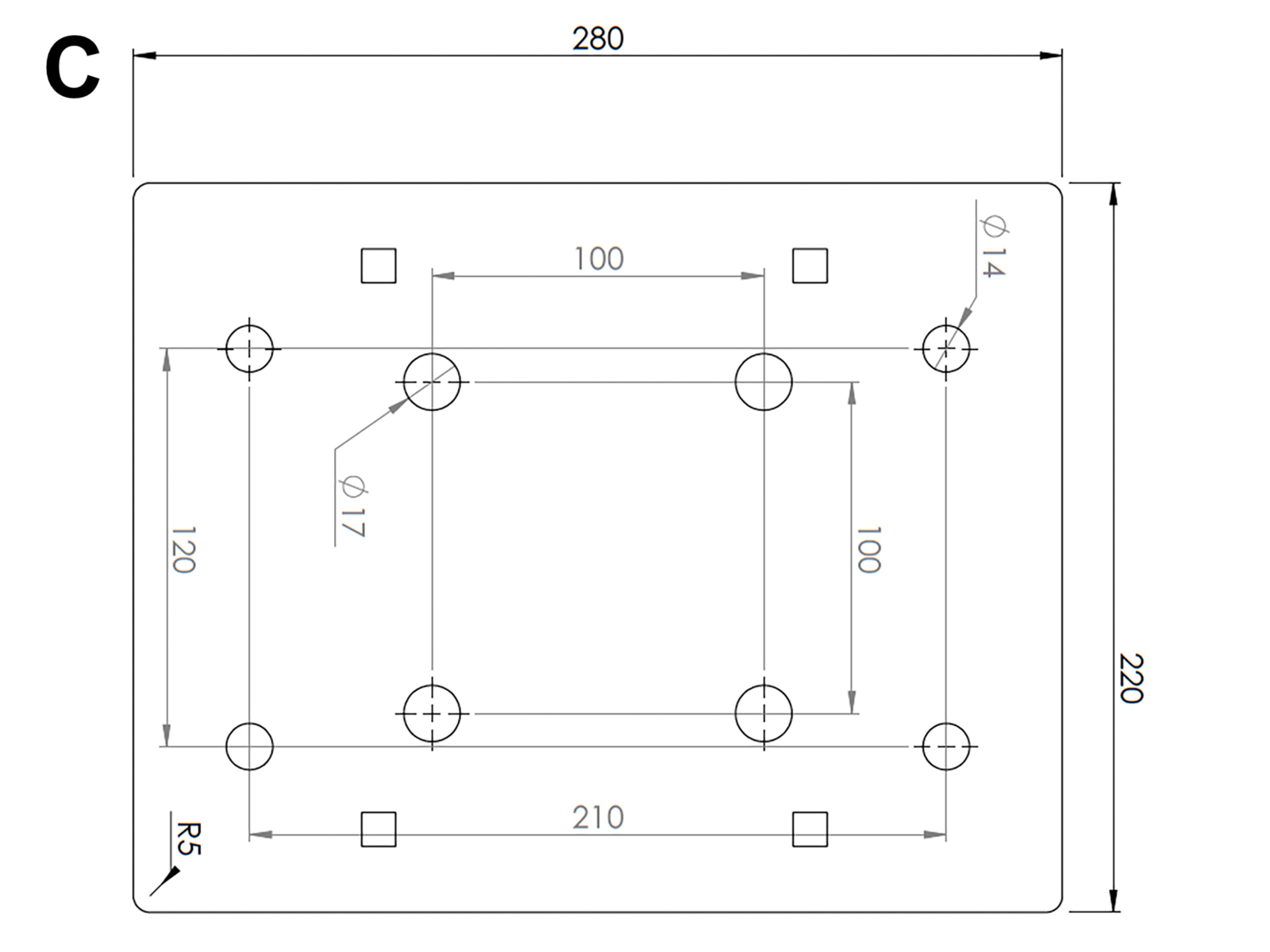

Available with excavator couplings (on request).
The shear is available as fixed or full 360 degree rotate by hydraulic rotator to de-limb trees or cut fallen timber.
BENEFITS & FEATURES
It is simple to attach and use.
CF-10 is the smallest shear of the range, and its light weight allows to the mini excavator to maintain its capacity.
Cutting at the ground level > low stump: DELEKS® CF-10 cuts the wood to be harvested neatly and precisely at the desired point from ground level, and its technical features ensure that stumps are cut low, at ground level.
2-in-1: cutting and loading: if necessary, the cutting blade can be removed, in which case the tree shear acts as a wood grapple.
|Caracteristic||Units metric||Units US|
|Weight||52.0 kg||115.0 lb|
|Trunk cutting diameter||90-120 mm||3.55-4.72 in|
|Min./Max. Relief Pressure||150 - 210 bar||150 - 210 bar|
|Min./Max. Flow||8+ l/min||8+ l/min|
|Hydraulic Hoses||400 bar pressure||400 bar pressure|

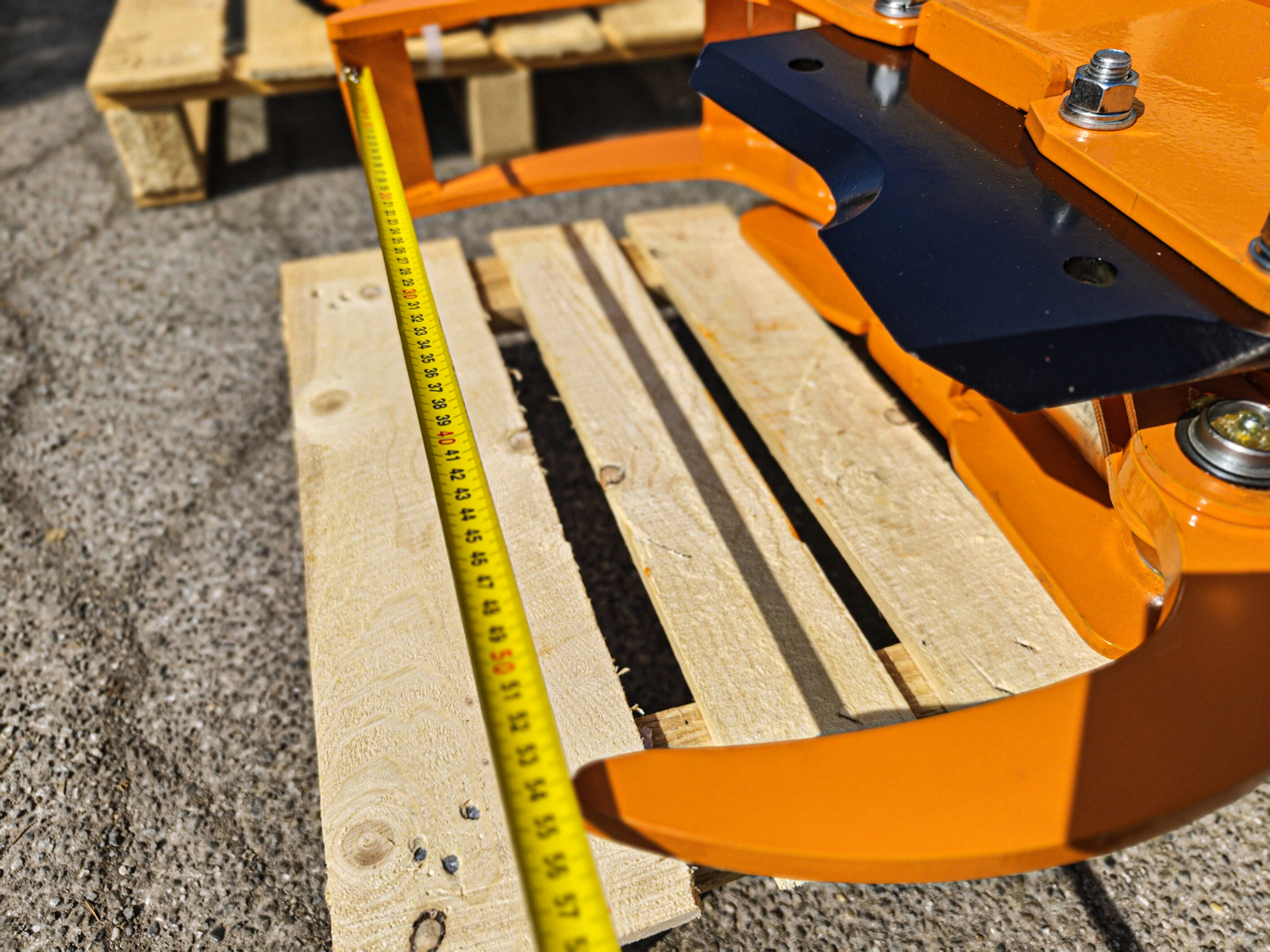

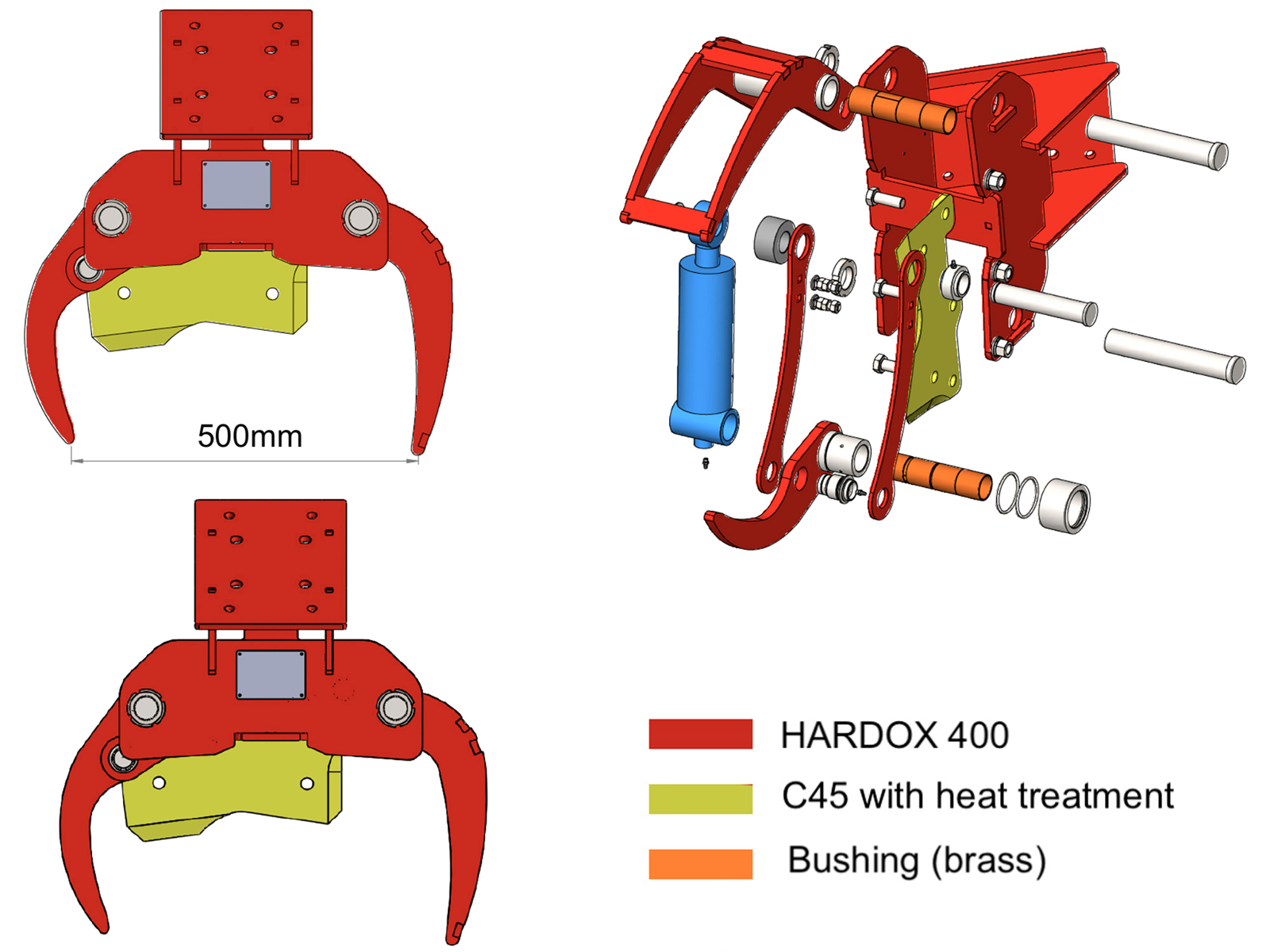

|Max Opening||500.0 mm||19.70 in|

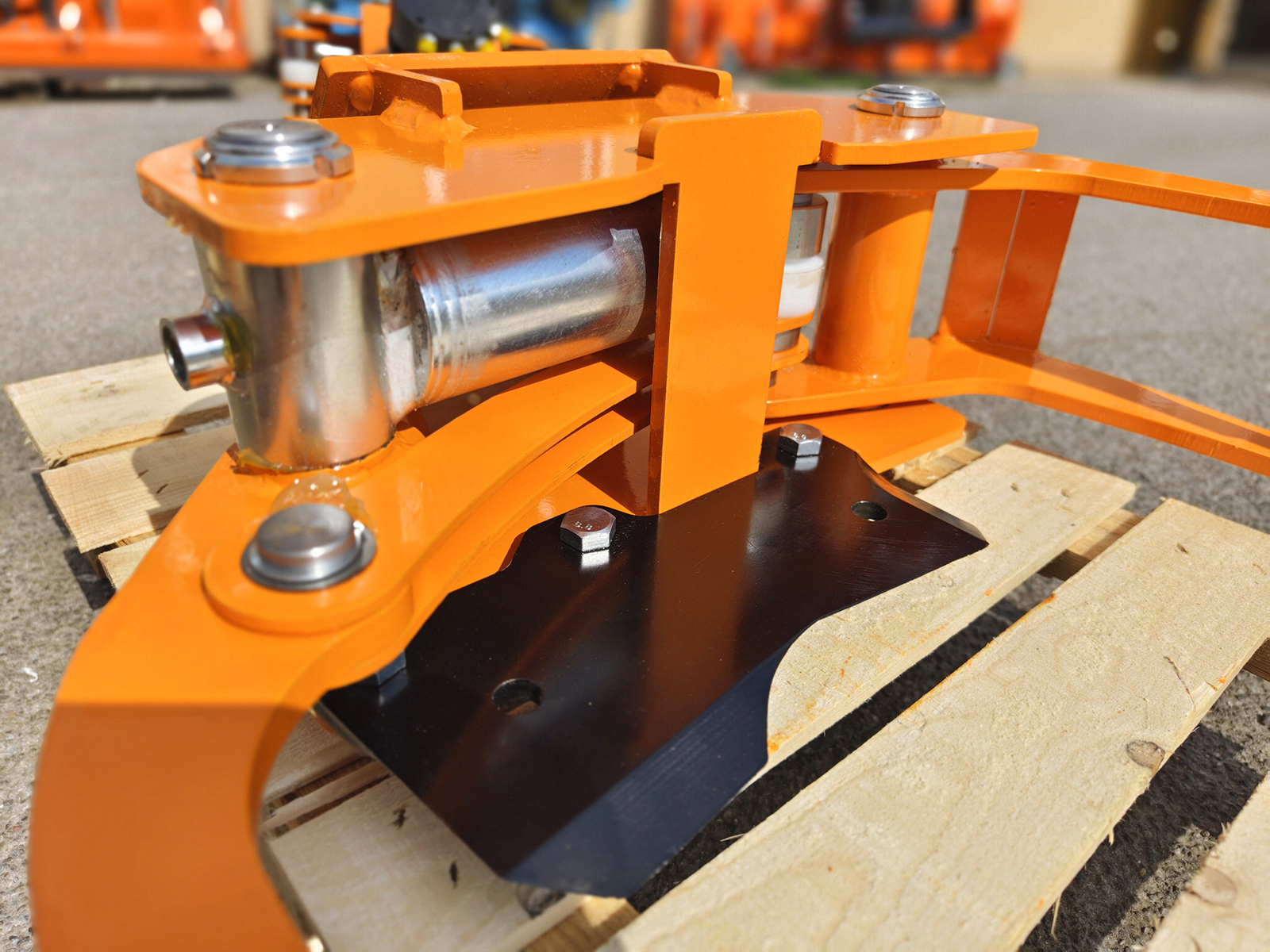

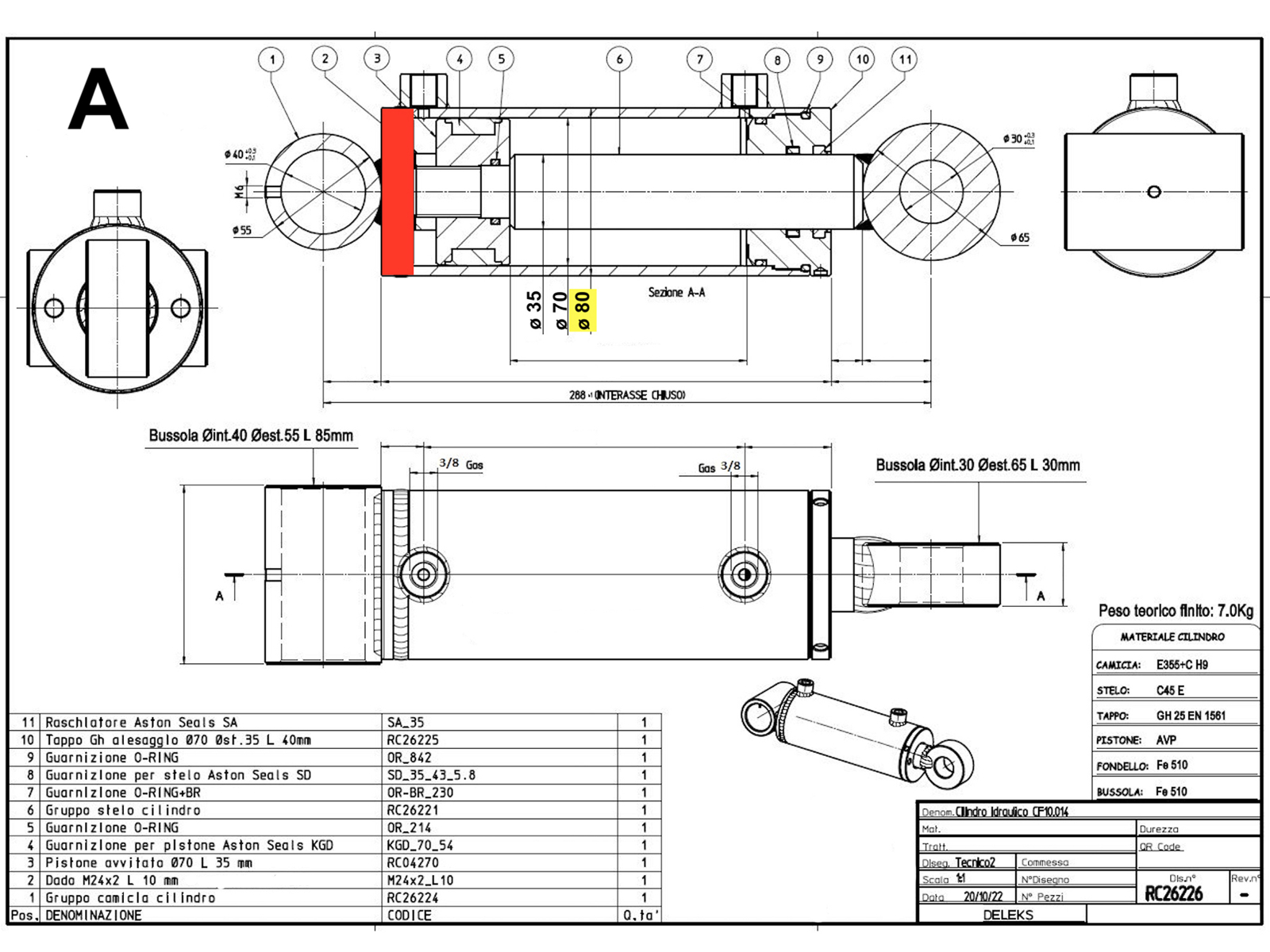

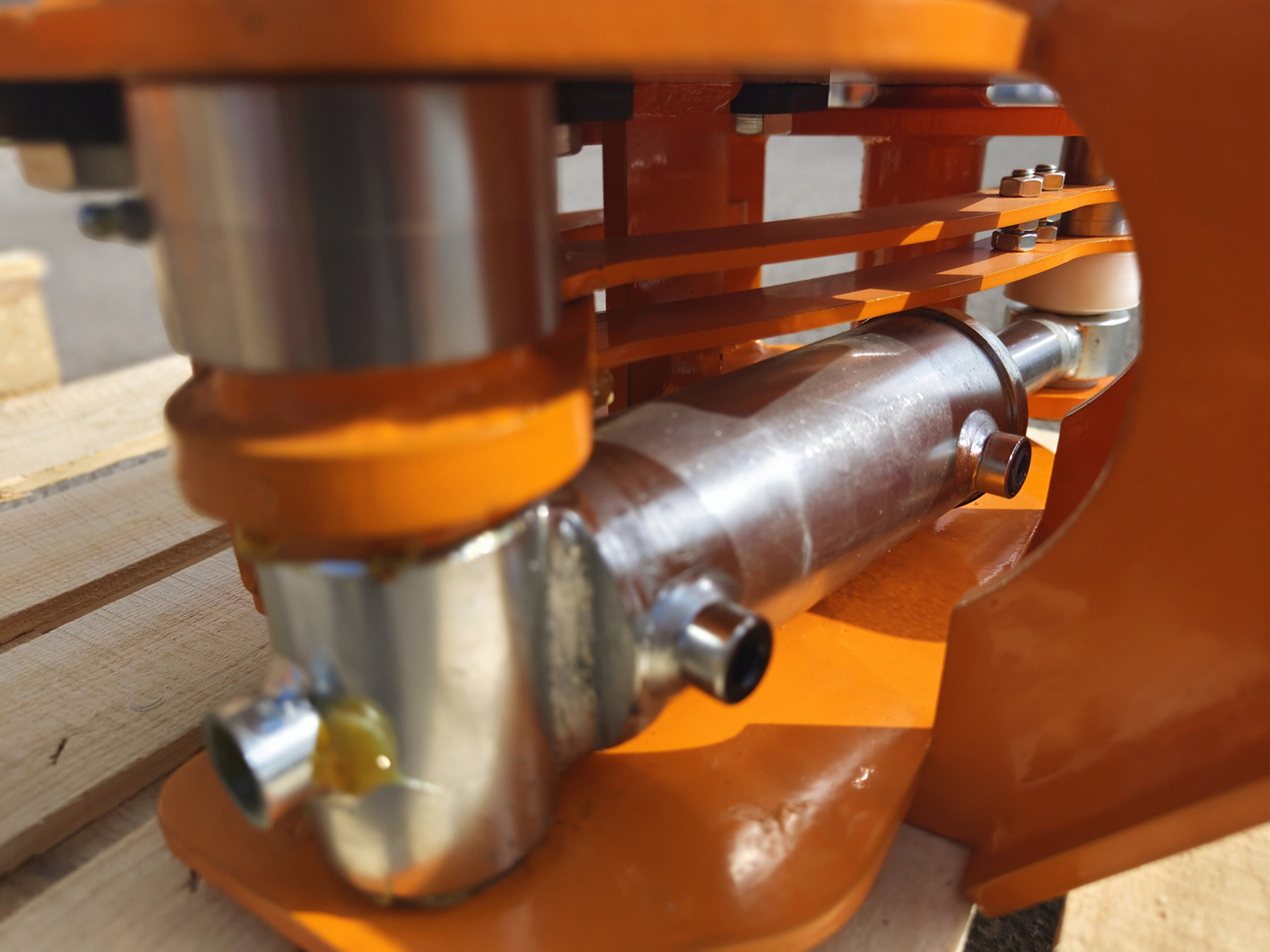

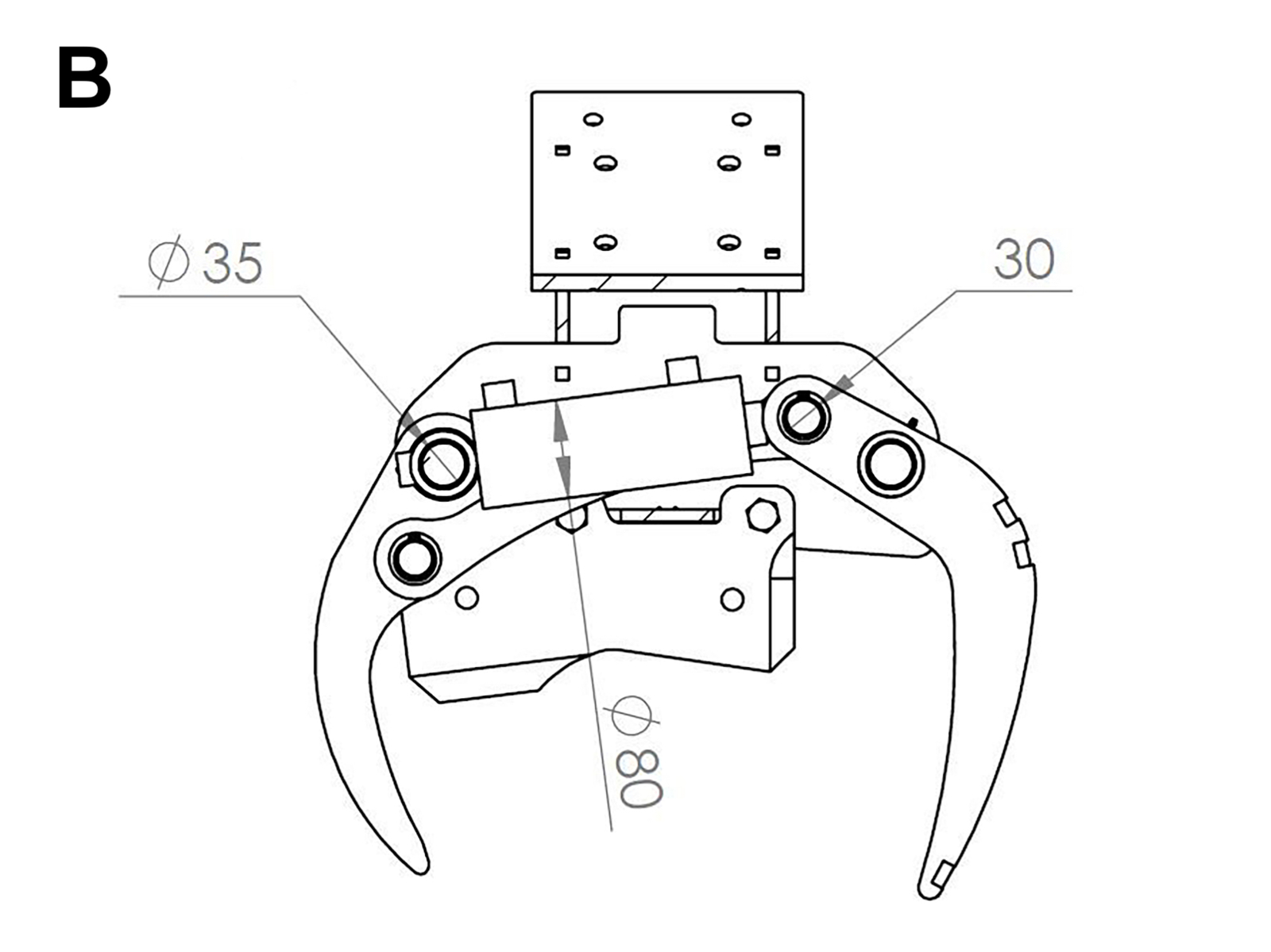

|Hydraulic cilinder diameter||80.0 - 35.0 mm||3.15 - 1.38 in|
|Compact Excavators Range||1.0 - 2.0 ton||1.0 - 2.0 ton|

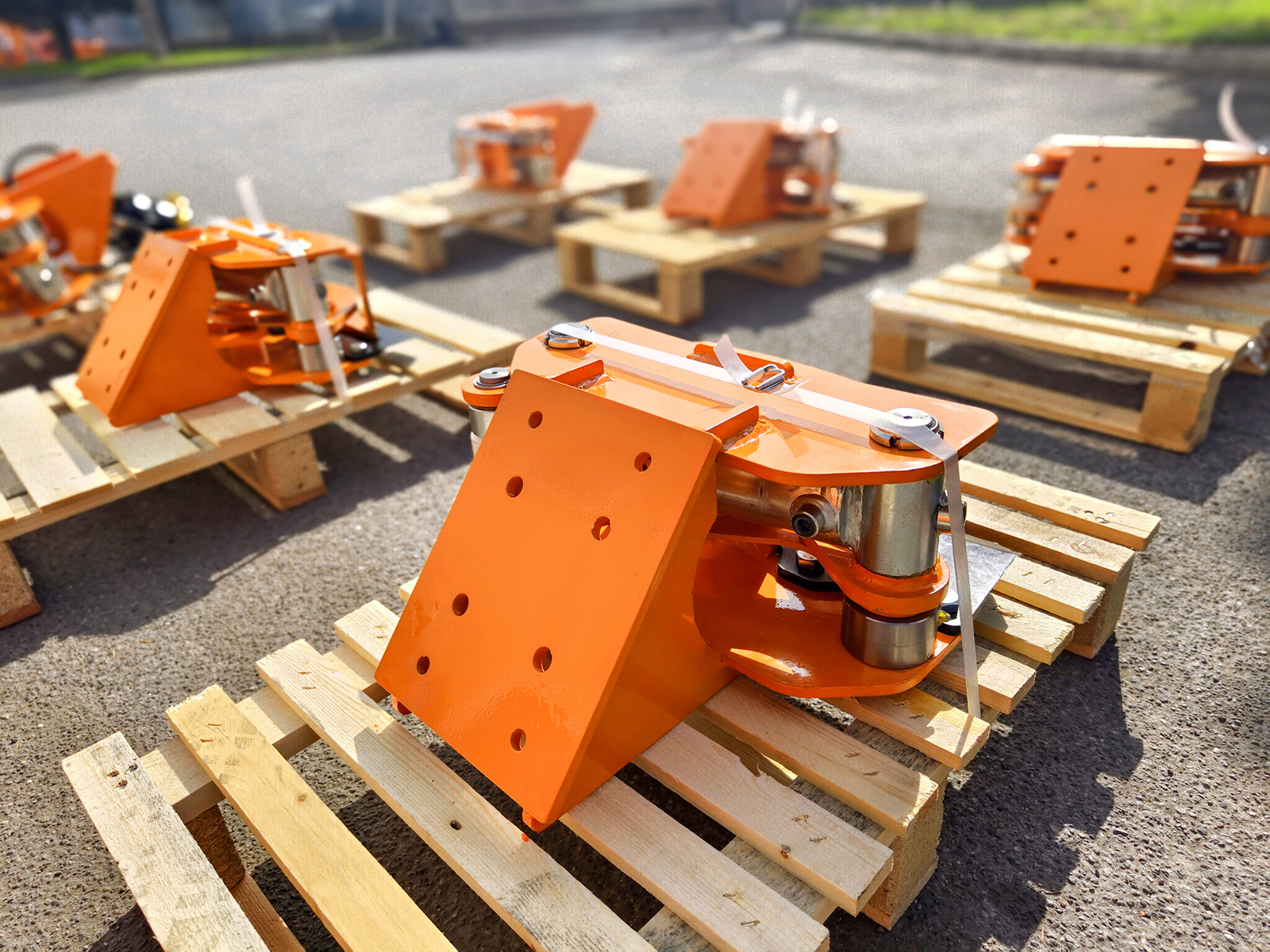

|Packing sizes||600.0*800.0*450.0 mm||1.97*2.62*1.47 ft|
