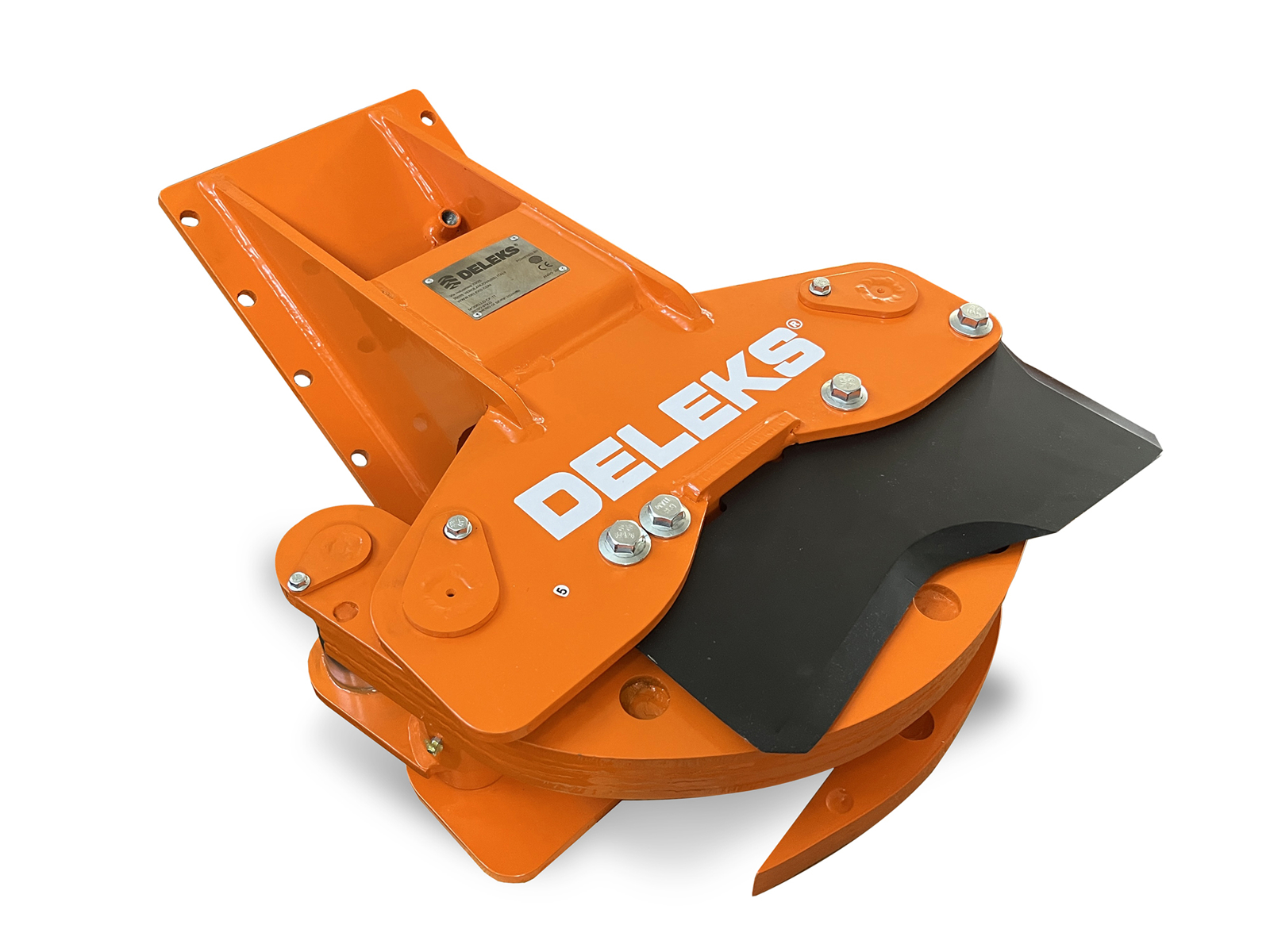

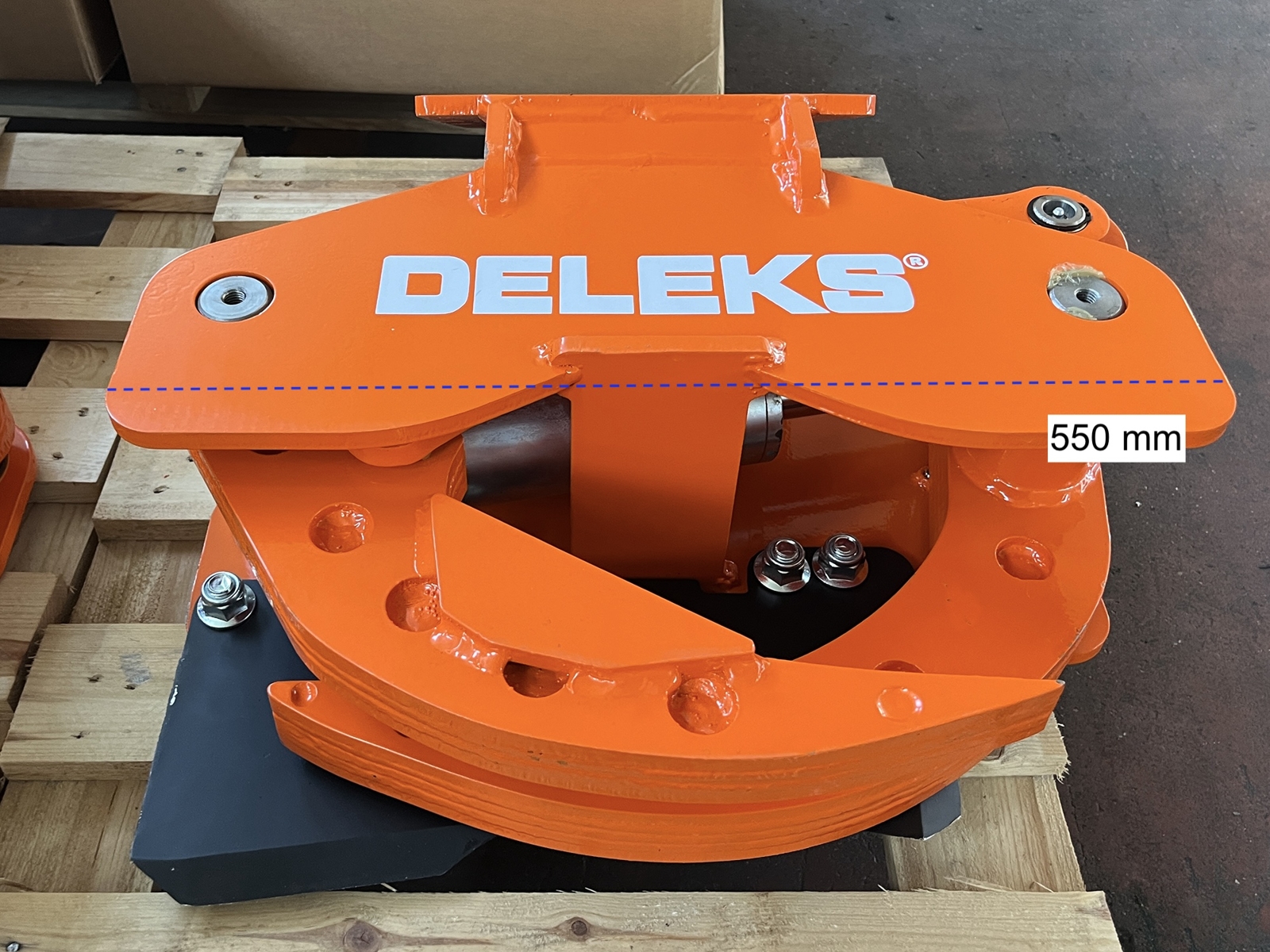

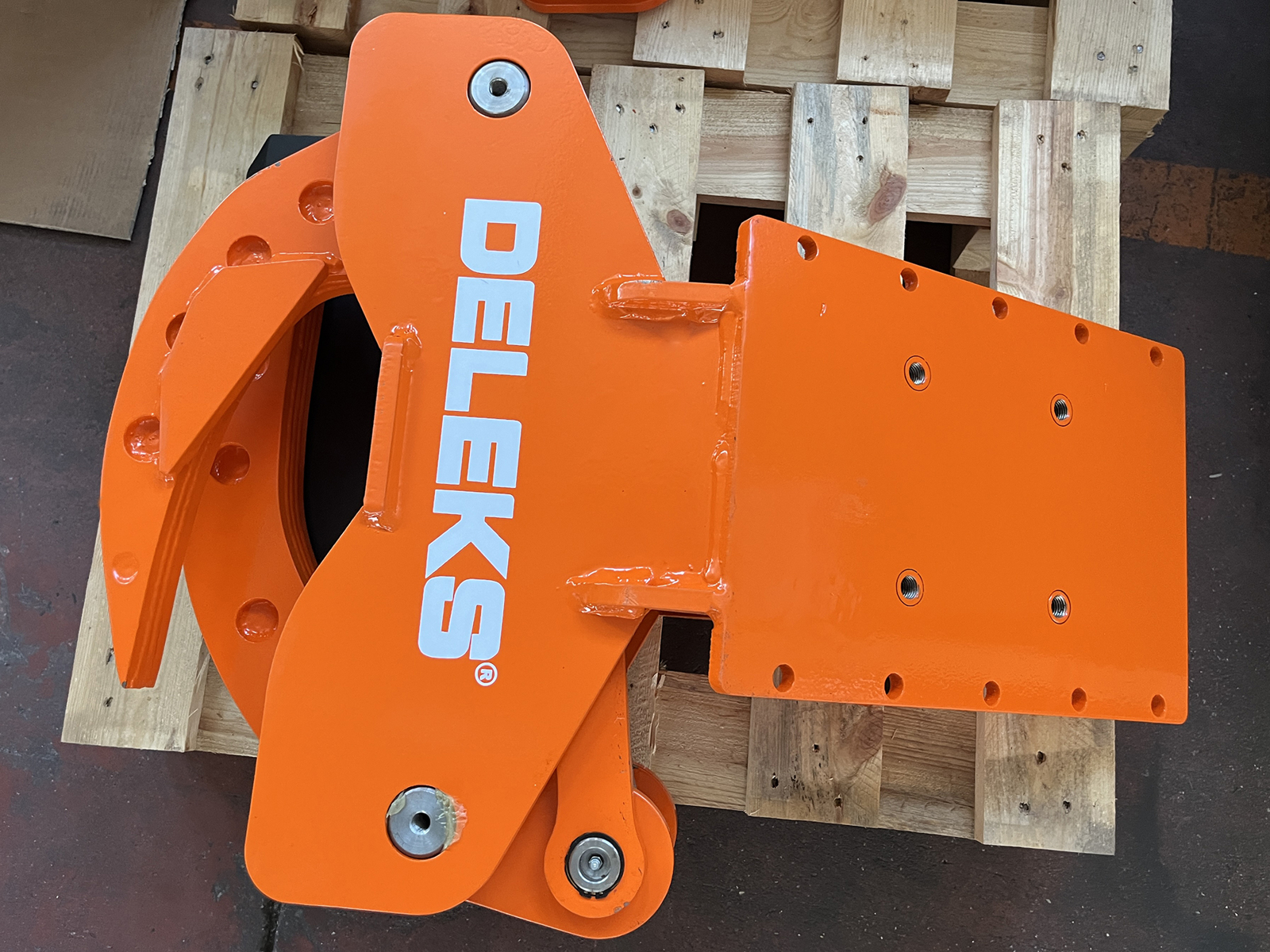

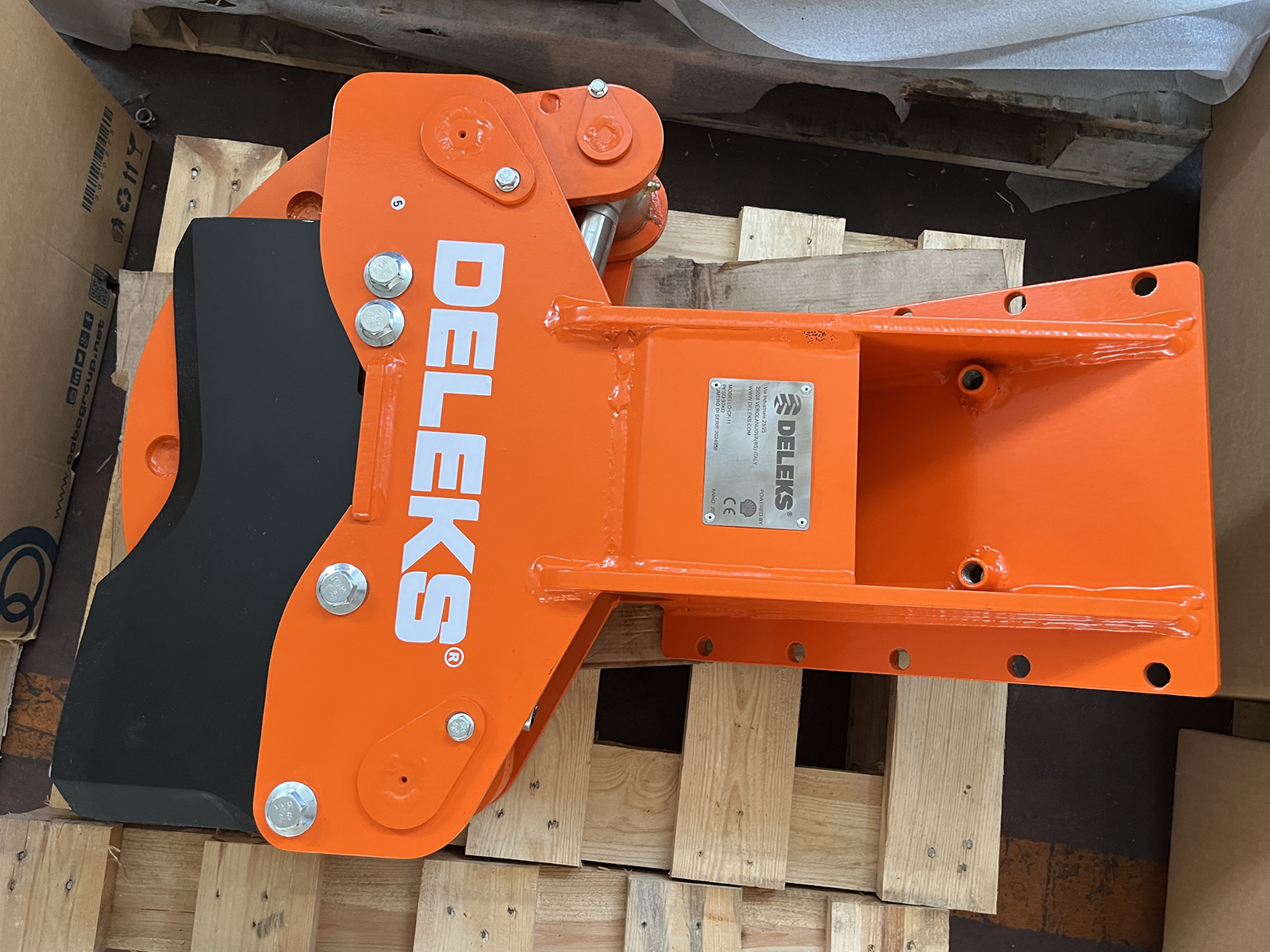

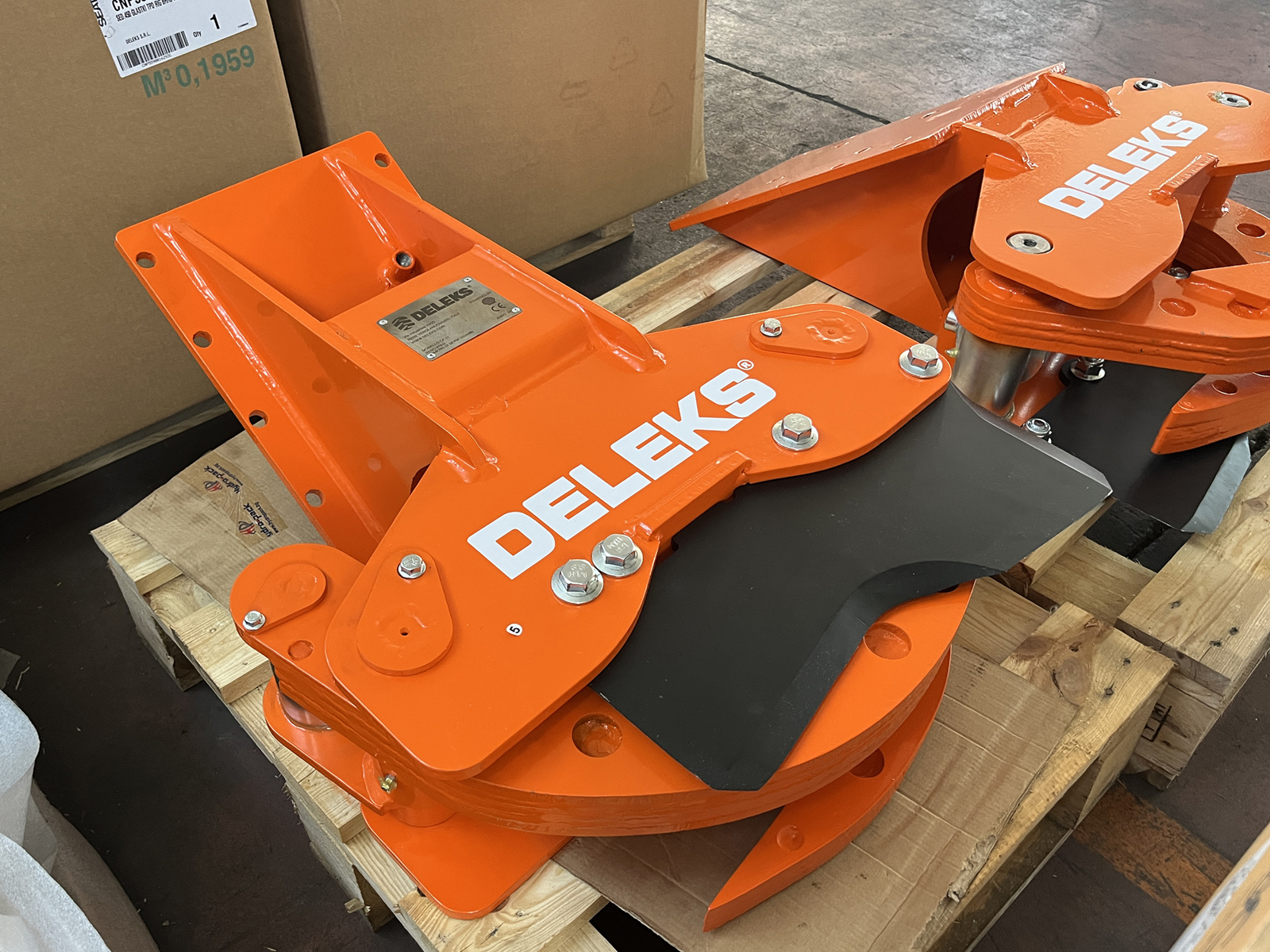

Mini Excavator hydraulic Tree Shear / Grab, mod. CF-11

Available
CodeCF11
EAN 8053470236112
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

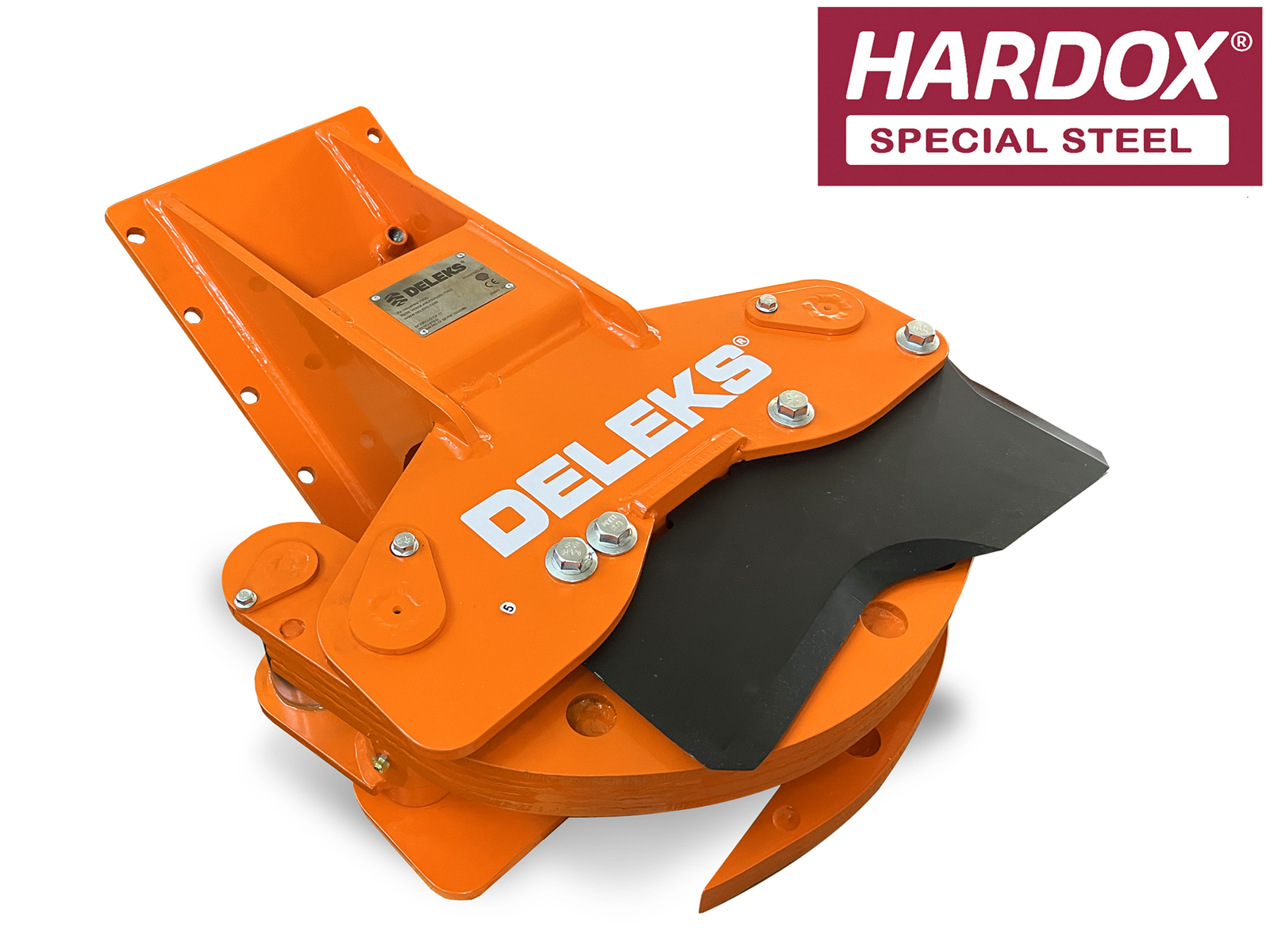

DELEKS® Tree shear designed for versatile professional use, suitable for use in smaller scale excavators up to 3 ton or front mounted on a skid-steer, telescopic or tractor.


OVERVIEW

CF-11 is ideal for harvesting low-grade timber and energy wood, for clearing fields and roadsides.

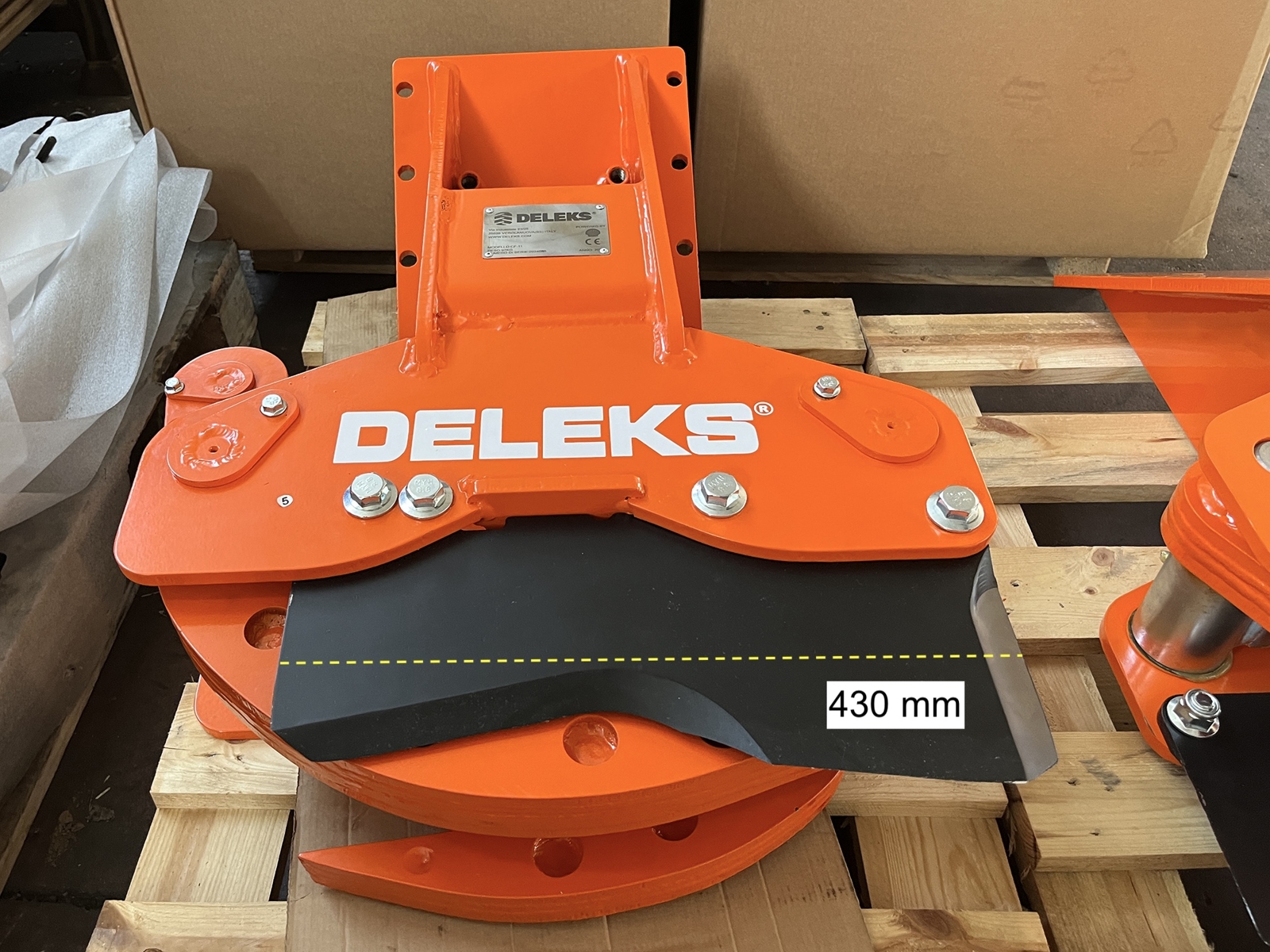

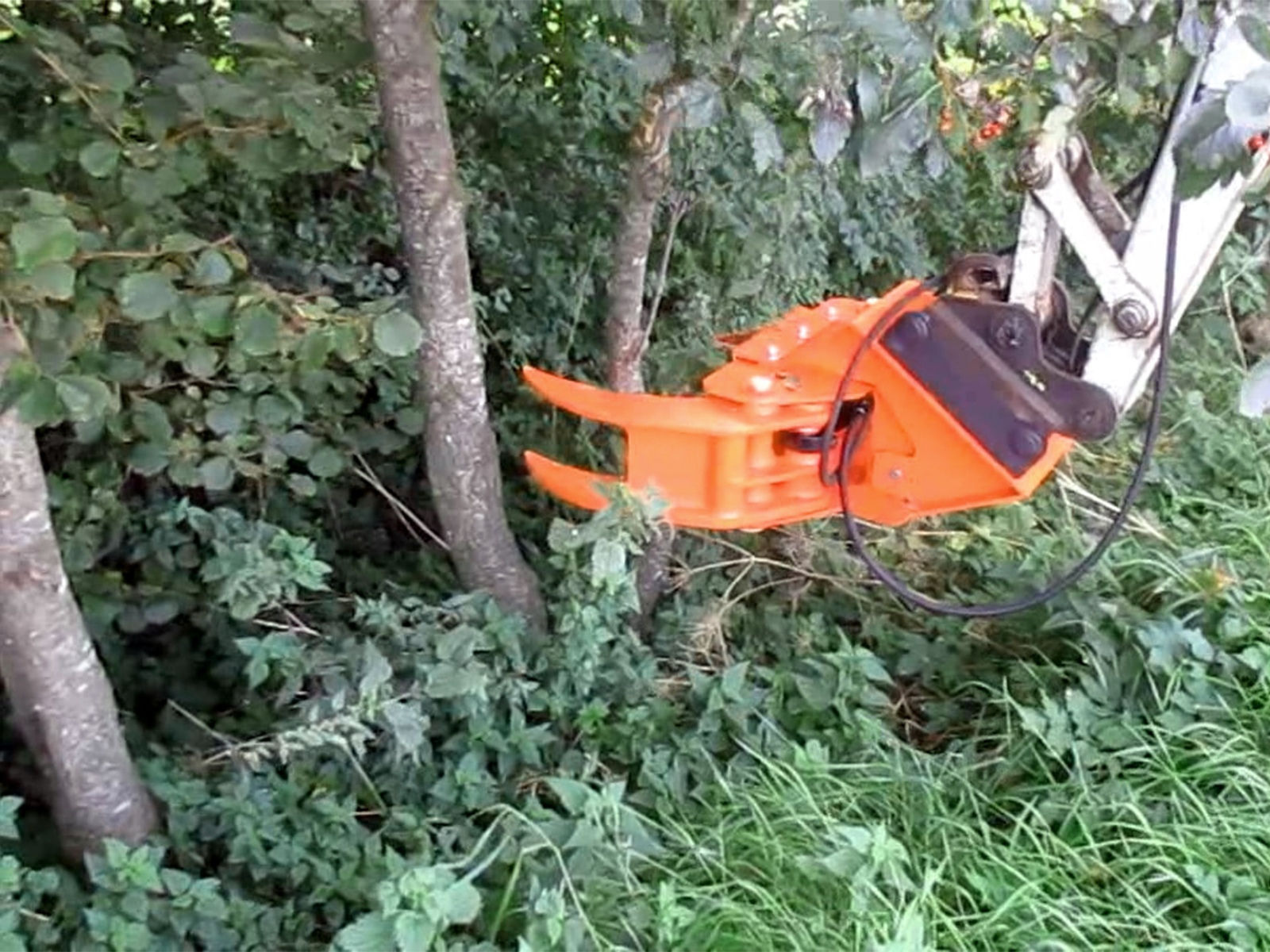

The DELEKS® mini-excavator hydraulic shear is capable of cutting trees or bunching thinner woods together with the grab for cutting.  The shear has a powerful hardened blade that will cleanly and safely cut through timber.

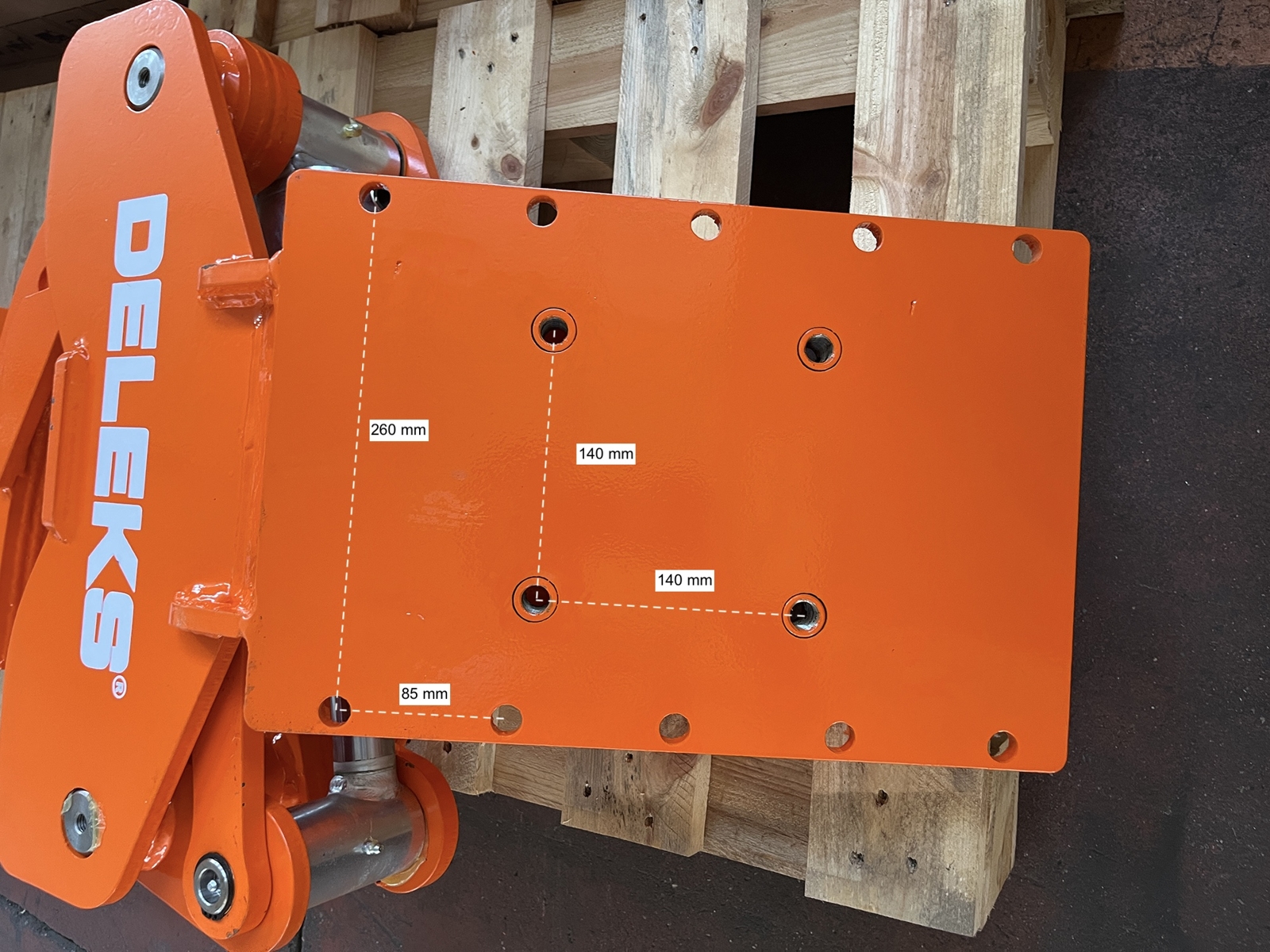

Available with excavator couplings (on request).

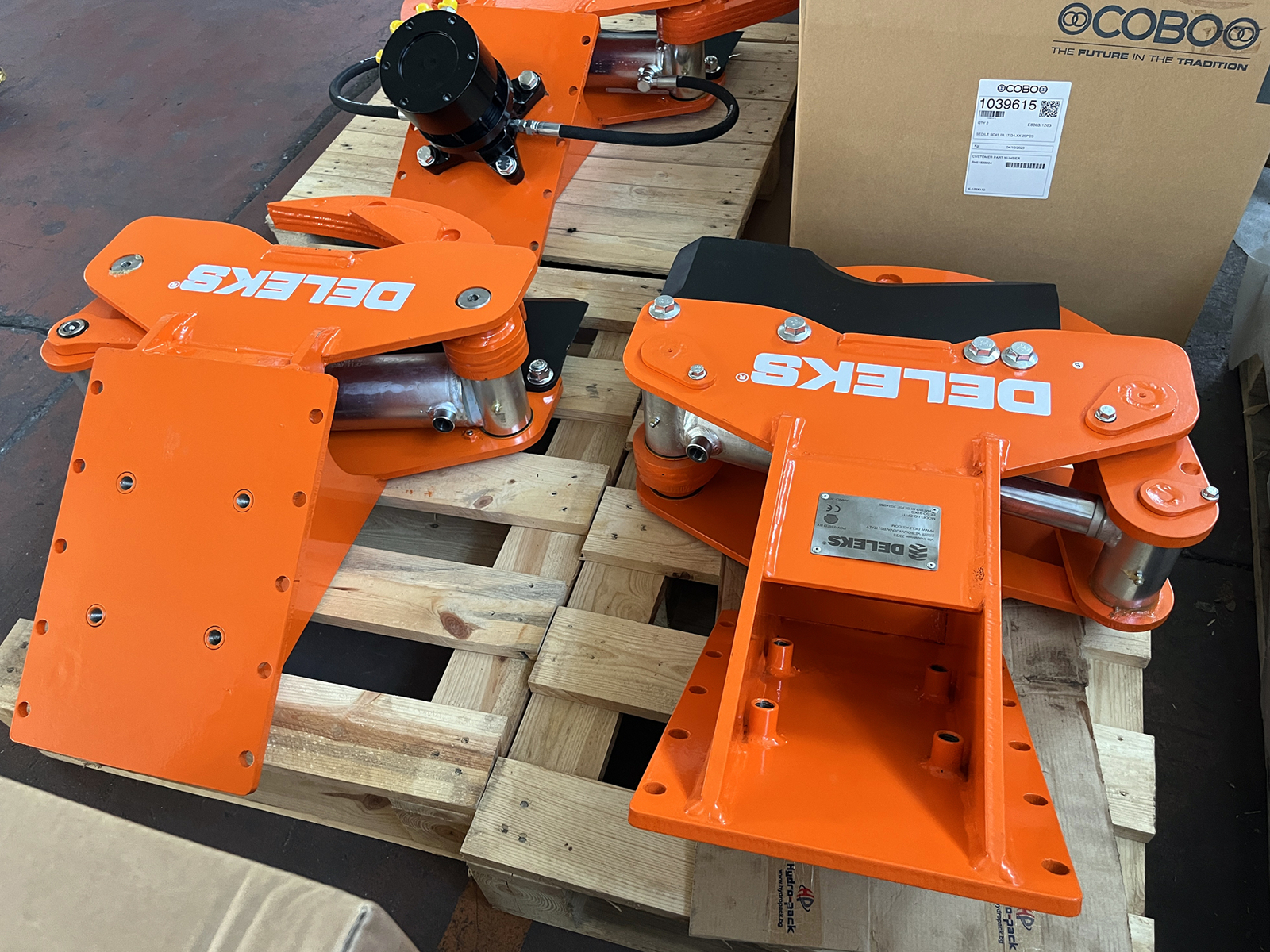

The shear is available as fixed or full 360 degree rotate by hydraulic rotator to de-limb trees or cut fallen timber.



BENEFITS & FEATURES

It is simple to attach and use.

Cutting at the ground level > low stump: DELEKS® CF-11 cuts the wood to be harvested neatly and precisely at the desired point from ground level, and its technical features ensure that stumps are cut low, at ground level.

With the CF-11's wide 650 mm opening, it is also easy to cut several small trees at once.

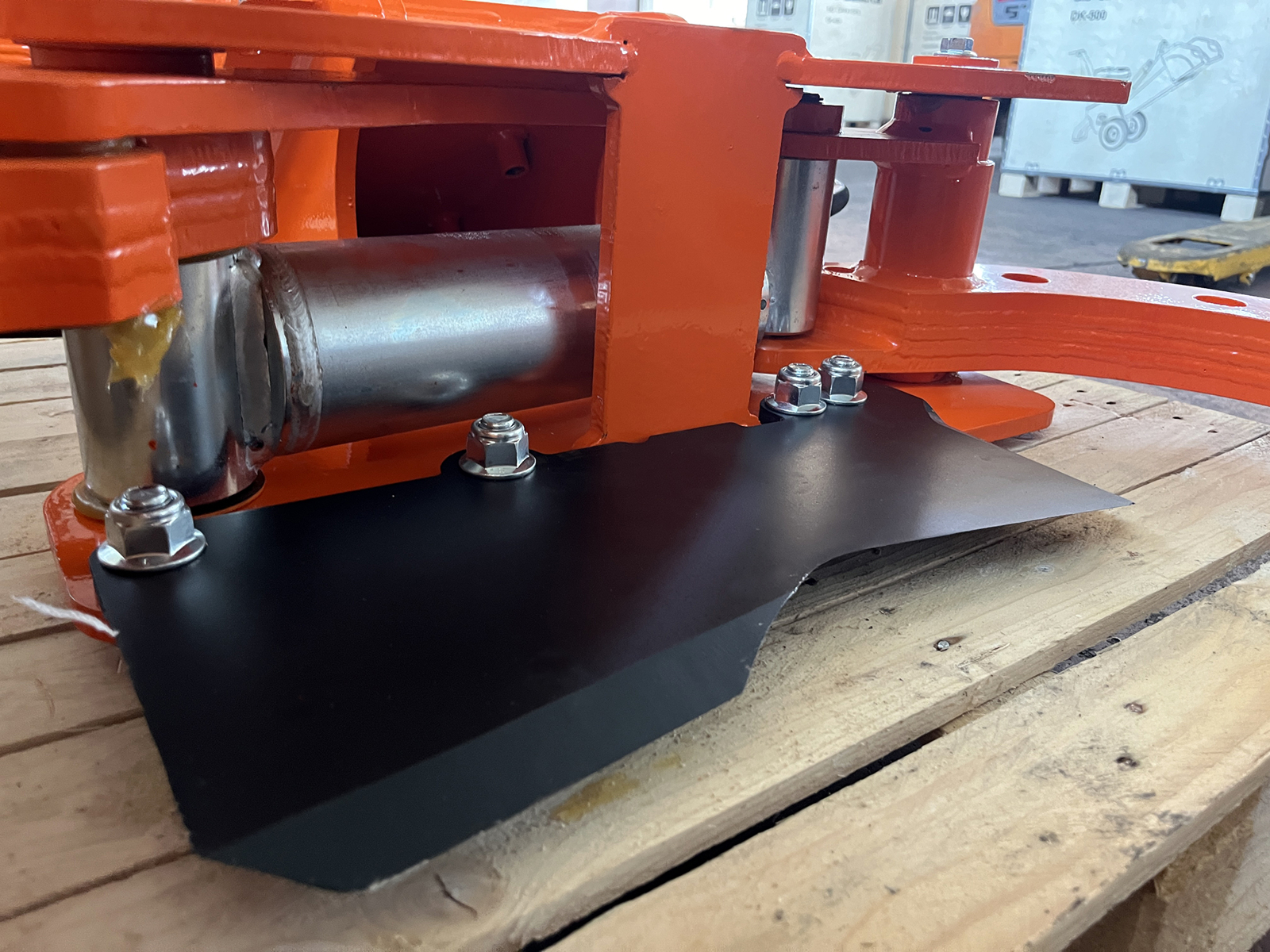

2-in-1: cutting and loading: if necessary, the cutting blade can be removed, in which case the tree shear acts as a wood grapple.






CARACTERISTICS

Caracteristic Units metric Units US
Weight 97.0 kg 215.0 lb
Trunk cutting diameter 130-150 mm 5.10 - 5.90 in
Min./Max. Relief Pressure 175 - 210 bar 175 - 210 bar
Min./Max. Flow 25 - 50 l/min 25 - 50 l/min
Hydraulic Hoses 400 bar pressure 400 bar pressure
Max Opening 650.0 mm 25.60 inch
Hydraulic cilinder diameter 80.0 - 40.0 mm 3.15 - 1.57 in
Compact Excavators Range 2.0 - 3.0 ton 2.0 - 3.0 ton
Packing sizes 600.0*800.0*450.0 mm 1.97*2.62*1.47 ft
