Petrol chipper shredder - DK-800-LF

Not available Notify me
CodeDK800LF
EAN 8053470230691
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

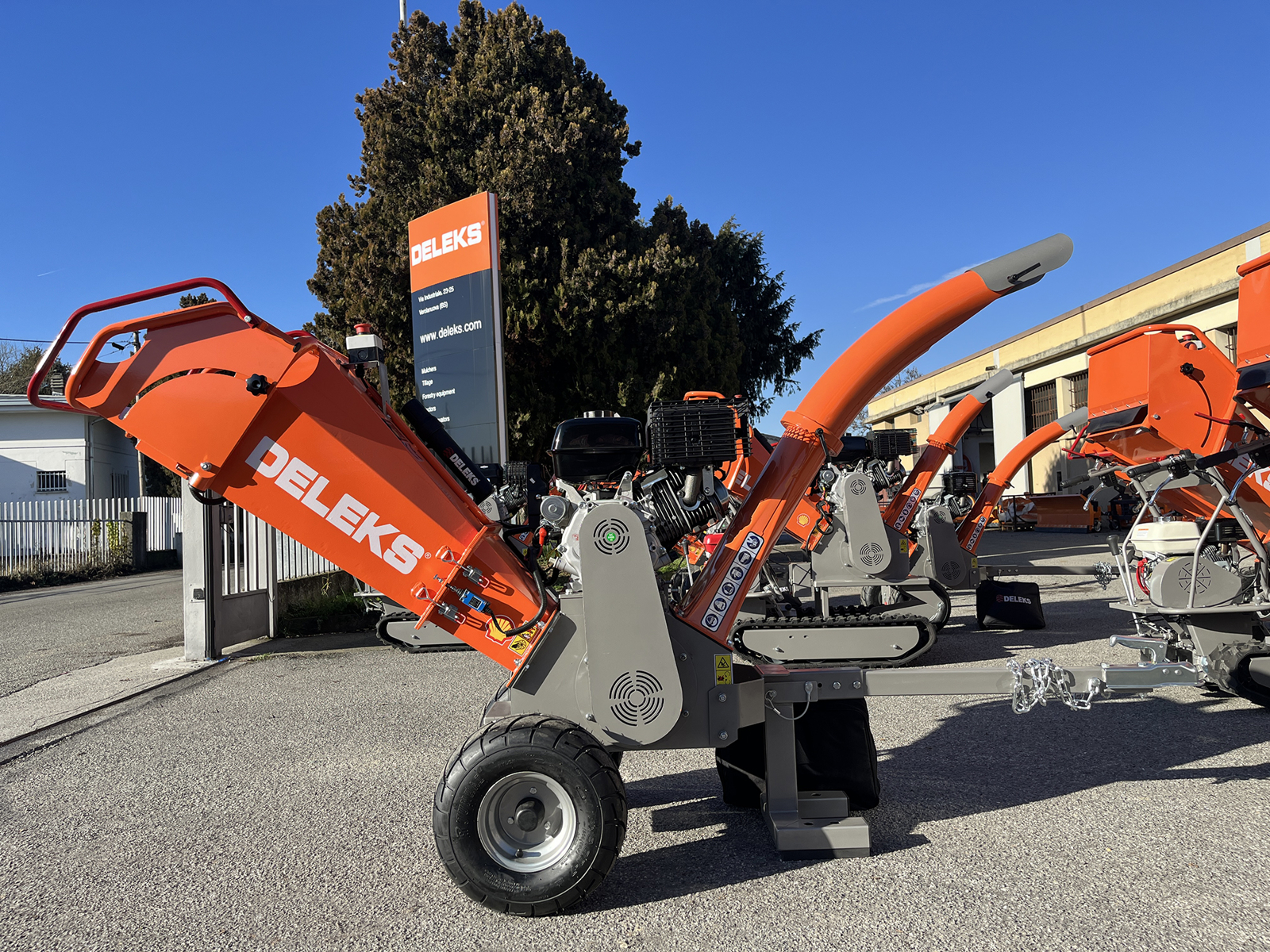

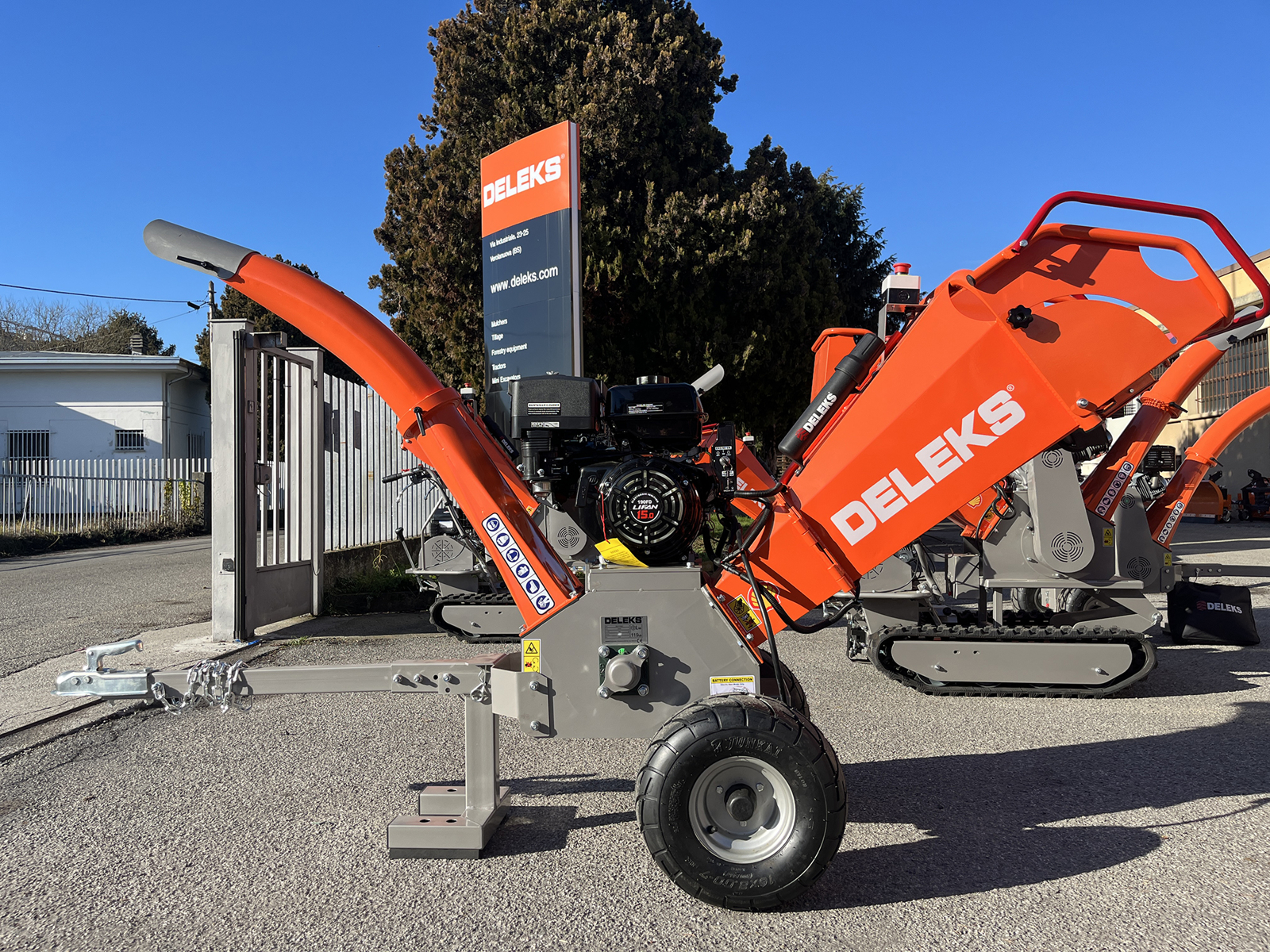

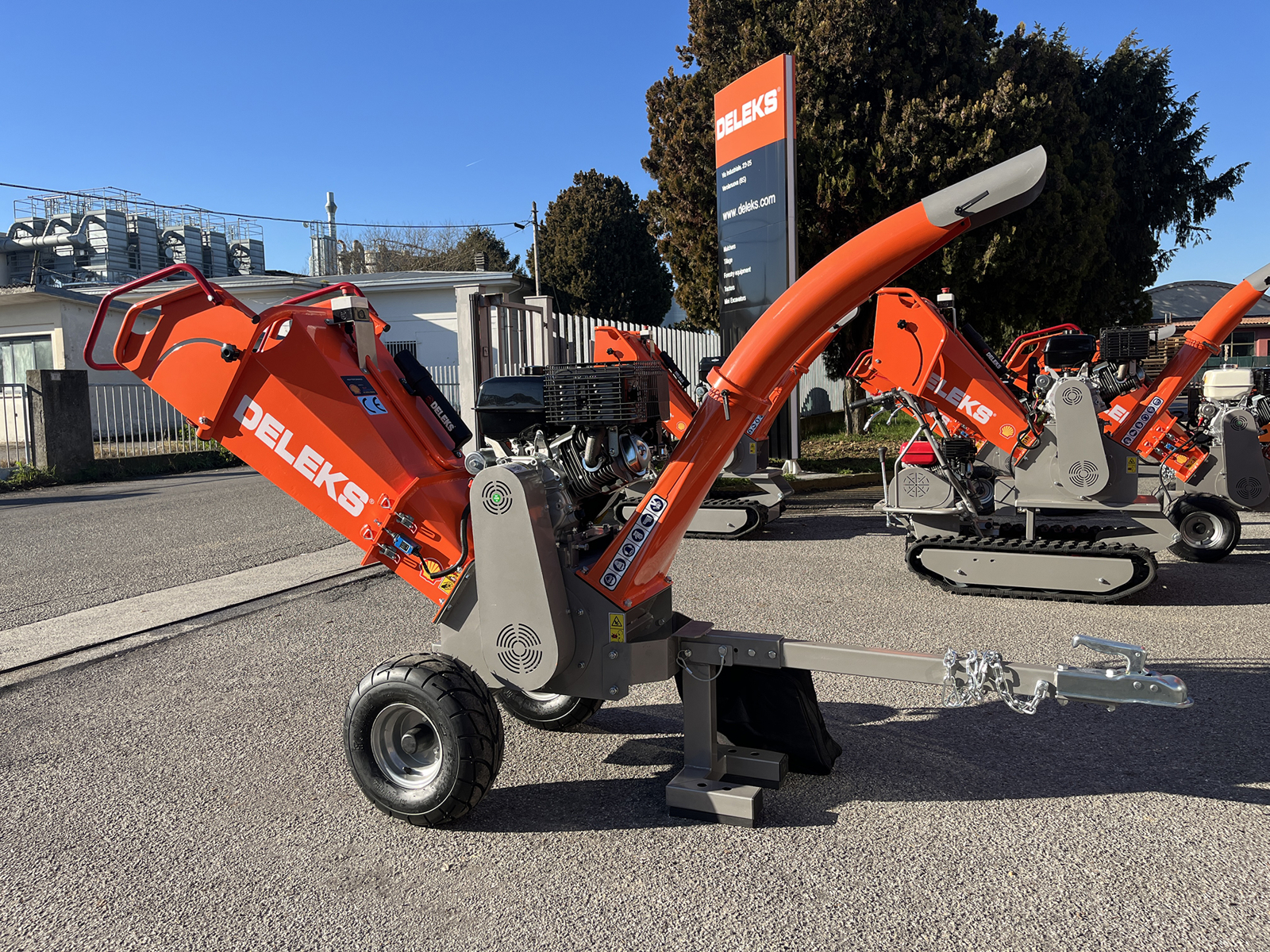

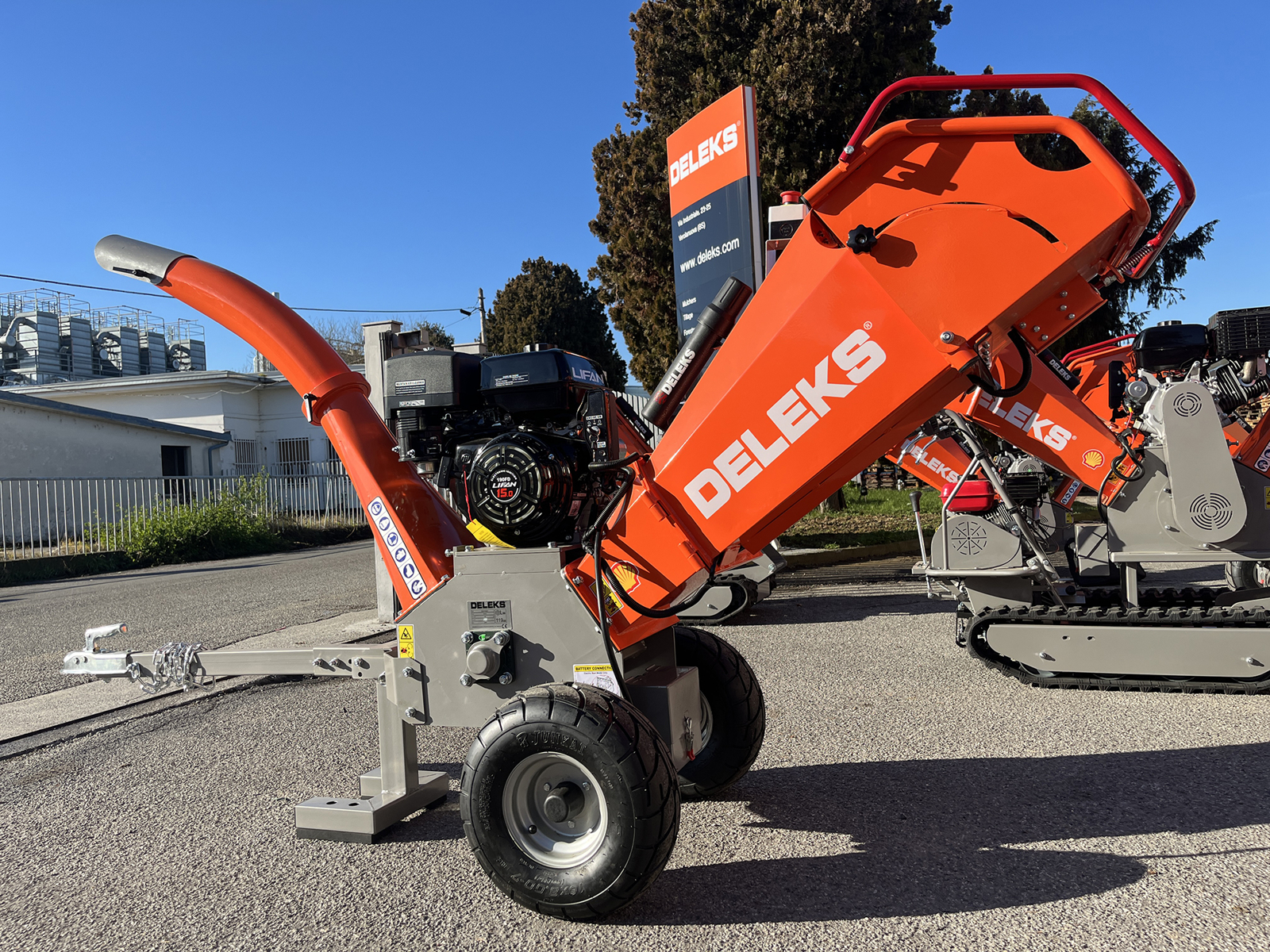

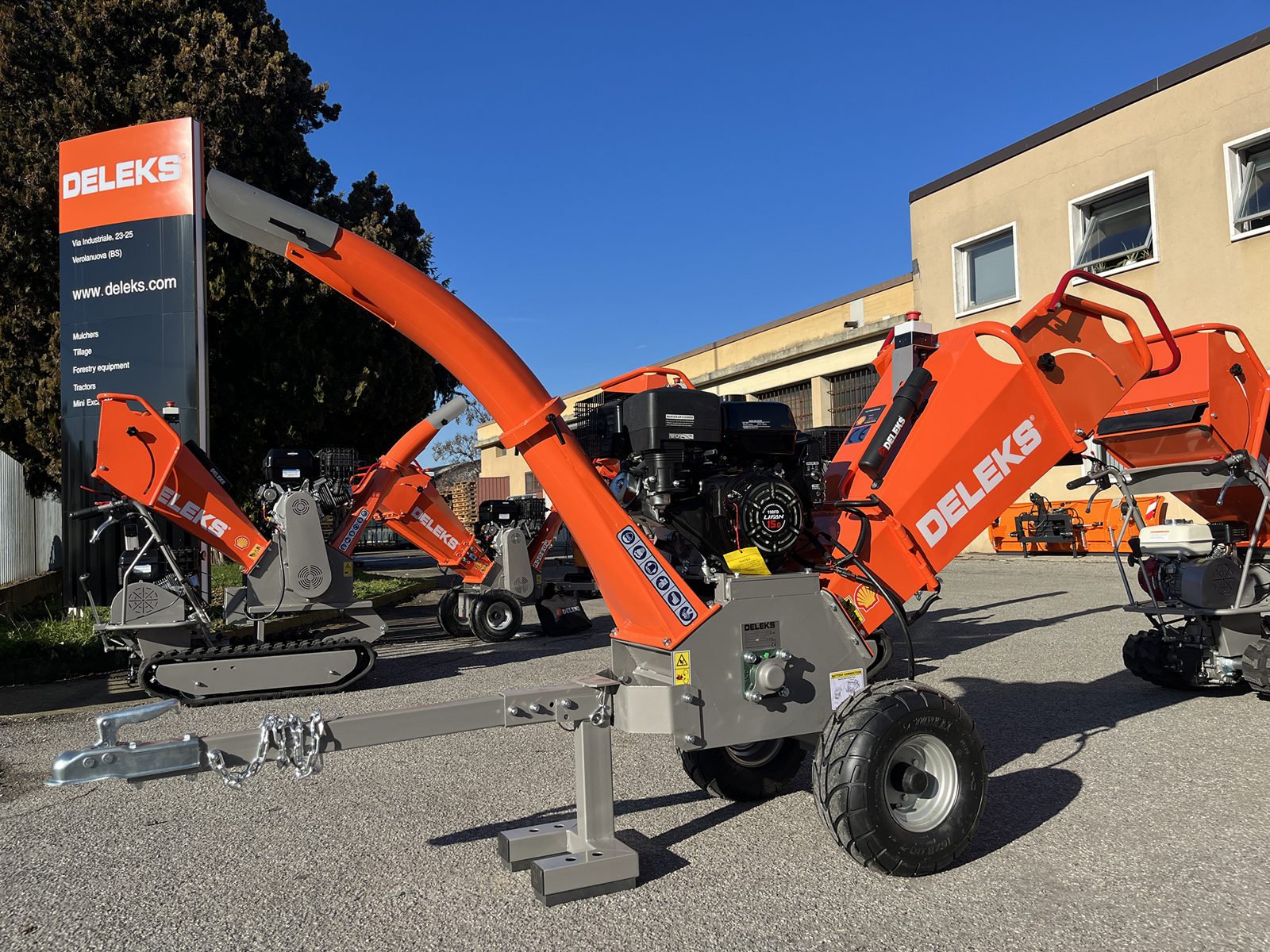

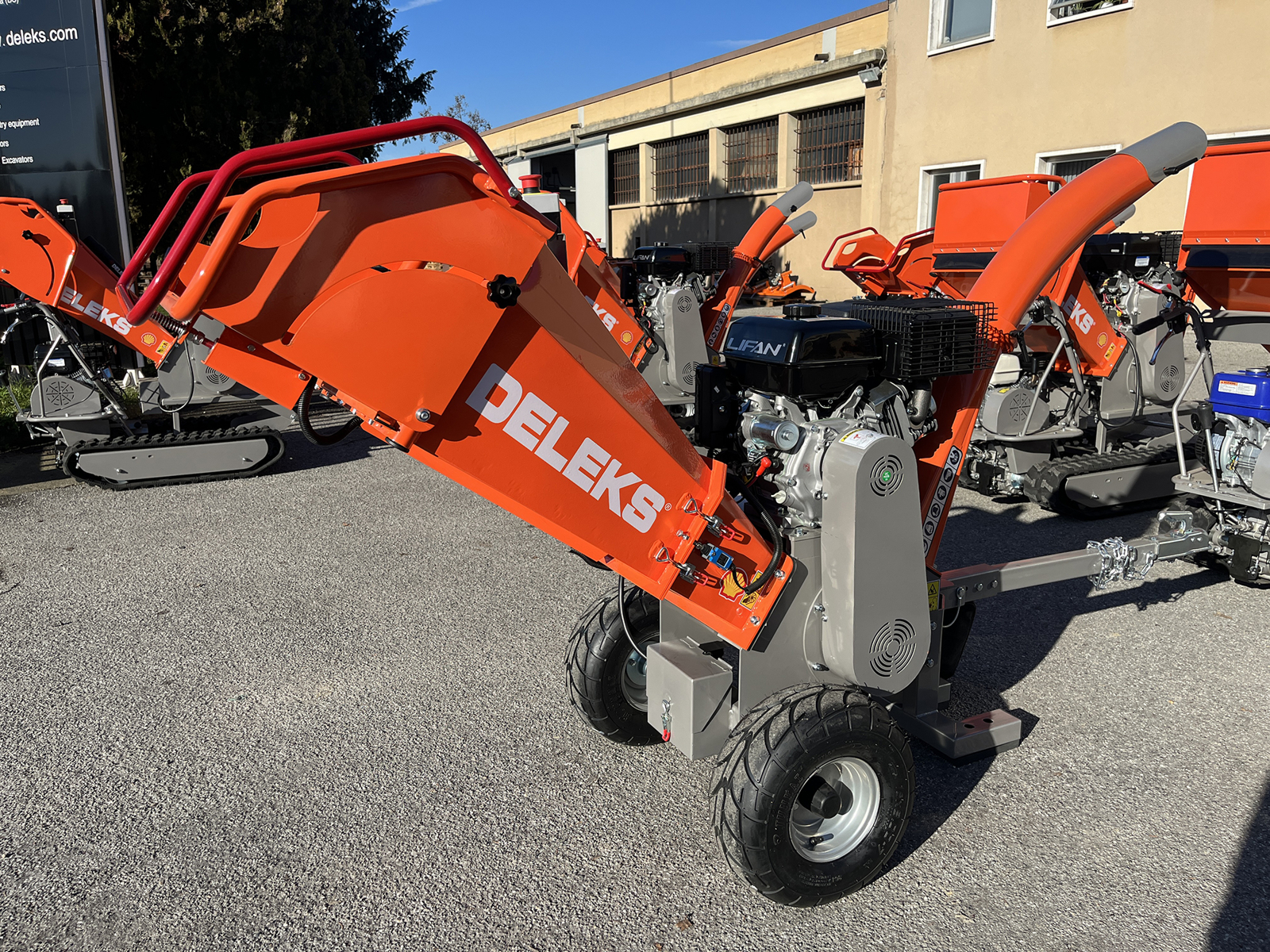

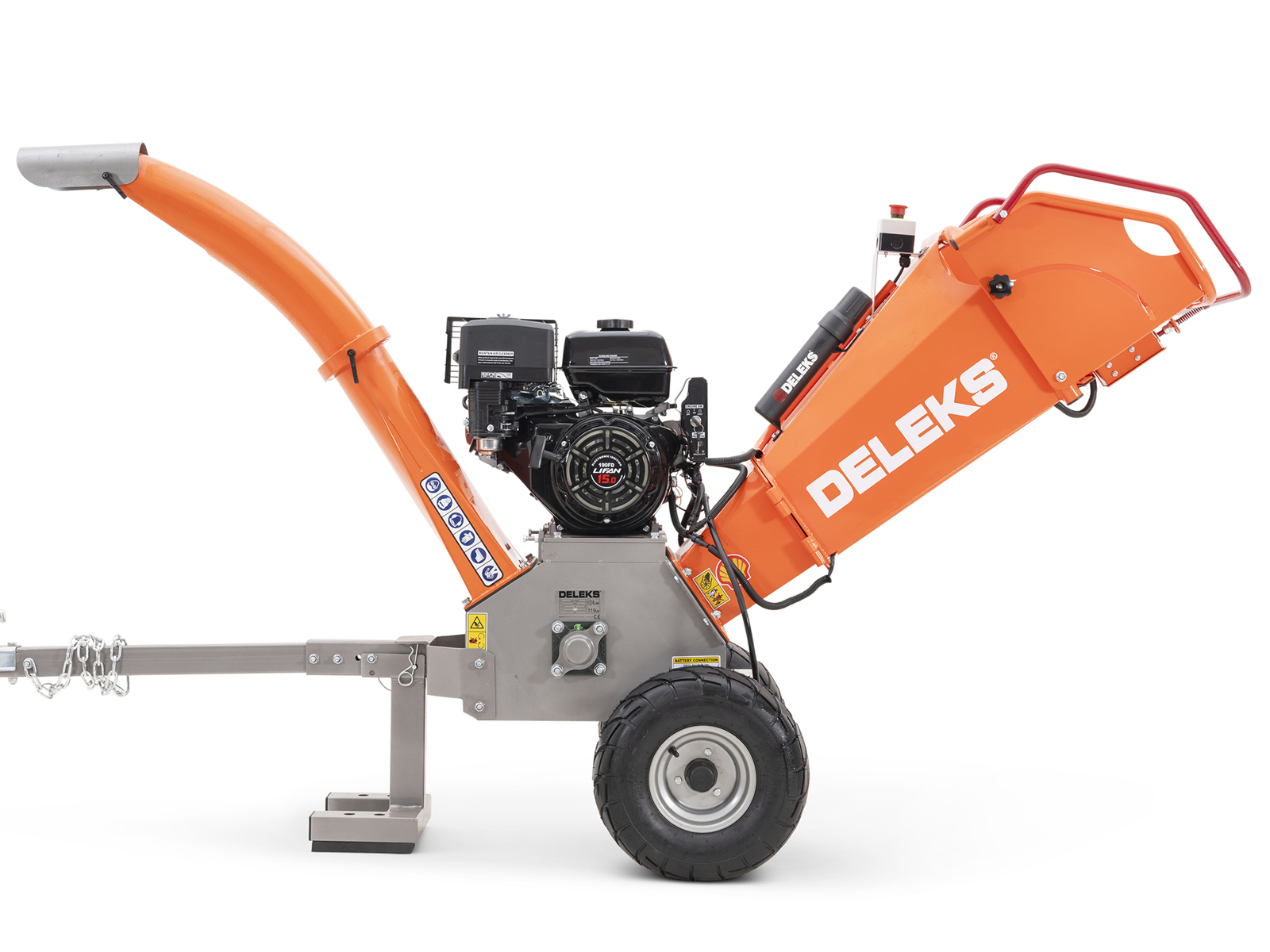

Professional Wood Chipper DELEKS DK-800-FL with 15 Hp engine, 4 stroke gasoline engine, E-Start.

This product has a Certificate of registration in the EUROPEAN UNION INTELLECTUAL PROPERTY OFFICE




OVERVIEW

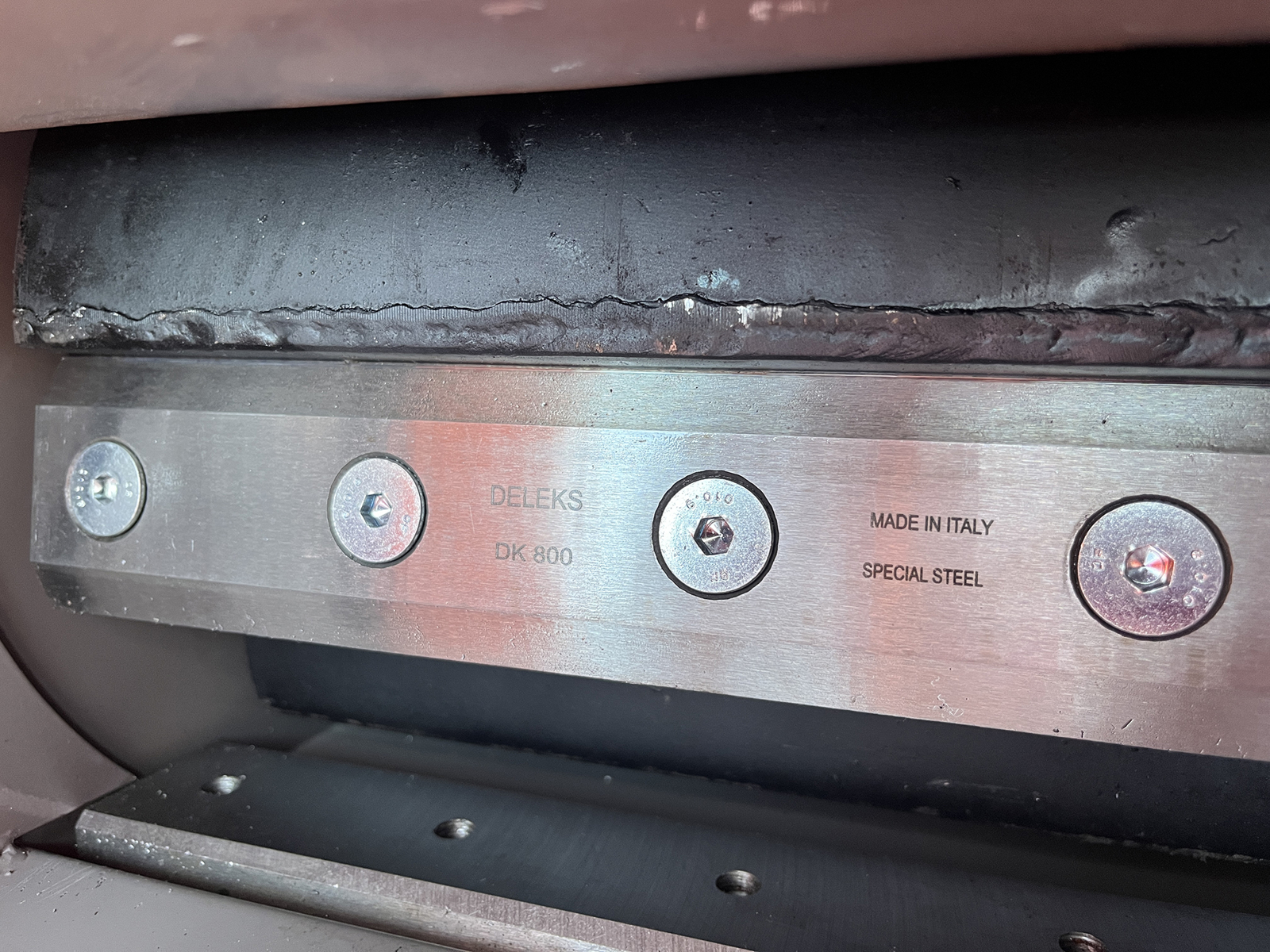

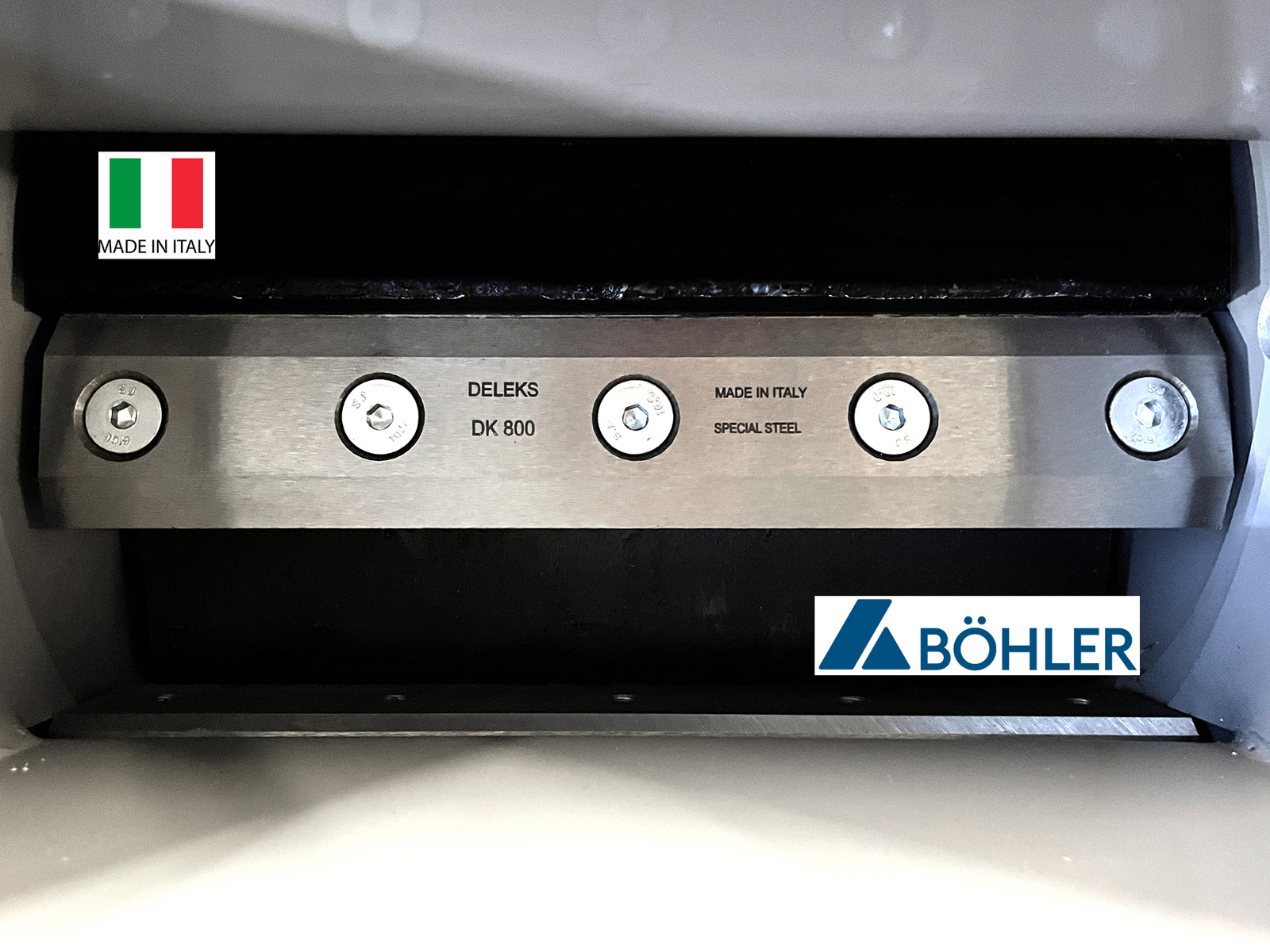

Chipping drum system shreds vegetation using 2 horizontal blades + 1 counter-fixed blade. Gasoline engine LIFAN 190FD 15.0 hp (3-Year warranty - Spare parts always available).

Suitable for the chipping of all types of dry and green wood, pruning residues, palm leaves, etc. Ideal for professional/contractor usage.

Maximum cutting diameter: 10cm

Chipper produces enough material to make pulp or pellets for industrial use.



CERTIFICATES - GUARANTEE - ASSISTANCE

TÜV SUD certification

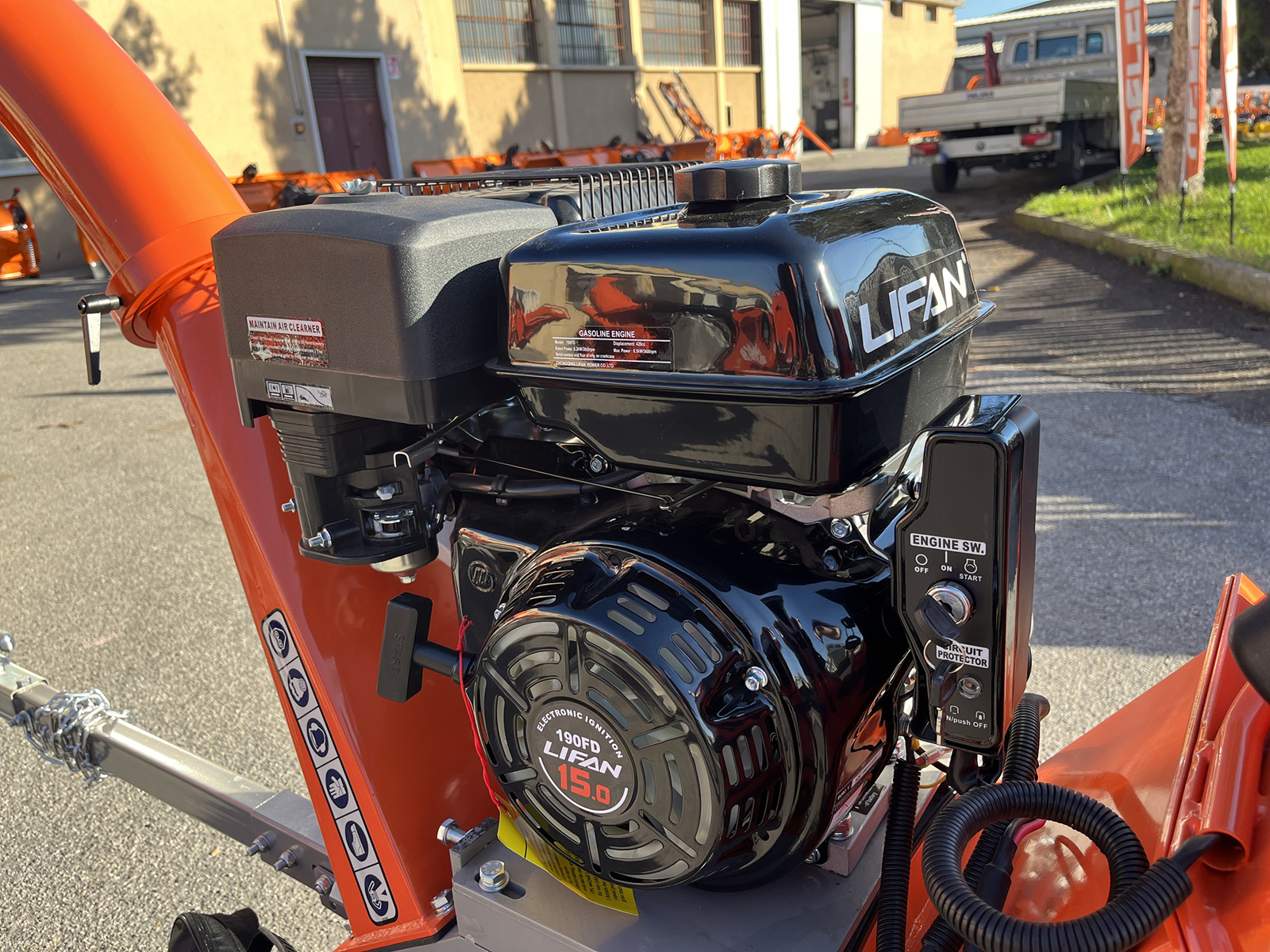

LIFAN 190FD petrol engine with 3-years European warranty


BENEFITS AND FEATURES

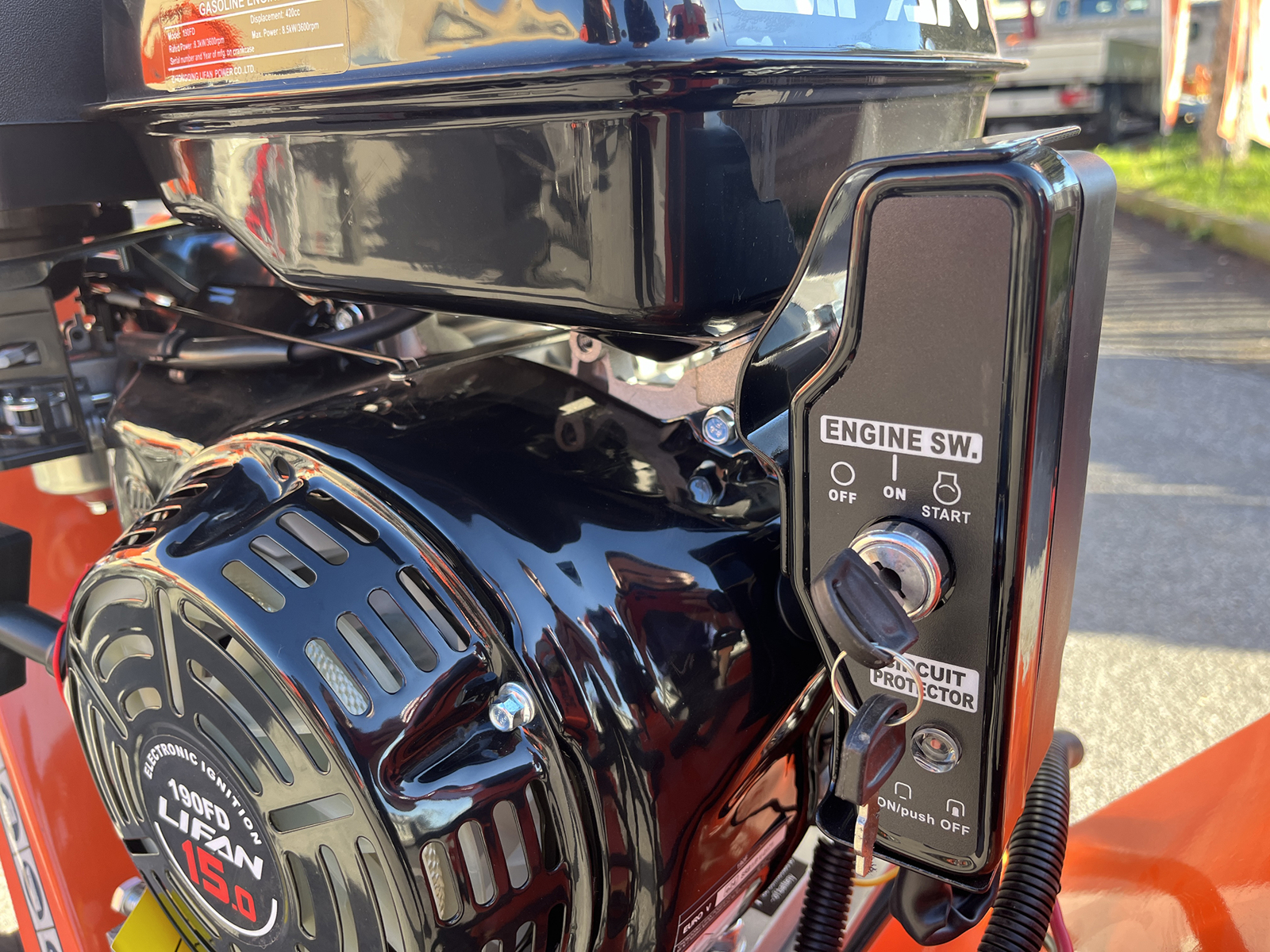

Electric Starter.

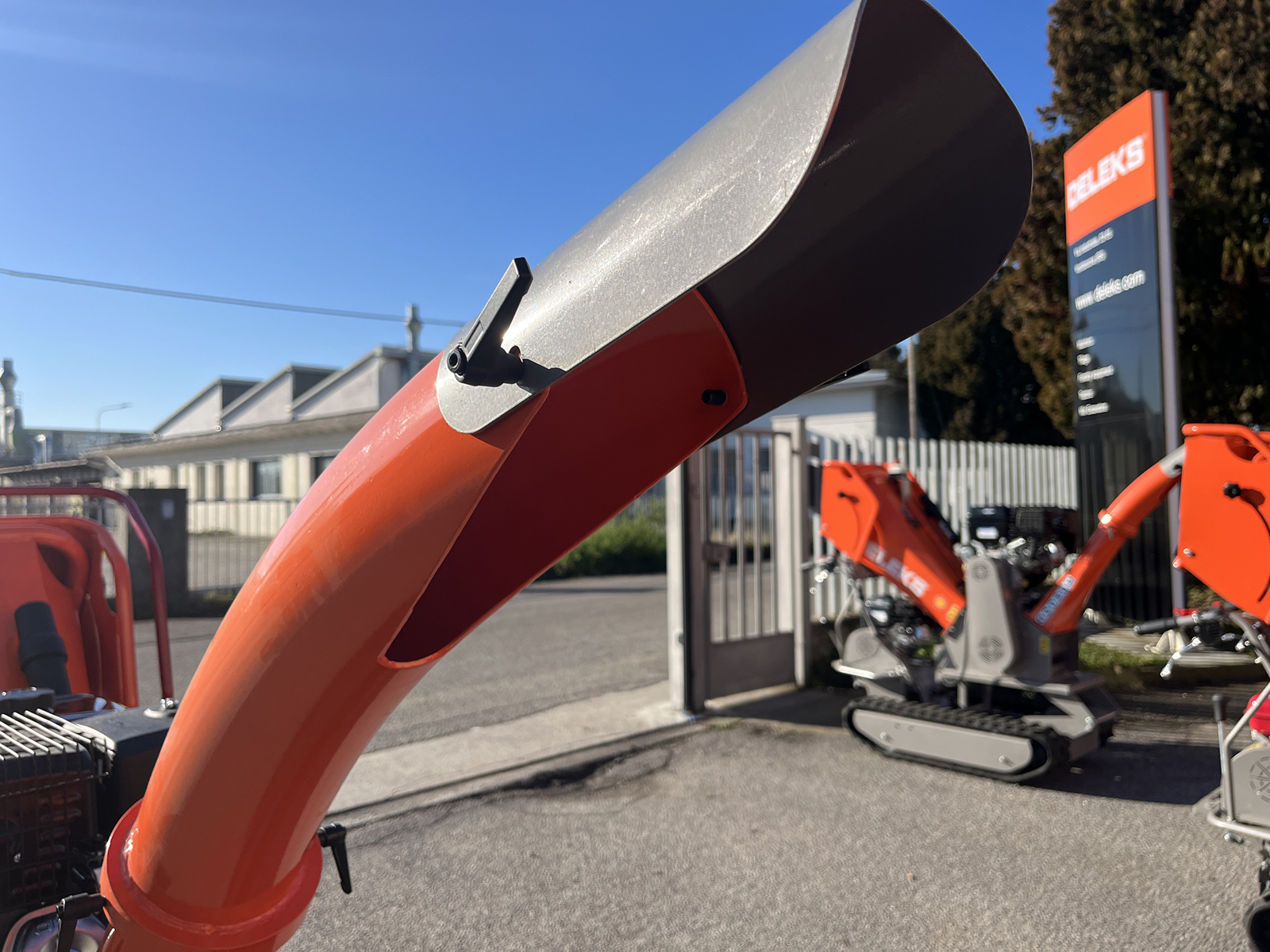

Redesigned outlet made with a thicker tubular. Its height of 160 cm allows the material to be discharged directly into compost containers or on the truck body. In a few seconds with the two butterfly levers it is possible to adjust the direction or remove it.

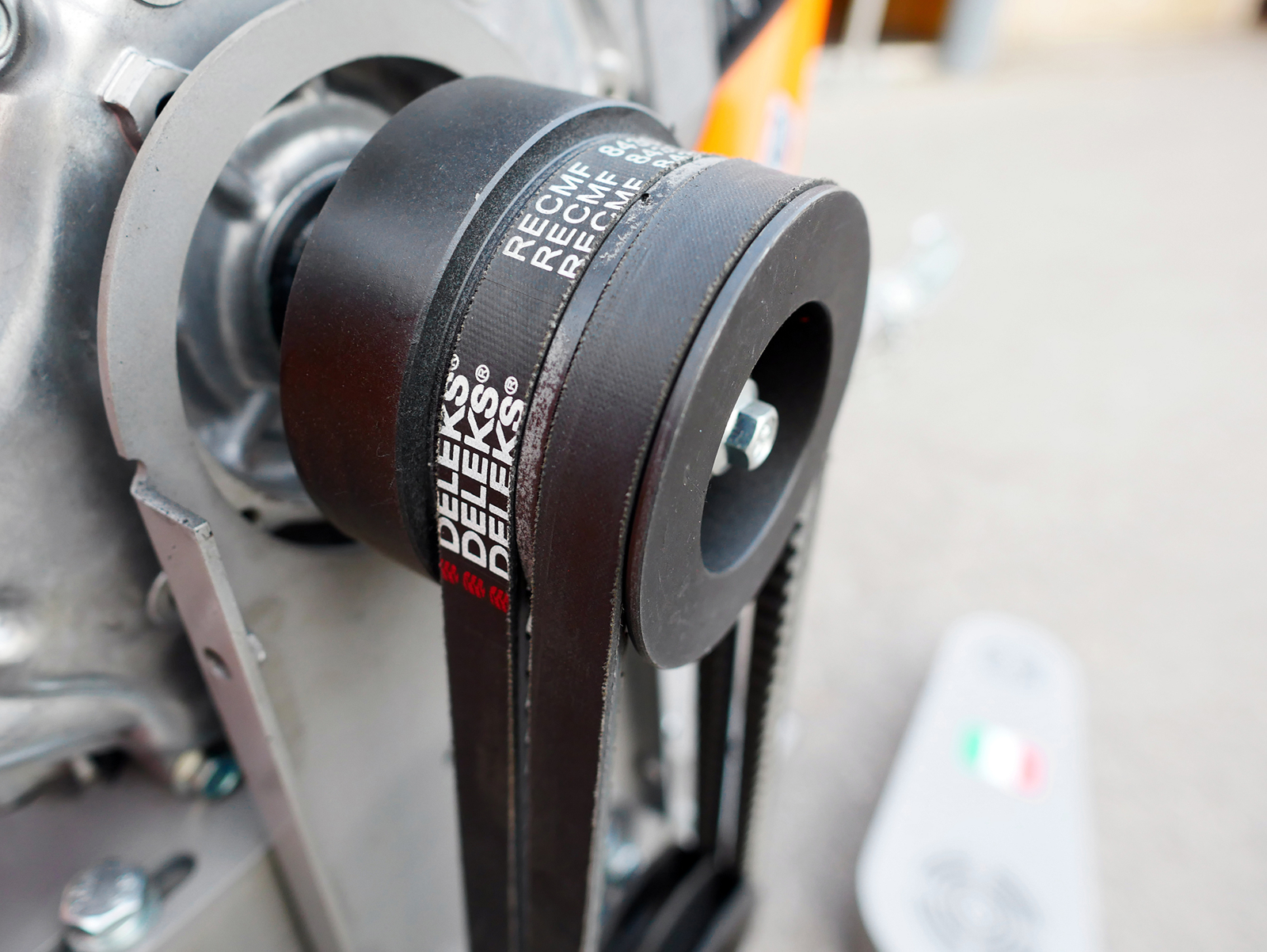

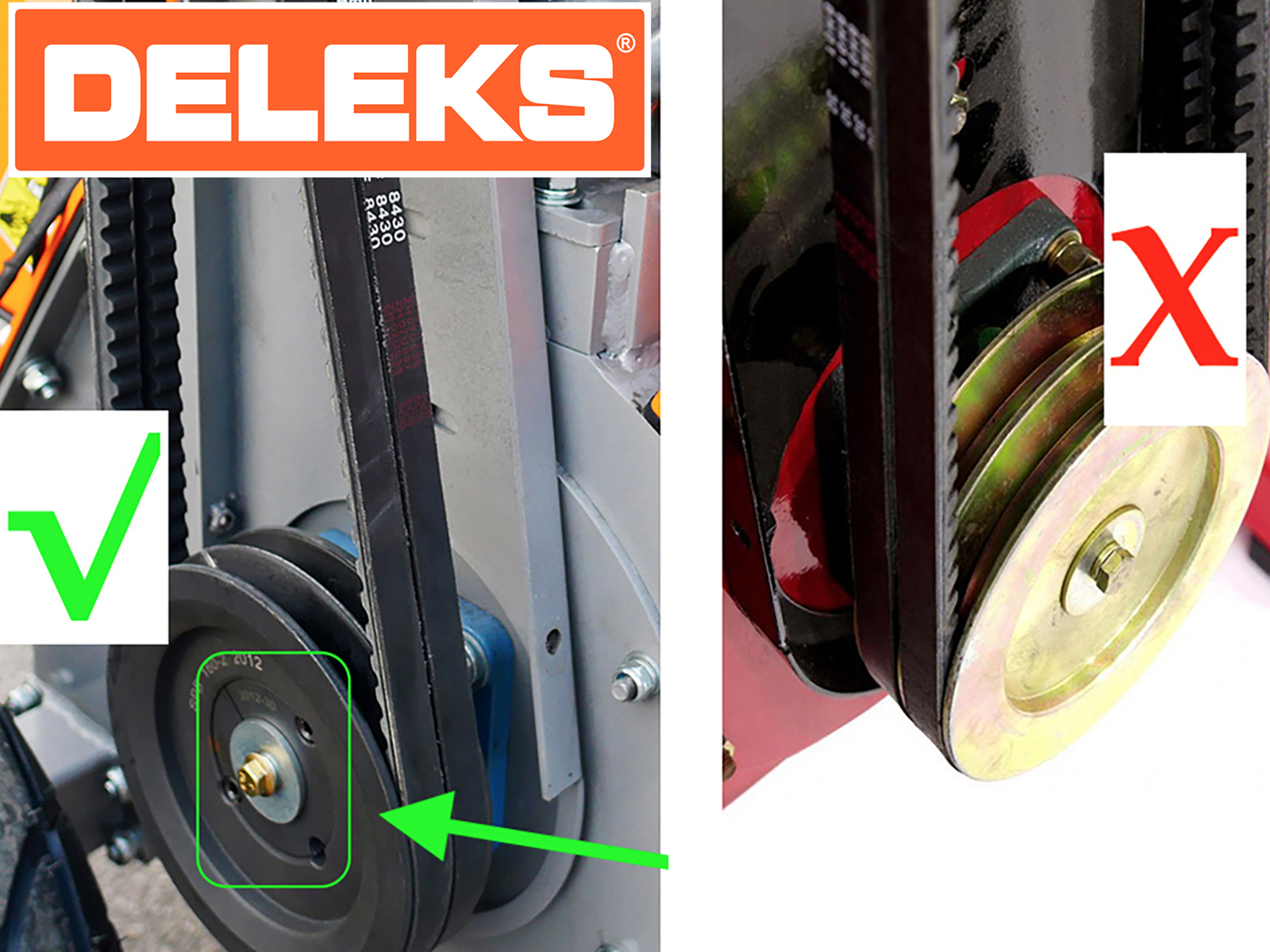

TAPER BUSHING: Unlike other brands, DELEKS® mounts a conical bushing between the pulley and the horizontal shaft of the drum on its chipper. This guarantees a perfect coupling between the parts of the transmission and to safeguard the life of the machine over the years, avoiding the erosion and ovalization of the transmission shaft.

The Anti-shock clutch avoids direct motion between the motor and drum, thus facilitates the cold start and in case of jamming or introduction of foreign objects, prevents the crankshaft from damage.

Gasoline engine, air-cooled 4-stroke.

Starter rope;.

Ergonomic design;.

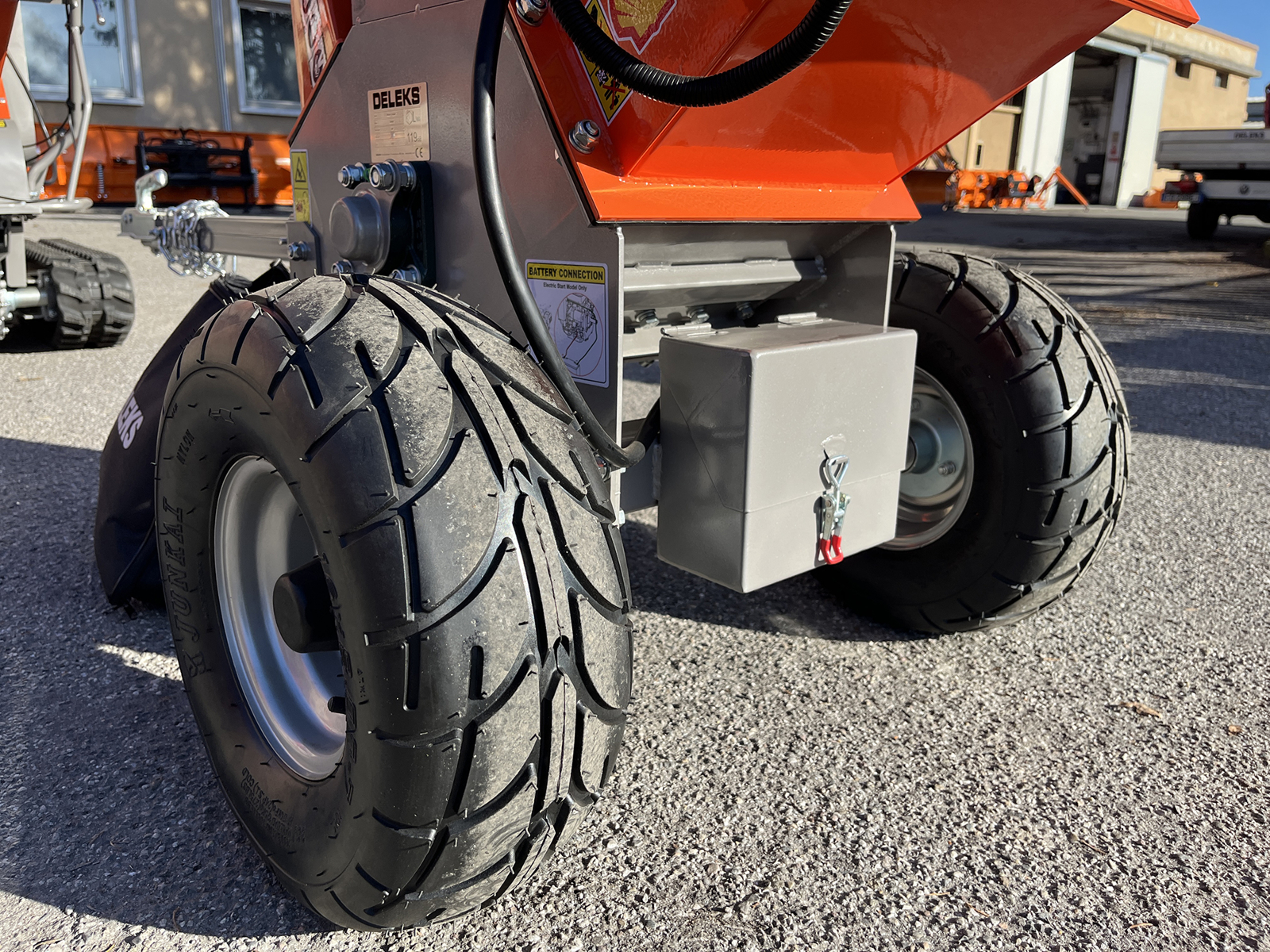

Excellent maneuverability thanks to the wheels 41cm in diameter, 16cm step;.

Solid structure (200kg) and stable with a low center of gravity.

Headphones and goggles.

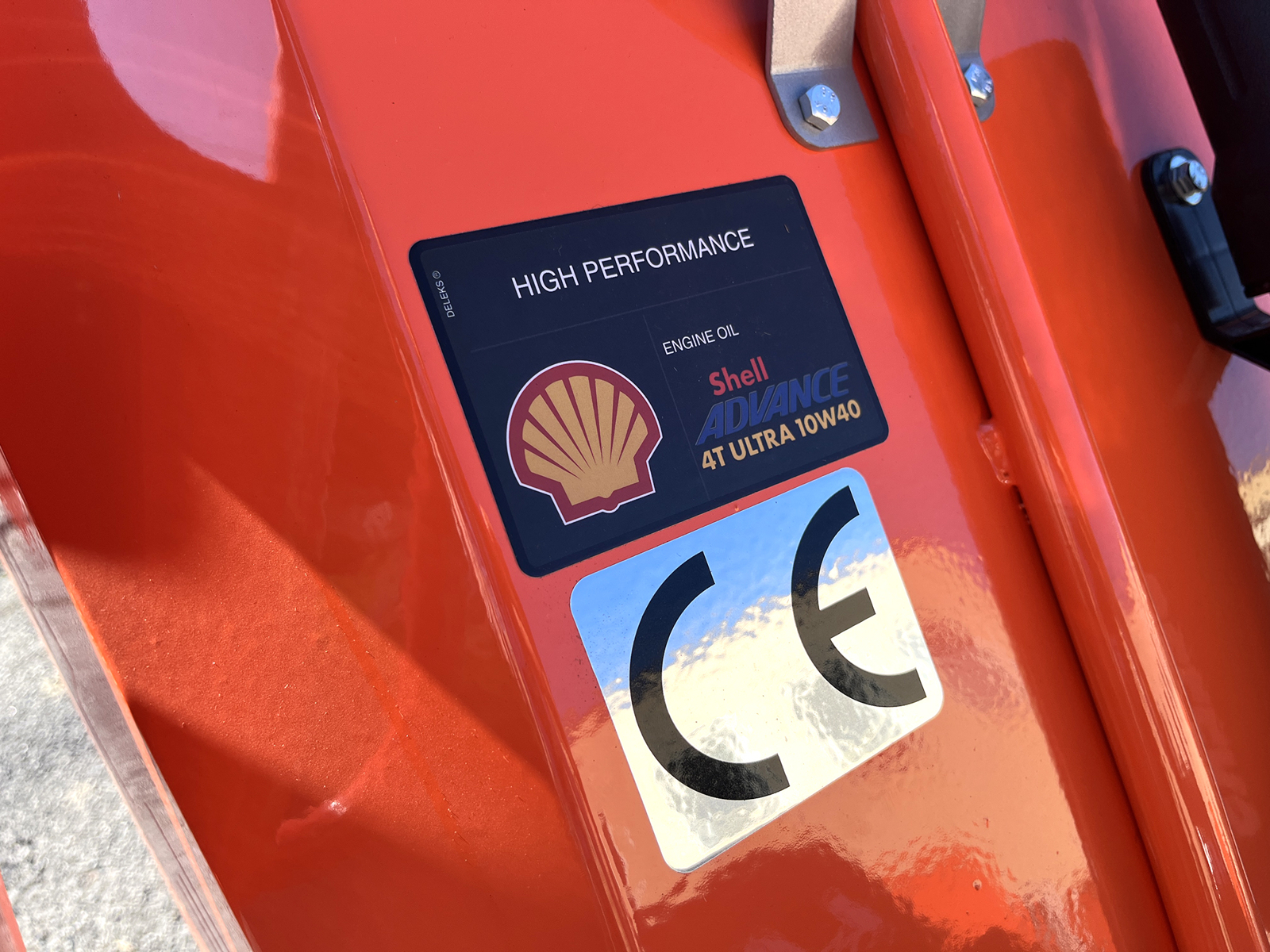

Conforms to the CE directive.

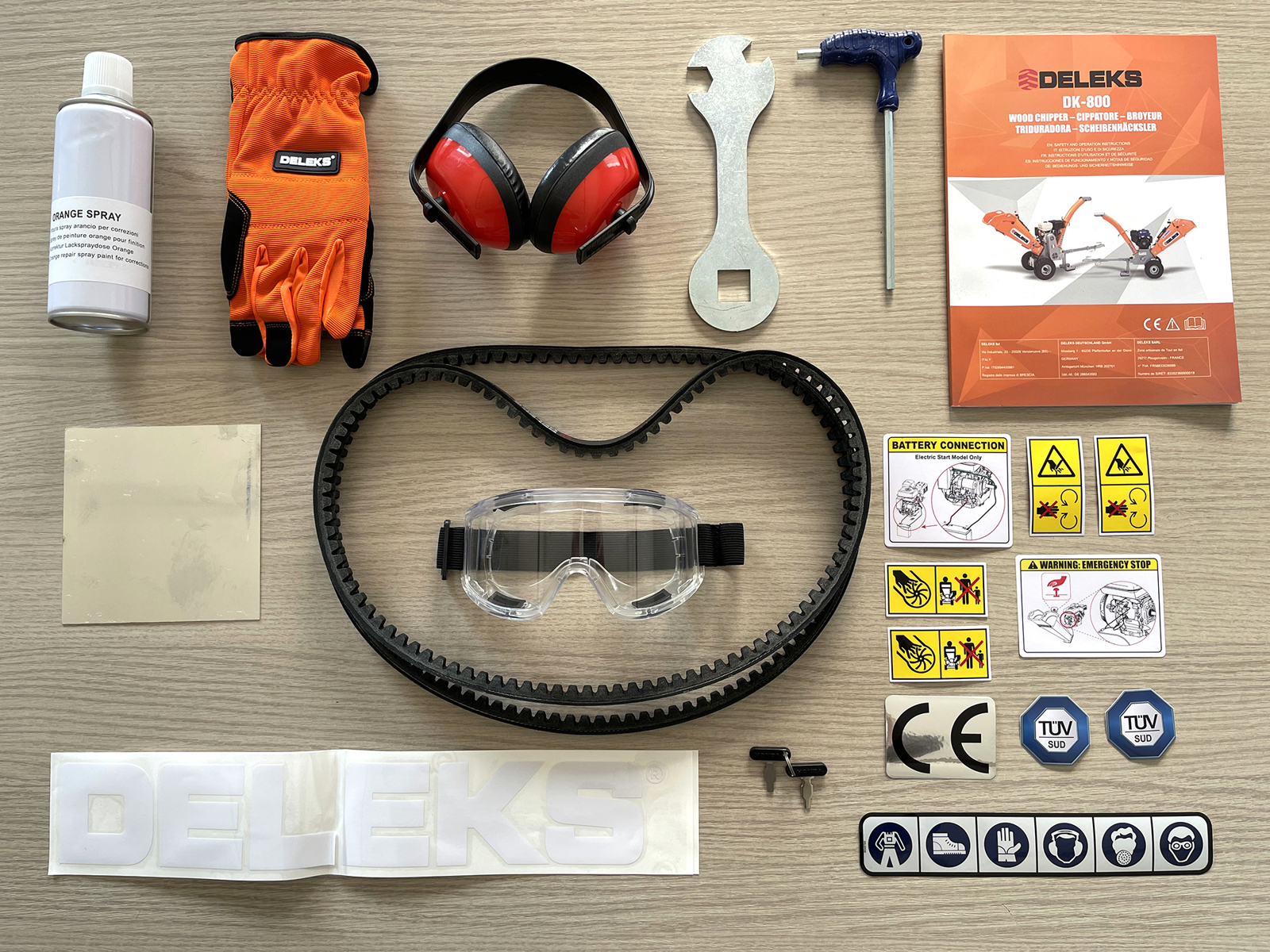

STANDARD EQUIPMENT

Pair of spare blades

Spare counter knife

1 kg of synthetic oil

Set of 2 replacement transmission belts

CE protection caps

CE protective glasses

Use and maintenance manual for the machine

Use and maintenance manual for the LIFAN engine

Orange Spray Paint

Complete set of replacement stickers

Set wrenches for maintenance



Documentation supplied with this article:

Invoice or Receipt
CE Conformity
Maintenance Manual


EC Certification and Risk Analysis (Valid throughout Europe) edited by TÜV SÜD.

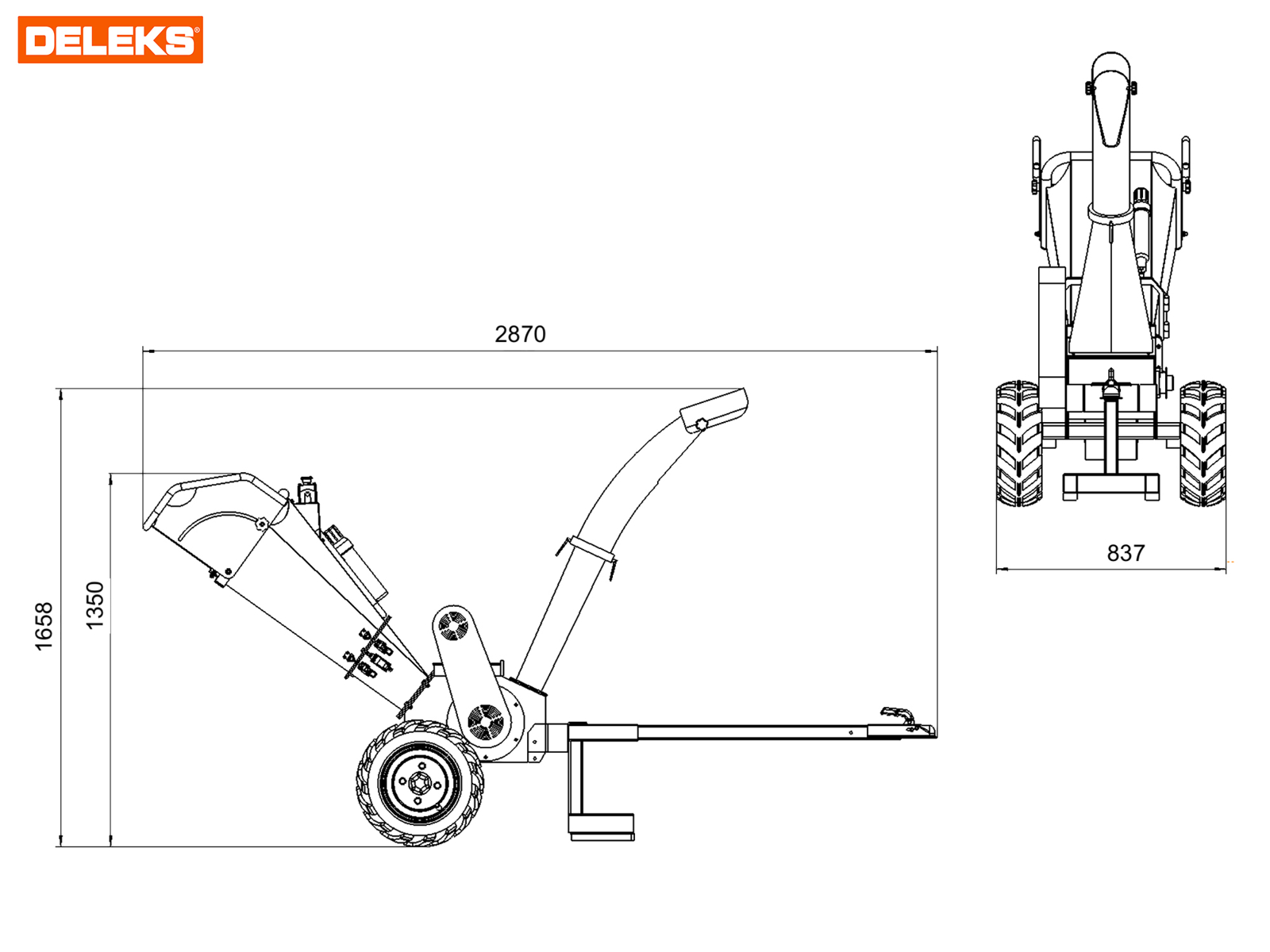

CARACTERISTICS

Caracteristic Units metric Units US
Overall width 760.0 mm 2.50 ft
Weight 200.0 kg 440.0 lb
Overall height 1630.0 mm 5.35 ft
Overall length 2600.0 mm 8.53 ft
Blades: Weight 600.0 g 21.16 oz
Transmission V Belts V Belts
Working Efficiency 6-7 m3/h 19.70-23.0 sq ft/h
Cutting System Chipping drum with 2 blades + 1 fixed blade Chipping drum with 2 blades + 1 fixed blade
Chipped material size range 5.0 - 15.0 mm 0.20 - 0.60 in
Transmission V-Belts quantity 2 2
Transmission V-Belts sizes 17x1041 17x1041

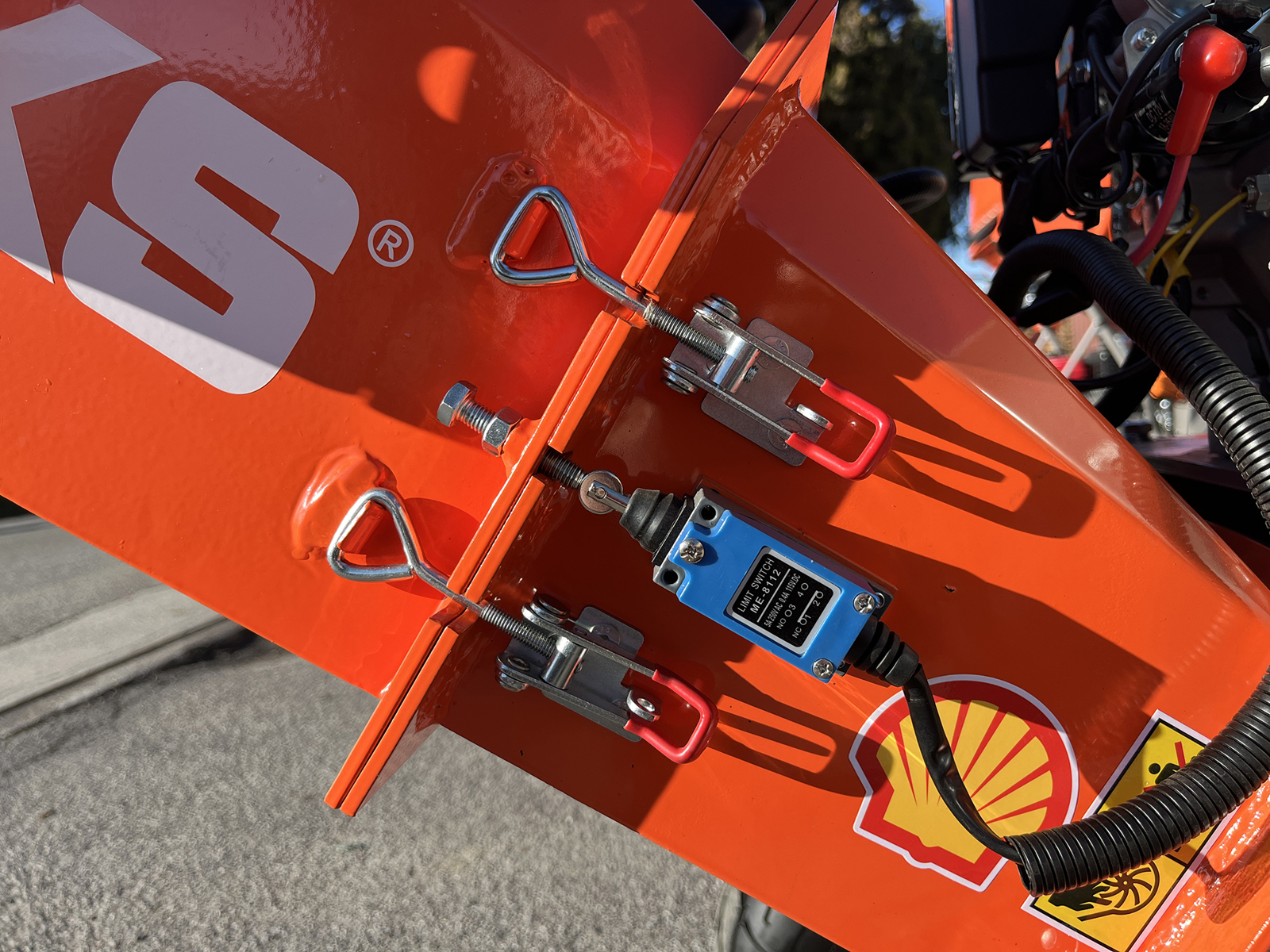

Safety System Emergency button Emergency button
Blades: Sizes 300.0*55.0 mm 11.81*2.16 in
Outlet Tube Sizes 130.0*130.0 mm / 360° 5.12*5.12 in / 360°
Maximum cutting diameter 80.0 mm 1.97 - 2.75 in
Engine 15Hp Lifan 190F 420cc 15Hp Lifan 190F 420cc
Starter E-start and Pull cord E-start and Pull cord
Wheels: sizes 16" x 410.0 mm 16"*5.5 in

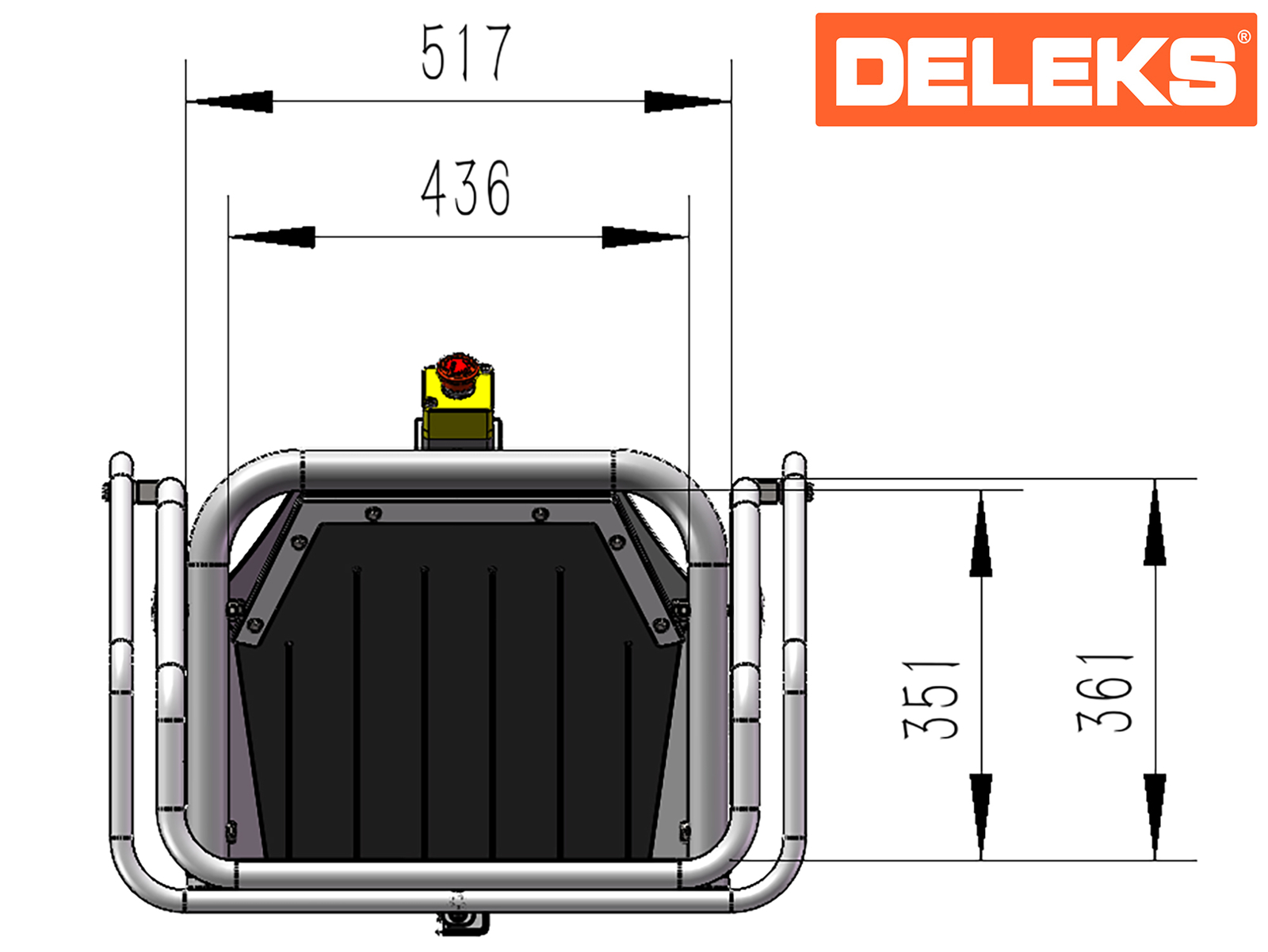

Cutting inlet sizes 300.0*140.0 mm 11.81*5.50 in

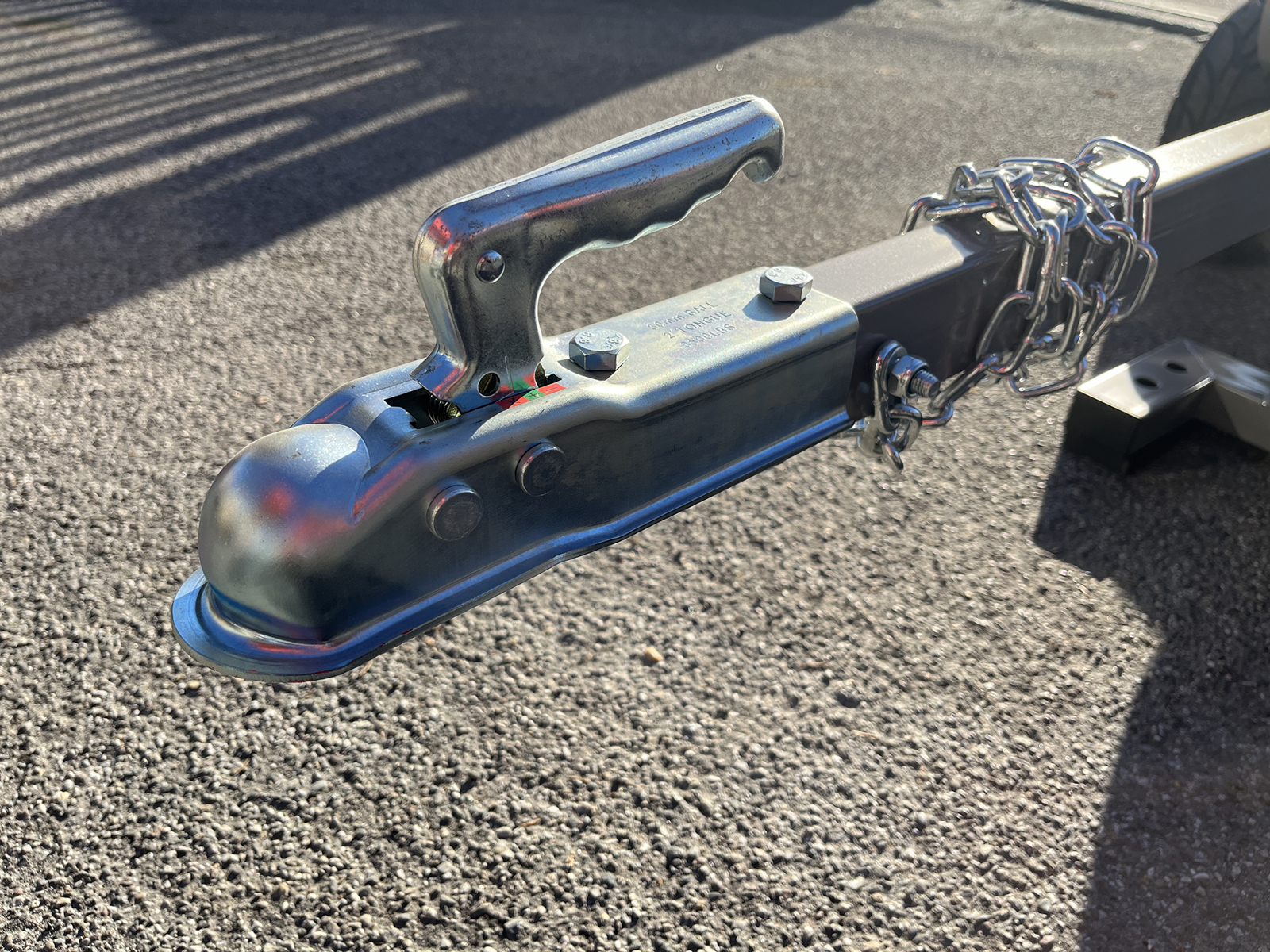

Towing bar
Outlet hight 1550.0 mm 5.08 ft
Fuel consumption 1 l/h 1 l/h
Packing sizes 900.0*760.0*1000.0 mm 2.95*2.50*3.28 ft
