petrol chipper shredder dk 800 briggs amp stratton

Petrol chipper shredder with Briggs&Stratton and Estart

4.4

298 reviews

Available

Code DK800BS

EAN 8053470230707

View all details.

PAY IN 3 INSTALLMENTS

-97,50€ ~~1.950,00€VAT incl.~~

TOTAL

1.852,50€VAT incl.

Free shipping

REQUEST MORE INFORMATION

IMAGES

VIDEO

Review by Edd China (Wheeler Dealers)

Field test by Edd China

Field test

Replacing and adjusting the knives

DETAILS

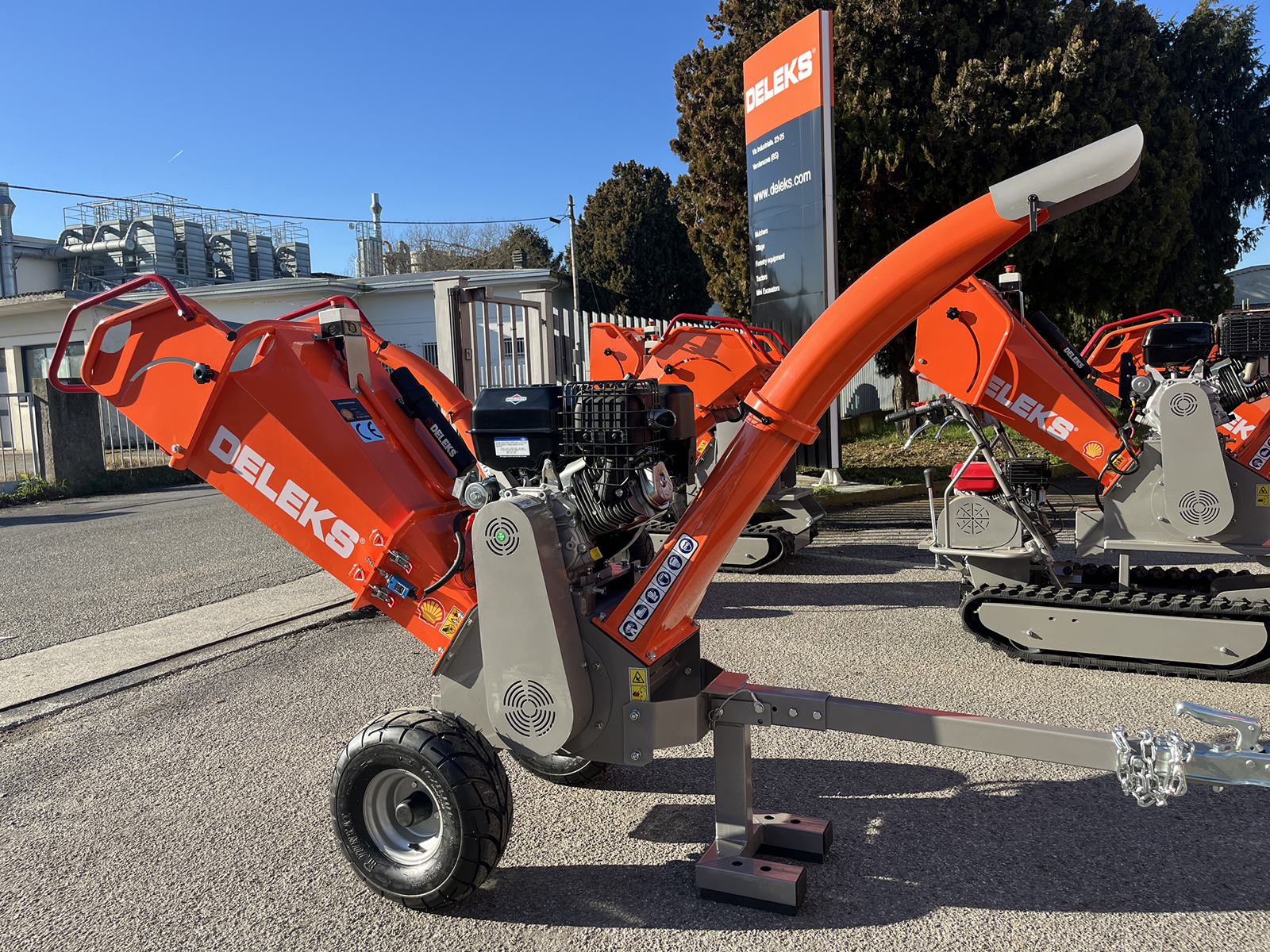

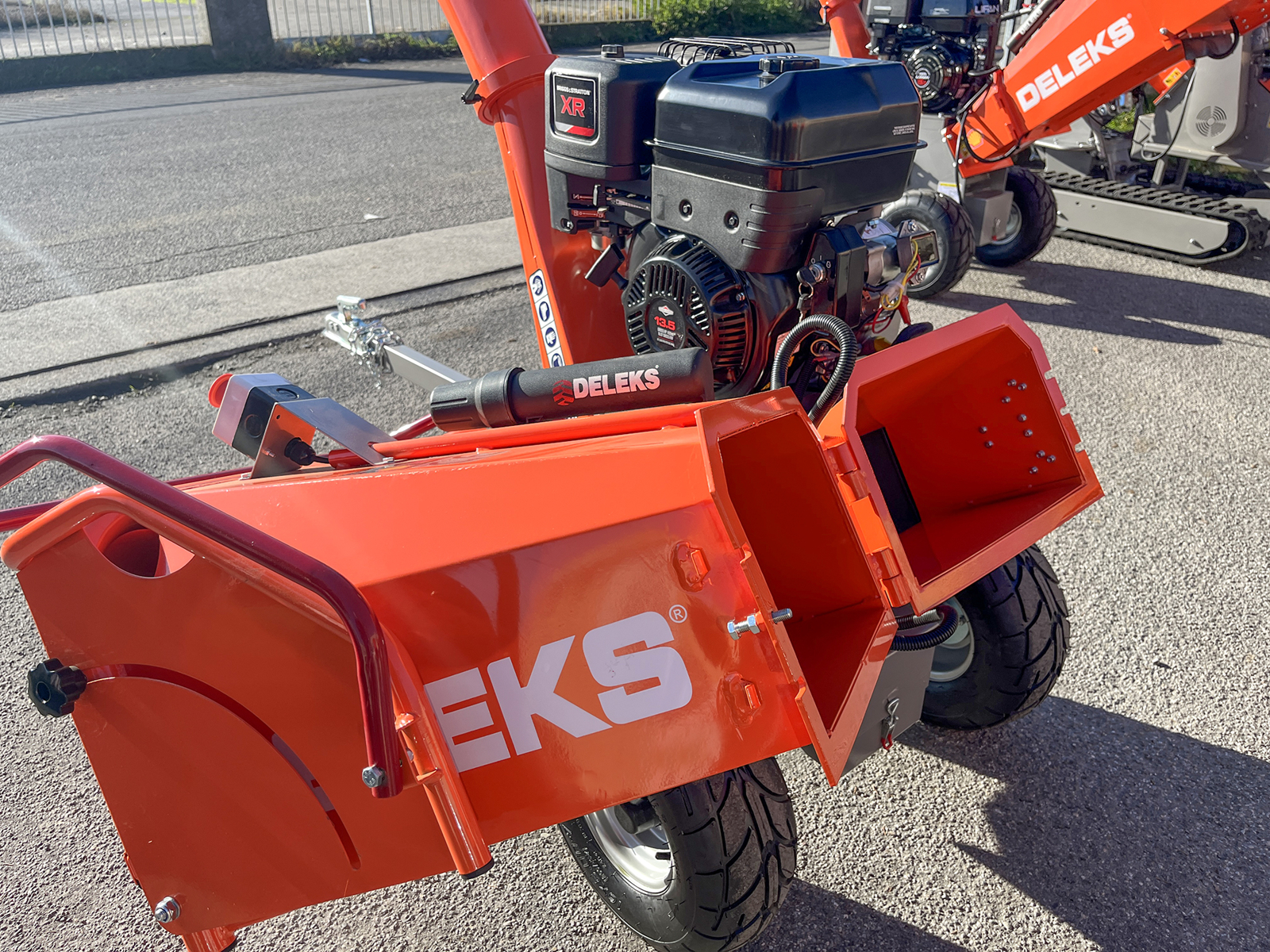

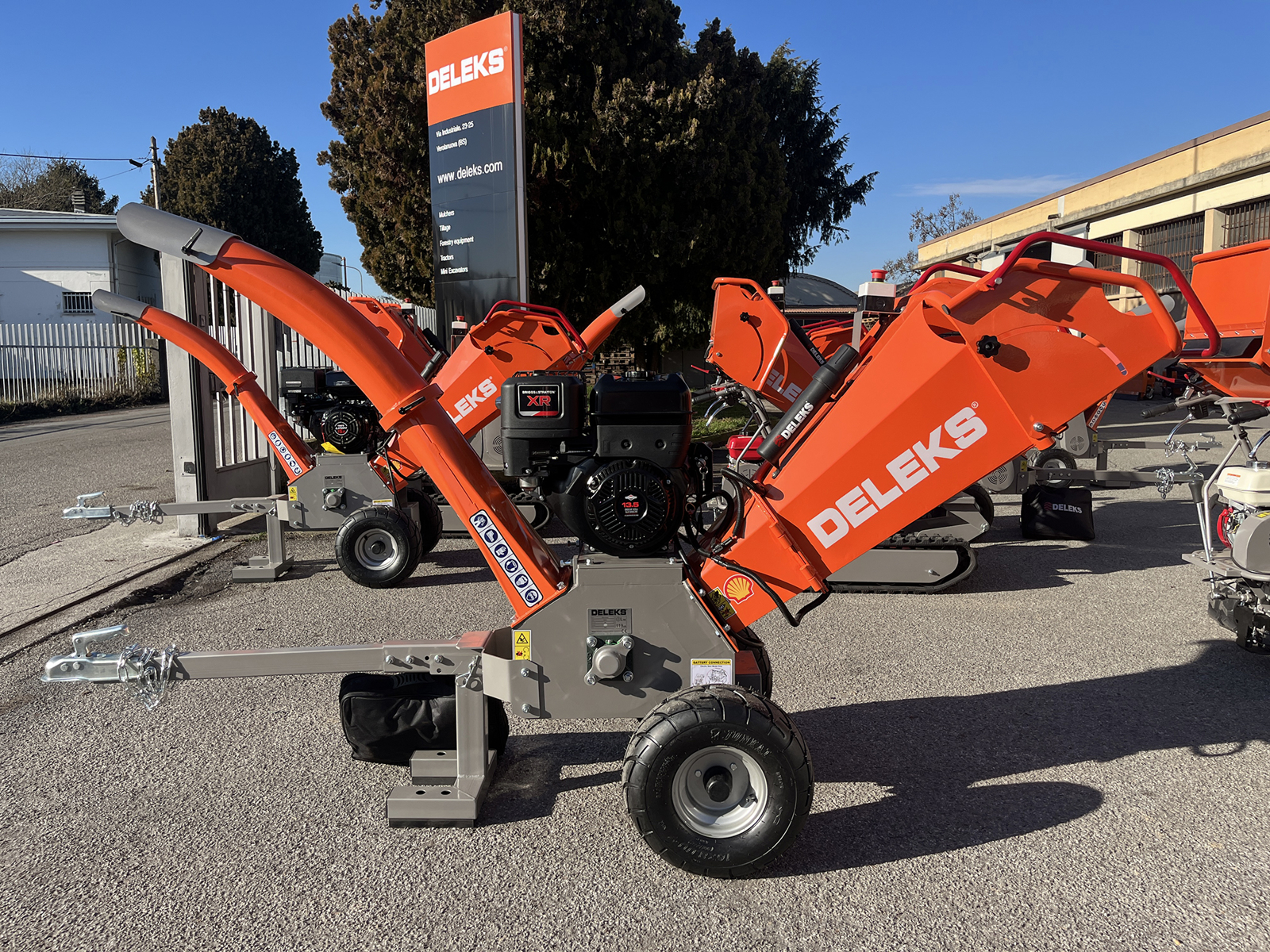

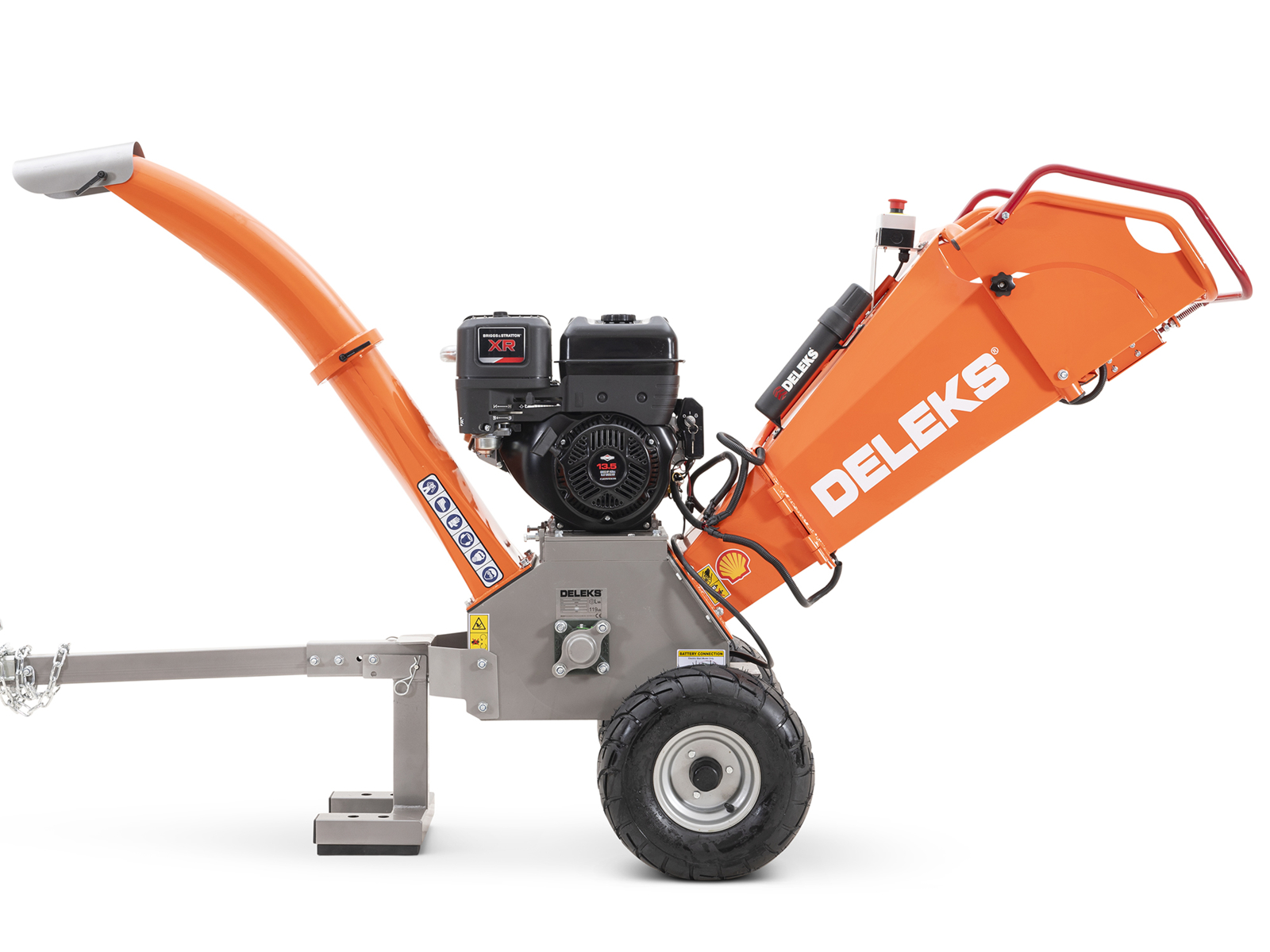

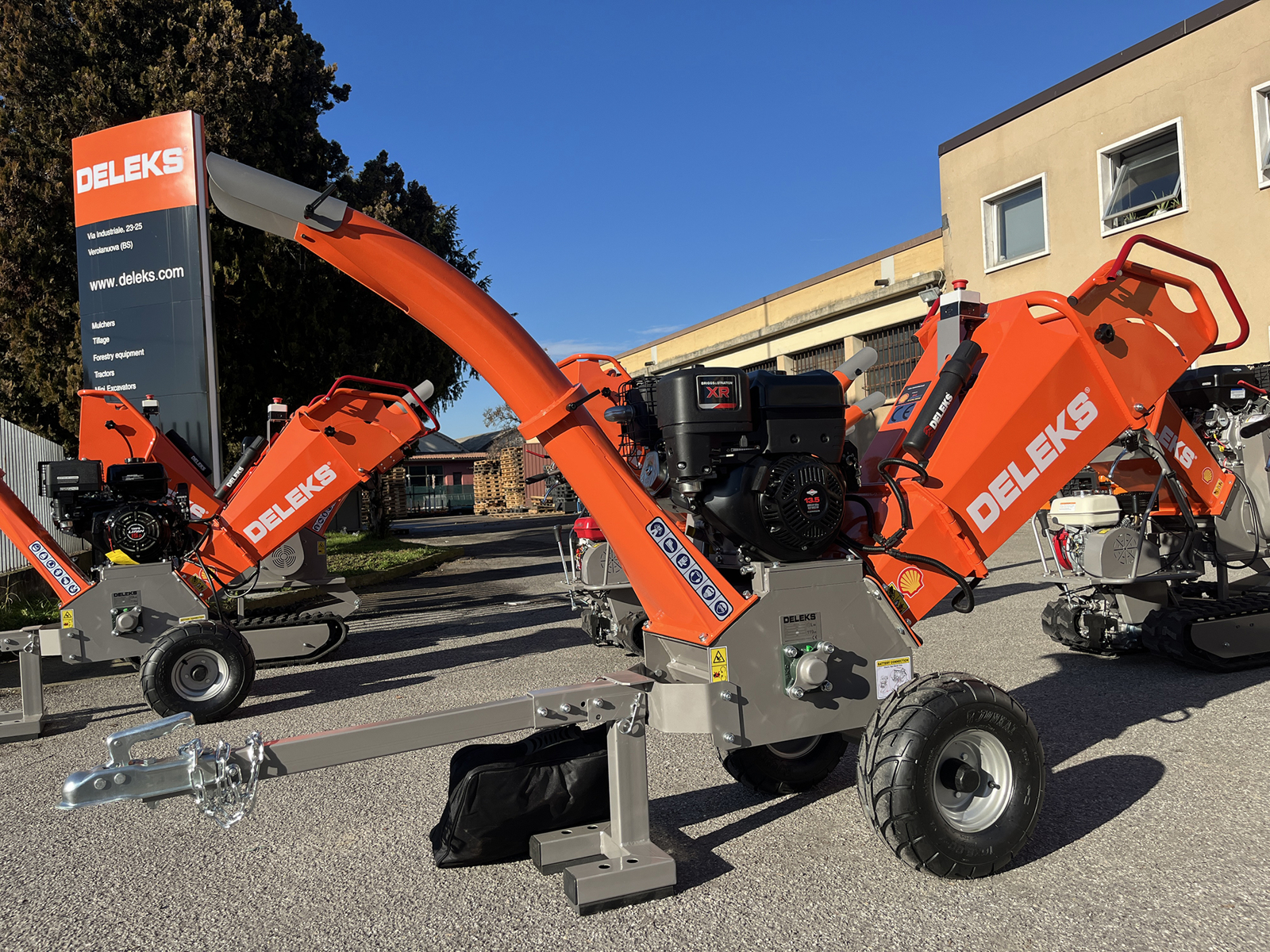

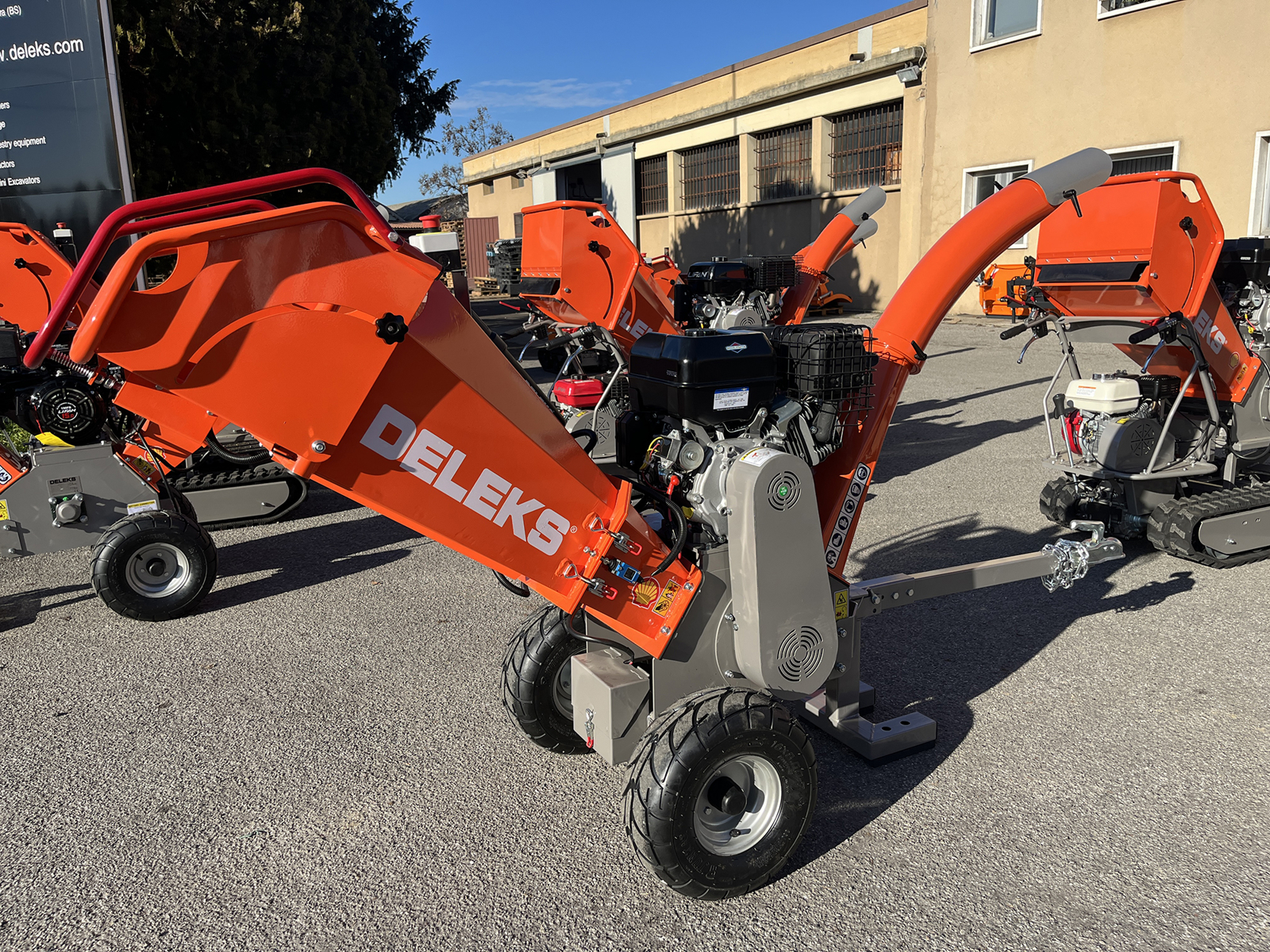

Professional Wood Chipper DELEKS DK-800-B&S with 15 Hp engine, 4 stroke gasoline engine, E-Start.

This product has a Certificate of registration in the EUROPEAN UNION INTELLECTUAL PROPERTY OFFICE

OVERVIEW

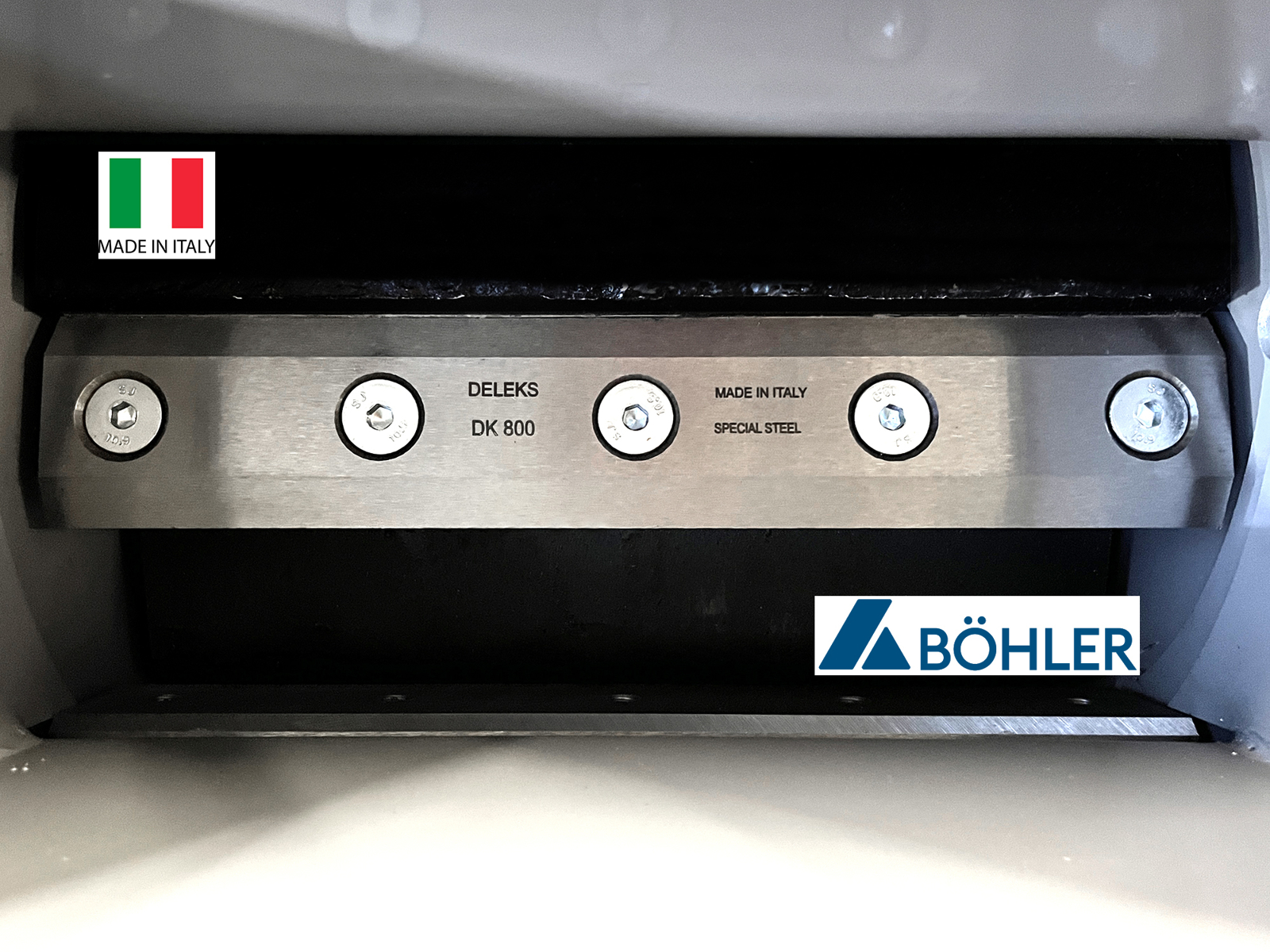

Chipping drum system shreds vegetation using 2 horizontal blades + 1 counter-fixed blade. Suitable for the chipping of all types of dry and green wood, pruning residues, palm leaves, etc. Ideal for professional/contractor usage.

Chipper produces enough material to make pulp or pellets for industrial use.

The Anti-shock clutch avoids direct motion between the motor and drum, thus facilitates the cold start and in case of jamming or introduction of foreign objects, prevents the crankshaft from damage.

Machine not suitable for shredding corn, straw, alfalfa, etc ..

BENEFITS AND FEATURES

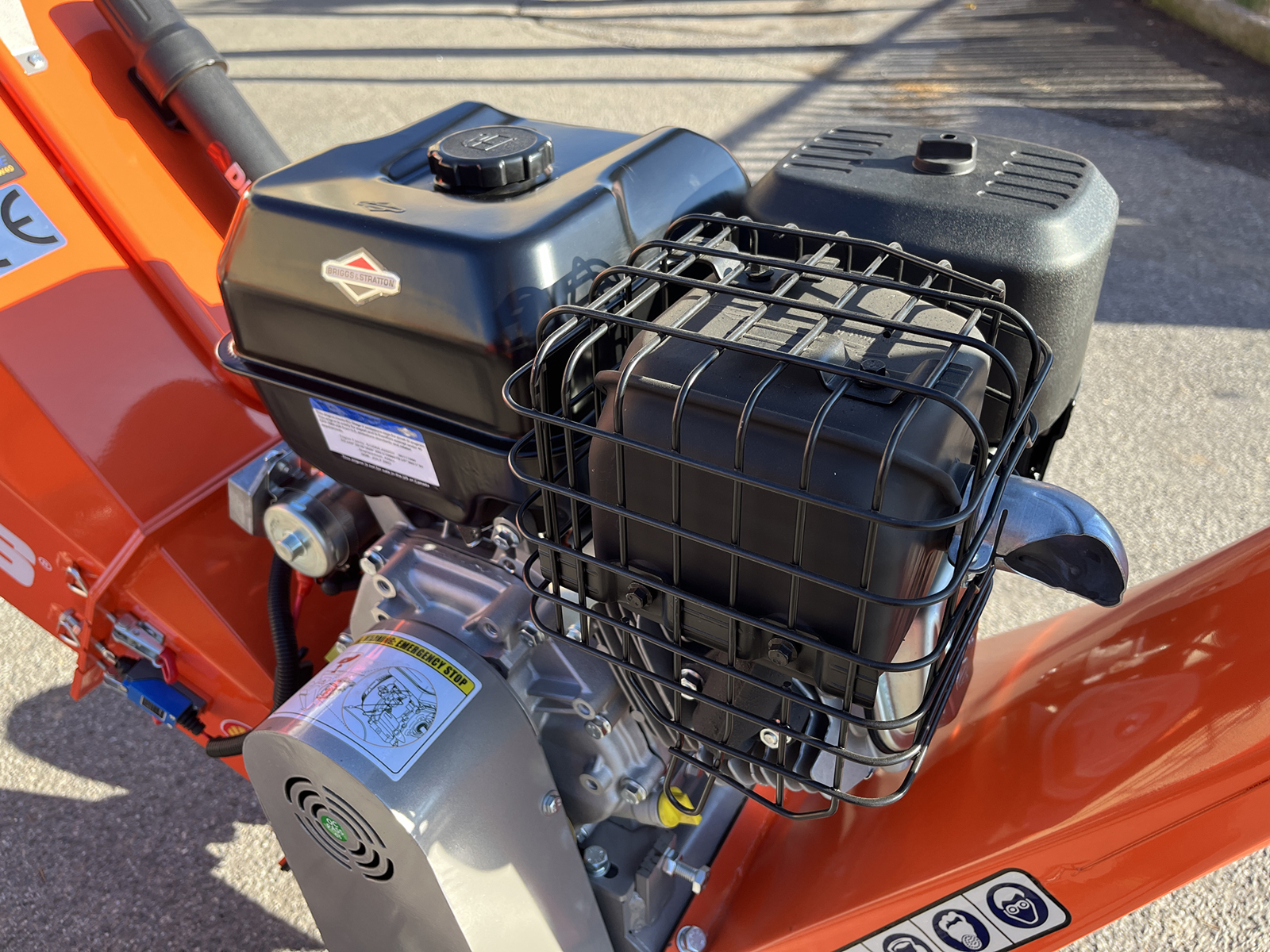

Gasoline engine BRIGGS&STRATTON 15.0 hp (2-Year warranty - Spare parts always available); 

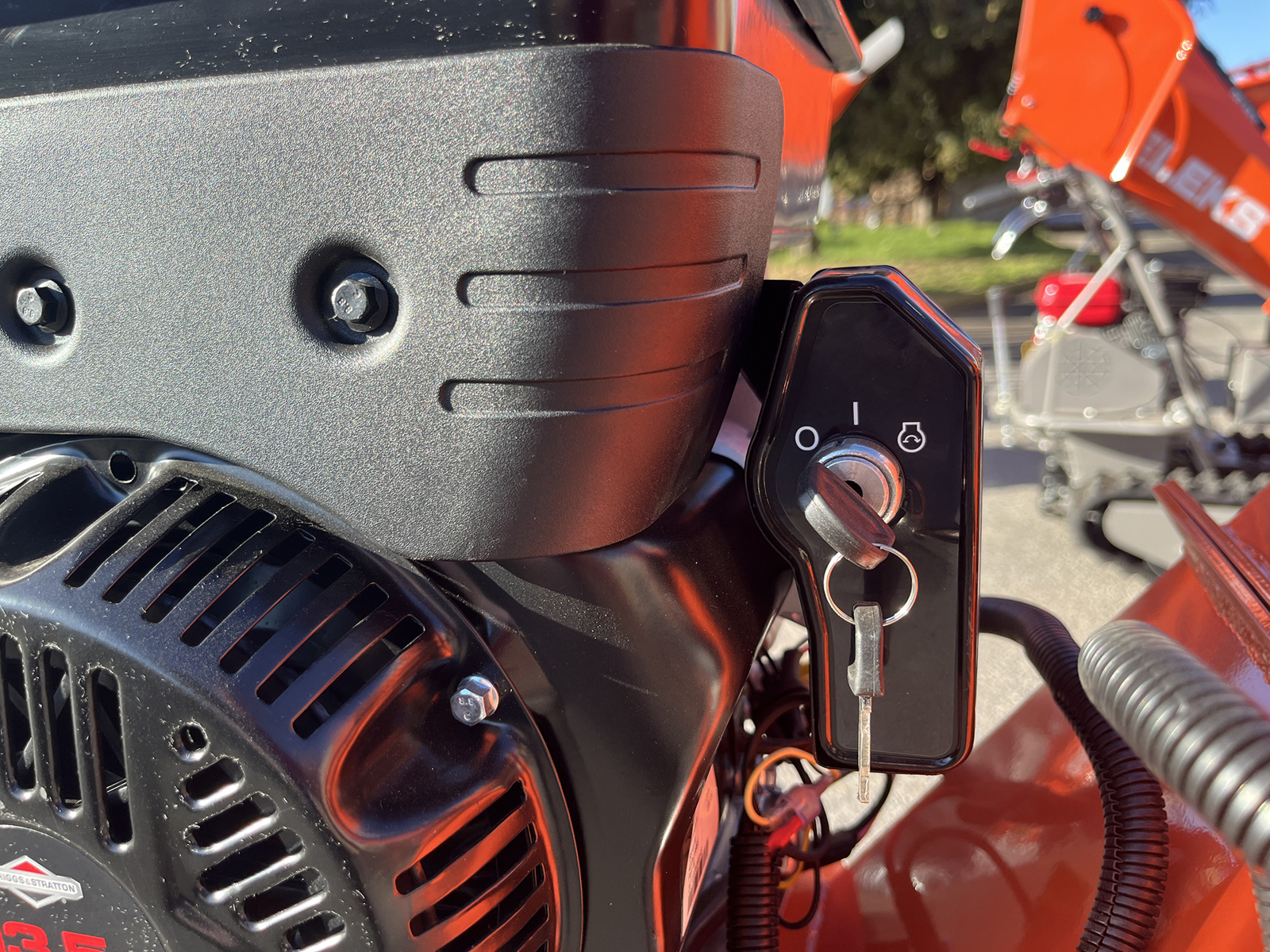

Electric Starter;

Anti-shock clutch; 

Gasoline engine, air-cooled 4-stroke; 

Starter rope; 

 Ergonomic design; 

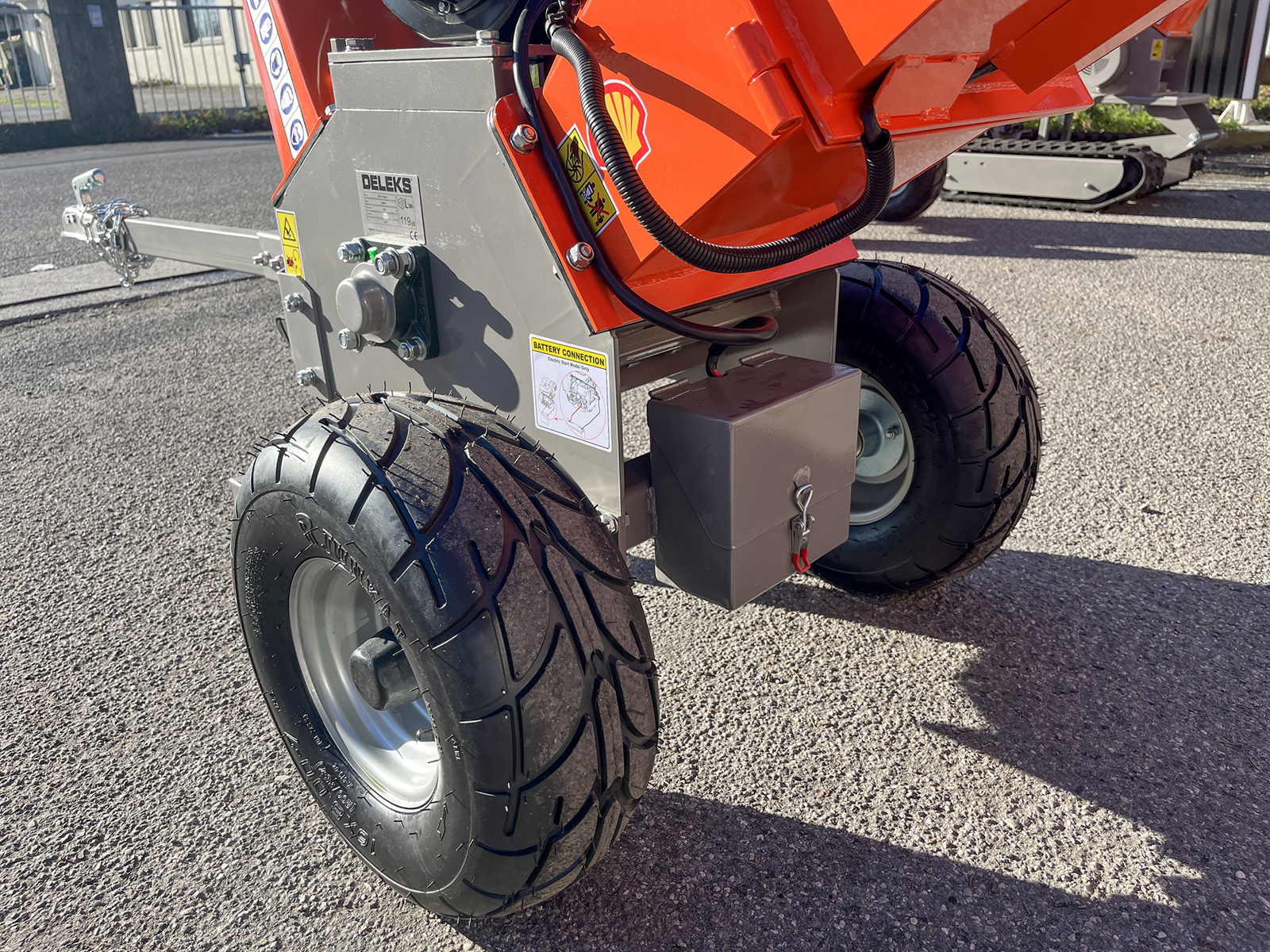

Excellent maneuverability thanks to the wheels 41cm in diameter, 16cm step; 

Solid structure (200kg) and stable with a low center of gravity;

 Headphones and goggles

Conforms to the CE directive.   

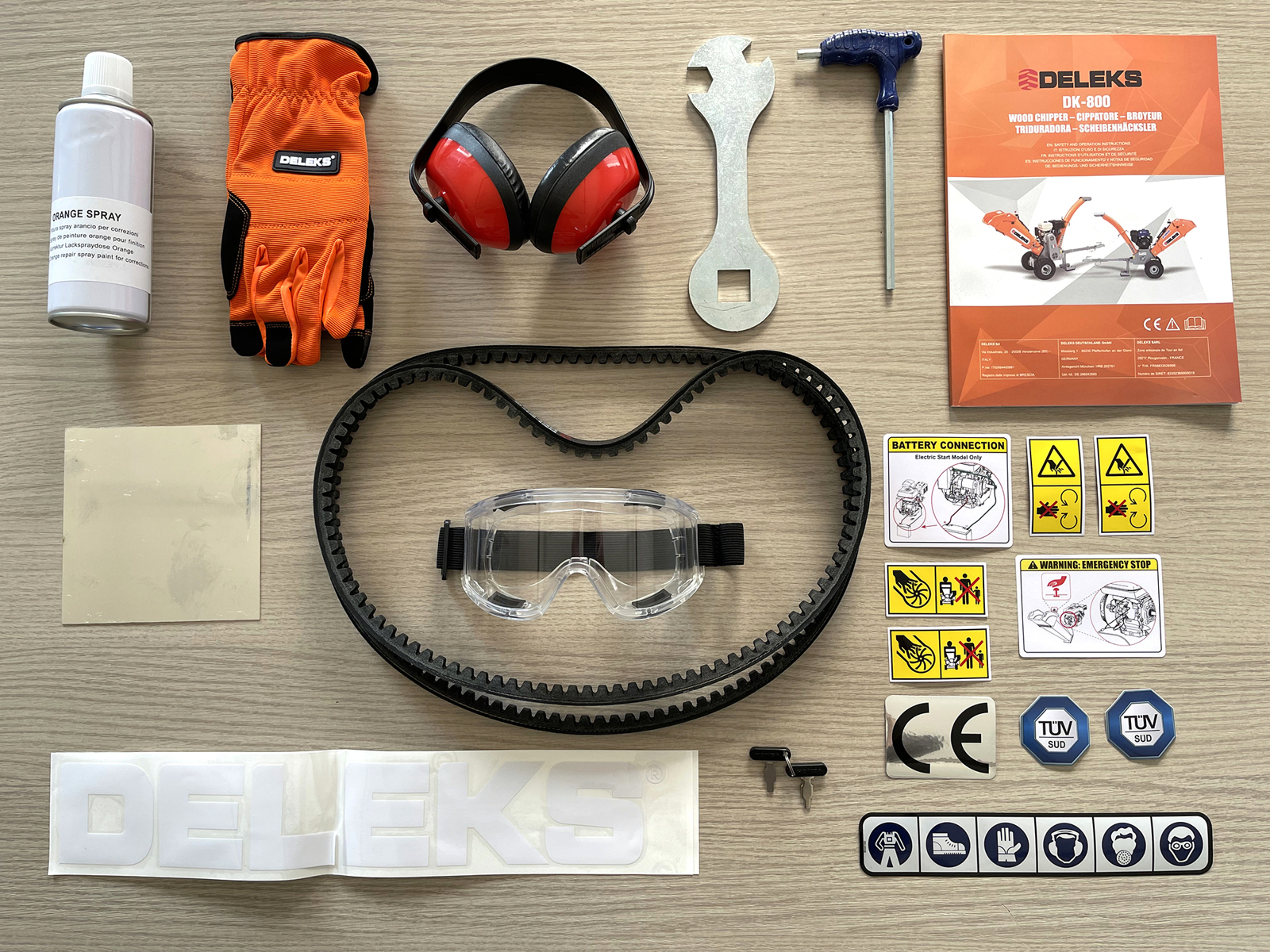

STANDARD EQUIPMENT

Pair of spare blades

Spare counter knife

Set of 2 replacement transmission belts

CE protection caps

CE protective glasses

Use and maintenance manual for the machine

Use and maintenance manual for the B&S engine

Orange Spray Paint

Complete set of replacement stickers

Set wrenches for maintenance

Documentation supplied with this article:

Invoice or Receipt
CE Conformity
Maintenance Manual

EC Certification and Risk Analysis (Valid throughout Europe) edited by TÜV SÜD.

CHARACTERISTICS

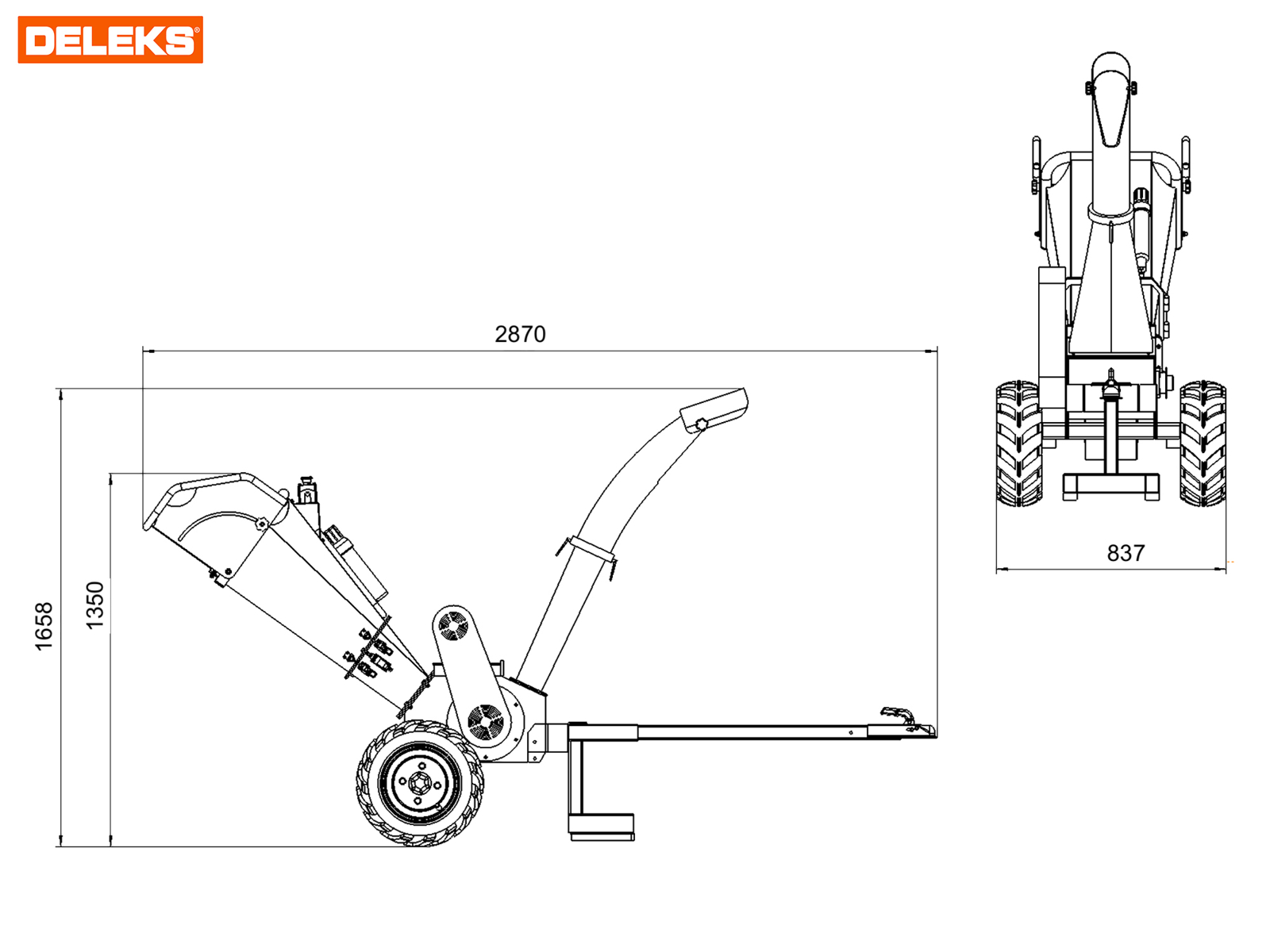

Characteristic	Units metric	Units US
Overall width	760.0 mm	2.50 ft
Weight	200.0 kg	440.0 lb
Overall height	1630.0 mm	5.35 ft
Overall length	2600.0 mm	8.53 ft
Blades: Weight	600.0 g	21.16 oz
Transmission	V Belts	V Belts
Working Efficiency	6-7 m3/h	19.70-23.0 sq ft/h
Cutting System	Chipping drum with 2 blades + 1 fixed blade	Chipping drum with 2 blades + 1 fixed blade
Chipped material size range	5.0 - 15.0 mm	0.20 - 0.60 in

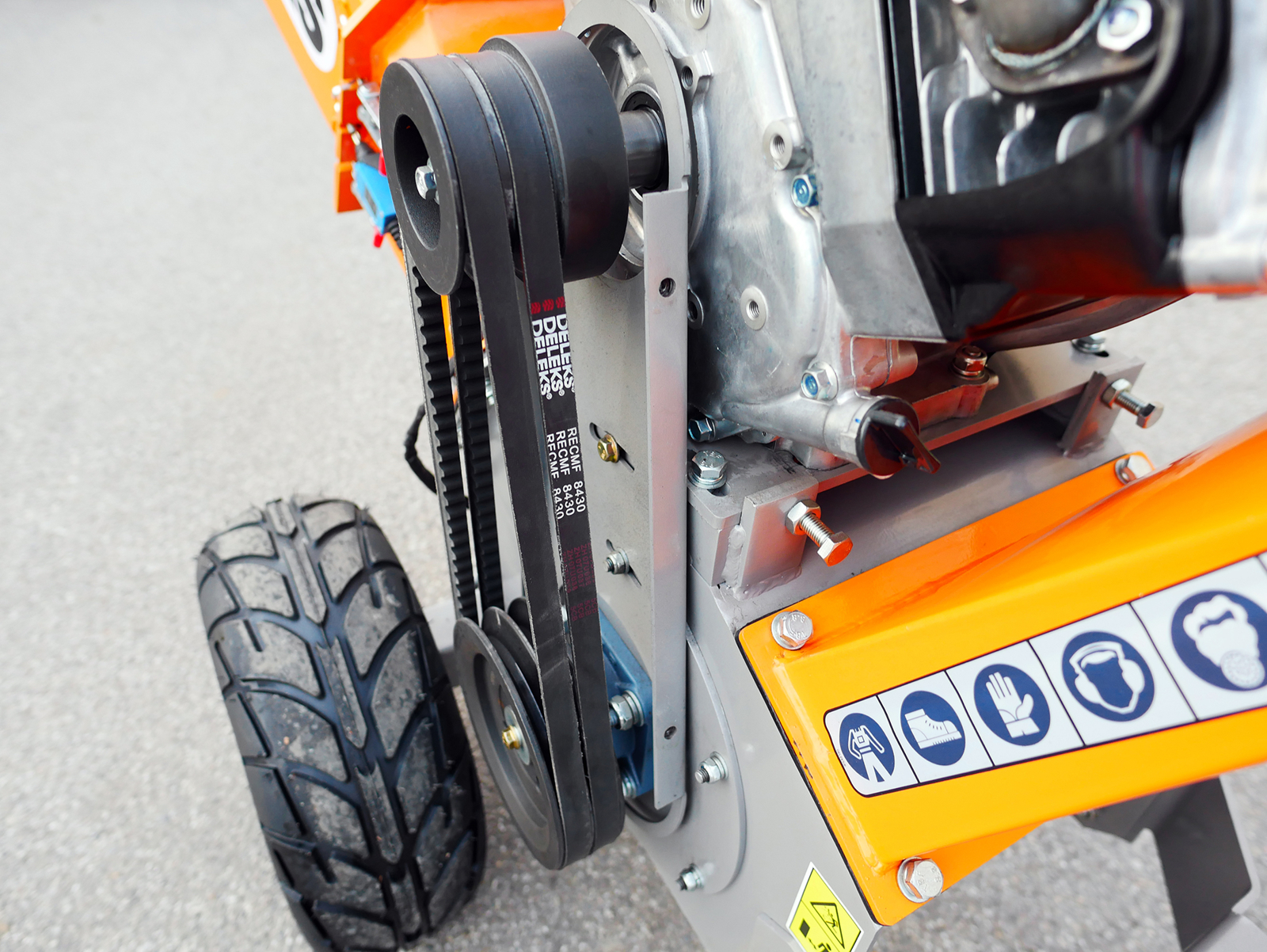

Transmission V-Belts quantity	2	2
Transmission V-Belts sizes	17x1041	17x1041

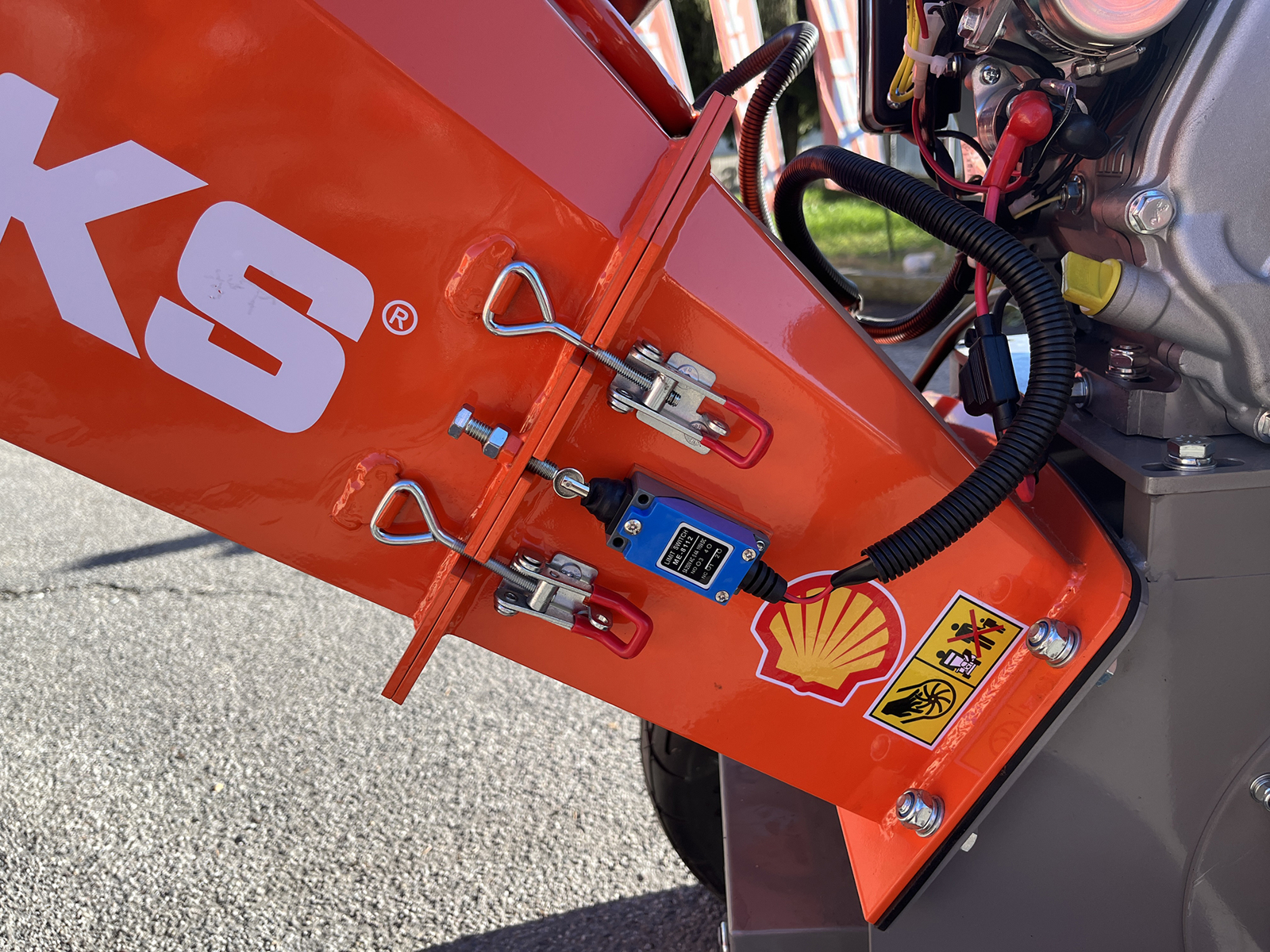

Safety System	Emergency button	Emergency button

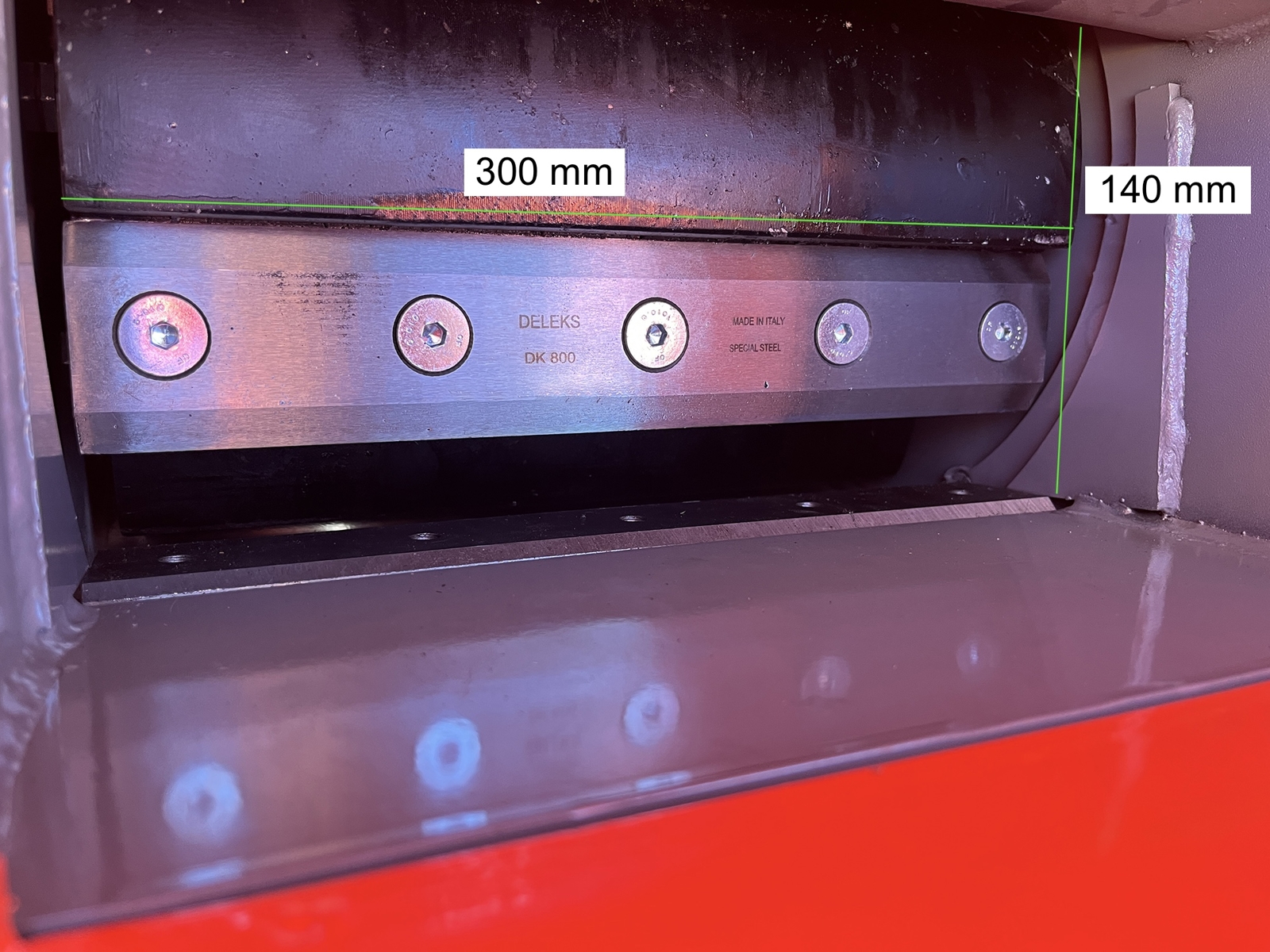

Blades: Sizes	300.0*55.0 mm	11.81*2.16 in
Outlet Tube Sizes	130.0*130.0 mm / 360°	5.12*5.12 in / 360°
Maximum cutting diameter	80.0 - 100.0 mm	4.00 in

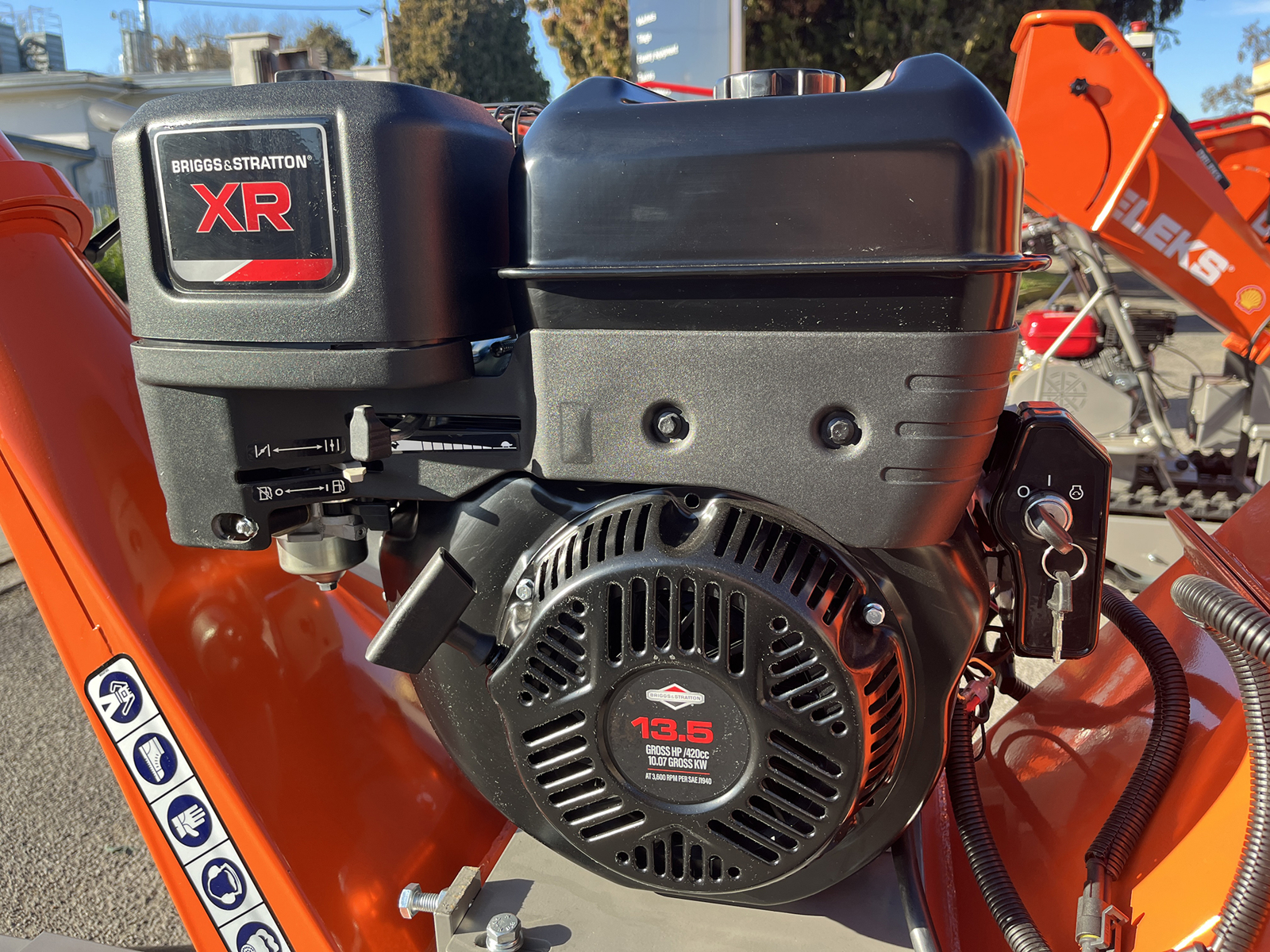

Engine	15Hp Briggs&Stratton XR2100 420cc	15Hp Briggs&Stratton XR2100 420cc
Starter	E-start and Pull cord	E-start and Pull cord
Wheels: sizes	16" x 410.0 mm	16"*5.5 in

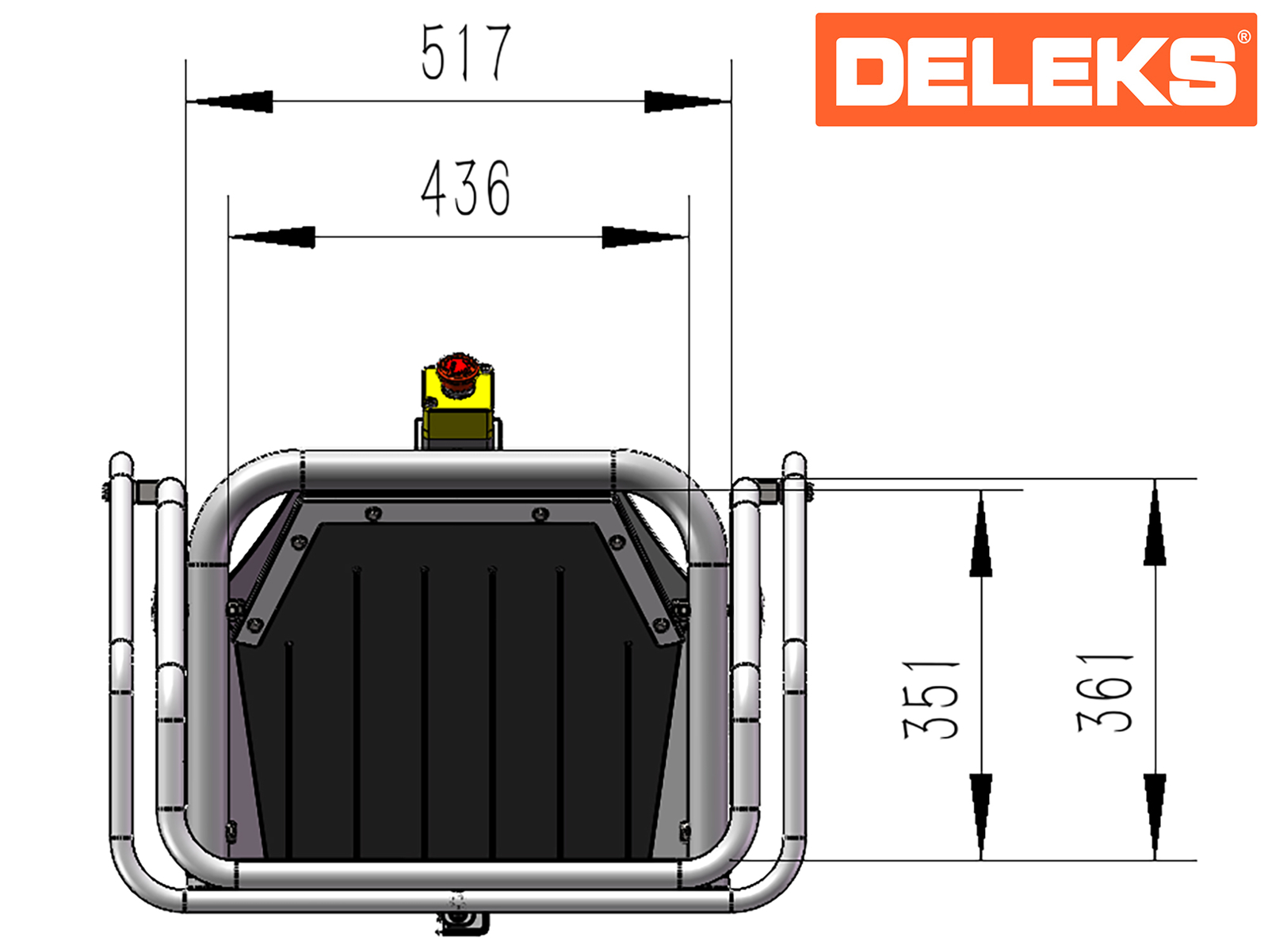

Cutting inlet sizes	300.0*140.0 mm	11.81*5.50 in

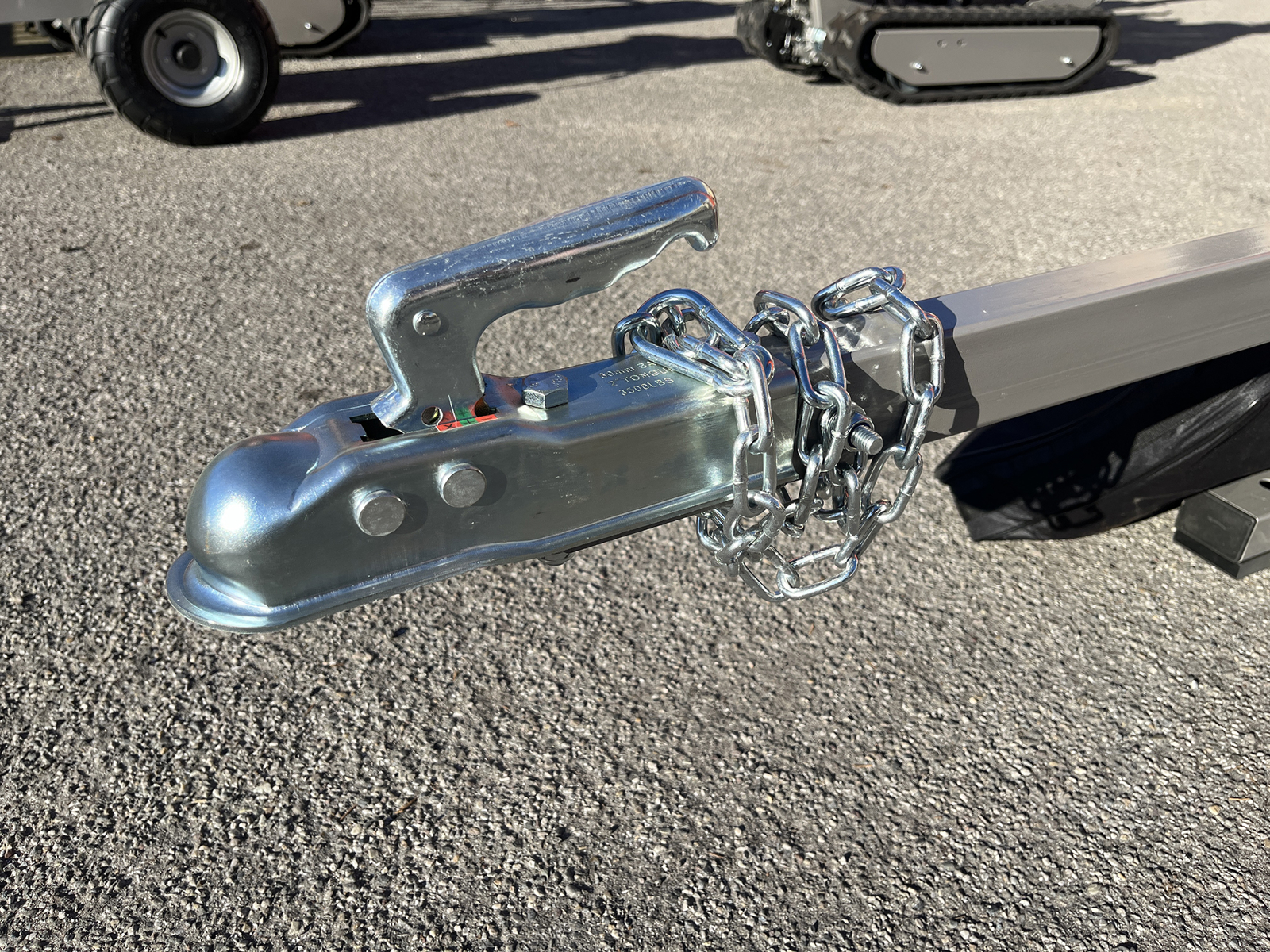

Towing bar	√	√
Outlet hight	1600.0 mm	5.0 ft
Fuel consumption	1 l/h	1 l/h
Packing sizes	900.0760.01000.0 mm	2.952.503.28 ft
