Flail collector mower for tractors 160 cm (63 in) PANDA-160, flail mower with 960-litre collector and hydraulic emptying

Available
Code PANDA160PTO - EAN 8053470237942
2.999,00€VAT incl.
Free shipping
Loading...
2.999,00€VAT incl.
Free shipping
View all details.
CUTTING WIDTH
90 120 160

4.6

1551 reviews

2.999,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Field test
Field test

DETAILS

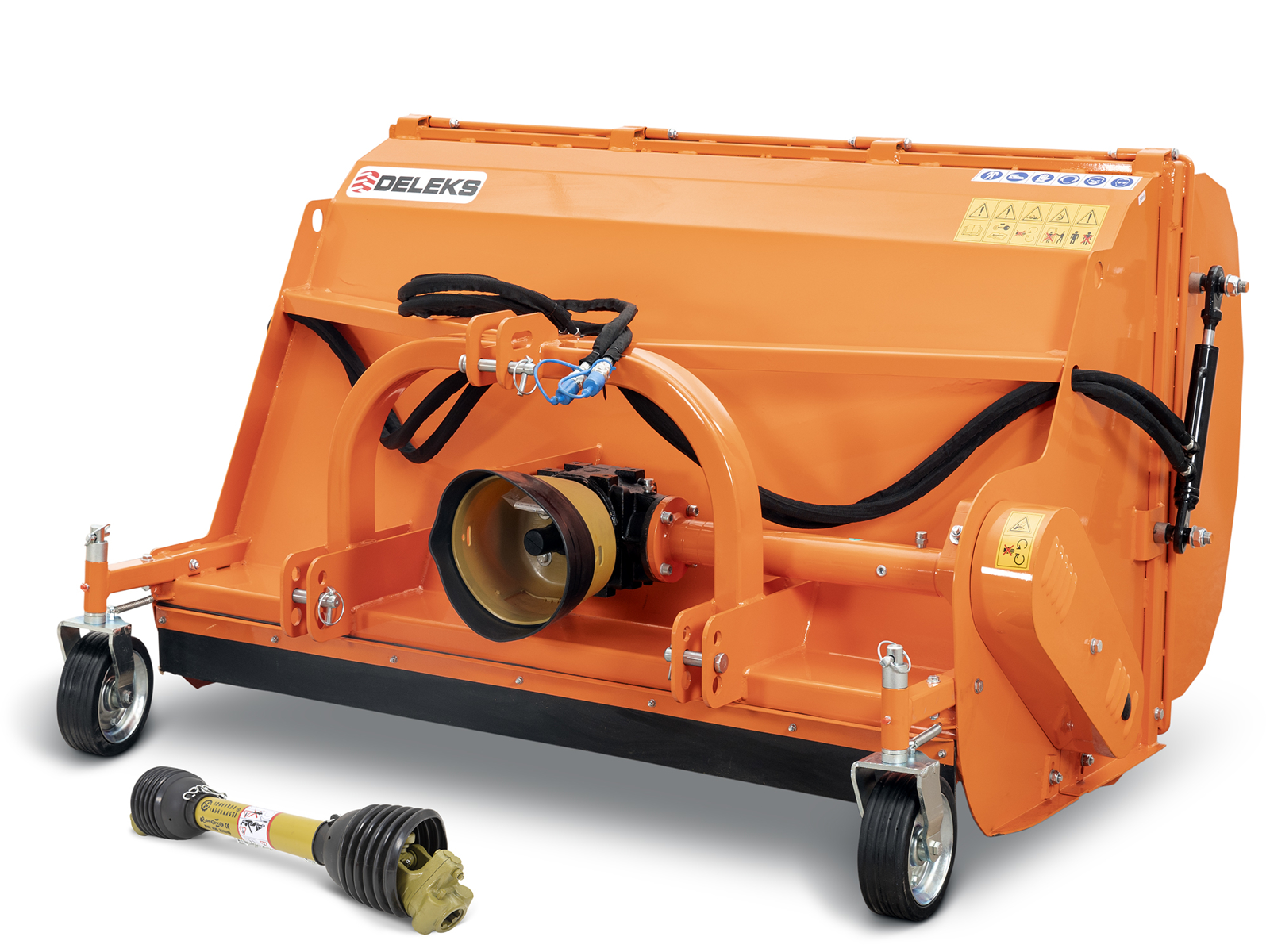

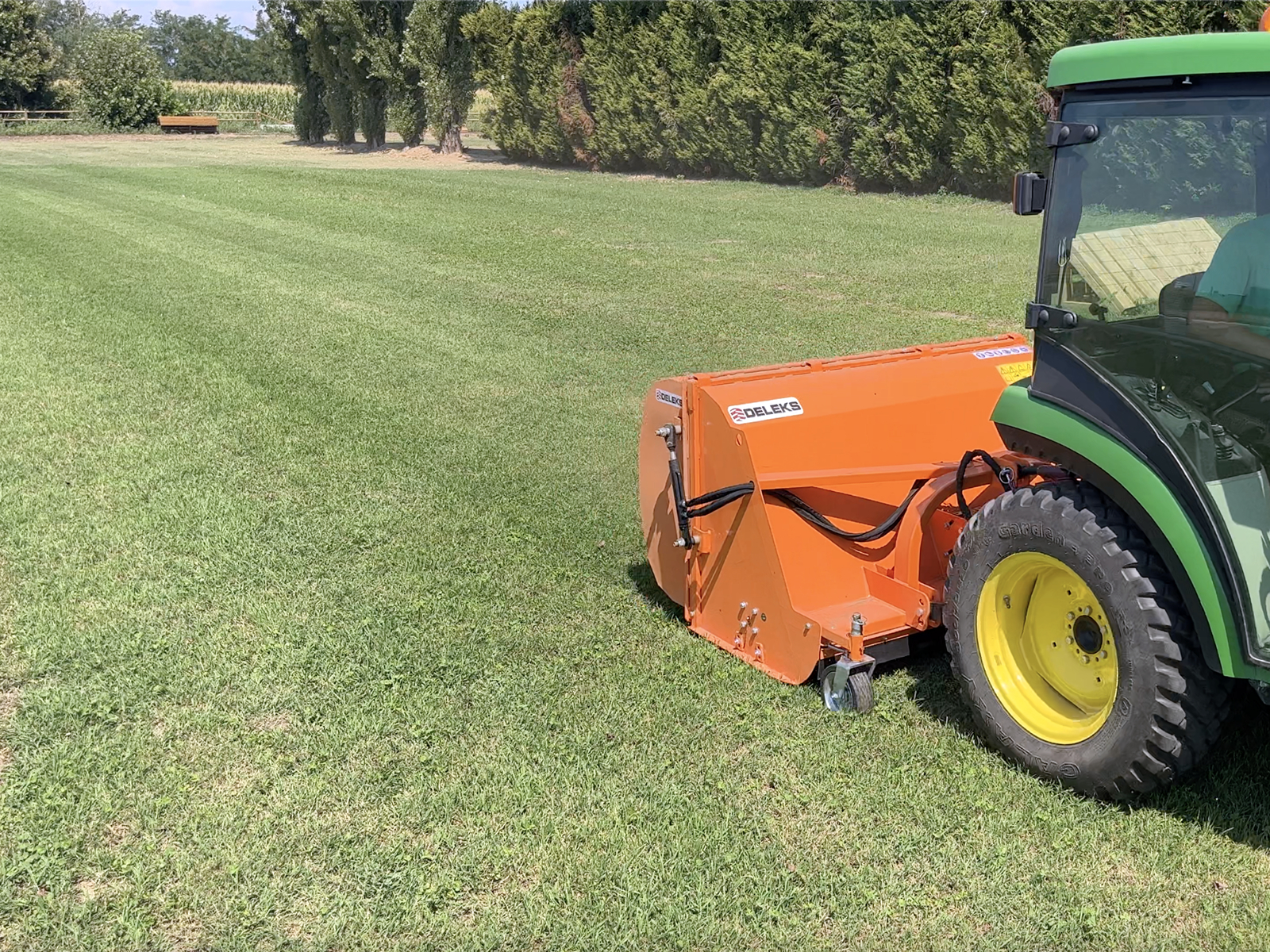

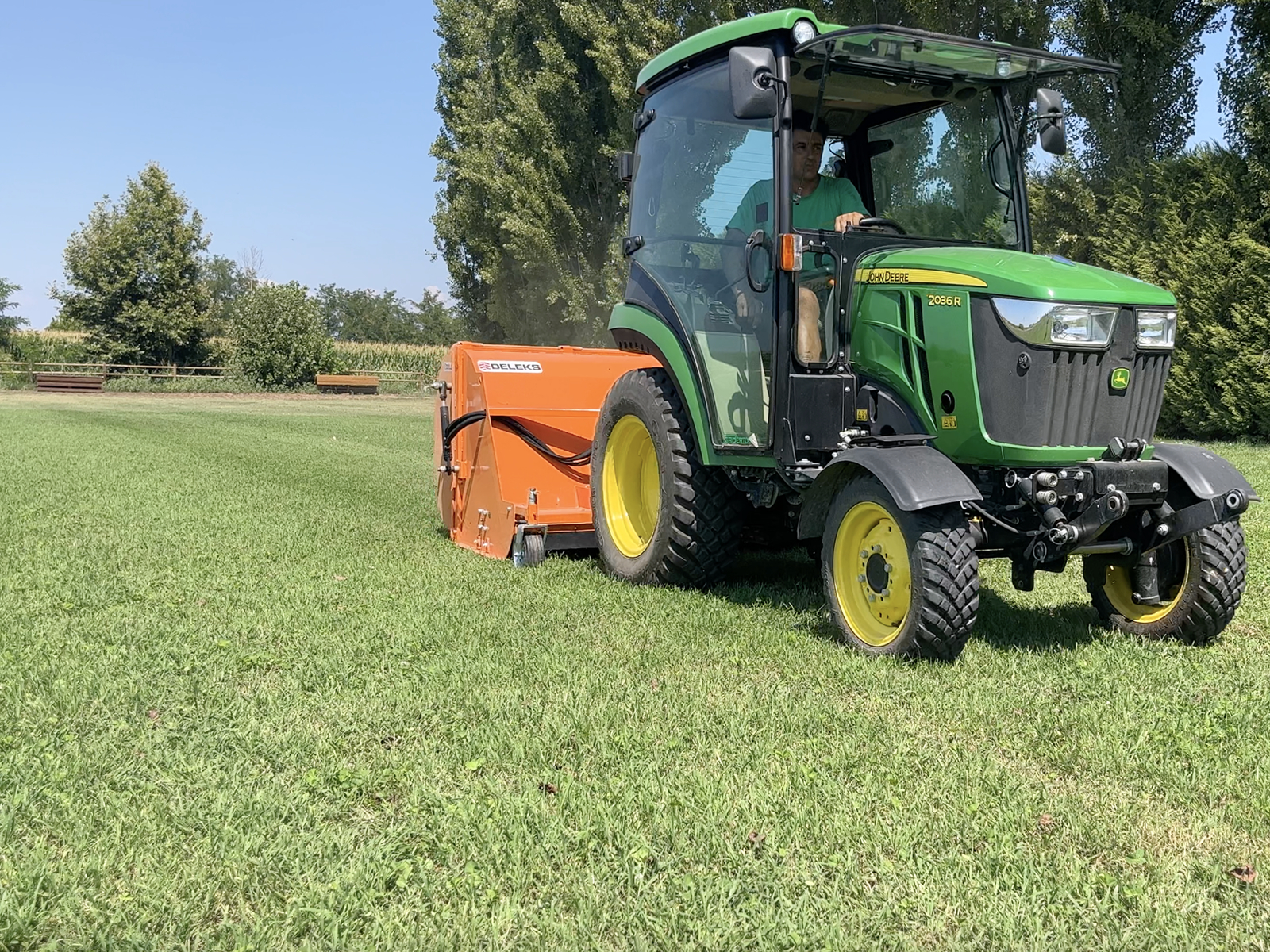

Flail collector mower for tractors with a 160 cm (63 in) cut: the DELEKS® PANDA-160 cuts and collects in a single pass, for tractors from 30 to 60 hp with a category 1 three-point linkage. The shredded material is thrown into the 960-litre (33.9 cu ft) collector, which opens hydraulically from the seat. It comes fitted with paddle blades, which cut and collect the grass on sports fields, parks, campsites and riding grounds; with the optional hammer flails it shreds and collects the prunings along the vine row. DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 3-belt drive, 380 kg (838 lb). TÜV-certified, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.


Cuts and collects in a single pass

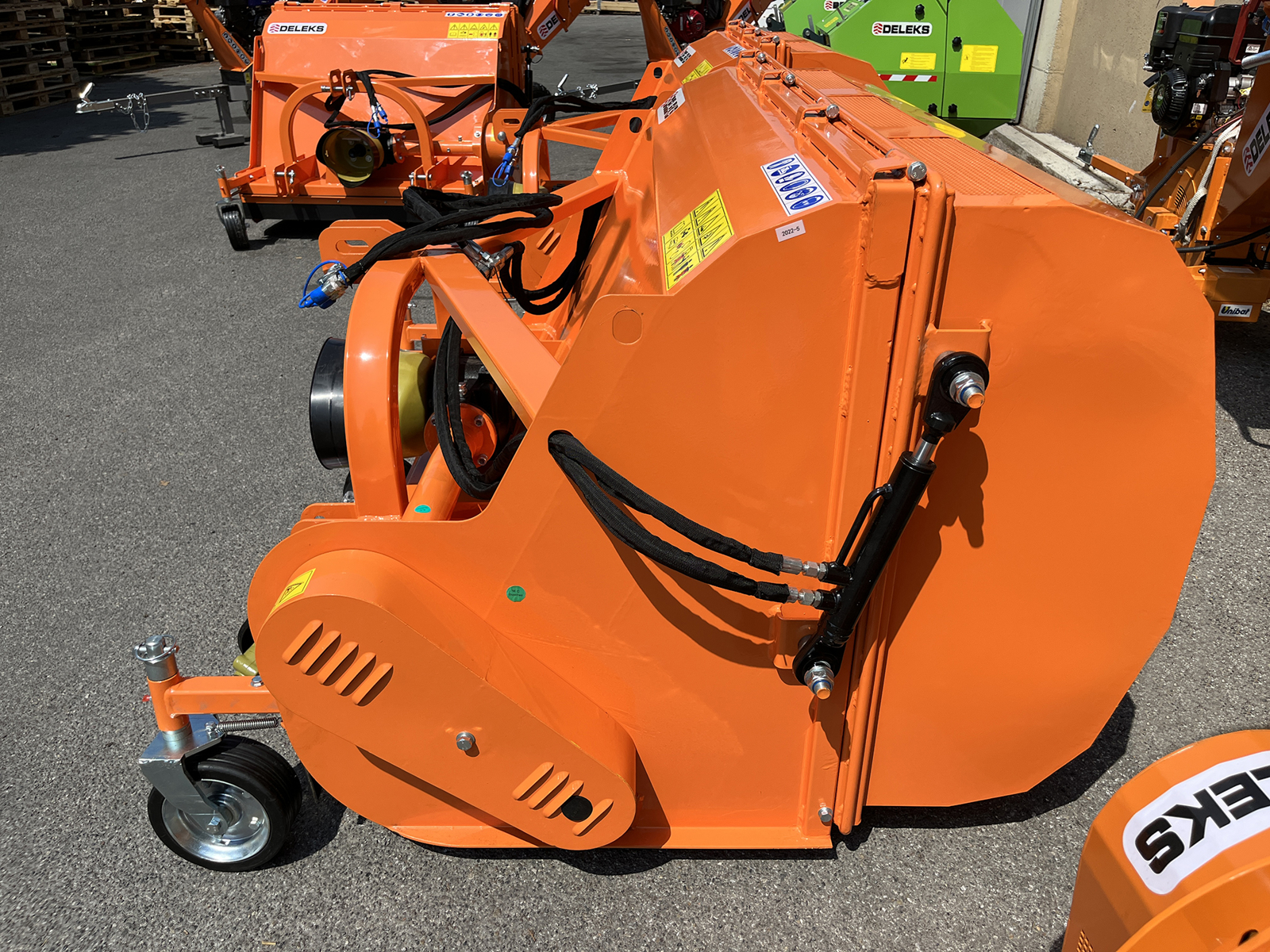

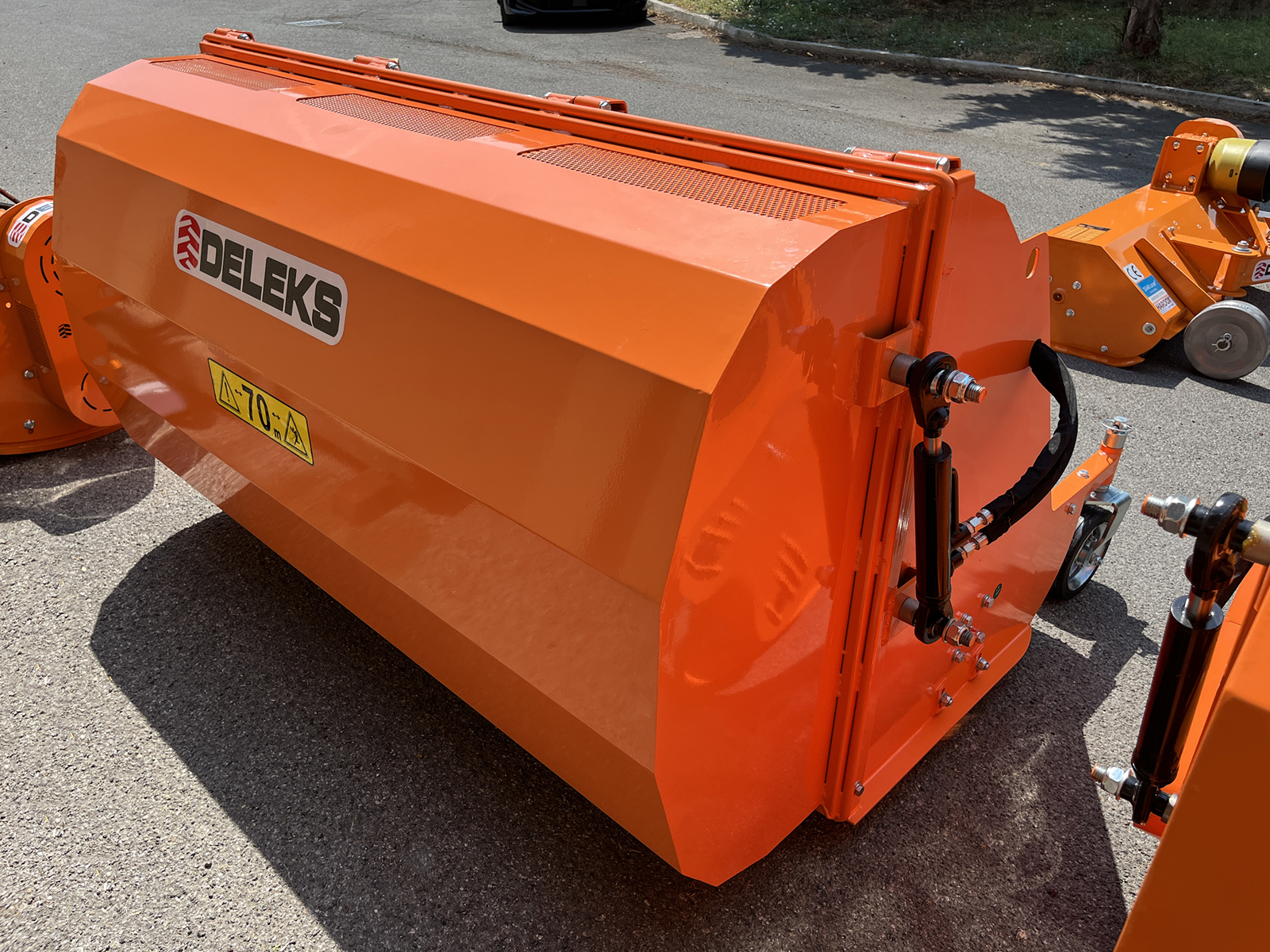

The PANDA-160 cuts and collects: the shredded material is thrown into the 960-litre rear collector and the ground is left clean. When the collector is full it opens hydraulically from the seat, without getting off the tractor, and is emptied wherever you need. It is the machine for areas where grass, leaves or prunings cannot be left lying.

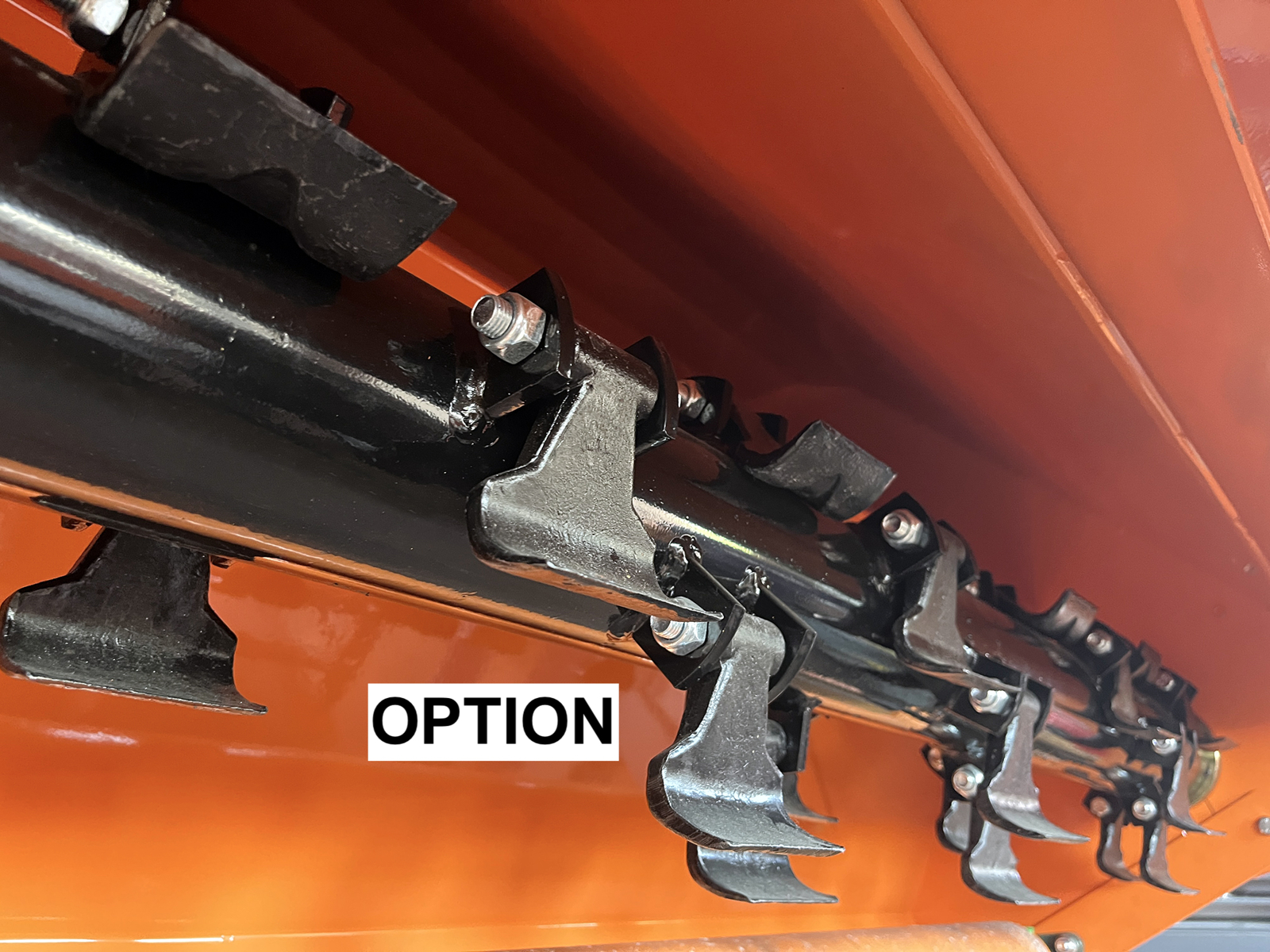

Blades for grass, hammer flails for prunings

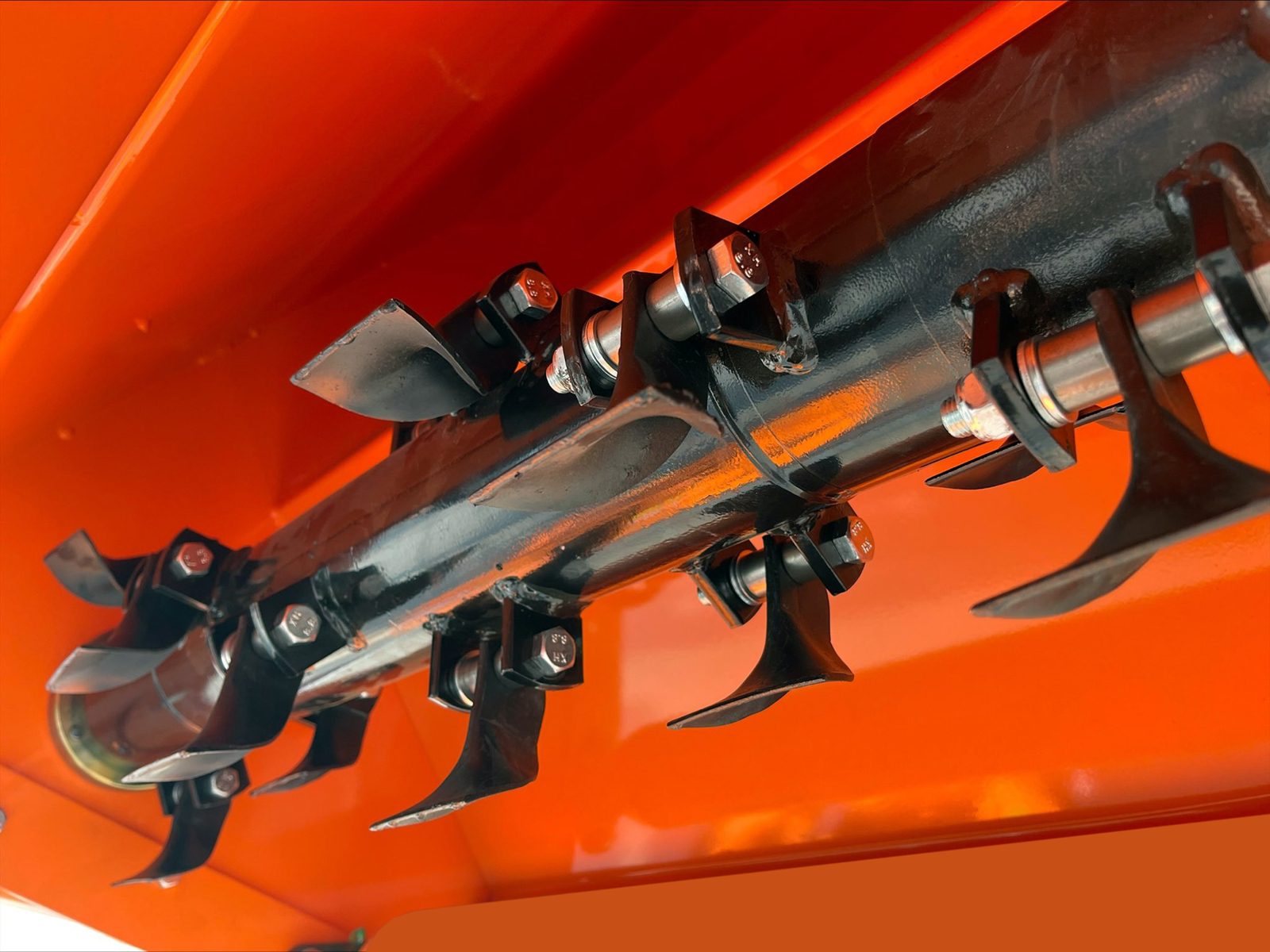

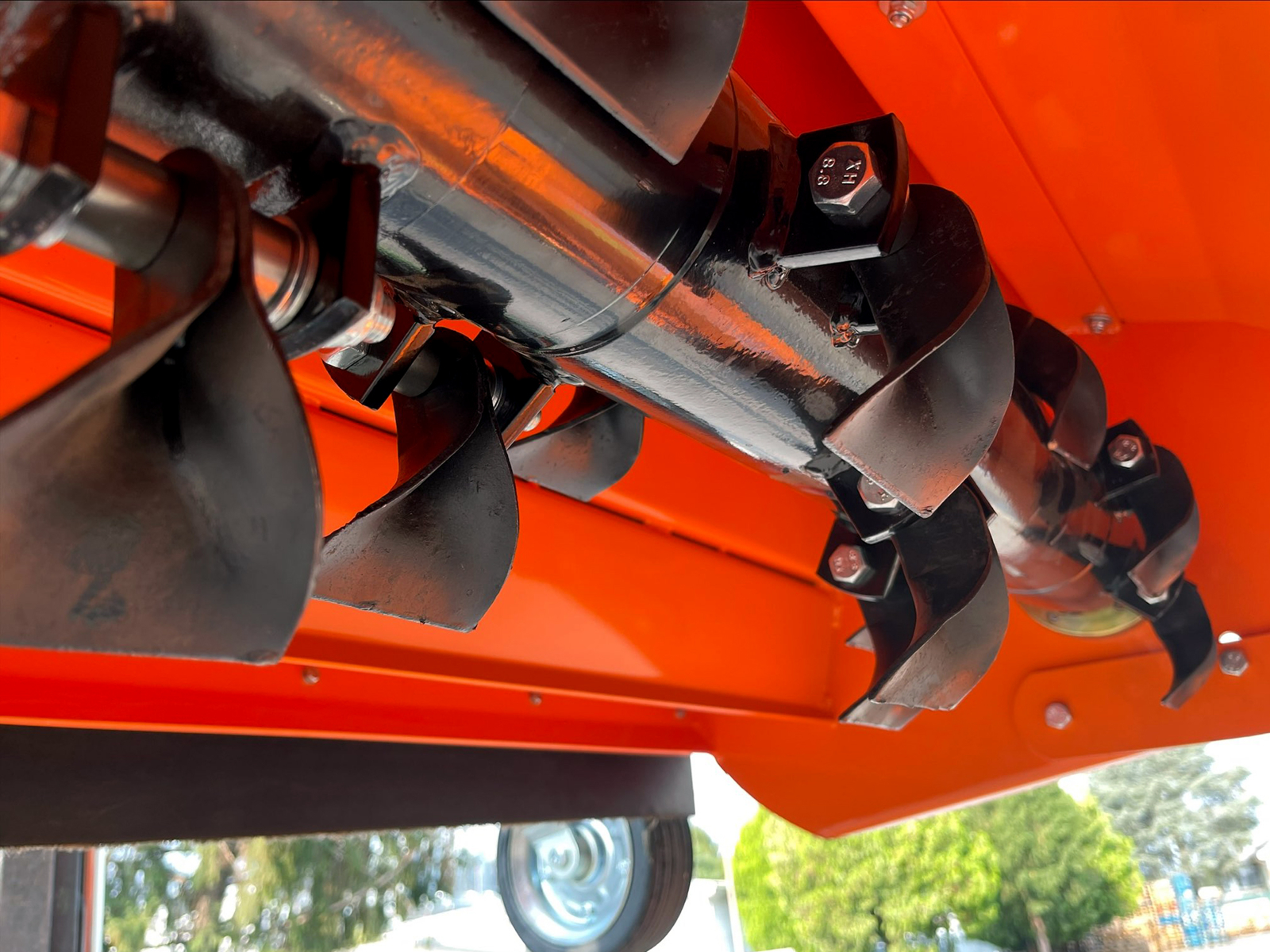

As standard the PANDA-160 is fitted with paddle blades, ideal for sports turf: compared with conventional Y blades they cut the grass better on the horizontal and create more airflow, which drives the clippings into the collector. This is the set-up for golf courses and football pitches, sports fields, riding grounds, campsites and parks. With the optional hammer flails it shreds and collects the prunings along the vine row in a single pass, and branches up to 2-3 cm (0.8-1.2 in) thick. The kit of 10 hammer flails (MAZZE10AGL) and the kit of 20 spare blades (COLTELLI20PANDA) can be added to your order from this page.


Which tractors it fits

The PANDA-160 cuts 160 cm (63 in) with an overall width of 180 cm (71 in) and is built for tractors from 30 to 60 hp with a 540 rpm PTO, a universal category 1 three-point linkage (19-22 mm pins, lower link spacing from 630 to 725 mm) and a hydraulic spool valve to open the collector. It weighs 380 kg (838 lb) empty: the tractor's linkage has to be able to lift the mower with the collector full.

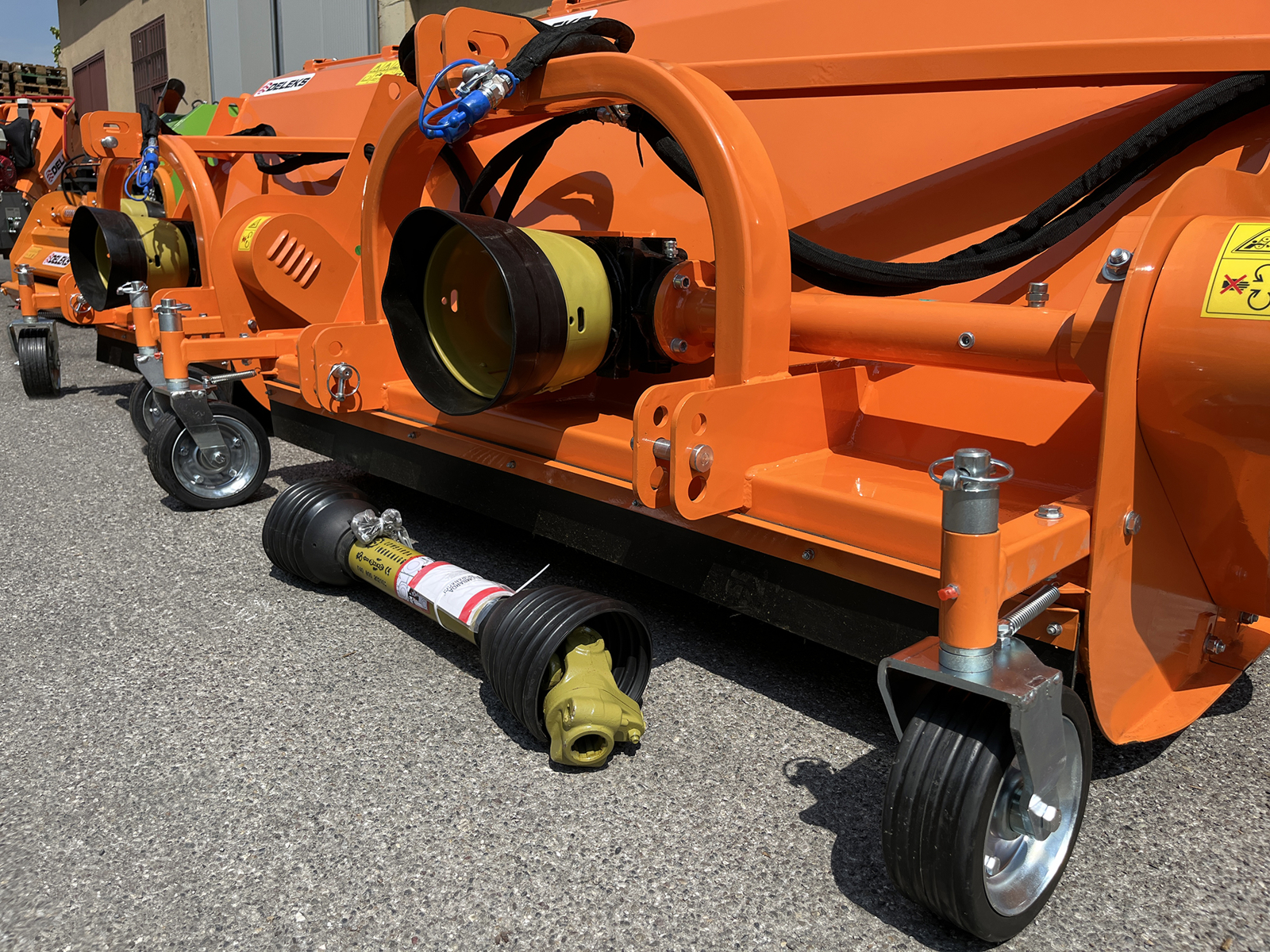

Rotor, roller and drive

The rotor, 108 mm (4.3 in) in diameter with an 8 mm (5/16 in) tube wall, is electronically balanced and spins at 2,295 rpm. The 102 mm (4 in) rear roller and the side skids set the cutting height; at the front there are protective flaps. The DELEKS® gearbox for a 540 rpm PTO has a freewheel and a 3-year warranty; drive reaches the rotor through 3 belts, with an adjustable tensioner set from the outside. The CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.


Dimensions, weight and delivery

Working width 1,600 mm (63.0 in), overall width 1,800 mm (70.9 in), length 1,400 mm (55.1 in), height 850 mm (33.5 in), weight 380 kg (838 lb), 960-litre collector. It ships in packaging measuring 187 × 142 × 125 cm (74 × 56 × 49 in), 502 kg (1107 lb) gross, 3.32 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.


Where it works

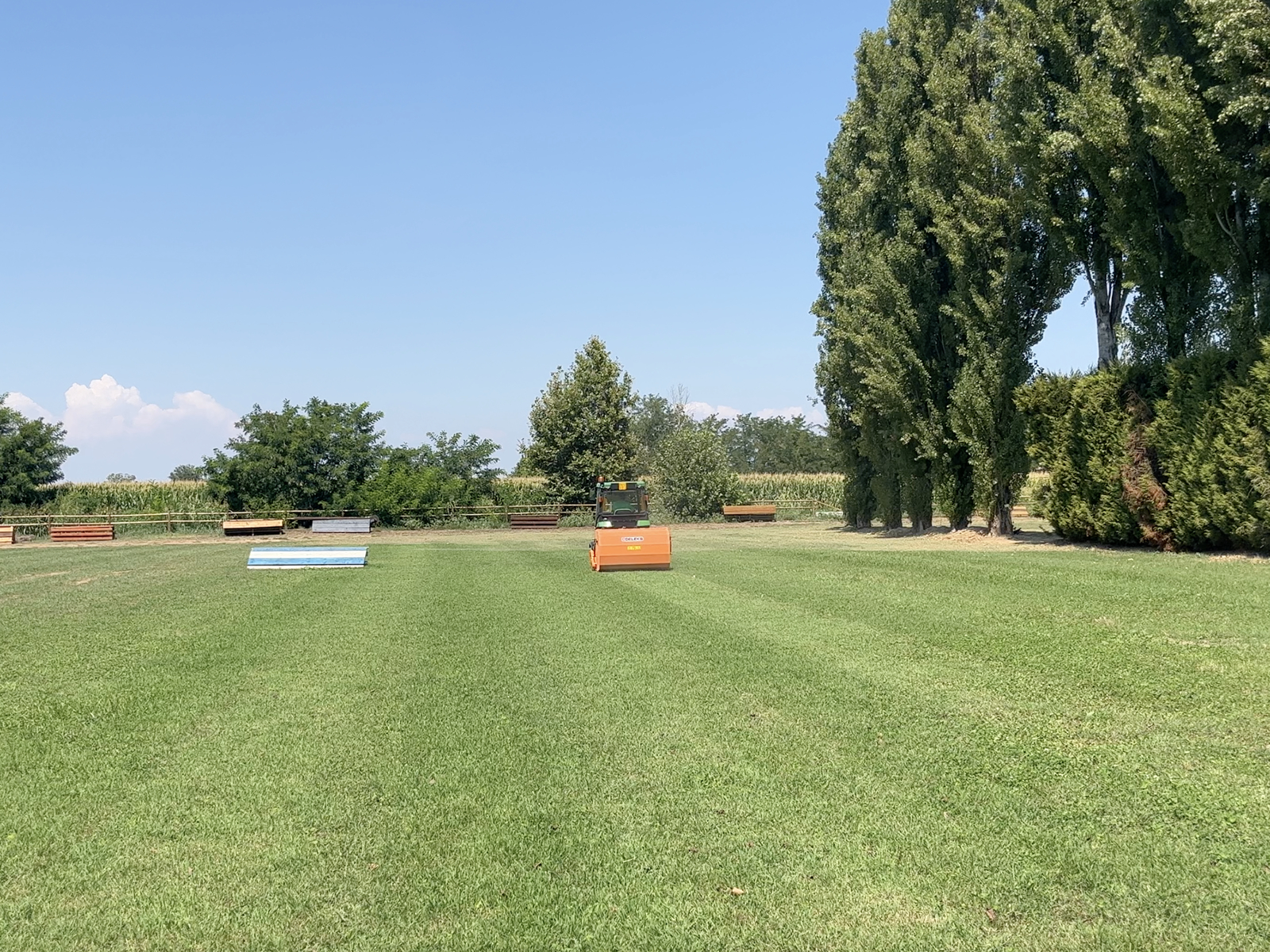

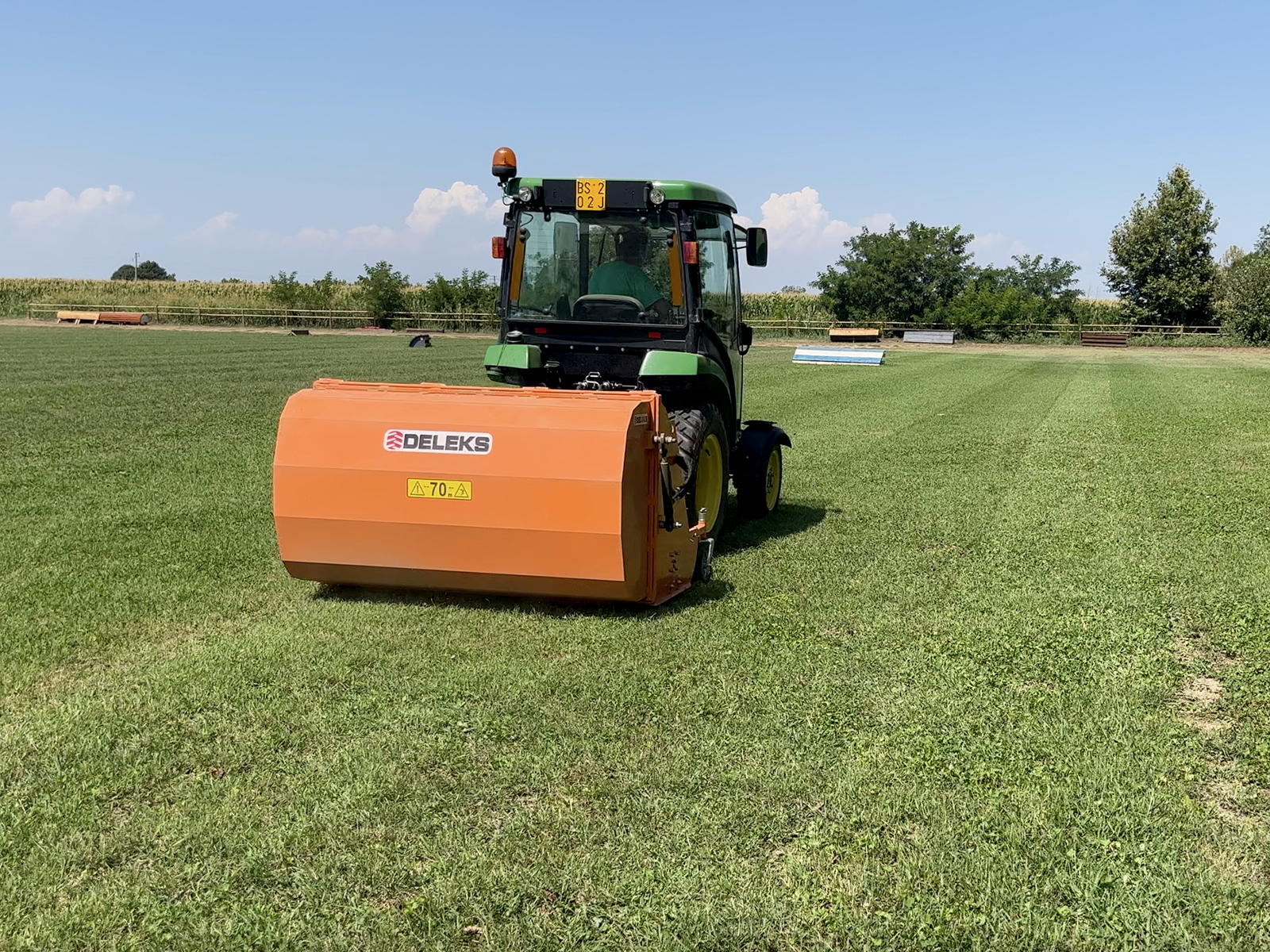

  • Sports fields, football pitches and golf courses: cutting the grass and collecting all the clippings

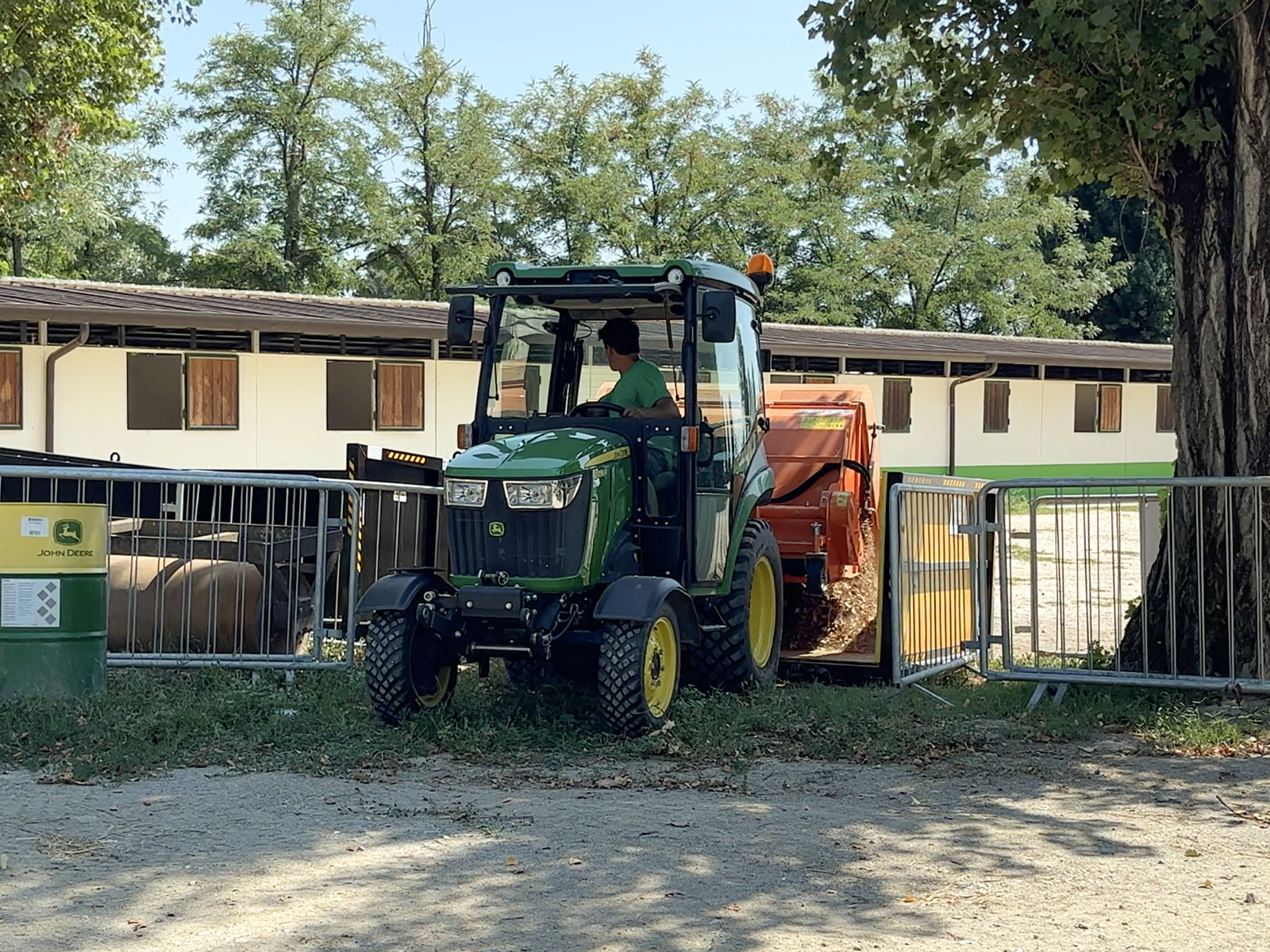

  • Parks, public gardens, campsites and riding grounds: grass and leaves collected in the hopper
  • Vineyards, with the optional hammer flails: prunings shredded and collected along the row in a single pass
  • Orchards and olive groves: grass, leaves and small prunings up to 2-3 cm (0.8-1.2 in)
  • Green areas where the cut material cannot be left on the ground

Options and spares

From this page you can add to your order the kit of 10 hammer flails (MAZZE10AGL), the kit of 20 blades (COLTELLI20PANDA), the spare set of 3 belts (CINGHIE3PANDA), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.


FAQ

What size tractor does the PANDA-160 need?
From 30 to 60 hp, with a 540 rpm PTO, a category 1 three-point linkage and a hydraulic spool valve to open the collector.

How is the collector emptied?

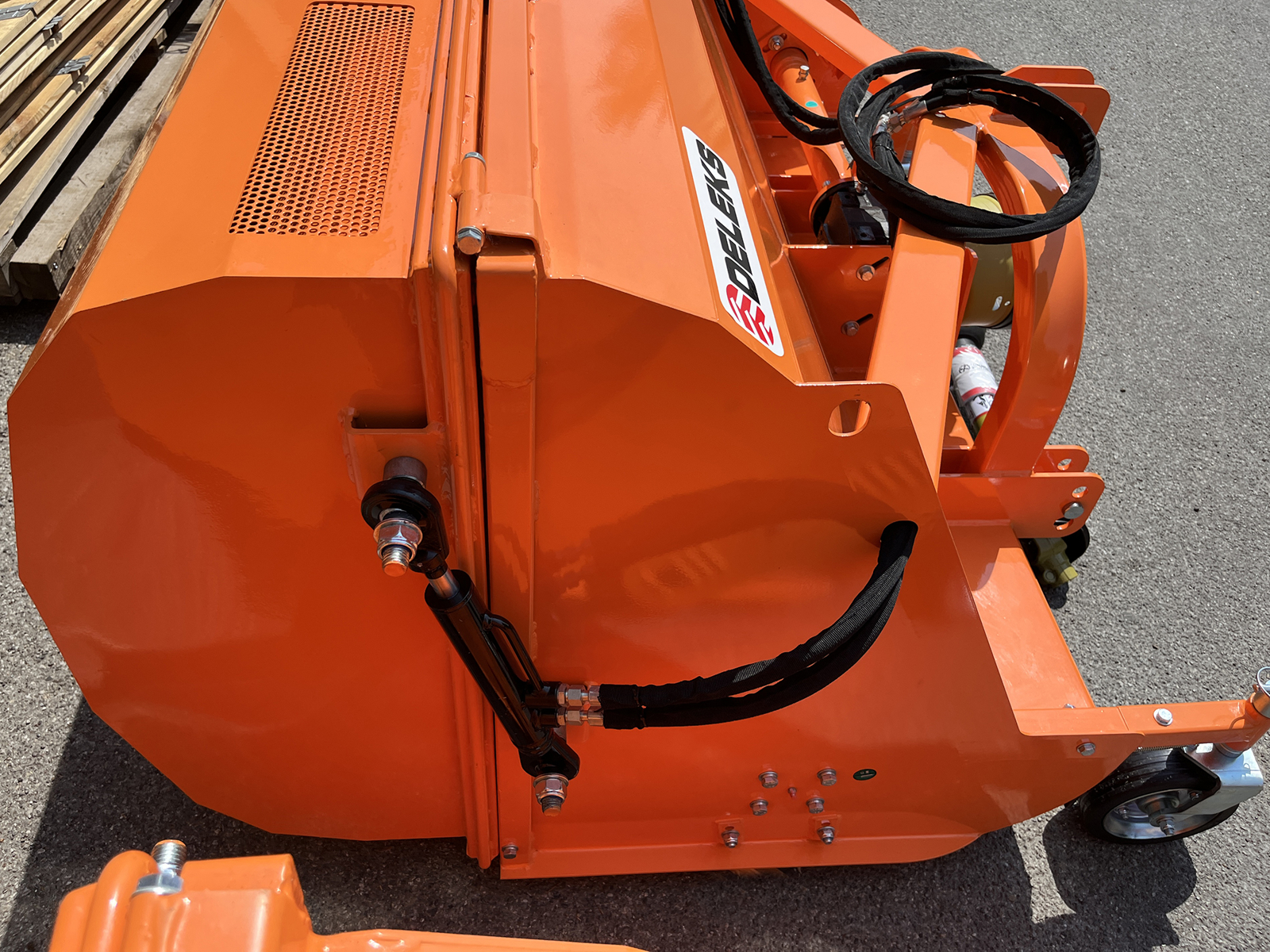

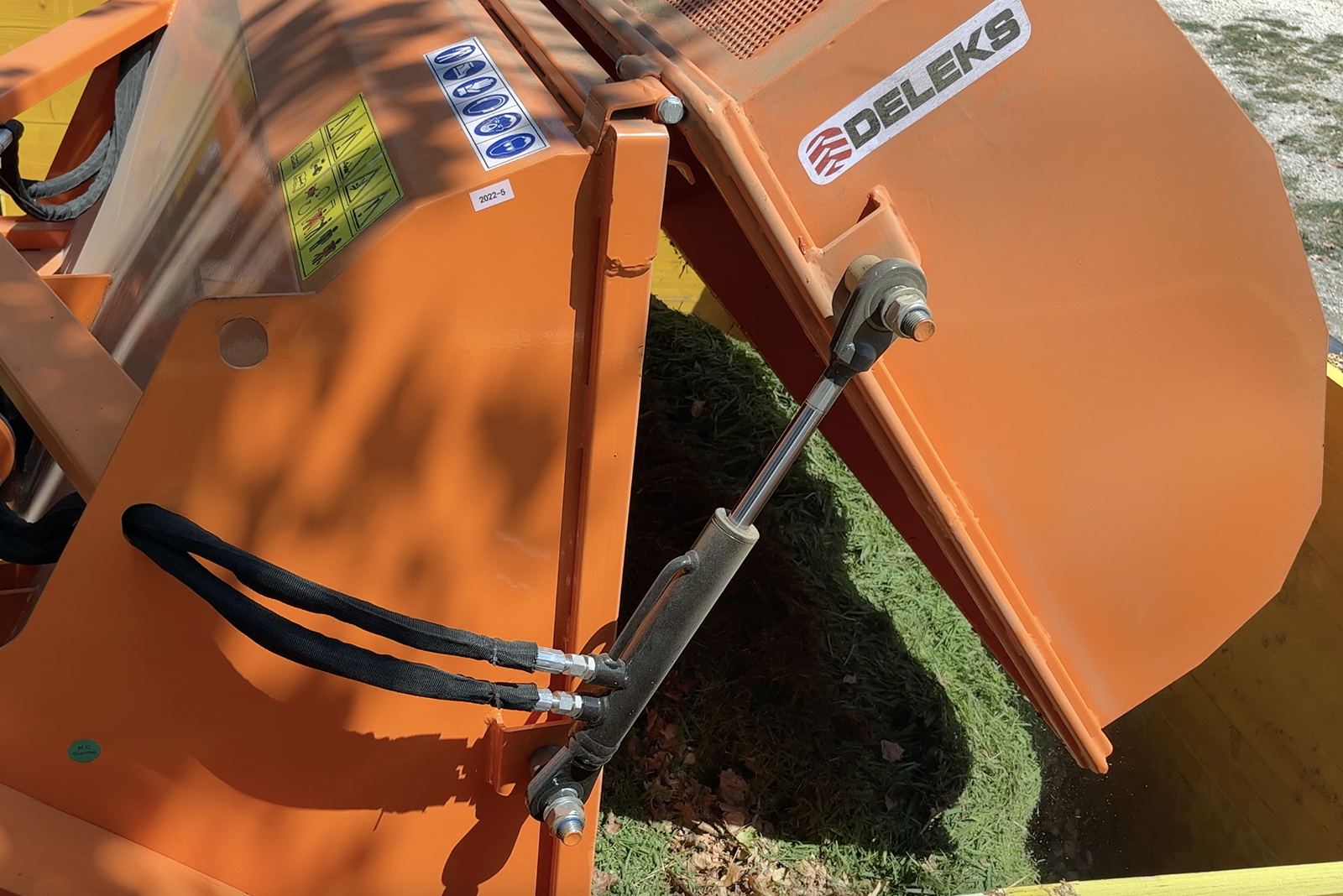

Hydraulically, from the seat: the 960-litre collector opens with the tractor's hydraulic control, without getting off.

Does it collect leaves too?
Yes: grass, leaves and light debris all go into the collector. It is not meant for thick branches: it shreds up to 2-3 cm (0.8-1.2 in) thick.

Hammer flails or blades?
It comes fitted with paddle blades, for the grass on sports fields and parks: they cut on the horizontal and create the airflow that drives the clippings into the collector. Hammer flails, for vine prunings, are optional: kit MAZZE10AGL.

Is it suitable for collecting prunings in the vineyard?
Yes, with the optional hammer flails (kit MAZZE10AGL): it shreds and collects the prunings along the row in a single pass.

How big is the collector?
960 litres on the PANDA-160; across the range it goes from 520 litres on the PANDA-90 to 960 litres on the PANDA-160.

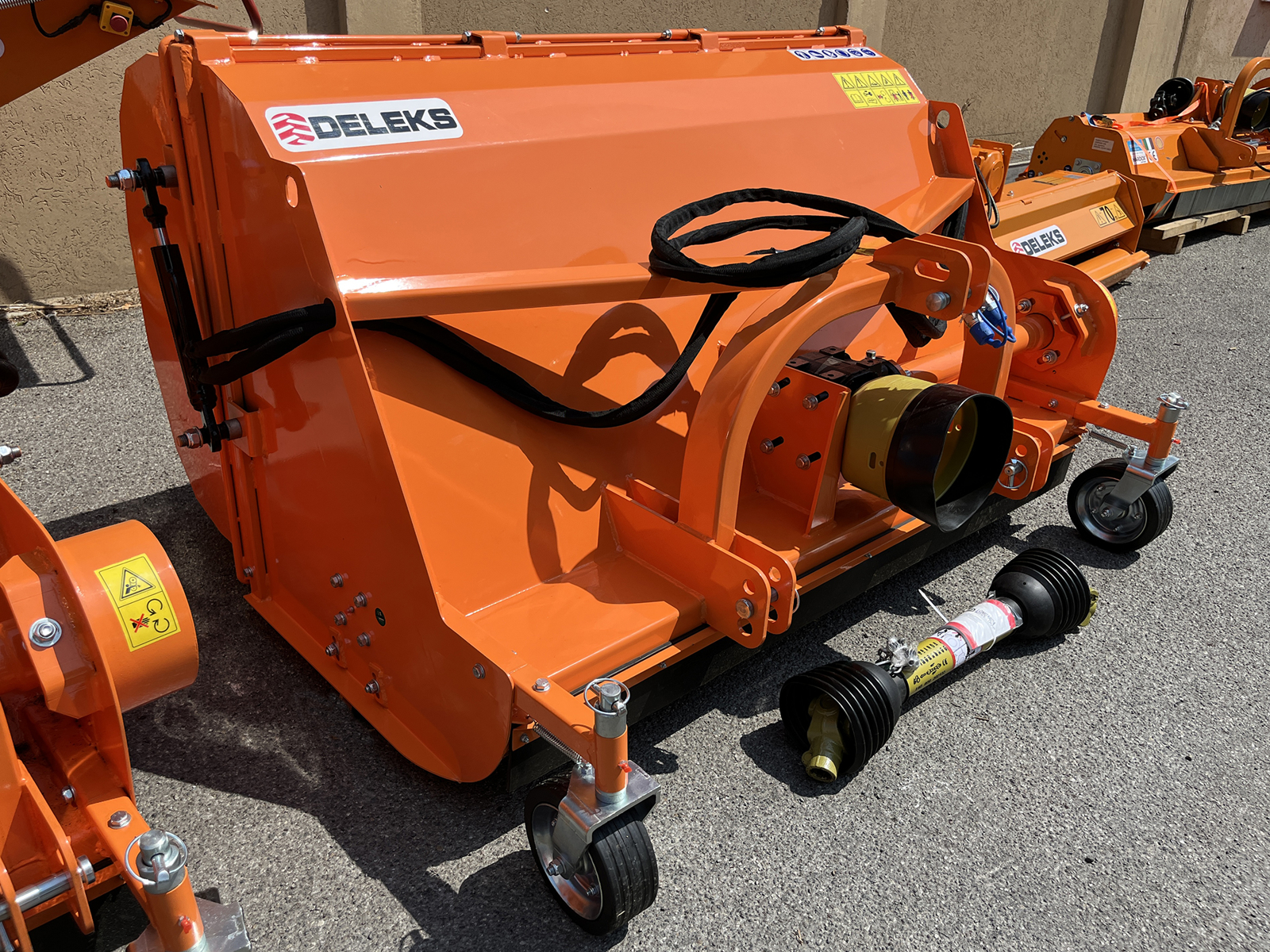

Is the PTO shaft included?

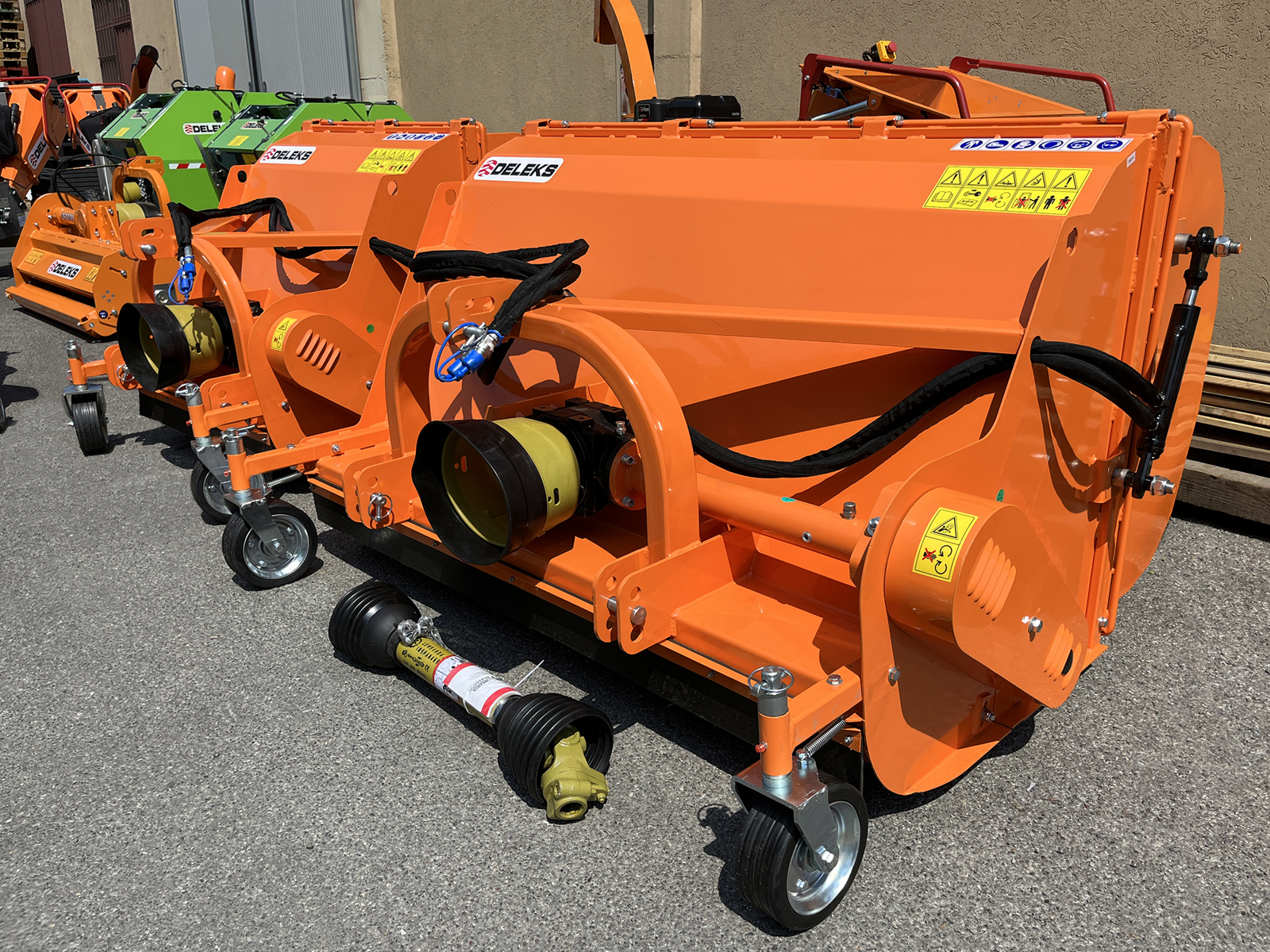

Yes: a CE-approved category 4 PTO shaft, 800 mm (31.5 in) long, with shear bolt.

How does it differ from a flail mower without a collector?
An ordinary flail mower leaves the shredded material on the ground, as organic matter. The PANDA-160 collects it: it is for places where the grass has to be left clean or where the prunings have to be taken out of the vineyard.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric Units US
Working width 1600.0 mm 5.25 ft
Overall width 1800.0 mm 5.90 ft
Weight 380.0 kg 838.0 lb
Overall height 850.0 mm 2.79 ft
Tractor Power Range 30 - 60 Hp 30 - 60 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Spacing between the 2 lower points 630.0 - 725.0 mm 24.80 - 28.50 in
Number of Hammers 26 26
Maximum cutting diameter 20.0 - 30.0 mm 0.78 - 1.18 in
Overall length 1400.0 mm 4.60 ft
Distance between pto attachment and ground 450.0 mm 17.70 in
Transmission: Drive method V-Belts V-Belts
Transmission: Gearbox DELEKS (3 year warranty) DELEKS (3 year warranty)
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Free wheel √ √
Transmission: RPM Rotor speed 2295 rpm 2295 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Transmission: V-Belts quantity 3 3
Transmission: V-Belts size 17x1067 17x1067
Rotor: diameter 108.0 mm 4.25 in
Rotor: bearings type and size UC207 UC207
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 8.0 mm 0.31 in
Rear roller: diameter 102.0 mm 4.0 in
Rear roller: sheet thickness 4.0 mm 0.2 in
Pto shaft CE 4x800 mm + shear bolt CE 4x800 mm + shear bolt
Gross shipping weight 502 kg 1107 lb
Package volume 3.32 m3 117.2 cu ft
Packing sizes 1870.0*1420.0*1250.0 mm 6.13*4.65*4.10 ft
