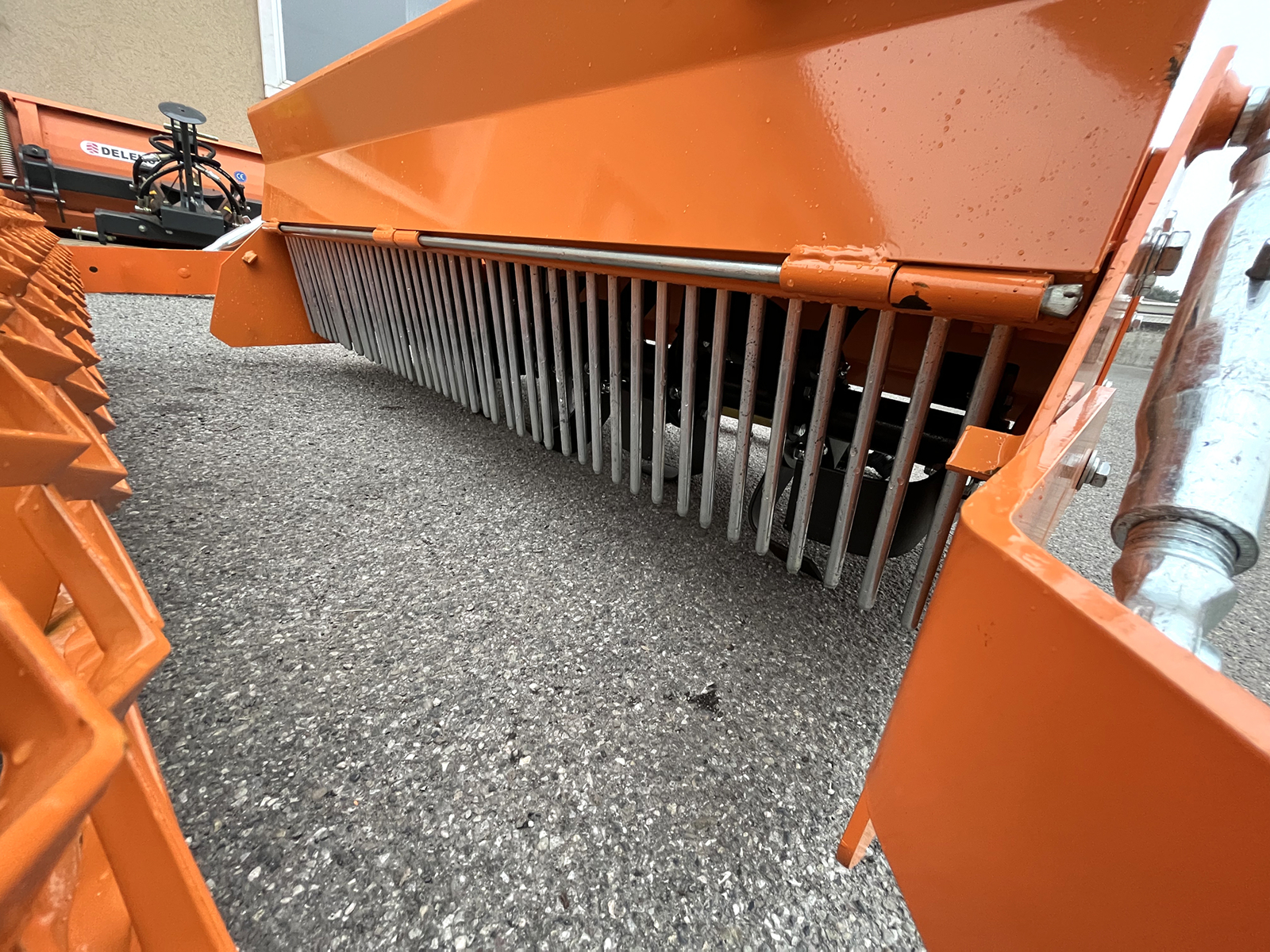

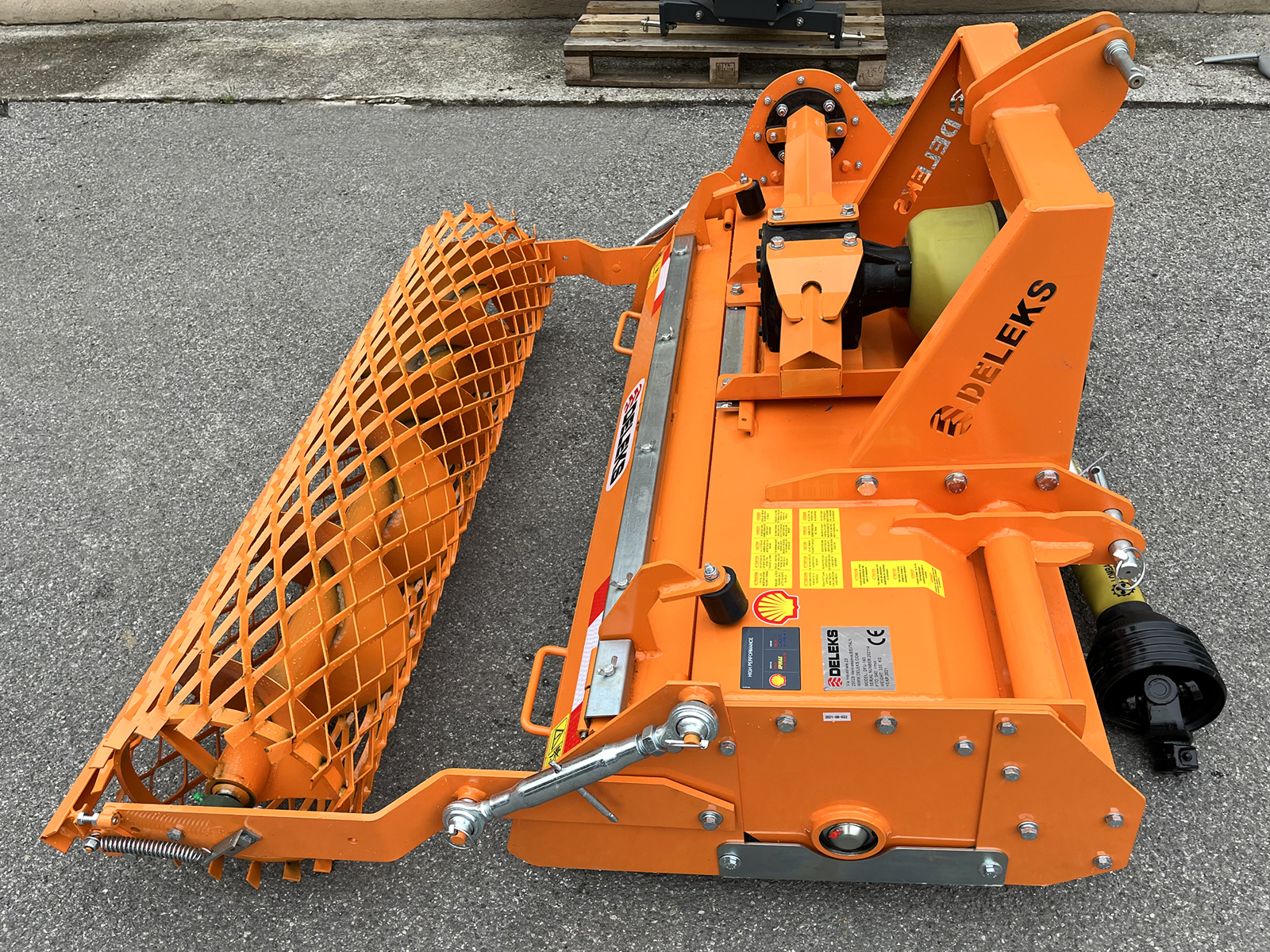

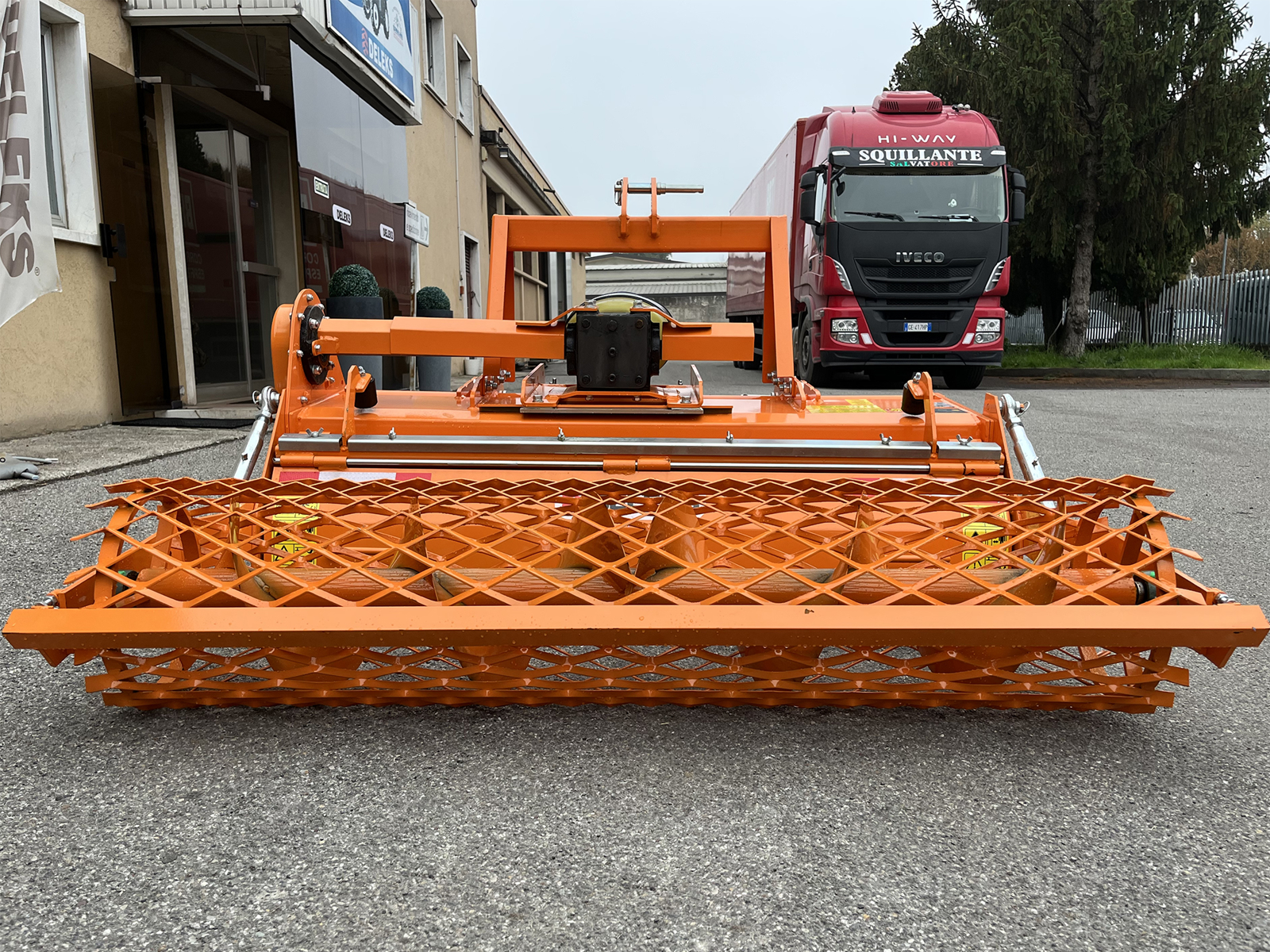

Adjustable Stone Burier for tractors, rotary tiller - DFU-100

Not available Notify me
Code DFU100PTO
EAN 8053470230813
View all details.
TOTAL
2.156,00VAT incl.
Free shipping

VIDEO

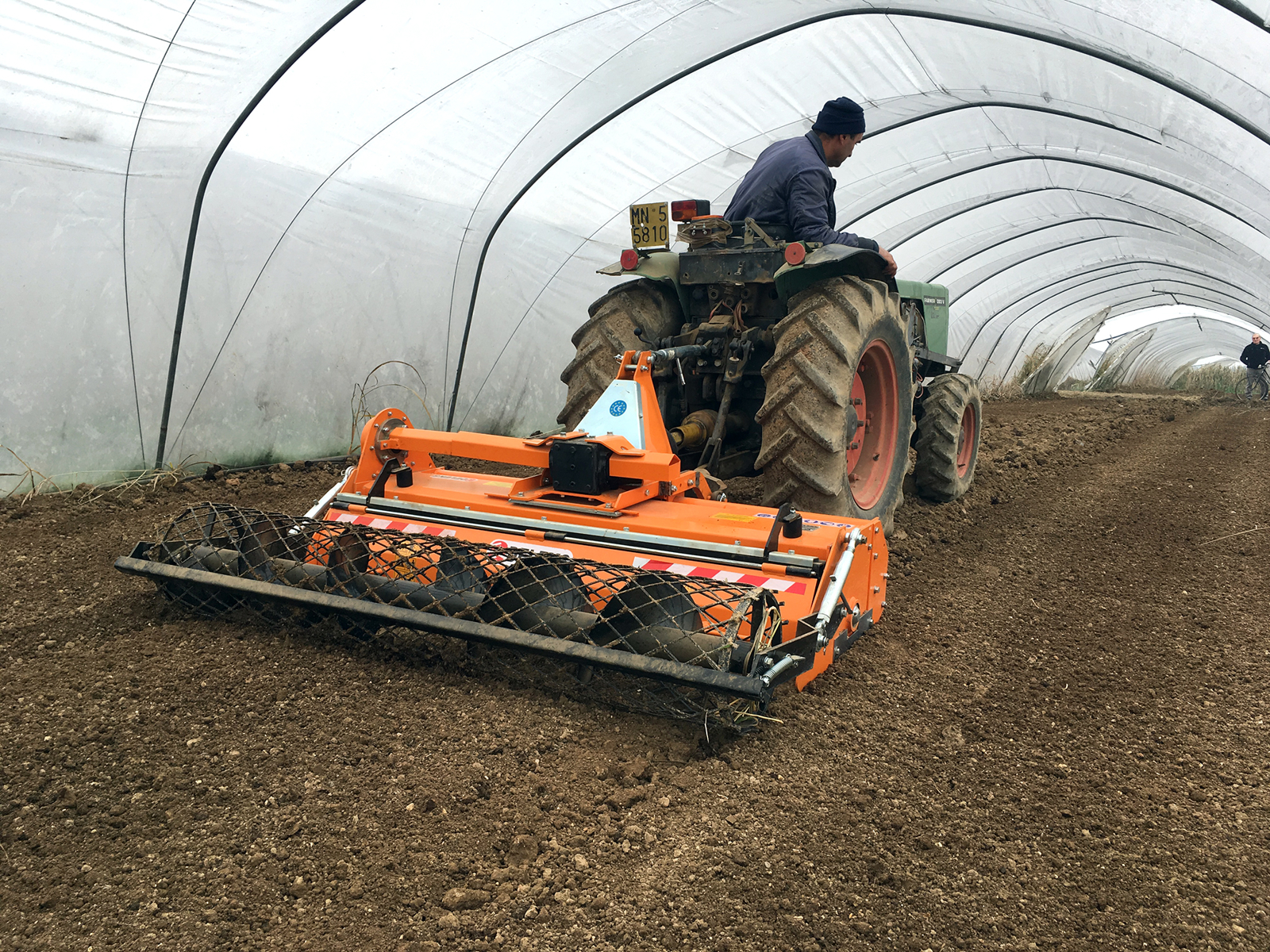

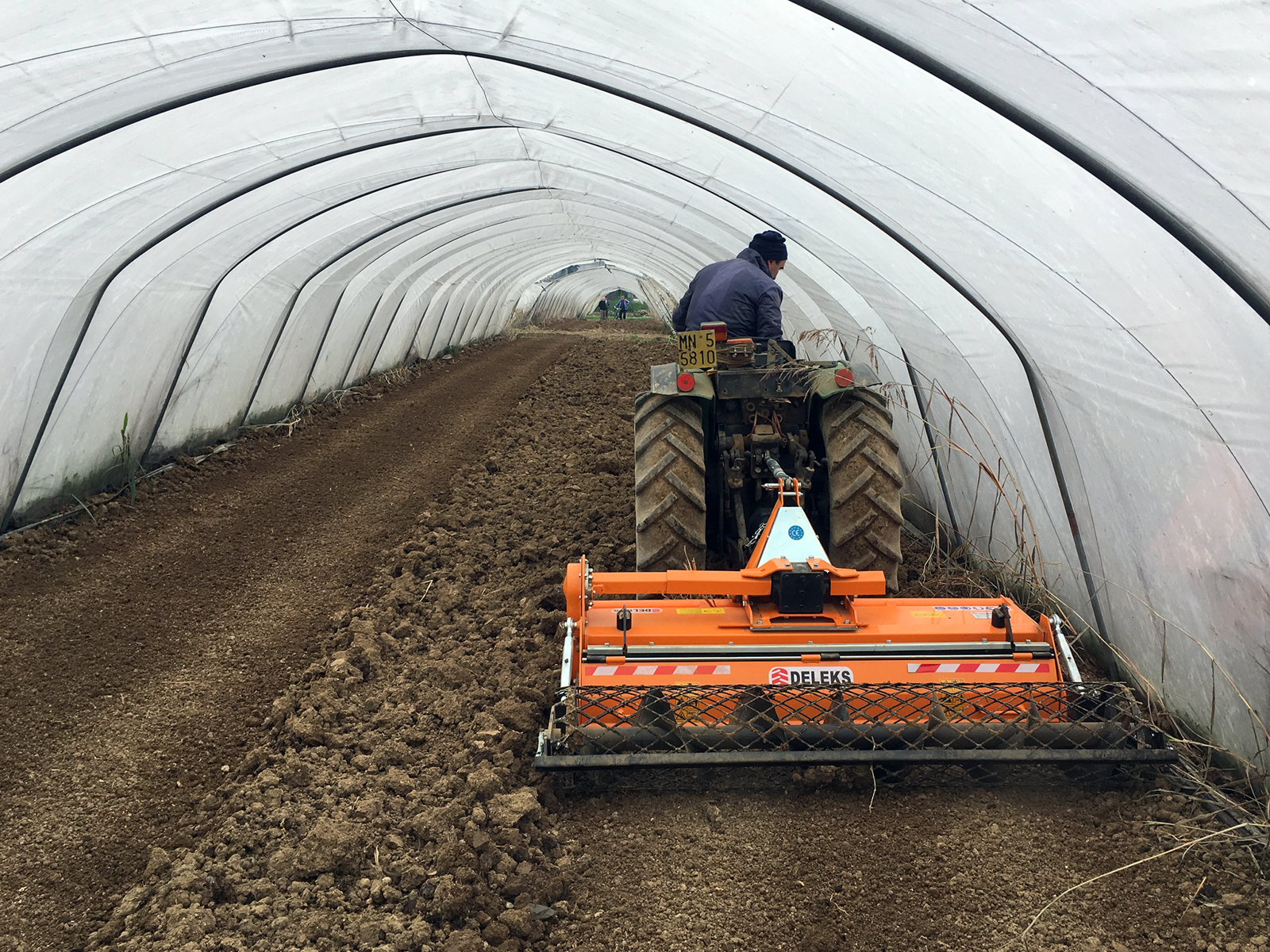

Field test
Field test

DETAILS

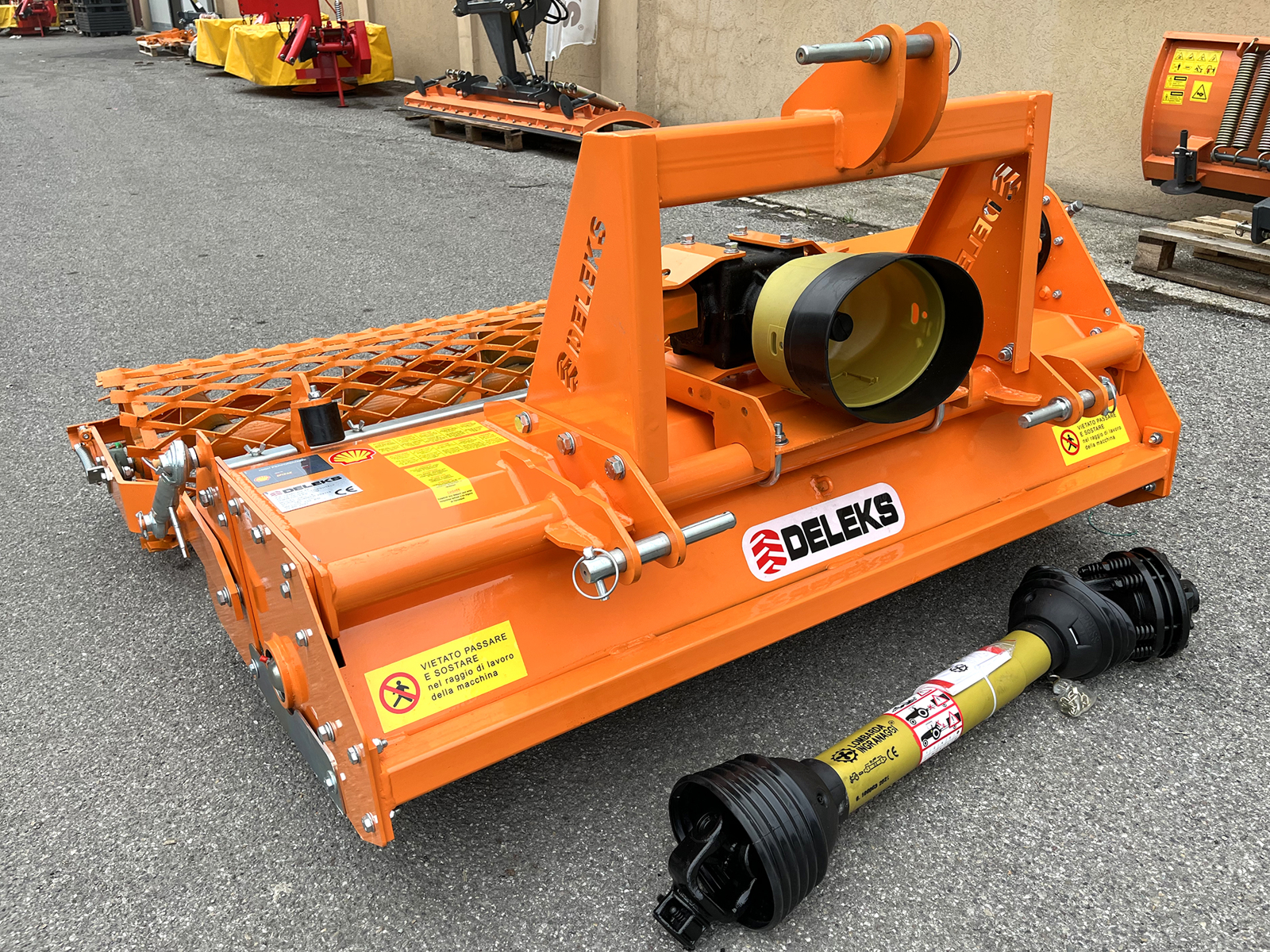

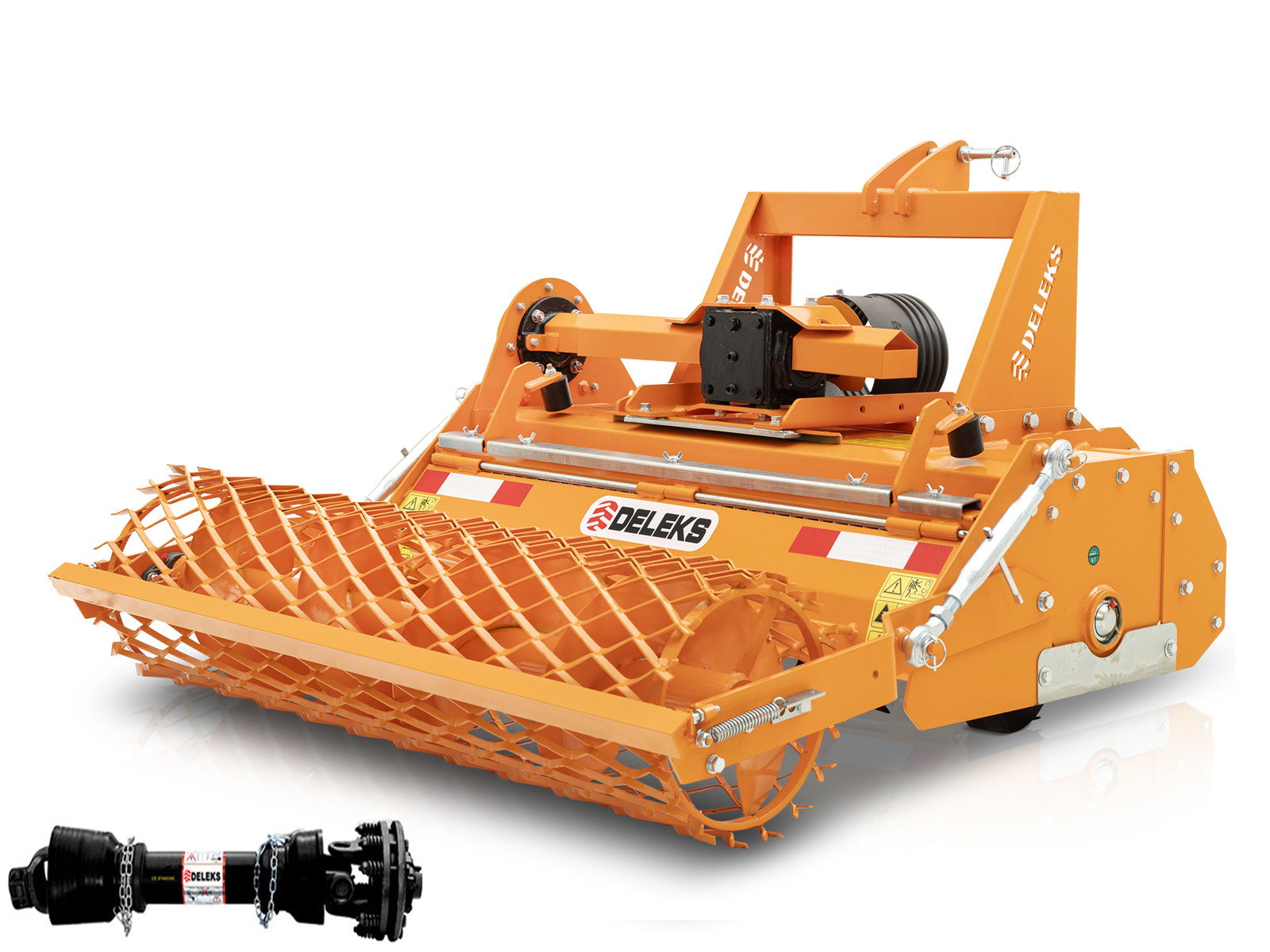

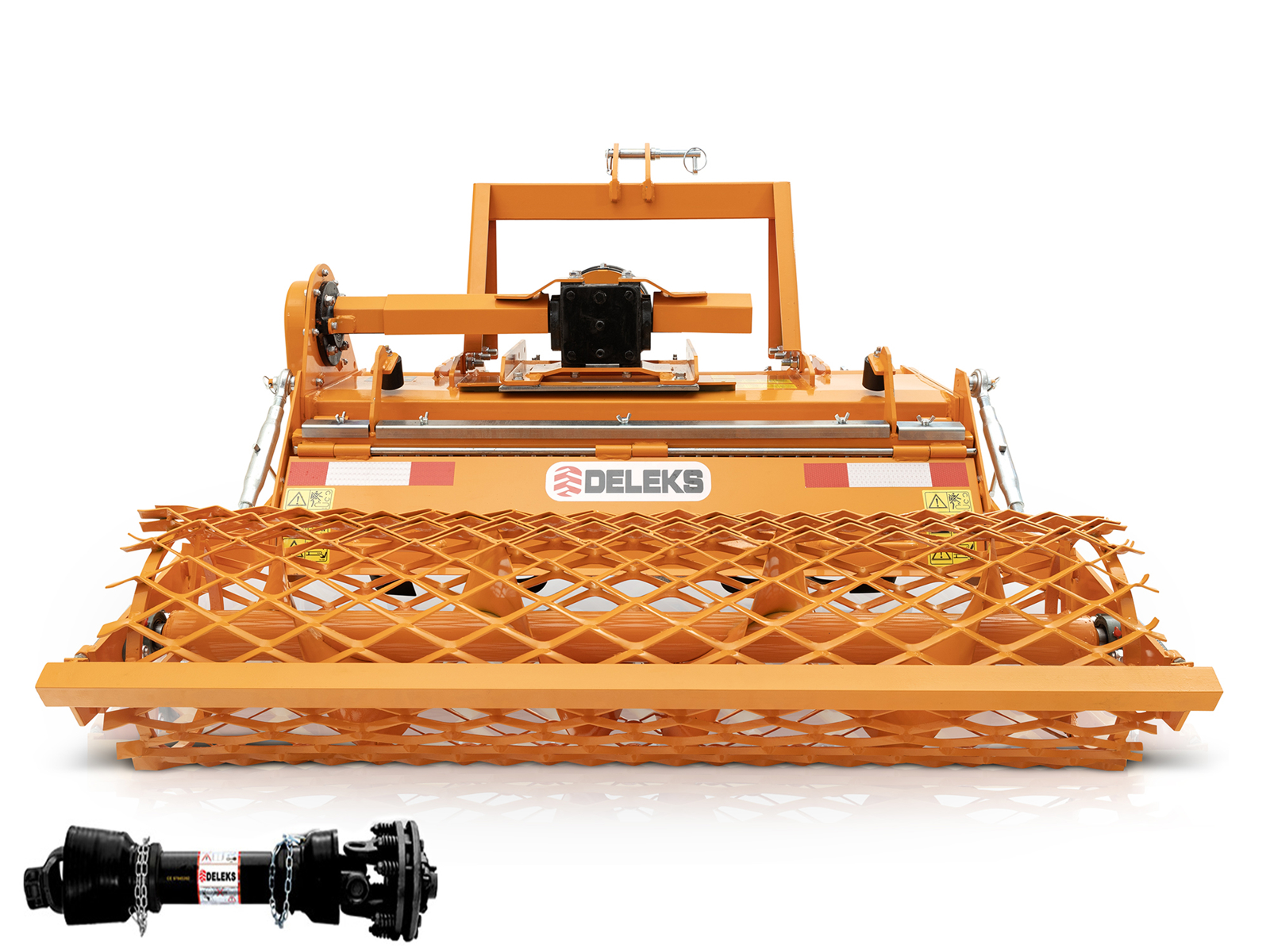

Adjustable Stone Burier DELEKS® - 95cm / 290kg - Rotovators with rear roller for tractors - Pto shaft CE included.


OVERVIEW

DFU-100 Stone Burier for compact tractors 18-45hp e.g New Holland Boomer 25-30, John Deere 2-3 Series, Kubota B, Iseki, Yanmar, Mahindra, Mitsubishi, Ferrari, Pasquali etc. The DFU-100 Stone-Burier is the perfect machine to prepare a smooth seed bed in any type of soil, including heavy soils and hard clay. It has been designed for greenhouse cultivation, preparing the soil for planting, flower beds and gardens. Single Speed Gearbox with 540 RPM PTO, Chain Side Drive. Delivered assembled (except 3 point linkage and rear roller) and greased, Gearbox filled with oil.



BENEFITS & FEATURES

Stones are buried in one pass without having to return to the same row twice.

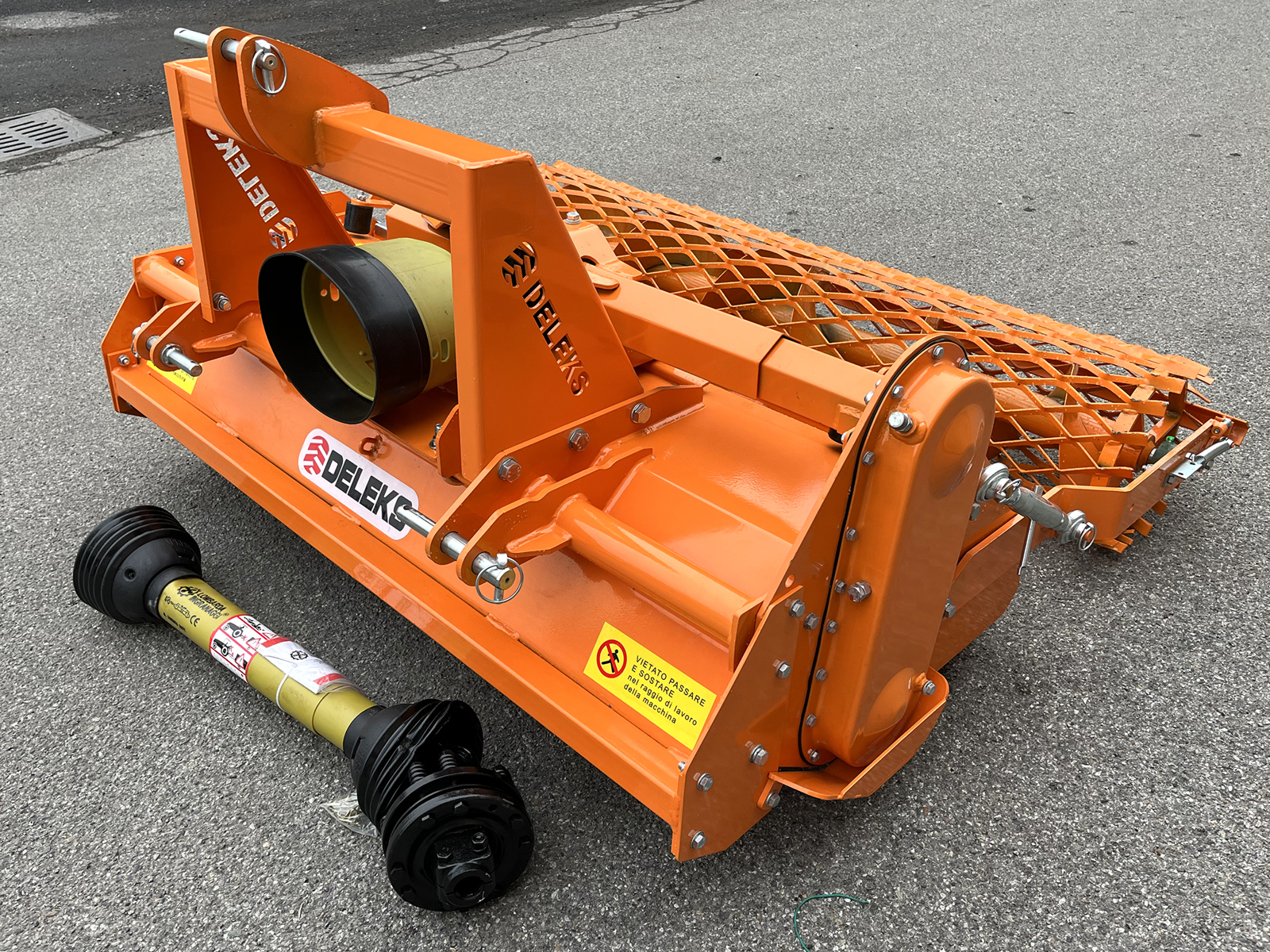

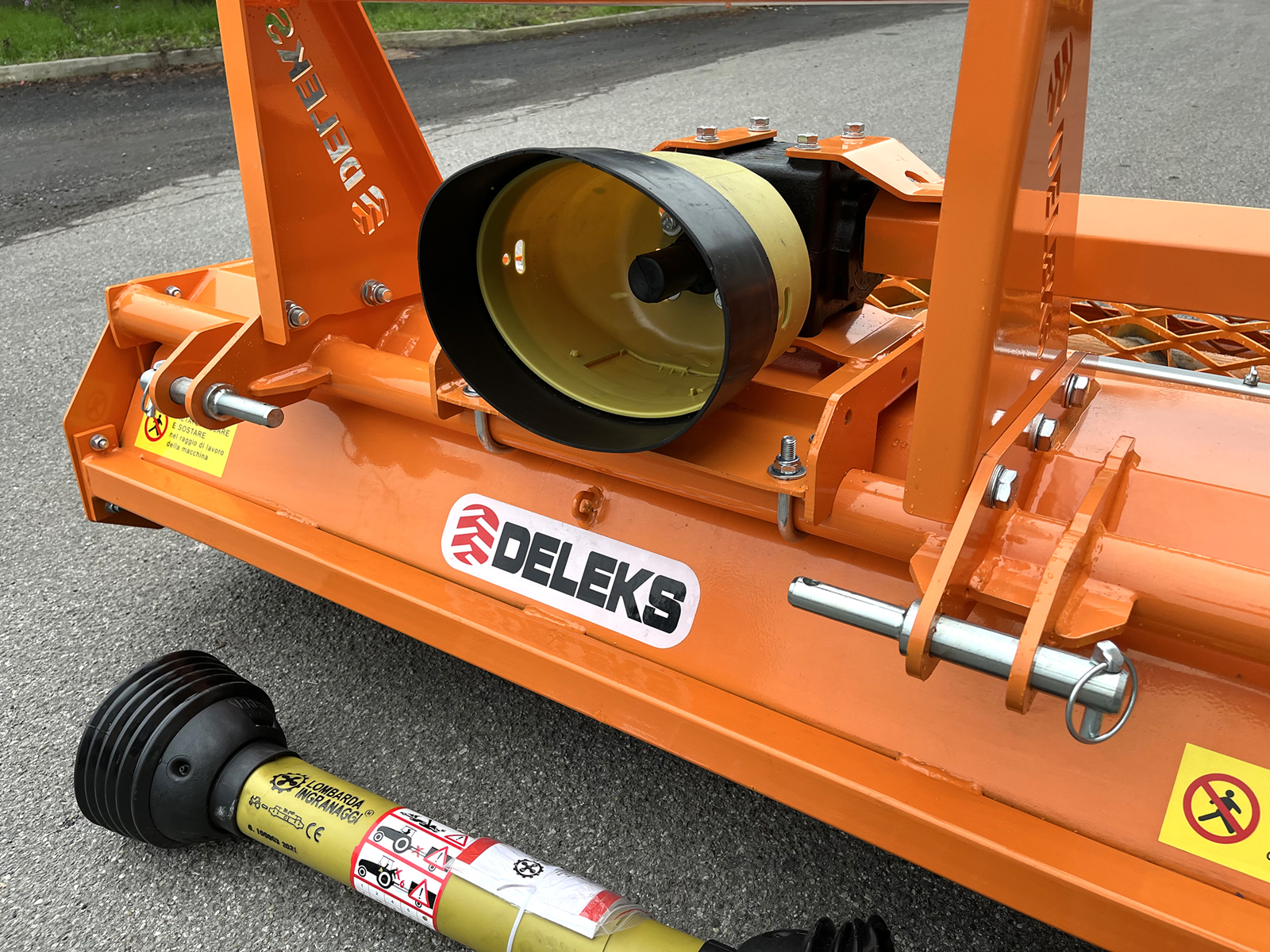

Pto shaft CE included.

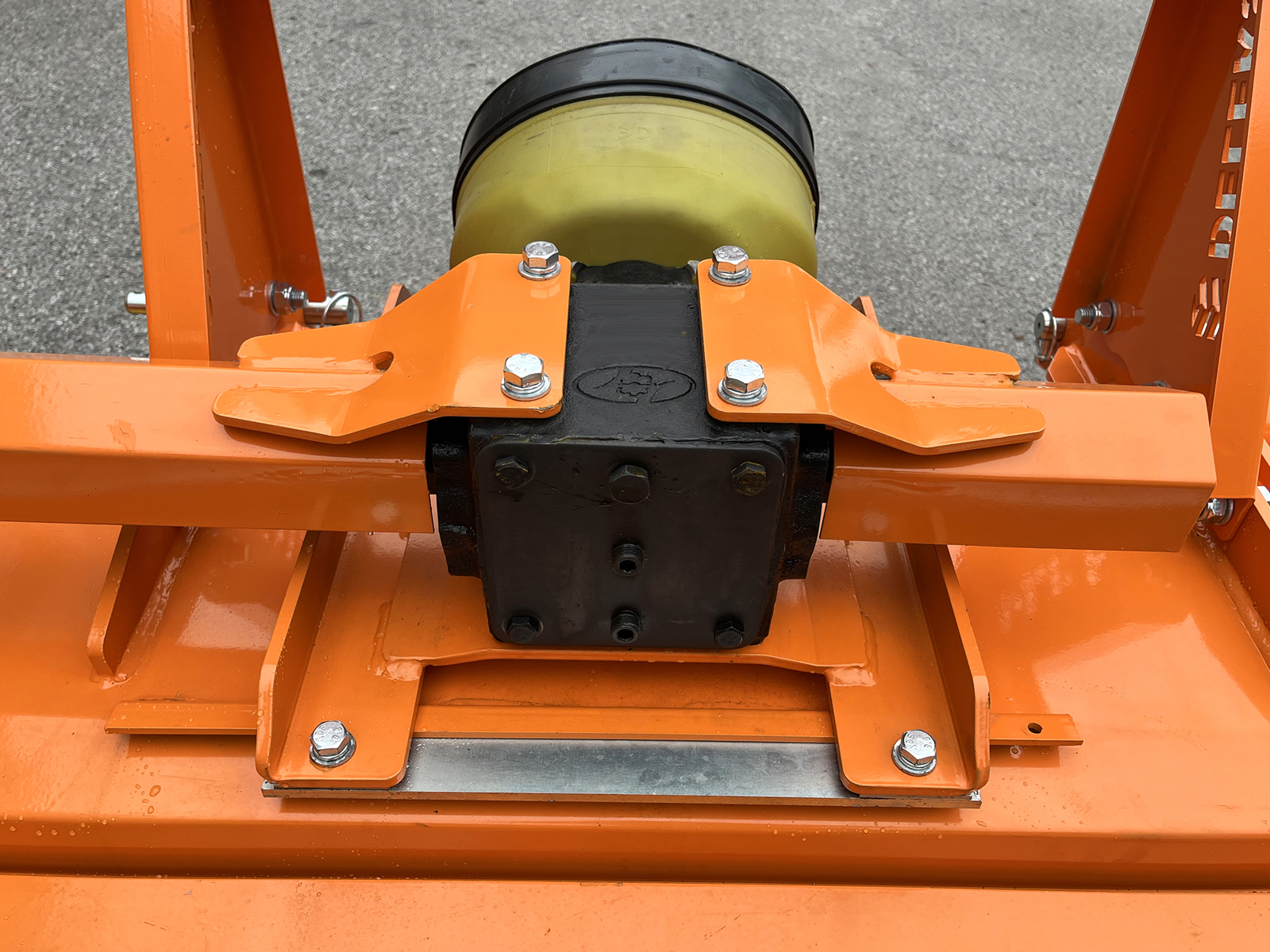

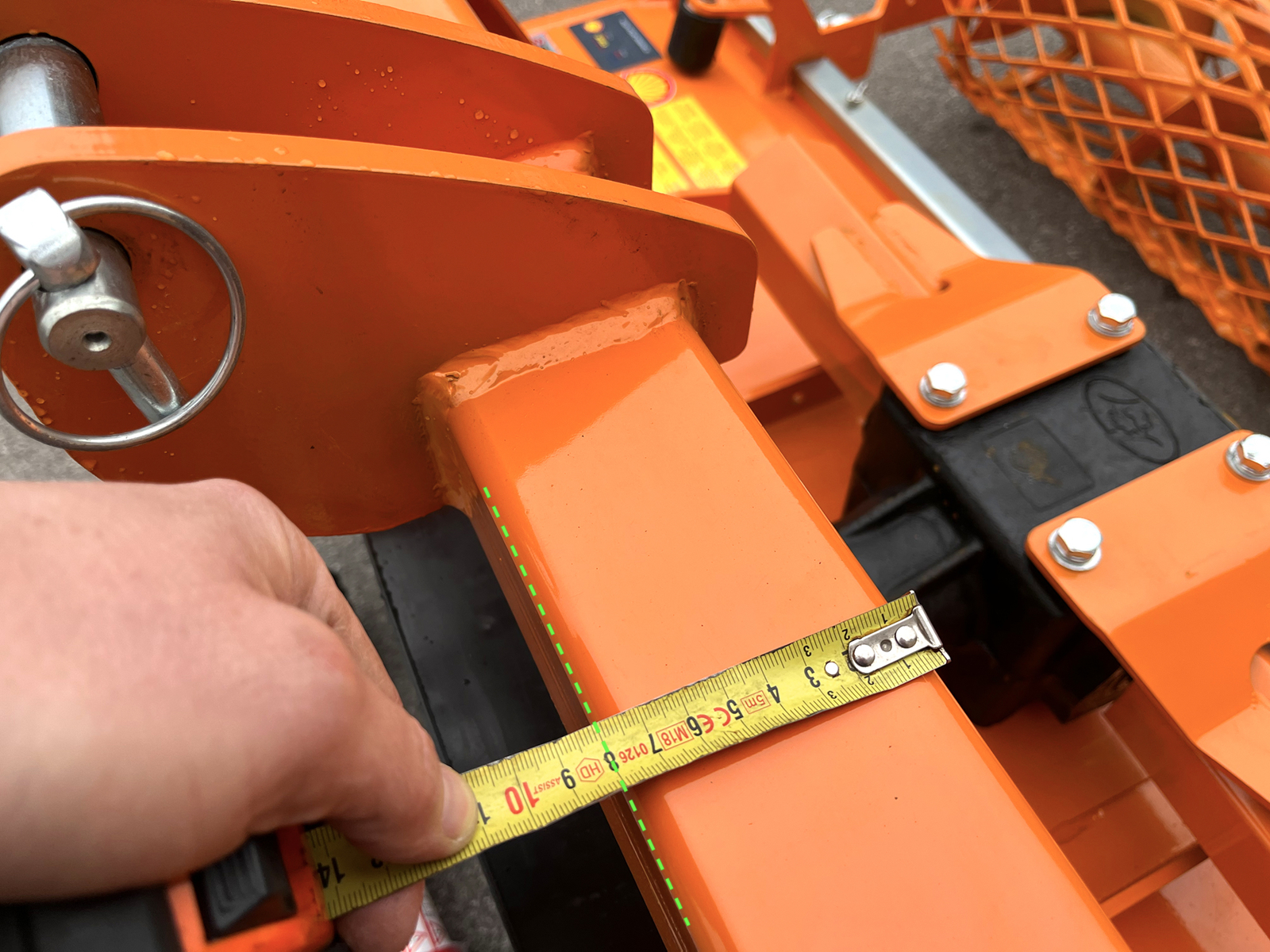

The three-point hitch (120mm) is moved manually by hand and does not require levers to operate.

Blades are hardened for maximum strength, durability and wear life in the toughest soil conditions.

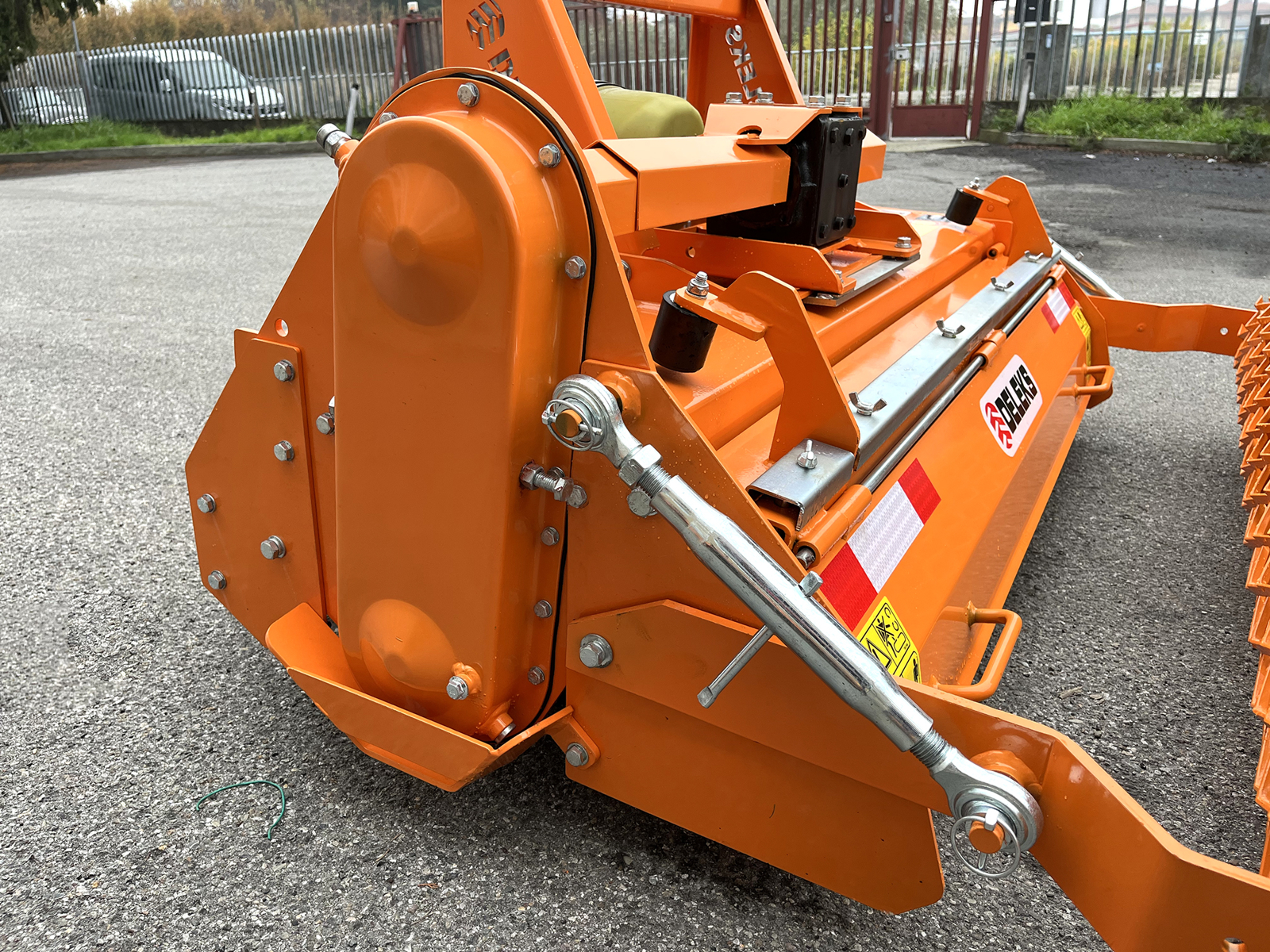

Automatic chain tensioner.

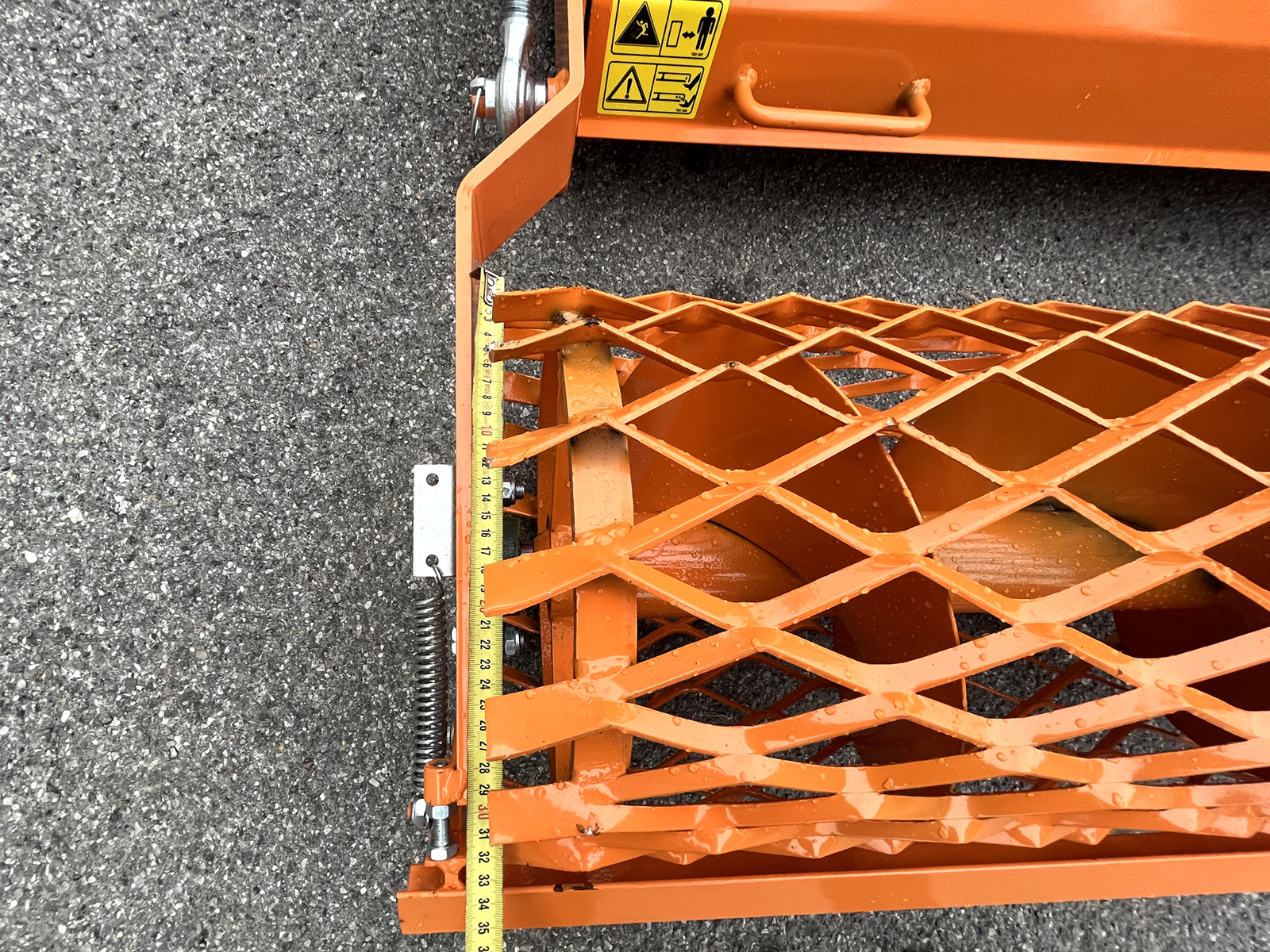

Adjustable rear roller.

CE Safety Guards.



CHARACTERISTICS

Characteristic Units metric Units US
Overall width 1180.0 mm 3.87 ft
Weight 290.0 kg 640.0 lb
Overall height 900.0 mm 2.95 ft
Tractor Power Range 18 - 45 Hp 18 - 45 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Position of the gearbox Central Central
Spacing between the 2 lower points 400.0 - 540.0 mm 15.75 - 21.26 in
Overall length 1230.0 mm 4.0 ft
Rotor: diameter 64.0 mm 2.52 in
Rotor: sheet thickness 10.0 mm 0.40 in
Transmission Chain Chain

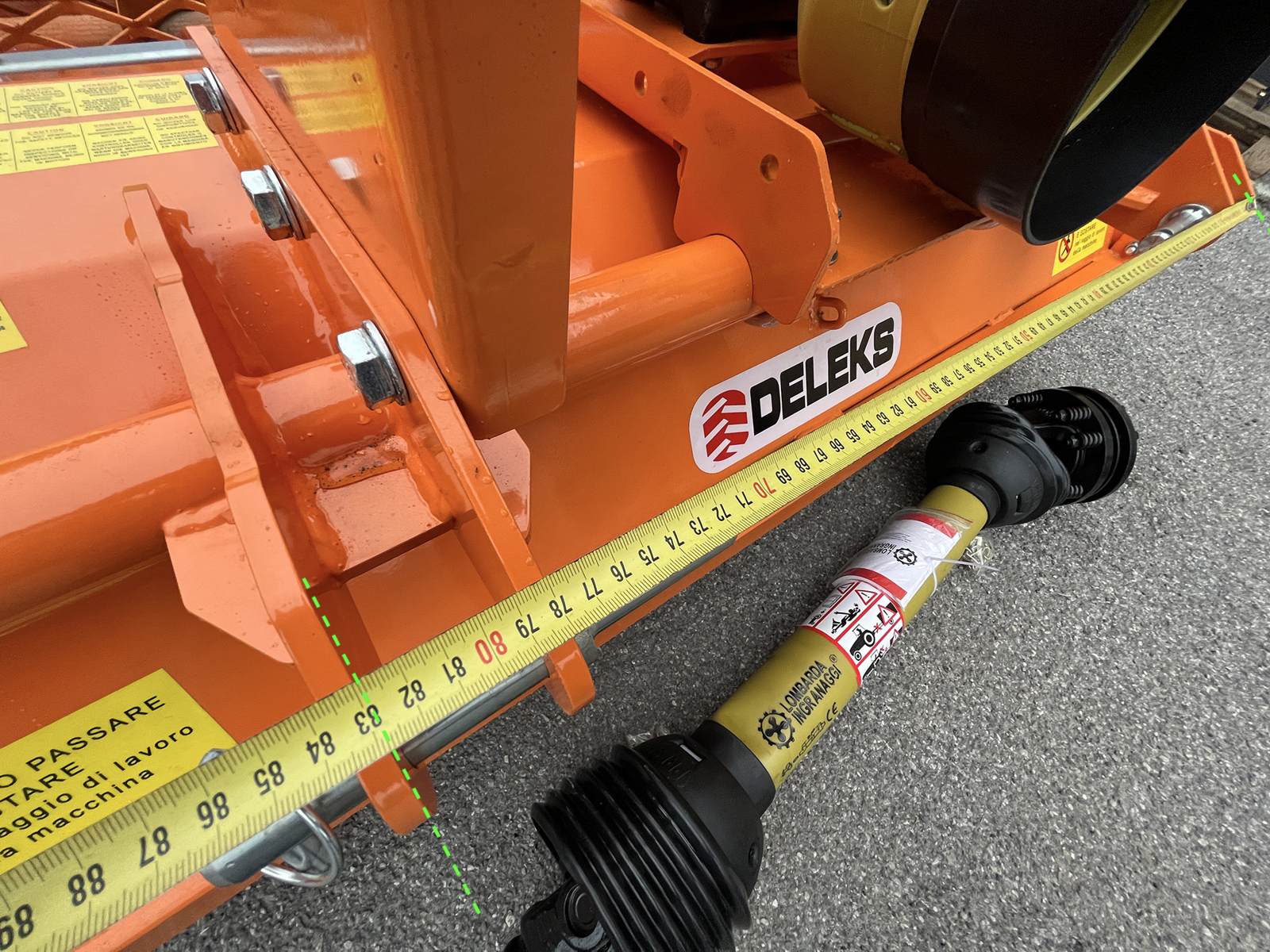

Effective Working width 950.0 mm 3.12 ft
Working Depth Range 160.0-200.0 mm 6.30 - 7.87 in

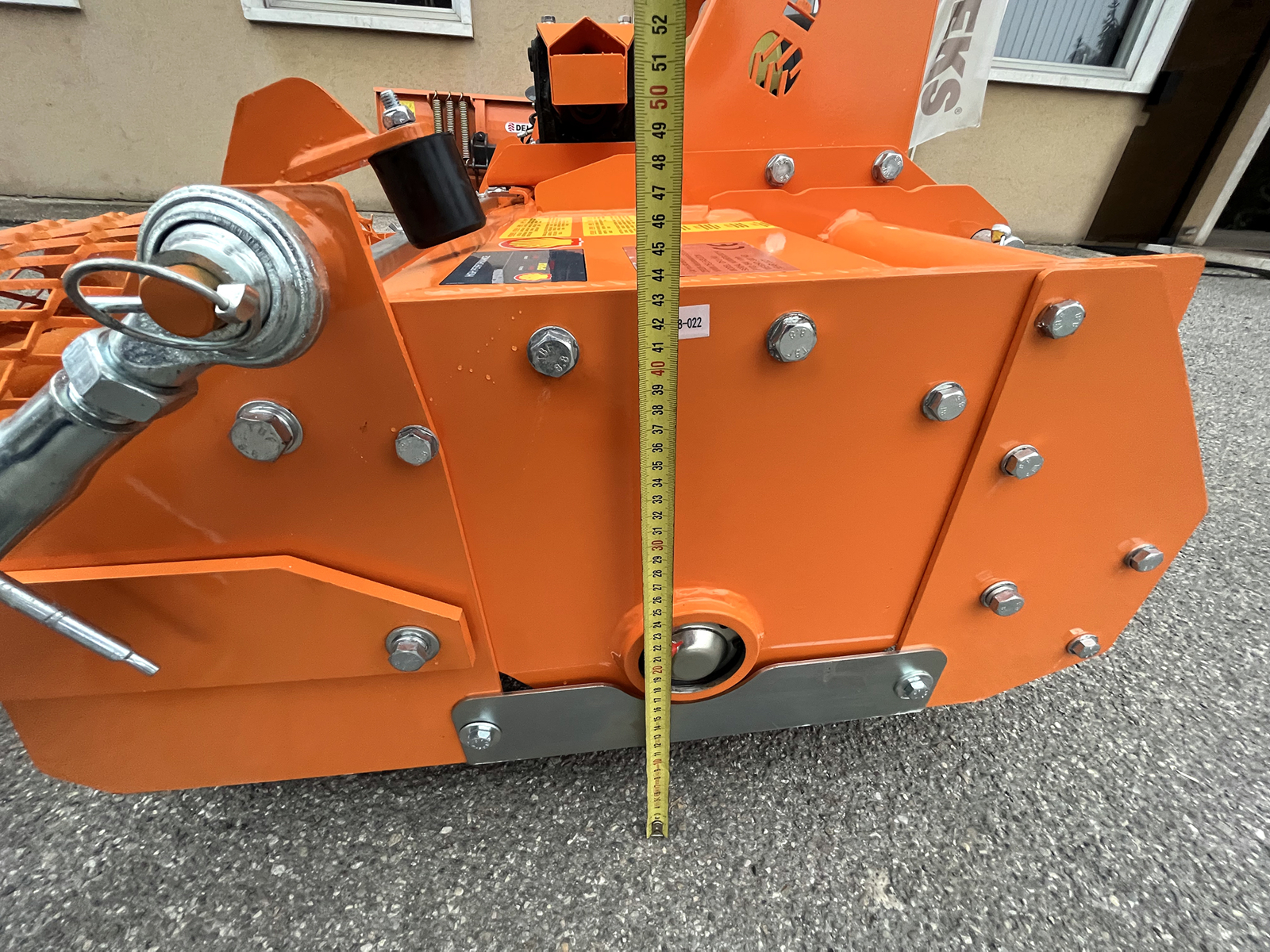

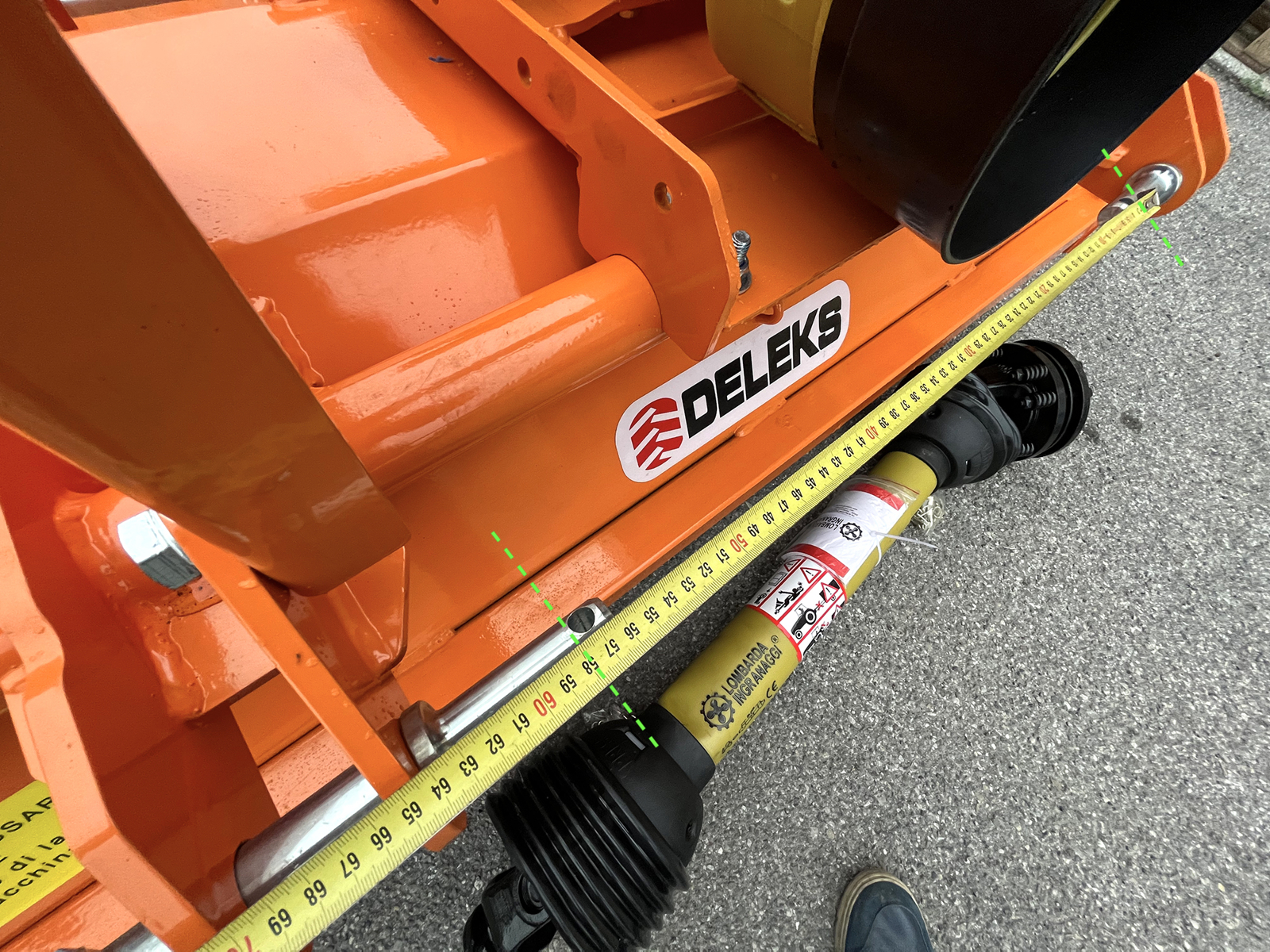

Distance between pto attachment and base 470.0 mm 18.50 in

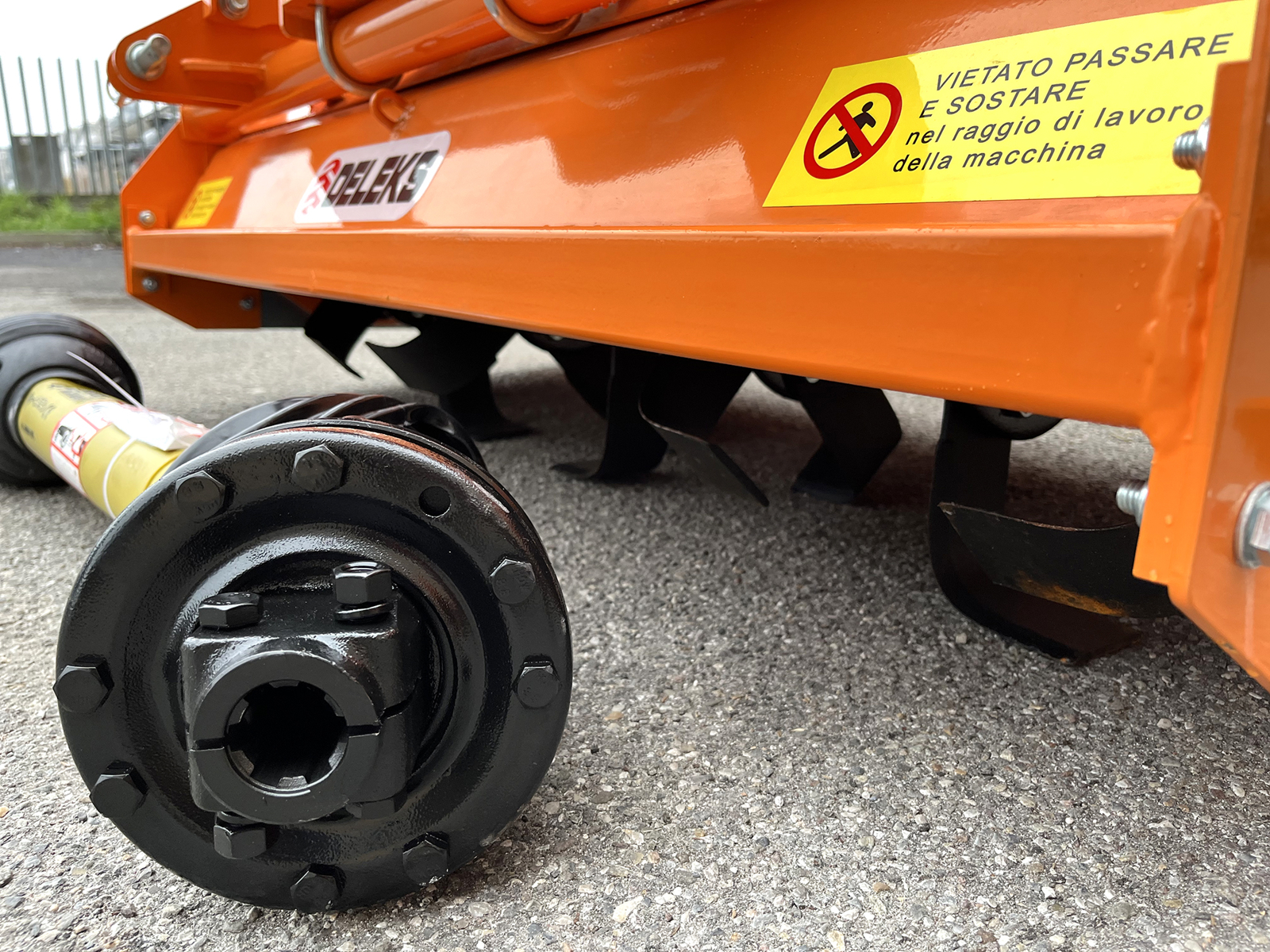

Pto shaft CE 4x600 mm + clutch ø160mm CE 4x600 mm + clutch ø160mm
Rotor: diameter with blades 415.0 mm 16.34 in
Rotor: bearings type and sizes "GB276-6306(R) GB276-6209(L)" "GB276-6306(R) GB276-6209(L)"
Rotor: flanges 6 6
Number of Blades per flange 4 4
Blades: quantity 20 20
Blades: height/width 170.0 / 65.0 mm 6.70 / 2.56 in
Blades: curve length 255.0 mm 10.04 in
Blades: distance between holes 45.0 mm 1.77 in
Blades: diameter of the holes 13.0 mm 0.51 in
Blades: thickness 6.0 mm 0.24 in
Gearbox Lombarda Ingranaggi 540 r/min (3 year warranty) Lombarda Ingranaggi 540 r/min (3 year warranty)
Effective Displacement 120.0 mm manual 4.73 in
Rotation of gearbox Right side Right side
RPM Rotor speed 216 rpm 216 rpm
Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Blades: weight 770.0 g 27.20 oz
Packing sizes 1000.0*1250.0*900.0 mm 3.28*4.10*2.95 ft
