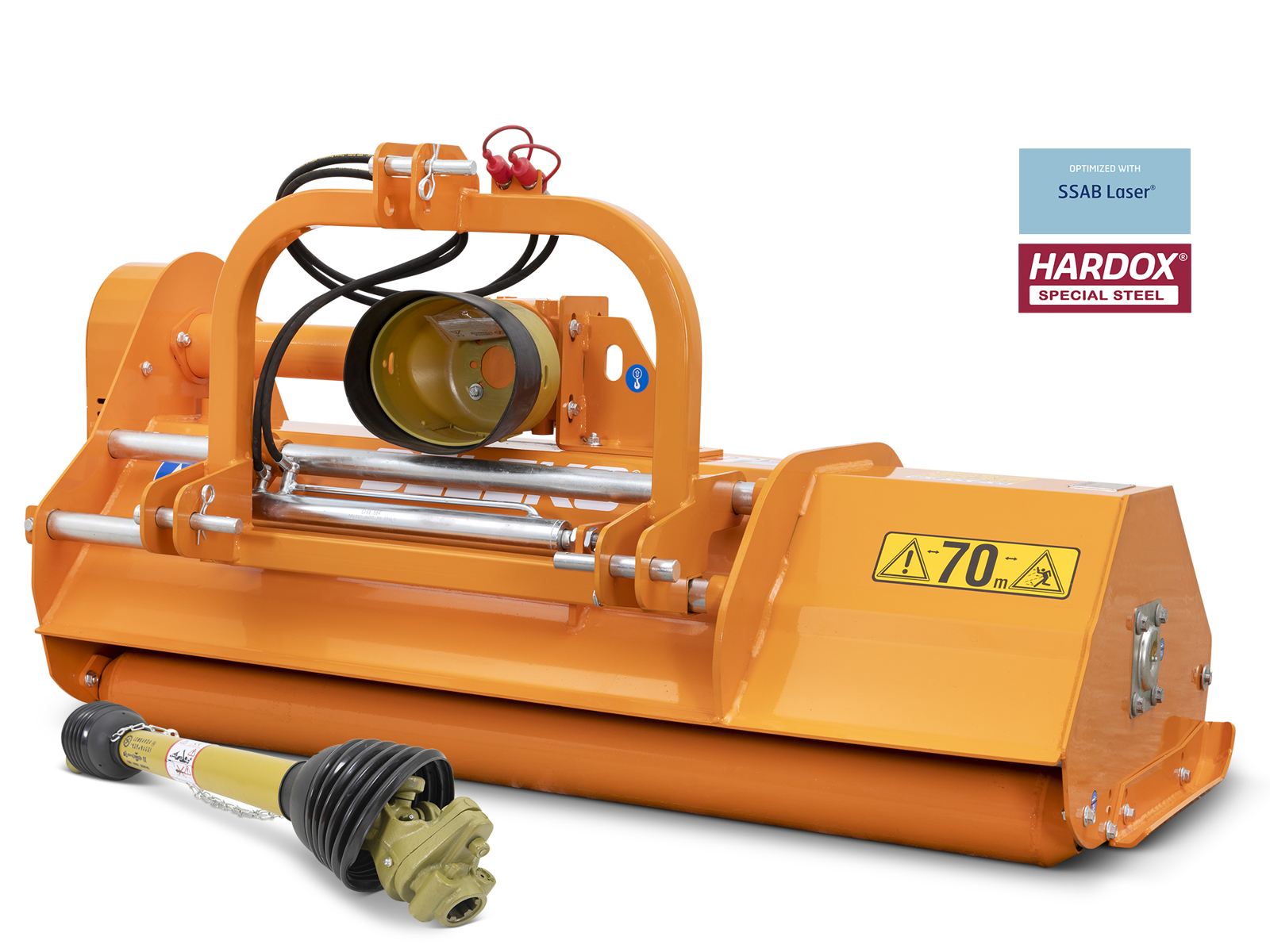

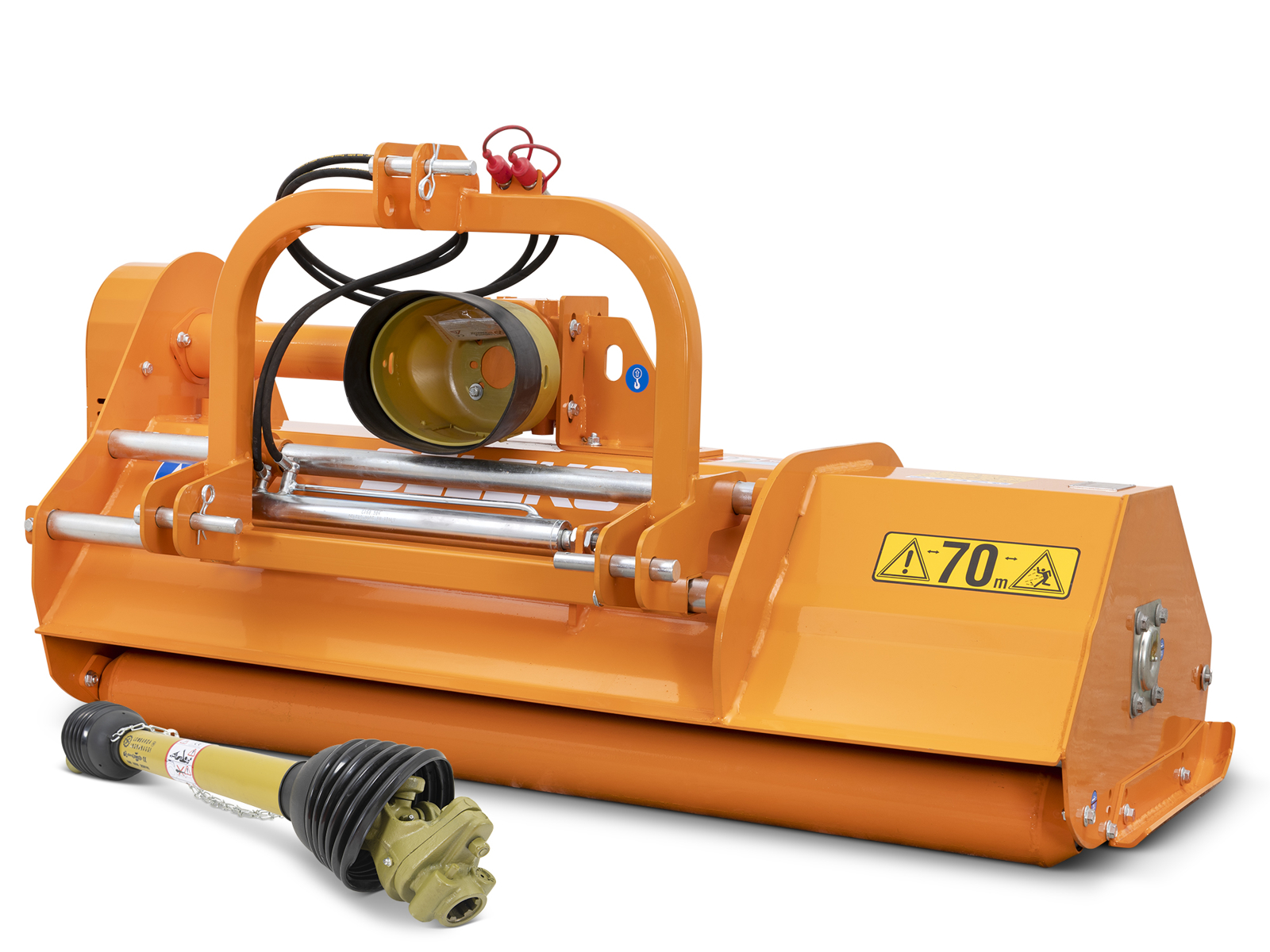

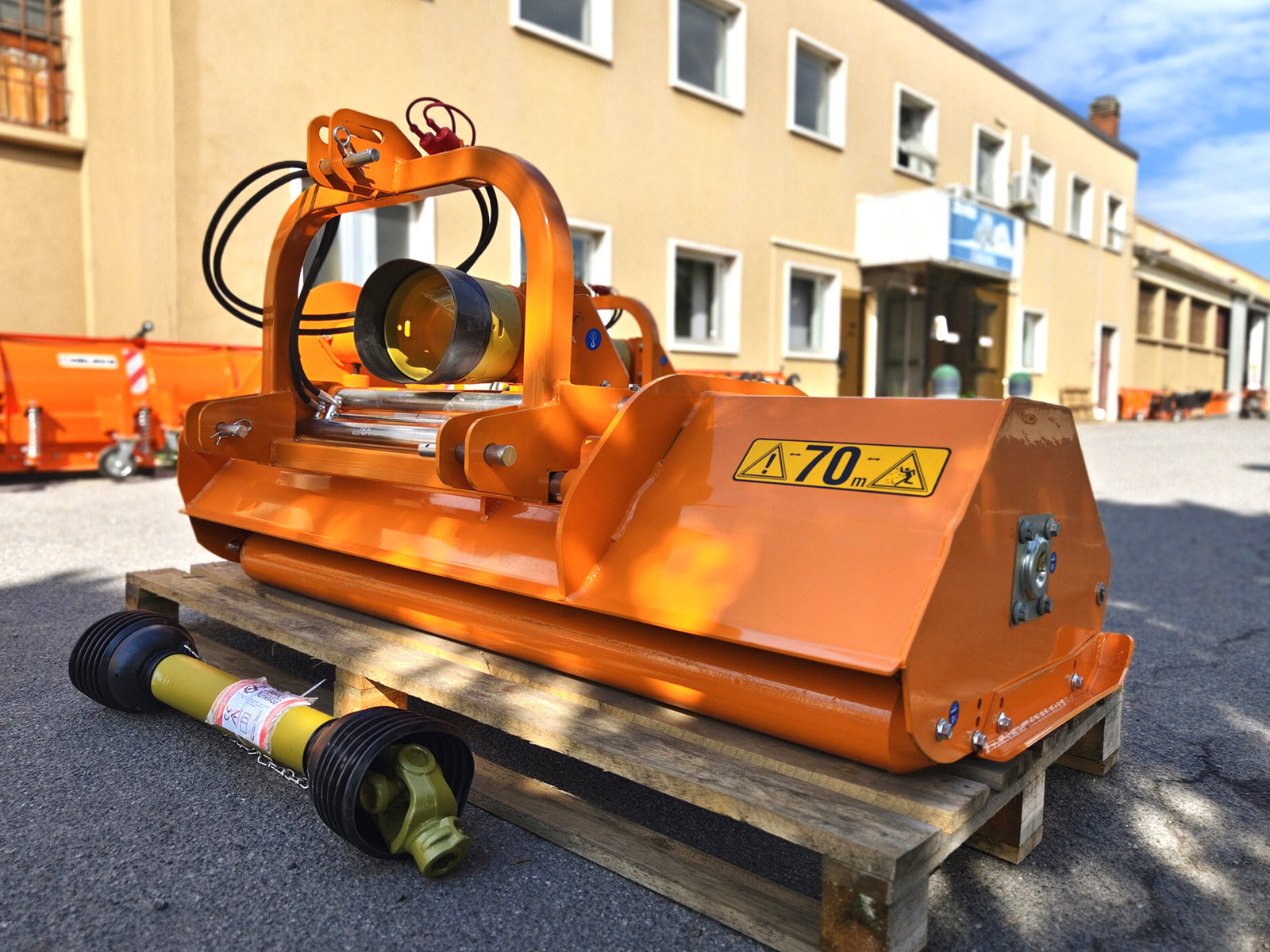

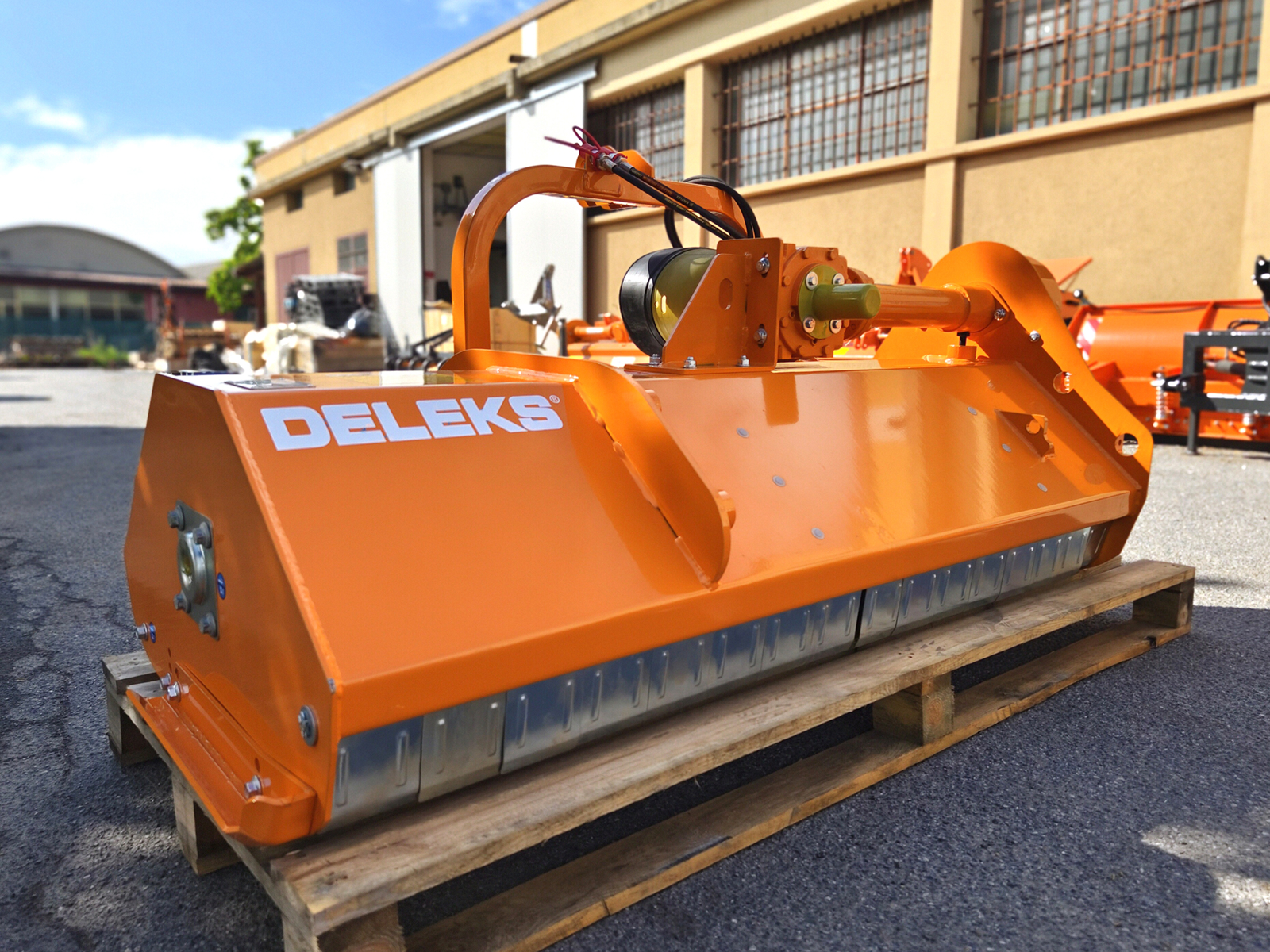

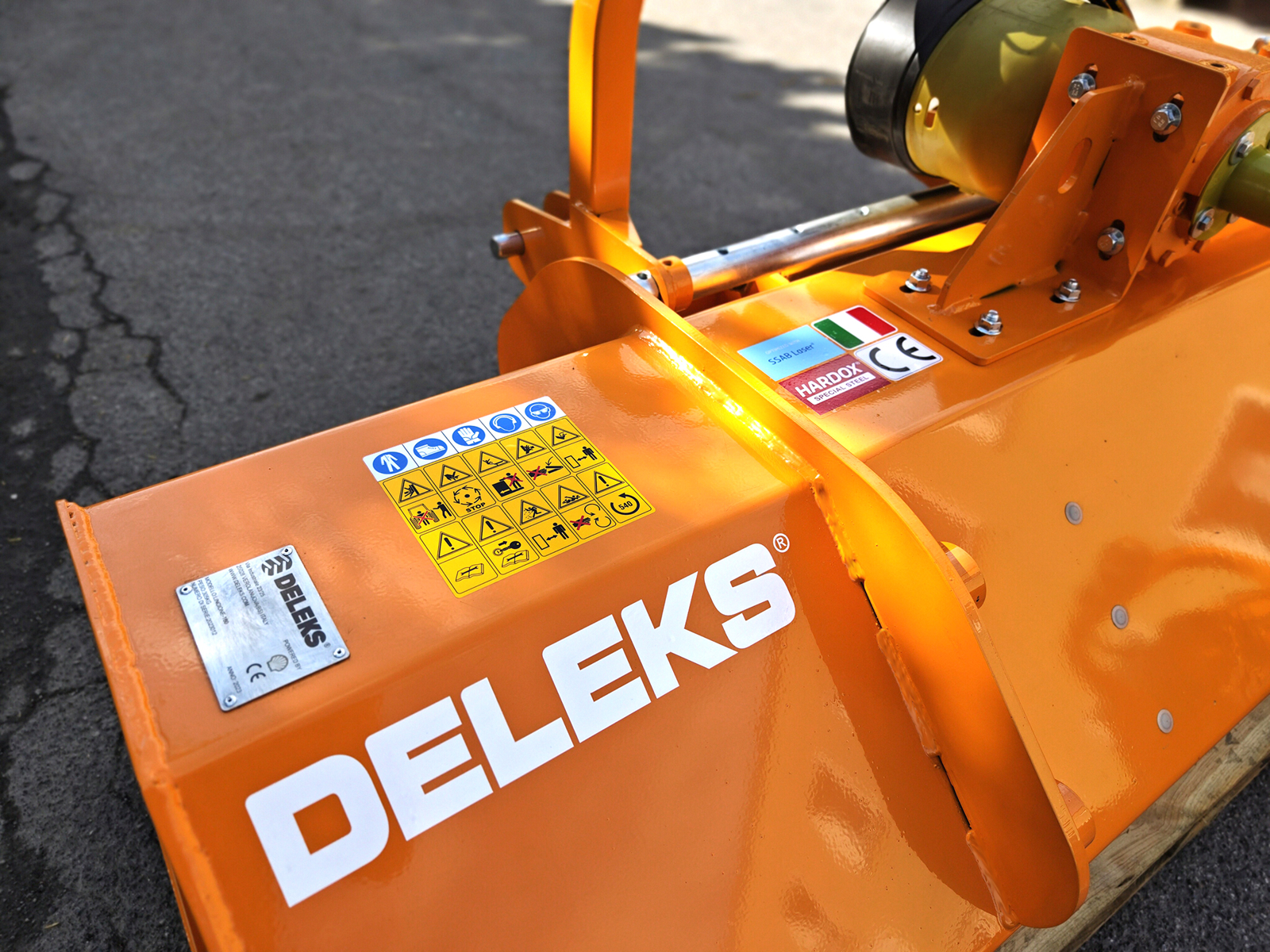

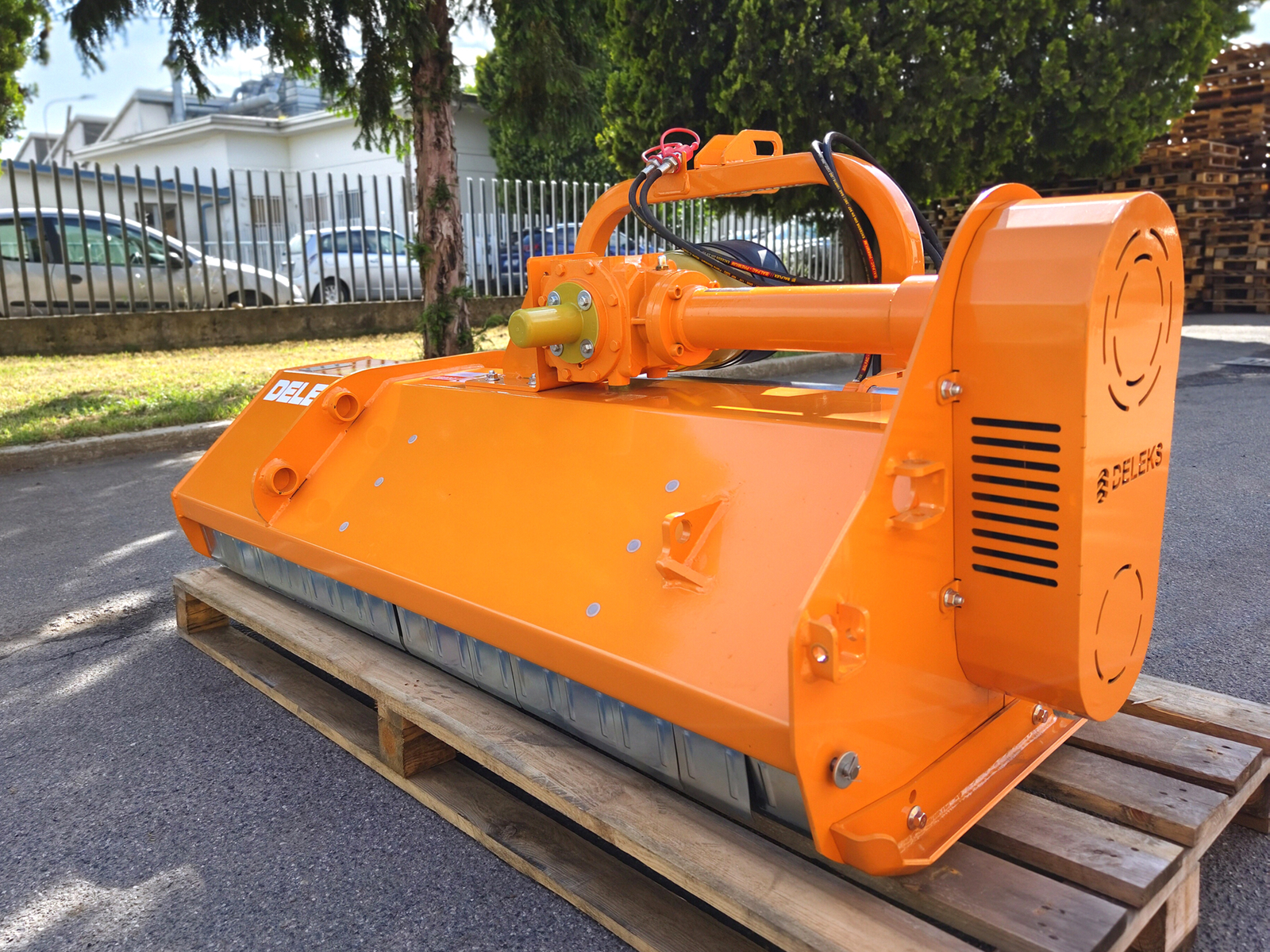

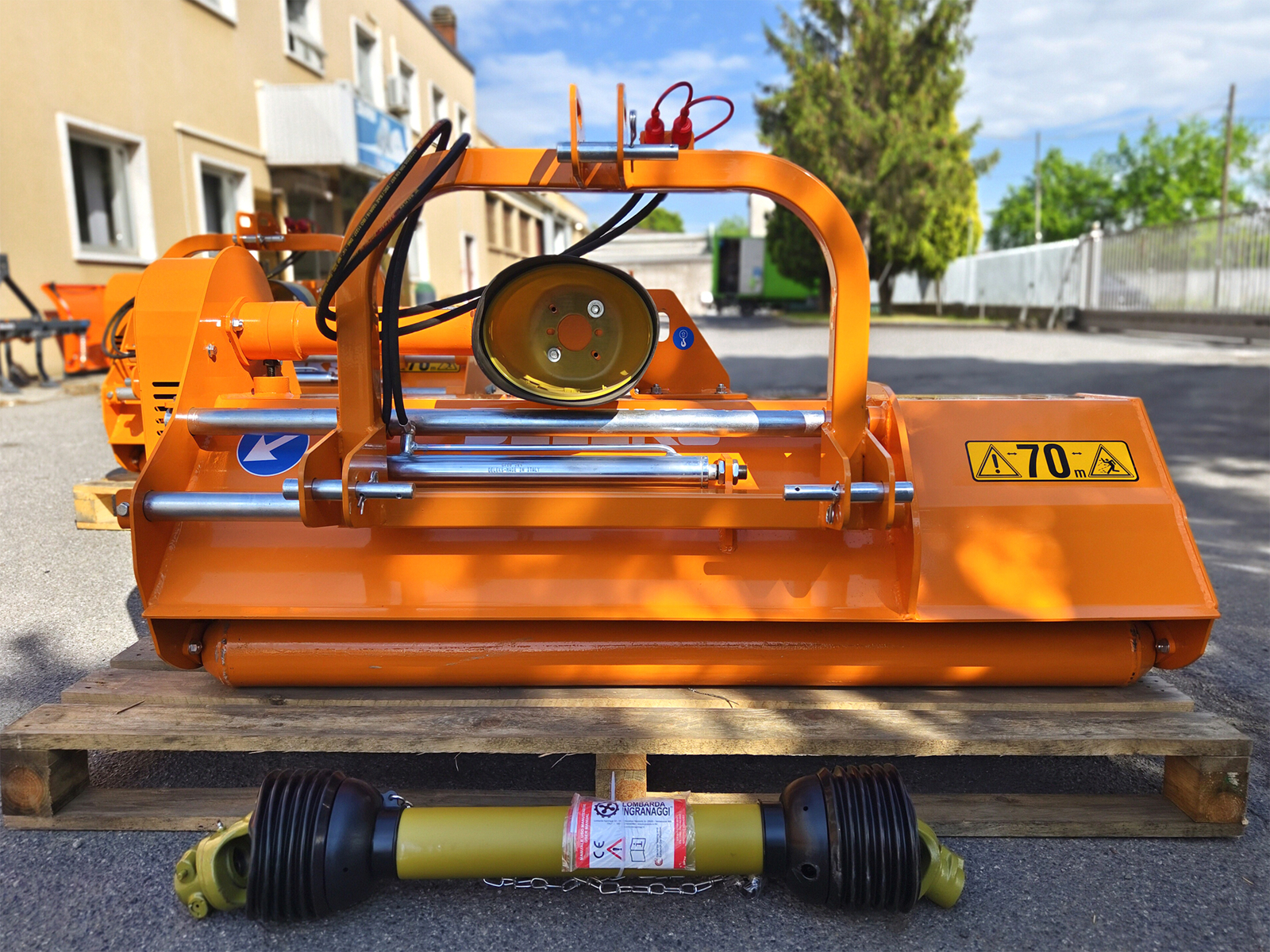

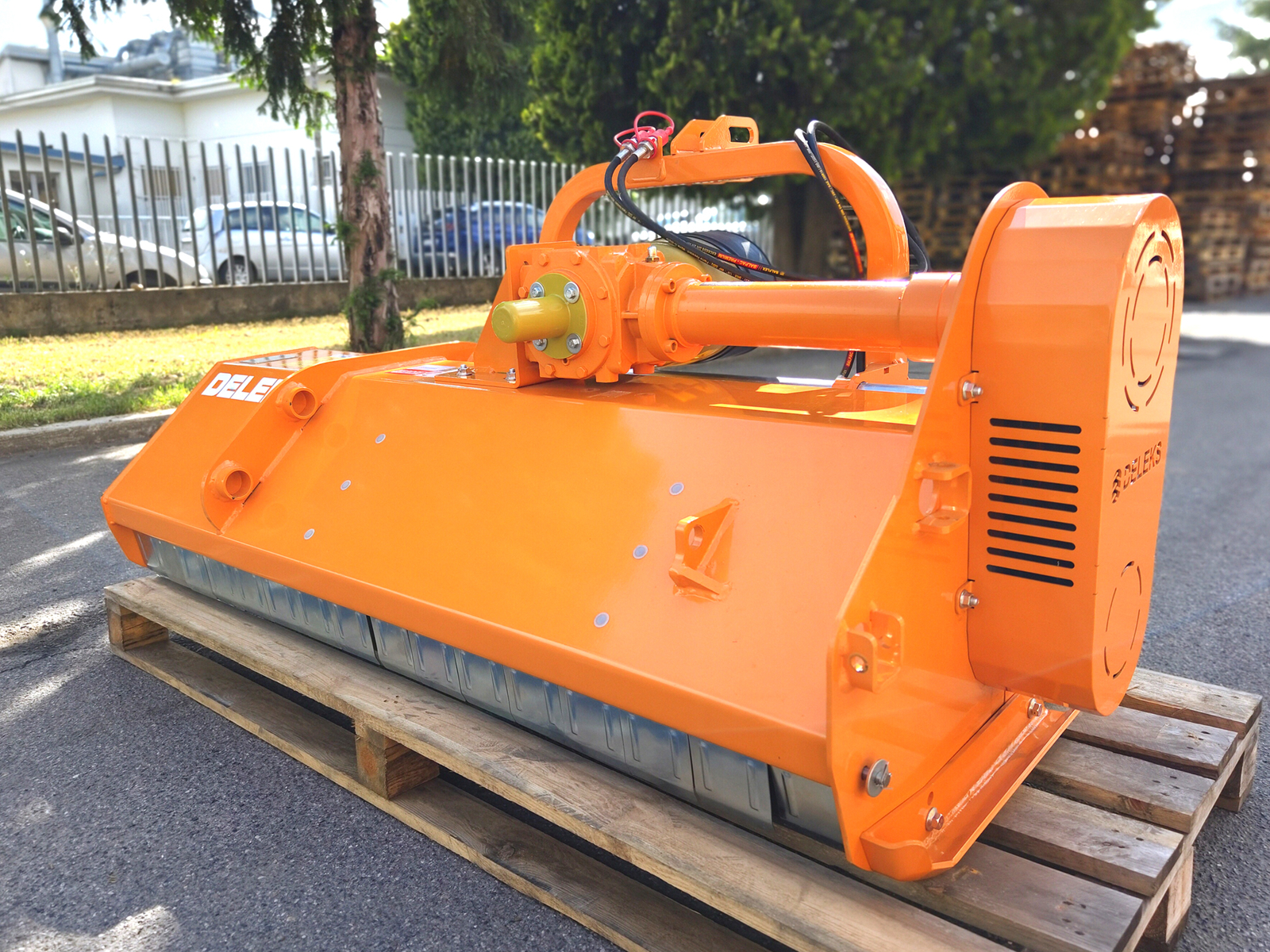

Reversible Flail mower 140cm with hydraulic sideshift for traktors - LINCIONE-140-SPH-REV

Reversible Flail Mower DELEKS^® 140cm / 325kg, Front / Rear Mounted Shredder for tractors- 310.0 mm hydraulic side shift - Pto shaft included.

OVERVIEW

The LINCIONE-140-SPH-REV can be mounted either in-front or behind tractor. Designed for working on fields, gardens, meadows, paddocks, unkempt ground, light rushes etc. Hydraulic side shift to offset machine.

Thanks to its 4mm frame (5mm above the rotor) is durable and sturdy enough to handle vegetation up to 3-4cm in thickness. This mower fits most 30-60hp tractors e.g Carraro Rev – Goldoni Ronin, Aster, Maxter – Valpadana – BCS – Ferrari – Pasquali- Holder – Kubota – Iseki – Landini Mistral, Serie 2 – Same Solaris, Dorado,  Deutz Agrokid – New Holland TCE, BOOMER 20-50 – John Deere Serie 3 - 4.

ADVANTAGES

Reversible use: it can be mounted in front of the tractor or on reversible tractors.

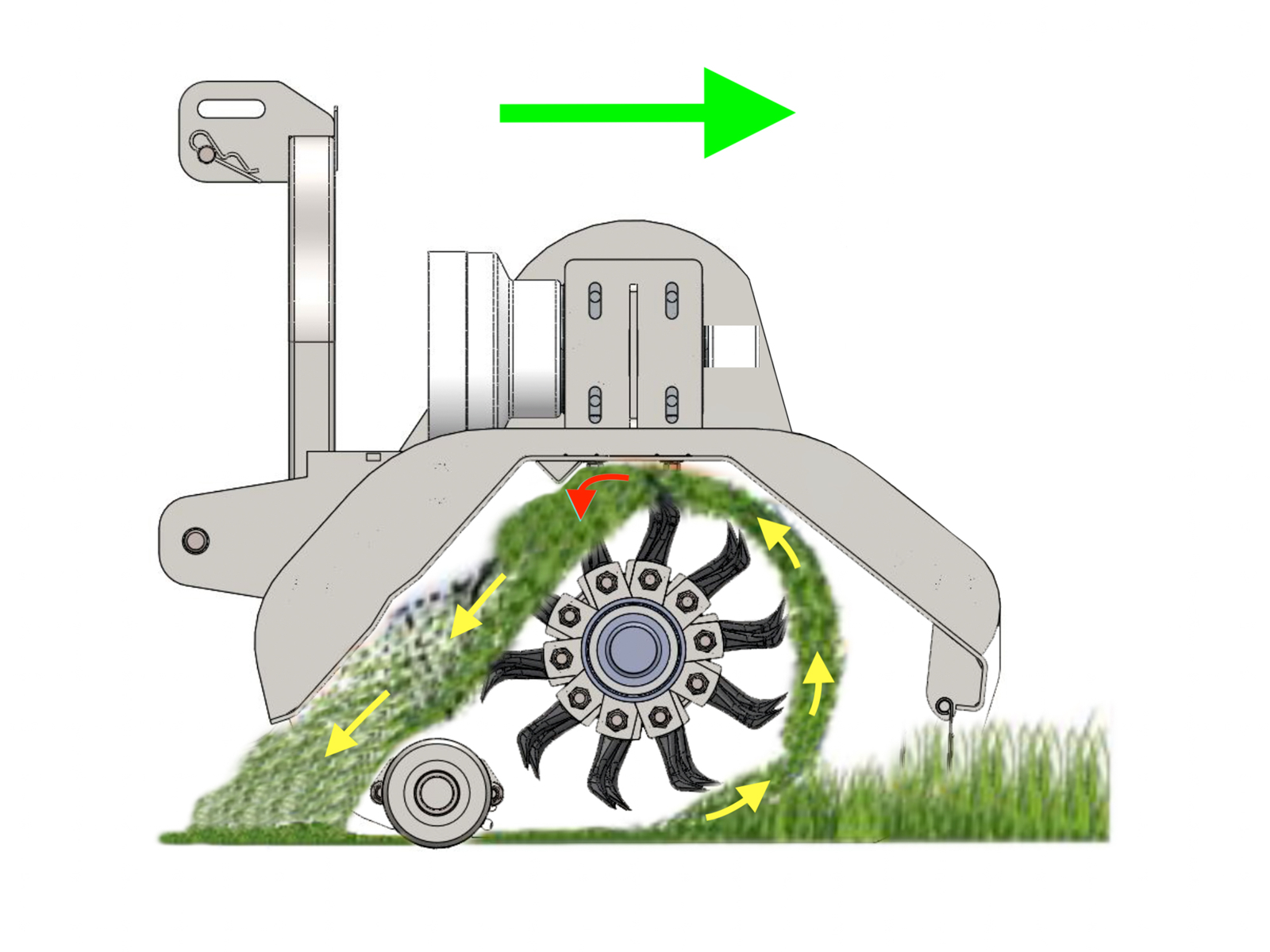

The special design of the shell allows perfect mulching of the grass and prevents clogging.

Sturdy structure suitable for professional use: frame casing thickness: 5.0mm, sides: 6.0mm, entirely made with Swedish SSAB steel.

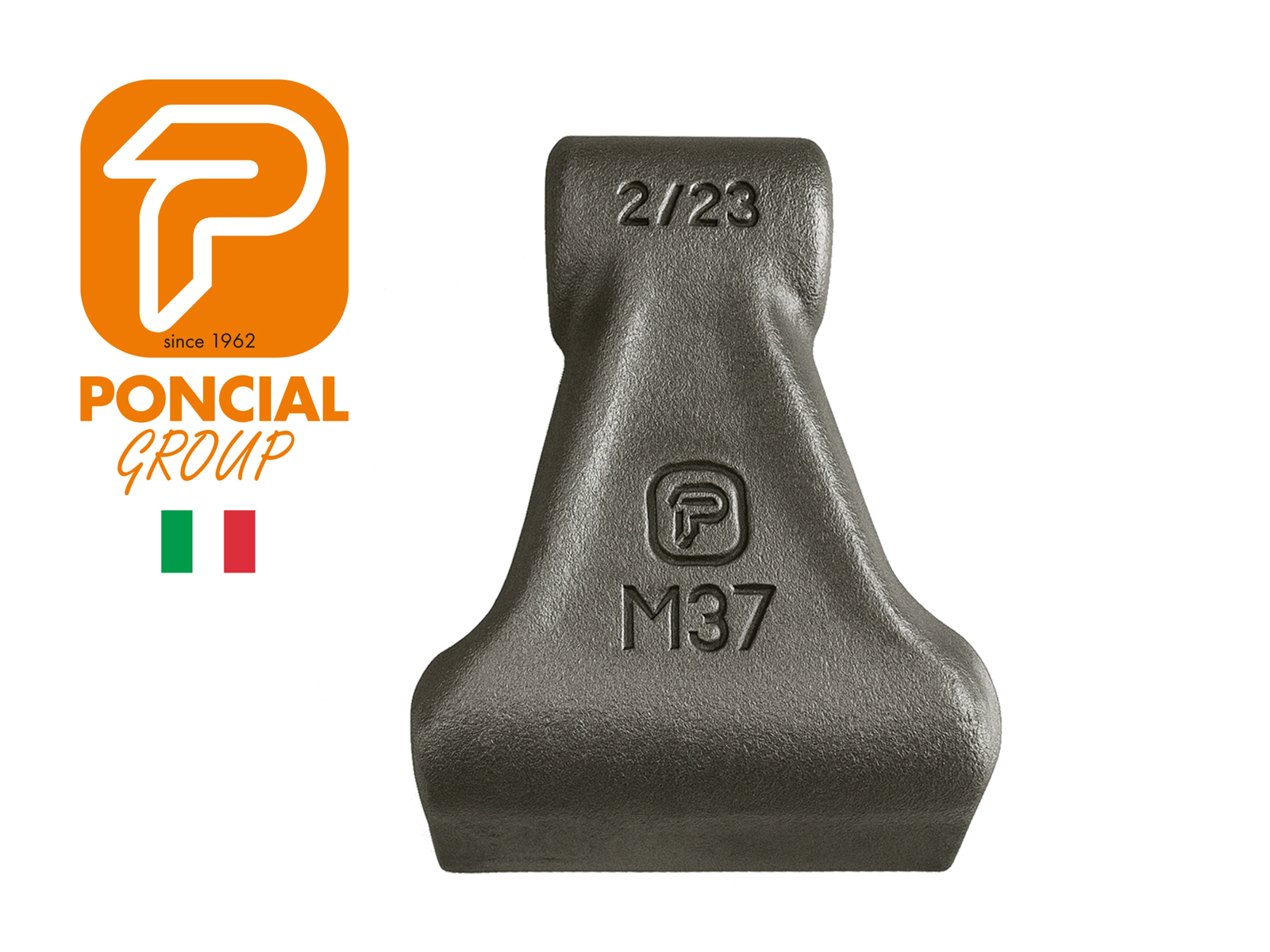

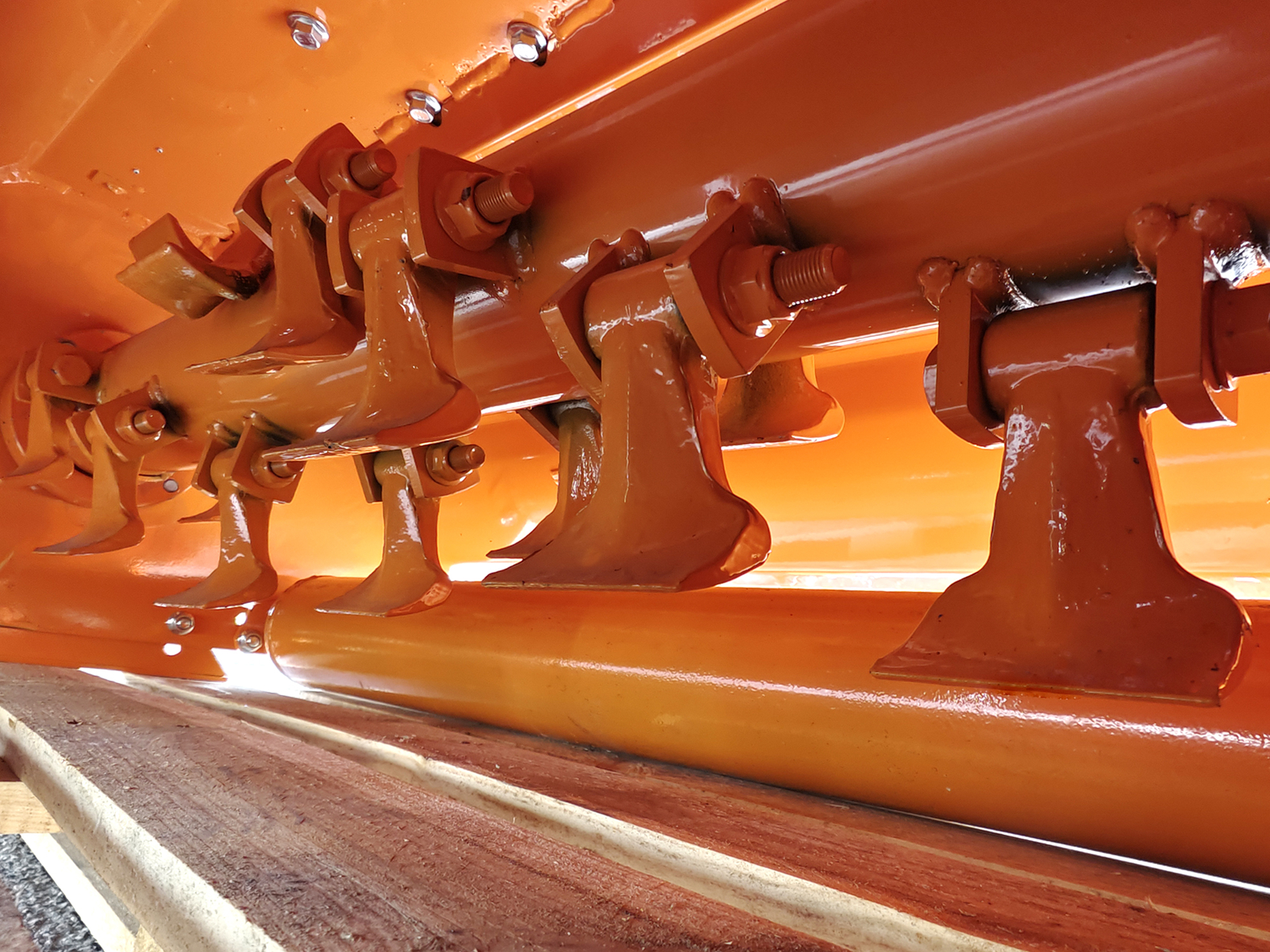

Forged hammers brand Poncial (Made in Italy).

Hammers attachments HARDOX made.

Rotor made with ARVEDI's tube, electronically balanced, 8mm thick S355 steel.

SKF self-aligning rotor bearings.

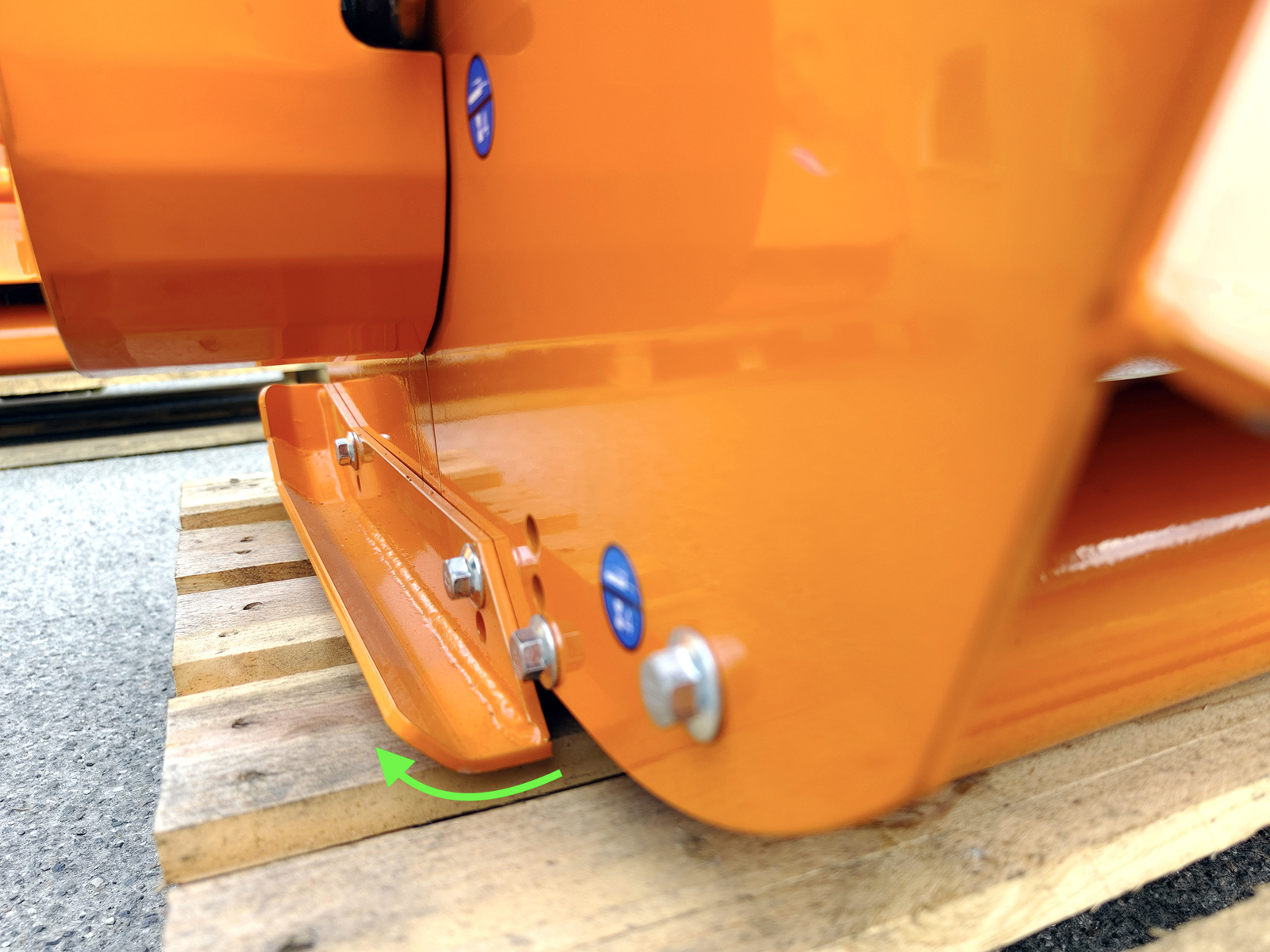

Lateral skids with double fold prevent the shredder from jamming in lateral movements.

Maximum application value on any type of residue, from the open field to the orchard.

EQUIPMENT

Universal 3-point hitch Cat. 1-2

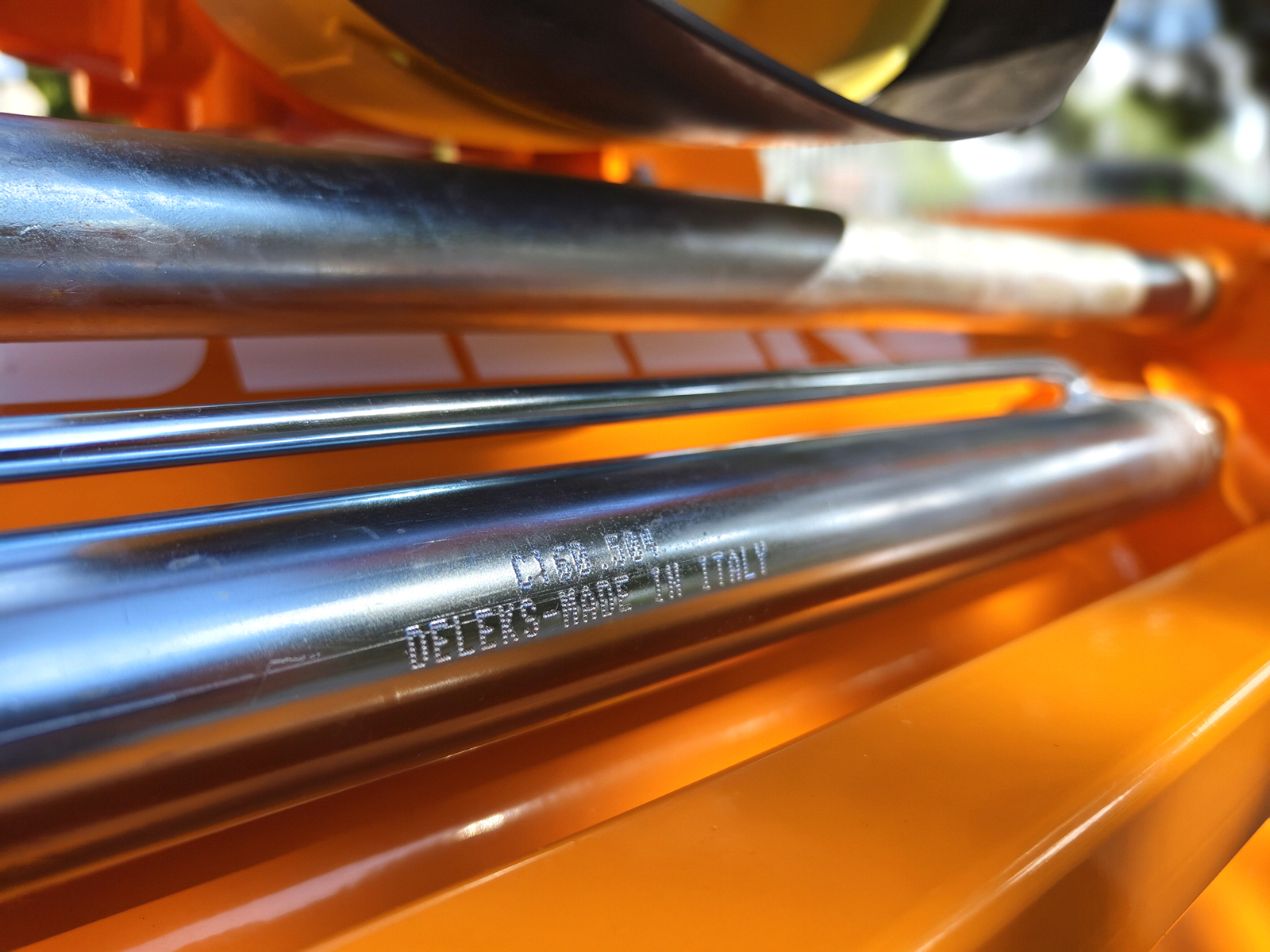

Hydraulic displacement 310.0 mm of the 3-point hitch

Double gearbox 540 + 540 r/min with freewheel, made in Italy

CE 6x1000 cardan shaft with shear bolt

4 transmission belts

Adjustable tensioner

Electronic balanced rotor

20 hammers, hot forged high strength 9cm base width

Pair of adjustable slides

Front guards

External adjustment of the belts

CE safety guard

Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual
