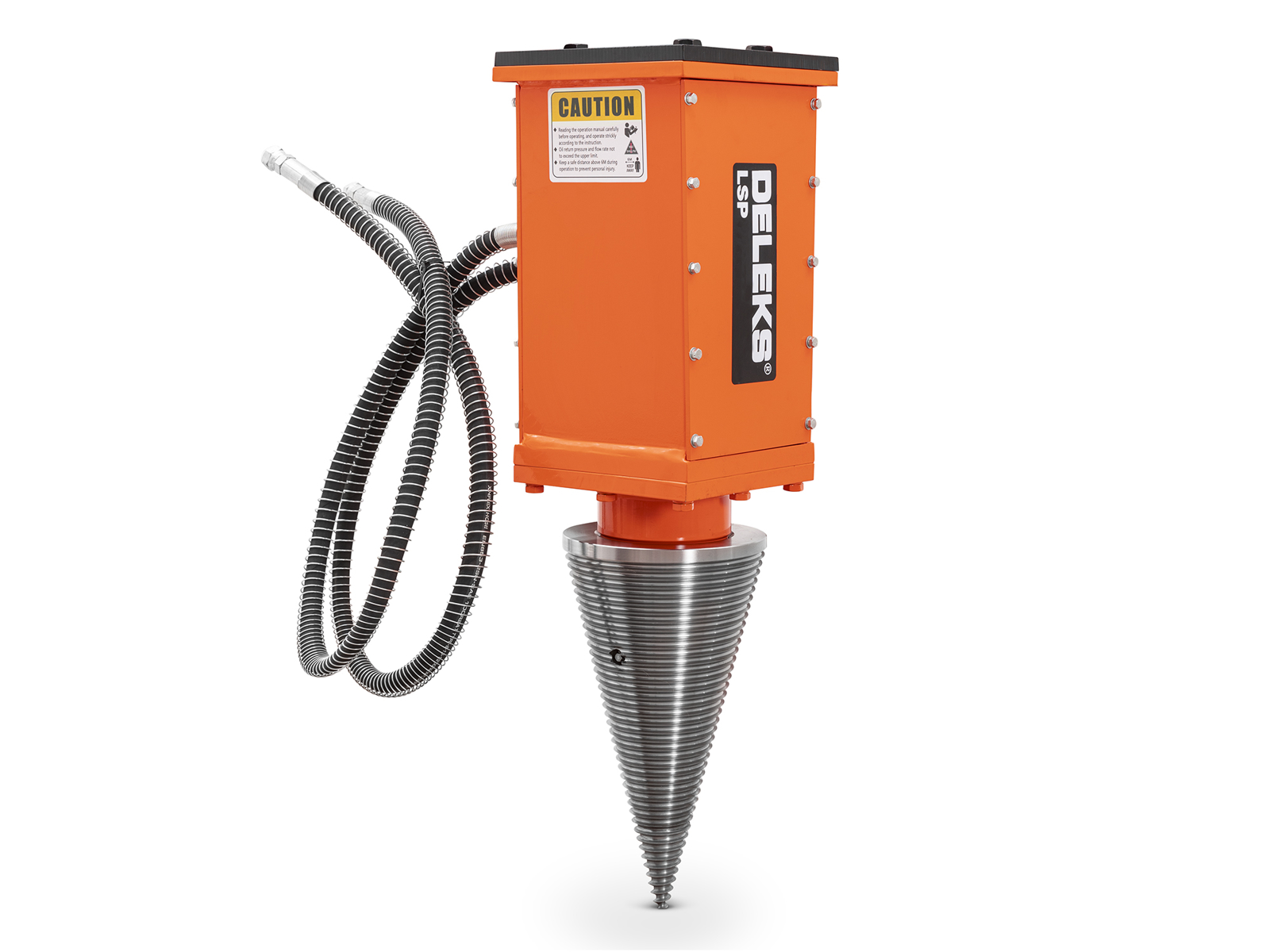

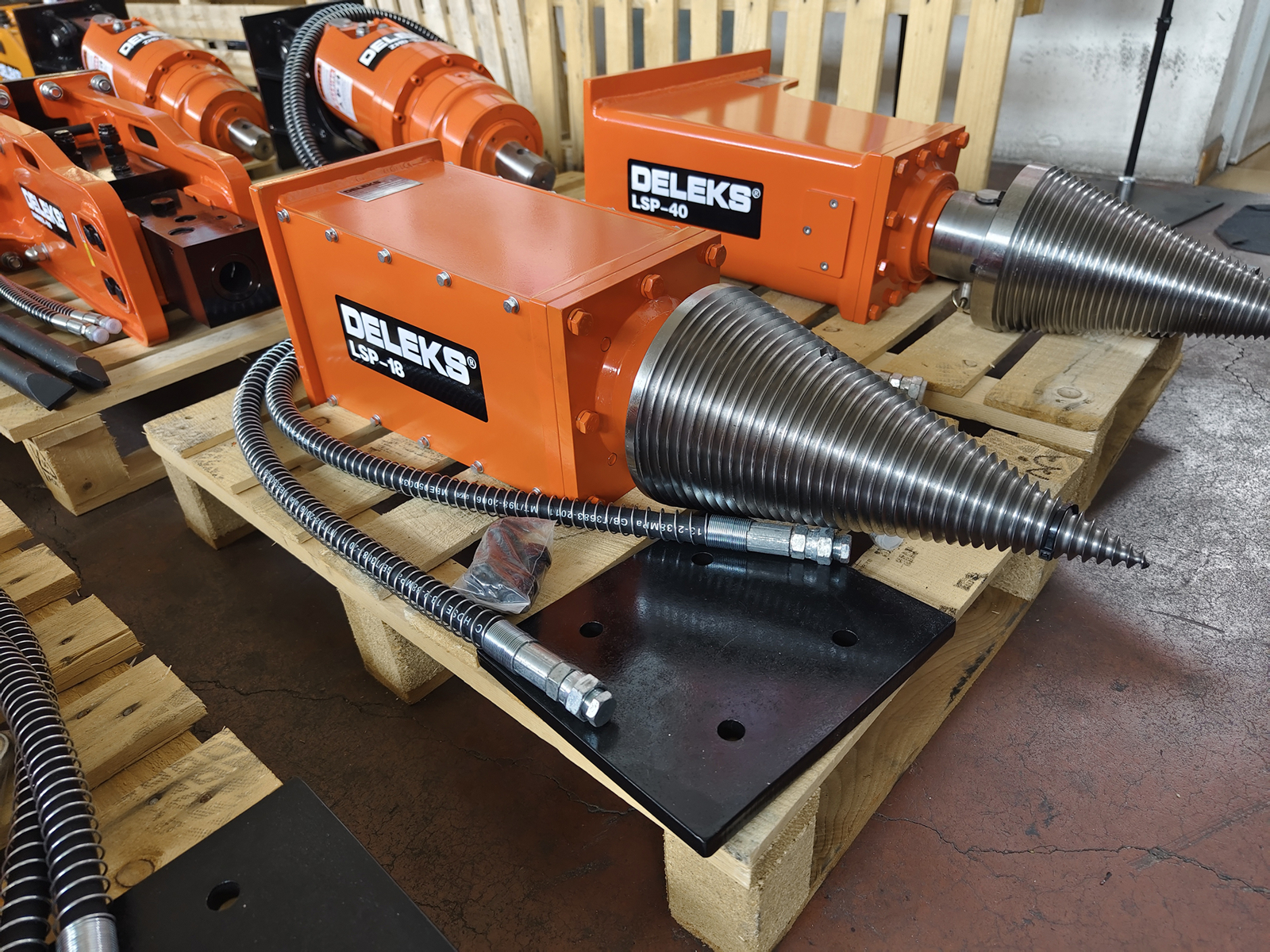

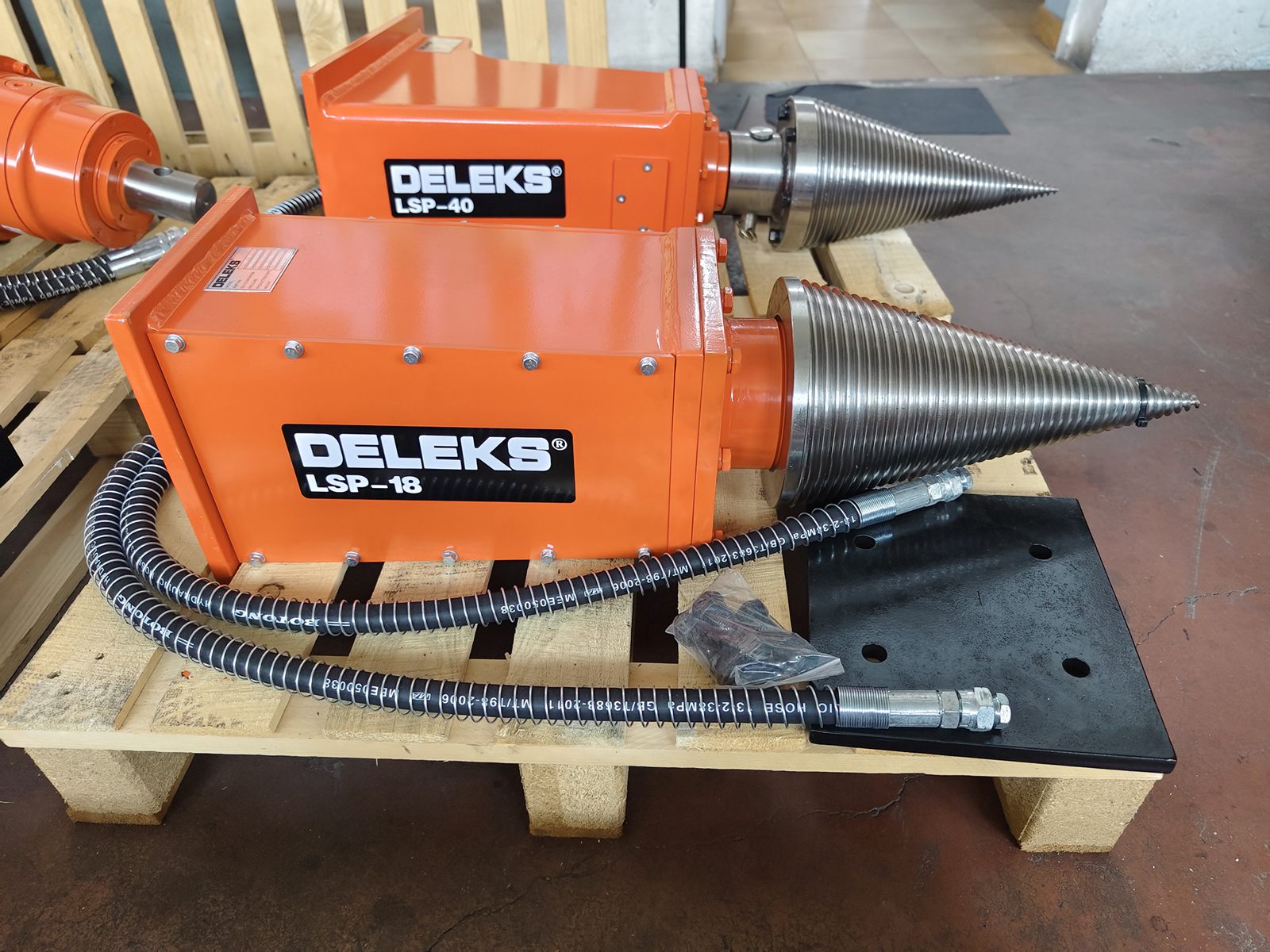

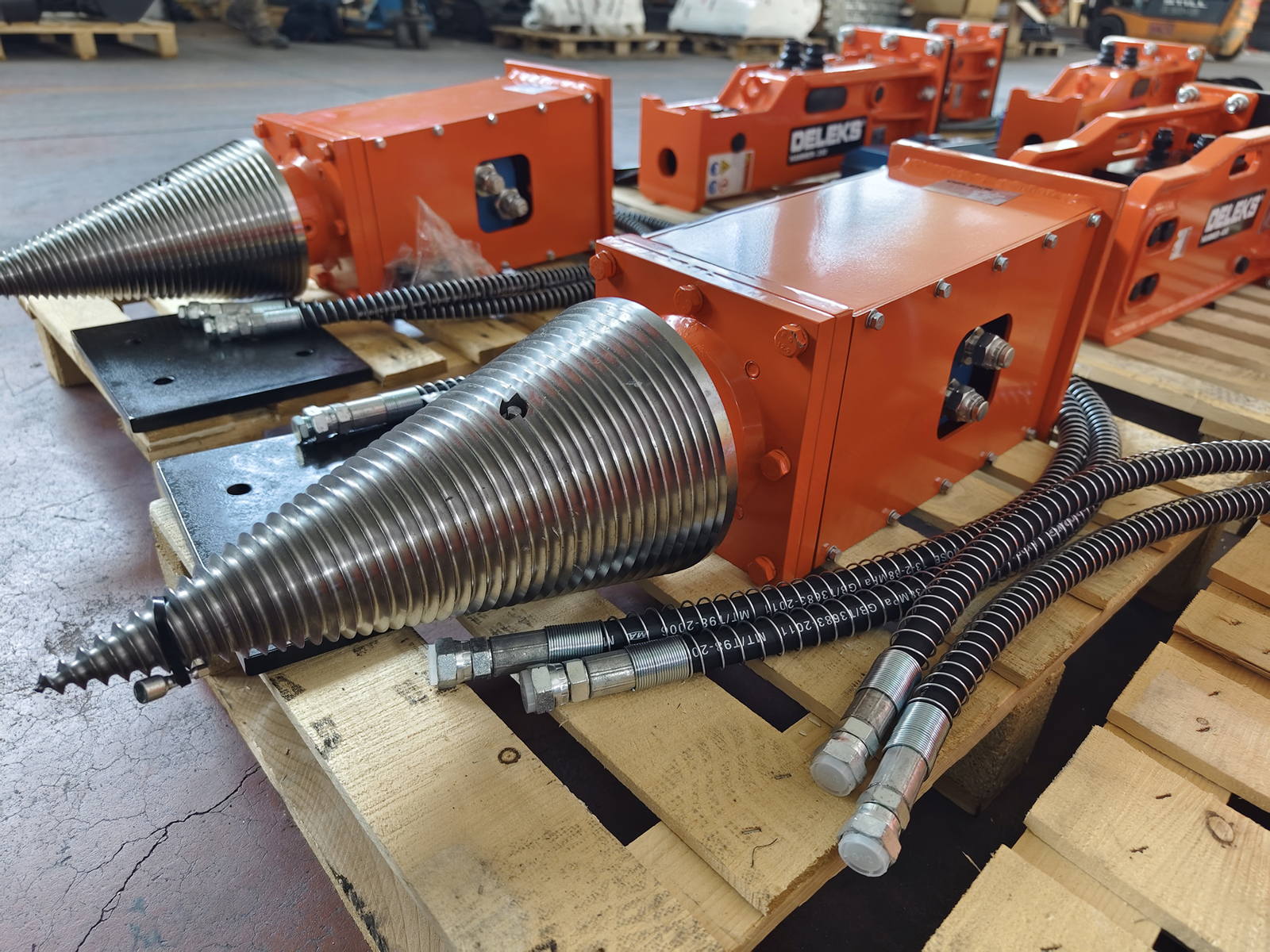

DELEKS® LSP-18 hydraulic log splitter for 3.0-5.0 ton miniexcavators| cone splitter, Log and Stump Screw | Excavator Attachment
MAIN APPLICATIONS
Load, unload and split with one Machine!
Designed to fit excavators and skid steers, the DELEKS® LSP-18 Log and Stump Screw is a practical solution for material size reduction in smaller yards.
Splits logs of any length
Splits large diameter logs in few seconds

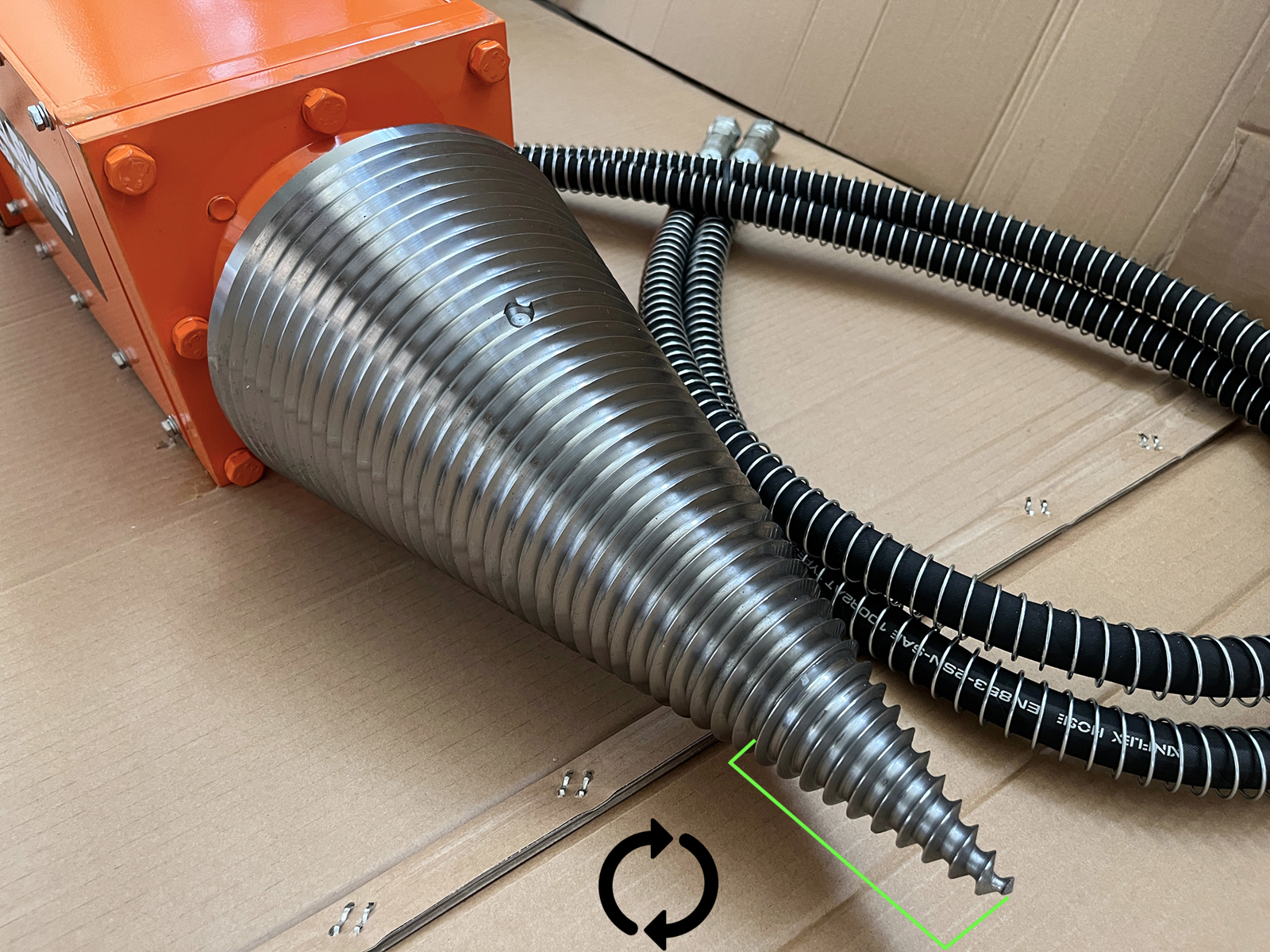

Steel conical screw log splitter
Tempered interchangeable tip
Vertical and horizontal drilling

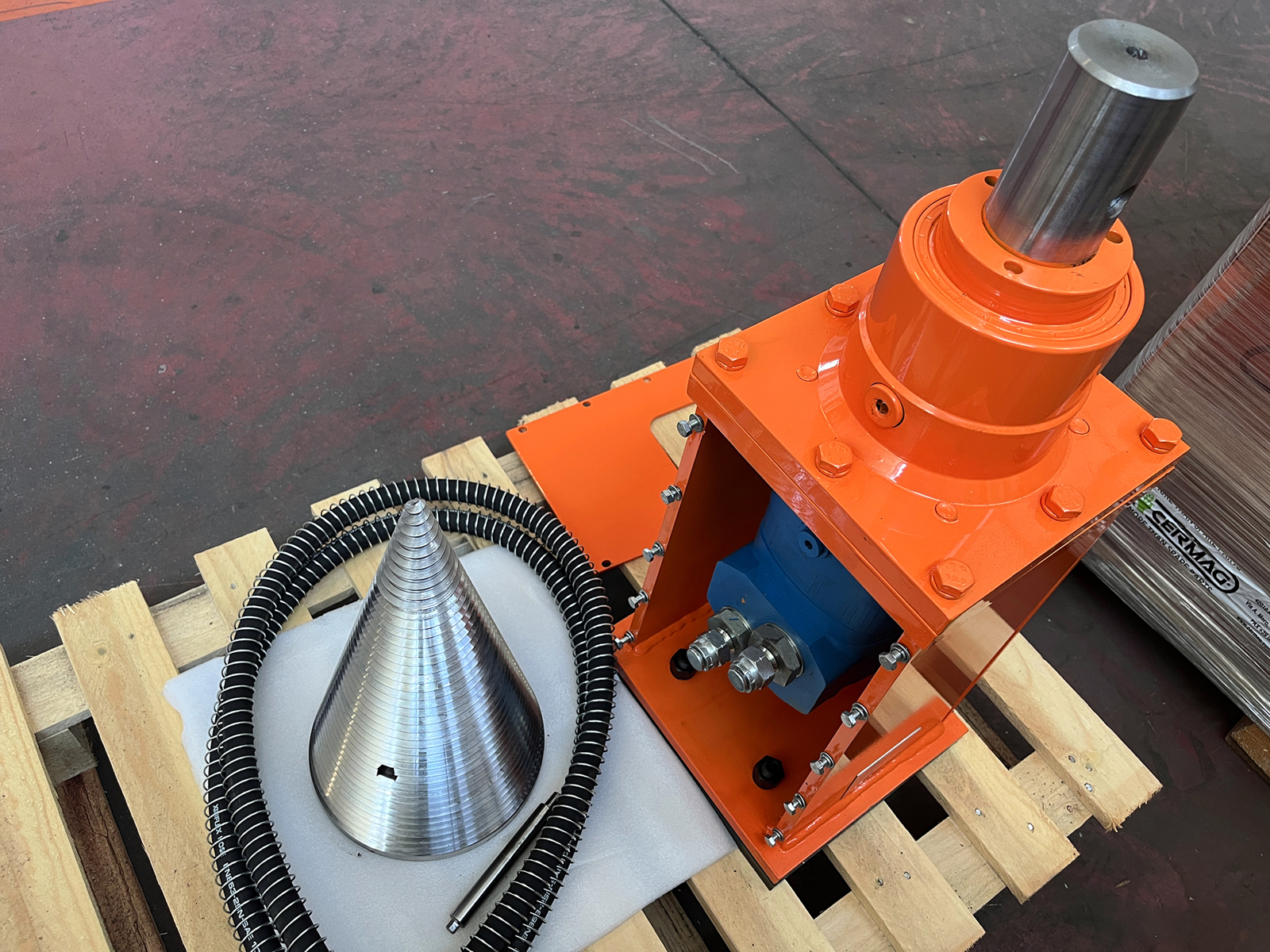

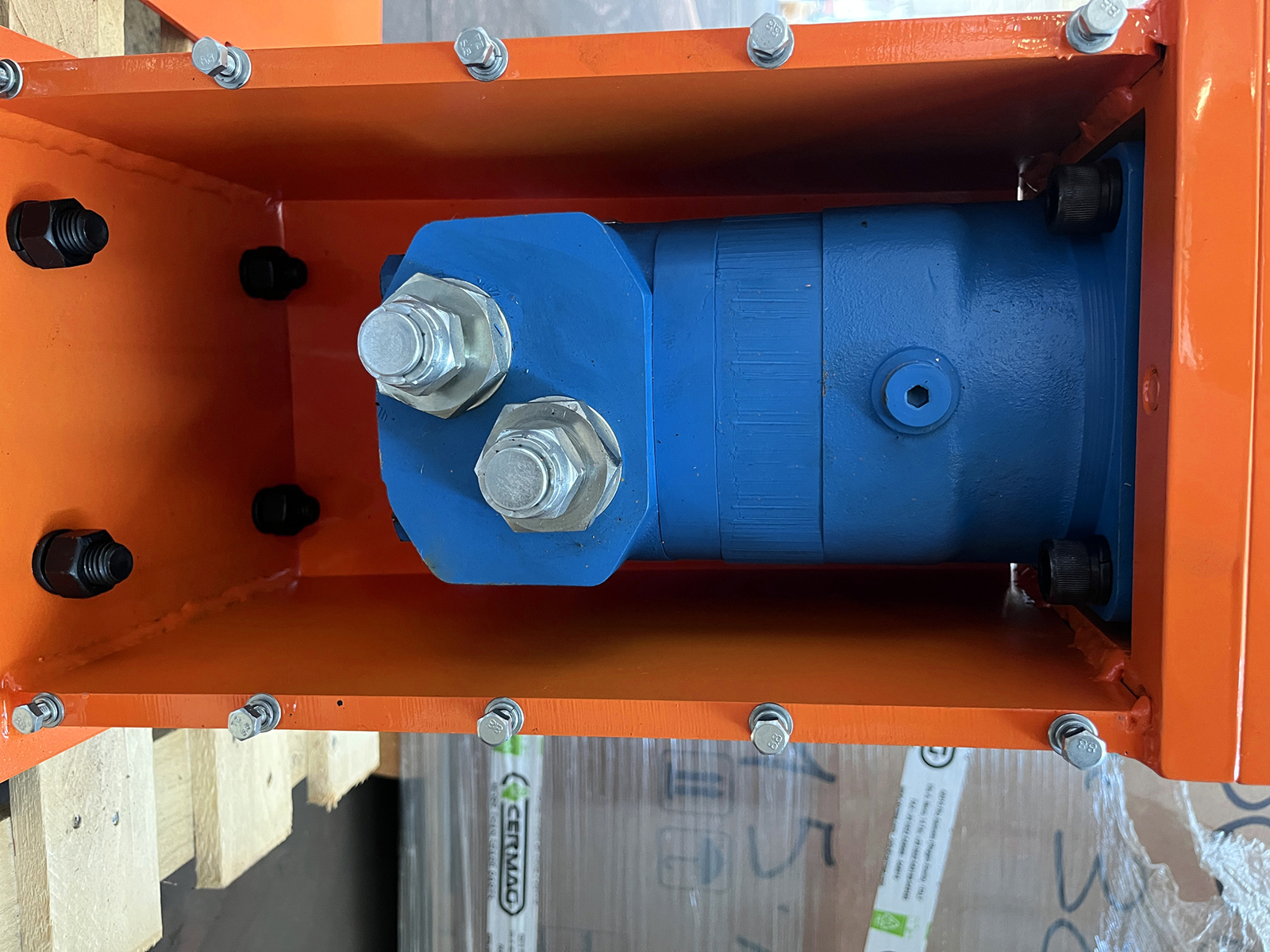

Hydraulic motor 390cc
Screwing with only a few turns, the logs can be lifted, moved and stored in the desired position.
Max Torque (Nm) 1878
Working Pressure (Bar): 100-170
Speed Range (r/min): 32-97

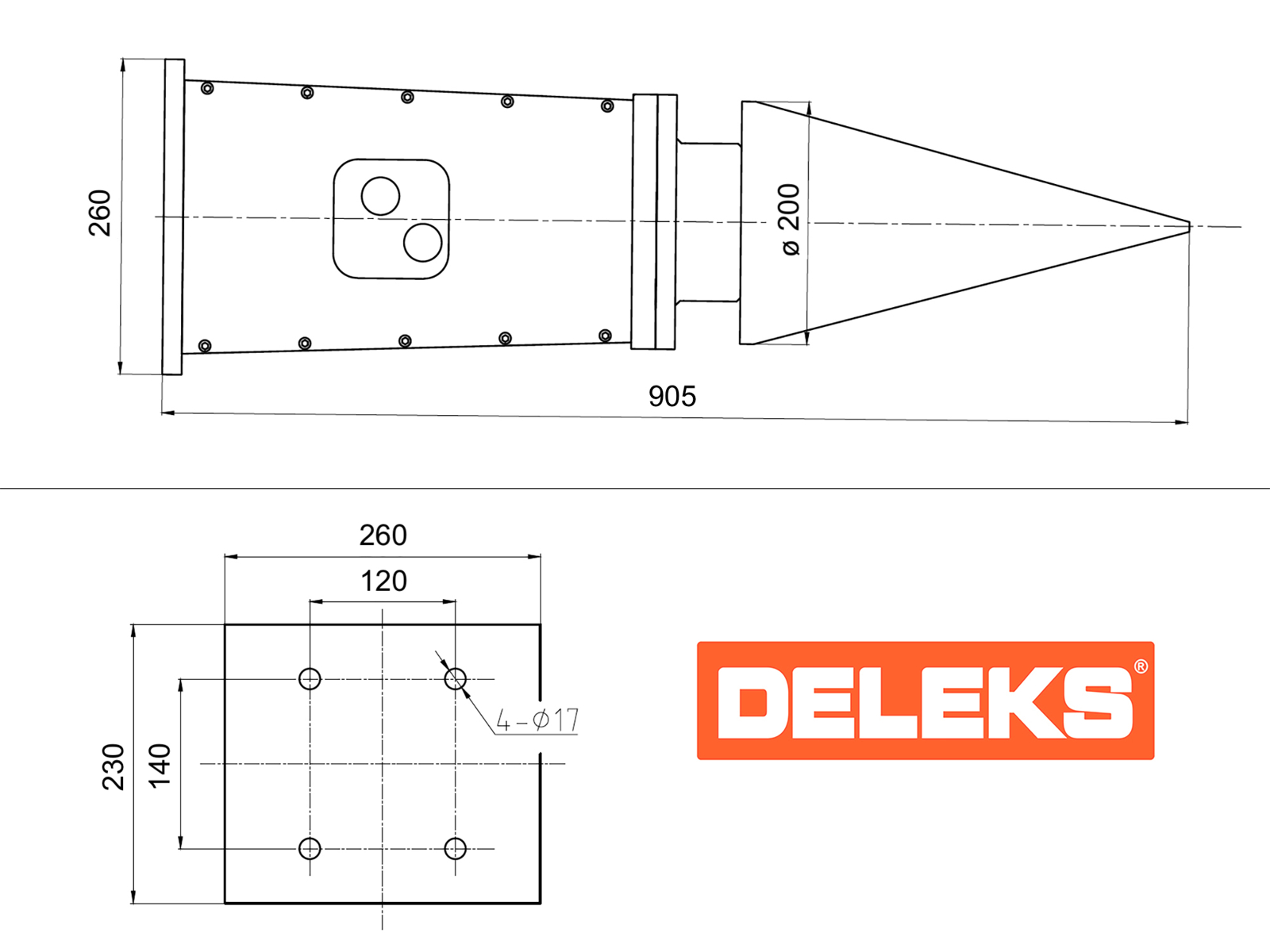

Cone Size(mm): Φ200X370
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 108.0 kg | 238.0 lb |
| Min./Max. Flow | 50-95 l/min | 50-95 l/min |
| Compact Excavators Range | 3.0-5.0 ton | 3.0-5.0 ton |
| Hydraulic quick couplers | G 1/2" | G 1/2" |
| Packing sizes | 950.0*32.0*410.0 mm | 3.12*1.05*1.35 ft |
