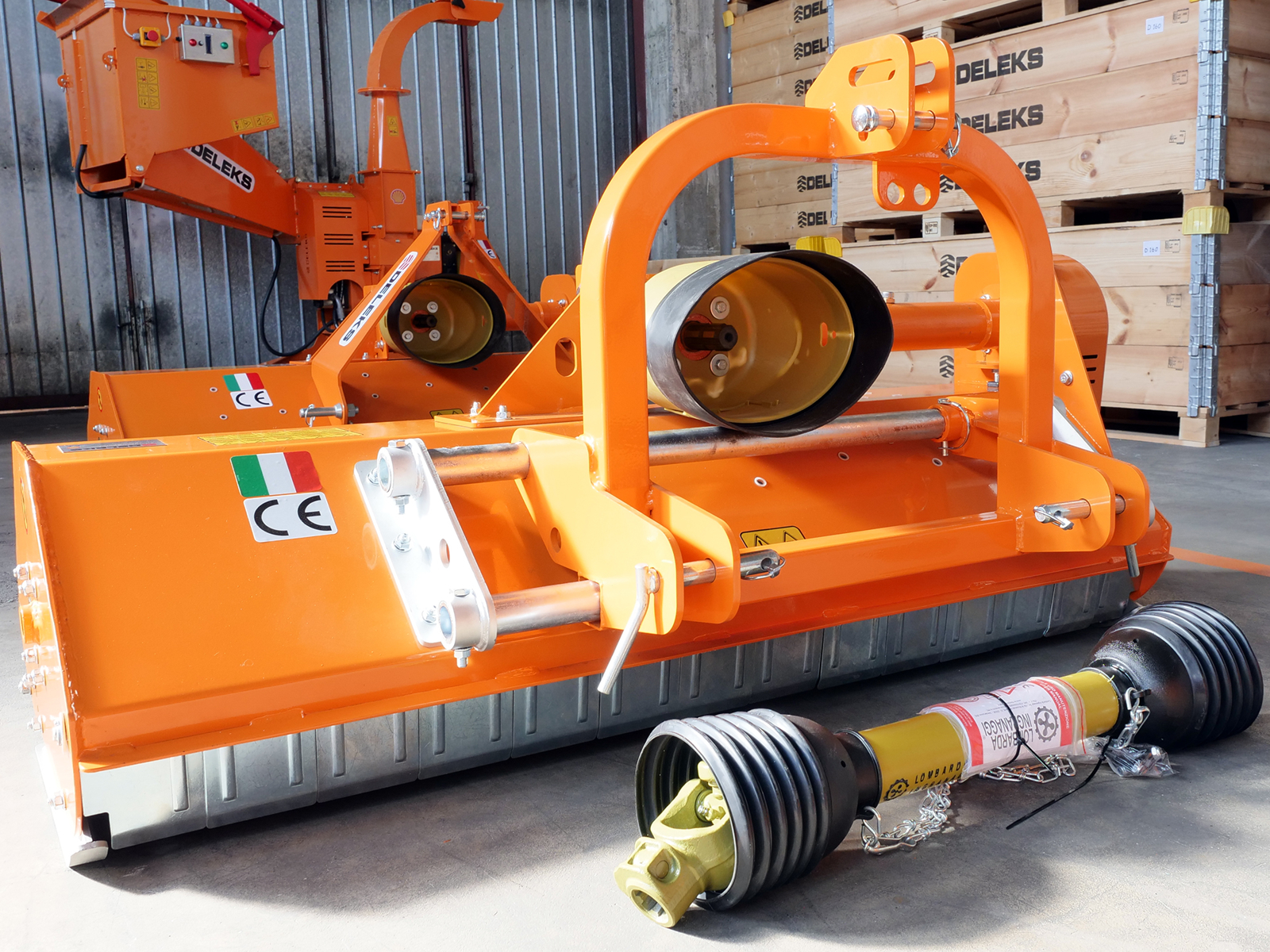

Flail mower with adjustable sideshift multipurpose mulcher - 100cm - with hammers - LINCE-SP100
Review by Edd China (Wheeler Dealers)
Field test
Unpacking by Alberto
DETAILS
Adjustable sideshift Mower for 14-40hp tractors, 155kg - DELEKS® LINCE-SP100 - Pto shaft CE included, 330g heat forged hammers to shred vegetation up to 2,0-3,0 cm thick.
OVERVIEW
The LINCE-SP100 sideshift mower can be used directly behind the tractor, or can be offset manually or hydraulically (optional) by 25cm. It gives a clean finish on grass, however can easily shreds small twigs and branches up to 2.5cm in diameter. This mower is attached to the tractor using universal three point linkage and fits most 14 - 40 hp compact tractors e.g Kubota, John Deere 2-3, New Holland Boomer 25-30, McCormick, Iseki, Yanmar.
BENEFITS & FEATURES
Frame entirely made with Swedish SSAB steel.
Rotor made with ARVEDI's tube, electronically balanced, 8mm thick S355 steel with hammers mounted on 6 rows instead of 4.
Hammers attachments HARDOX made.
SKF rotor bearings.

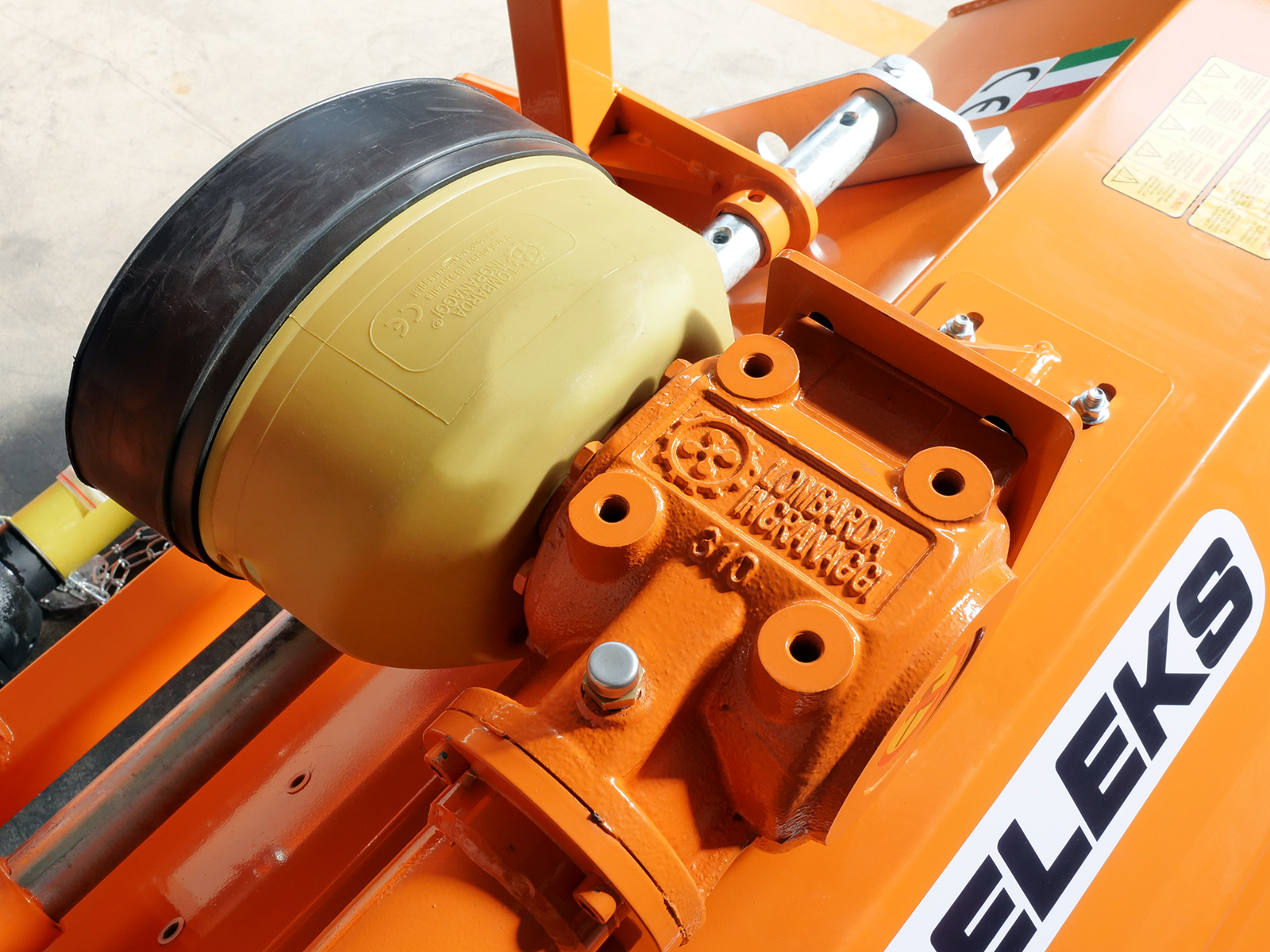

Gearbox P.T.O. 540 r.p.m. Lombarda Ingranaggi Srl with free-wheel (3 Years warranty).
25cm manual side shift (hydraulic as option).
The body is equipped with an internal curb which diverts the air flow towards the rotor for a mulching effect.
The internal positioning of the roller gives more efficiency and reduced execution times. The cutted grass passes over the roller without being crushed and is disposed of more quickly.
330g heat forged hammers to shred vegetation up to 2,0-3,0 cm thick.
3 High resistance toothed belts, and external belt tensioner.
Adjustable roller unit and side skids.
Pto shaft CE included.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1000.0 mm | 3.28 ft |
| Overall width | 1120.0 mm | 3.65 ft |
| Min / Max cutting height | 10.0 - 45.0 mm | 0.4- 1.77 in |
| Weight | 155.0 kg | 342.0 lb |
| Overall height | 750.0 mm | 2.49 ft |
| Tractor Power Range | 14 - 40 Hp | 14 - 40 HP |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) | Cat. 1 (ø 19.0-22.0mm) |
| Position of the gearbox | 555.0 mm from left side / 561.0 mm from right side | 1.82 ft from left side / 1.84 ft from right side |
| Hood height | 370.0 mm | 14.5 in |
| Spacing between the 2 lower points | 520.0 - 620.0 mm | 20.47 - 24.40 in |
| Number of Hammers | 16 | 16 |
| Maximum cutting diameter | 20.0 - 30.0 mm | 0.78 - 1.18 in |
| Overall length | 880.0 mm | 2.89 ft |
| Distance between pto attachment and ground | 472.0 mm | 18.6 in |
| Main hood thickness | 3.0 mm | 0.12 in |
| Sides thickness | 5.0 mm | 0.20 in |
| Side plates thickness | 6.0 mm | 0.23 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) (3 year warranty) | Lombarda Ingranaggi Srl (Italy) (3 year warranty) |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: RPM Rotor speed | 3150.0 rpm | 3150.0 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 206.0 mm | 8.11 in |
| Transmission: Lower pulley ø | 106.0 mm | 4.17 in |
| Transmission: V-Belts quantity | 3 | 3 |
| Transmission: V-Belts size | AX39 | AX39 |
| Rotor: diameter | 102.0 mm | 4.01 in |
| Rotor: bearings type and size | SKF UCF-207 | SKF UCF-207 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 8.0 mm | 0.31 in |
| Hammers: Weight | 330.0 g | 11.7 oz |
| Hammer: øhole | 11.0 mm | 0.43 in |
| Hammer: base width | 80.0 mm | 3.15 in |
| Hammer: top width | 14.0 mm | 0.55 in |
| Hammer: Diagonal | 75.0 mm | 2.95 in |
| Rear roller: diameter | 102.0 mm | 4.01 in |
| Rear roller: sheet thickness | 5.0 mm | 0.20 in |
| Rear roller: bearings type and size | FL205 | FL205 |
| Pto shaft | CE 2x800 mm | CE 2x2.60 ft + shear bolt |
| Hood length | 665.0 mm | 26.2 in |
| Effective Displacement | 250.0 mm (Manual/Hydr.) | 9.84 in (Manual/Hydr.) |
| Packing sizes | 1150.0*850.0*700.0 mm | 3.77*2.80*2.30 ft |
