DETAILS

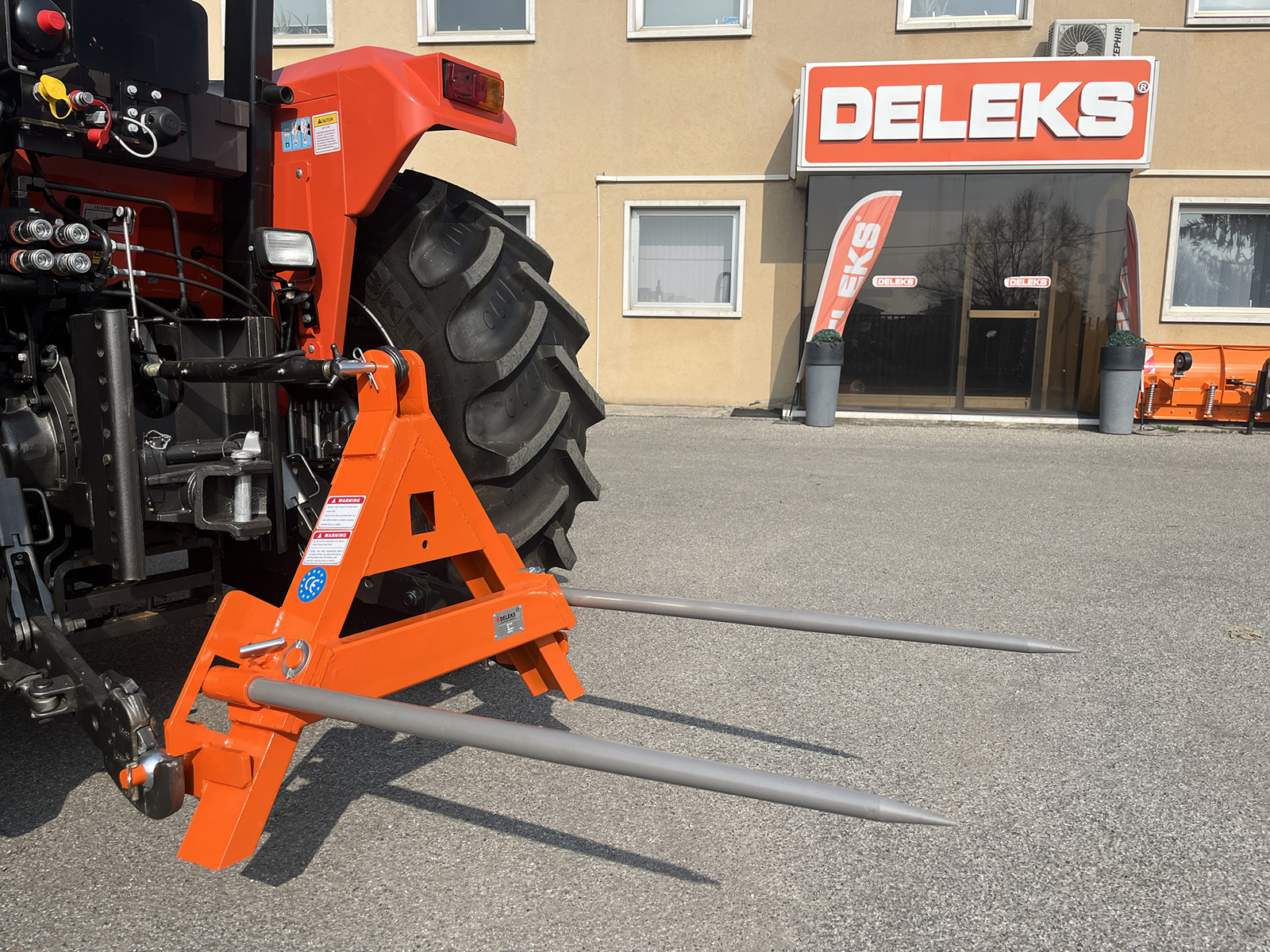

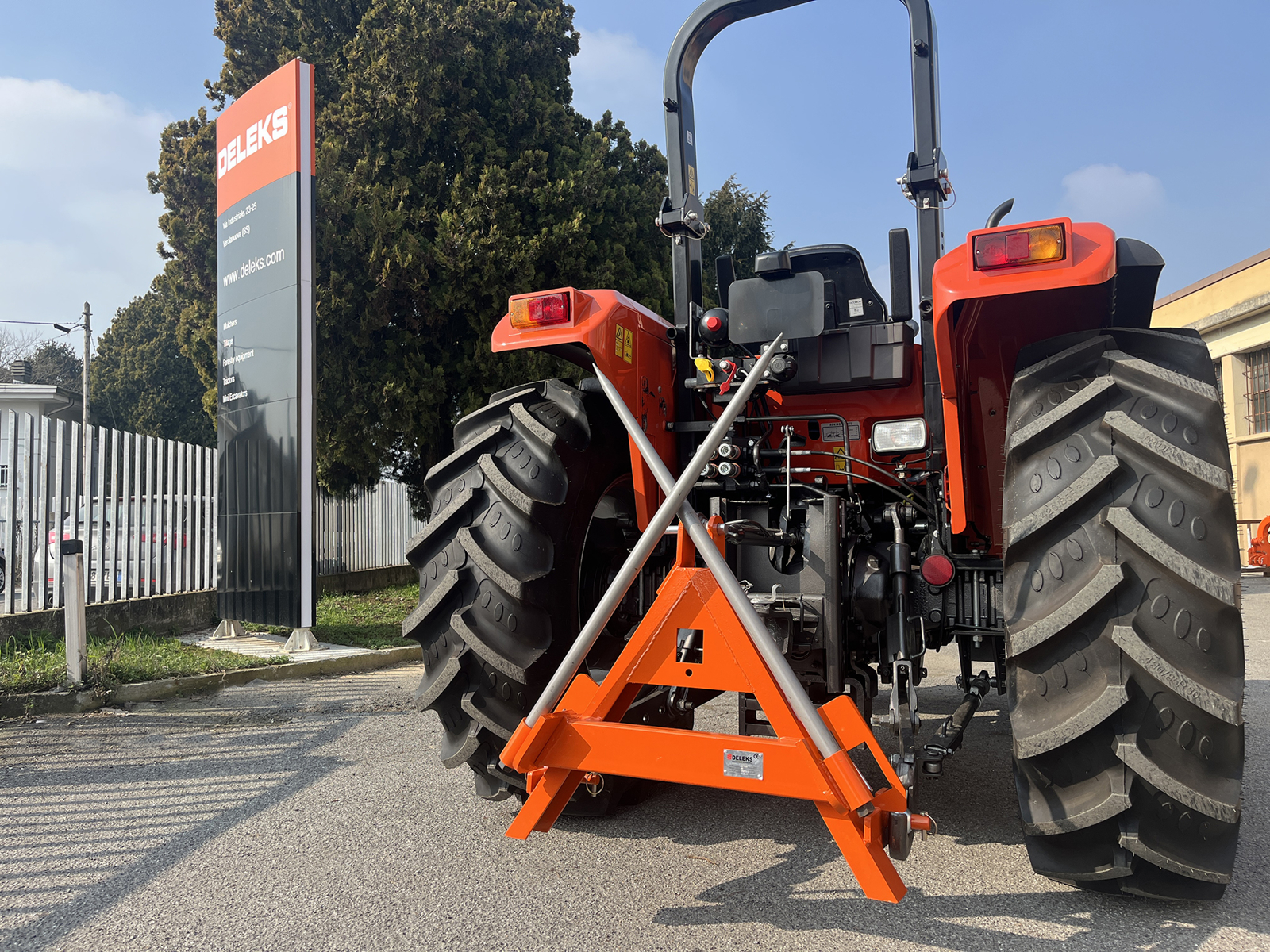

Hay bale forks DELEKS® for tractors like Kubota - Load capacity 800kg.
OVERVIEW

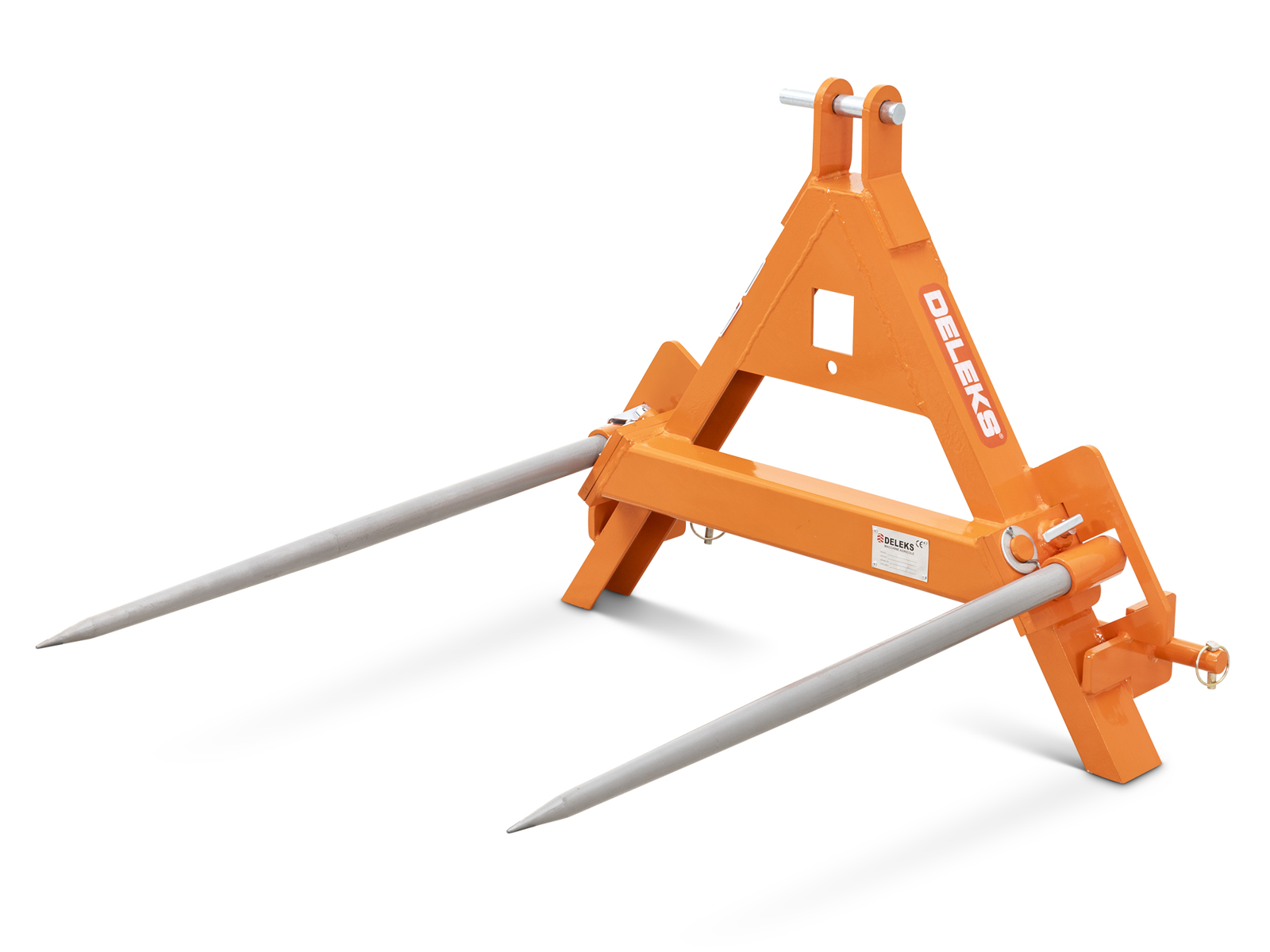

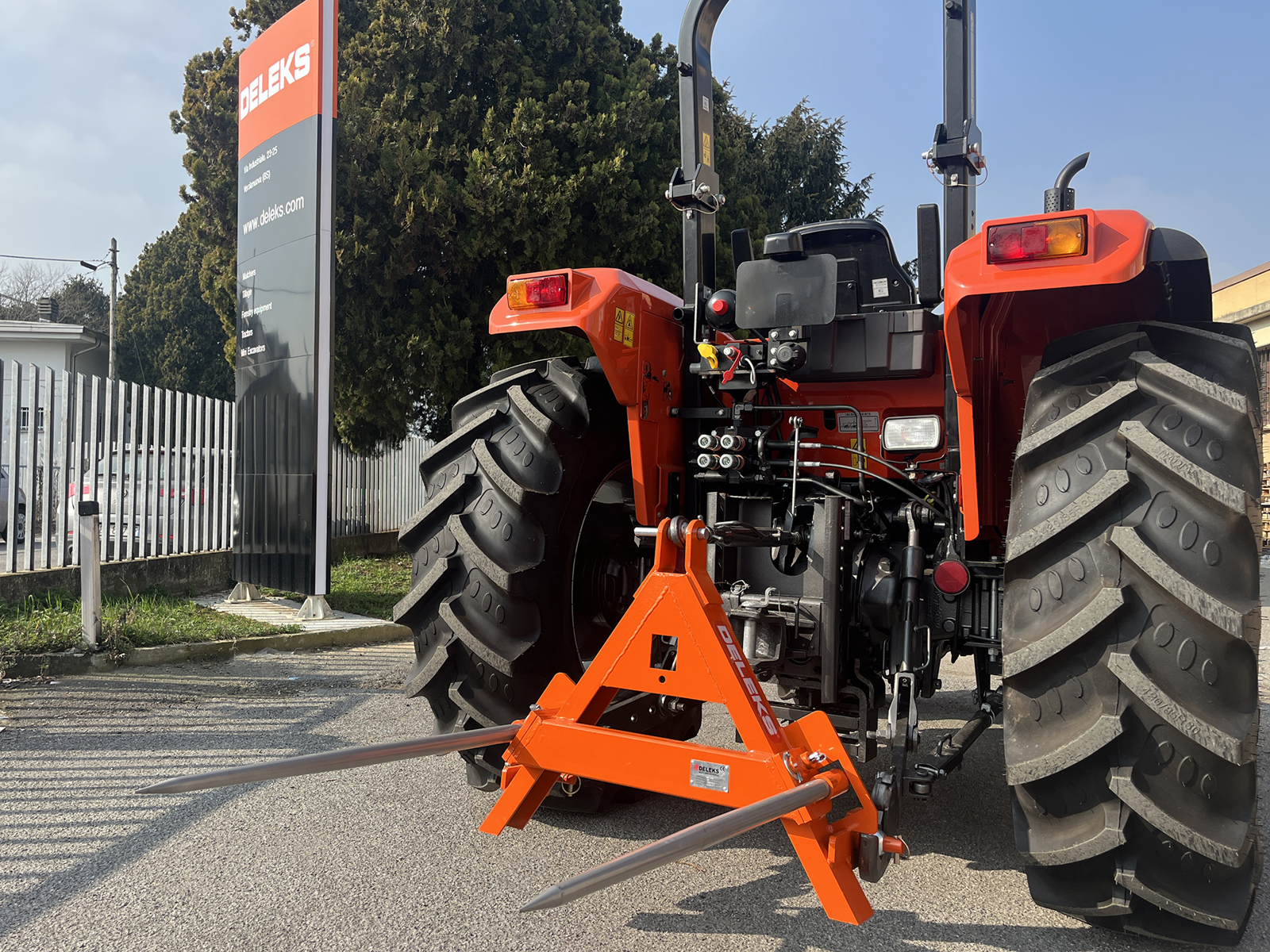

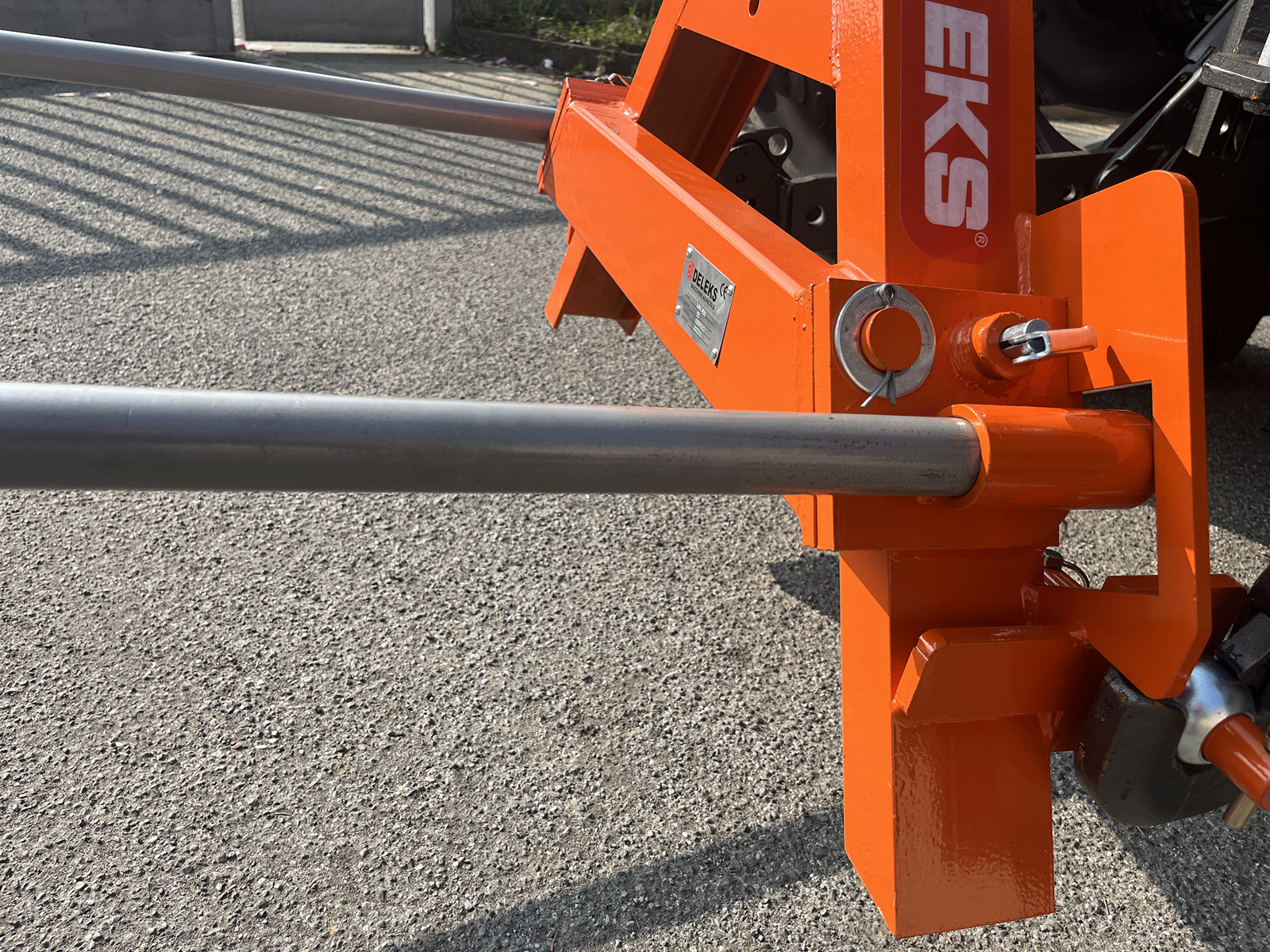

The DK-8 bale fork spears are extremely heavy duty, manufactured from high tensile solid steel for easy lifting and inserting into a hay bale. Ideal for any kind of tractor as Kubota, New Holland, John Deere, Deutz Fahr, Case, Massey Ferguson, etc. Universal 3 point linkage Cat. 1-2. EC Declaration of Conformity, 2 Year warranty.
SPECIFICATION
This Hay bale mover is designed for hard centre bales.
Weight limit is 800kg / 1750 lb.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 55.0 kg | 120.0 lb |
| Tractor Power Range | 30 - 100 Hp | 30 - 100 Hp |

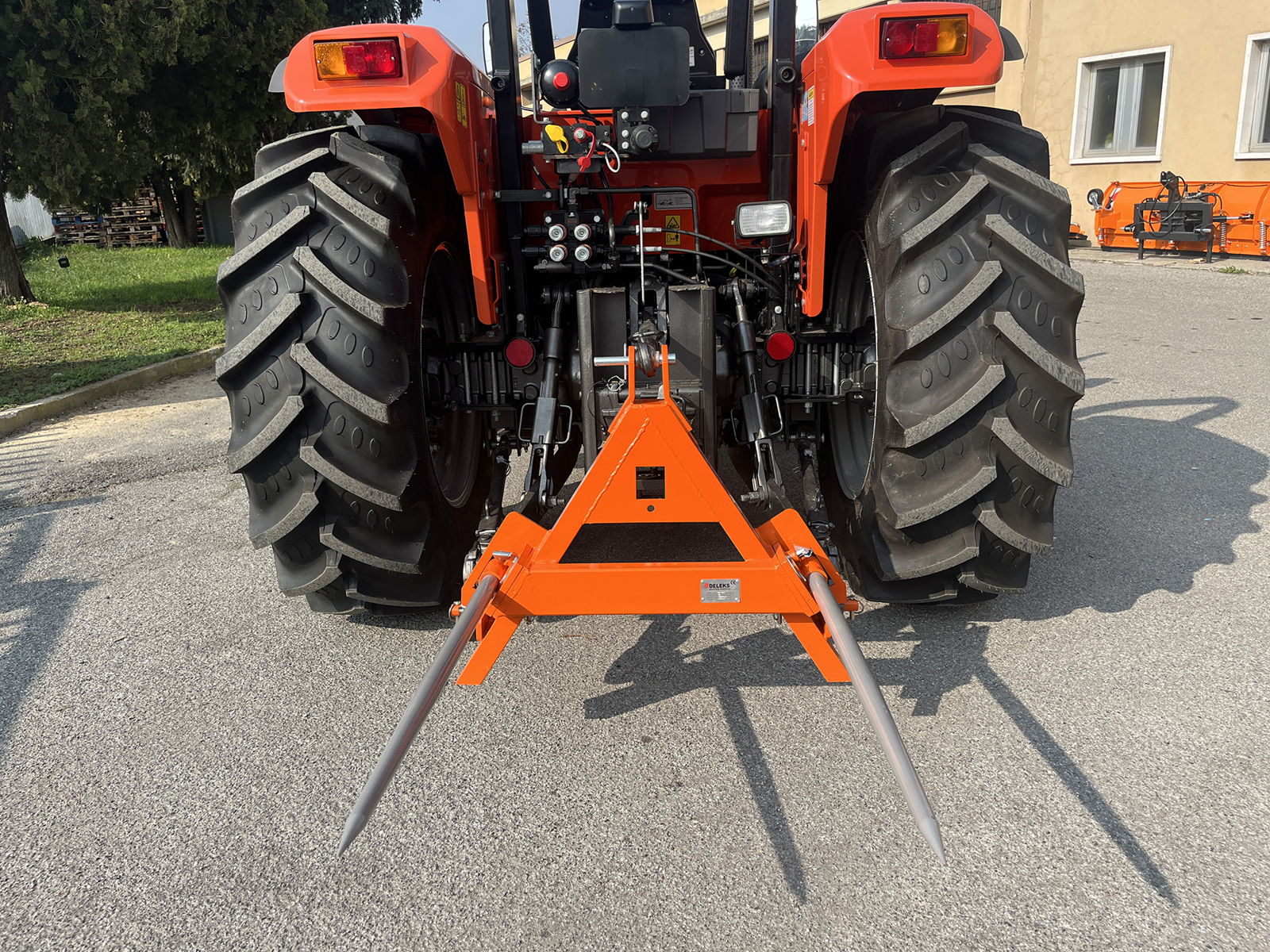

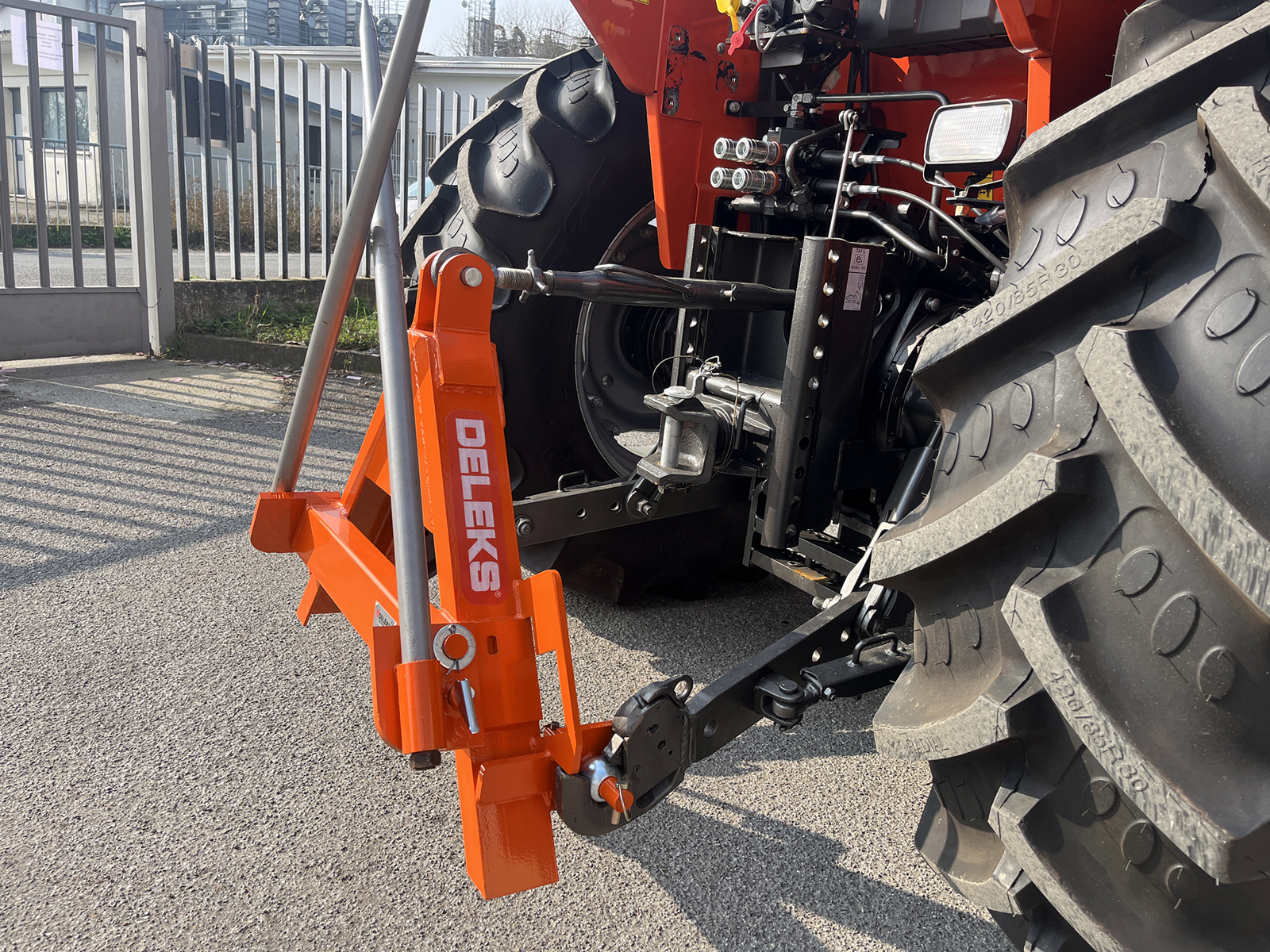

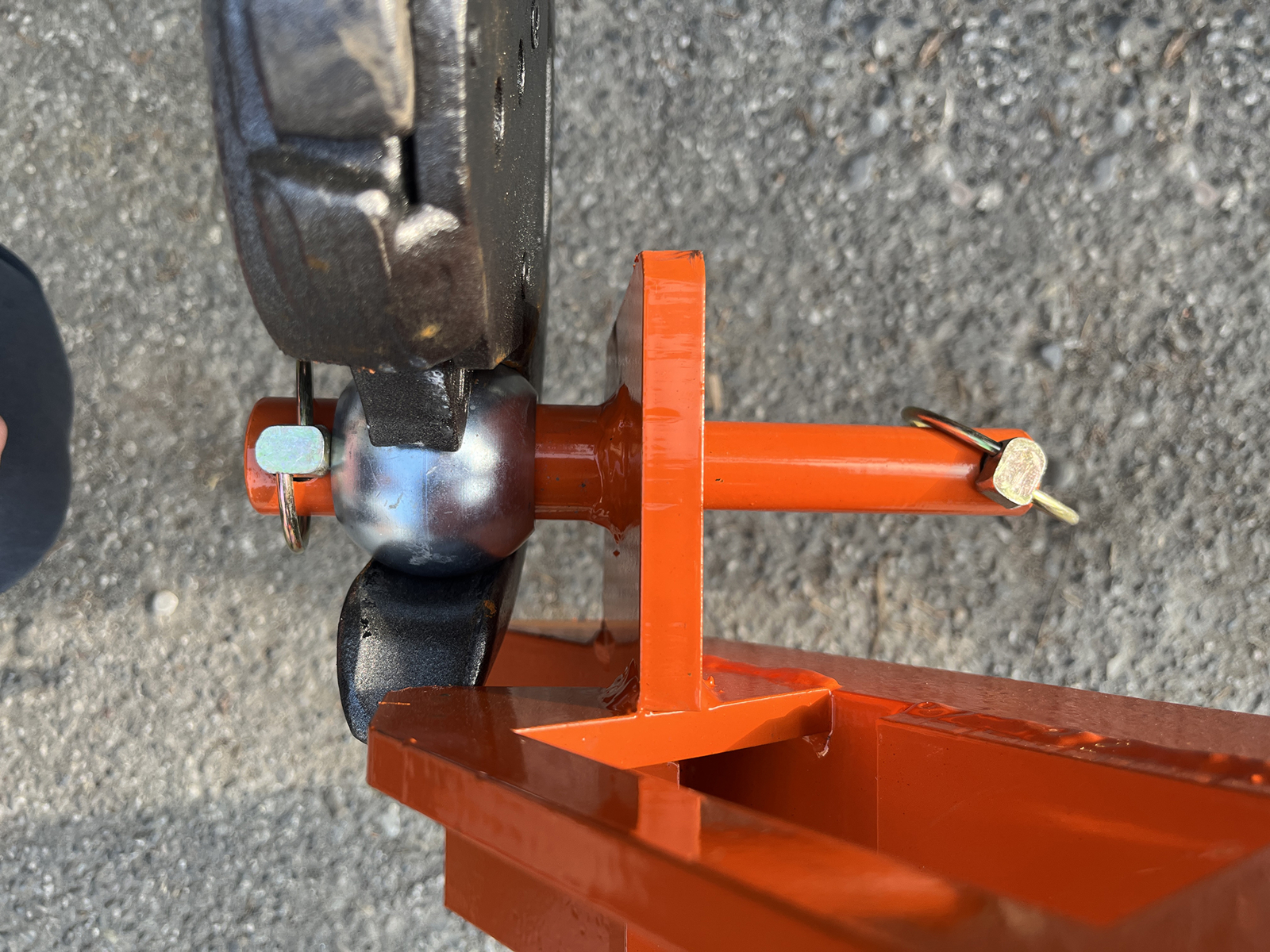

| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Load capacity | 800.0 kg | 1750.0 lb |
| Spacing between the 2 lower points | 640.0 / 860.0 mm | 25.20 / 33.85 in |

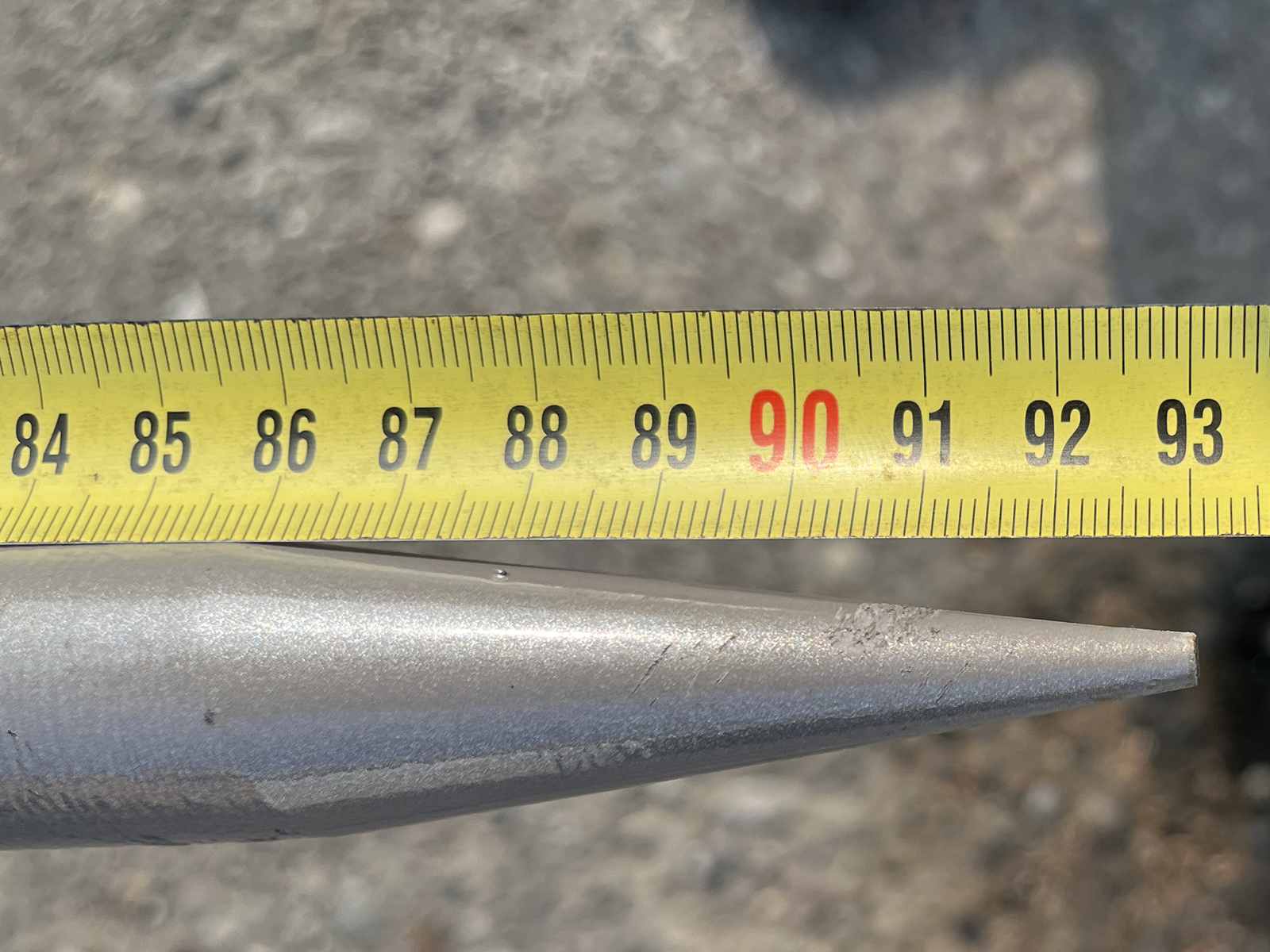

| Usable Fork Tine Length | 930.0 mm | 33.0 in |

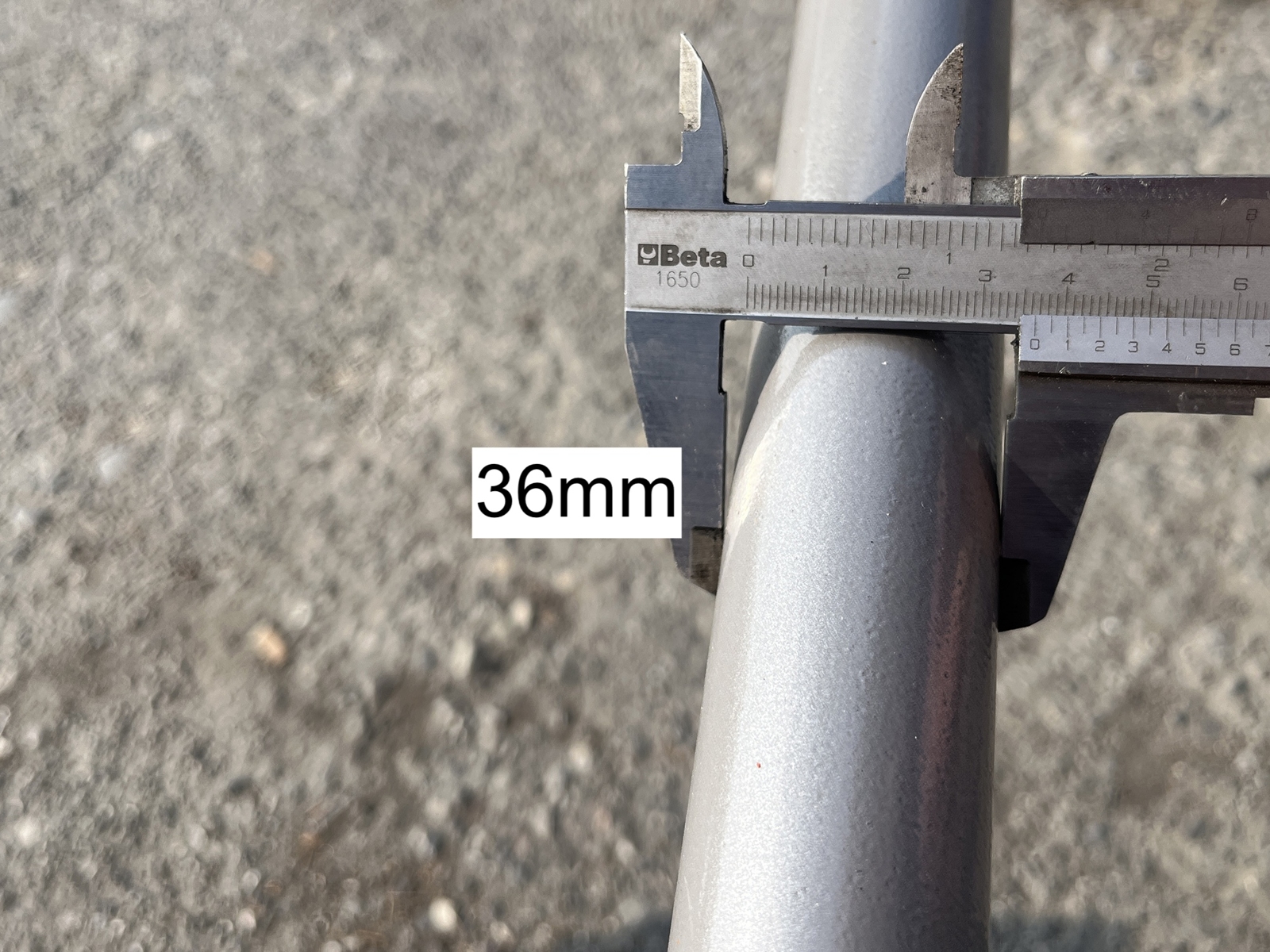

| Fork Tine Diameter | 36.0 mm | 1.42 in |
| Packing sizes | 1200*800*400mm | 3.94*2.62*1.31ft |
