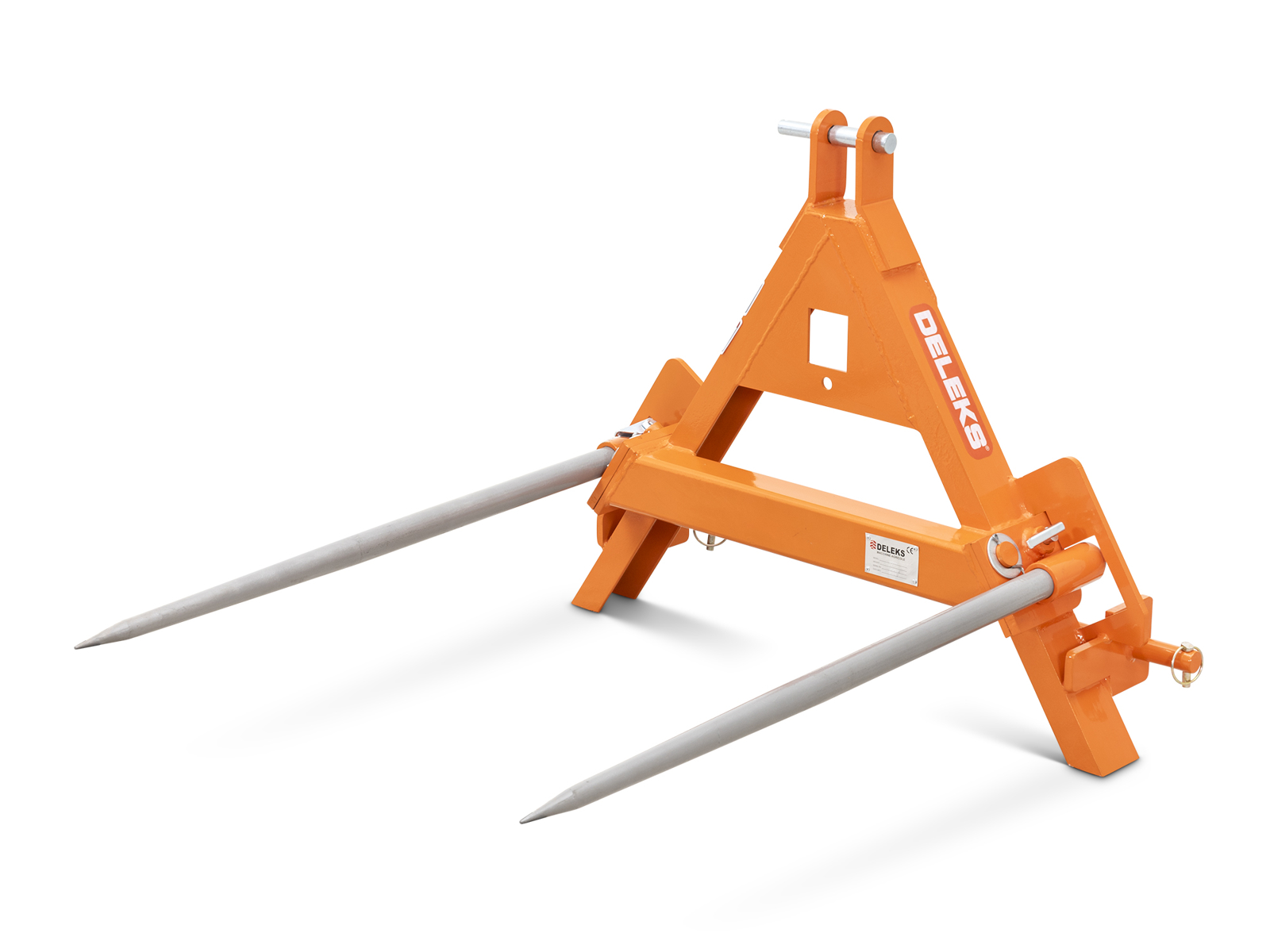

Hey bale fork for small traktors DK-6
4.6
1463 reviews
DETAILS
Hay bale forks DELEKS® for tractors like Kubota - Load capacity 600kg.
OVERVIEW
The DK-6 bale fork spears are extremely heavy duty, manufactured from high tensile solid steel for easy lifting and inserting into a hay bale. Ideal for any kind of tractor as Kubota, Kioti, Iseki, Pasquali, Yanmar, Solis, Mahindra, and narrow tractors like New Holland Boomer 25, John Deere, Pasquali, Ferrari etc. Universal 3 point linkage Cat. 1-2. EC Declaration of Conformity, 2 Year warranty.
SPECIFICATION
This Hay bale mover is designed for hard centre bales.
Weight limit is 600kg / 1300 lb.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 50.0 kg | 110.0 lb |
| Tractor Power Range | 12 - 60 Hp | 12 - 60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Load capacity | 600.0 kg | 1320.0 lb |
| Spacing between the 2 lower points | 640.0 / 860.0 mm | 25.20 / 33.85 in |

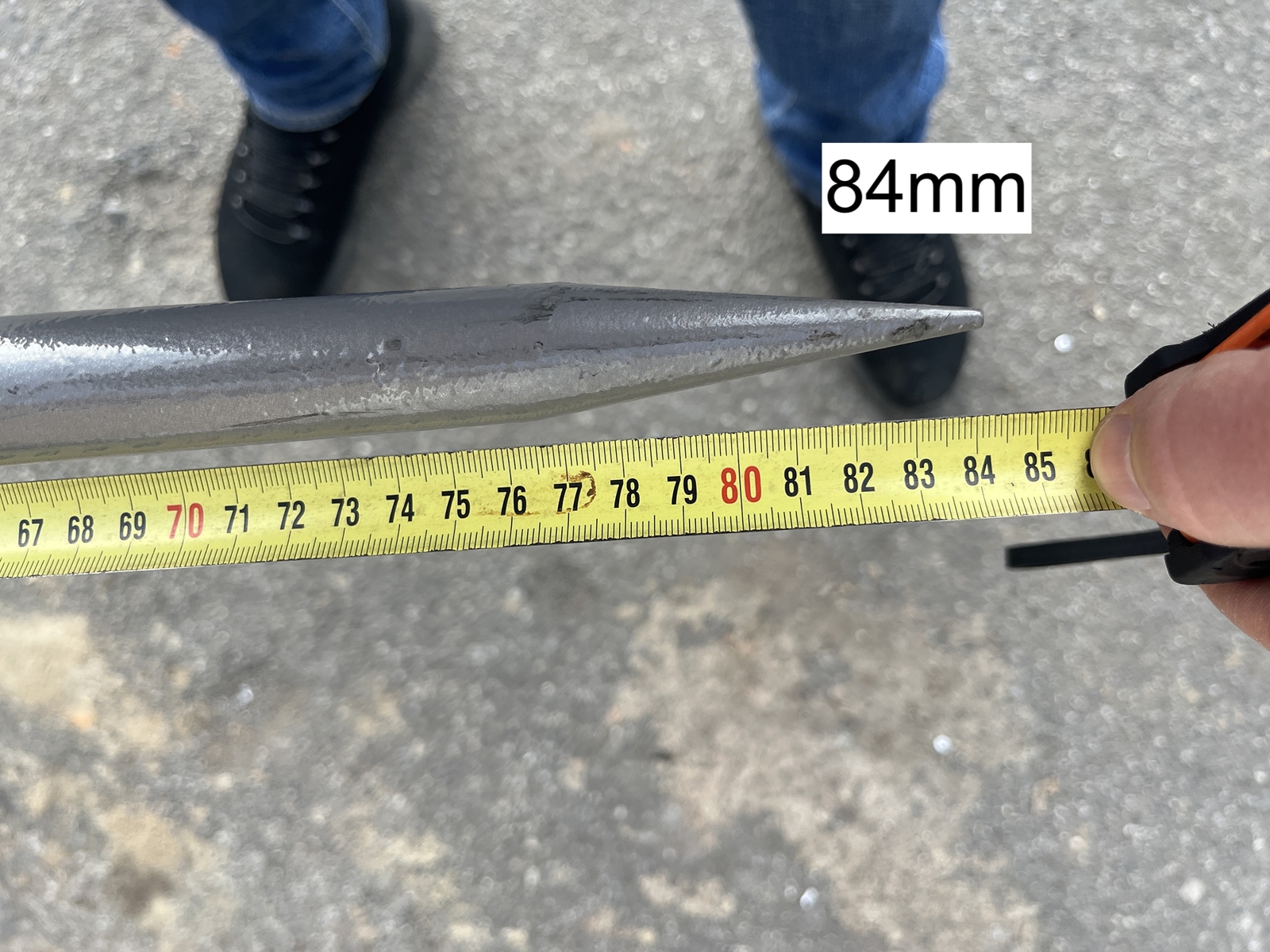

| Usable Fork Tine Length | 840.0 mm | 33.0 in |
| Fork Tine Diameter | 36.0 mm | 1.42 in |
| Packing sizes | 1200*800*400mm | 3.94*2.62*1.31ft |
DETAILS
CLOSEHay bale forks DELEKS® for tractors like Kubota - Load capacity 600kg.
OVERVIEW
The DK-6 bale fork spears are extremely heavy duty, manufactured from high tensile solid steel for easy lifting and inserting into a hay bale. Ideal for any kind of tractor as Kubota, Kioti, Iseki, Pasquali, Yanmar, Solis, Mahindra, and narrow tractors like New Holland Boomer 25, John Deere, Pasquali, Ferrari etc. Universal 3 point linkage Cat. 1-2. EC Declaration of Conformity, 2 Year warranty.
SPECIFICATION
This Hay bale mover is designed for hard centre bales.
Weight limit is 600kg / 1300 lb.
CHARACTERISTICS
CLOSE| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 50.0 kg | 110.0 lb |
| Tractor Power Range | 12 - 60 Hp | 12 - 60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Load capacity | 600.0 kg | 1320.0 lb |
| Spacing between the 2 lower points | 640.0 / 860.0 mm | 25.20 / 33.85 in |
| Usable Fork Tine Length | 840.0 mm | 33.0 in |
| Fork Tine Diameter | 36.0 mm | 1.42 in |
| Packing sizes | 1200*800*400mm | 3.94*2.62*1.31ft |
