Sideshift Flail Mower, Heavy Offset Side Mulcher For Tractors ALCE-140

Not available Notify me
EAN 8053470231063
3.439,00VAT incl.
Free shipping

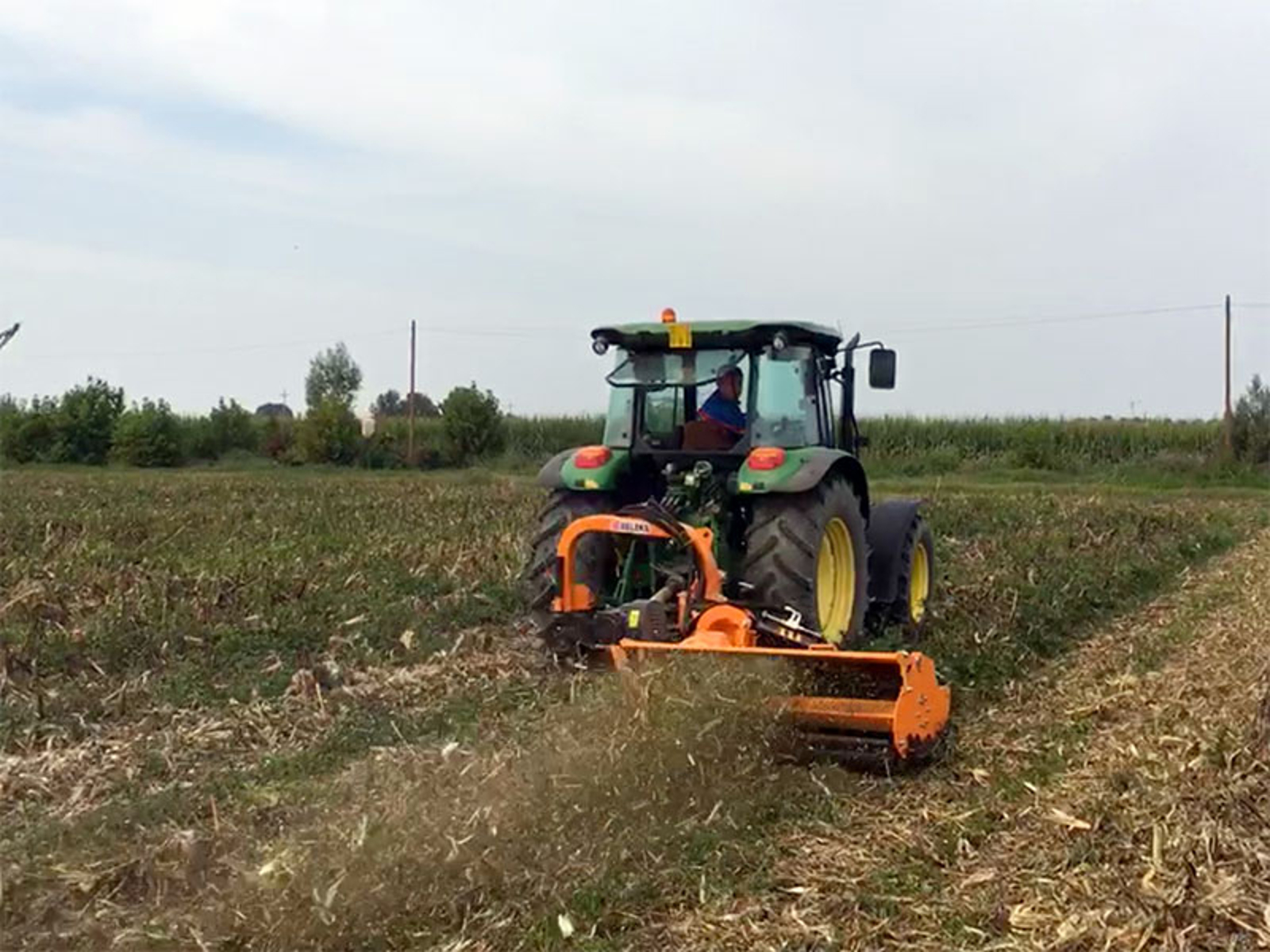

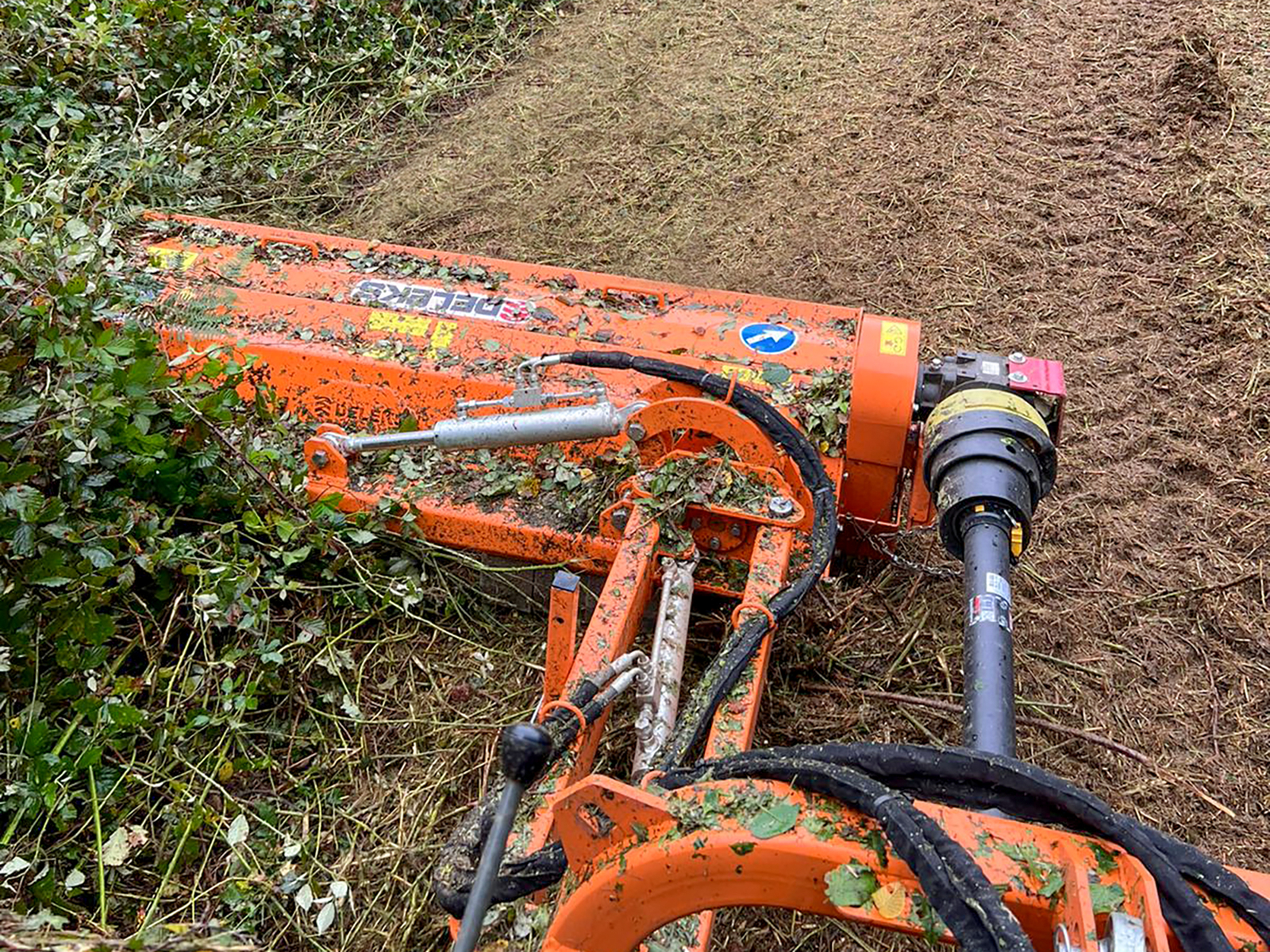

Field test
Field test
Review by Edd China (Wheeler Dealers)
Review by Edd China (Wheeler Dealers)

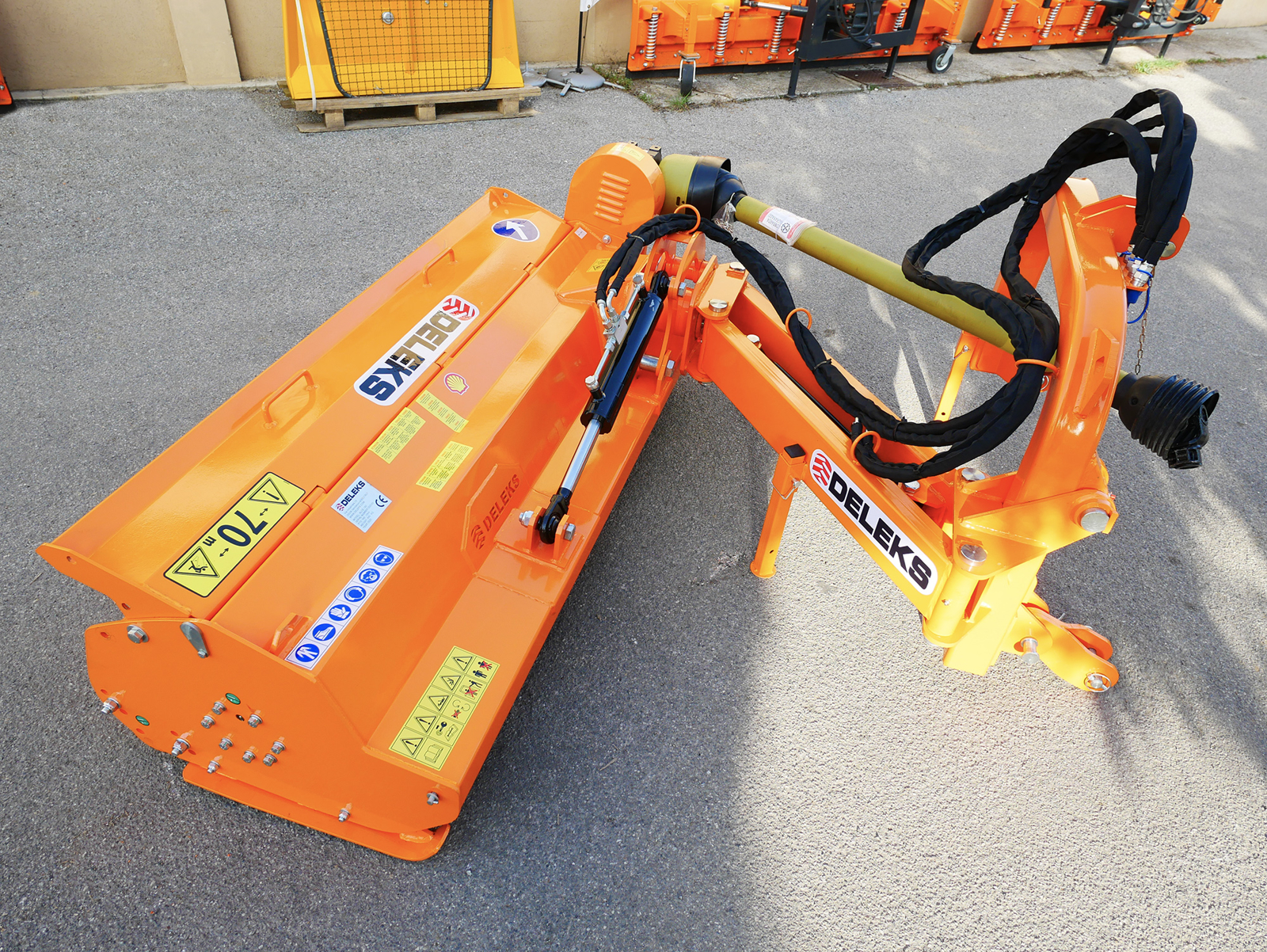

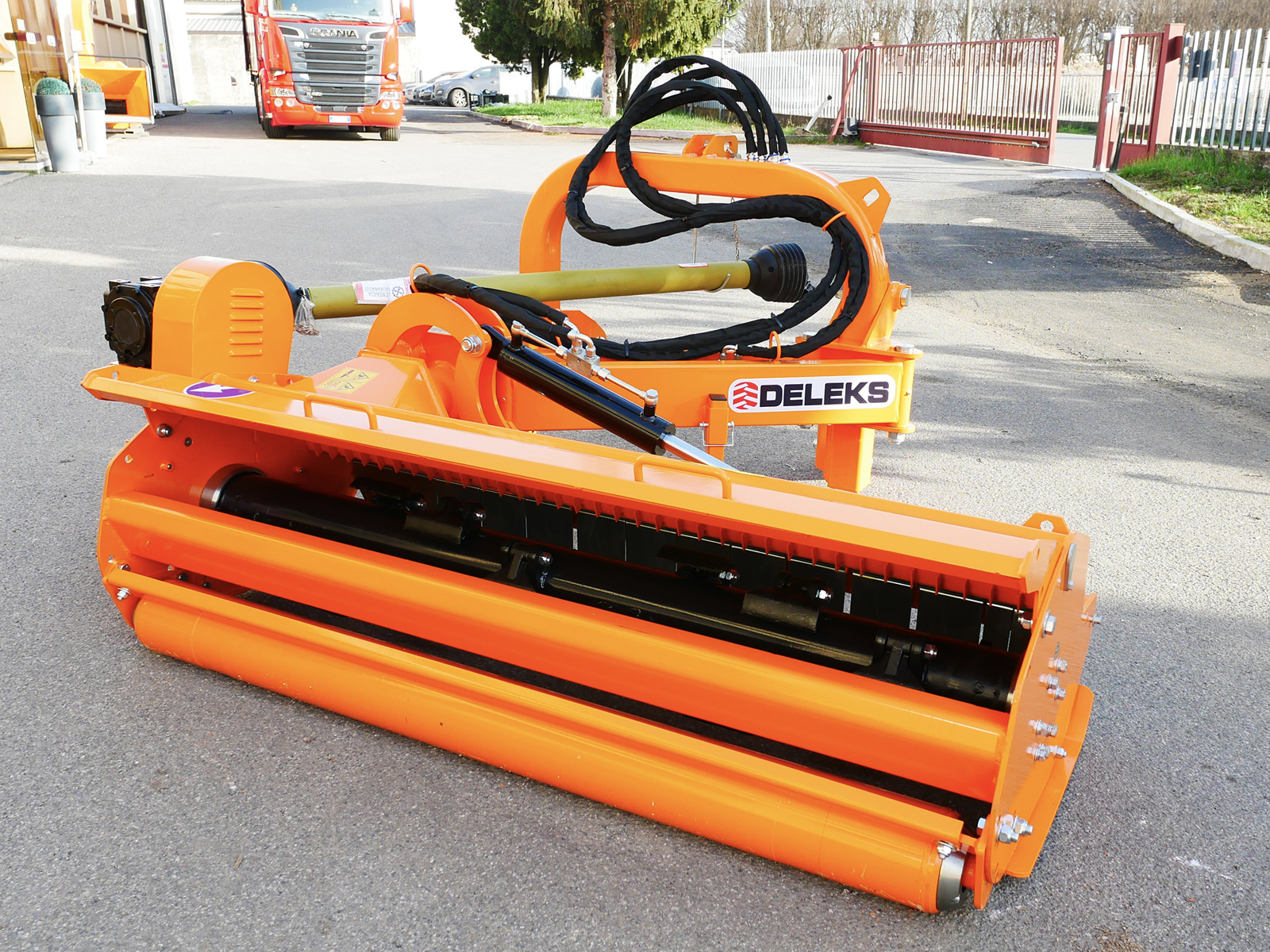

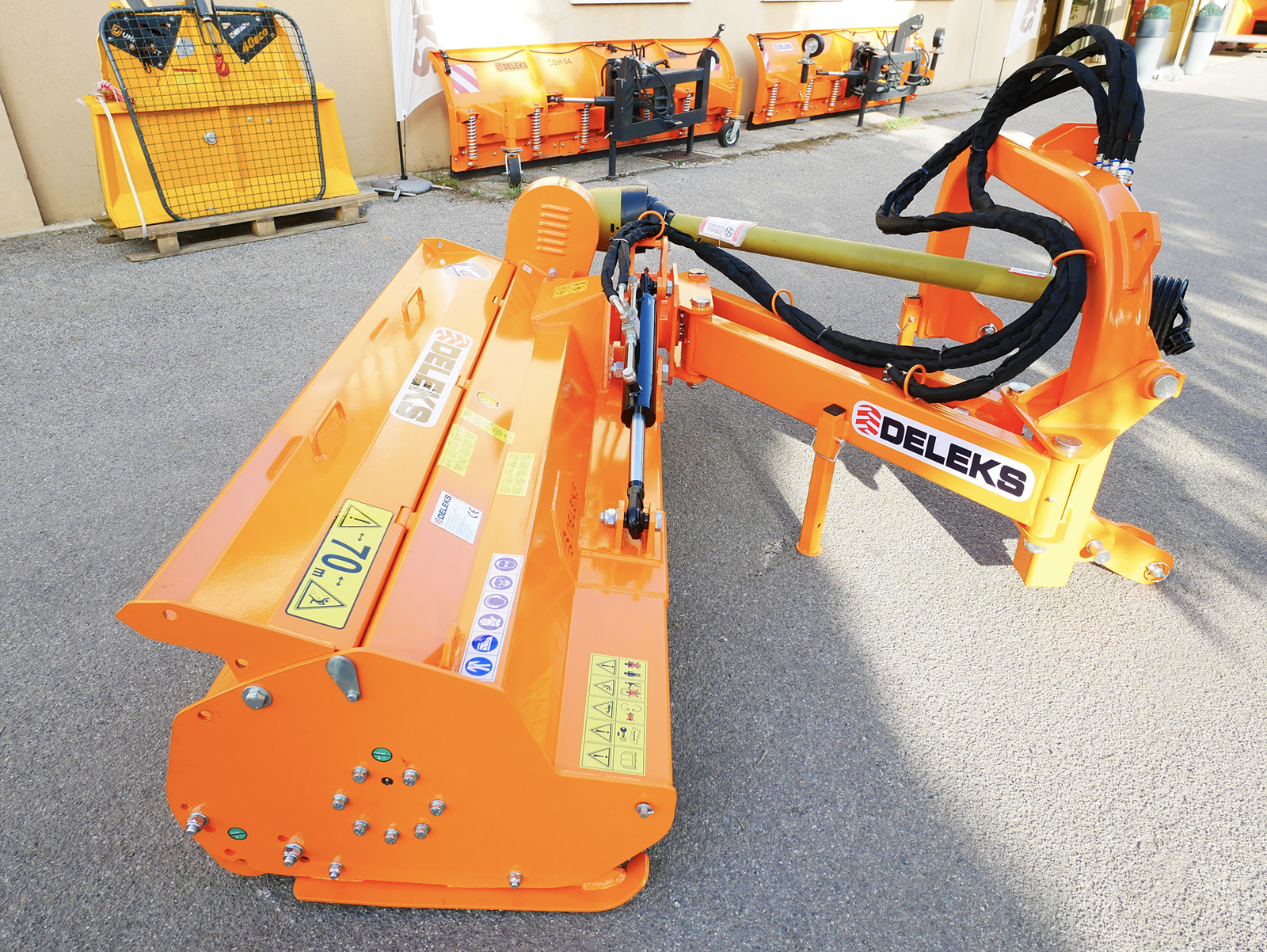

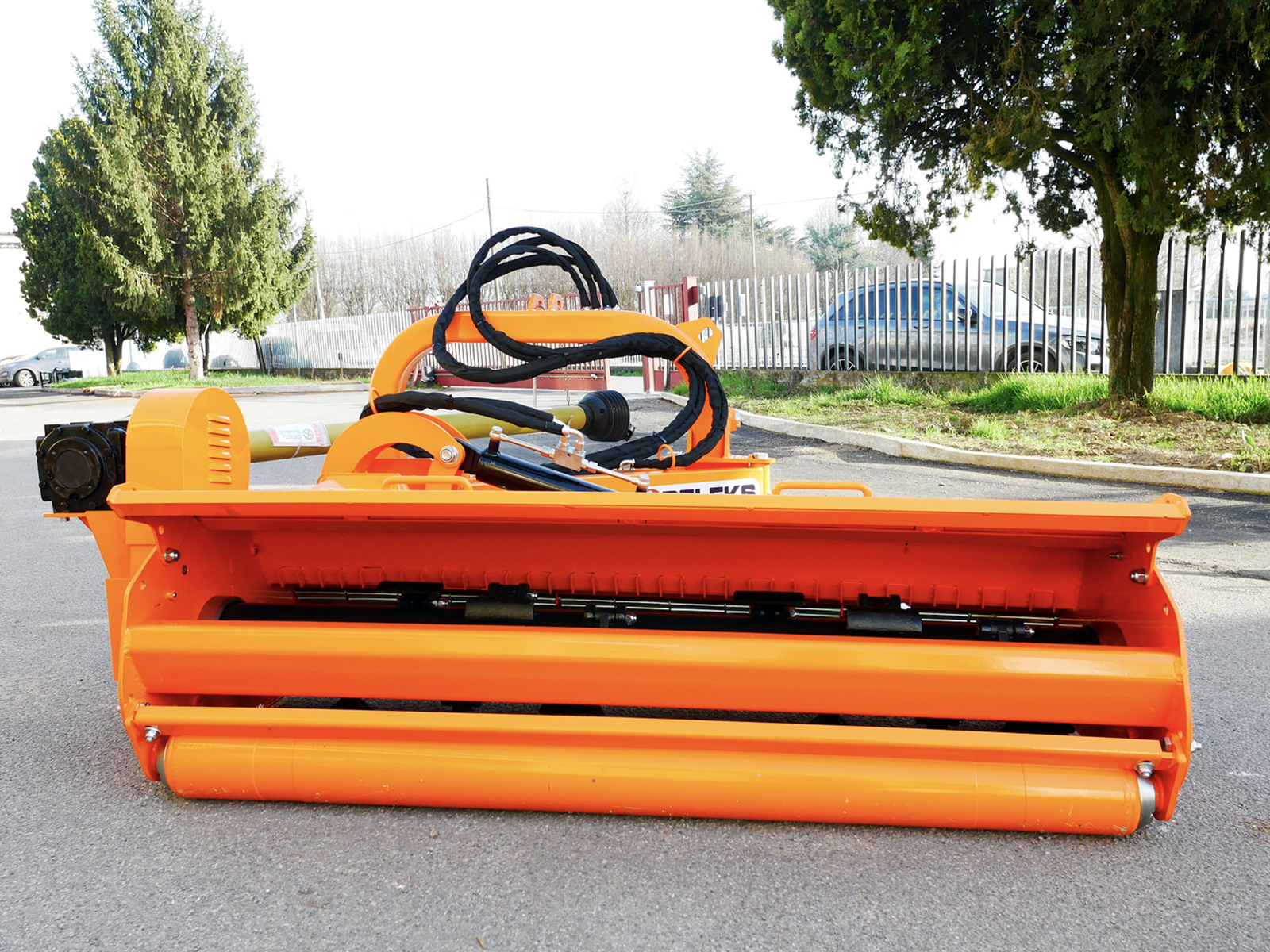

Sideshift Flail Mower 540kg / 140cm, Heavy Offset Side Mulcher For Tractors DELEKS® ALCE-140 - External gearbox - Pto shaft CE included.

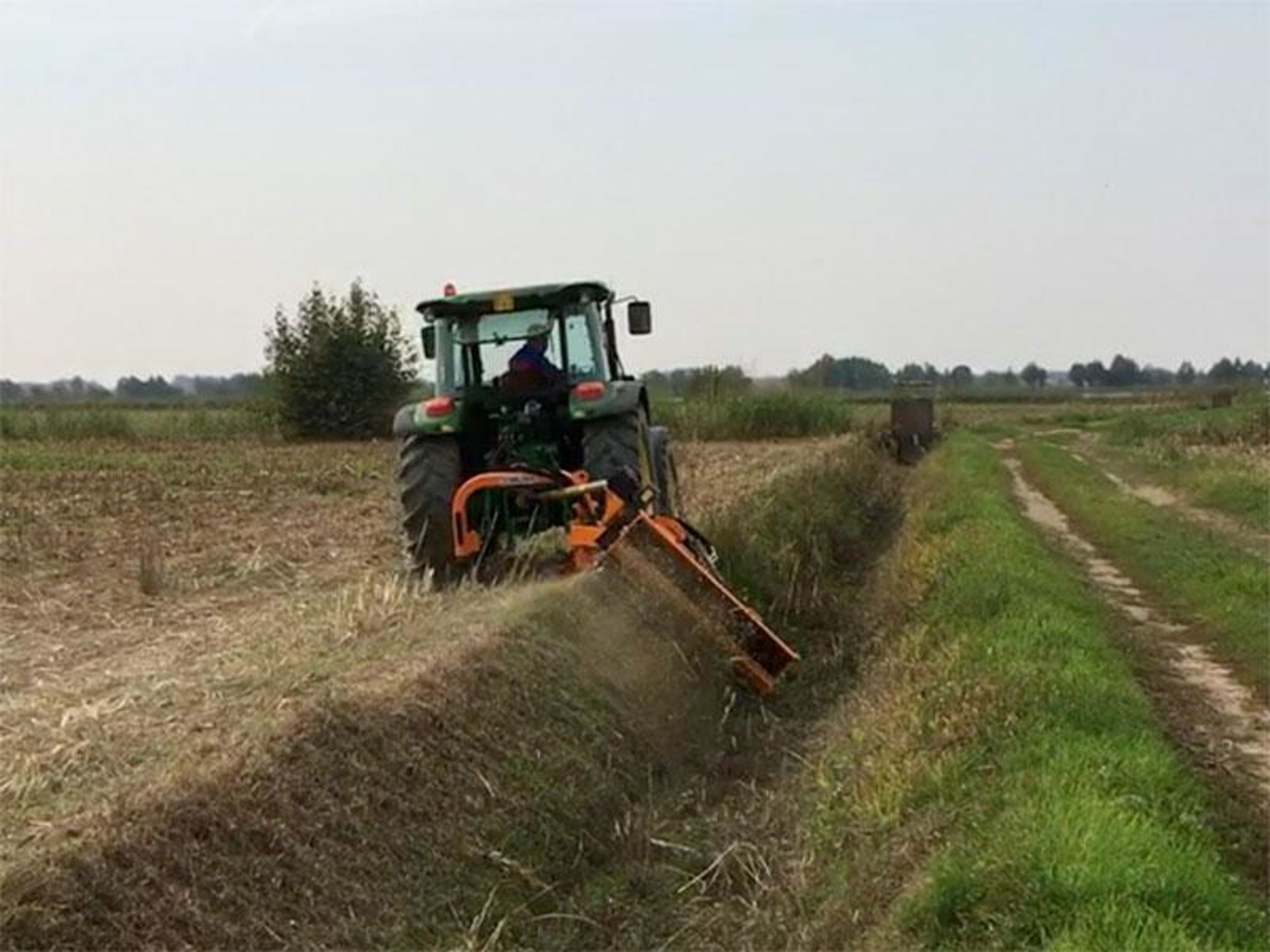

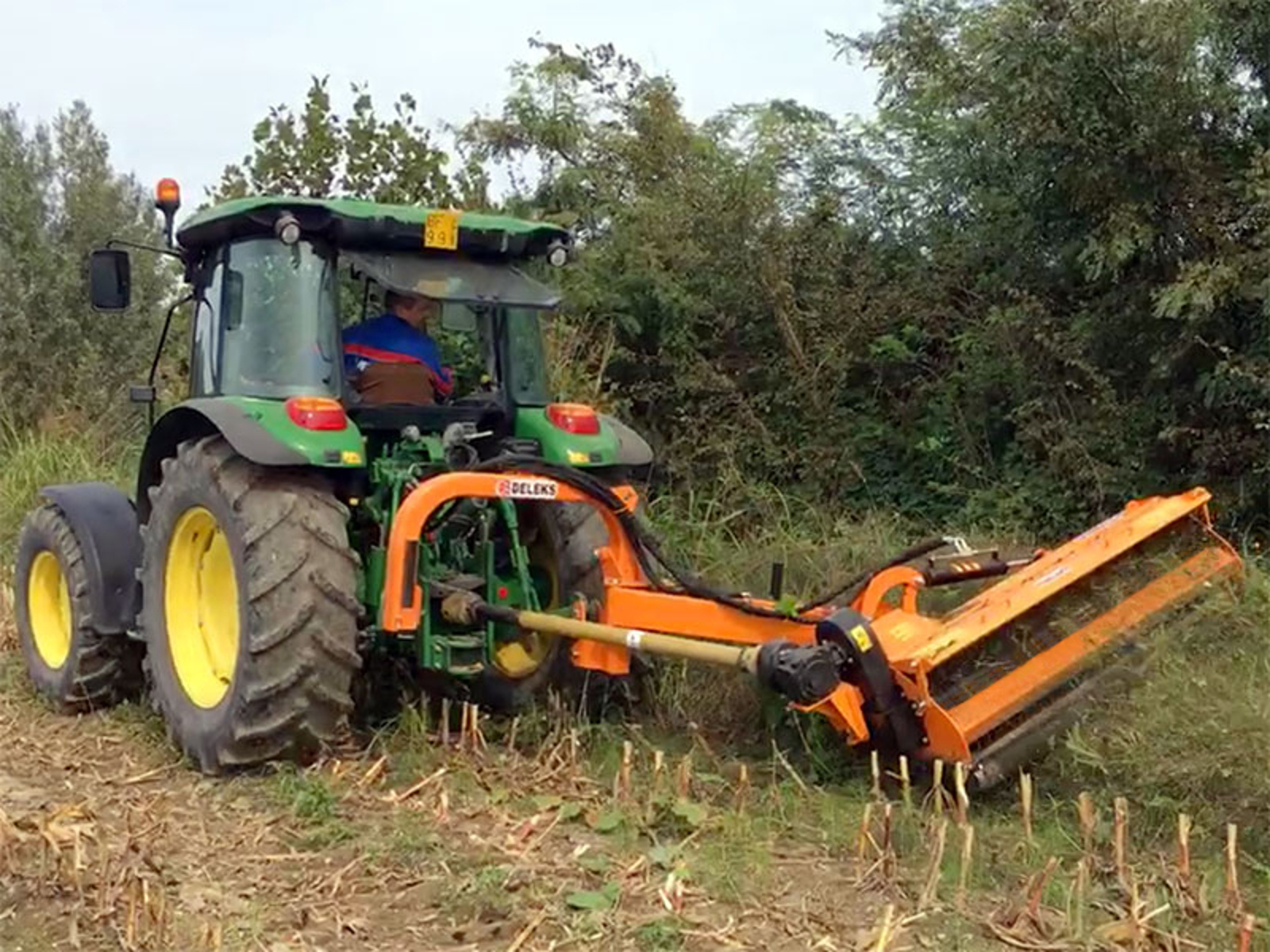

The ALCE-140 multi-purpose mower is for home and professional use and is extremely popular among organic farmers to tackle rushes, brambles and hedges. The ALCE cuts grass, but also shreds small twigs and branches 4cm thick making it ideal for docks, thistles and long, thick grass on roadsides. It can also be used for pruning and trimming bushes as it can be hydraulically angled vertically (90º) or down (60º) for riverbanks, verges and ditches. For 50-90 Hp tractors e.g. Fiat, Same, New Holland , Deutz-Fahr, Massey Ferguson, John Deere, Case, Ford, Kubota, Lamborghini, etc. Universal three point hitch with hydraulic offset Cat. 2, Pto Shaft 180cm CE.

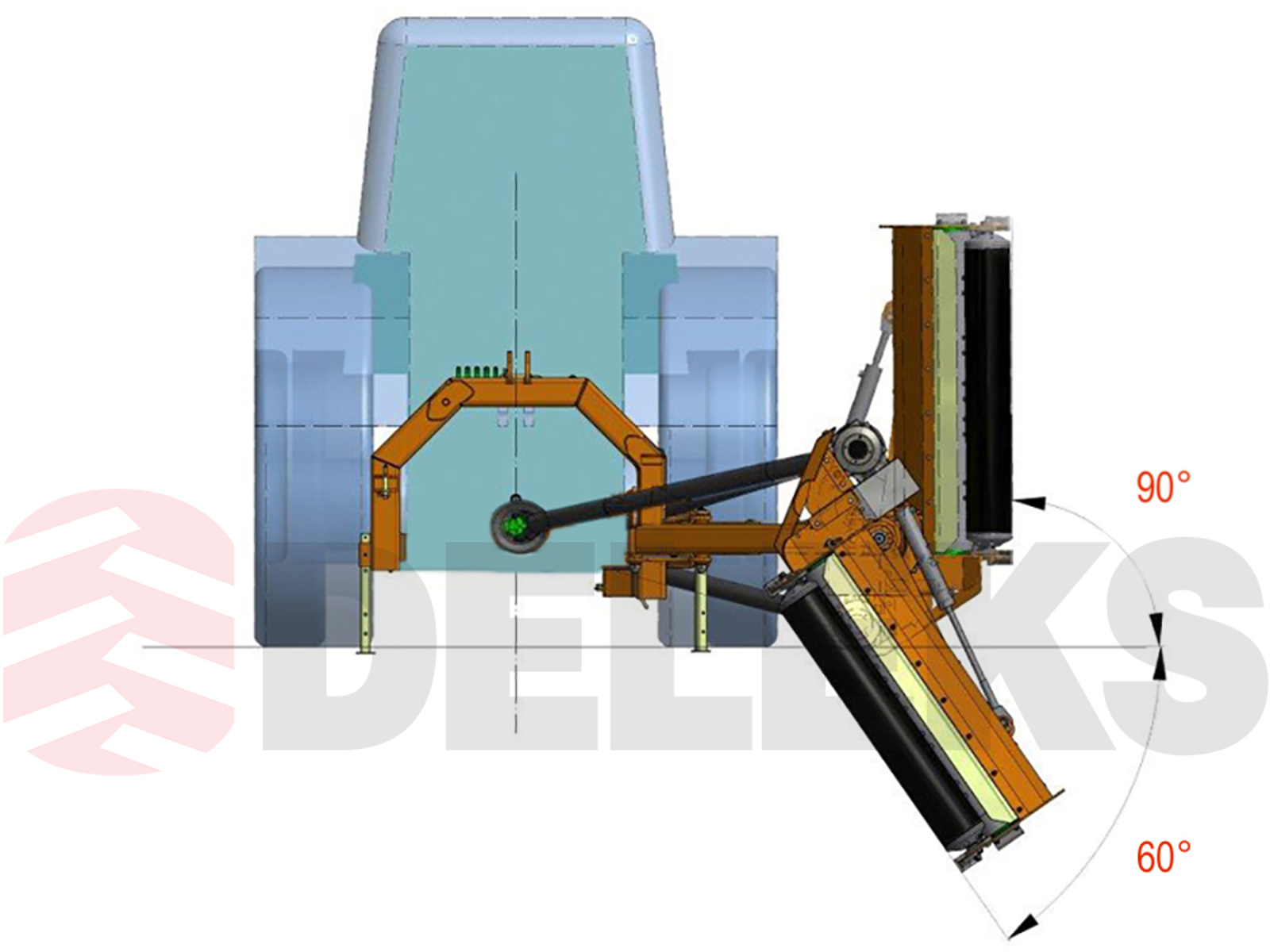

Can be hydraulically angled vertically (90º) or down (60º).

External gearbox to maximize lateral reach.

Sturdy and durable design for heavy usage.

Can operate horizontally inline or offset for verge or paddock.

Gearbox P.T.O. 540 r.p.m. with free-wheel (3 Years warranty).

Break back system to protected three point linkage.

4 high resistance toothed belts, and external belt tensioner.

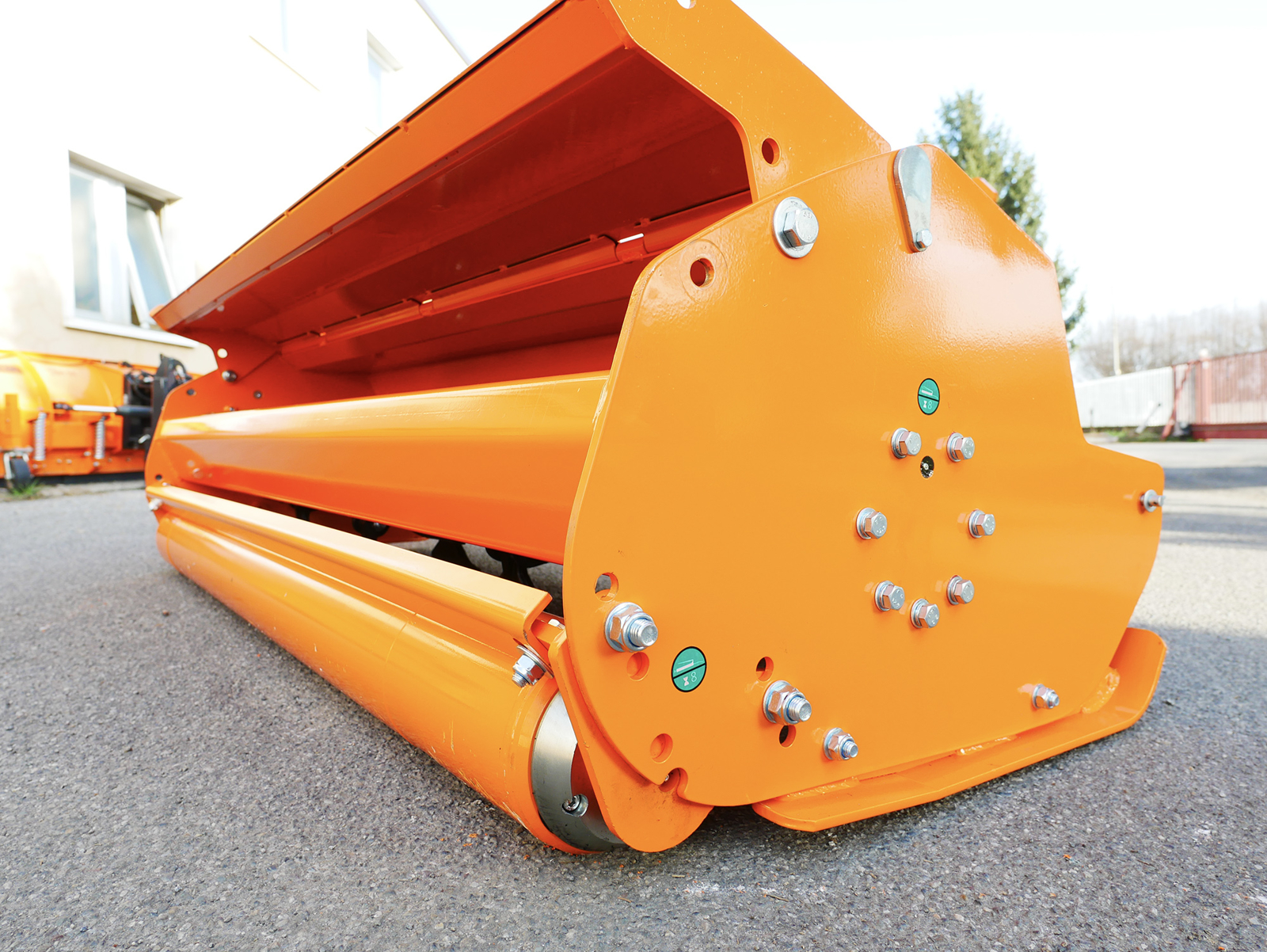

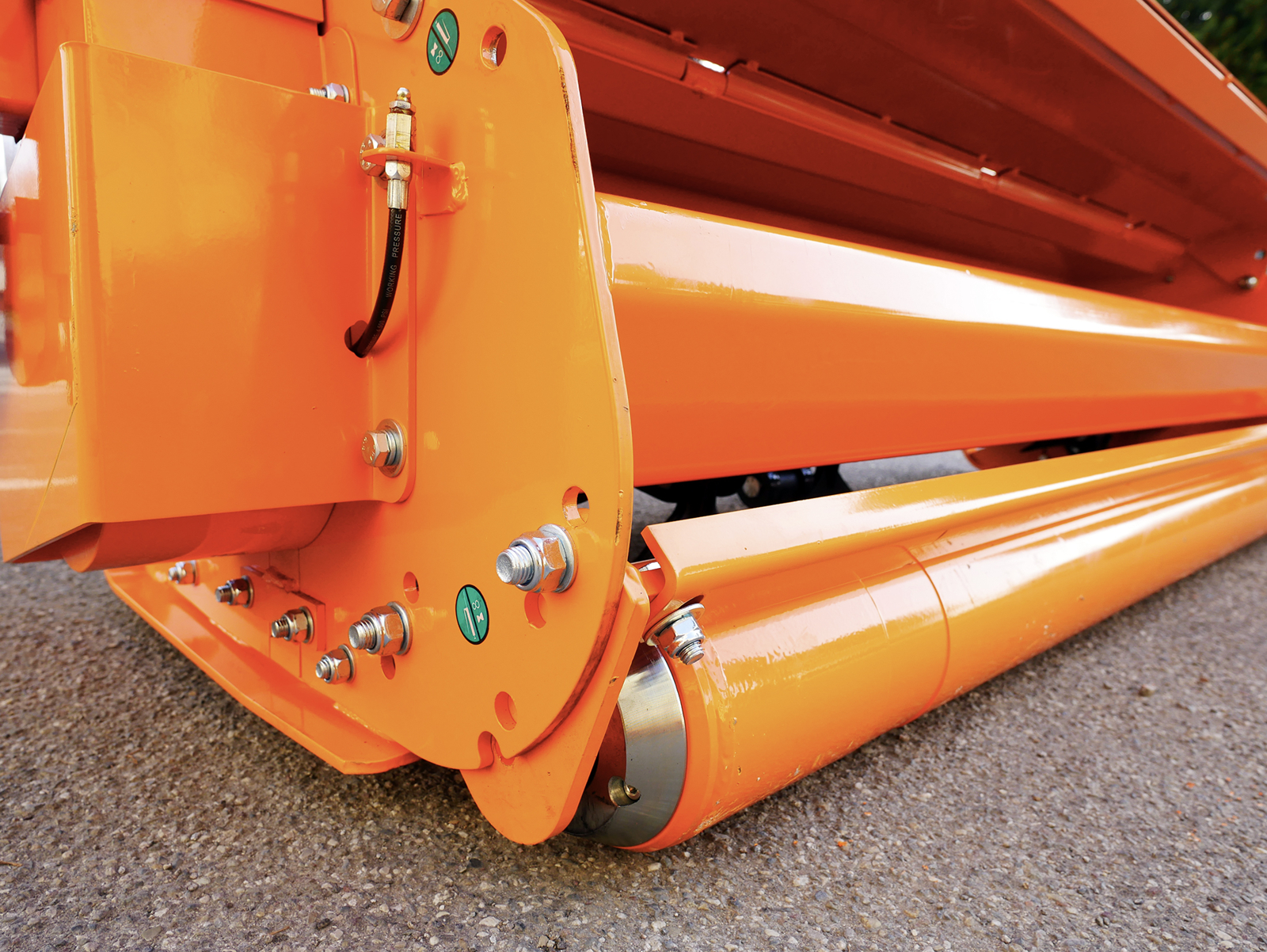

152.0 mm adjustable roller unit and skids.

Electronically balanced rotor.

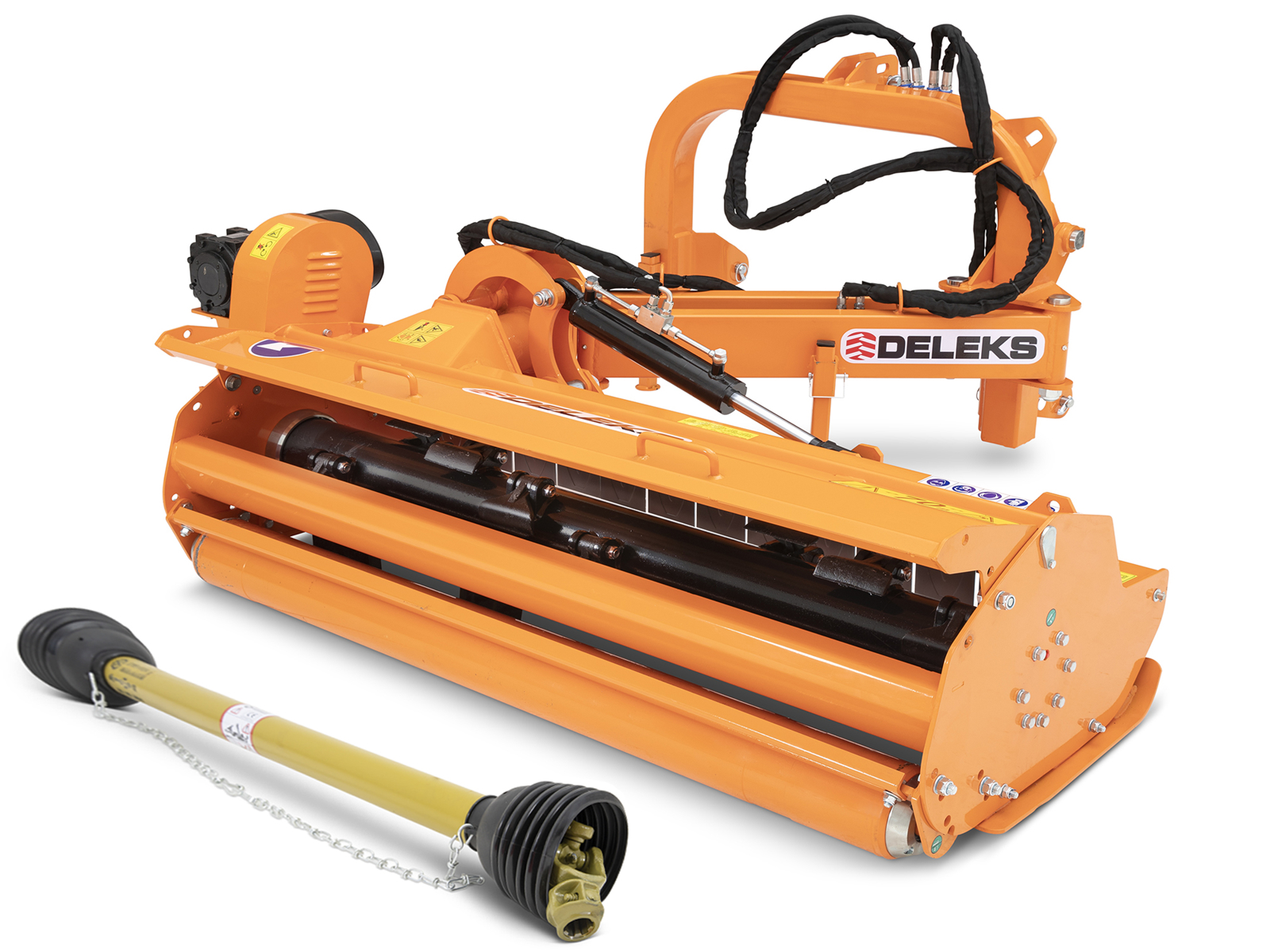

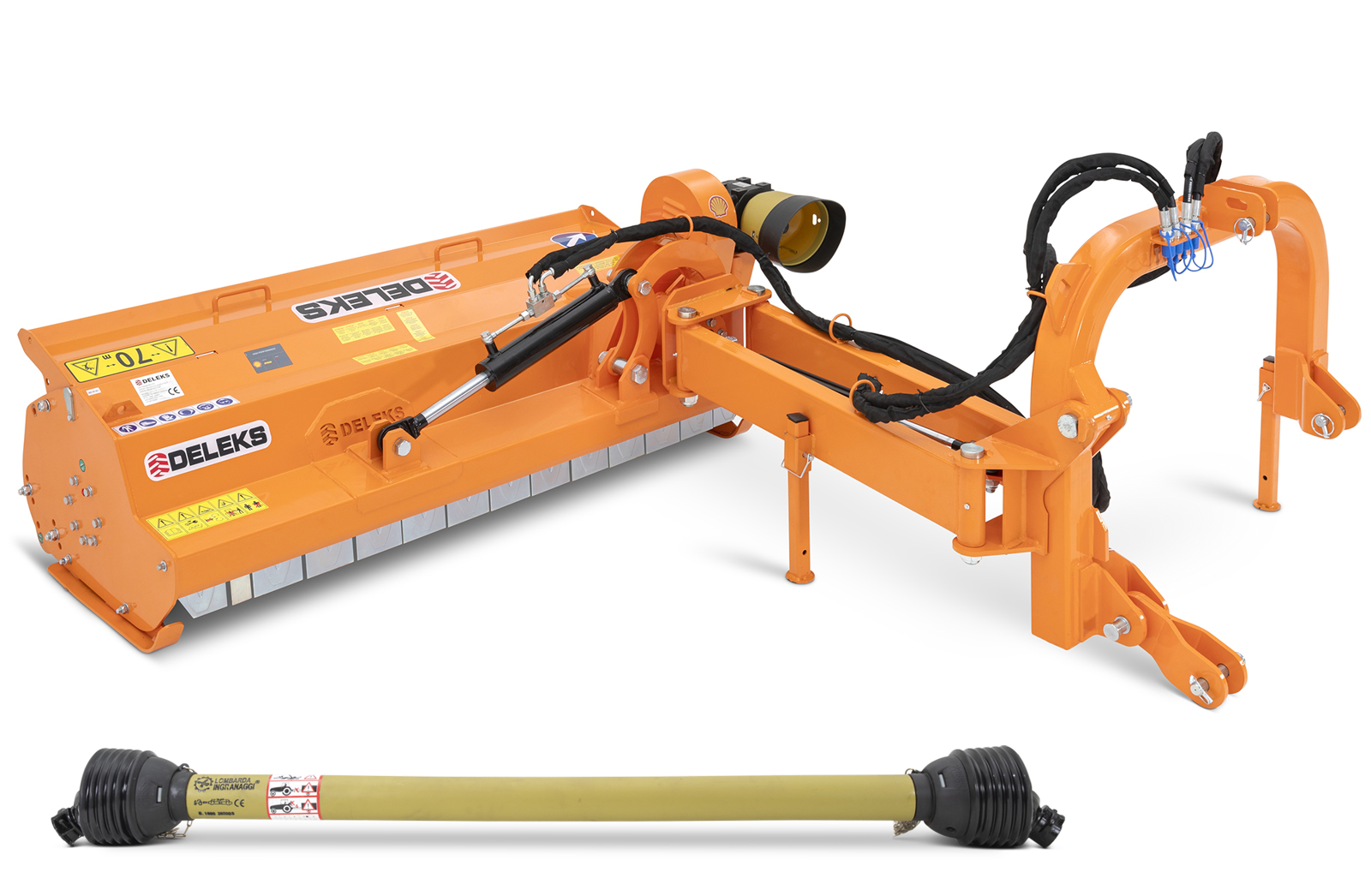

Pto shaft CE included.



Characteristic Units metric Units US
Working width 1395.0 mm 4.58 ft
Overall width 1790.0 mm 5.87 ft
Min / Max cutting height 35.0 - 95.0 mm 1.38 - 3.74 in
Weight 540.0 kg 1190.0 lb
Overall height 1150.0 mm 3.77 ft
Tractor Power Range 50 - 90 Hp 50 - 90 Hp
3 point linkage Cat. 2 (ø 25.0-28.0 mm) Cat. 2 (ø 25.0-28.0 mm)
Position of the gearbox external external
Hood height 470.0 mm 18.50 in
Spacing between the 2 lower points 840.0 - 970.0 mm 33.07 - 38.19 in
Number of Hammers 12 12
Maximum cutting diameter 40.0-50.0 mm 1.57 - 1.97 in
Overall length 1750.0 mm (closed) 5.74 ft (closed)
Distance between pto attachment and ground 650.0 mm 25.60 in
Main hood thickness 5.0 mm + reinforcements 0.2 in + reinforcements
Sides thickness 8.0 mm 0.31 in
Side plates thickness 8.0 mm 0.31 in
Transmission: Drive method V-Belts V-Belts
Transmission: Gearbox Lombarda Ingranaggi Srl (3 years warranty) Lombarda Ingranaggi Srl (3 years warranty)
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Free wheel
Transmission: RPM Rotor speed 2134 rpm 2134 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Transmission: Top pulley ø 220.0 mm 8.66 in
Transmission: Lower pulley ø 165.0 mm 6.50 in
Transmission: V-Belts quantity 4 4
Transmission: V-Belts size 17x1300 17x1300

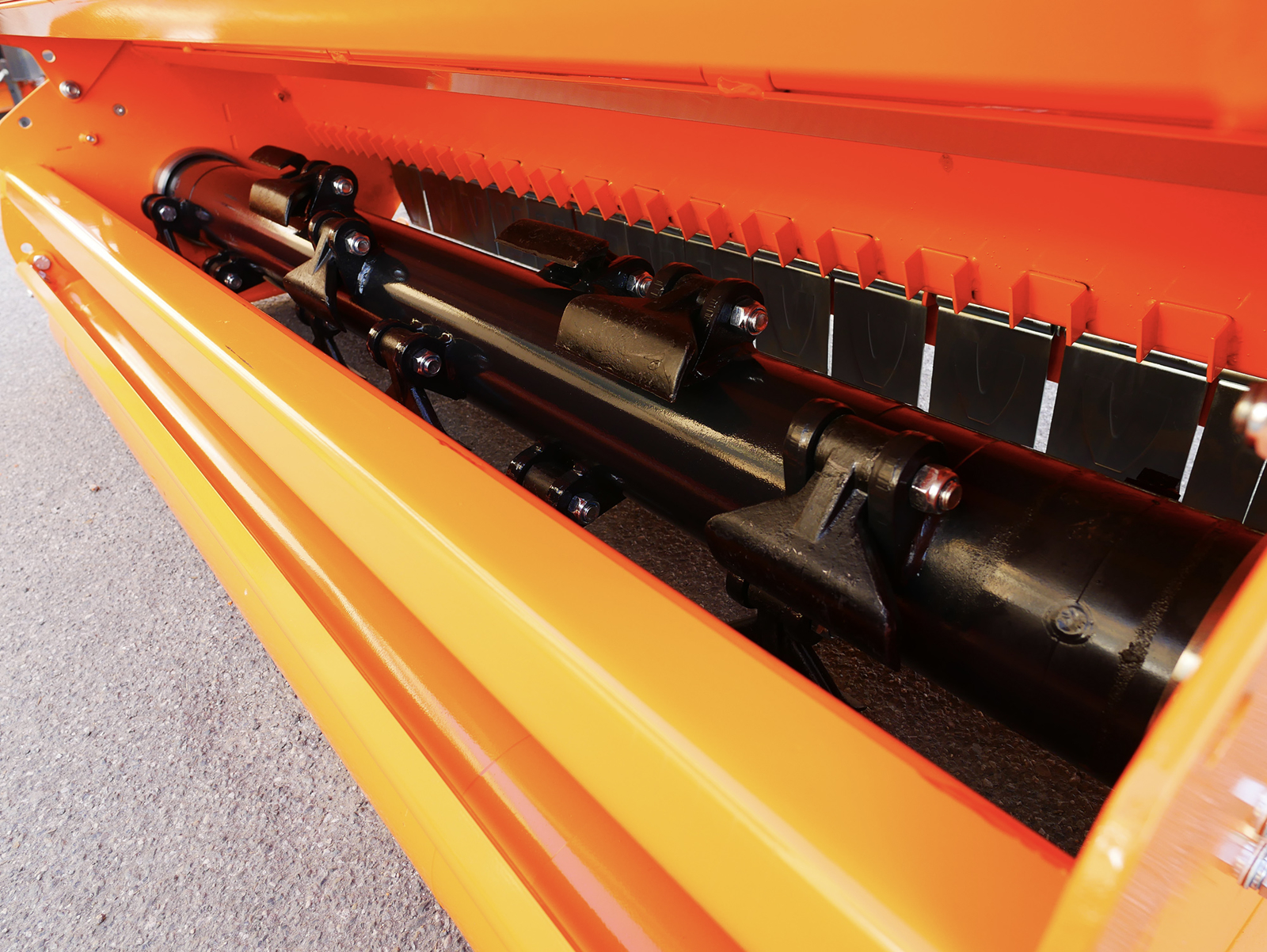

Rotor: diameter 152.0 mm 6.00 in
Rotor: bearings type and size 40x90 40x90
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 8.0 mm 0.31 in
Hammers: Weight 1100.0 g 38.80 oz
Hammer: øhole 16.0 mm 0.63 in
Hammer: base width 140.0 mm 5.51 in
Hammer: top width 40.0 mm 1.57 in
Hammer: Diagonal 97.0 mm 3.82 in
Rear roller: diameter 152.0 mm 6.00 in
Rear roller: sheet thickness 6.0 mm 0.24 in
Rear roller: bearings type and size 90x40 mm - GB276-6308 90x40 mm - GB276-6308

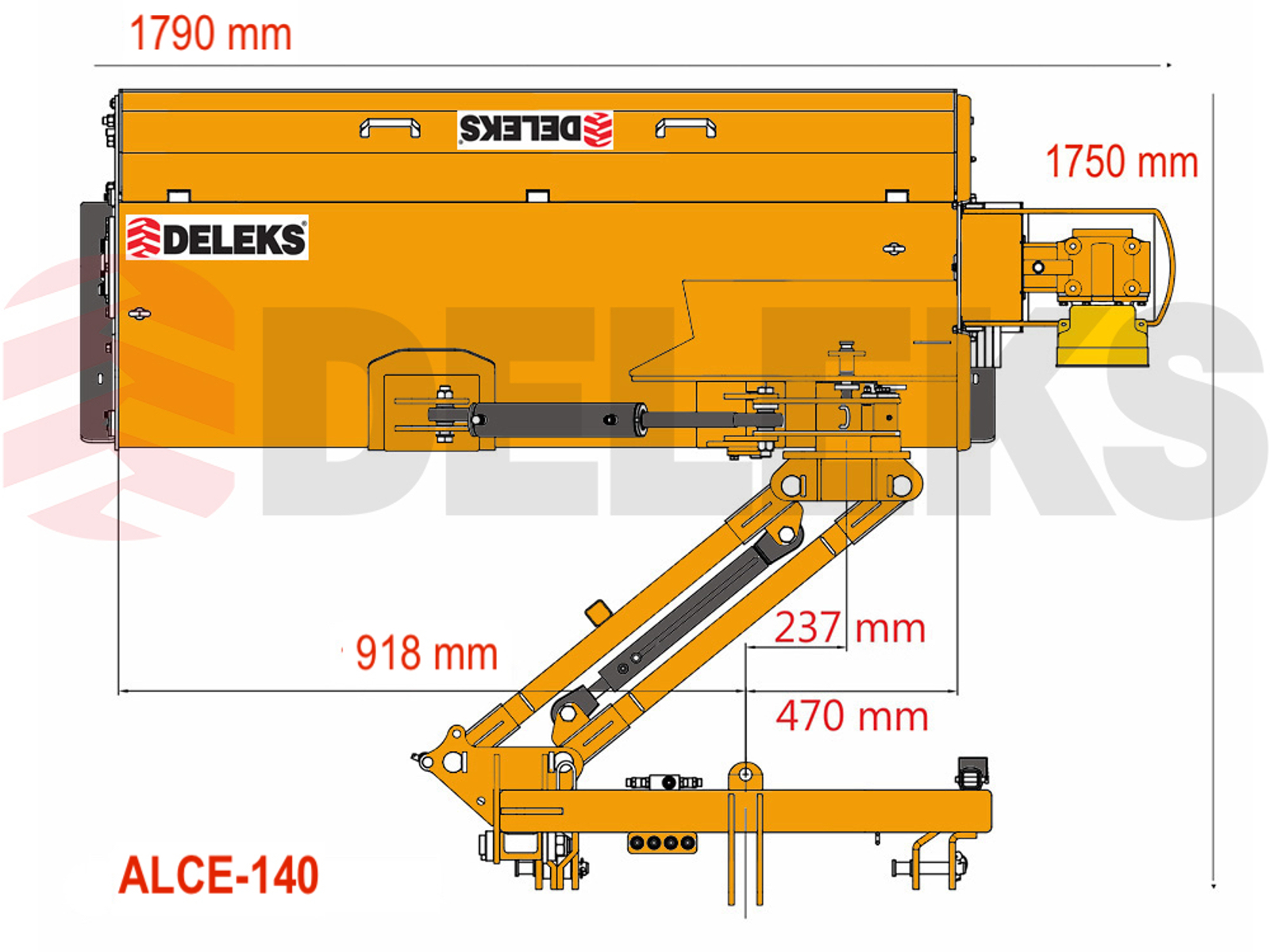

Displacement and Sizes See pictures See pictures
Hydraulic cylinder A diam. 80.0-35.0 mm 3.15 - 1.38 in
Hydraulic cylinder B diam. 60.0-30.0 mm 2.36 - 1.18 in
Min./Max. Relief Pressure 120 - 150 bar 120 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Hydraulic Hoses WP 400 Bar, 1/2" Agri Standard WP 400 Bar, 1/2" Agri Standard
Pto shaft CE 5x1800 mm CE 5x1800 mm
Hood length 770.0 mm 30.31 in
Packing sizes 1800.0*1000.0*1000.0 mm 5.90*3.28*3.28 in


10 bolts nuts alce
10 Bolts + nuts 10.9 ALCE-TORO-ARH
59,00VAT incl.


10 hammers alce toro
10 Hammers ALCE-TORO-ARH
128,00VAT incl.


4 belts alce
4 belts ALCE
92,00VAT incl.


spare pins cat 2 a
Spare pins Cat. 2-A
50,00VAT incl.

ø 25.0/28.0 mm
