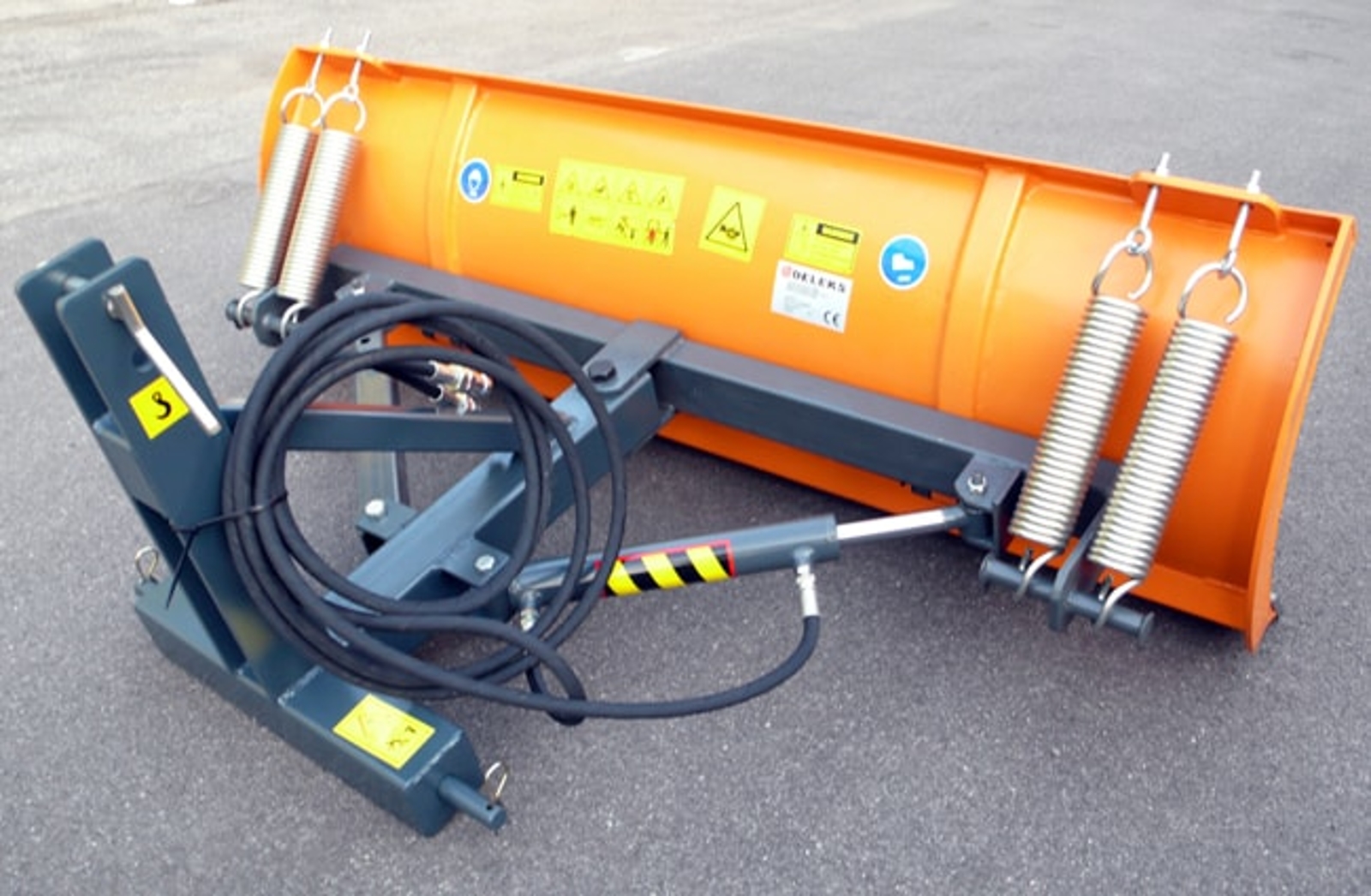

Three point linkage snowplow for tractor, LNS-170-C

4.5

192 reviews

Available
Code LNS170C
EAN 8053470231384
View all details.
TOTAL
1.252,00VAT incl.
Free shipping

VIDEO
Field test
Field test

DETAILS

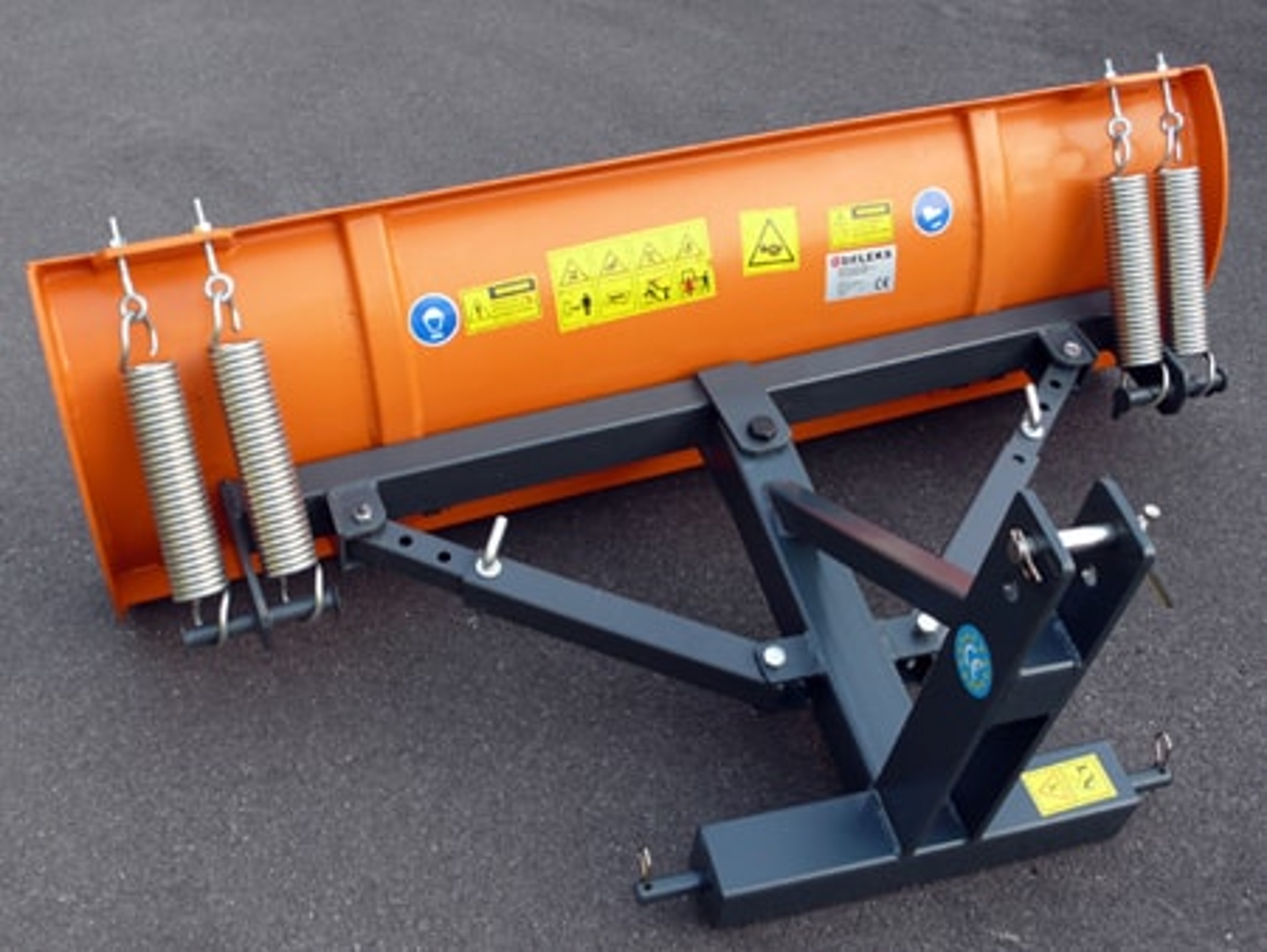

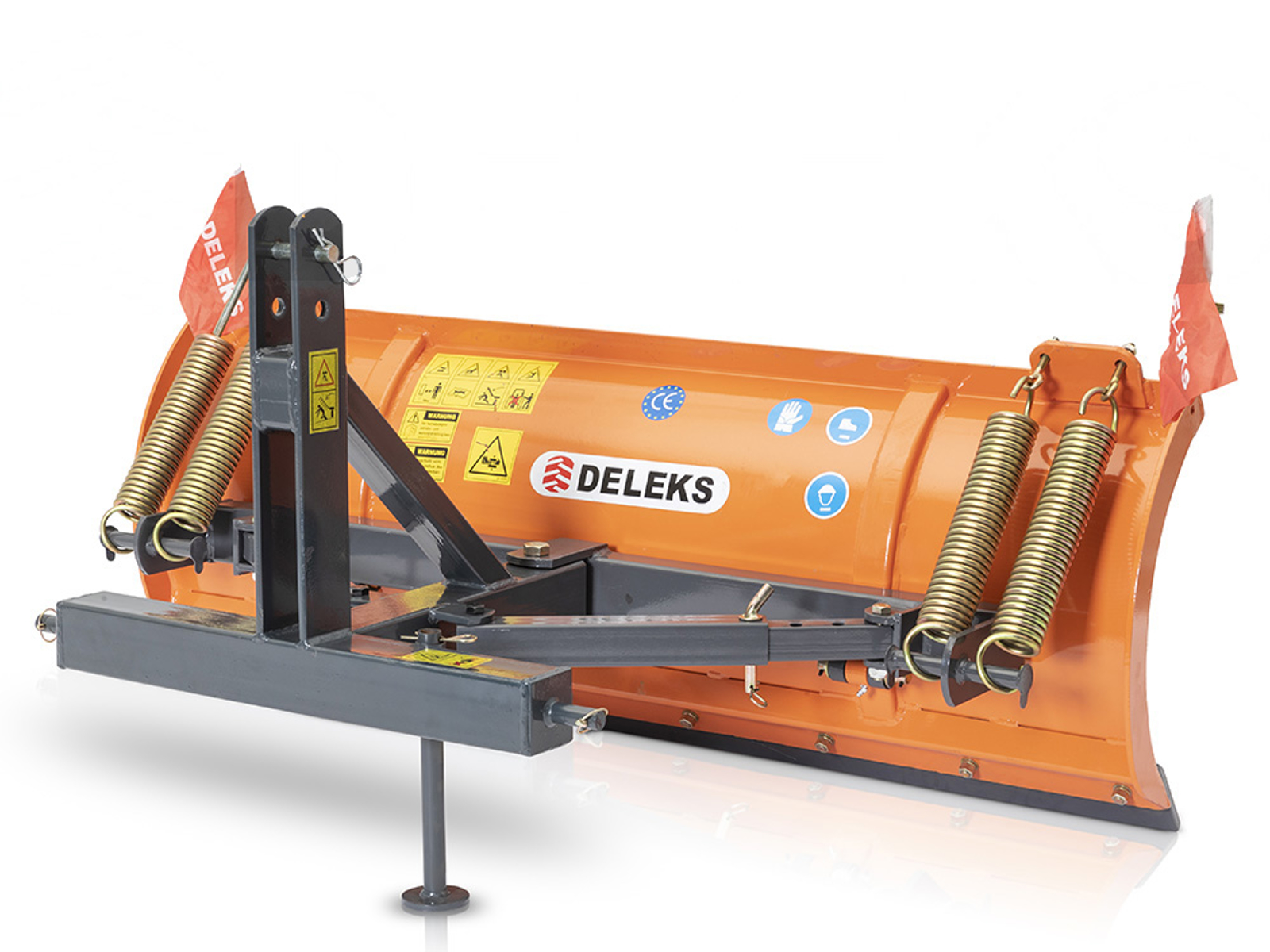

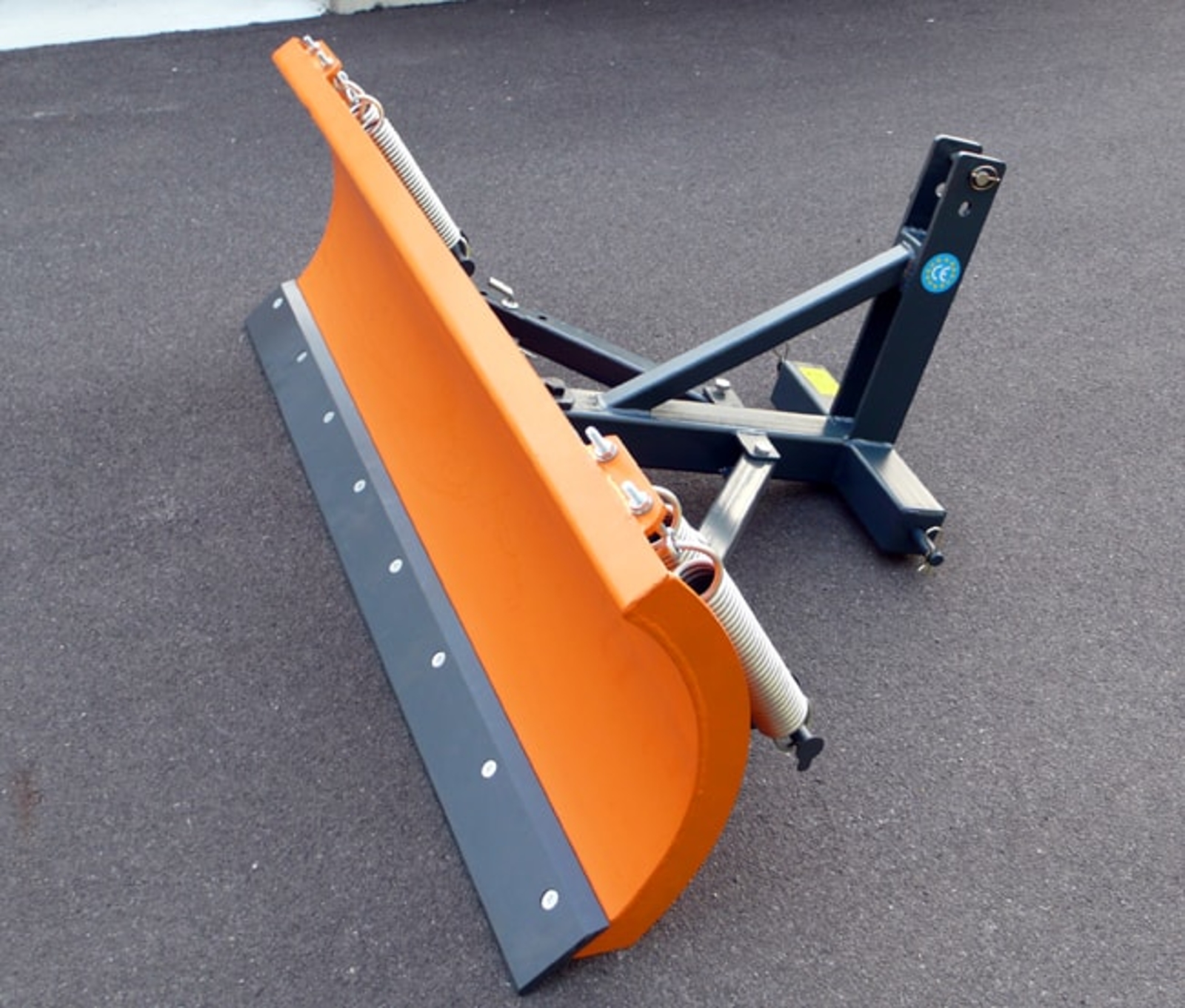

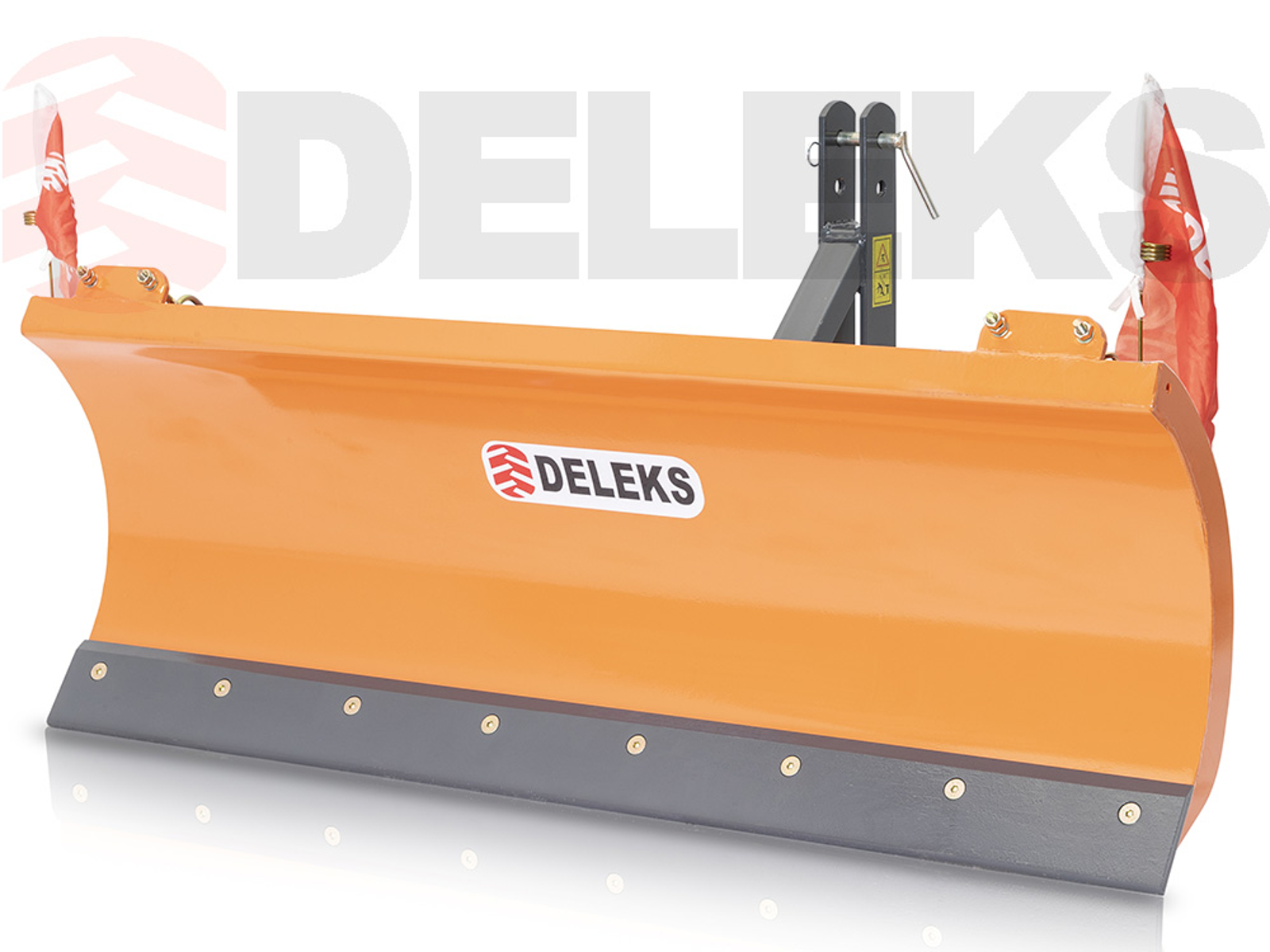

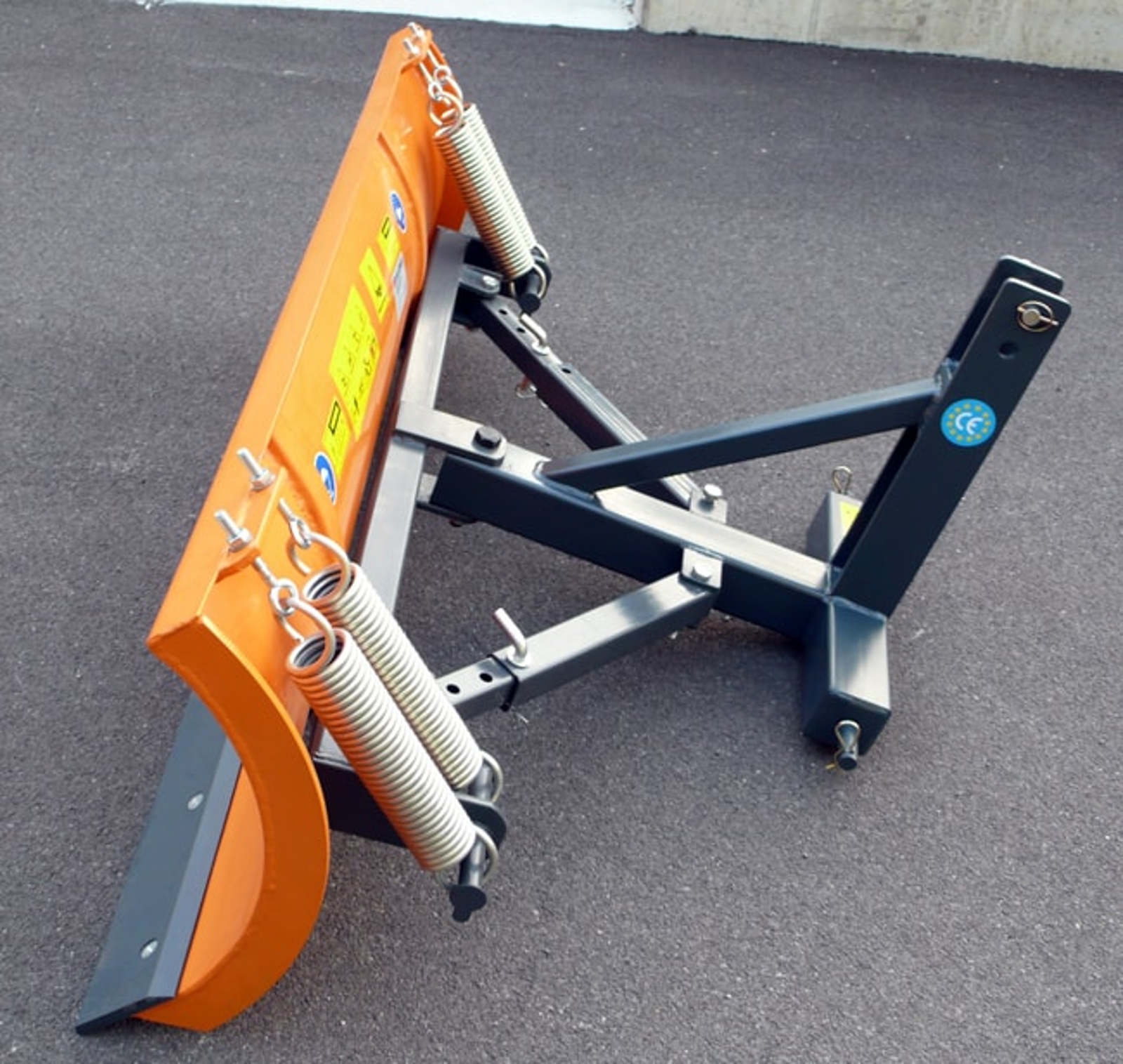

Three point linkage snowplow, DELEKS® snowblade 170cm for front and rear use on tractors Kubota, Iseki, Yanmar.


OVERVIEW

LNS-C snowplows have been designed for remove snow on roads, pavements, driveways, carparks, fields etc. Their sturdy structure means that they can not only handle heavy snow, but also they can be used as a grader blade during the warmer months.

They attach to tractors using Cat 1, three point linkage and have been designed to be used with 20 to 45hp tractors e.g. Kubota BX-B, Iseki, Yanmar, Ford, McCormick etc.

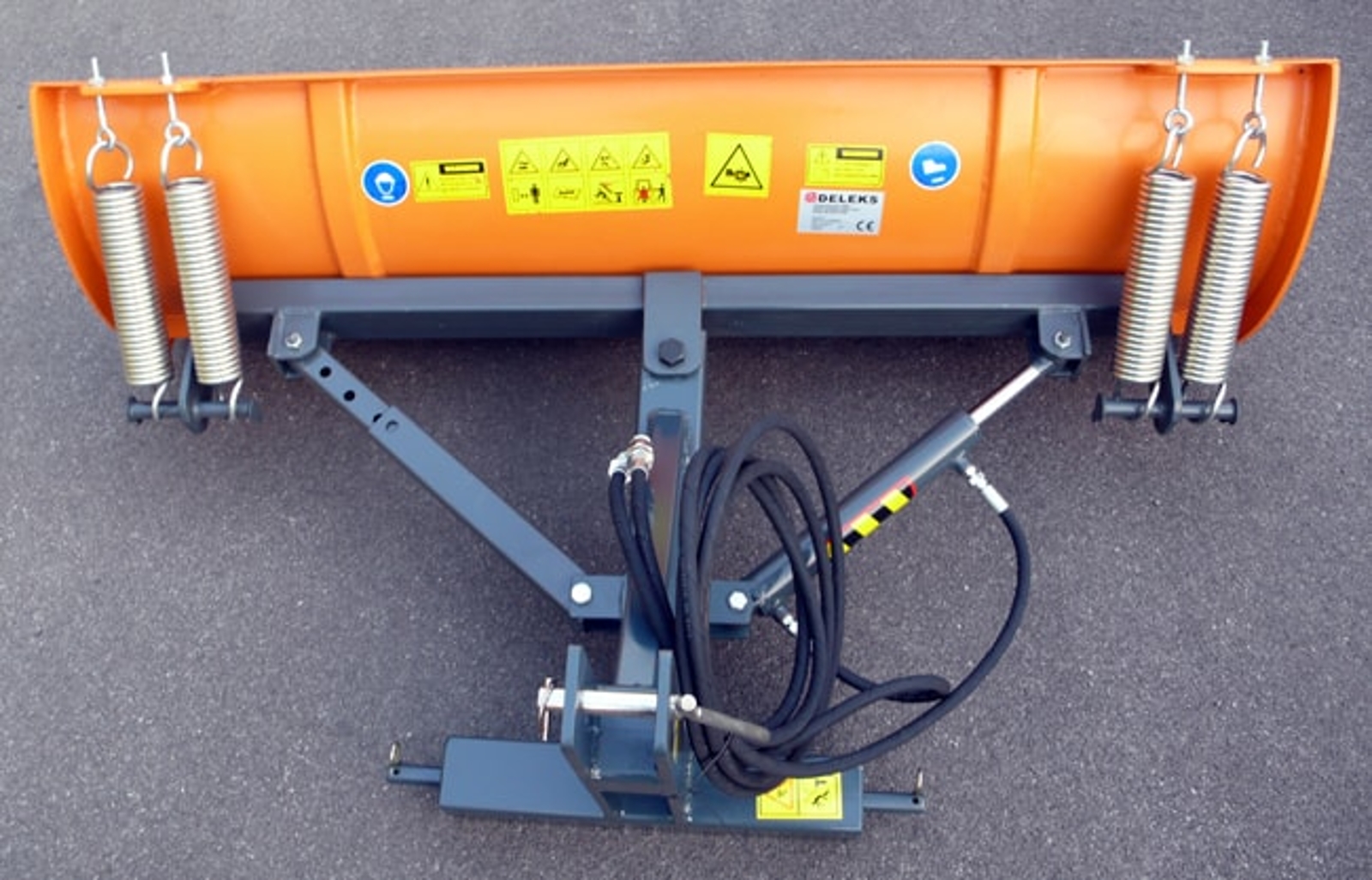

The tractor does not require a hydraulic system. Instead, it uses two hydraulic jacks for hydraulic piston angling (optional). Conforms to the EC Machinery Directive. 2 years guarantee.



BENEFITS AND FEATURES

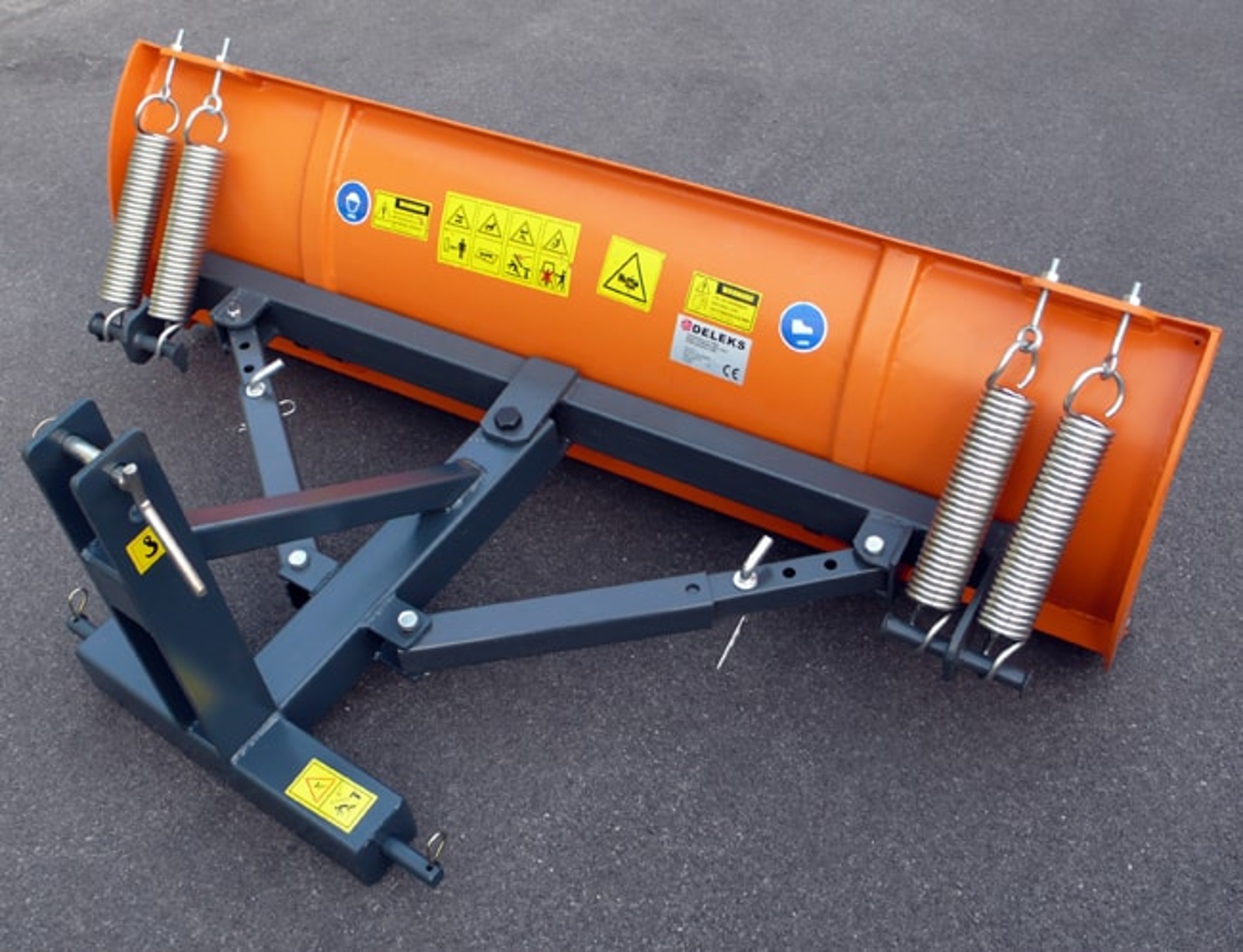

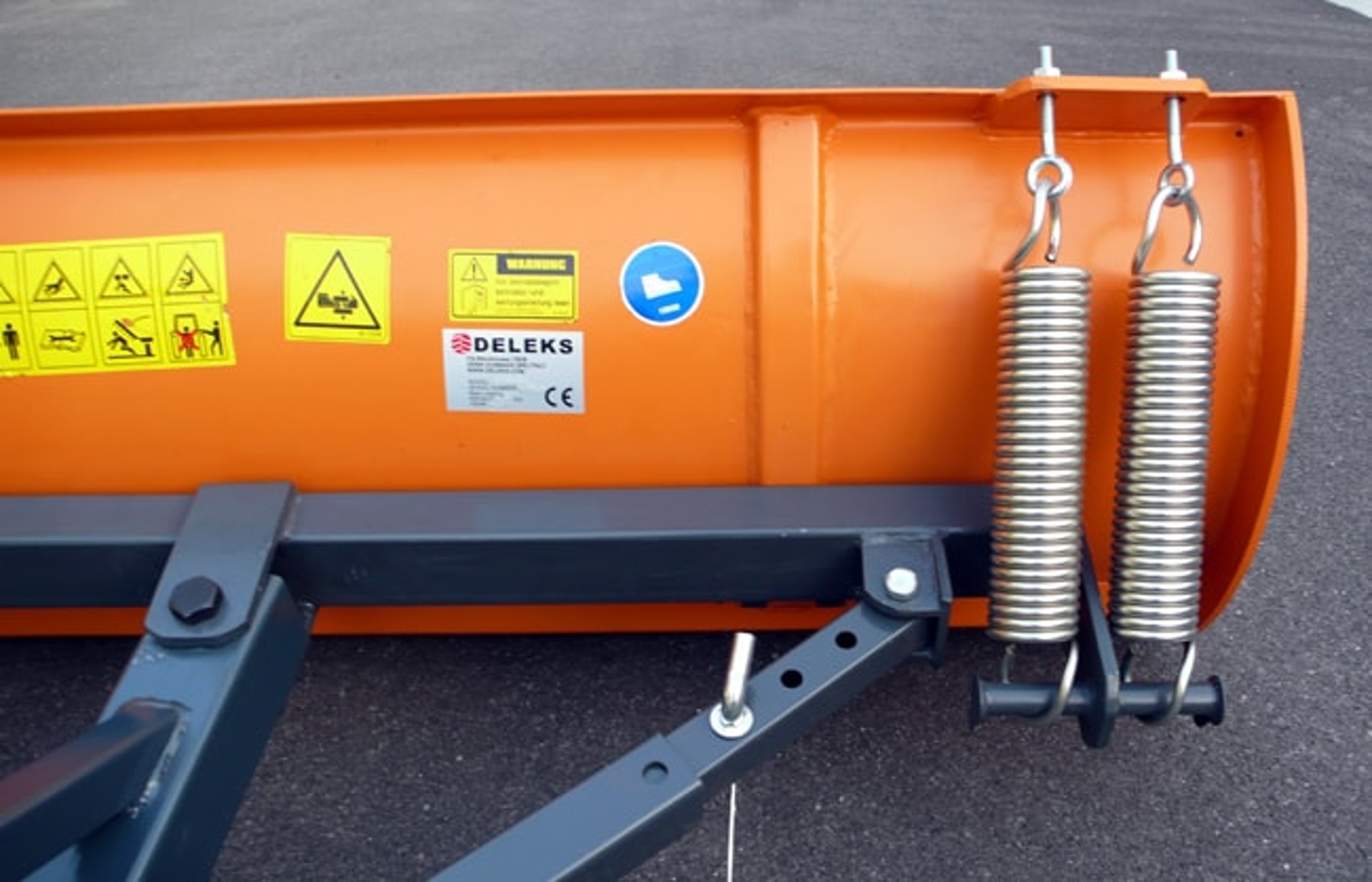

Anti-shock system with 4 shock absorbing springs to operate in maximum safety.

Extreme ease of assembly and use.

Sharp replaceable steel. On request also available with Rubber blade.

The 3-point hitch is removable and replaceable with plate fitting or Mini skid steer loaders.

Homologated for road use.



CHARACTERISTICS

Characteristic Units metric Units US
Weight 123.0 kg 271.0 lb
Overall height 880.0 mm 2.88 ft
Tractor Power Range 20 - 45 Hp 20 - 45 Hp
Overall Length 620.0 mm 2.03 ft
Spacing between the 2 lower points 710.0-740.0 mm 2.33 - 2.42 in
Distance between the 2 lower points and ground 300.0 mm 11.81 in
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface 3 Point linkage cat. 1 (19.0 - 22.0 mm) 3 Point linkage cat. 1 (19.0 - 22.0 mm)
Angling (left/right) 28° 28°
Float +/- 2° +/- 2°
Blade Height 525.0 mm 1.72 ft
Side edge thickness 8.0 mm 0.31 in
Shock absorbers 4 4
Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 120.0 mm 4.72 in
Cutting Edge Thickness 14.0 mm 0.55 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights x x
Removable Skid Shoes x x
Working width (angled) 1520.0 mm 5.00 ft
Hydraulic Hoses (Optional) 2 x 1500.0 mm / connections 1.2" (Optional) 2 x 1500.0 mm / connections 1.2"
Overall width 1716.0 mm 5.63 ft
Main frame thickness 4.0 mm 0.15 in
Hydraulic cylinder/s ø (Optional) 50.0 / 25.0 mm (Optional) 50.0 / 25.0 mm
Packing sizes 1716.0*800.0*800.0 mm 5.63*2.62*2.62 ft
