Snowblade with 3 point linkage for tractor, LN-220-C

4.5

192 reviews

Available
Code LN220C
EAN 8053470231421
View all details.
TOTAL
2.880,00VAT incl.
Free shipping

DETAILS

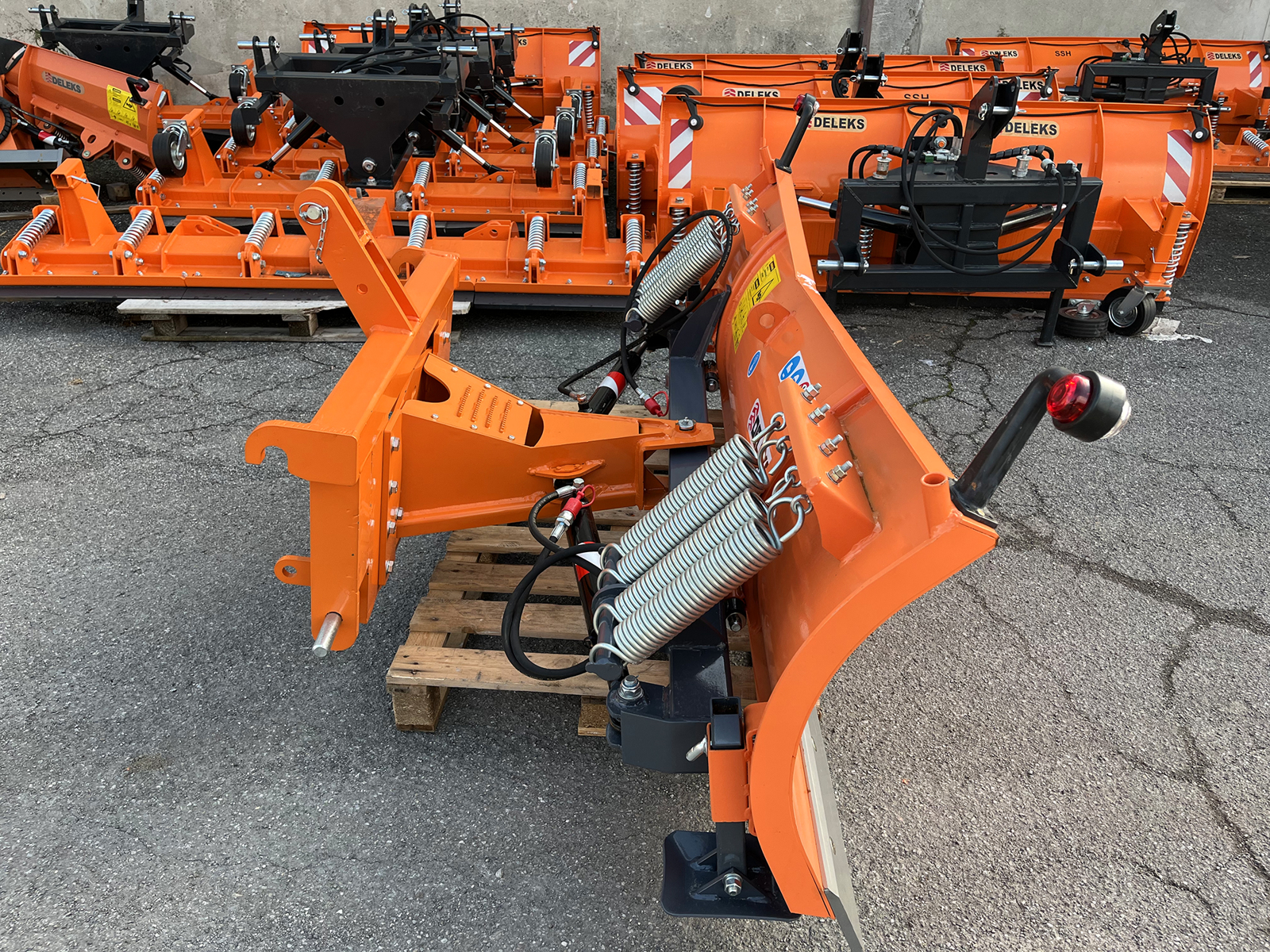

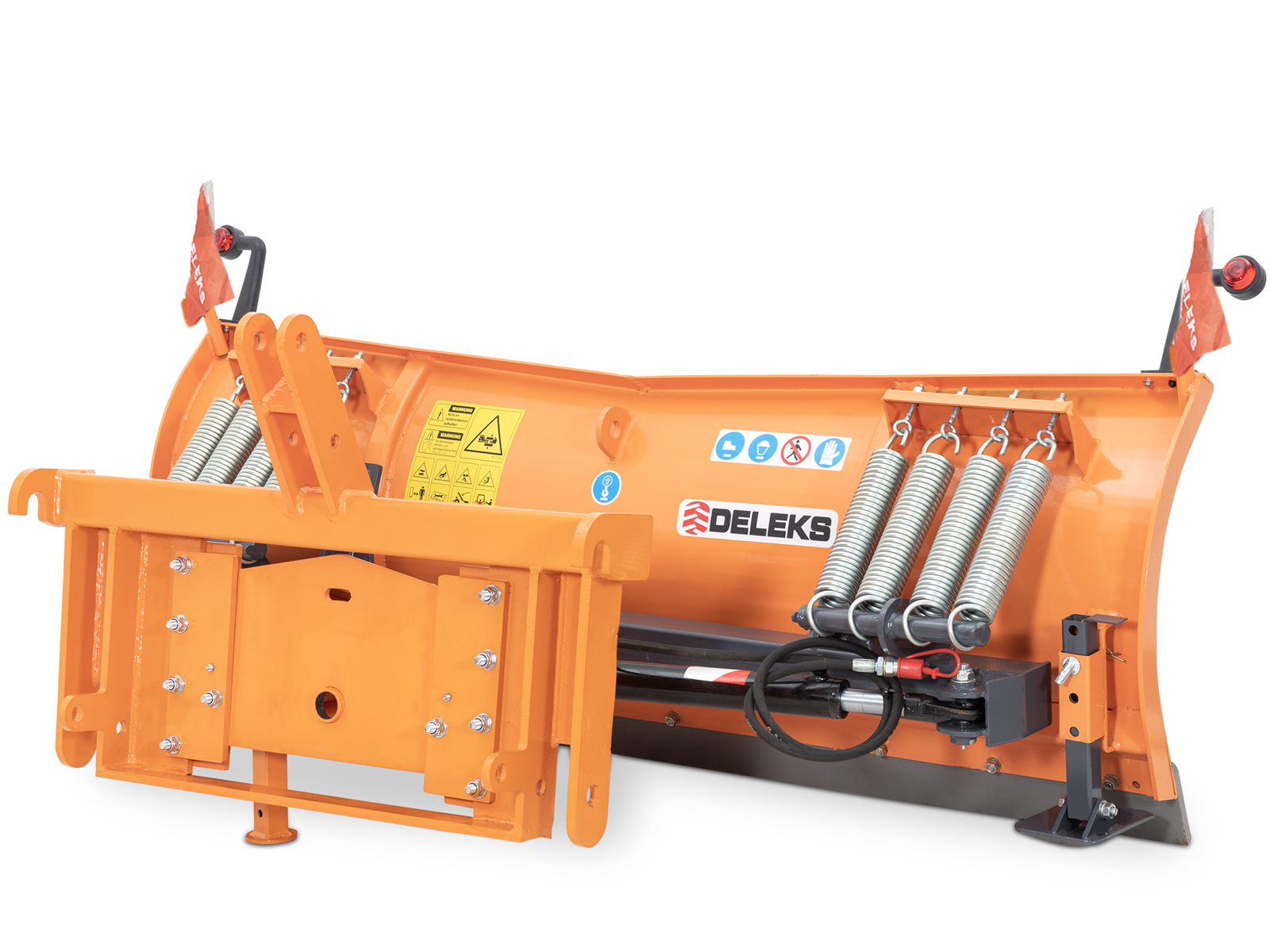

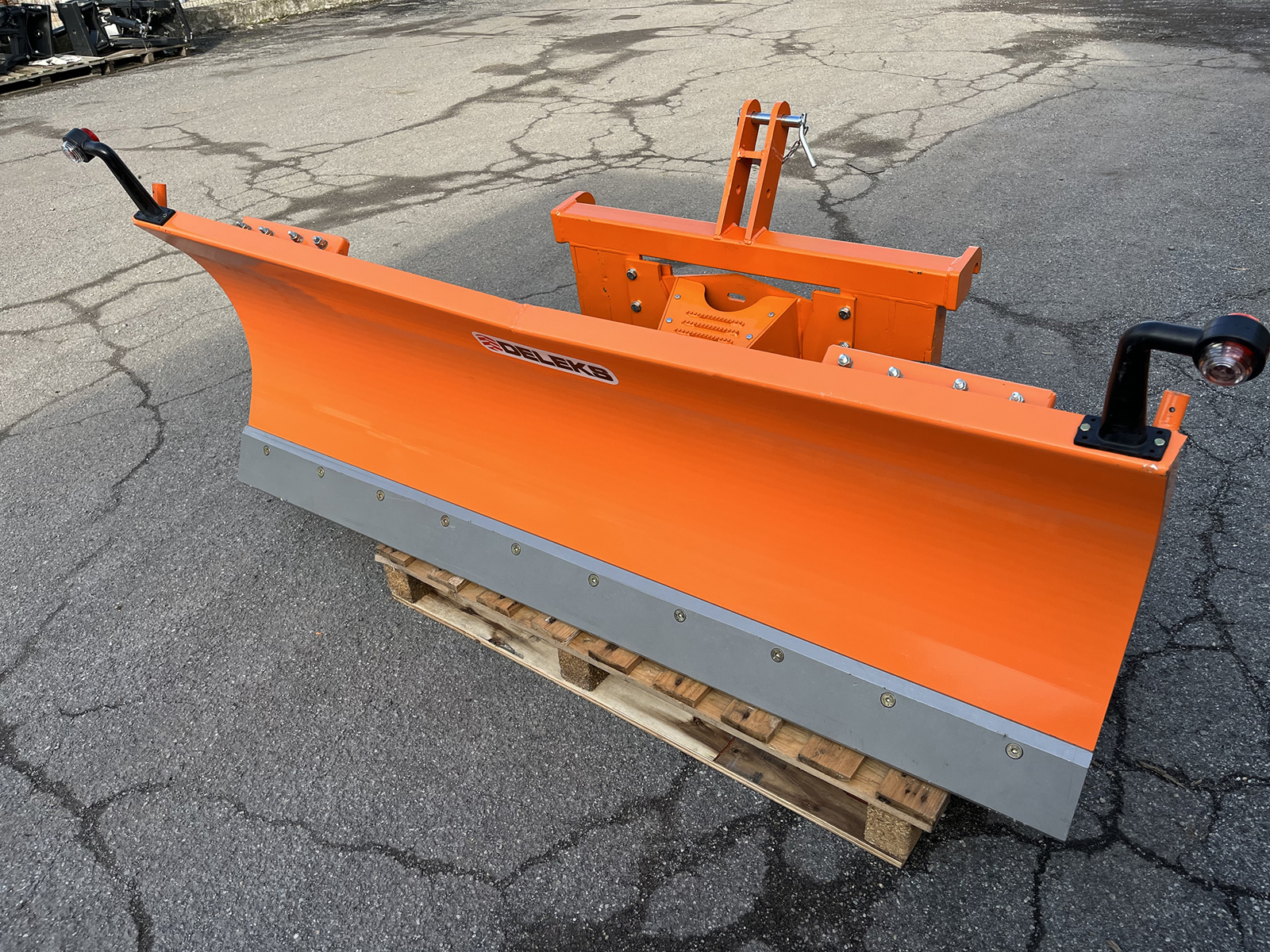

Three point linkage snowplow, 220cm - DELEKS® - for frontal use or reversible tractors - Homologated for road use.


OVERVIEW

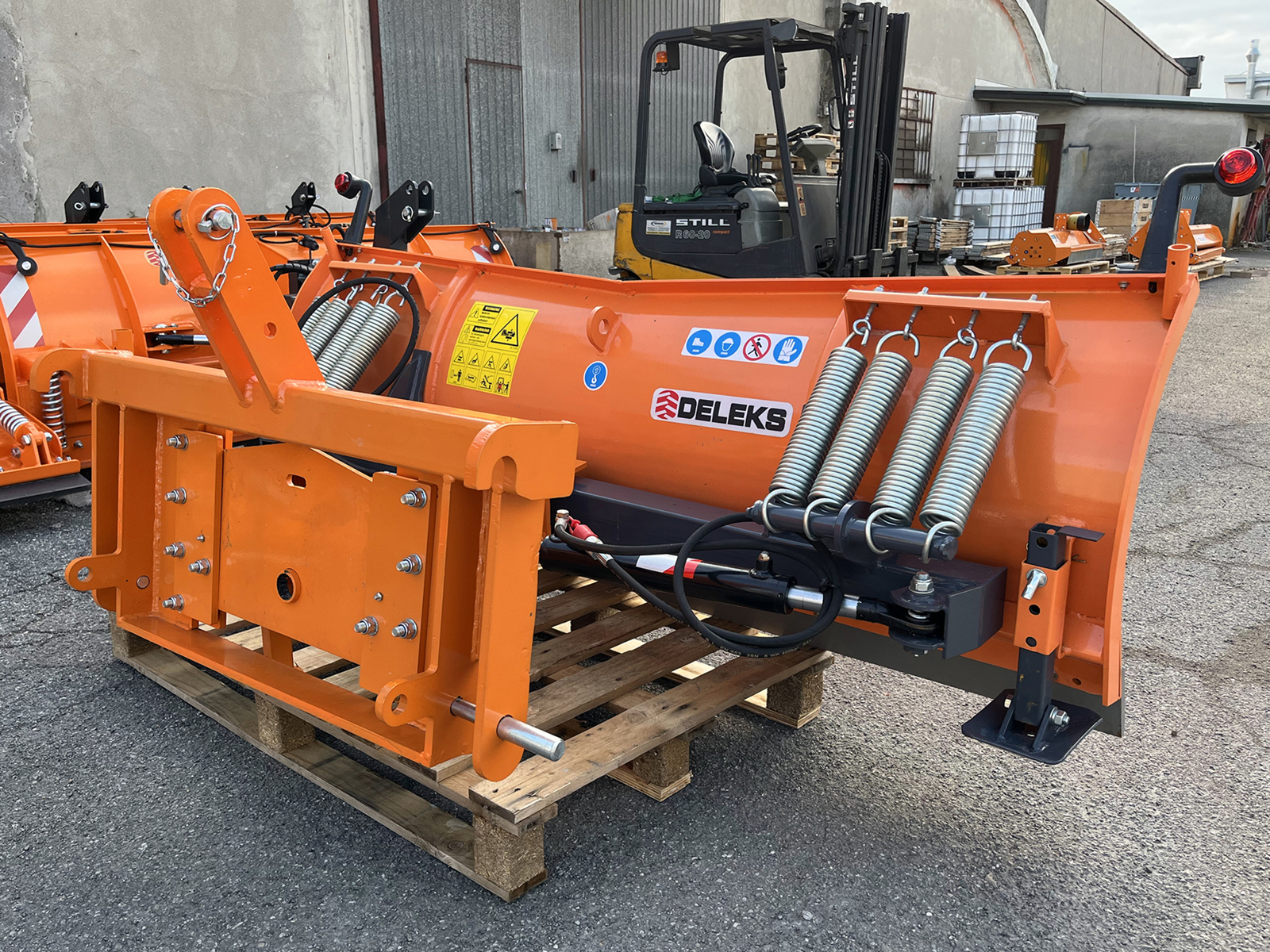

LN-220-C Snowplow has been designed with a Cat. 1-2, 3-point hitch for tractors from 50 to 80hp e.g. Lamborghini, Ford, Massey Ferguson, John Deere or reversible tractors like Antonio Carraro, Pasquali, Valpadana etc. Angling of the plow is done hydraulically by pipes from 1.5 m (on request we supply 2 hydraulic pipes for an additional 4,0m, with Easy-on coupling system). Supplied with skid shoes and marker lights. Conforms to the EC Machinery Directive. 2 years warranty.



BENEFITS AND FEATURES

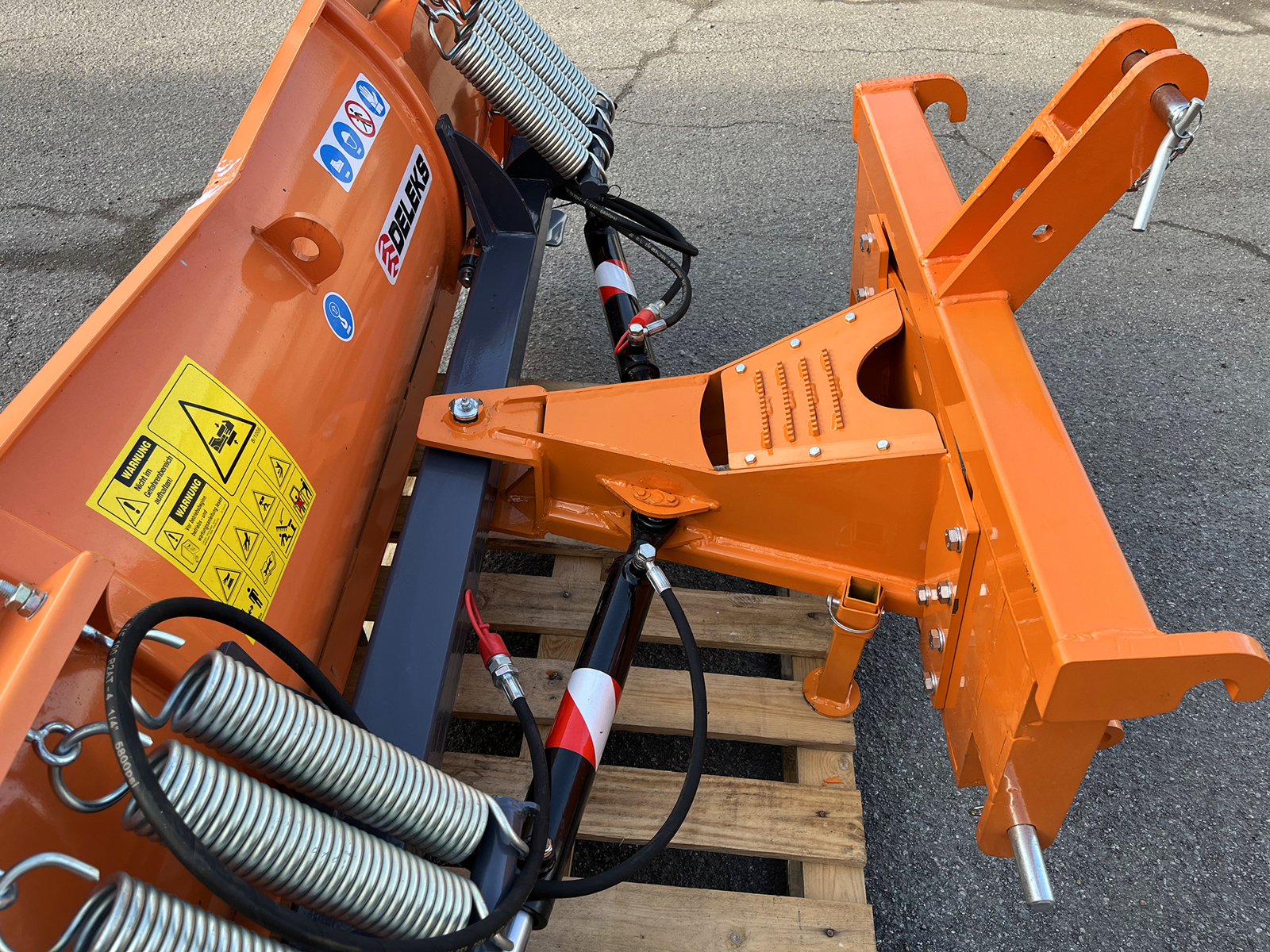

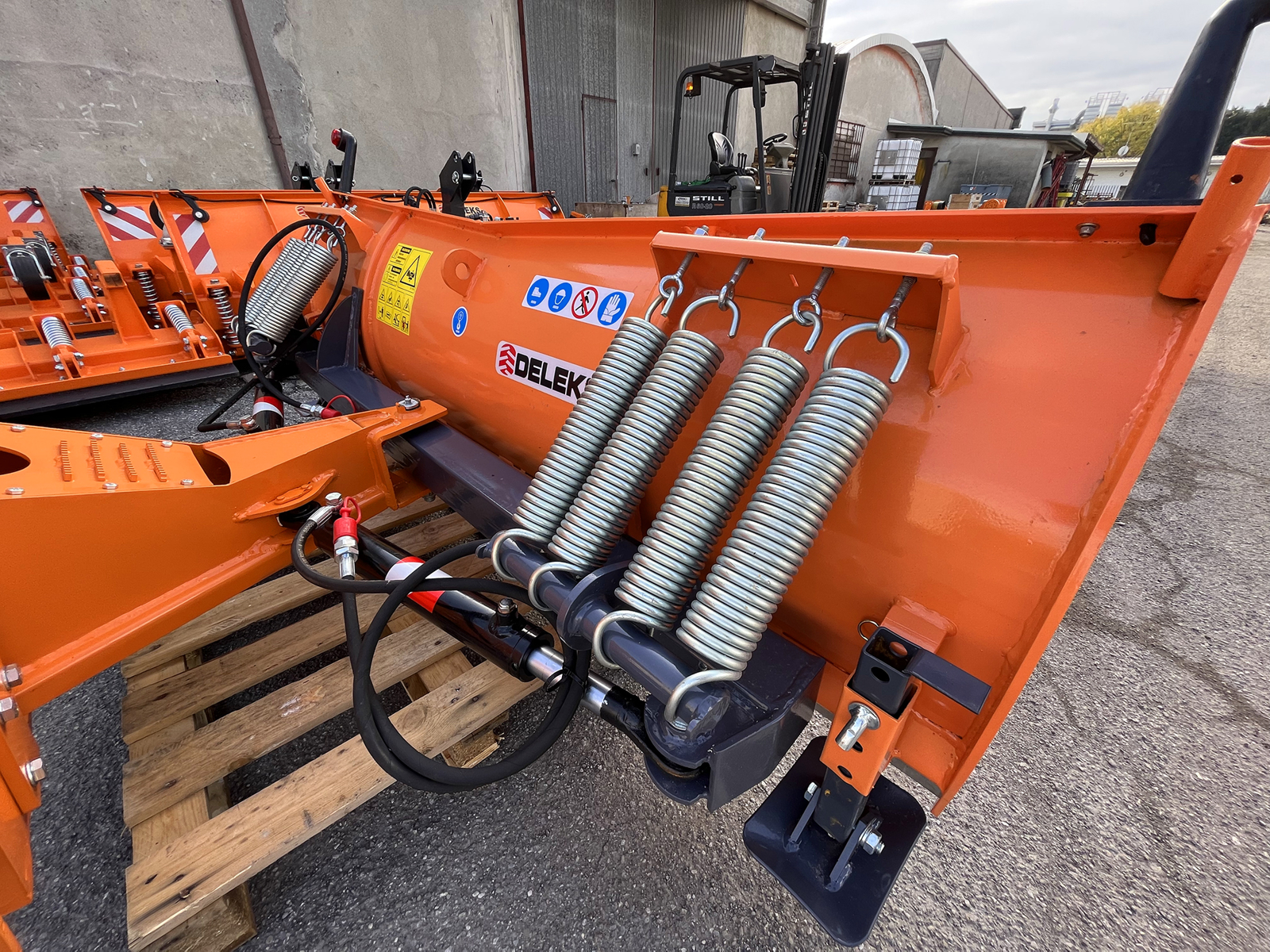

Shockproof system with 8 shock absorbing springs to operate in maximum safety.

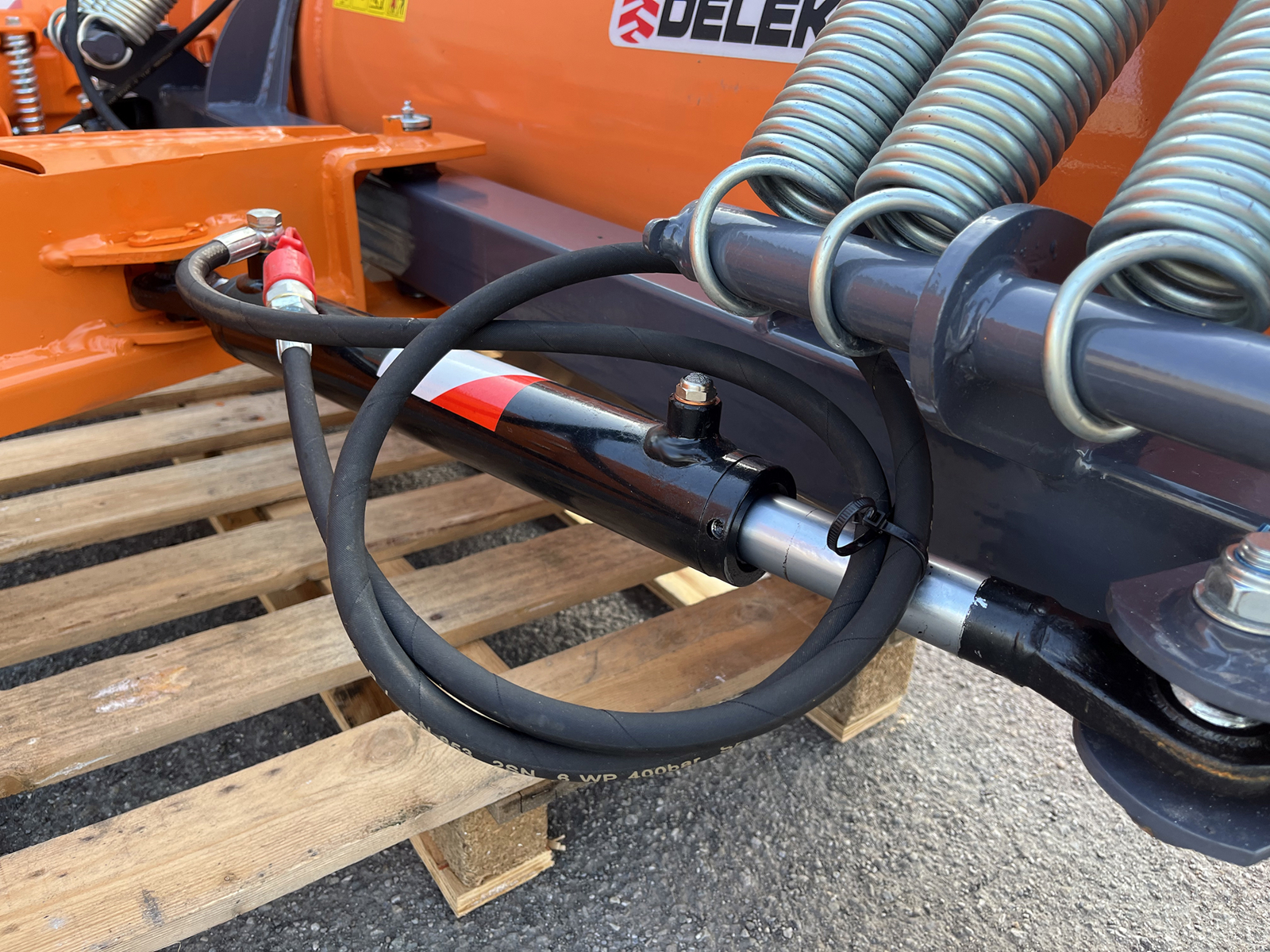

Hydraulic system consists of two pistons Made in Italy for the left/right orientation.

Perfect adherence to the road surface and homologated for road use.

Extreme easy to assemble and operate.

Adjustable torque slides, make work easier, reducing the pressure on the cutting edge, especially on rough surfaces such as gravel parking lots.

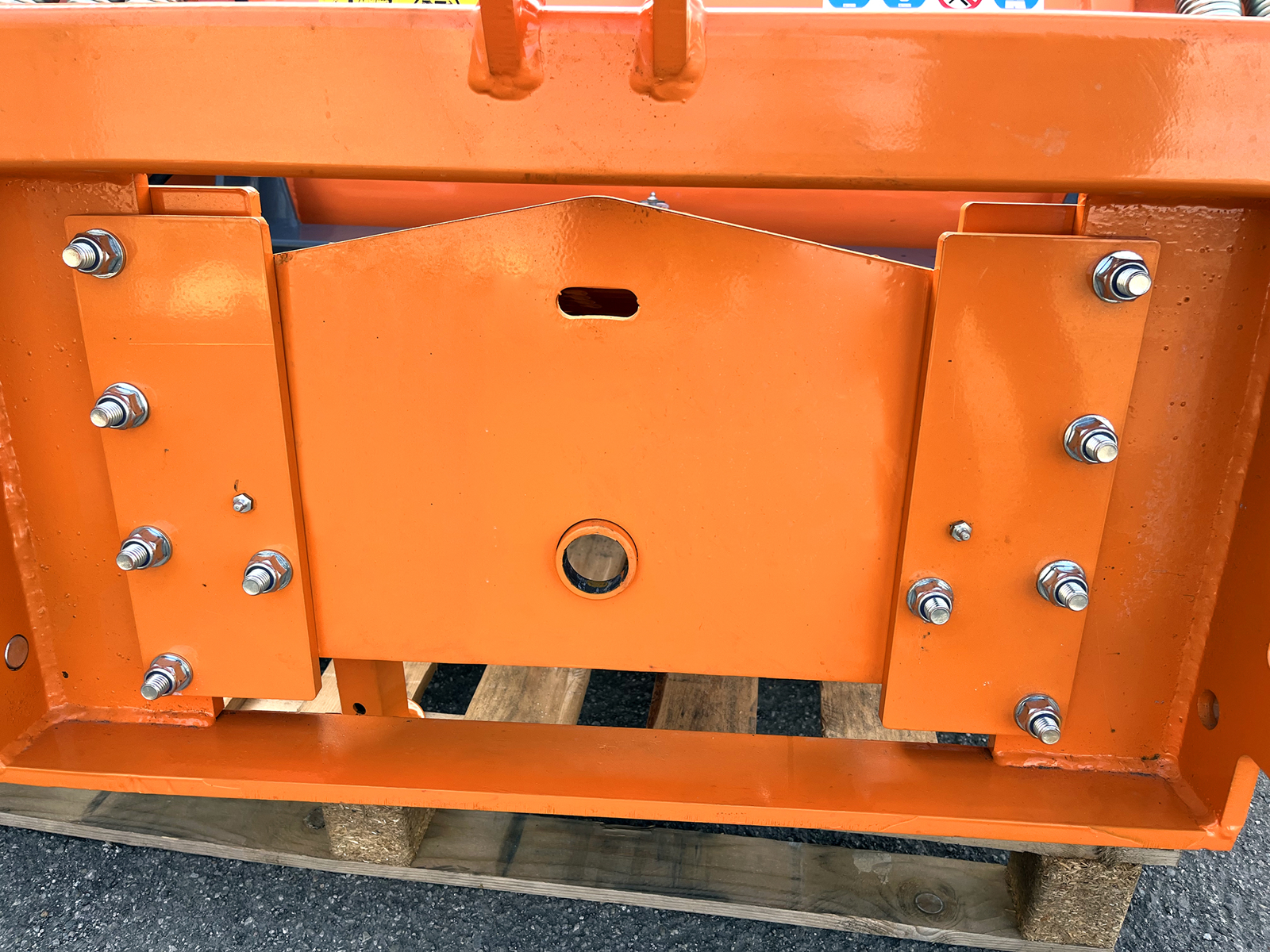

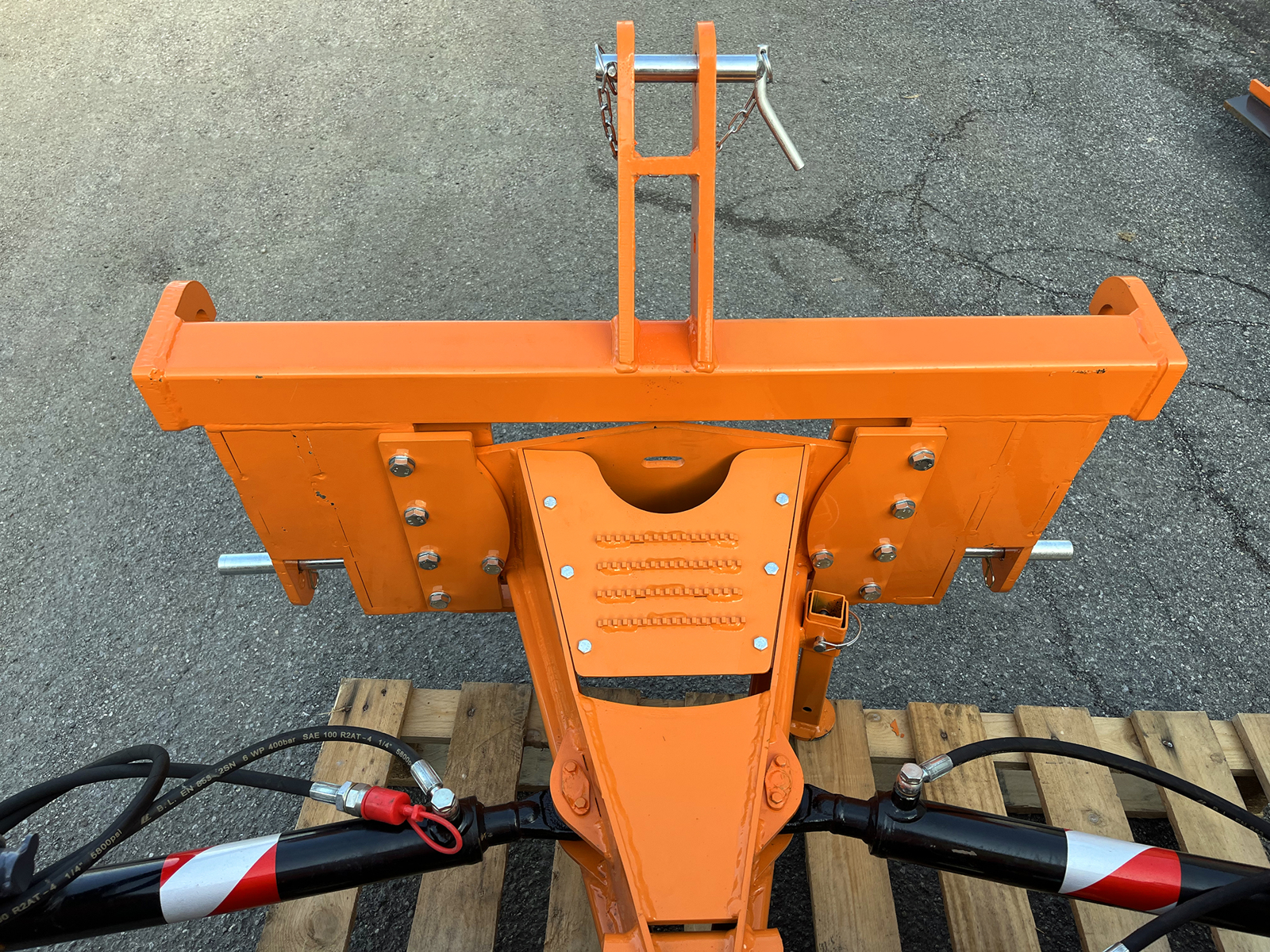

The 3-point hitch is removable and replaceable with fitting plate, EURO linkage, or Skid steer loaders.



Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual




CHARACTERISTICS

Characteristic Units metric Units US
Weight 300.0 kg 672.0 lb
Overall height 700.0 mm 2.30 ft
Tractor Power Range 50 - 80 Hp 50 - 80 Hp
Overall Length 950.0 mm 3.11 ft
Spacing between the 2 lower points 660.0 - 900.0 mm 26.0 - 35.43 in
Distance between the 2 lower points and ground 250.0 mm 9.84 in
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min

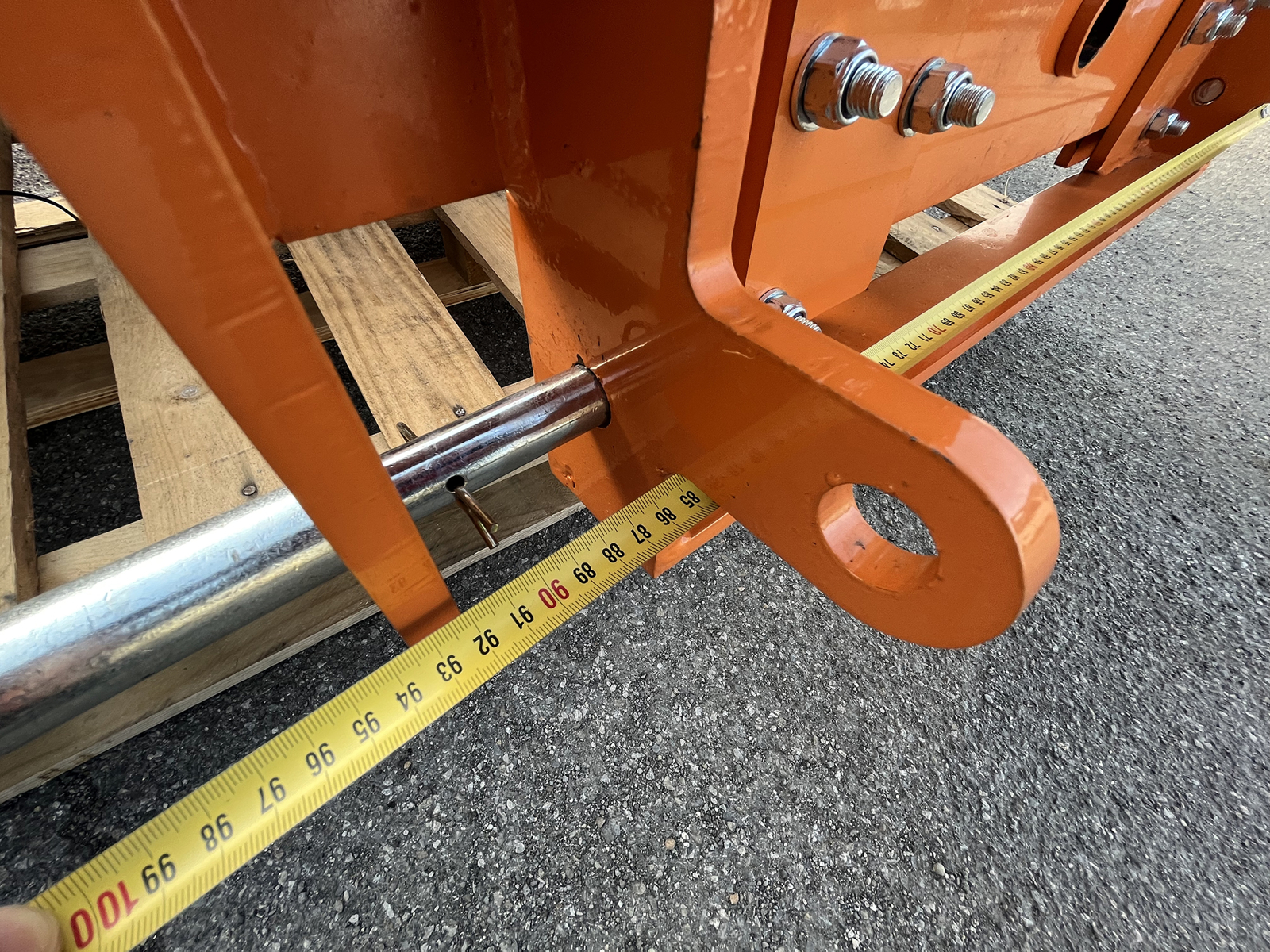

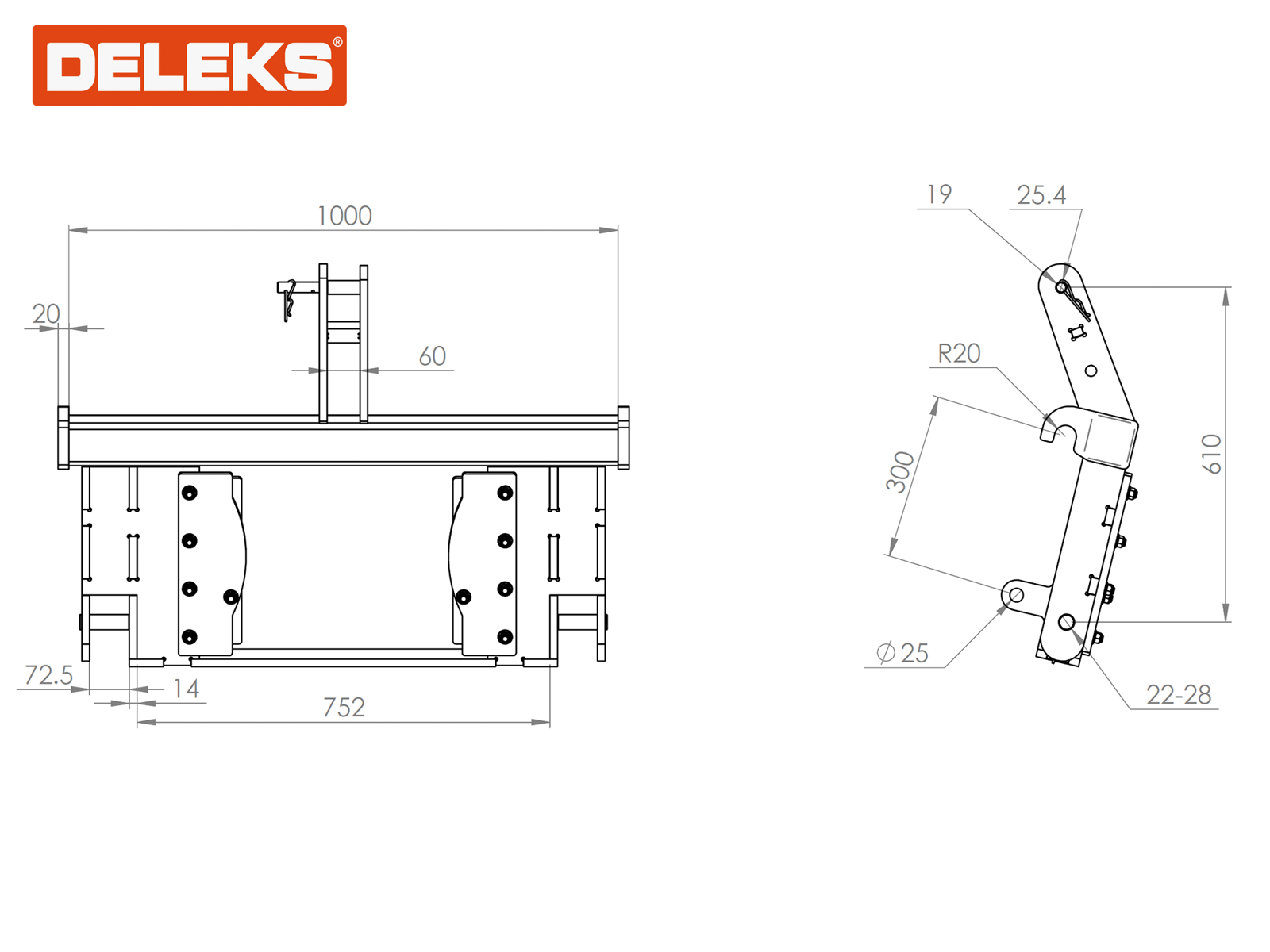

Interface 3 point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm) 3 point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm)
Angling (left/right) 27° 27°
Float +/- 6° +/- 6°
Blade Height 700.0 mm 2.30 ft
Side edge thickness 8.0 mm 0.32 in
Shock absorbers 8 8

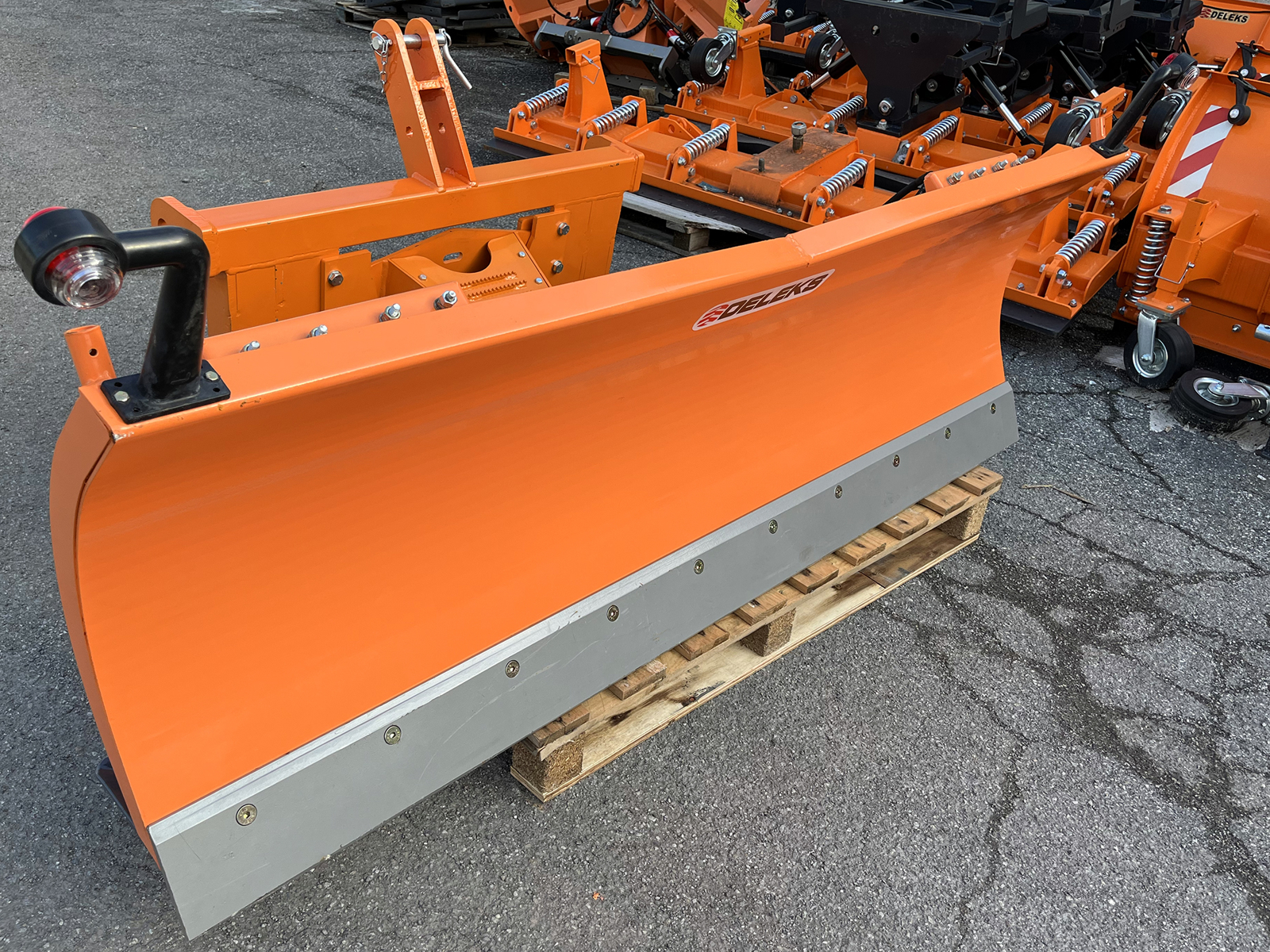

Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 150.0 mm 5.90 in
Cutting Edge Thickness 16.0 mm 0.63 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights
Removable Skid Shoes
Working width (angled) 1964.0 mm 6.44 ft
Hydraulic Hoses 2 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar 2 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar
Overall width 2205.0 mm 7.23 ft
Main frame thickness 5.0 mm 0.2 in
Hydraulic cylinder/s ø 60.0/30.0 mm 2.36/1.18 in
Packing sizes 2205.0*800.0*830.0 mm 7.23*2.62*2.95 ft

Optional

2 hydr pipes 4 00m fast connection set
2 Hydr. pipes 4,00m + Fast connection Set
170,00VAT incl.
Available

4,00m - Quick Release Coupling 1/2"

Fast connection set.

2 springs snowblade ln lns lnk
2 springs snowblade LN-LNS-LNK
100,00VAT incl.
Available

LN-LNS-LNK

couple marker lights ln
Couple marker lights LN
56,00VAT incl.
Available

LN 175/250

spare pins cat 1 2
Spare pins Cat. 1-2
59,00VAT incl.
Available

ø 19.0/22.0 + 25.0/28.0 mm

spare rubber blade 220 cm
Spare rubber blade 220 cm
264,00VAT incl.
Available

LN-220

spare skid shoe ln 200 250
Spare skid shoe LN-200-250
80,00VAT incl.
Not available Notify me

LN-200/250

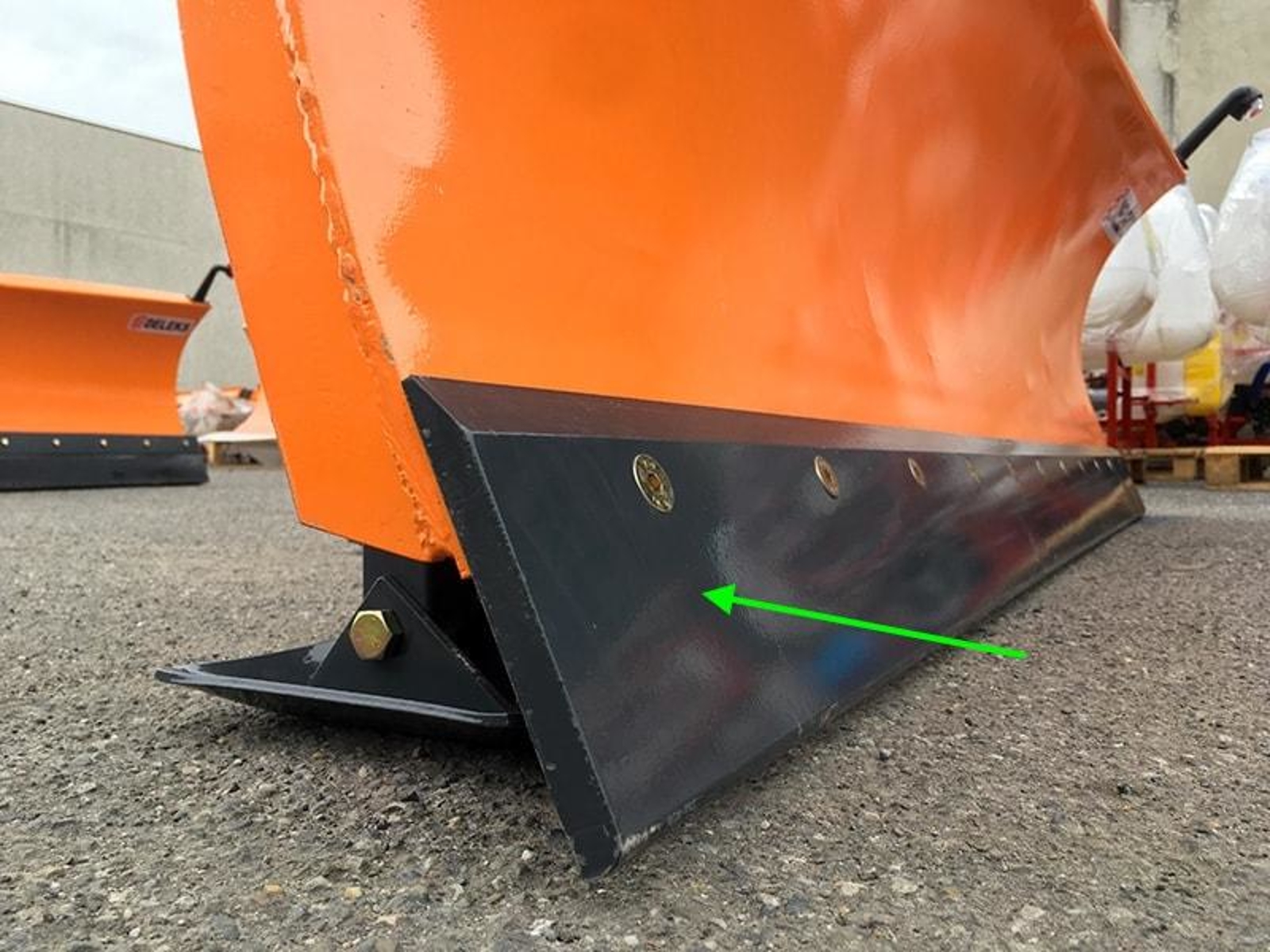

spare steel blade 220 cm
Spare steel blade 220 cm
264,00VAT incl.
Available

LN-220
