Snowplow for tractor front-end loaders, LN-175-E

4.5

192 reviews

Not available Notify me
Code LN175E
EAN 8053470231520
View all details.
TOTAL
2.450,00VAT incl.
Free shipping

DETAILS

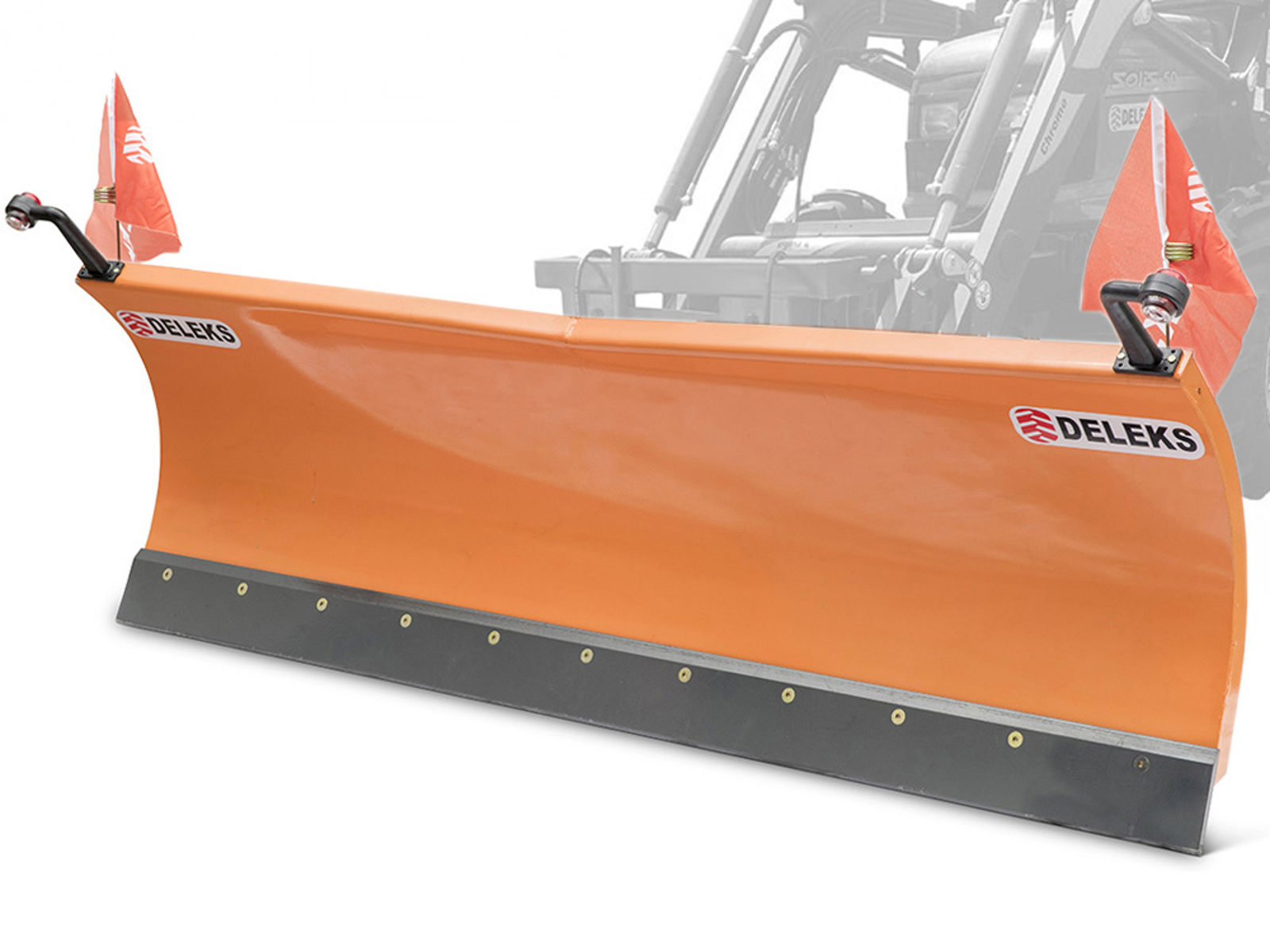

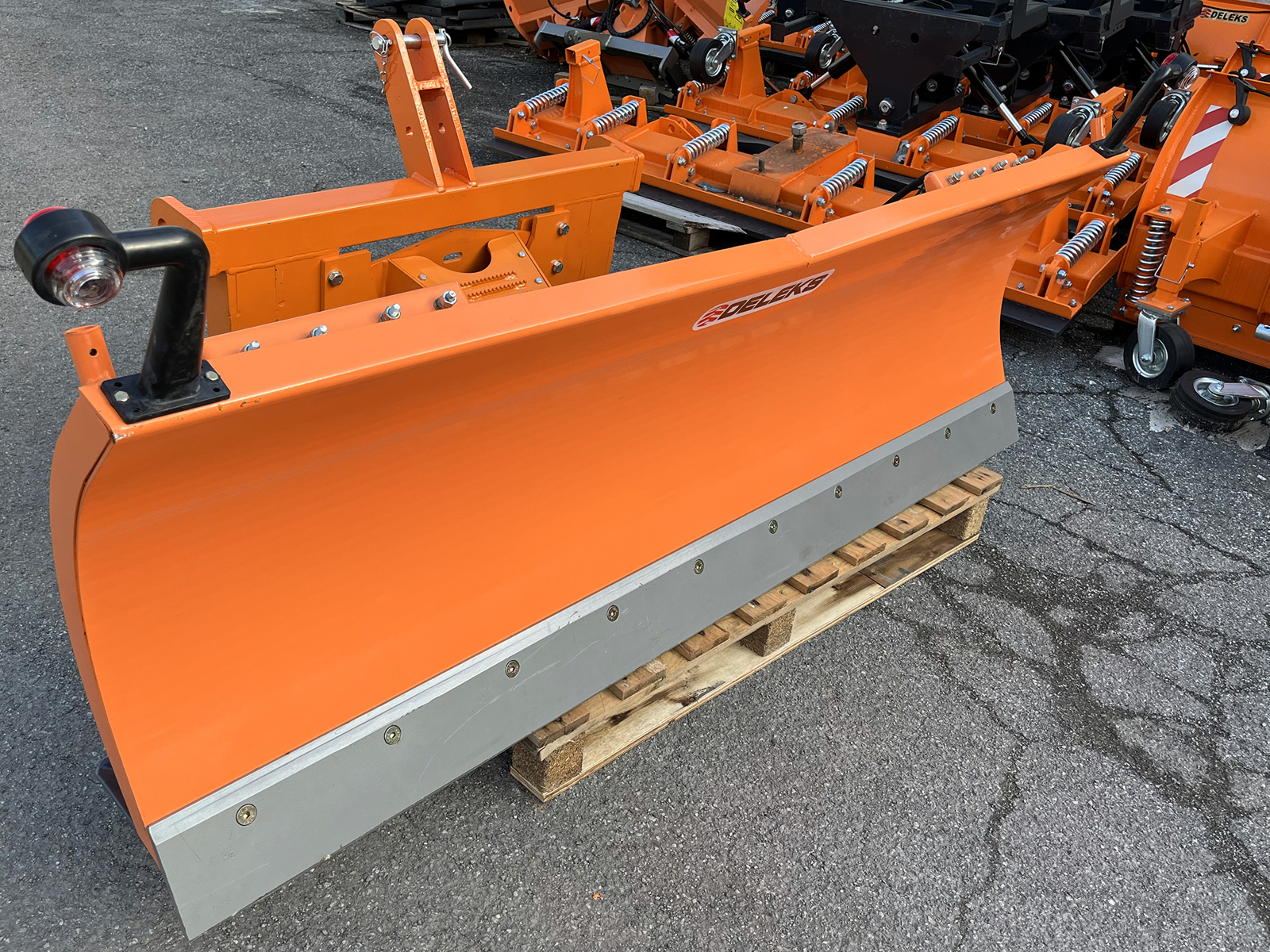

Snowblade 175cm for tractor front-end loaders, DELEKS® snow plough with Euro attachment - Homologated for road use.


OVERVIEW

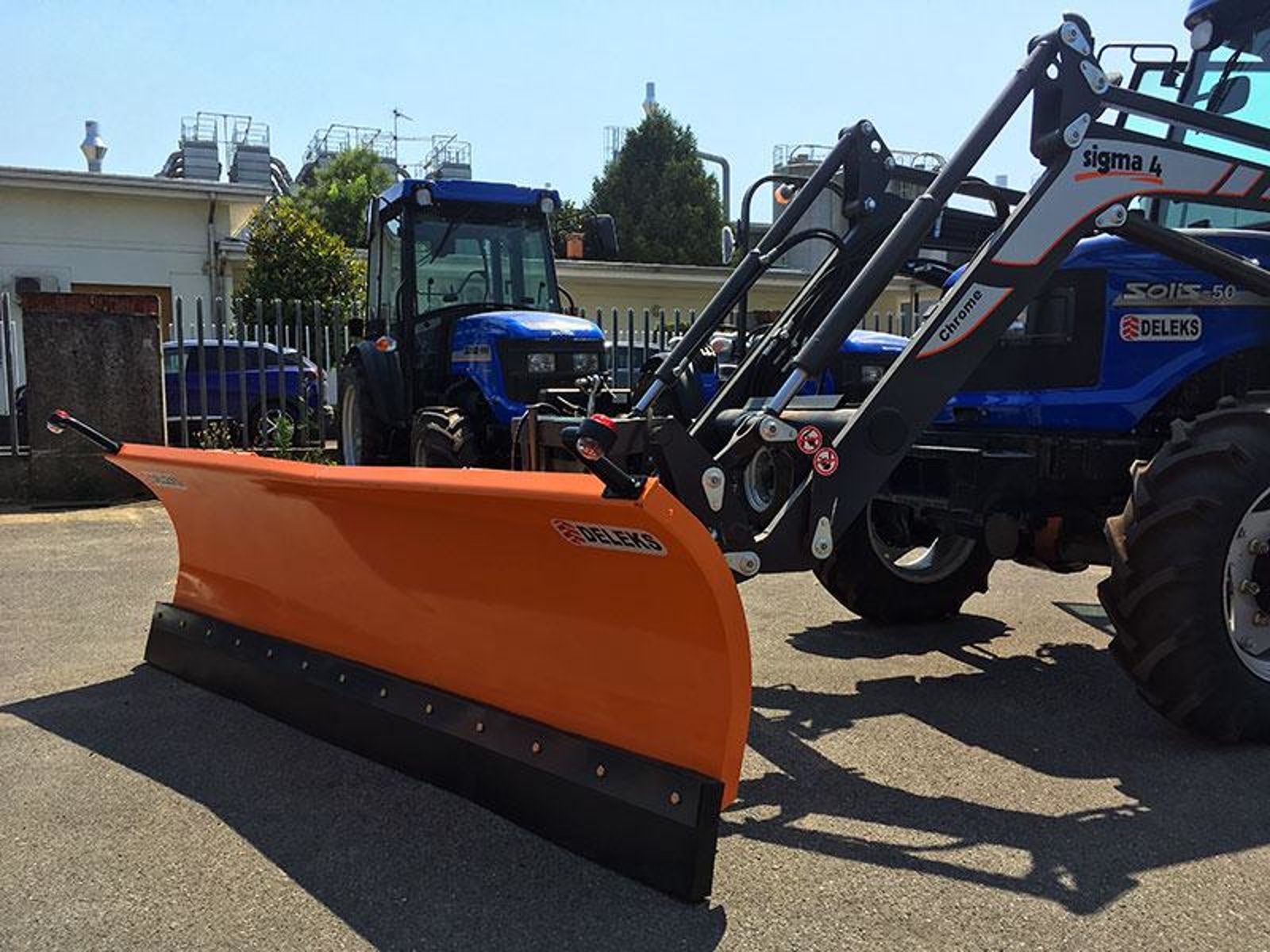

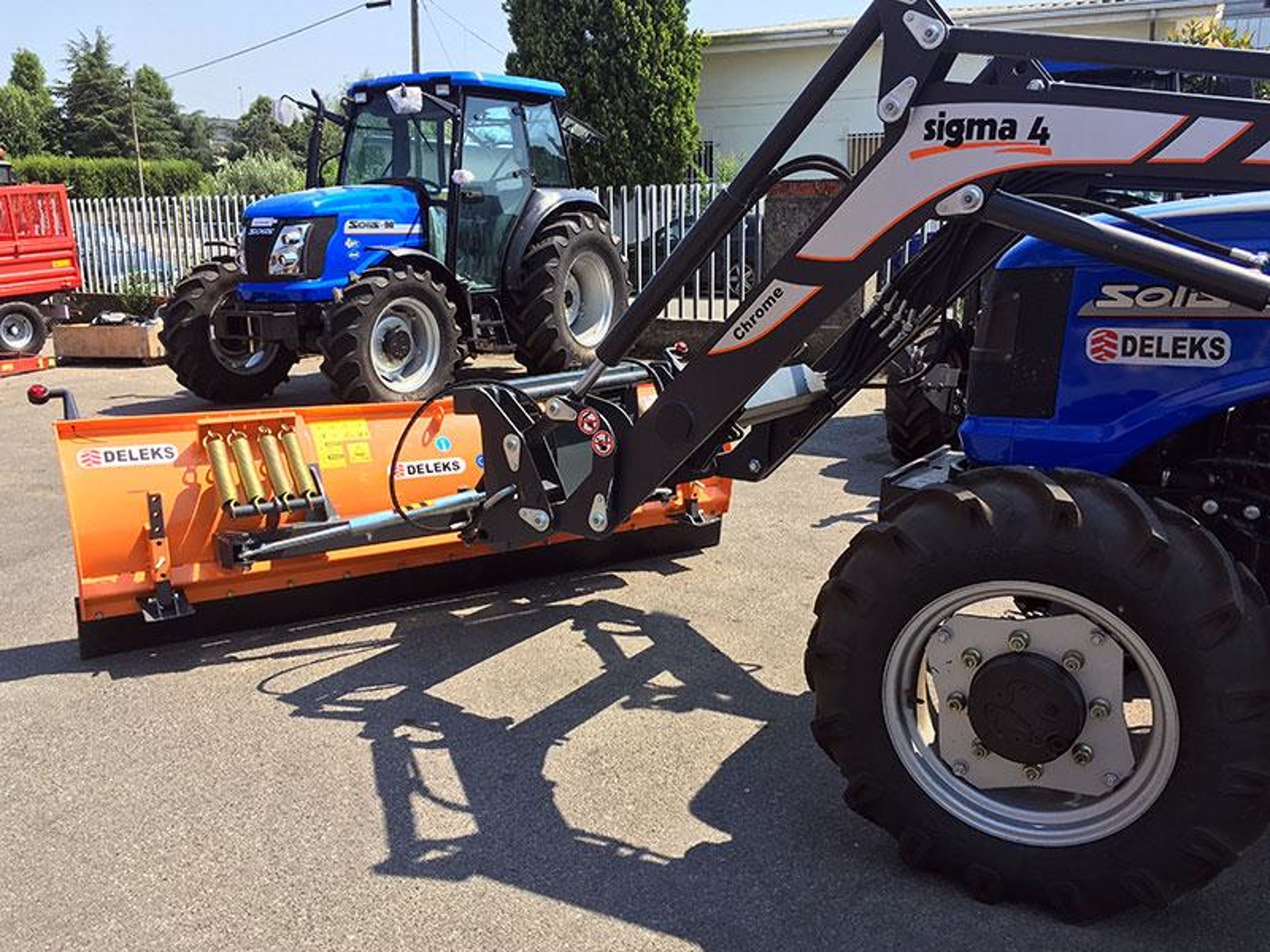

LN-175-E Snowplow has been designed for tractors front-end loaders, from 30 to 70hp. Angling of the plow is done hydraulically. We supply 1.5m pipes that connect to the tractor. Supplied with skid shoes and marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.



BENEFITS AND FEATURES

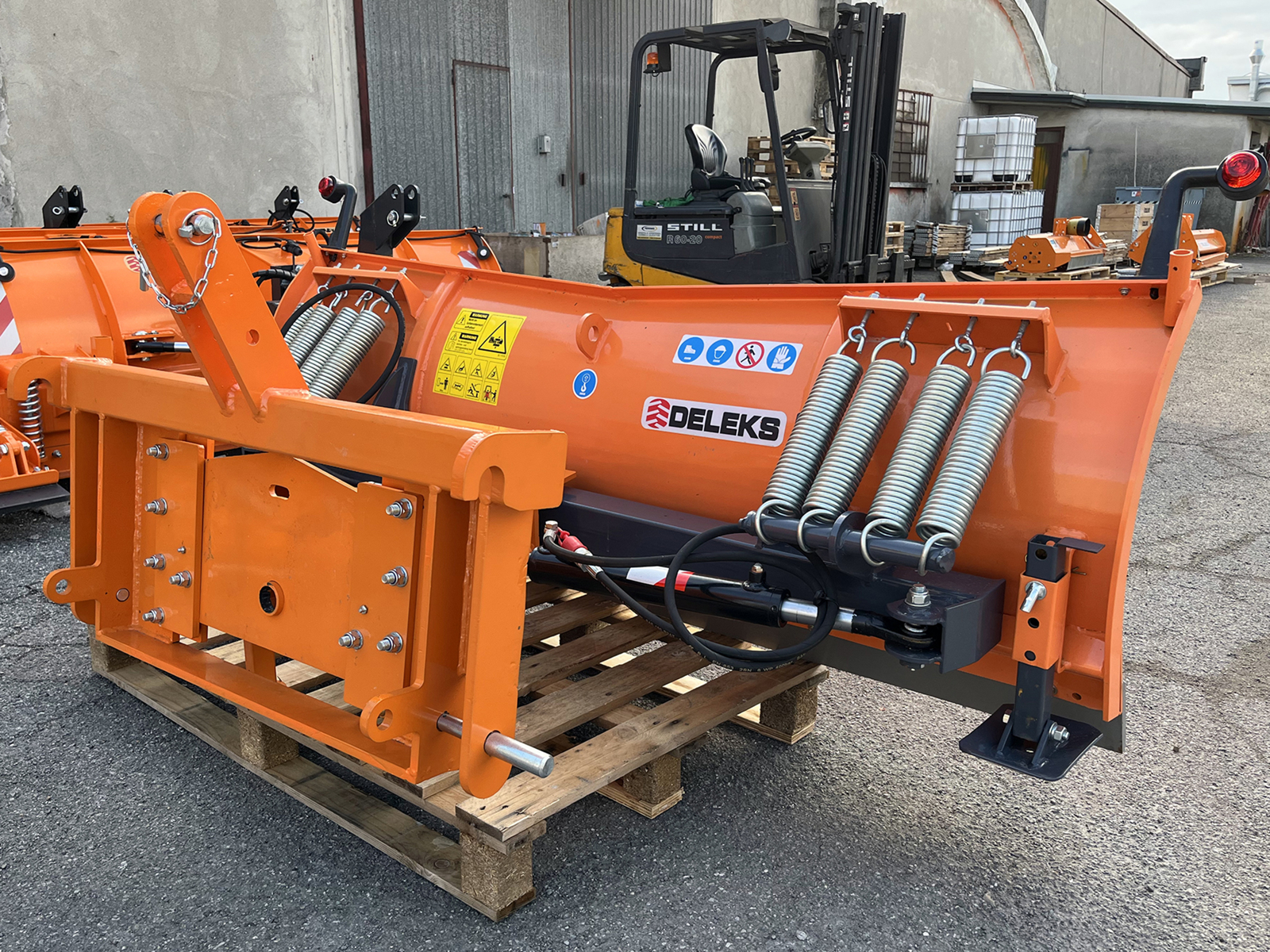

Shockproof system with 8 shock absorbing springs to operate in maximum safety.

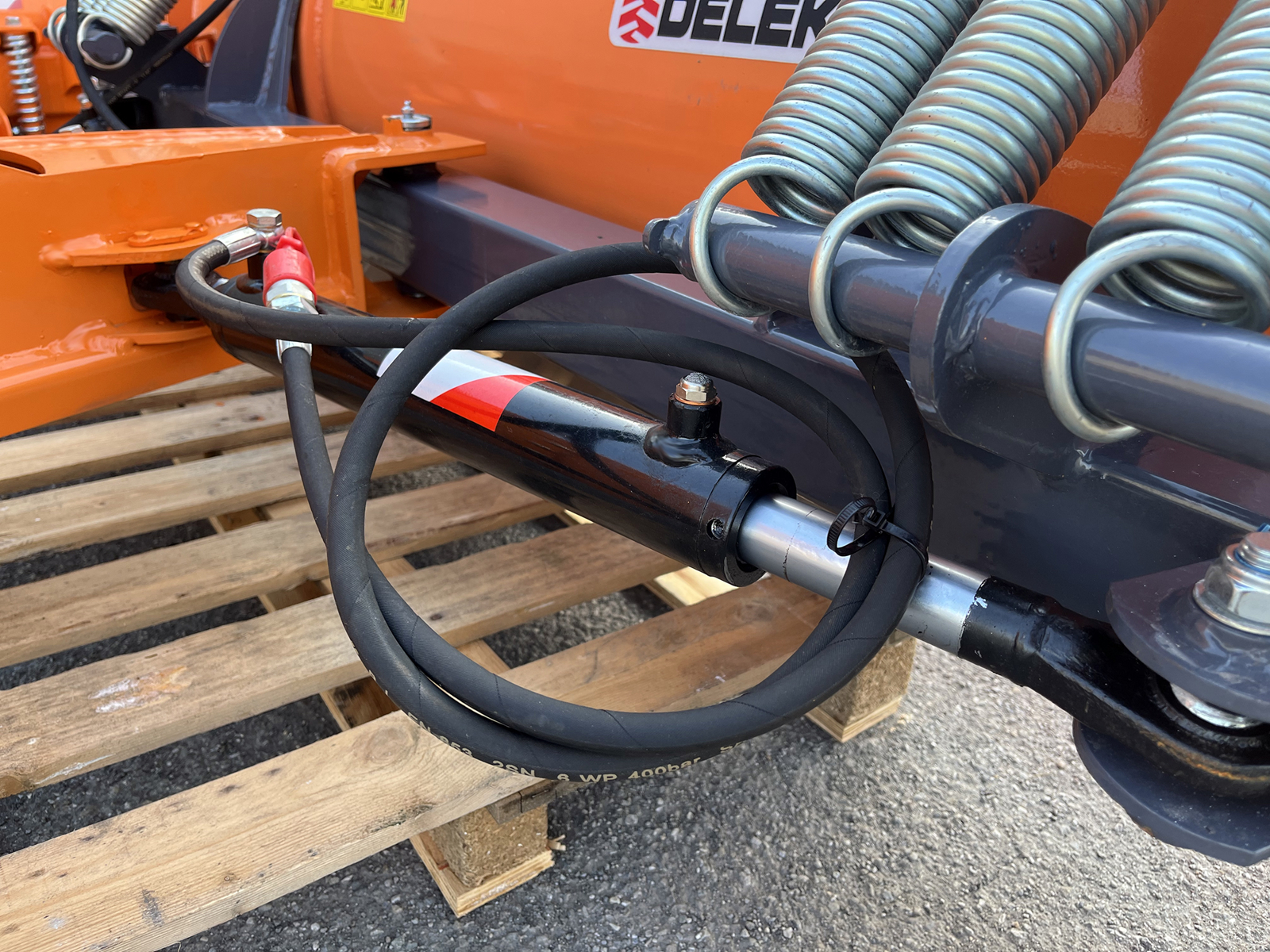

Hydraulic system consists of two pistons brand Made in Italy for the right orientation / left.

Perfect adherence to the road surface and homologated for road use.

Extreme ease of assembly and use.

Adjustable torque slides, make work easier, reducing the pressure on the cutting edge, especially on rough surfaces such as gravel parking lots.

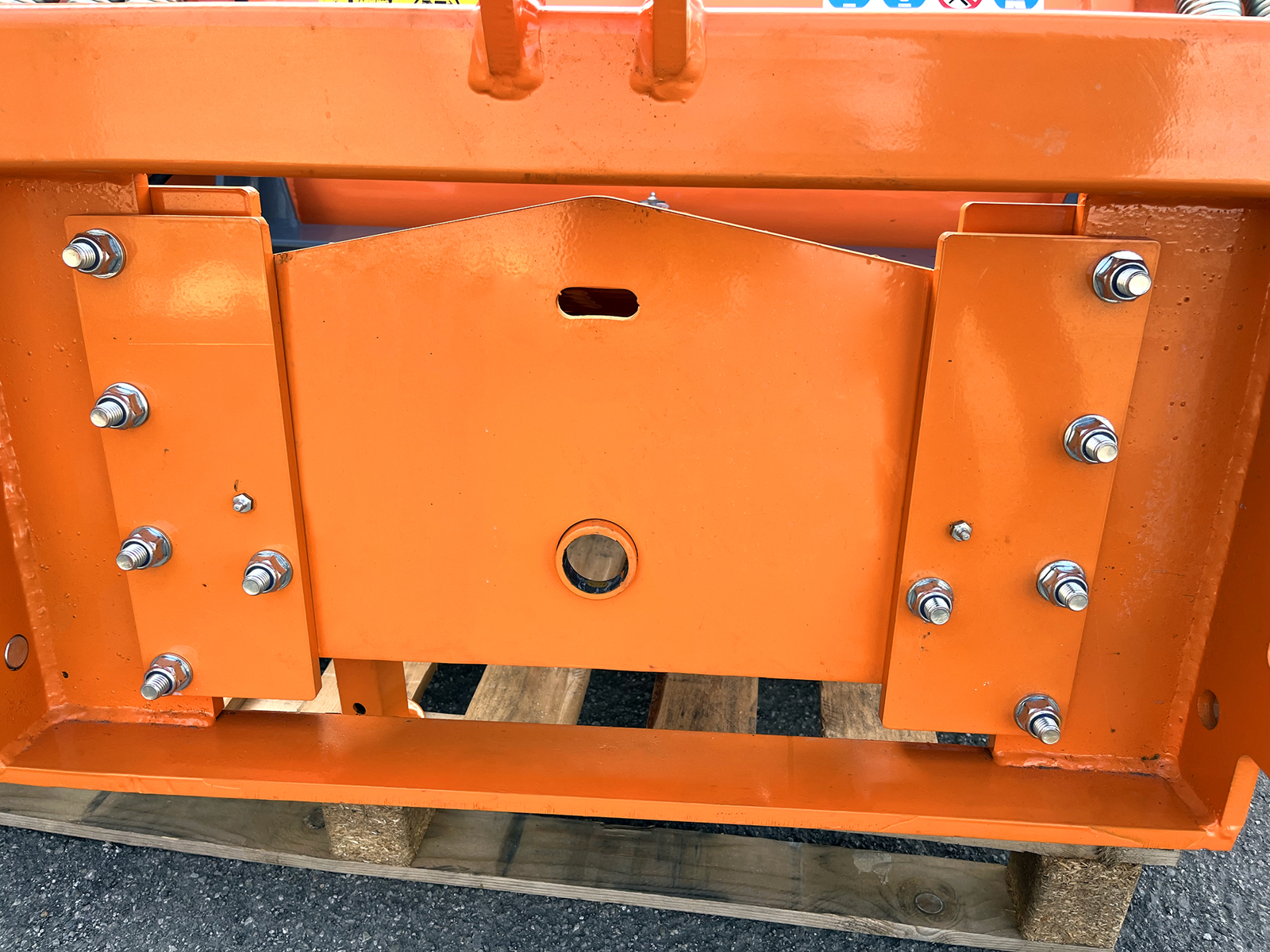

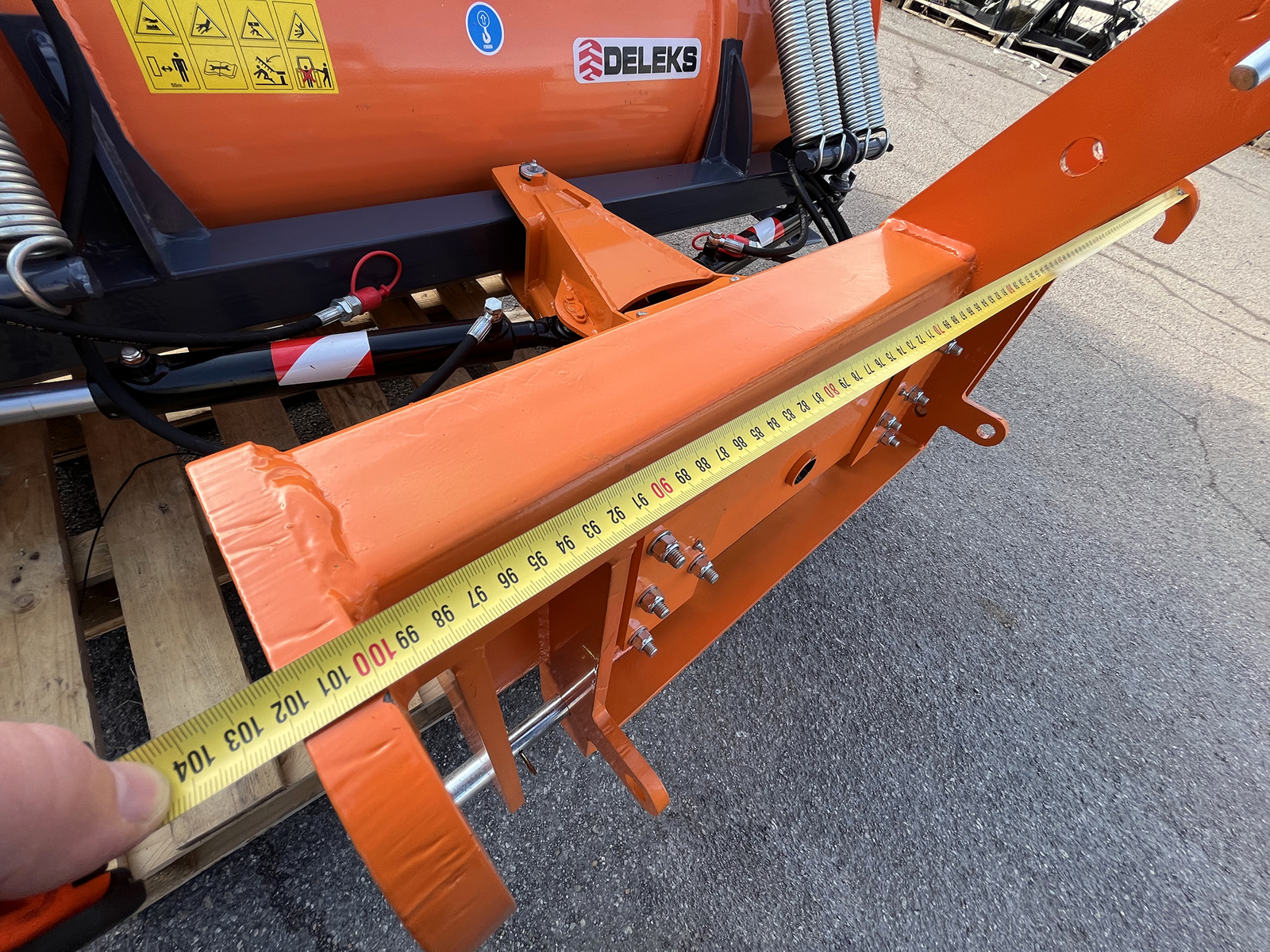

The EURO linkage is removable and replaceable with fitting plate, 3-point hitch, or Skid steer loaders.



Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual



CHARACTERISTICS

Characteristic Units metric Units US
Weight 275.0 kg 606.27 lb
Overall height 700.0 mm 2.30 ft
Tractor Power Range 30 - 70 Hp 30 - 70 Hp
Overall Length 950.0 mm 3.11 ft
Min./Max. Relief Pressure 110 - 150 bar 110 - 150 bar
Min./Max. Flow 18 - 22 l/min 18 - 22 l/min
Interface EURO EURO
Angling (left/right) 27° 27°
Float +/- 4° +/- 4°
Blade Height 700.0 mm 2.30 ft
Side edge thickness 8.0 mm 0.32 in
Shock absorbers 8 8

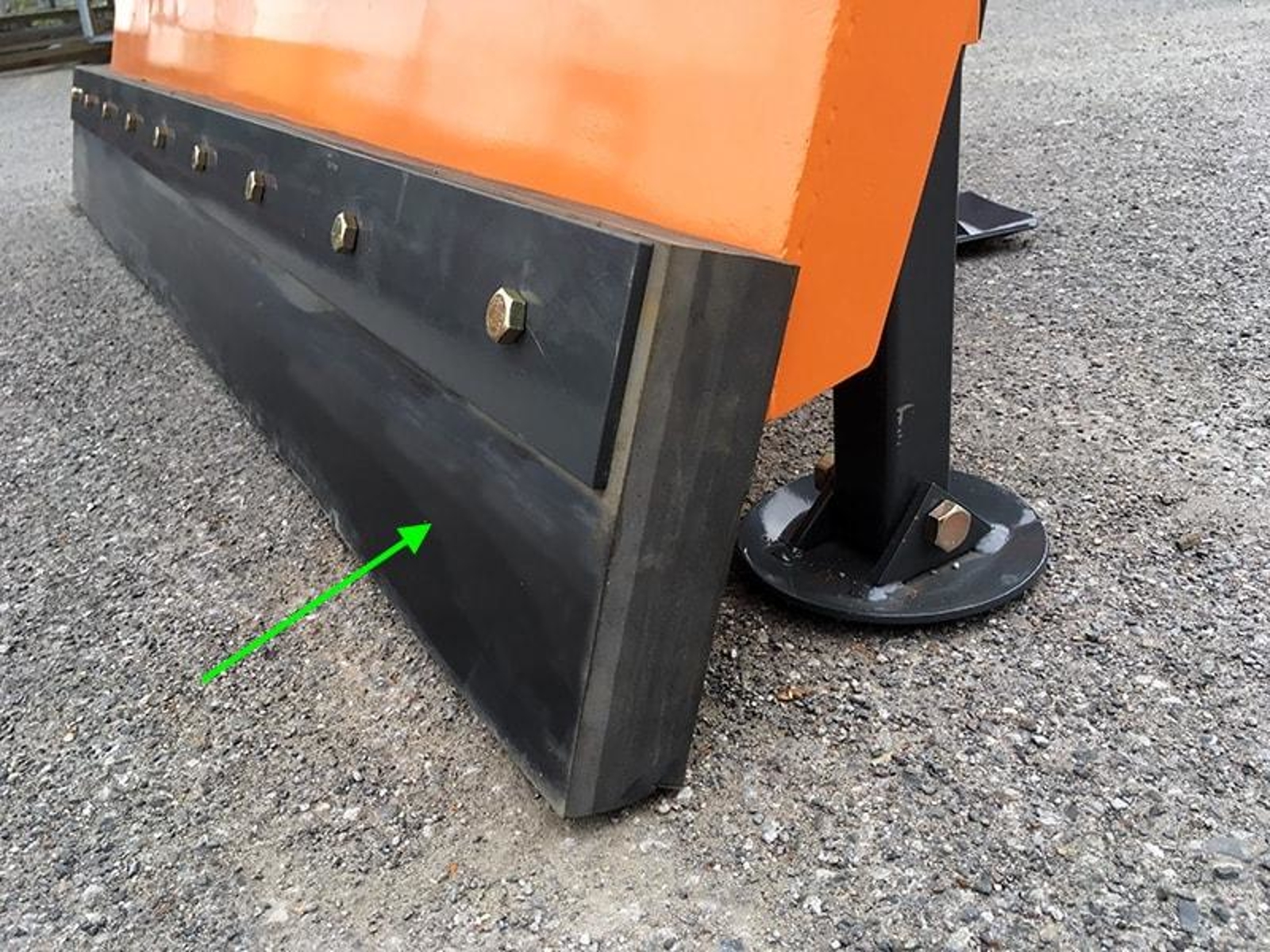

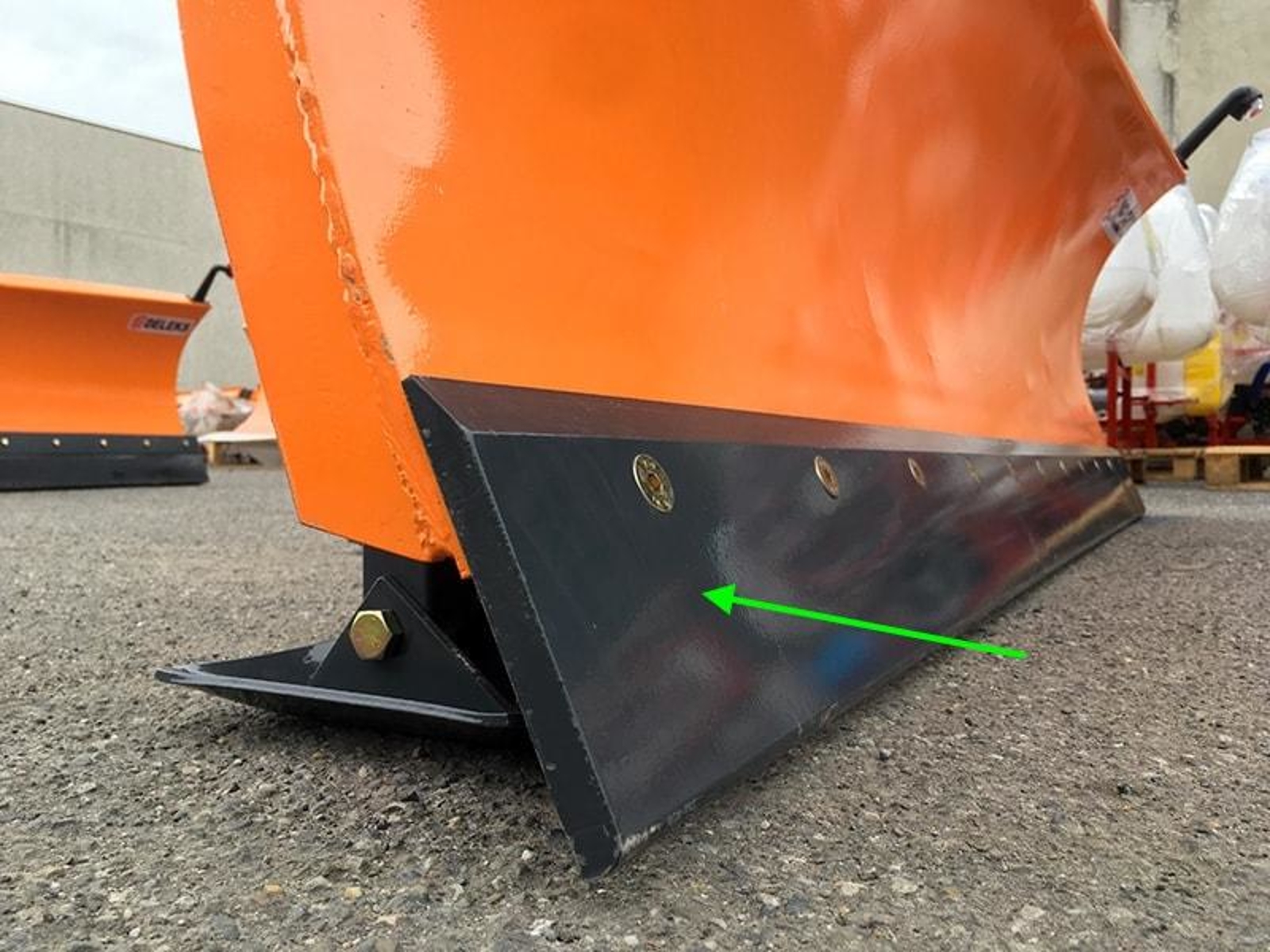

Cutting Edge Steel or Rubber Steel or Rubber
Cutting Edge Height 150.0 mm 5.90 in
Cutting Edge Thickness 16.0 mm 0.63 in
Trip Edge Quantity 1 1
Distance betweens the bolts of the Trip Edge 200.0 mm 7.87 in
Lights
Removable Skid Shoes

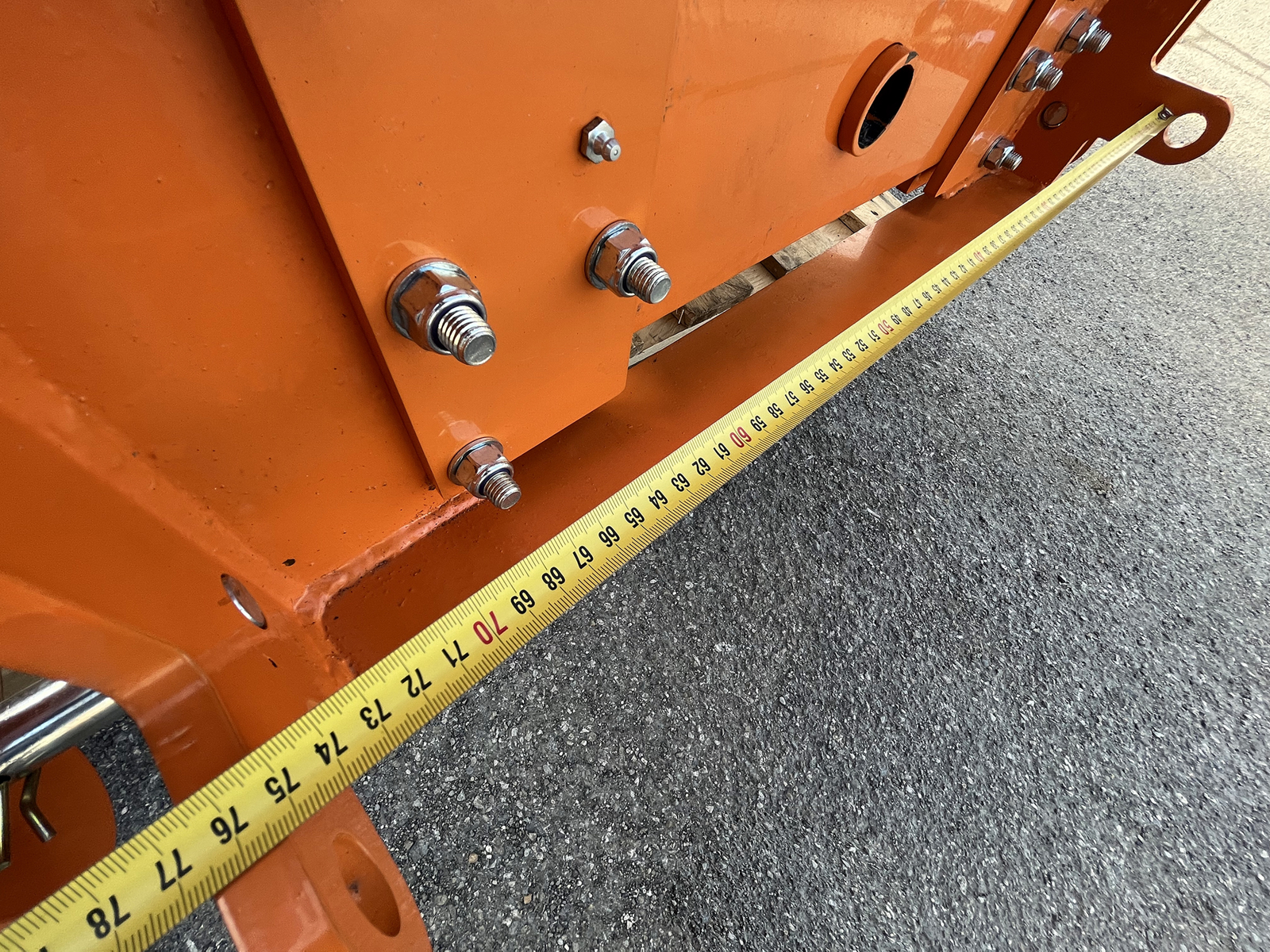

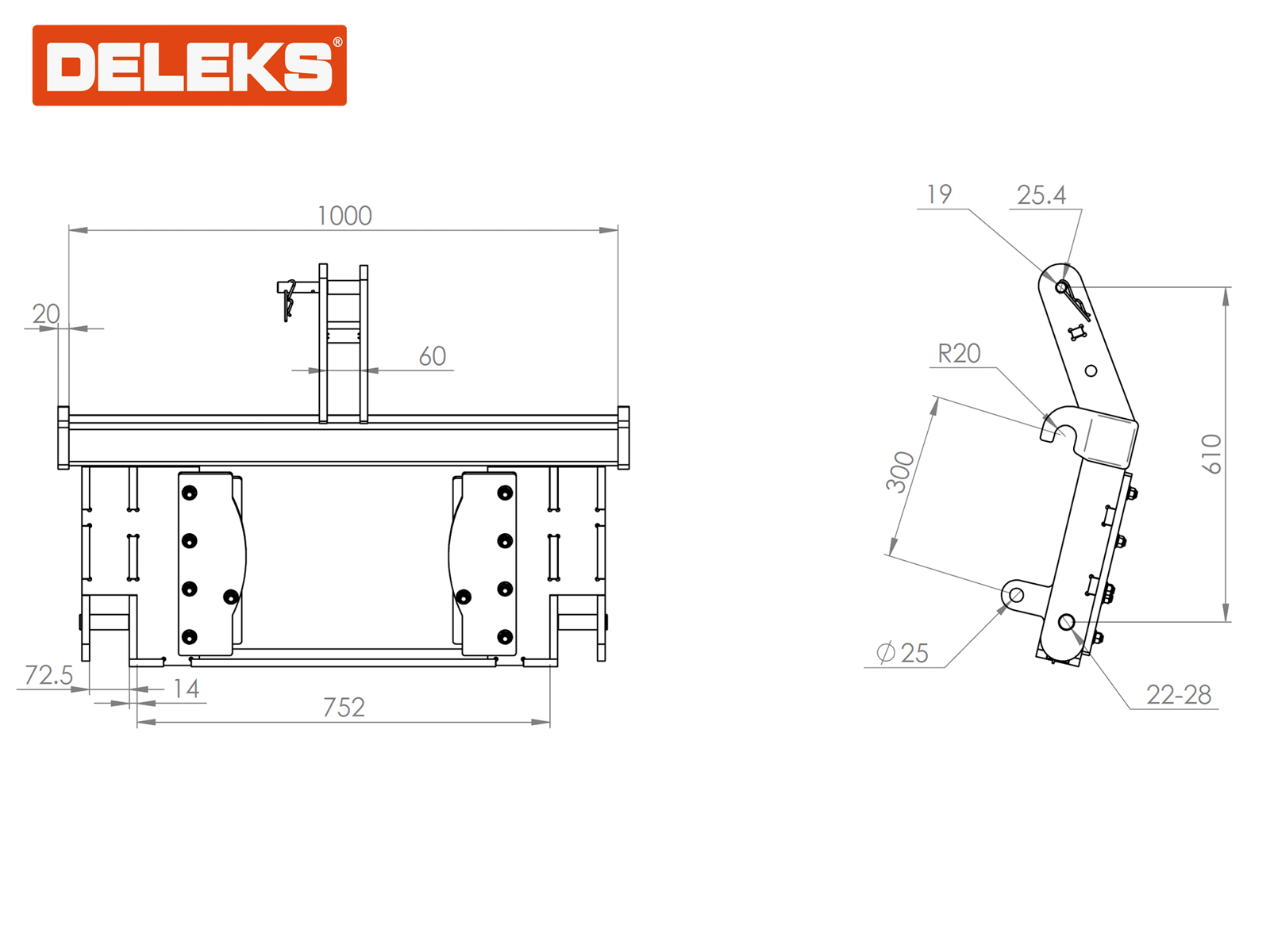

Universal attachment sizes See pictures See pictures
Working width (angled) 1563.0 mm 5.13 ft
Hydraulic Hoses 2 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar 2 x 4.92 ft/ connections 1.2", WP 400 bar
Overall width 1755.0 mm 5.76 ft
Main frame thickness 5.0 mm 0.2 in
Hydraulic cylinder/s ø 60.0/30.0 mm 2.36/1.18 in
Packing sizes 1755.0*800.0*830.0 mm 5.75*2.62*2.95 ft

Optional

2 hydr pipes 4 00m fast connection set
2 Hydr. pipes 4,00m + Fast connection Set
170,00VAT incl.
Available

4,00m - Quick Release Coupling 1/2"

Fast connection set.

2 springs snowblade ln lns lnk
2 springs snowblade LN-LNS-LNK
100,00VAT incl.
Available

LN-LNS-LNK

couple marker lights ln
Couple marker lights LN
56,00VAT incl.
Available

LN 175/250

spare rubber blade 175 cm
Spare rubber blade 175 cm
200,00VAT incl.
Available

LN-175

spare skid shoe ln 175
Spare skid shoe LN-175
78,00VAT incl.
Not available Notify me

LN-175

spare steel blade 175 cm
Spare steel blade 175 cm
202,00VAT incl.
Available

DDL-175, LN-175
