LN-175-M Snow plow for up to 3.0 ton skid steer loaders - DELEKS® - 175cm - The Universal attachment for Skid steer loaders.
Strong and durable snowplow for skid steer loaders up to 3.0ton. Compatible with all common brands e.g. Bobcat, JCB, Caterpillar, Case, etc. Angling of the plow is done hydraulically. We supply 1.5m pipes that connect to the tractor. Supplied with skid shoes and marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES

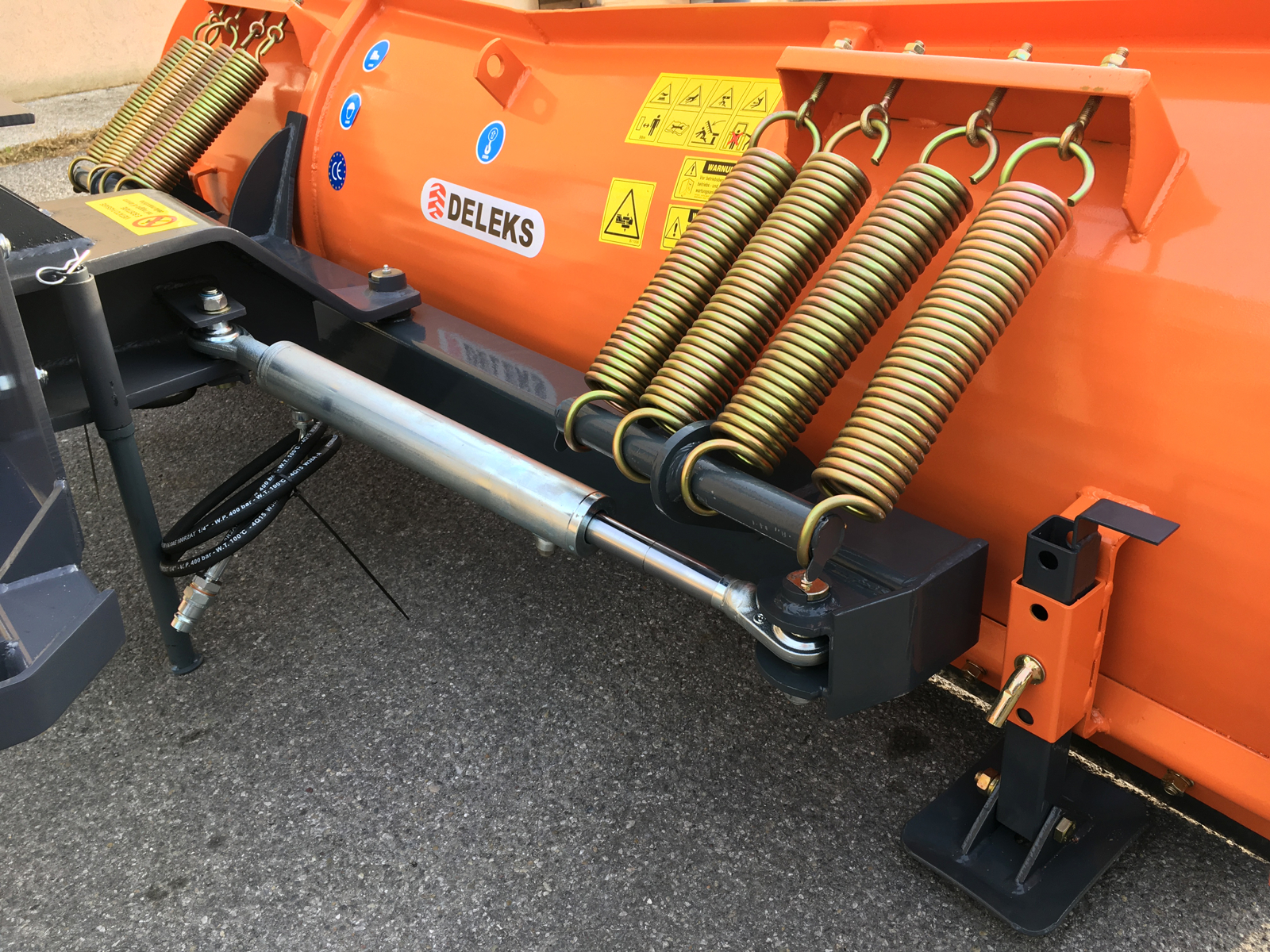

Shockproof system with 8 shock absorbing springs to operate in maximum safety.
Hydraulic system consists of two pistons Made in Italy.
Perfect adherence to the road surface and homologated for road use.
Extreme ease of assembly and use.
Adjustable torque slides, make work easier, reducing the pressure on the cutting edge, especially on rough surfaces such as gravel parking lots.
The Universal attachment for Skid steer loaders is removable and replaceable with 3-point hitch, or EURO attachment for tractor front-end loaders.
Documentation supplied with this article:
Invoice or Receipt
|Characteristic||Units metric||Units US|
|Weight||290.0 kg||640.0 lb|
|Overall height||700.0 mm||2.30 ft|
|Overall Length||950.0 mm||3.11 ft|
|Min./Max. Relief Pressure||110 - 150 bar||110 - 150 bar|
|Min./Max. Flow||18 - 22 l/min||18 - 22 l/min|
|Interface||Universal for Skid Steer Loaders||Universal for Skid Steer Loaders|
|Float||+/- 6°||+/- 6°|
|Blade Height||700.0 mm||2.30 ft|
|Side edge thickness||8.0 mm||0.32 in|

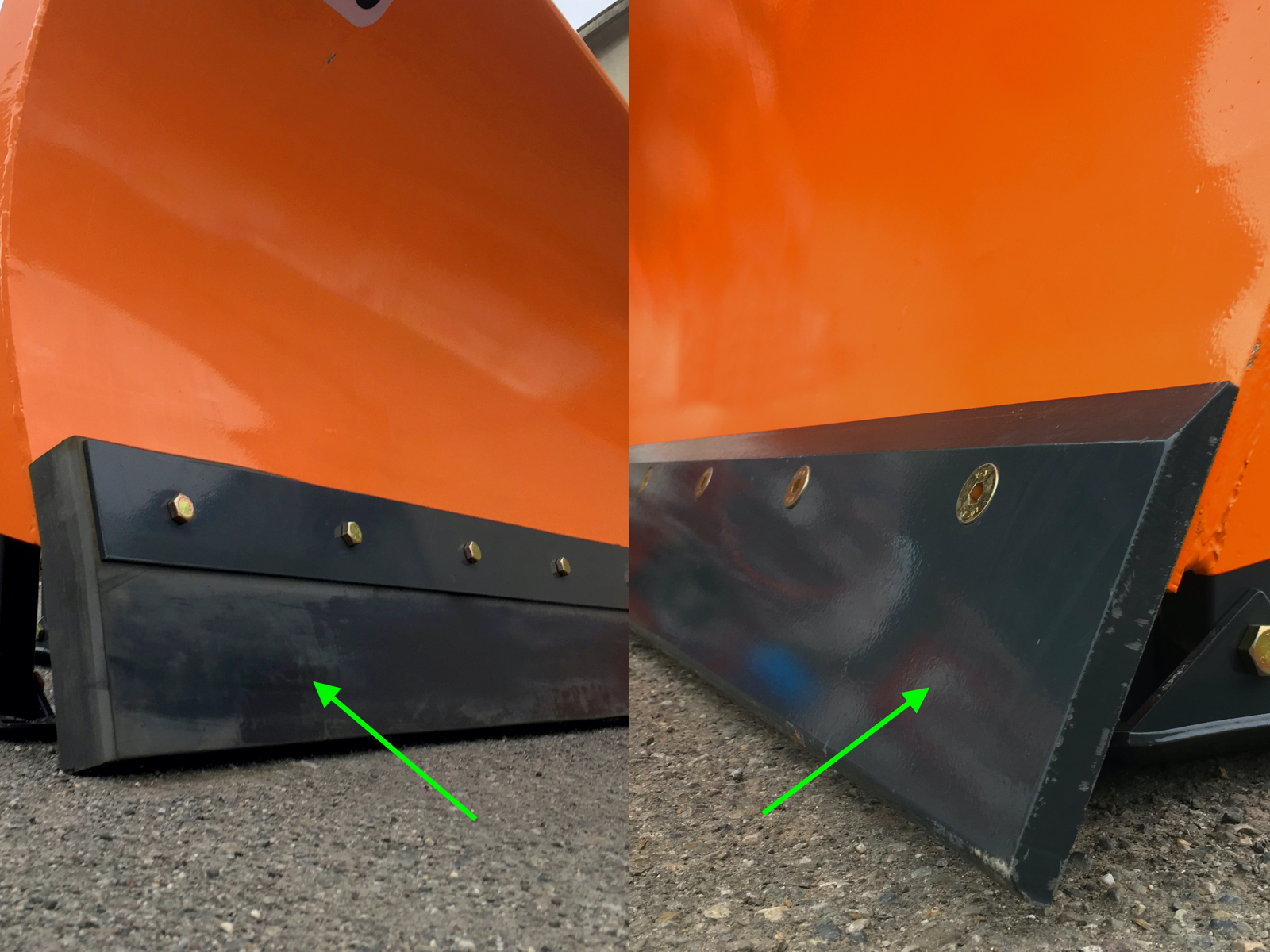

|Cutting Edge||Steel or Rubber||Steel or Rubber|
|Cutting Edge Height||150.0 mm||5.90 in|
|Cutting Edge Thickness||16.0 mm||0.63 in|
|Trip Edge Quantity||1||1|
|Distance betweens the bolts of the Trip Edge||200.0 mm||7.87 in|
|Removable Skid Shoes||√||√|

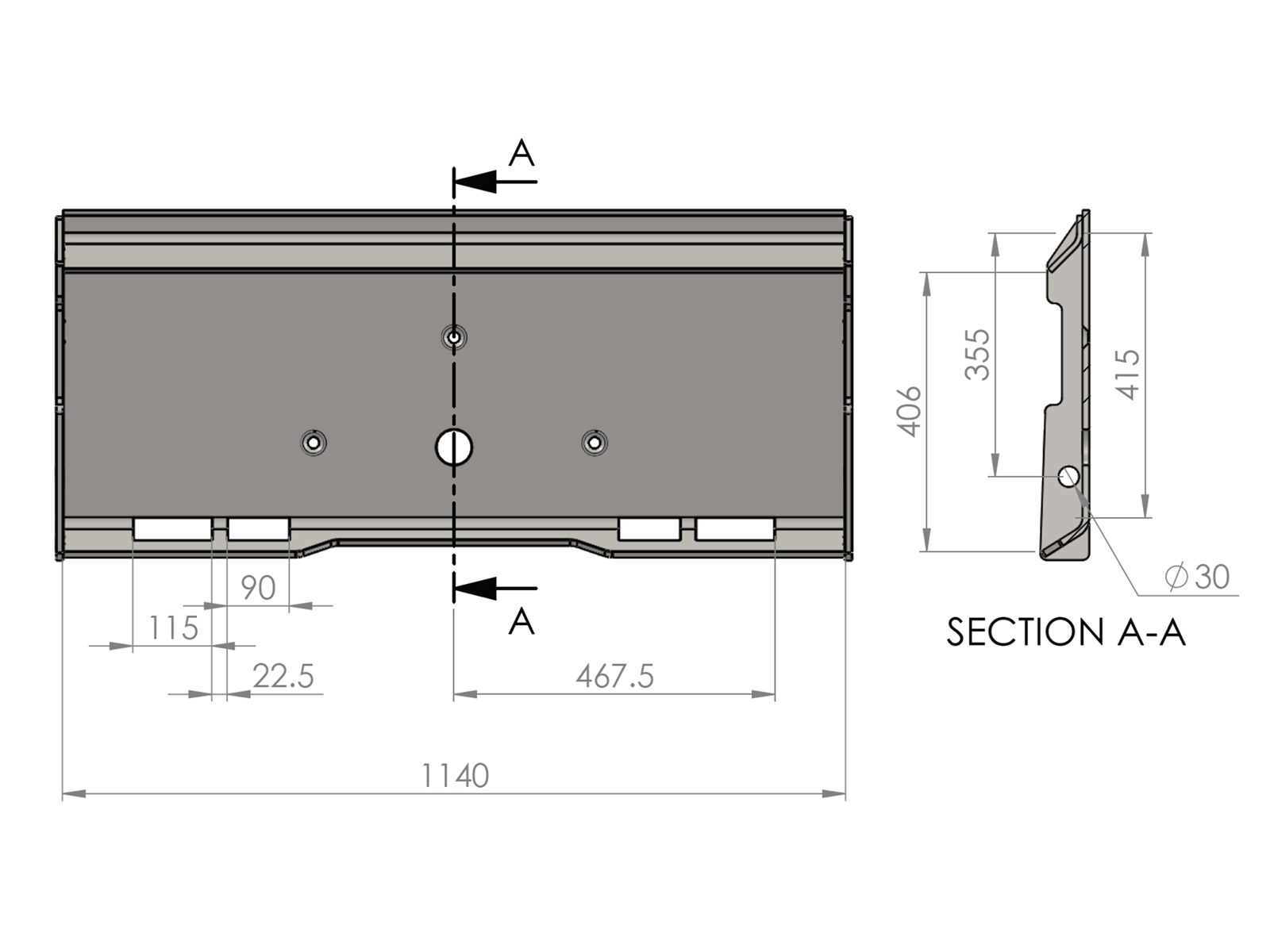

|Universal attachment sizes||See pictures||See pictures|
|Working width (angled)||1563.0 mm||5.13 ft|
|Suitable on||Skid Steer L. 3.0 t max||Skid Steer L. 3.0 t max|
|Hydraulic Hoses||2 x 1500.0 mm / WP 400 bar||2 x 4.92 ft/ WP 400 bar|
|Overall width||1755.0 mm||5.76 ft|
|Main frame thickness||5.0 mm||0.2 in|
|Hydraulic cylinder/s ø||60.0/30.0 mm||2.36/1.18 in|
|Packing sizes||1755.0*800.0*830.0 mm||5.75*2.62*2.95 ft|
