Potato digger for tractors mod. DPT-120

Not available Notify me
CodeDPT120PTO
EAN 8053470230332
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

Potato digger - DELEKS®- for tractors like Kubota, Iseki - for potatoes, tubers - 3-point linkage - Pto Shaft included.


OVERVIEW

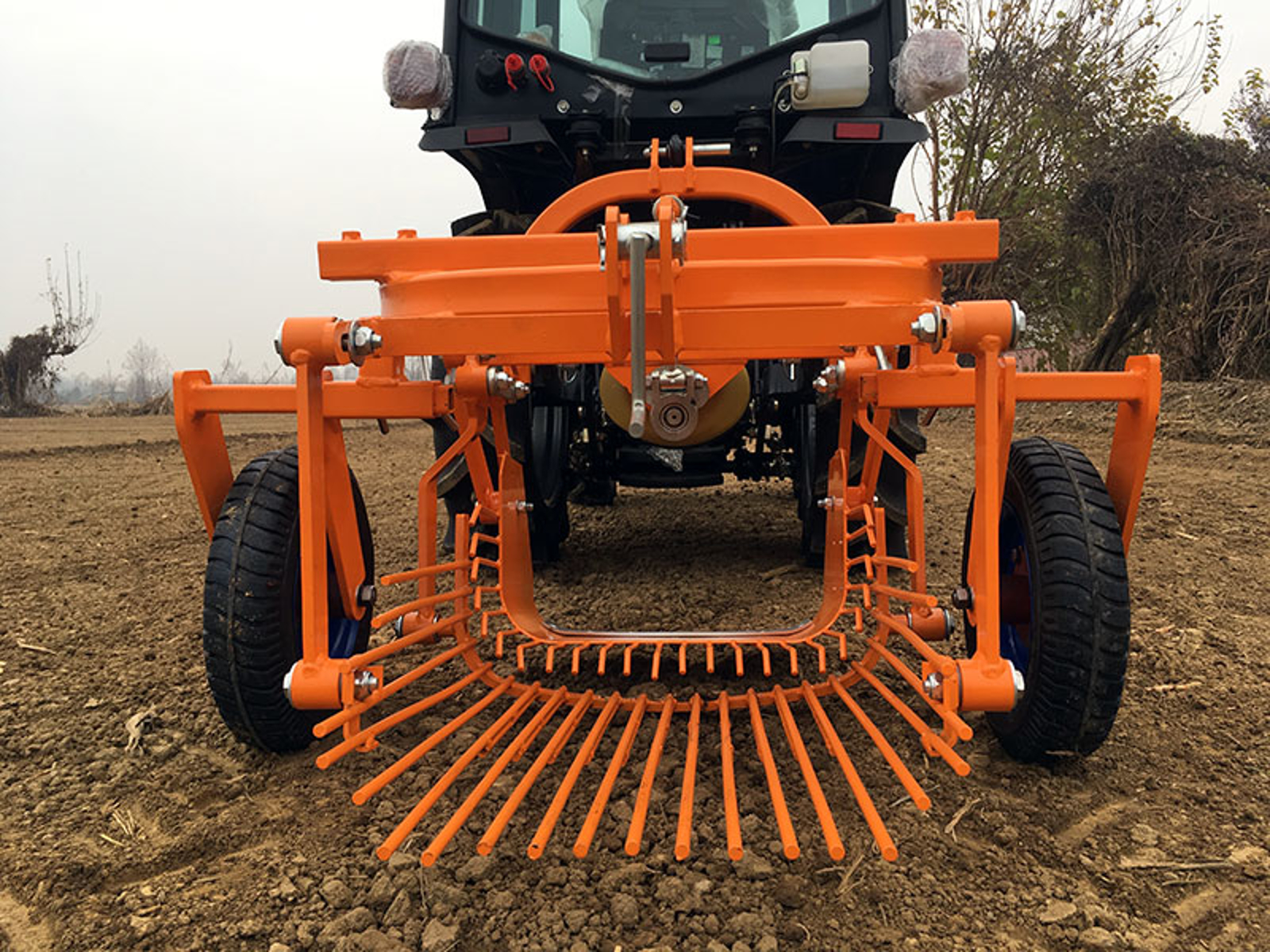

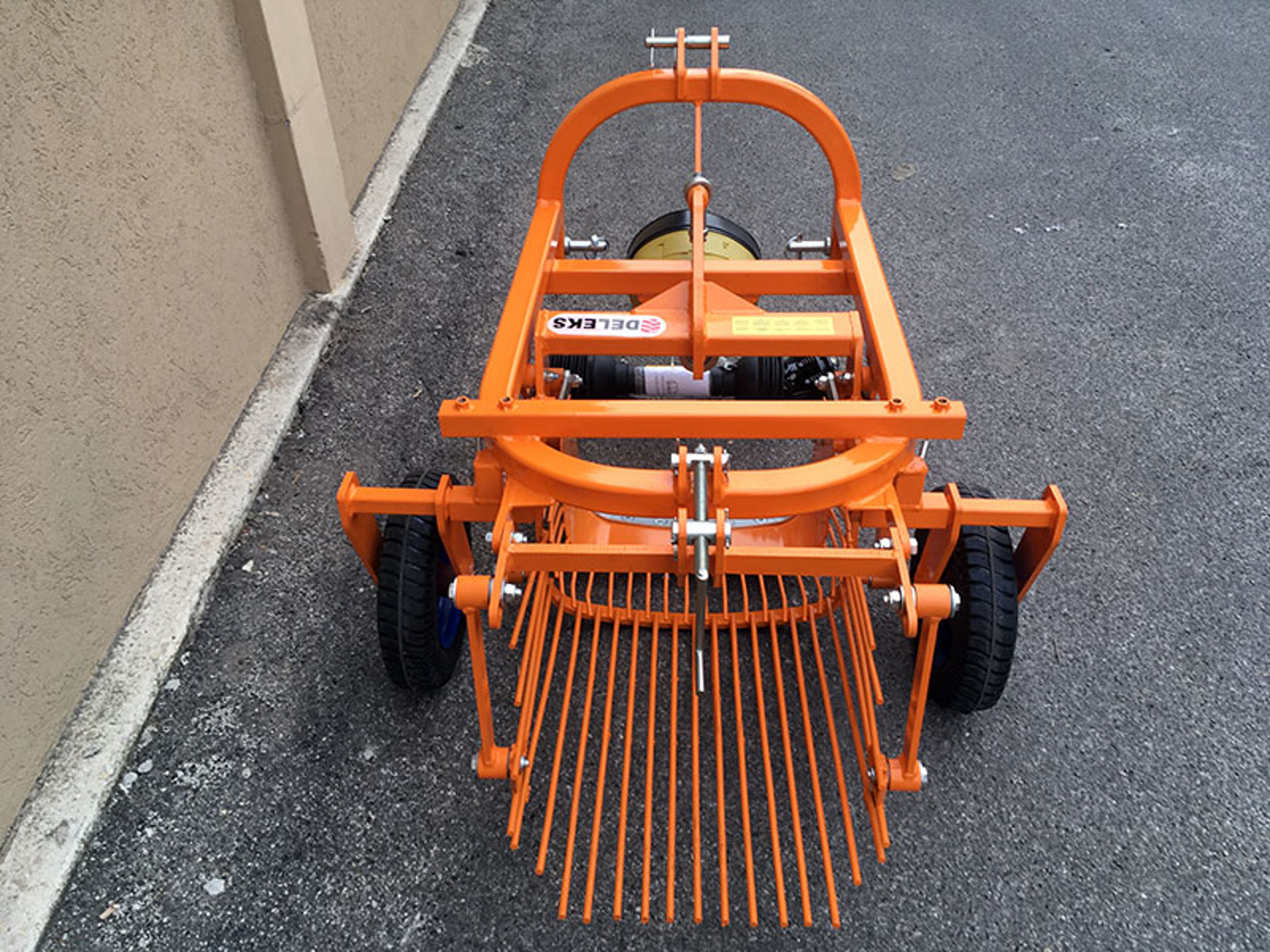

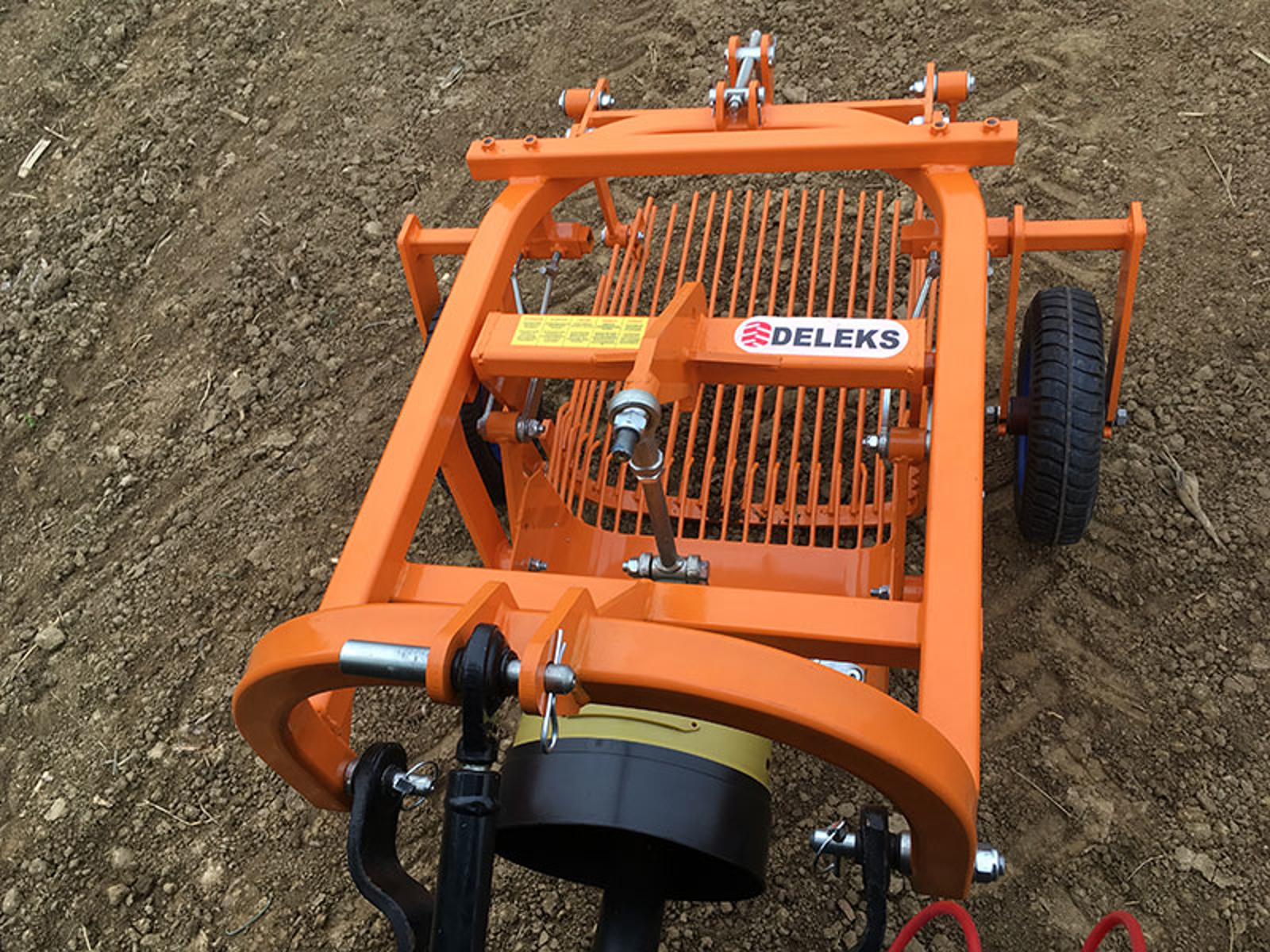

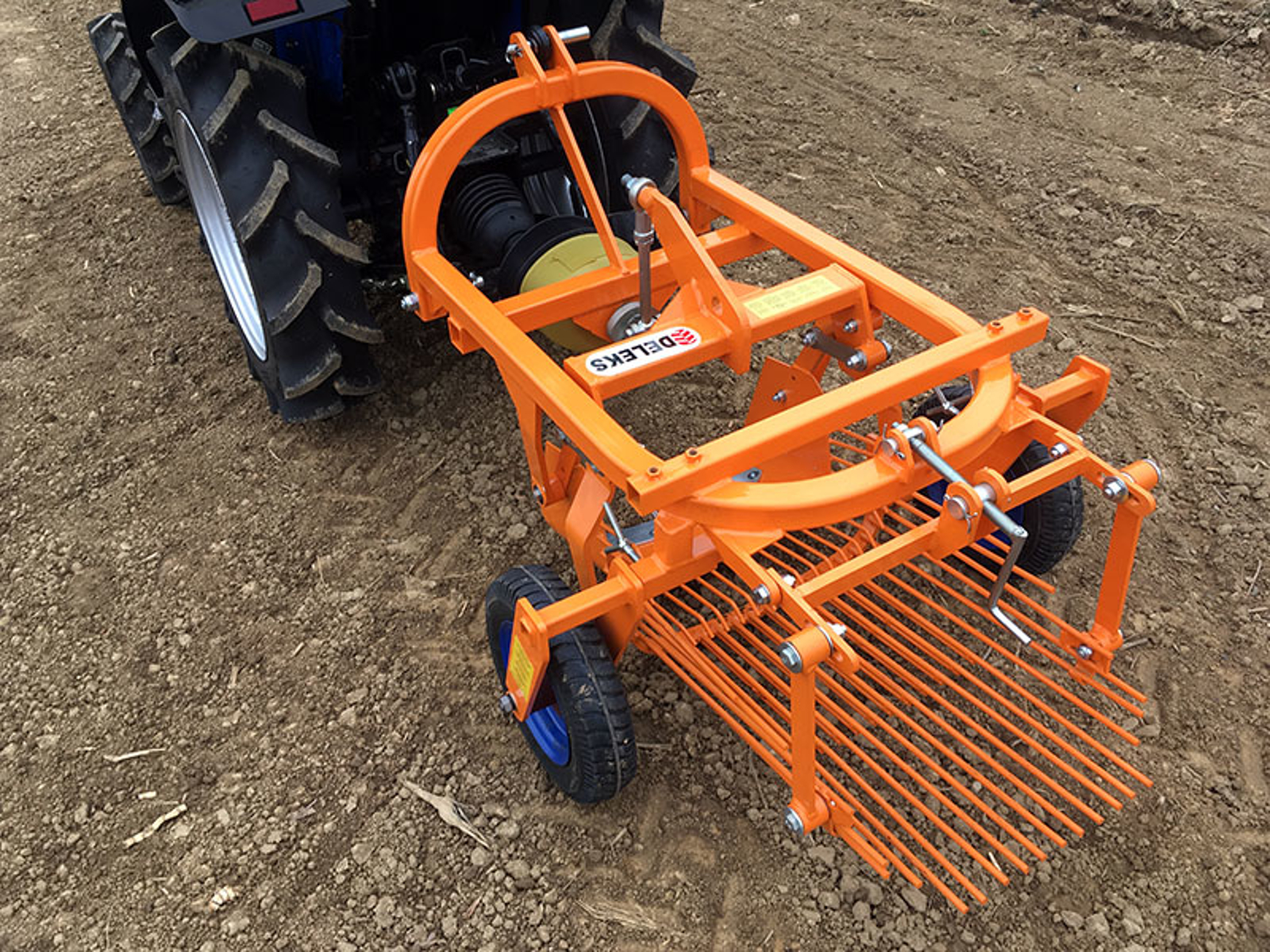

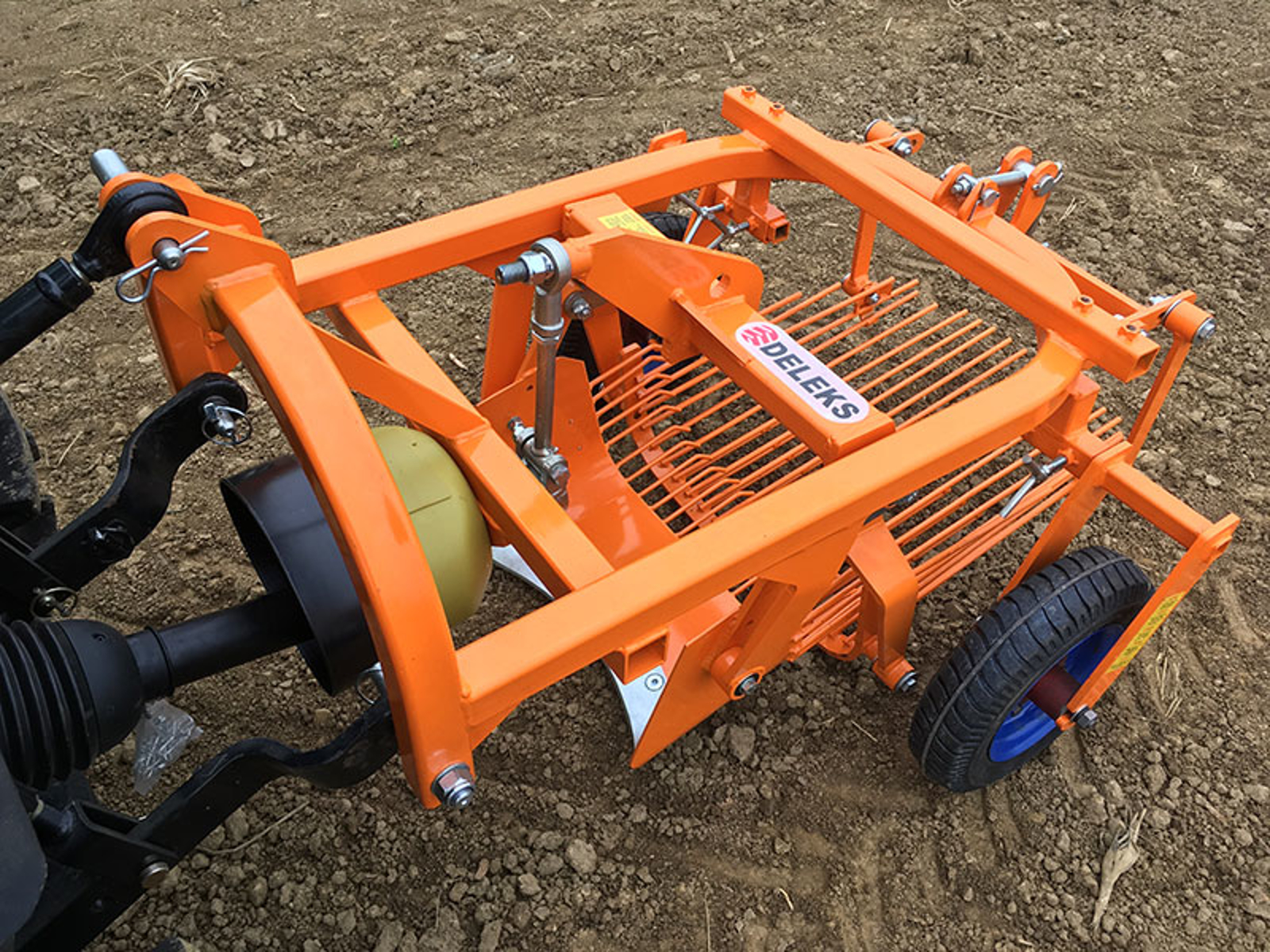

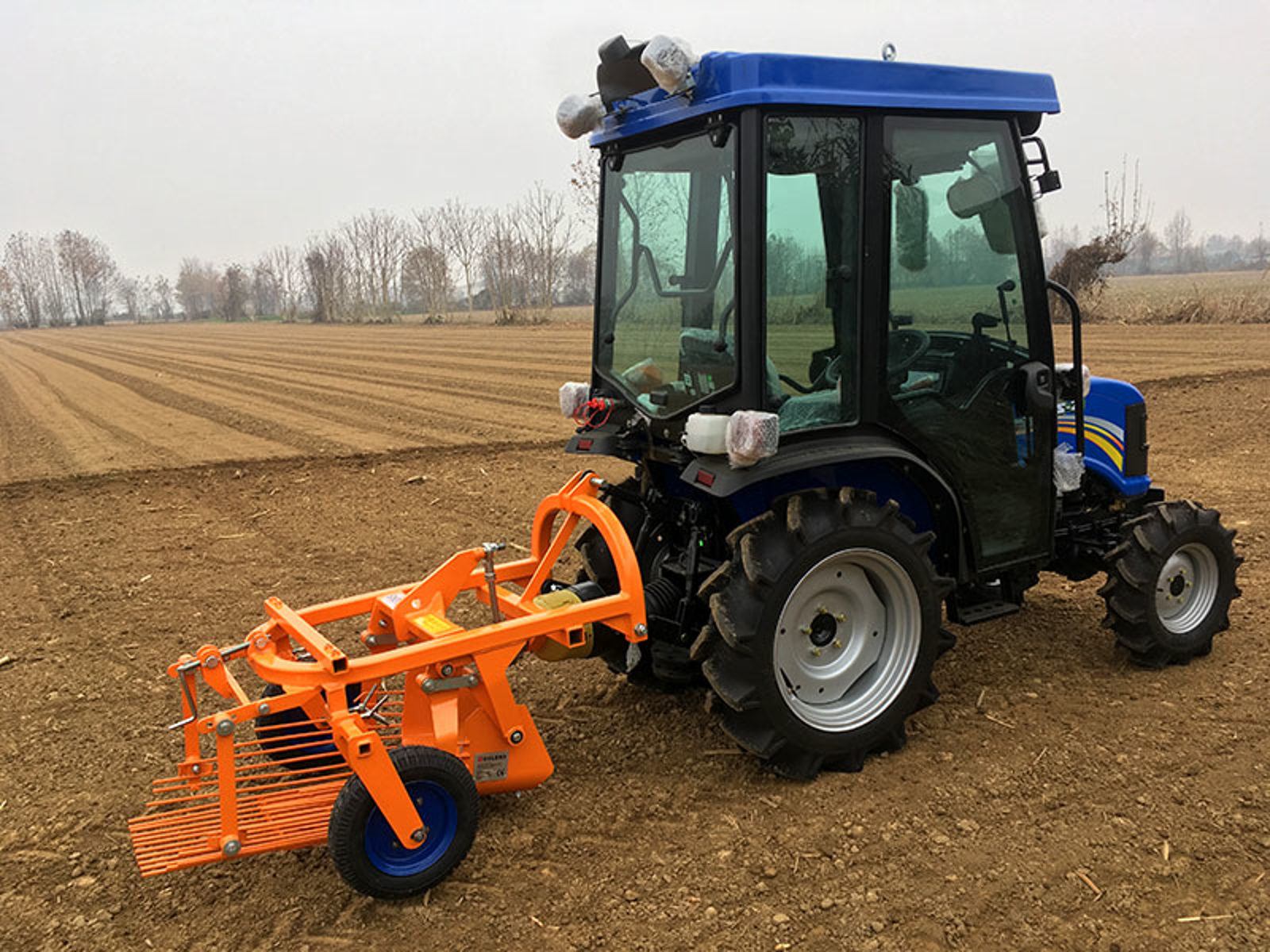

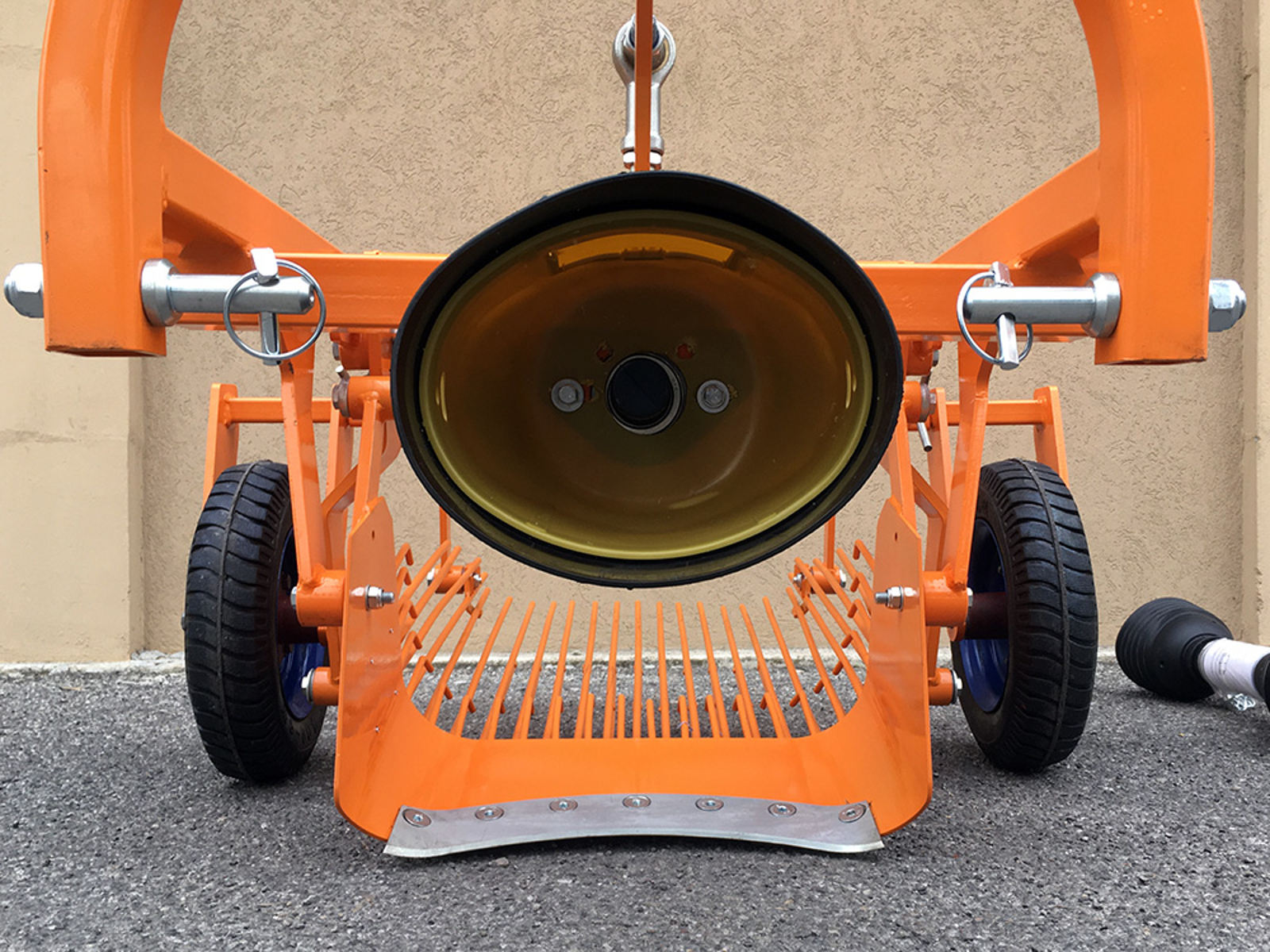

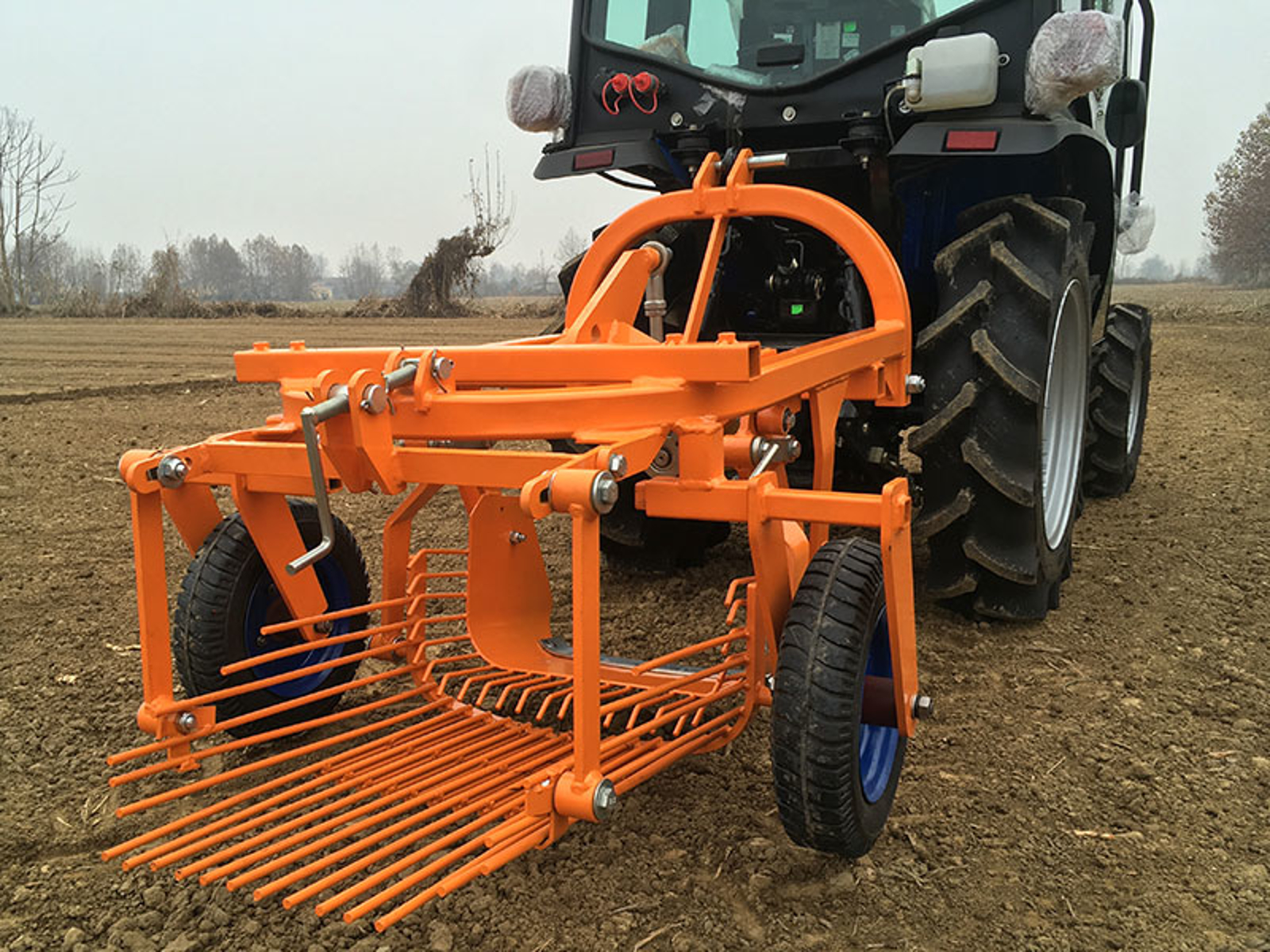

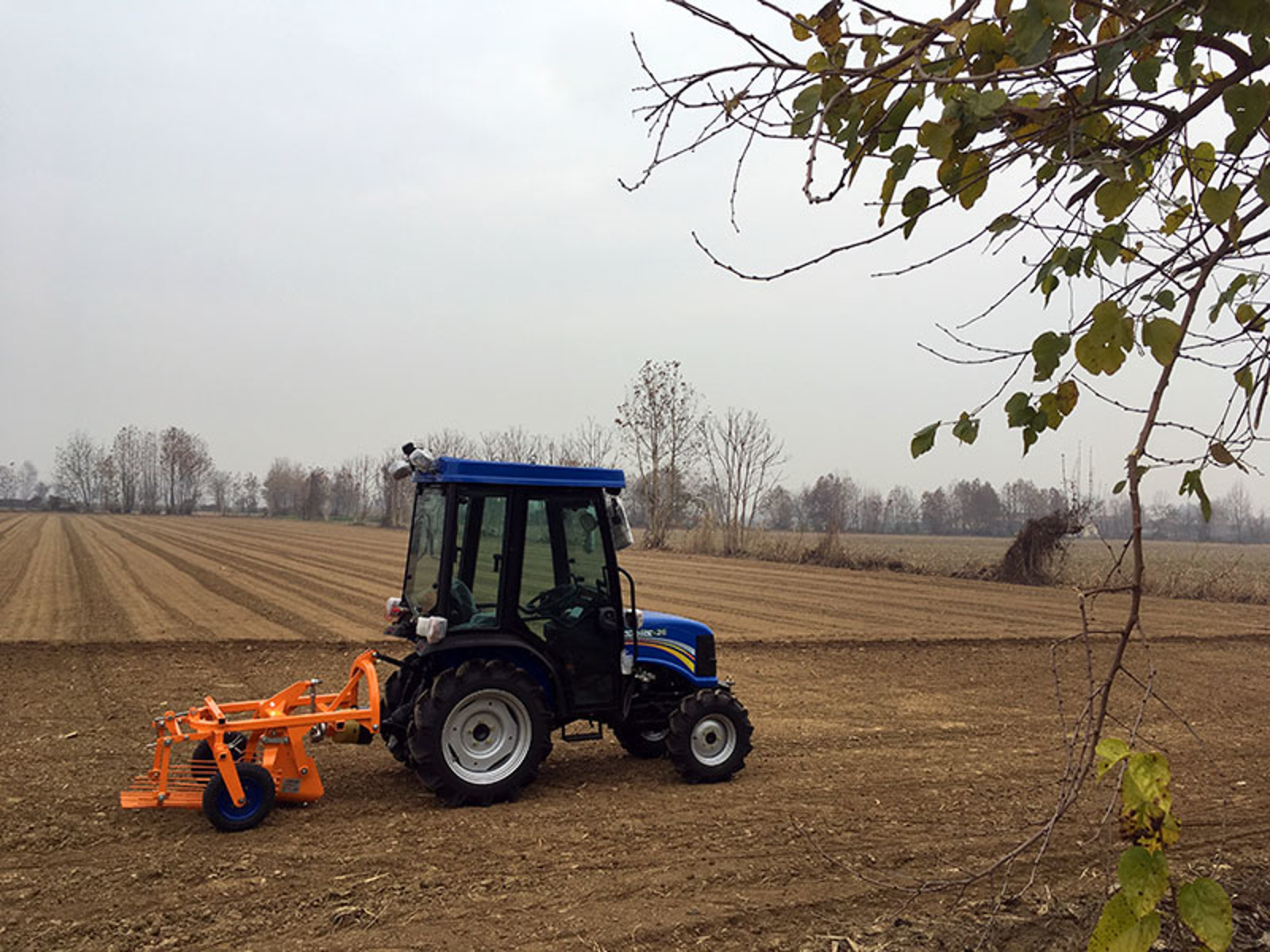

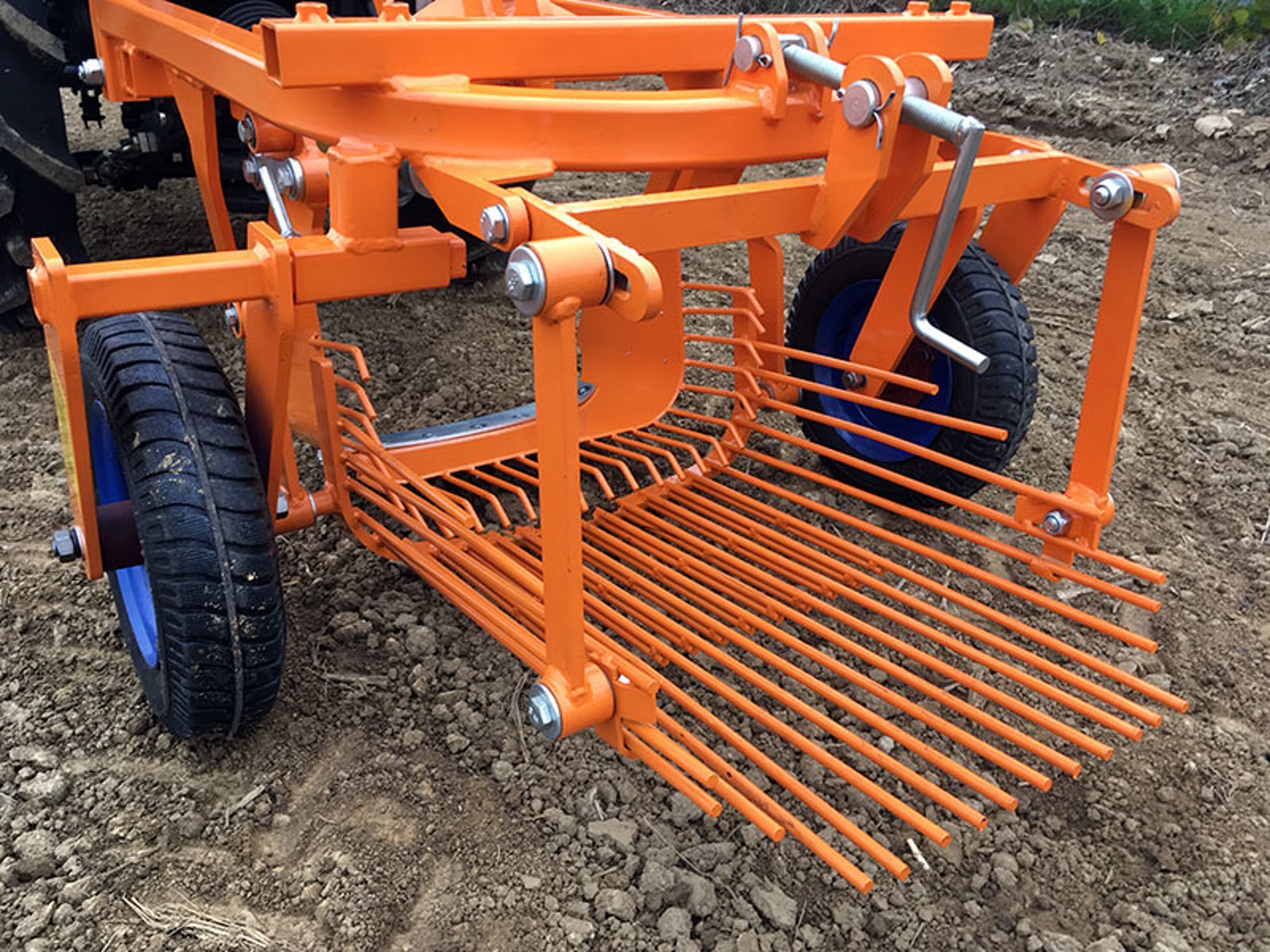

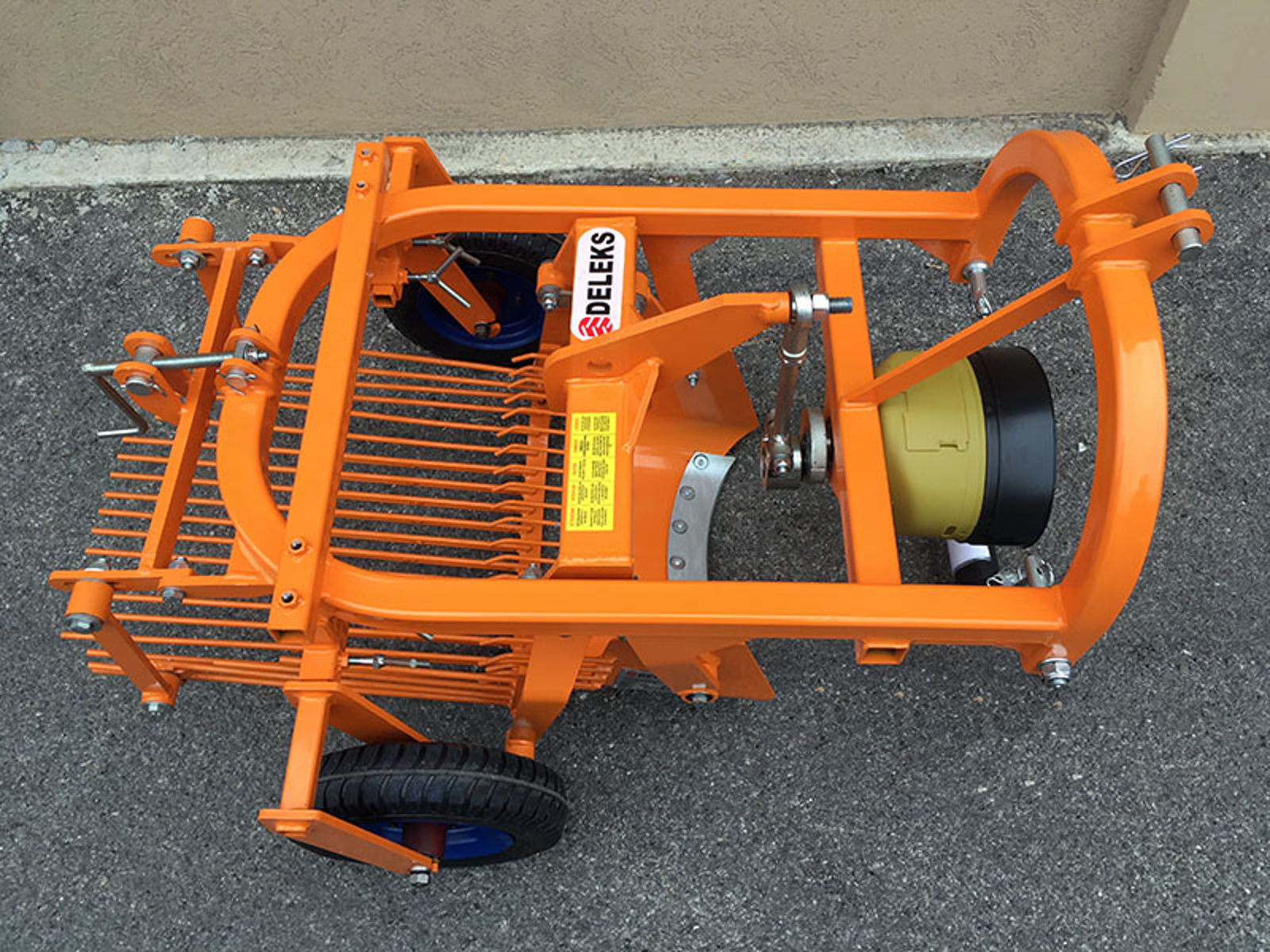

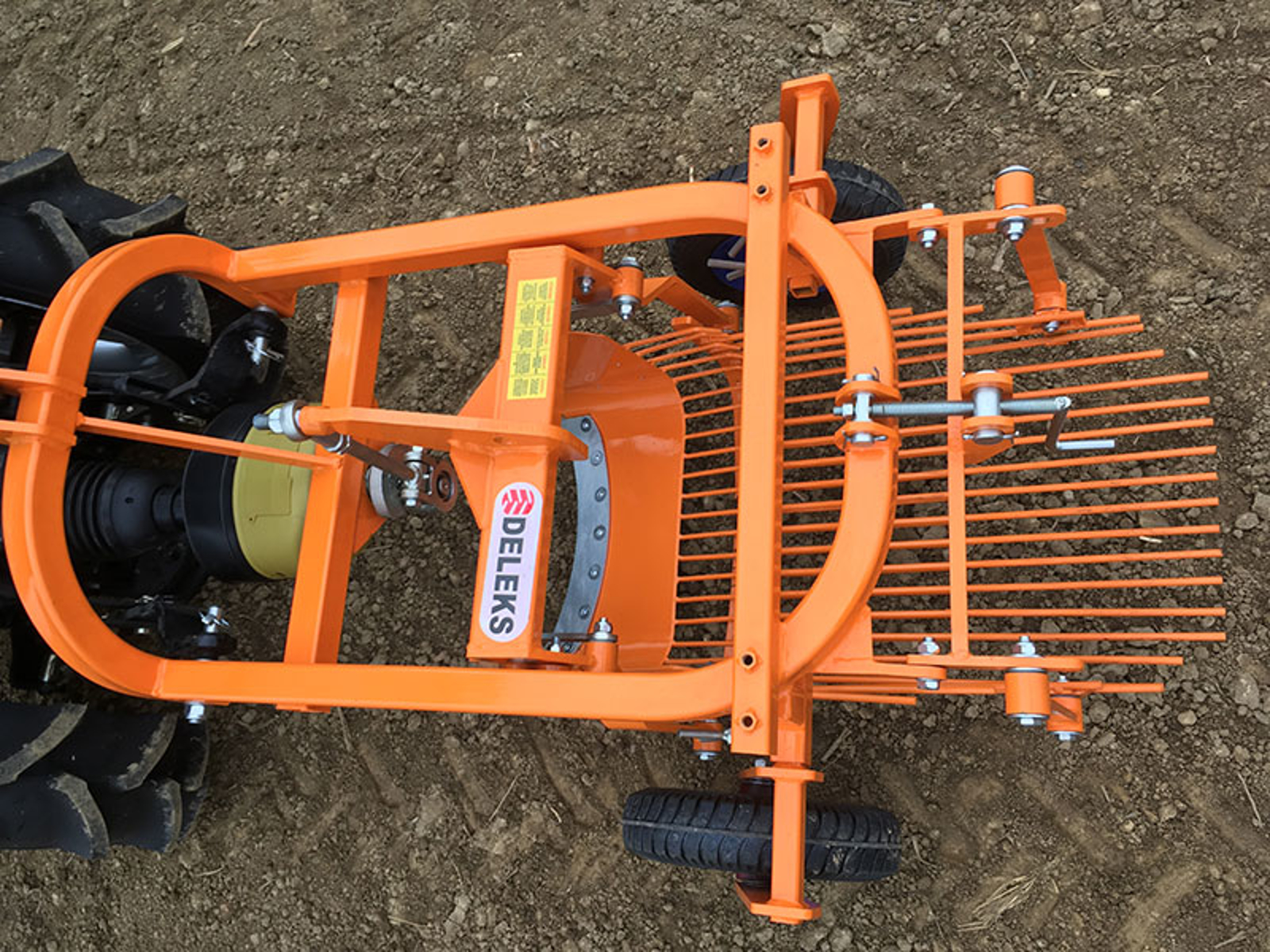

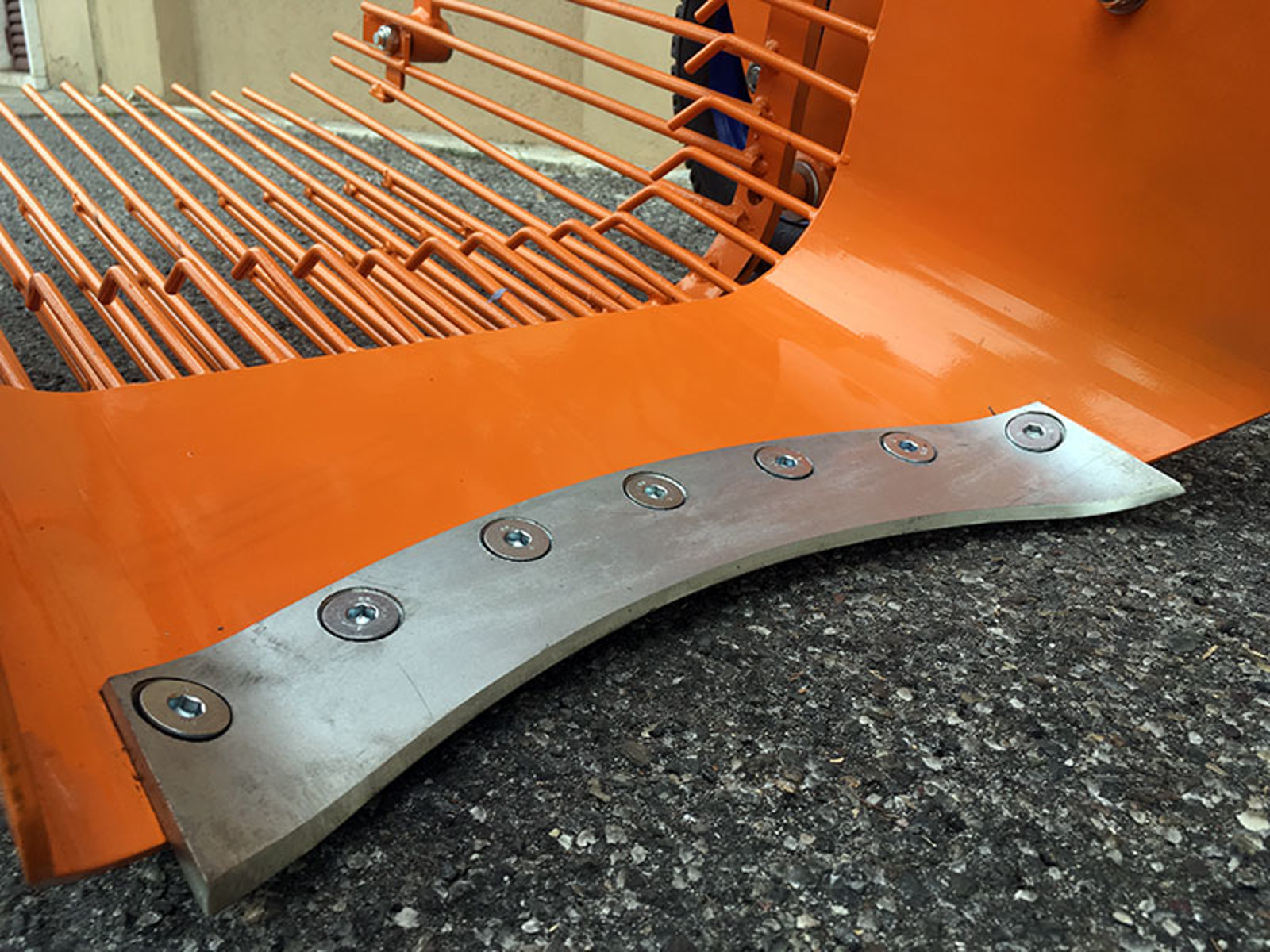

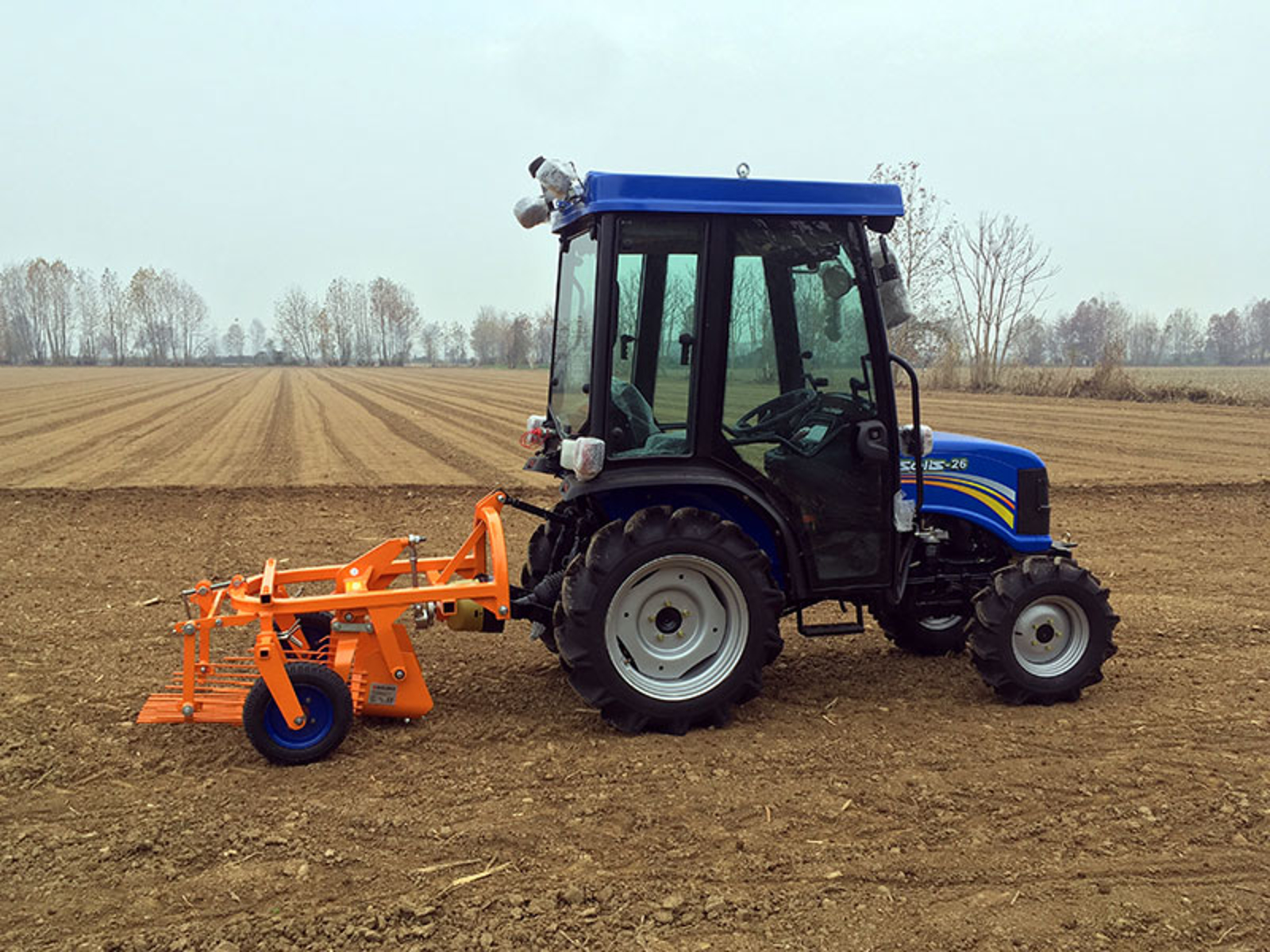

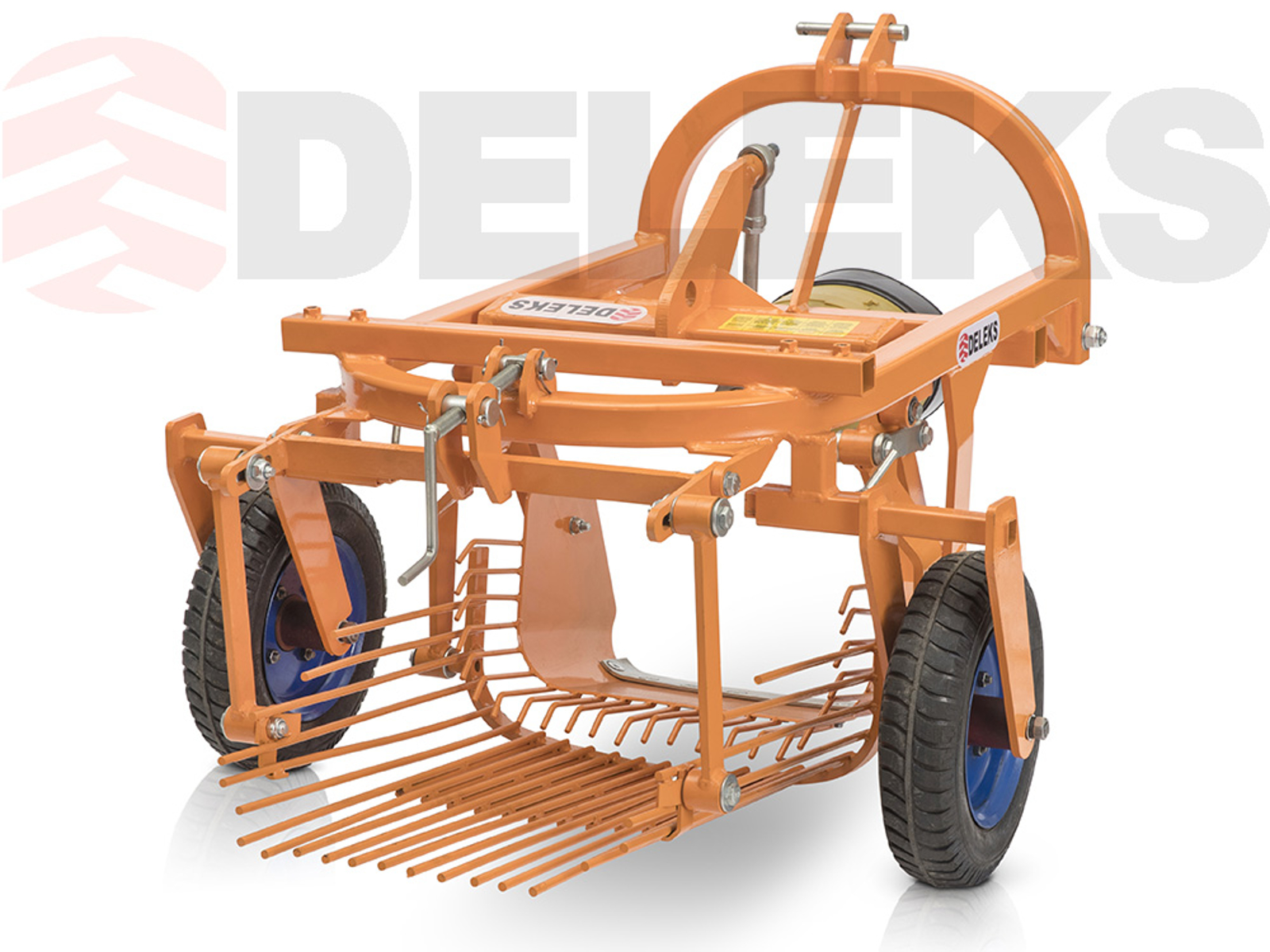

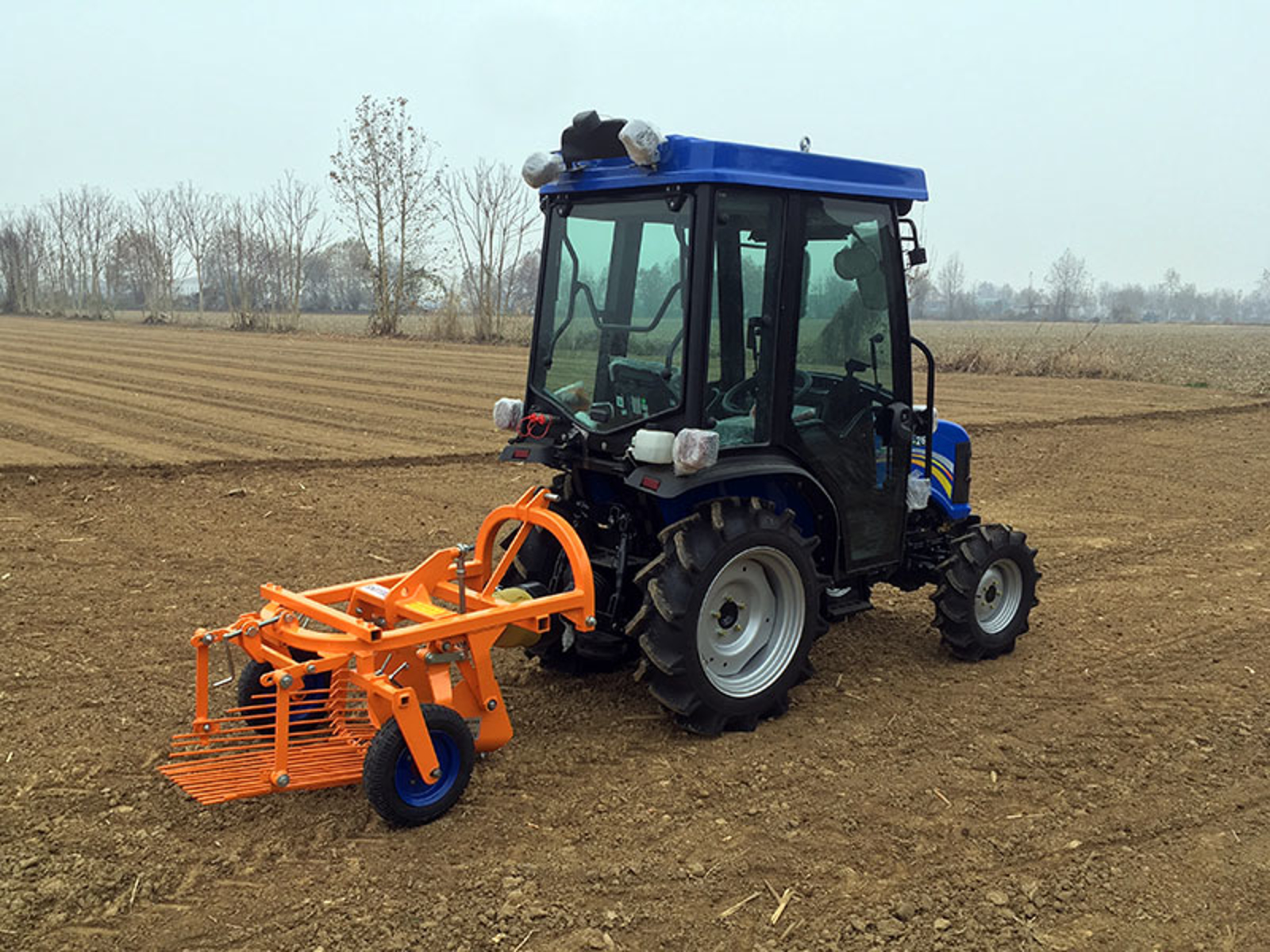

The DPT Potato Digger has been designed to be used on small compact/lawn tractors. The machine is made up of a vibrating digging plowshare with adjustable digging depth that conveys the potatoes and the earth onto a vibrating sieve grid that separates the potatoes from the earth, thus depositing them on a single cut row. Its reduced dimensions make it possible to use the device on small ground plots, both planes and hills, and make it suitable for digging new potatoes. it fits most common compact tractor brands: Japanese tractors Kubota, Kioti, Iseki, Pasquali, Yanmar, Solis, Mahindra, and narrow tractors like New Holland Boomer 25, John Deere, Pasquali, Ferrari etc. Universal 3 point linkage Cat.1. EC Declaration of Conformity.



BENEFITS & FEATURES

Full plots of potatoes can be dug up in one go.

Can be used for a range of different crops.

Can be used on flat plain or on terrain with a range of different gradients.

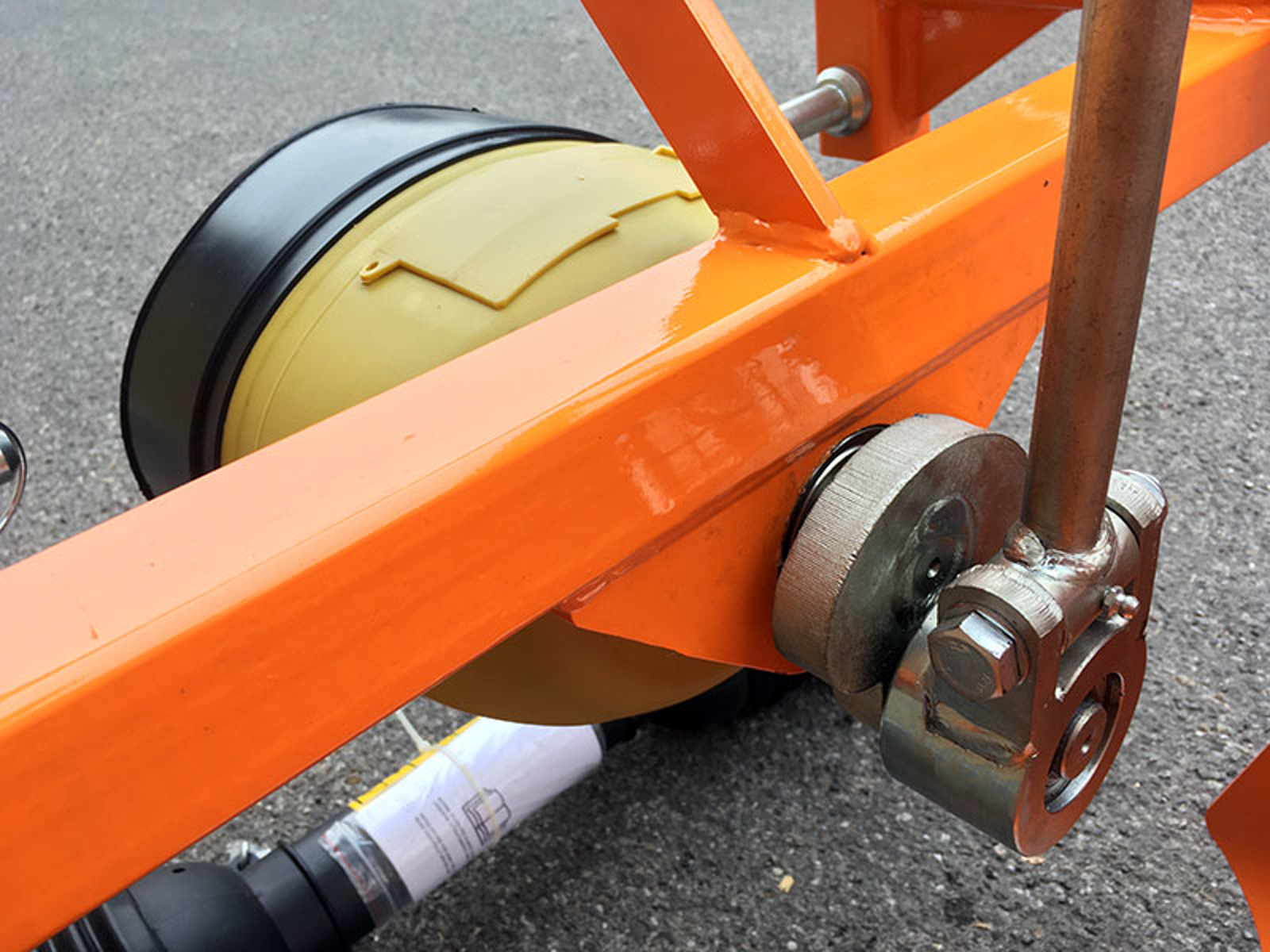

Rubber silent block reduces vibration during use to give the machine longevity.

Simple effective design.

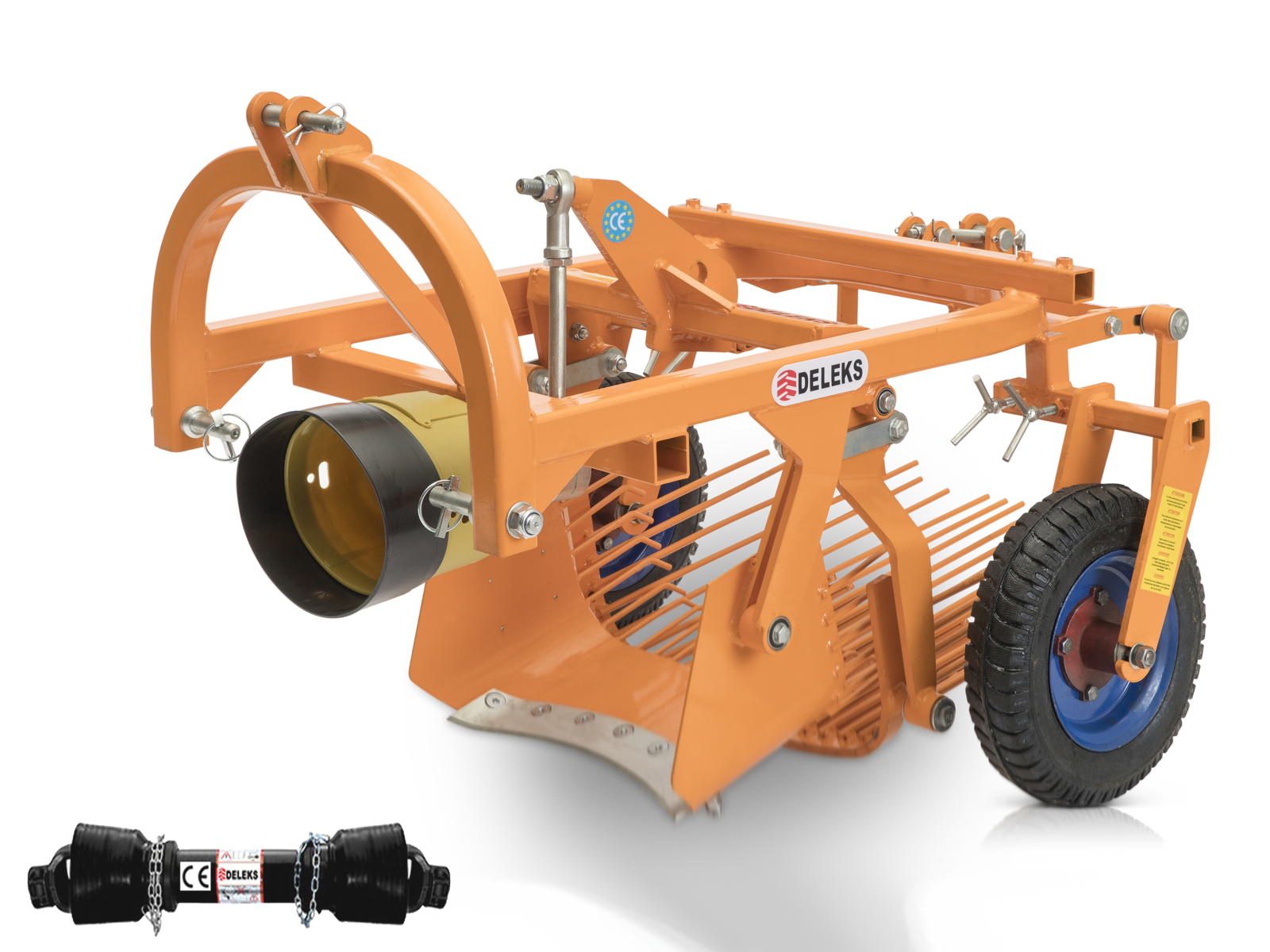

Pto Shaft included.


Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual


EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).






CARACTERISTICS

Caracteristic Units metric Units US
Overall width 1050.0 mm 3.45 ft
Weight 165.0 kg 364.0 lb
Overall height 830.0 mm 2.72 ft
Tractor Power Range 12 - 35 Hp 12 - 35 Hp
3 point linkage Cat. 1 (ø 19.0-22.0mm) Cat. 1 (ø 19.0-22.0mm)
Position of the gearbox Central Central
3 point linkage Thickness 50.0*50.0 mm (5.0 mm) 1.97*1.97 in (0.2 in)
Spacing between the 2 lower points 450.0 - 760.0 mm 17.71 - 29.92 in
Overall length 1350.0 mm 4.43 ft
Distance between the 2 lower points and ground 420.0 mm 16.54 in

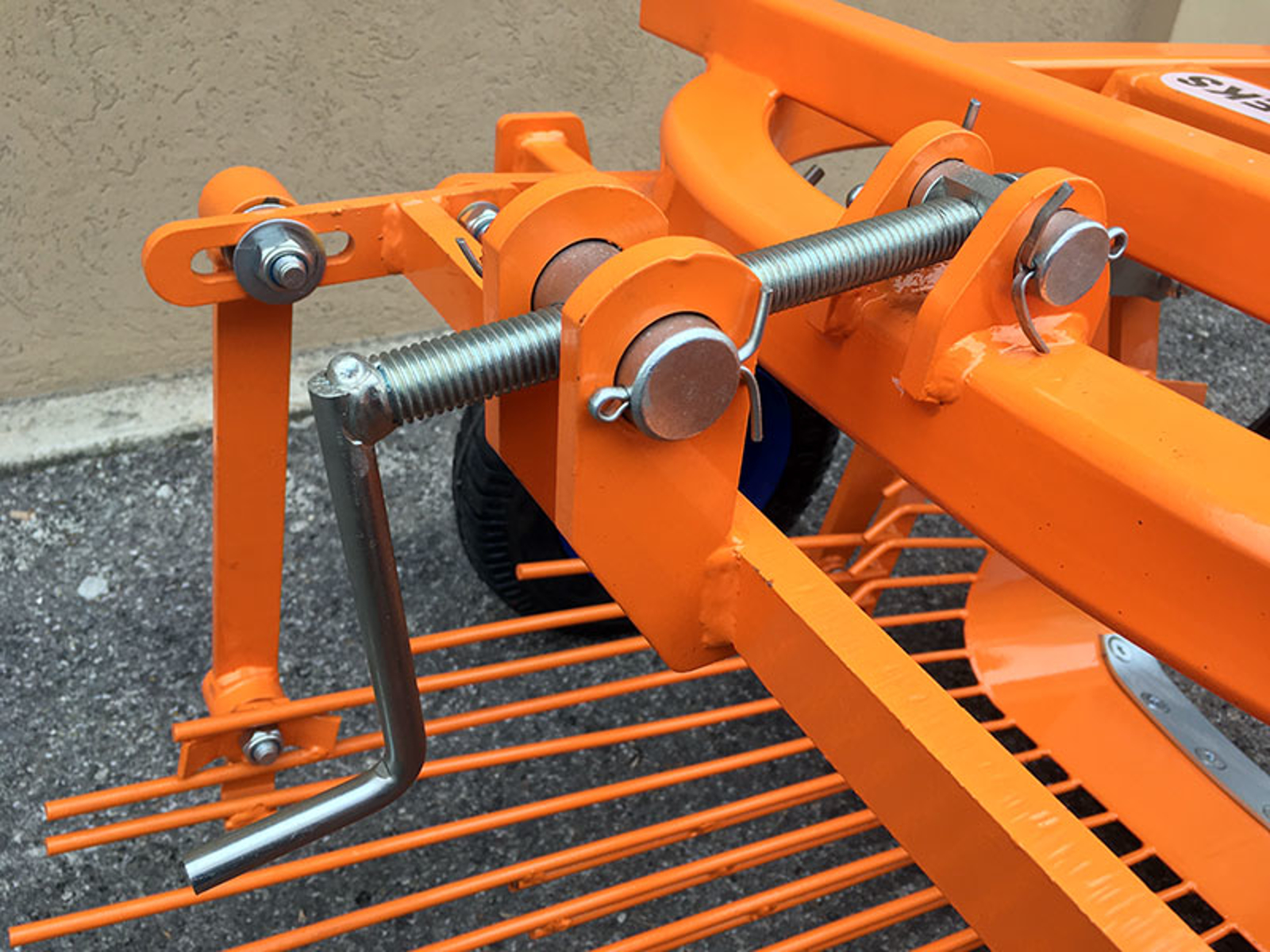

Digging depth Adjustable Adjustable
Diameter of the wheels 380*9.0 mm 15.0*0.35 in
Effective Working width 470.0 mm 1.54 ft
Distance between pto attachment and base 370.0 mm 14.57 in
Pto shaft CE 4x600 mm + clutch ø160mm CE 4x600 mm + clutch ø160mm
Rotation of gearbox Right side Right side
PTO 540 r/min 540 r/min
Packing sizes 1400.0*800.0*950.0 mm 4.59*2.62*3.12 ft
