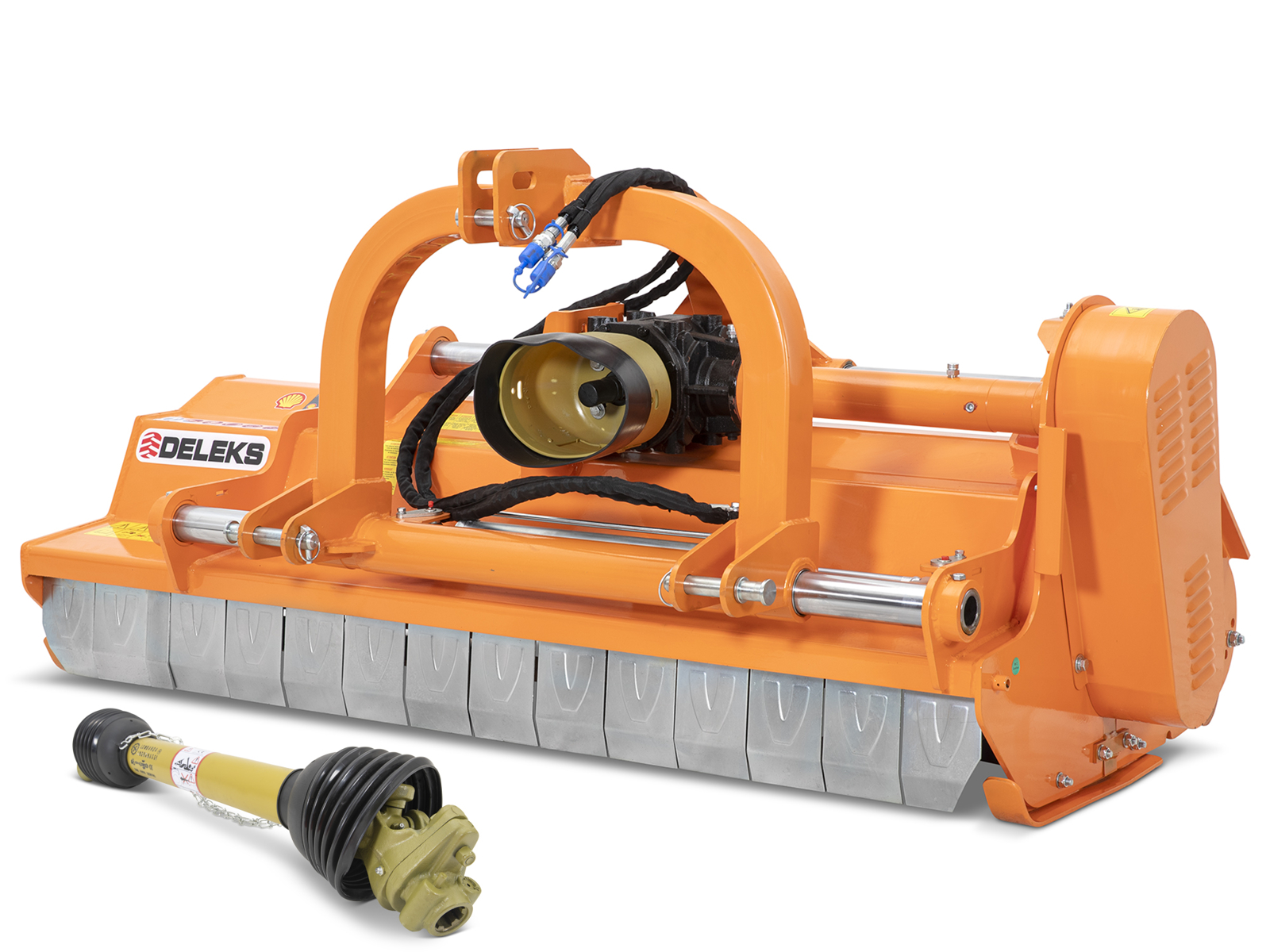

Flail mower and stalk shredder for tractors 220 cm (87 in) TORO-220, heavy-duty hammer flail mulcher with hydraulic side shift for 70-120 hp tractors
DETAILS

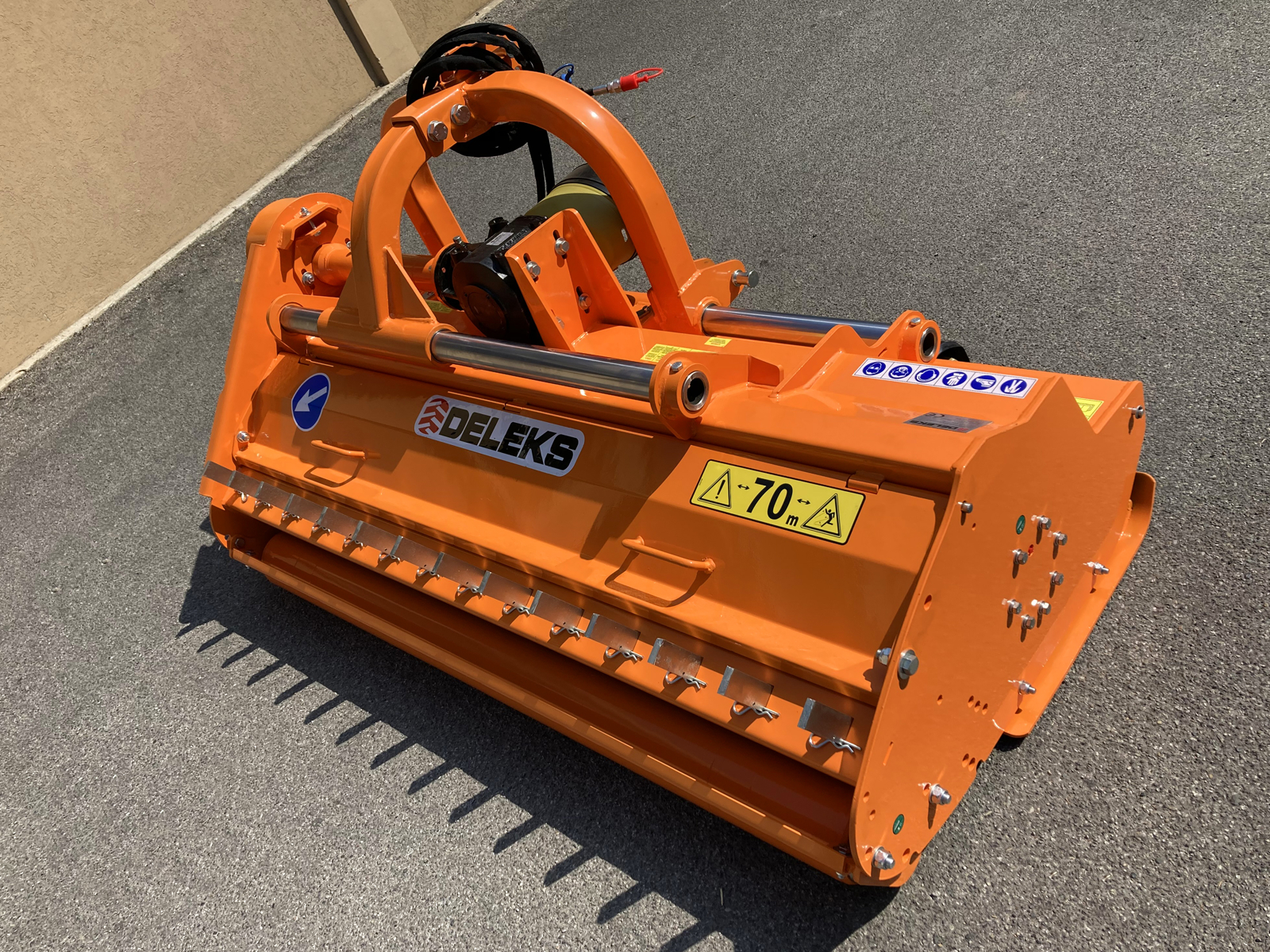

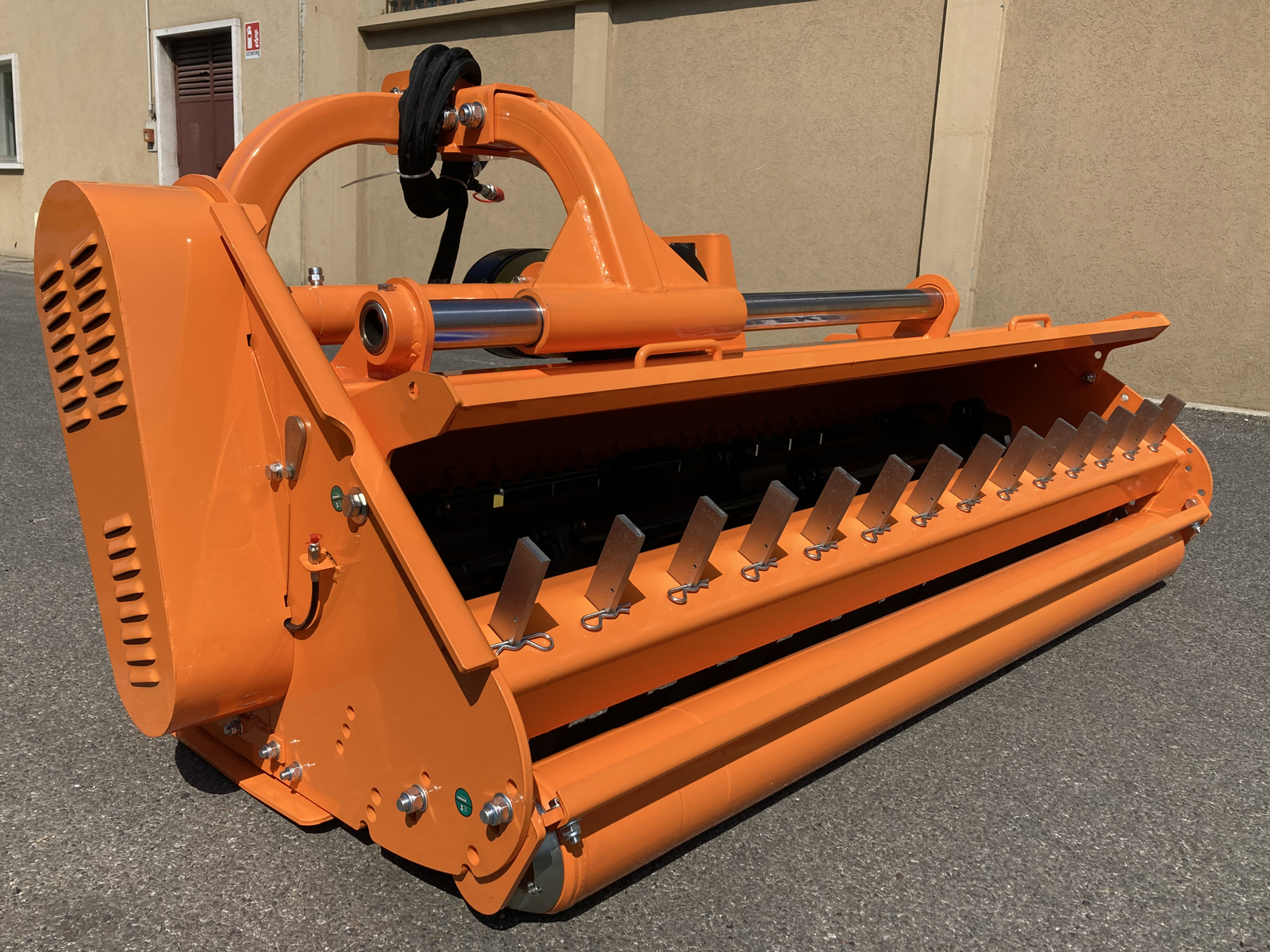

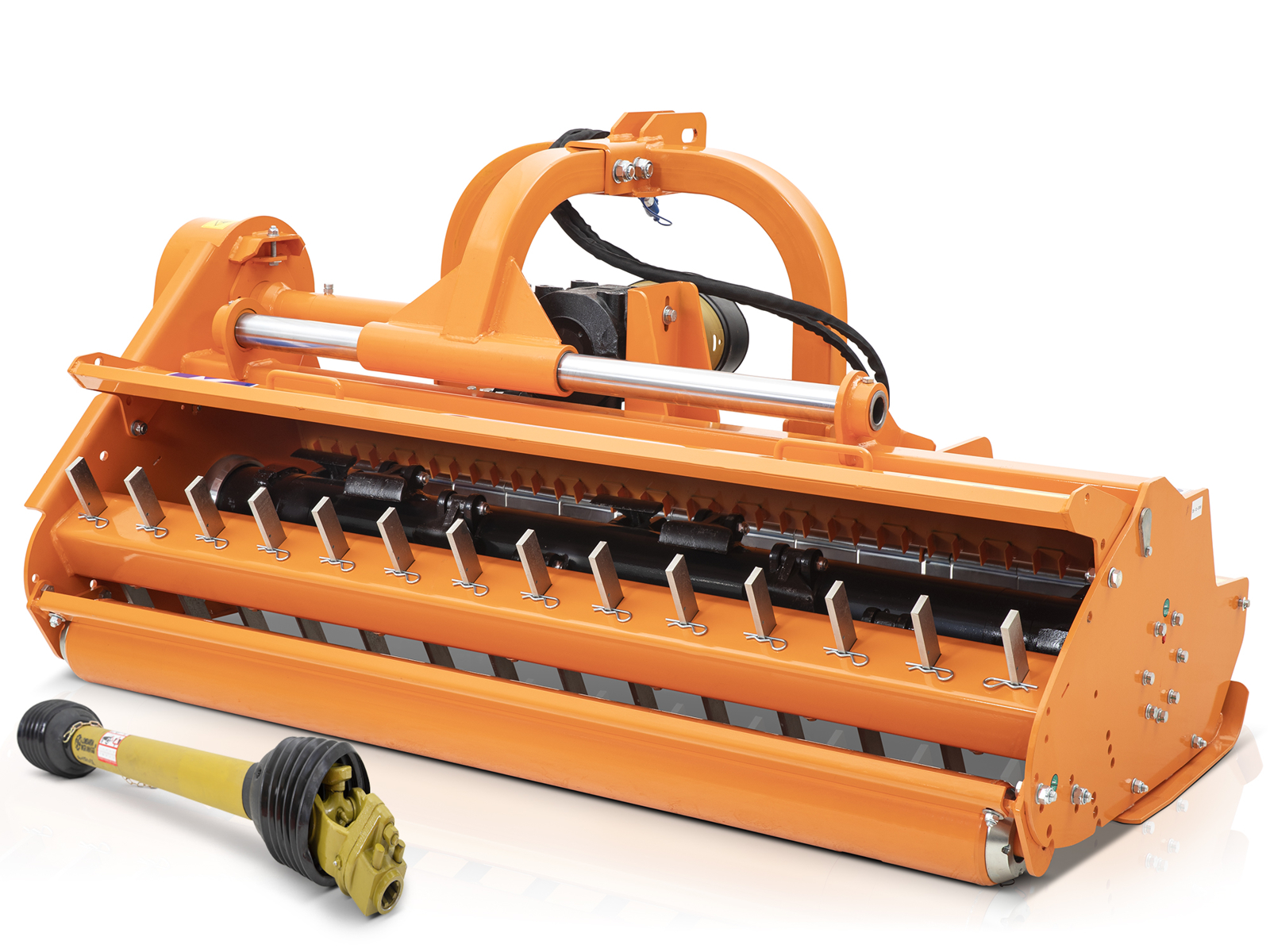

Flail mower and stalk shredder for tractors with a 220 cm (87 in) cut: the DELEKS® TORO-220 is the heavy-series hammer flail mulcher with hydraulic side shift, for wheeled or tracked tractors from 70 to 120 hp, such as New Holland, John Deere, Landini, Deutz-Fahr, Massey Ferguson and Kubota. It works from open fields to orchards: the electronically balanced 170 mm (6.7 in) rotor carries 20 hammer flails of 1,100 g (2.4 lb) with a 14 cm (5.5 in) wide base and pulverises maize stalks, grass, vine prunings and other prunings up to 6-7 cm (2.4-2.8 in) thick; on request it can be fitted with 60 blades. The hydraulic side shift is 50 cm (20 in), the rear hood opens for servicing and the oversized rear roller has a mud scraper. DELEKS® 540 rpm gearbox with freewheel and a 3-year warranty, 5-belt drive, 730 kg (1,609 lb). TÜV-certified, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.
Which tractors it fits
The TORO-220 cuts 220 cm (87 in) with an overall width of 238 cm (94 in) and is designed for wheeled or tracked tractors from 70 to 120 hp with a 540 rpm PTO and a universal category 2 three-point linkage (25-28 mm pins, lower link spacing from 735 to 890 mm): New Holland, John Deere 5 Series, Landini Rex, Deutz-Fahr, Massey Ferguson, Lamborghini RF, Kubota, Solis and equivalent tractors. It works on the flat and on slopes. The gearbox sits 1,000 mm from the left-hand side and 1,200 mm from the right-hand side, 580 mm above the ground. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks.

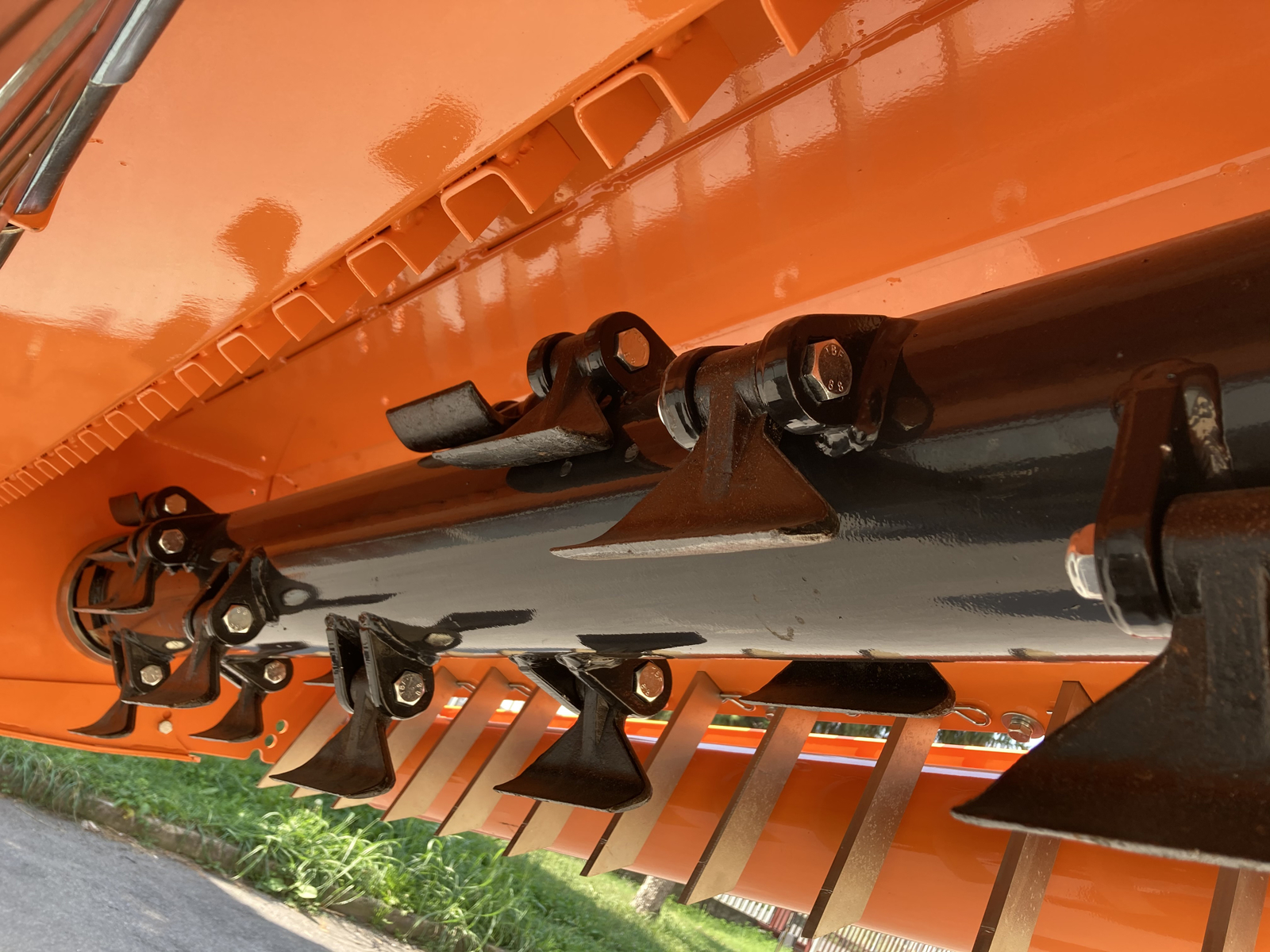

170 mm (6.7 in) rotor with 20 hammer flails or 60 blades

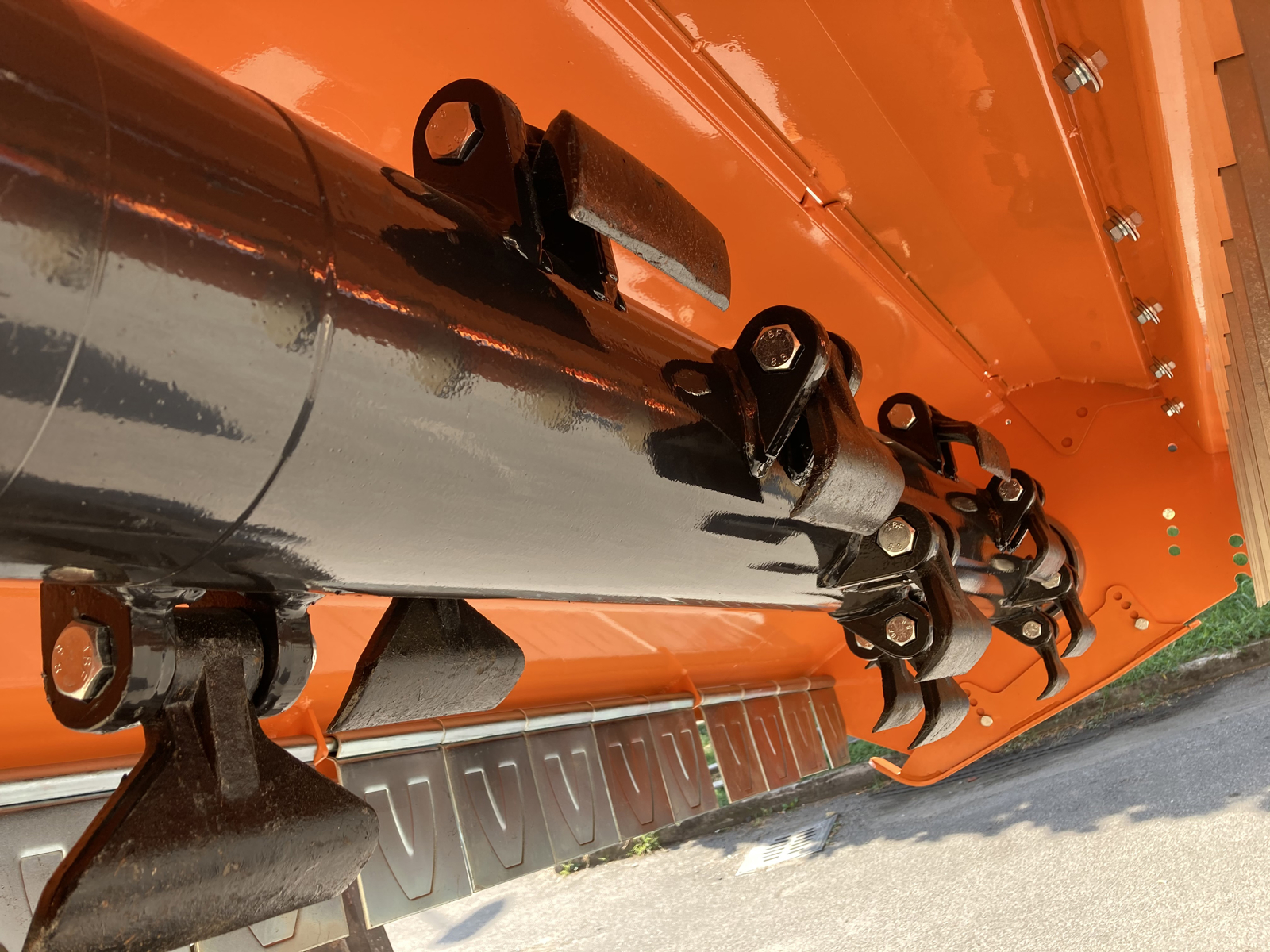

The rotor is 170 mm (6.7 in) in diameter, with a 10 mm (3/8 in) tube wall and reinforced end supports; it is electronically balanced and spins at 2,403 rpm. The 20 hammer flails of 1,100 g (2.4 lb), with a 140 mm (5.5 in) wide base, pulverise maize stalks, grass, vine prunings and other prunings up to 6-7 cm (2.4-2.8 in) thick. On request the TORO-220 can be fitted with triple blades: 60 blades in place of the 20 flails, using the COLTELLI60TORO kit.

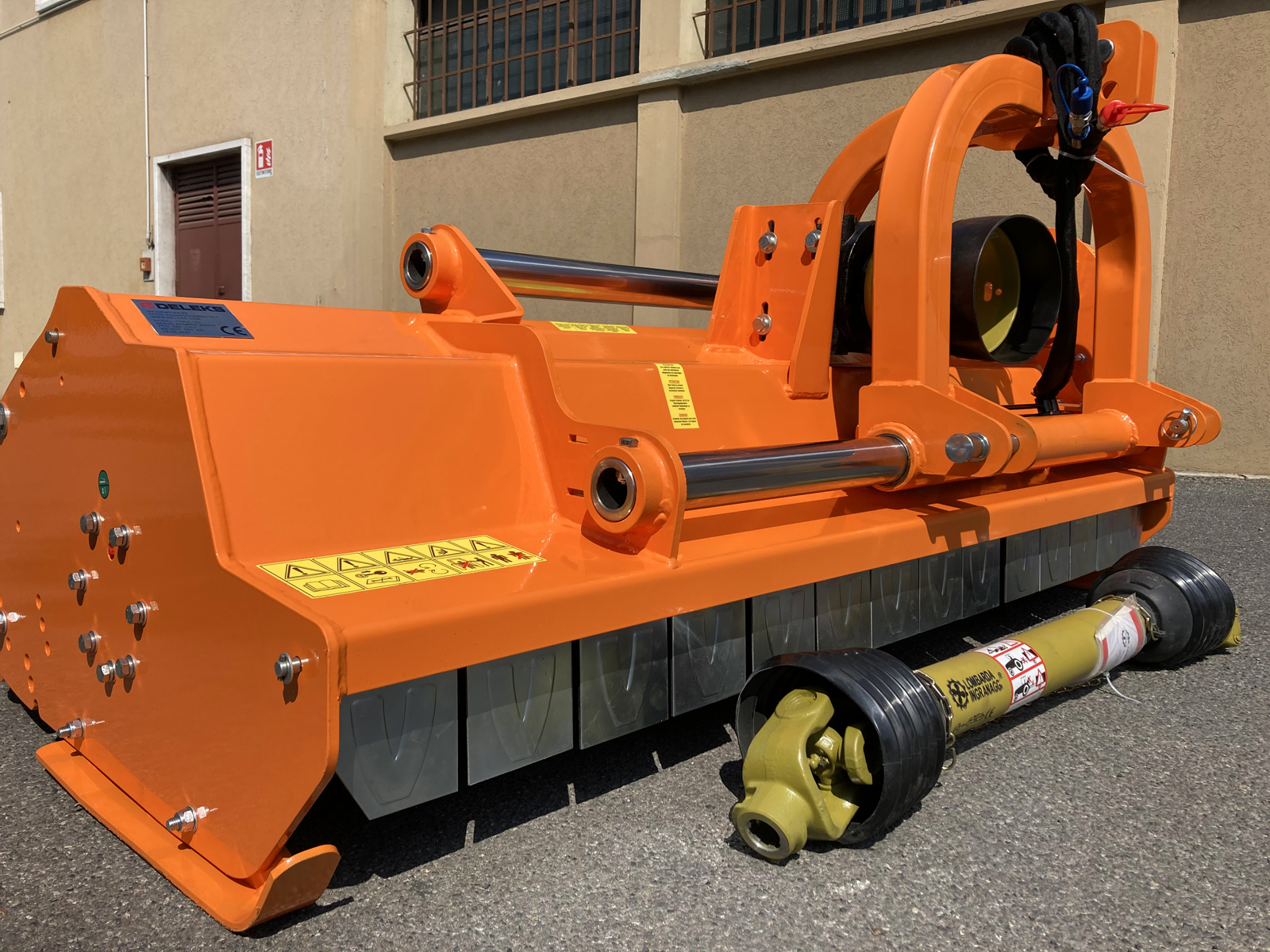

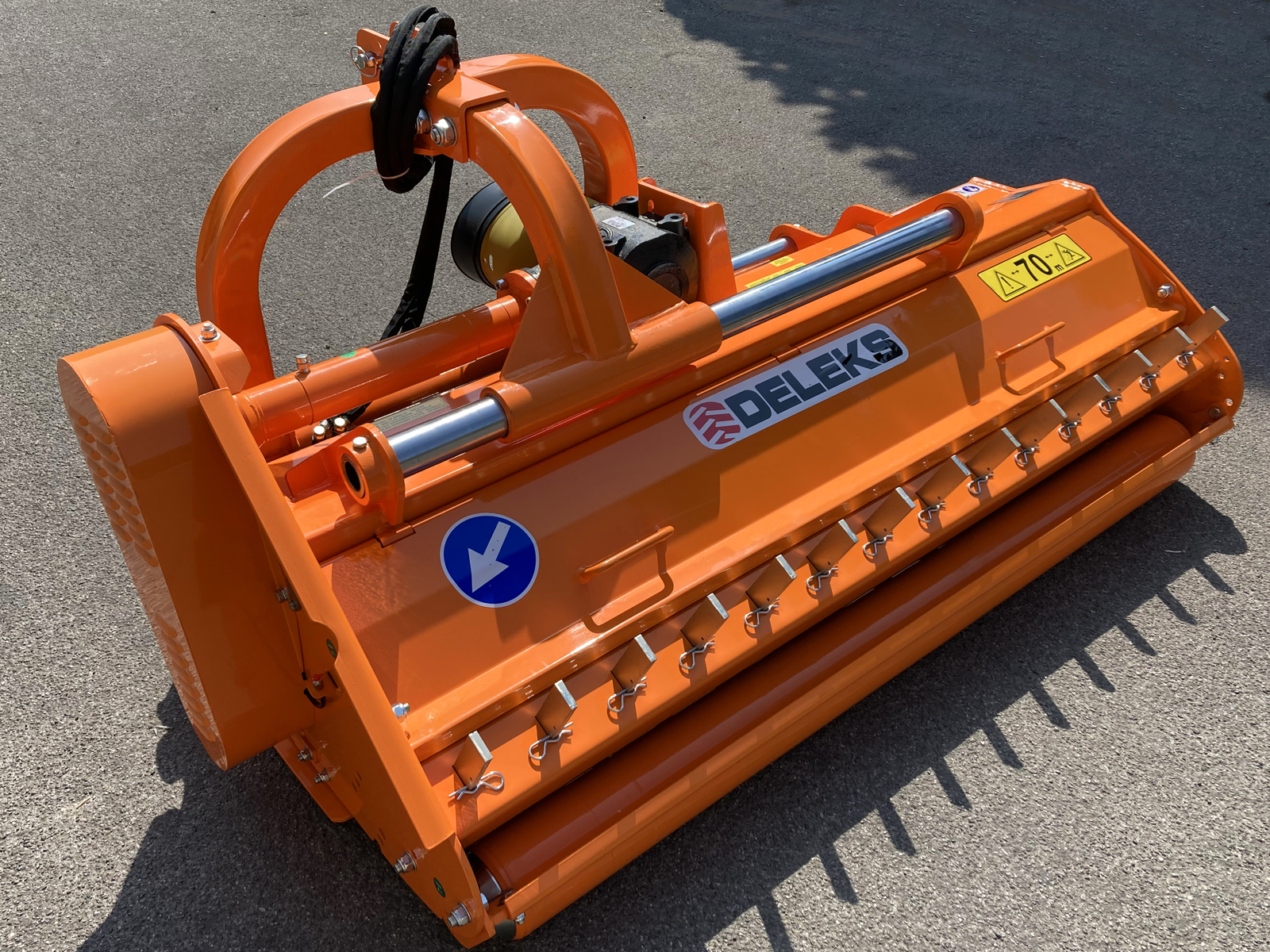

Hydraulic side shift of 50 cm (20 in)
The 50 cm (20 in) hydraulic side shift is worked from the seat with the tractor's spool valve: the mower runs centred or offset, along field edges, tight to the rows and along ditches. It comes with 2 hydraulic hoses with ½ in agricultural quick-release couplings.

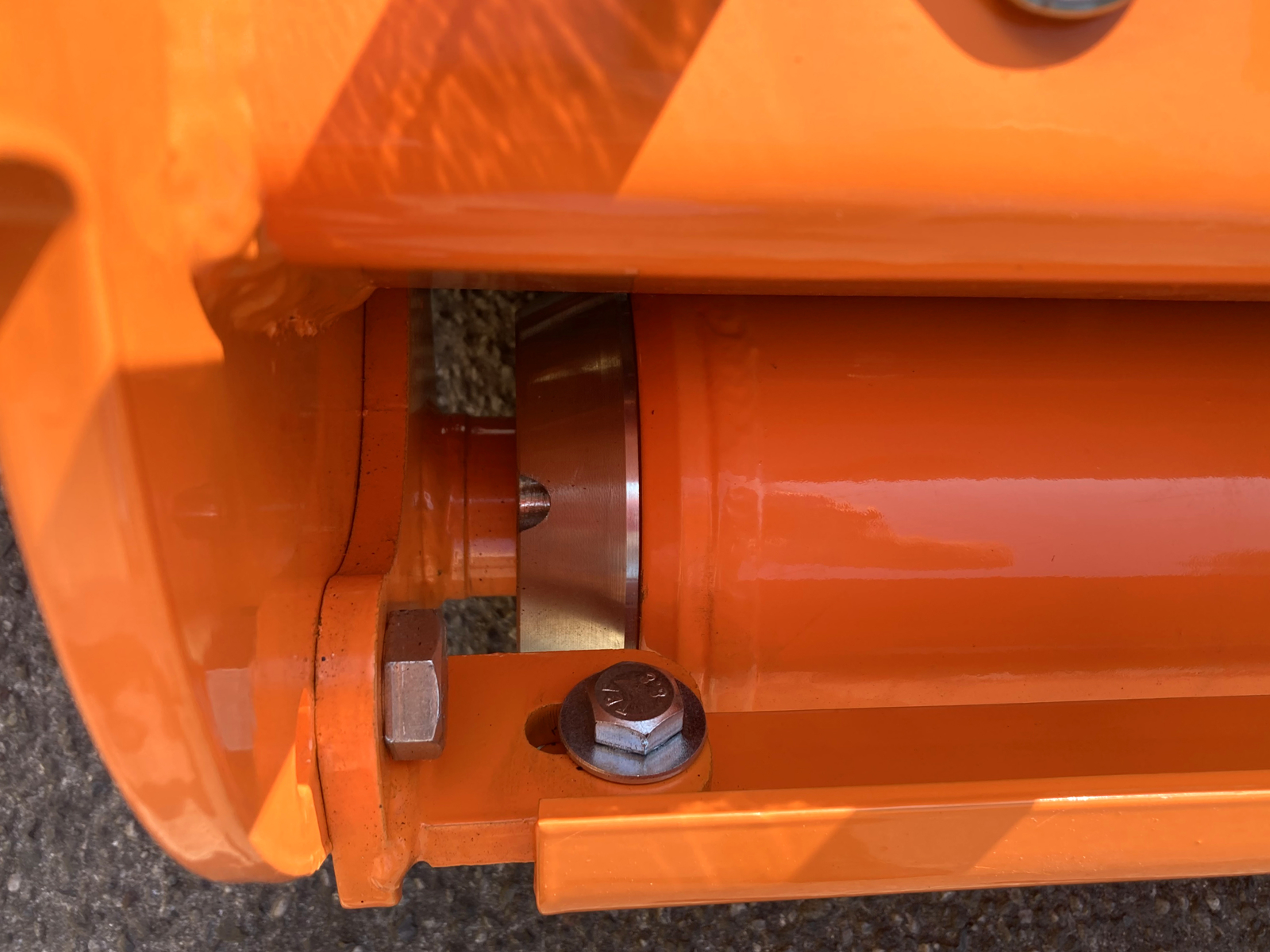

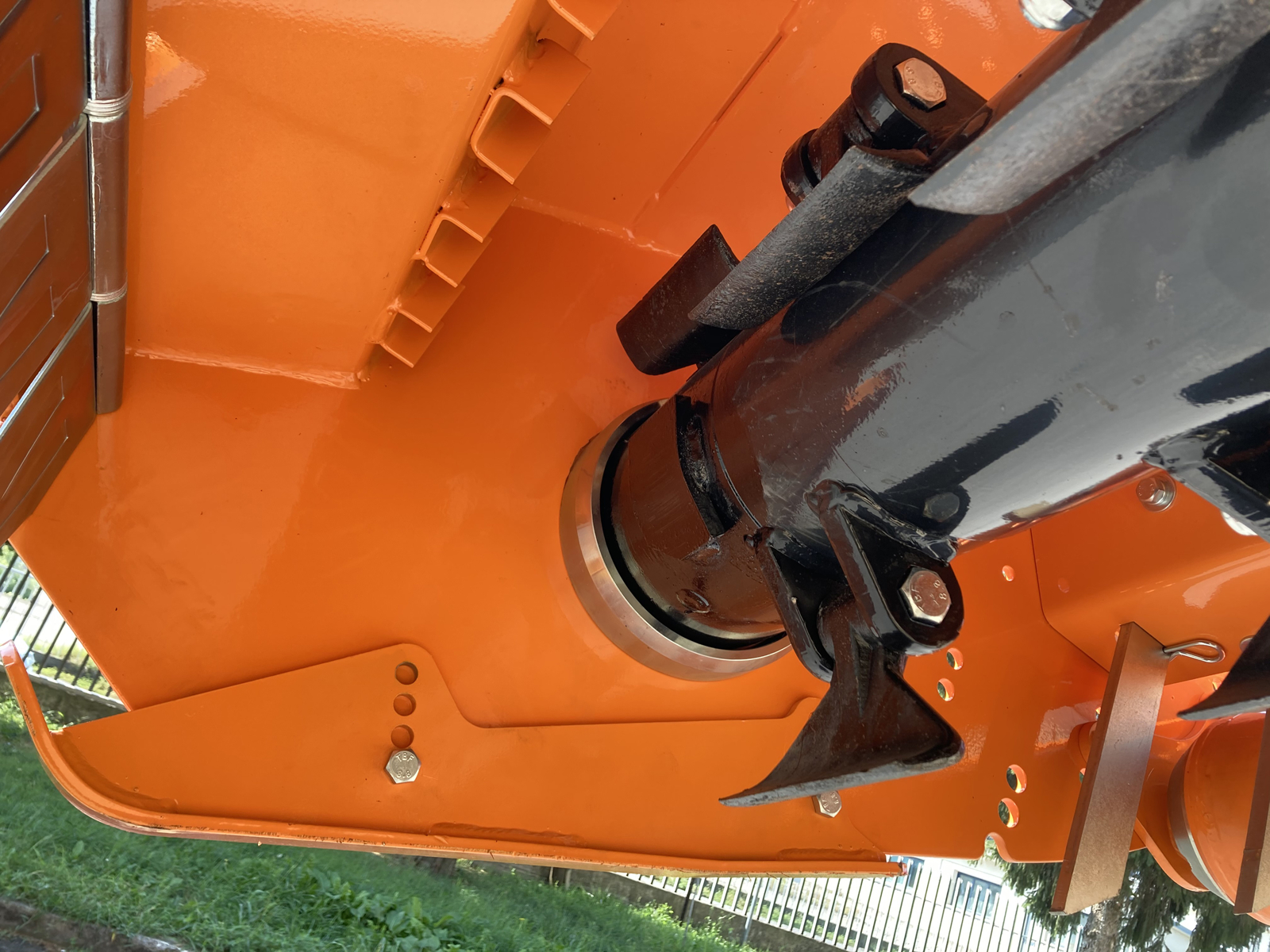

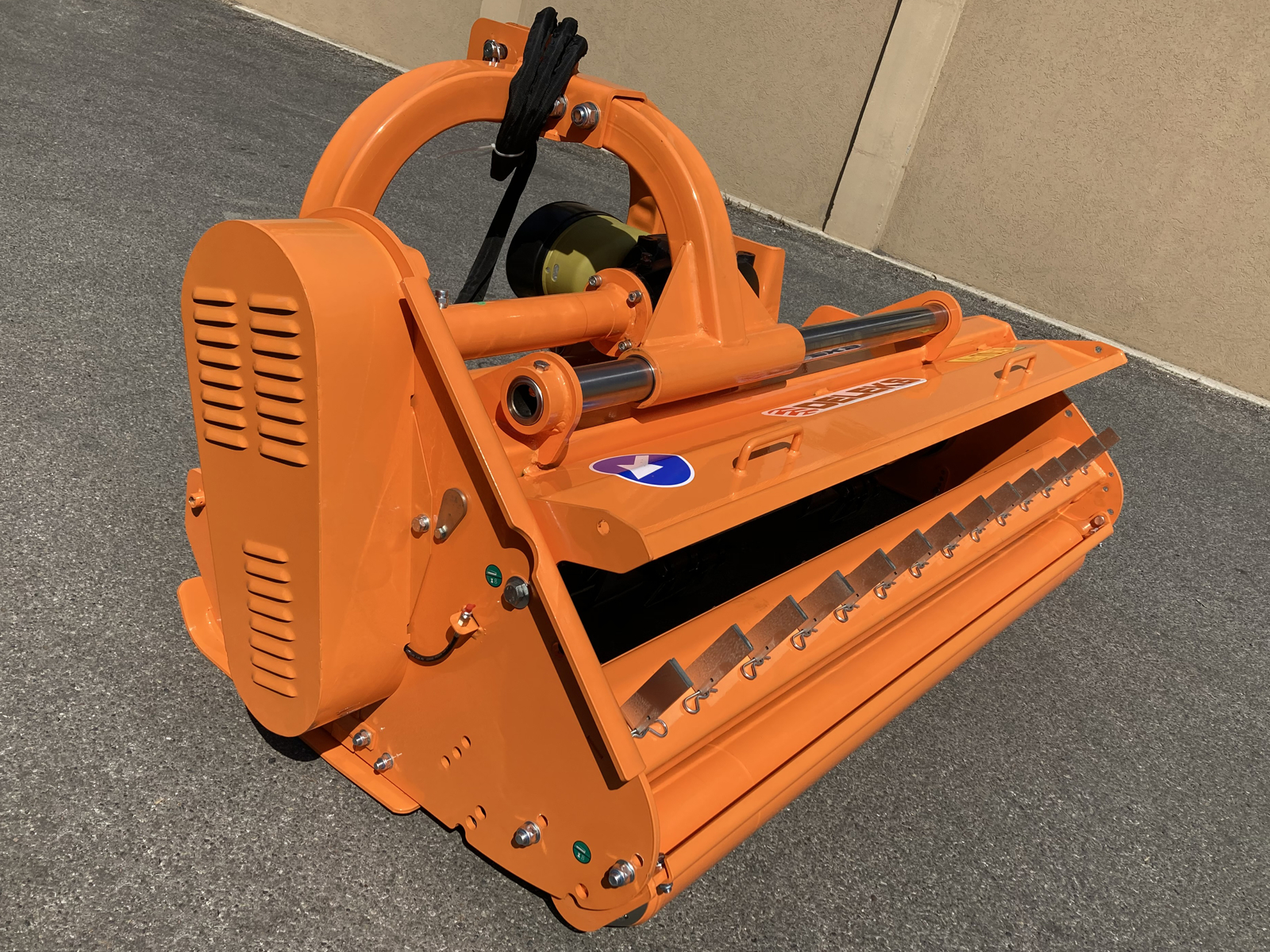

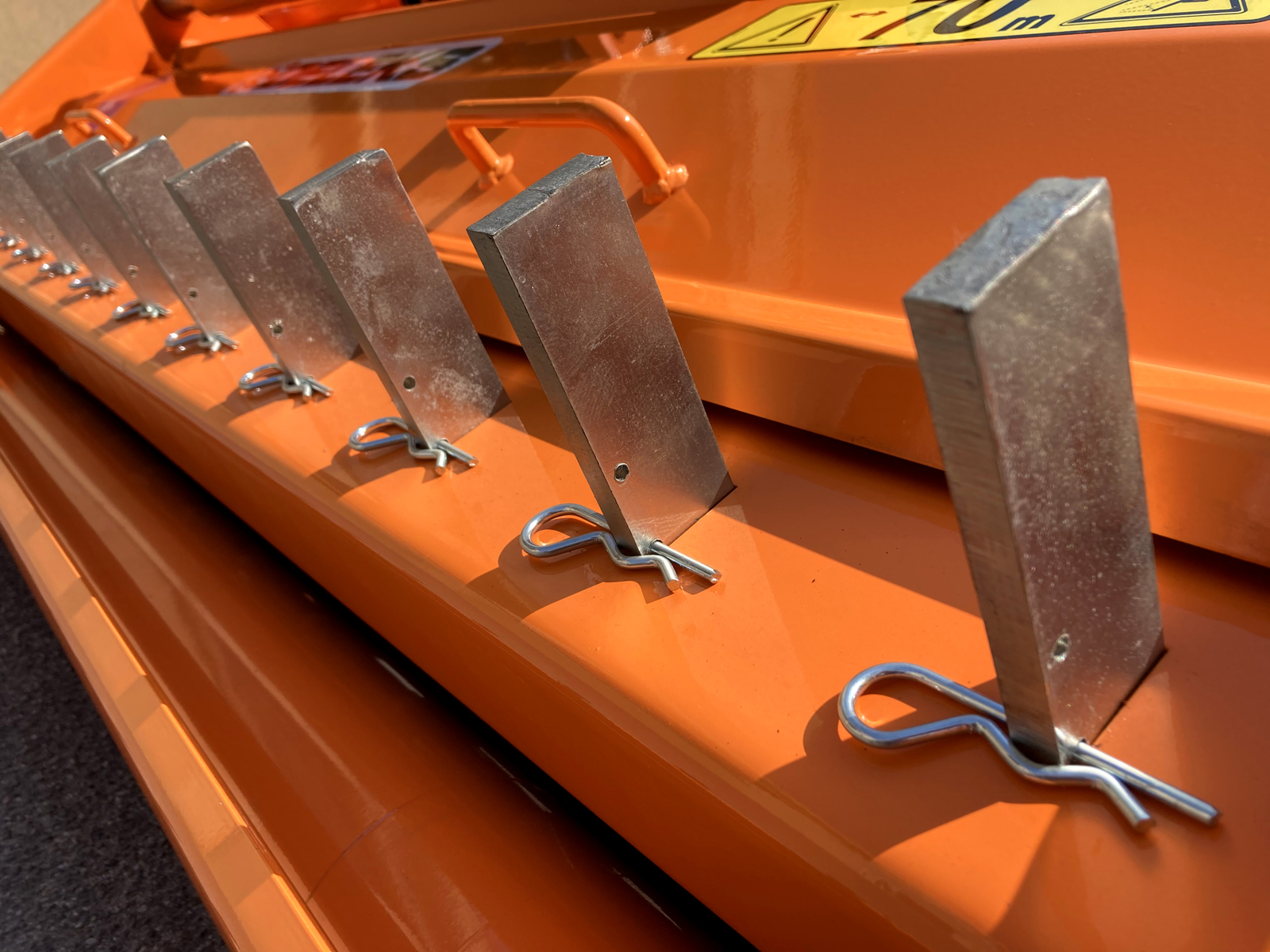

Opening hood, roller with mud scraper and cutting height

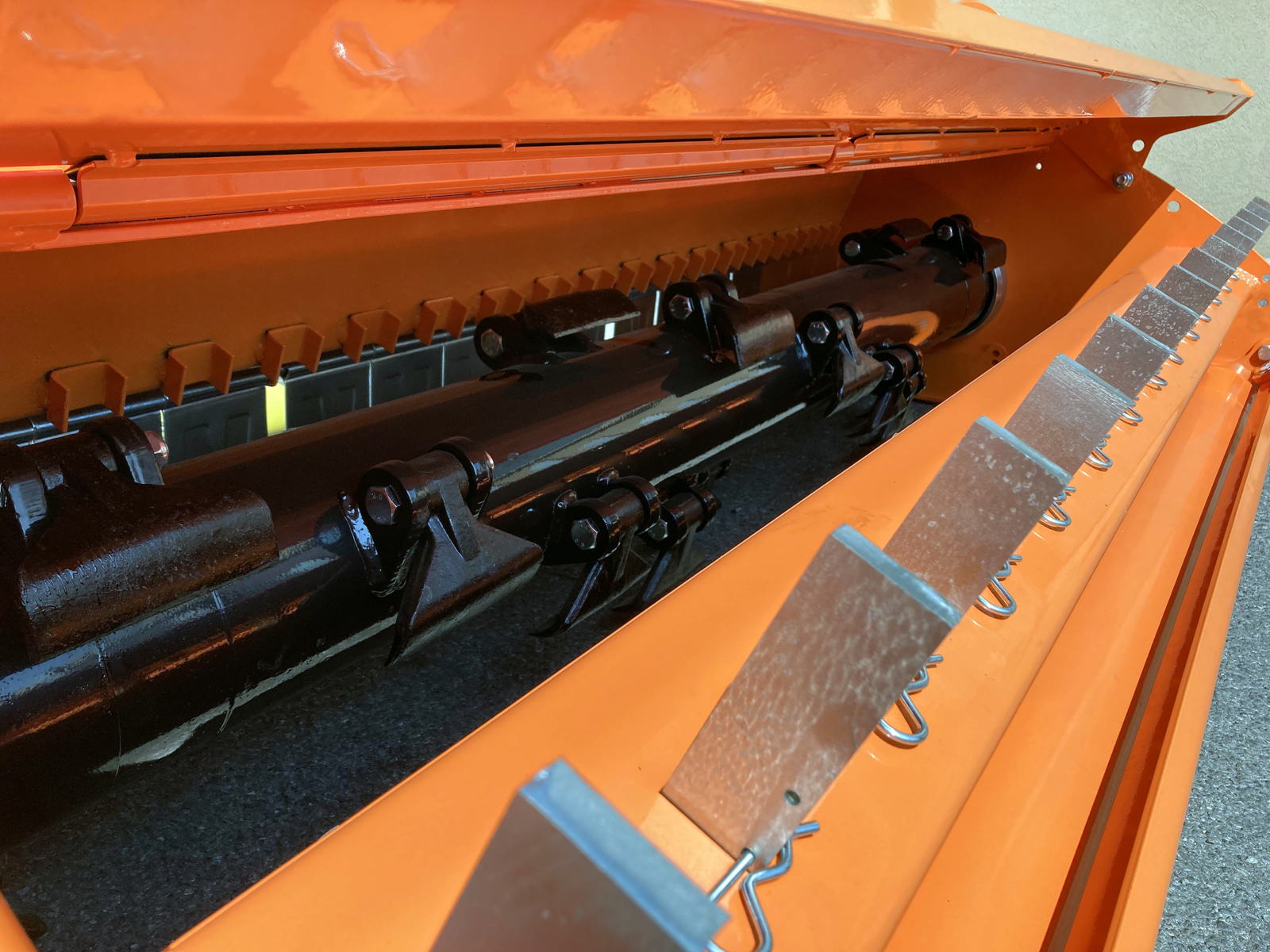

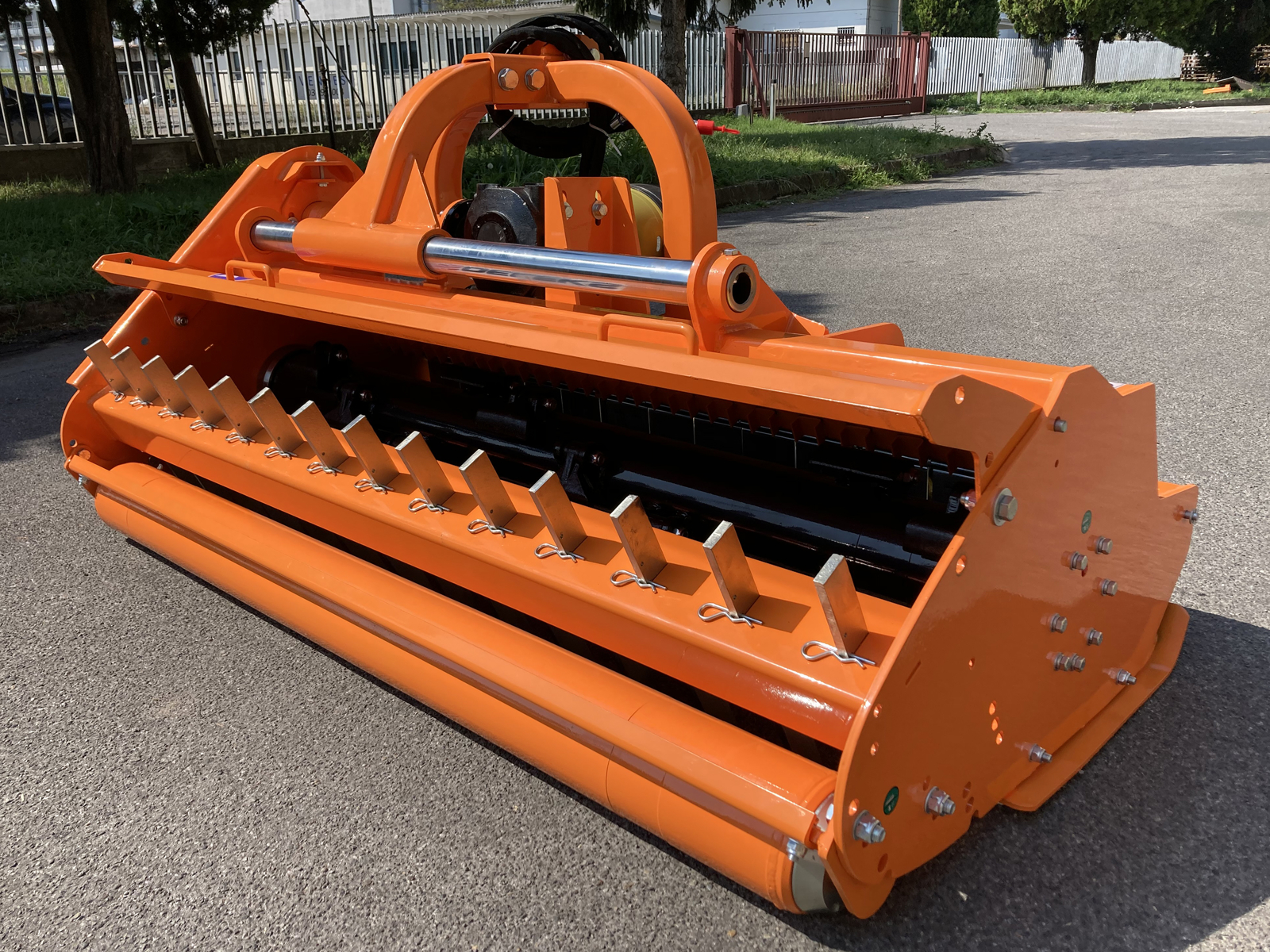

The rear hood opens for servicing. The oversized rear roller, 152 mm (6 in) in diameter, has a mud scraper that keeps it clear of soil; together with the 12 mm side skids it sets the cutting height from 10 to 75 mm (0.4 to 3 in). The frame is 5 mm thick, with 10 mm side plates.
Gearbox with freewheel, 5 belts and PTO shaft

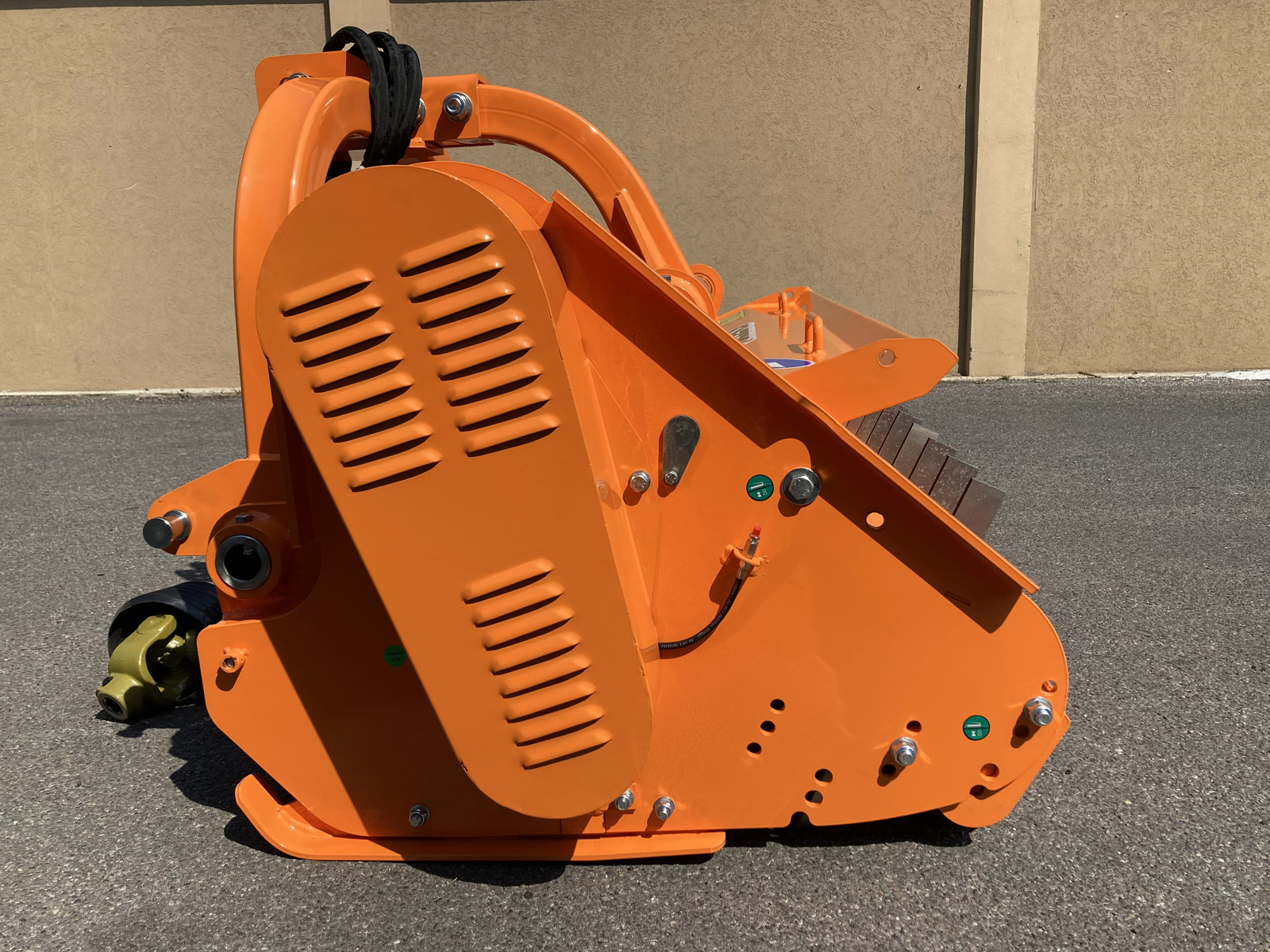

The DELEKS® gearbox for a 540 rpm PTO has a freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 5 V-belts, 17x1300; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 8 PTO shaft, 1,200 mm (47.2 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.
Dimensions, weight and delivery
Working width 2,200 mm (86.6 in), overall width 2,380 mm (93.7 in), length 1,100 mm (43.3 in), height 990 mm (39 in), weight 730 kg (1,609 lb). It ships on a pallet in packaging measuring 250 × 115 × 100 cm (98 × 45 × 39 in), 844 kg (1,861 lb) gross, 2.88 m³, with free delivery within the EU. For delivery, the address must be accessible to an articulated lorry (a 24-tonne artic) and you need a forklift to unload the pallet. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.
Where it works
- Open fields: maize stalks, stubble and crop residues
- Vineyards, orchards and olive groves: vine prunings and other prunings up to 6-7 cm (2.4-2.8 in)
- Rough ground, field margins and headlands: long grass and brambles
- Ditches, fence lines and rows: working offset with the hydraulic side shift
- On the flat and on slopes, with wheeled or tracked tractors from 70 to 120 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10A), the 10 nuts and bolts for the flails (DB10A), the kit of 60 blades (COLTELLI60TORO), the spare set of 5 belts (CINGHIE5GO), the DISC-603T hydraulic inter-row disc (code DISC603T), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the TORO-220 need?
From 70 to 120 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 730 kg (1,609 lb).
Which TORO for a 60 hp tractor?
The TORO-200, for tractors from 60 to 120 hp. The TORO-220 and the TORO-240 need at least 70 hp.
Does it shred maize stalks?
Yes: it is a hammer flail stalk shredder, which smashes stalks and crop residues in open fields and also shreds vine prunings and other prunings up to 6-7 cm (2.4-2.8 in) thick.
Hammer flails or blades?
It comes with 20 hammer flails of 1,100 g (2.4 lb); on request it can be fitted with triple blades, 60 blades, using the COLTELLI60TORO kit.
How does the side shift work?
It is hydraulic, 50 cm (20 in): you work it from the seat with the tractor's spool valve, even on the move.

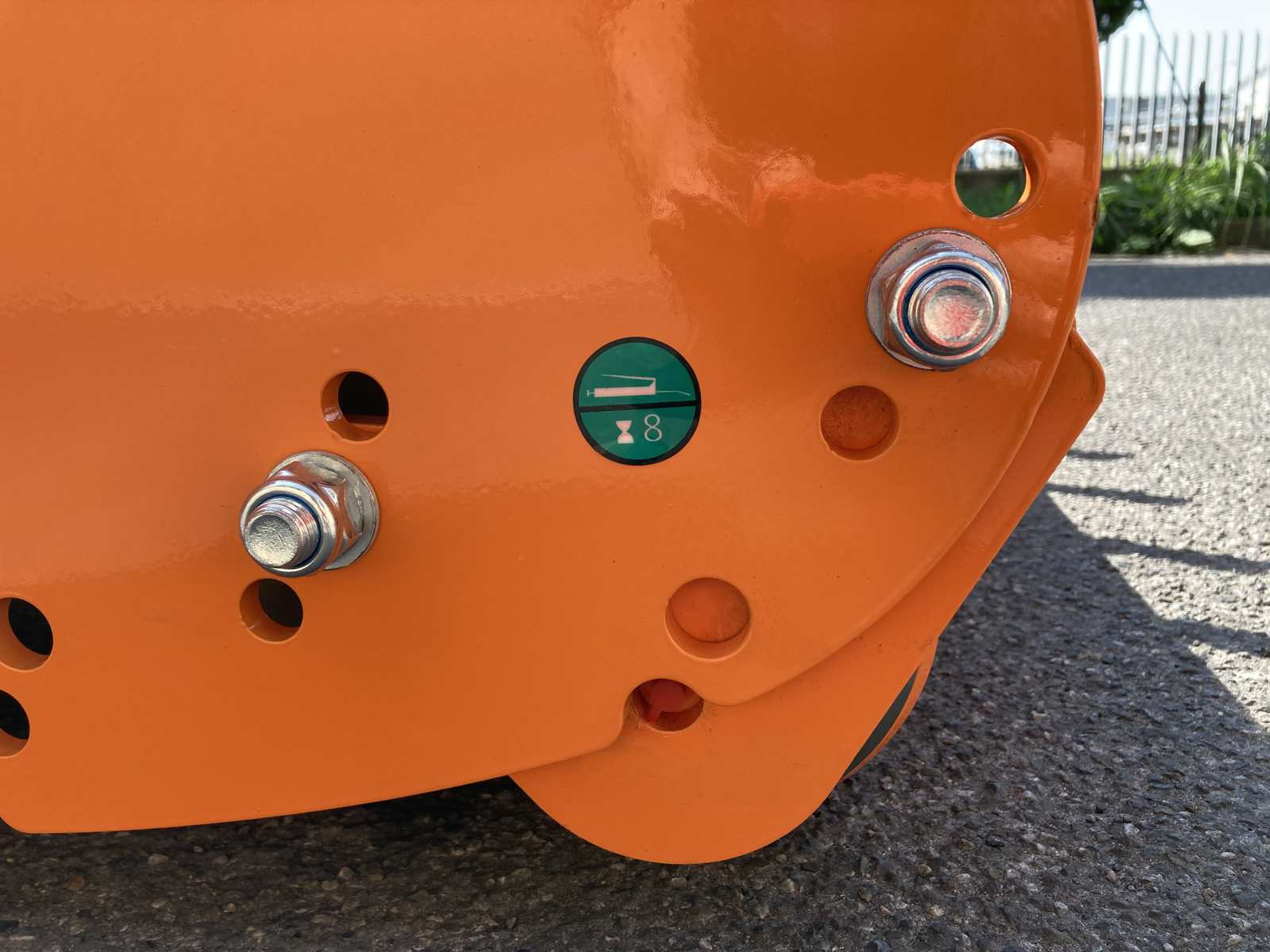

How do you set the cutting height?
From 10 to 75 mm (0.4 to 3 in), with the oversized rear roller and the side skids.
Is the PTO shaft included?
Yes: a CE-approved category 8 PTO shaft, 1,200 mm (47.2 in) long, with shear bolt.
How does it differ from the CERVO?
The CERVO is lighter, from 480 to 560 kg (1,058 to 1,235 lb), and starts at 160 cm (63 in): 152 mm (6 in) rotor, 4 belts, 40 cm (16 in) side shift, for tractors from 50 to 100 hp. The TORO runs from 200 to 240 cm (79 to 94 in) and from 690 to 770 kg (1,521 to 1,698 lb), with a 170 mm (6.7 in) rotor, 5 belts and 50 cm (20 in) side shift, for tractors up to 120 hp.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 2200.0 mm | 7.22 ft |
| Overall width | 2380.0 mm | 7.80 ft |
| Min / Max cutting height | 10.0 - 75.0 mm | 0.4 - 2.95 in |
| Weight | 730.0 kg | 1600 lb |
| Overall height | 990.0 mm | 3.25 ft |
| Tractor Power Range | 70 - 120 Hp | 70 - 120 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0 mm) | Cat. 2 (ø 25.0-28.0 mm) |
| Position of the gearbox | 1000.0 mm from left side / 1200.0 mm from right side | 39.37 in from left side / 47.25 in from right side |
| Hood height | 550.0 mm | 21.65 in |
| Spacing between the 2 lower points | 735.0 - 890.0 mm | 28.95 - 35.00 in |
| Number of Hammers | 20 (or 60 blades) | 20 (or 60 blades) |
| Maximum cutting diameter | 50.0-60.0 mm | 2.00 - 2.40 in |
| Overall length | 1100.0 mm | 3.60 ft |
| Distance between pto attachment and ground | 580.0 mm | 22.83 in |
| Main hood thickness | 5.0 mm | 0.2 in |
| Sides thickness | 10.0 mm | 0.4 in |
| Side plates thickness | 12.0 mm | 0.47 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: Gearbox | DELEKS (3 year warranty) | DELEKS (3 year warranty) |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: RPM Rotor speed | 2403.0 rpm | 2403.0 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 230.0 mm | 9.05 in |
| Transmission: Lower pulley ø | 155.0 mm | 6.10 in |
| Transmission: V-Belts quantity | 5 | 5 |
| Transmission: V-Belts size | 17x1300 | 17x1300 |
| Rotor: diameter | 170.00 mm | 6.69 in |
| Rotor: bearings type and size | 1309 | 1309 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 10.0 mm | 0.4 in |
| Hammers: Weight | 1100.0 g | 38.80 oz |
| Hammer: øhole | 16.0 mm | 0.63 in |
| Hammer: base width | 140.0 mm | 5.51 in |
| Hammer: top width | 40.0 mm | 1.57 in |
| Hammer: Diagonal | 97.0 mm | 3.82 in |
| Rear roller: diameter | 152.0 mm | 5.98 in |
| Rear roller: sheet thickness | 6.0 mm | 0.24 in |
| Rear roller: bearings type and size | 6308 | 6308 |
| Pto shaft | CE 8x1200 mm + shear bolt | CE 8x1200 mm + shear bolt |
| Hood length | 1000.0 mm | 39.37 in |
| Effective Displacement | 500.0 mm (Hydr.) | 19.68 in (Hydr.) |
| Gross shipping weight | 844 kg | 1861 lb |
| Package volume | 2.88 m3 | 101.7 cu ft |
| Packing sizes | 2500.0*1150.0*1000.0 mm | 8.20*3.77*3.28 ft |
