Adjustable sideshift Mower for tractors, Shredder, Mulcher - TORO-200

Available
CodeTORO200PTO
EAN 8053470235641
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

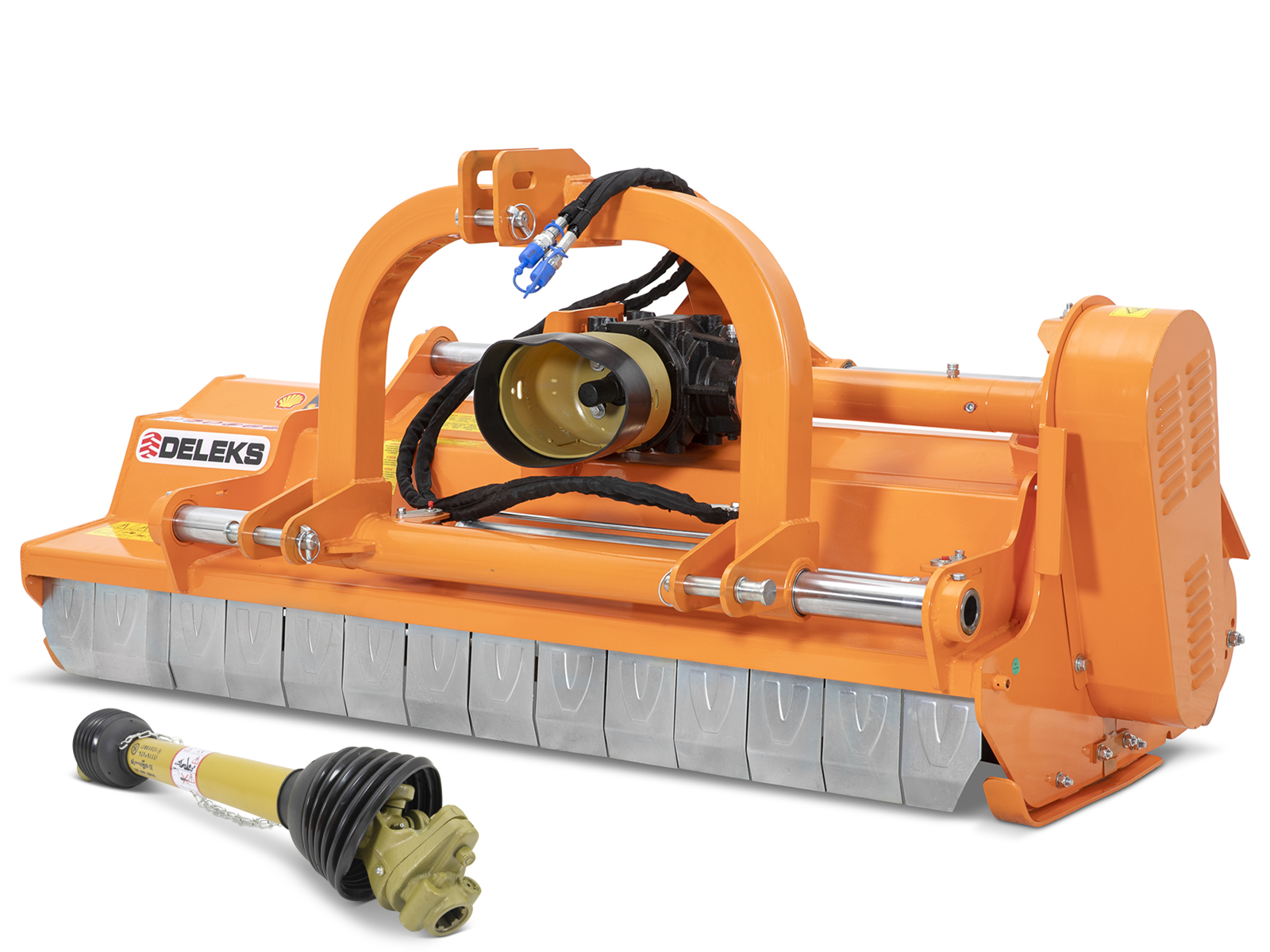

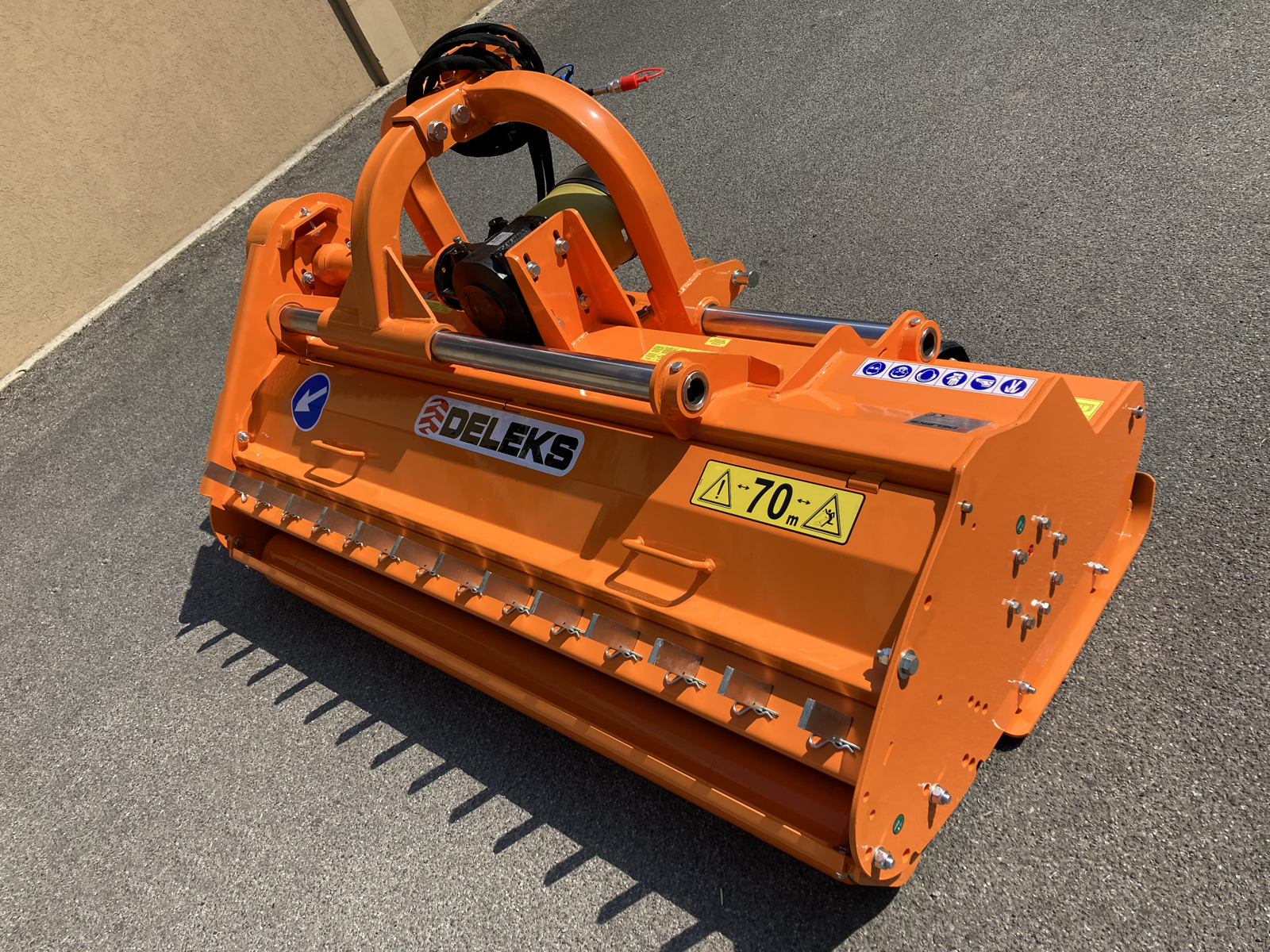

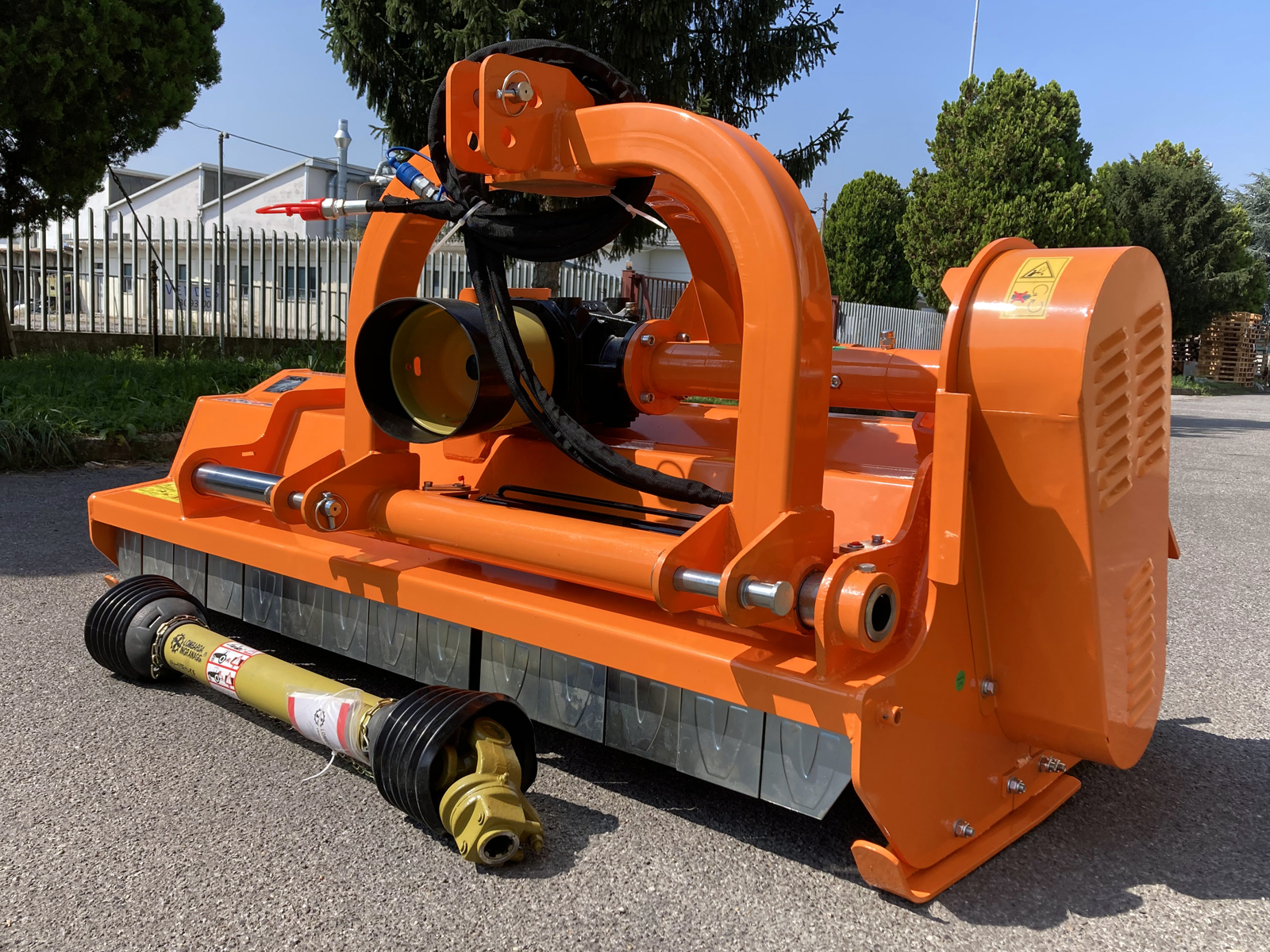

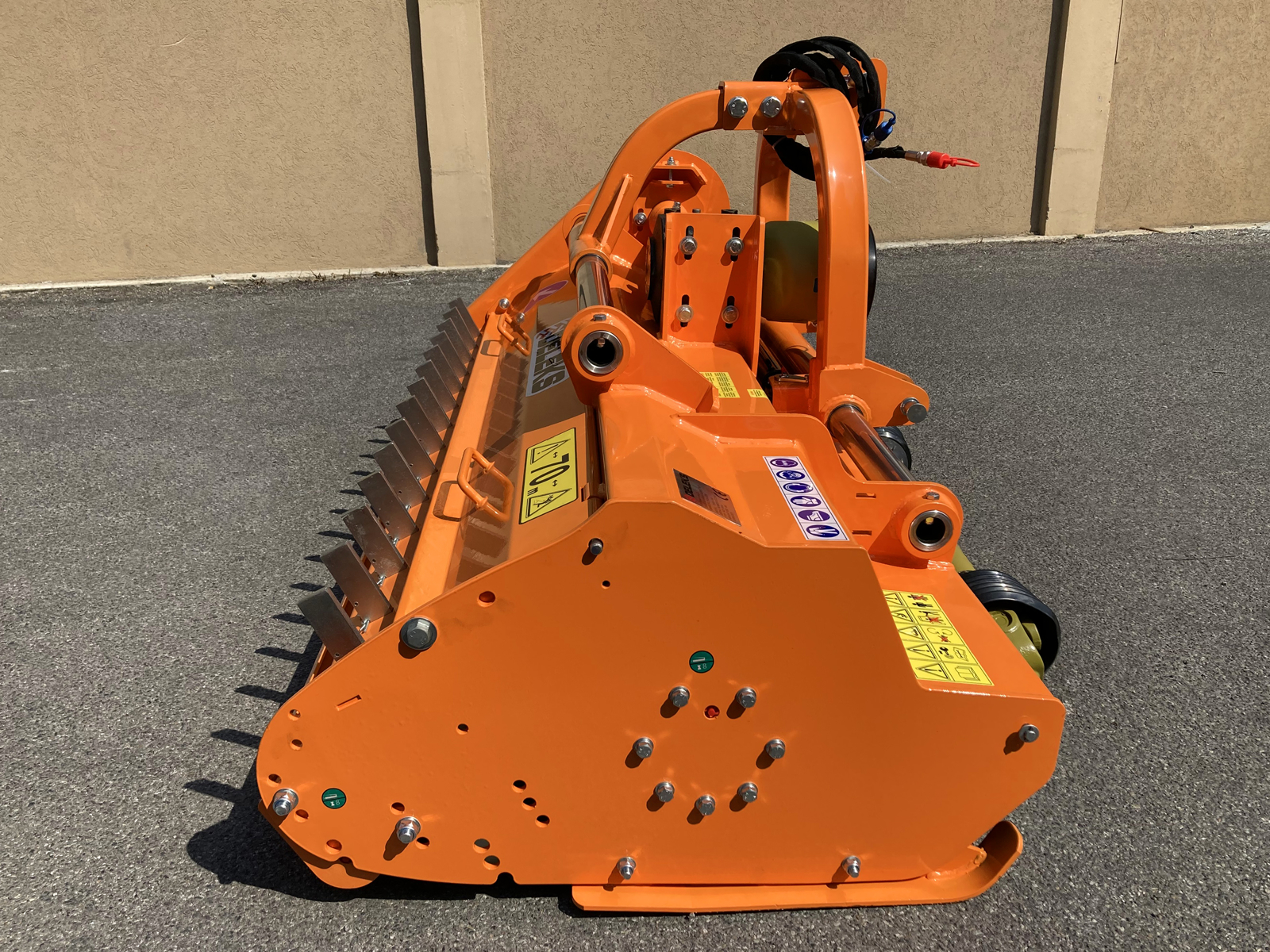

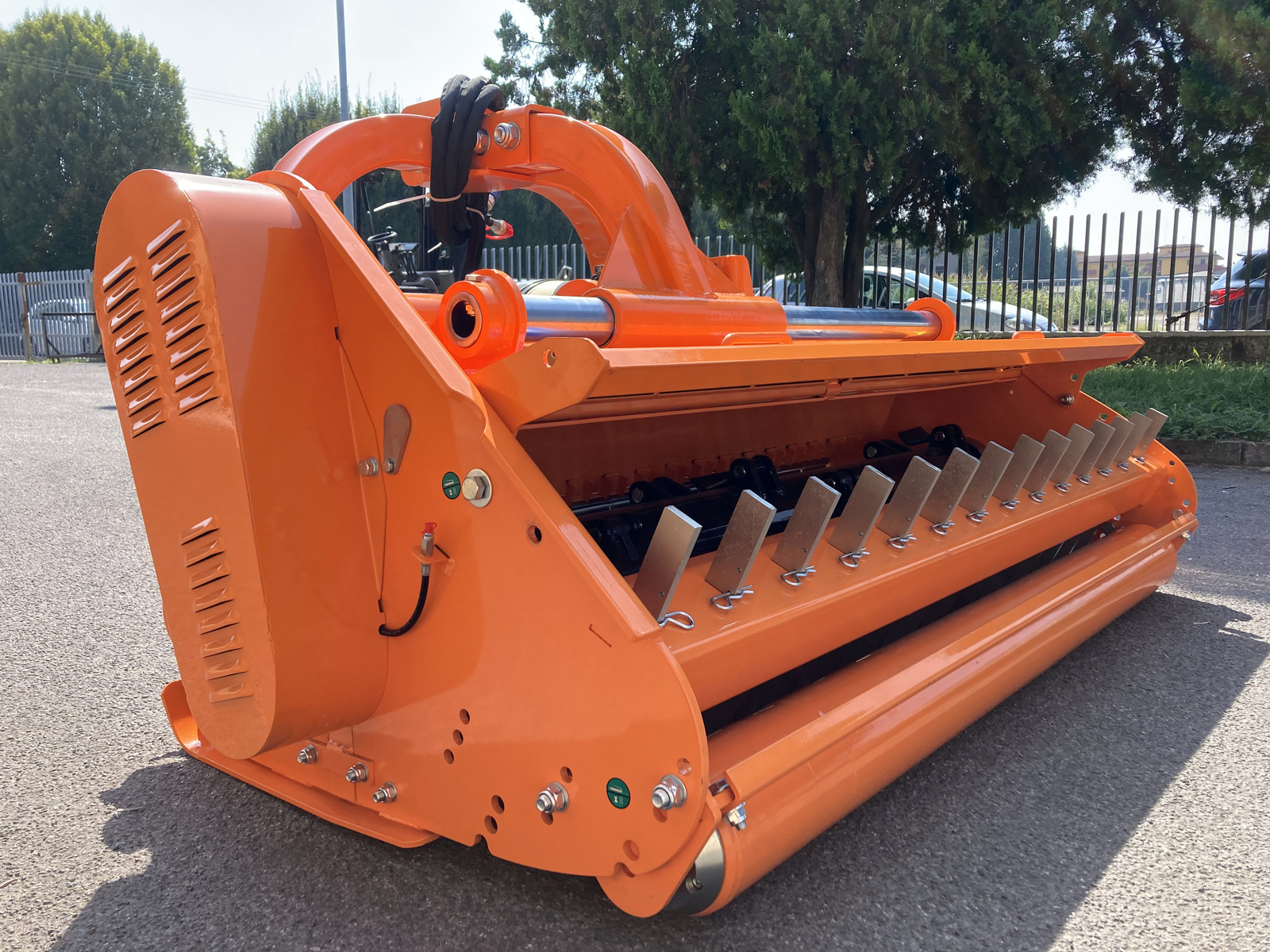

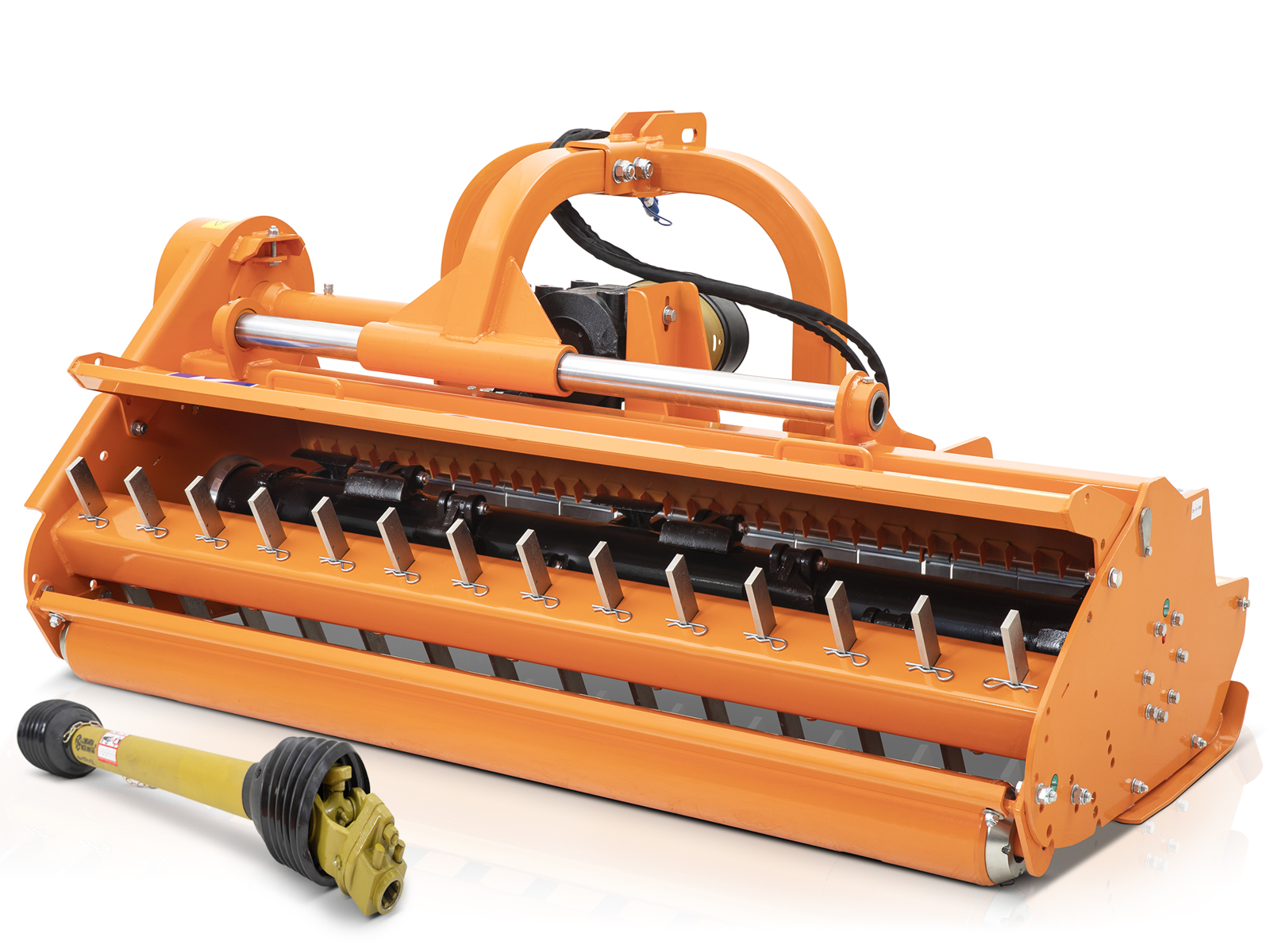

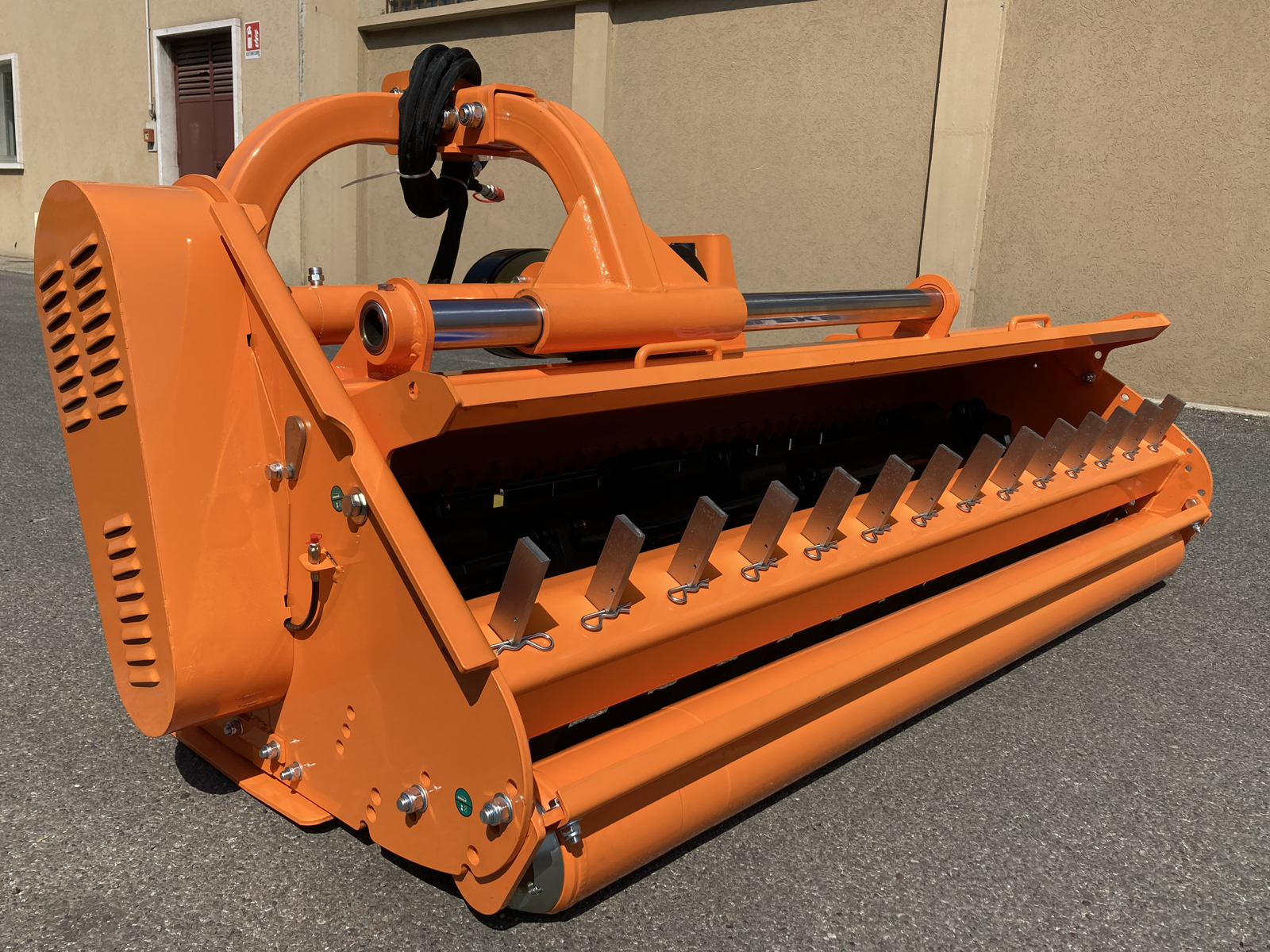

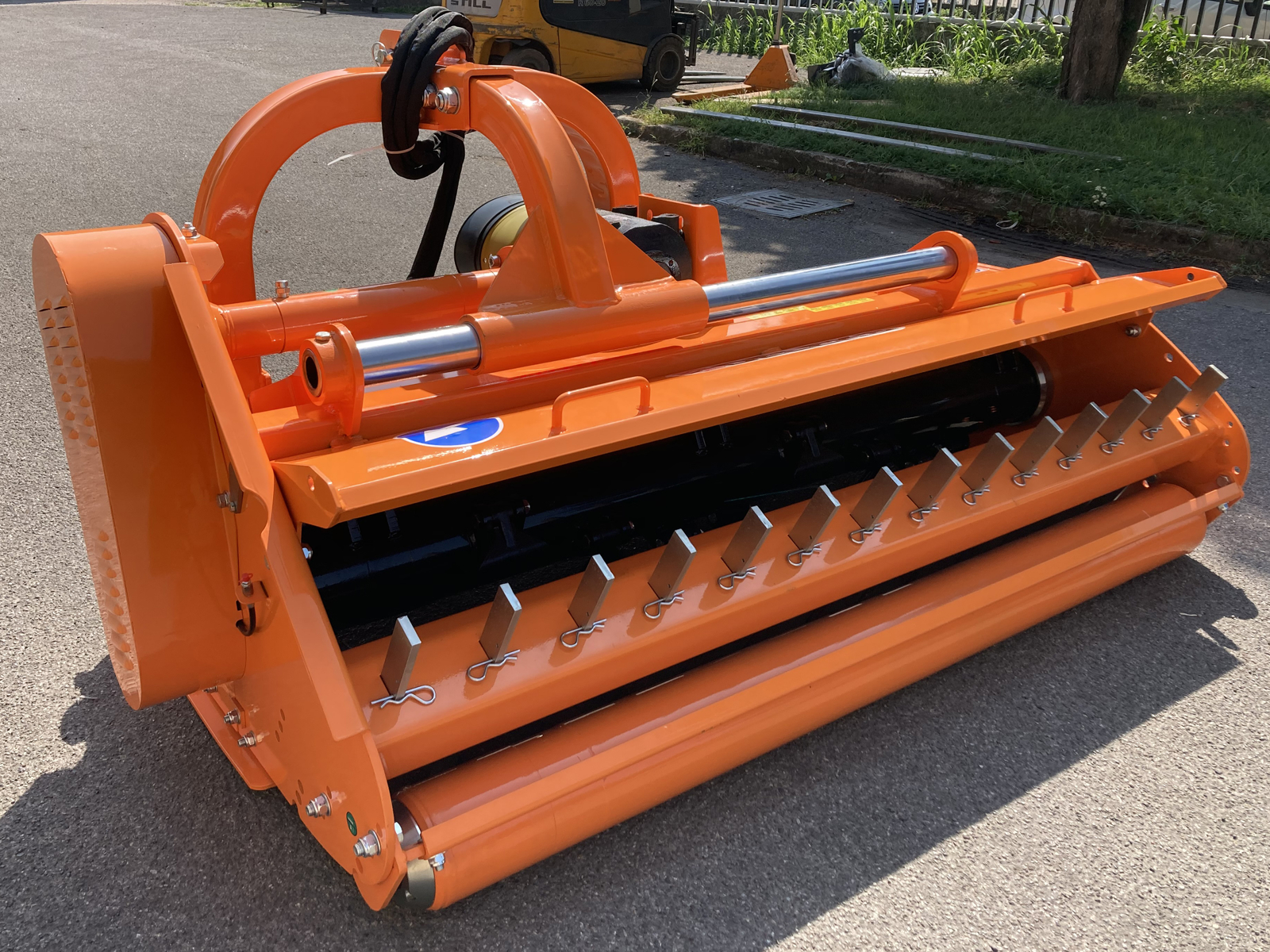

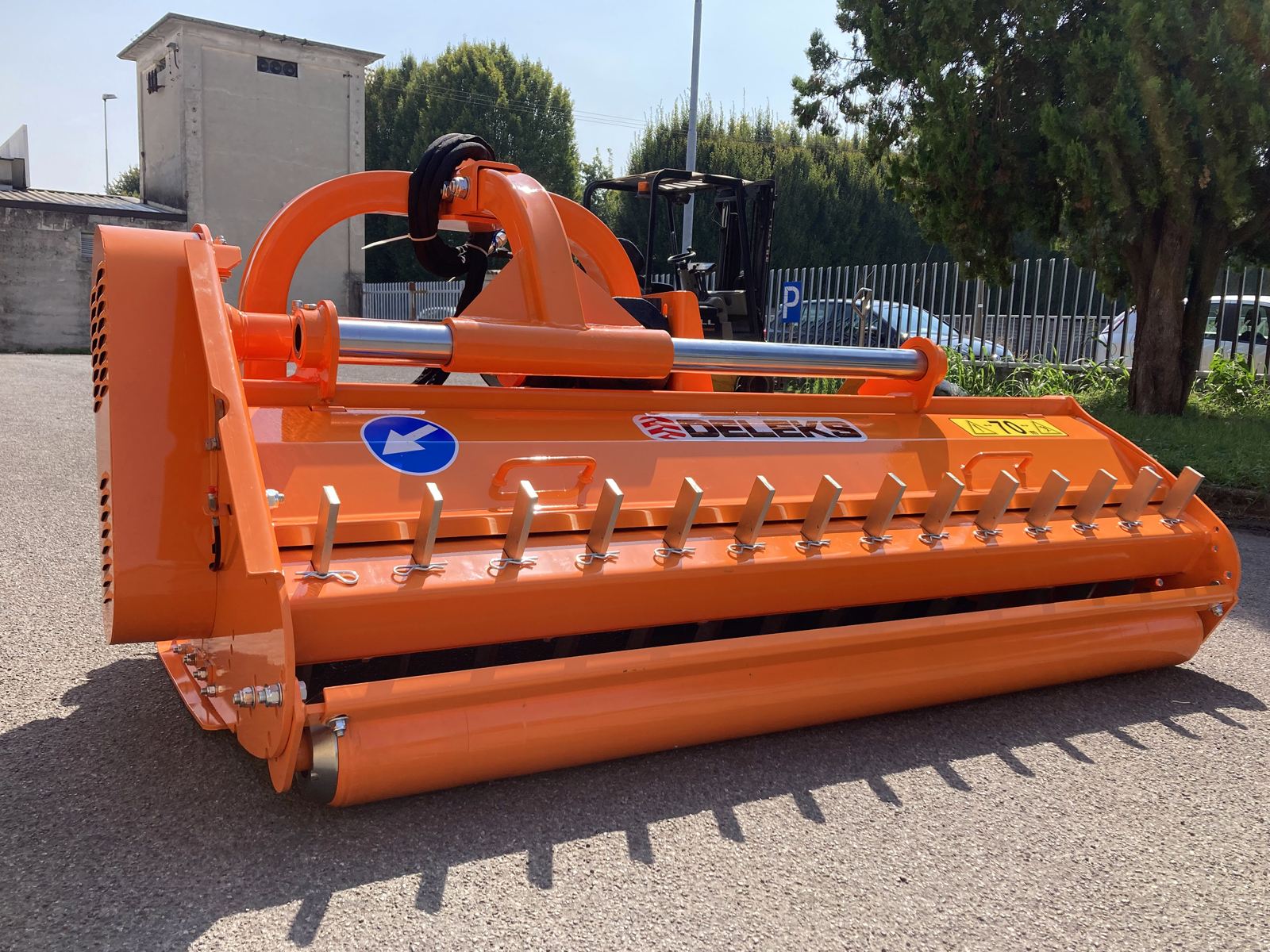

Adjustable sideshift Flail Mower For 60-120HP Tractors Shredder, 200cm / 690kg, Mulcher - DELEKS® TORO-200 - Pto shaft CE included.


OVERVIEW

The TORO-200 heavy duty flail mower is particularly suitable for harvesting corn stalks, wheat, soybean, straw, vegetables in general, for the cleaning of uncultivated land (max 5-6 cm in diameter), it has a power of between 60 and 120 Hp and has a working width of 200 cm.

Thanks to it's solid frame and 170.0 mm rotor it can be used for work on the flat ground and verges. Compatible with all brands of tractors with Cat. 2 three-point linkage e.g Fiat, Ford, New Holland T4, Deutz-Fahr, Landini Rex, John Deere 4, Kubota L-M, Lamborghini, Goldoni, etc.


BENEFITS & FEATURES

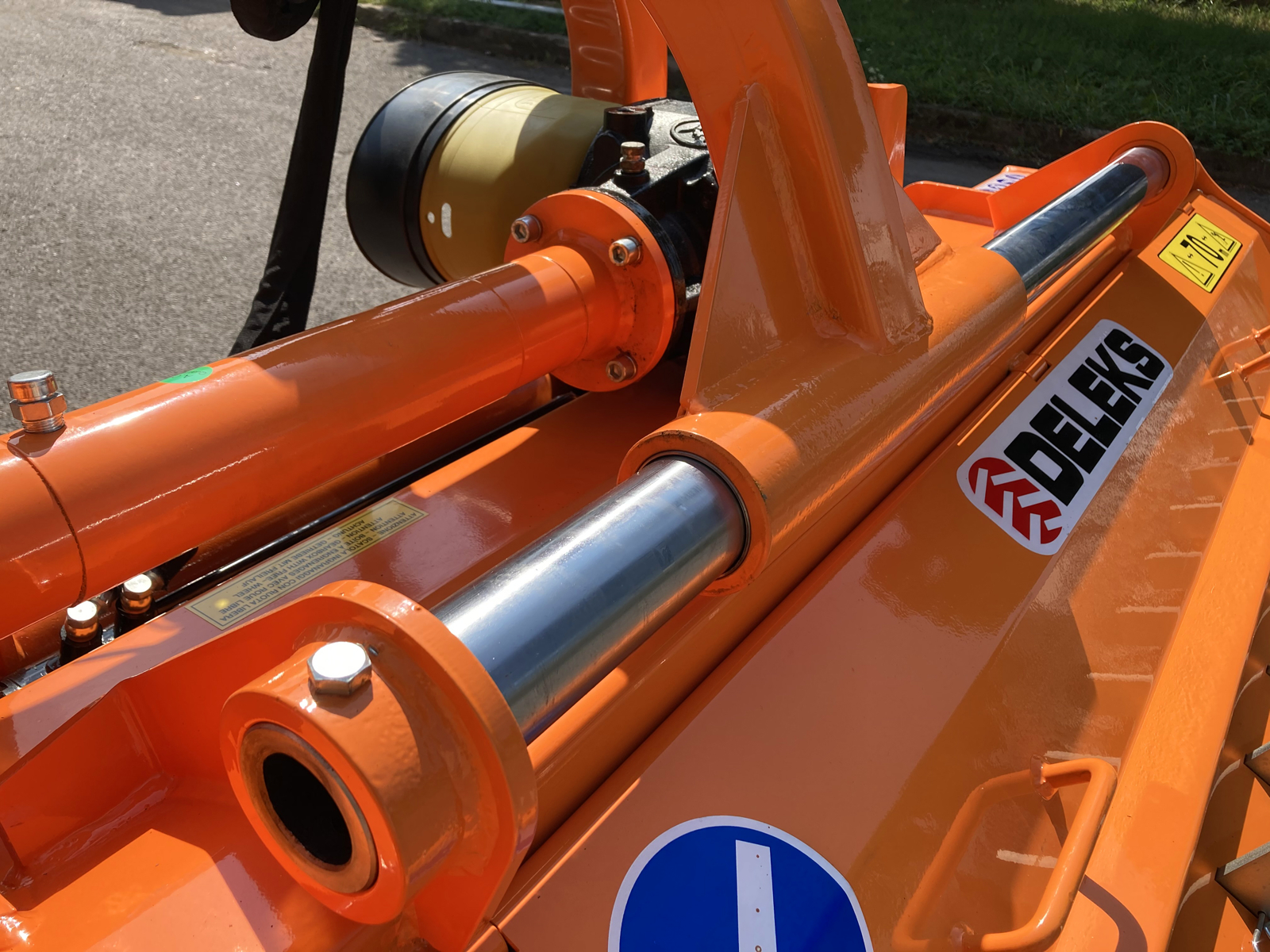

Hydraulic offset.

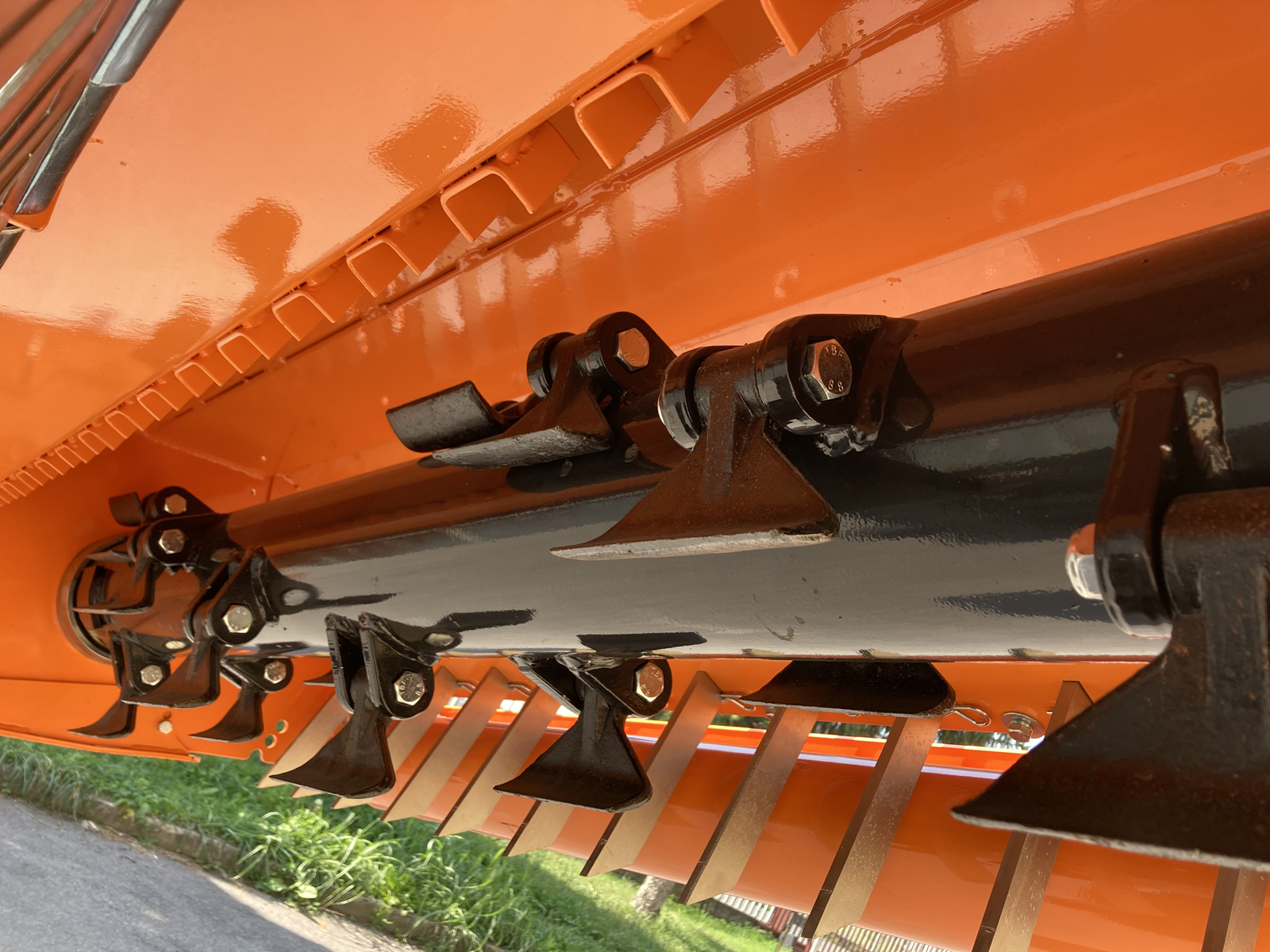

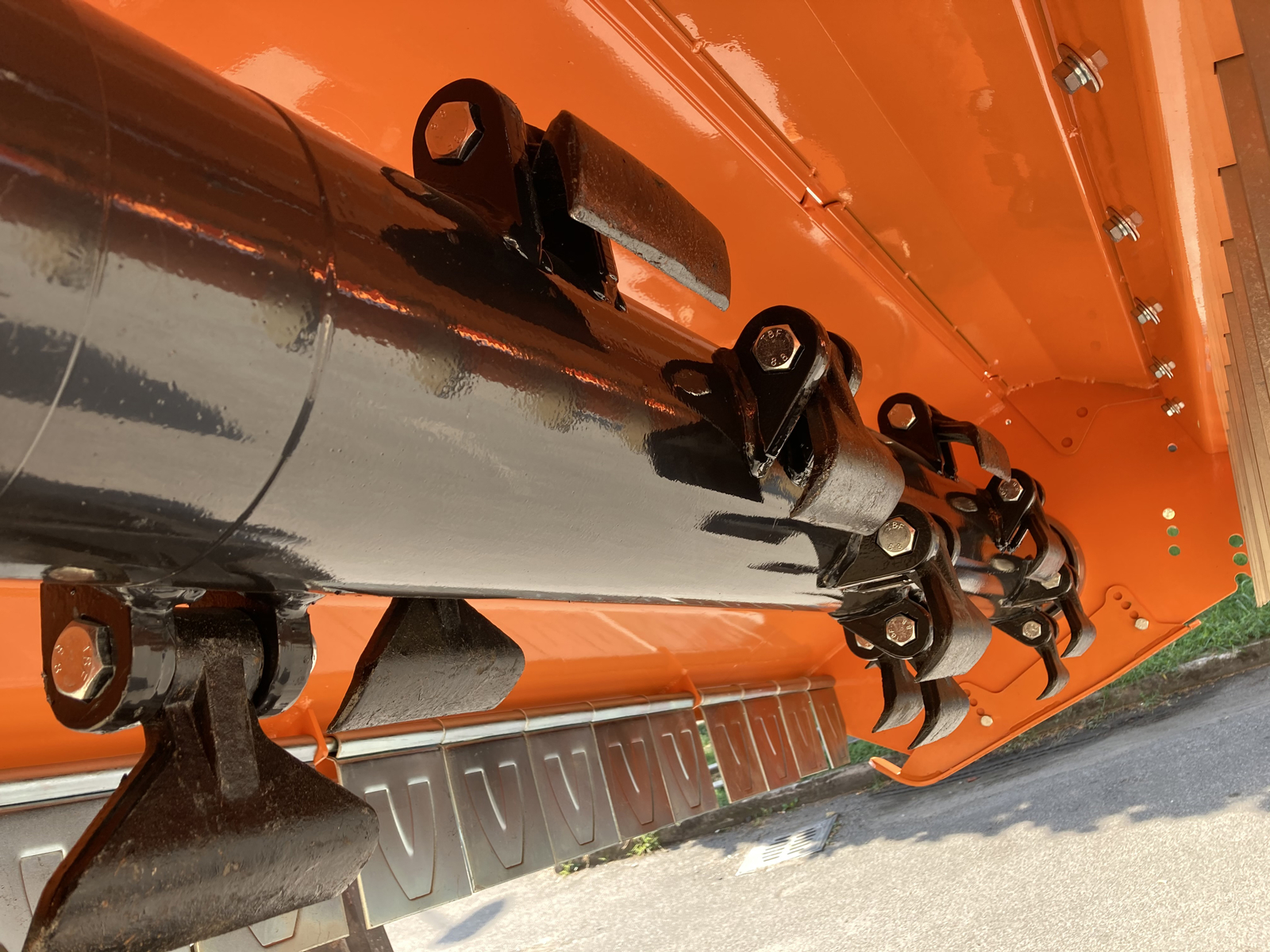

Hammers on the rotator (triple Y-blade set on request).

5 high resistance toothed belts, and external belt tensioner.

170.0 mm electronically balanced rotor.

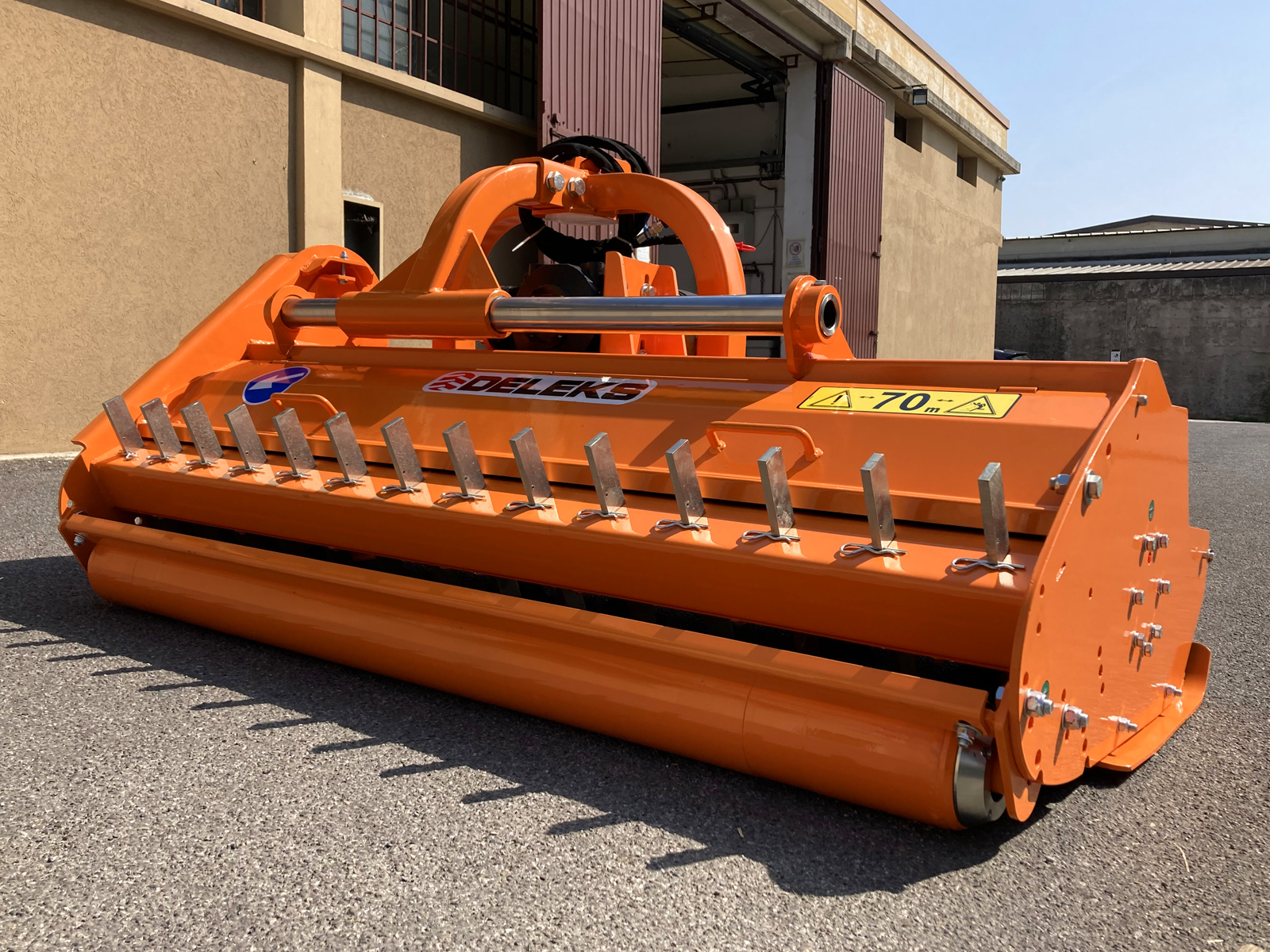

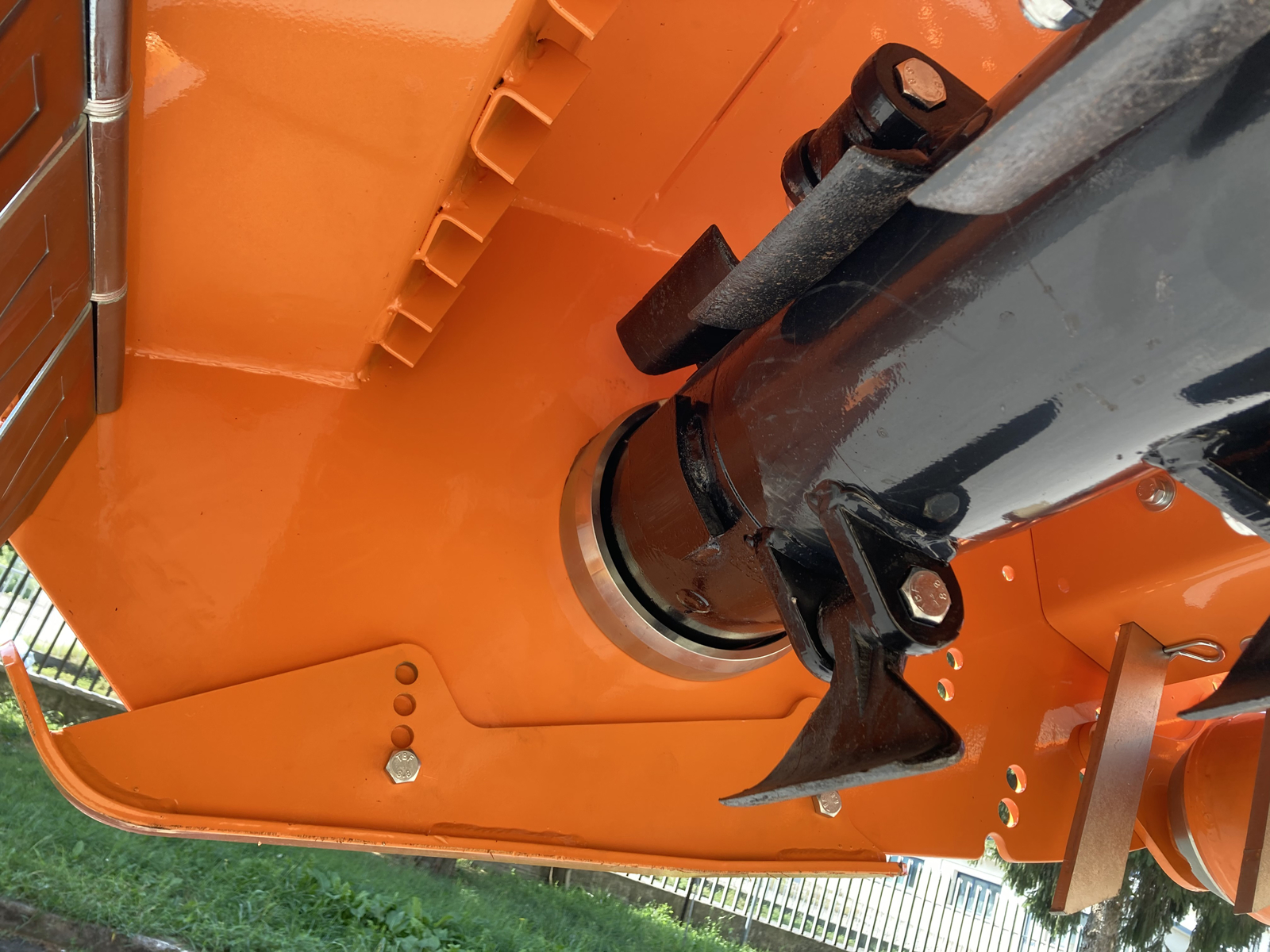

Self-cleaning rear roller and side skids.

Rear bonnet can be opened for maintenance purposes.

Reinforced rotor support fixed to the frame by 6 strong bolts for additional strength.

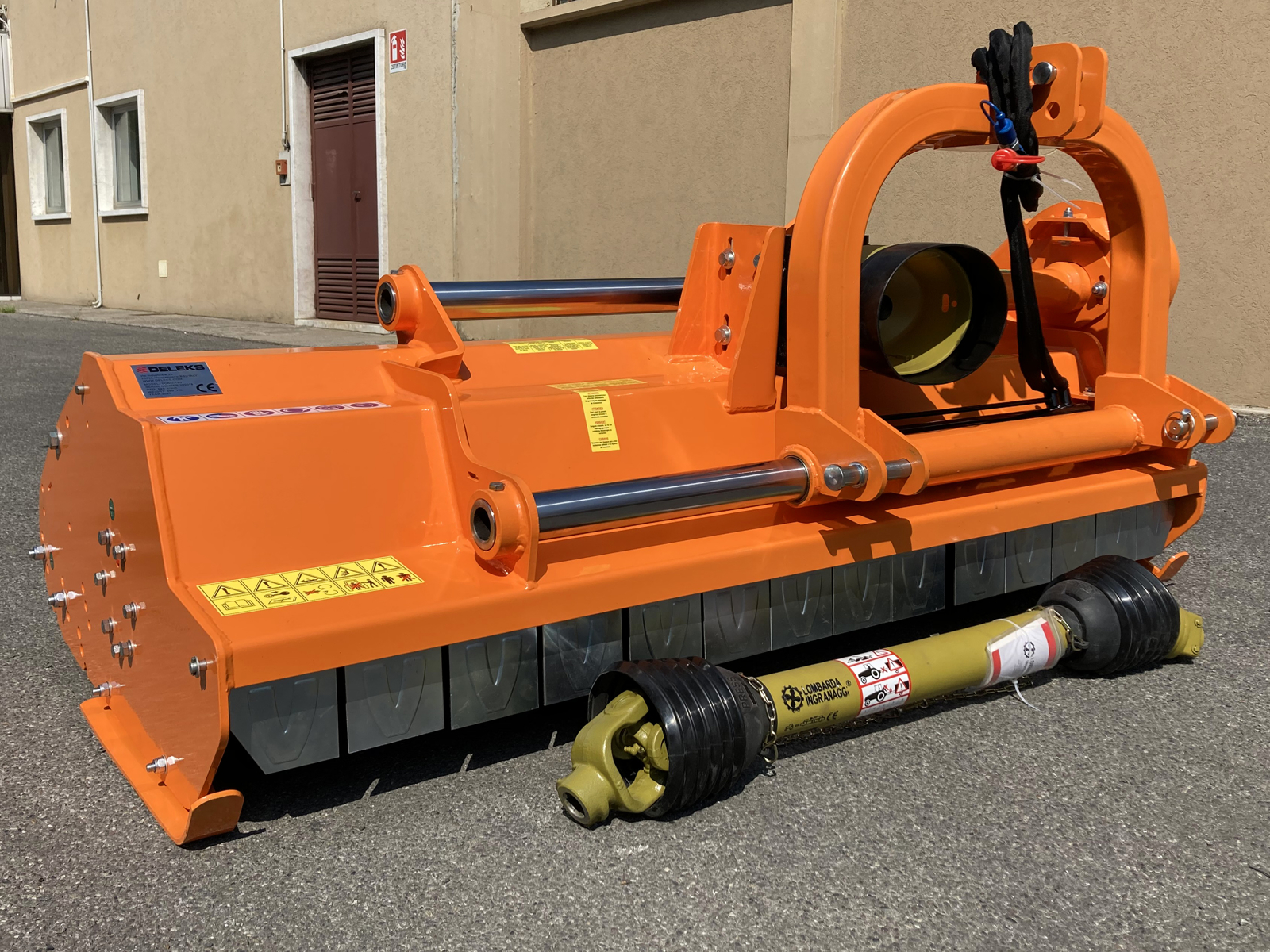

Pto shaft CE included.



CARACTERISTICS

Caracteristic Units metric Units US
Working width 2000.0 mm 6.56 ft
Overall width 2180.0 mm 7.15 ft

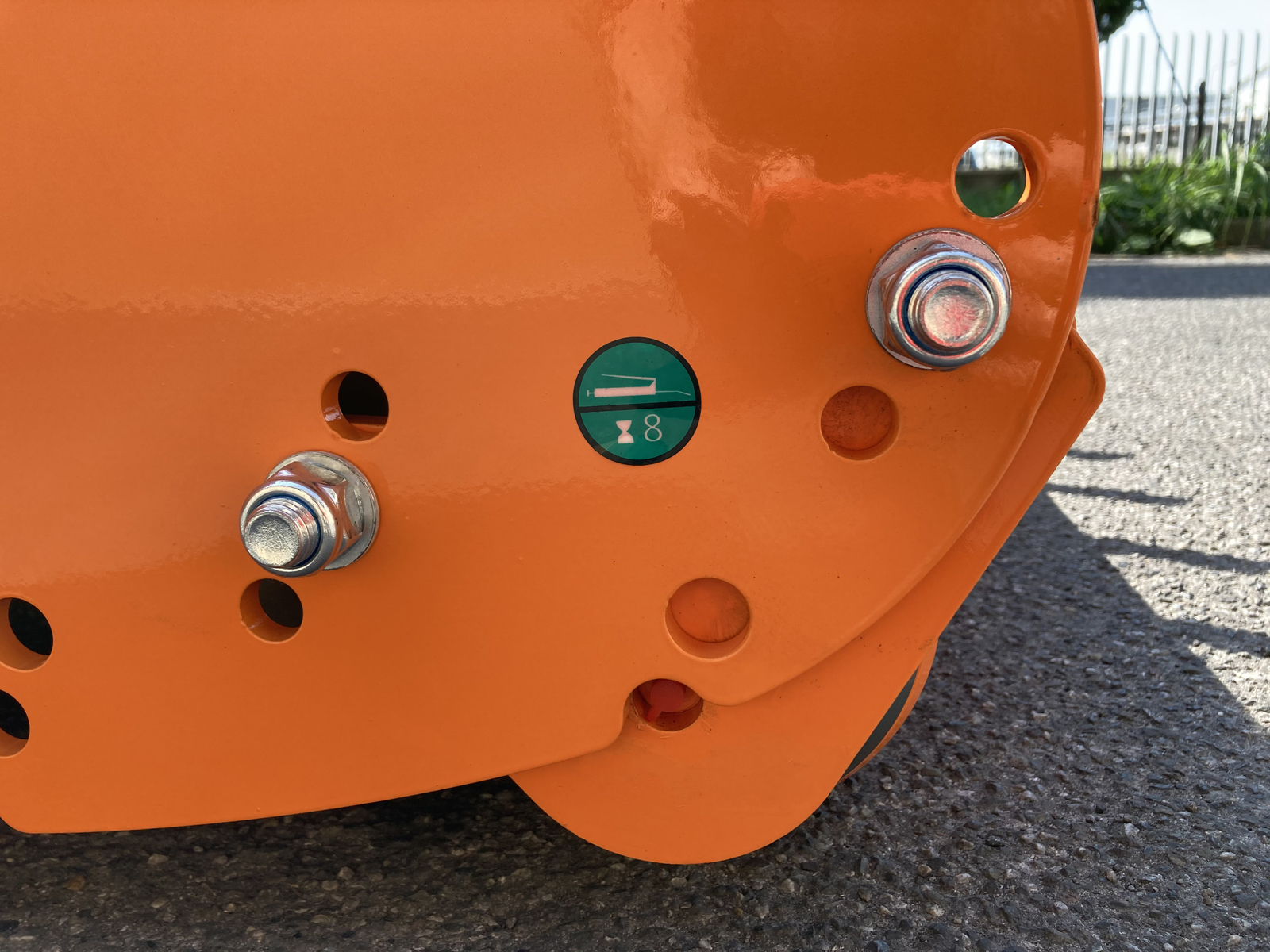

Min / Max cutting height 10.0 - 75.0 mm 0.4 - 2.95 in
Weight 690.0 kg 1520 lb
Overall height 990.0 mm 3.25 ft
Tractor Power Range 60 - 120 Hp 60 - 120 Hp
3 point linkage Cat. 2 (ø 25.0-28.0 mm) Cat. 2 (ø 25.0-28.0 mm)
Position of the gearbox 800.0 mm from left side / 1200.0 mm from right side 31.50 in from left side / 47.00 in from right side
Hood height 550.0 mm 21.65 in
Spacing between the 2 lower points 735.0 - 890.0 mm 28.95 - 35.00 in
Number of Hammers 18 (or 54 blades) 18 (or 54 blades)
Maximum cutting diameter 40.0-50.0 mm 1.57 - 1.97 in
Overall length 1100.0 mm 3.60 ft
Distance between pto attachment and ground 580.0 mm 22.83 in
Main hood thickness 5.0 mm 0.2 in
Sides thickness 10.0 mm 0.4 in
Side plates thickness 12.0 mm 0.47 in
Transmission: Drive method V-Belts V-Belts
Transmission: Gearbox Lombarda Ingranaggi (3 year warranty) Lombarda Ingranaggi (3 year warranty)
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Free wheel
Transmission: RPM Rotor speed 2403.0 rpm 2403.0 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Transmission: Top pulley ø 230.0 mm 9.05 in
Transmission: Lower pulley ø 155.0 mm 6.10 in
Transmission: V-Belts quantity 5 5
Transmission: V-Belts size 17x1300 17x1300
Rotor: diameter 170.00 mm 6.69 in
Rotor: bearings type and size 1309 1309
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 10.0 mm 0.4 in
Hammers: Weight 1100.0 g 38.80 oz
Hammer: øhole 16.0 mm 0.63 in
Hammer: base width 140.0 mm 5.51 in
Hammer: top width 40.0 mm 1.57 in
Hammer: Diagonal 97.0 mm 3.82 in
Rear roller: diameter 152.0 mm 5.98 in
Rear roller: sheet thickness 6.0 mm 0.24 in
Rear roller: bearings type and size 6308 6308
Pto shaft CE 8x1300 mm + shear bolt CE 8x1300 mm + shear bolt
Hood length 1000.0 mm 39.37 in
Effective Displacement 500.0 mm (Hydr.) 19.68 in (Hydr.)
Packing sizes 2250*1150*950.0 mm 7.38*3.77*3.12 ft
