Rotary tiller for tractor - Hydraulic offset - DFH-IDR-135
EAN 8053470234019
See more details
2 YEARS WARANTY
30 DAYS FOR RETURN
5-10 DAYS OF SHIPPING
SECURE PAYMENT
DETAILS

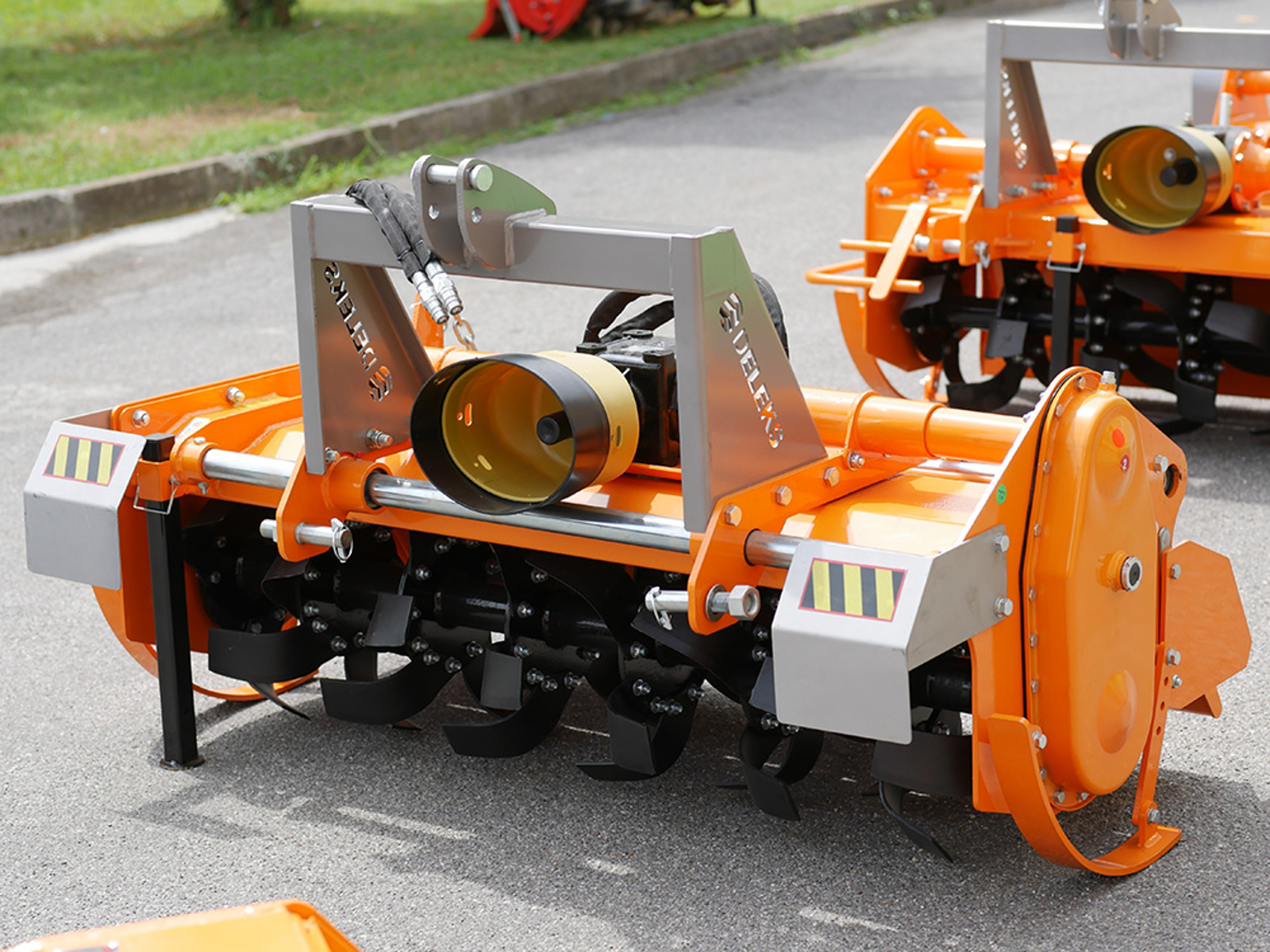

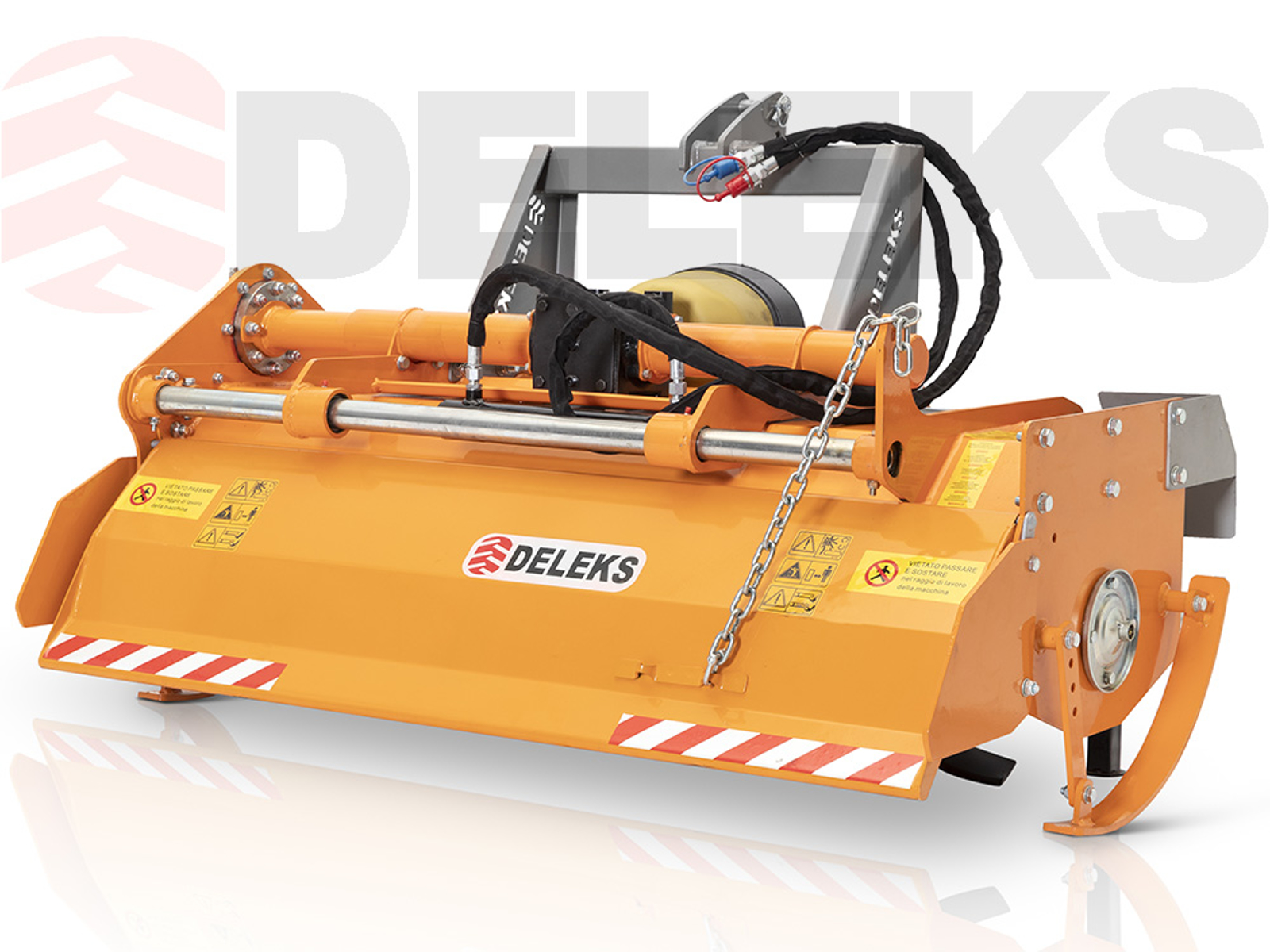

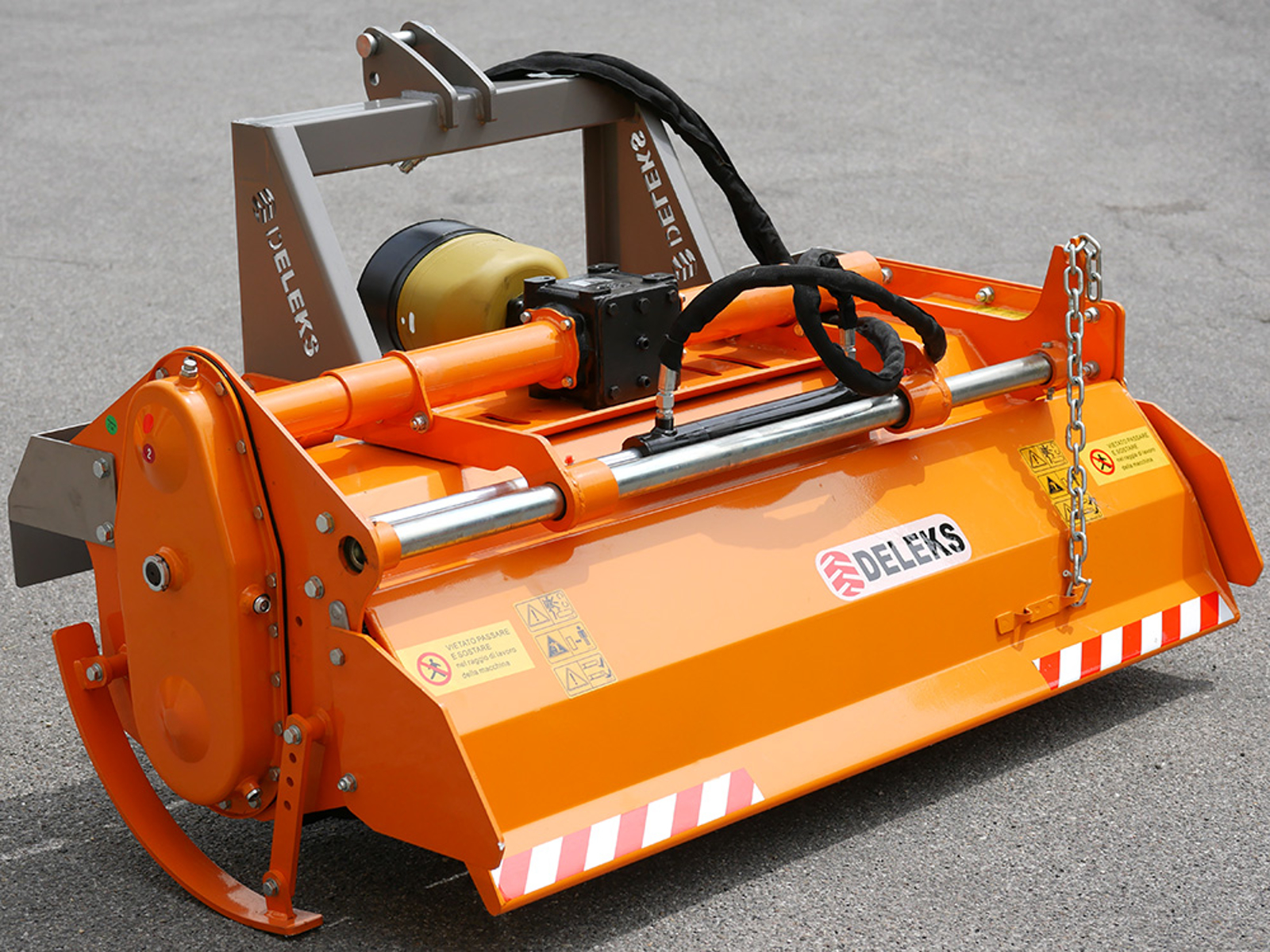

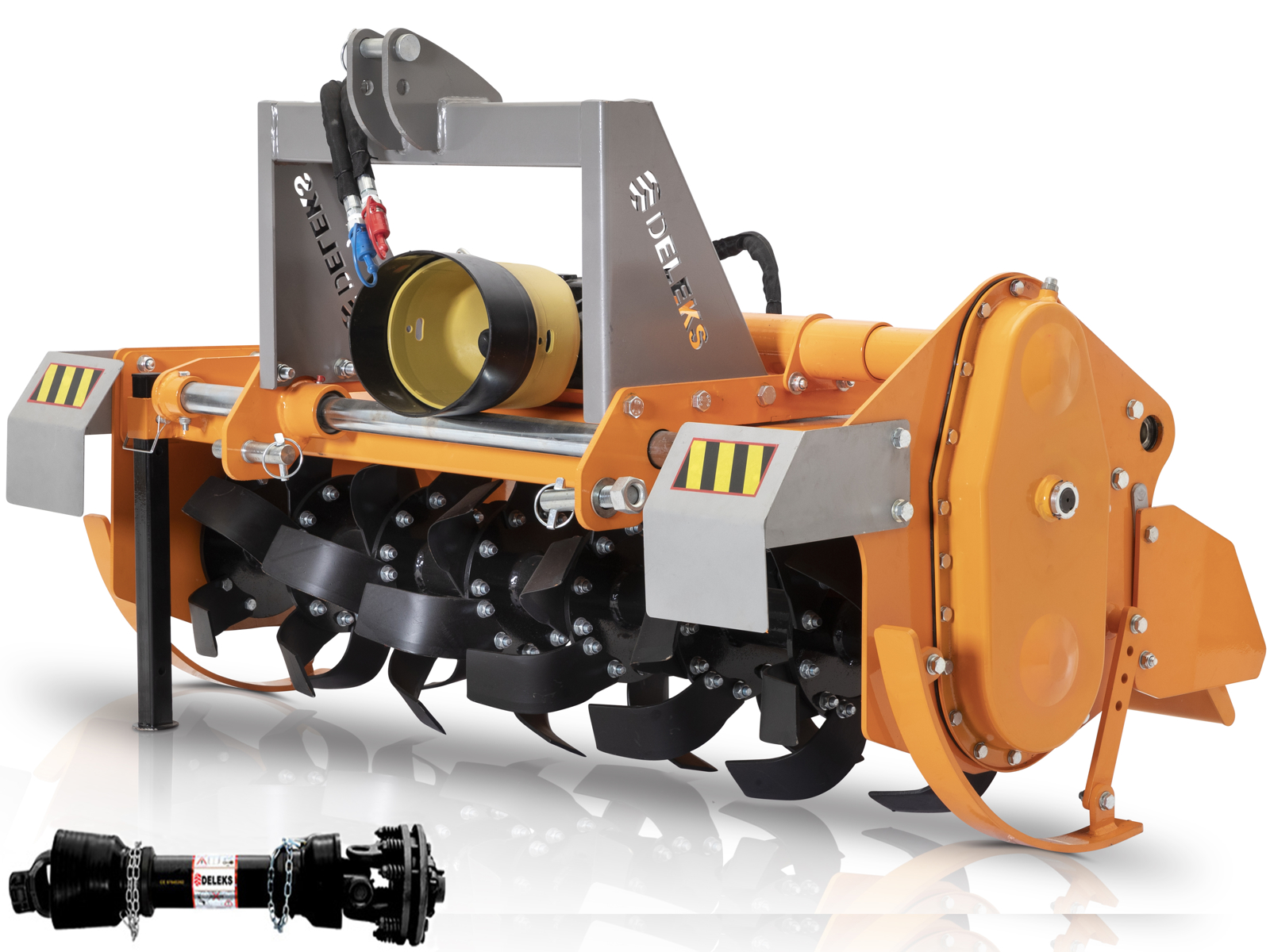

Rotary Tiller DELEKS® for 30-60HP Tractors, Rotovator 135cm / 328kg - 330mm Hydraulic offset - Side Gears Drive - Pto shaft CE included.
OVERVIEW

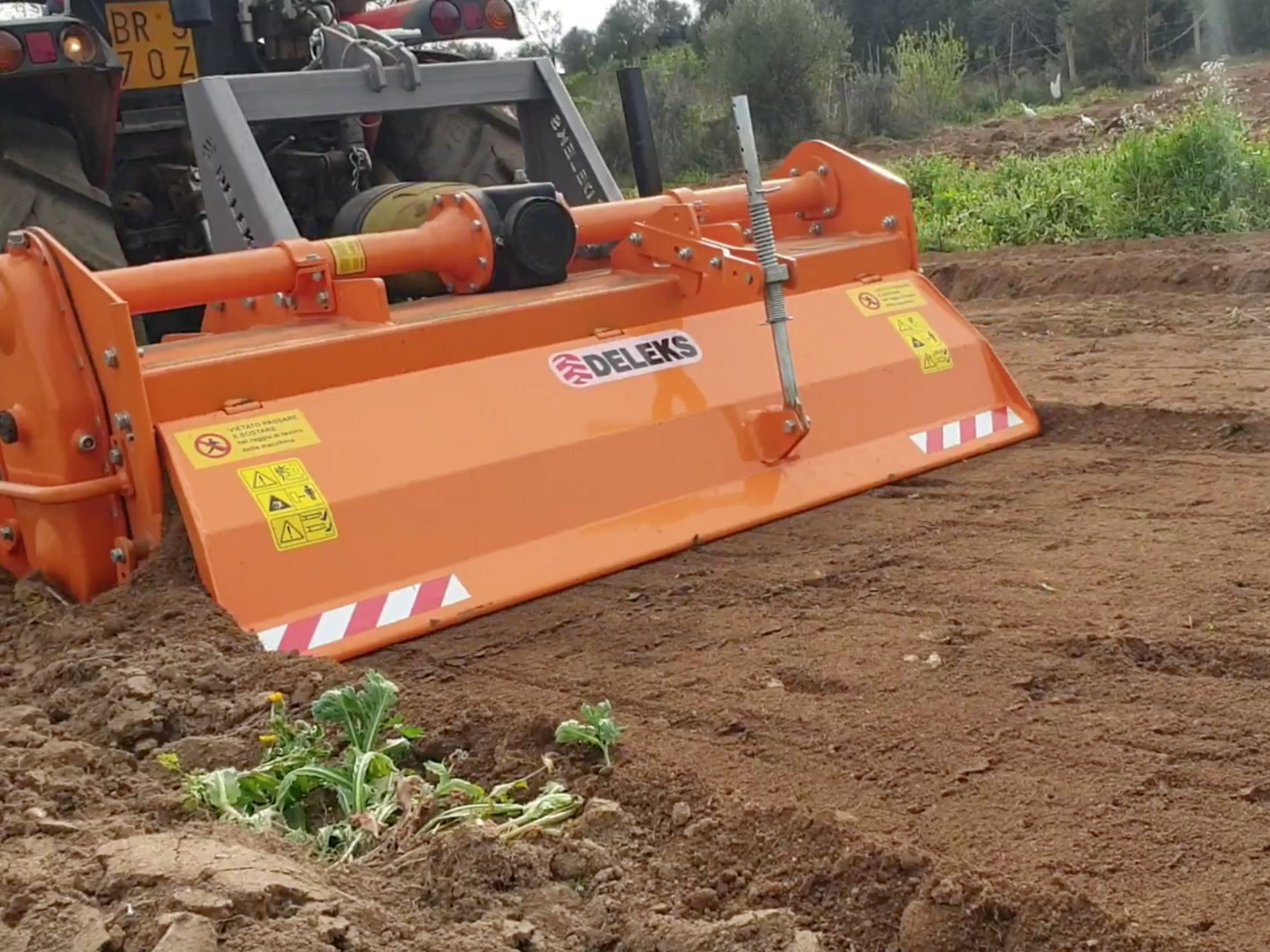

The DFH-IDR Rotary Tiller has been designed for soil preparation, in fields, nursery, orchards, allotments, and for gardening. Rotating blades break up the soil, on rough uncultivated ground. Can be also be used for weeding or working surface material into the soil.
Designed to fit most compact 30-60HP tractors e.g Kubota L, Lamborghini, Fiat, McCormick, Landini Mistral, New Holland Boomer 35-40, T3, John Deere 3-4 Series. Cat.1-2 universal three-point hitch, Hydraulic offset, single-speed cast-iron gearbox. Delivered assembled (except 3 point linkage) and greased, Gearbox filled with oil.
BENEFITS & FEATURES

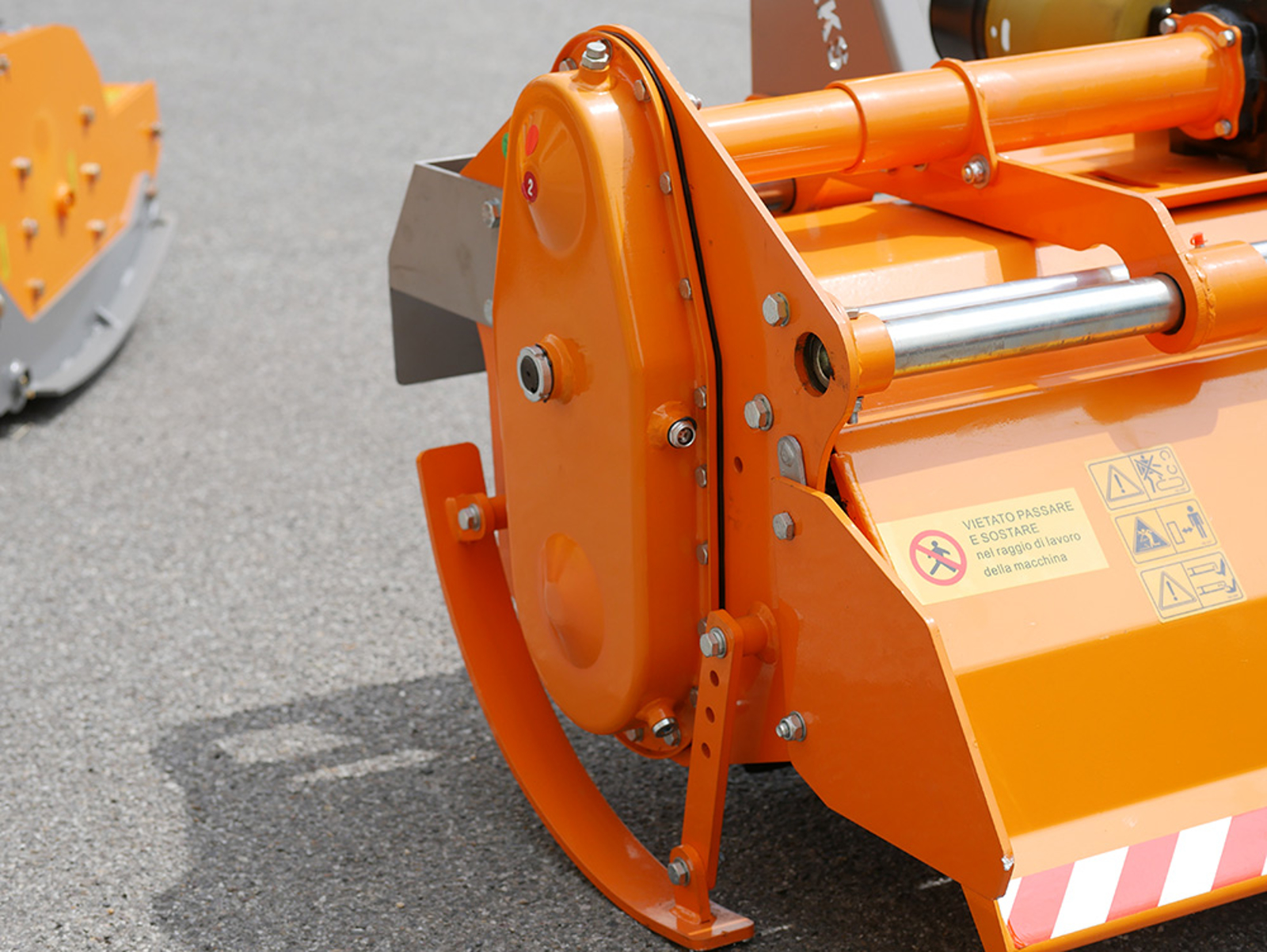

Side Gears Drive.
Pto shaft CE included.

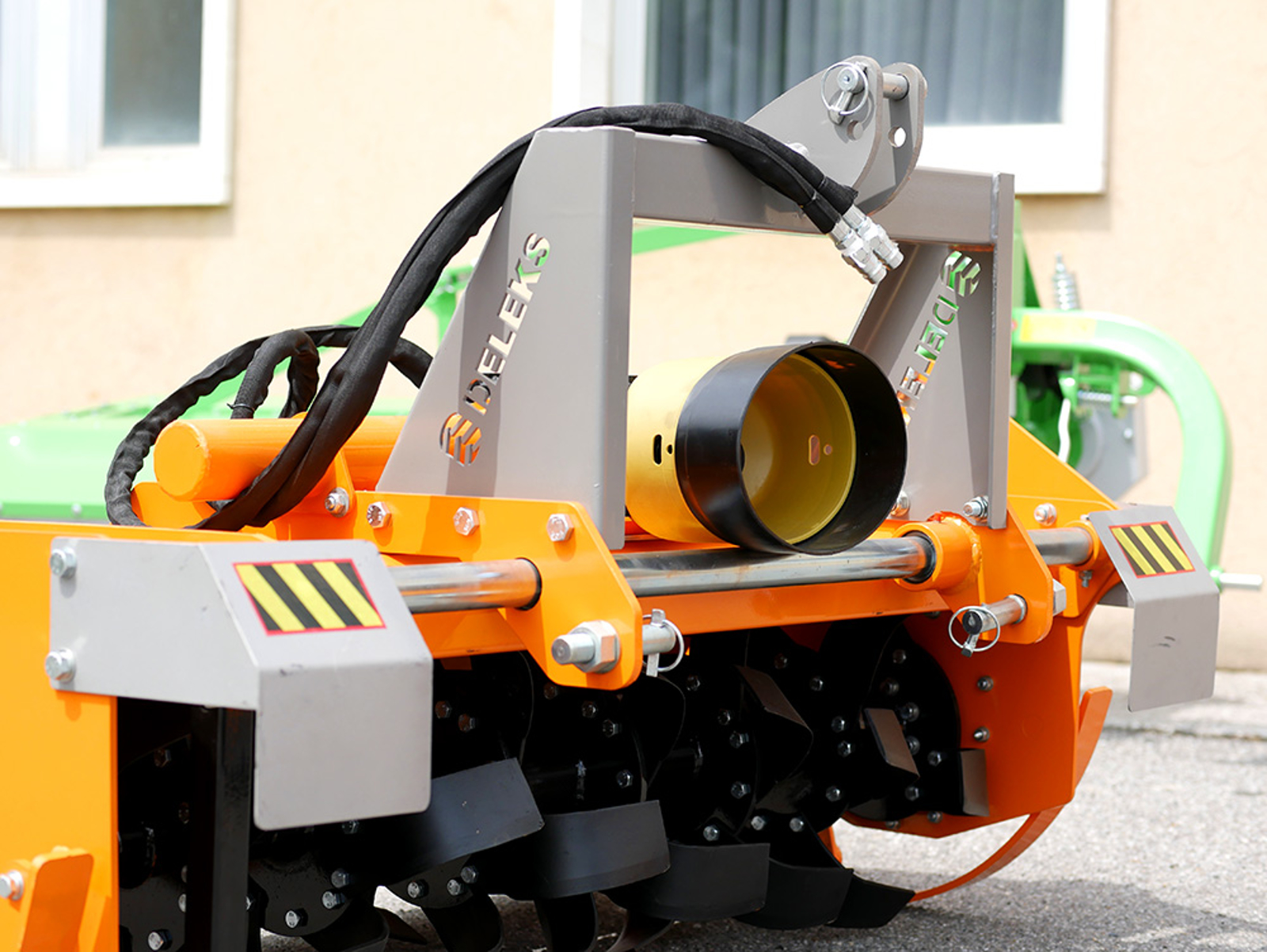

Hydraulic offset.

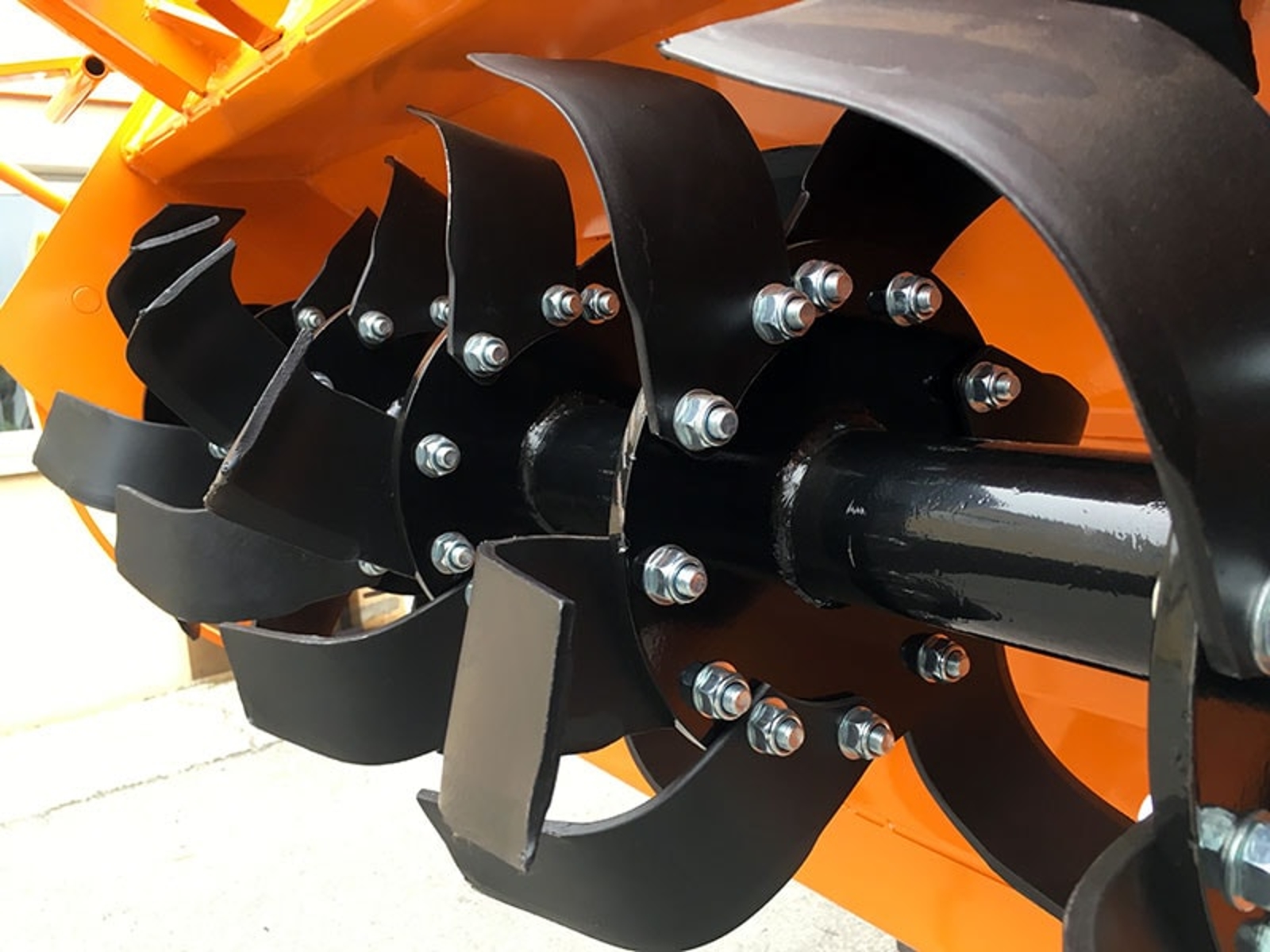

Six spiral blades per flange.

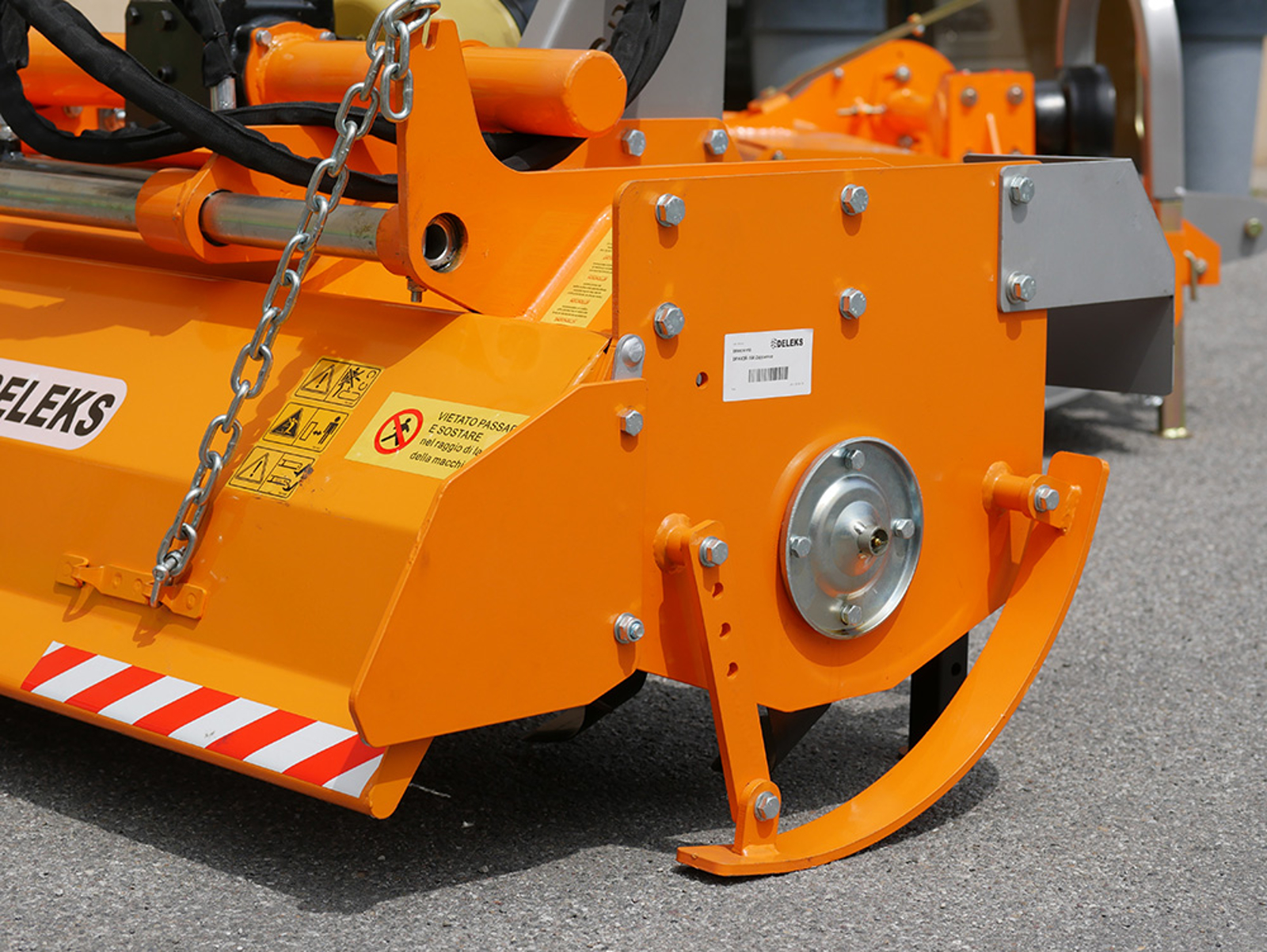

Adjustable side skids to obtain the desired working depth.
Adjustable rear shield.
CE Safety Guards.
VIDEO
CARACTERISTICS
| Caracteristic | Units metric | Units US |
|---|---|---|
| Overall width | 1550.0 mm | 5.08 ft |
| Weight | 328.0 kg | 723.0 lb |
| Overall height | 1030.0 mm | 3.38 ft |
| Tractor Power Range | 30 - 60 Hp | 30 - 60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Position of the gearbox | Central | Central |
| Spacing between the 2 lower points | 745.0 - 870.0 mm | 29.35 - 34.25 in |
| Overall length | 720.0 mm | 2.36 ft |
| Rotor: diameter | 76.0 mm | 3.0 in |
| Rotor: sheet thickness | 8.0 mm | 0.31 in |
| Transmission | Gears | Gears |
| Effective Working width | 1345.0 mm | 4.41 ft |
| Working Depth Range | 160.0-200.0 mm | 6.30 - 7.87 in |
| Distance between pto attachment and base | 590.0 mm | 23.23 in |
| Pto shaft | 6x800 + Clutch ø180mm | 6x800 + Clutch ø180mm |
| Rotor: diameter with blades | 480.0 mm | 18.90 in |
| Rotor: bearings type and sizes | "GB276-6306(R) GB276-6309(L)" | "GB276-6306(R) GB276-6309(L)" |
| Rotor: flanges | 7 | 7 |
| Number of Blades per flange | 6 | 6 |
| Blades: quantity | 36 | 36 |
| Blades: height/width | 180.0 / 83.0 mm | 7.08 / 3.26 in |
| Blades: curve length | 250.0 mm | 9.84 in |
| Blades: distance between holes | 55.0 mm | 2.16 in |
| Blades: diameter of the holes | 13.0 mm | 0.51 in |
| Blades: thickness | 6.0 mm | 0.24 in |
| Gearbox | Lombarda Ingranaggi 540 r/min (3 year warranty) | Lombarda Ingranaggi 540 r/min (3 year warranty) |
| Effective Displacement | 330.0 mm Hydraulic | 330.0 mm Hydraulic |
| Rotation of gearbox | Right side | Right side |
| RPM Rotor speed | 210 rpm | 210 rpm |
| Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Blades: weight | 810.0 g | 28.57 oz |
| Packing sizes | 800.0*1580.0*820.0 mm | 2.62*5.18*2.70 ft |
