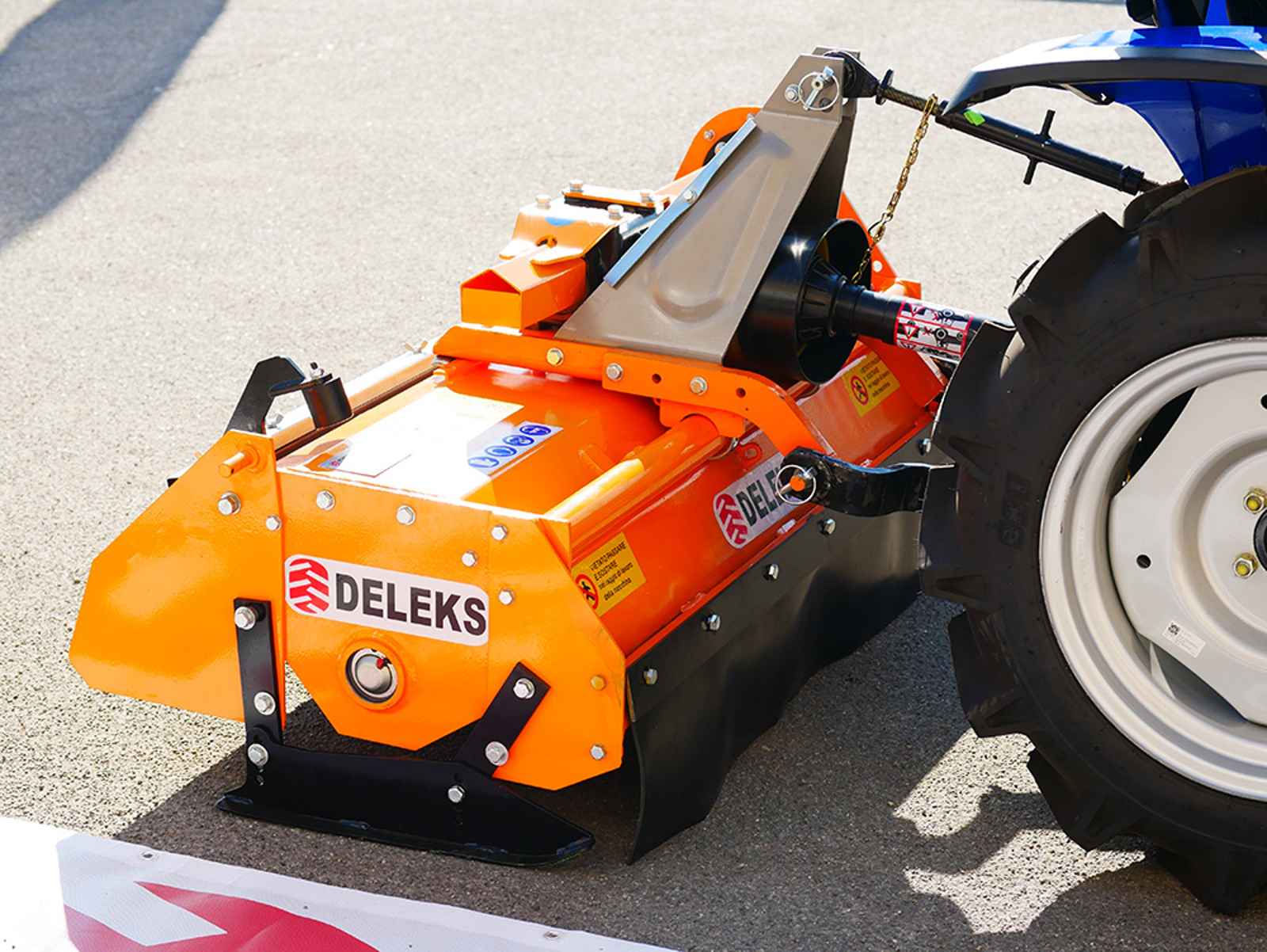

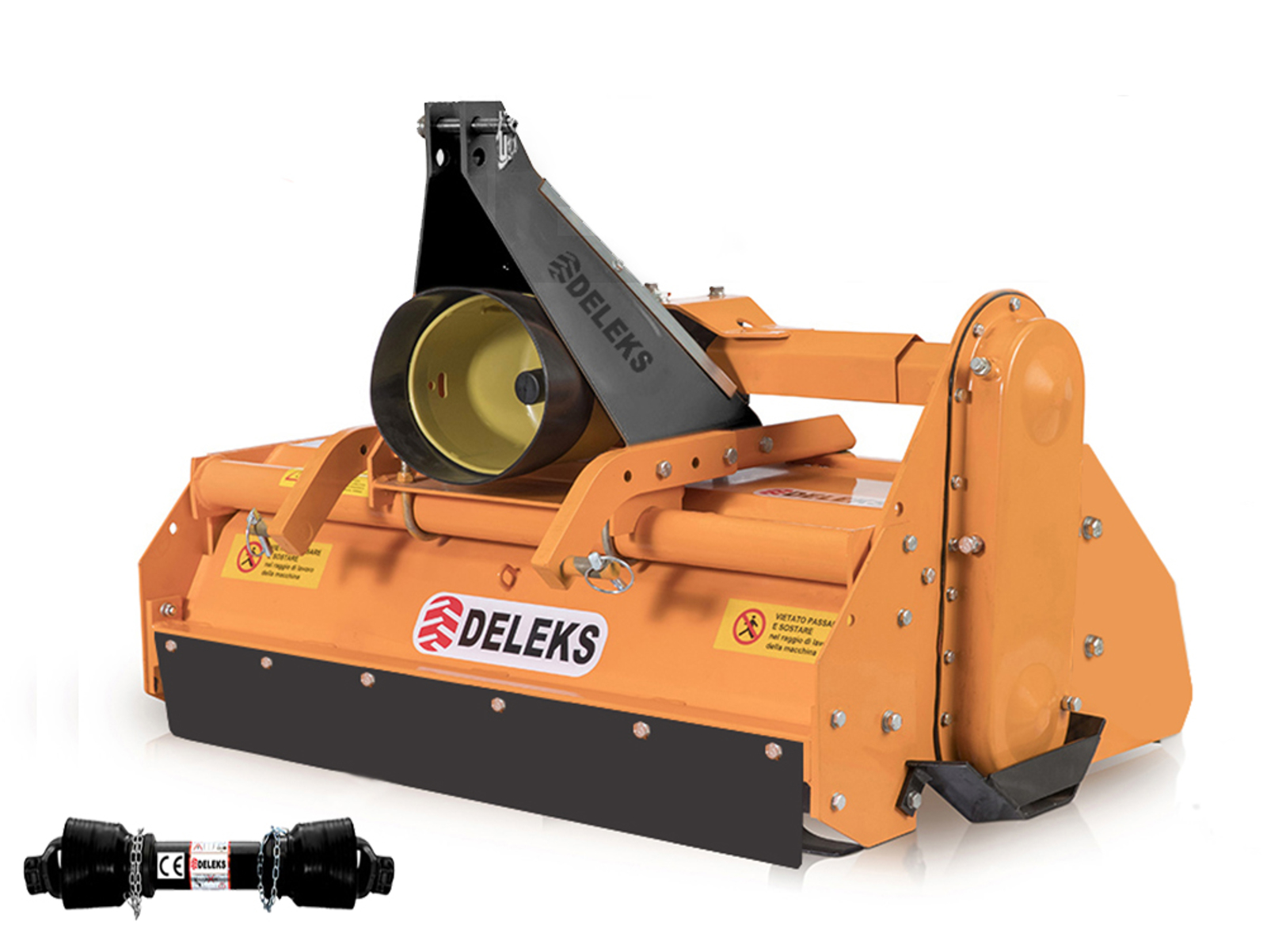

Shatter milling machine - mixture - facing bedding for poultry farms - 155cm - DELEKS - Innovative mixing machine for chickens and turkeys.
PAVO keeps the bedding clean, soft, airy and quickly renewed.
Prevents the formation of pavement crusting : detaches, raises and shatters the hardest and most dry part of the litter attached to the ground.

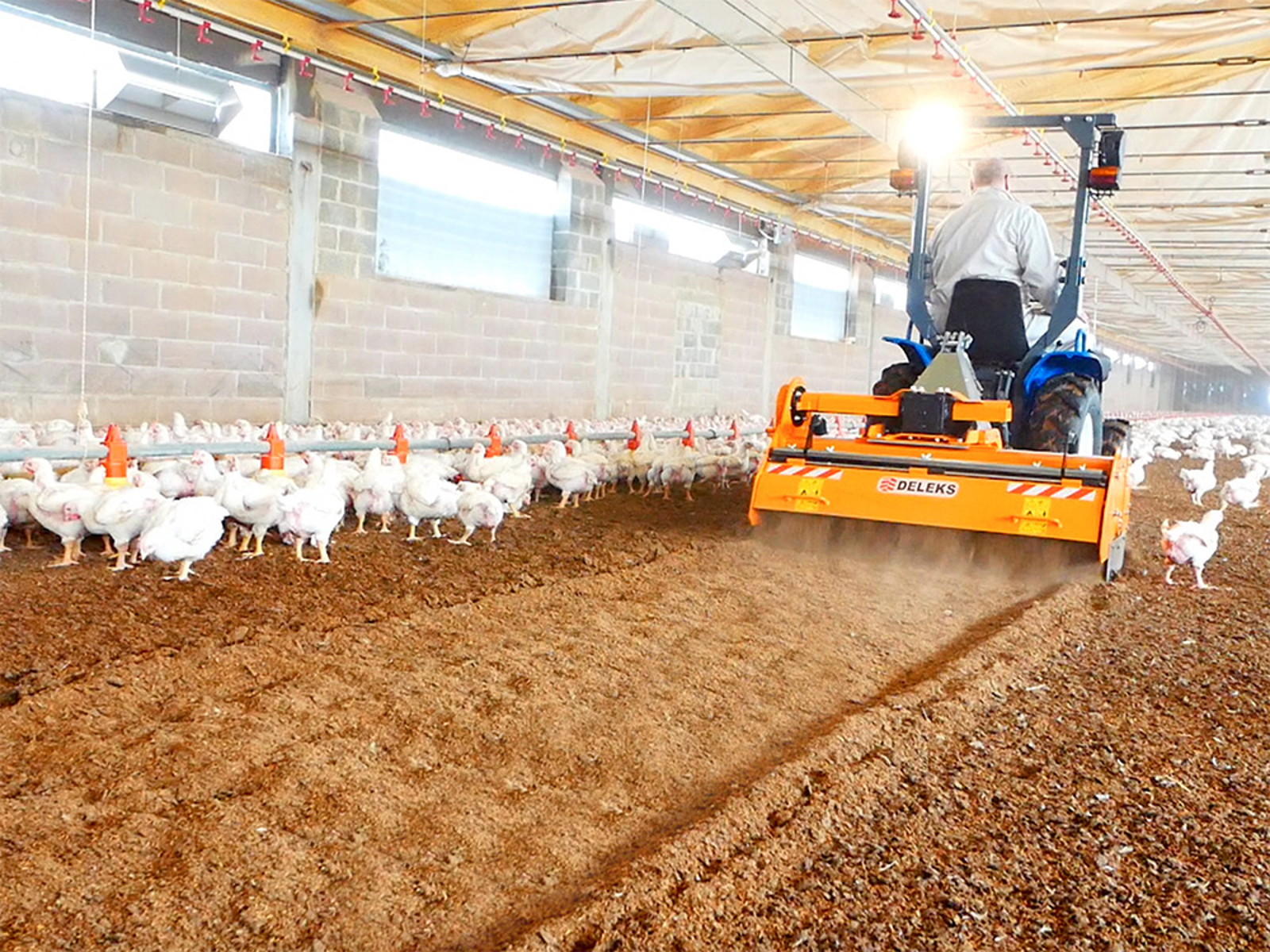

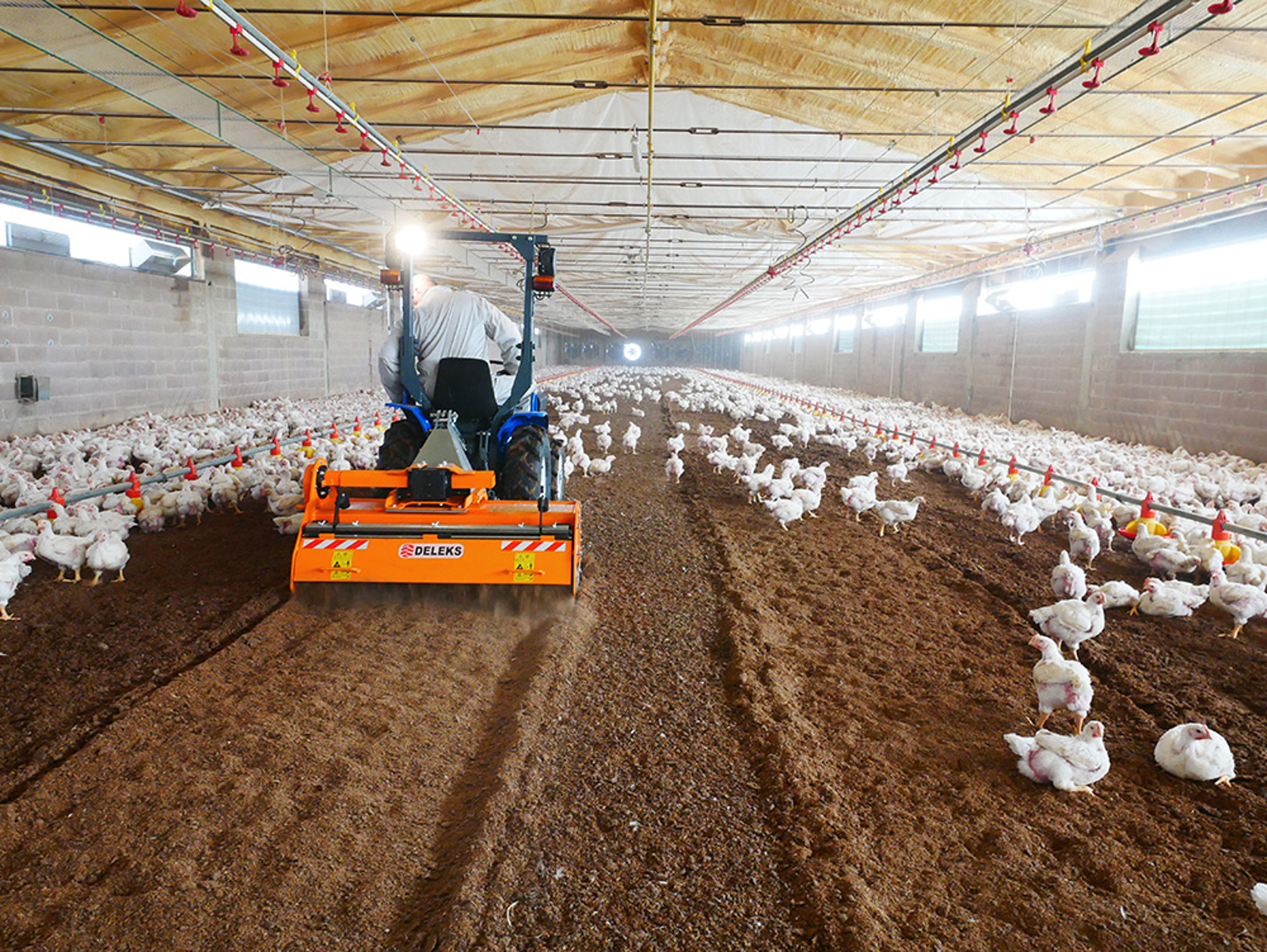

The machines hoes mix and turn all the layers of the litter and distribute the dry chips on the surface.
The humid part is mixed and, due to the effect of the greater weight, falls to the ground first, and then covered by the dryer and lighter part.
This greatly reduces the formation of odors, the presence of insects, and the strong smell of ammonia.

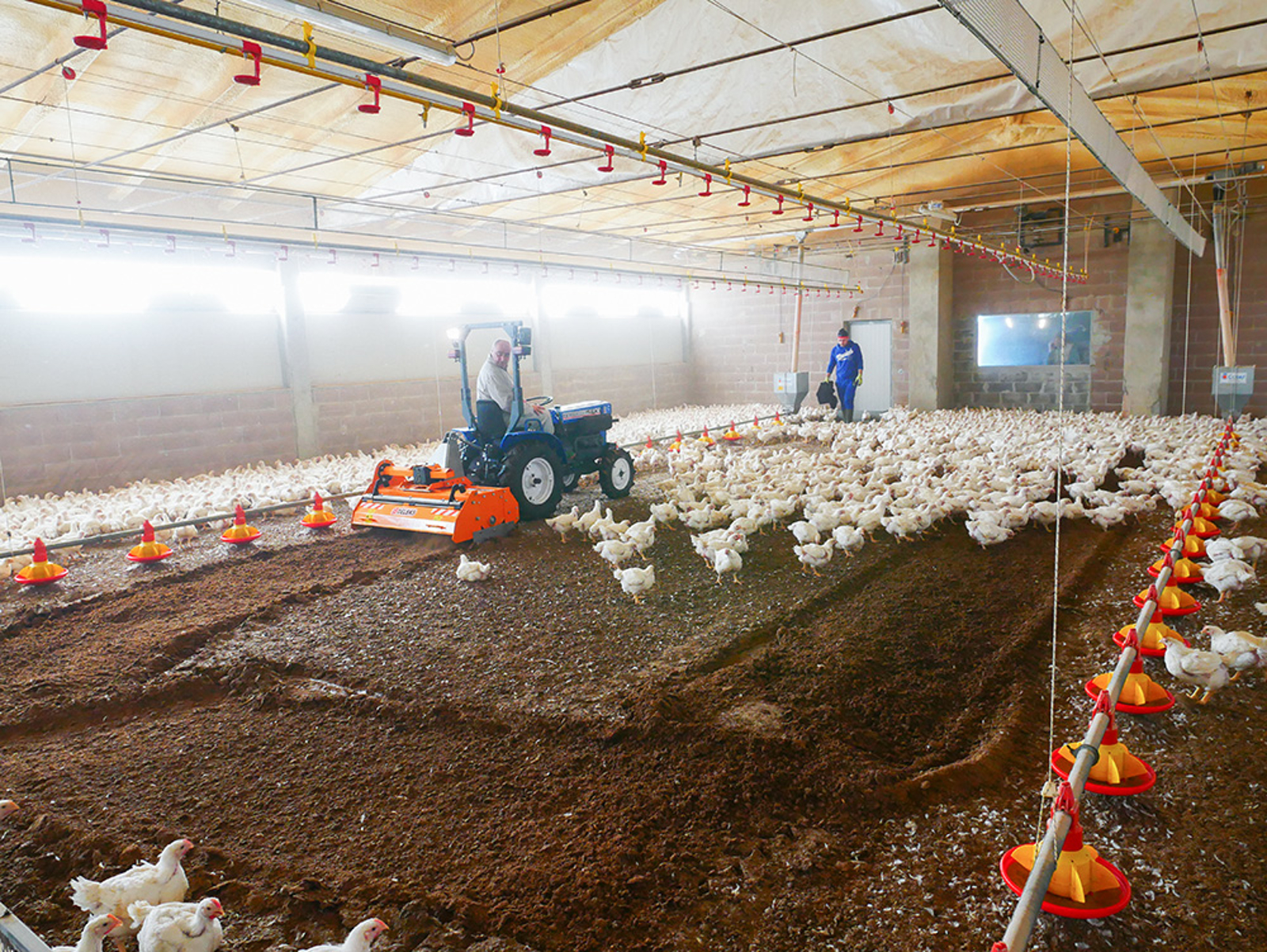

The speed of intervention allows the complete reverse of the litter during the day. The advancement speed is on average 3-4 km / h, but depends on the type of materials, the compactness of the surface crust and the working depth.
Thus, the animal comes to live in a dry and clean environment, with few unpleasant odors and with great benefit for the breeder in terms of:
Quality of production cycle management
Lower risk of infections
Well-being for operators working inside the warehouses
Economic performance of the farm

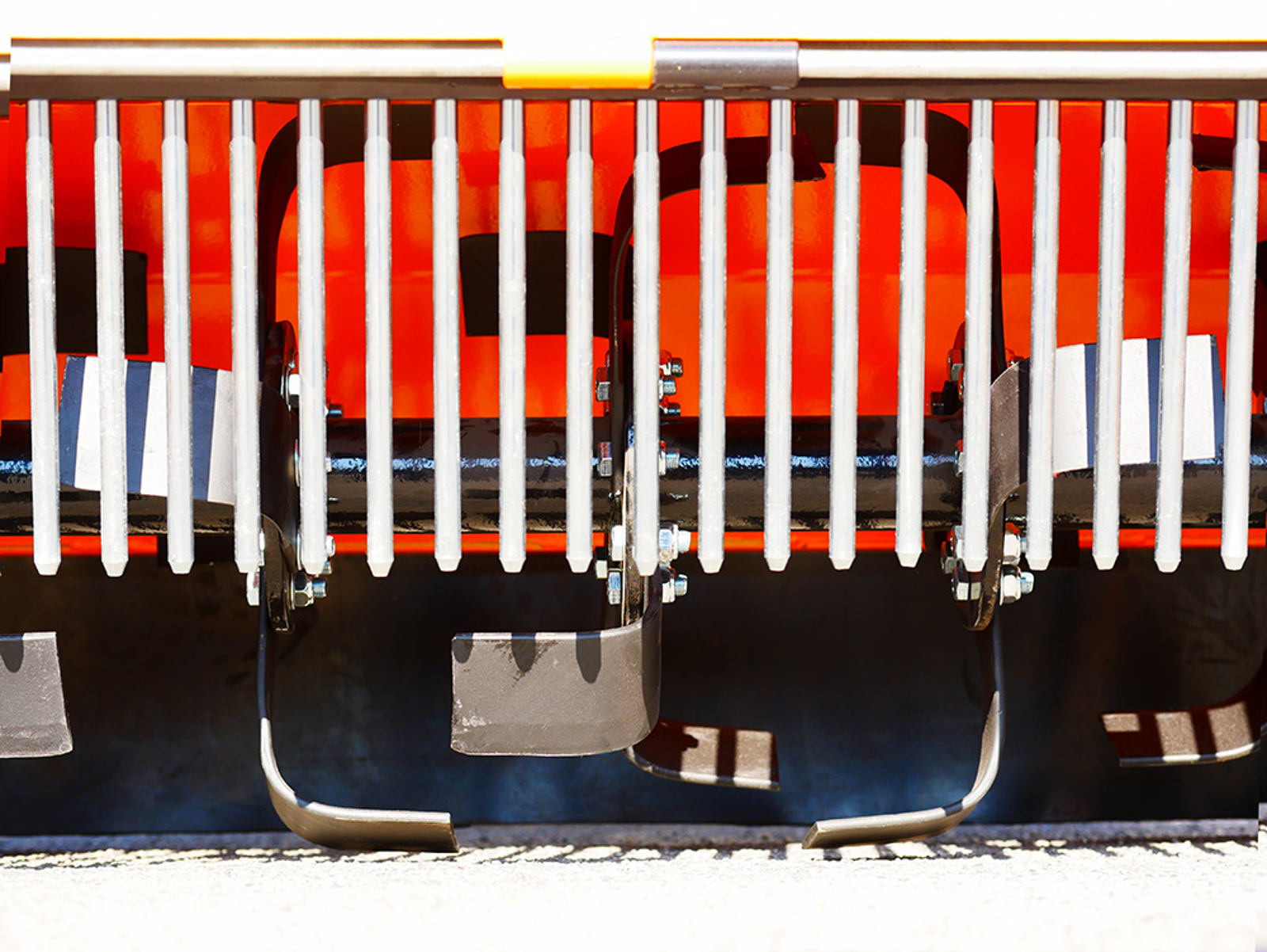

Counter-rotating rotor with flanges with 4 right-angle blades
Pair of slides adjustable in height, which place the hoes a few millimeters from the bottom, allowing a complete chip overturning
Side chain transmission in oil bath

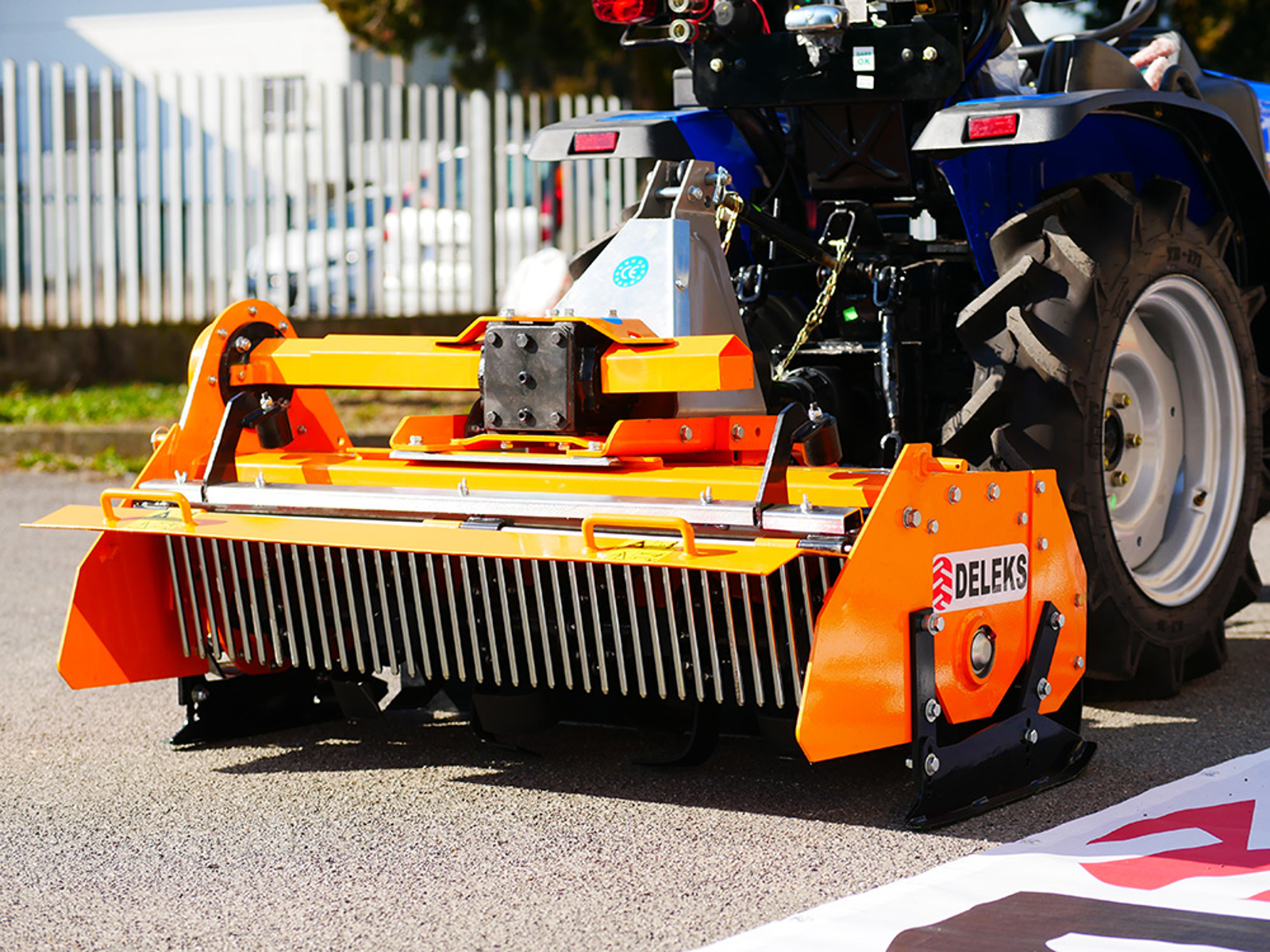

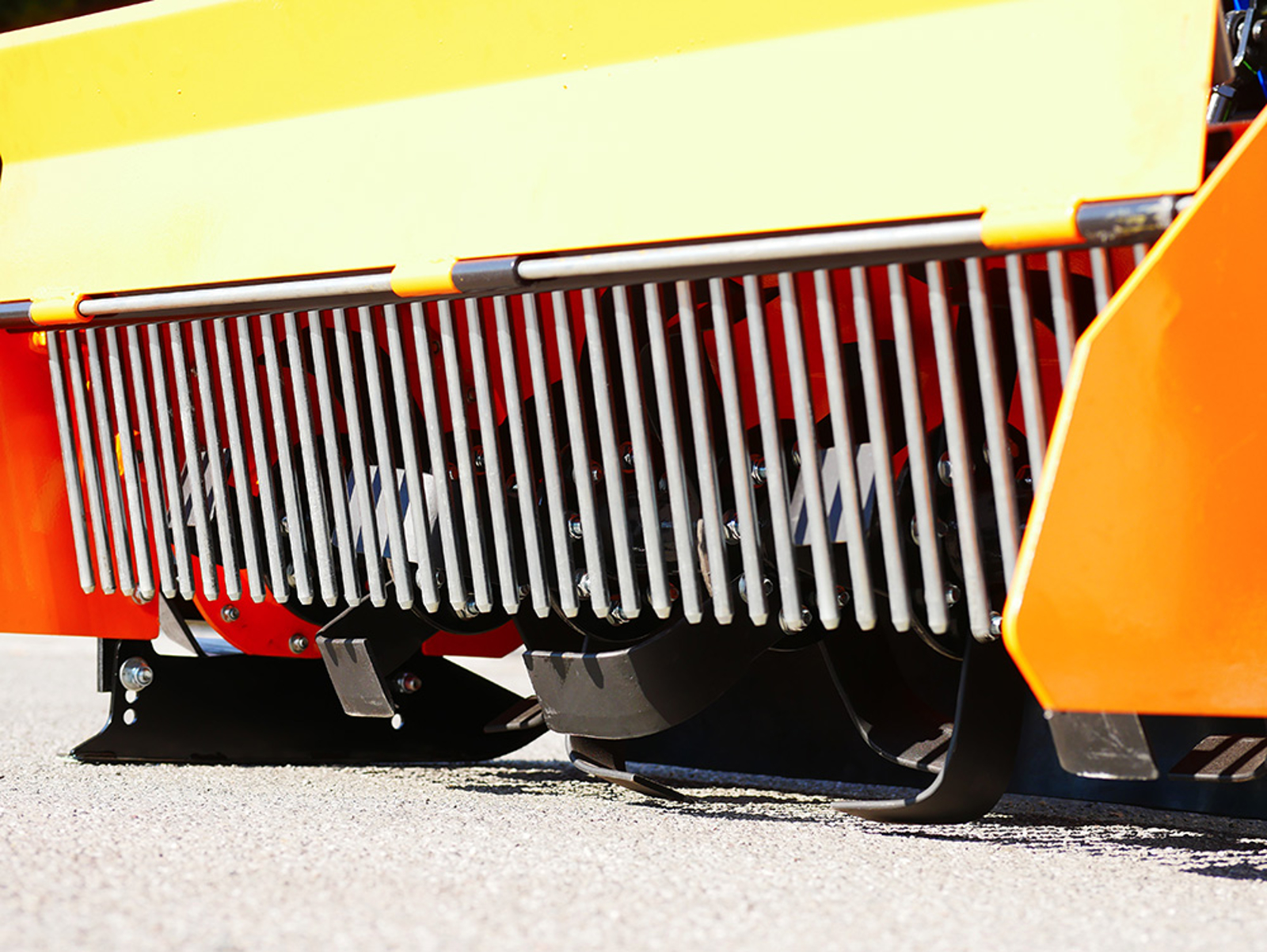

Rear rake to even the mixed material and improve the burial of the humid fraction.

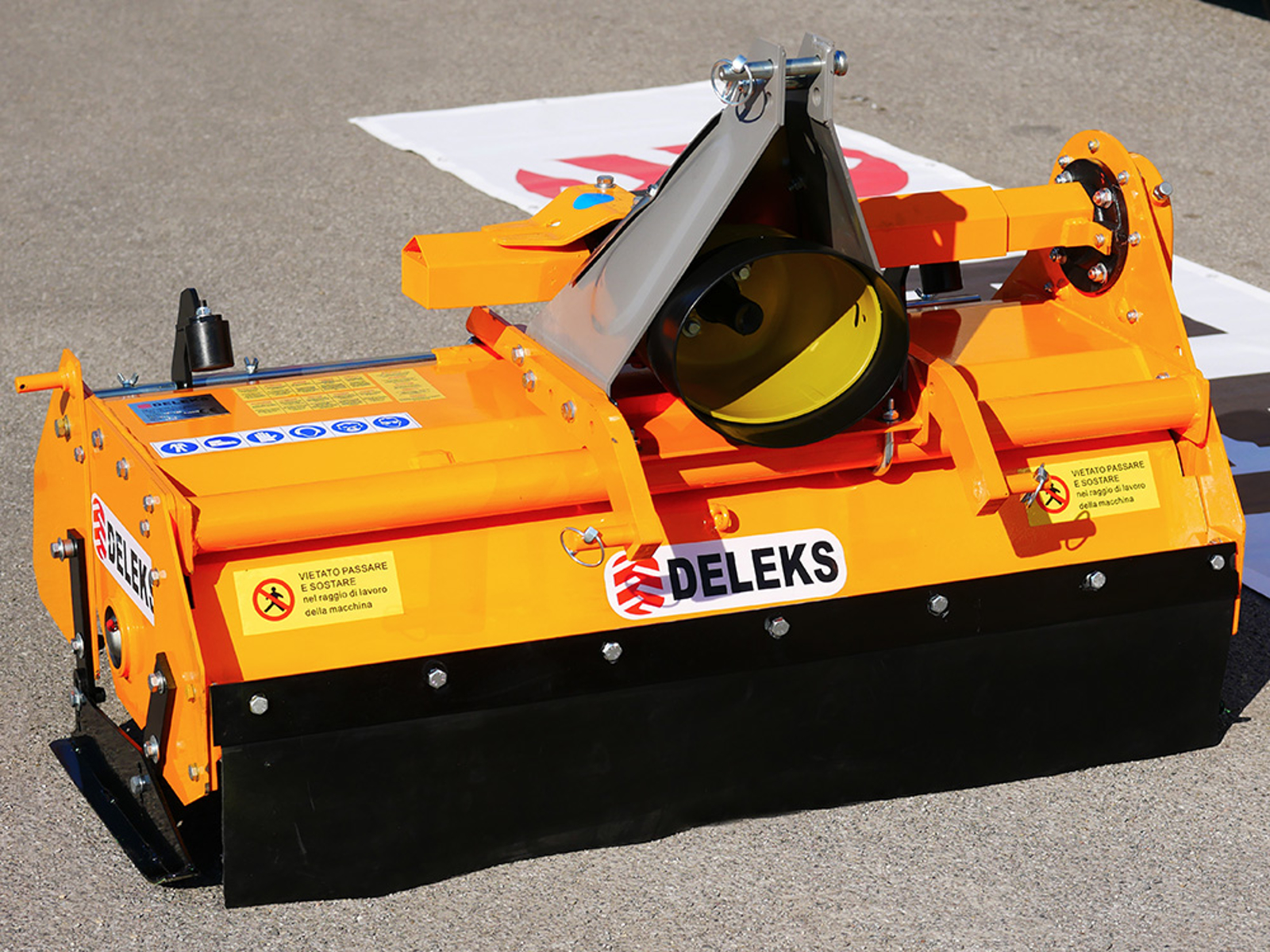

Front curtain protection in thick rubber to avoid the contact of hoes with poultry
Mechanical sideshift (120 mm) of the 3-point attachment Cat. 1

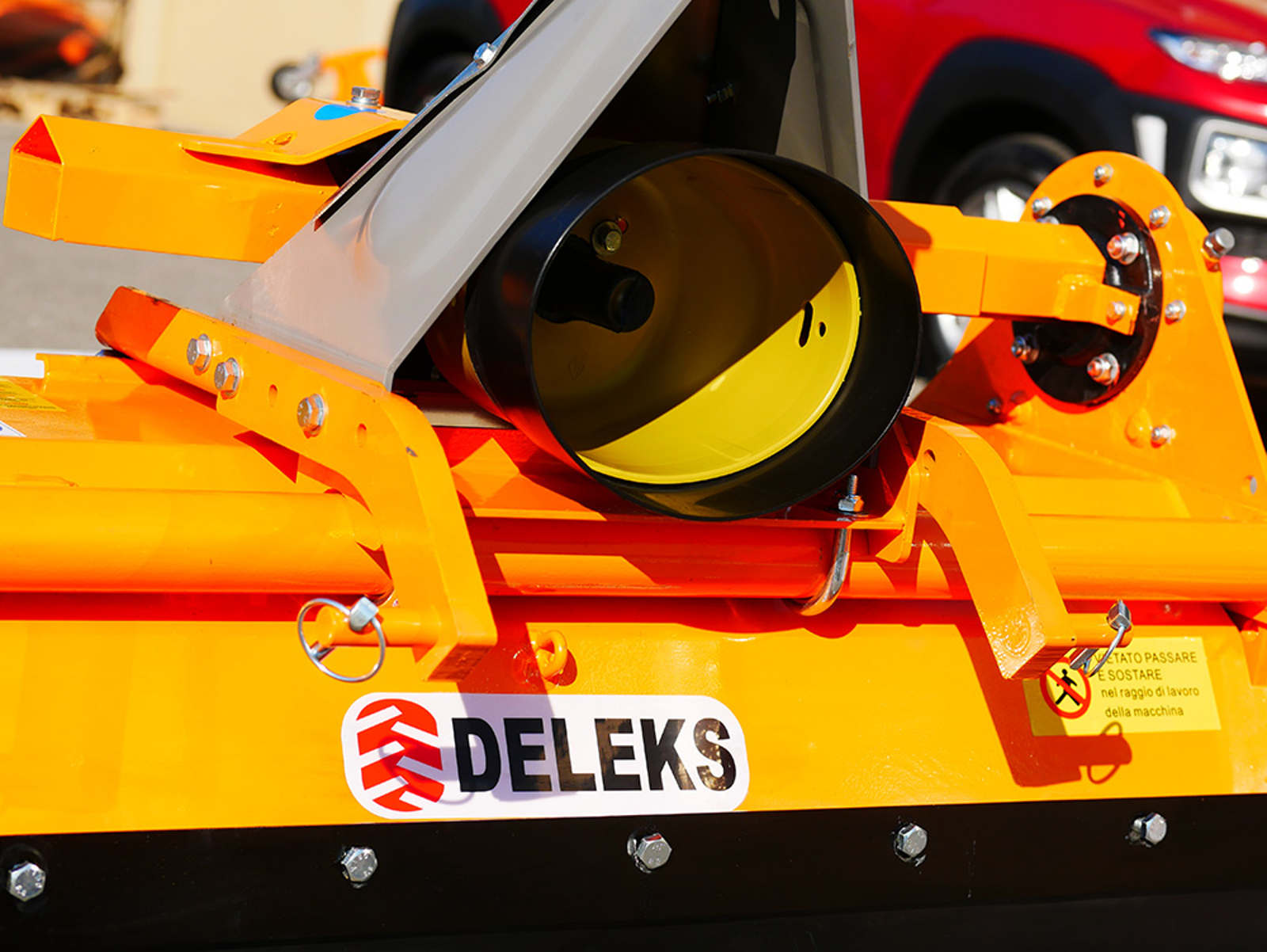

Multiplier 540 r/min
Rear panel openable
Cardan shaft CE cat. 4 x 700 mm.
|Caracteristic||Units metric||Units US|
|Overall width||1650.0 mm||5.40 ft|
|Weight||300.0 kg||660.0 lb|
|Overall height||900.0 mm||2.95 ft|
|Tractor Power Range||30 - 50 Hp||30 - 50 Hp|
|3 point linkage||Cat. 1 (ø 19.0-22.0mm)||Cat. 1 (ø 19.0-22.0mm)|
|Position of the gearbox||Central||Central|
|Spacing between the 2 lower points||400.0 - 540.0 mm||15.75 - 21.26 in|
|Overall length||800.0 mm||2.60 ft|
|Rotor: diameter||64.0 mm||2.52 in|
|Rotor: sheet thickness||10.0 mm||0.40 in|
|Effective Working width||1550.0 mm||5.08 ft|
|Working Depth Range||-||-|
|Distance between pto attachment and base||470.0 mm||18.50 in|
|Pto shaft||CE 4x700 mm||CE 4x700 mm|
|Rotor: diameter with blades||415.0 mm||16.34 in|
|Rotor: bearings type and sizes||"GB276-6306(R) GB276-6209(L)"||"GB276-6306(R) GB276-6209(L)"|
|Number of Blades per flange||4||4|
|Blades: height/width||170.0 / 65.0 mm||6.70 / 2.56 in|
|Blades: curve length||255.0 mm||10.04 in|
|Blades: distance between holes||45.0 mm||1.77 in|
|Blades: diameter of the holes||13.0 mm||0.51 in|
|Blades: thickness||6.0 mm||0.24 in|
|Gearbox||Lombarda Ingranaggi 540 r/min (3 year warranty)||Lombarda Ingranaggi 540 r/min (3 year warranty)|
|Effective Displacement||120.0 mm manual||4.73 in|
|Rotation of gearbox||Right side||Right side|
|RPM Rotor speed||216 rpm||216 rpm|
|Oil in the gearbox||Yes / SAE 120 - ISO 72925||Yes / SAE 120 - ISO 72925|
|Blades: weight||770.0 g||27.20 oz|
|Packing sizes||1000.0*1850.0*900.0 mm||3.28*6.06*2.95 ft|
