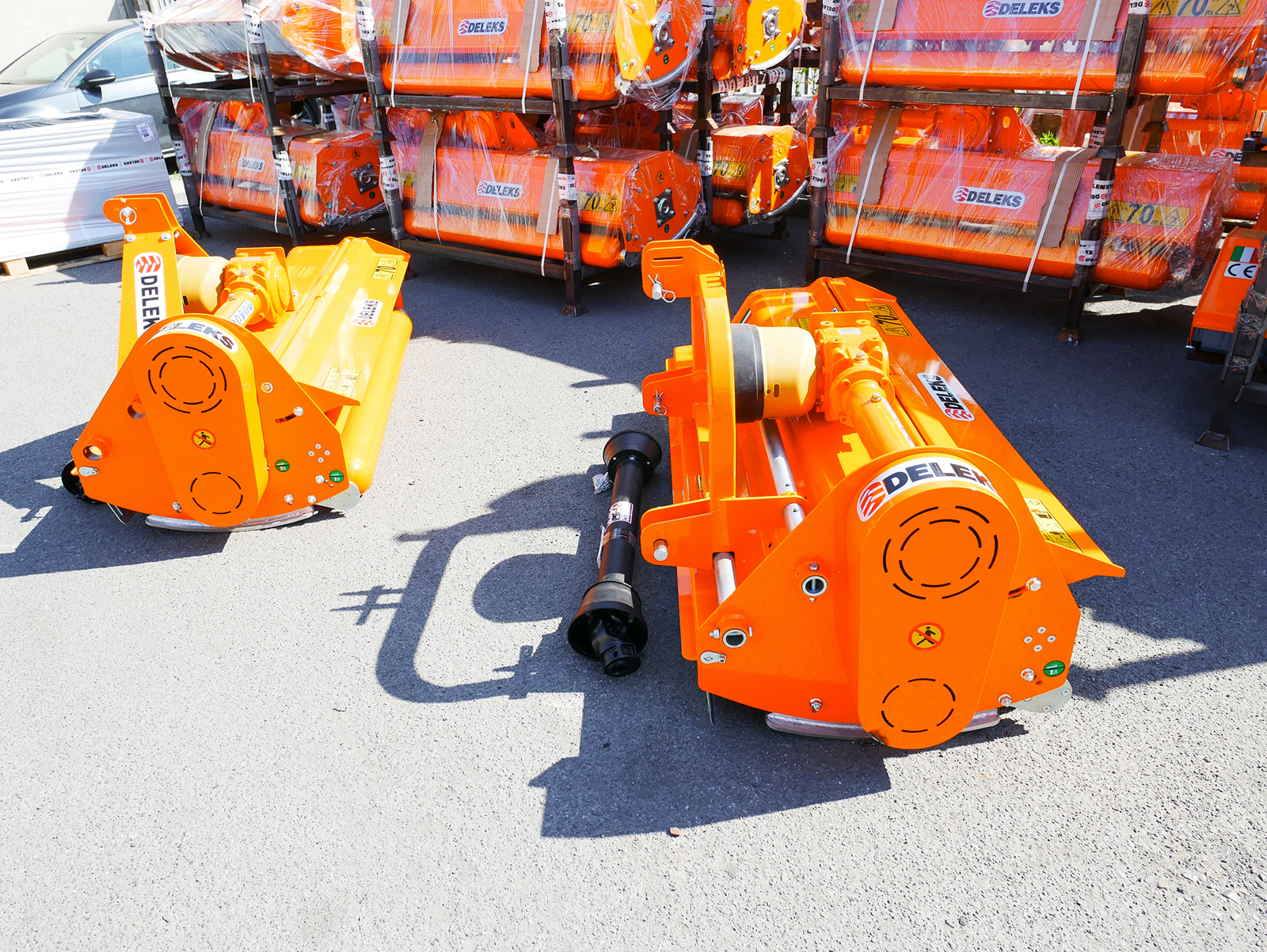

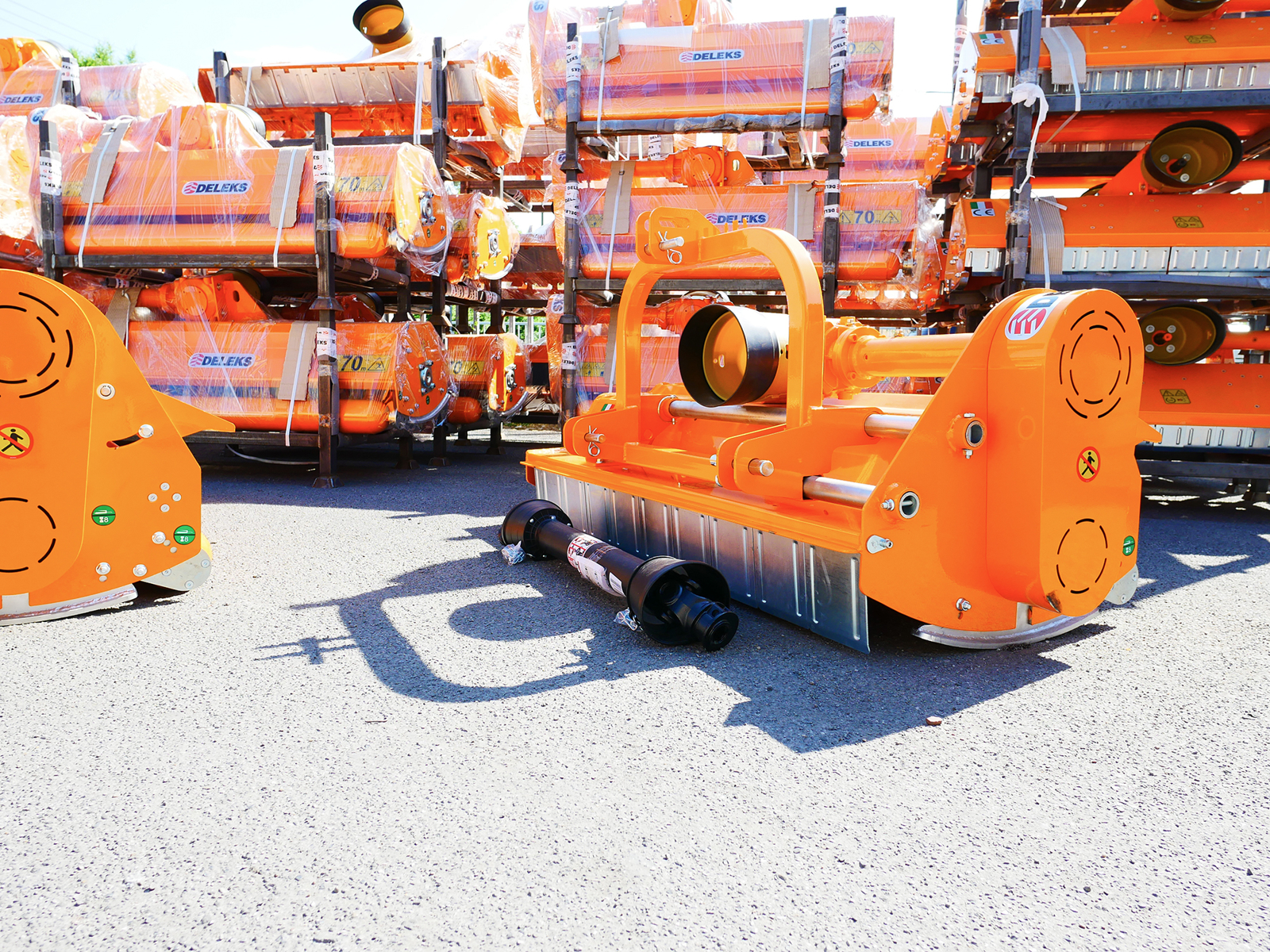

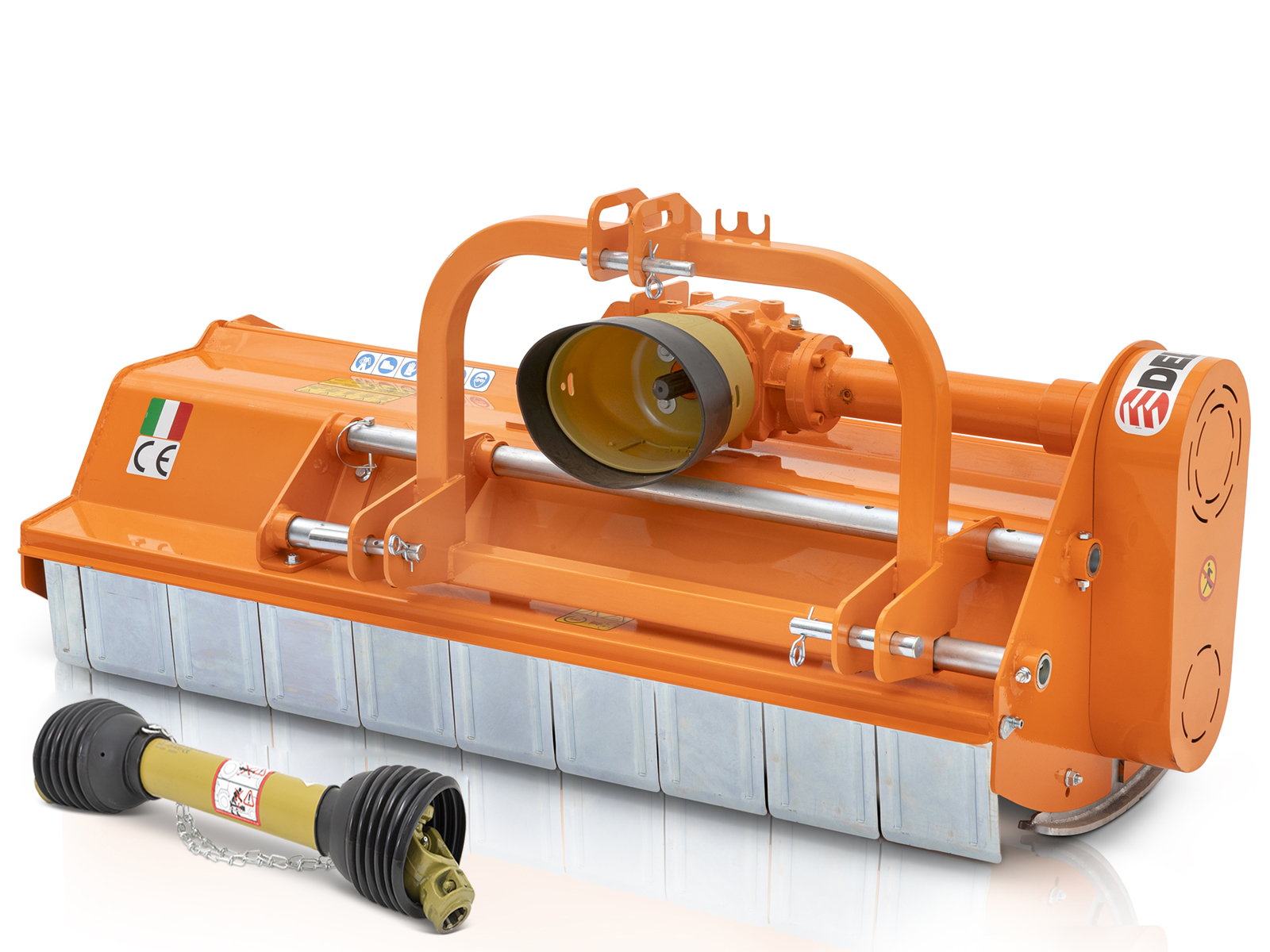

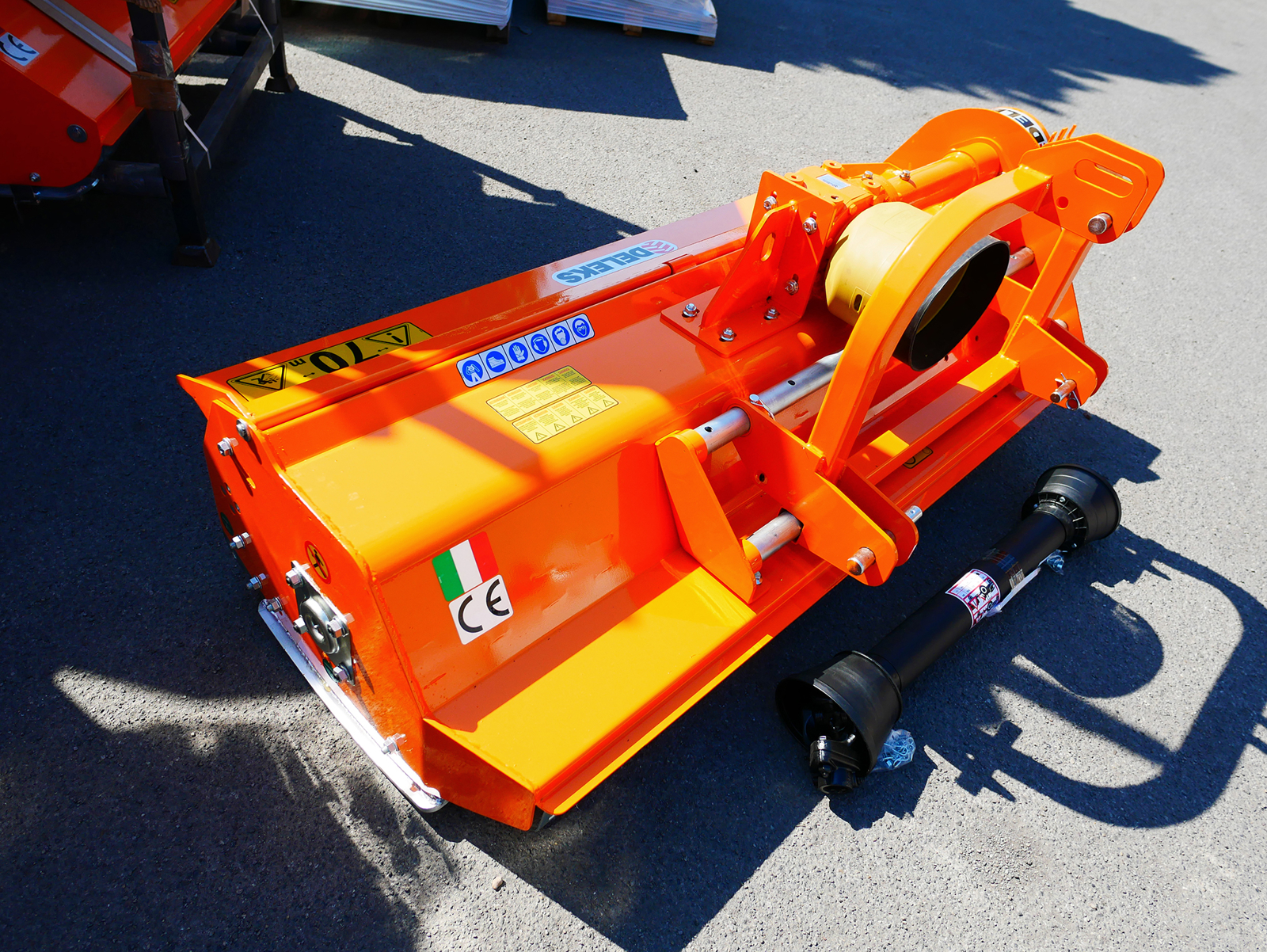

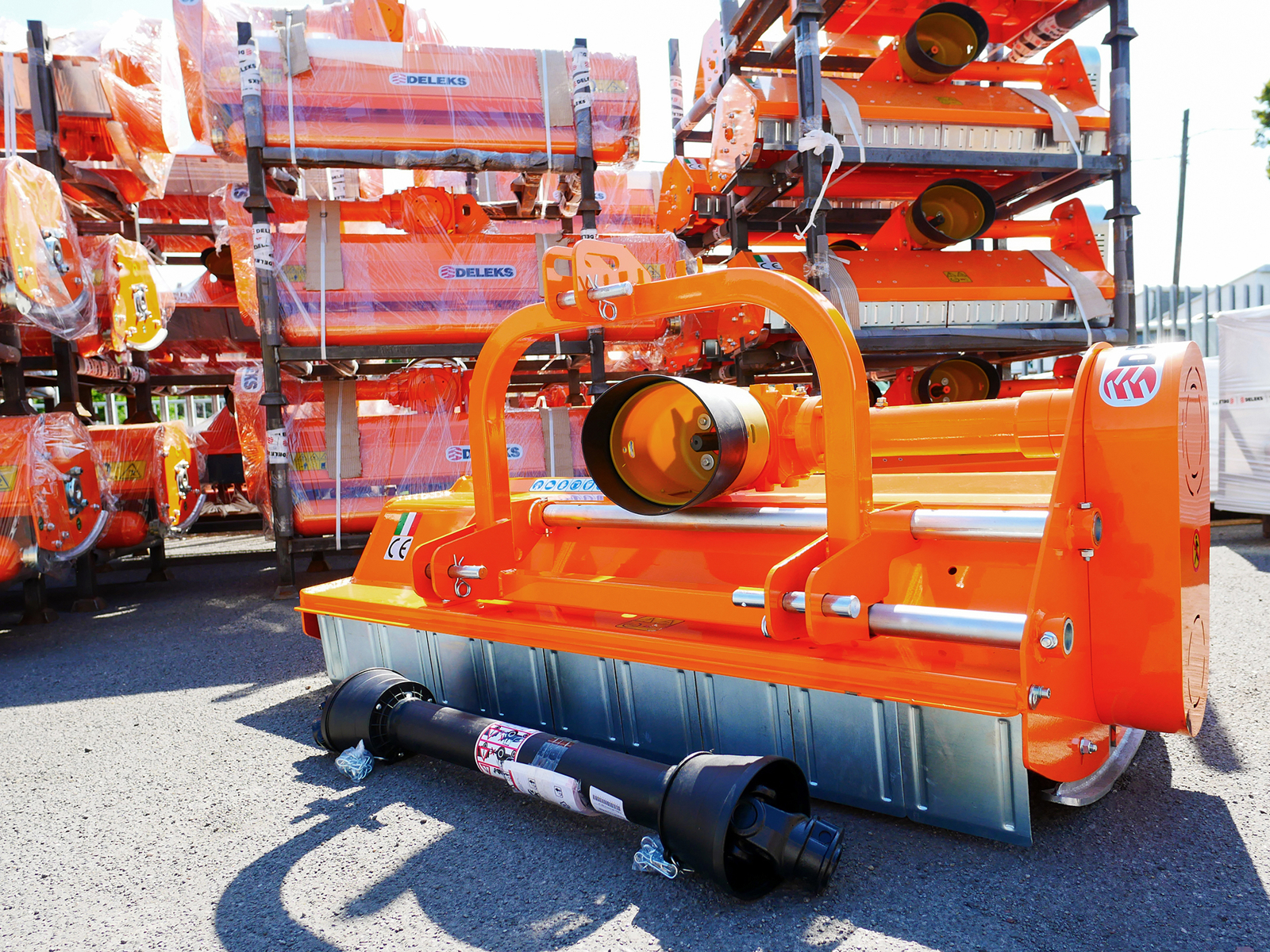

Shredder with hammers 185cm / 370kg for tractors - DELEKS® LEOPARD-180-SP - 310.0 mm manual side shift - Pto shaft included.
Shredder with hammers for orchard, vineyard, olive grove and uncultivated areas. Professional Flail Mower with manual side shift.
Working width 185cm - Weight 370kg.

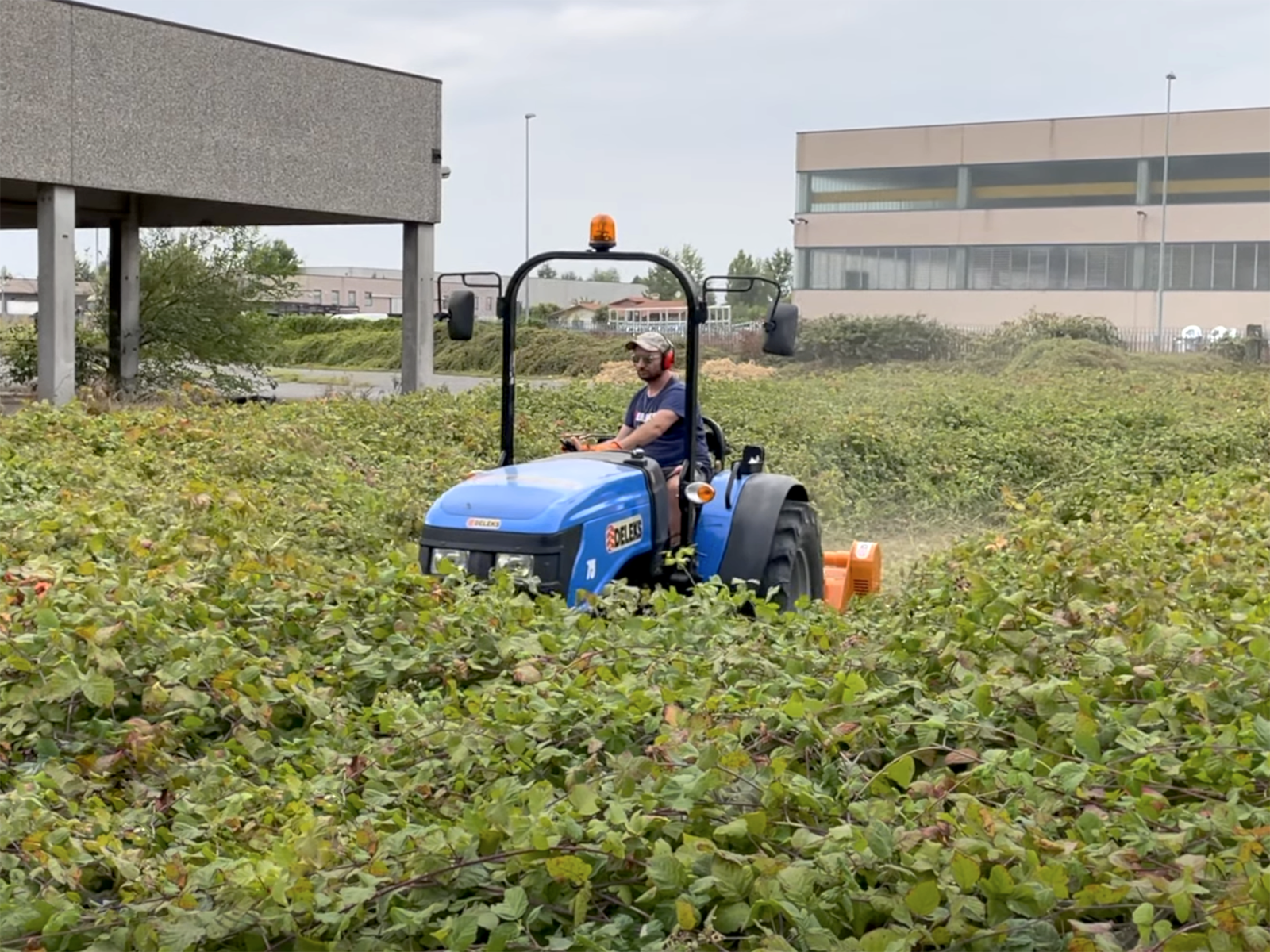

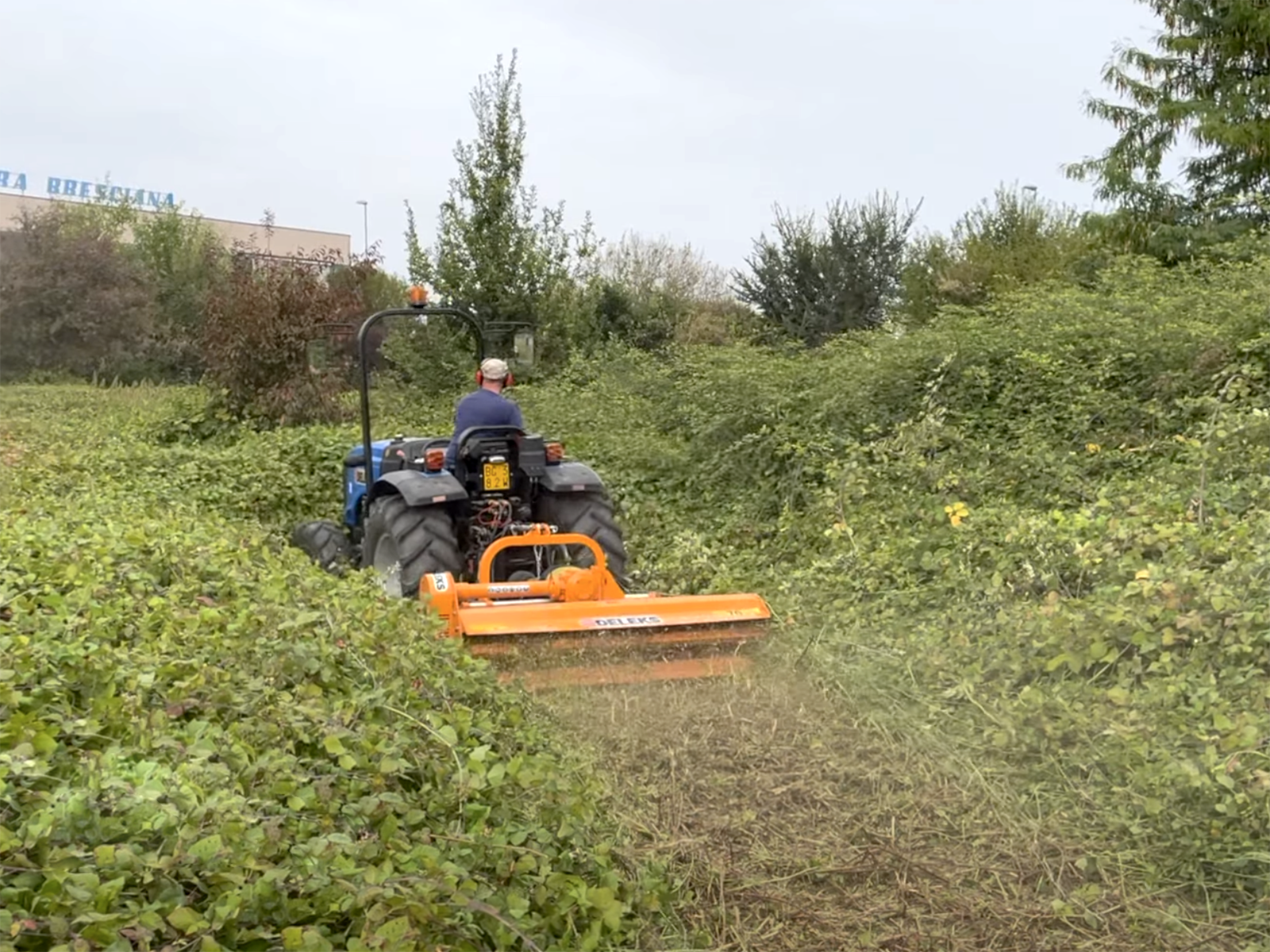

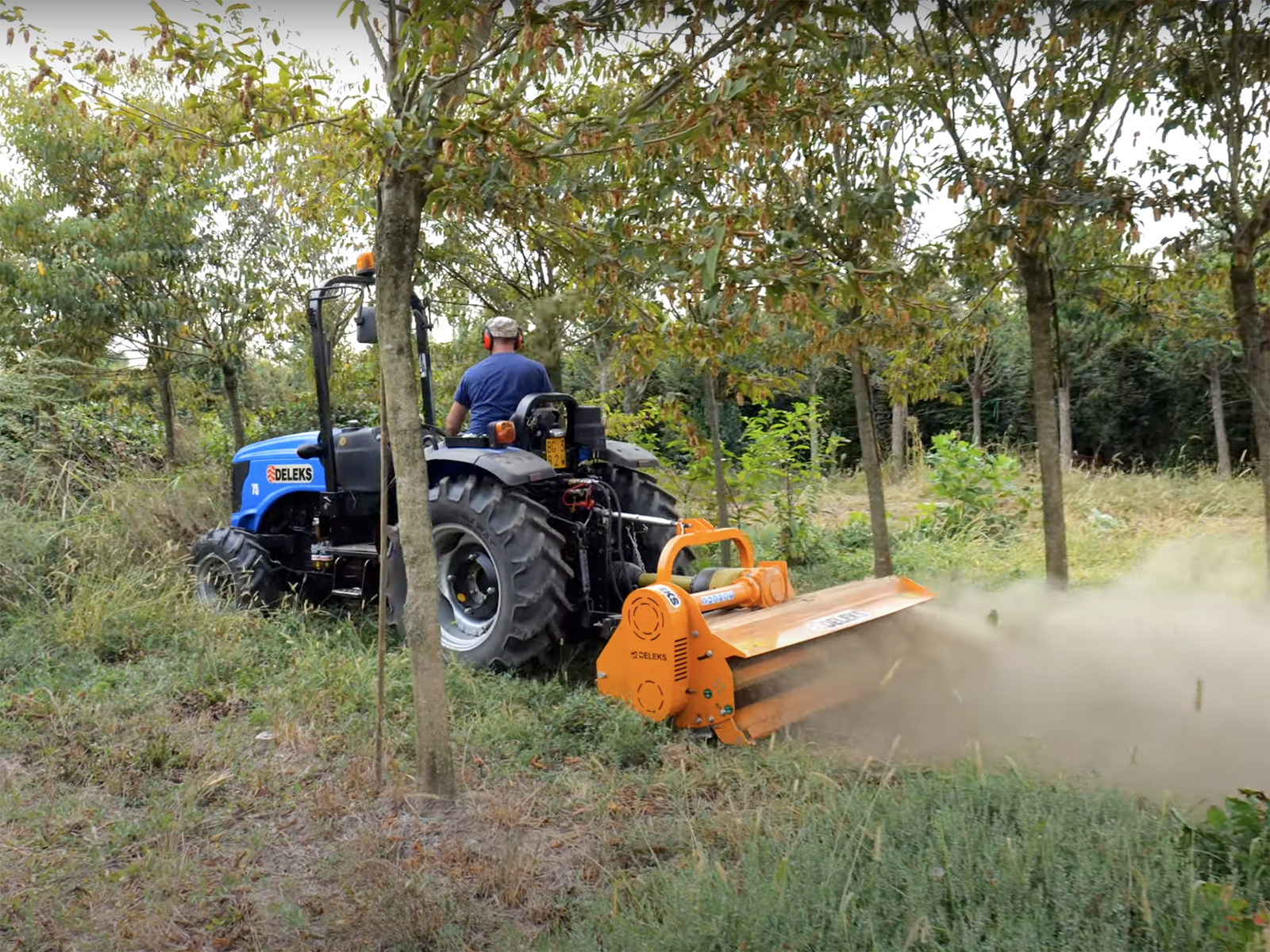

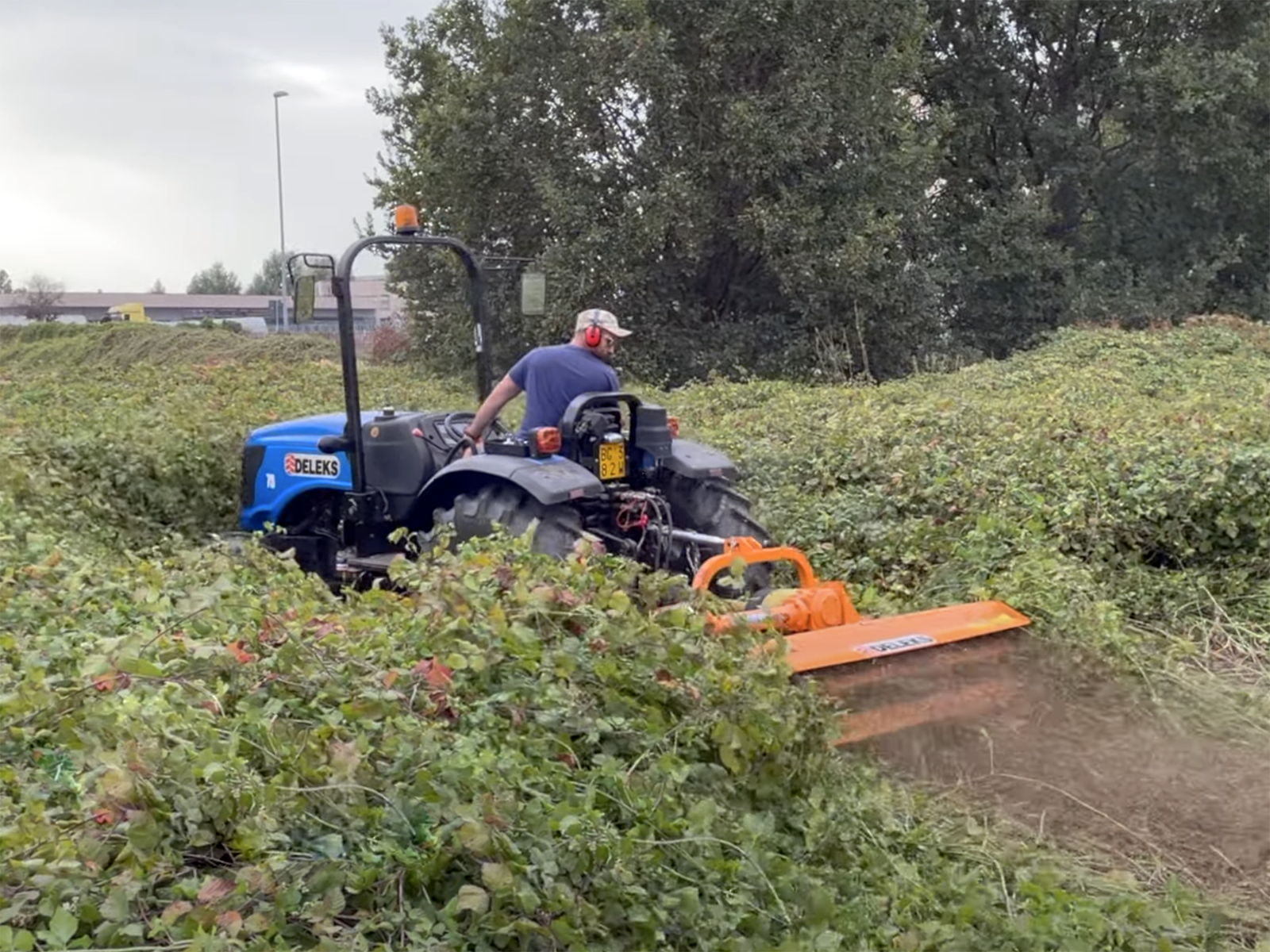

Suitable for working on grass, leaves, vineyard and olive groves, for tractors from 40 to 70 HP, like Kubota, Landini, Antonio Carraro, Same, Lamborghini...
The LEOPARD-180-SP model is presented as a versatile shredder, suitable for cutting grass and thanks to its robust structure it is very useful for shredding prunings and pruning residues, up to 4-5 cm in diameter.

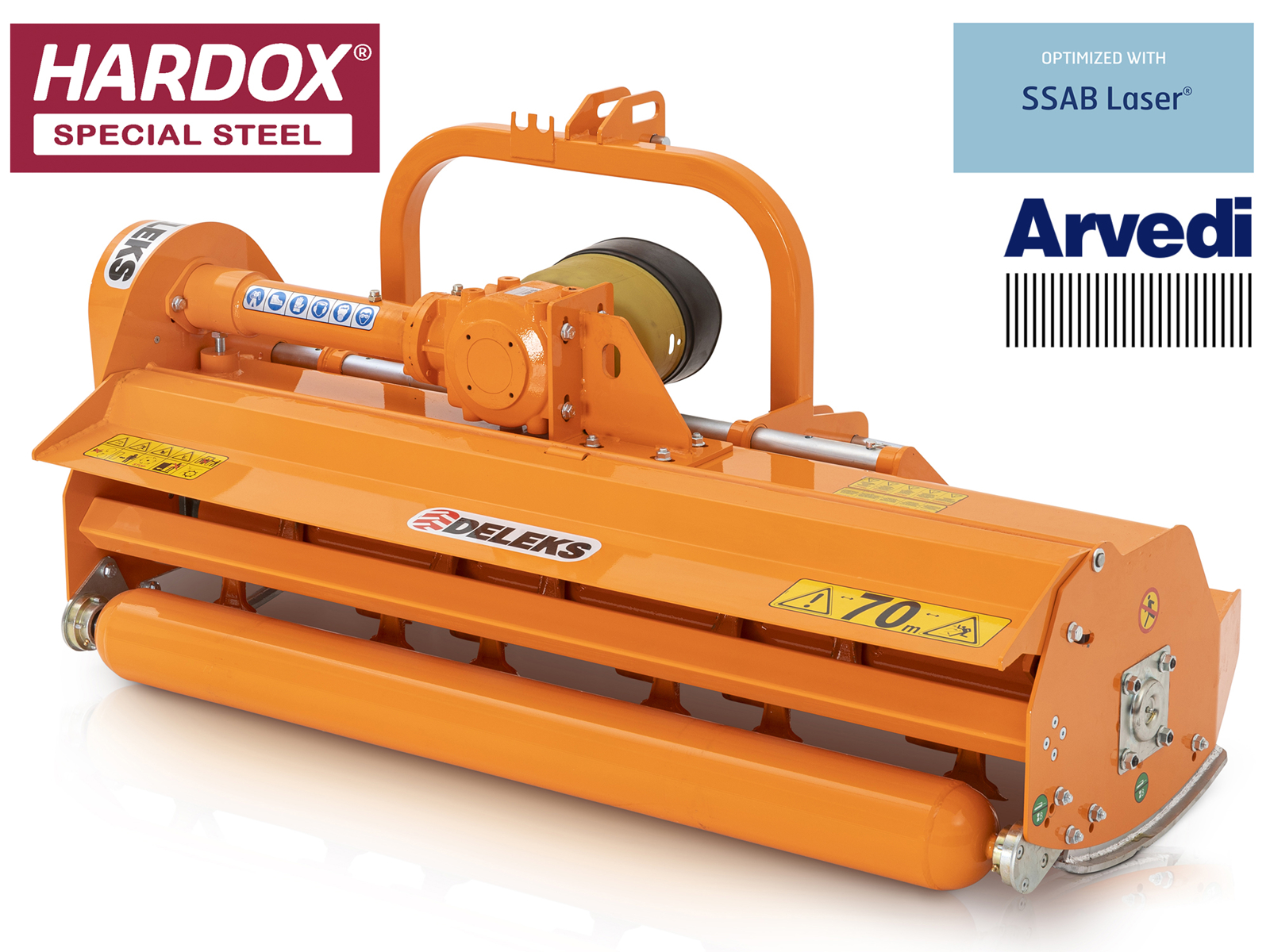

Sturdy structure suitable for professional use: frame casing thickness: 4.0mm, sides: 6.0mm, entirely made with Swedish SSAB steel.
6.0 mm thick double case HARDOX made.
Hammers attachments HARDOX made.

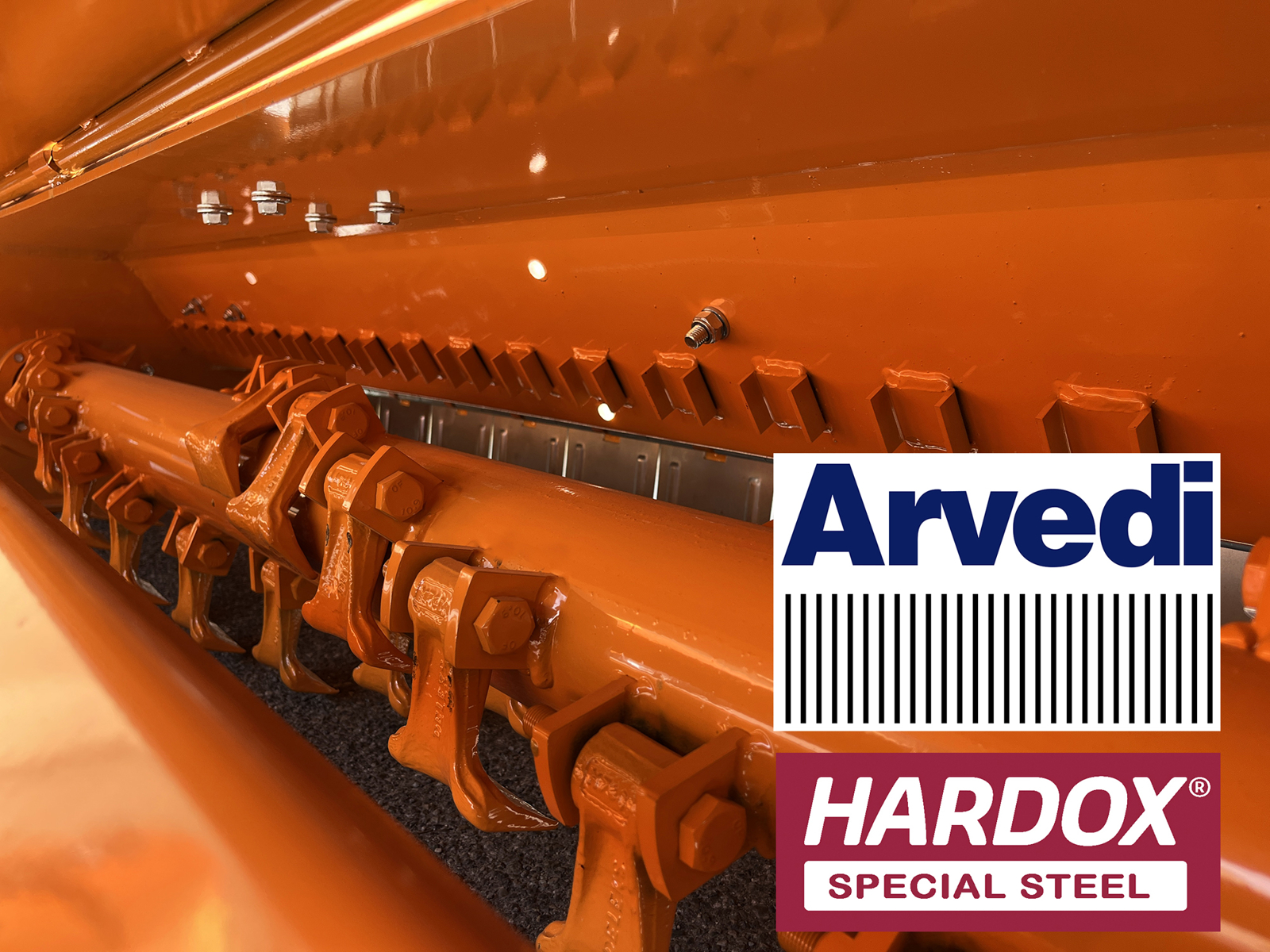

Rotor made with ARVEDI's tube, electronically balanced, 8mm thick S355 steel.
SKF self-aligning rotor bearings.
20cm high frontal mouth, avoids crushing grass when it is high.

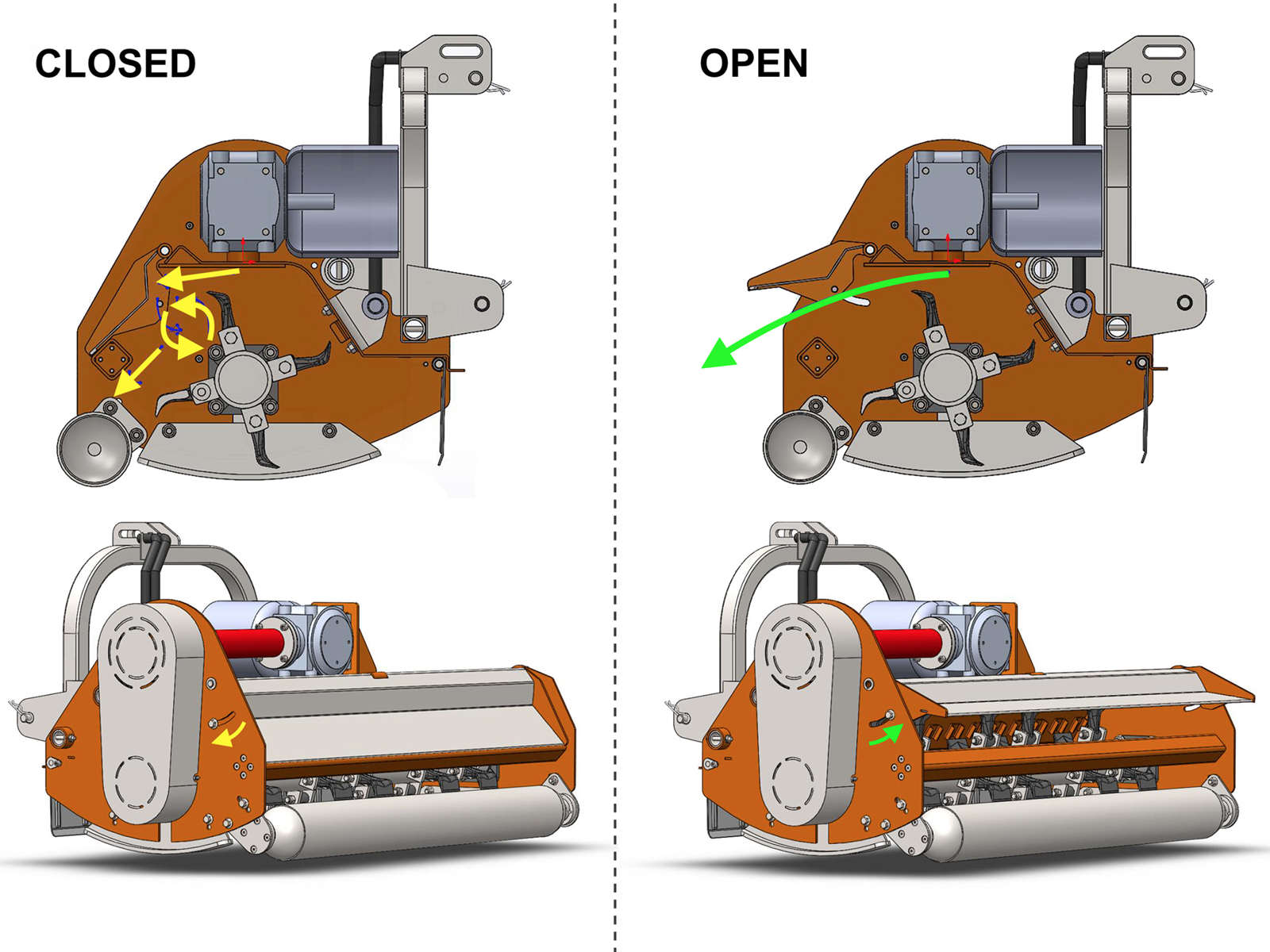

Closed hood, mulching effect: the plant material remains longer in the chamber and gets pulverized.
Open hood: reduces the pressure in the chamber and allows you to proceed at a higher speed.
Maximum application value on any type of residue, from the open field to the orchard.

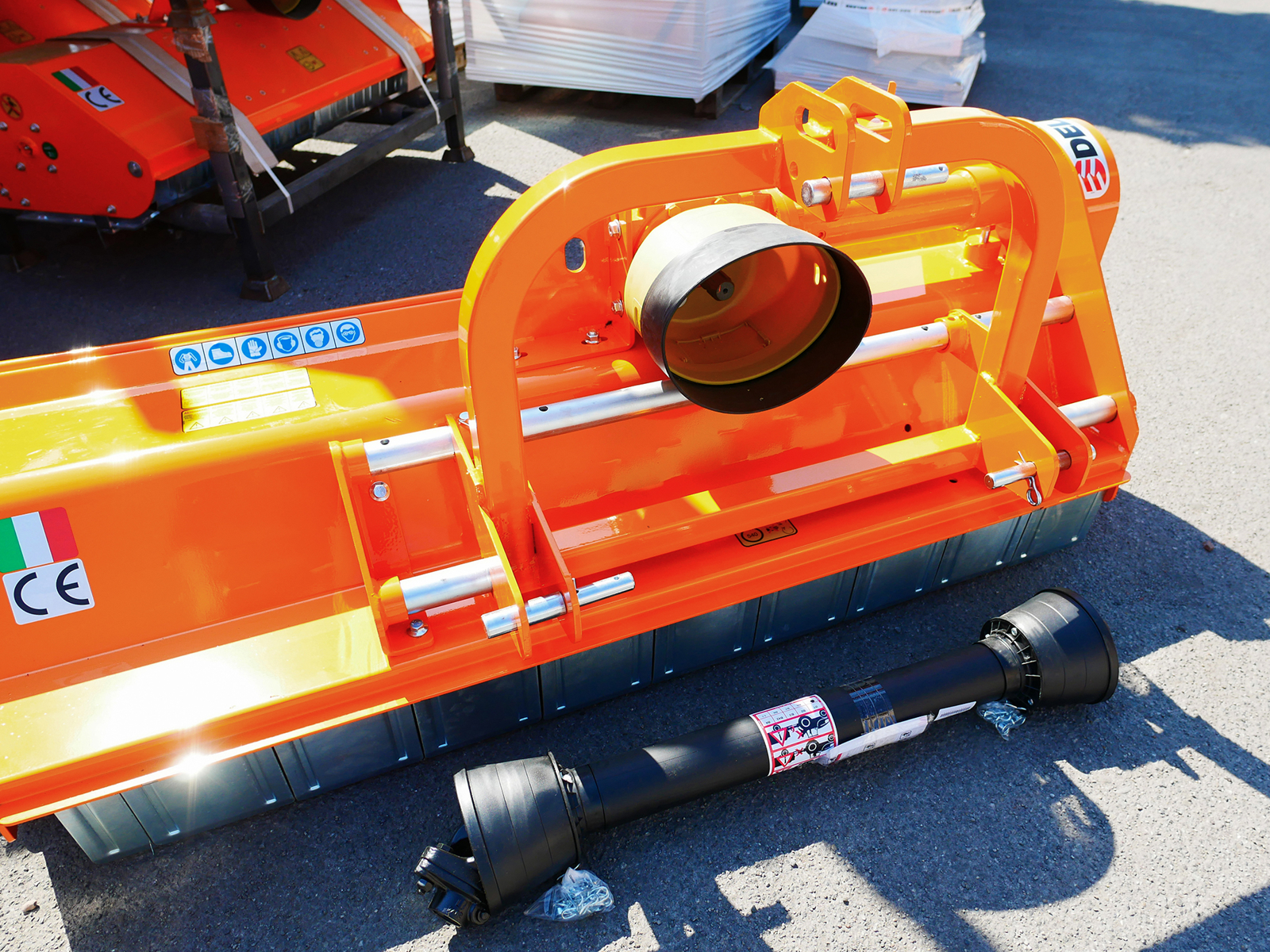

Universal 3-point hitch Cat. 1-2
Manual displacement 310.0 mm of the 3-point hitch

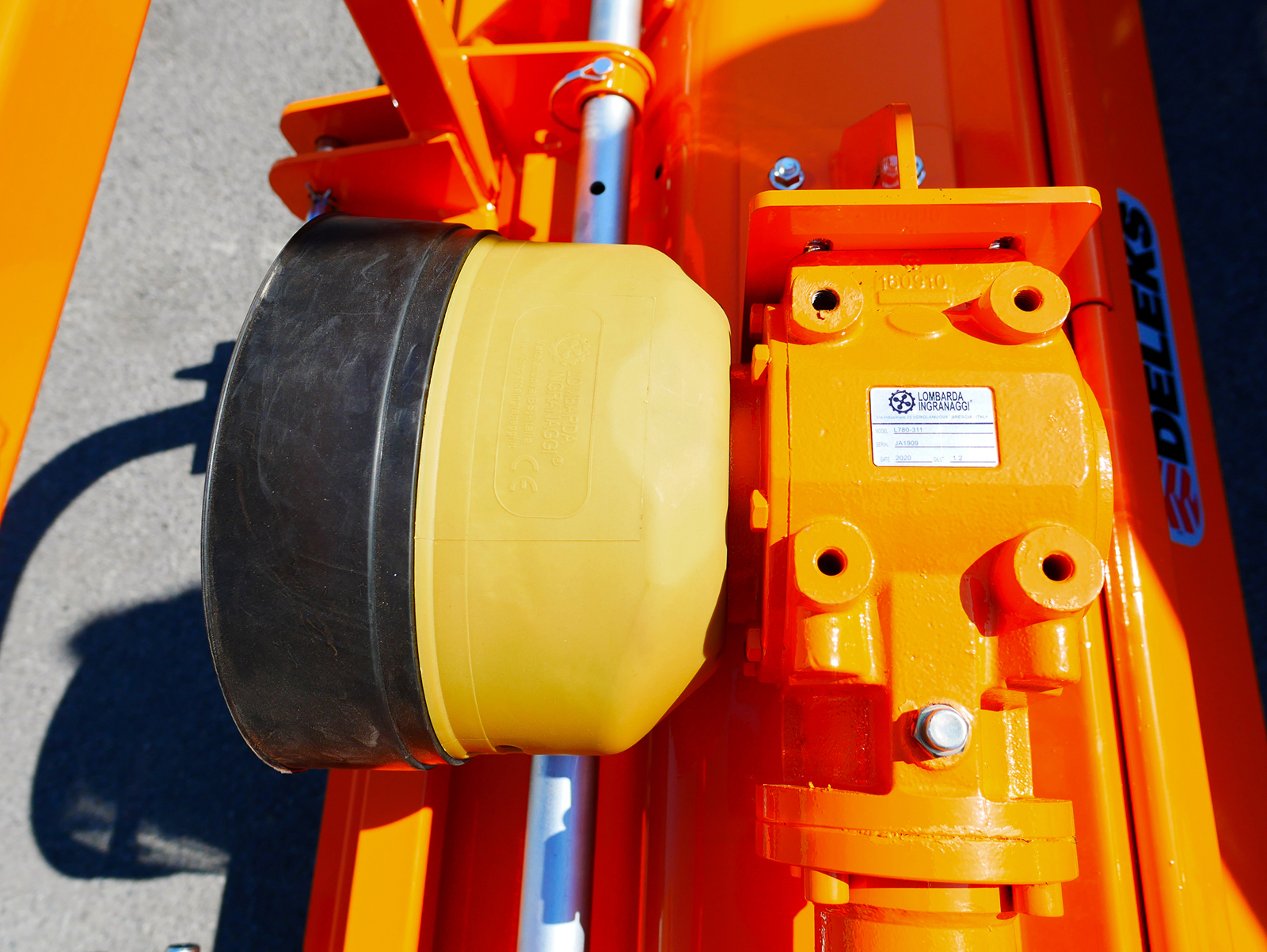

PTO 540 r / min with built-in freewheel, brand Lombarda Ingranaggi
CE 6x1000 cardan shaft
4 transmission belts
Rear hood that can be opened for maintenance
Electronic balanced rotor

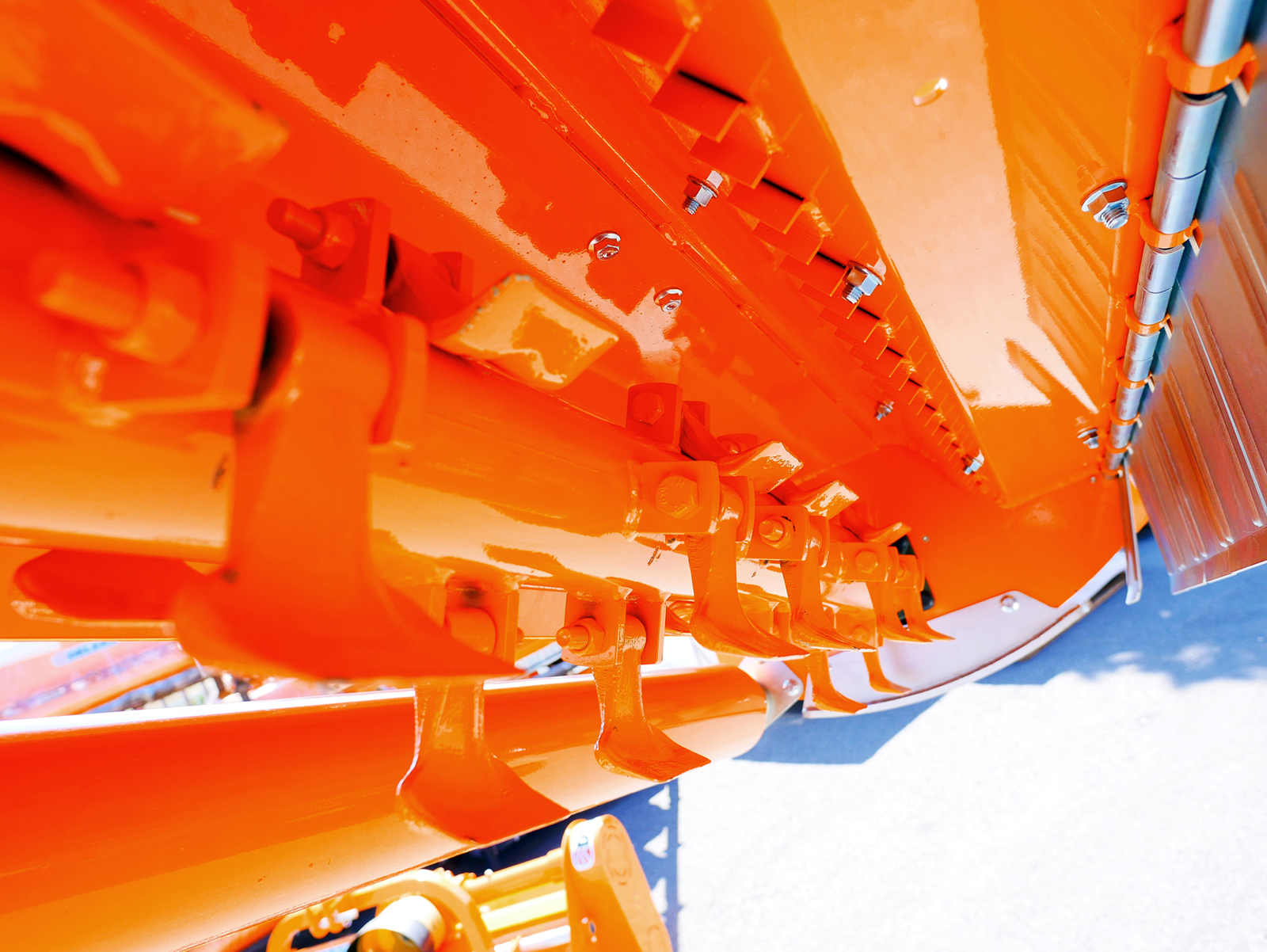

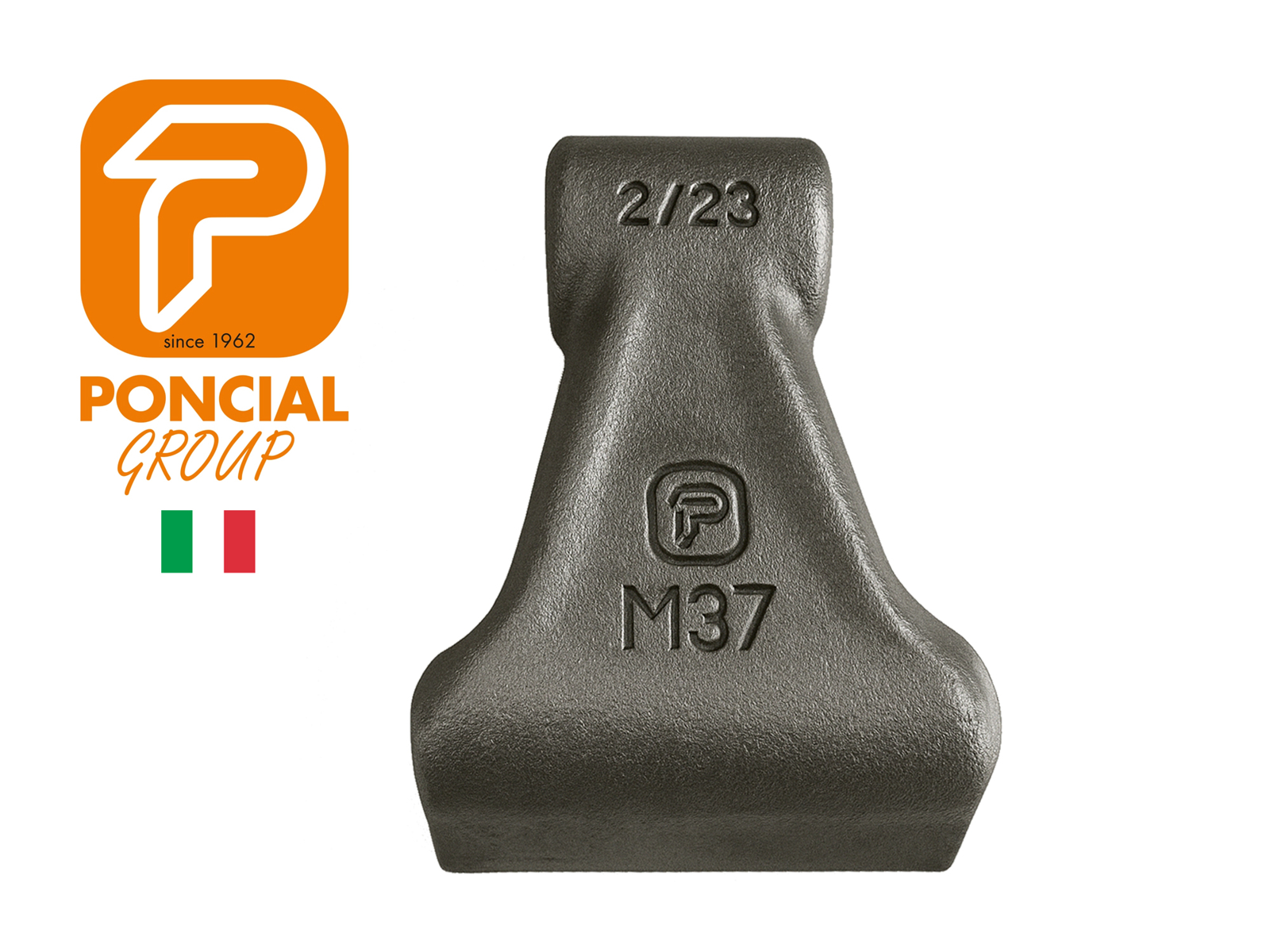

28 hammers, hot forged high strength 9cm base width
Pair of adjustable slides
External adjustment of the belts
CE safety guard
Documentation supplied with this article:
Invoice or Receipt

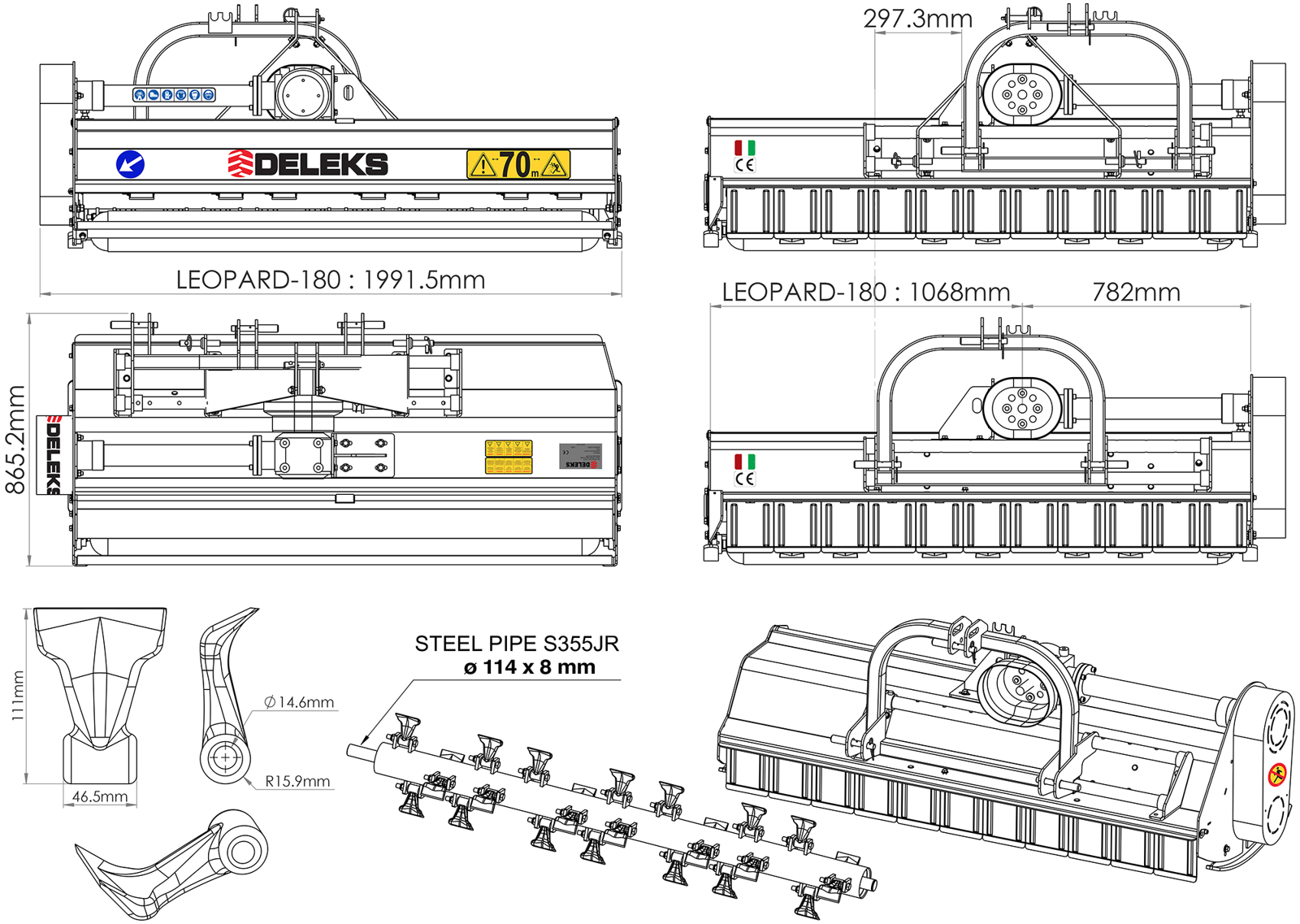

|Characteristic||Units metric||Units US|
|Working width||1850.0 mm||6.07 ft|
|Overall width||1991.5 mm||6.53 ft|
|Min / Max cutting height||10.0 - 45.0 mm||0.4- 1.77 in|
|Weight||370.0 kg||815.0 lb|
|Overall height||800.0 mm||2.60 ft|
|Tractor Power Range||40 - 70 Hp||40 - 70 Hp|
|3 point linkage||Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)||Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)|
|Hood height||460.00 mm||18.10 in|
|Spacing between the 2 lower points||560.0 - 950.0 mm||22.00 - 37.40 in|
|Number of Hammers||28||28|
|Maximum cutting diameter||40.0 - 50.0 mm||1.57 - 1.97 in|
|Overall length||865.0 mm||2.84 ft|
|Distance between pto attachment and ground||520.0 mm||20.5 in|
|Main hood thickness||4.0 + 6.0 mm||0.16 + 0.23 in|
|Sides thickness||6.0 mm||0.23 in|
|Side plates thickness||6.0 mm||0.23 in|
|Transmission: Drive method||V-Belts||V-Belts|
|Transmission: Gearbox||Lombarda Ingranaggi (Italy) (3 year warranty)||Lombarda Ingranaggi (Italy) (3 year warranty)|
|Transmission: PTO||540 r/min||540 r/min|
|Transmission: Rotation of gearbox||Right side||Right side|
|Transmission: Free wheel||√||√|
|Transmission: RPM Rotor speed||2300 rpm||2300 rpm|
|Transmission: Oil in the gearbox||Yes / SAE 120 - ISO 72925||Yes / SAE 120 - ISO 72925|
|Transmission: Top pulley ø||180.0 mm||7.08 in|
|Transmission: Lower pulley ø||130.0 mm||5.12 in|
|Transmission: V-Belts quantity||4||4|
|Transmission: V-Belts size||BX43||BX43|
|Rotor: diameter||108.0 mm||4.25 in|
|Rotor: bearings type and size||SKF 2208-TVH||SKF 2208-TVH|
|Rotor: sheet thickness||8.0 mm||0.31 in|
|Hammers: Weight||820.0 g||29.0 oz|
|Hammer: øhole||15.0 mm||0.6 in|
|Hammer: base width||82.0 mm||3.23 in|
|Hammer: top width||45.0 mm||1.77 in|
|Hammer: Diagonal||95.0 mm||3.74 in|
|Rear roller: diameter||140.0 mm||5.51 in|
|Rear roller: sheet thickness||5.0 mm||0.2 in|
|Rear roller: bearings type and size||UC205||UC205|
|Pto shaft||CE 6x1000 mm||CE 6x1000 mm + shear bolt|
|Effective Displacement||310.0 mm||12.20 in|
|Packing sizes||2000.0*900.0*800.0 mm||6.55*2.95*2.62 ft|
