Flail mower with hammers for reversible or frontal tractors, Mulcher
Field test with Claas tractor
DETAILS

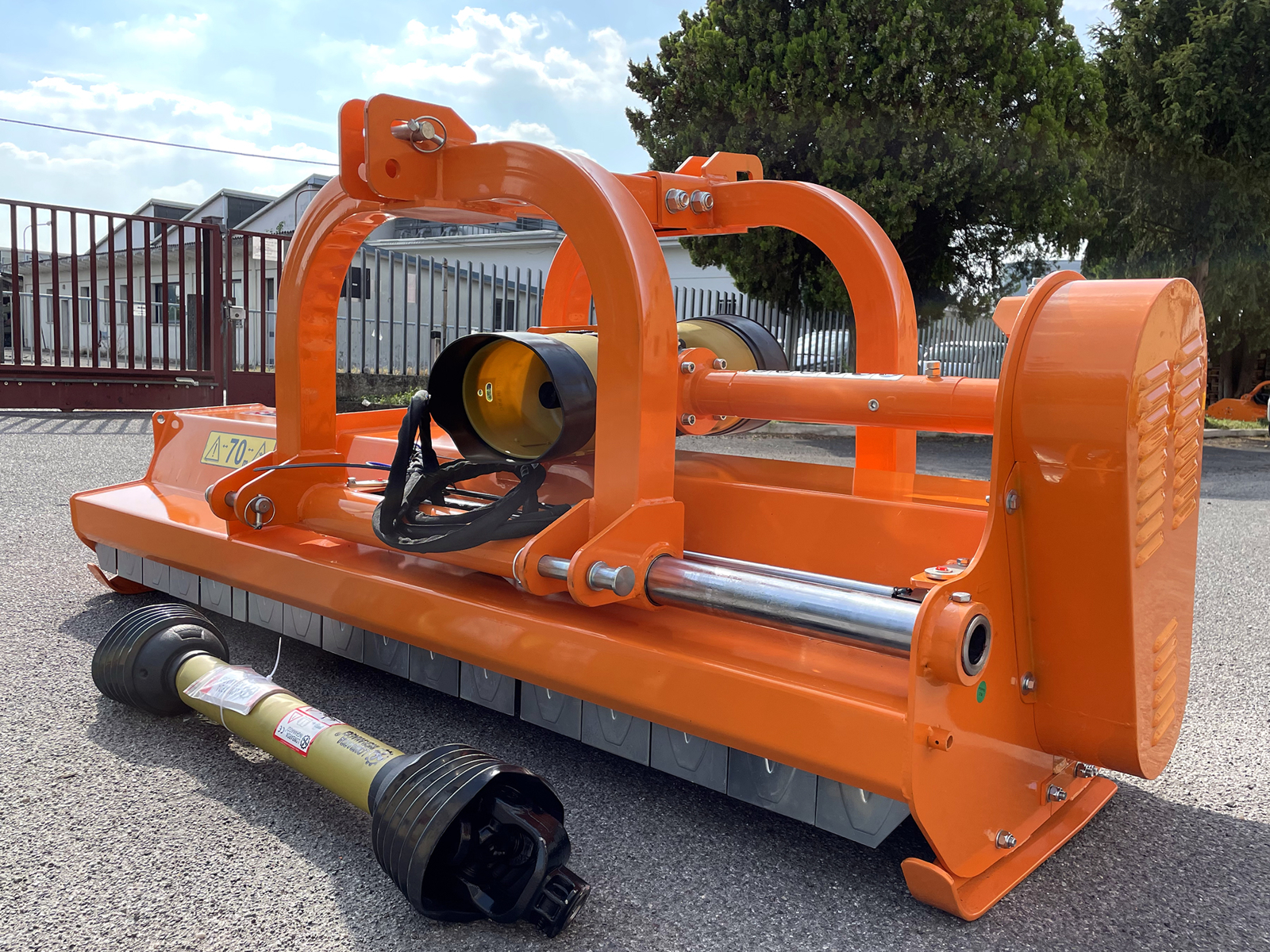

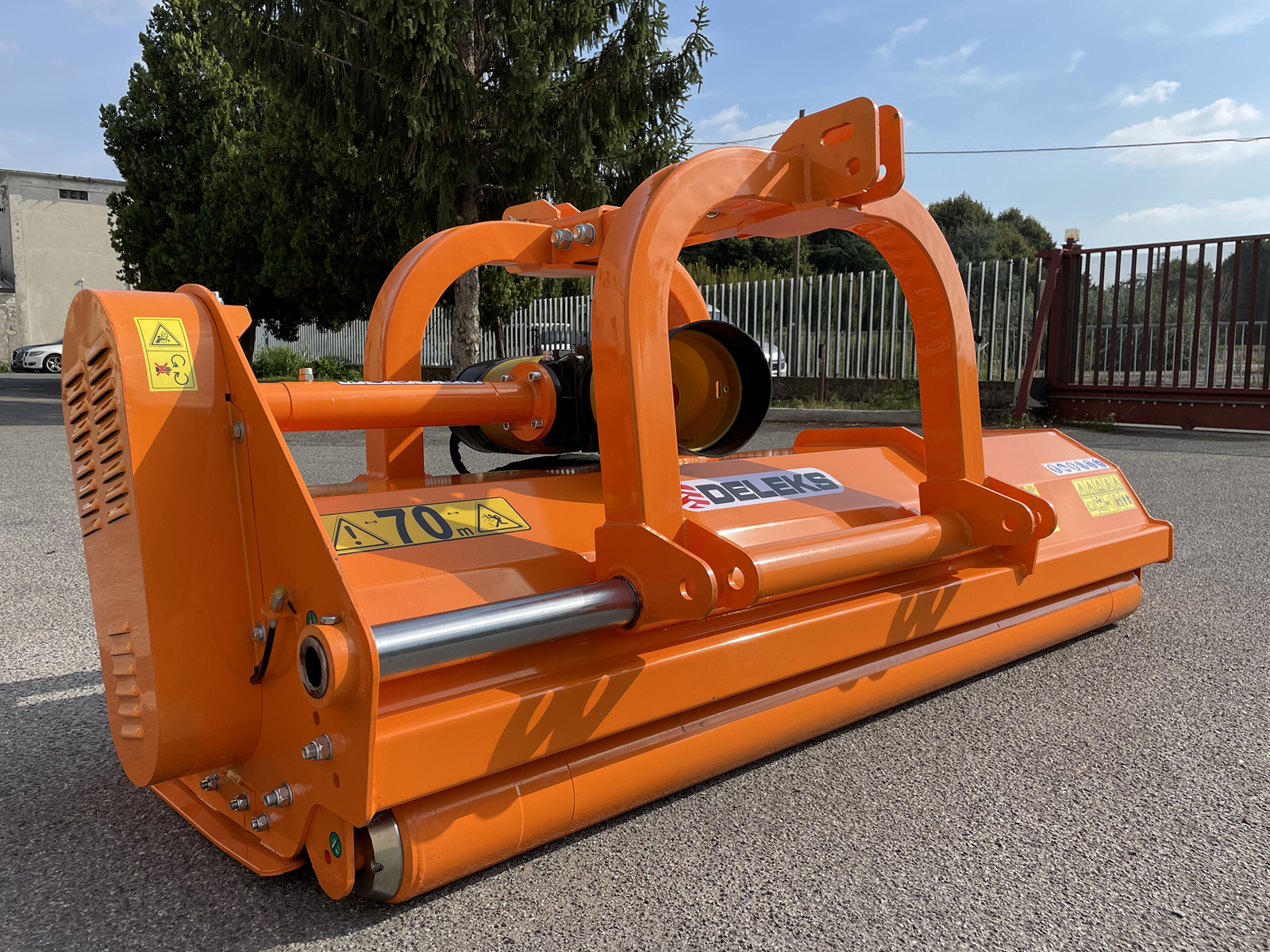

DELEKS® GRIZZLY-180 Reversible flail mower for 60-100HP, double case, working width 180cm / 545kg, front / rear mounted shredder, mulcher for tractors.
OVERVIEW
The GRIZZLY-180 is an heavy and compact mulcher, it can be mounted either in-front or behind tractor. Designed for working on fields, gardens, meadows, paddocks, unkempt ground, light rushes ect. Hydraulic side shift to offset machine. It is durable and sturdy enough to handle vegetation up to 4-5cm in thickness.
This mower is attached to the tractor using reinforced steel universal three point linkage and fits most 60-100hp tractors.
BENEFITS & FEATURES

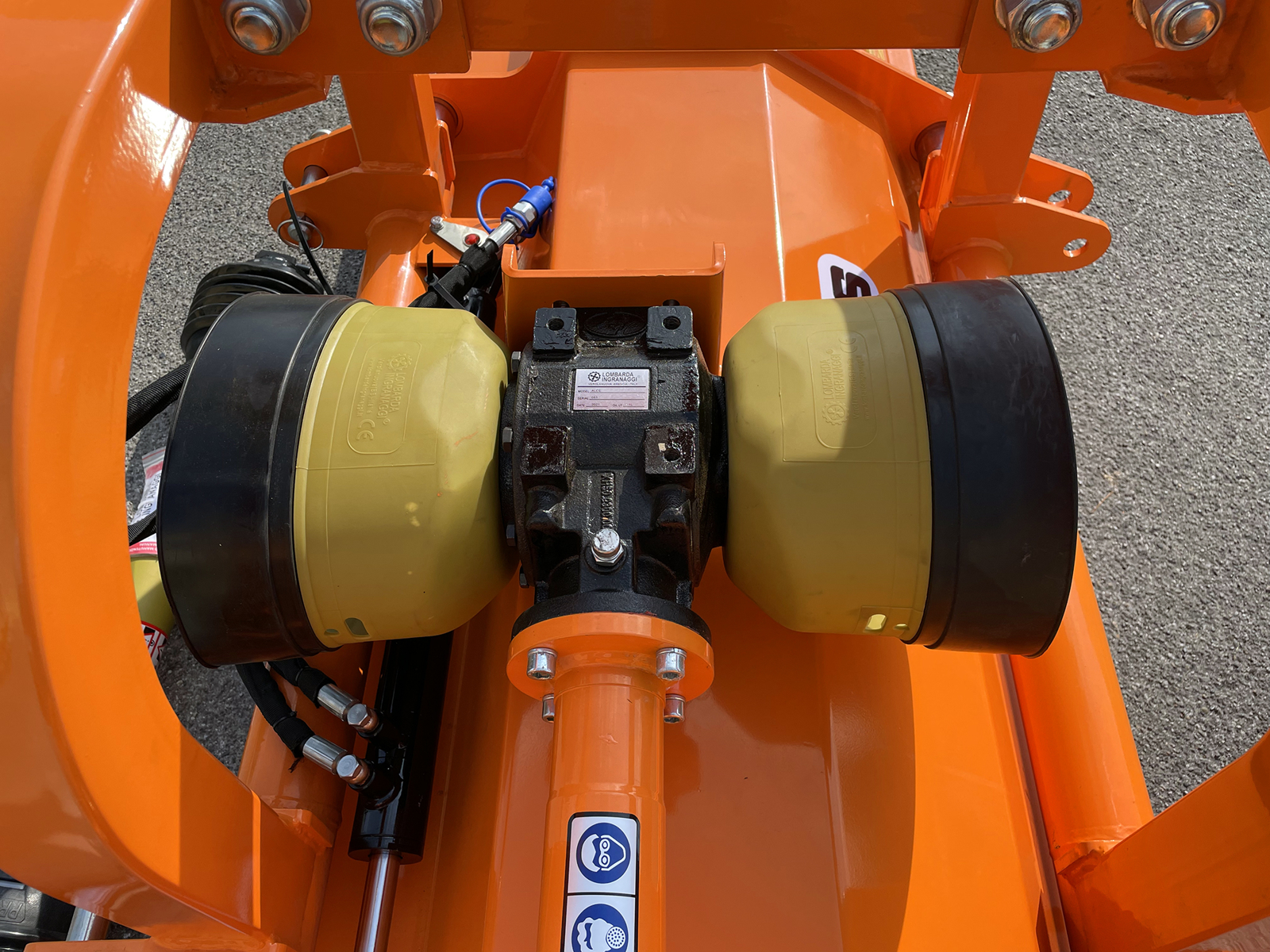

Reversible use, 540 + 540 r/min (1000 r/min as option) Lombarda Ingranaggi.
Double case.
Hydraulic side shift.

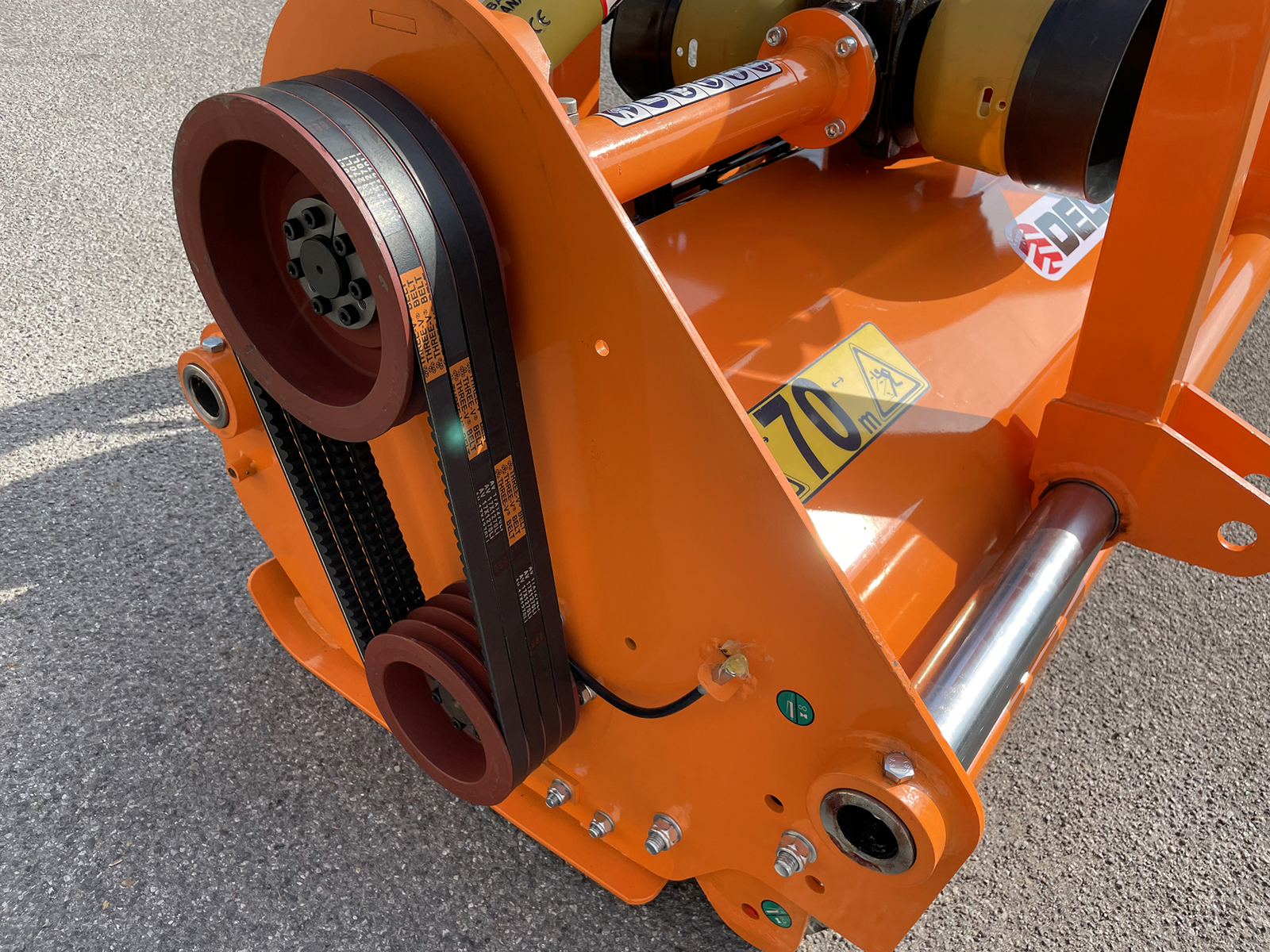

4 high resistance toothed belts, and external belt tensioner.
152.0 mm adjustable roller unit and skids.
Electronically balanced rotor.

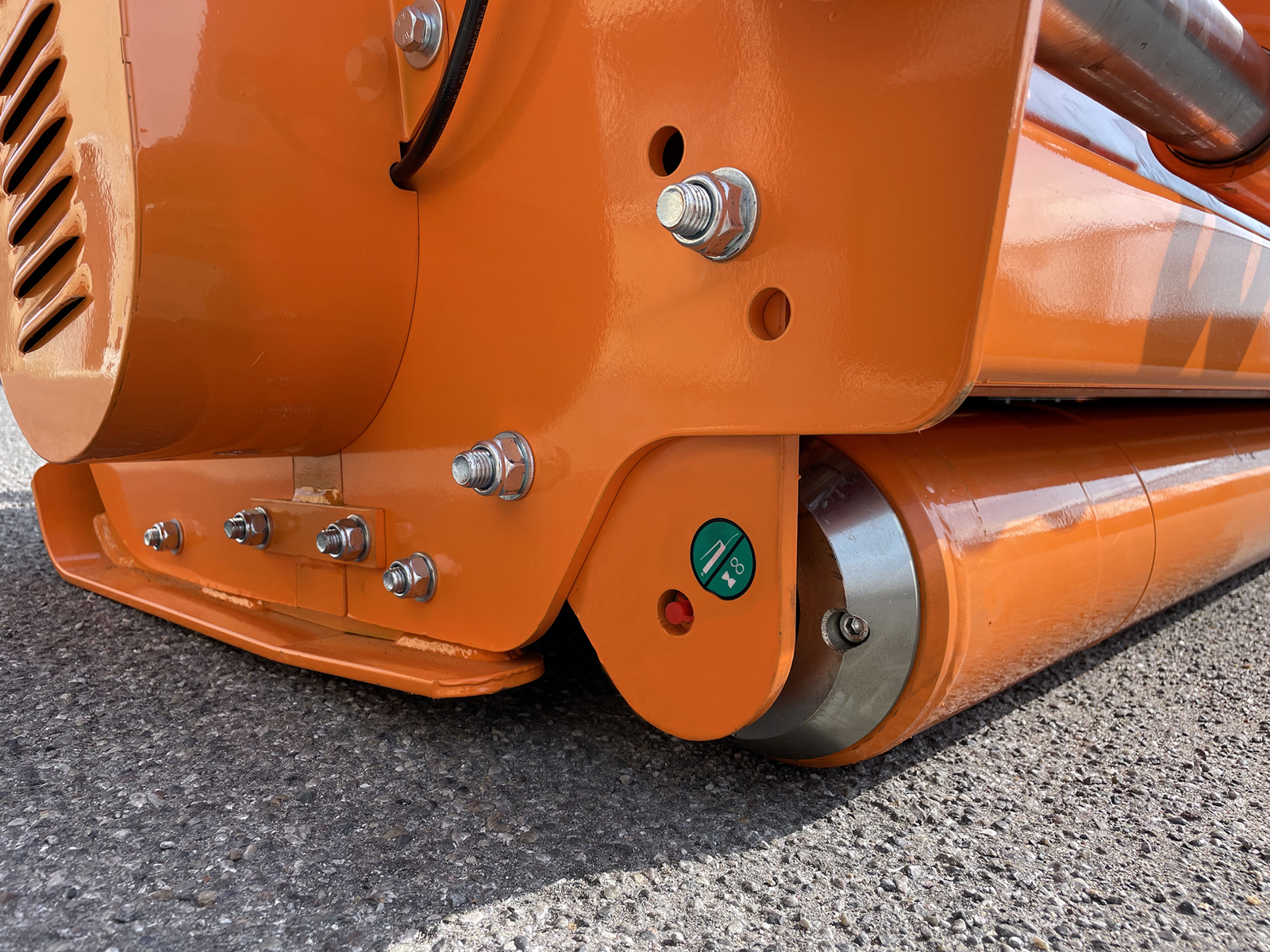

Adjustable roller unit and side skids.
Pto shaft CE included.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1800.0 mm | 5.90 ft |
| Overall width | 1950.0 mm | 6.40 ft |
| Min / Max cutting height | 5.0 - 55.0 mm | 0.2 - 2.16 in |
| Weight | 545.0 kg | 1200.0 lb |
| Overall height | 1050.0 mm | 3.45 ft |
| Tractor Power Range | 60 - 100 Hp | 60 - 100 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) | Cat. 2 (ø 25.0-28.0mm) |
| Position of the gearbox | 800.0 mm from left side / 1000.0 mm from right side | 31.50 in from left side / 40.00 in from right side |
| Hood height | 500.0 mm | 19.70 in |
| Hydraulic Pipes (2) | 2500.0 mm / connections 1.2" AGRI, WP-400 bar | 100.0 in / connections 1.2" AGRI, WP-400 bar |
| Spacing between the 2 lower points | 740.0 - 890.0 mm | 29.0 - 35.0 in |

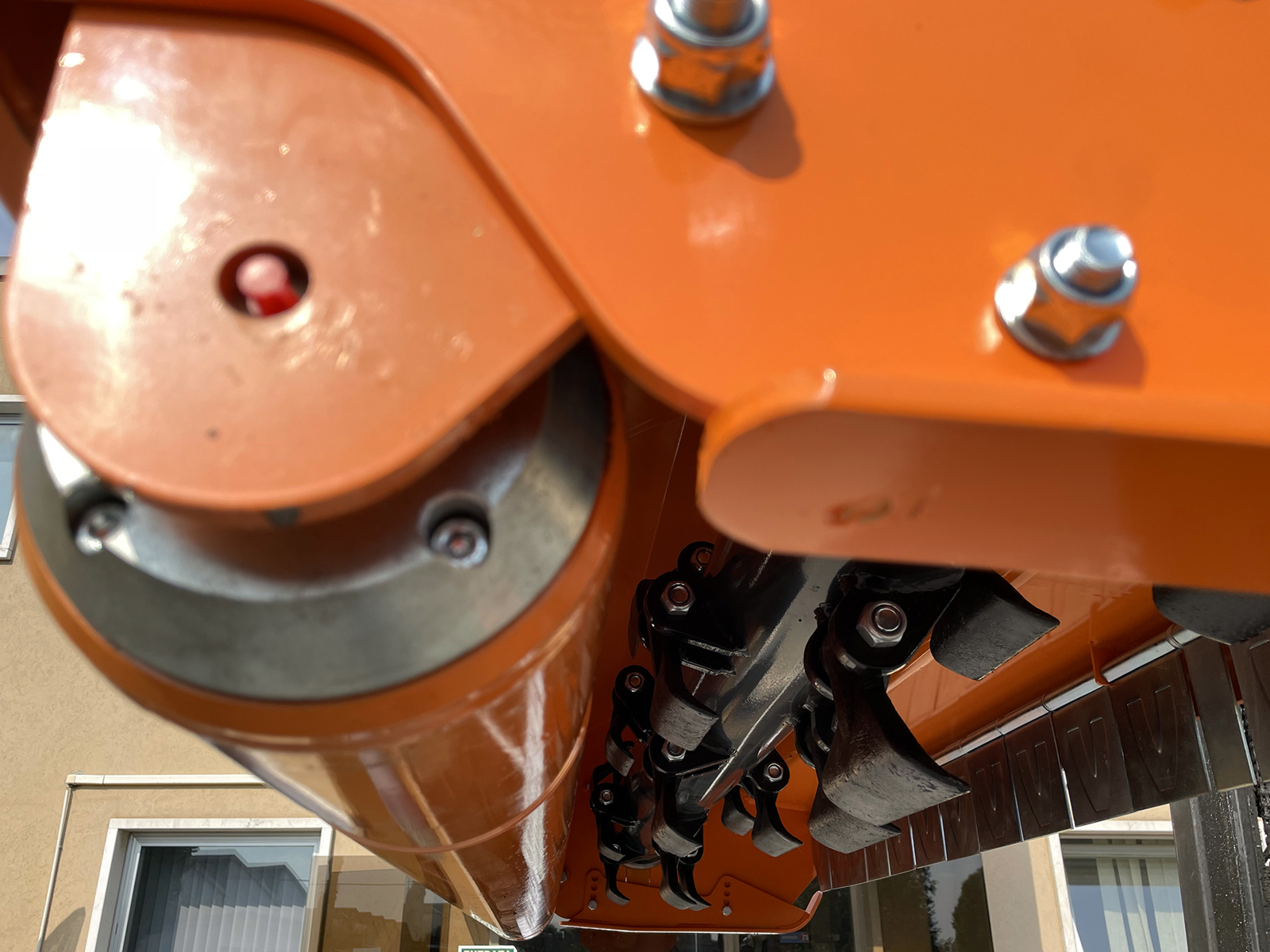

| Number of Hammers | 16 | 16 |
| Maximum cutting diameter | 40.0 - 50.0 mm | 1.57 - 1.97 in |
| Overall length | 1030.0 mm | 3.38 ft |
| Distance between pto attachment and ground | 550.0 mm | 15.75 in |
| Main hood thickness | 5.0 mm | 0.2 in |
| Sides thickness | 8.0 mm | 0.31 in |
| Side plates thickness | 6.0 mm | 0.23 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi 540 r/min - 3 years warranty | Lombarda Ingranaggi 540 r/min - 3 years warranty |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: RPM Rotor speed | 2140 rpm | 2140 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 4 | 4 |
| Transmission: V-Belts size | 17x1270 | 17x1270 |
| Rotor: diameter | 152.0 mm | 6.00 in |
| Rotor: bearings type and size | 40x90 | 40x90 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 8.0 mm | 0.31 in |

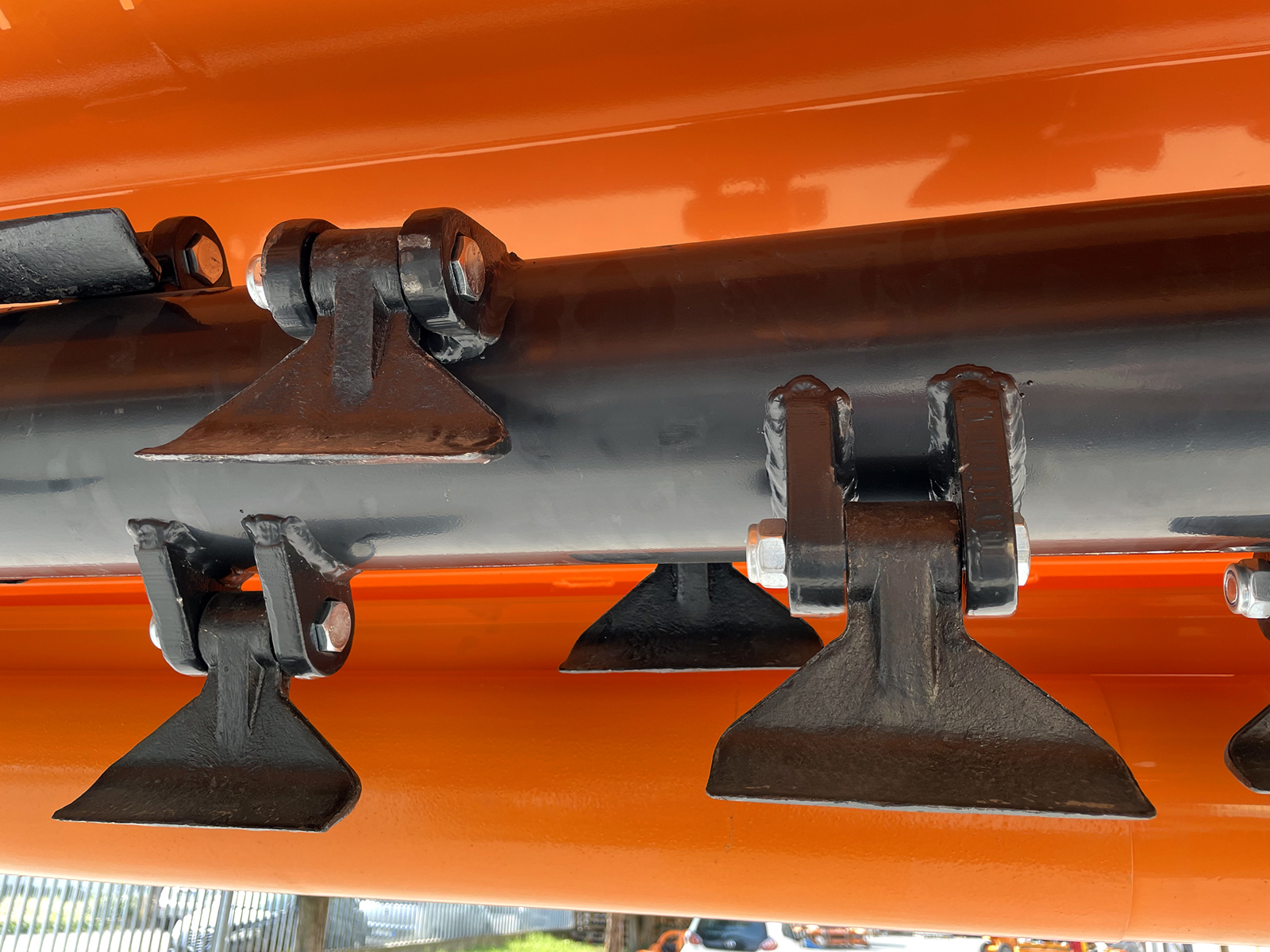

| Hammers: Weight | 1100.0 g | 38.80 oz |
| Hammer: øhole | 16.0 mm | 0.63 in |
| Hammer: base width | 140.0 mm | 5.5 in |
| Hammer: top width | 40.0 mm | 1.57 in |
| Hammer: Diagonal | 97.0 mm | 3.82 in |

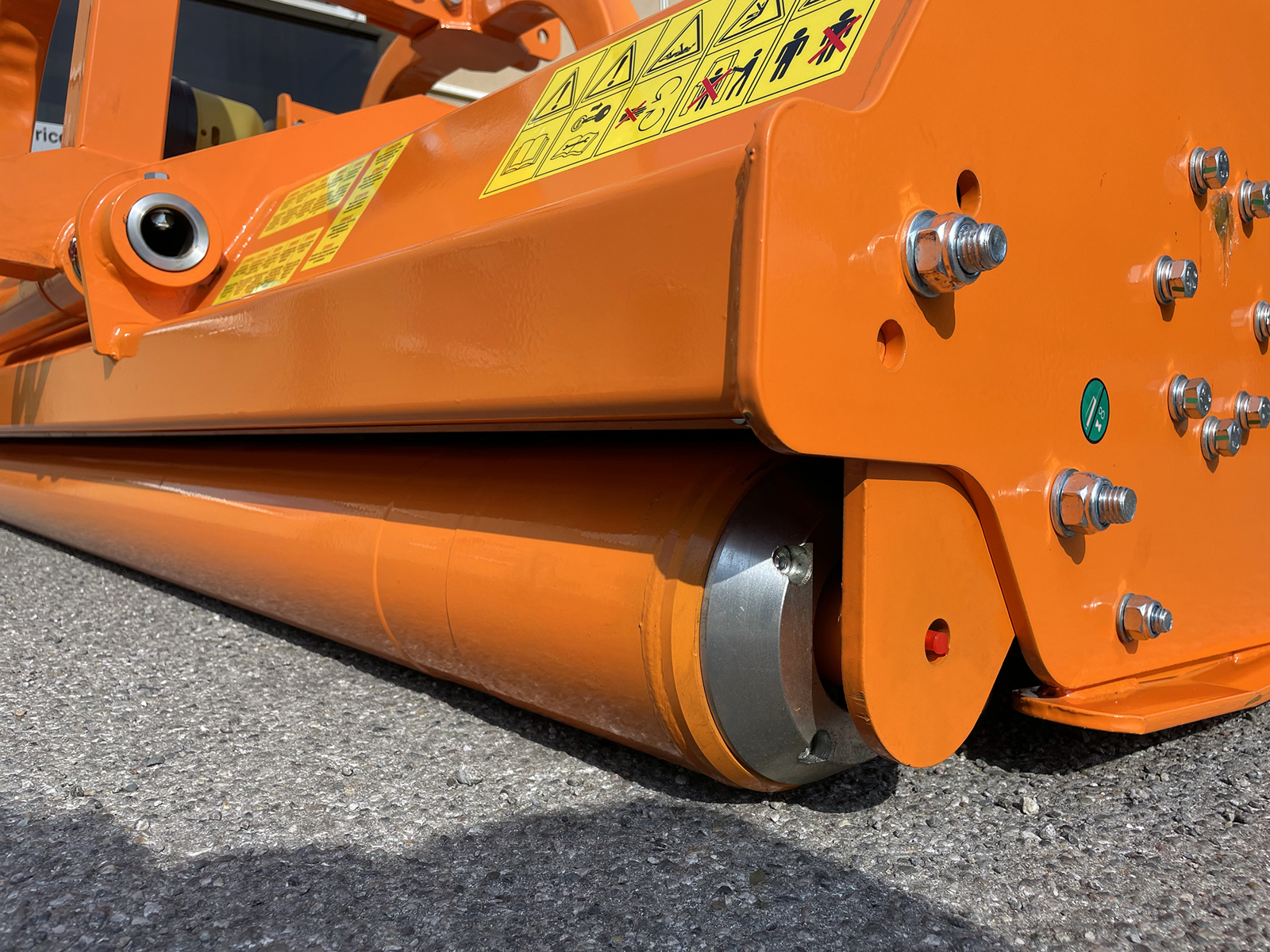

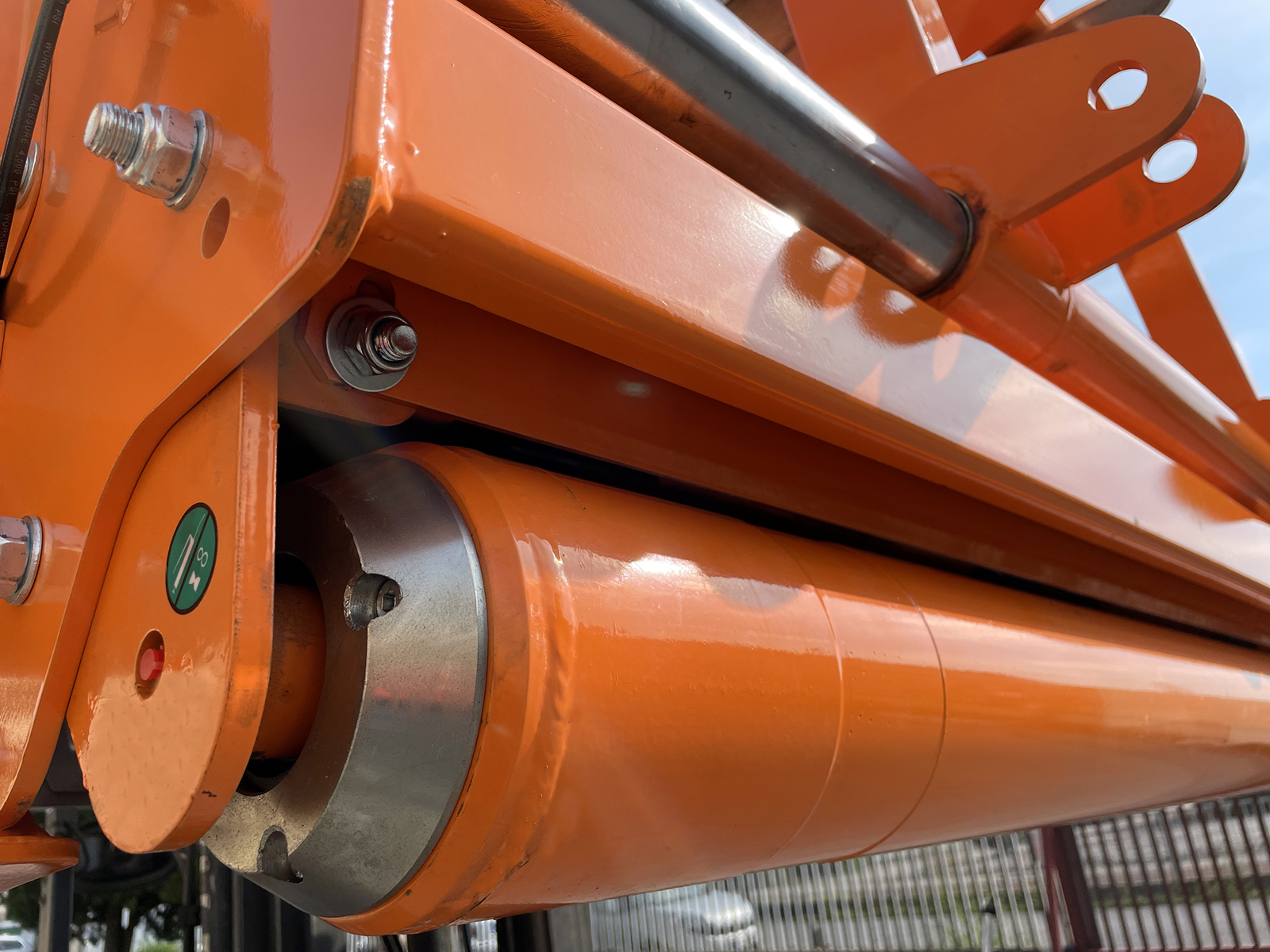

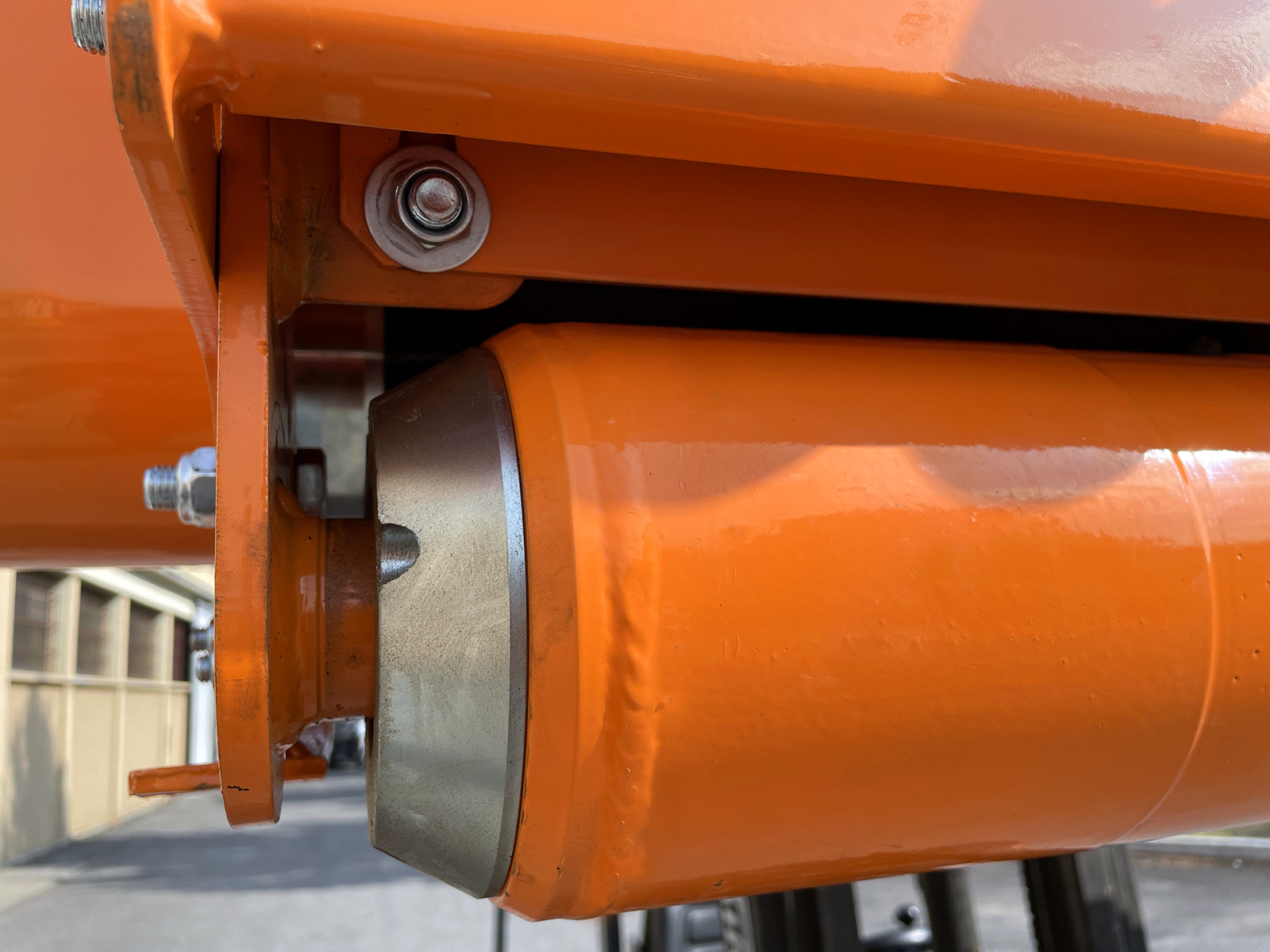

| Rear roller: diameter | 152.0 mm | 5.98 in |
| Rear roller: sheet thickness | 6.0 mm | 0.23 in |
| Rear roller: bearings type and size | 90x40 mm - GB276-6308 | 90x40 mm - GB276-6308 |
| Pto shaft | CE 8x1200 mm + shear bolt | CE 8x1200 mm + shear bolt |
| Hood length | 1000.0 mm | 39.40 in |
| Effective Displacement | 400.0 mm (Hydraulic) | 15.75 in (Hydraulic) |
| Packing sizes | 1950.0*1050.0*1050.0 mm | 6.40*3.45*3.45 ft |
