Front and rear flail mower 200 cm (79 in) GRIZZLY-200, heavy-duty hammer flail mulcher for reverse-drive tractors or tractors with a front linkage, 60-100 hp

Available
Code GRIZZLY200PTO - EAN 8053470237164
Suggested price 3.914,00€VAT incl.
3.450,00€VAT incl.
Free shipping
Loading...
Suggested price 3.914,00€VAT incl.
3.450,00€VAT incl.
Free shipping
View all details.
CUTTING WIDTH
160 180 200 220

4.6

1551 reviews

Suggested price 3.914,00€VAT incl.
3.450,00€VAT incl.
 REQUEST INFORMATION

VIDEO
Field test with Claas tractor
Field test with Claas tractor

DETAILS

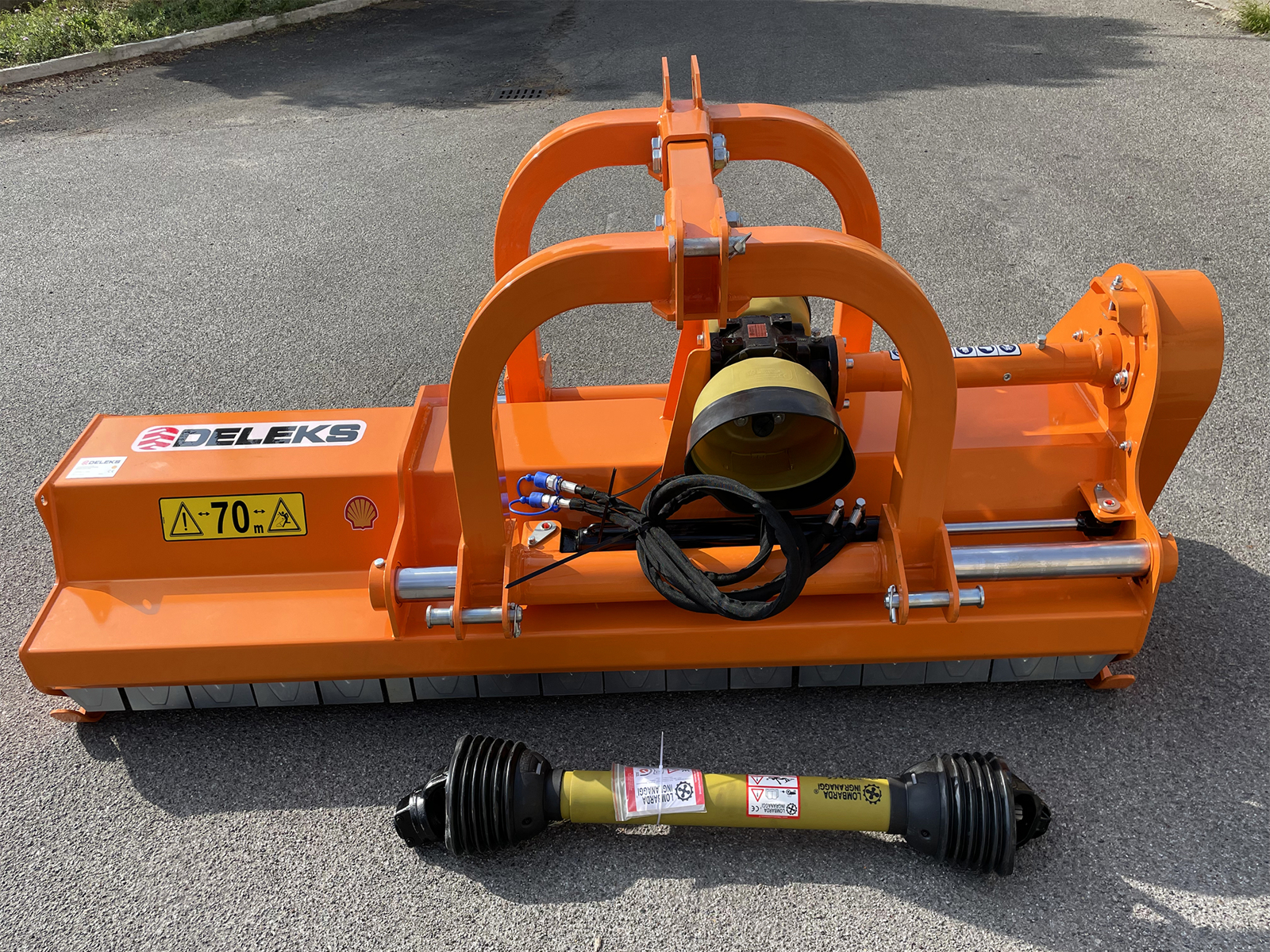

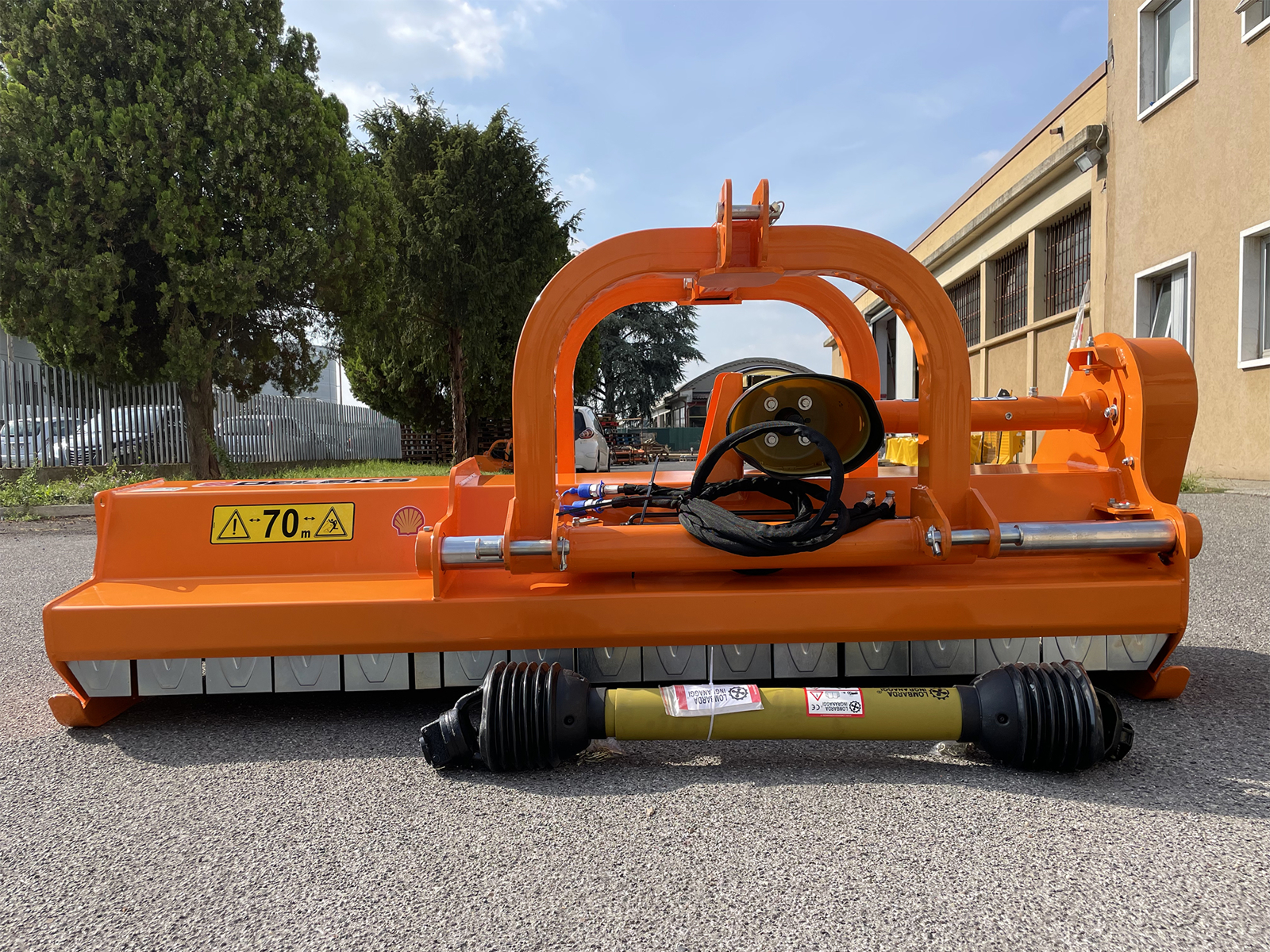

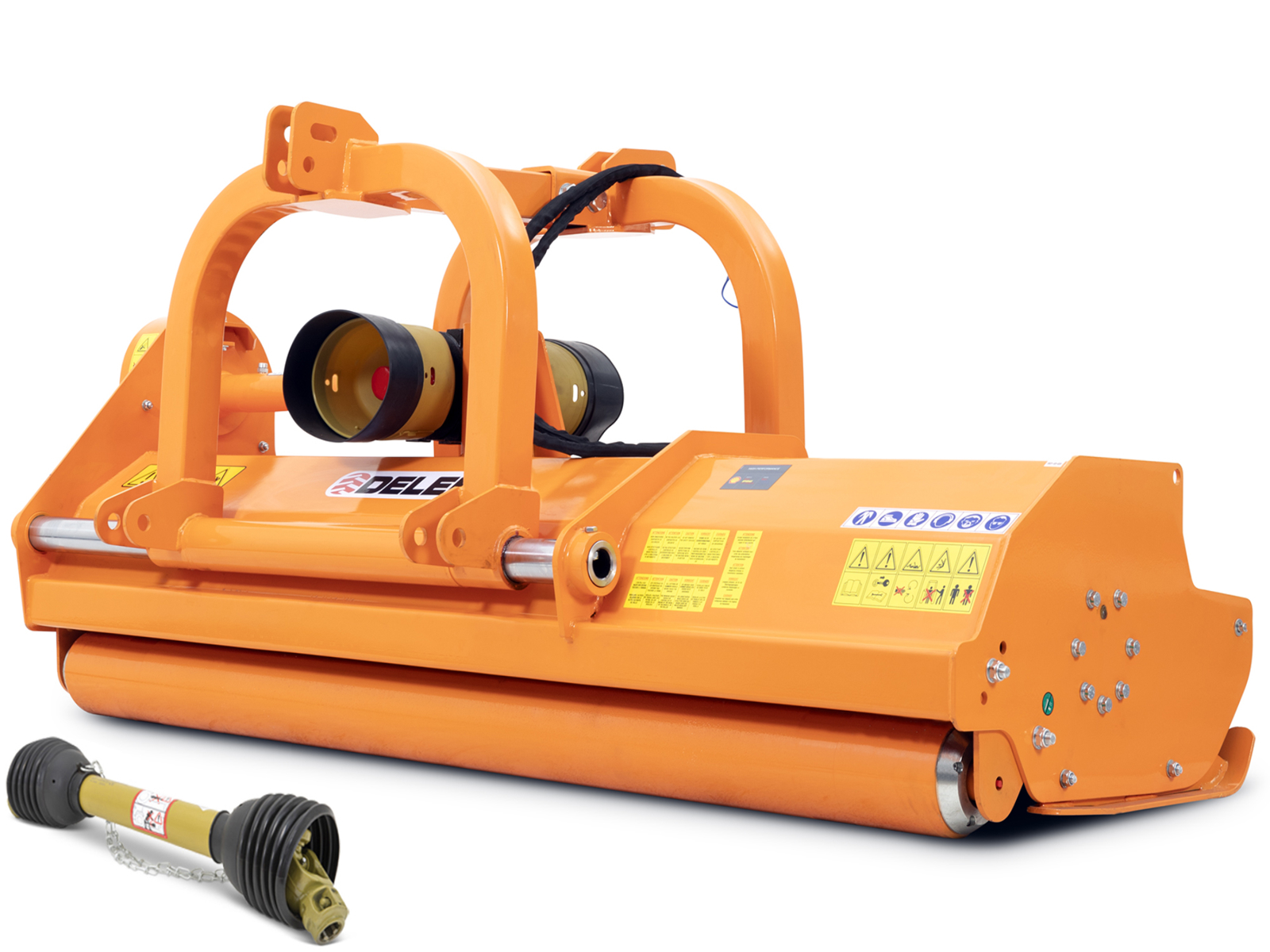

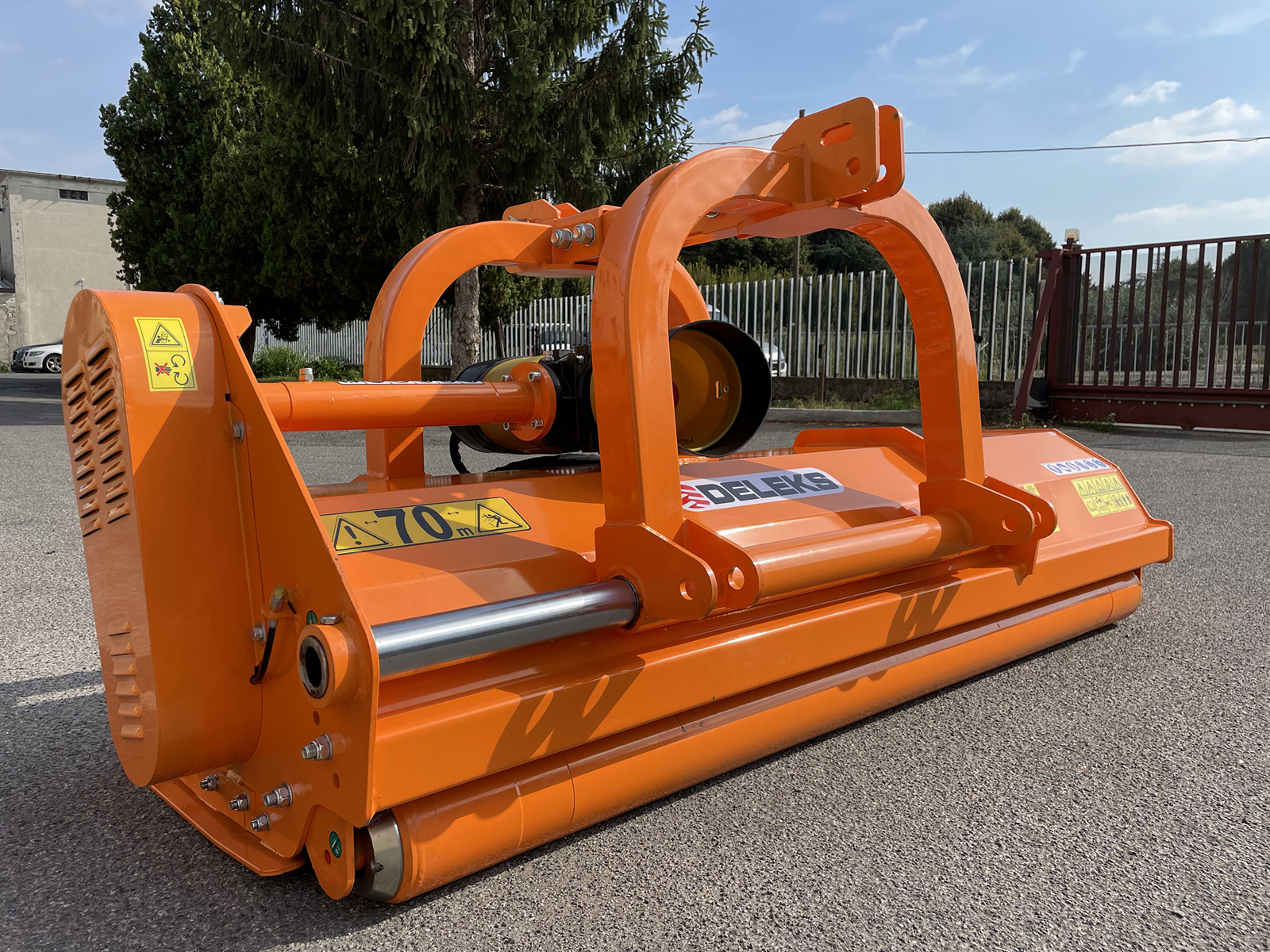

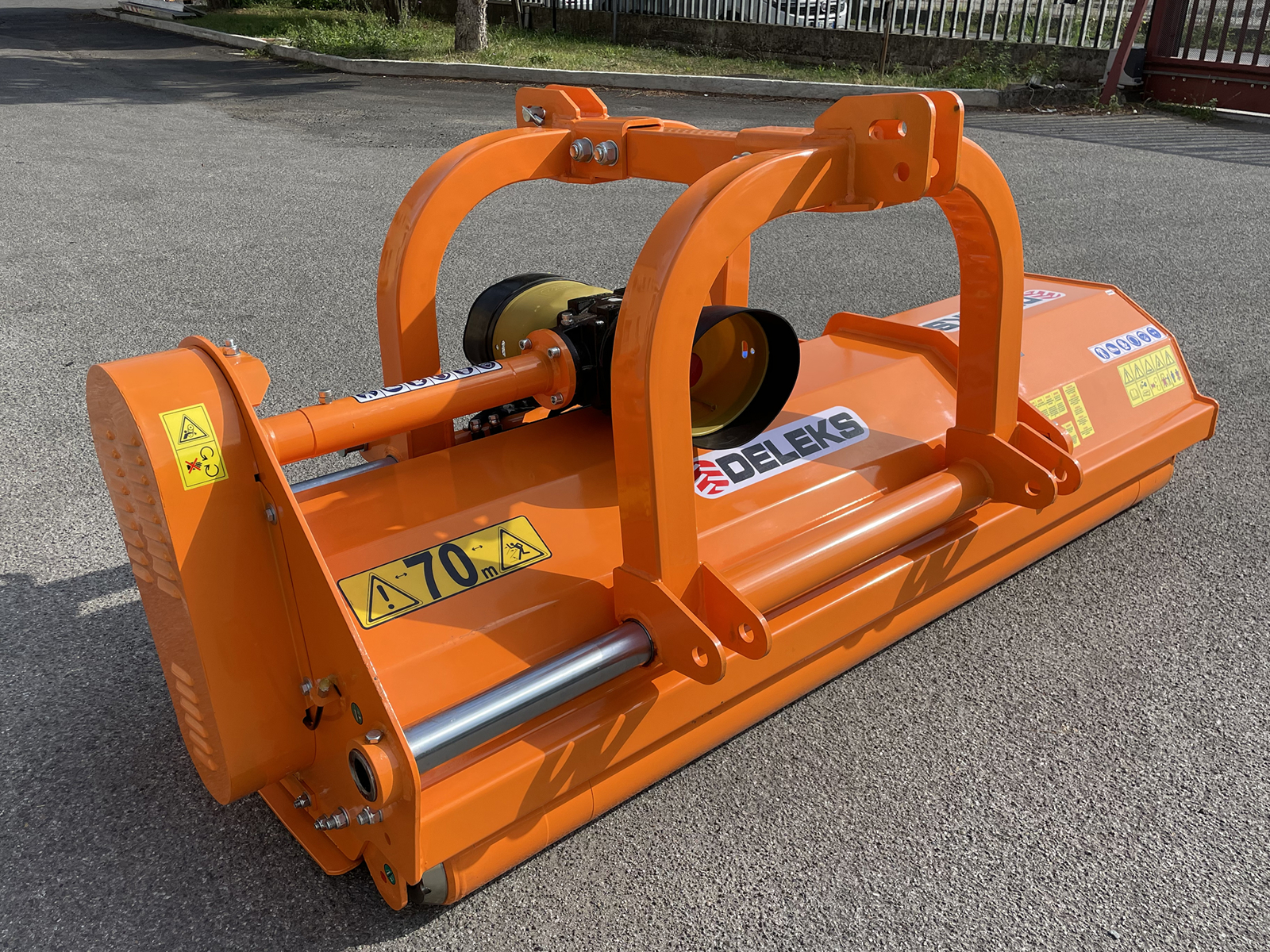

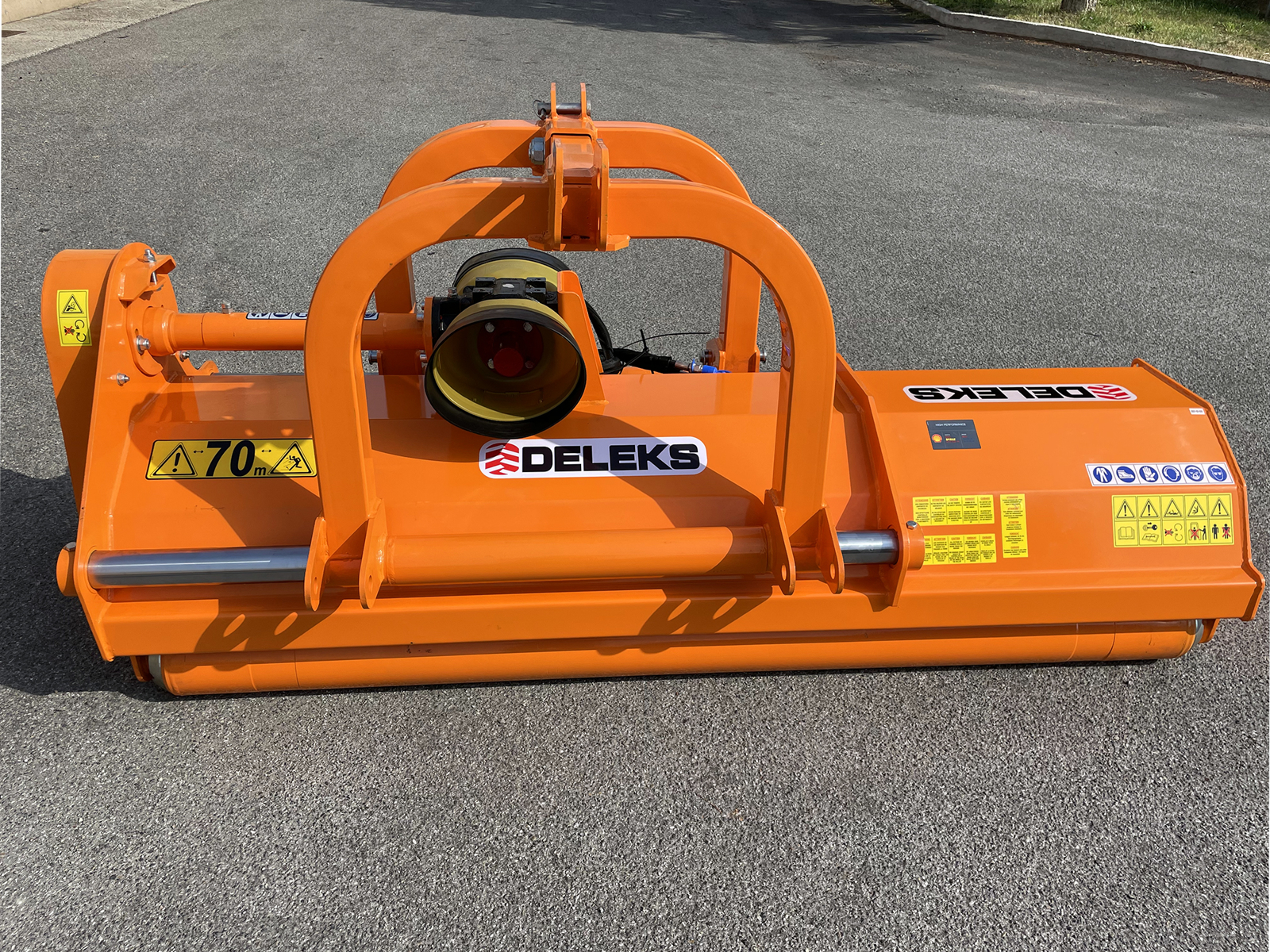

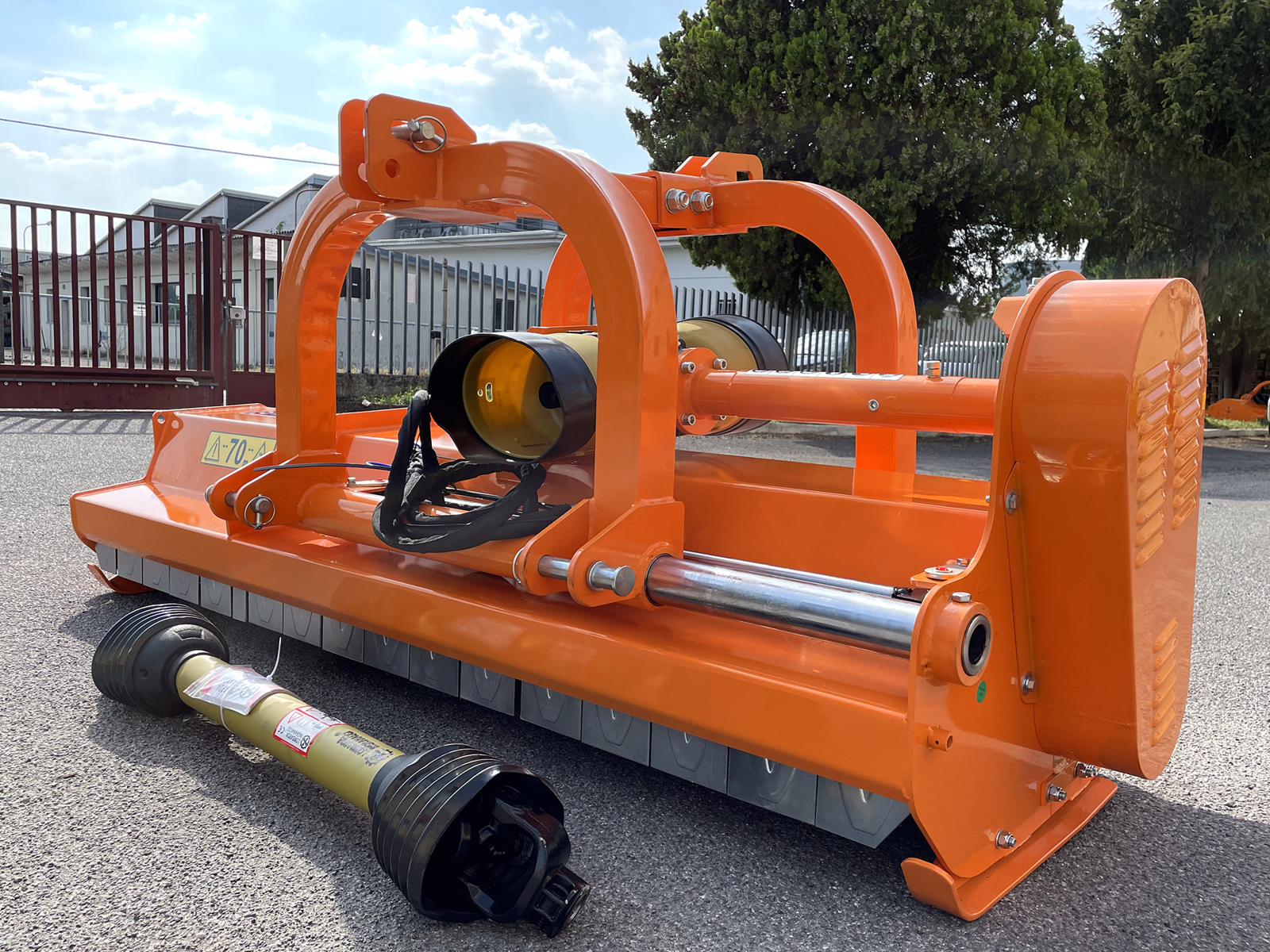

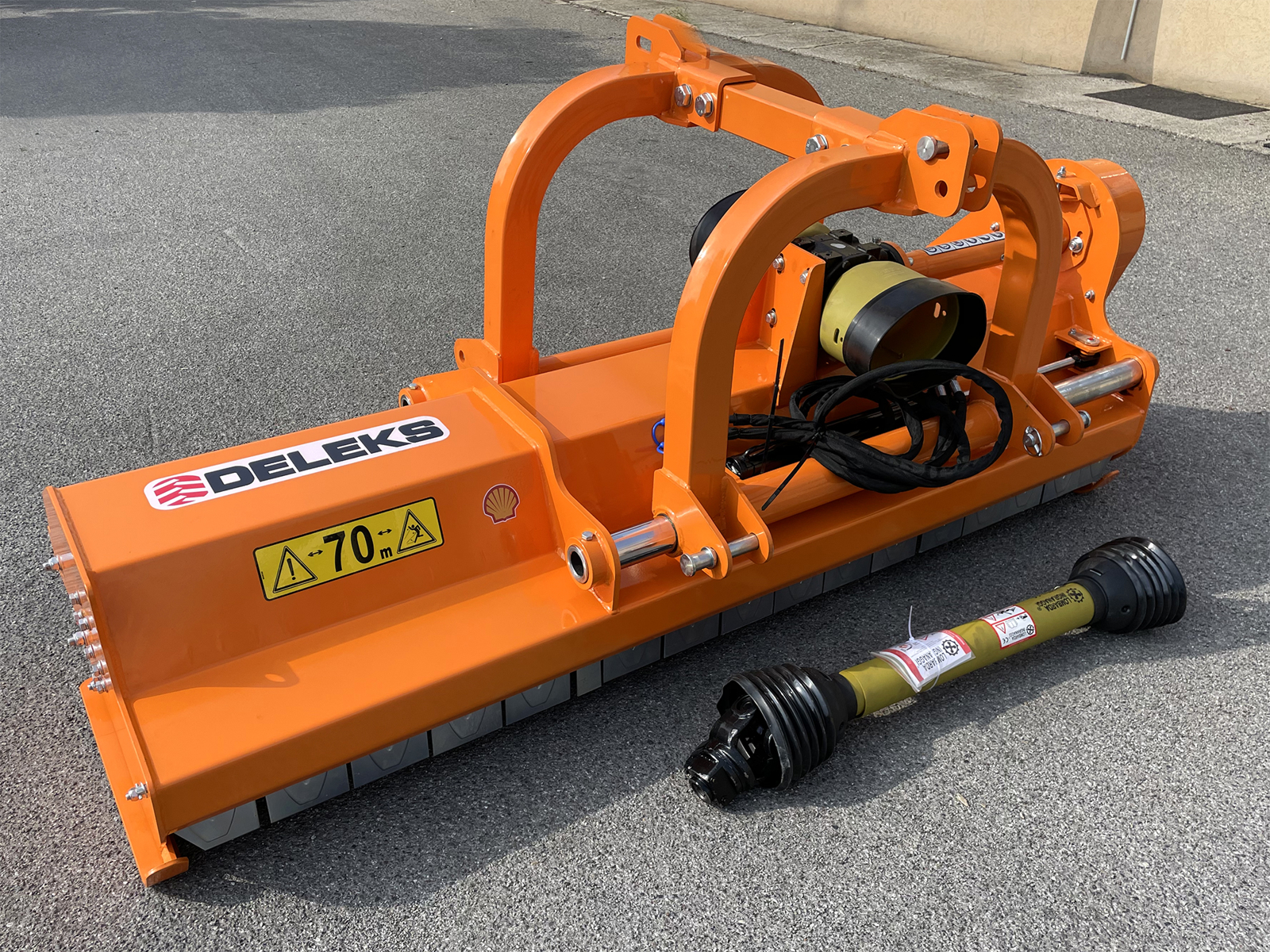

Front and rear flail mower with a 200 cm (79 in) cut: the DELEKS® GRIZZLY-200 is the heavy-series hammer flail mulcher that mounts in front of the tractor or behind it, for reverse-drive tractors, tractors with a front linkage and conventional tractors from 60 to 100 hp. The DELEKS® double-shaft gearbox, 540 + 540 rpm, with freewheel and a 3-year warranty, lets you run it front or rear; for a 1,000 rpm PTO there is the optional gearbox. The electronically balanced 152 mm (6 in) rotor carries 18 hammer flails of 1,100 g (2.4 lb) and pulverises grass, leaves, brambles and vine and olive prunings up to 6-7 cm (2.4-2.8 in) thick. Double-skin hood, 40 cm (16 in) hydraulic side shift, oversized rear roller, 4-belt drive, 570 kg (1,257 lb). TÜV-certified, it comes complete with a CE-approved PTO shaft, a 2-year warranty and free delivery within the EU.


Front or rear: which tractors it fits

The GRIZZLY-200 runs in front of the tractor or behind it: on the front linkage, on reverse-drive tractors or, like a conventional flail mower, on the rear linkage. It cuts 200 cm (79 in) with an overall width of 215 cm (85 in) and fits tractors of every make from 60 to 100 hp, with a universal category 2 three-point linkage (25-28 mm pins, lower link spacing from 740 to 890 mm). It works on the flat and on slopes. The gearbox sits 800 mm from the left-hand side and 1,200 mm from the right-hand side, 550 mm above the ground.

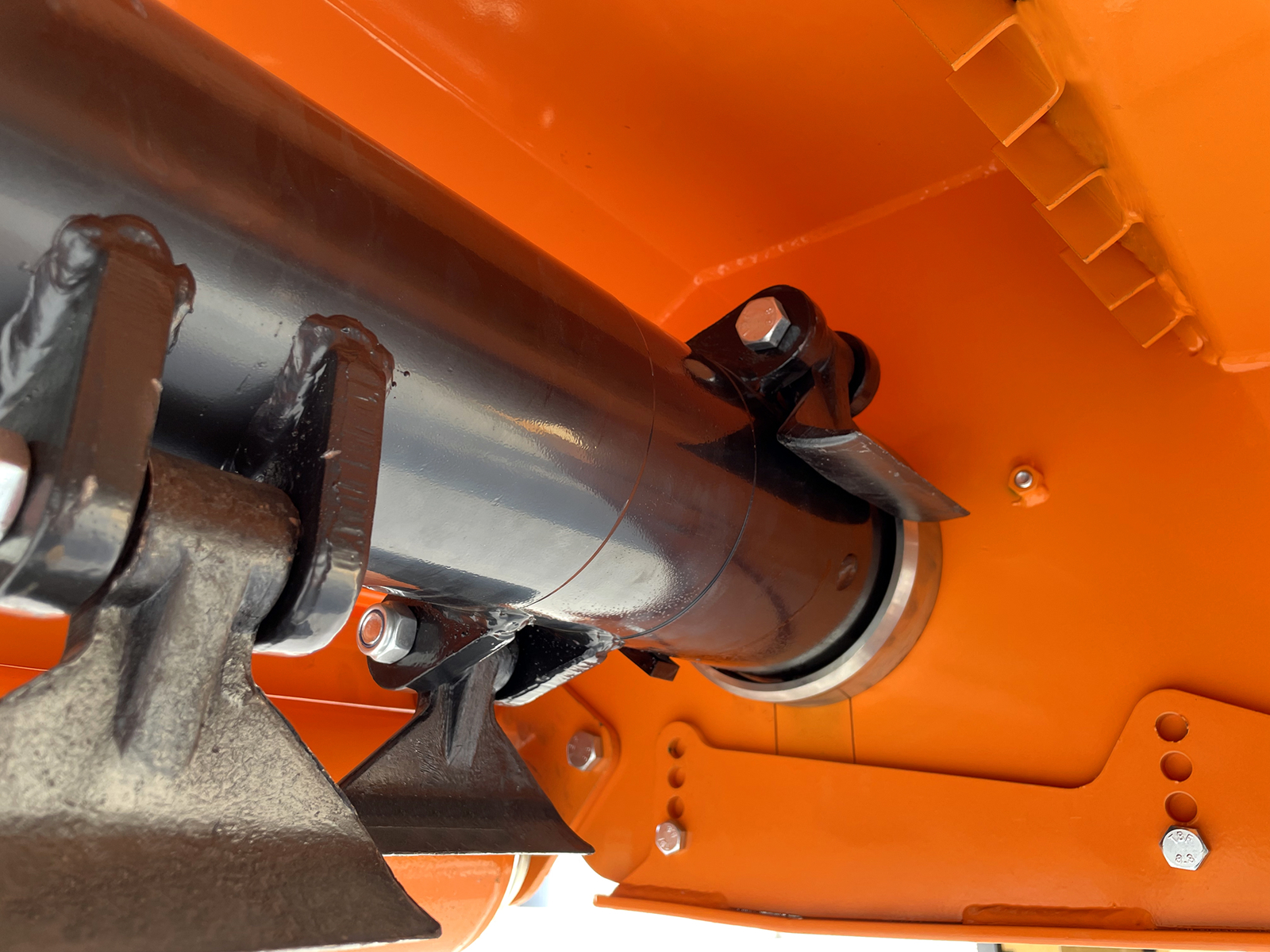

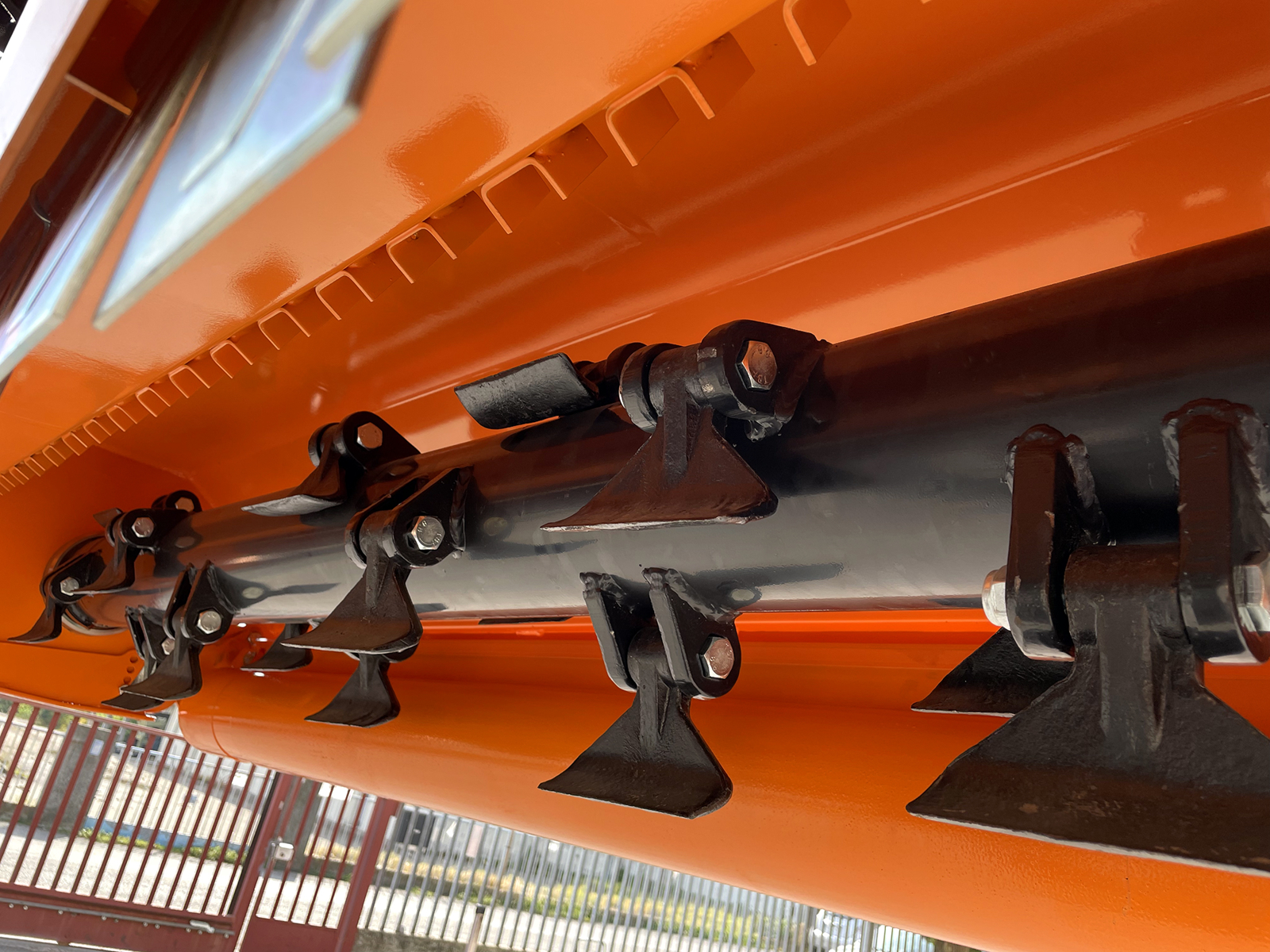

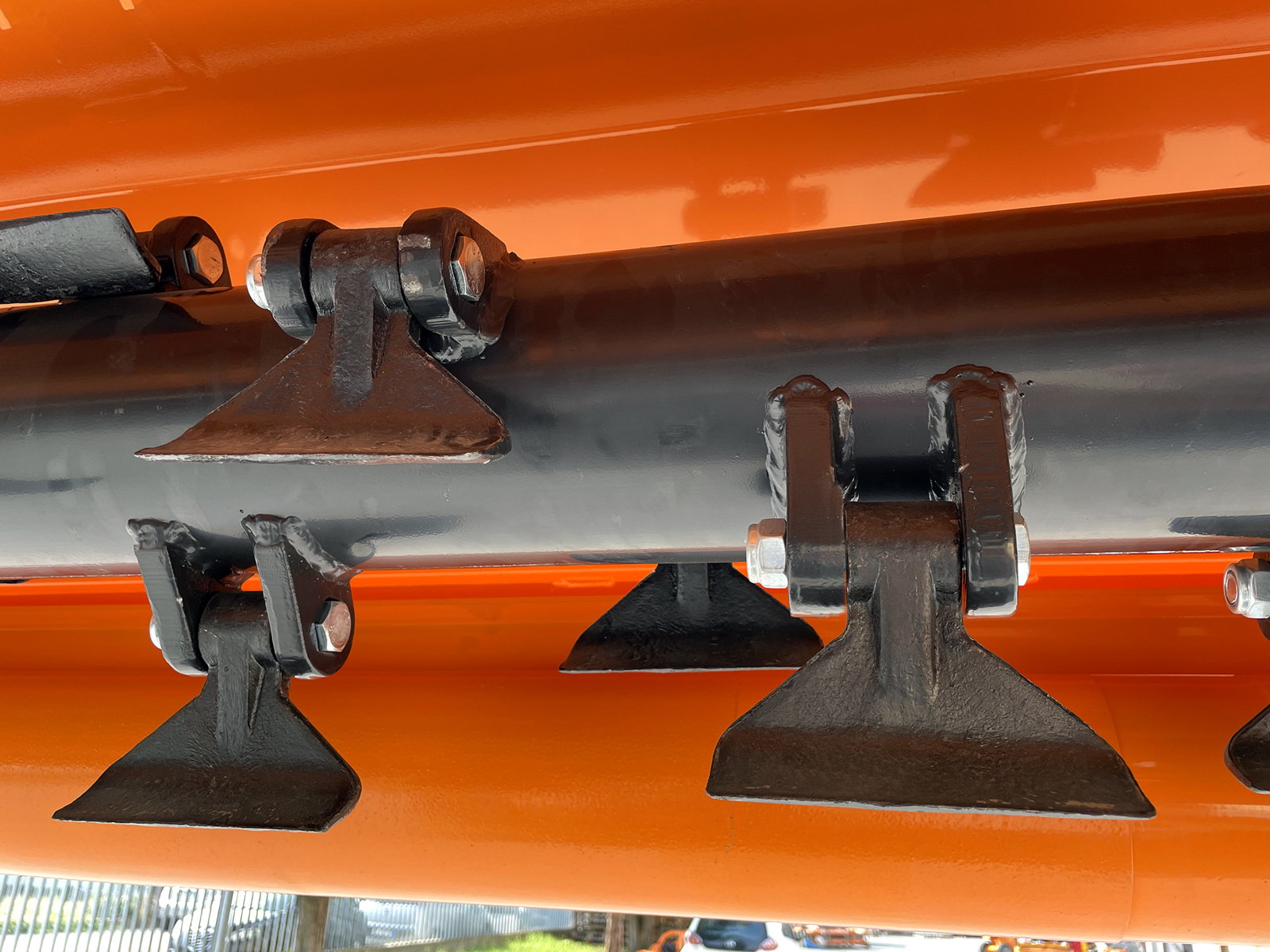

152 mm (6 in) rotor with 18 hammer flails of 1,100 g (2.4 lb)

The rotor is 152 mm (6 in) in diameter, with an 8 mm (5/16 in) tube wall; it is electronically balanced and spins at 2,140 rpm. The 18 hammer flails weigh 1,100 g (2.4 lb) each and have a 140 mm (5.5 in) wide base: they pulverise grass, leaves, brambles and vine and olive prunings up to 6-7 cm (2.4-2.8 in) thick. On request the GRIZZLY-200 can be fitted with triple blades instead of the hammer flails, using the COLTELLI60TORO kit.

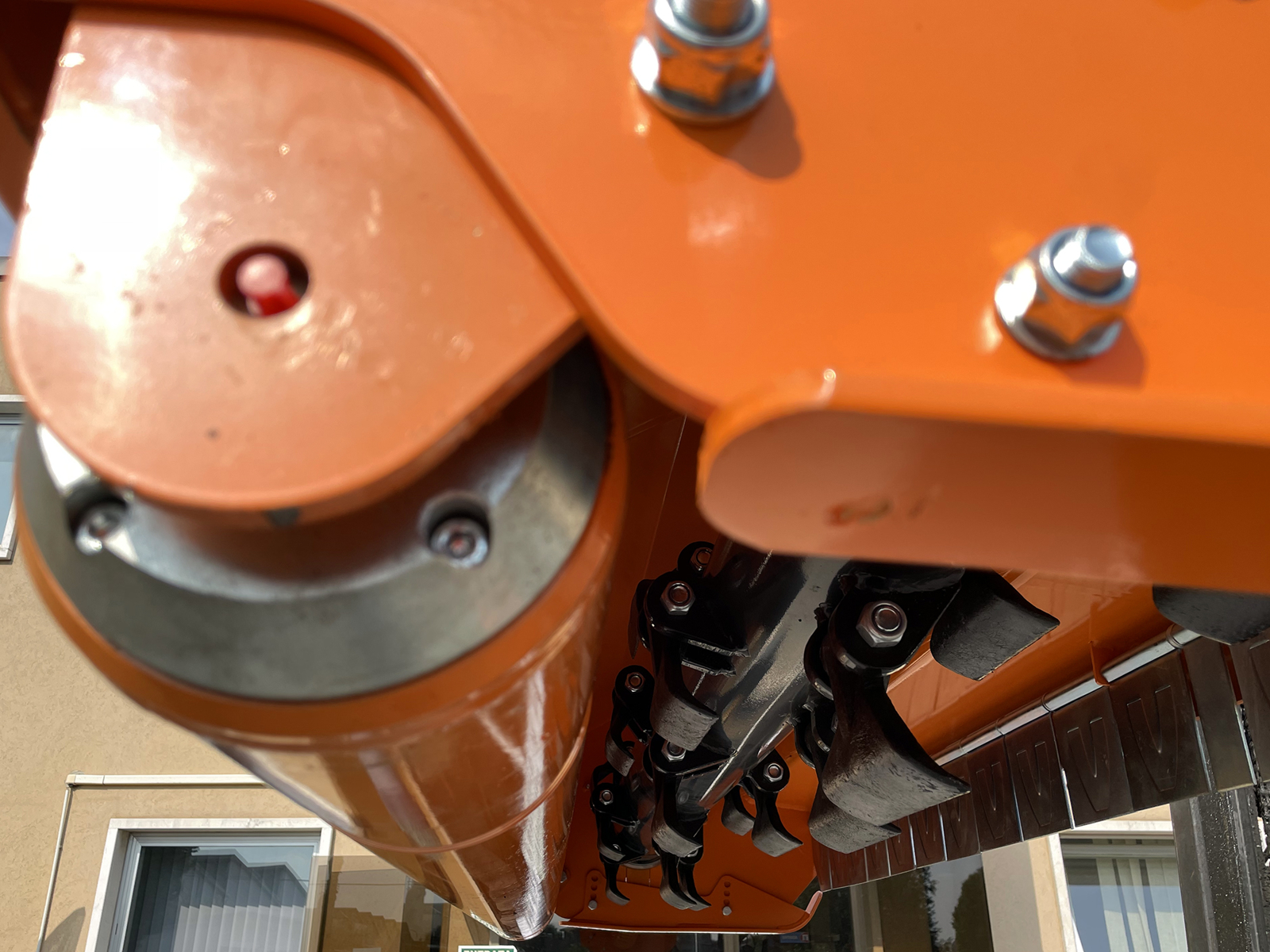

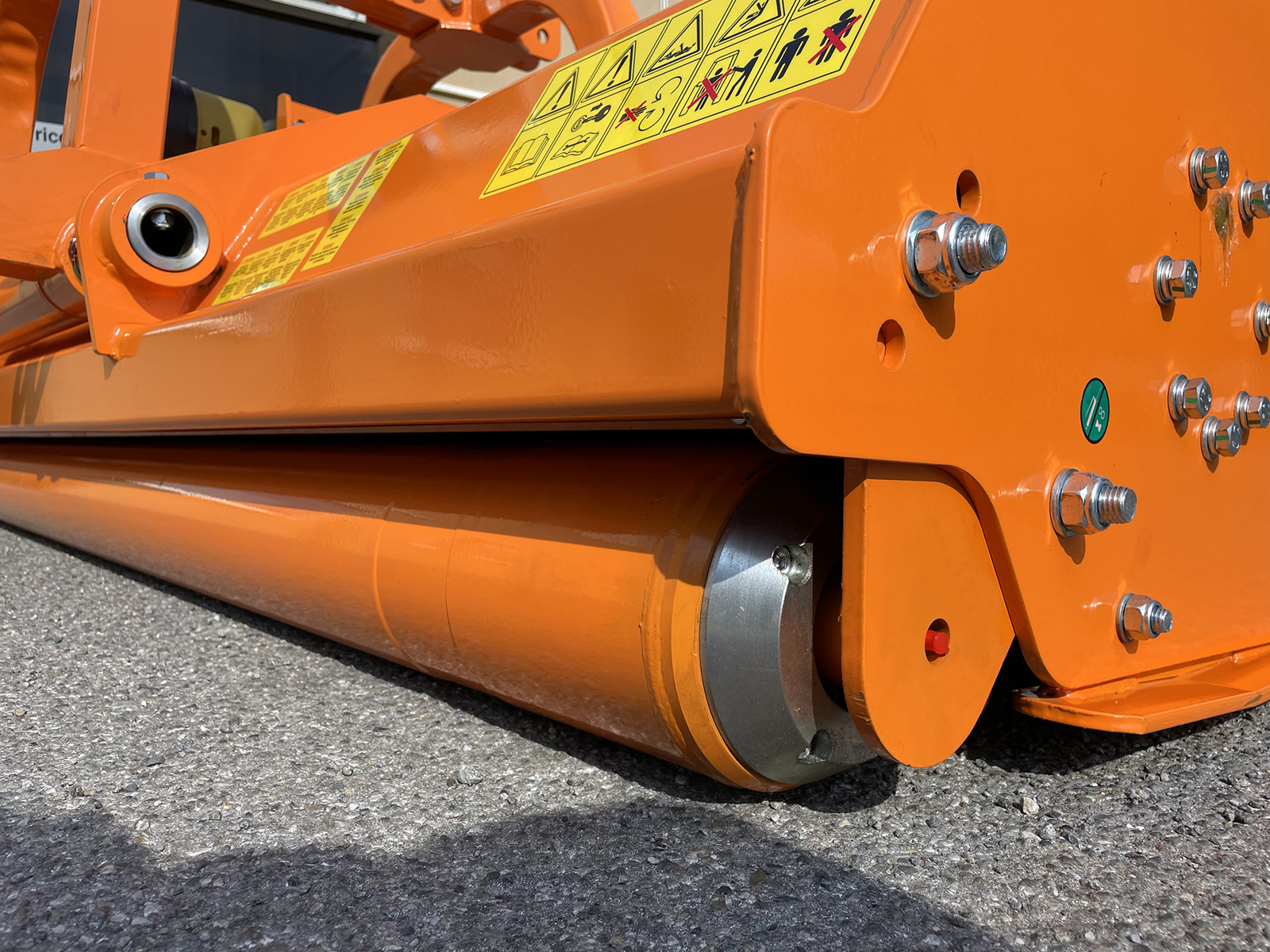

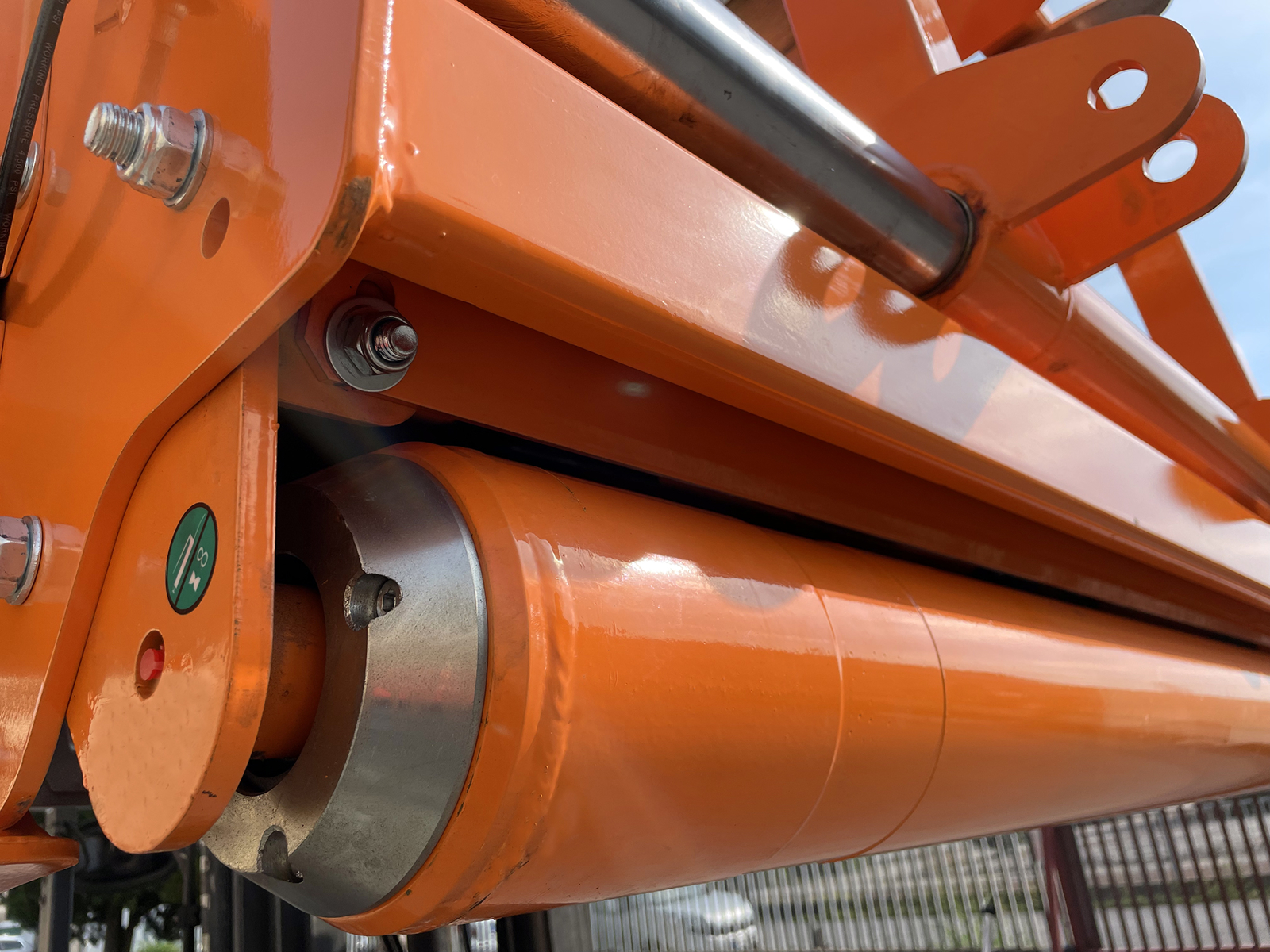

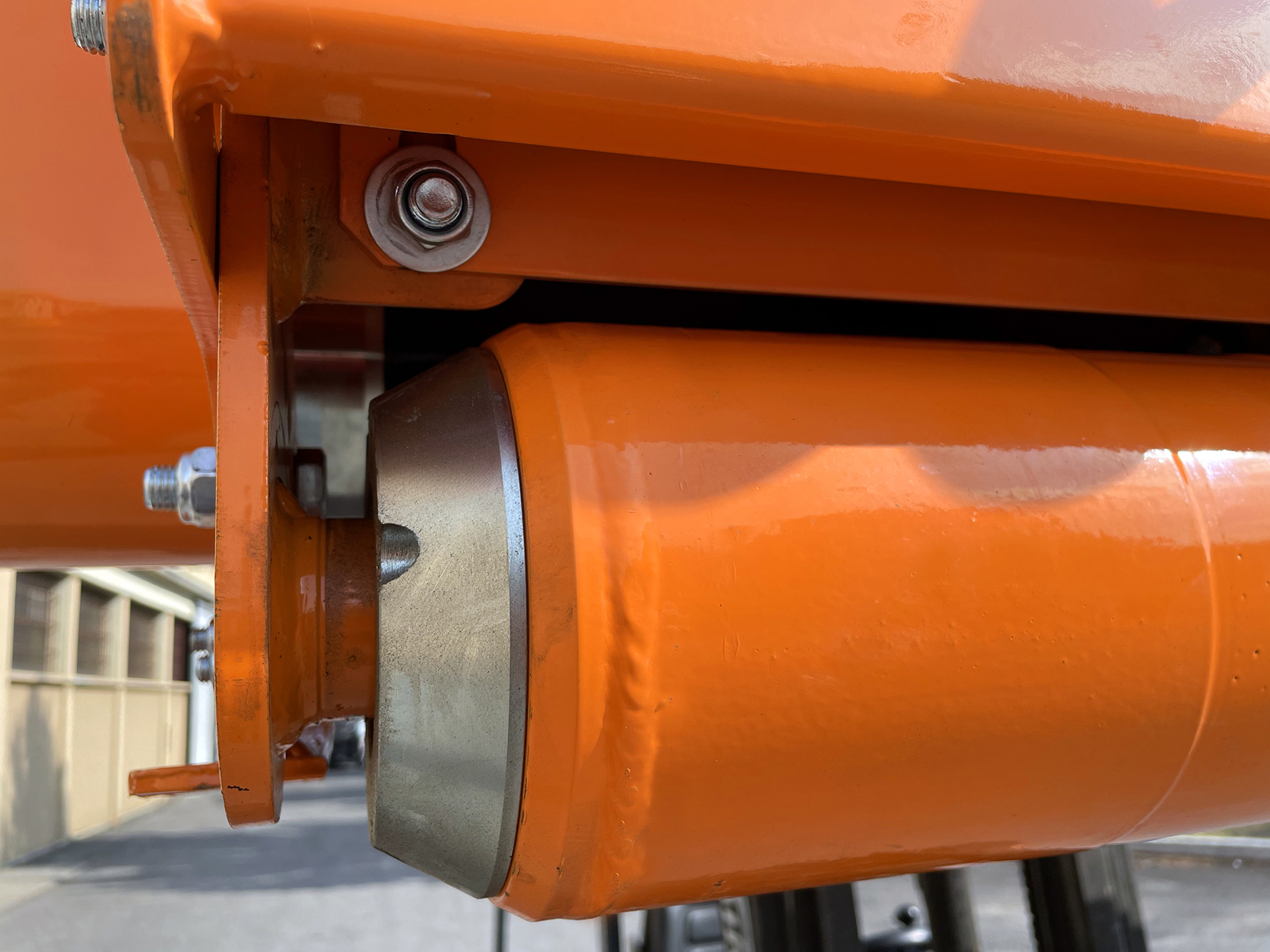

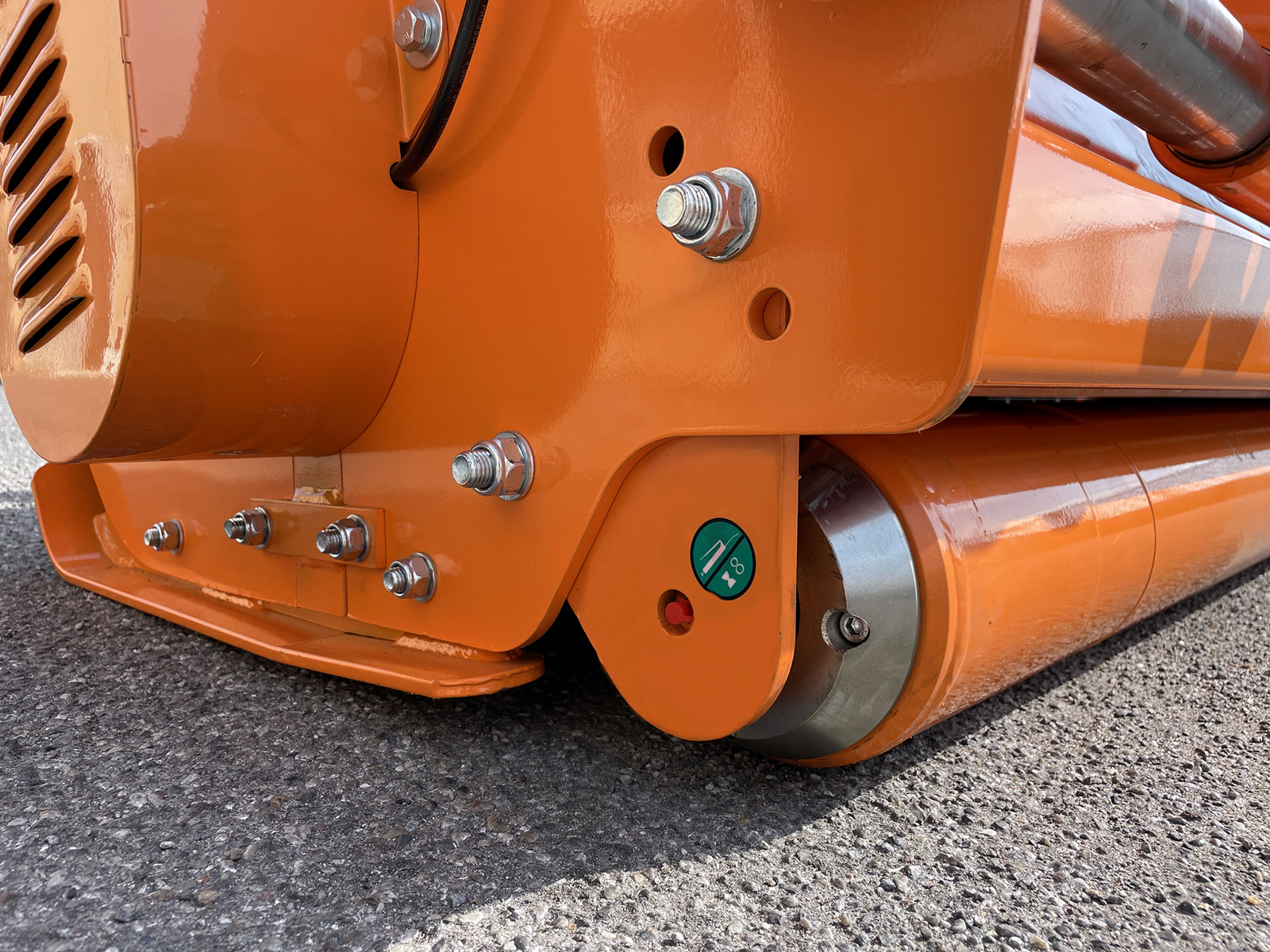

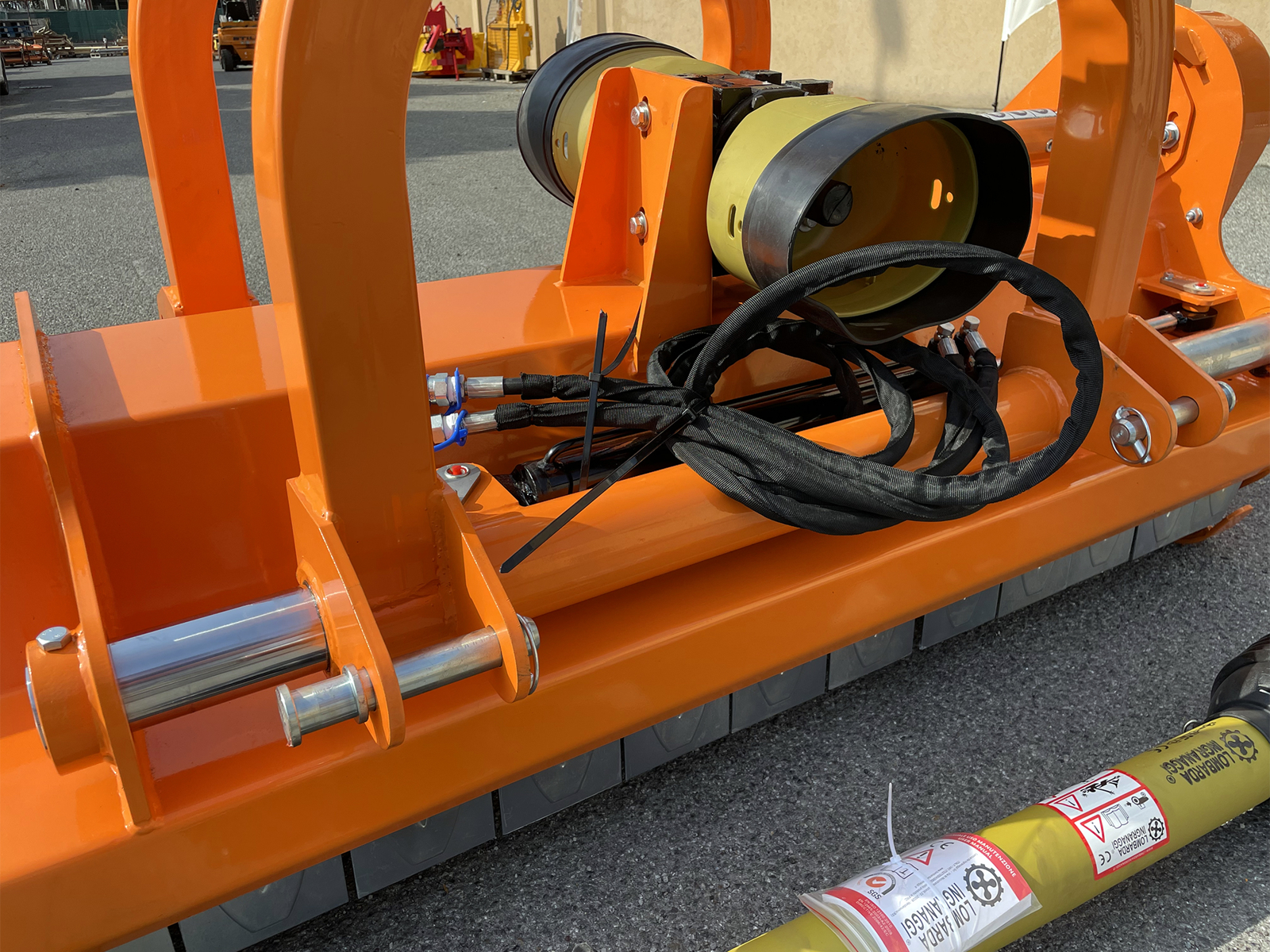

Double-skin hood, oversized roller and cutting height

The GRIZZLY-200 is built with a double-skin hood: the reinforced structure protects the body of the machine from knocks and from the stresses of shredding. The frame is 5 mm thick, with 8 mm side plates and 6 mm side skids. The oversized rear roller, 152 mm (6 in) in diameter, carries the machine and, with the side skids, sets the cutting height from 5 to 55 mm (0.2 to 2.2 in).

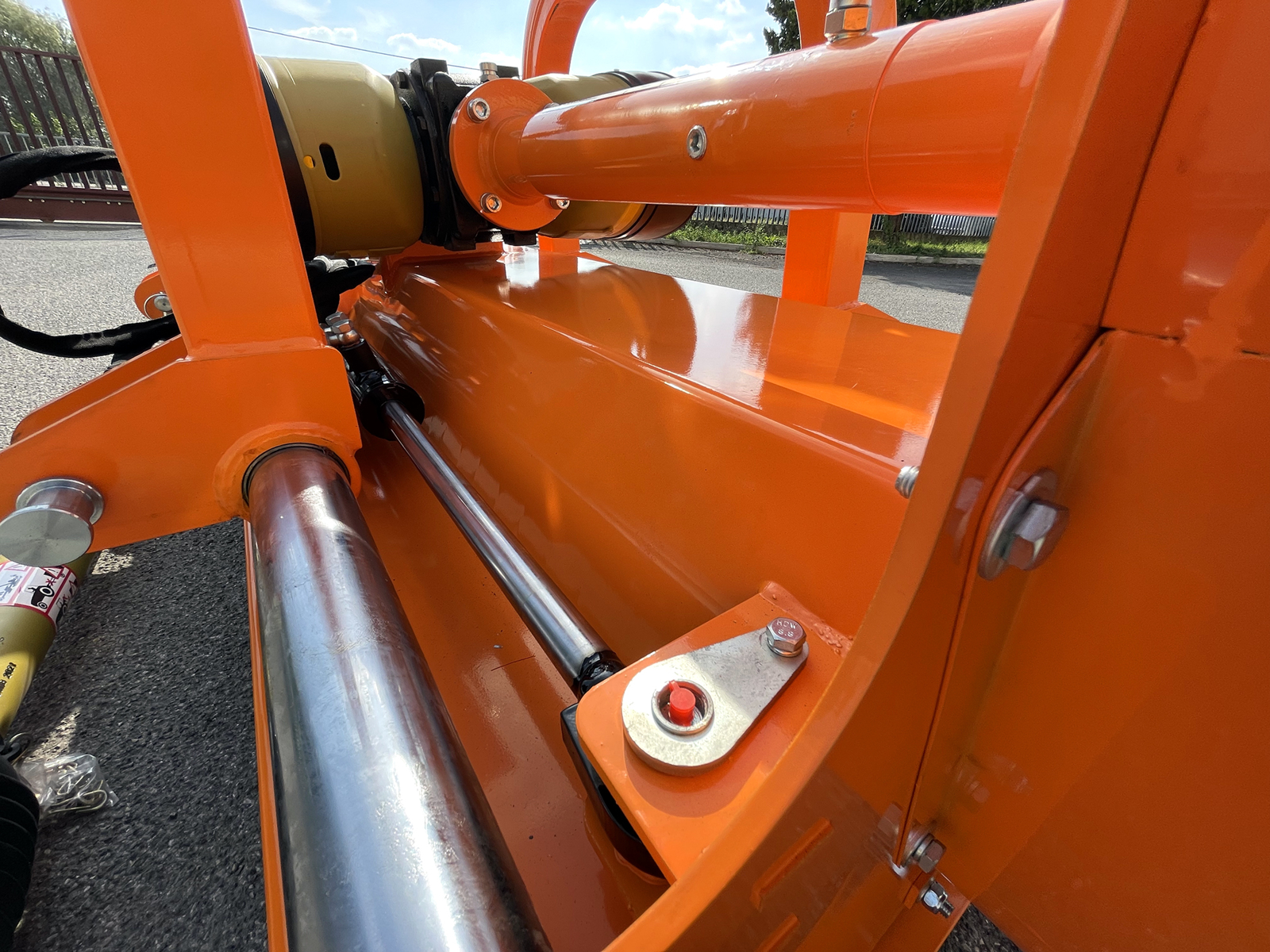

Hydraulic side shift of 40 cm (16 in)

The 40 cm (16 in) hydraulic side shift is worked from the seat with the tractor's spool valve: the mower runs centred or offset, along field edges, tight to the rows and wherever you need it out to one side of the tractor. It comes with 2 hydraulic hoses, 2.5 m (8 ft) long, with ½ in agricultural quick-release couplings.

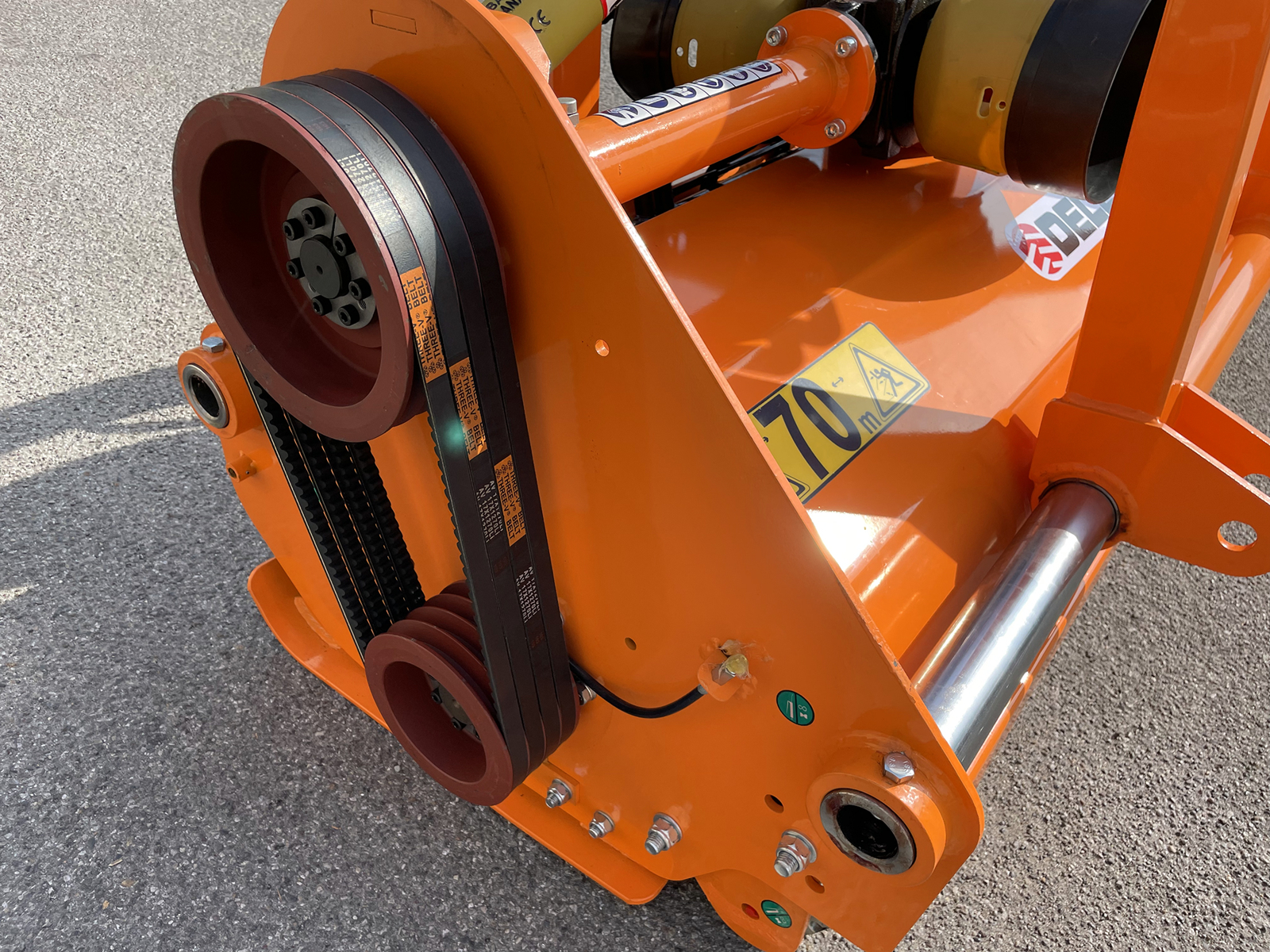

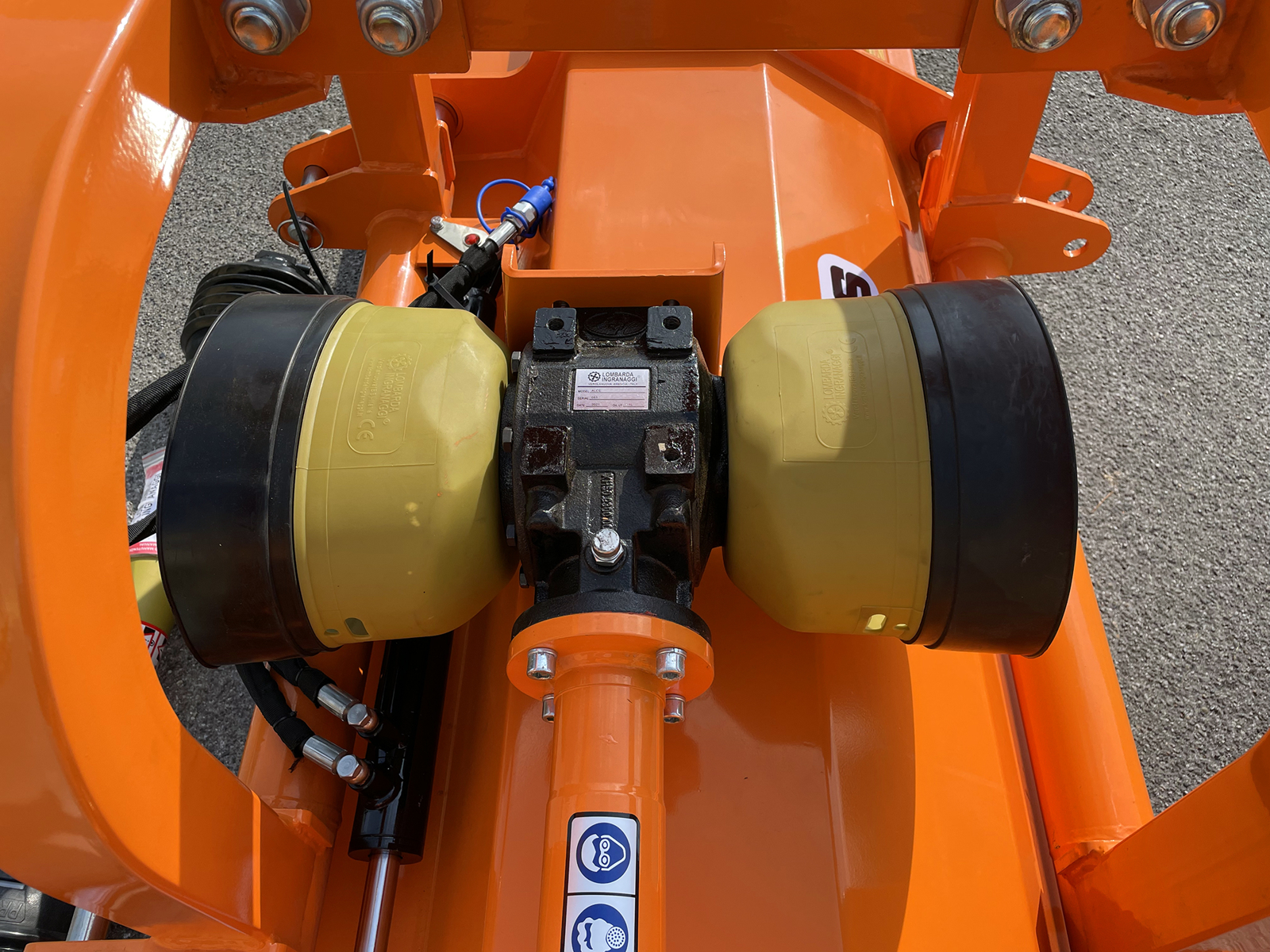

Double-shaft gearbox, 4 belts and PTO shaft

The DELEKS® gearbox has a double shaft, 540 + 540 rpm, with freewheel and a 3-year warranty: that is why the GRIZZLY-200 works both front and rear. With the freewheel, when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. For tractors with a 1,000 rpm PTO the 1,000 rpm gearbox is available as an option (SOSTMOLT1000). Drive reaches the rotor through 4 V-belts, 17x1270; tension is set from the outside, with the adjustable tensioner. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.


Dimensions, weight and delivery

Working width 2,000 mm (78.7 in), overall width 2,150 mm (84.6 in), length 1,030 mm (40.6 in), height 1,050 mm (41.3 in), weight 570 kg (1,257 lb). It ships on a pallet in packaging measuring 215 × 105 × 105 cm (85 × 41 × 41 in), 687 kg (1,515 lb) gross, 2.37 m³, with free delivery within the EU. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.


Where it works

  • Reverse-drive tractors and front linkages: mowing out front, with the machine always in view
  • Vineyards, orchards and olive groves: prunings up to 6-7 cm (2.4-2.8 in), grass and leaves between the rows
  • Rough ground: long grass and brambles, shredded before the tractor's wheels run over them
  • Field edges, ditches and rows: working offset with the hydraulic side shift
  • Conventional rear mounting, on the flat and on slopes, with tractors from 60 to 100 hp

Options and spares

From this page you can add to your order the kit of 10 hammer flails (MAZZE10A), the 10 nuts and bolts for the flails (DB10A), the kit of 60 blades (COLTELLI60TORO), the spare set of 4 belts (CINGHIE4A), the gearbox for a 1,000 rpm PTO in place of the 540 rpm one (SOSTMOLT1000), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.


FAQ

Can it be mounted in front of the tractor?
Yes: the DELEKS® double-shaft gearbox, 540 + 540 rpm, lets you run it out front, on the front linkage or on a reverse-drive tractor, or at the rear like a conventional flail mower.

Does it suit a 1,000 rpm PTO?
As standard the gearbox is 540 rpm; the 1,000 rpm gearbox (SOSTMOLT1000) can be ordered as an option.

What size tractor does the GRIZZLY-200 need?
From 60 to 100 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 570 kg (1,257 lb).

What size branches will it shred?
Vine and olive prunings and brambles up to 6-7 cm (2.4-2.8 in) thick, as well as grass and leaves.

Hammer flails or blades?
It comes with 18 hammer flails of 1,100 g (2.4 lb); on request it can be fitted with triple blades, using the COLTELLI60TORO kit.

How does the side shift work?
It is hydraulic, 40 cm (16 in): you work it from the seat with the tractor's spool valve, even on the move.

Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.

How does it differ from the CERVO?
Rotor, flails, double-skin hood and dimensions are the same. The GRIZZLY has the double-shaft gearbox and also works out front; the CERVO is the mower from the same series for rear mounting.


DELEKS® spares and support

Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.

CHARACTERISTICS

Characteristic Units metric Units US
Working width 2000.0 mm 6.50 ft
Overall width 2150.0 mm 7.00 ft
Min / Max cutting height 5.0 - 55.0 mm 0.2 - 2.16 in
Weight 570.0 kg 1260.0 lb
Overall height 1050.0 mm 3.45 ft
Tractor Power Range 60 - 100 Hp 60 - 100 Hp
3 point linkage Cat. 2 (ø 25.0-28.0mm) Cat. 2 (ø 25.0-28.0mm)
Position of the gearbox 800.0 mm from left side / 1200.0 mm from right side 31.50 in from left side / 47.24 in from right side
Hood height 500.0 mm 19.70 in
Spacing between the 2 lower points 740.0 - 890.0 mm 29.0 - 35.0 in
Number of Hammers 18 18
Maximum cutting diameter 40.0 - 50.0 mm 1.57 - 1.97 in
Overall length 1030.0 mm 3.38 ft
Distance between pto attachment and ground 550.0 mm 21.65 in
Main hood thickness 5.0 mm 0.2 in
Sides thickness 8.0 mm 0.31 in
Side plates thickness 6.0 mm 0.23 in
Transmission: Drive method V-Belts V-Belts
Transmission: Gearbox DELEKS 540 r/min - 3 years warranty DELEKS 540 r/min - 3 years warranty
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Free wheel √ √
Transmission: RPM Rotor speed 2140 rpm 2140 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Transmission: V-Belts quantity 4 4
Transmission: V-Belts size 17x1270 17x1270
Rotor: diameter 152.0 mm 6.00 in
Rotor: bearings type and size 40x90 40x90
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 8.0 mm 0.31 in
Hammers: Weight 1100.0 g 38.80 oz
Hammer: øhole 16.0 mm 0.63 in
Hammer: base width 140.0 mm 5.5 in
Hammer: top width 40.0 mm 1.57 in
Hammer: Diagonal 97.0 mm 3.82 in
Rear roller: diameter 152.0 mm 5.98 in
Rear roller: sheet thickness 6.0 mm 0.23 in
Rear roller: bearings type and size 90x40 mm - GB276-6308 90x40 mm - GB276-6308
Hydraulic Hoses 2500.0 mm / connections 1/2" AGRI, WP-400 bar 100.0 in / connections 1/2" AGRI, WP-400 bar
Pto shaft CE 6x1000 mm + shear bolt CE 6x1000 mm + shear bolt
Hood length 1000.0 mm 39.40 in
Effective Displacement 400.0 mm (Hydraulic) 15.75 in (Hydraulic)
Gross shipping weight 687 kg 1515 lb
Package volume 2.37 m3 83.7 cu ft
Packing sizes 2150.0*1050.0*1050.0 mm 7.00*3.45*3.45 ft

Certifications

SSAB Laser 355MC   Download PDF
ARVEDI / TUBINDUSTRIA: Certification   Download PDF

Technical charts

Shell Spirax S2 A 80W-90: Specifications   Download PDF
