Flail mower with hammers for reversible or frontal tractors, Mulcher

4.5

282 reviews

Not available Notify me
Code GRIZZLY160PTO
EAN 8053470237140
View all details.
TOTAL
3.250,00VAT incl.
Free shipping

DETAILS

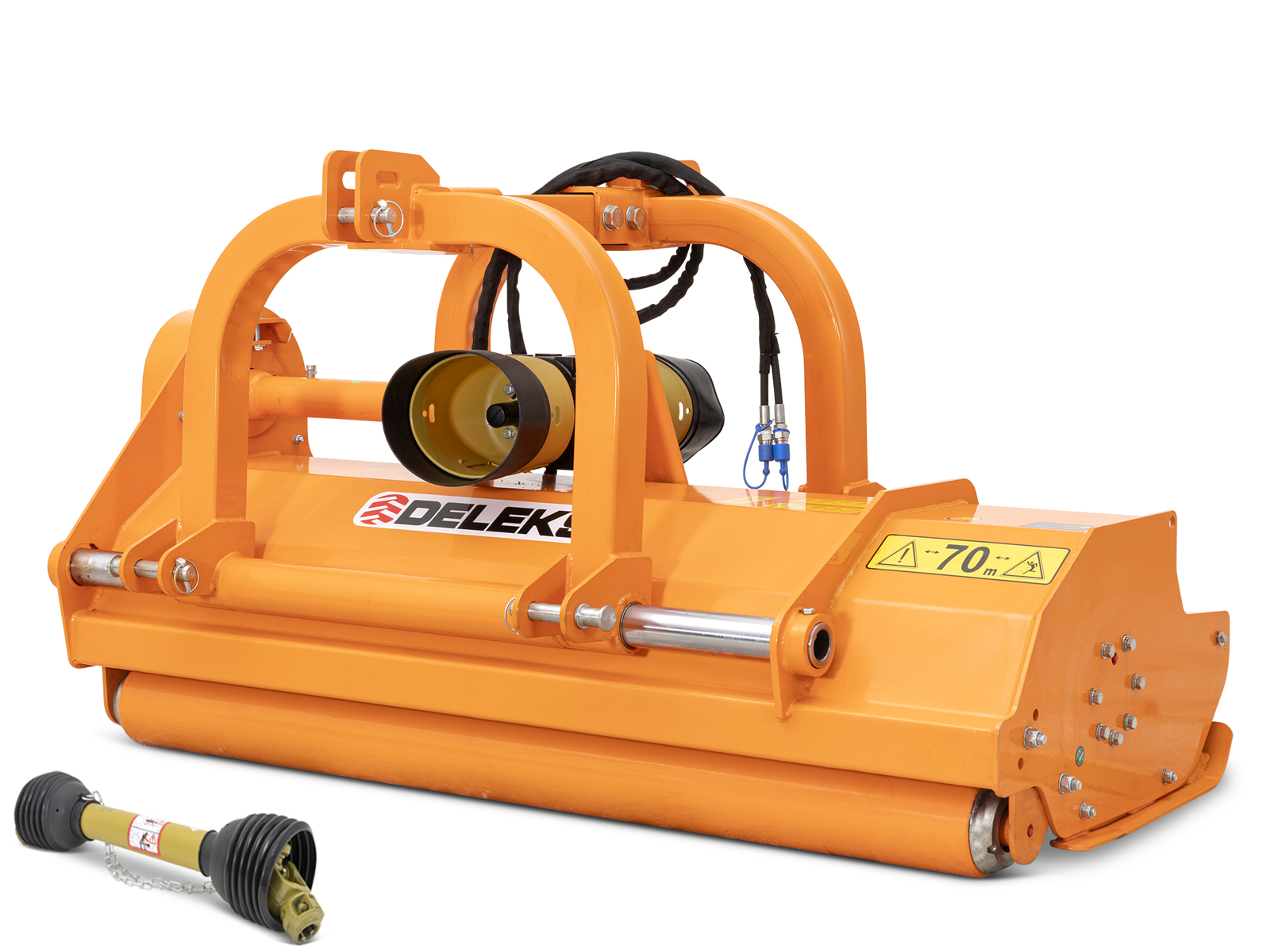

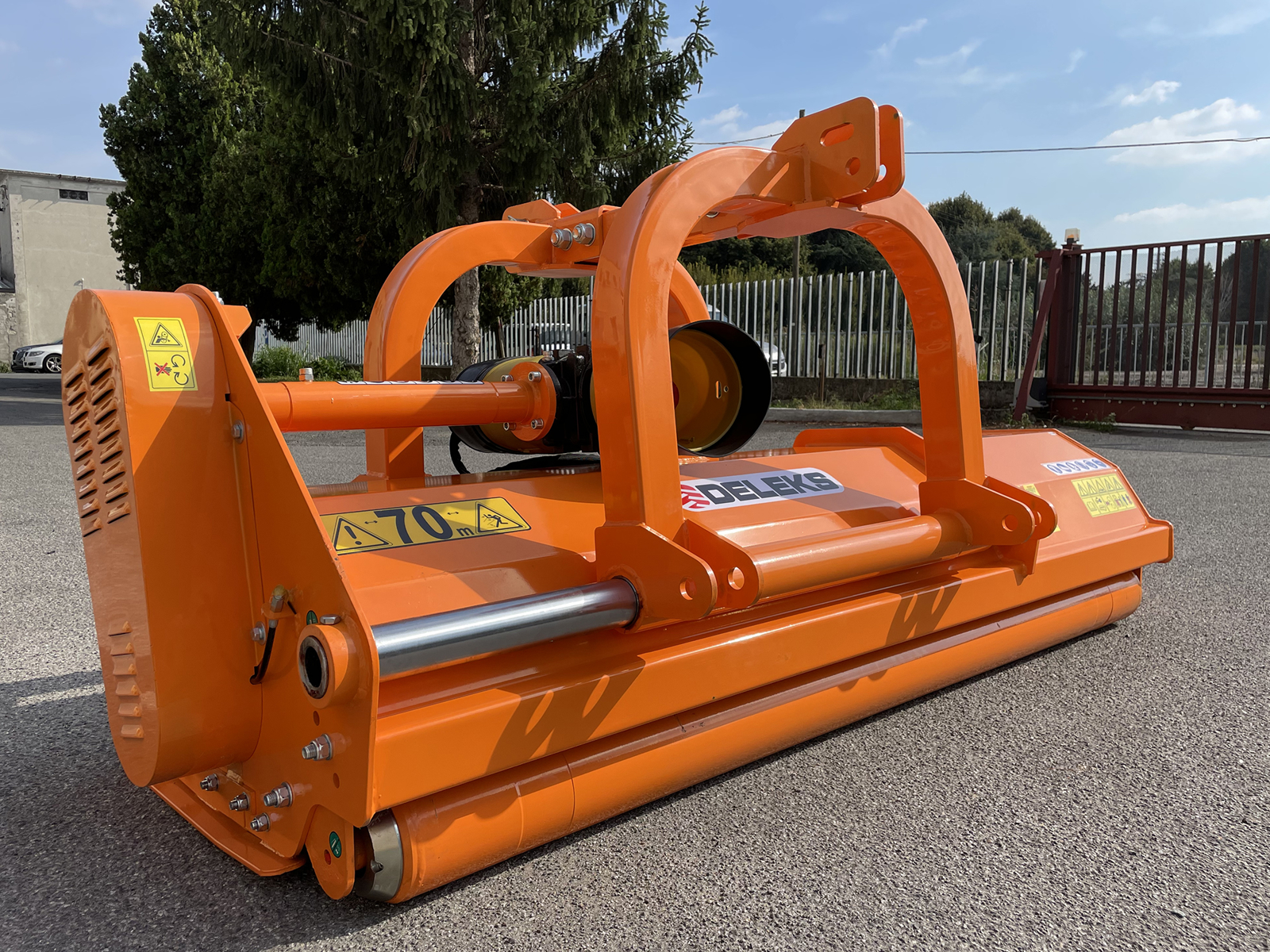

DELEKS® GRIZZLY-160 Reversible flail mower for 50-100HP, working width 160cm / 480kg, front / rear mounted shredder, mulcher for tractors.


OVERVIEW

The GRIZZLY-160 is an heavy and compact mulcher, it can be mounted either in-front or behind tractor. Designed for working on fields, gardens, meadows, paddocks, unkempt ground, light rushes ect. Hydraulic side shift to offset machine. It is durable and sturdy enough to handle vegetation up to 4-5cm in thickness.

This mower is attached to the tractor using reinforced steel universal three point linkage and fits most 50-100hp tractors.


BENEFITS & FEATURES

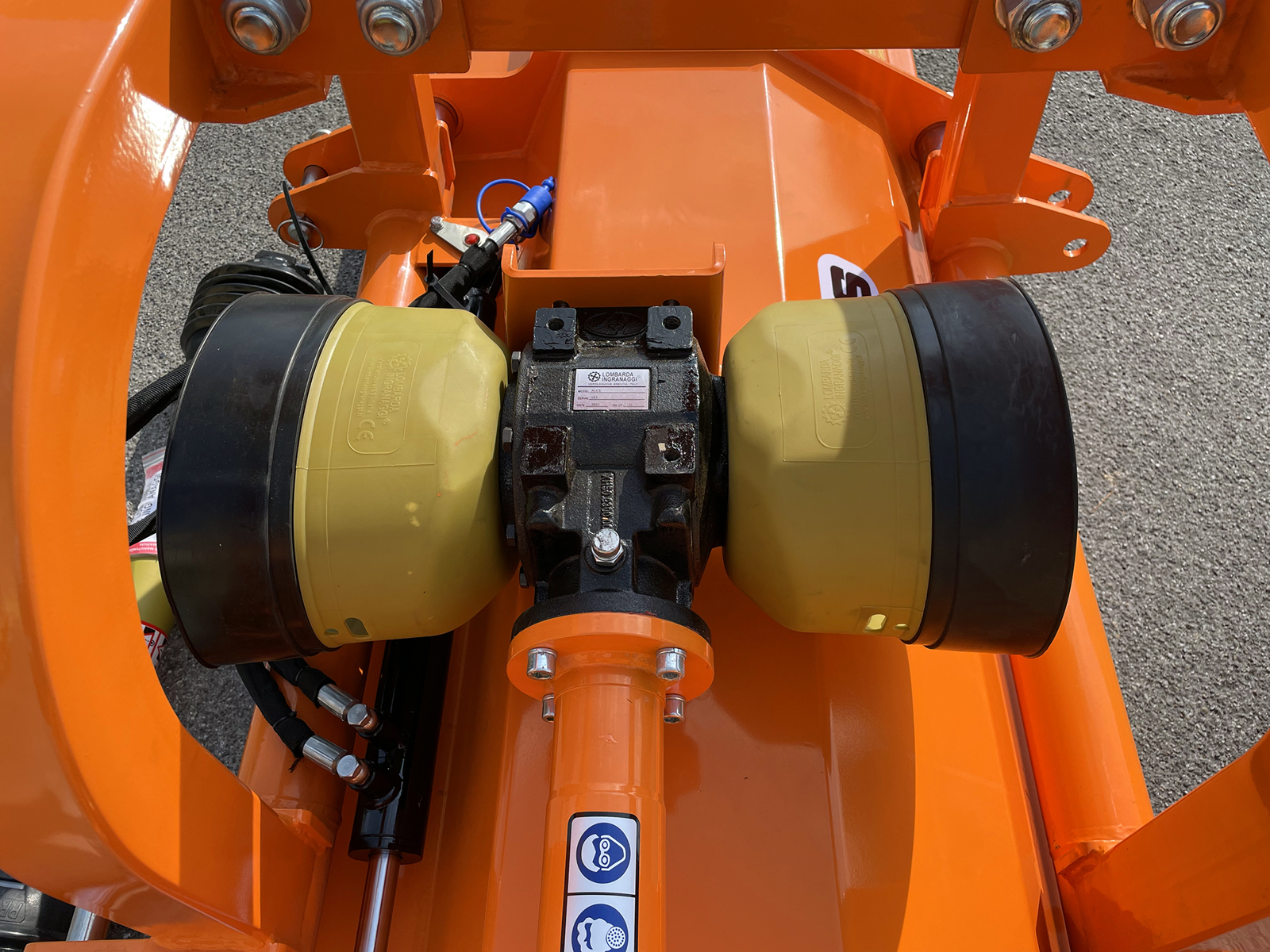

Reversible use, 540 + 540 r/min (1000 r/min as option) Lombarda Ingranaggi.

Double case.

Hydraulic side shift.

4 high resistance toothed belts, and external belt tensioner.

152.0 mm adjustable roller unit and skids.

Electronically balanced rotor.

Adjustable roller unit and side skids.

Pto shaft CE included.



CHARACTERISTICS

Characteristic Units metric Units US
Working width 1600.0 mm 5.25 ft
Overall width 1750.0 mm 5.75 ft
Min / Max cutting height 5.0 - 55.0 mm 0.2 - 2.16 in
Weight 480.0 kg 1060.0 lb
Overall height 1050.0 mm 3.45 ft
Tractor Power Range 50 - 100 Hp 50 - 100 Hp
3 point linkage Cat. 2 (ø 25.0-28.0mm) Cat. 2 (ø 25.0-28.0mm)
Position of the gearbox 750.0 mm from left side / 850.0 mm from right side 29.50 in from left side / 33.50 in from right side
Hood height 500.0 mm 19.70 in
Hydraulic Pipes (2) 2500.0 mm / connections 1.2" AGRI, WP-400 bar 100.0 in / connections 1.2" AGRI, WP-400 bar
Spacing between the 2 lower points 740.0 - 890.0 mm 29.0 - 35.0 in
Number of Hammers 14 14
Maximum cutting diameter 40.0 - 50.0 mm 1.57 - 1.97 in
Overall length 1030.0 mm 3.38 ft
Distance between pto attachment and ground 550.0 mm 15.75 in
Main hood thickness 5.0 mm 0.2 in
Sides thickness 8.0 mm 0.31 in
Side plates thickness 6.0 mm 0.23 in
Transmission: Drive method V-Belts V-Belts
Transmission: Gearbox Lombarda Ingranaggi 540 r/min - 3 years warranty Lombarda Ingranaggi 540 r/min - 3 years warranty
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Free wheel
Transmission: RPM Rotor speed 2140 rpm 2140 rpm
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Transmission: V-Belts quantity 4 4
Transmission: V-Belts size 17x1270 17x1270

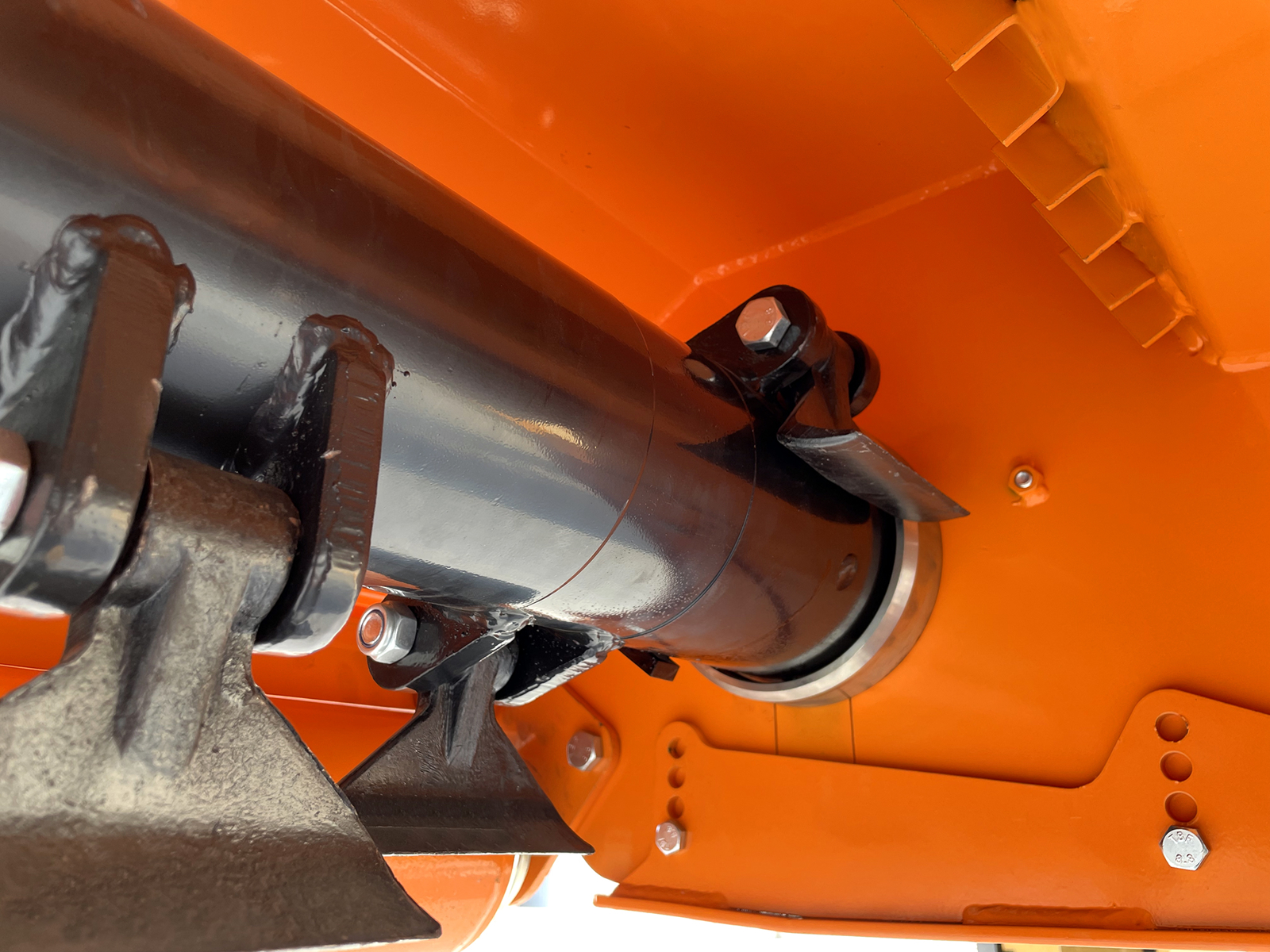

Rotor: diameter 152.0 mm 6.00 in
Rotor: bearings type and size 40x90 40x90
Rotor: balancing Electronic Electronic
Rotor: sheet thickness 8.0 mm 0.31 in

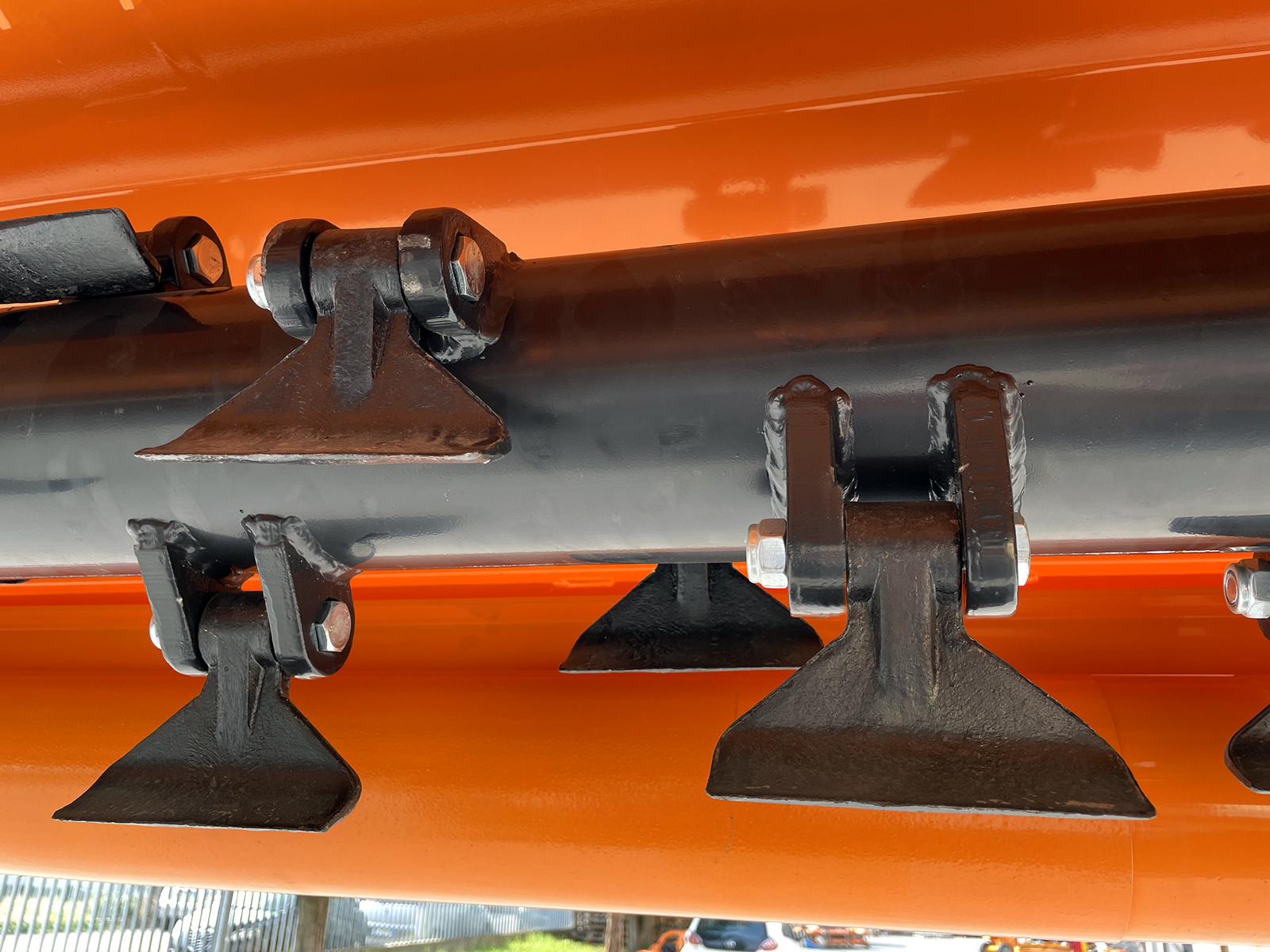

Hammers: Weight 1100.0 g 38.80 oz
Hammer: øhole 16.0 mm 0.63 in
Hammer: base width 140.0 mm 5.5 in
Hammer: top width 40.0 mm 1.57 in
Hammer: Diagonal 97.0 mm 3.82 in
Rear roller: diameter 152.0 mm 5.98 in
Rear roller: sheet thickness 6.0 mm 0.23 in
Rear roller: bearings type and size 90x40 mm - GB276-6308 90x40 mm - GB276-6308
Pto shaft CE 6x1000 mm CE 6x1000 mm
Hood length 1000.0 mm 39.40 in
Effective Displacement 400.0 mm (Hydraulic) 15.75 in (Hydraulic)
Packing sizes 1750.0*1050.0*1050.0 mm 5.75*3.45*3.45 ft
