Medium heavy Rotavator tiller for tractor - working width 150cm - manuall sideshift - mod. DFM-150

4.5

192 reviews

Available
Code DFM150PTO
EAN 8053470230776
View all details.
TOTAL
1.650,00VAT incl.
Free shipping

VIDEO

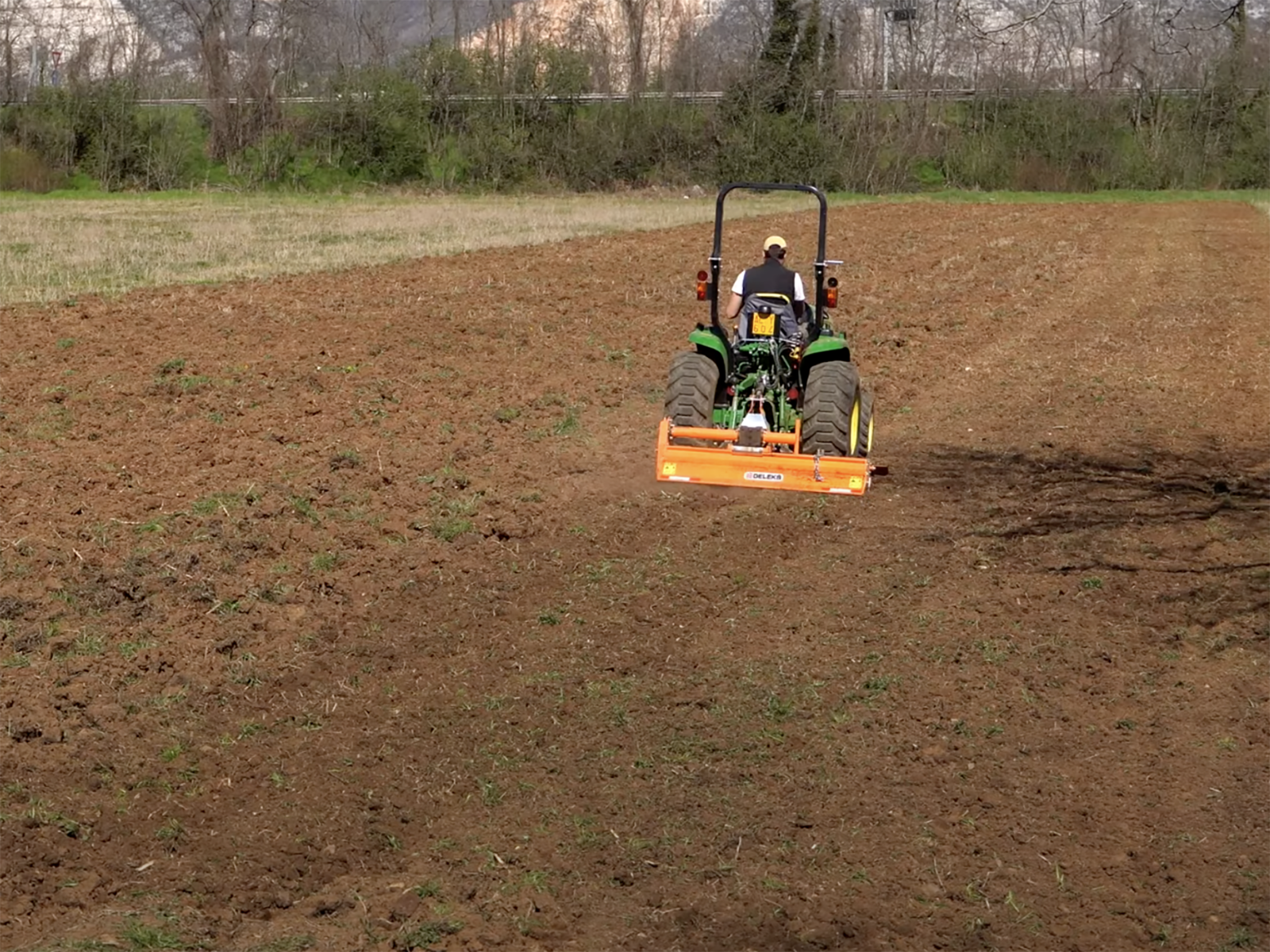

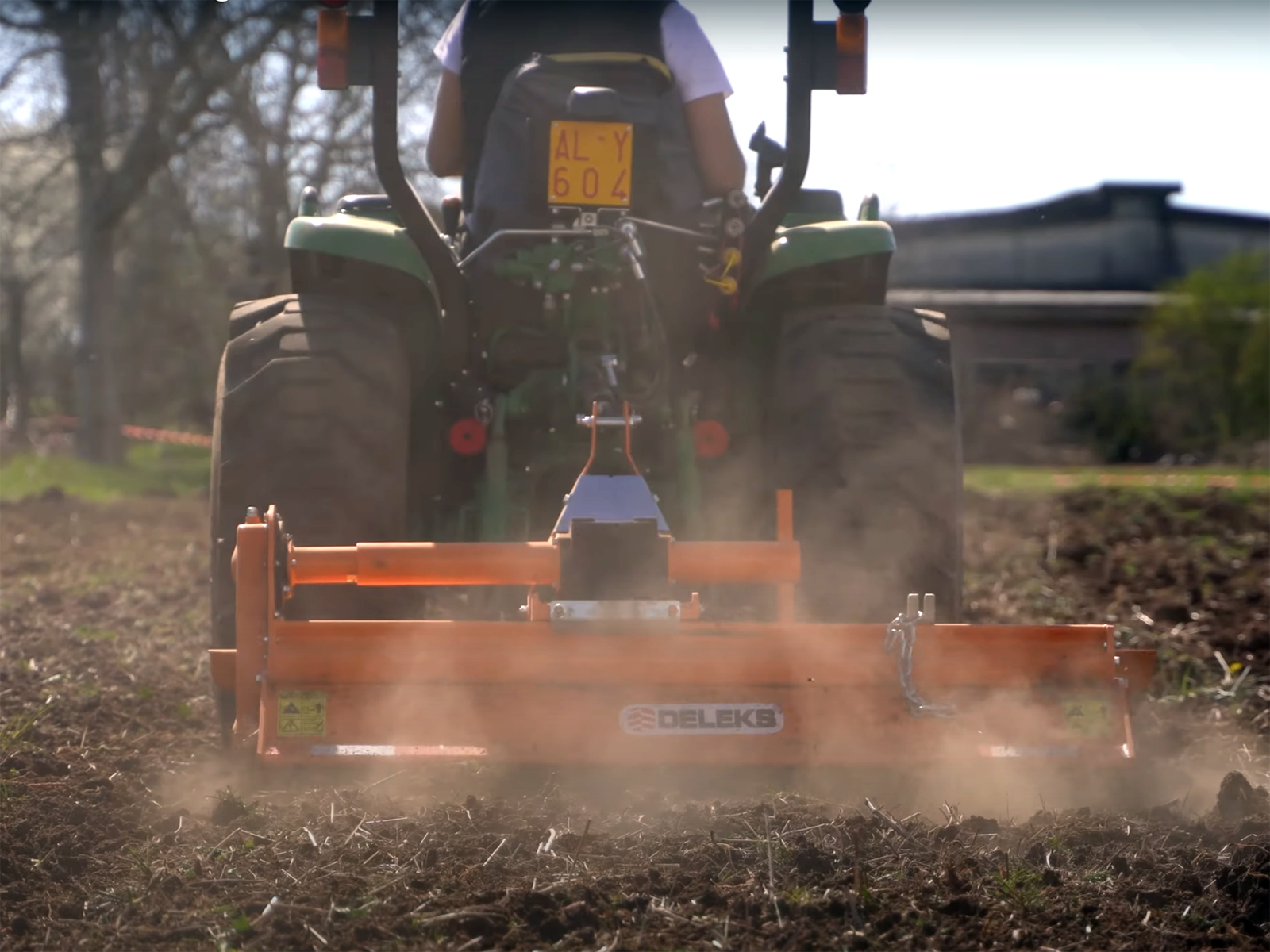

Field test
Field test

DETAILS

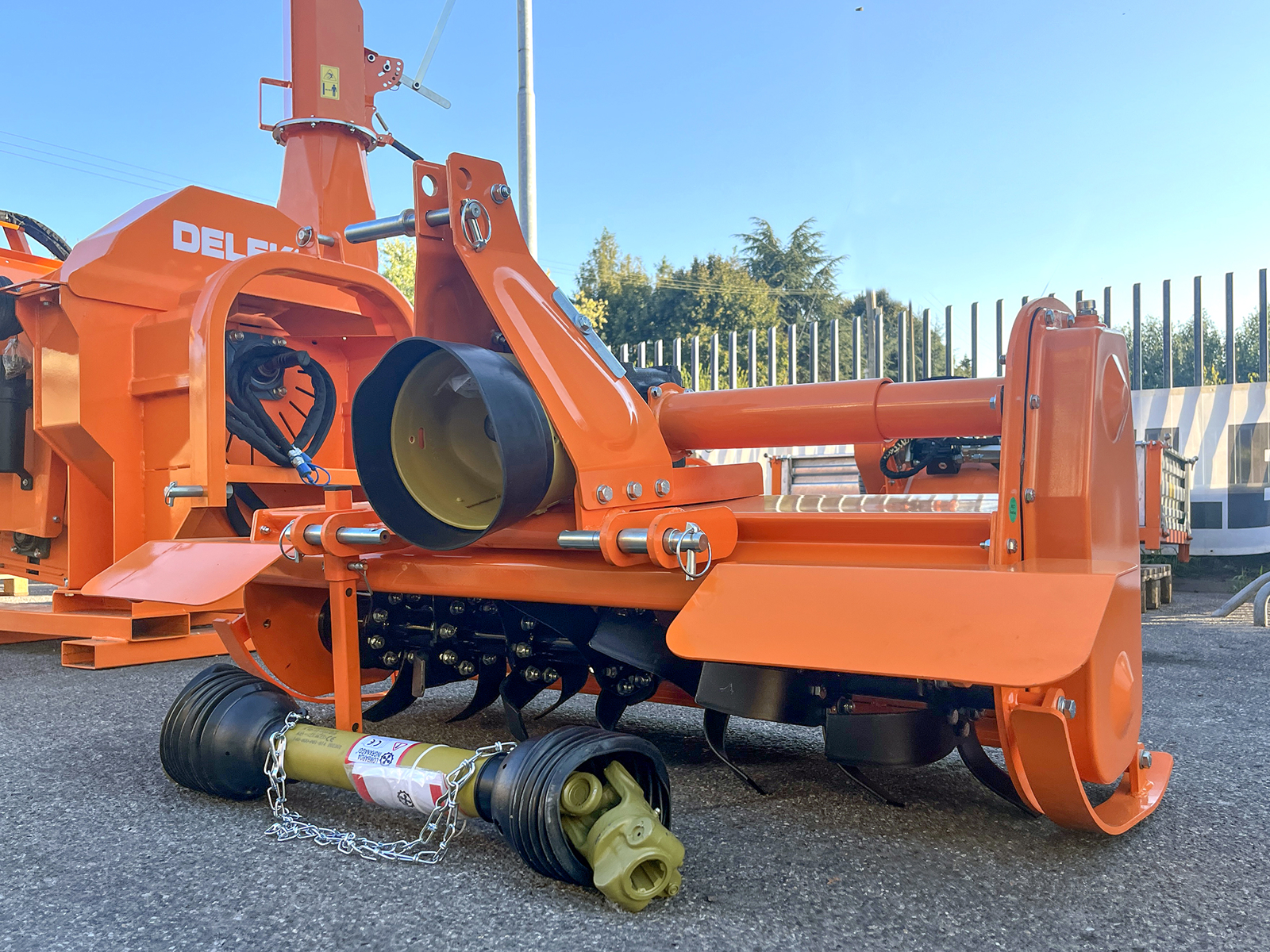

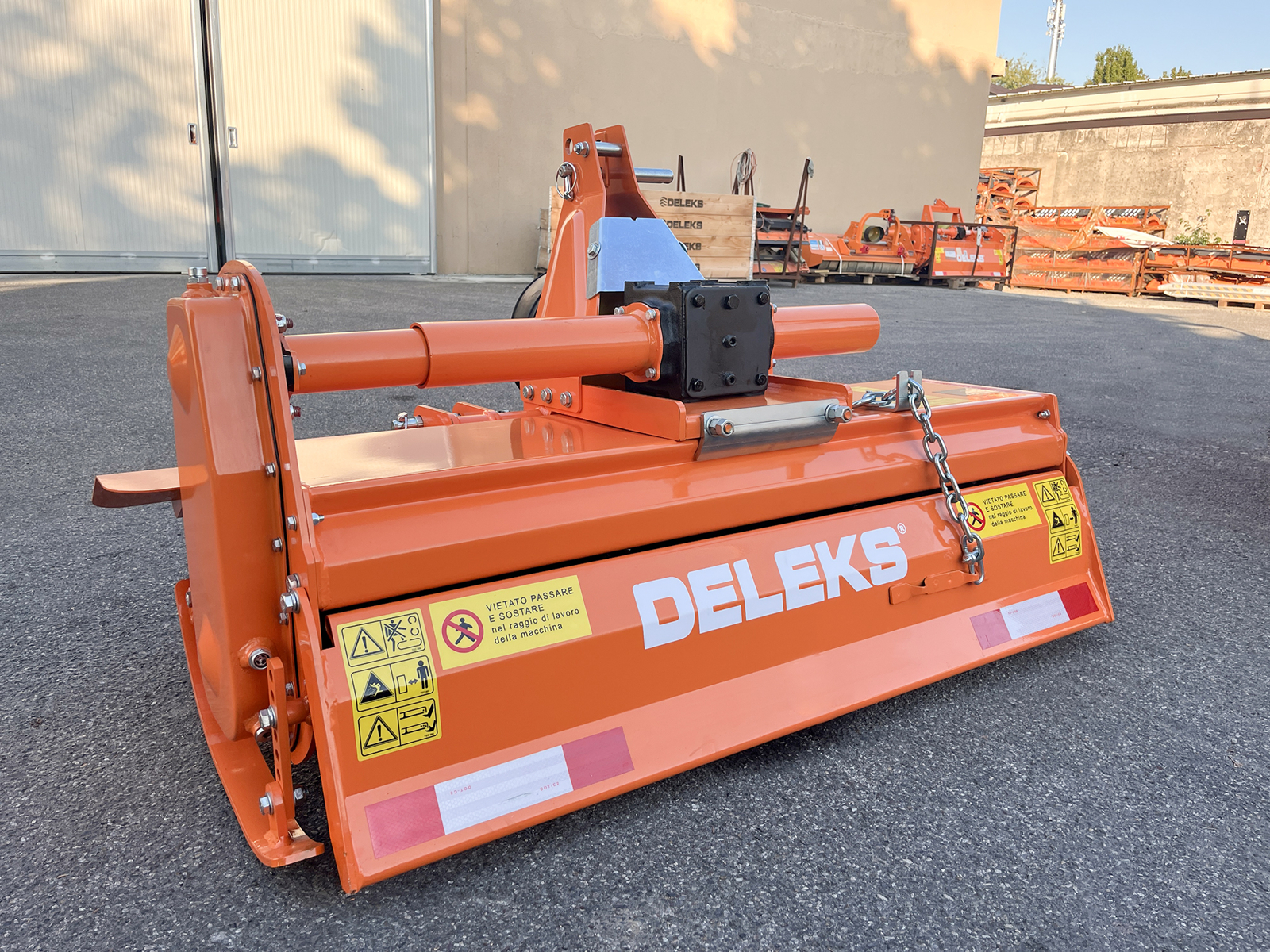

Rotavator tiller 150cm, medium heavy with sideshift DELEKS® for tractors 20-45Hp like Kubot, Iseki, Branson - Pto shaft CE included.


OVERVIEW

Medium sized rotary tiller for tractors 20-45hp e.g Holland Boomer 30-35, John Deere 2-3 Series, Kubota, Iseki, Yanmar, Mahindra, Solis, Mitsubishi, Ferrari, Pasquali, Goldoni, Branson, etc. The tiller is attached to the tractor using universal three point linkage.

Designed for soil preparation/cultivation in nursery, orchards, and for gardens. Our rotavators can be used to pulverize and stir soil before planting (to prepare seed beds) or after your crop has begun growing (to kill off unwanted weeds). Single Speed Gearbox with 540 RPM PTO, Chain Side Drive. Delivered assembled (except 3 point linkage) and greased, Gearbox filled with oil.



BENEFITS & FEATURES

The sideshift by the three-point hitch (120mm) is moved manually by hand and does not require levers to operate.

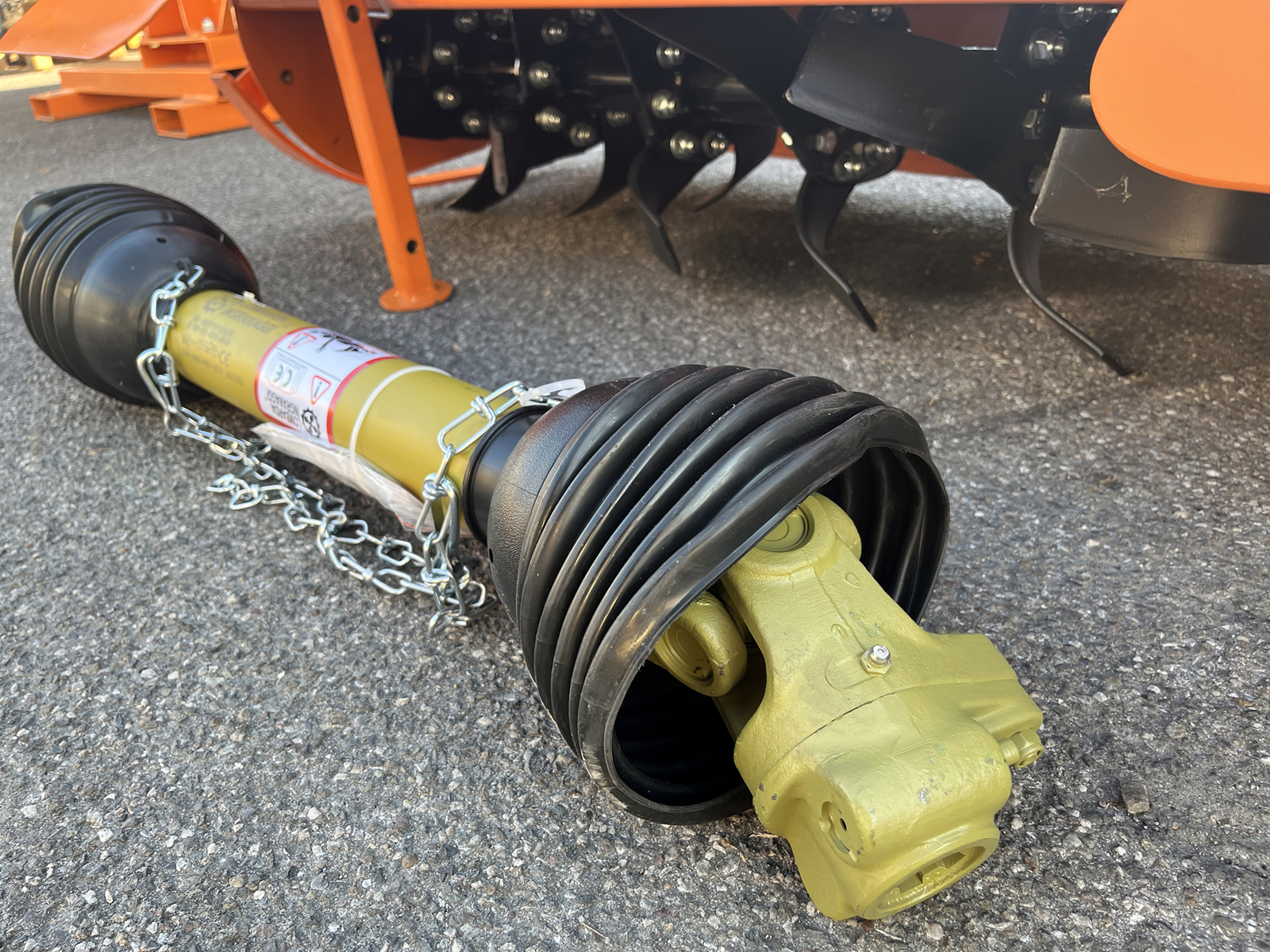

Pto shaft CE included.

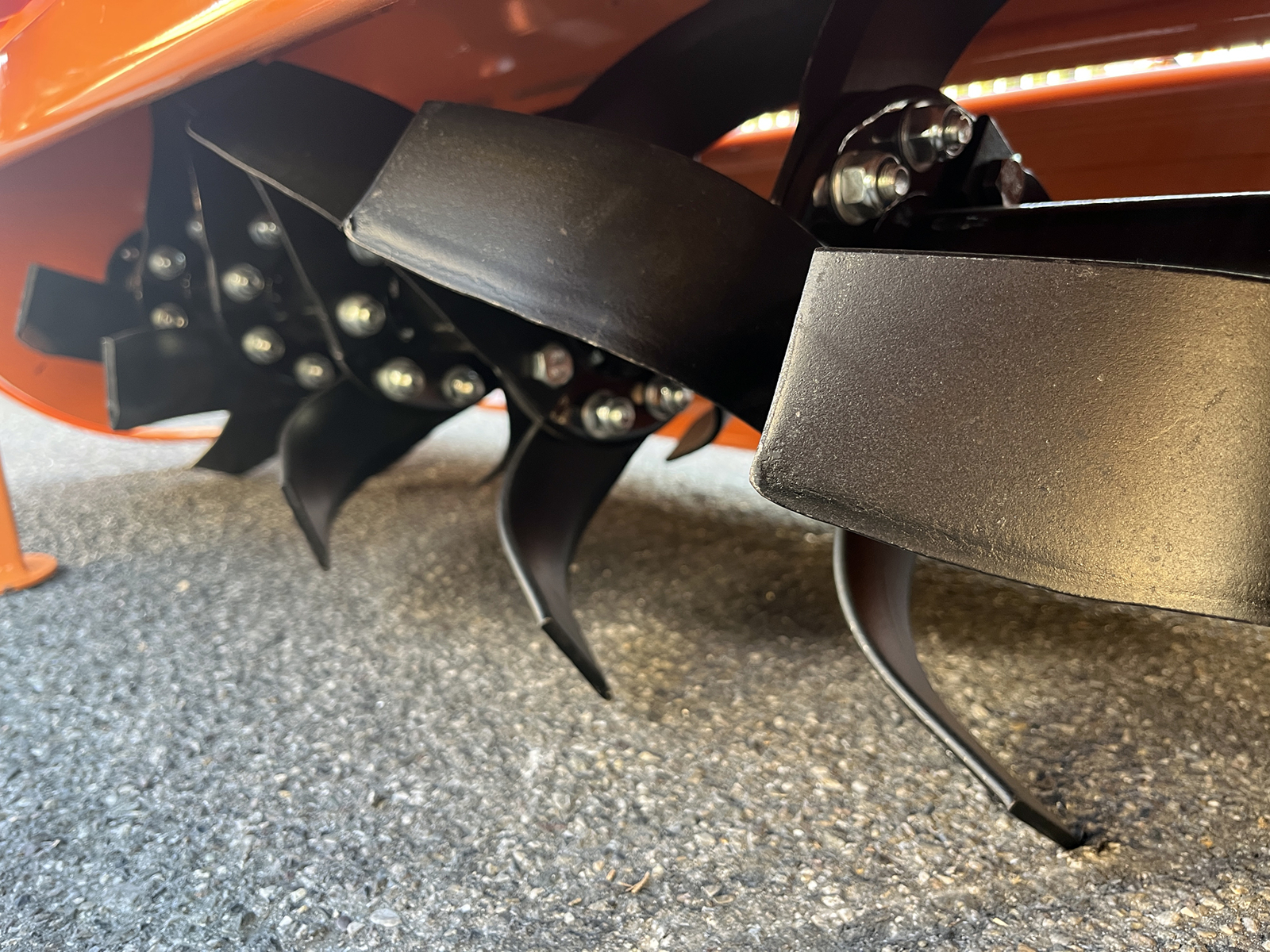

Blades are hardened for maximum strength, durability and wear life in the toughest soil conditions.

Automatic chain tensioner.

Adjustable skids to obtain the desired working depth.

Adjustable rear shield ensures best ground leveling.

CE SafetyGuards.


CHARACTERISTICS

Characteristic Units metric Units US
Overall width 1680.0 mm 5.51 ft
Weight 232.0 kg 512.0 lb
Overall height 820.0 mm 2.70 ft
Tractor Power Range 20 - 45 Hp 20 - 45 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Position of the gearbox 630.0 mm from left side / 770.0 mm from right side 24.80 in from left side / 30.31 in from right side
Spacing between the 2 lower points 310.0 - 630.0 mm 12.2 - 24.8 in
Overall length 620.0 mm 2.03 ft
Rotor: diameter 64.0 mm 2.52 in
Rotor: sheet thickness 6.0 mm 0.24 in
Transmission Chain Chain
Effective Working width 1500.0 mm 4.92 ft
Working Depth Range 120.0 - 160.0 mm 1680.0 mm
Distance between pto attachment and base 490.0 mm 19.30 in
Pto shaft CE 4x800 mm + shear bolt CE 4x2.60 ft + shear bolt
Rotor: diameter with blades 370.0 mm 14.57 in
Rotor: bearings type and sizes "GB276-6207(R) GB276-6209(L" "GB276-6207(R) GB276-6209(L"
Rotor: flanges 8 8
Number of Blades per flange 4 4
Blades: quantity 32 32
Blades: height/width 180.0 / 67.0 mm 7.08 / 2.64 in
Blades: curve length 230.0 mm 9.05 in
Blades: distance between holes 45.0 mm 1.77 in
Blades: diameter of the holes 13.0 mm 0.51 in
Blades: thickness 6.0 mm 0.24 in

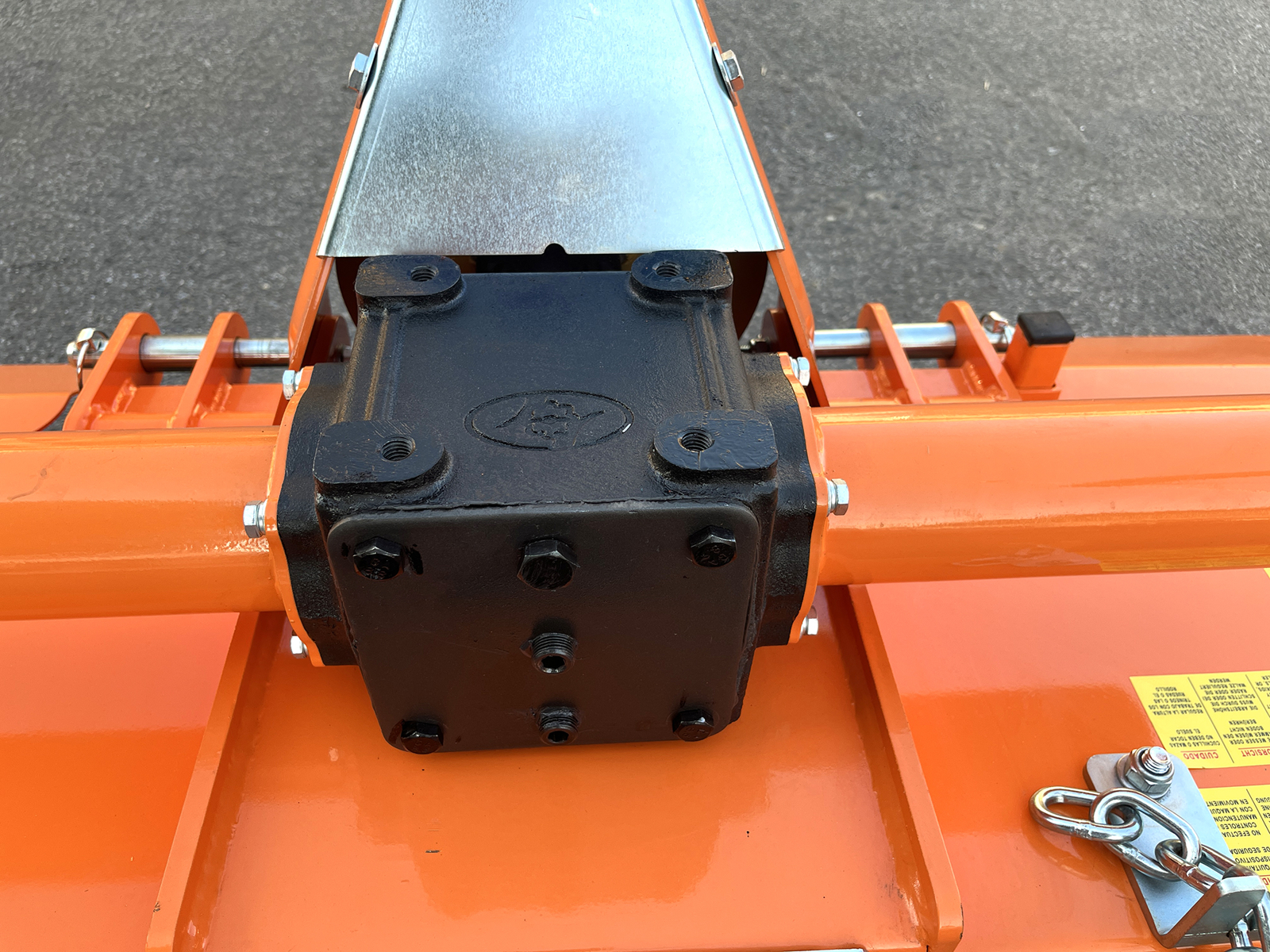

Gearbox Lombarda Ingranaggi 540 r/min (3 year warranty) Lombarda Ingranaggi 540 r/min (3 year warranty)
Effective Displacement 120.0 mm manual 4.73 in
Rotation of gearbox Right side (left side on request) Right side (left side on request)
RPM Rotor speed 230 rpm 230 rpm
Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Blades: weight 570.0 g 20.10 oz
Packing sizes 800.0*1770.0*750.0 mm 2.62*5.80*2.46 ft
