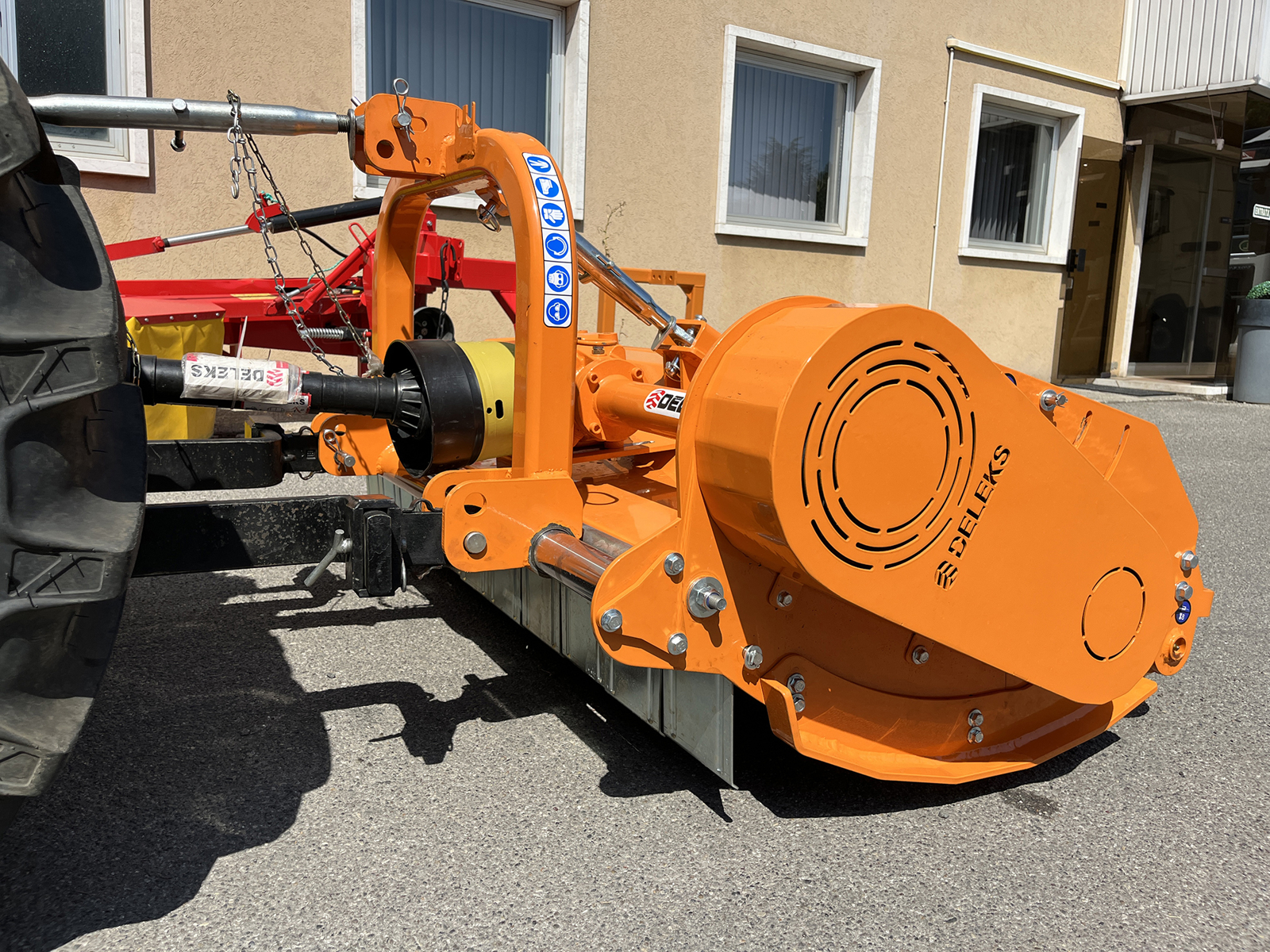

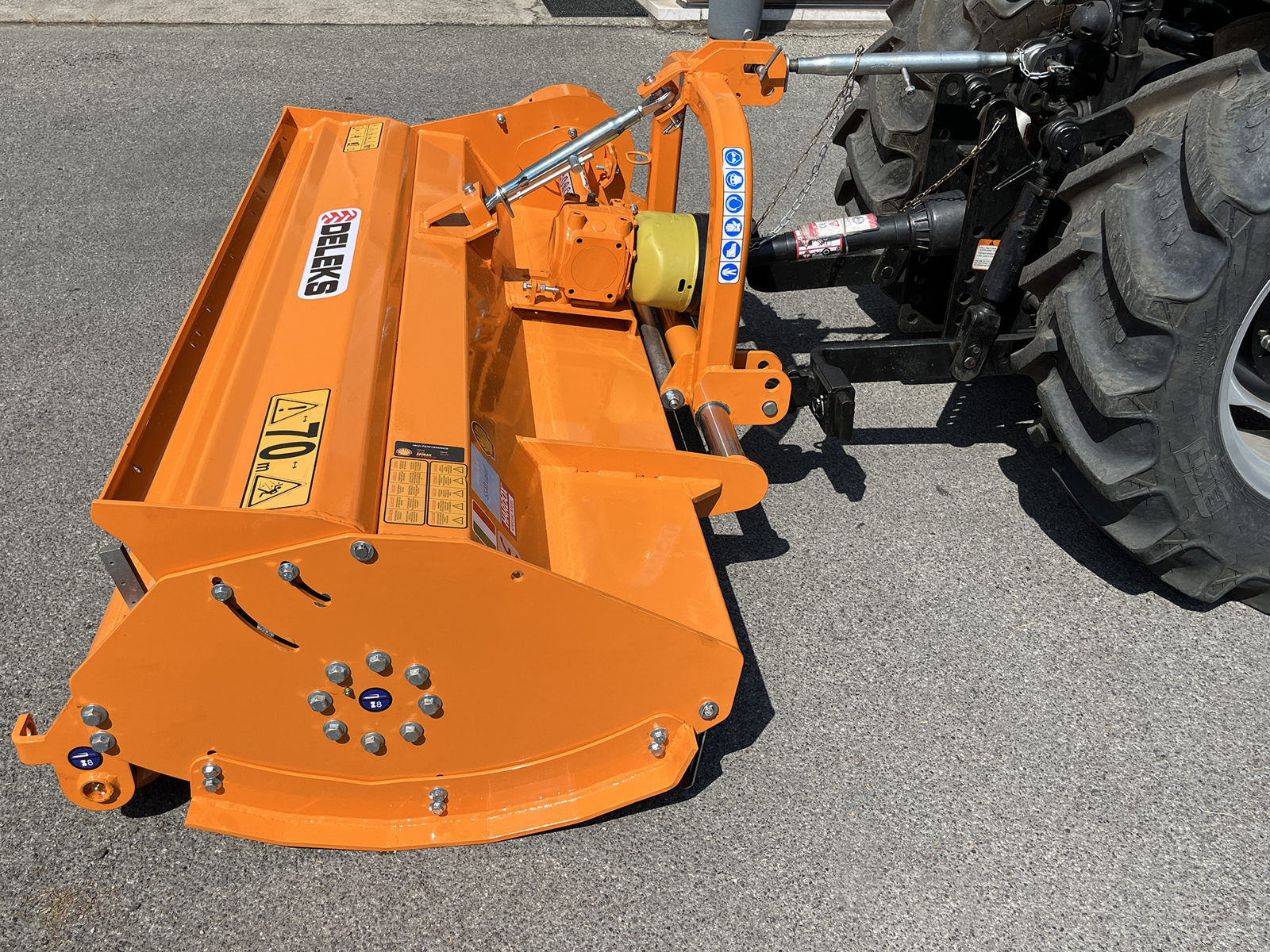

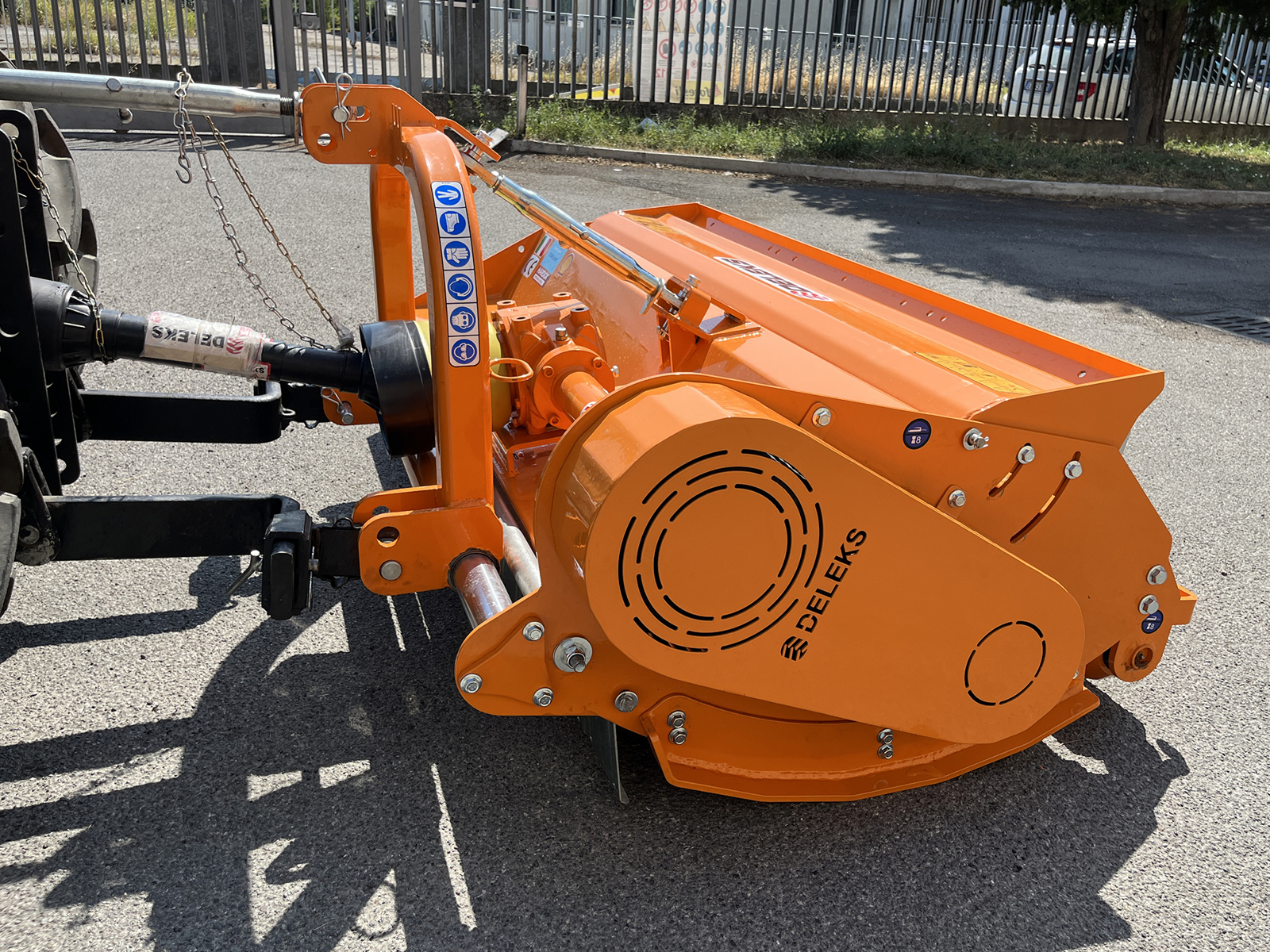

Adjustable sideshift mower for tractors, shredder, mulcher

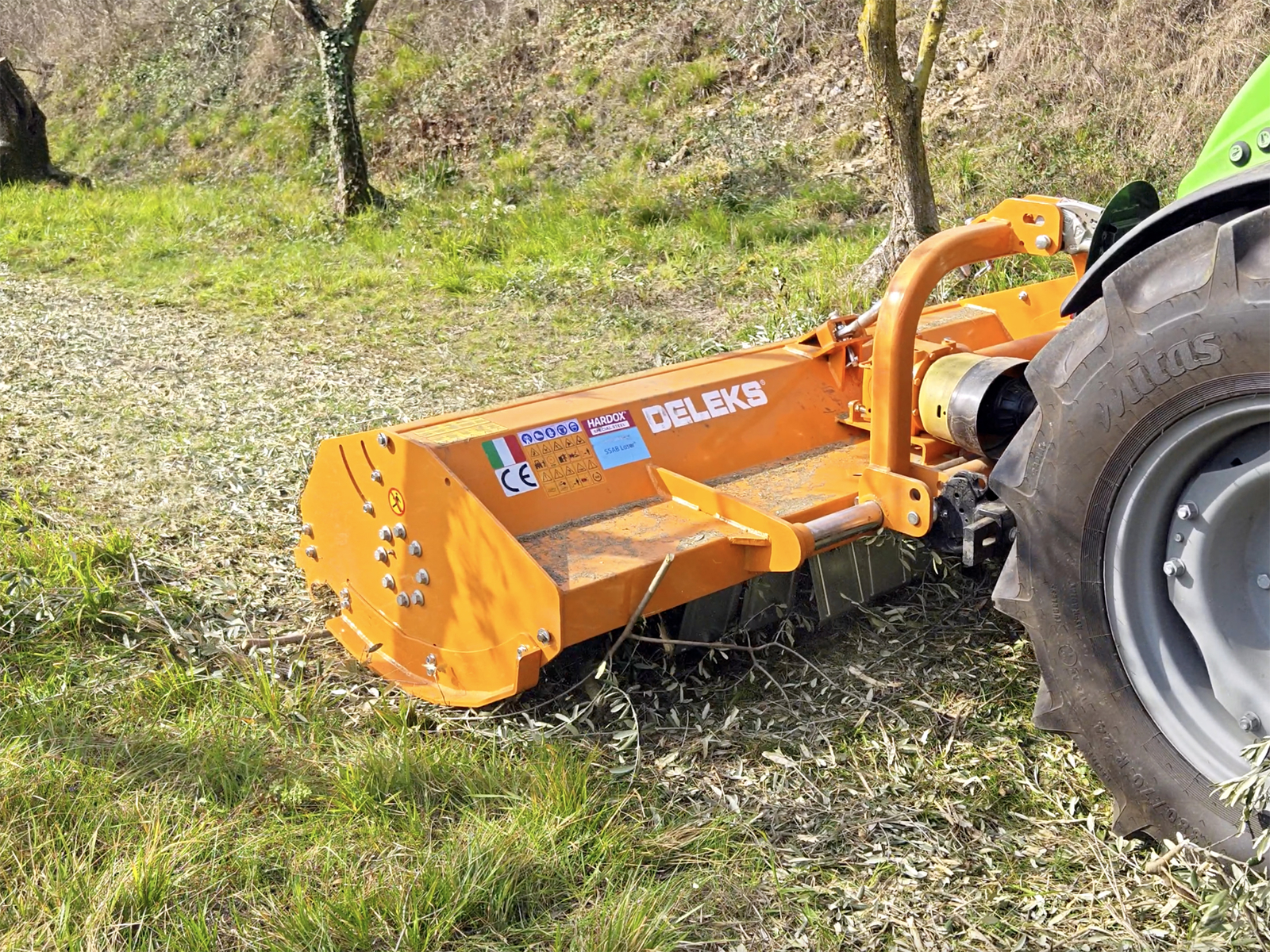

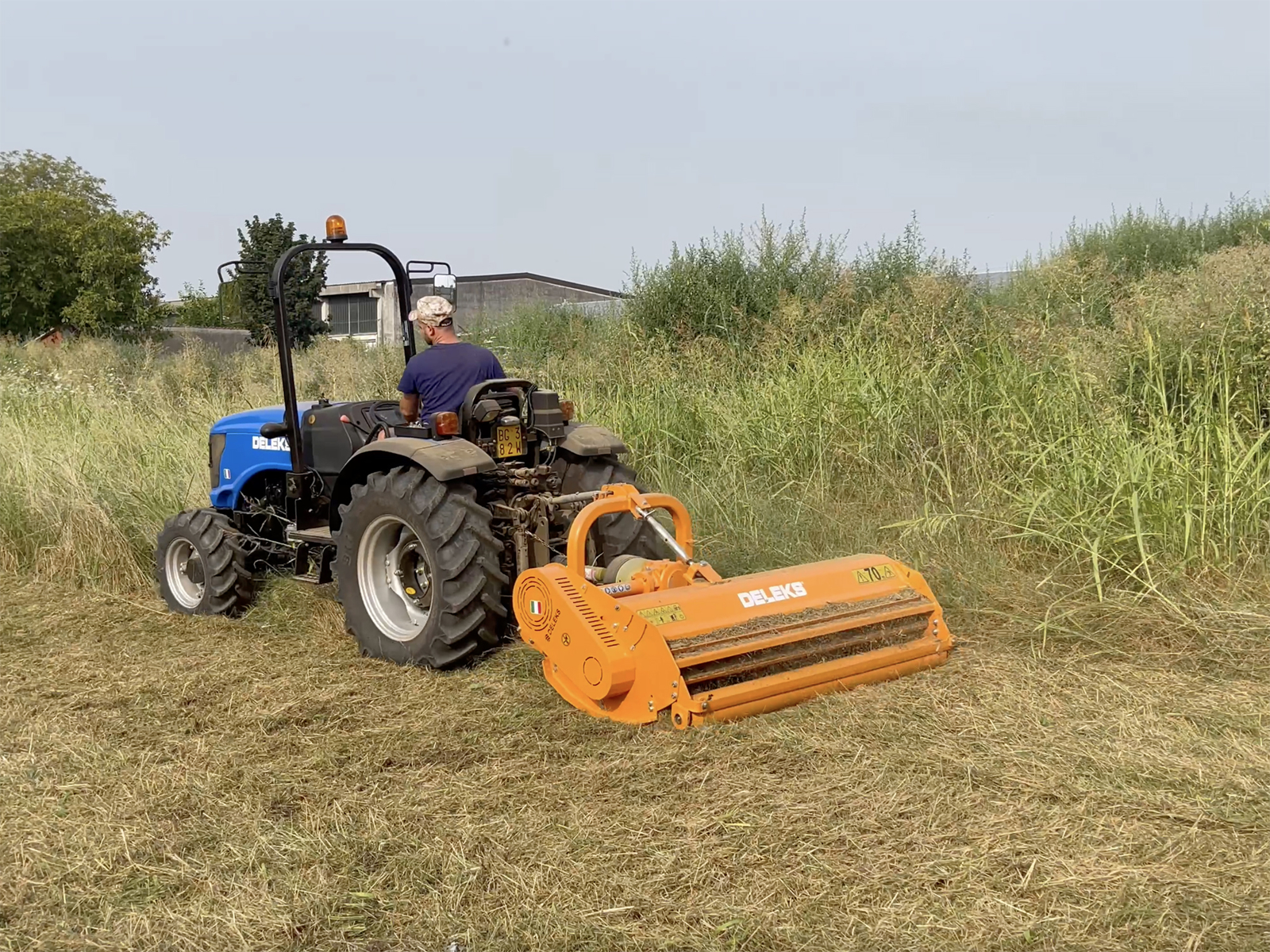

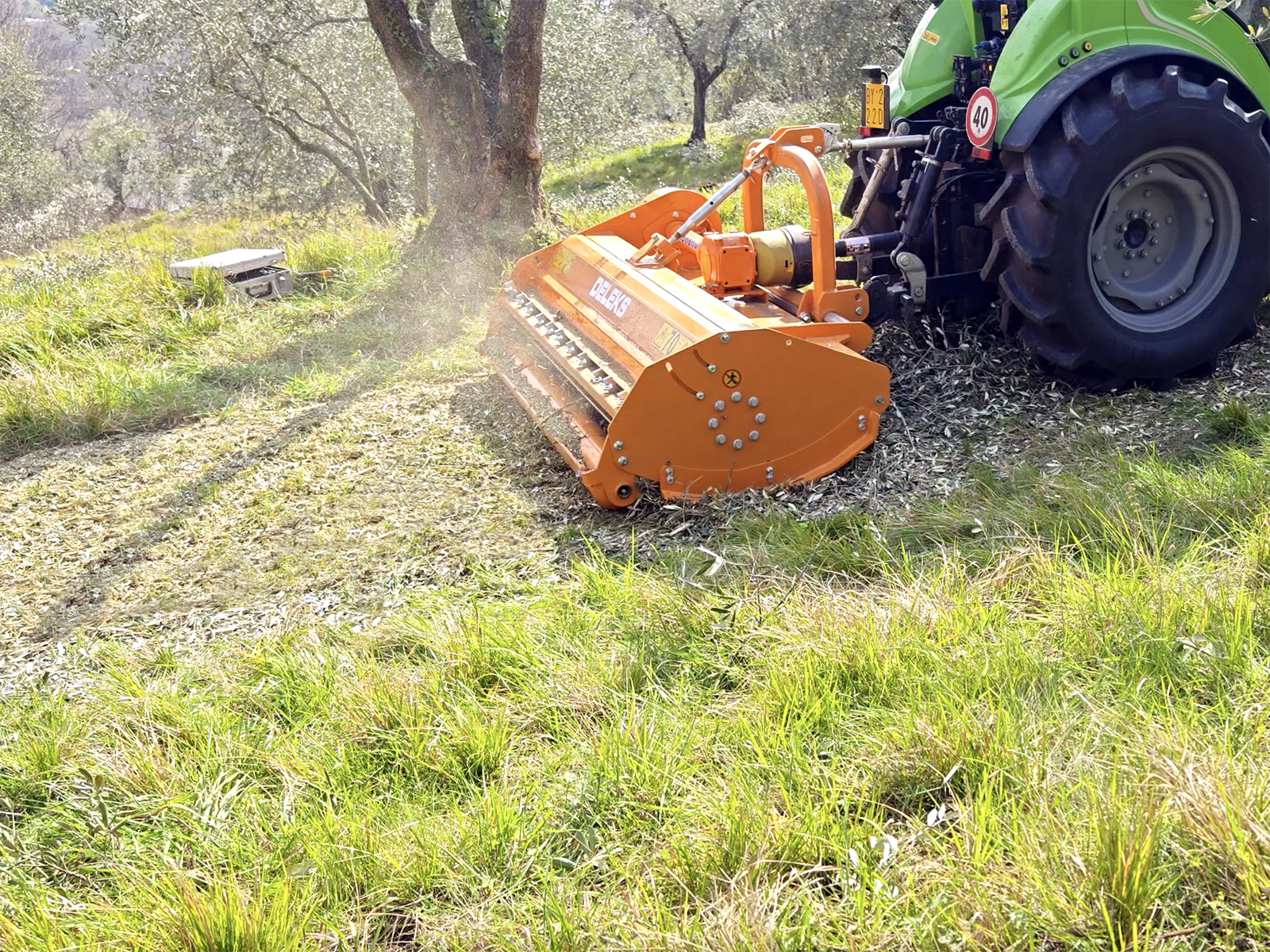

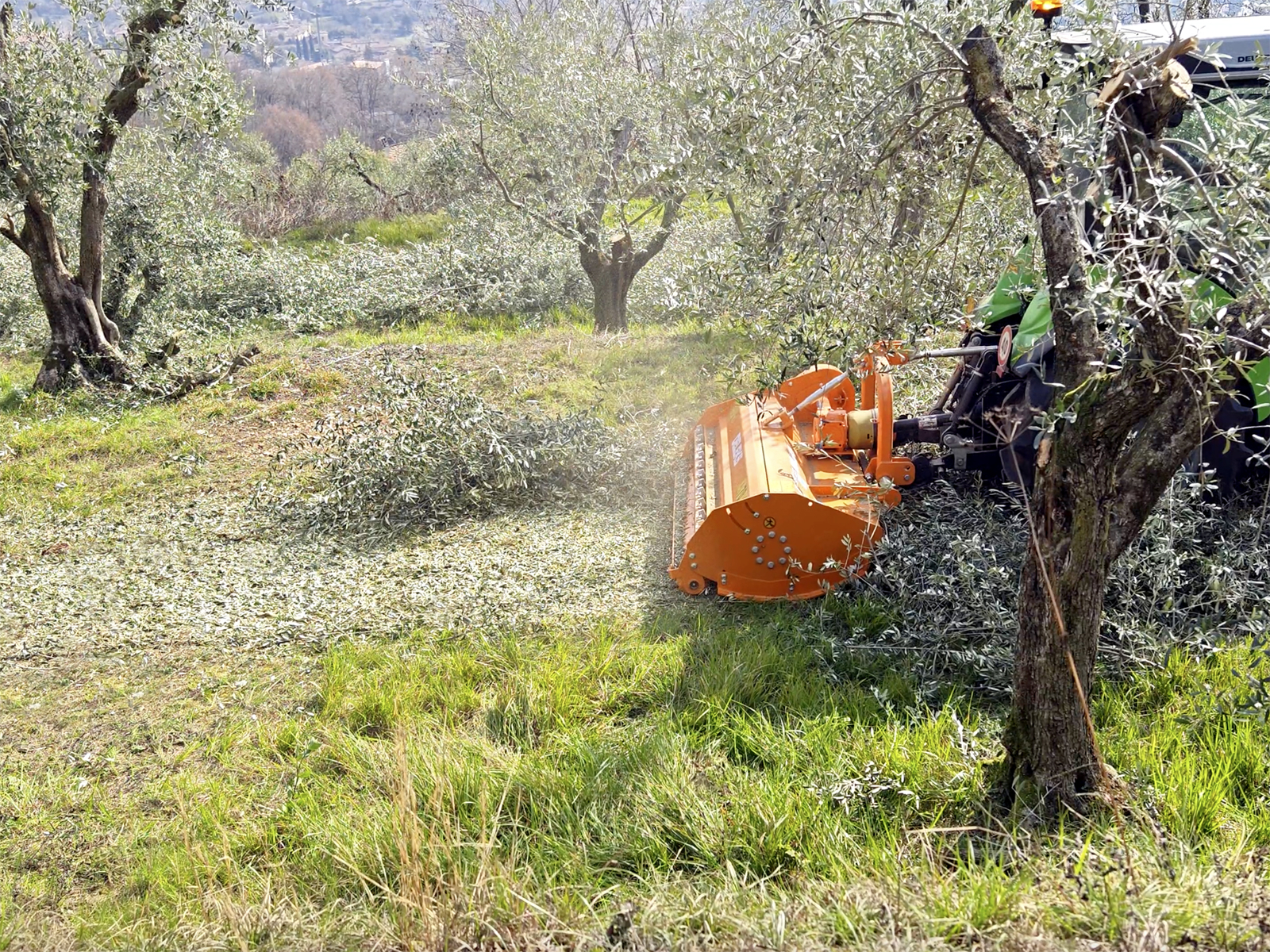

Field test
Field test
DETAILS
Flail mower for tractor 70-120Hp - Made in Italy - 186cm / 585kg - DELEKS® GEPARD-190 - Shredder mulcher, pto shaft CE included.
OVERVIEW
GEPARD, a heavy duty flail mower, particularly suitable for the cleaning of uncultivated land.
It is sturdy and durable design makes the GEPARD mower ideal for professional use.
It gives a clean finish on grass but it also shreds tough vegetation (5-6 cm) easily making it suitable for working on fields, meadows, paddocks, unkempt ground and for working on rushes.
Compatible with all brands of tractors with Cat. 1-2 three-point linkage e.g Fiat, Ford, New Holland T3-T4, John Deere 3-4, Lamborghini Ego, Deutz-Fahr, Landini, Kubota, Goldoni, etc. Conforms to the EC machinery directive, 2-year warranty.
BENEFITS & FEATURES
Sturdy structure suitable for professional use: frame casing thickness: 4.0 + 4.0mm, sides: 8.0mm, entirely made with Swedish SSAB steel.
3 points linkage Cat. 1-2 mounted on chromed tubes ø60.0 mm and with 400.0 mm offset.
Lombarda Ingranaggi Srl Gearbox P.T.O. 540 r.p.m. with free-wheel and 3 year warranty.
ø160.0 mm electronically balanced rotor, made with ARVEDI's tube, thickness: 10.0 mm, material: S355. Shafts of the rotor: ø60.0 mm, material: 42CRMO4.
Reinforced rotor support fixed to the frame by 8 strong bolts M16 for additional strength.
Heat forged hammers, weight 1.5 kg, base width 110 mm, hole ø20.0 mm, designed to pulverize grass, vineyard and olive grove shoots, brambles, stalks, etc. up to ø5-6 cm.
25cm high frontal mouth, avoids crushing grass when it is high.
ø160.0 mm rear roller with internal bearings with dust and residue protection.
Closed hood, mulching effect: the plant material remains longer in the chamber and gets pulverized.
Open hood: reduces the pressure in the chamber and allows you to proceed at a higher speed.
5 high resistance toothed belts.

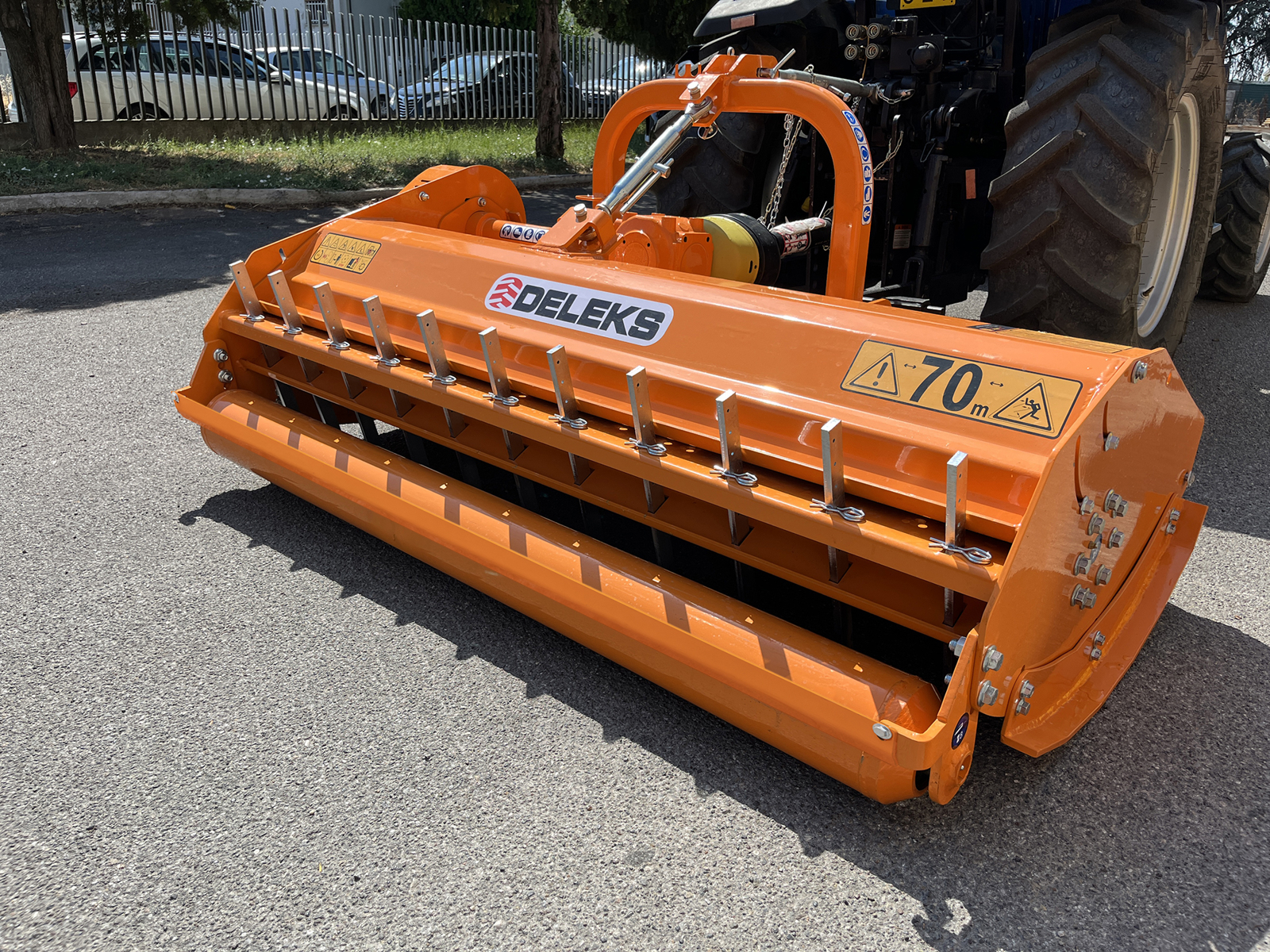

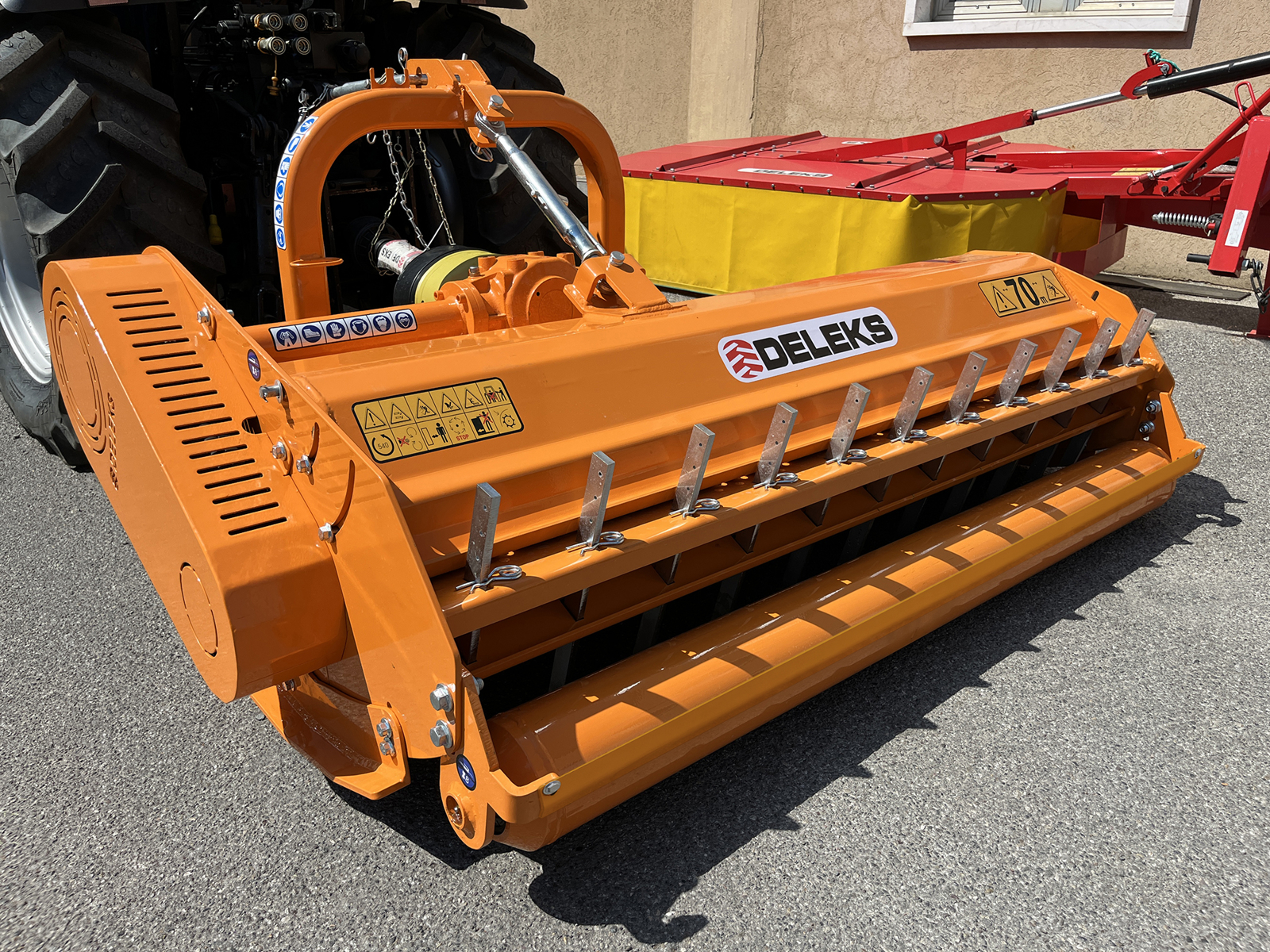

Rear removable collecting rakes.
Self-cleaning rear roller and side skids.
CE Certification.
Pto shaft CE included.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1860.0 mm | 6.10 ft |
| Overall width | 2150.0 mm | 7.00 ft |
| Min / Max cutting height | 15 - 75 mm | 0.6 - 2.95 in |
| Weight | 655.0 kg | 1445.0 lb |
| Overall height | 930.0 mm | 3.05 ft |
| Tractor Power Range | 70 - 120 Hp | 70 - 120 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Hood height | 500.0 mm | 19.70 in |
| Spacing between the 2 lower points | 660.0 - 800.0 mm | 26.00 - 31.50 in |
| Number of Hammers | 20 | 20 |
| Maximum cutting diameter | 50.0-70.0 mm | 1.97 - 2.75 in |
| Overall length | 1260.0 mm | 4.13 ft |
| Distance between pto attachment and ground | 515.0 mm | 20.0 in |
| Main hood thickness | 4.0 mm + 4.0 mm | 0.16 in + 0.16 in |
| Sides thickness | 8.0 mm | 0.3 in |
| Side plates thickness | 10.0 mm | 0.4 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (3 year warranty) | Lombarda Ingranaggi Srl (3 year warranty) |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: RPM Rotor speed | 2000.0 rpm | 2000.0 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 230.0 mm | 9.0 in |
| Transmission: Lower pulley ø | 190.0 mm | 7.50 in |
| Transmission: V-Belts quantity | 5 | 5 |
| Transmission: V-Belts size | XPB-1525 | XPB-1525 |
| Rotor: diameter | 160.00 mm | 6.30 in |
| Rotor: bearings type and size | SKF® 2212 | SKF® 2212 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 10.0 mm - S355 | 0.4 in |
| Hammers: Weight | 1486.0 g | 52.40 oz |
| Hammer: øhole | 20.5 mm | 0.80 in |
| Hammer: base width | 110.0 mm | 4.33 in |
| Hammer: top width | 74.0 mm | 2.91 in |
| Rear roller: diameter | 160.0 mm | 6.30 in |
| Rear roller: sheet thickness | 8.0 mm | 0.32 in |
| Rear roller: bearings type and size | 6210 | 6210 |
| Pto shaft | CE 6x1000 mm + shear bolt | CE 6x1000 mm + shear bolt |
| Hood length | 870.0 mm | 34.25 in |
| Effective Displacement | 400.0 mm | 15.75 in |
| Packing sizes | 2200*1300*1000.0 mm | 7.20*4.25*3.28 ft |
DETAILS
CLOSEFlail mower for tractor 70-120Hp - Made in Italy - 186cm / 585kg - DELEKS® GEPARD-190 - Shredder mulcher, pto shaft CE included.
OVERVIEW
GEPARD, a heavy duty flail mower, particularly suitable for the cleaning of uncultivated land.
It is sturdy and durable design makes the GEPARD mower ideal for professional use.
It gives a clean finish on grass but it also shreds tough vegetation (5-6 cm) easily making it suitable for working on fields, meadows, paddocks, unkempt ground and for working on rushes.
Compatible with all brands of tractors with Cat. 1-2 three-point linkage e.g Fiat, Ford, New Holland T3-T4, John Deere 3-4, Lamborghini Ego, Deutz-Fahr, Landini, Kubota, Goldoni, etc. Conforms to the EC machinery directive, 2-year warranty.
BENEFITS & FEATURES
Sturdy structure suitable for professional use: frame casing thickness: 4.0 + 4.0mm, sides: 8.0mm, entirely made with Swedish SSAB steel.
3 points linkage Cat. 1-2 mounted on chromed tubes ø60.0 mm and with 400.0 mm offset.
Lombarda Ingranaggi Srl Gearbox P.T.O. 540 r.p.m. with free-wheel and 3 year warranty.
ø160.0 mm electronically balanced rotor, made with ARVEDI's tube, thickness: 10.0 mm, material: S355. Shafts of the rotor: ø60.0 mm, material: 42CRMO4.
Reinforced rotor support fixed to the frame by 8 strong bolts M16 for additional strength.
Heat forged hammers, weight 1.5 kg, base width 110 mm, hole ø20.0 mm, designed to pulverize grass, vineyard and olive grove shoots, brambles, stalks, etc. up to ø5-6 cm.
25cm high frontal mouth, avoids crushing grass when it is high.
ø160.0 mm rear roller with internal bearings with dust and residue protection.
Closed hood, mulching effect: the plant material remains longer in the chamber and gets pulverized.
Open hood: reduces the pressure in the chamber and allows you to proceed at a higher speed.
5 high resistance toothed belts.
Rear removable collecting rakes.
Self-cleaning rear roller and side skids.
CE Certification.
Pto shaft CE included.
CHARACTERISTICS
CLOSE| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1860.0 mm | 6.10 ft |
| Overall width | 2150.0 mm | 7.00 ft |
| Min / Max cutting height | 15 - 75 mm | 0.6 - 2.95 in |
| Weight | 655.0 kg | 1445.0 lb |
| Overall height | 930.0 mm | 3.05 ft |
| Tractor Power Range | 70 - 120 Hp | 70 - 120 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Hood height | 500.0 mm | 19.70 in |
| Spacing between the 2 lower points | 660.0 - 800.0 mm | 26.00 - 31.50 in |
| Number of Hammers | 20 | 20 |
| Maximum cutting diameter | 50.0-70.0 mm | 1.97 - 2.75 in |
| Overall length | 1260.0 mm | 4.13 ft |
| Distance between pto attachment and ground | 515.0 mm | 20.0 in |
| Main hood thickness | 4.0 mm + 4.0 mm | 0.16 in + 0.16 in |
| Sides thickness | 8.0 mm | 0.3 in |
| Side plates thickness | 10.0 mm | 0.4 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (3 year warranty) | Lombarda Ingranaggi Srl (3 year warranty) |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: RPM Rotor speed | 2000.0 rpm | 2000.0 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 230.0 mm | 9.0 in |
| Transmission: Lower pulley ø | 190.0 mm | 7.50 in |
| Transmission: V-Belts quantity | 5 | 5 |
| Transmission: V-Belts size | XPB-1525 | XPB-1525 |
| Rotor: diameter | 160.00 mm | 6.30 in |
| Rotor: bearings type and size | SKF® 2212 | SKF® 2212 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 10.0 mm - S355 | 0.4 in |
| Hammers: Weight | 1486.0 g | 52.40 oz |
| Hammer: øhole | 20.5 mm | 0.80 in |
| Hammer: base width | 110.0 mm | 4.33 in |
| Hammer: top width | 74.0 mm | 2.91 in |
| Rear roller: diameter | 160.0 mm | 6.30 in |
| Rear roller: sheet thickness | 8.0 mm | 0.32 in |
| Rear roller: bearings type and size | 6210 | 6210 |
| Pto shaft | CE 6x1000 mm + shear bolt | CE 6x1000 mm + shear bolt |
| Hood length | 870.0 mm | 34.25 in |
| Effective Displacement | 400.0 mm | 15.75 in |
| Packing sizes | 2200*1300*1000.0 mm | 7.20*4.25*3.28 ft |
Certifications
CLOSE| SSAB Laser 355MC | Download PDF |
| Hardox | Download PDF |
| ARVEDI / TUBINDUSTRIA: Certification | Download PDF |
Technical charts
CLOSE| Shell Spirax S2 A 80W-90: Specifications | Download PDF |
