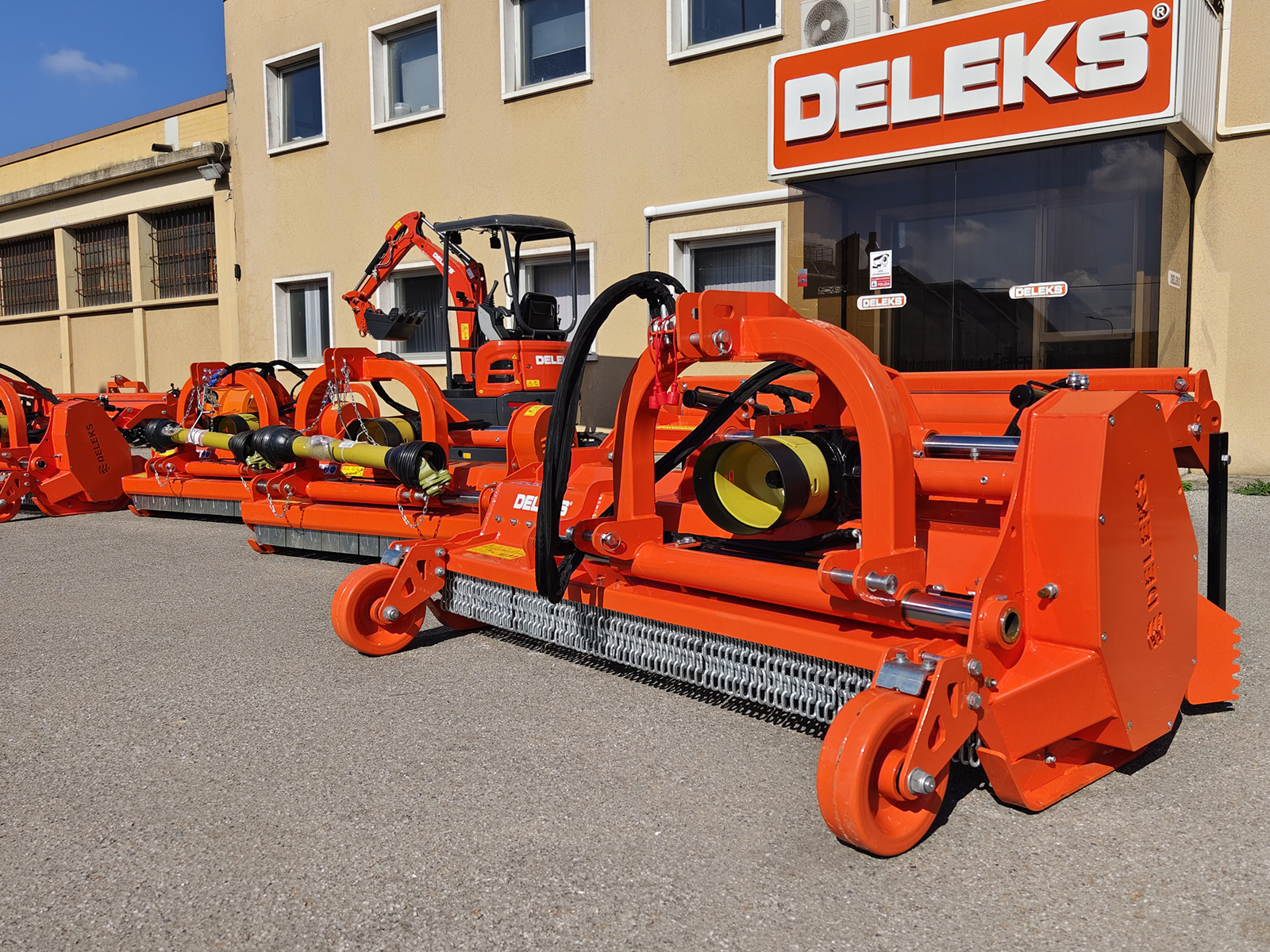

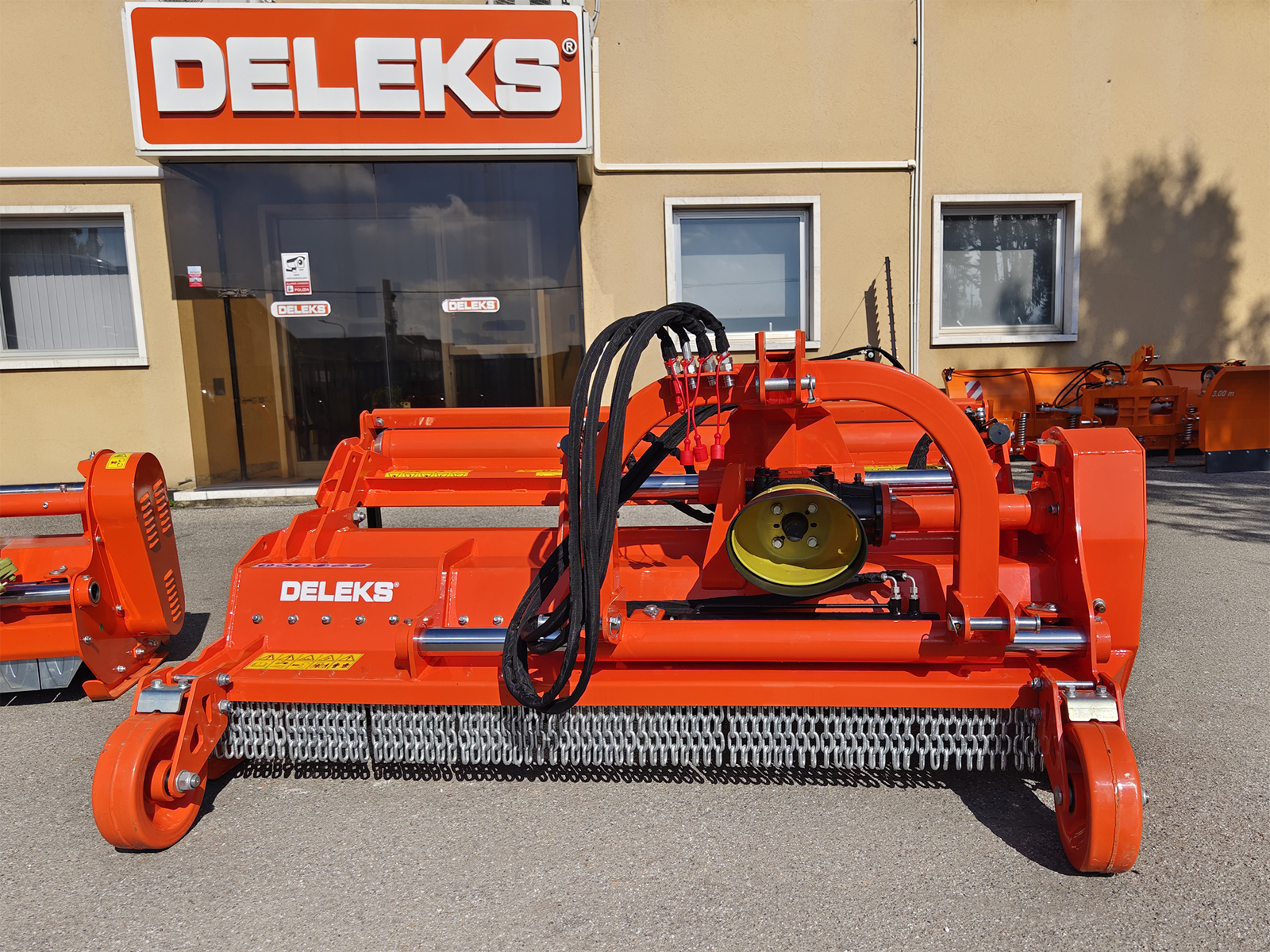

Forestry mulcher for tractors 200 cm (79 in) GORILLA-200, forestry flail mower with hydraulic rear hood and side shift for 90-120 hp tractors
DETAILS
Forestry mulcher for tractors with a 200 cm (79 in) cut: the DELEKS® GORILLA-200 is the heavy-series flail mower for saplings, shrubs, brushwood and prunings up to 15 cm (6 in) thick, for wheeled or tracked tractors from 90 to 120 hp, such as New Holland, John Deere, Landini, Deutz-Fahr, Massey Ferguson and Kubota. The oversized 168 mm (6.6 in) rotor carries 20 toothed hammer flails of 1,600 g (3.5 lb) on toothed brackets set in a double helix and works against the counter-knives bolted to the frame. The rear hood with its roller lifts hydraulically, the hydraulic side shift is 30 cm (12 in) and there are two wheels at the front. 540 rpm gearbox with freewheel and a 3-year warranty, reinforced 5-belt drive, 804 kg (1,773 lb). It comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.
Which tractors it fits
The GORILLA-200 cuts 200 cm (79 in) with an overall width of 221 cm (87 in) and is designed for wheeled or tracked tractors from 90 to 120 hp with a 540 rpm PTO and a universal category 2 three-point linkage (25-28 mm pins, lower link spacing from 740 to 890 mm): New Holland, John Deere, Landini, Deutz-Fahr, Massey Ferguson, Lamborghini, Kubota and equivalent tractors. It works on the flat and on slopes. The gearbox sits 600 mm above the ground.

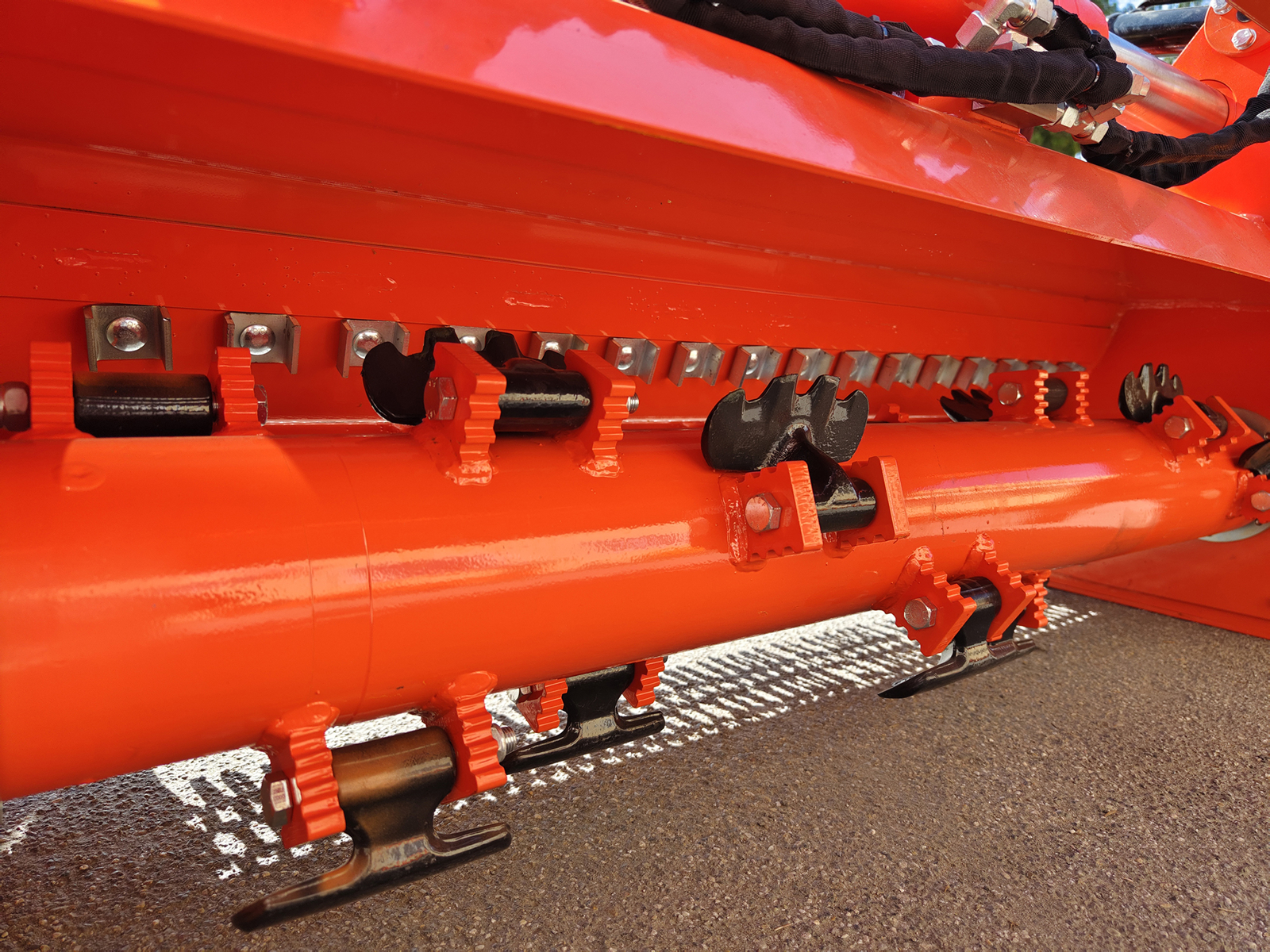

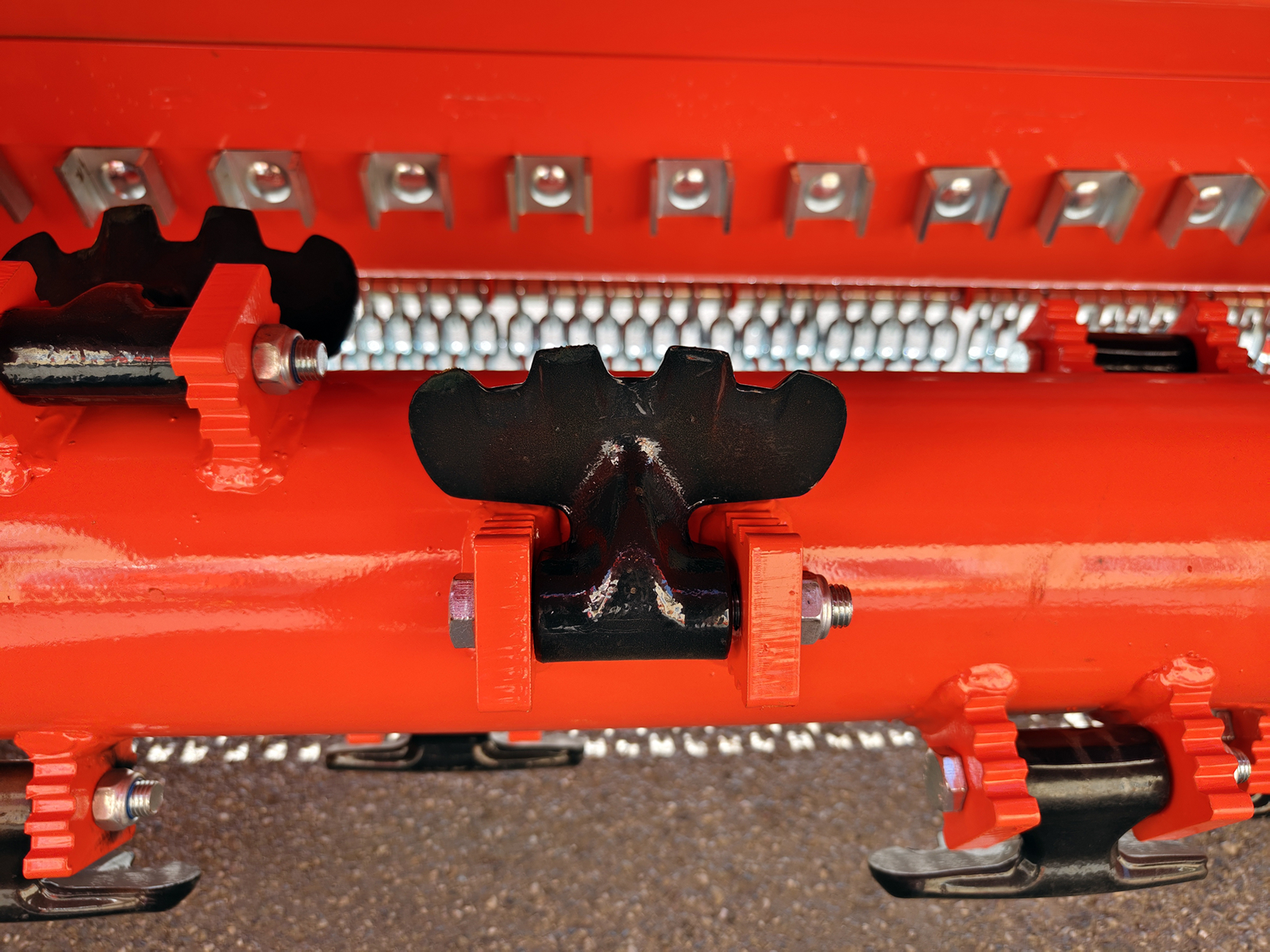

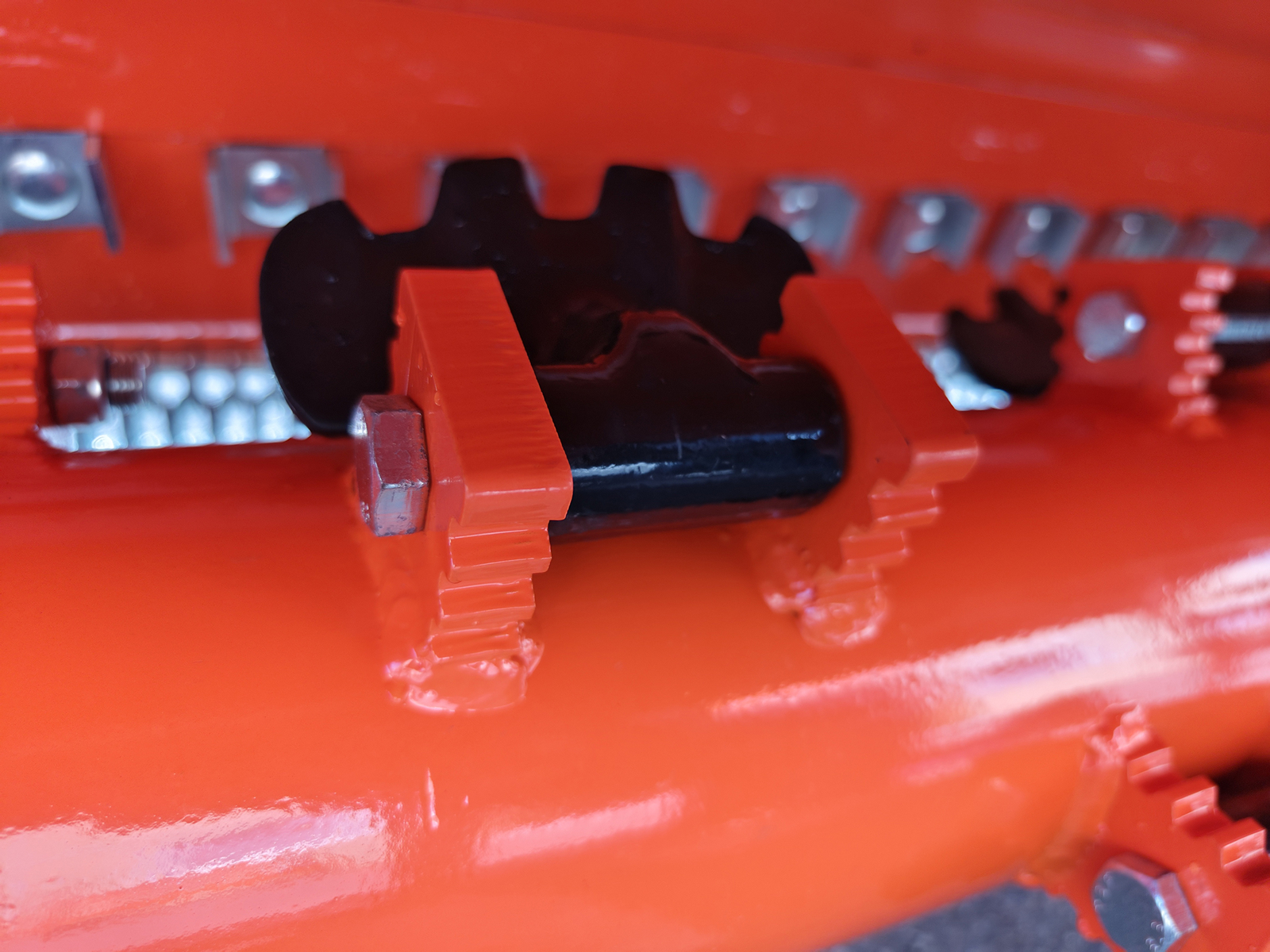

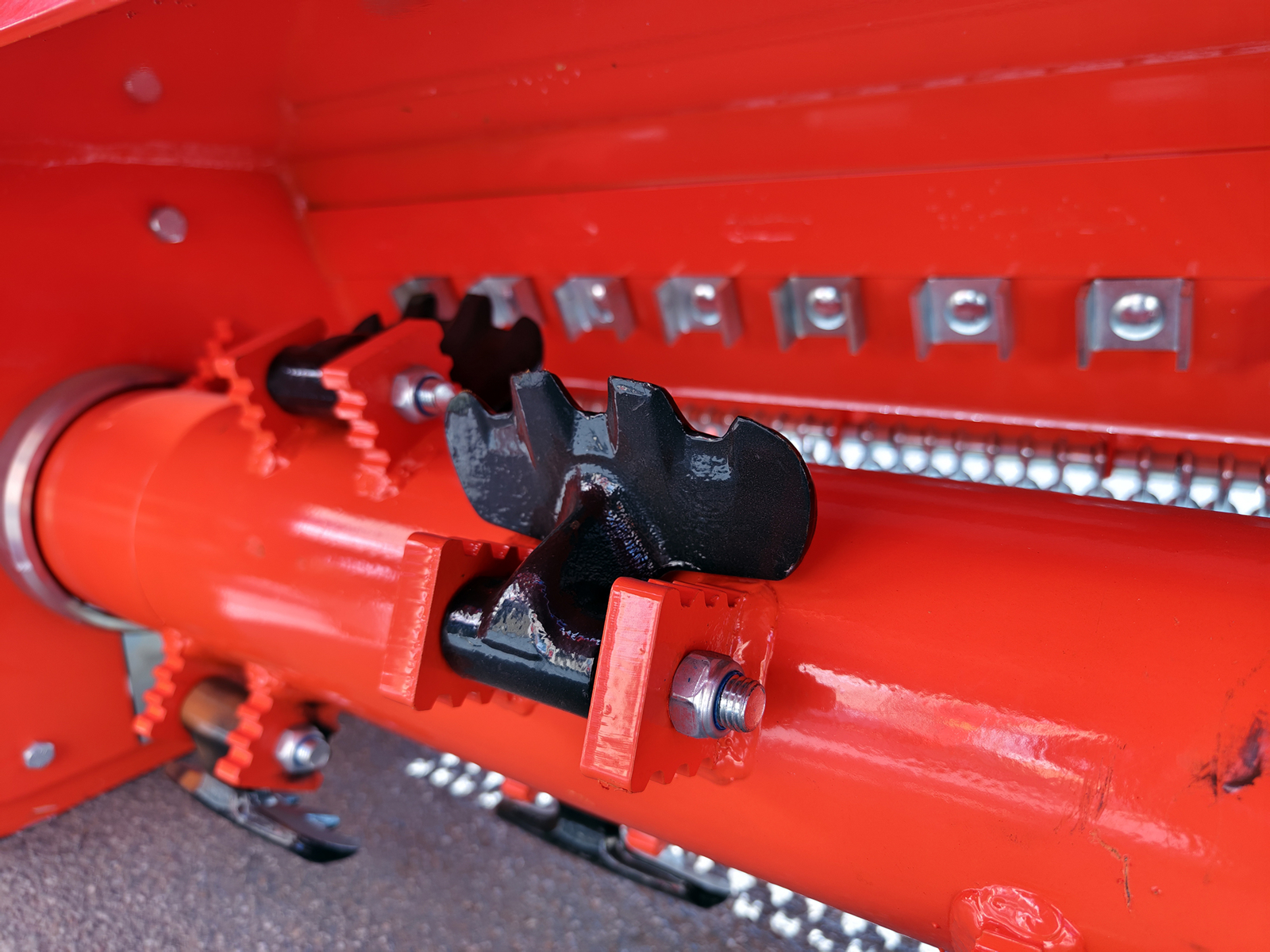

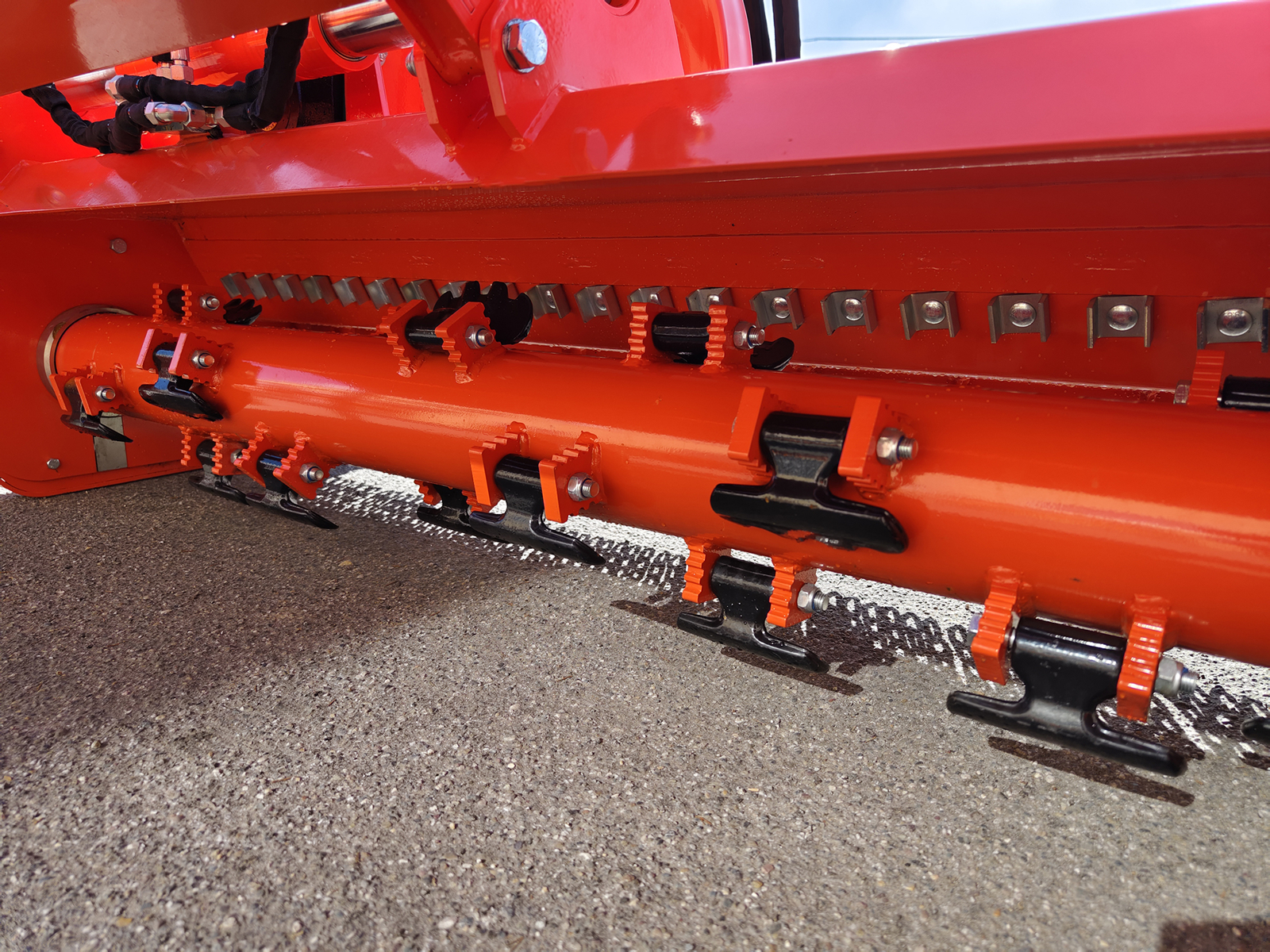

168 mm (6.6 in) rotor with 20 flails of 1,600 g (3.5 lb) and toothed brackets
The oversized rotor is 168 mm (6.6 in) in diameter, with an 8 mm (5/16 in) tube wall; it is electronically balanced and spins at 2,166 rpm. It carries 20 toothed hammer flails of 1,600 g (3.5 lb). The brackets that hold the flail pins are toothed too and are welded to the rotor in a double helix: when the flails swing back under the blows, on heavy windrows or thick brushwood, the toothed brackets keep chopping the wood. Interchangeable counter-knives are bolted to the frame. The cutting chamber is large: it shreds big volumes of vegetation and branches up to 15 cm (6 in) thick down fine.

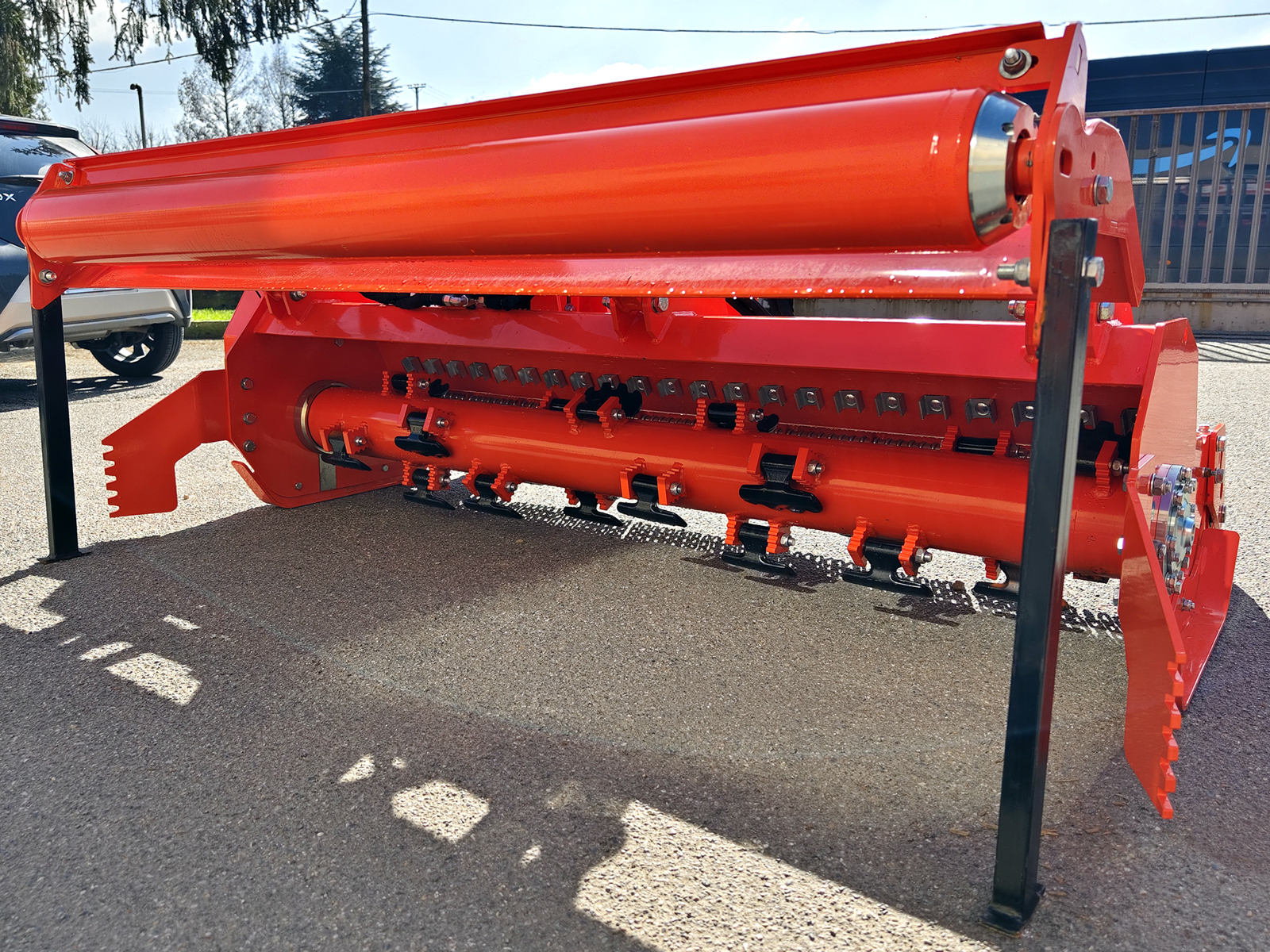

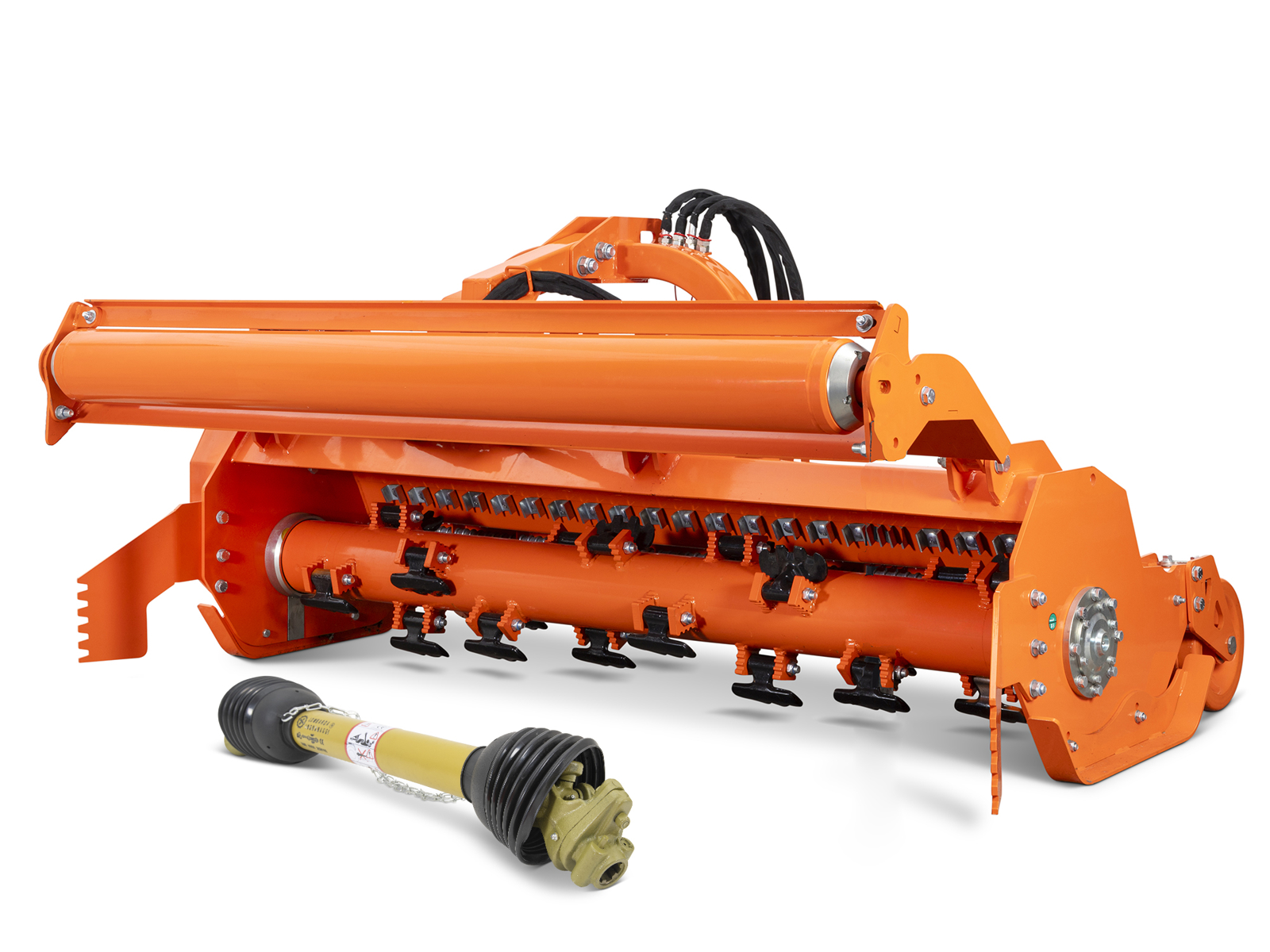

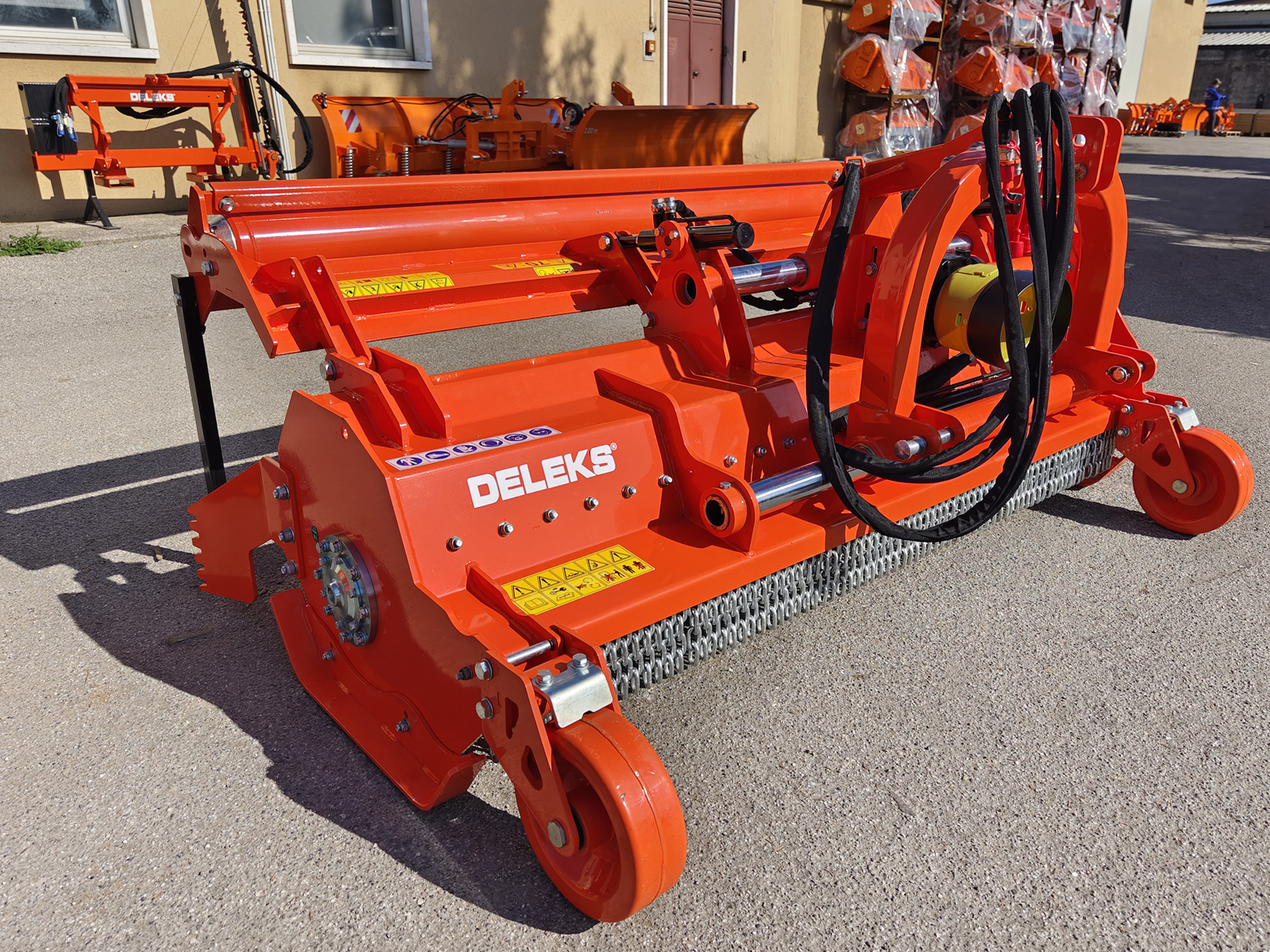

Hydraulically lifted rear hood
The rear panel with its roller lifts hydraulically, on the 2 rams mounted at the sides. In vineyards and orchards it lets you shred the prunings without running over the windrows; in woodland you work on weeds, brushwood and brambles.

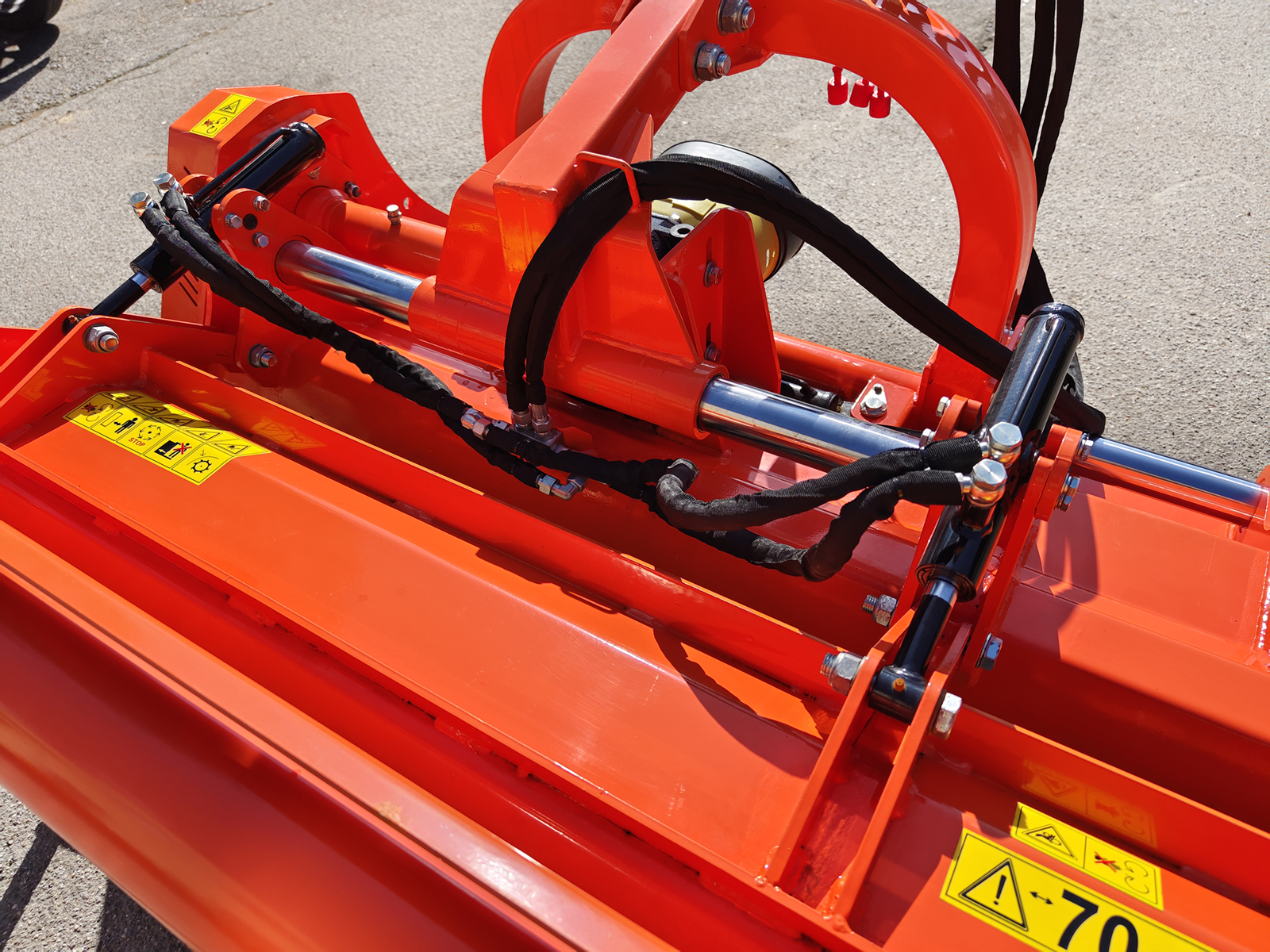

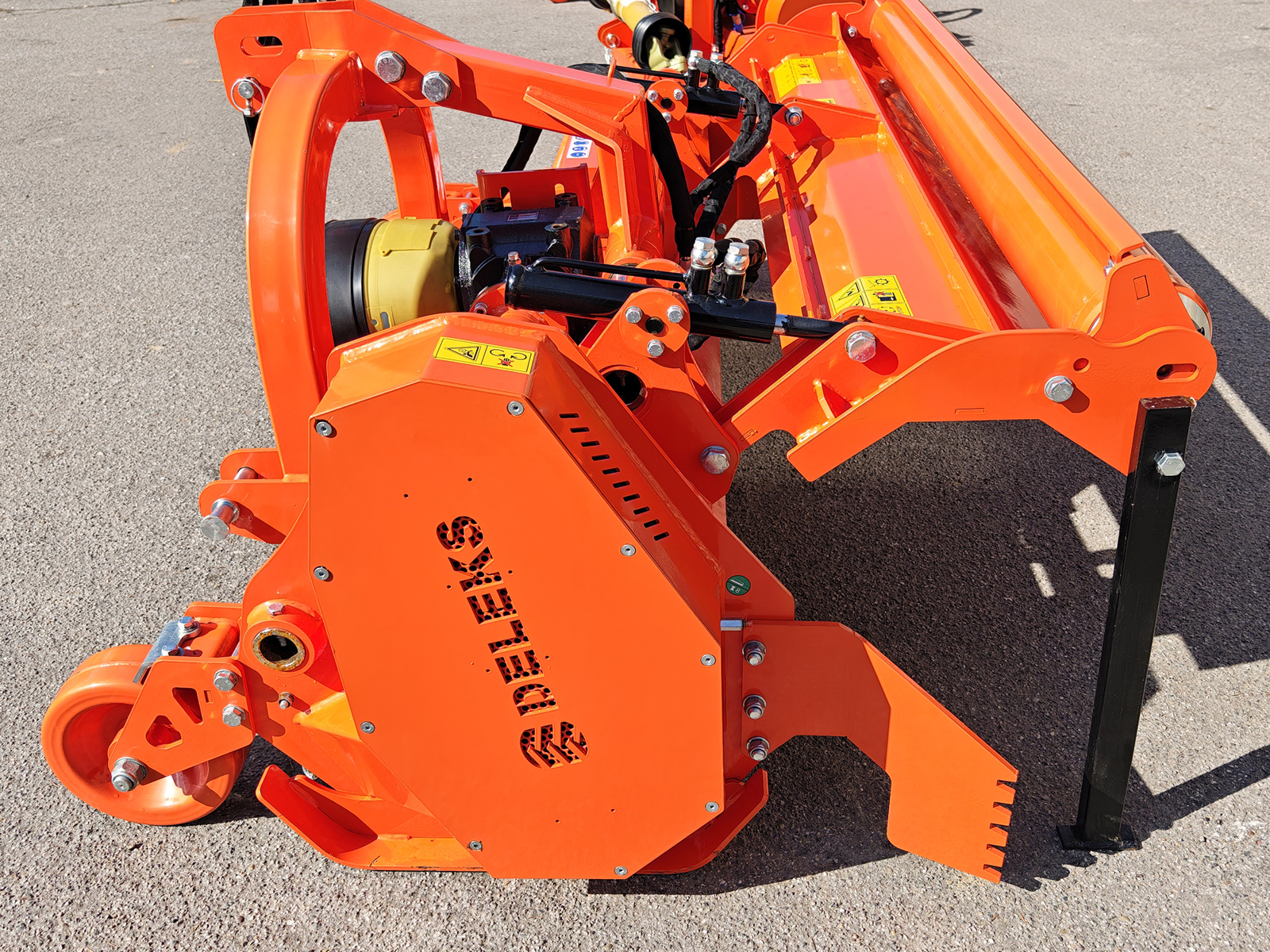

Hydraulic side shift of 30 cm (12 in)
The category 2 three-point headstock has 30 cm (12 in) of hydraulic side shift: it is worked from the seat and takes the mower out to one side, along edges, banks and rows. The tractor needs rear hydraulic outlets, for the side shift and for lifting the hood. For the side shift it comes with 2 hydraulic hoses with ½ in agricultural quick-release couplings.

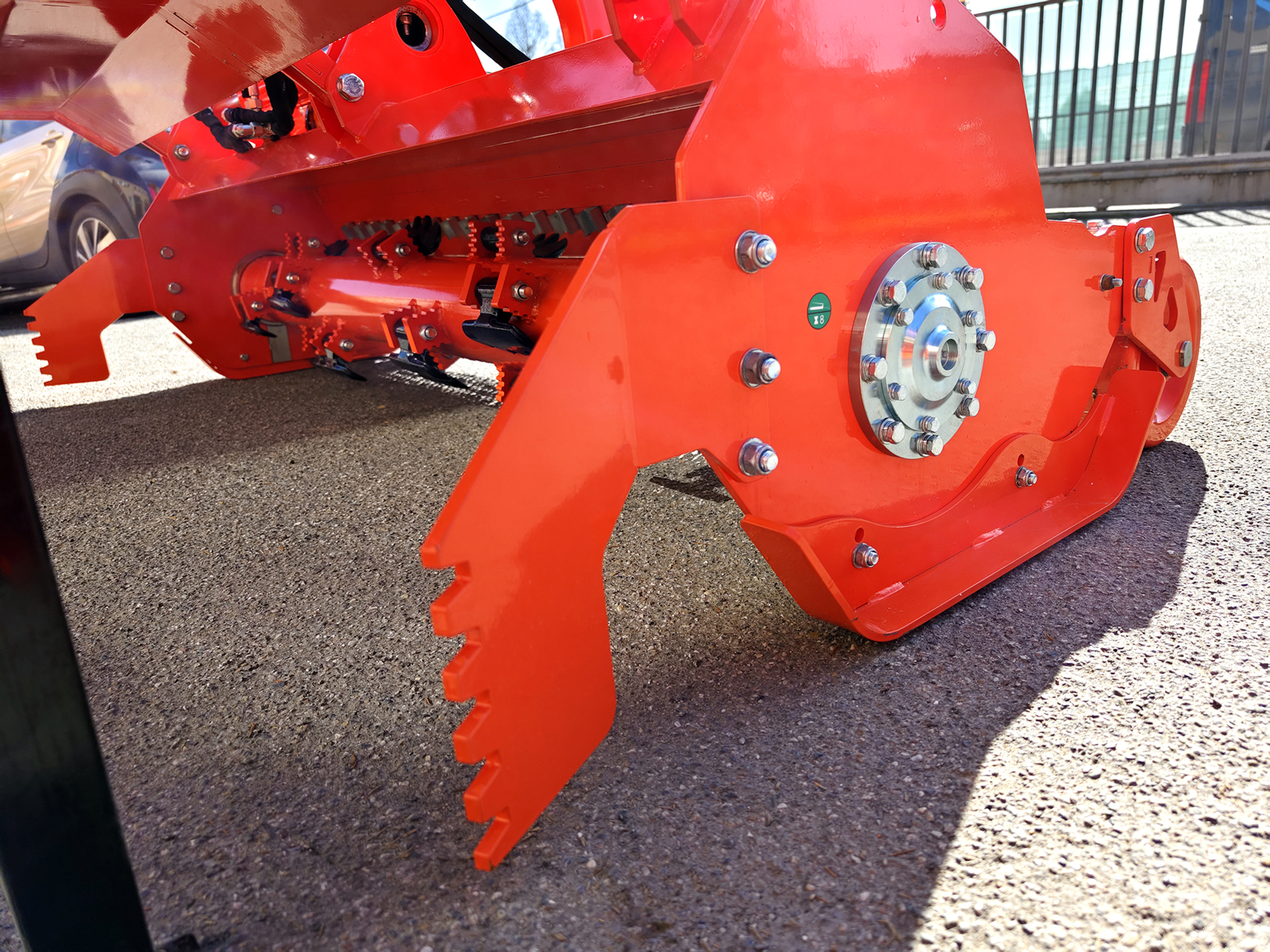

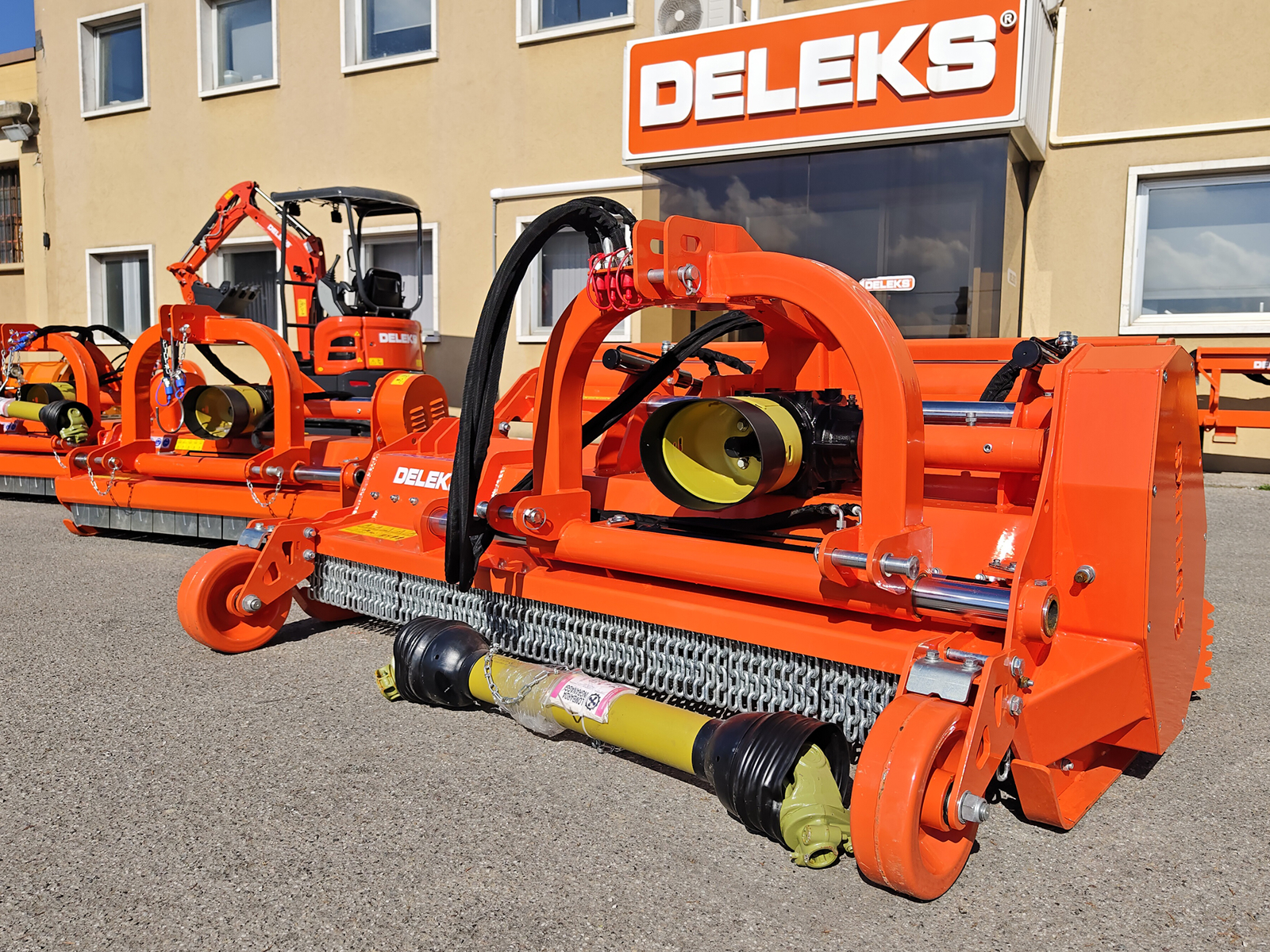

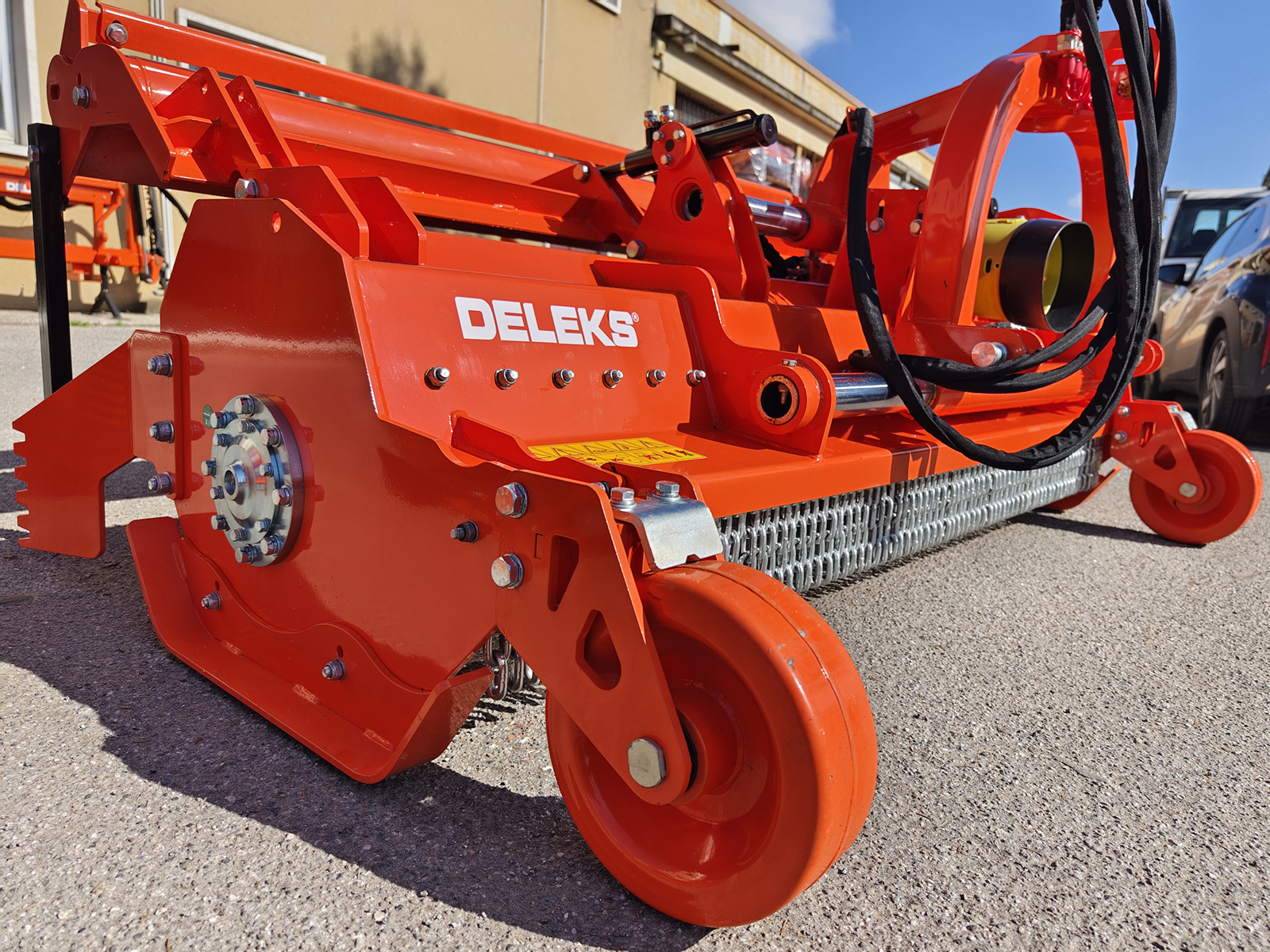

Front wheels, roller and cutting height
At the front the GORILLA-200 has a pair of wheels, at the rear the oversized roller, 152 mm (6 in) in diameter: together with the 8 mm side skids they hold the cutting height between 50 and 70 mm (2 and 2.8 in). The frame is 5 mm thick, with 10 mm side plates.

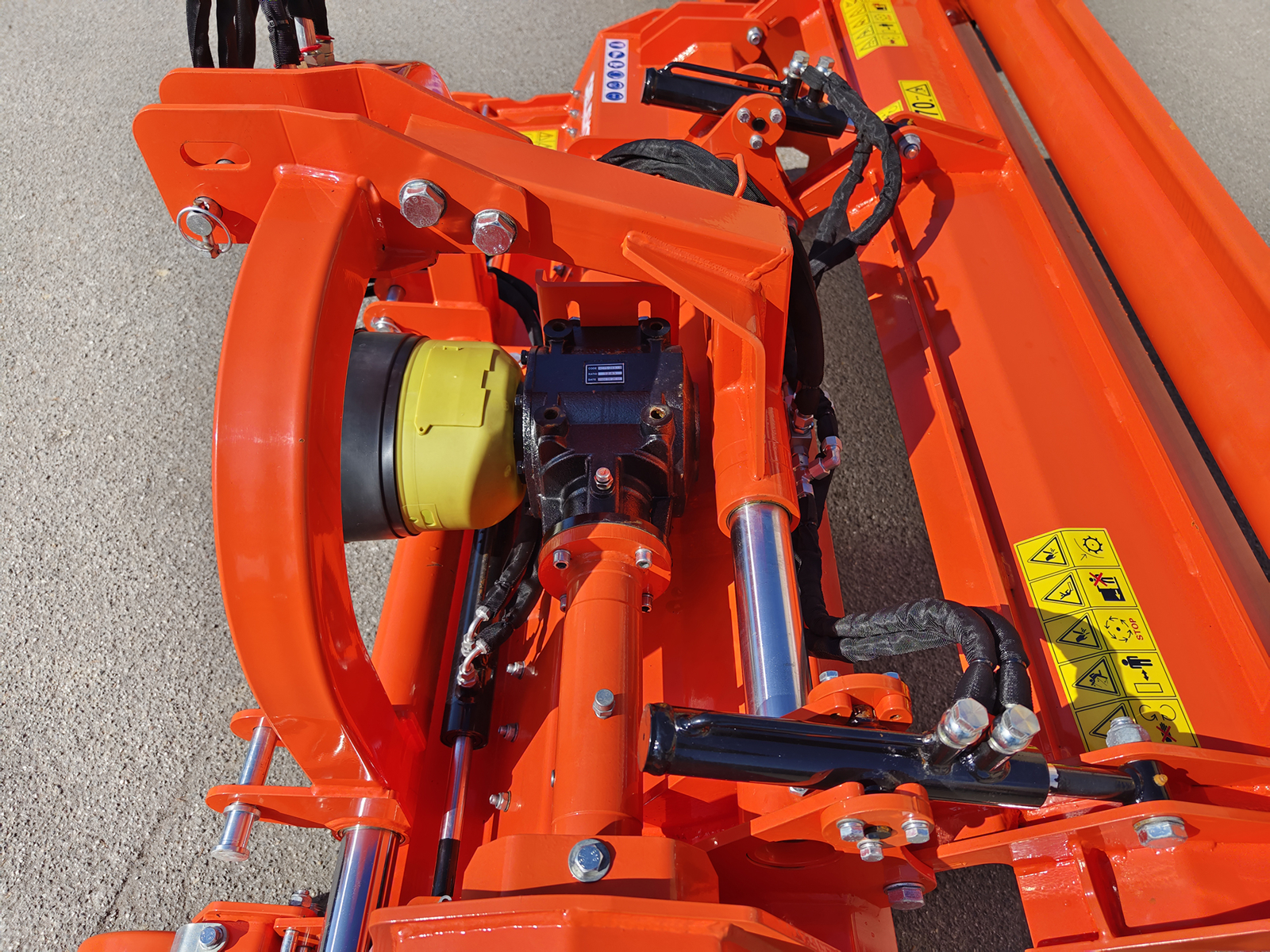

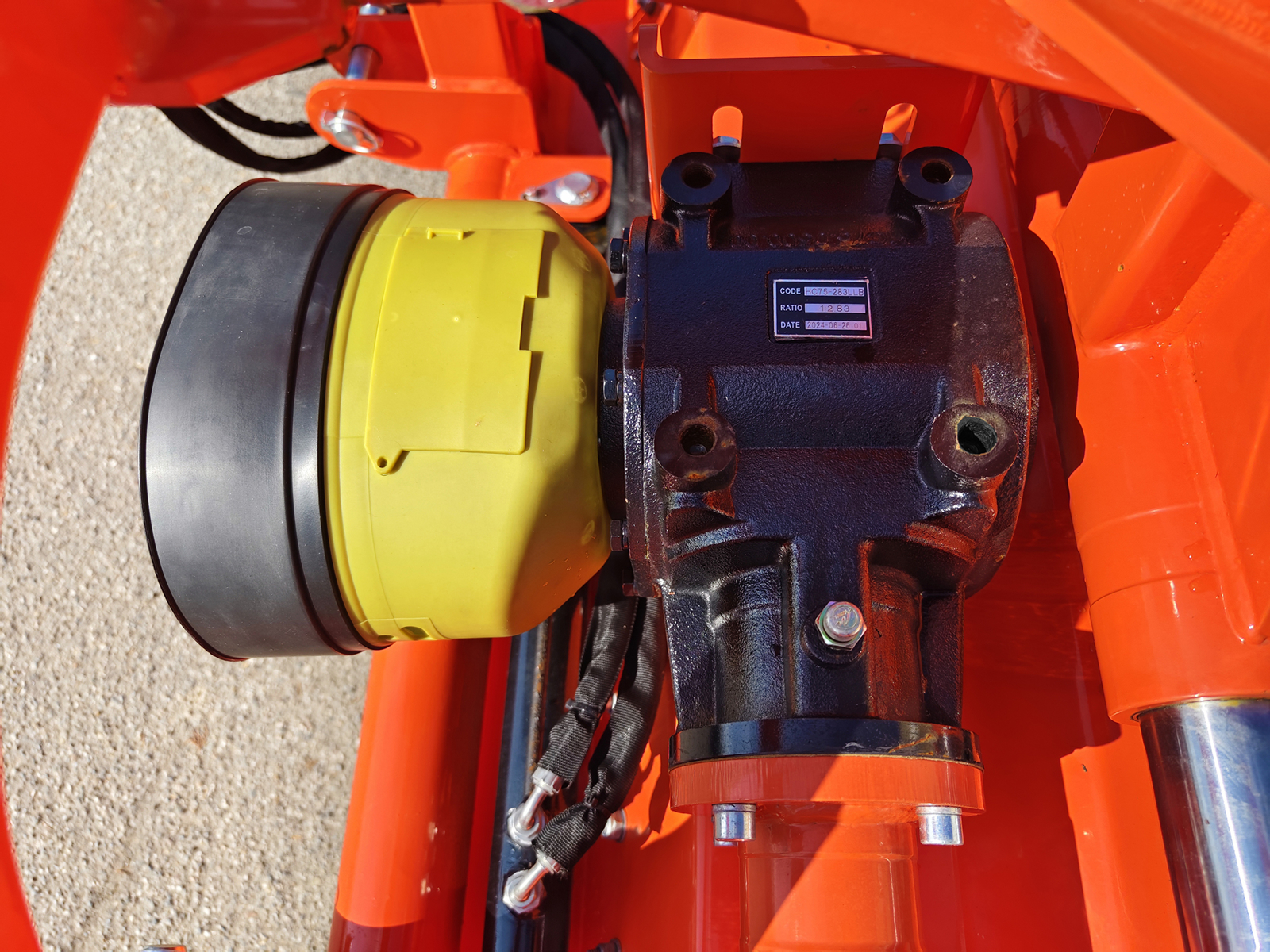

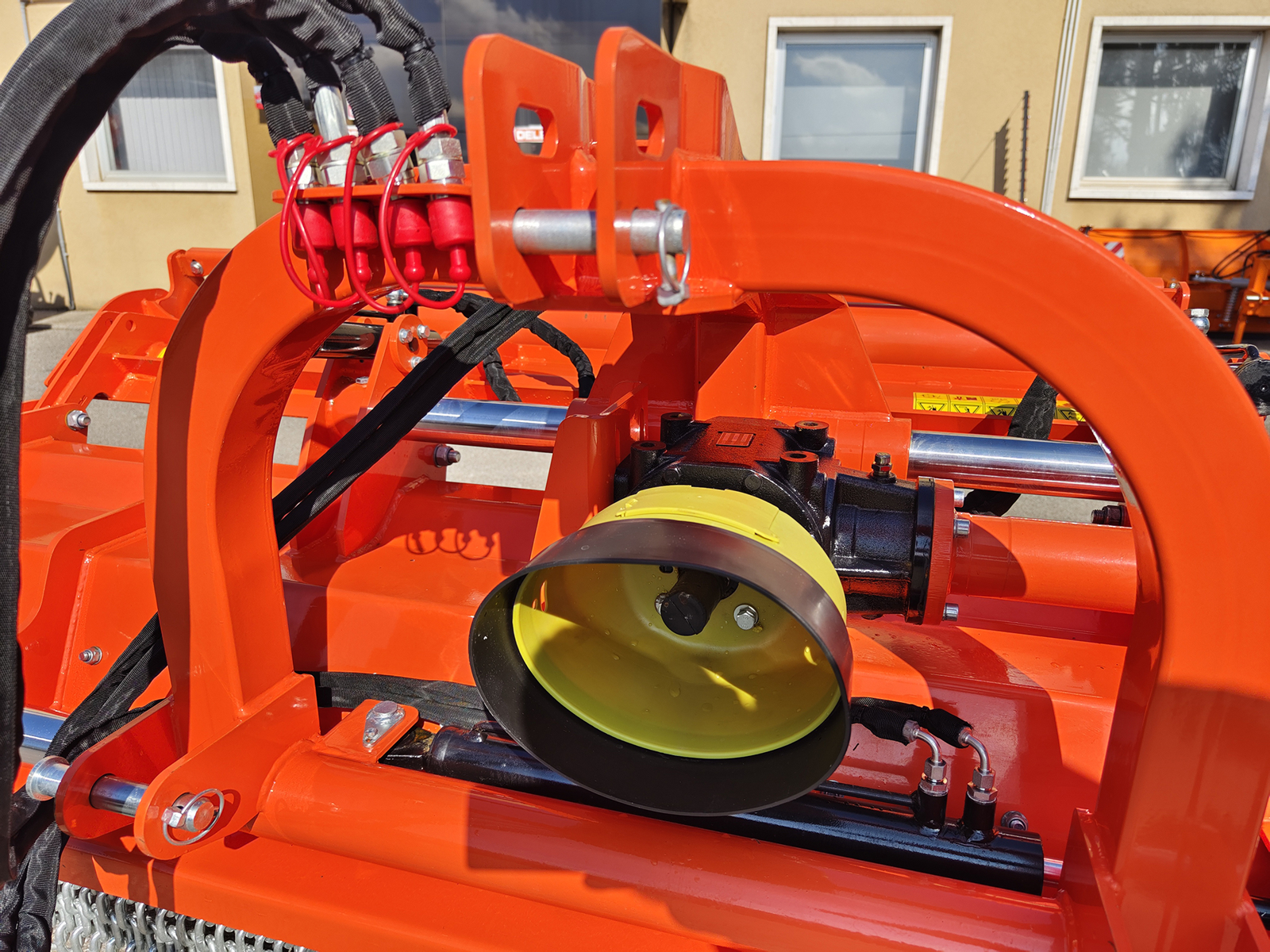

Reinforced drive, 5 belts and PTO shaft
The gearbox for a 540 rpm PTO has a freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. The drive is reinforced, with 5 V-belts, 17x1321; the tensioner is adjustable and belt tension is set from the outside. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.

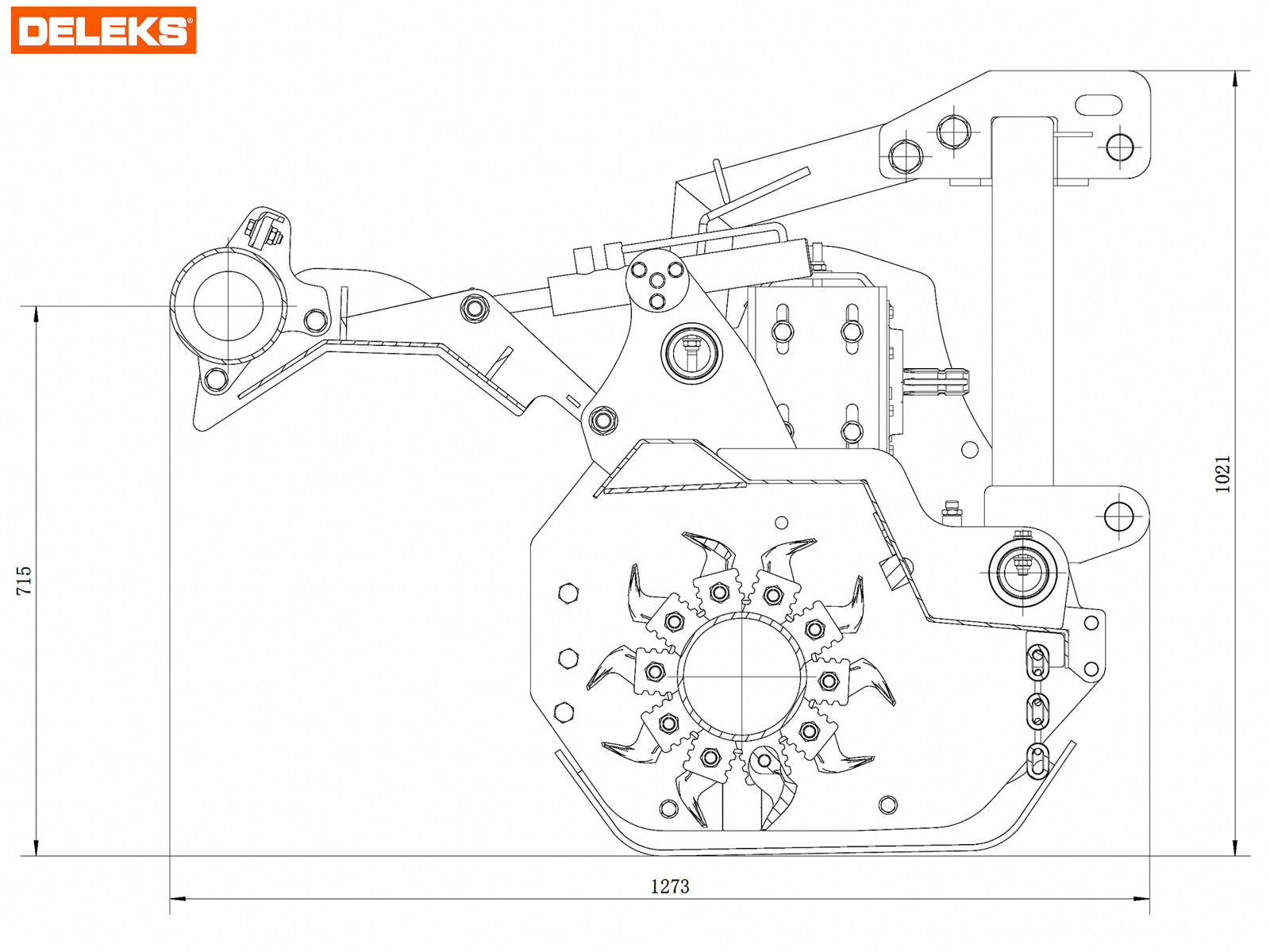

Dimensions, weight and delivery

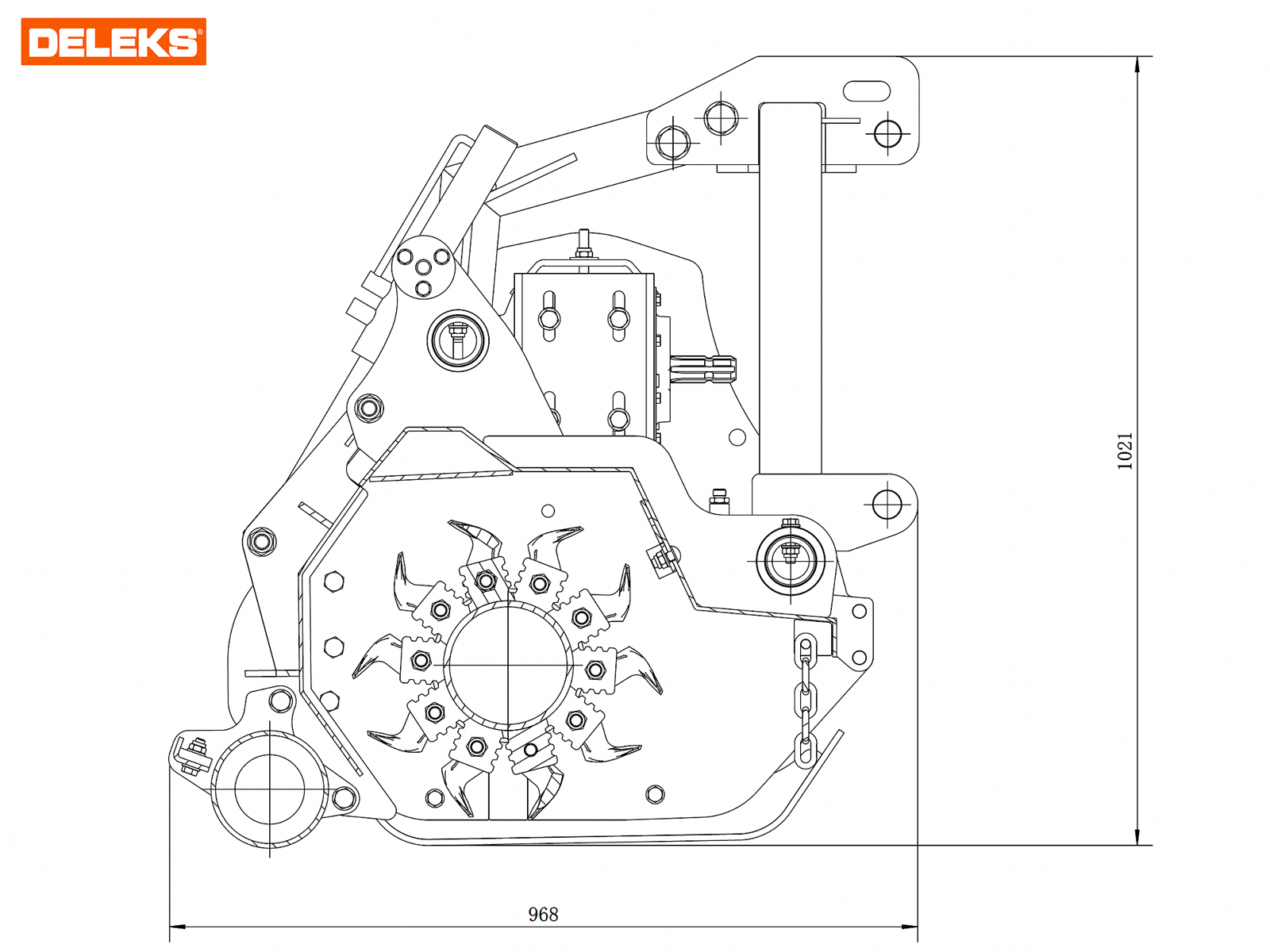

Working width 2,000 mm (78.7 in), overall width 2,210 mm (87 in), height 1,020 mm (40.2 in), weight 804 kg (1,773 lb). It ships on a pallet in packaging measuring 225 × 110 × 100 cm (89 × 43 × 39 in), 824 kg (1,817 lb) gross, 2.48 m³, with free delivery within the EU. For delivery, the address must be accessible to an articulated lorry (a 24-tonne artic) and you need a forklift to unload the pallet. It complies with the EC Machinery Directive and carries a 2-year warranty.
Where it works
- Woodland: woody material, saplings, shrubs and brushwood up to 15 cm (6 in) thick
- Reclaiming rough ground: weeds, brambles and woody growth
- Vineyards, orchards and olive groves: pruning windrows shredded without running over them
- Edges, banks and rows: working offset with the hydraulic side shift
- On the flat and on slopes, with wheeled or tracked tractors from 90 to 120 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10GORILLA), the kit of 10 counter-knives (CONTROCOLTELLI10GORILLA), the spare set of 5 belts (CINGHIE5GO) and the universal PTO adapter (RID1). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the GORILLA-200 need?
From 90 to 120 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 804 kg (1,773 lb).
Will it suit a 50 or 70 hp tractor?

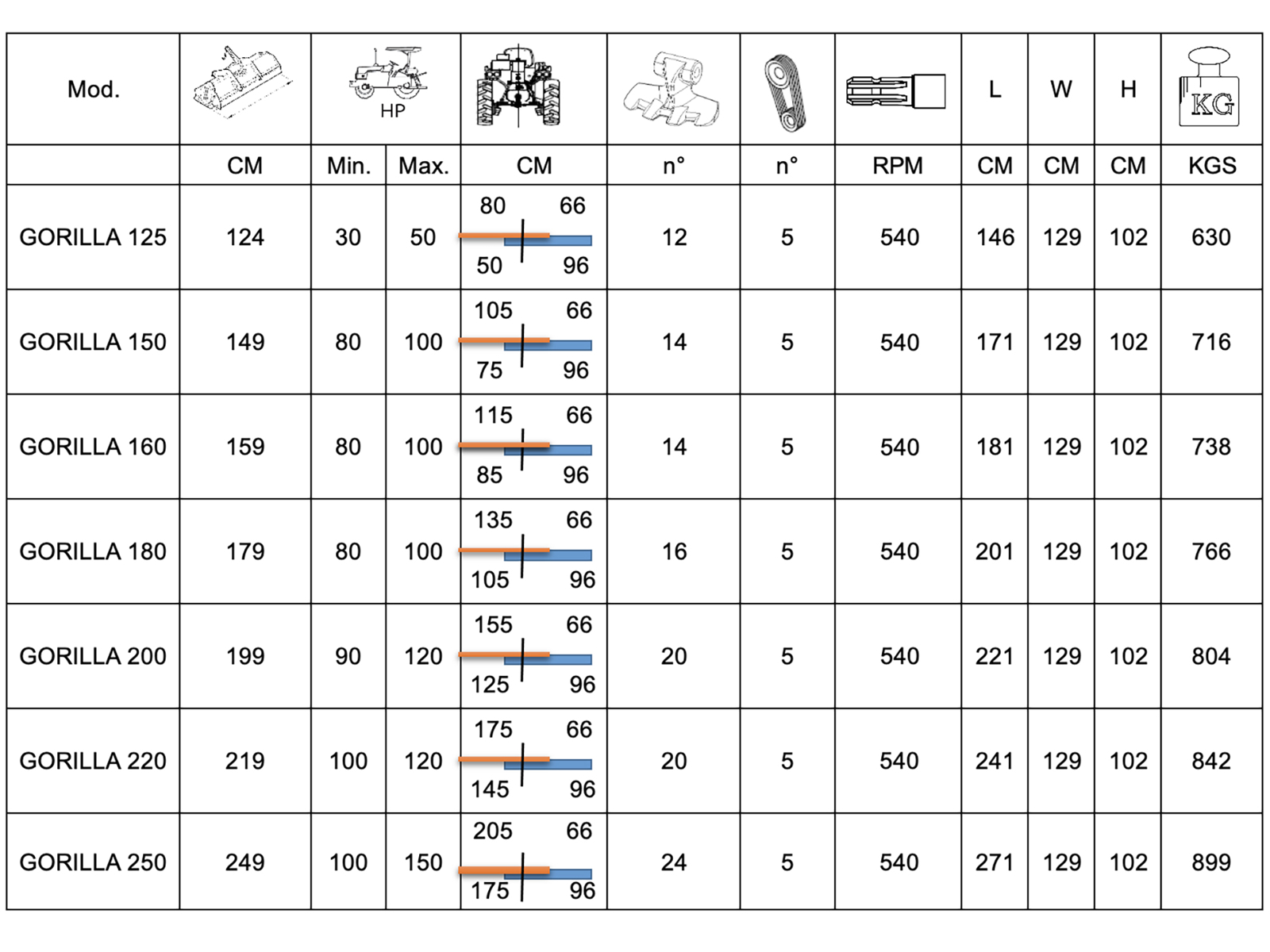

No: the GORILLA-150 and the GORILLA-180 need 80 to 100 hp, the GORILLA-200 and the GORILLA-220 need 90 to 120 hp. For tractors from 50 to 70 hp there are the CERVO heavy-duty flail mowers, which shred branches up to 6-8 cm (2.4-3.1 in).
What diameter will it shred?
Saplings, shrubs, branches and prunings up to 15 cm (6 in) thick, as well as brambles and weeds.
What is the hydraulic rear hood for?
It lifts the rear panel with its roller, on 2 side rams: in vineyards and orchards it lets you shred the pruning windrows without running over them.
What does the tractor need?
A 540 rpm PTO, a category 2 three-point linkage, a linkage able to carry the mower's 804 kg (1,773 lb) and rear hydraulic outlets for the side shift and for lifting the hood.
Can the flails and counter-knives be replaced?

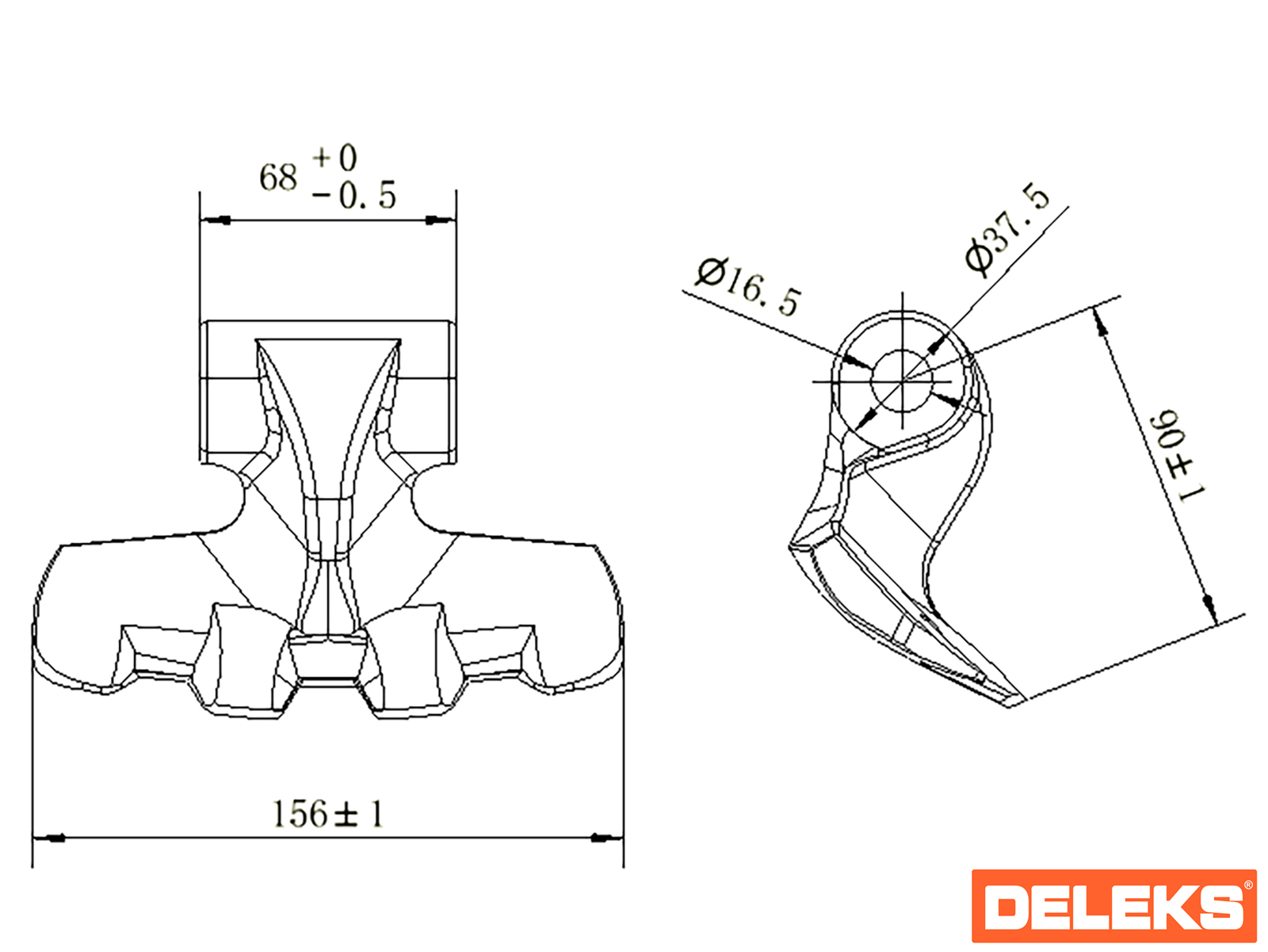

Yes: the kit of 10 hammer flails (MAZZE10GORILLA) and the kit of 10 counter-knives (CONTROCOLTELLI10GORILLA) can be ordered from this page; the counter-knives are bolted to the frame.
Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.
How does it differ from the CERVO and TORO heavy-duty flail mowers?
The CERVO and TORO are agricultural flail mowers, with flails of 1,100 g (2.4 lb), for prunings and branches up to 6-7 cm (2.4-2.8 in). The GORILLA is a forestry mulcher: flails of 1,600 g (3.5 lb), toothed brackets, counter-knives and a hydraulic hood, for wood up to 15 cm (6 in).
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 2000.0 mm | 6.56 ft |
| Overall width | 2210.0 mm | 7.25 ft |
| Min / Max cutting height | 50.0 - 70.0 mm | 1.96 - 2.75 in |
| Weight | 804.0 kg | 1772.0 lb |
| Overall height | 1020.0 mm | 3.35 ft |
| Tractor Power Range | 90 - 120 Hp | 90 - 120 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0 mm) | Cat. 2 (ø 25.0-28.0 mm) |
| Hood height | 500.0 mm | 19.70 in |
| Spacing between the 2 lower points | 740.0 - 890.0 mm | 28.95 - 35.00 in |
| Number of Hammers | 20 | 20 |
| Maximum cutting diameter | 150.0 mm | 5.90 in |
| Distance between pto attachment and ground | 600.0 mm | 23.60 in |
| Main hood thickness | 5.0 mm | 0.2 in |
| Sides thickness | 10.0 mm | 0.4 in |
| Side plates thickness | 8.0 mm | 0.32 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: Gearbox | 3 year warranty | 3 year warranty |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: RPM Rotor speed | 2166 rpm | 2166 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 5 | 5 |
| Transmission: V-Belts size | 17x1321 | 17x1321 |
| Rotor: diameter | 168.0 mm | 6.60 in |
| Rotor: bearings type and size | 1309 | 1309 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 8.0 mm | 0.31 in |
| Hammers: Weight | 1600.0 g | 56.50 oz |
| Rear roller: diameter | 152.0 mm | 5.98 in |
| Rear roller: sheet thickness | 6.0 mm | 0.24 in |
| Rear roller: bearings type and size | 6308 | 6308 |
| Pto shaft | CE 6x1000 mm + shear bolt | CE 6x1000 mm + shear bolt |
| Effective Displacement | 300.0 mm (Hydr.) | 11.80 in (Hydraulic) |
| Gross shipping weight | 824 kg | 1817 lb |
| Package volume | 2.48 m3 | 87.6 cu ft |
| Packing sizes | 2250.0*1100.0*1000.0 mm | 7.38*3.60*3.28 ft |
