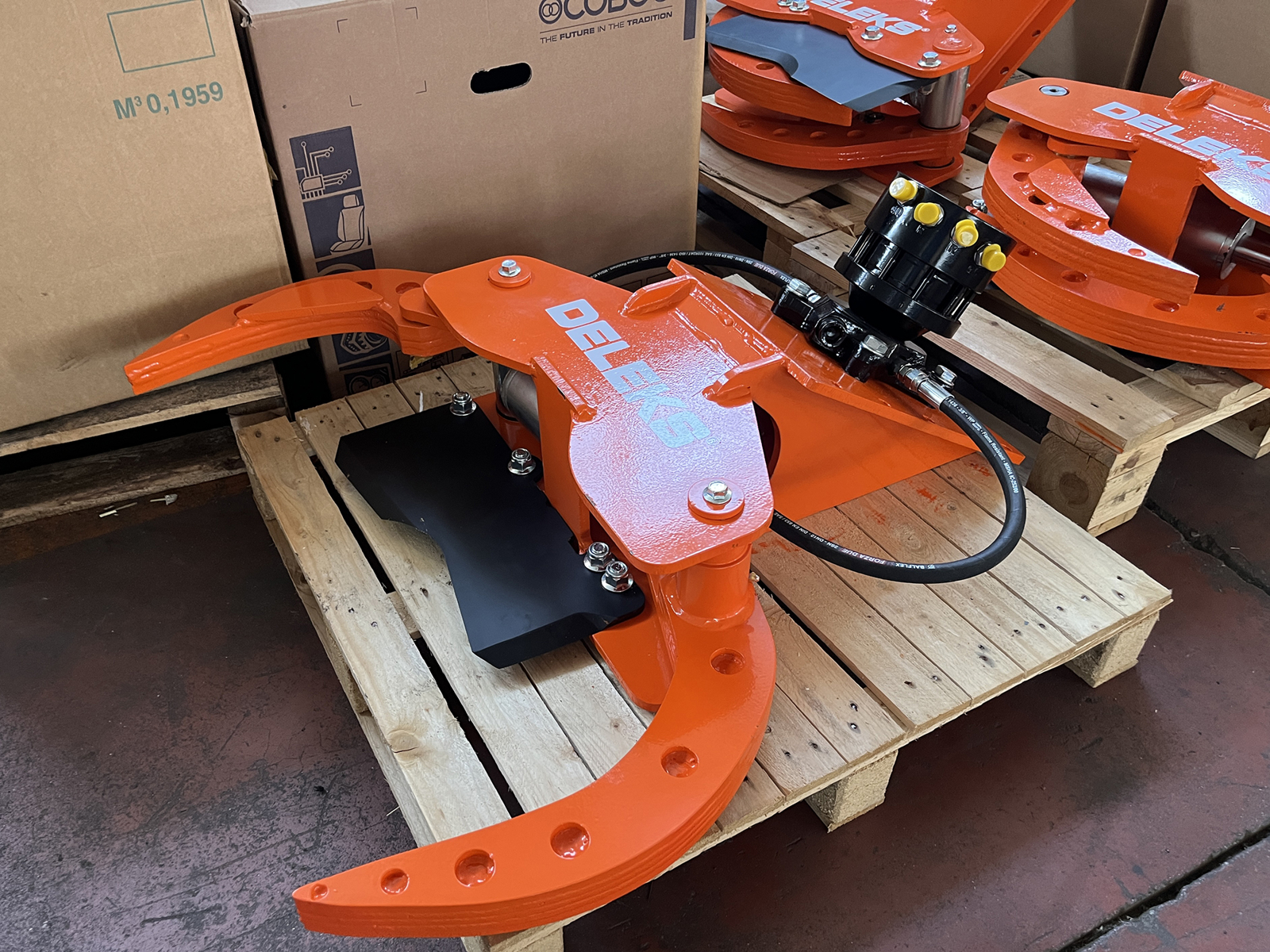

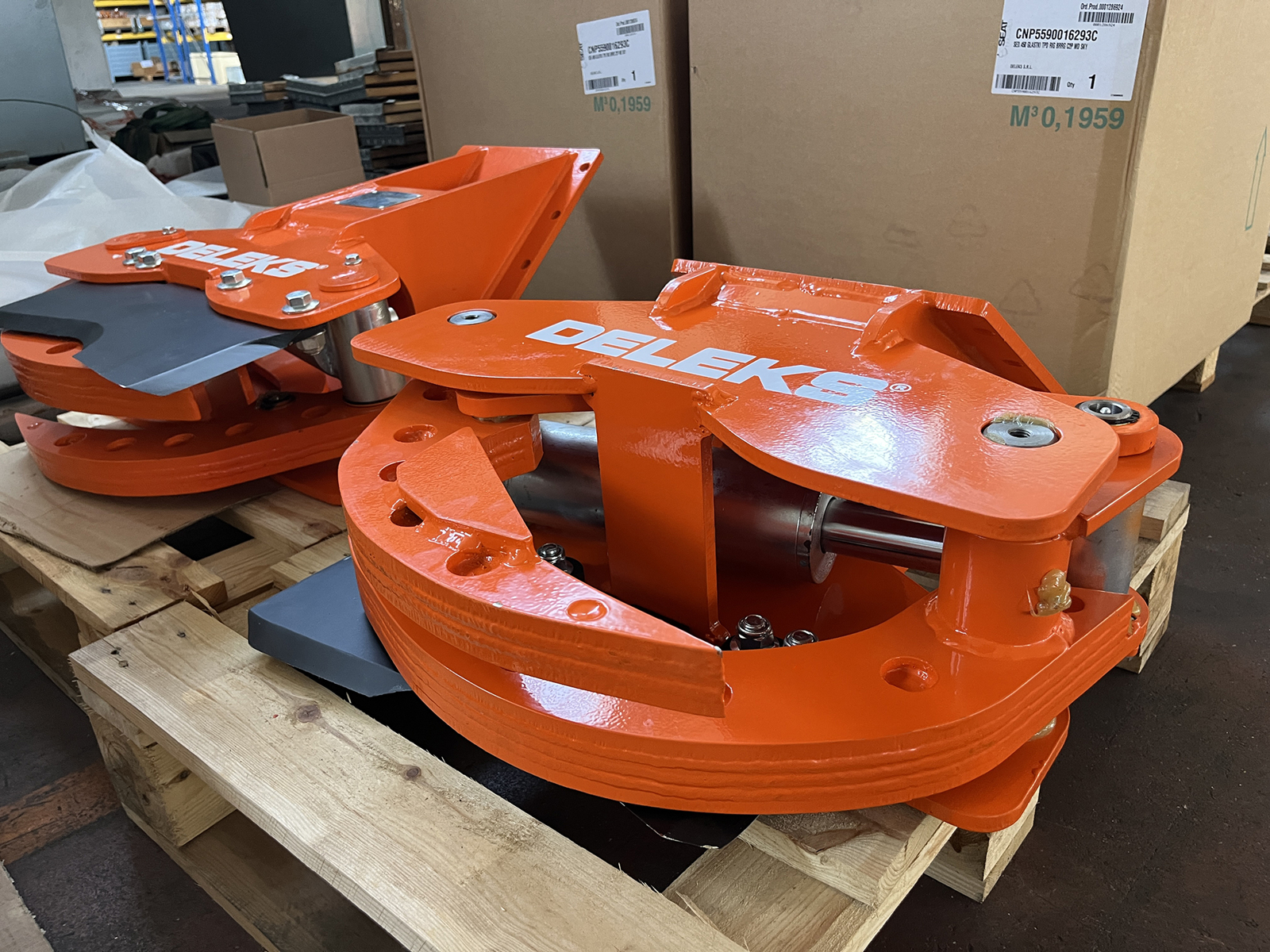

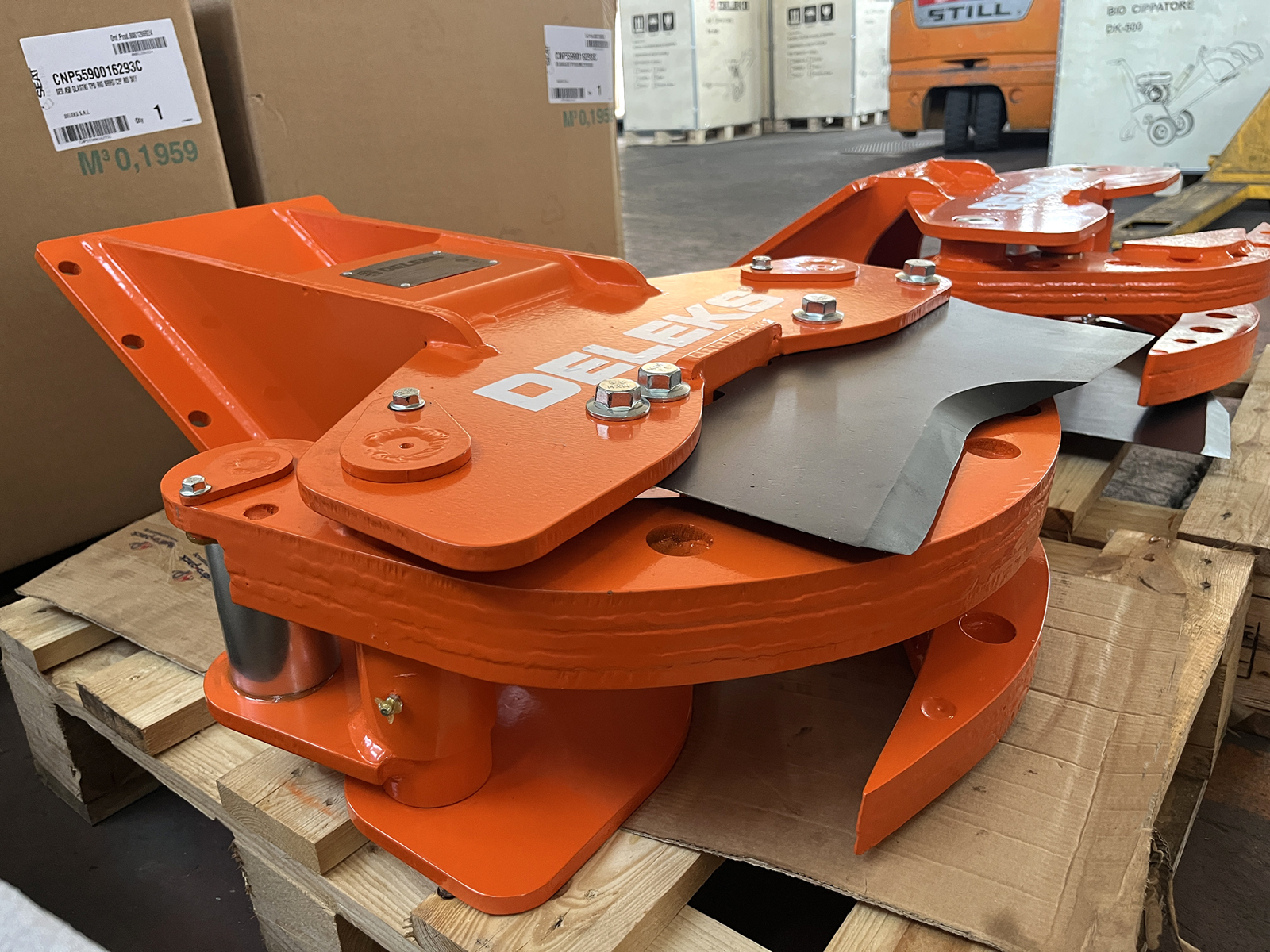

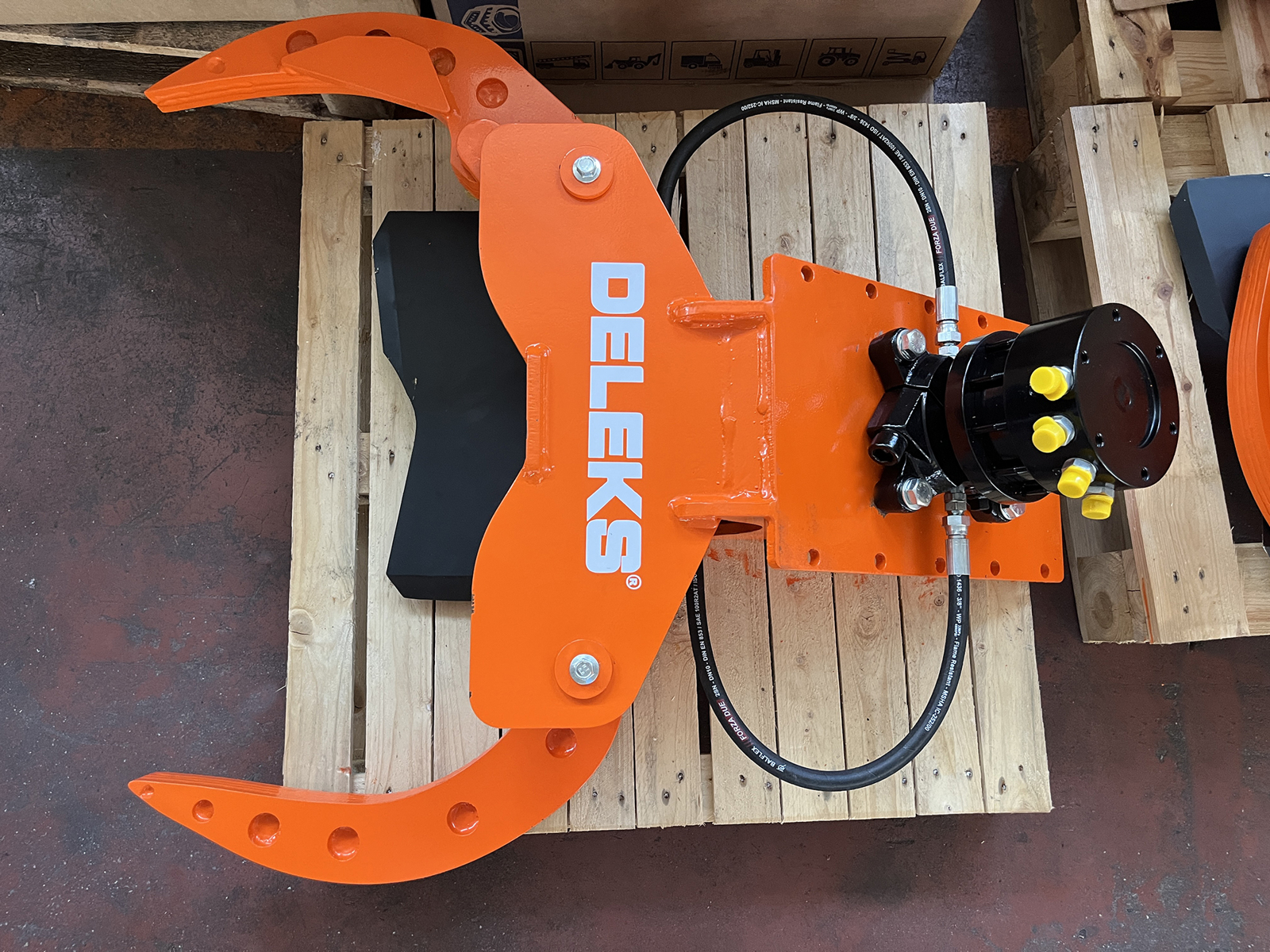

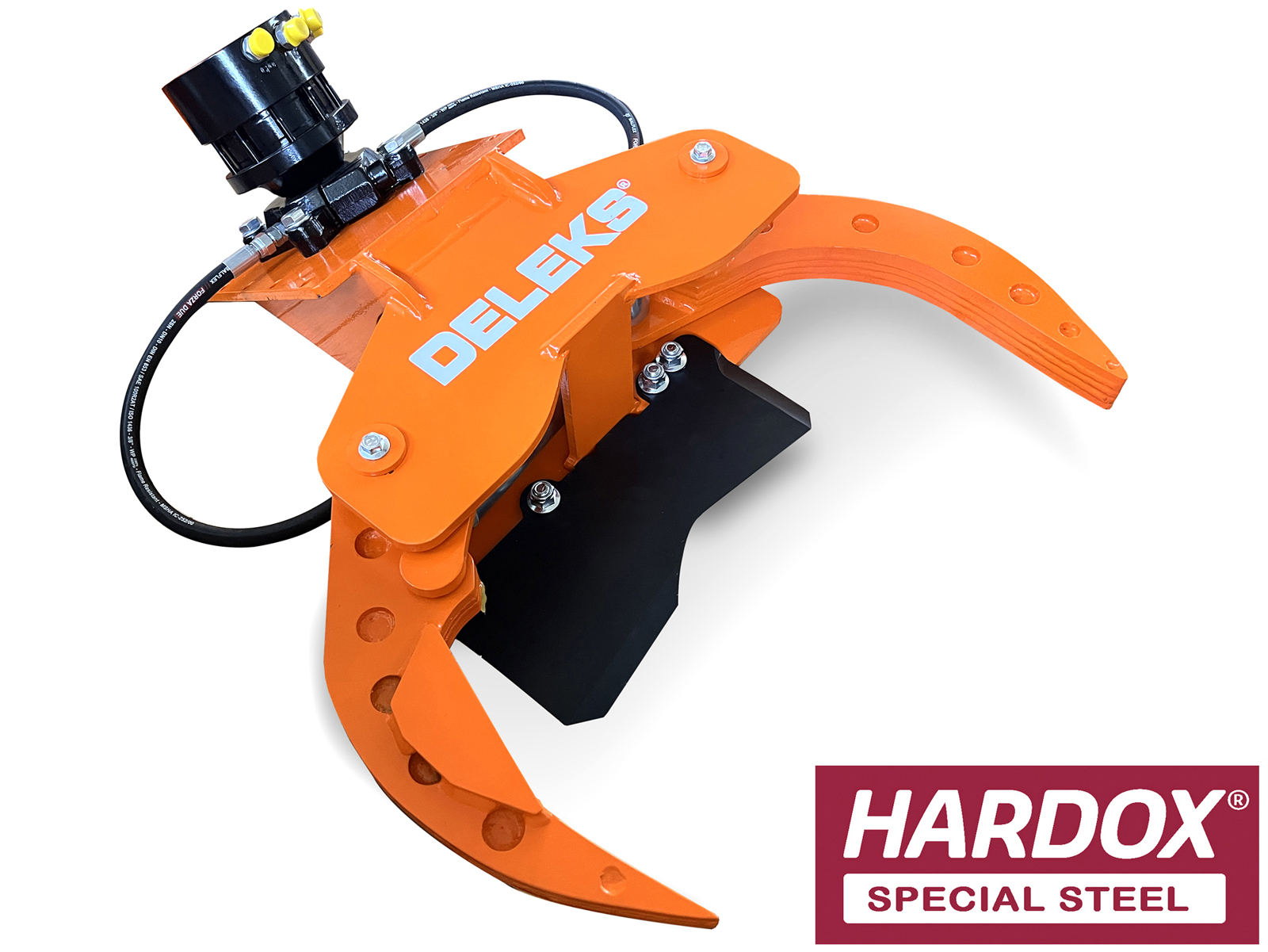

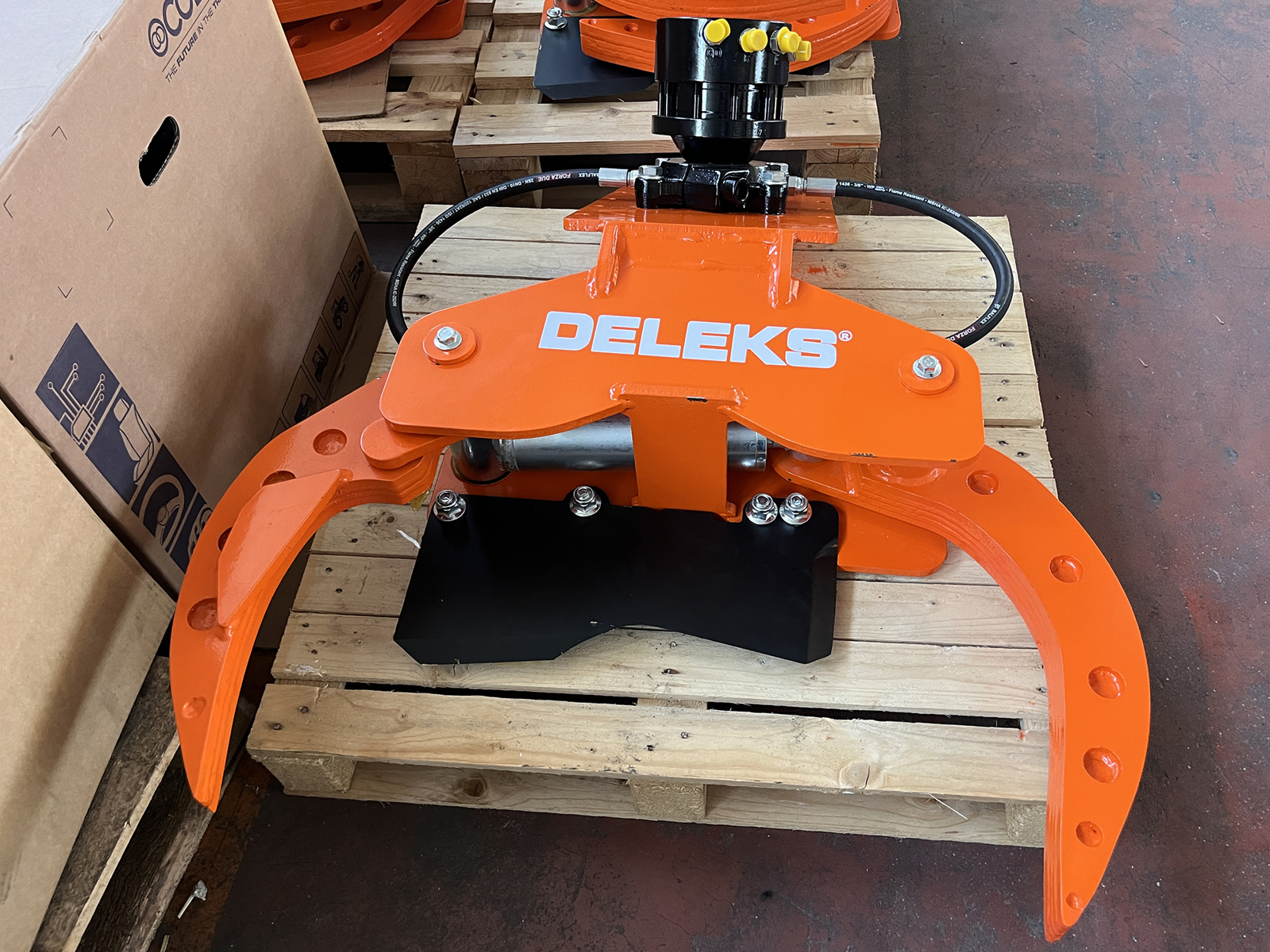

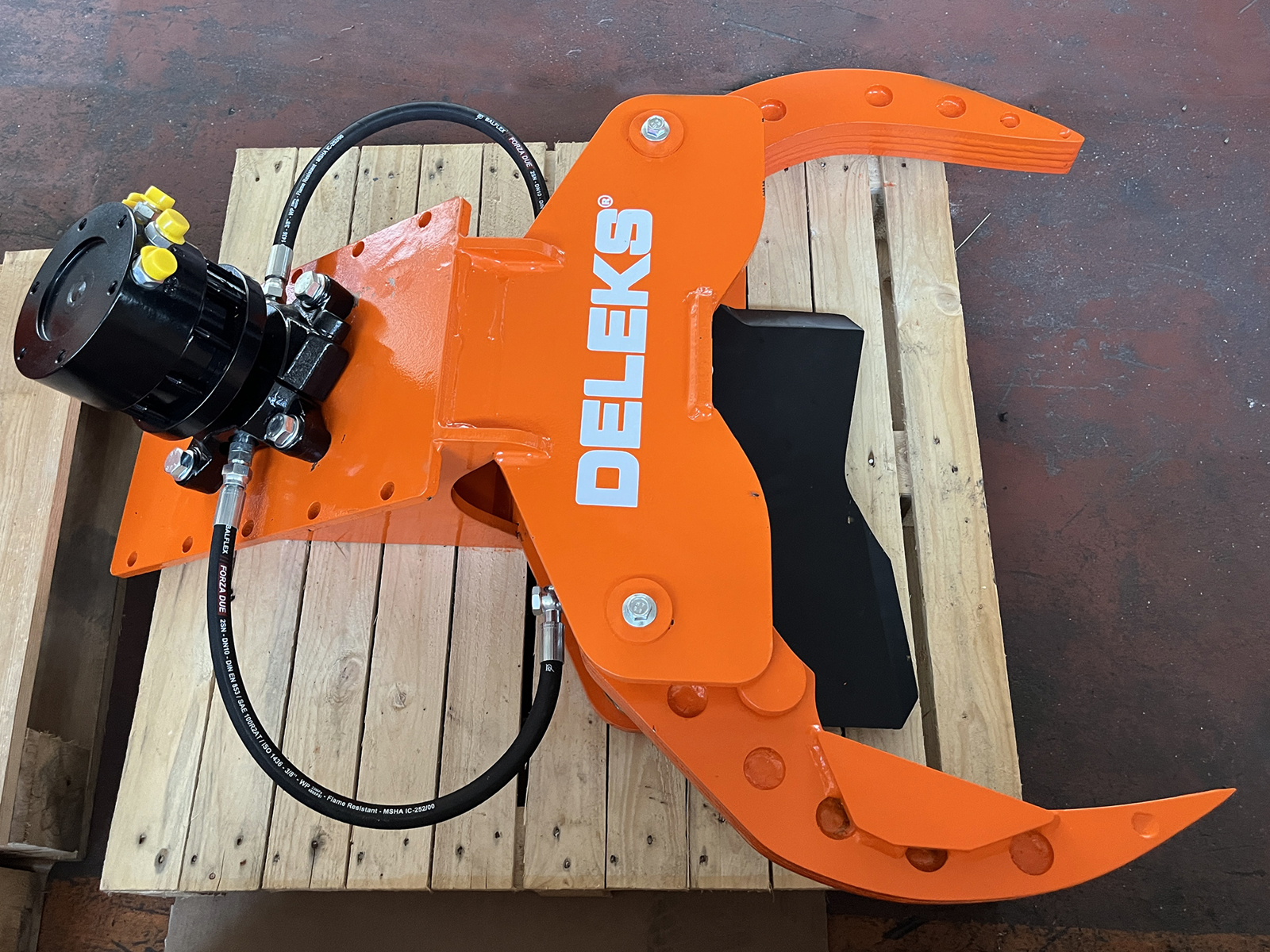

Mini Excavator hydraulic Tree Shear / Grab with fixed rotator for quick linkage, mod. CF-11R

Available
CodeCF11R
EAN 8053470236129
See more details

2 YEARS WARANTY

30 DAYS FOR RETURN

5-10 DAYS OF SHIPPING

SECURE PAYMENT


DETAILS

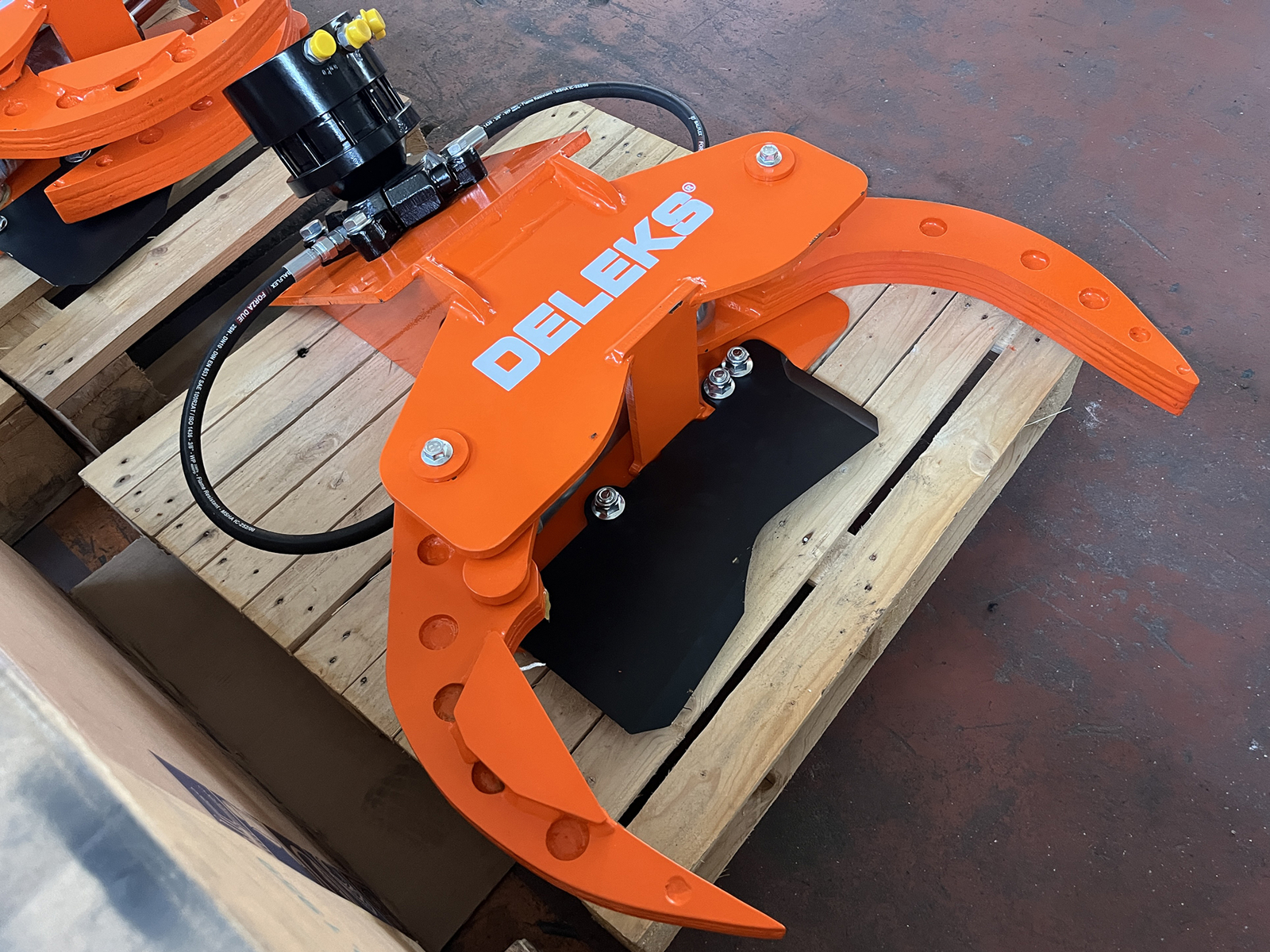

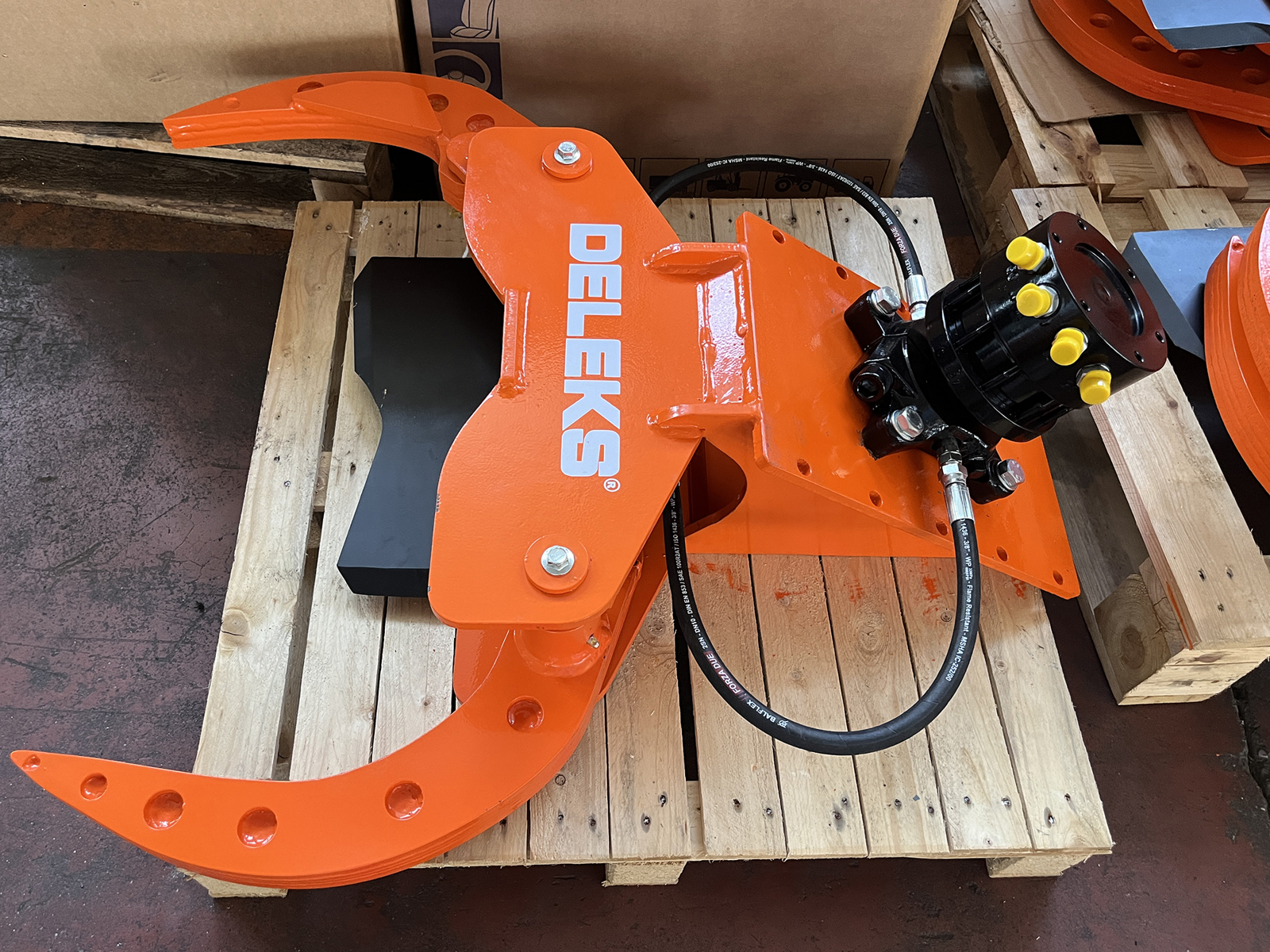

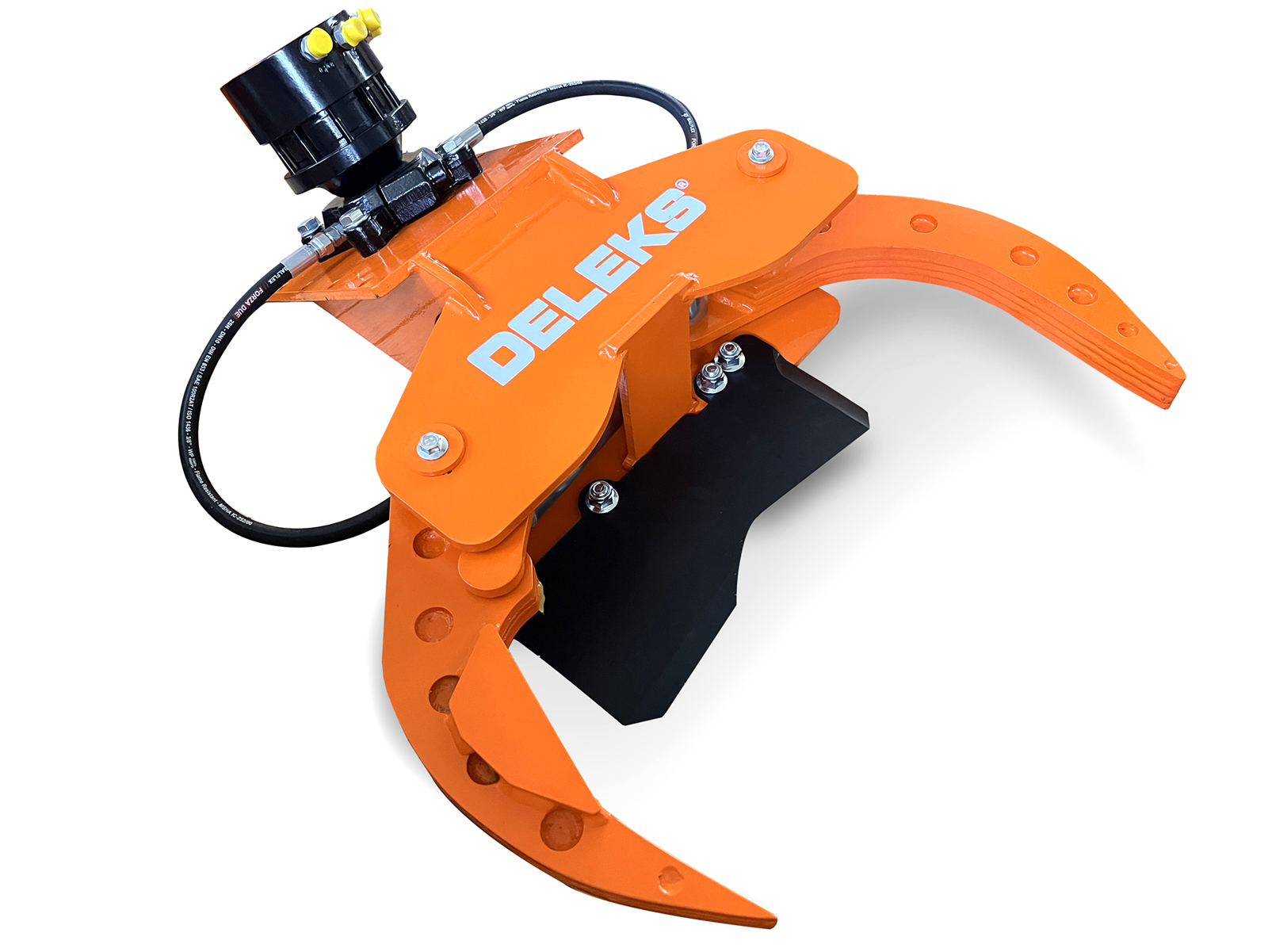

DELEKS® Tree shear with Lombarda Ingranaggi hydraulic rotator, for versatile professional use, suitable for use in smaller scale excavators up to 3 ton or front mounted on a skid-steer, telescopic or tractor.


OVERVIEW

CF-11R is ideal for harvesting low-grade timber and energy wood, for clearing fields and roadsides.

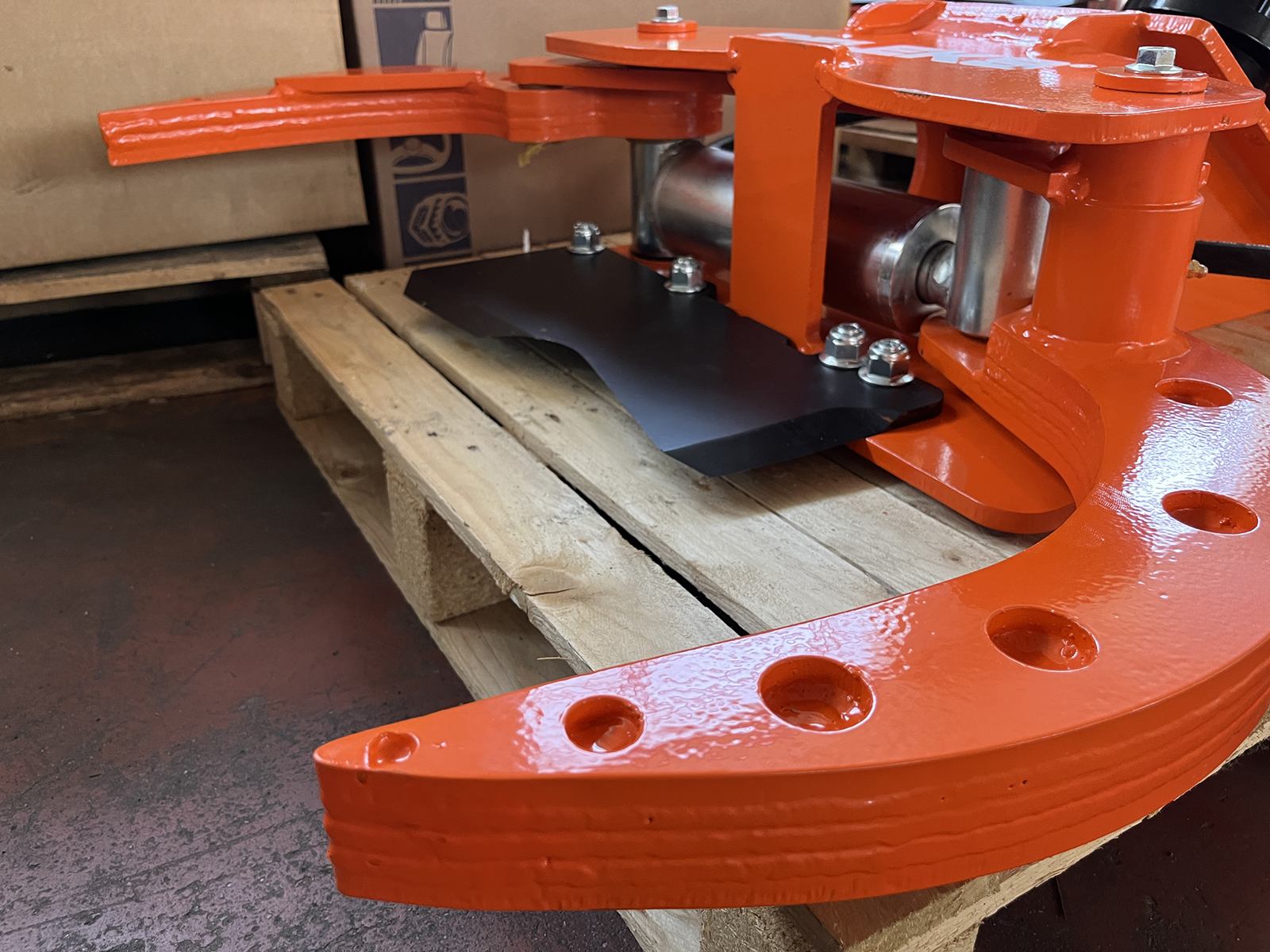

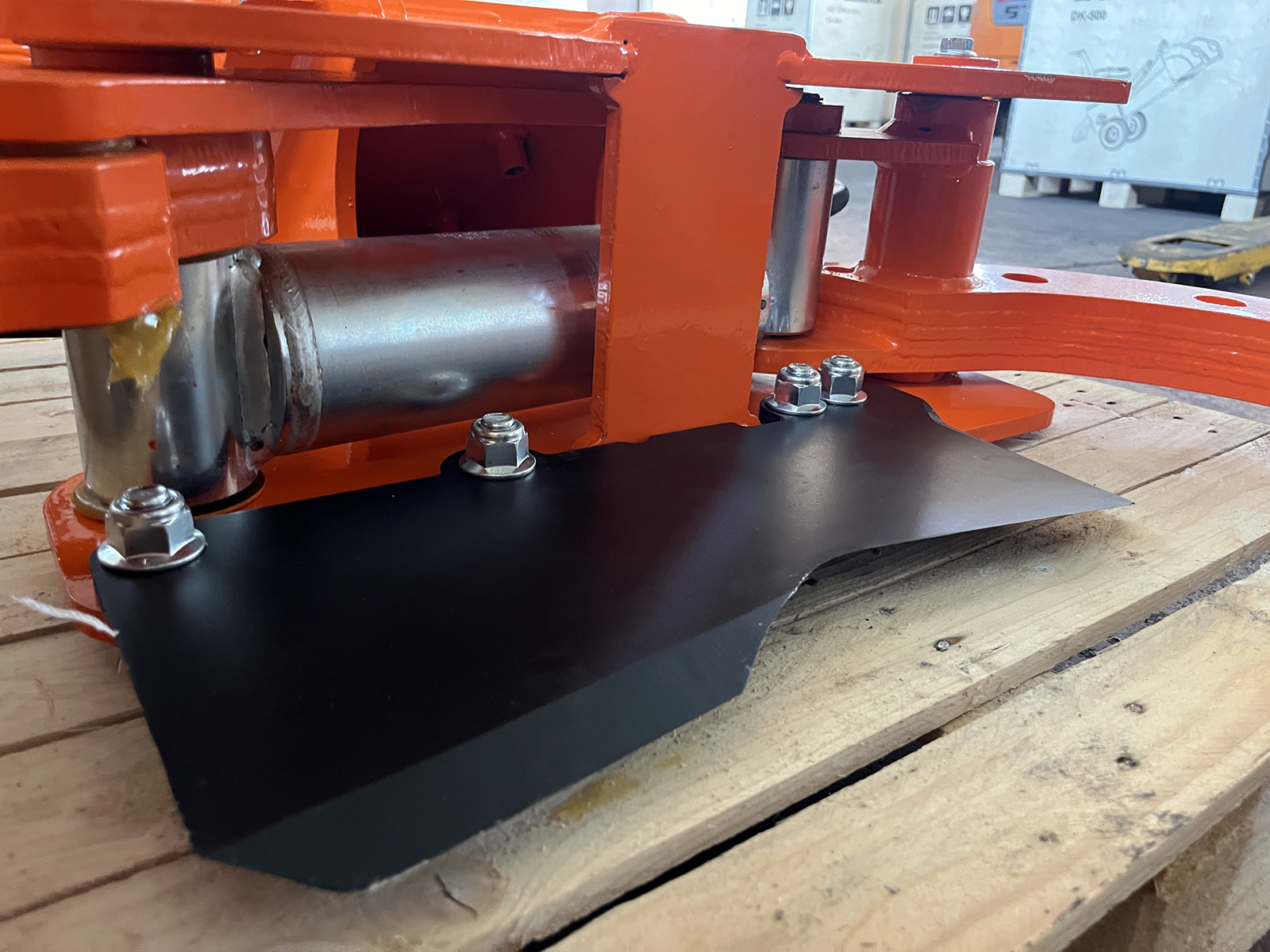

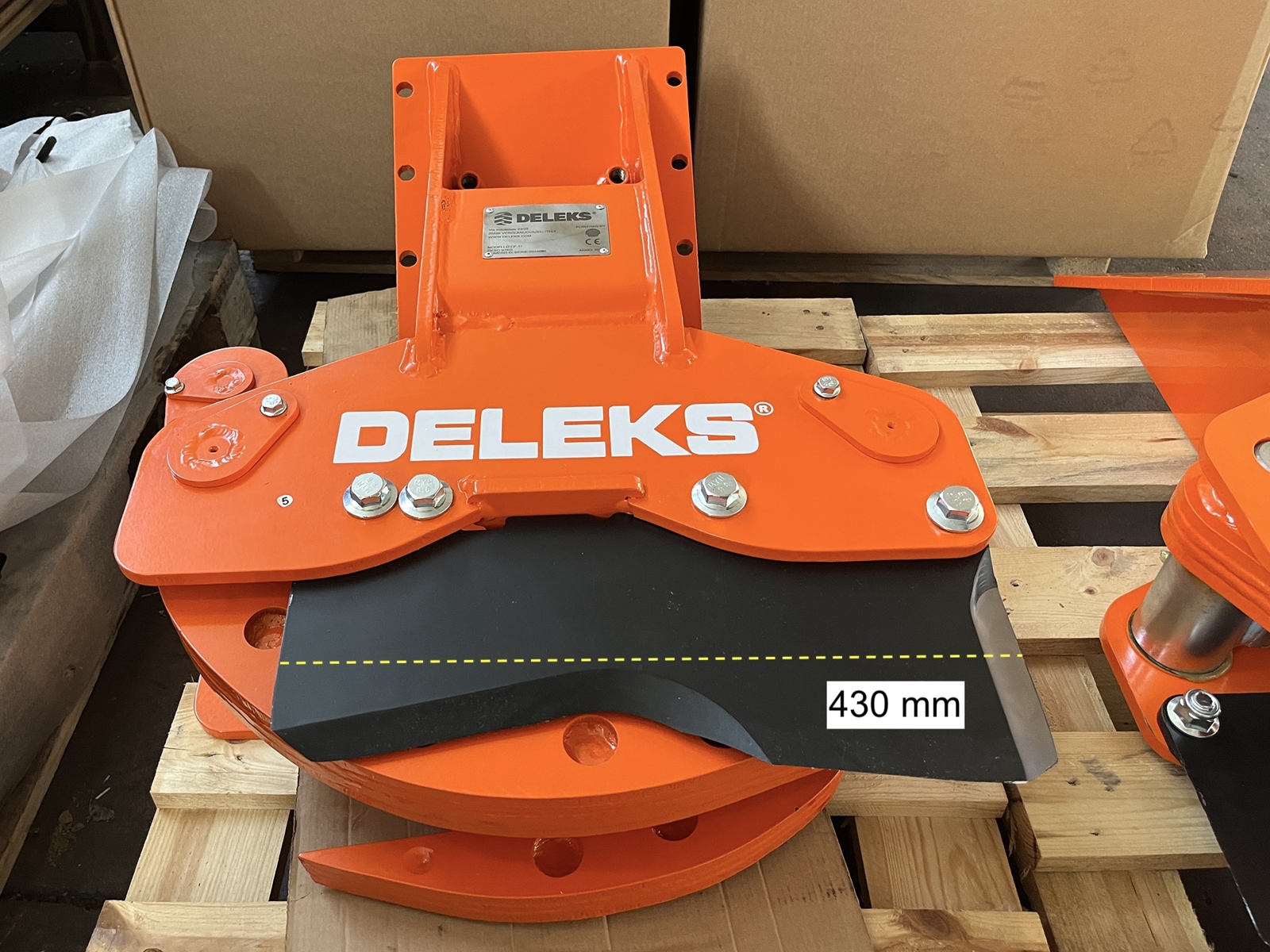

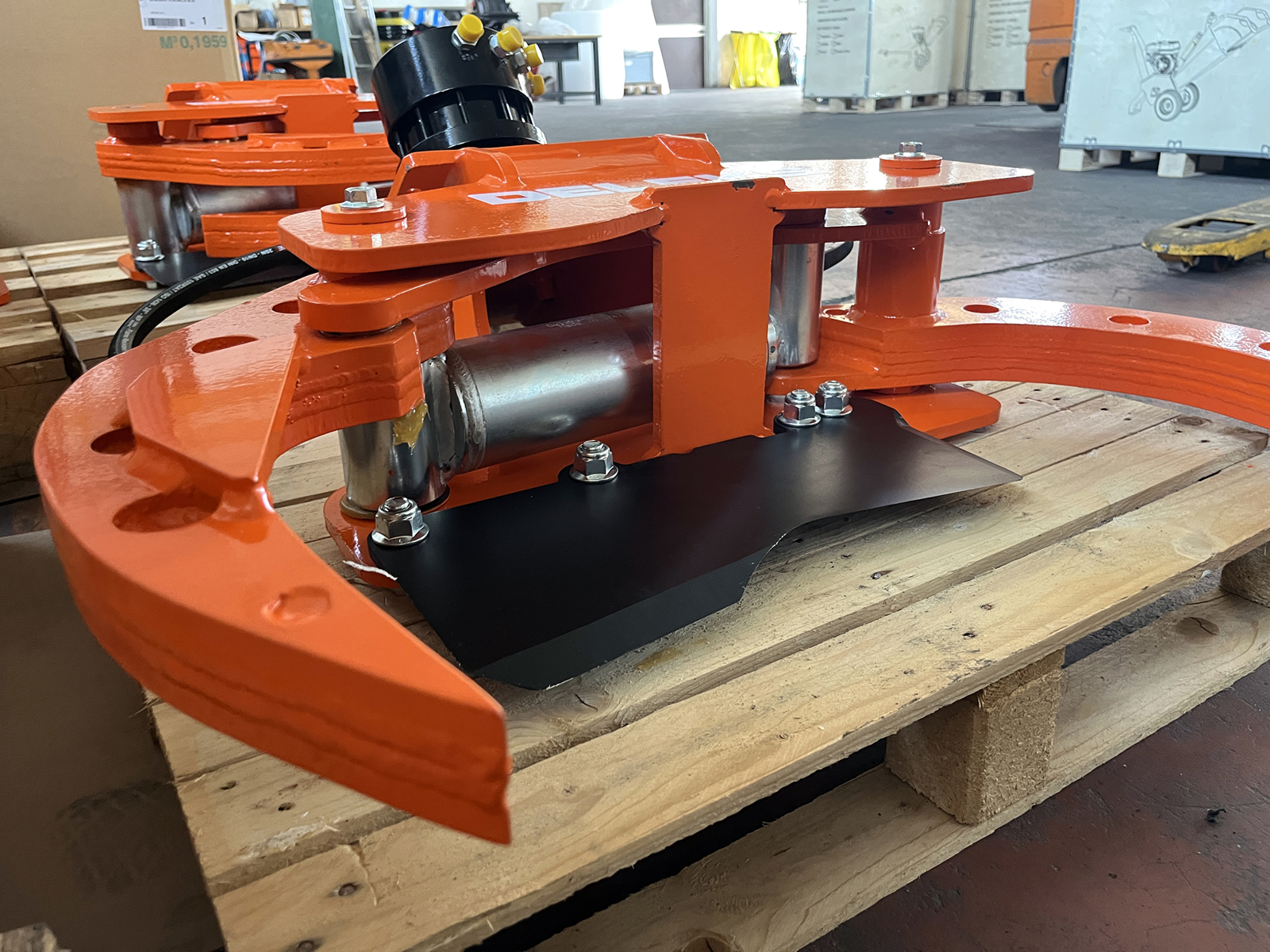

The DELEKS® mini-excavator hydraulic shear is capable of cutting trees or bunching thinner woods together with the grab for cutting.  The shear has a powerful hardened blade that will cleanly and safely cut through timber.

Available with excavator couplings (on request).

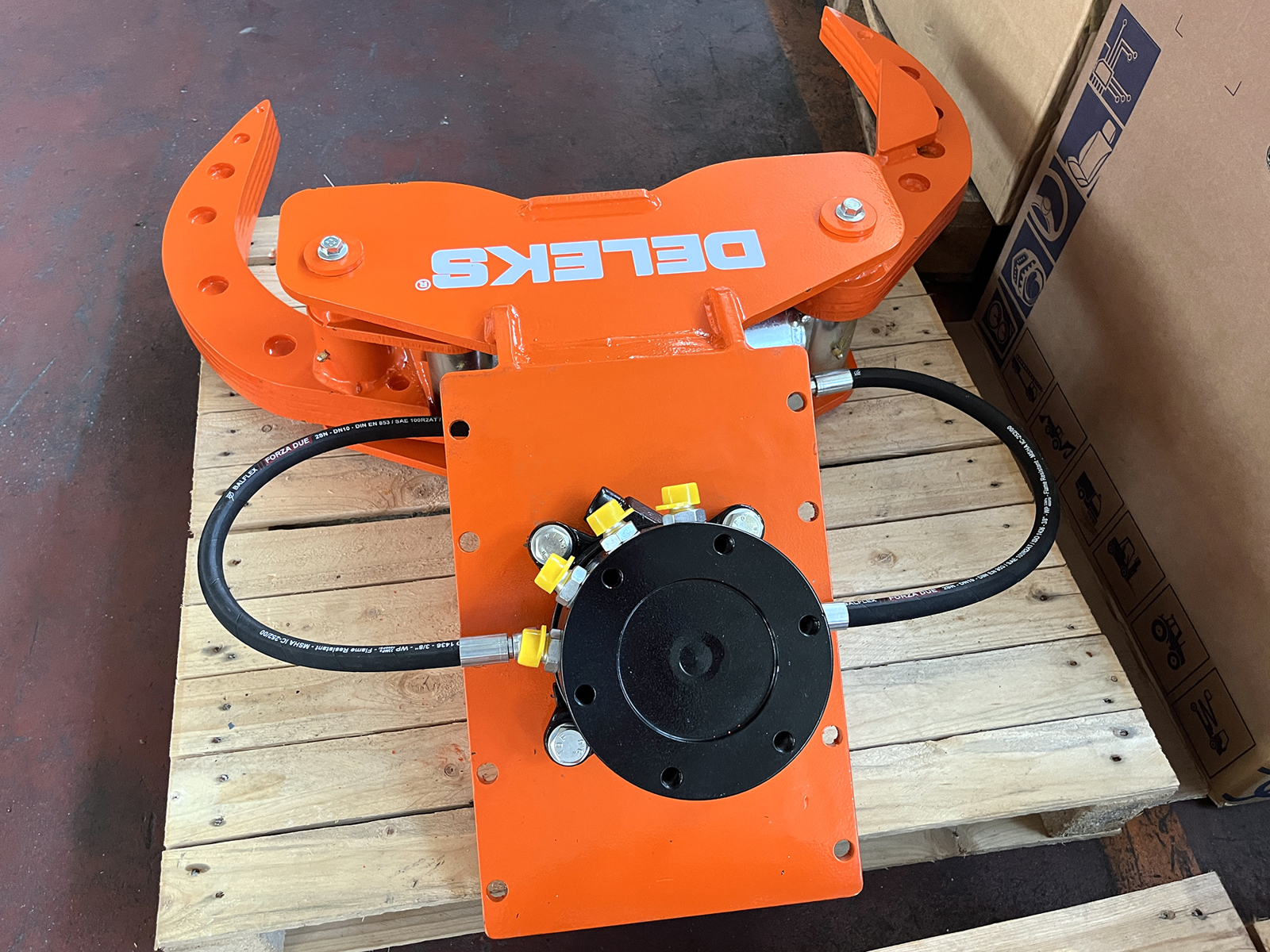

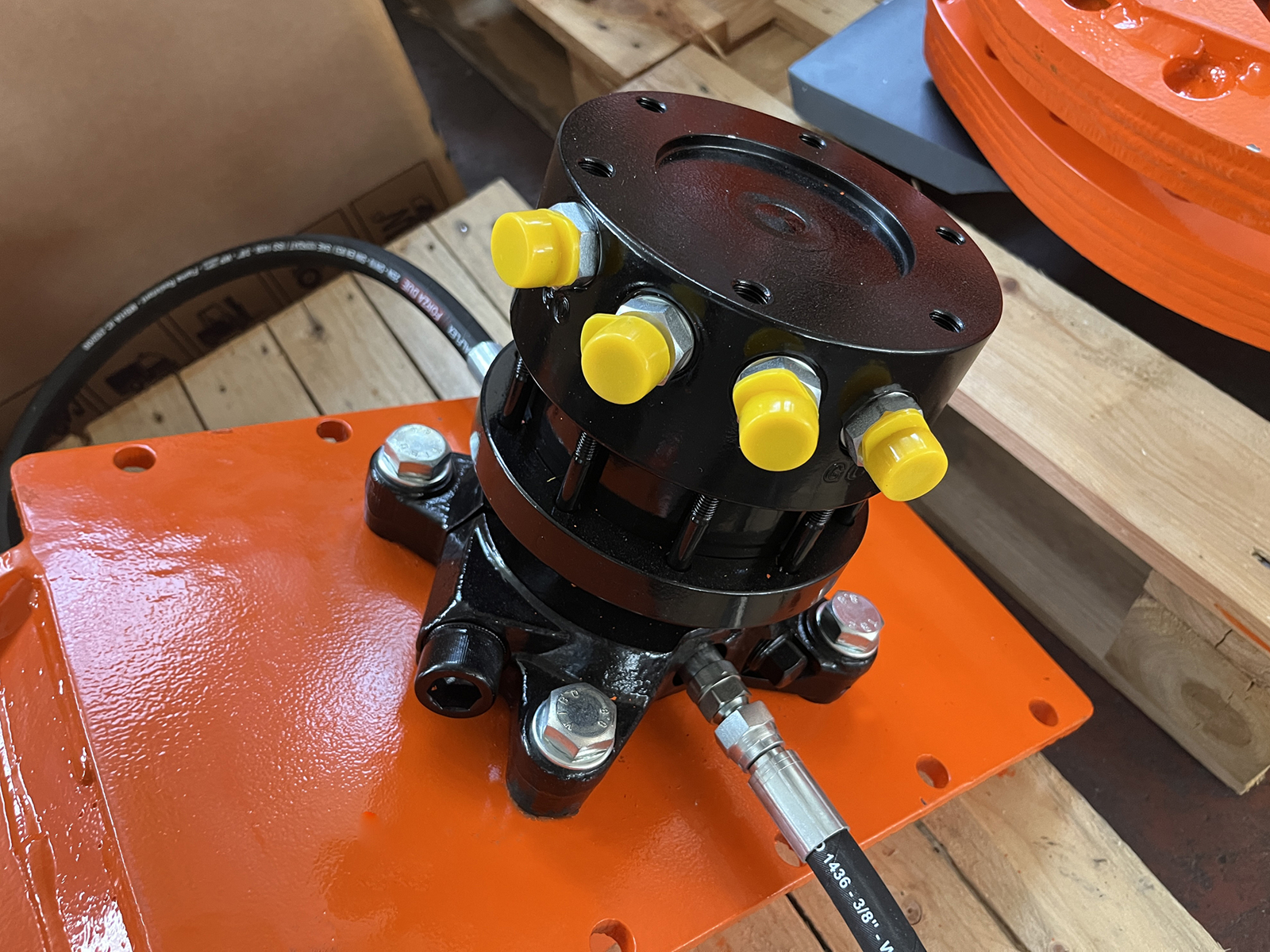

Rotator: Lombarda Ingranaggi® GR55FF rotators are powerful, reliable and robust. They are engineered to perform in heavy duty work environments with maximal efficiency and minimal unscheduled downtime as they have a loading capacity 4500kg.



BENEFITS & FEATURES

It is simple to attach and use.

Cutting at the ground level > low stump: DELEKS® CF-11R cuts the wood to be harvested neatly and precisely at the desired point from ground level, and its technical features ensure that stumps are cut low, at ground level.

With the CF-11R's wide 650 mm opening, it is also easy to cut several small trees at once.

2-in-1: cutting and loading: if necessary, the cutting blade can be removed, in which case the tree shear acts as a wood grapple.






CARACTERISTICS

Caracteristic Units metric Units US
Weight 132.0 kg 290.0 lb
Trunk cutting diameter 130-150 mm 5.10 - 5.90 in
Min./Max. Relief Pressure 175 - 210 bar 175 - 210 bar
Min./Max. Flow 25 - 50 l/min 25 - 50 l/min
Hydraulic Hoses 400 bar pressure 400 bar pressure

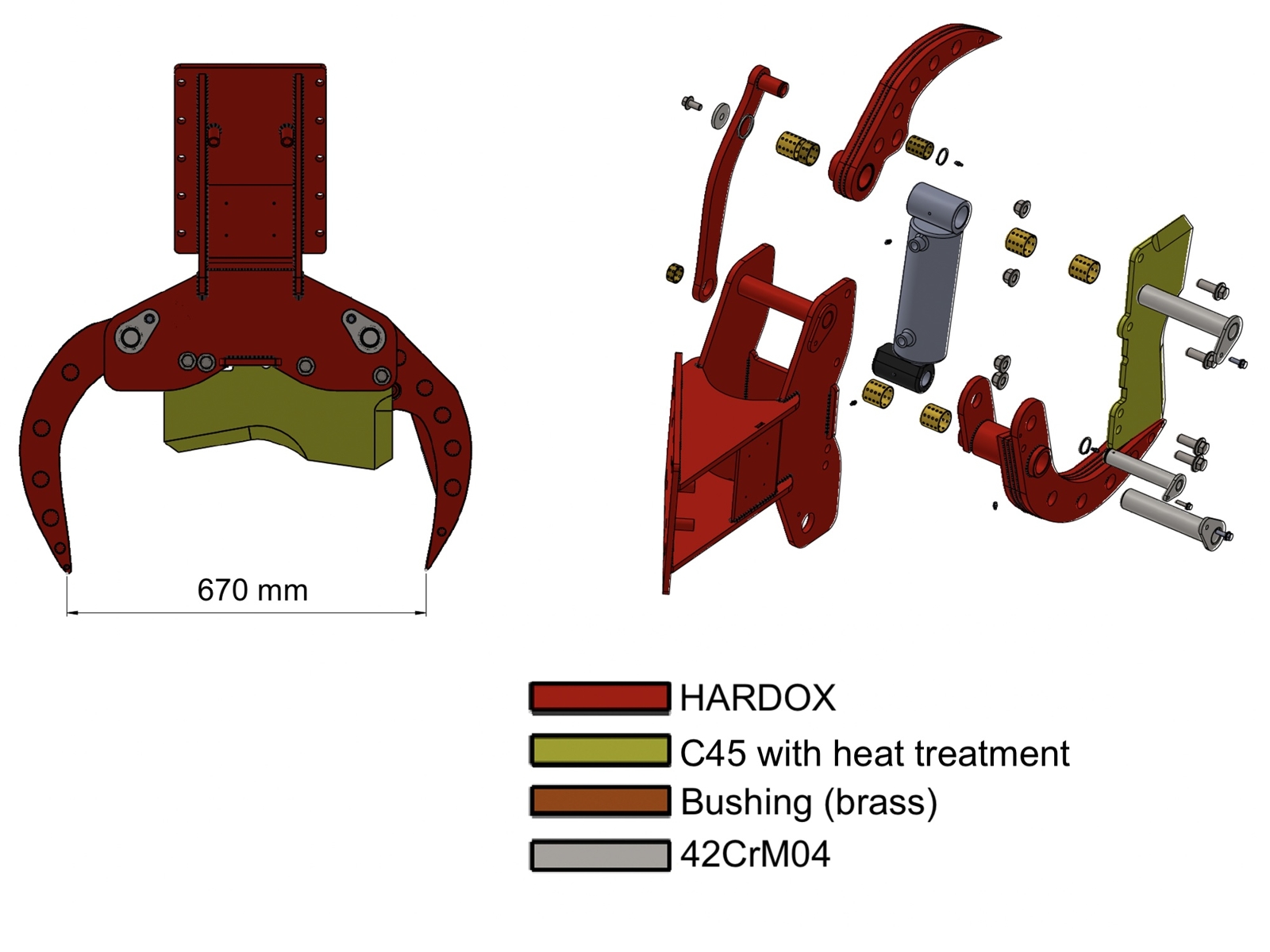

Max Opening 650.0 mm 25.60 inch

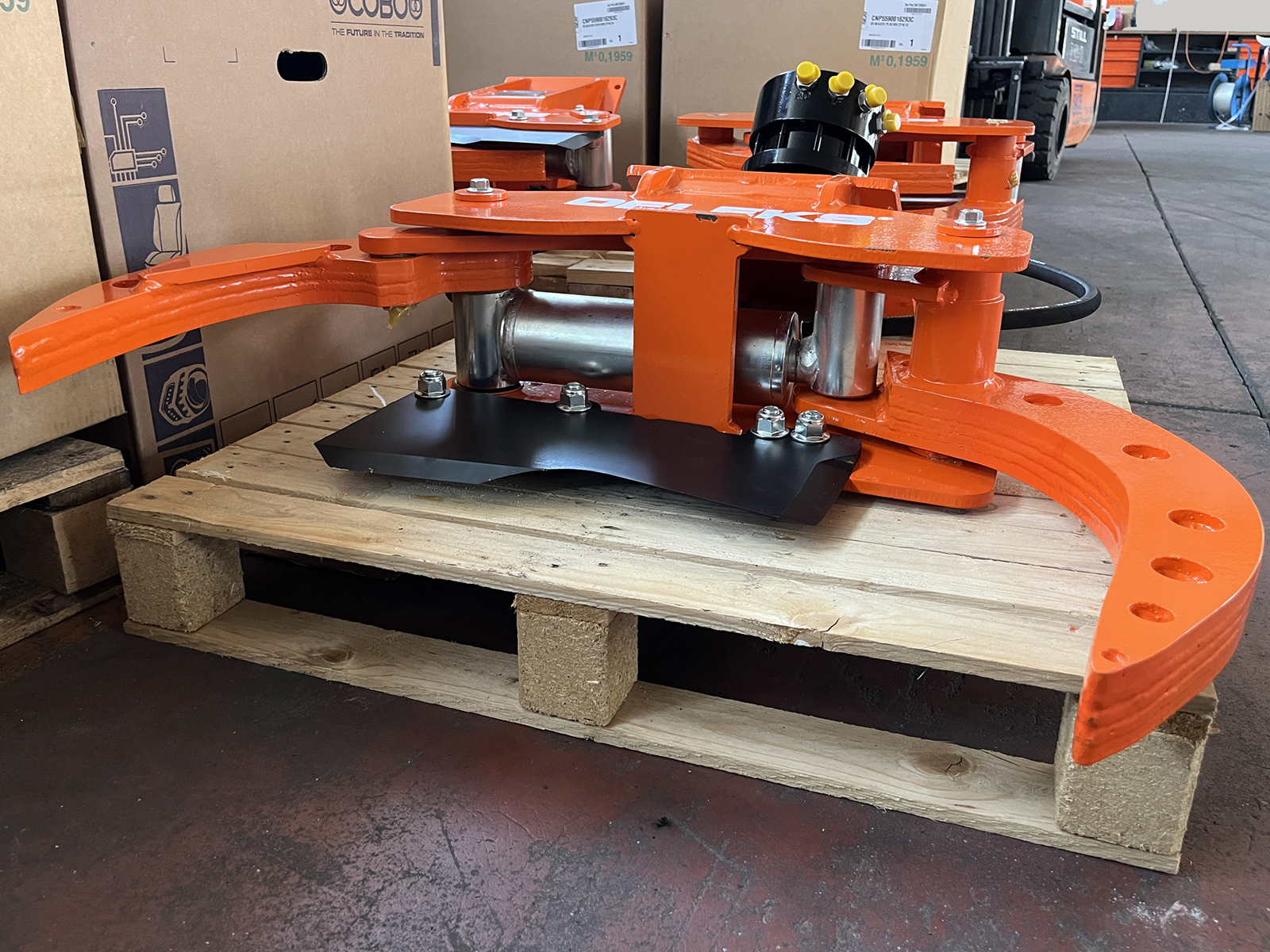

Hydraulic cilinder diameter 80.0 - 40.0 mm 3.15 - 1.57 in
Compact Excavators Range 2.0 - 3.0 ton 2.0 - 3.0 ton
Packing sizes 600.0*800.0*450.0 mm 1.97*2.62*1.47 ft
