Stalk shredder for tractors 260 cm (102 in) BISON-260, heavy-duty blade shredder for maize stalks, stubble and crop residues, 90-130 hp tractors
DETAILS

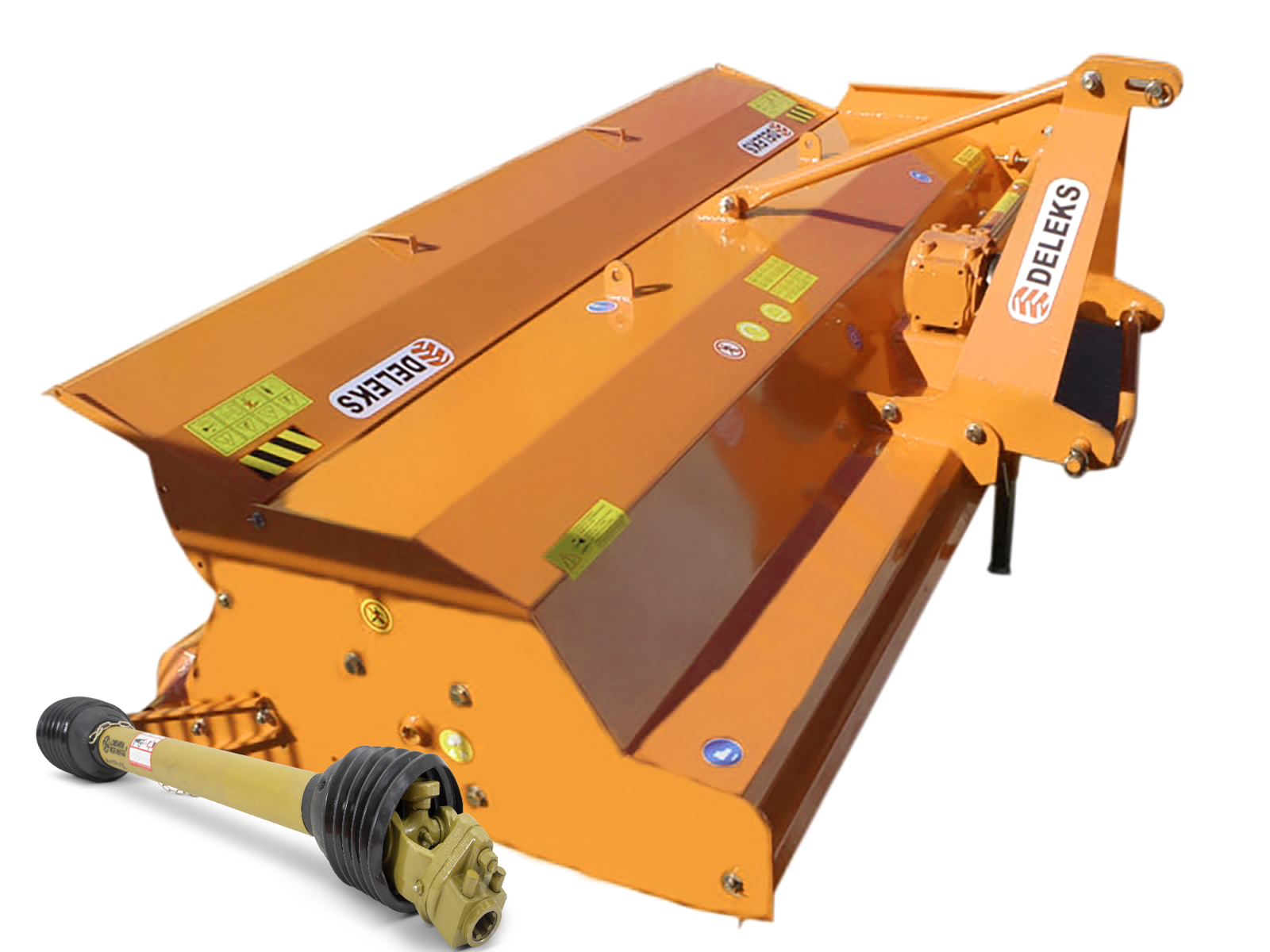

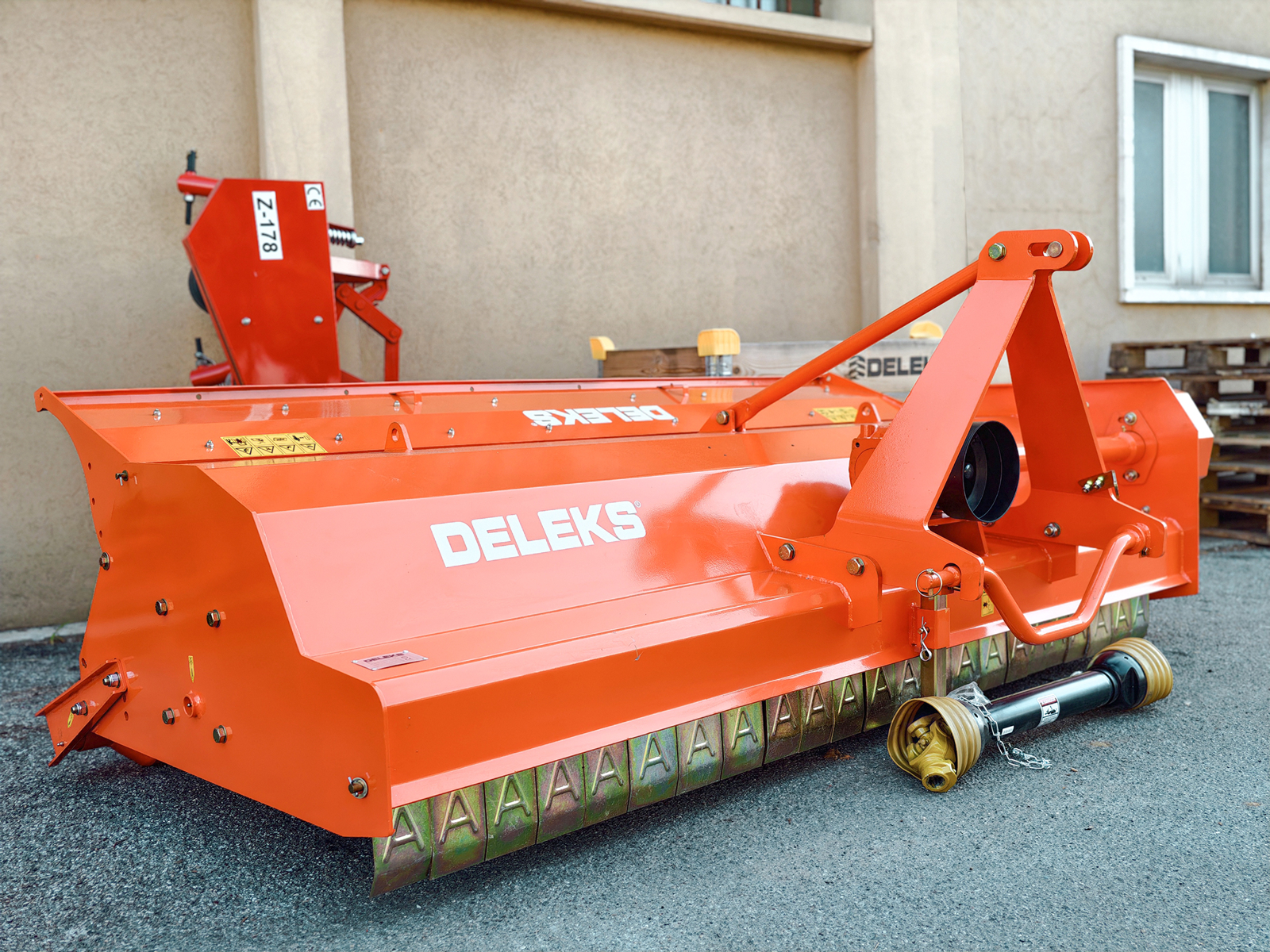

Stalk shredder for tractors with a 260 cm (102 in) cut: the DELEKS® BISON-260 is the professional heavy-series shredder for maize stalks, wheat, soya and rapeseed stubble, straw and crop residues, for farms and contractors running tractors from 90 to 130 hp, such as New Holland, John Deere, Same, Deutz-Fahr, Landini and Massey Ferguson. The electronically balanced 205 mm (8.1 in) rotor carries 84 blades in 28 sets of three, shreds the residues and spreads them on the ground; the 220 mm (8.7 in) rear roller sets the cutting height from 10 to 100 mm (0.4 to 3.9 in). Double-skin hood, opening rear cover, 540 rpm gearbox with freewheel, 4-belt drive, 900 kg (1,984 lb). CAC-certified, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.
Which tractors it fits
The BISON-260 cuts 260 cm (102 in) with an overall width of 275 cm (108 in) and is intended for farms and contractors running tractors from 90 to 130 hp with a 540 rpm PTO and a category 2 three-point linkage (25-28 mm pins, lower link spacing from 750 to 940 mm): New Holland, John Deere, Same, Deutz-Fahr, Landini, Massey Ferguson, Fiat, Kubota and equivalent tractors. The gearbox sits 650 mm above the ground.

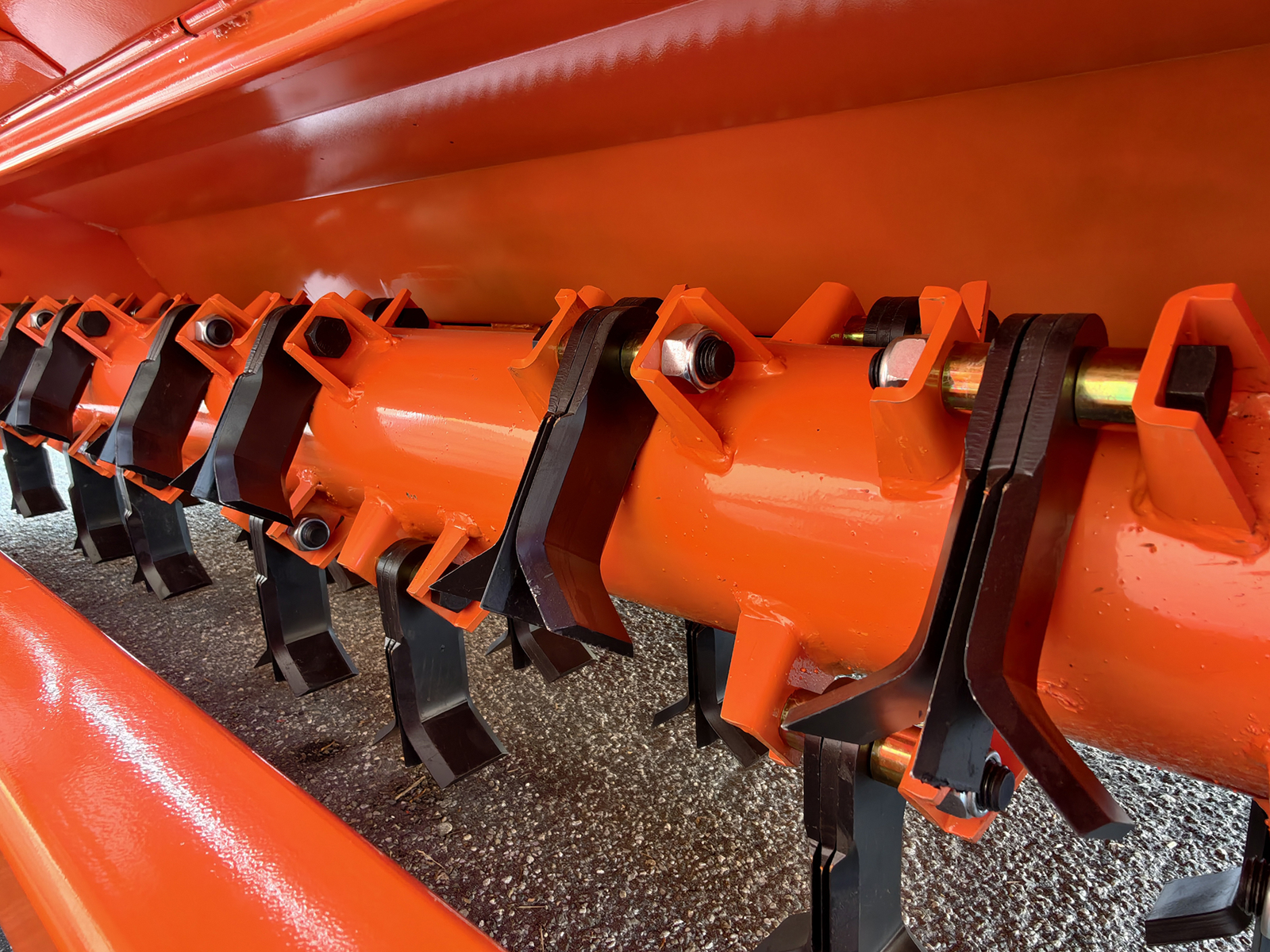

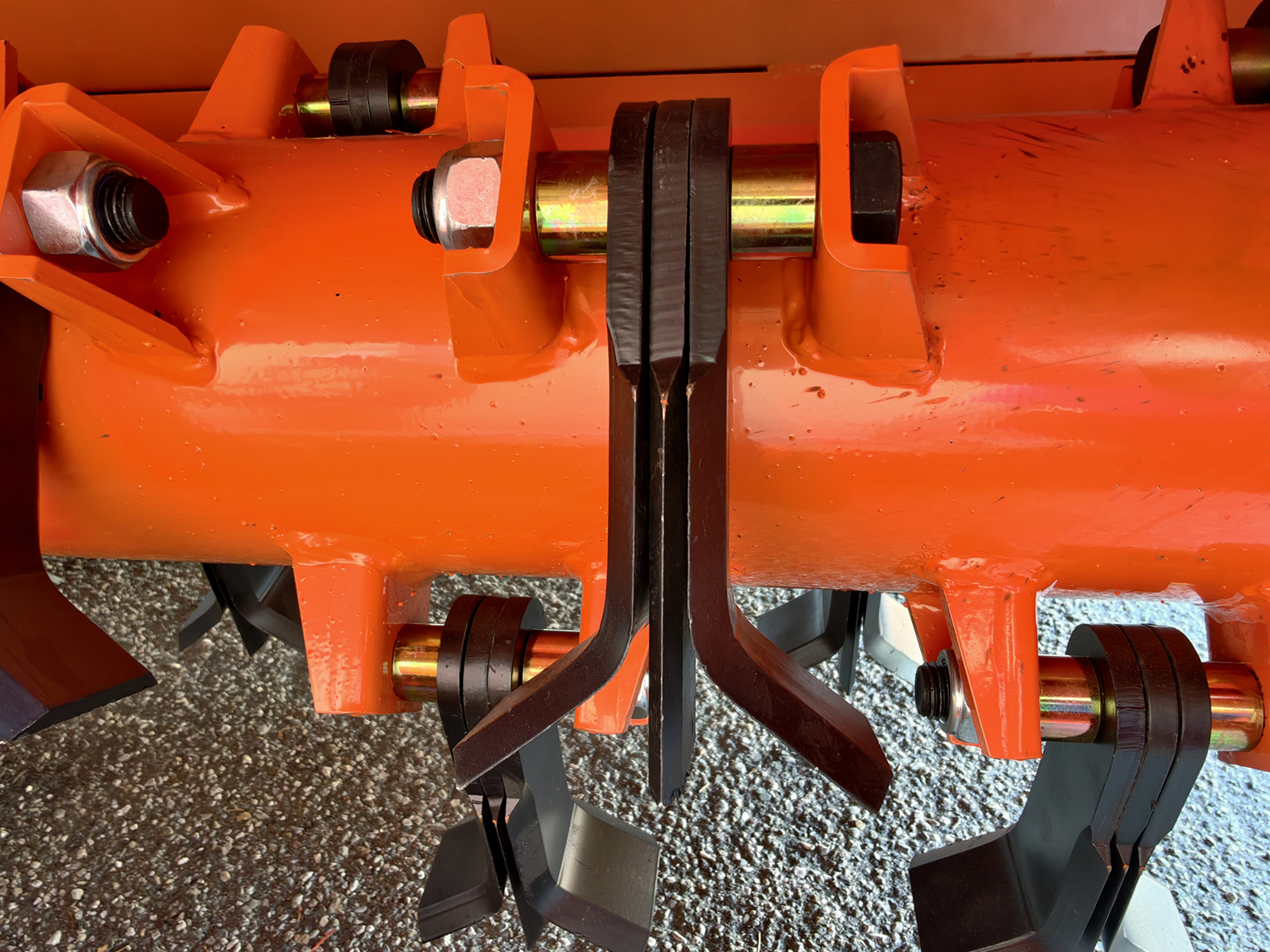

205 mm (8.1 in) rotor with 84 blades

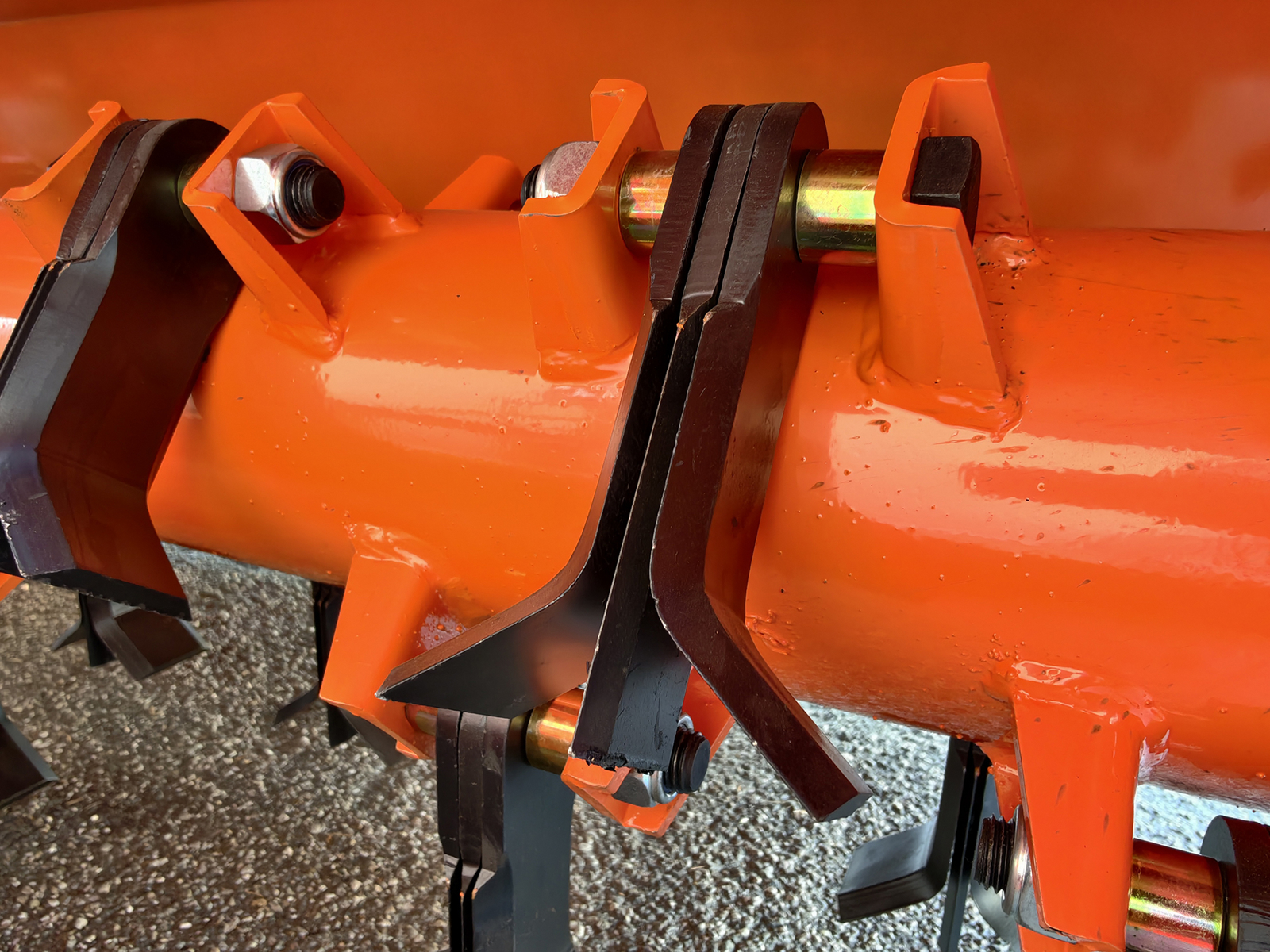

The rotor is 205 mm (8.1 in) in diameter, with an 8 mm (5/16 in) tube wall; it is electronically balanced, to cut vibration and wear, and spins at 1,790 rpm. It carries 84 blades, in 28 sets of three, and is designed to take hammer flails or blades. It shreds maize stalks, stubble, straw and dense vegetation, up to 3-4 cm (1.2-1.6 in) thick, and spreads the material on the ground. The rotor supports are in steel, with sealed, watertight bearings.

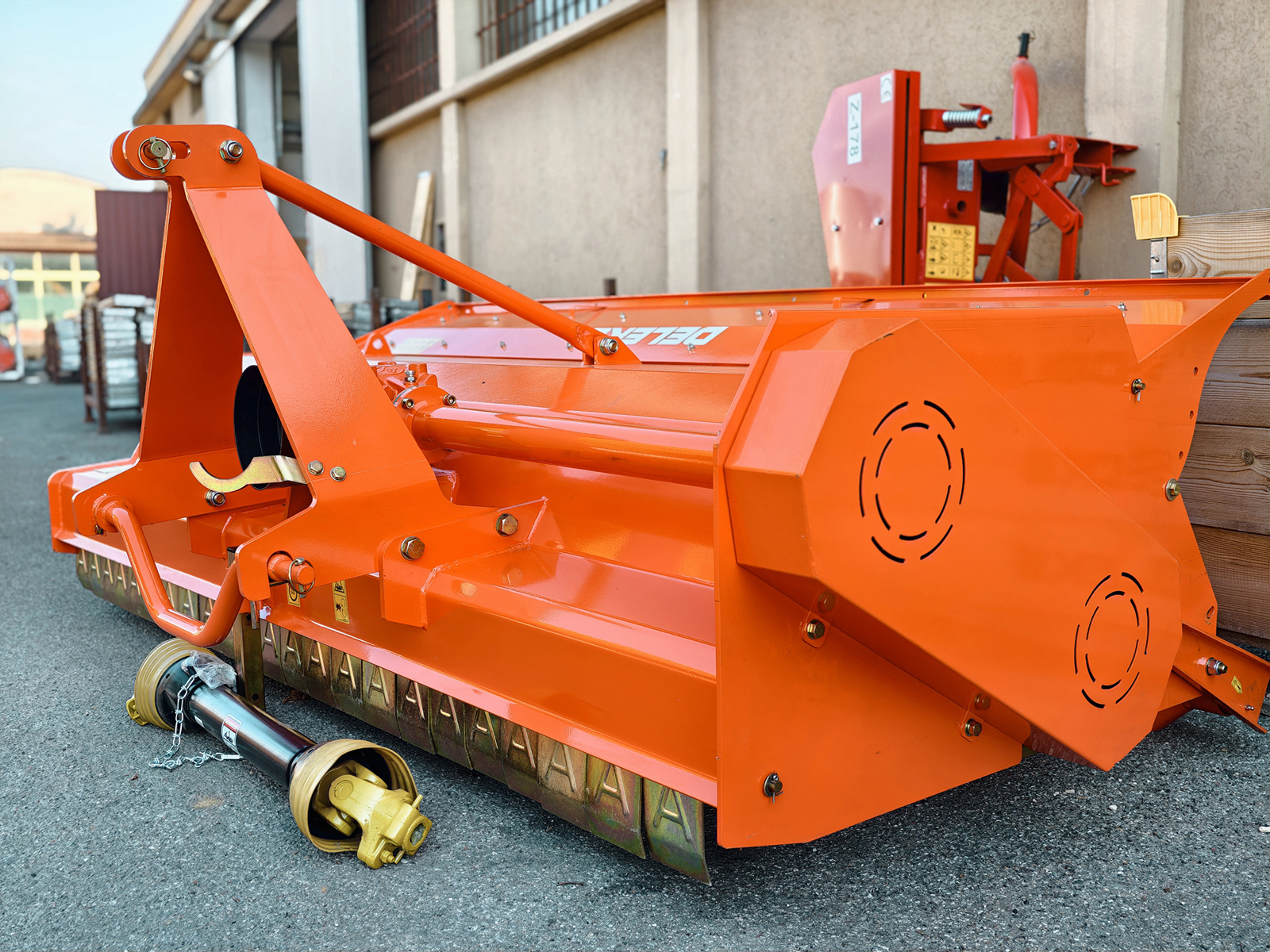

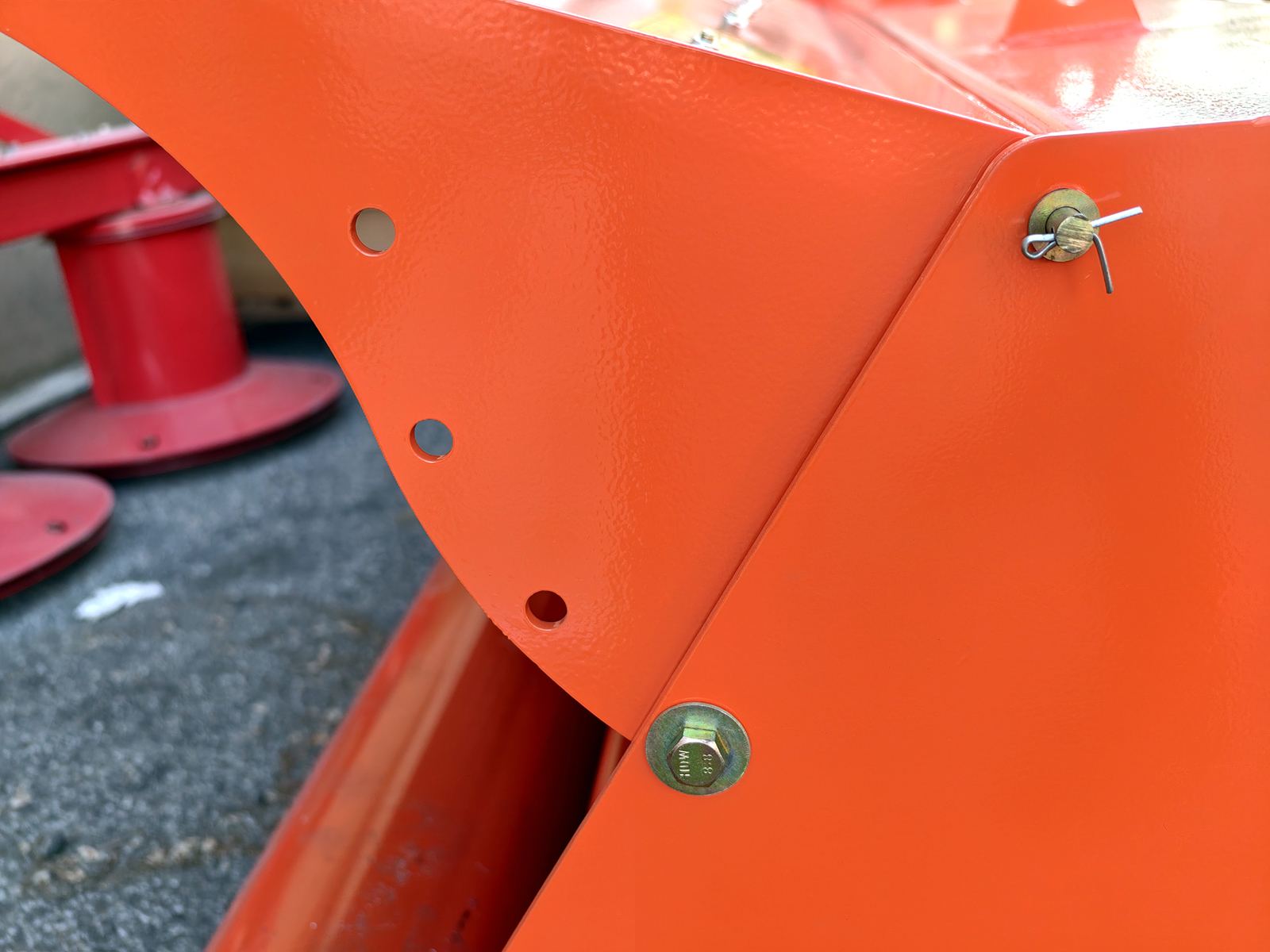

Double-skin hood, front guards and opening cover

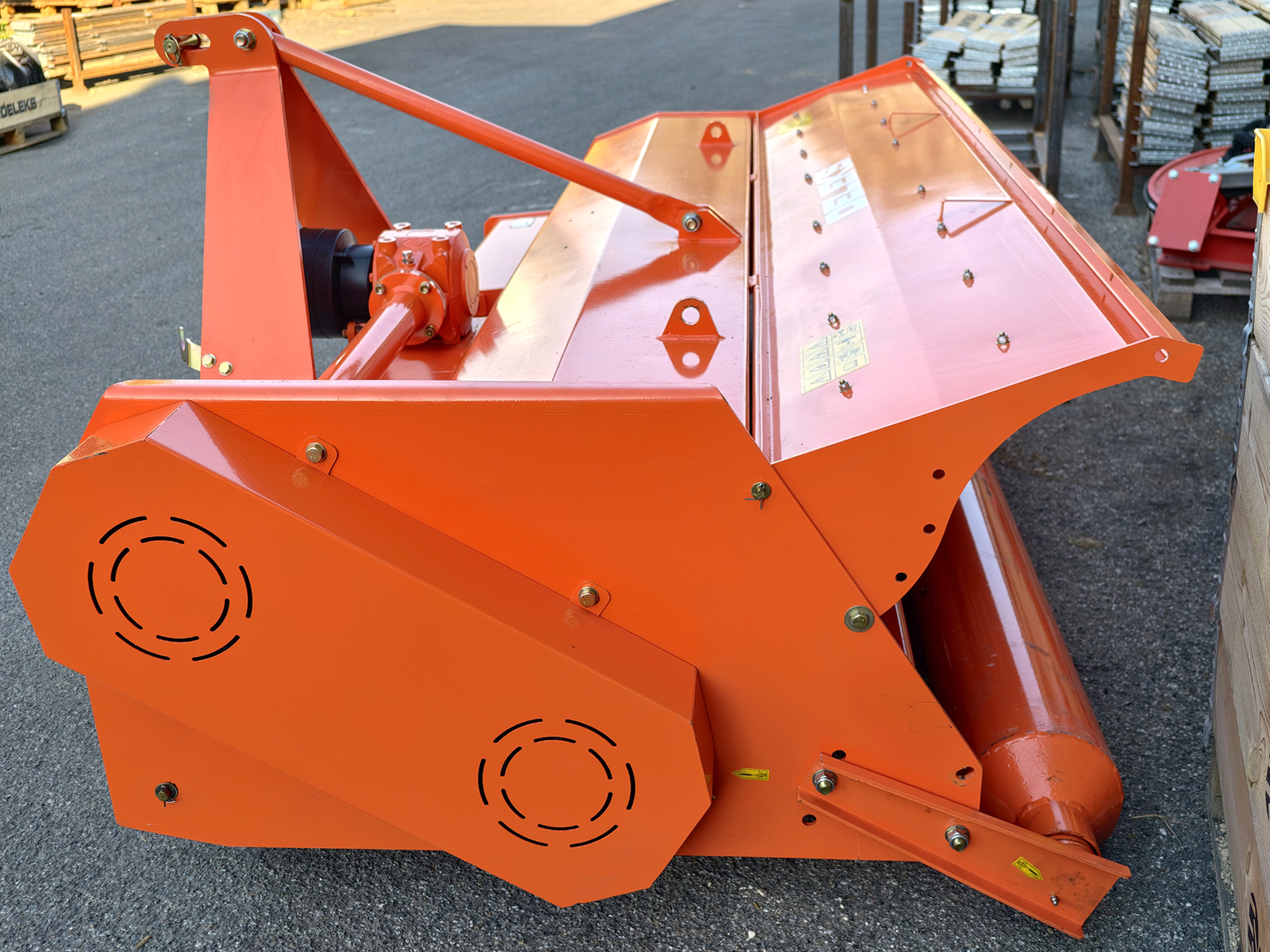

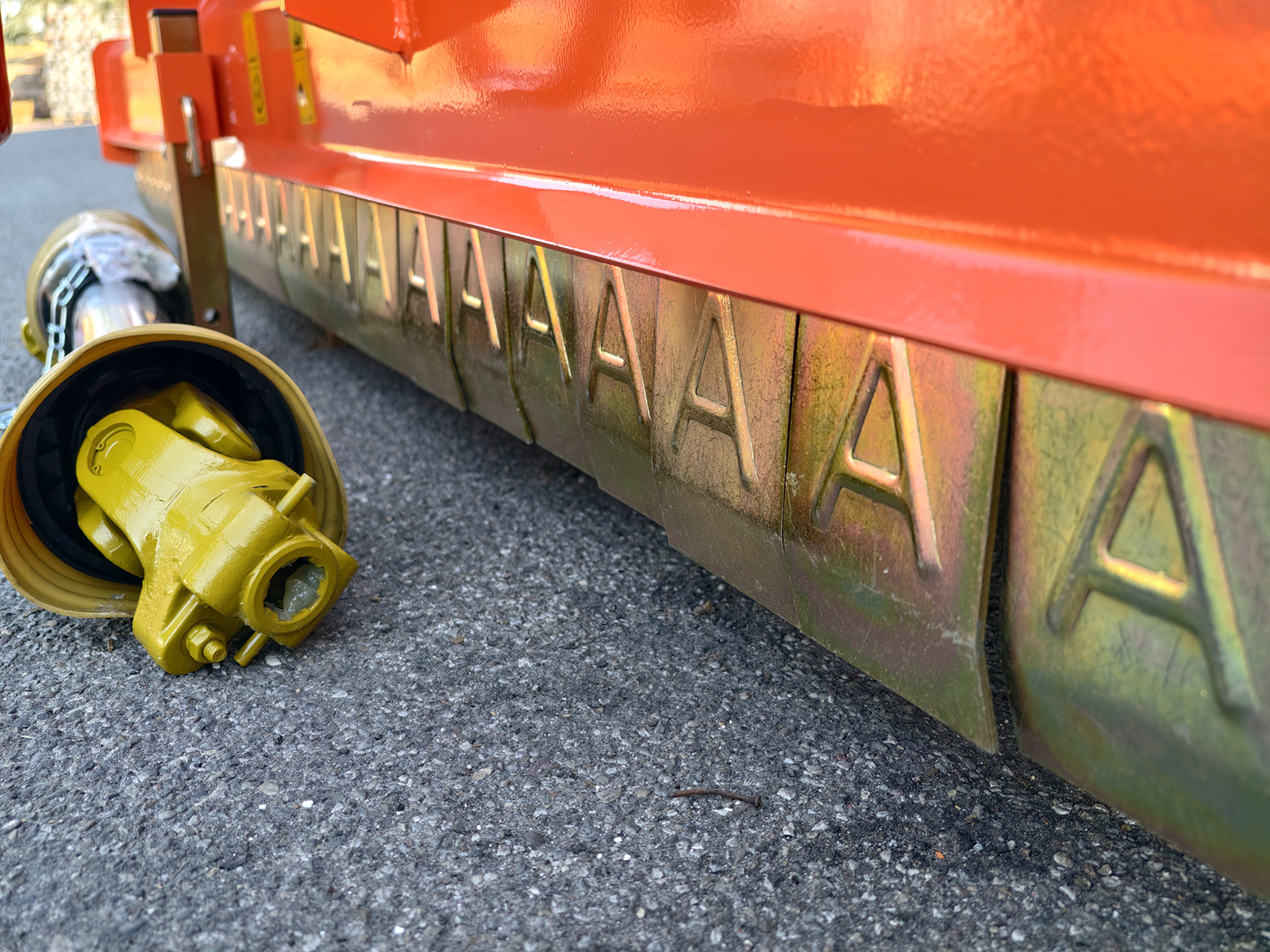

The structure is a double-skin hood in reinforced steel, with a 5 mm frame and 8 mm side plates, for intensive professional use. At the front there are guards in ribbed sheet steel; at the rear, the cover opens for servicing and cleaning.

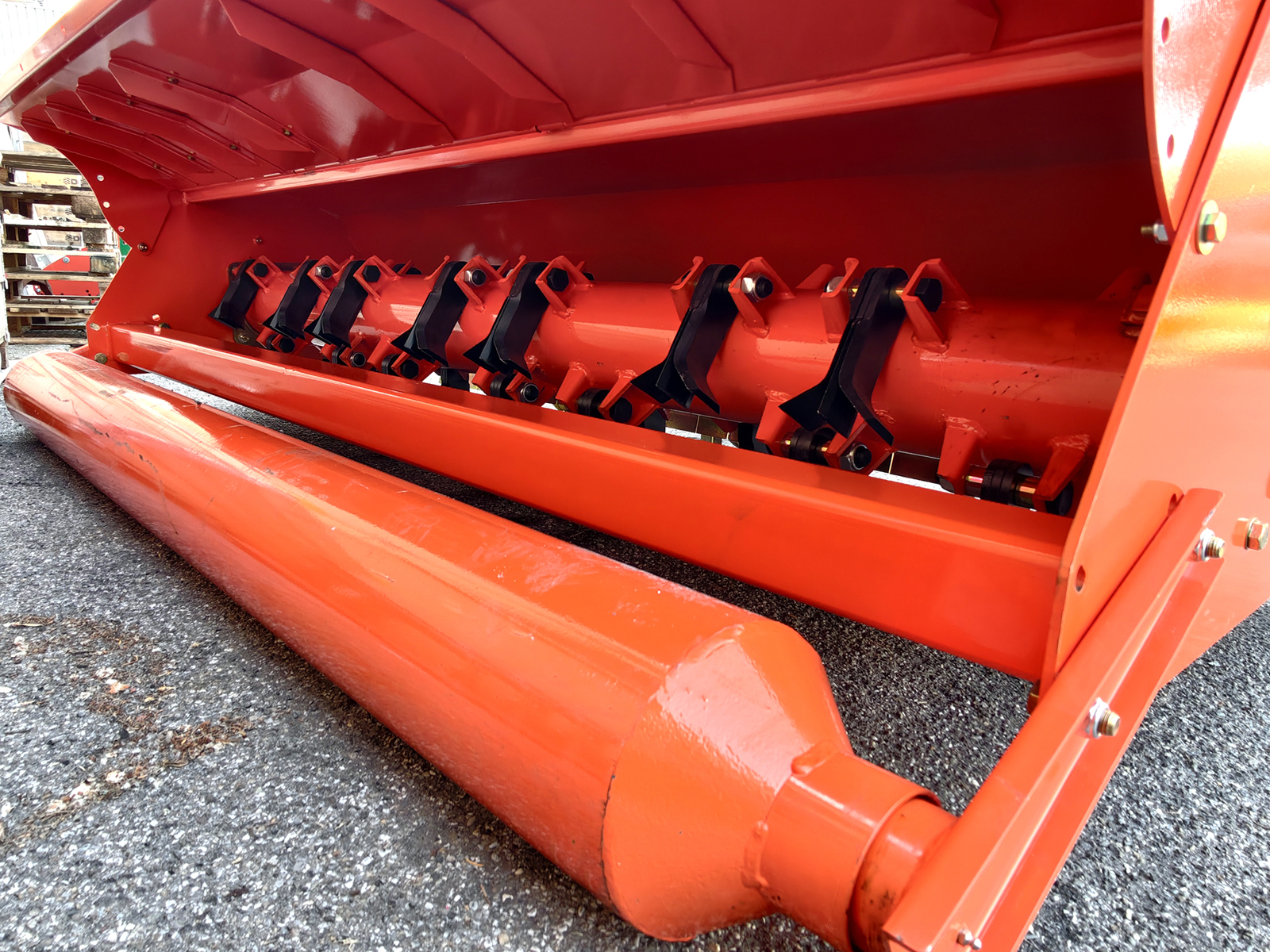

220 mm (8.7 in) roller and cutting height
The rear roller, 220 mm (8.7 in) in diameter, has tapered ends and is height-adjustable: cutting height runs from 10 to 100 mm (0.4 to 3.9 in). The roller supports are in steel, with watertight bearings.

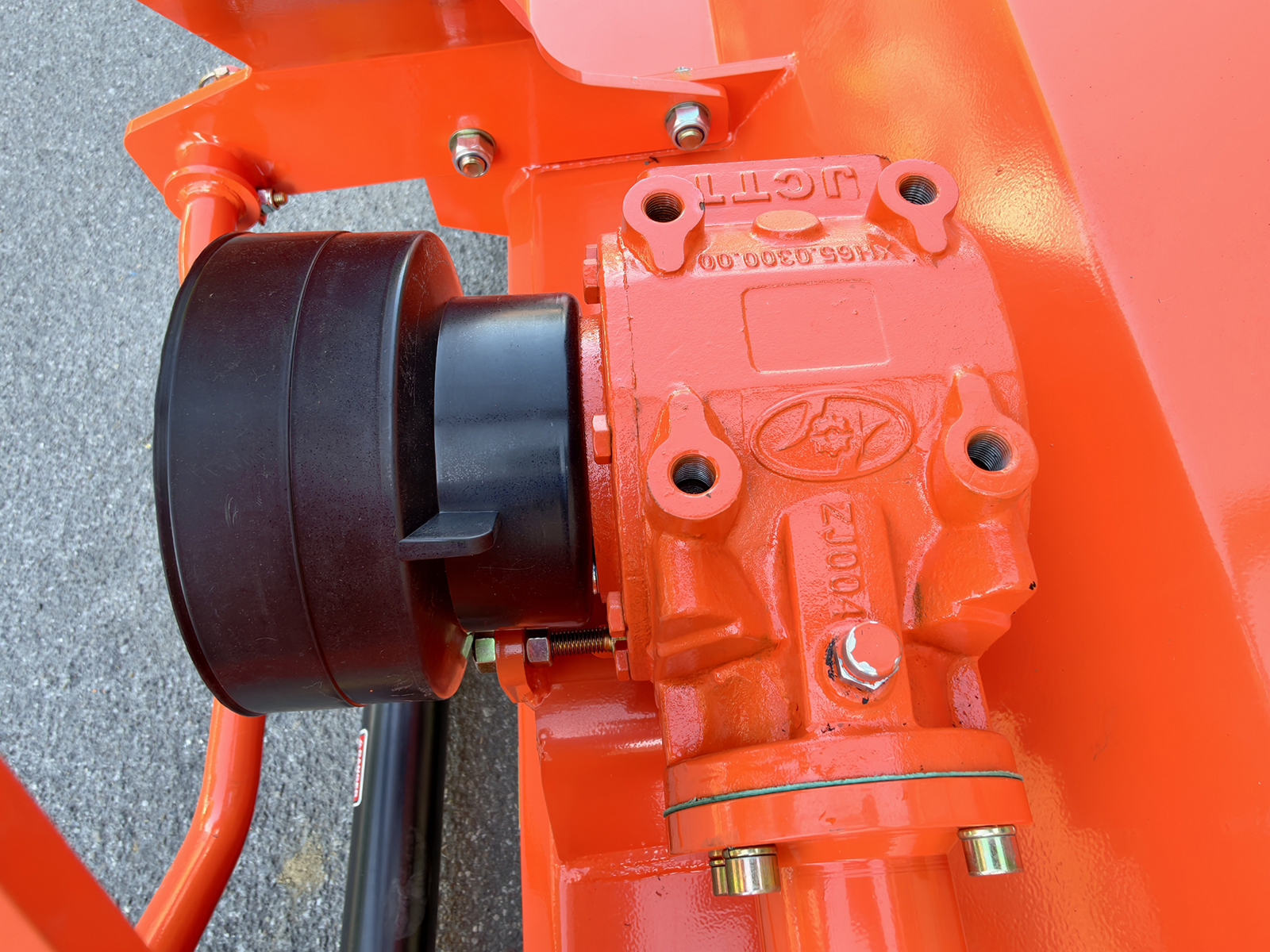

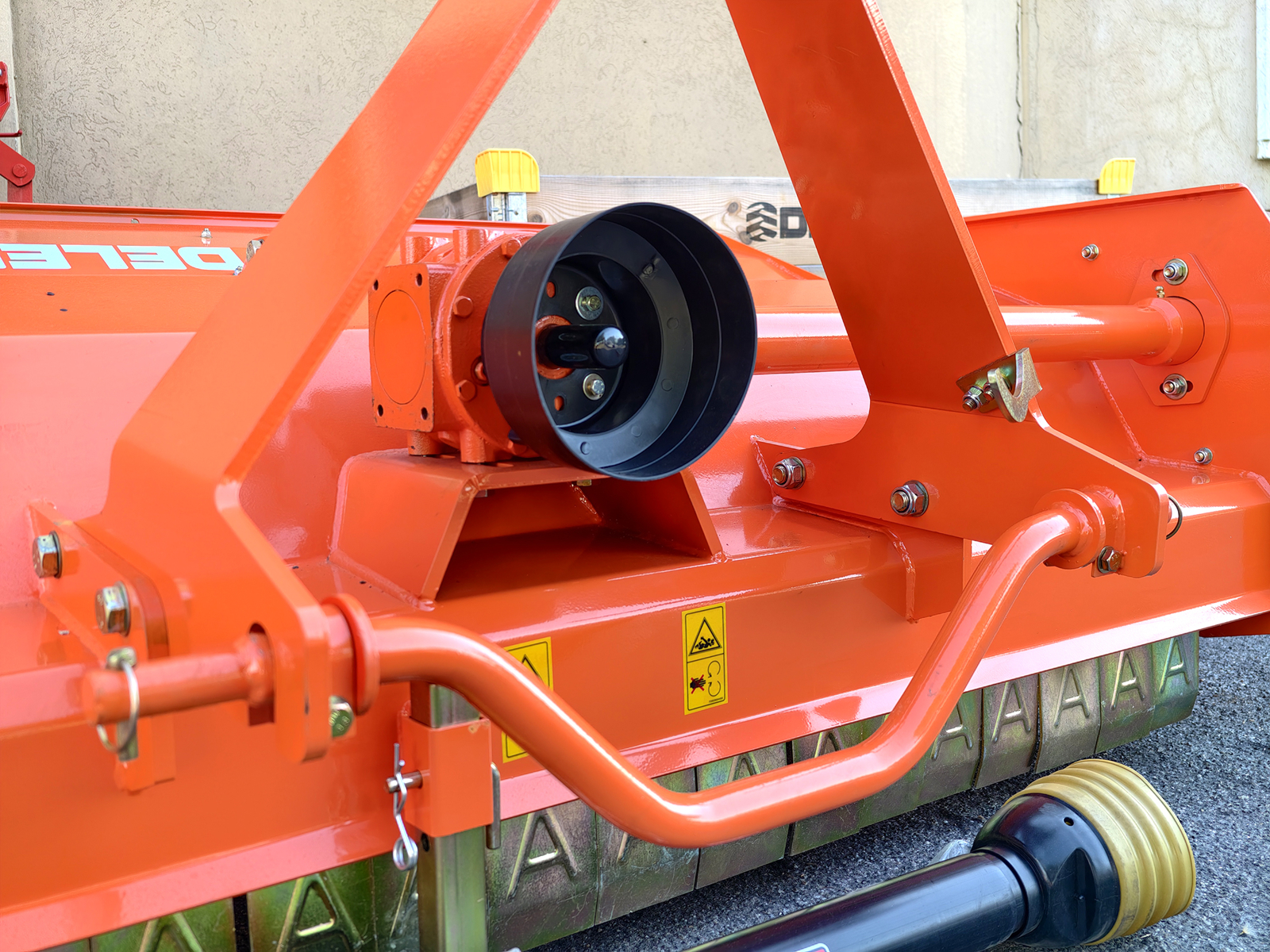

Gearbox with freewheel, 4 belts and PTO shaft

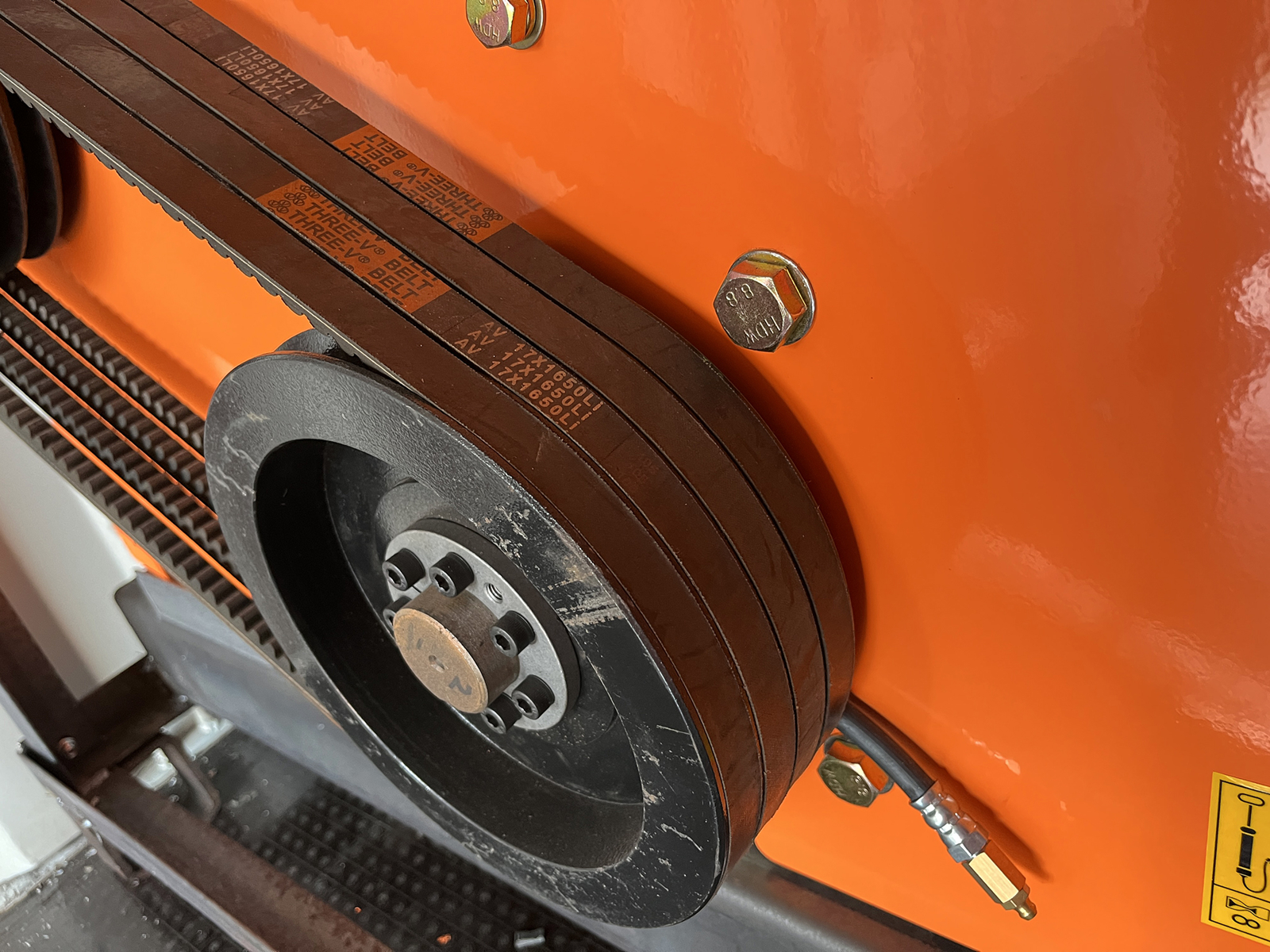

The gearbox for a 540 rpm PTO has a built-in freewheel: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 belts, 17x1650, on the side of the machine. The CE-approved category 8 PTO shaft, with shear bolt, is included: the bolt shears under overload and protects the driveline.
Dimensions, weight and delivery
Working width 2,600 mm (102.4 in), overall width 2,750 mm (108.3 in), length 1,150 mm (45.3 in), height 1,100 mm (43.3 in), weight 900 kg (1,984 lb). It ships on a pallet in packaging measuring 276 × 125 × 100 cm (109 × 49 × 39 in), 980 kg (2,161 lb) gross, 3.45 m³, with free delivery within the EU. For delivery, the address must be accessible to an articulated lorry and you need the means to unload the pallet. It complies with the EC Machinery Directive, is CAC-certified (Conformity Assessment Center) and carries a 2-year warranty.

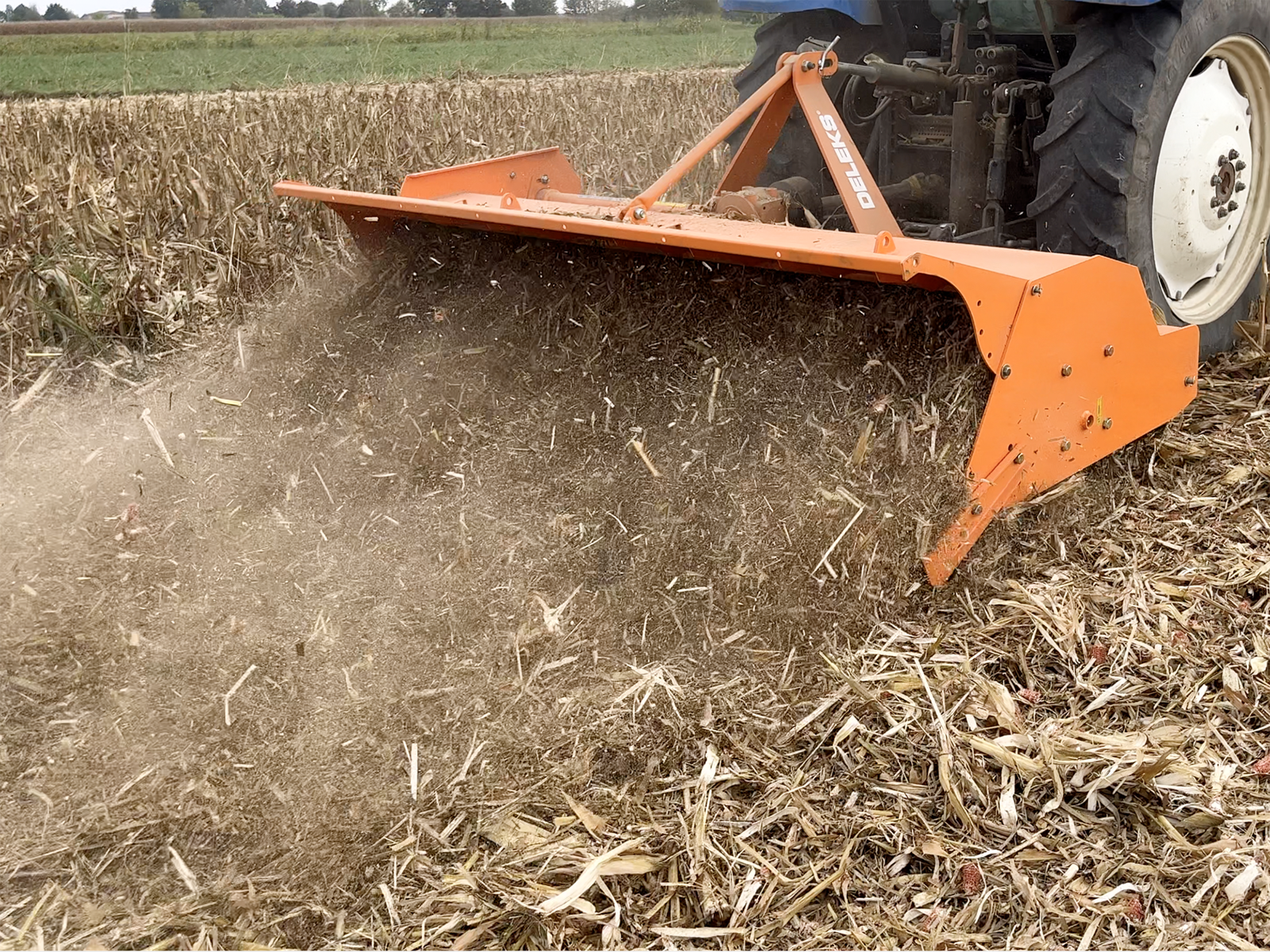

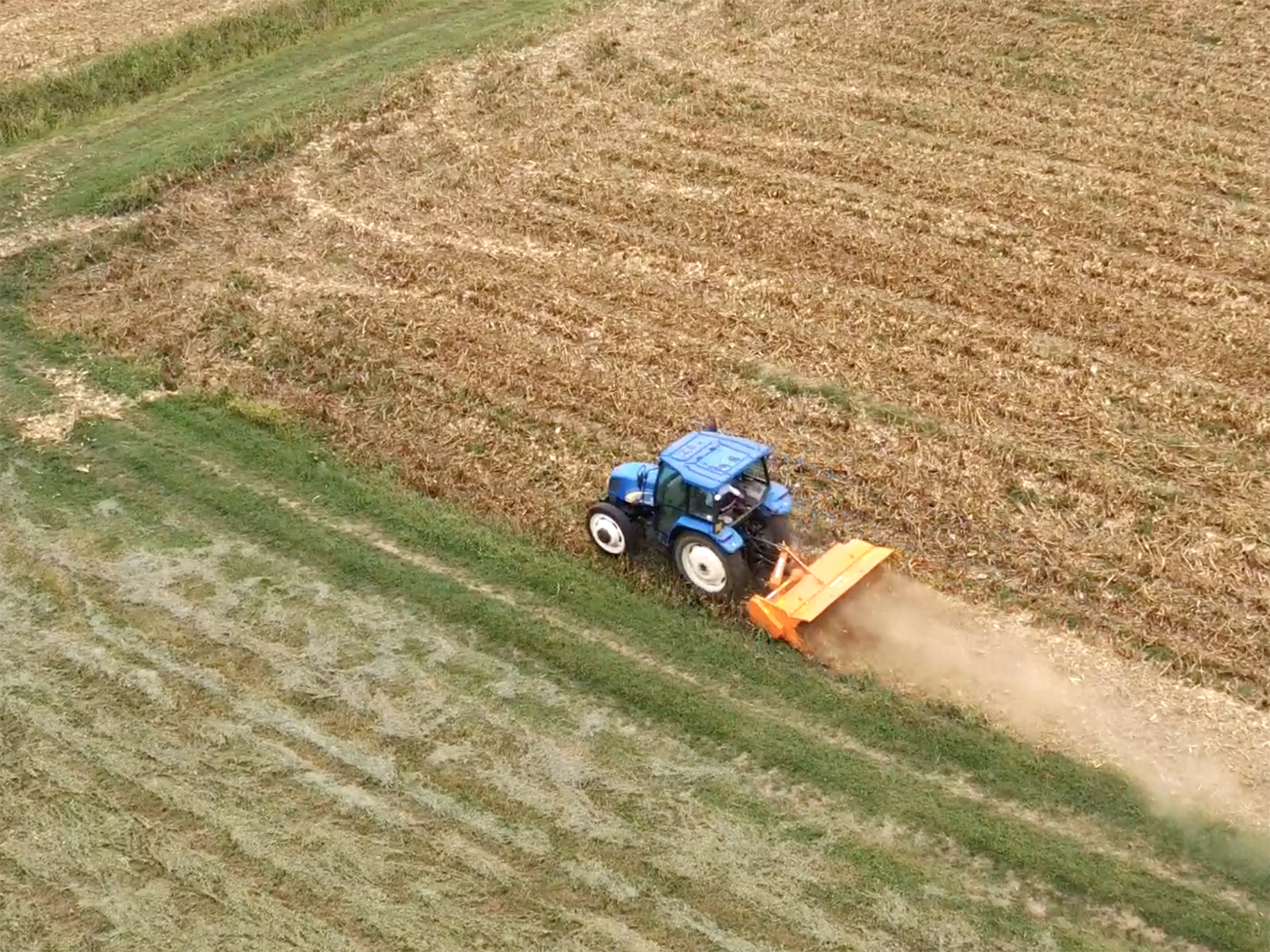

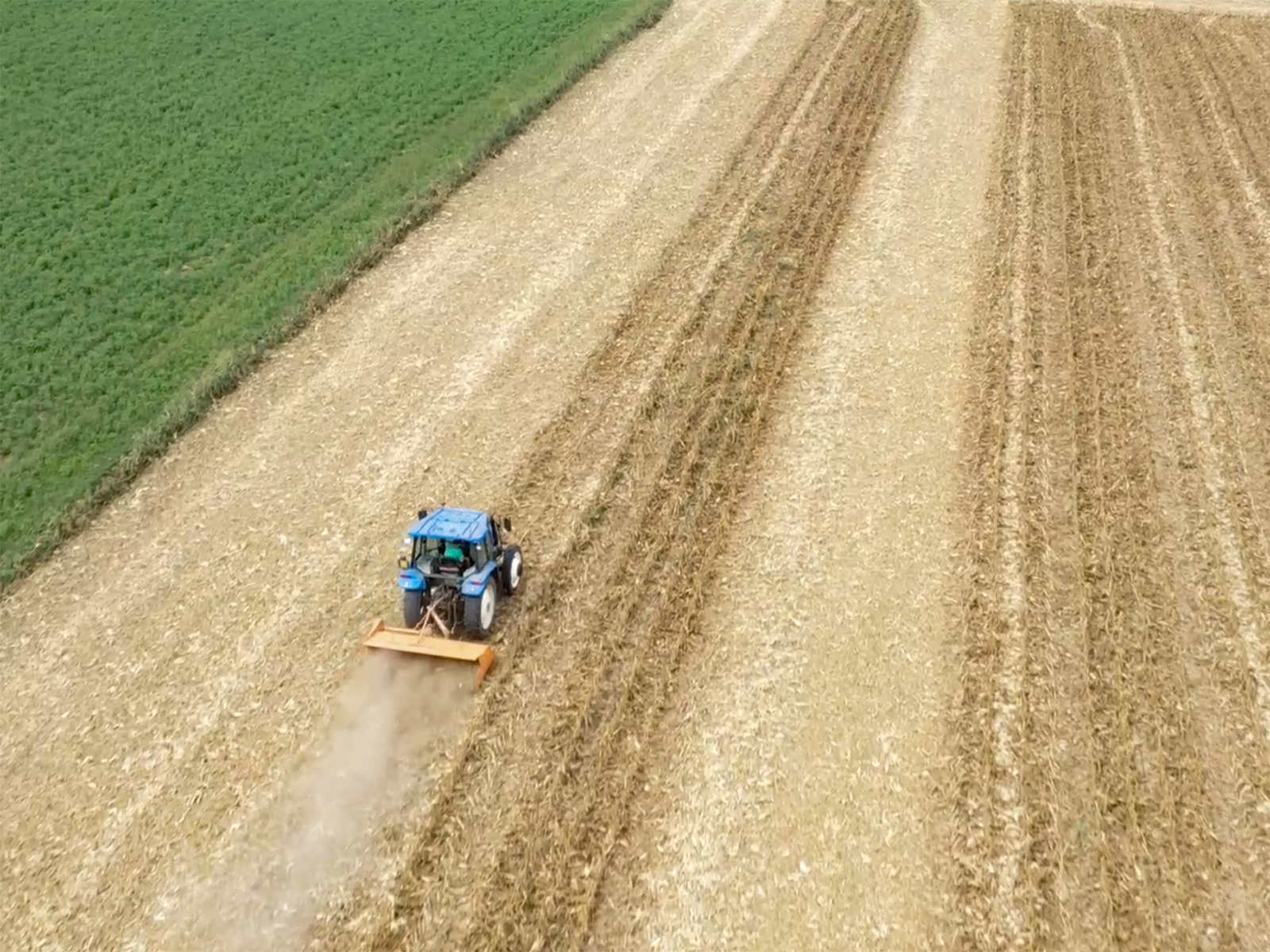

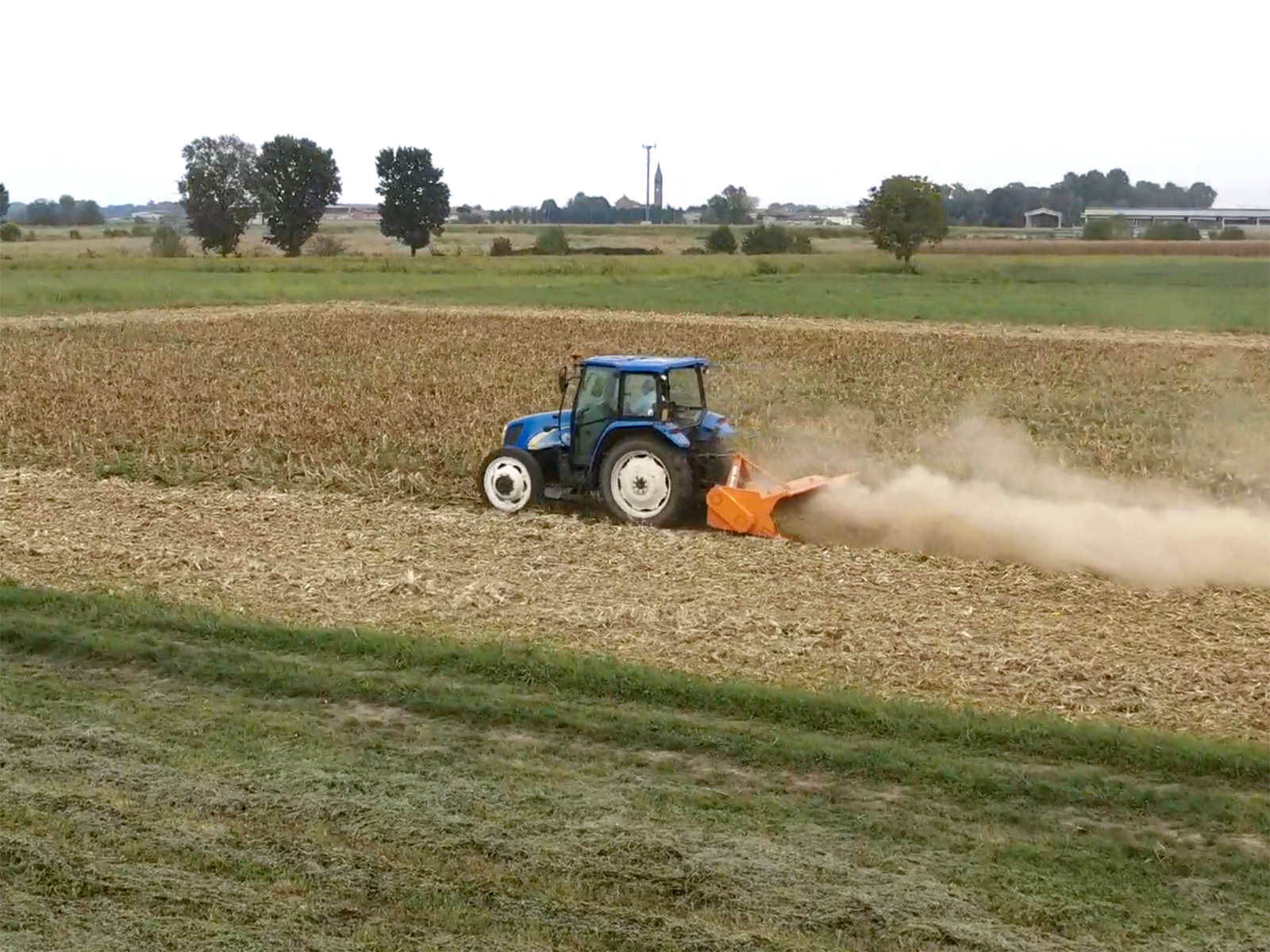

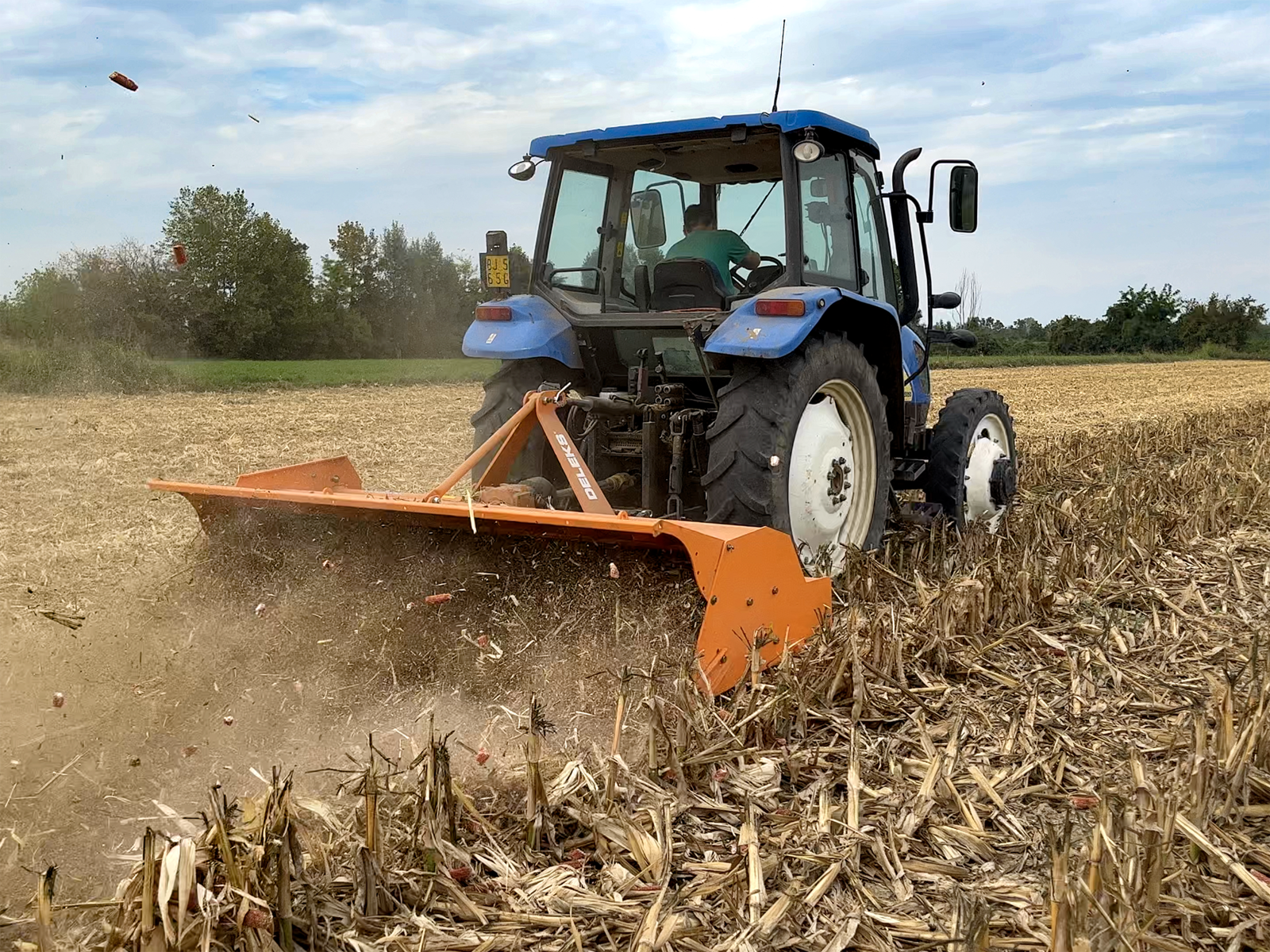

Where it works

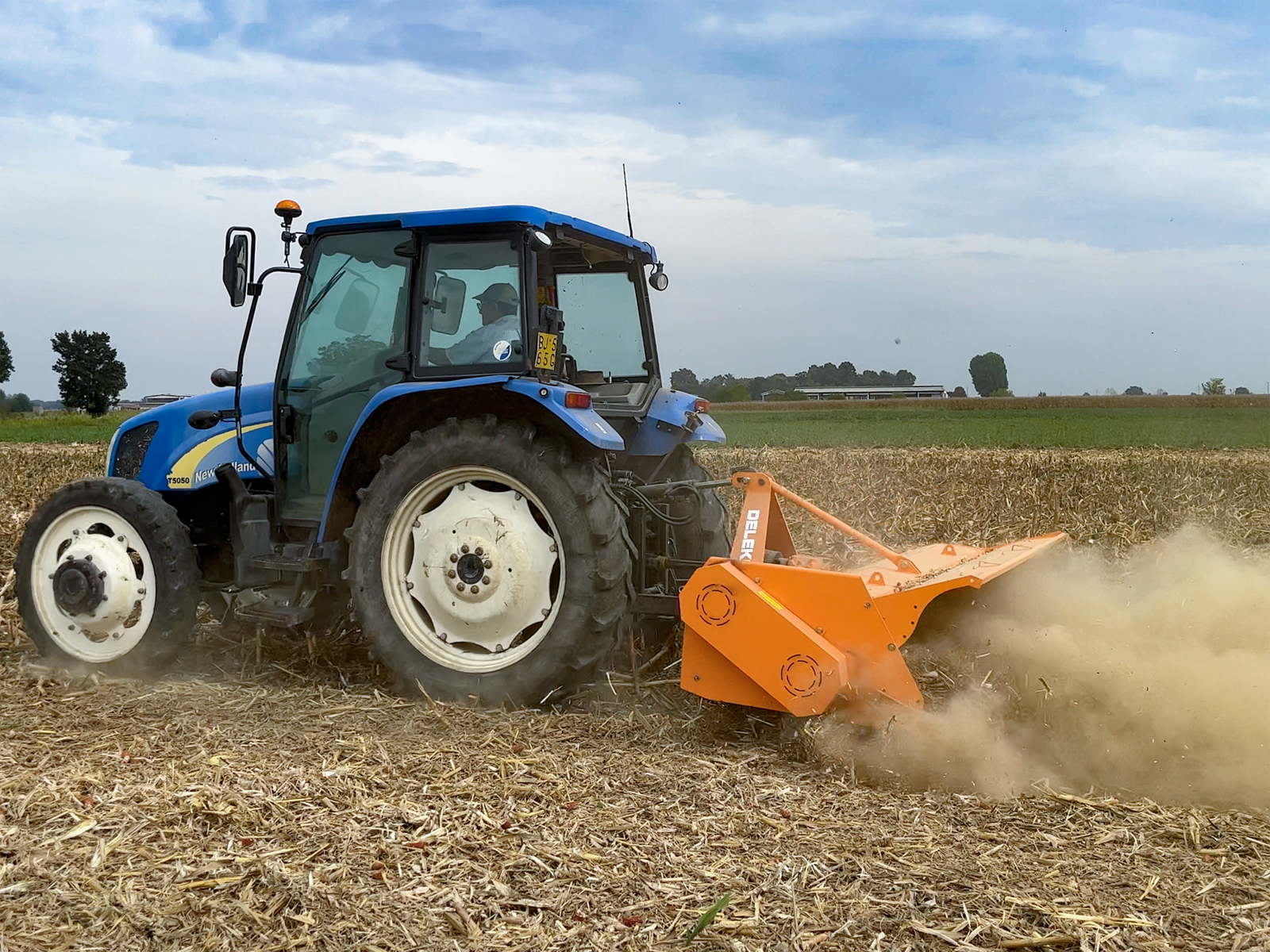

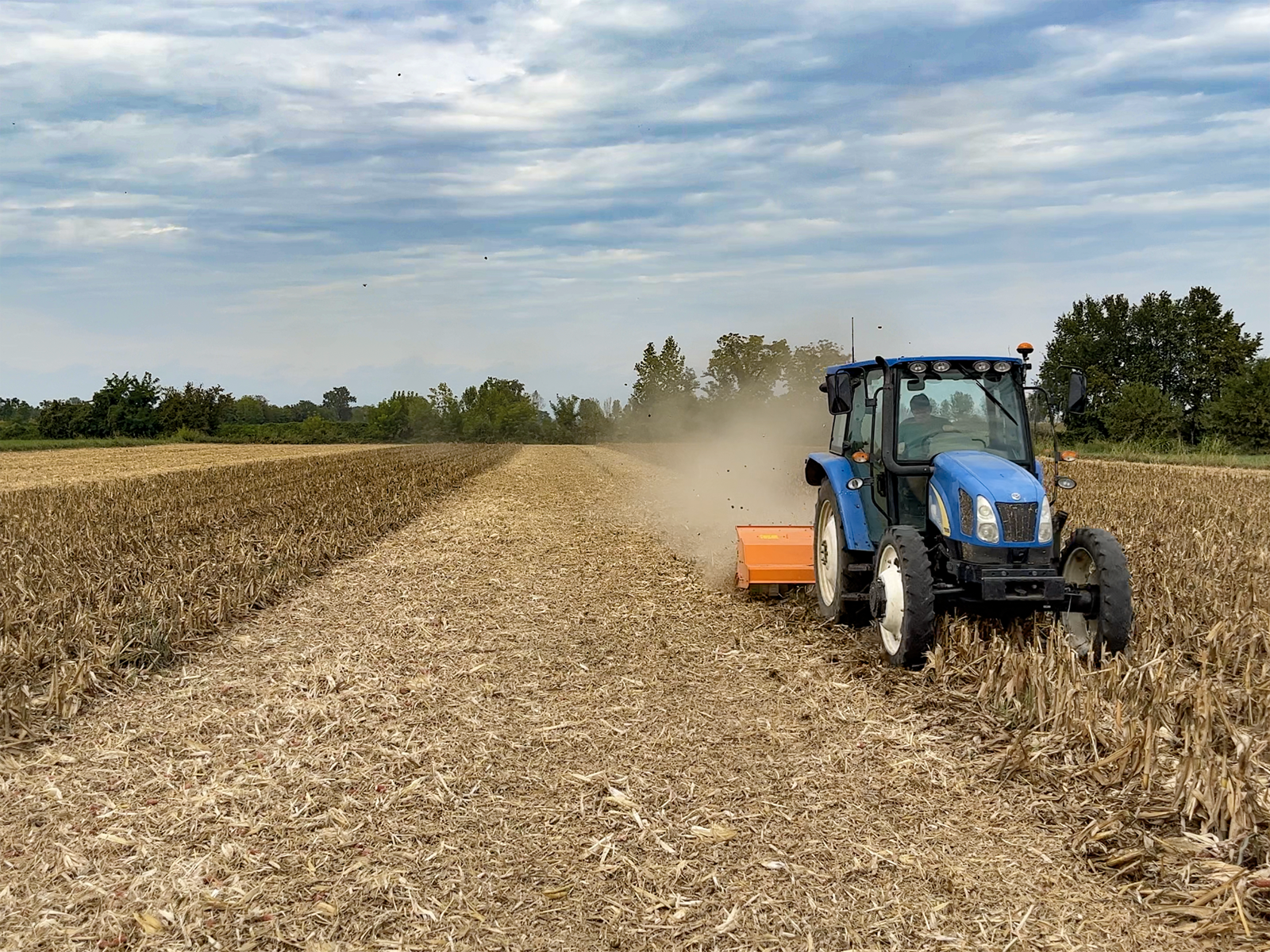

- Maize: stalks shredded and spread on the ground
- Wheat, soya and rapeseed: stubble and straw
- Rough ground and land to be cleared: weed growth
- Farms and contractors: 260 cm (102 in) on every pass over large areas
- Tractors from 90 to 130 hp with a category 2 three-point linkage
Options and spares
From this page you can add to your order the kit of 9 blades (COLTELLI9BI), the 3 nuts and bolts for the blades (DB3BI), the spare set of 4 belts (CINGHIE4BI), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the BISON-260 need?
From 90 to 130 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 900 kg (1,984 lb).
What does it shred?
Maize stalks, wheat, soya and rapeseed stubble, straw and crop residues in general, as well as the vegetation on rough ground and land to be cleared.
Does it shred branches too?
Up to 3-4 cm (1.2-1.6 in) thick. For vine prunings and other prunings there are the TORO and CERVO heavy-duty flail mowers; for wood up to 15 cm (6 in), the GORILLA forestry mulcher.
Hammer flails or blades?
It is fitted with 84 blades, in 28 sets of three; the rotor is designed to take hammer flails or blades.
How do you set the cutting height?
From 10 to 100 mm (0.4 to 3.9 in), with the adjustable rear roller.
Is the PTO shaft included?
Yes: a CE-approved category 8 PTO shaft, with shear bolt.
How is it delivered?
On a pallet: the address must be accessible to an articulated lorry and you need the means to unload it.
How does it differ from the TORO?
The TORO goes up to 240 cm (94 in), has hammer flails of 1,100 g (2.4 lb) and hydraulic side shift, and also shreds prunings up to 6-7 cm (2.4-2.8 in). The BISON is wider, 260 cm (102 in), with blades, for stalks and stubble over large areas.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 2600.0 mm |
| Overall width | 2750.0 mm |
| Min / Max cutting height | 10.0 - 100.0 mm |
| Weight | 900.0 kg |
| Overall height | 1100.0 mm |
| Tractor Power Range | 90 - 130 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0 mm) |
| Hood height | 550.0 mm |
| Spacing between the 2 lower points | 750.0 - 940.0 mm |
| Maximum cutting diameter | 30.0-40.0 mm |
| Overall length | 1150.0 mm |
| Distance between pto attachment and ground | 650.0 mm |
| Main hood thickness | 5.0 mm |
| Sides thickness | 8.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 1790.0 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 4 |
| Transmission: V-Belts size | 17x1650 |
| Rotor: diameter | 205.00 mm |
| Rotor: bearings type and size | UK211+H2311 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Rear roller: diameter | 220.0 mm |
| Rear roller: sheet thickness | 8.0 mm |
| Rear roller: bearings type and size | UC 208 |
| Number of Blades | 28 x 3 |
| Pto shaft | CE cat. 8 + shear bolt |
| Hood length | 1100.0 mm |
| Gross shipping weight | 980 kg |
| Package volume | 3.45 m3 |
| Packing sizes | 2760*1250*1000.0 mm |
