DETAILS

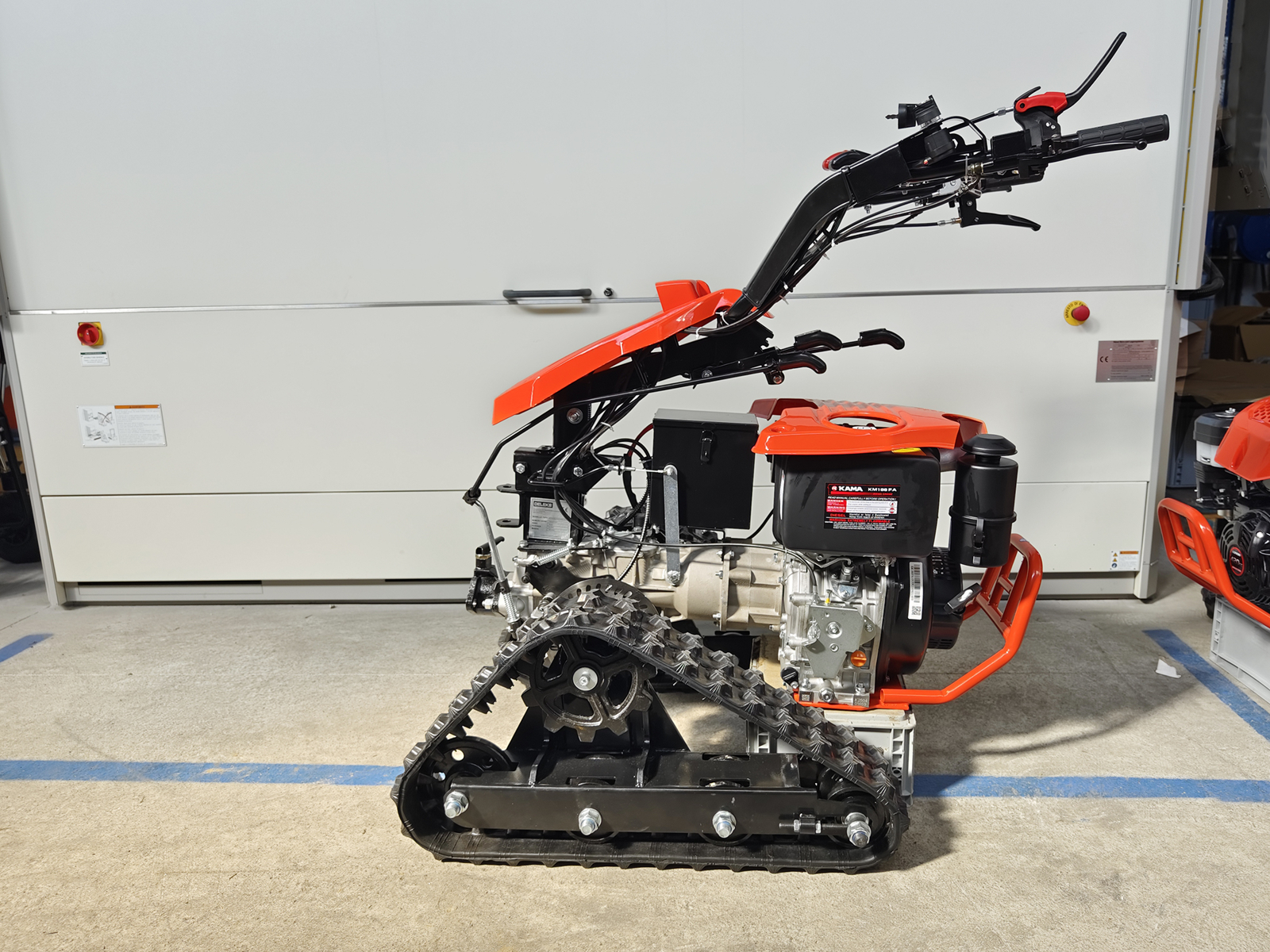

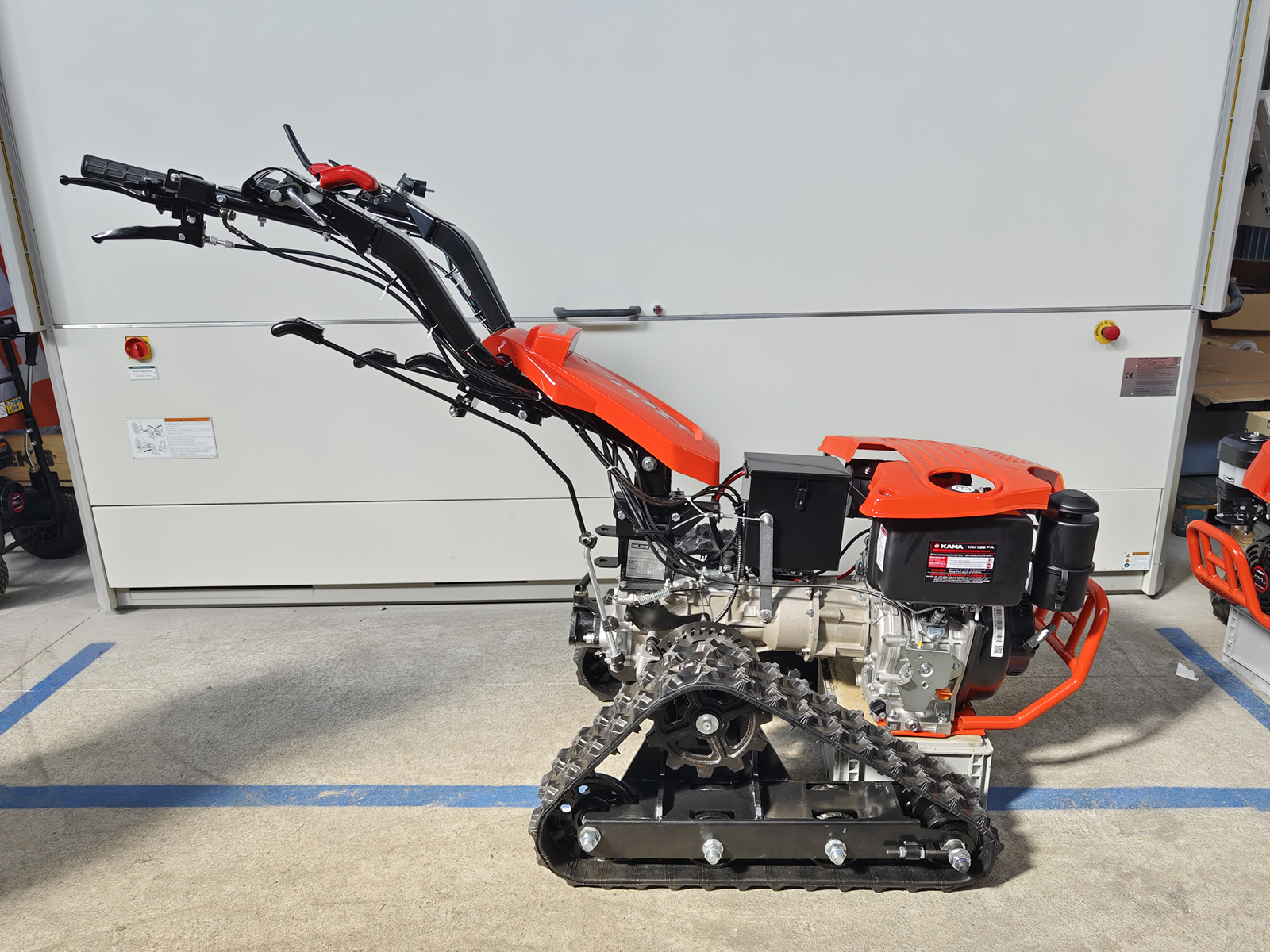

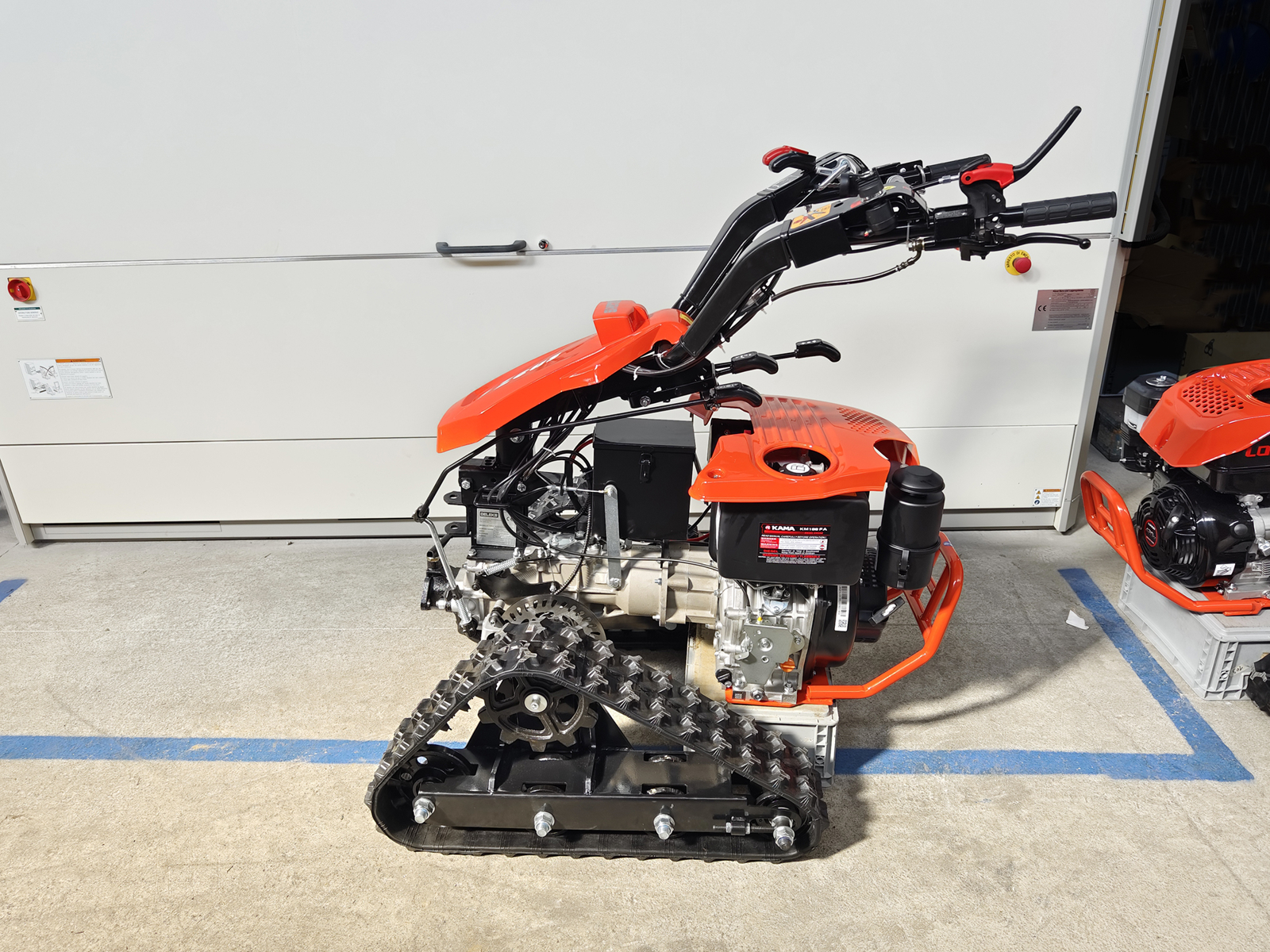

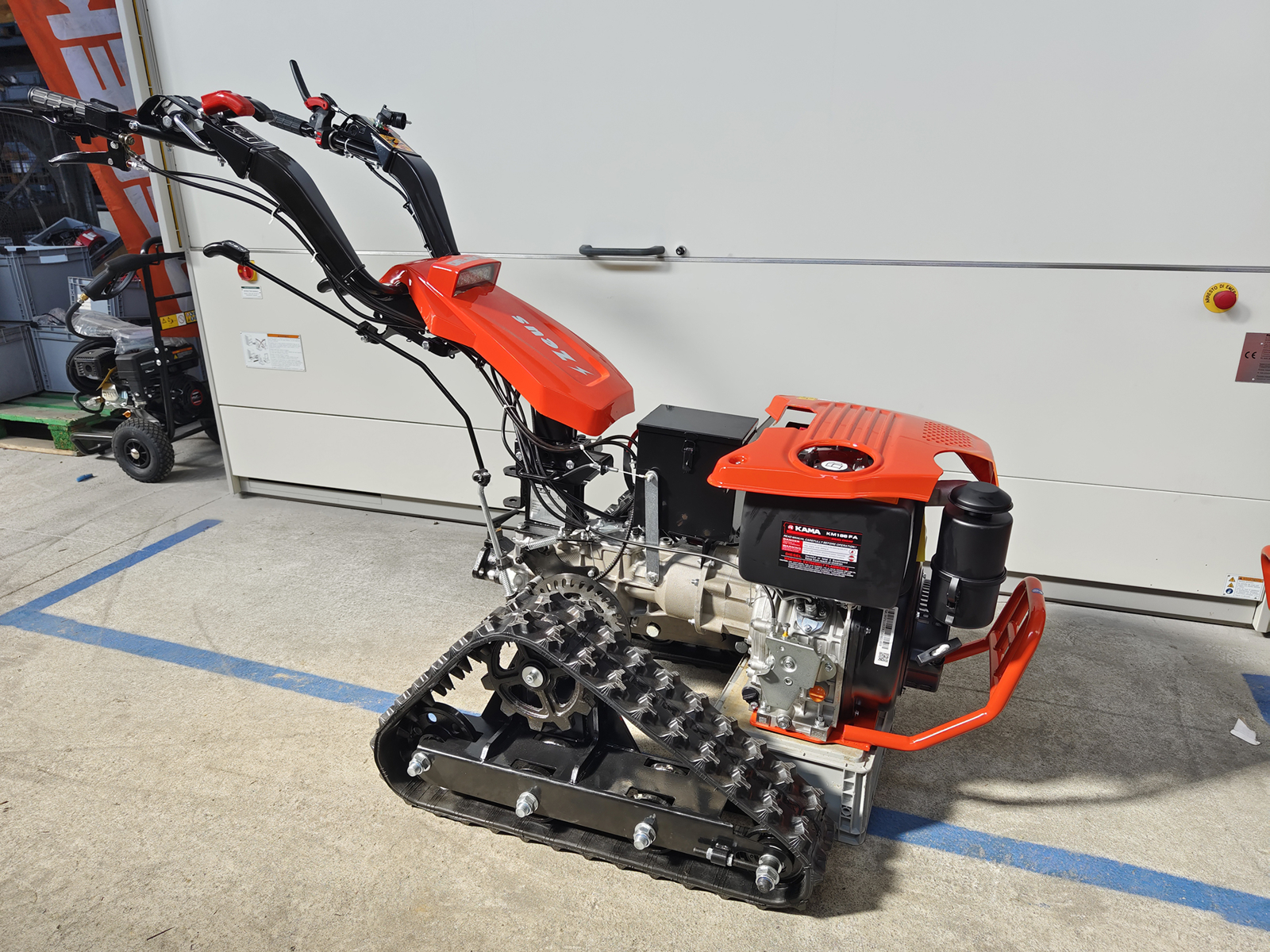

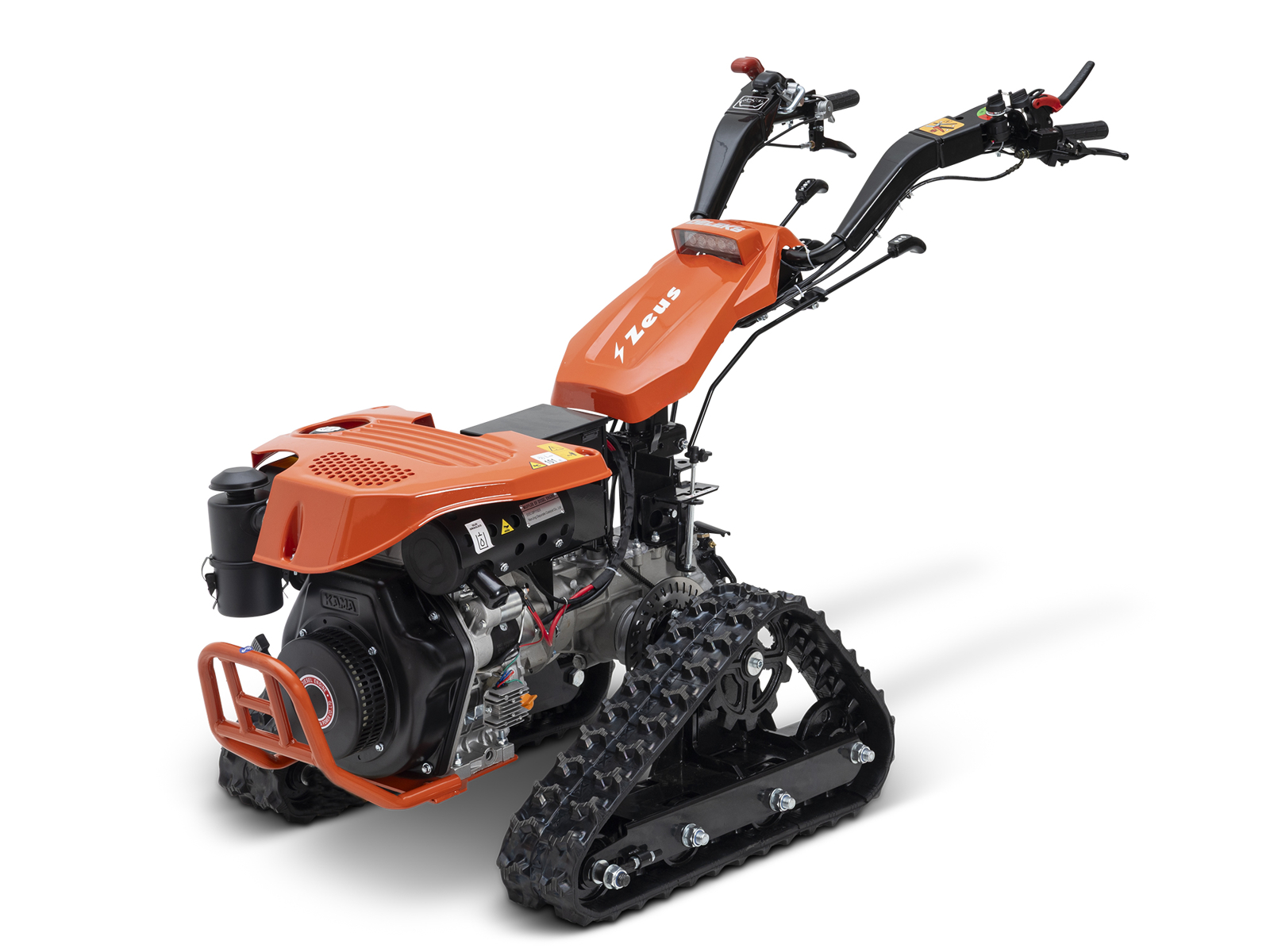

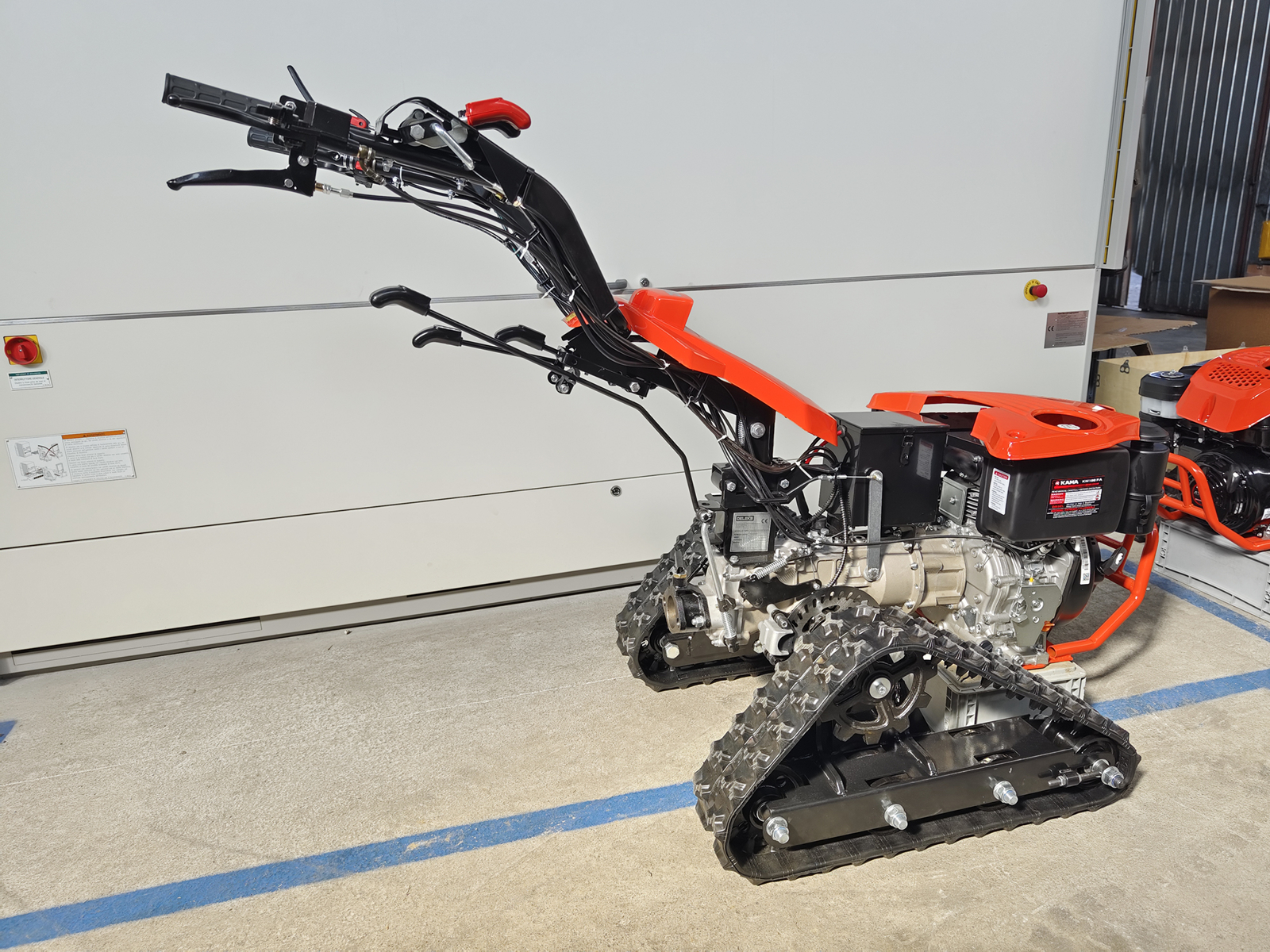

Professional tracked two-wheel tractor with a 418 cc Kama 186FD diesel engine giving 9 hp, rubber tracks, electric key start, 3+2 gearbox with quick reverse and reversible handlebars: the most popular ZEUS diesel in the version for slopes, rough and wet ground. The 3-tooth BCS-type quick hitch comes as standard: it takes BCS, Ferrari and Pasquali attachments straight on and, with the adapter, fine-spline (millerighe) attachments too. It weighs 185 kg (408 lb); free delivery within the EU, delivered ready to use.

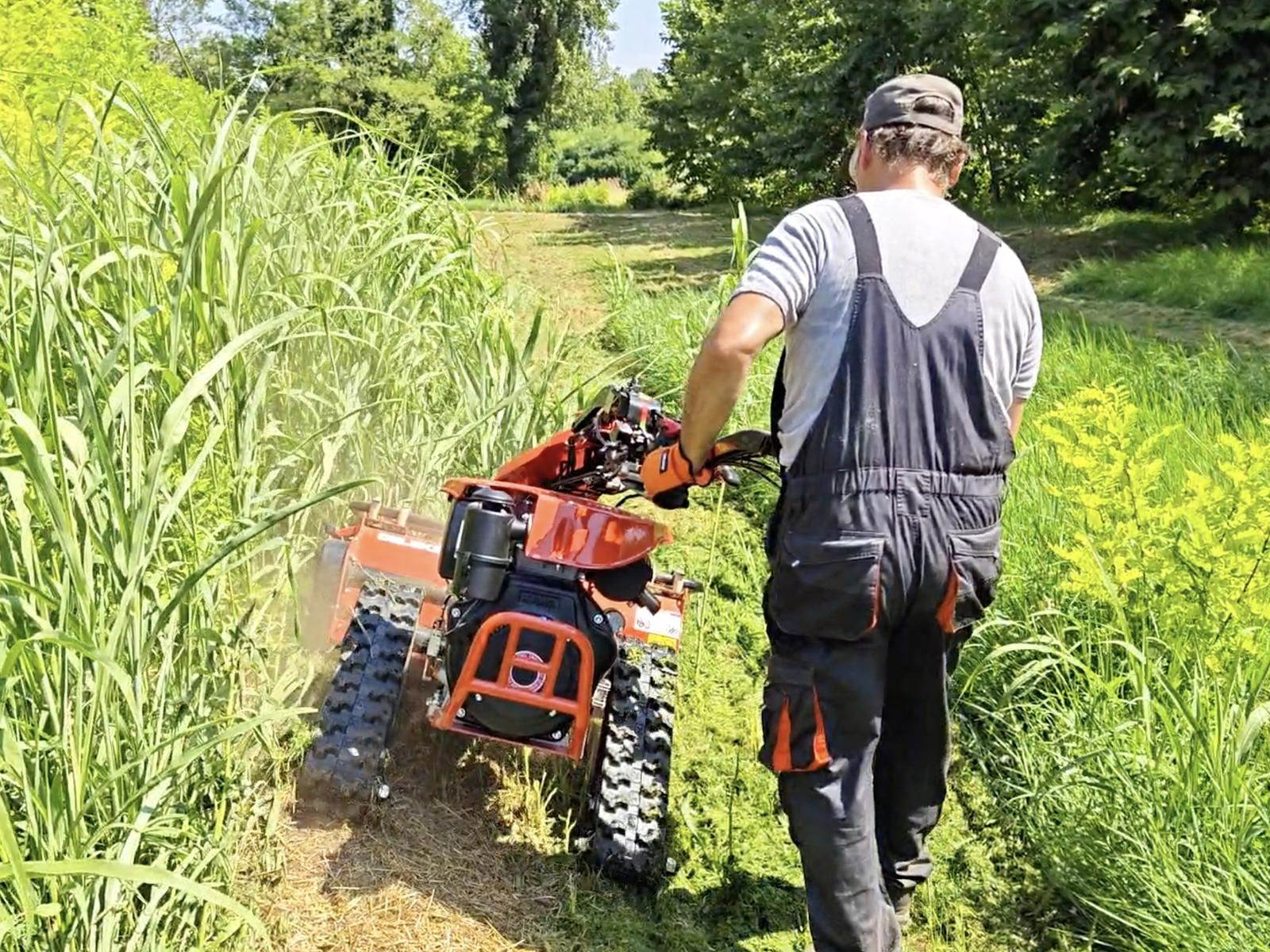

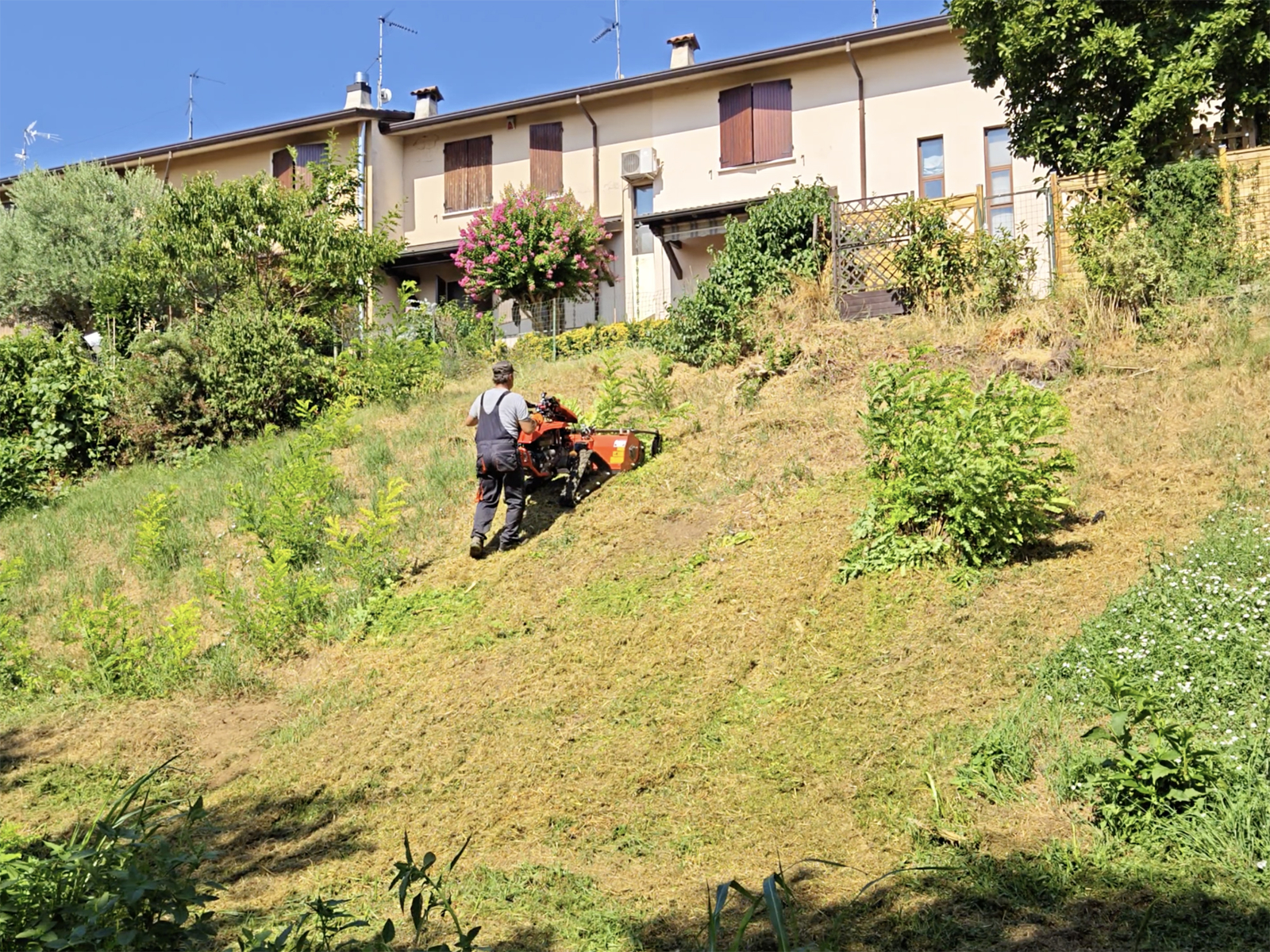

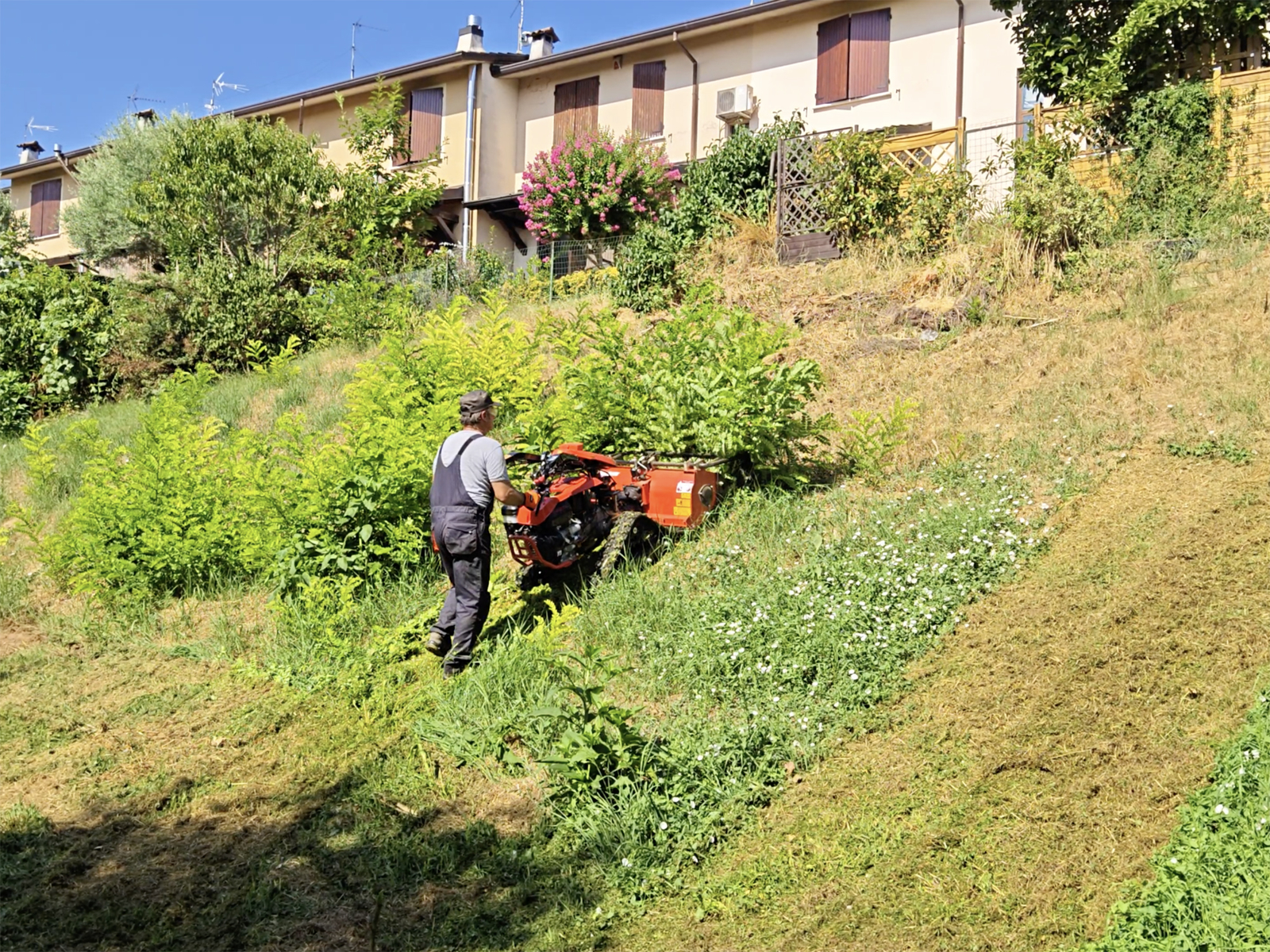

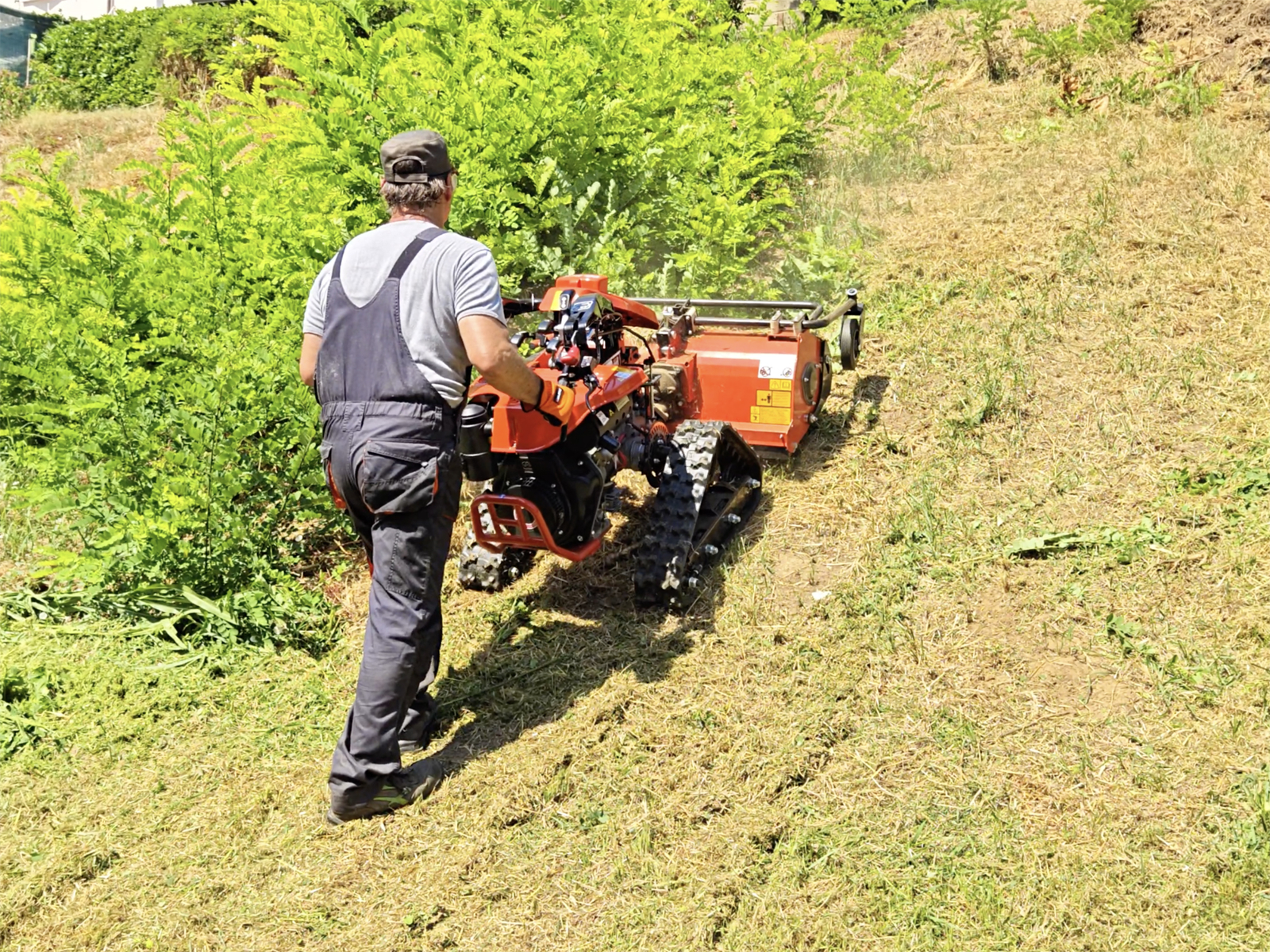

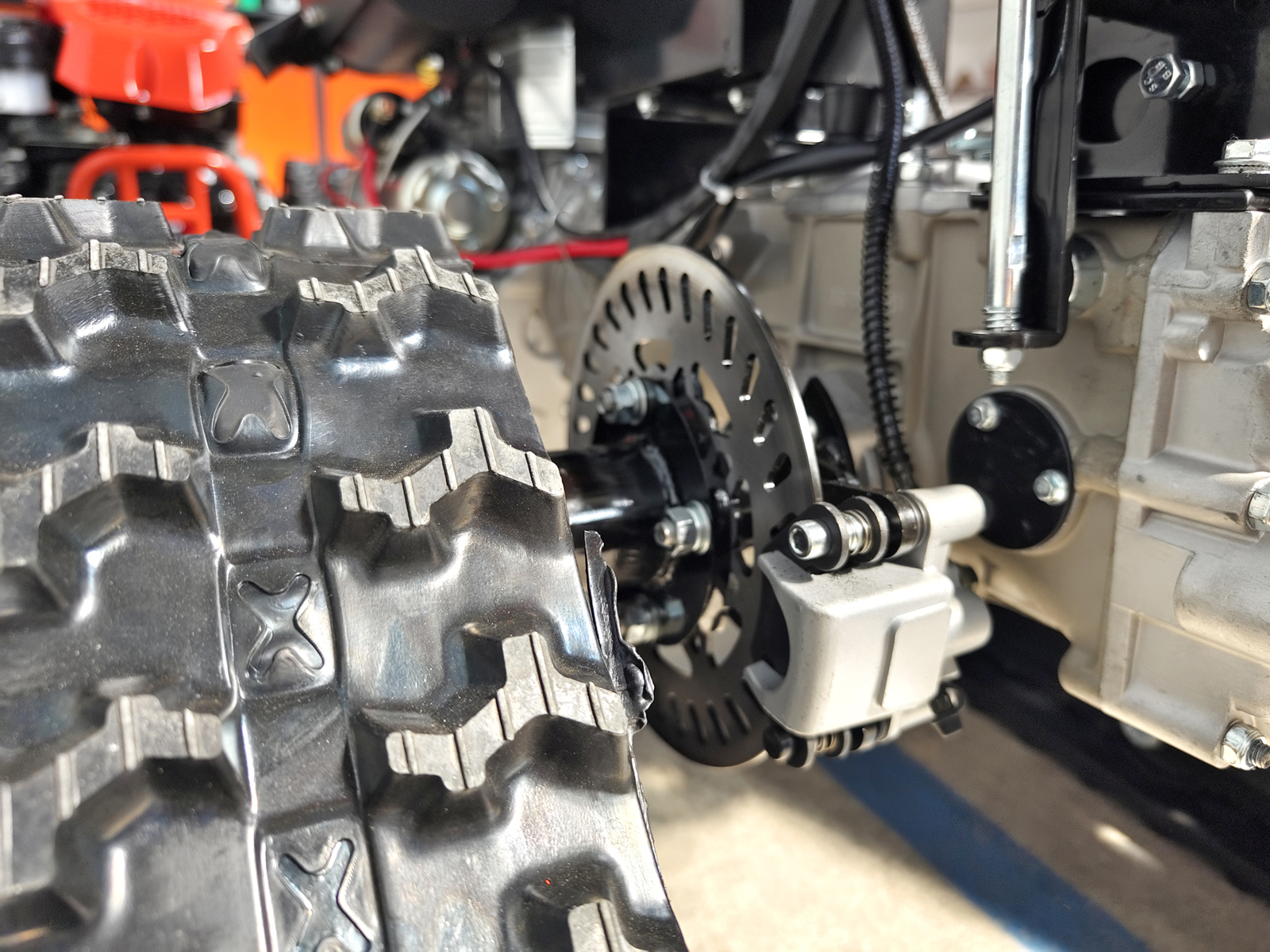

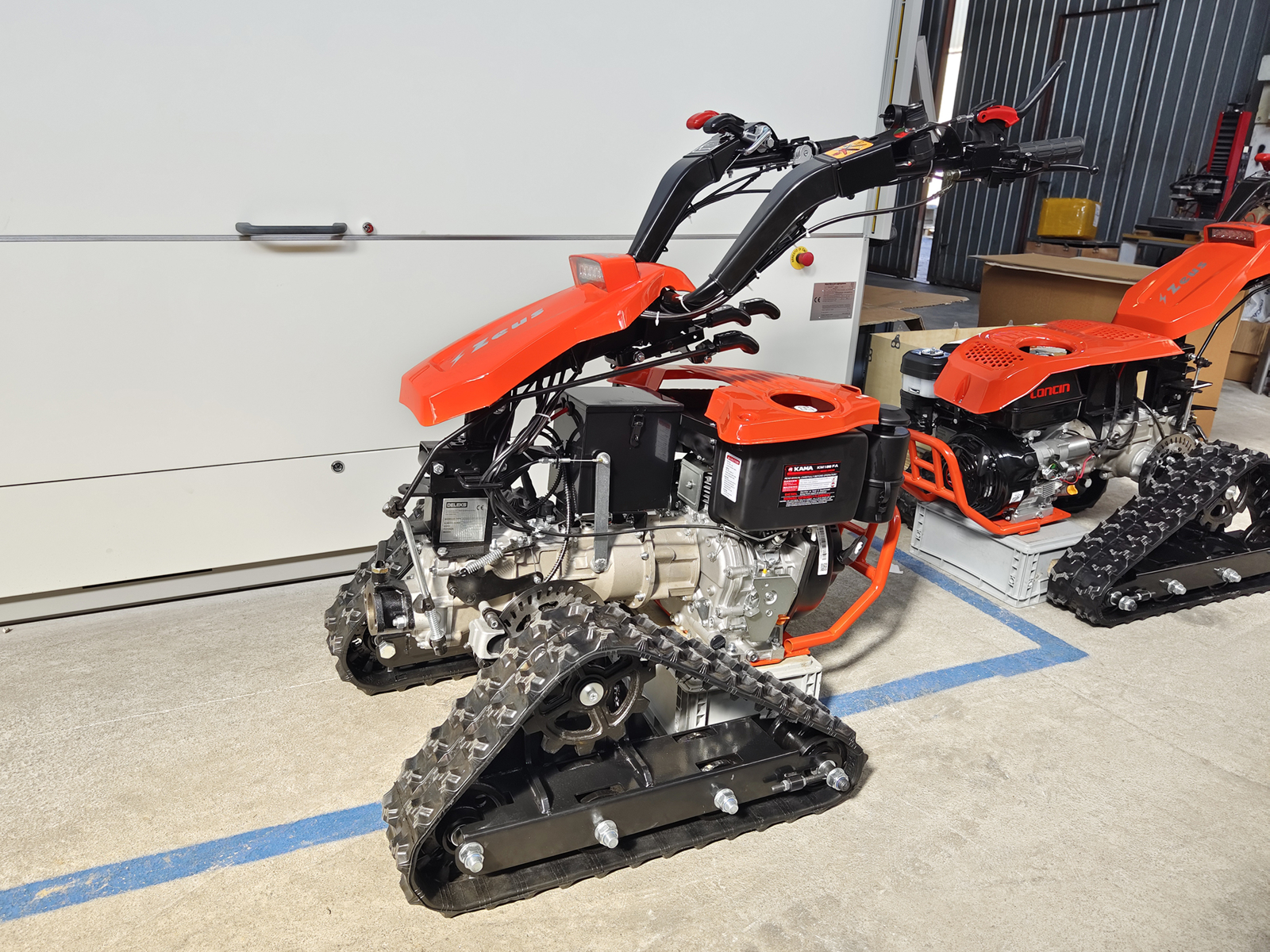

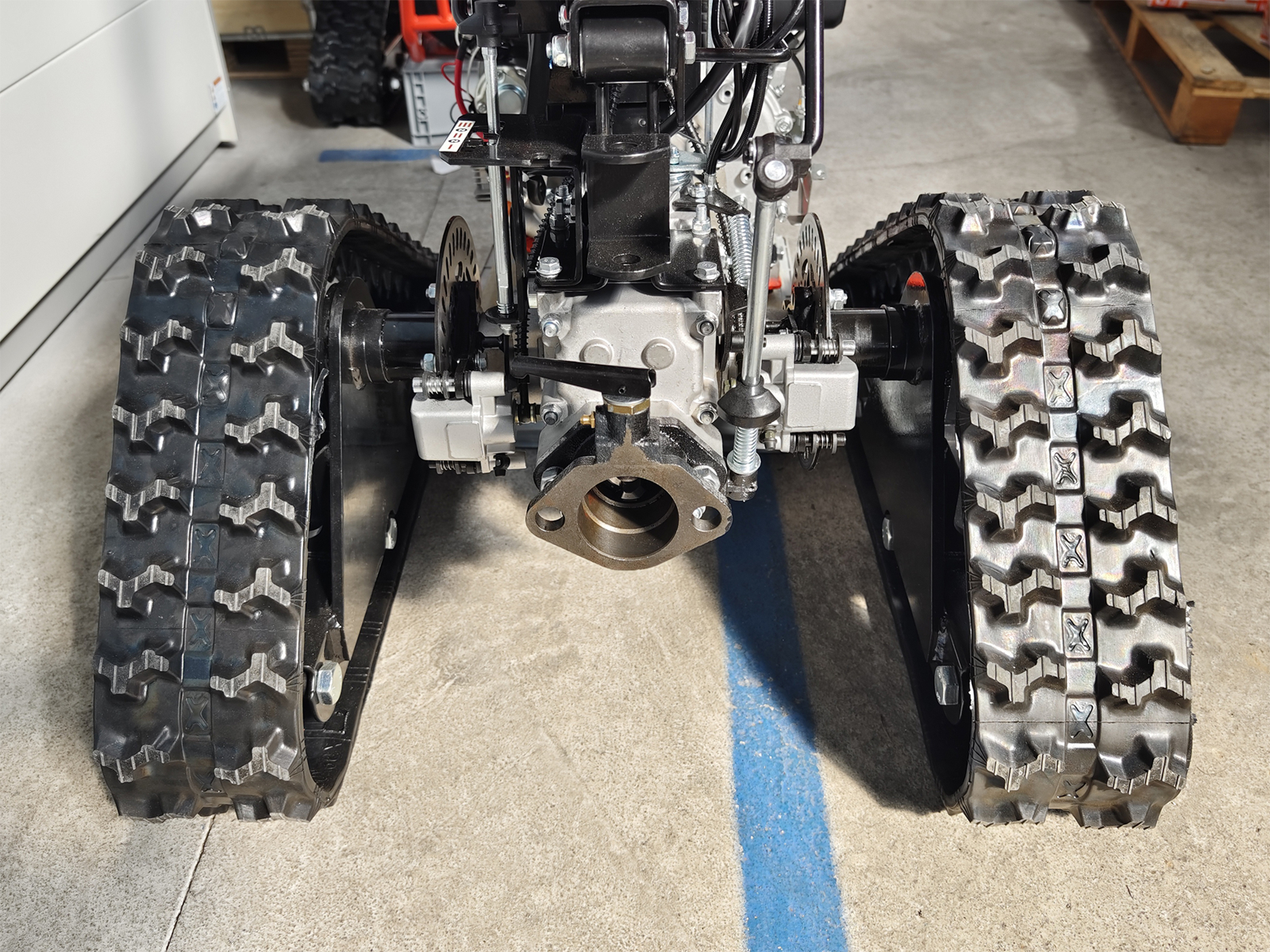

Rubber tracks: stable on slopes
The rubber tracks rest on a far larger footprint than wheels: the machine does not spin on wet grass, does not sink into soft ground and stays stable working across a slope. At 185 kg (408 lb) it is the heaviest model in the range, the one that holds best on a hillside with the flail mower and the plough.

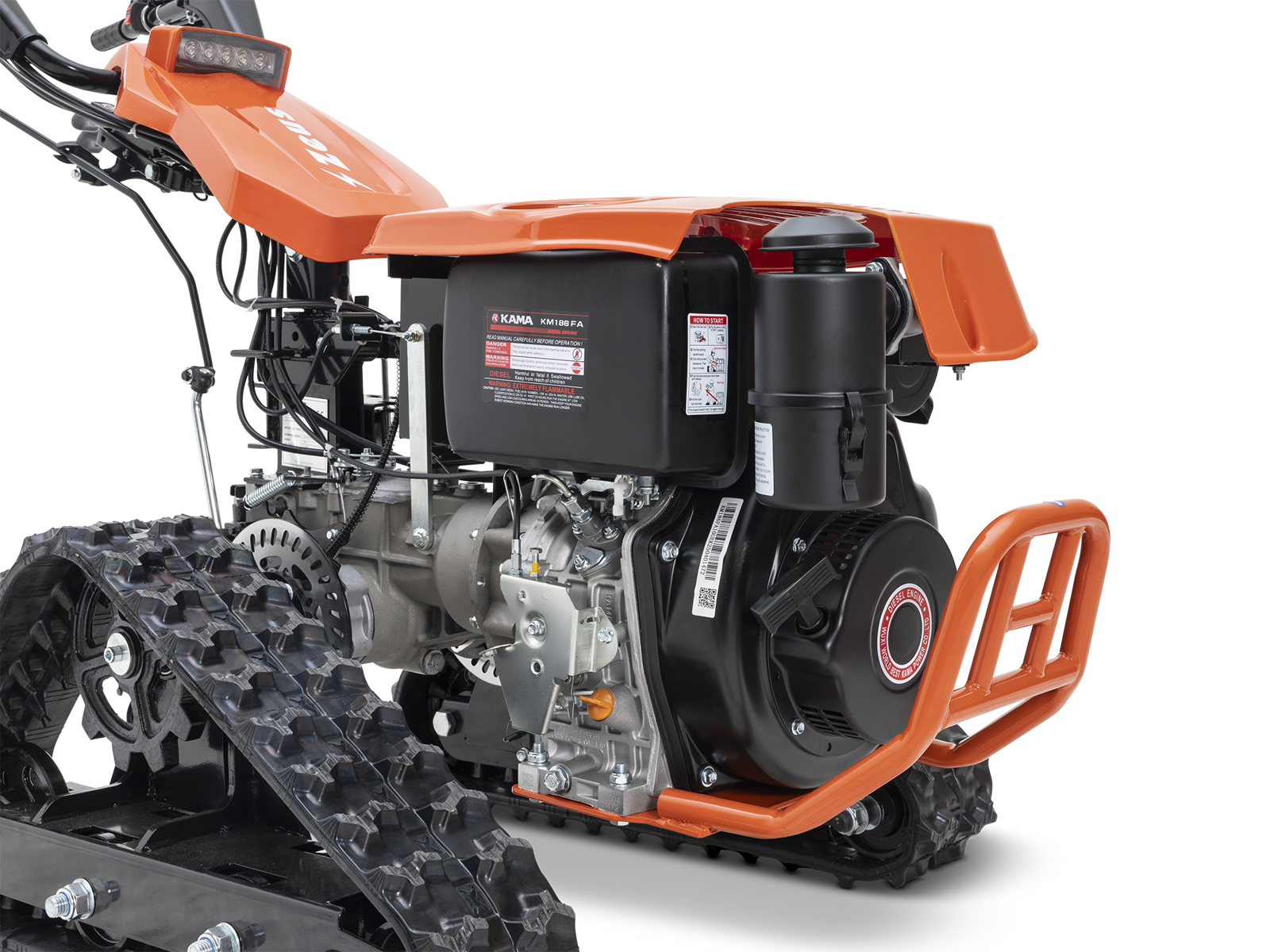

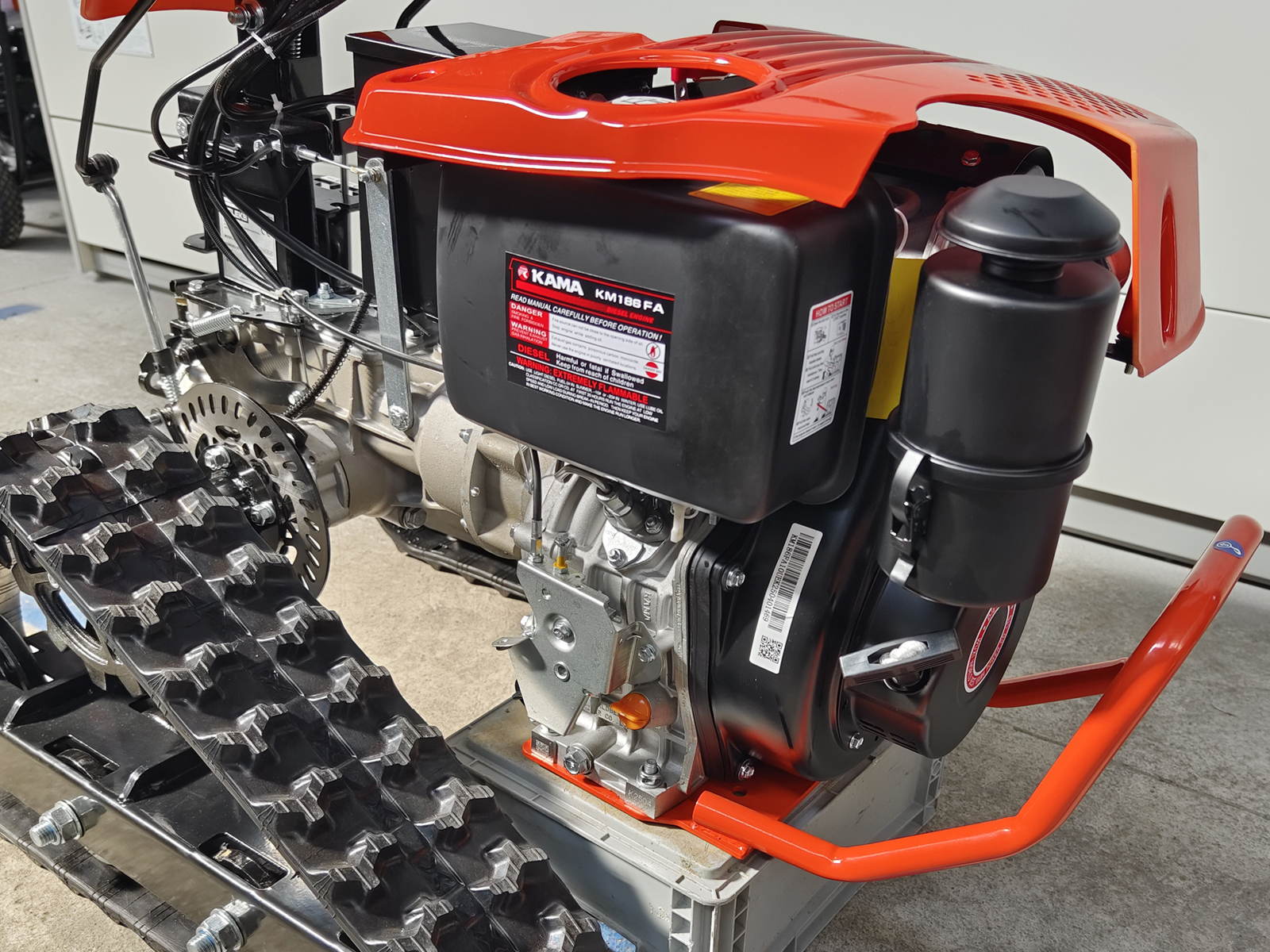

Kama 9 hp diesel, the most popular choice

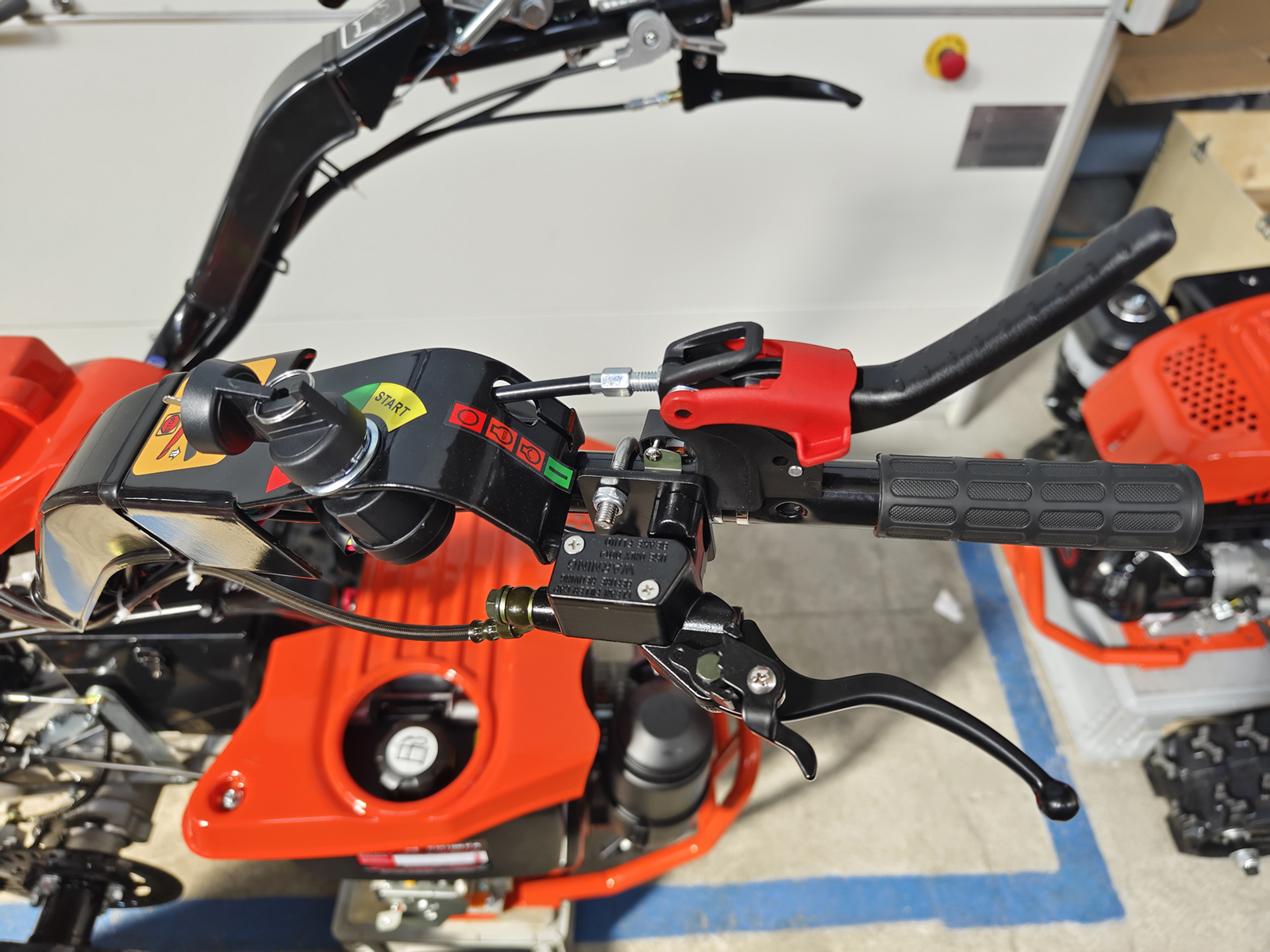

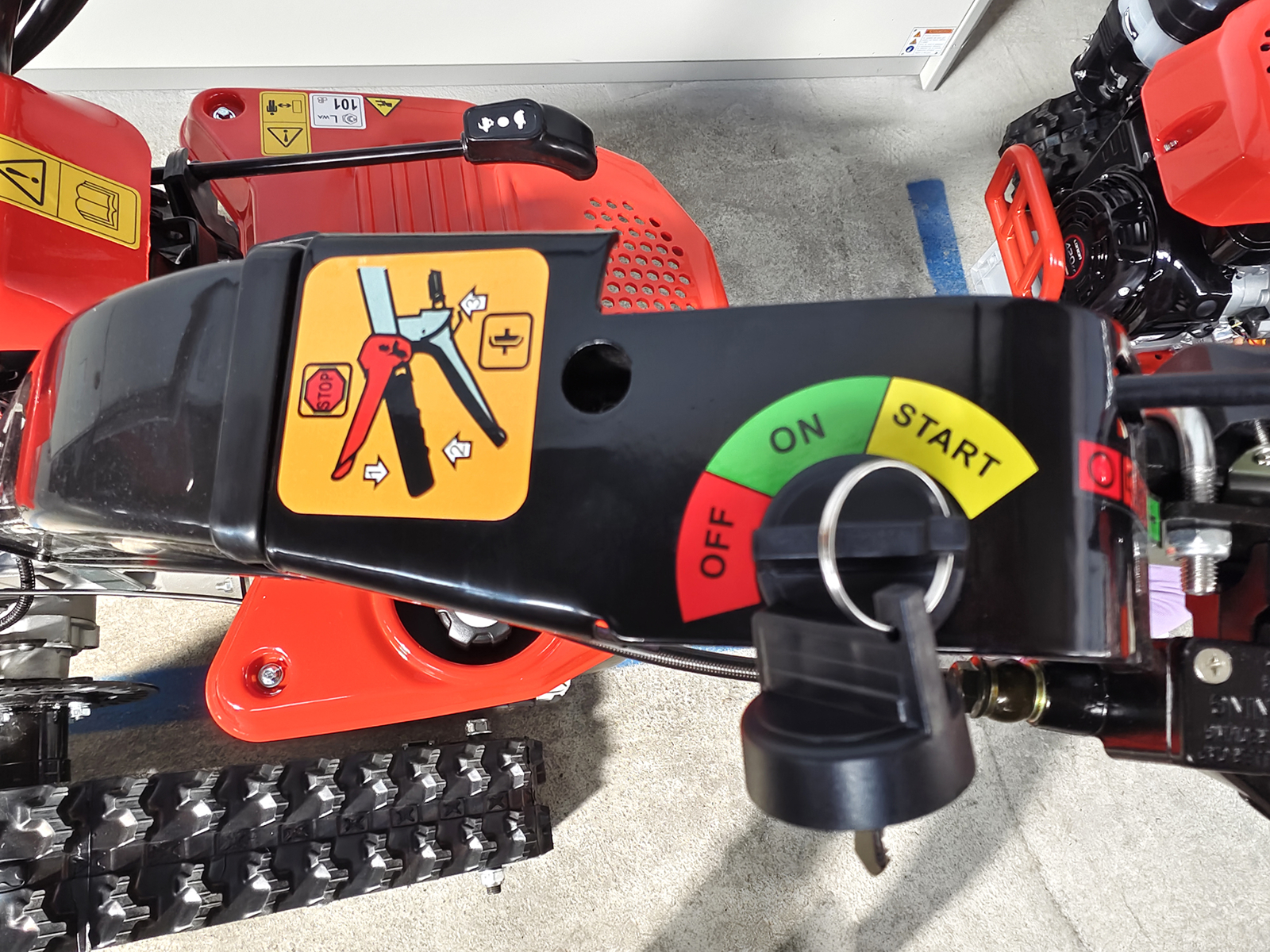

The 418 cc Kama 186FD diesel gives 9 hp and holds its revs under load through long days of mowing and flail mowing: it uses less fuel than the petrol, runs cooler and burns the diesel most farms already have. Electric key start, with a recoil starter as back-up.

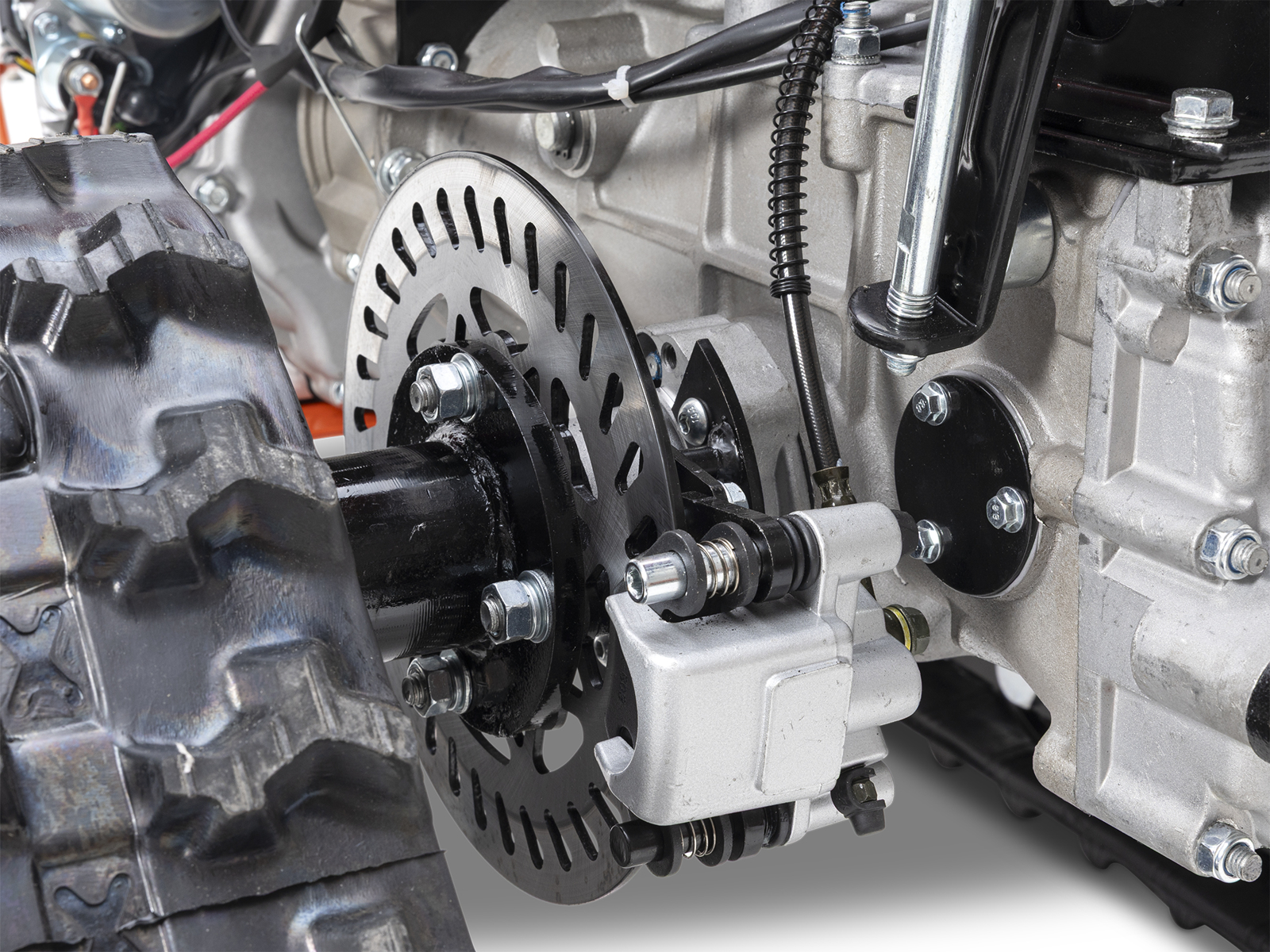

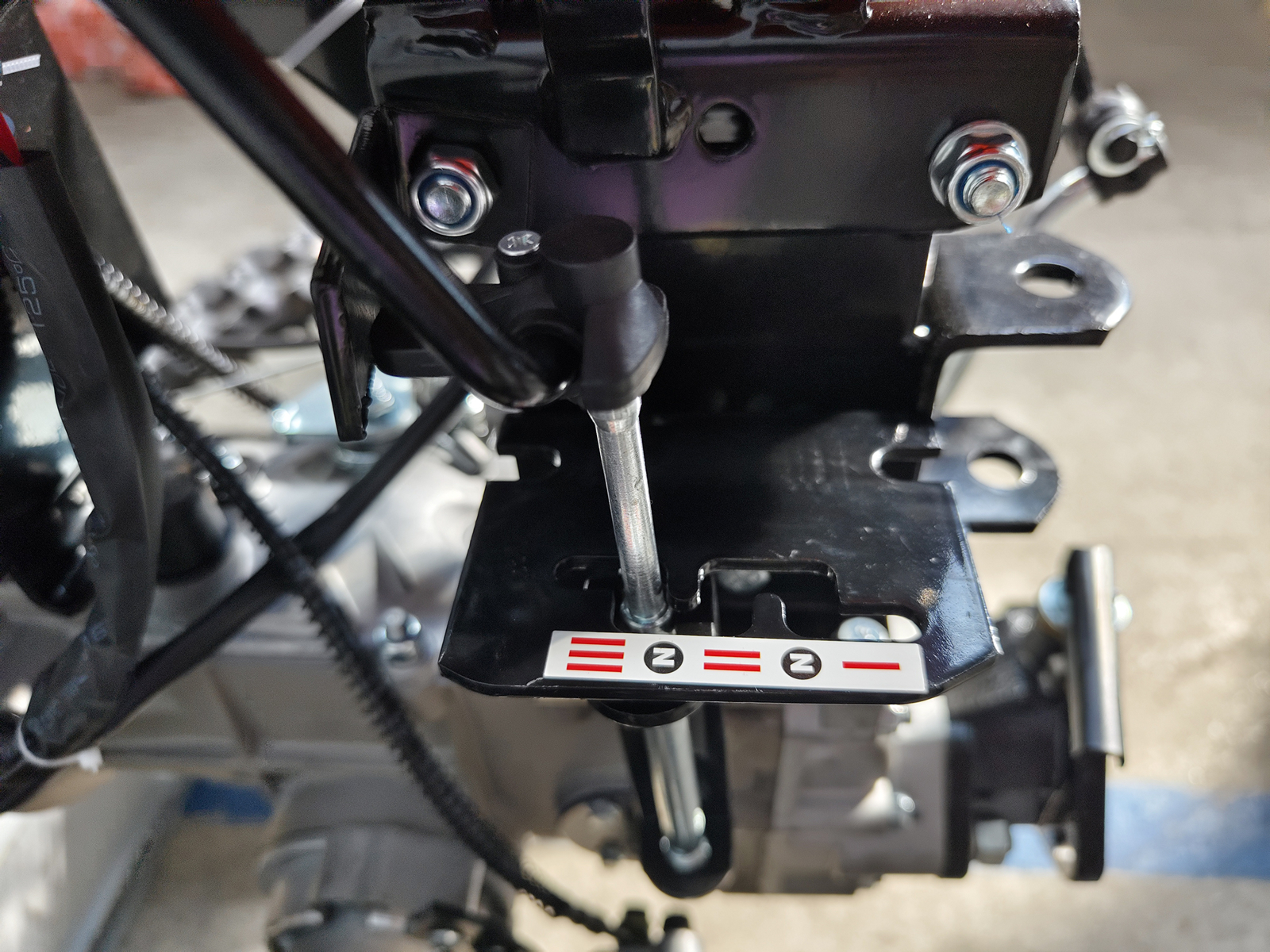

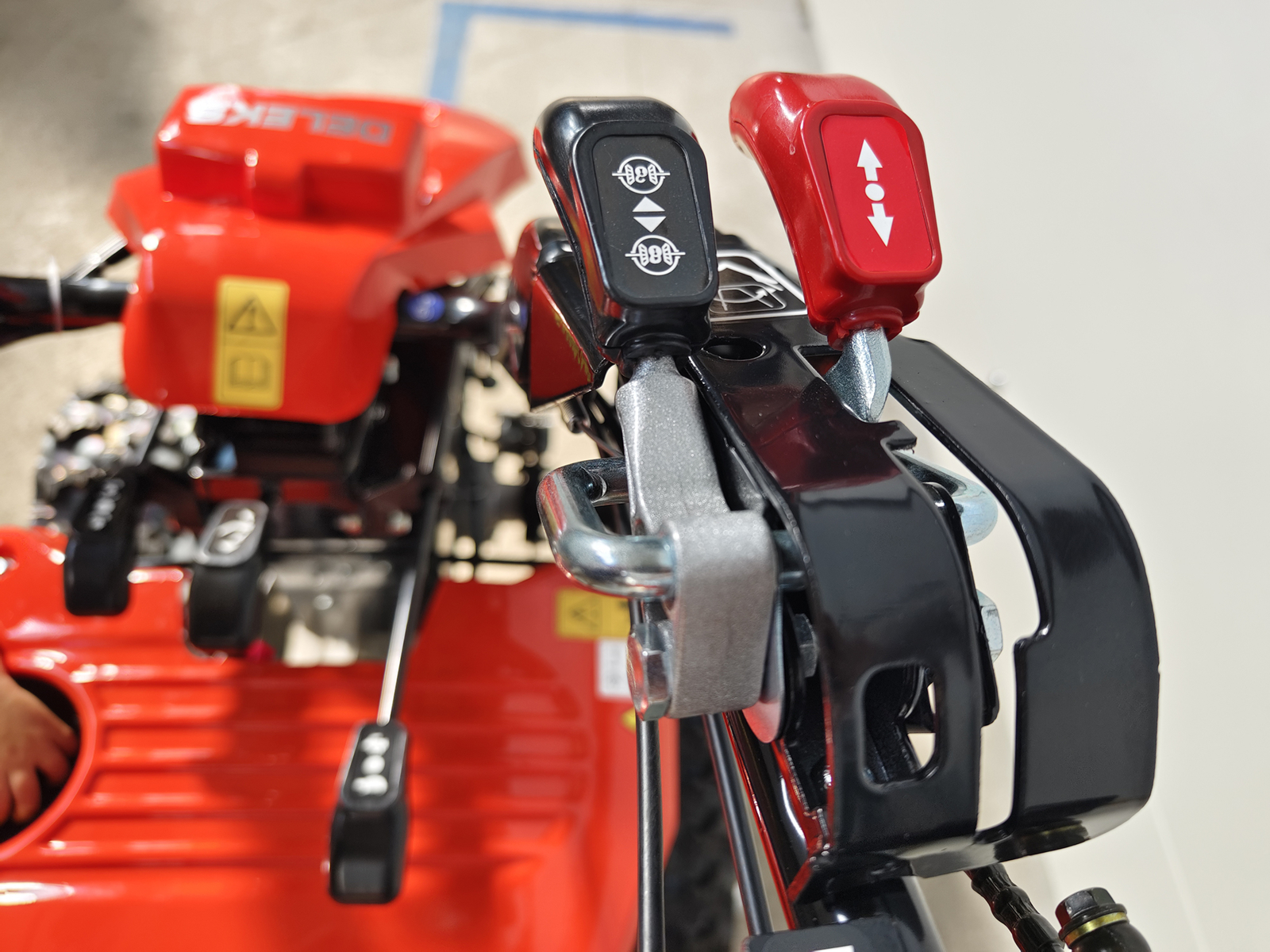

3+2 gearbox with quick reverse
Three forward gears and two reverse, quick reverse to change direction without changing gear, gears in an oil bath and a 990 rpm PTO, turning clockwise, independent of the drive.

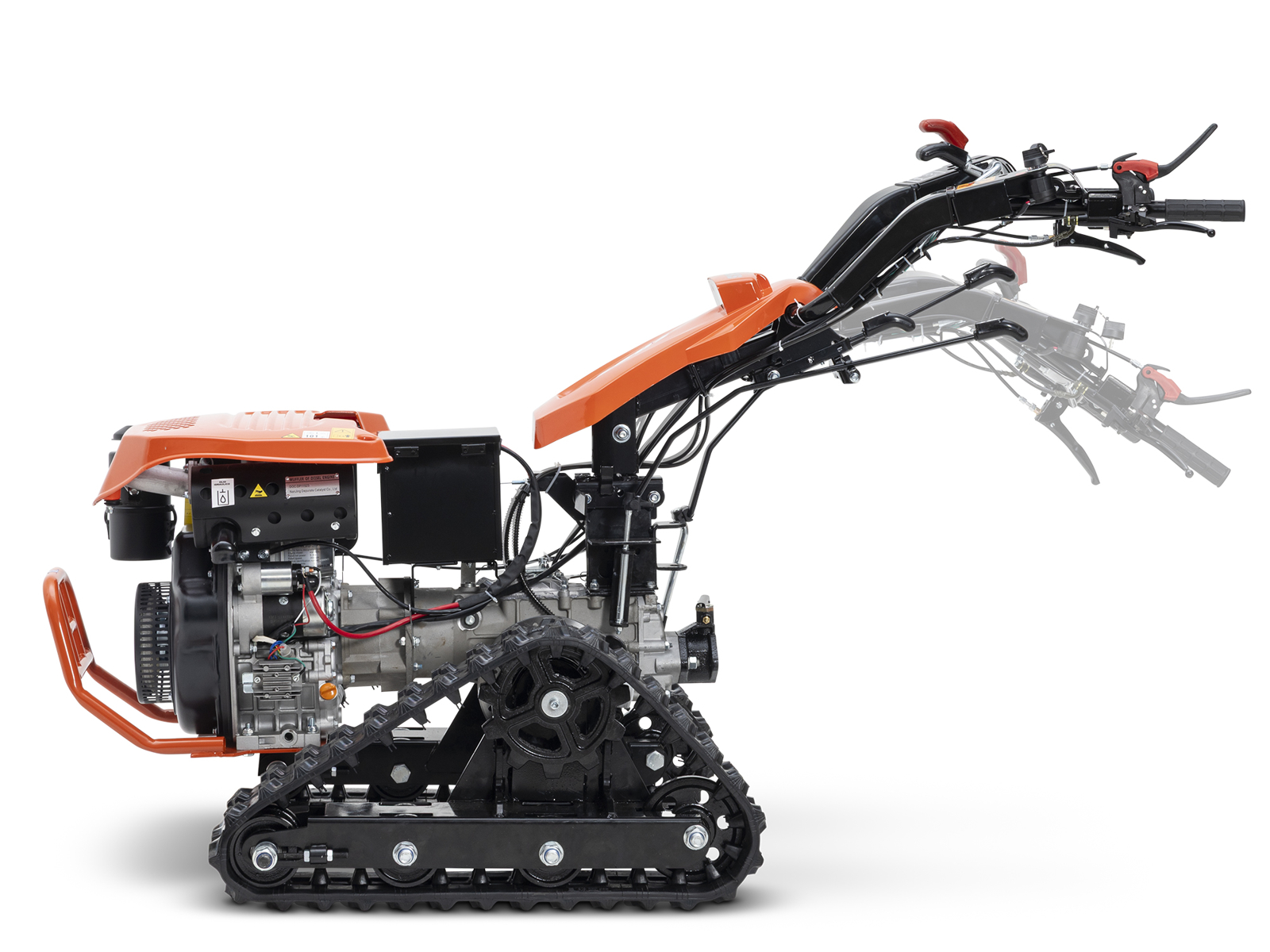

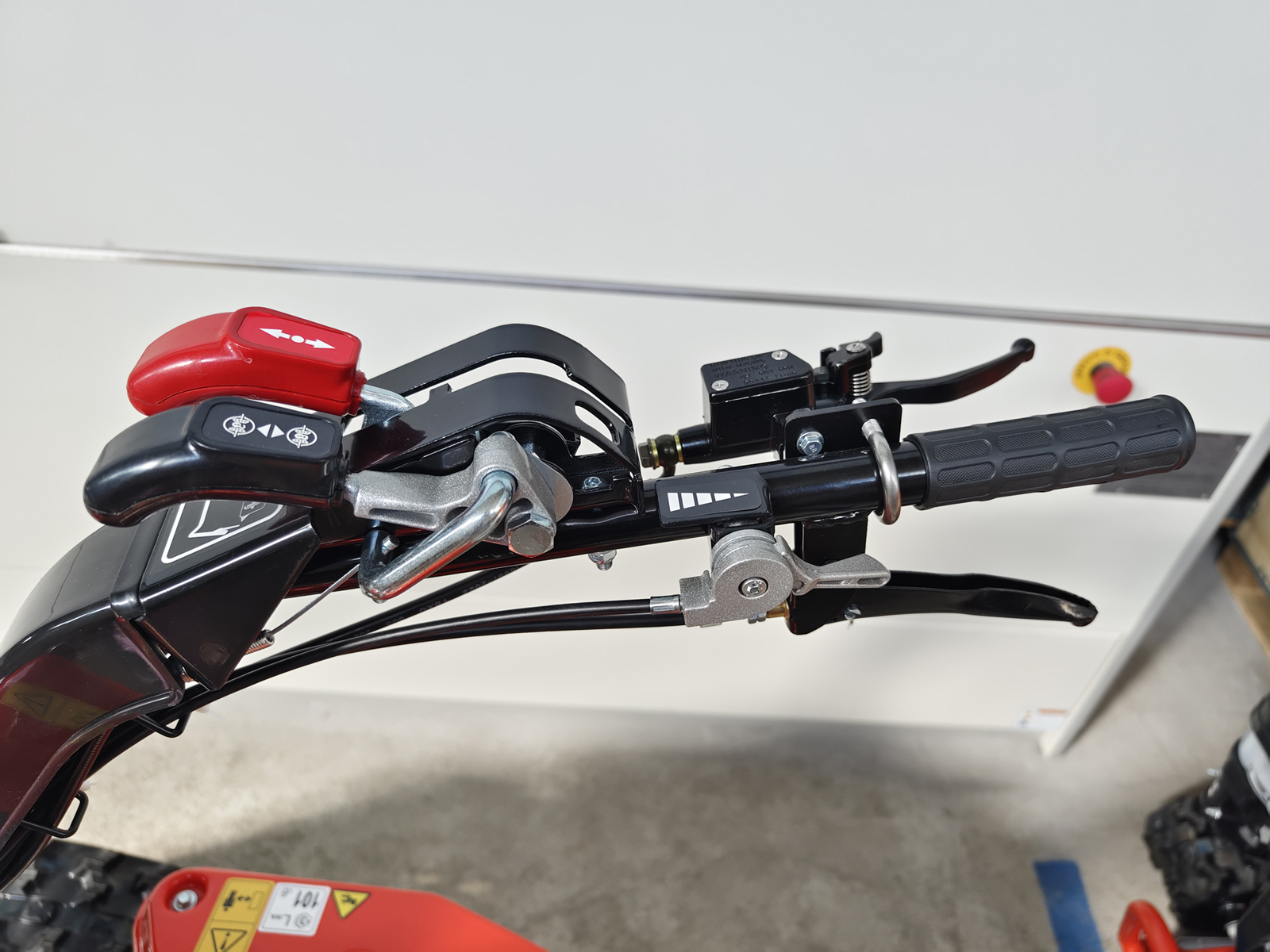

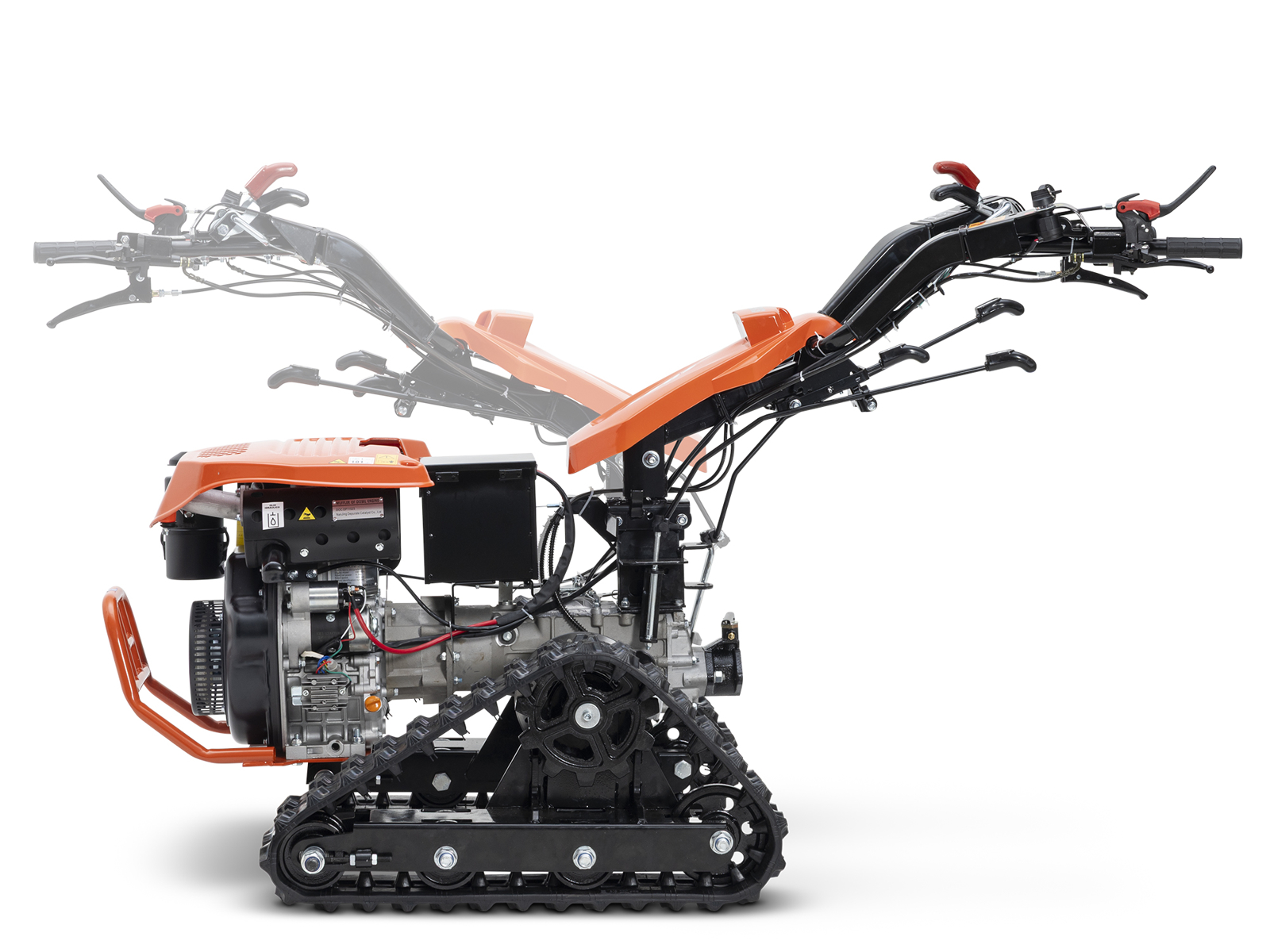

Handlebars reversible through 180°
The handlebars swing through 180°: with rear attachments (rotavator, plough, ridger) you work one way, with front attachments (cutter bar, flail mower, sweeper, snow blower) the other. They adjust for height and sideways, so you can stay on the uphill side when working across a slope.

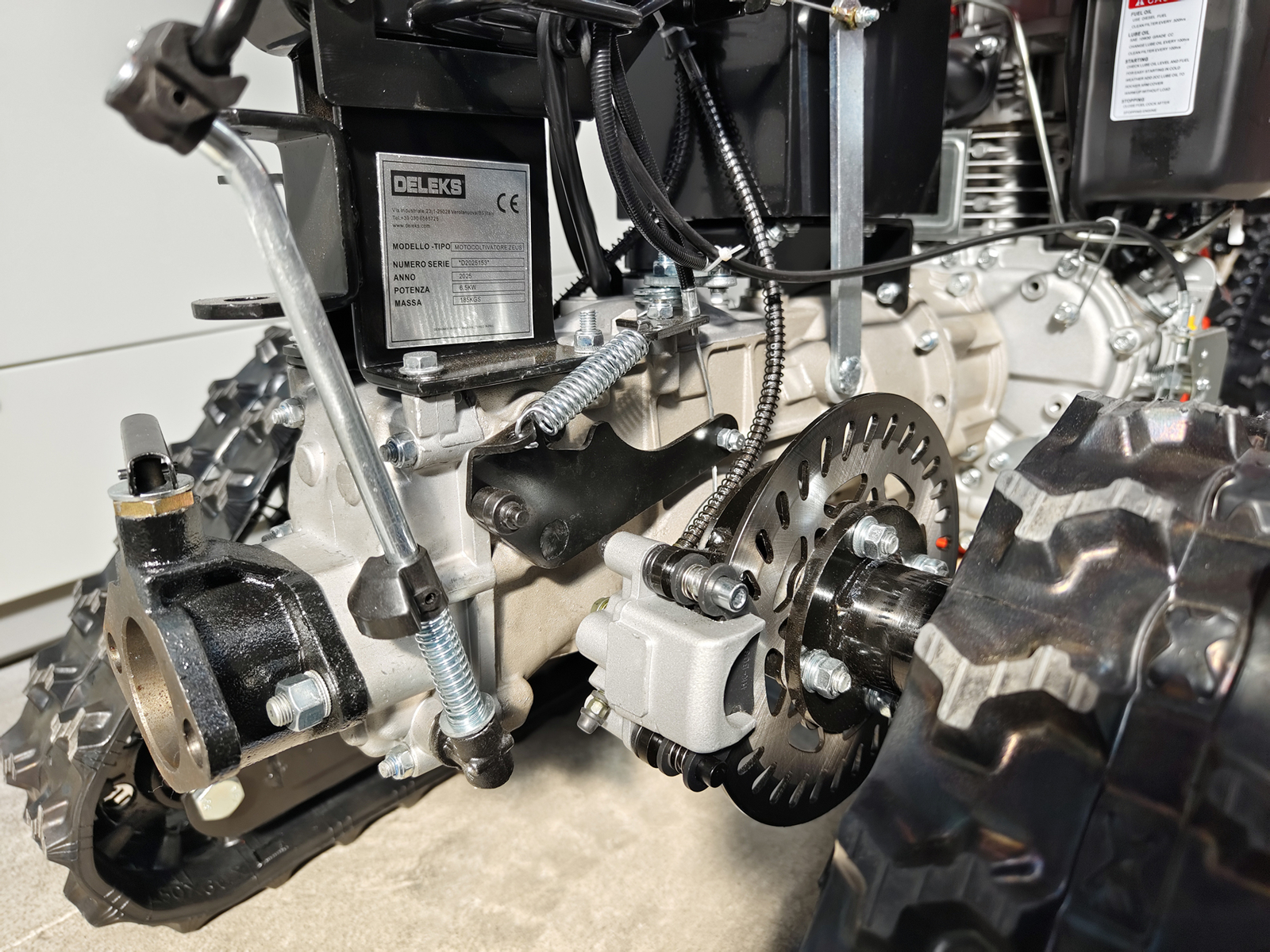

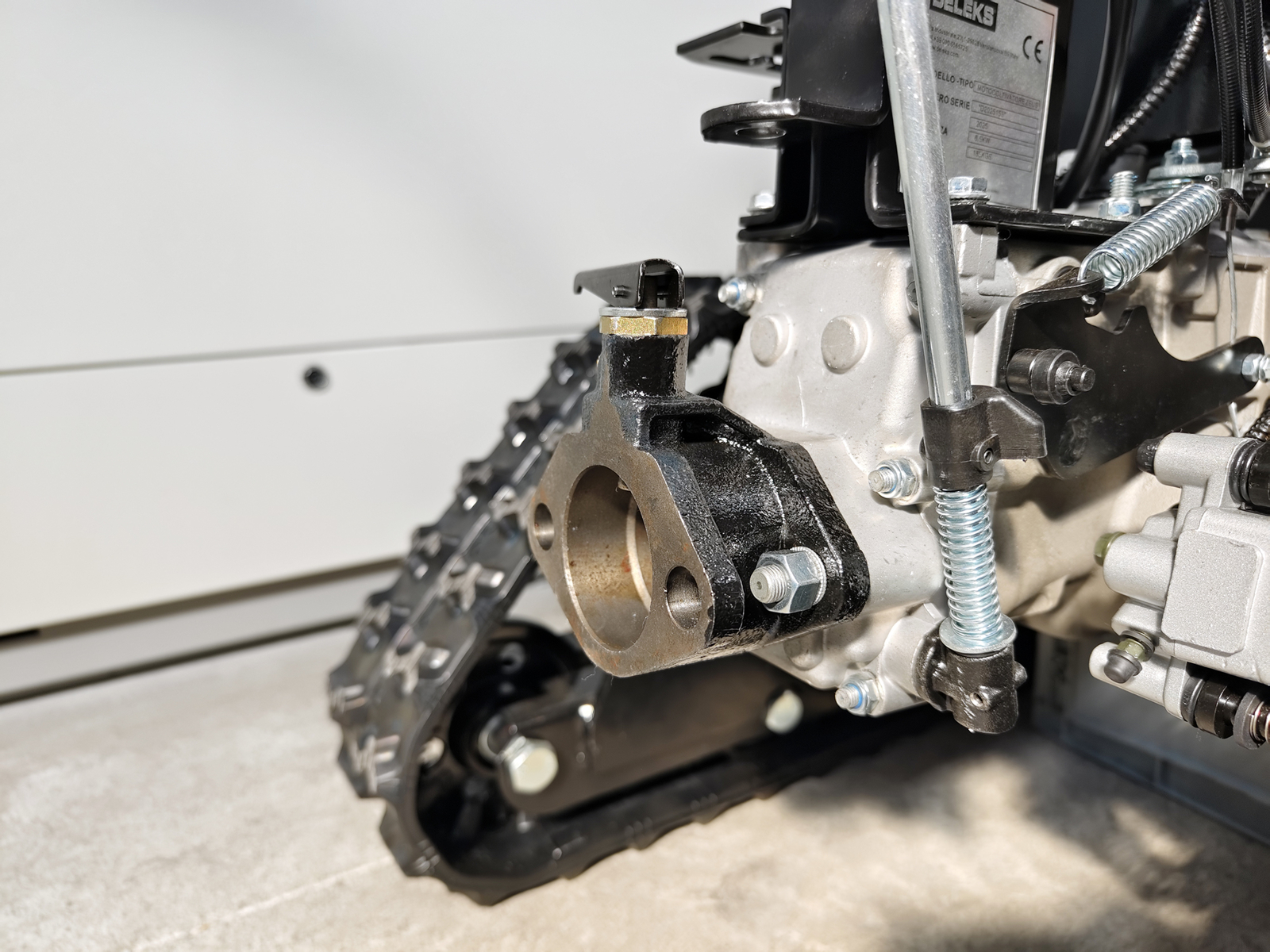

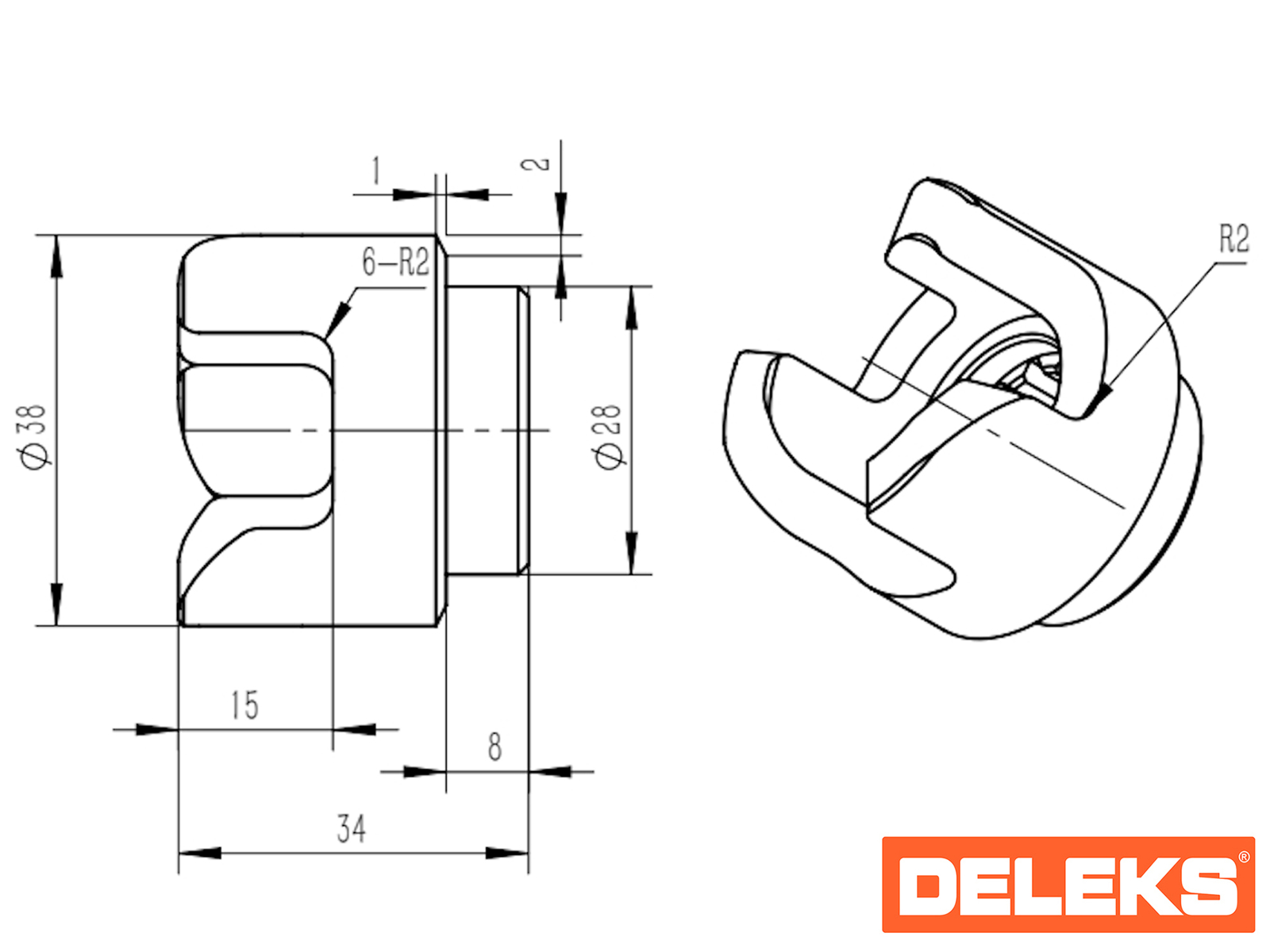

3-tooth BCS-type quick hitch, fine-spline with adapter
The female half of the 3-tooth quick hitch comes fitted to the tractor; every DELEKS® attachment already has its male half and changes over in seconds, with no tools. It is the same hitch as BCS, Ferrari and Pasquali, so attachments from those makes fit straight on; for fine-spline (millerighe) attachments there is the adapter. The attachments are the same as for the wheeled versions.
Pre-delivery check and shipping
Before shipping, the DELEKS® logistics centre checks the assembly, the engine and gearbox oil levels, the greasing and the controls, then secures the machine in a sealed wooden crate for transport. Delivery is free within the EU and the tractor arrives ready to use.
Fields of application

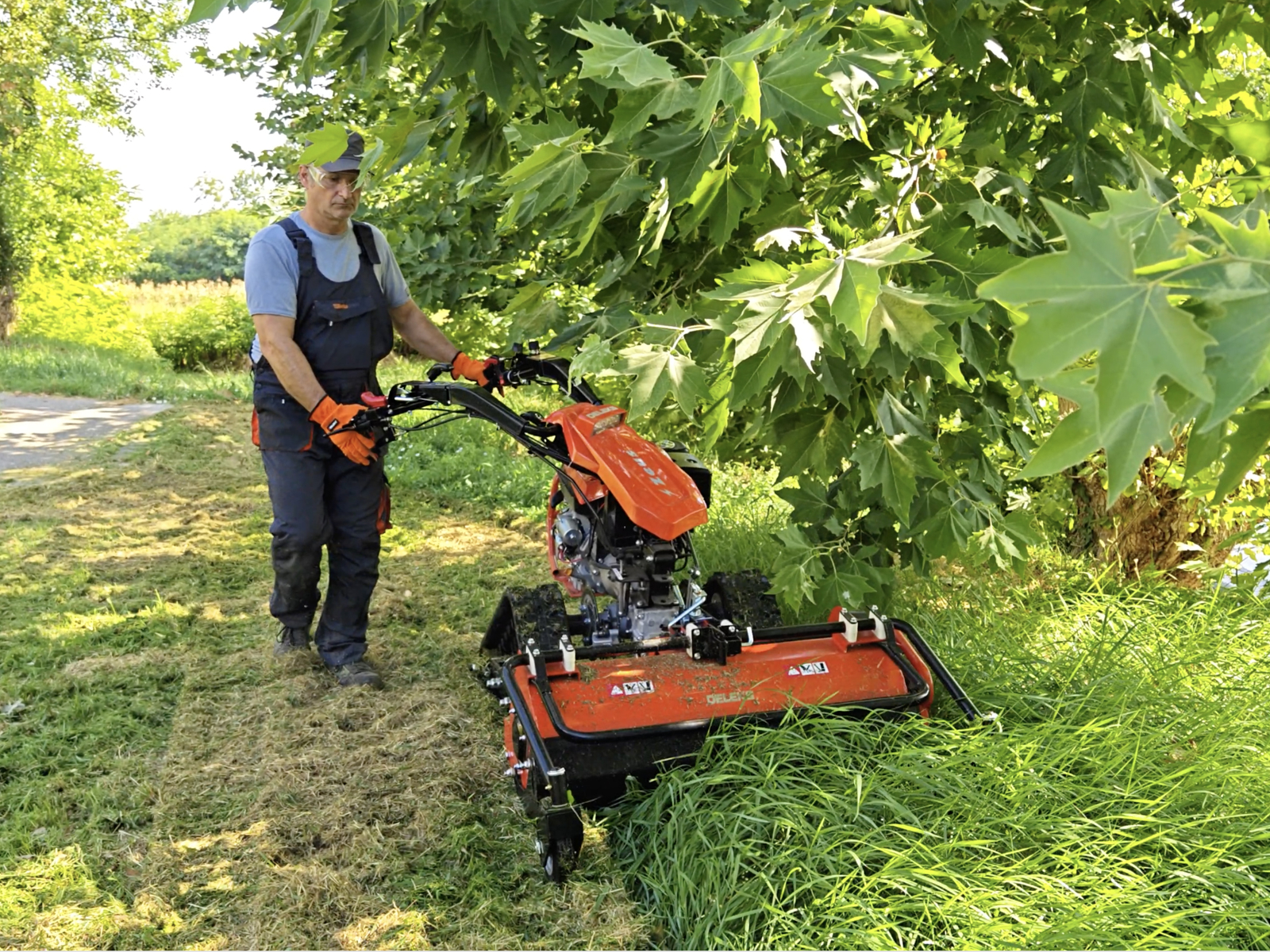

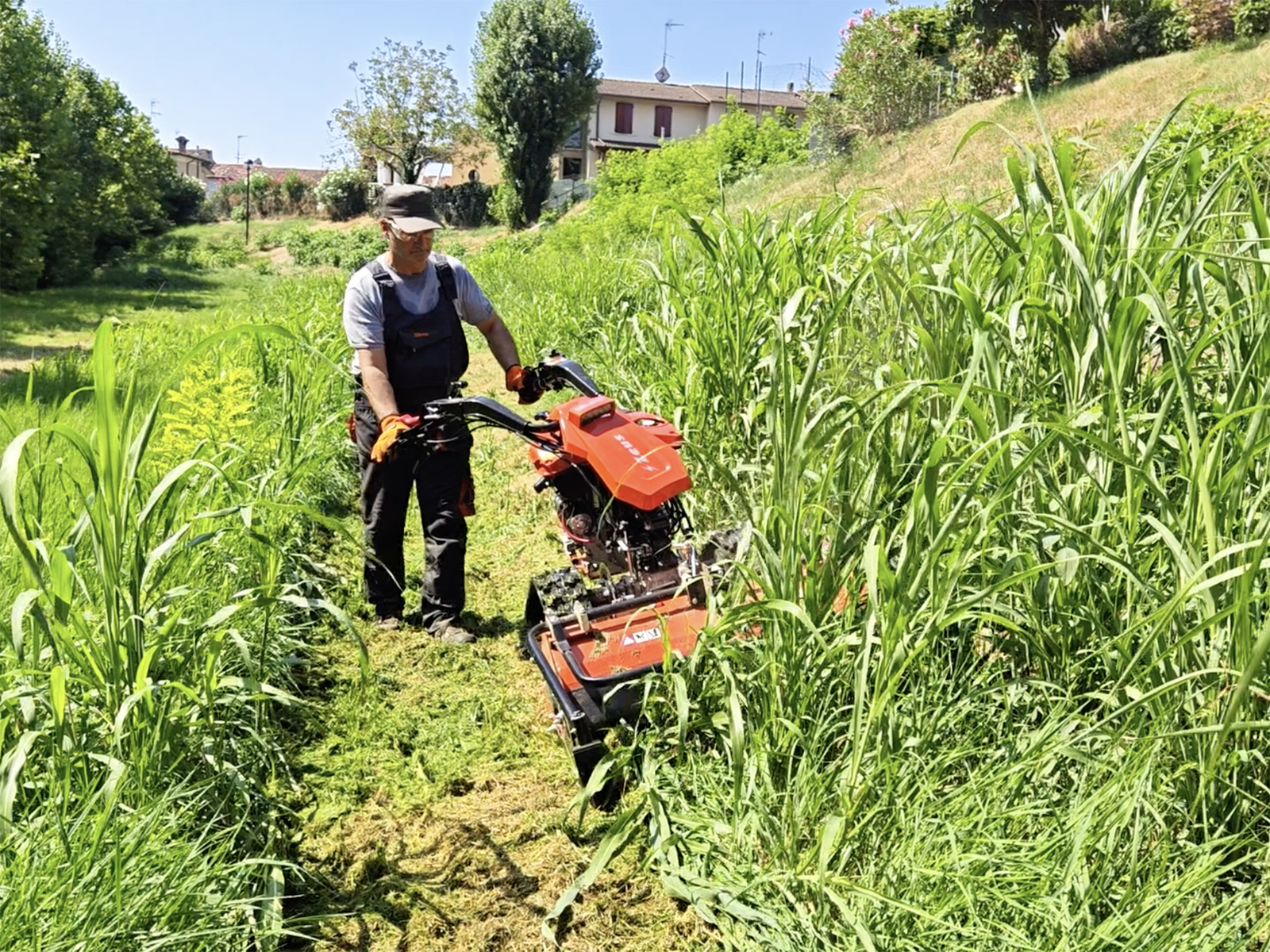

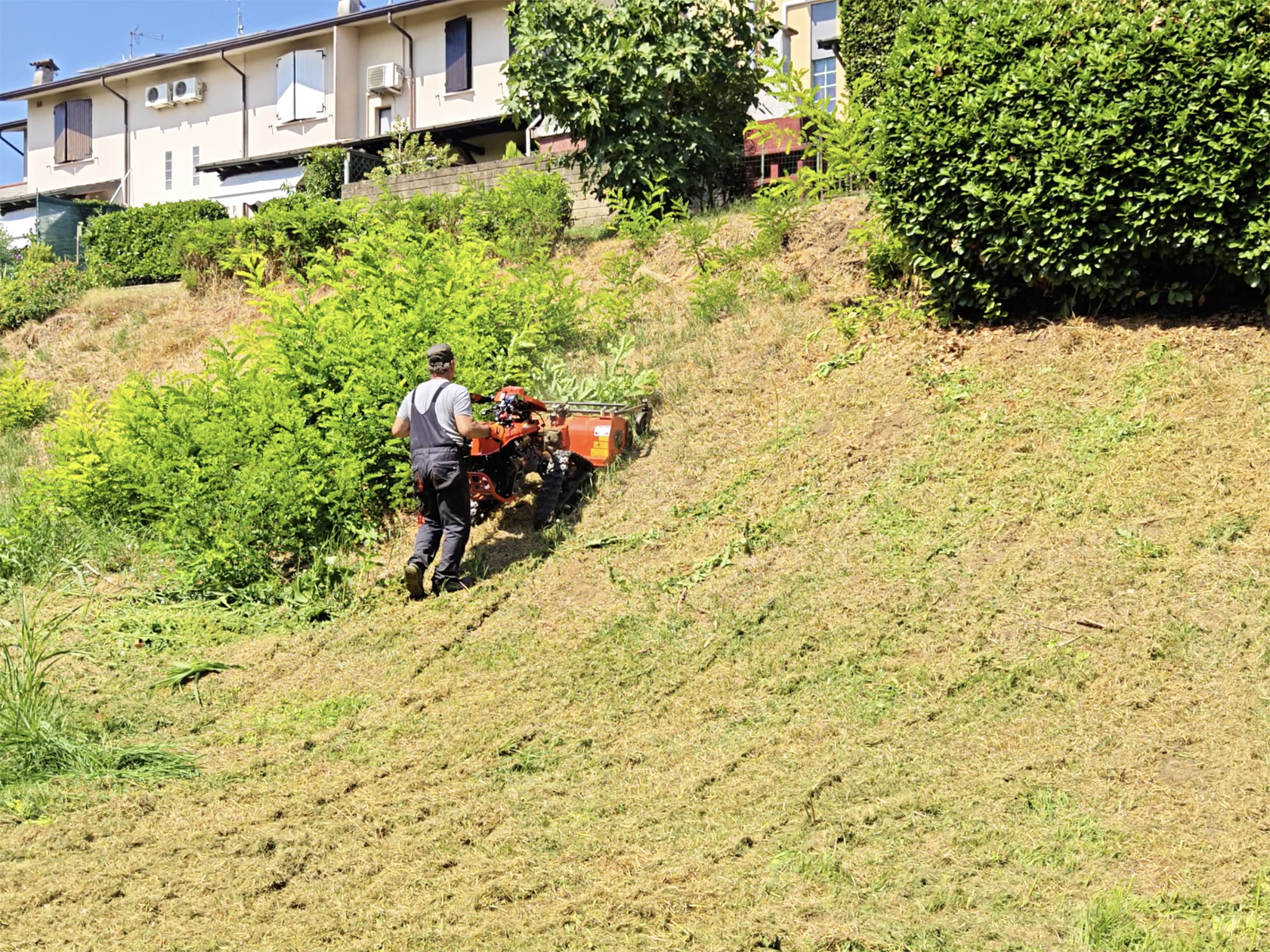

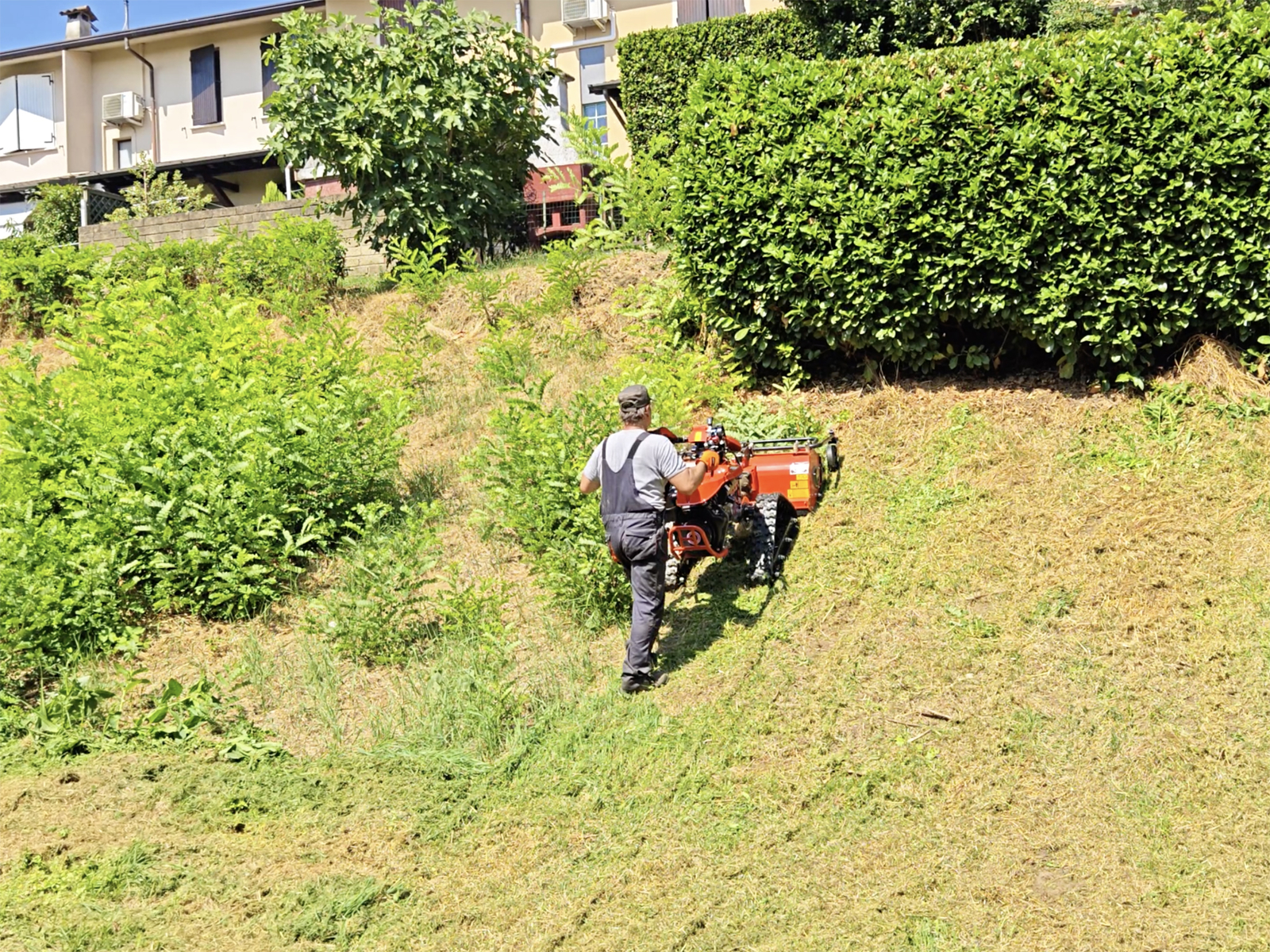

- Cutter-bar mowing and flail mowing on slopes, banks and embankments
- Hillside vineyards, orchards and olive groves: grass between the rows, loose soil
- Wet or soft ground where wheels sink
- Rotavating and ploughing the plot, as with the wheeled versions
- Snow with blower or blade on sloping drives and yards
Options and attachments
Rotavator, cutter bar, flail mower, ploughs, ridger, potato digger, cultivator, rotary harrow with seeder, PTO extension and snow blower can be added to the order or later. Ordered together with the tractor they get 10% off up to €150 and 5% off above.
FAQ
Diesel or petrol, on the tracked version?
The 9 hp diesel is the most popular: it uses less fuel, runs cooler and holds its revs under load. The 14 hp petrol (ZEUSLTR) has more power in reserve and is simpler to run.
When are tracks worth it instead of wheels?
When you often work on slopes, across a hillside or on wet ground: tracks do not spin and do not sink. On the flat, on the plot, wheels are enough (ZEUSK).
Can I use the BCS, Ferrari or Pasquali attachments I already have?
Yes, they have the same 3-tooth hitch; fine-spline ones need the adapter. If in doubt, ask the DELEKS® team first.
How does it arrive?
In a sealed wooden crate with oil and lubricants already checked: set the handlebars to the working position, fill up with diesel and off you go.
DELEKS® spare parts and service
Genuine spare parts ship from the DELEKS® warehouses in Europe: tines, blades, knives, belts, filters, control cables and the other wearing parts are normally in stock, for routine and for unscheduled maintenance. The technical service helps you find the right part from the exploded drawings, service the machine and choose the attachments that suit your work. The product comes with the EC declaration of conformity, the invoice and the use and maintenance manual, also emailed when the order ships. Two-year warranty, free delivery within the EU and free returns on attachments that do not fit your two-wheel tractor.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 185.0 kg |
| Transmission: Rotation of gearbox | Clockwise |
| Engine | Kama 186FD 9Hp 418cc diesel |
| Starter | E-start and Pull cord |
| RPM | 990 |
| Gross shipping weight | 212 kg |
| Package volume | 0.98 m3 |
| Packing sizes | 1150*900*950.0 mm |
