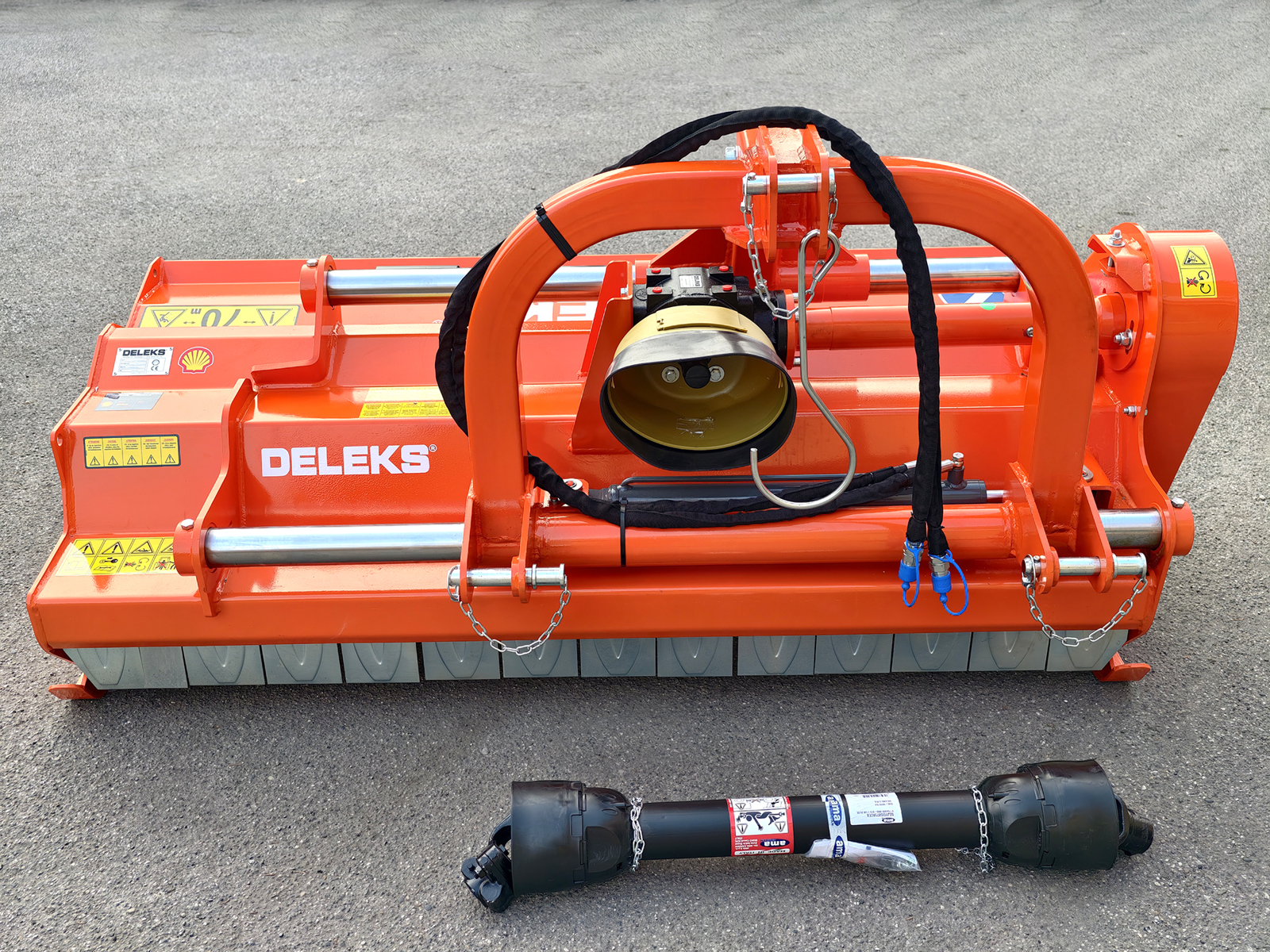

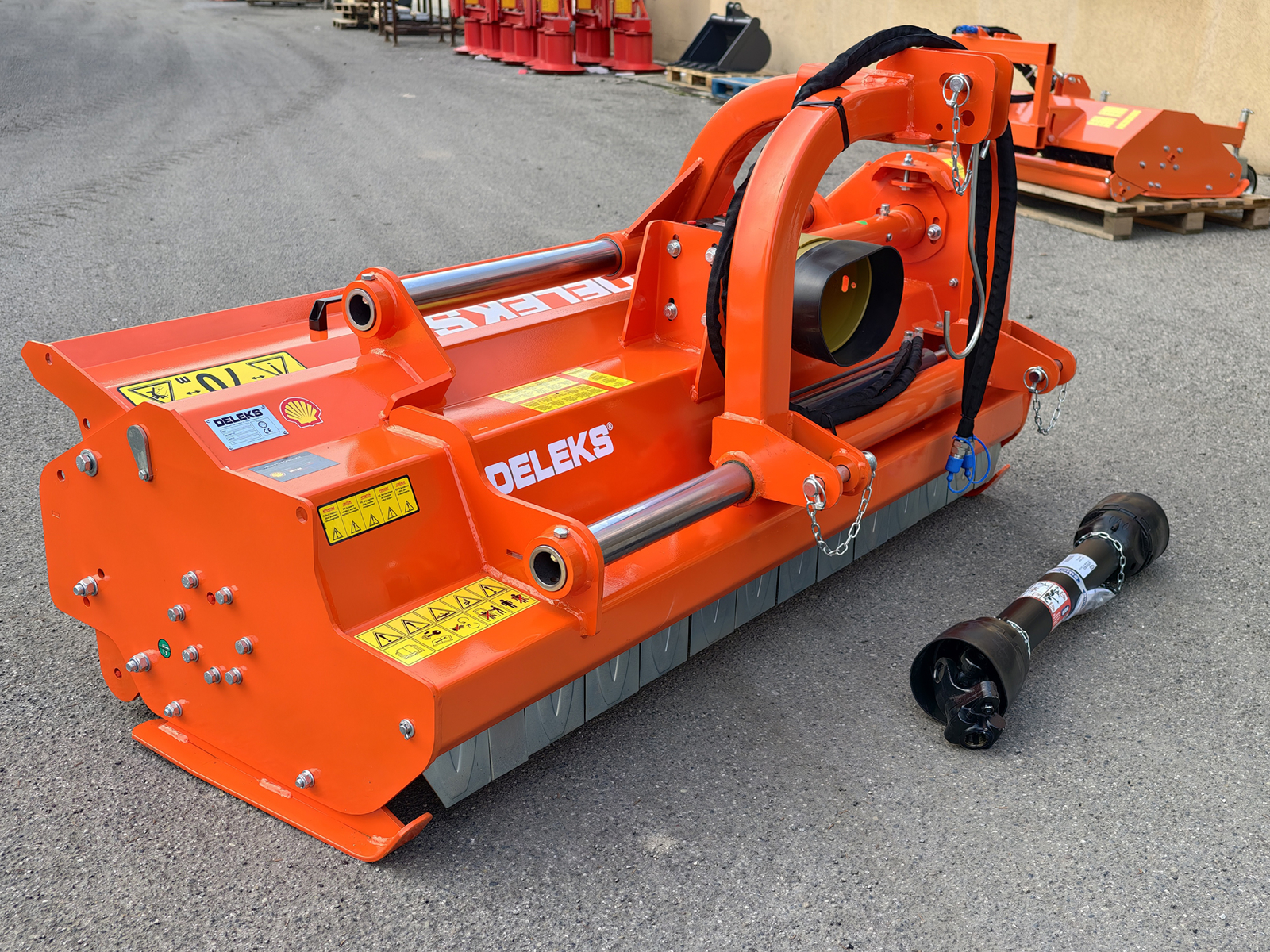

Heavy-duty flail mower for tractors 180 cm (71 in) CERVO-180, hammer flail mulcher with hydraulic side shift for 60-100 hp tractors
DETAILS

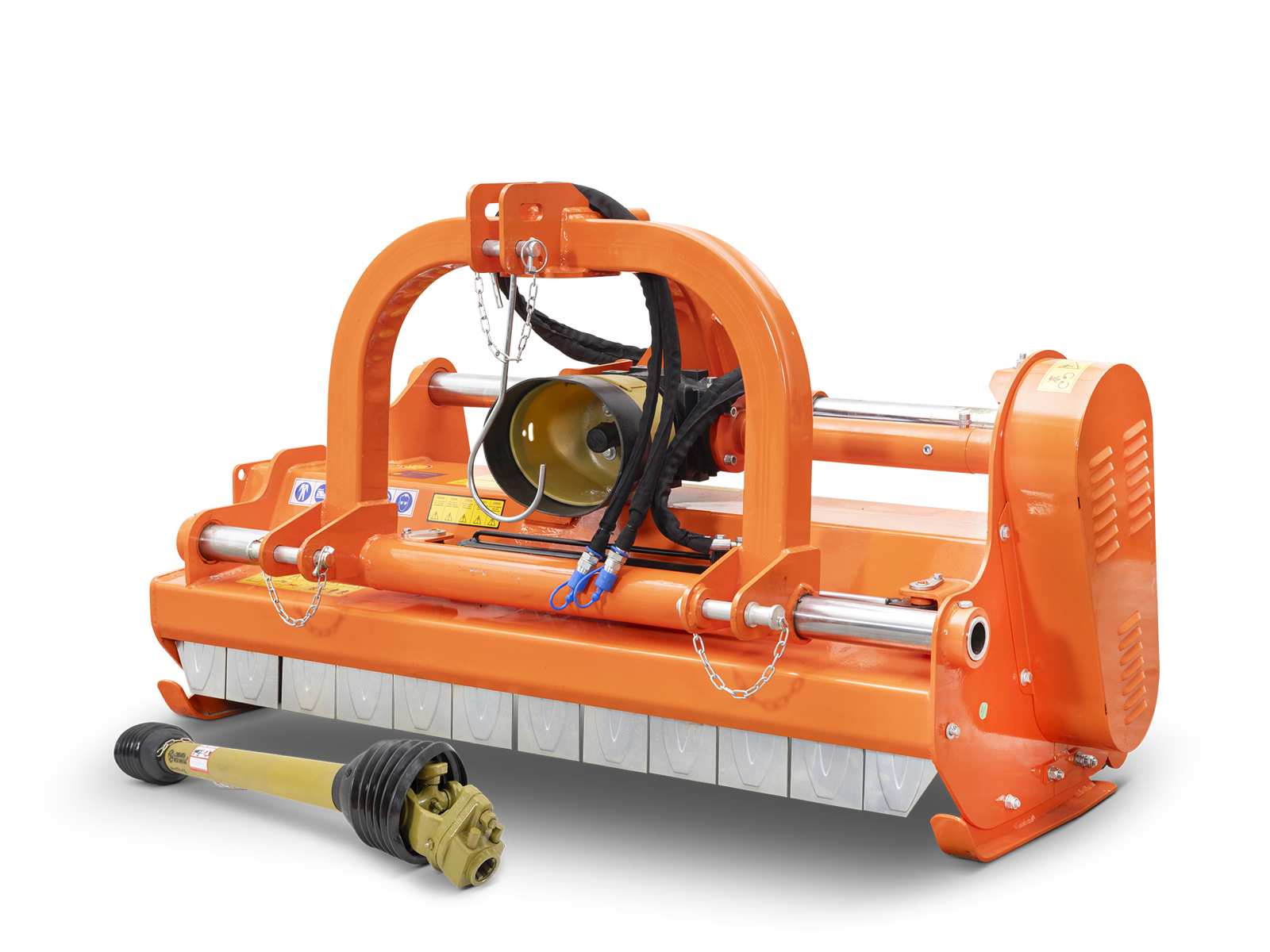

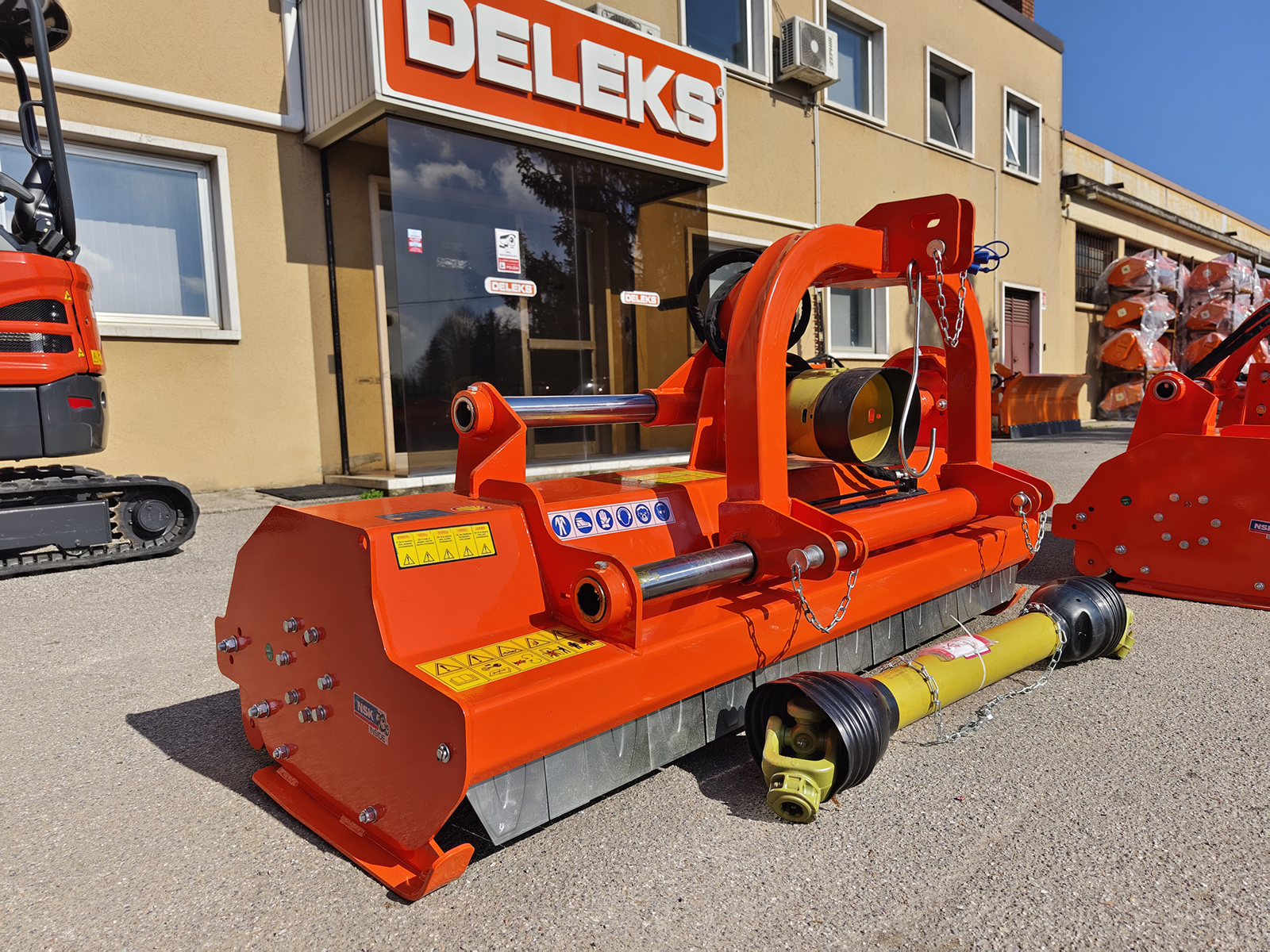

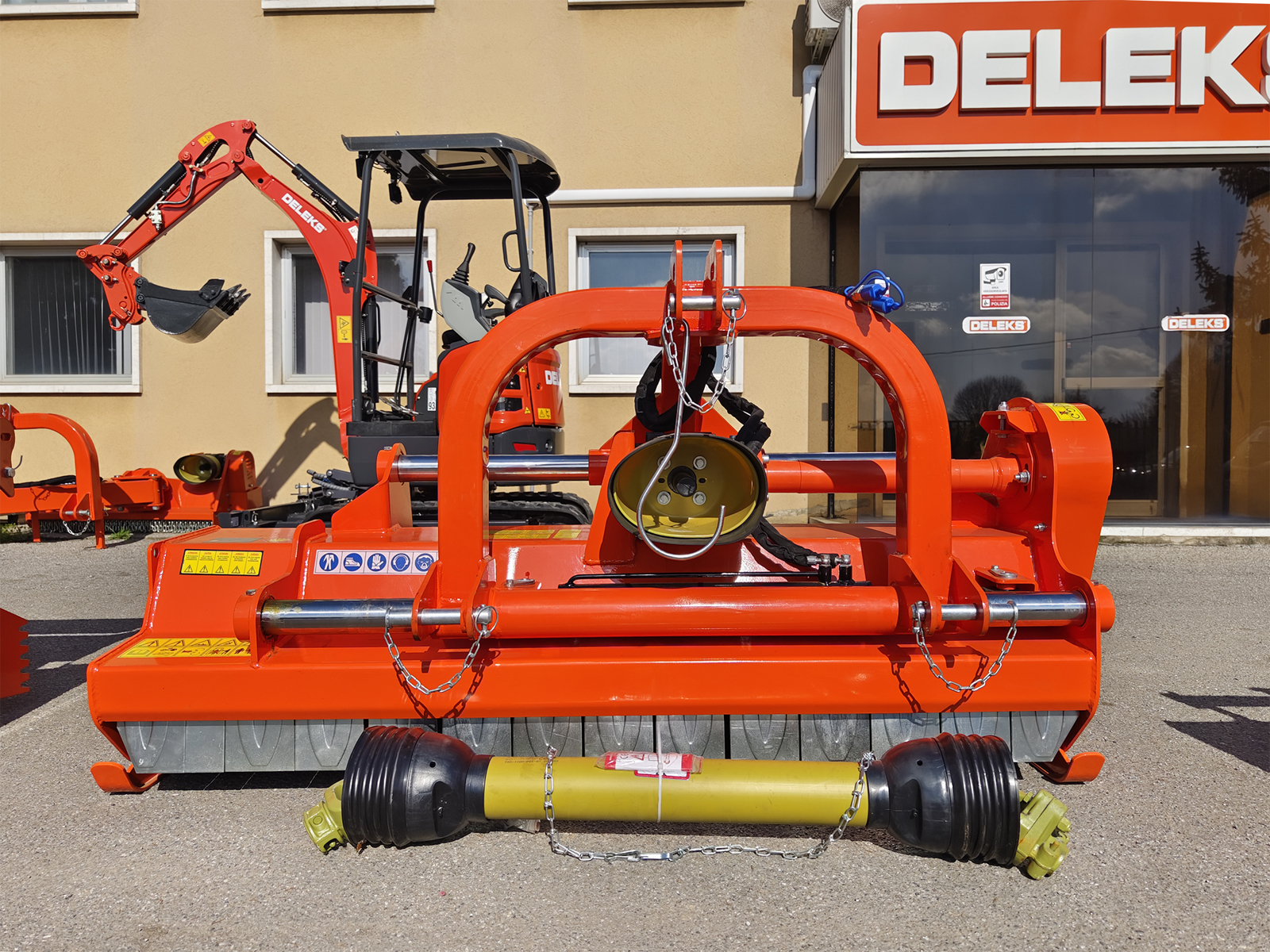

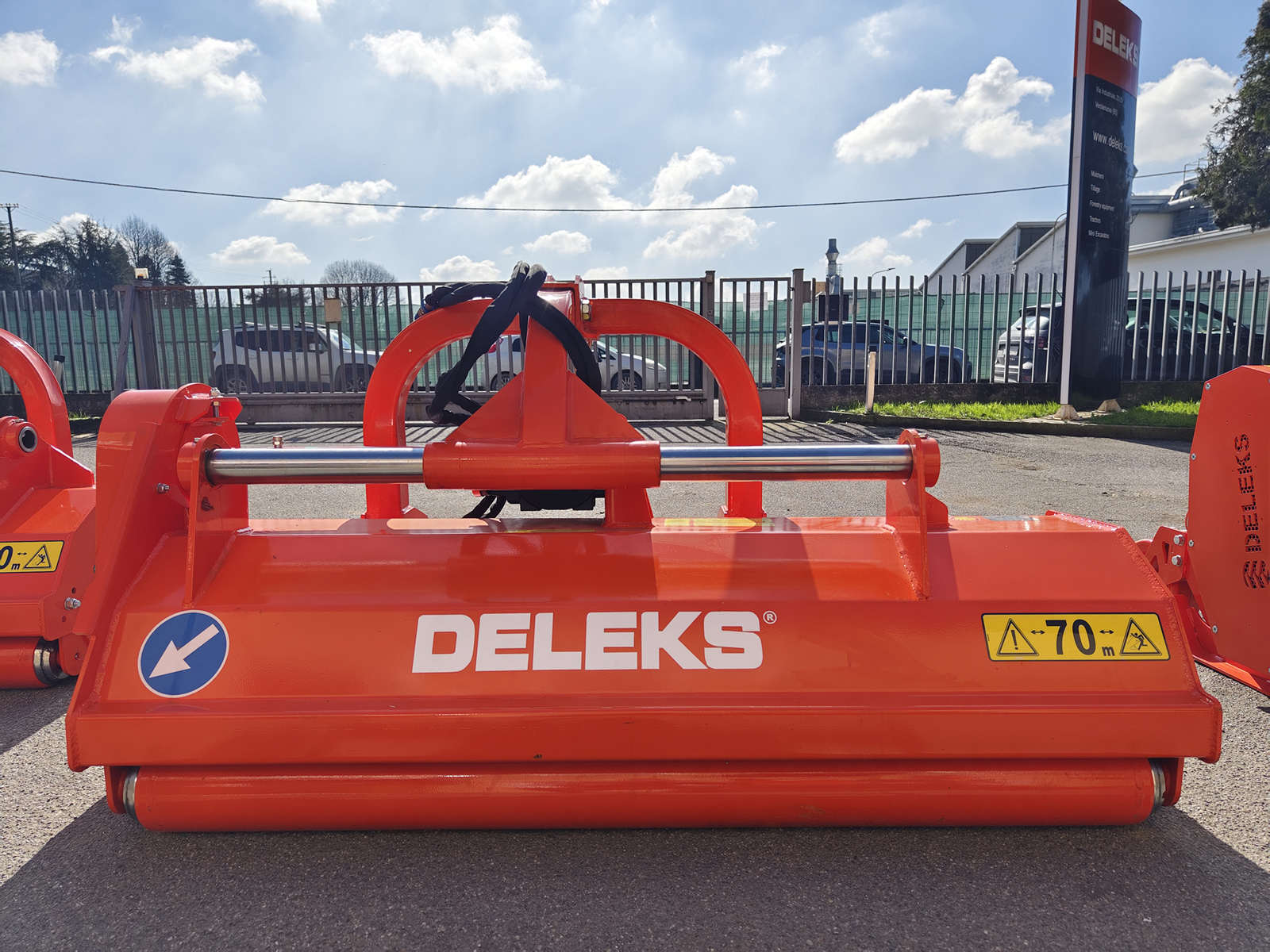

Heavy-duty flail mower for tractors with a 180 cm (71 in) cut: the DELEKS® CERVO-180 is the hammer flail mulcher from the heavy series for wheeled or tracked tractors from 60 to 100 hp, such as New Holland, John Deere, Landini, Deutz-Fahr, Massey Ferguson and Kubota. The electronically balanced 152 mm (6 in) rotor carries 16 hammer flails of 1,100 g (2.4 lb) with a 14 cm (5.5 in) wide base and shreds long grass, brambles, scrub, vine prunings and other prunings up to 6-7 cm (2.4-2.8 in) thick. The hood is double-skinned, the 40 cm (16 in) hydraulic side shift is worked from the seat and the oversized rear roller sets the cutting height. 540 rpm gearbox with freewheel and a 3-year warranty, 4-belt drive, 505 kg (1,113 lb). TÜV-certified, it comes complete with a CE-approved PTO shaft with shear bolt, a 2-year warranty and free delivery within the EU.
Which tractors it fits
The CERVO-180 cuts 180 cm (71 in) with an overall width of 195 cm (77 in) and is built for wheeled or tracked tractors from 60 to 100 hp with a 540 rpm PTO and a universal category 2 three-point linkage (25-28 mm pins, lower link spacing from 740 to 890 mm): New Holland, John Deere 5 Series, Landini Rex, Deutz-Fahr, Massey Ferguson, Lamborghini, Kubota, Solis and equivalent tractors. It works on the flat and on slopes, centred or offset to the tractor. The gearbox sits 800 mm from the left-hand side and 1,000 mm from the right-hand side, 550 mm above the ground. As a rule of thumb the mower should be 15 to 20 cm (6 to 8 in) wider than the tractor's outer track, so it covers the wheel marks.

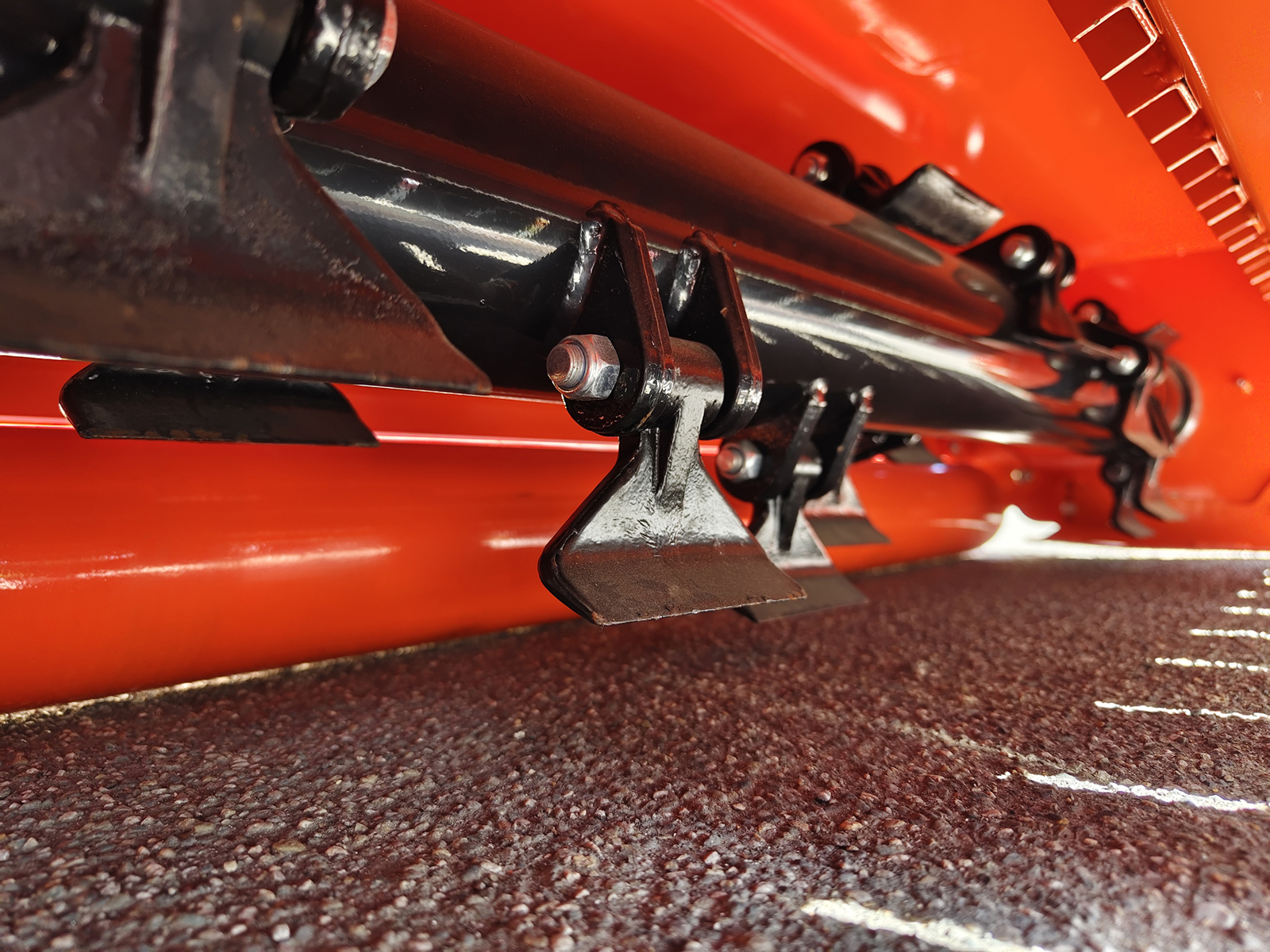

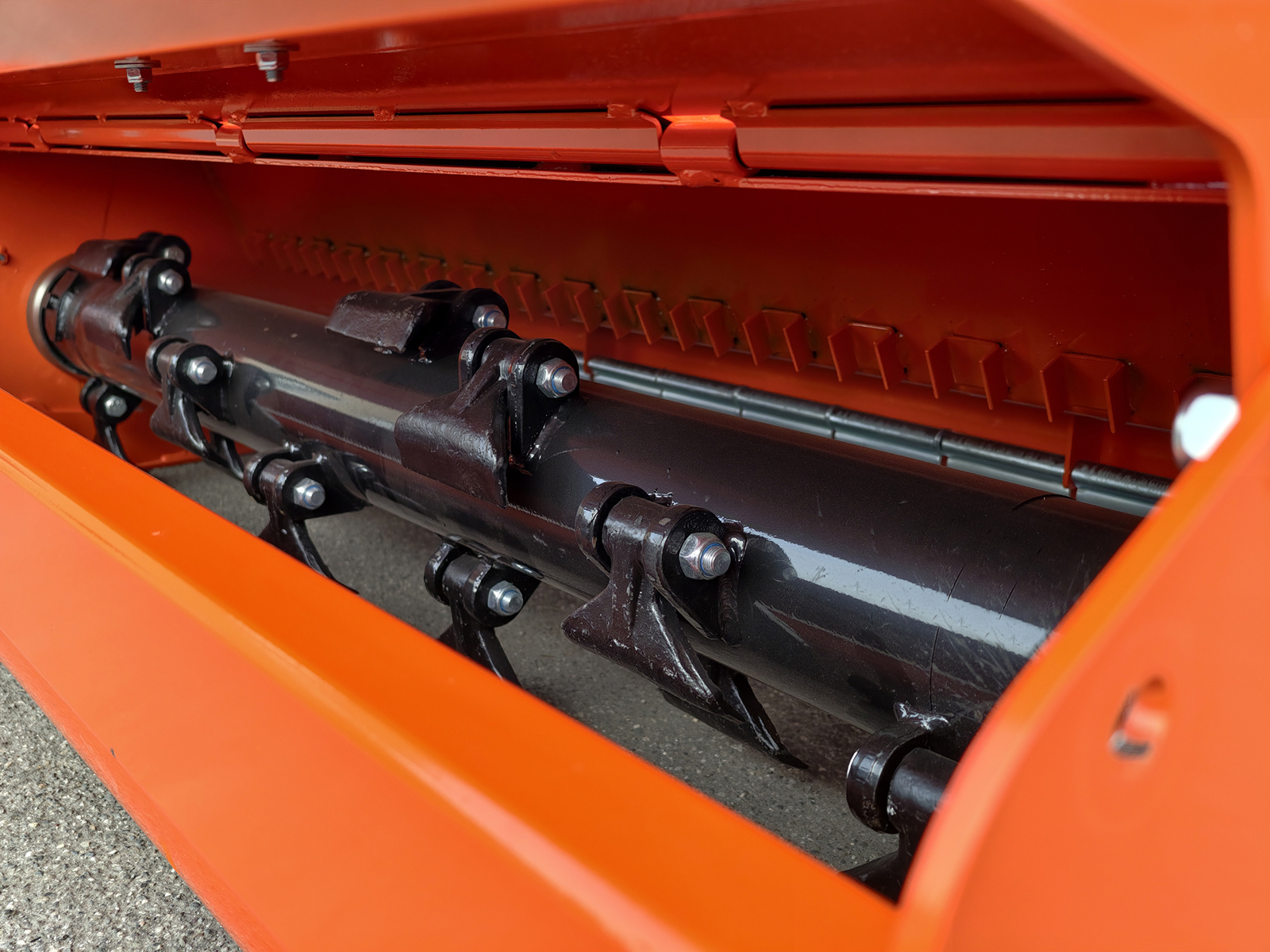

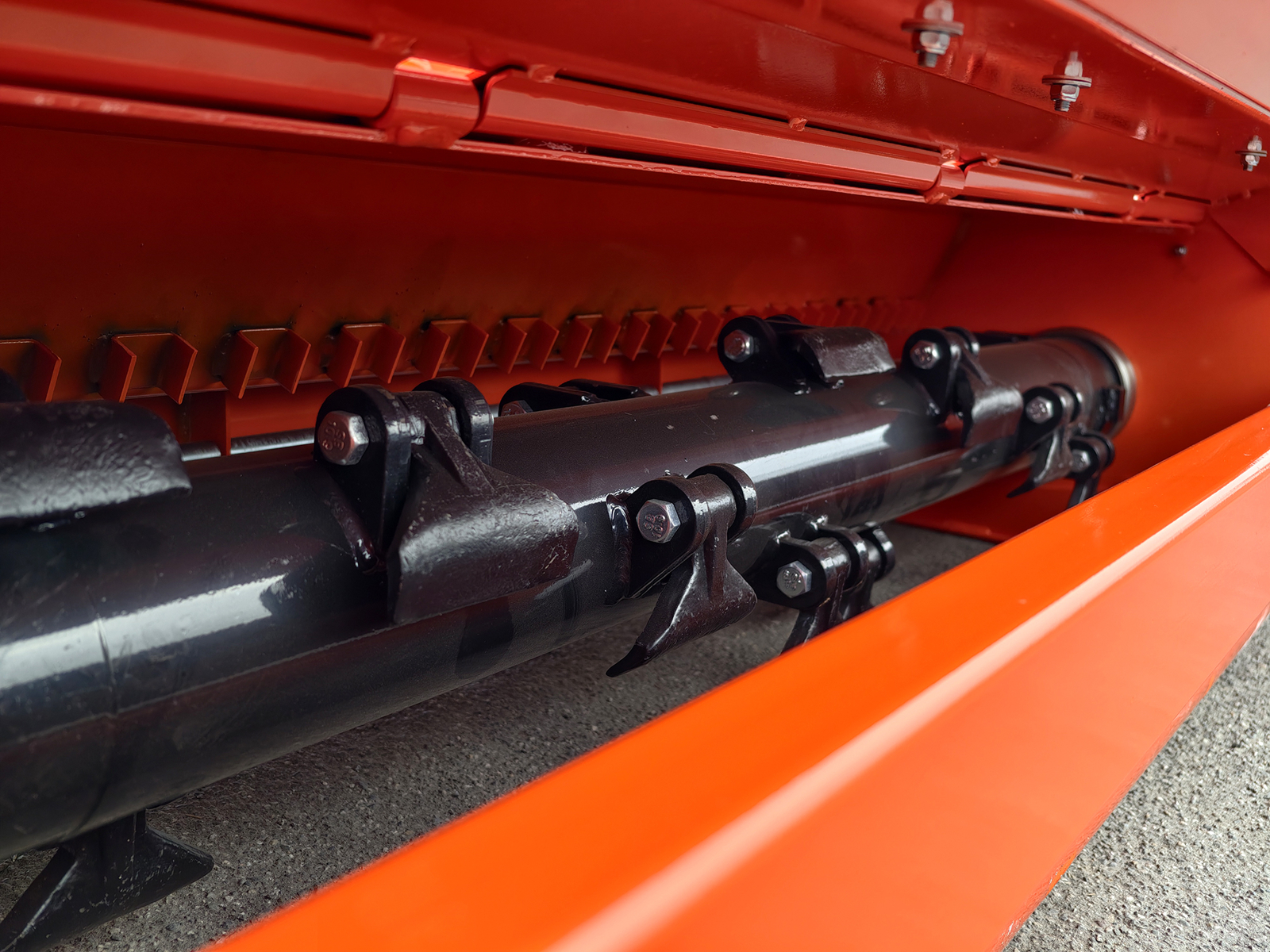

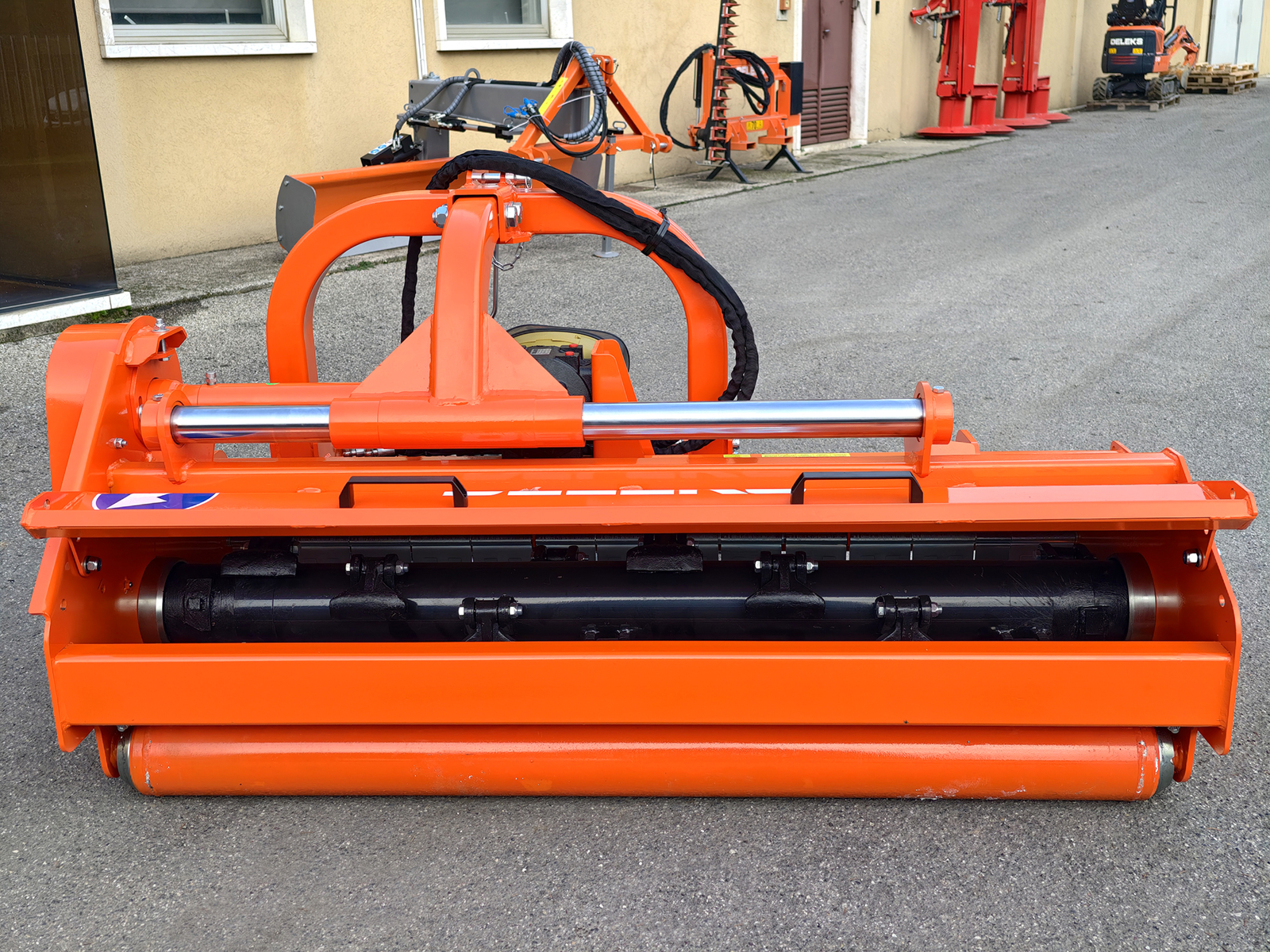

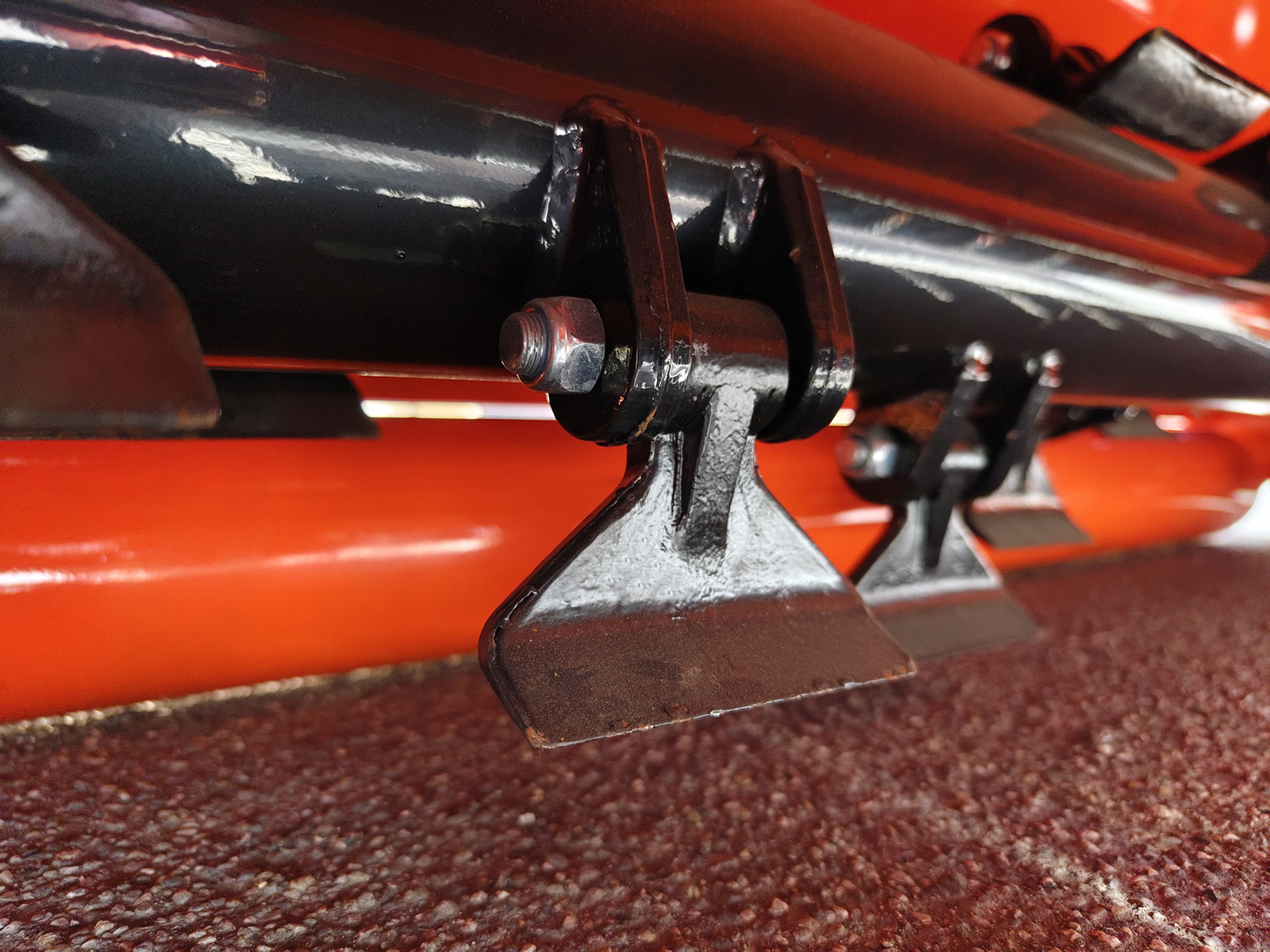

152 mm (6 in) rotor with 16 hammer flails of 1,100 g (2.4 lb)
The rotor is 152 mm (6 in) in diameter, with an 8 mm (5/16 in) tube wall; it is electronically balanced and spins at 2,140 rpm. The 16 hammer flails weigh 1,100 g (2.4 lb) each and have a 140 mm (5.5 in) wide base: they shred long grass, brambles, scrub, vine prunings and other prunings up to 6-7 cm (2.4-2.8 in) thick, depending on the type and condition of the material. Inside the shredding chamber a row of counter-knives is welded to the hood: the material carried round by the rotor meets the counter-knives and is chopped again before it leaves. On request the CERVO-180 can be fitted with triple blades instead of the hammer flails, using the COLTELLI60TORO kit.

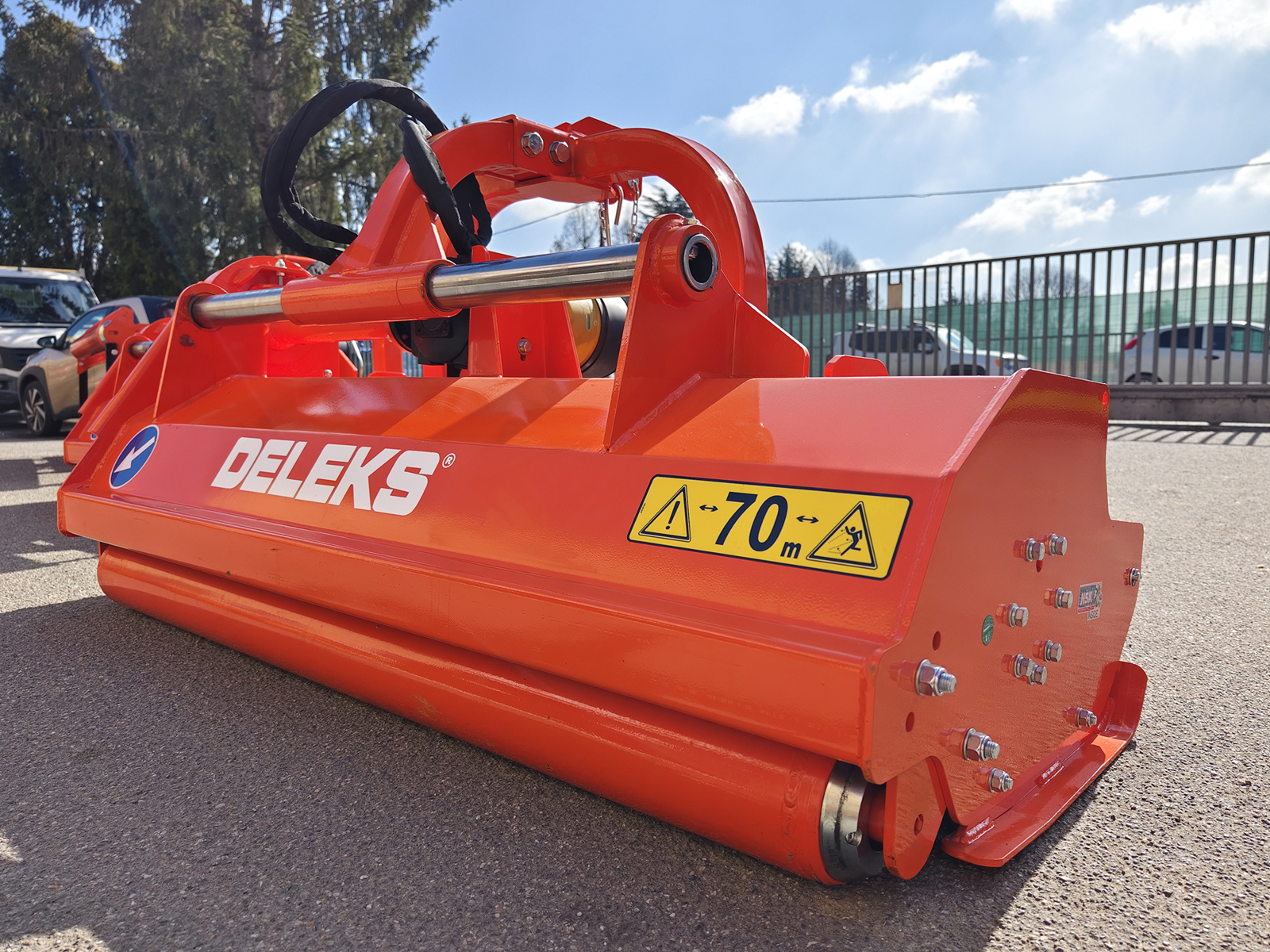

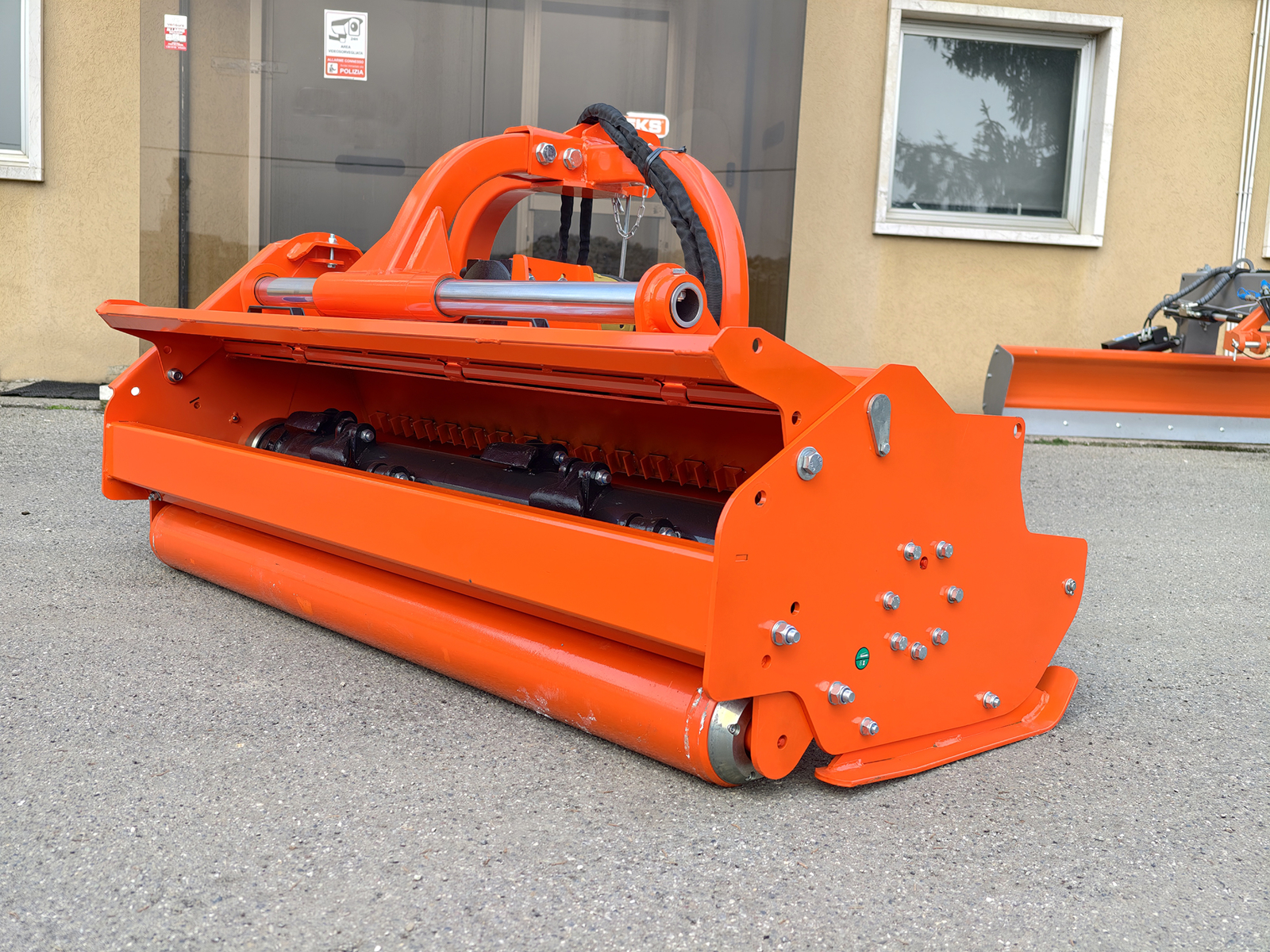

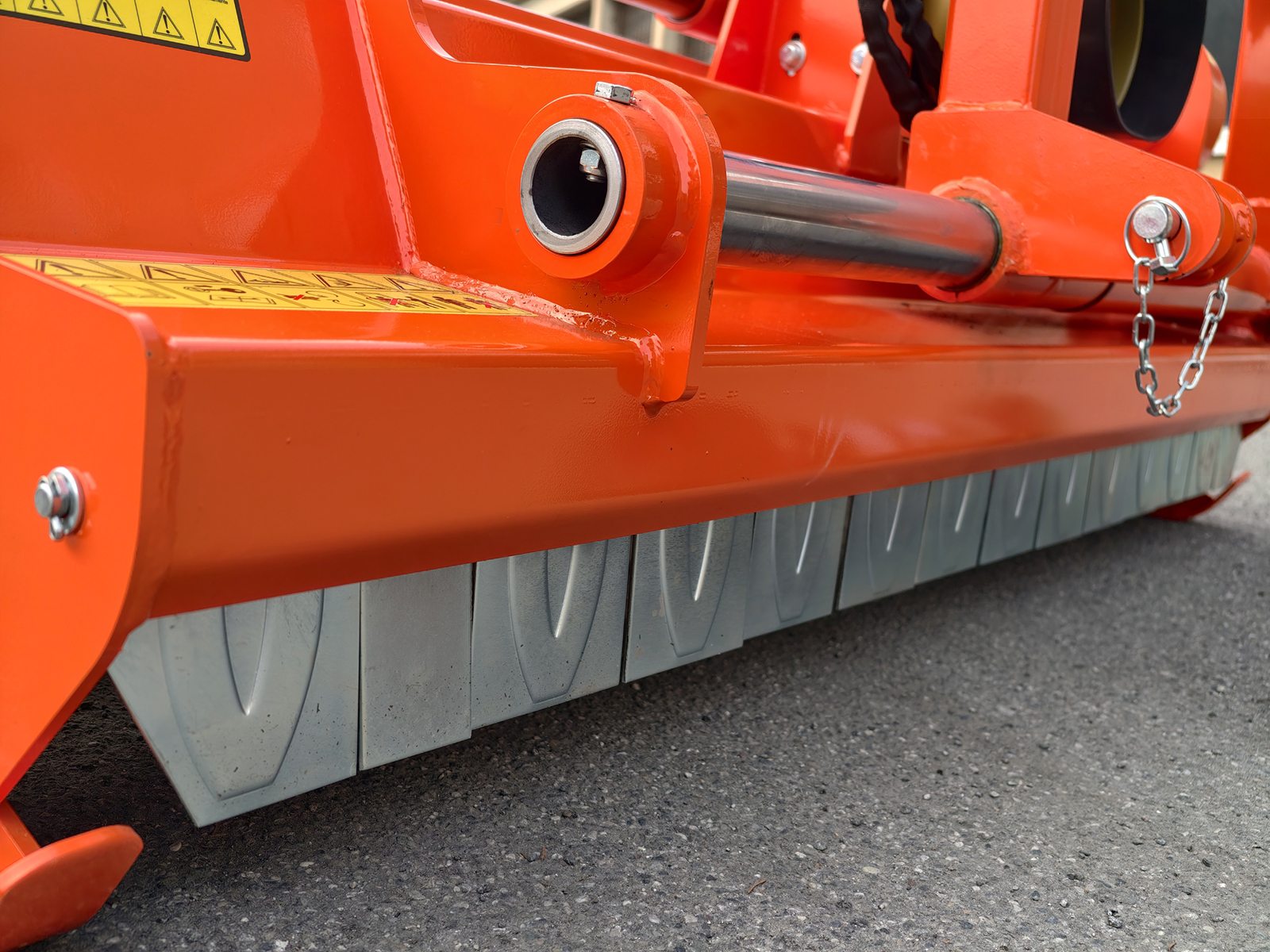

Double-skin hood, oversized roller and cutting height

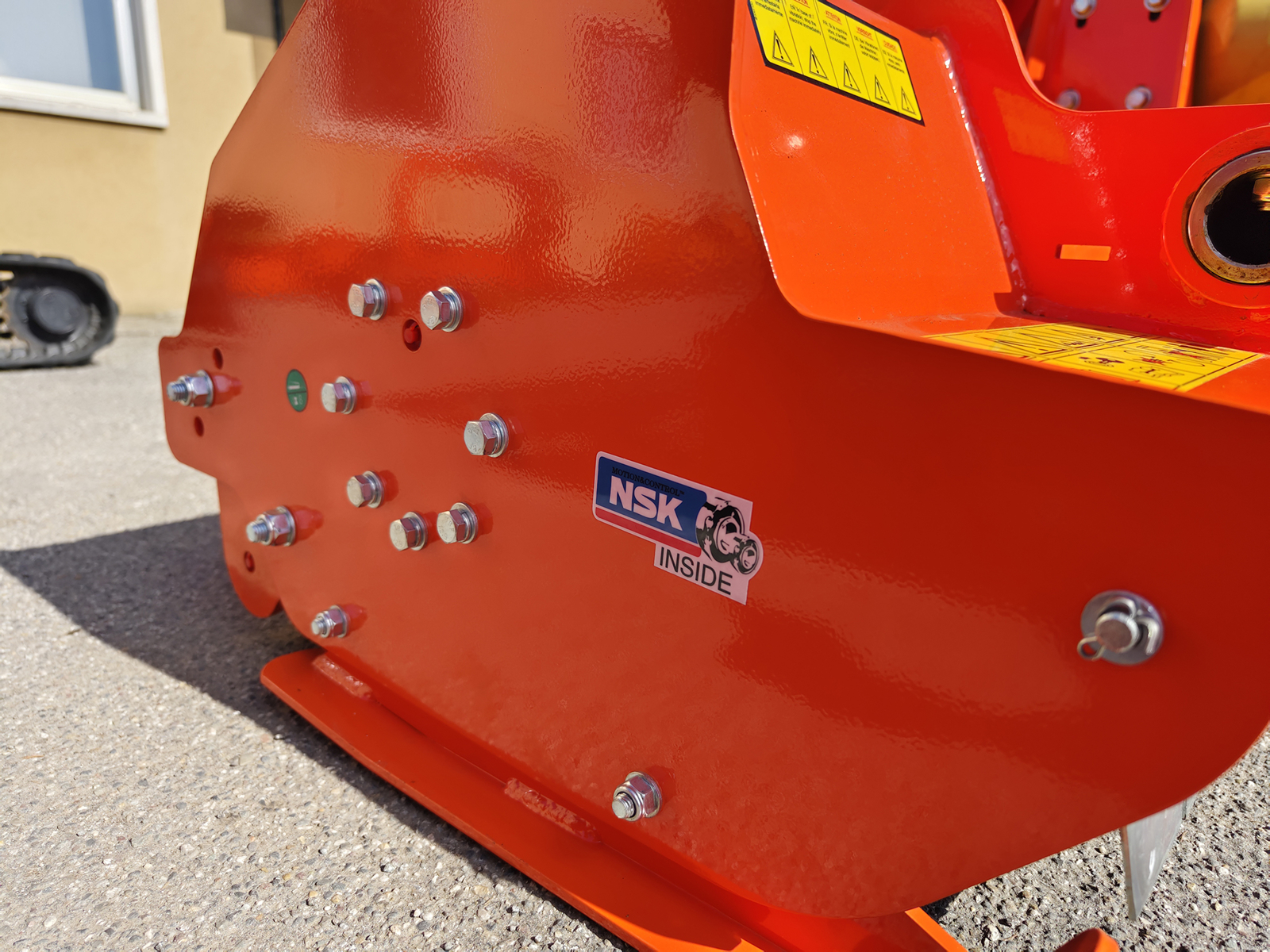

The CERVO-180 is built with a double-skin hood: the reinforced structure protects the body of the machine from knocks and from the stresses of shredding. The frame is 5 mm thick, with 8 mm side plates and 6 mm side skids. The oversized rear roller, 152 mm (6 in) in diameter, carries the machine and, with the side skids, sets the cutting height from 5 to 55 mm (0.2 to 2.2 in). The rear panel opens: it gives access to the shredding chamber and the rotor for inspection, cleaning and servicing.

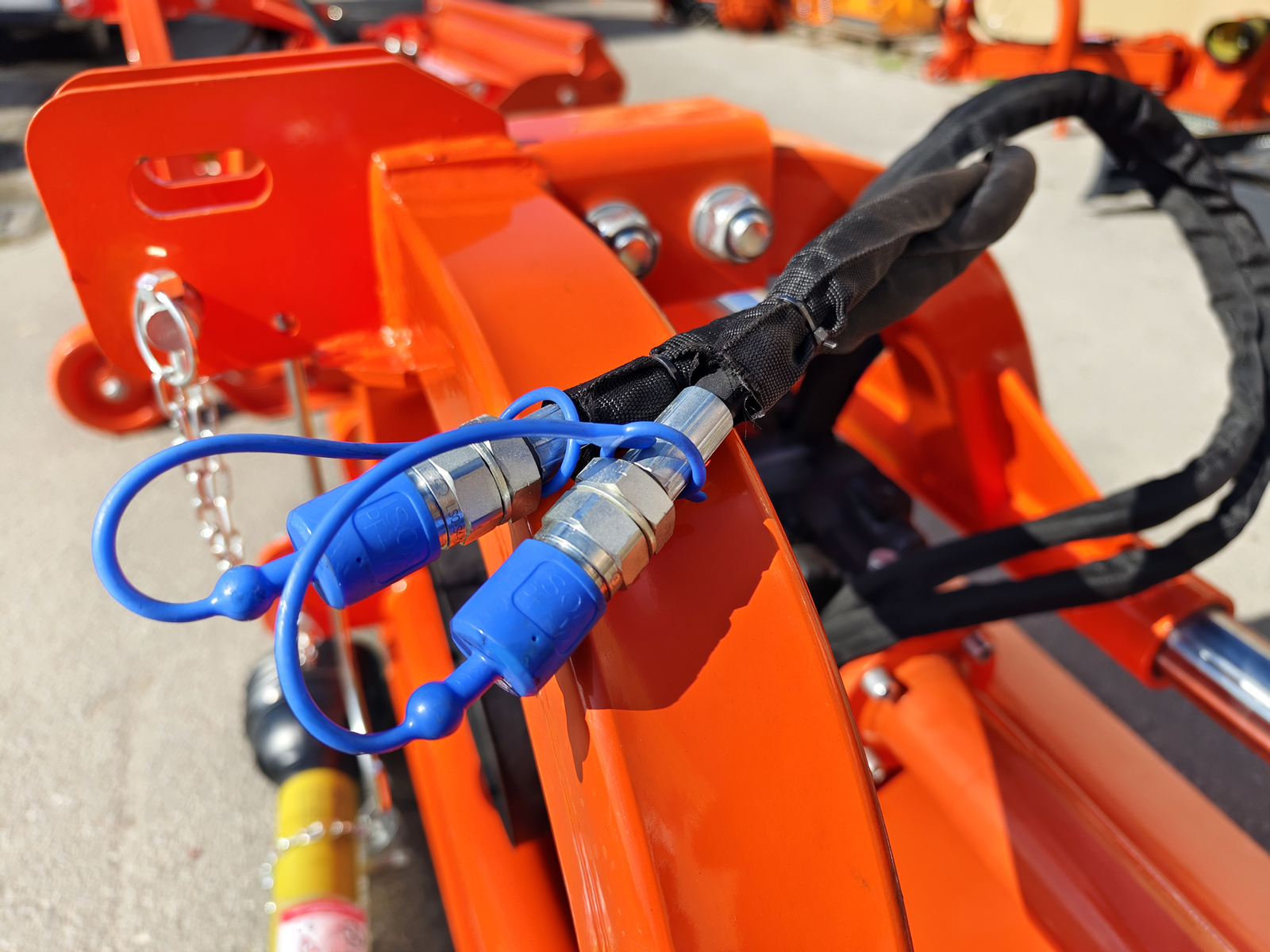

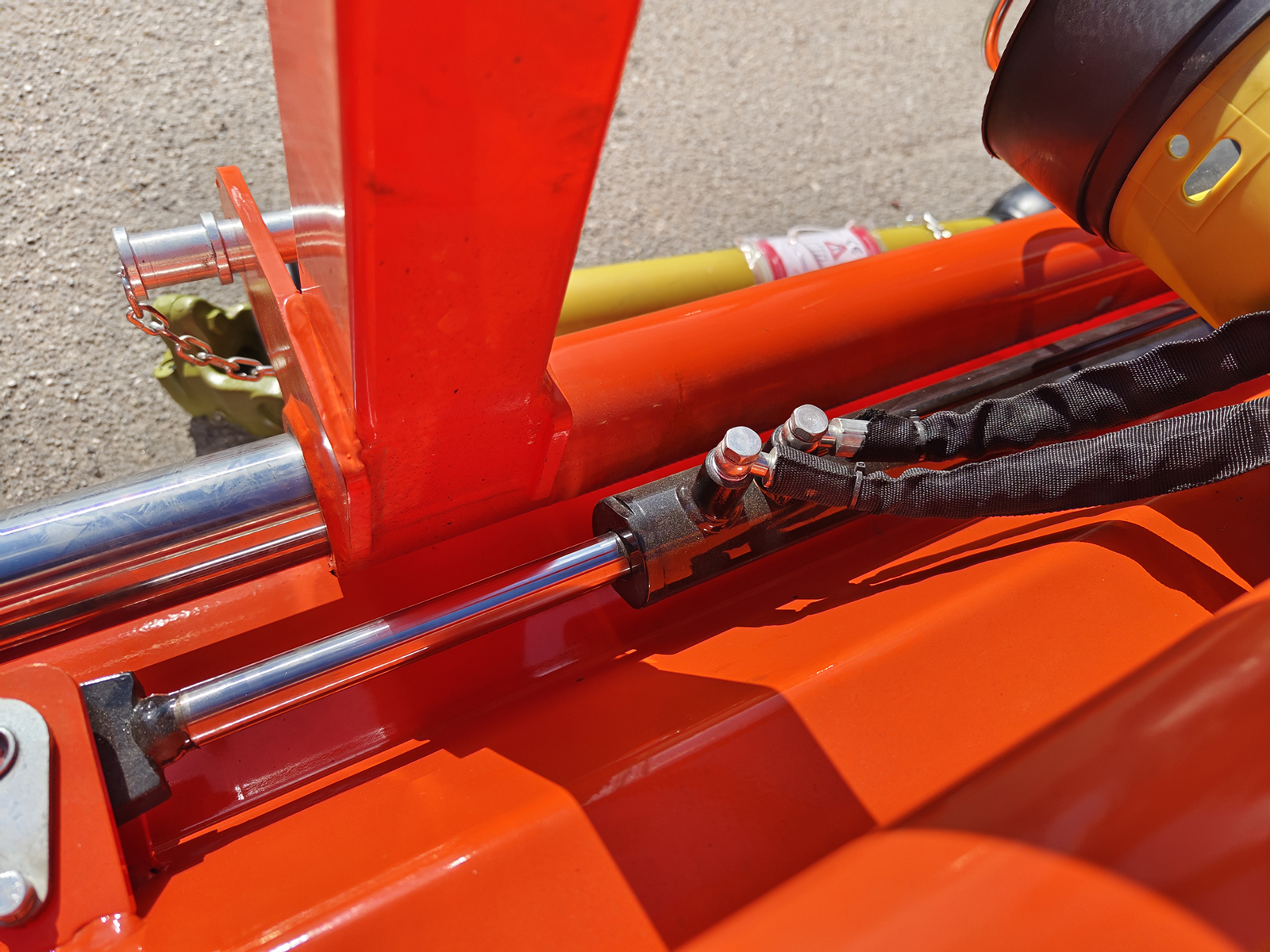

Hydraulic side shift of 40 cm (16 in)
The 40 cm (16 in) hydraulic side shift is worked from the seat with the tractor's spool valve: the mower runs centred or offset, along field edges, tight to the rows and wherever you need it out to one side of the tractor. It comes with 2 hydraulic hoses, 2.5 m (8 ft) long, with ½ in agricultural quick-release couplings.

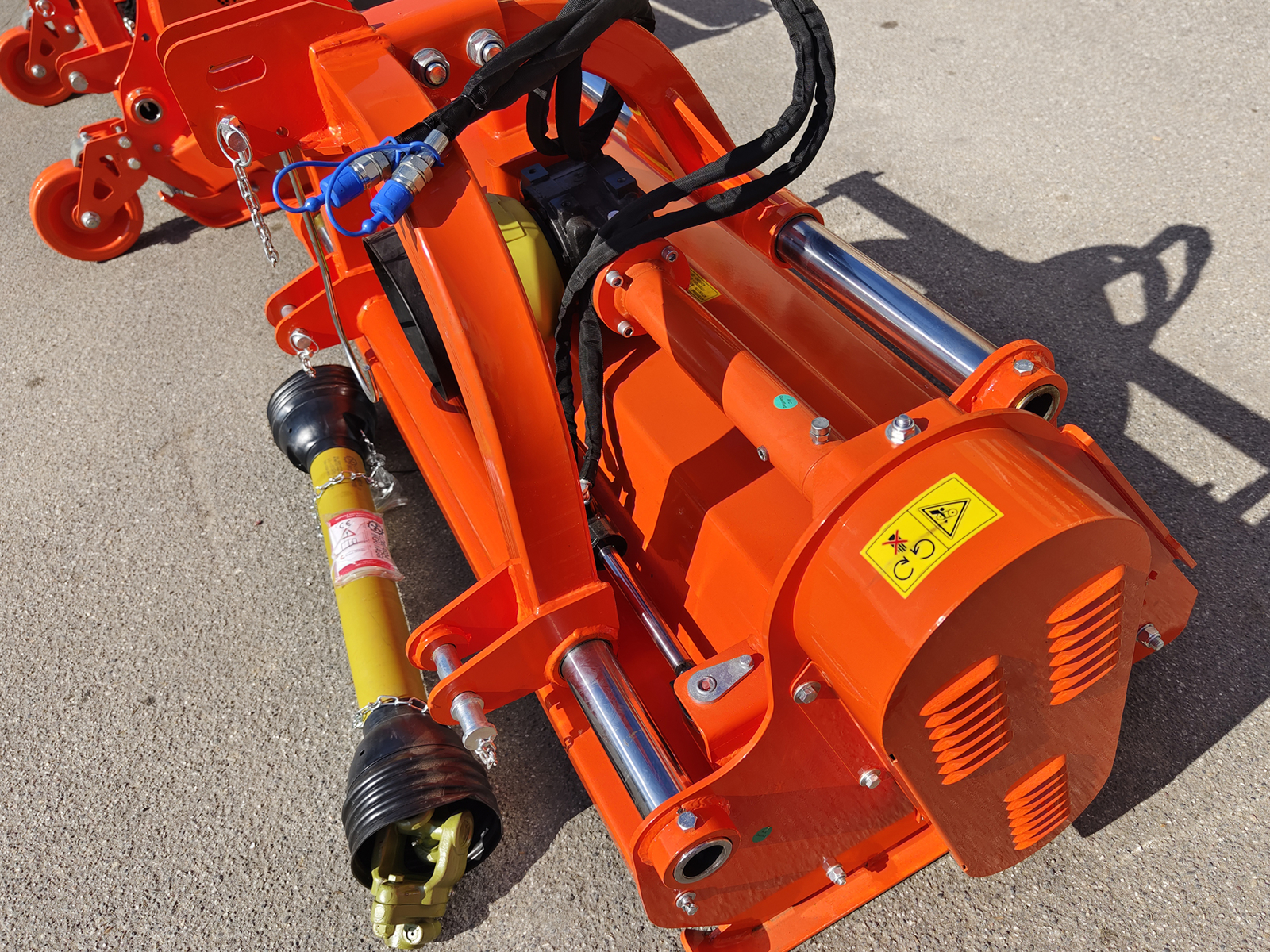

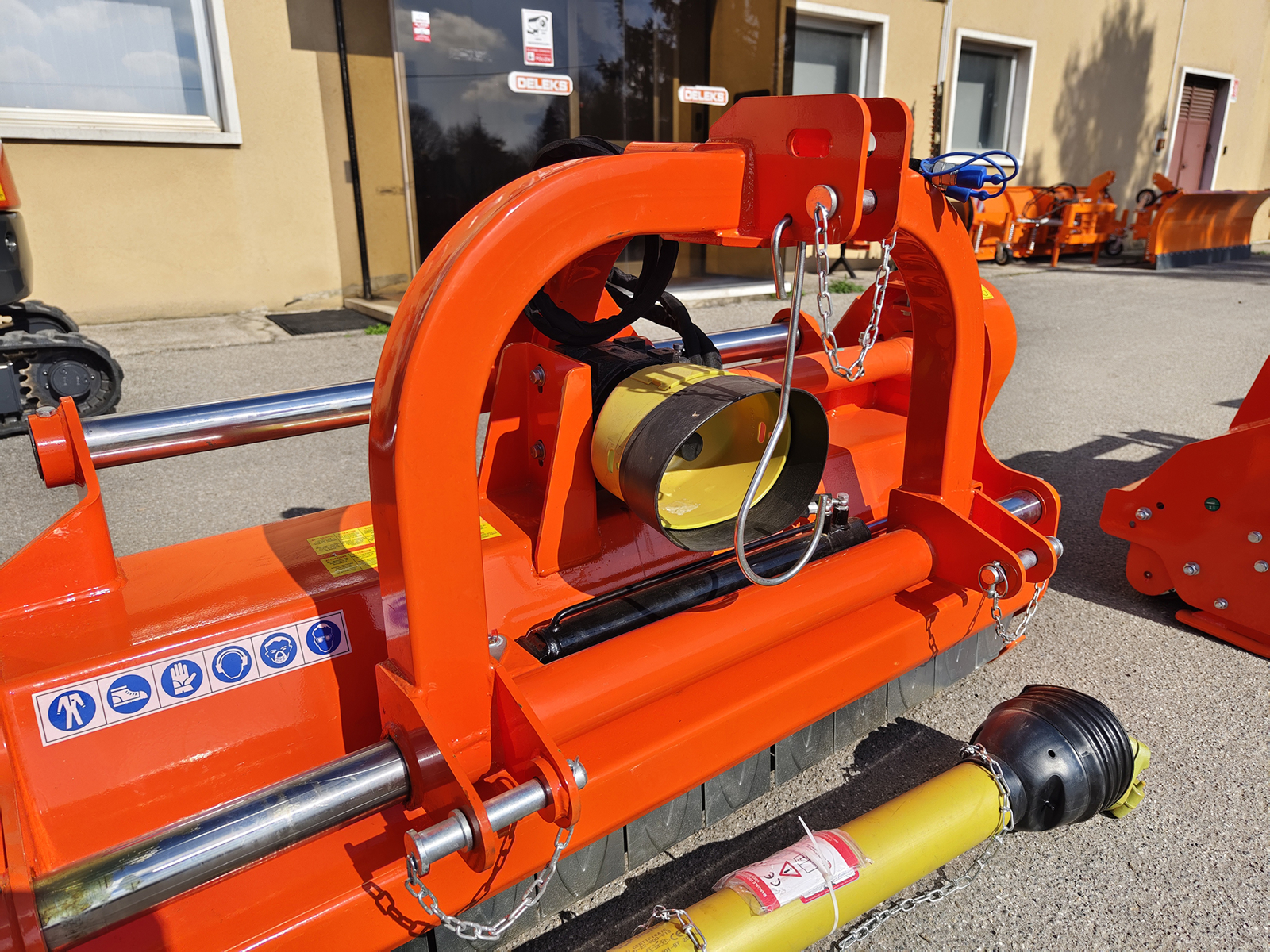

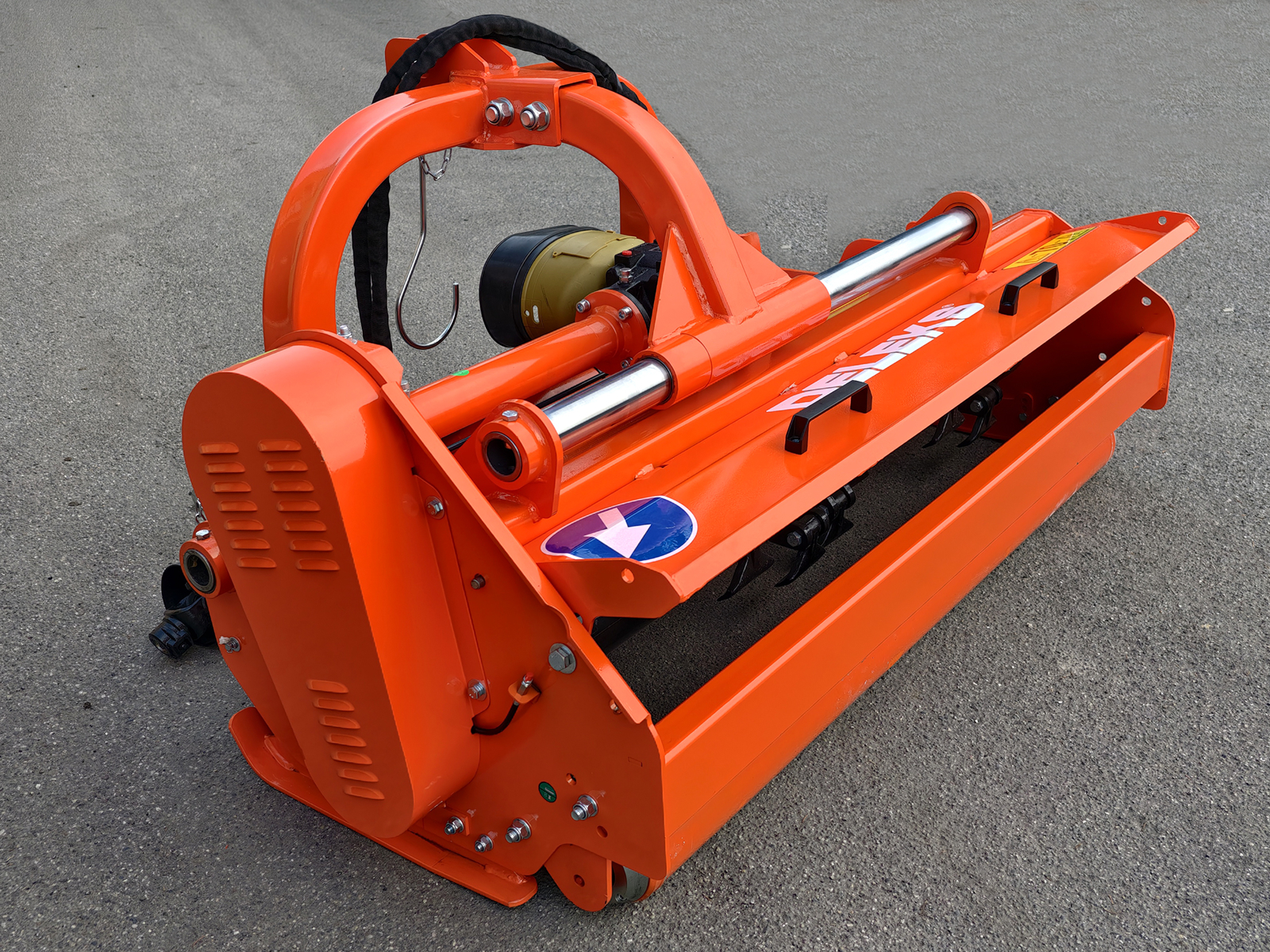

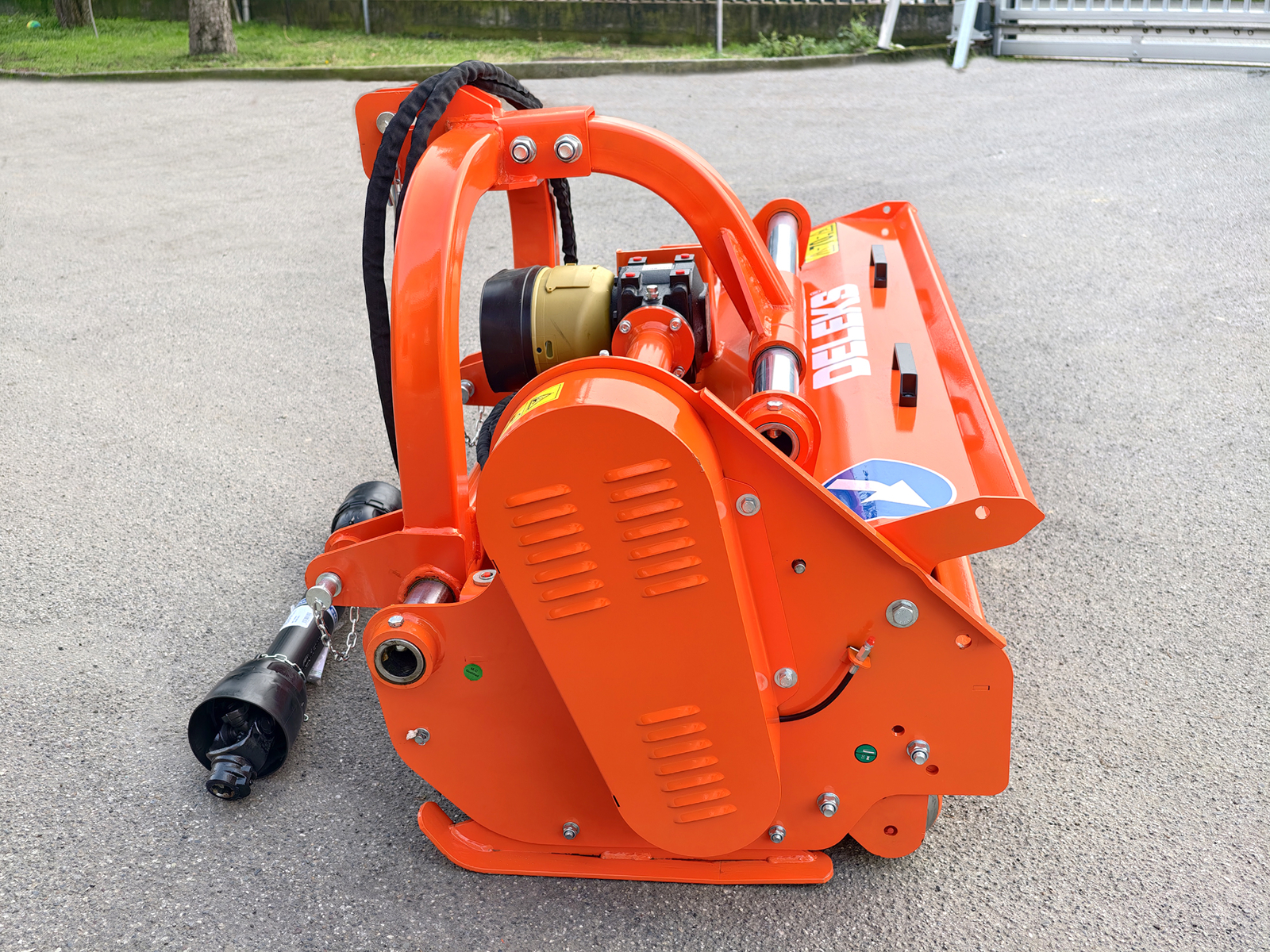

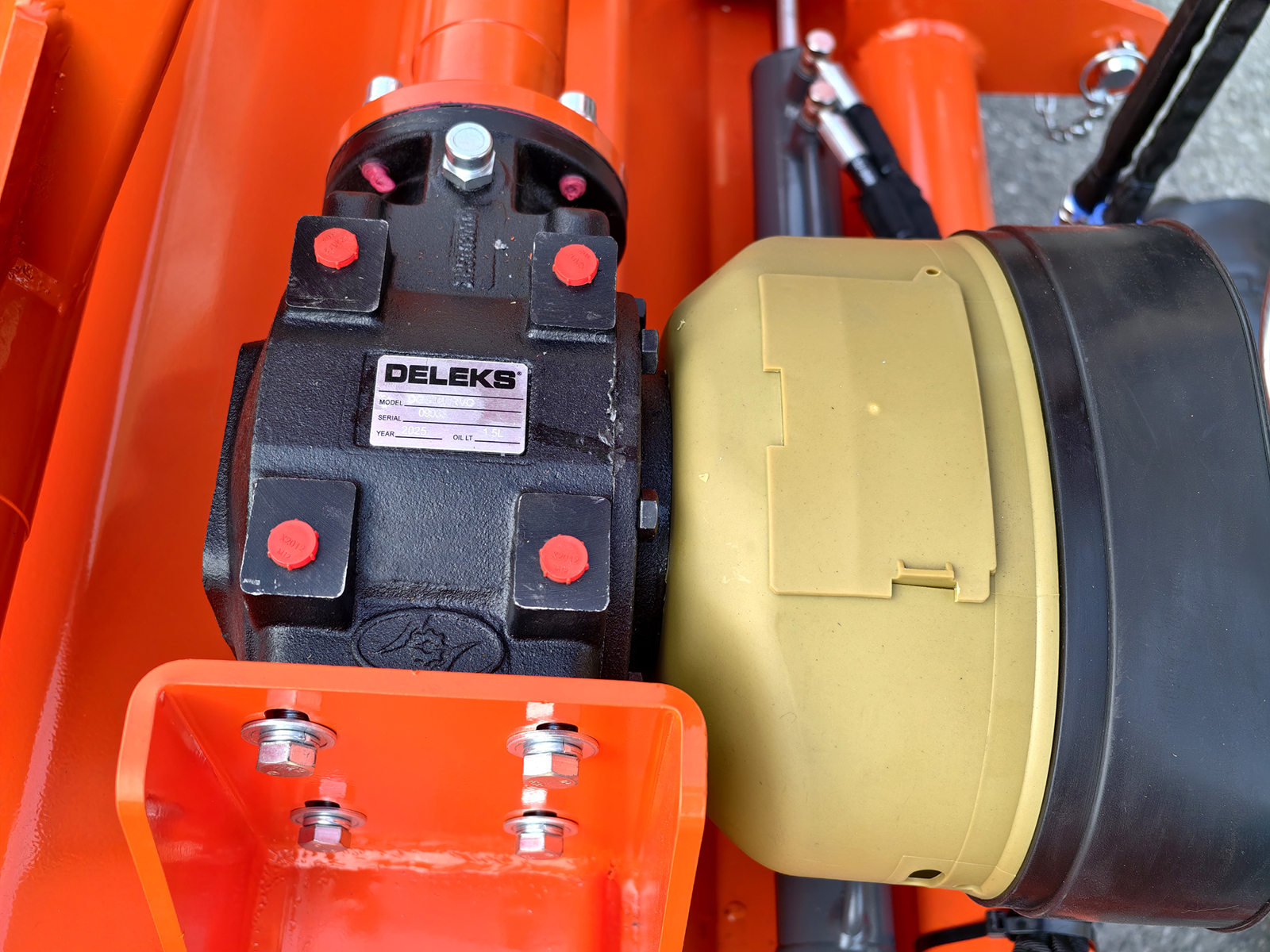

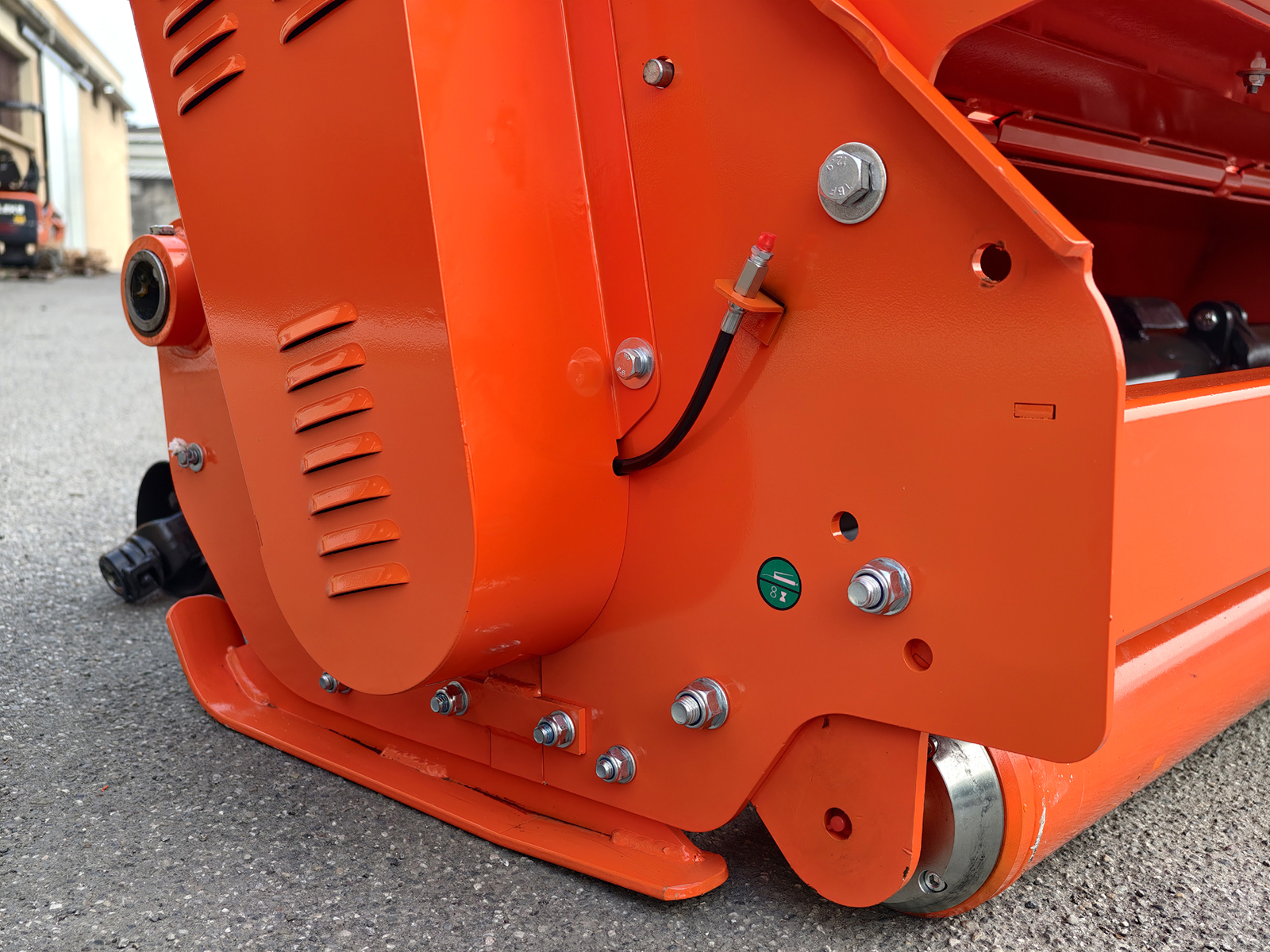

Gearbox with freewheel, 4 belts and PTO shaft
The gearbox for a 540 rpm PTO has a freewheel and a 3-year warranty: when you disengage the PTO the rotor carries on turning under its own momentum and runs down by itself, without driving back through the tractor's transmission. Drive reaches the rotor through 4 V-belts, 17x1270, on the side of the machine; belt tension is set from the outside, with the adjustable tensioner. The CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt, is included: the bolt shears under overload and protects the driveline.

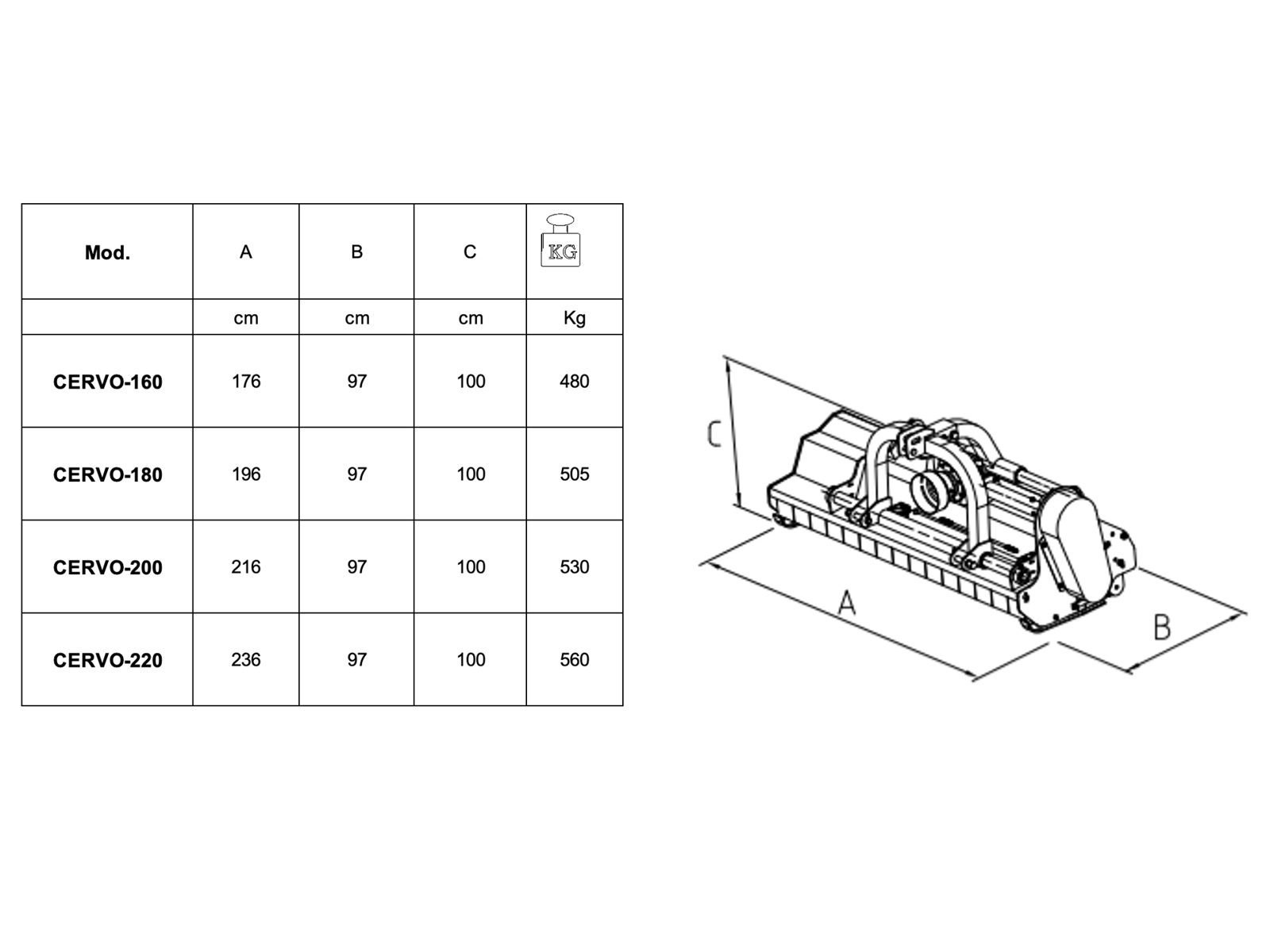

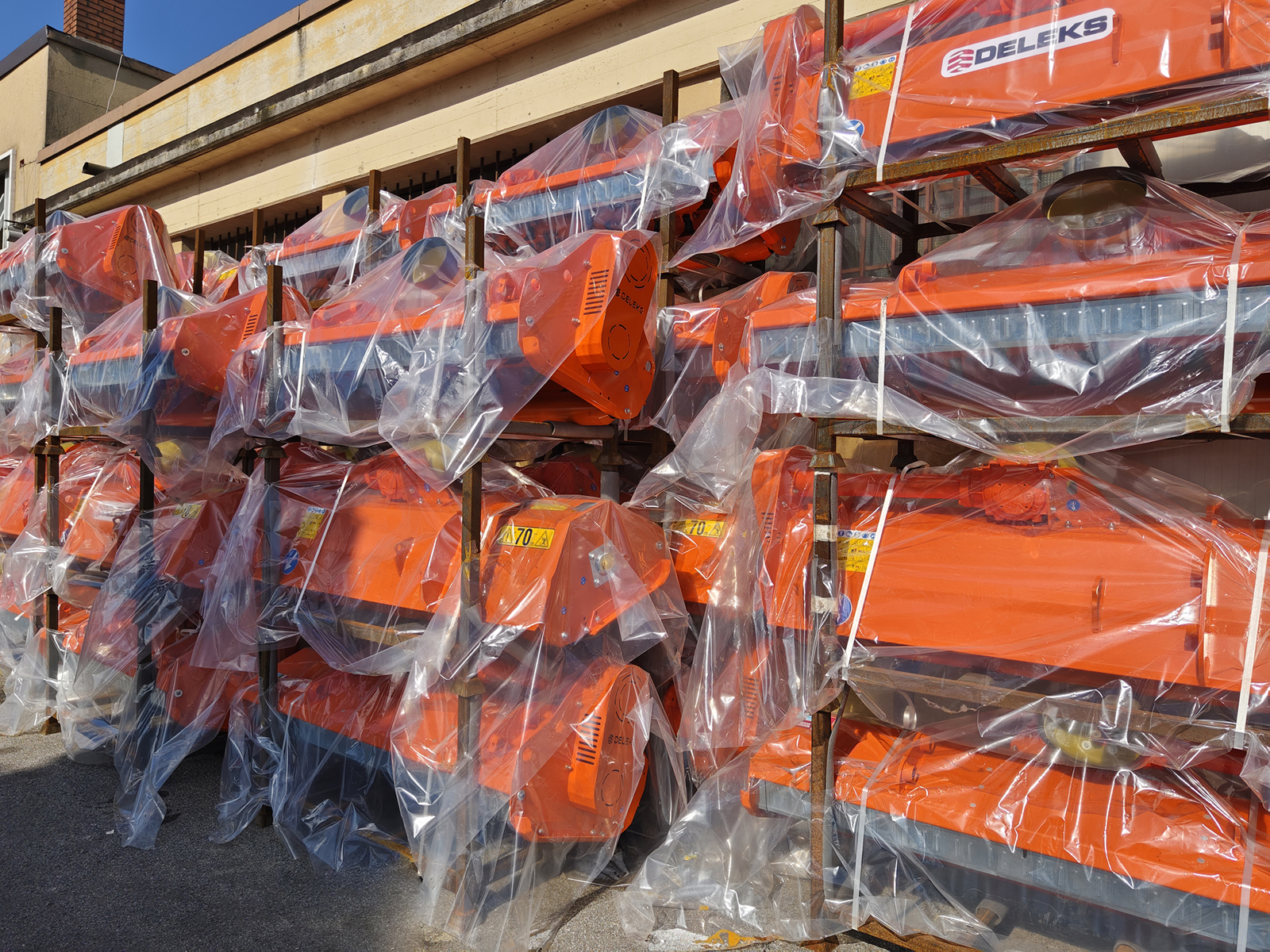

Dimensions, weight and delivery
Working width 1,800 mm (70.9 in), overall width 1,950 mm (76.8 in), length 1,030 mm (40.6 in), height 1,050 mm (41.3 in), weight 505 kg (1,113 lb). It ships on a Euro pallet, protected by a steel crate, in packaging measuring 195 × 105 × 105 cm (77 × 41 × 41 in), 644 kg (1,420 lb) gross, 2.15 m³, with free delivery within the EU: before dispatch DELEKS® checks the oil and grease levels. To keep the package compact, the three-point headstock travels dismantled and has to be fitted before use. It complies with the EC Machinery Directive, is TÜV-certified and carries a 2-year warranty.
Where it works
- Vineyards, orchards and olive groves: vine prunings and other prunings up to 6-7 cm (2.4-2.8 in), grass between the rows
- Rough ground and land being reclaimed: long grass, brambles and scrub
- Field edges, ditches and rows: working offset with the hydraulic side shift
- Open fields: stubble and crop residues
- On the flat and on slopes, with wheeled or tracked tractors from 60 to 100 hp
Options and spares
From this page you can add to your order the kit of 10 hammer flails (MAZZE10A), the 10 nuts and bolts for the flails (DB10A), the kit of 60 blades (COLTELLI60TORO), the spare set of 4 belts (CINGHIE4A), the DISC-603T hydraulic inter-row disc (code DISC603T), the universal PTO adapter (RID1), the 680 mm (26.8 in) top link (BE0124) and the 730 mm (28.7 in) top link (BE0125). Other spares are identified on the exploded diagrams with our technical team.
FAQ
What size tractor does the CERVO-180 need?
From 60 to 100 hp, with a 540 rpm PTO and a category 2 three-point linkage. Mind the lift capacity too: the linkage has to carry the mower's 505 kg (1,113 lb).
What size branches will it shred?
Vine prunings, other prunings and woody material up to 6-7 cm (2.4-2.8 in) thick, depending on the type and condition of the material, as well as long grass, brambles and scrub. For saplings and branches up to 15 cm (6 in) there is the GORILLA forestry mulcher.
Hammer flails or blades?
It comes with 16 hammer flails of 1,100 g (2.4 lb); on request it can be fitted with triple blades, using the COLTELLI60TORO kit.
How does the side shift work?
It is hydraulic, 40 cm (16 in): you work it from the seat with the tractor's spool valve, even on the move.
How do you set the cutting height?
From 5 to 55 mm (0.2 to 2.2 in), with the oversized rear roller and the side skids.

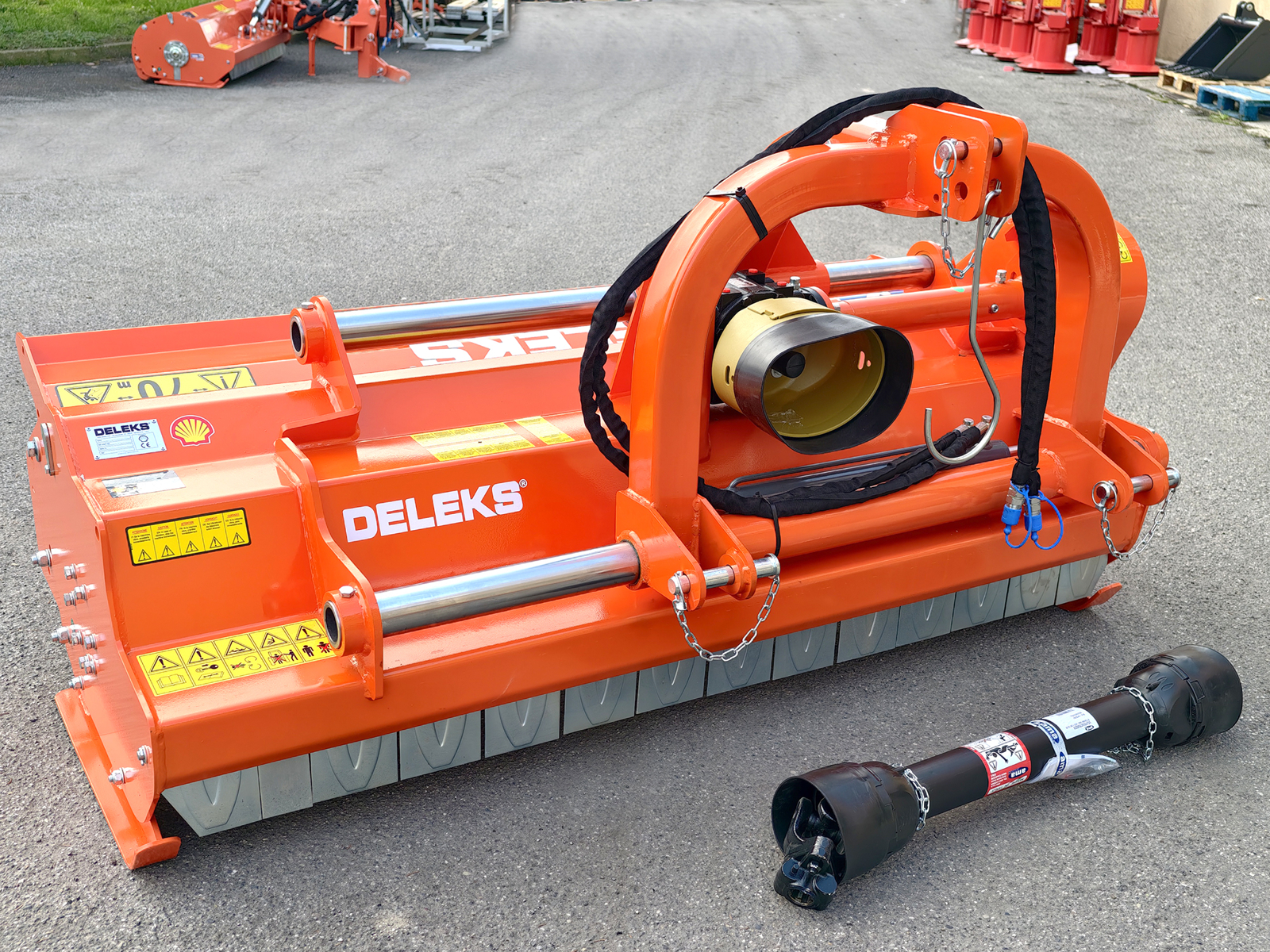

Is the PTO shaft included?
Yes: a CE-approved category 6 PTO shaft, 1,000 mm (39.4 in) long, with shear bolt.
How does it differ from the TORO?
The TORO is wider, from 200 to 240 cm (79 to 94 in), and heavier, from 690 to 770 kg (1,521 to 1,698 lb): 170 mm (6.7 in) rotor, 5 belts, 50 cm (20 in) hydraulic side shift, for tractors up to 120 hp. The CERVO runs from 160 to 220 cm (63 to 87 in) and from 480 to 560 kg (1,058 to 1,235 lb), for tractors from 50 to 100 hp.
How does it differ from the medium series?
The medium-series flail mowers have flails of 820 g (1.8 lb), weigh 285 to 428 kg (628 to 944 lb) and shred branches up to 4-5 cm (1.6-2 in). The CERVO-180 has flails of 1,100 g (2.4 lb), weighs 505 kg (1,113 lb) and shreds up to 6-7 cm (2.4-2.8 in).
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: flails, brackets, belts, bearings, rear roller, skids and drive components are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help choosing the right mower and accessories for your tractor. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1800.0 mm | 5.90 ft |
| Overall width | 1950.0 mm | 6.40 ft |
| Min / Max cutting height | 5.0 - 55.0 mm | 0.2 - 2.16 in |
| Weight | 505.0 kg | 1100.0 lb |
| Overall height | 1050.0 mm | 3.45 ft |
| Tractor Power Range | 60 - 100 Hp | 60 - 100 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) | Cat. 2 (ø 25.0-28.0mm) |
| Position of the gearbox | 800.0 mm from left side / 1000.0 mm from right side | 31.50 in from left side / 40.00 in from right side |
| Hood height | 500.0 mm | 19.70 in |
| Spacing between the 2 lower points | 740.0 - 890.0 mm | 29.0 - 35.0 in |
| Number of Hammers | 16 | 16 |
| Maximum cutting diameter | 60.0 - 80.0 mm | 2.35 - 3.15 in |
| Overall length | 1030.0 mm | 3.38 ft |
| Distance between pto attachment and ground | 550.0 mm | 21.65 in |
| Main hood thickness | 5.0 mm | 0.2 in |
| Sides thickness | 8.0 mm | 0.31 in |
| Side plates thickness | 6.0 mm | 0.23 in |
| Transmission: Drive method | V-Belts | V-Belts |
| Transmission: Gearbox | JCCT - 3 years warranty | JCCT - 3 years warranty |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: RPM Rotor speed | 2140 rpm | 2140 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 4 | 4 |
| Transmission: V-Belts size | 17x1270 | 17x1270 |
| Rotor: diameter | 152.0 mm | 6.00 in |
| Rotor: bearings type and size | 40x90 | 40x90 |
| Rotor: balancing | Electronic | Electronic |
| Rotor: sheet thickness | 8.0 mm | 0.31 in |
| Hammers: Weight | 1100.0 g | 38.80 oz |
| Hammer: øhole | 16.0 mm | 0.63 in |
| Hammer: base width | 140.0 mm | 5.5 in |
| Hammer: top width | 40.0 mm | 1.57 in |
| Hammer: Diagonal | 97.0 mm | 3.82 in |
| Rear roller: diameter | 152.0 mm | 5.98 in |
| Rear roller: sheet thickness | 6.0 mm | 0.23 in |
| Rear roller: bearings type and size | 90x40 mm - GB276-6308 | 90x40 mm - GB276-6308 |
| Hydraulic Hoses | 2500.0 mm / connections 1/2" AGRI, WP-400 bar | 100.0 in / connections 1/2" AGRI, WP-400 bar |
| Pto shaft | CE 6x1000 mm + shear bolt | CE 6x1000 mm + shear bolt |
| Hood length | 1000.0 mm | 39.40 in |
| Effective Displacement | 400.0 mm (Hydraulic) | 15.75 in (Hydraulic) |
| Gross shipping weight | 644 kg | 1420 lb |
| Package volume | 2.15 m3 | 75.9 cu ft |
| Packing sizes | 1950.0*1050.0*1050.0 mm | 6.40*3.45*3.45 ft |
