Tractor-mounted hedge cutter - AIRONE-160-TR

4.5

282 reviews

Available
Code AIRONE160TRPTO
EAN 8053470235931
View all details.
TOTAL
4.690,00VAT incl.
Free shipping

VIDEO
Field test
Field test
Review by Edd China (Wheeler Dealers)
Review by Edd China (Wheeler Dealers)

DETAILS

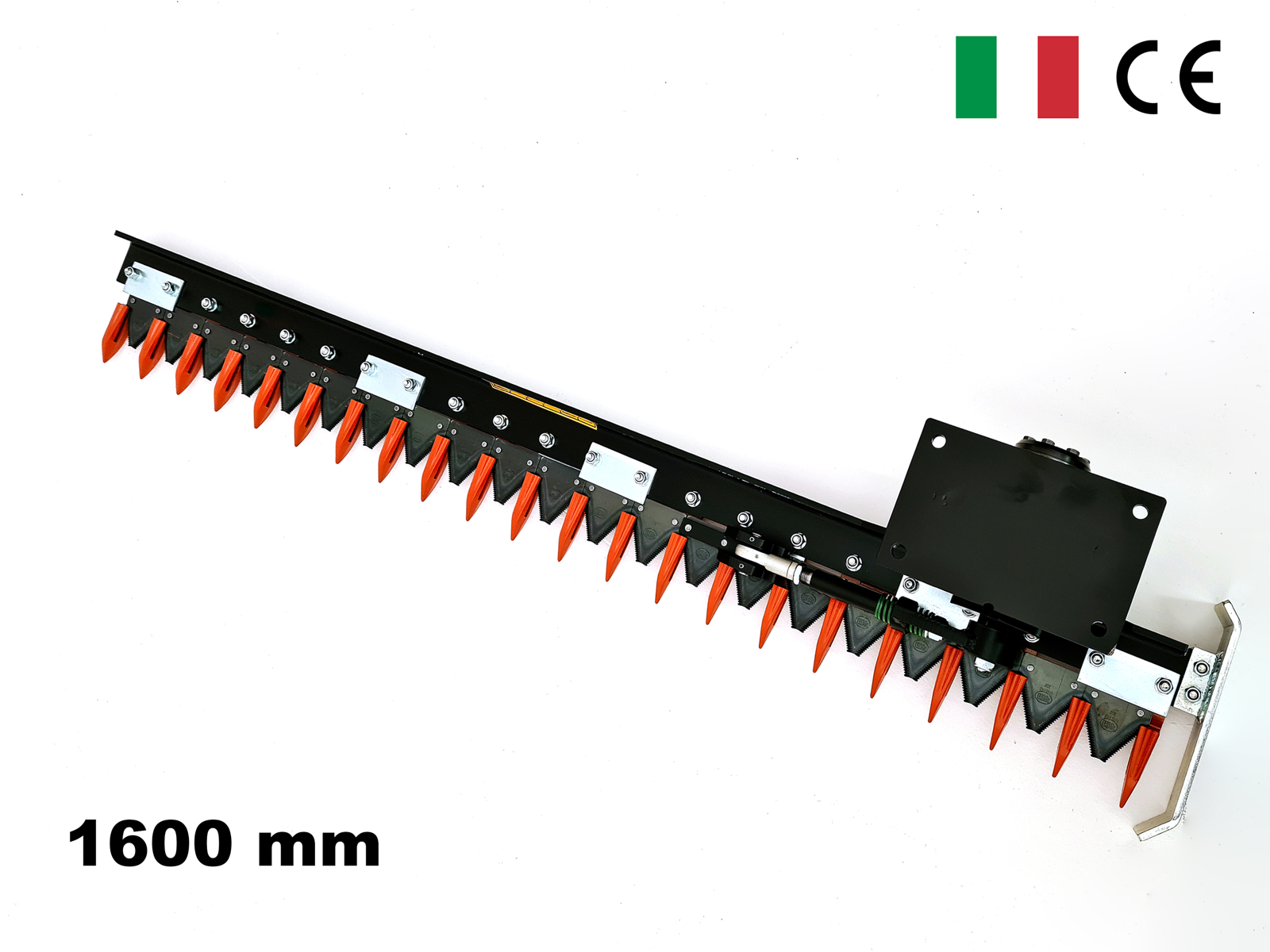

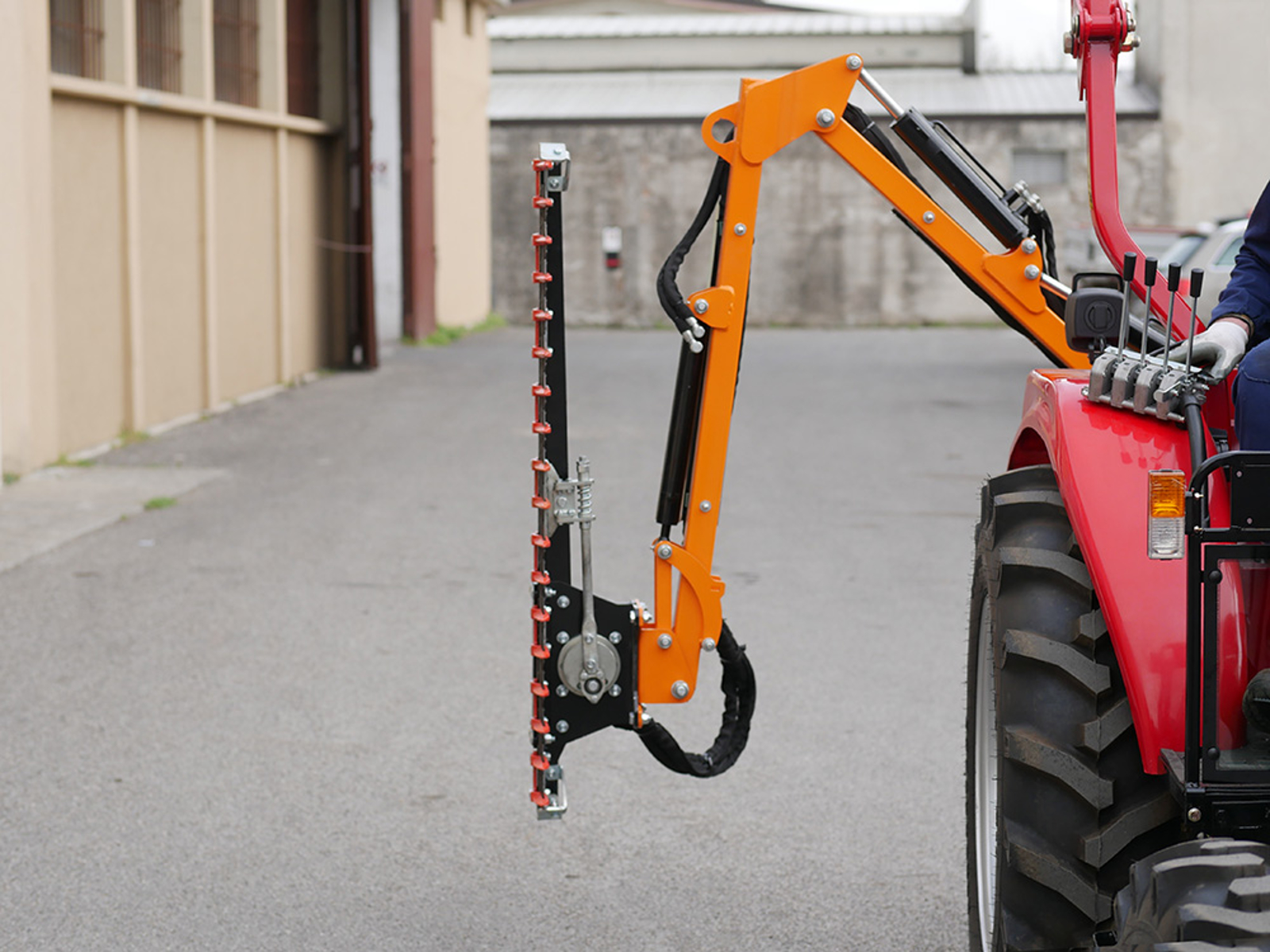

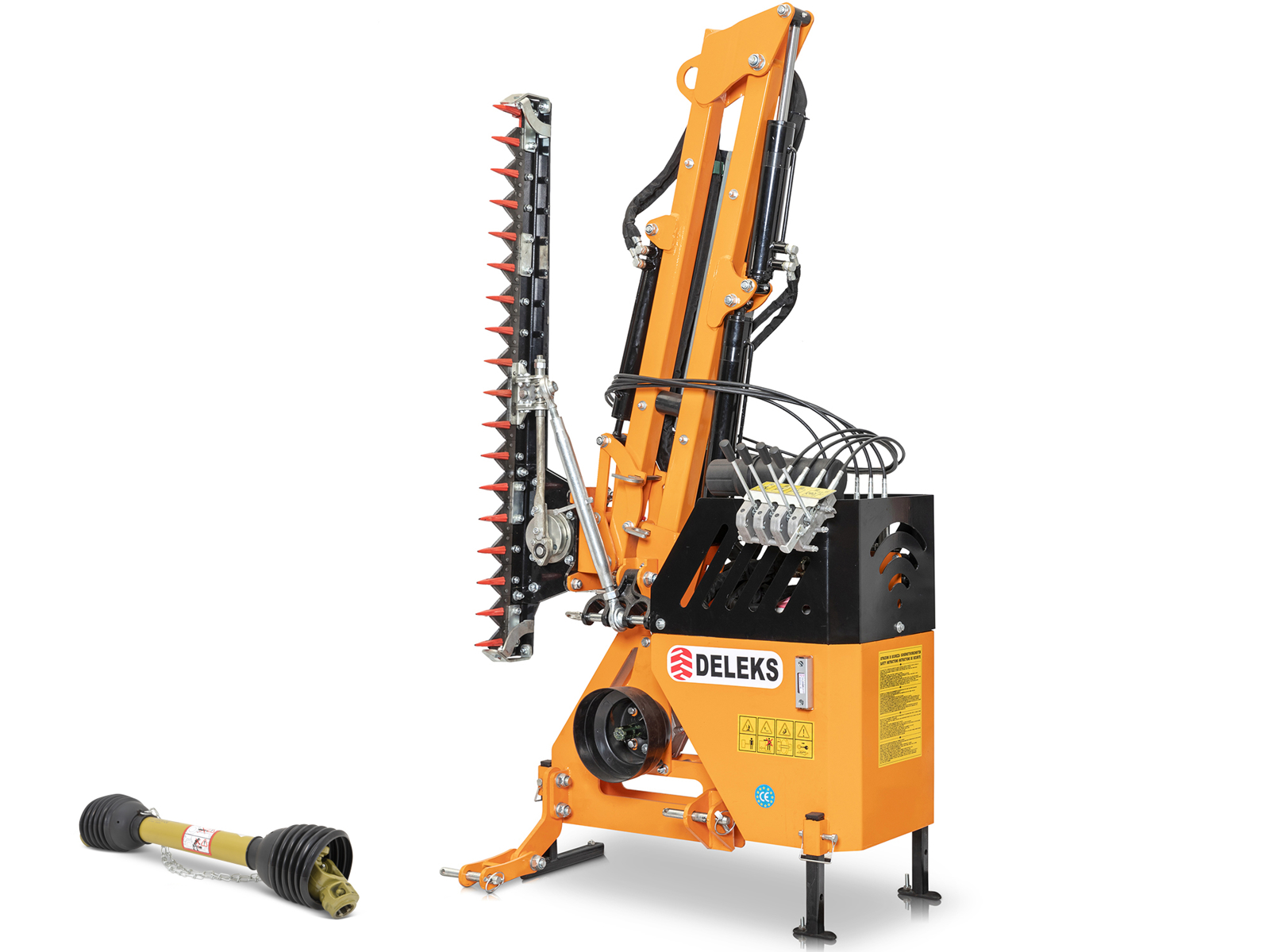

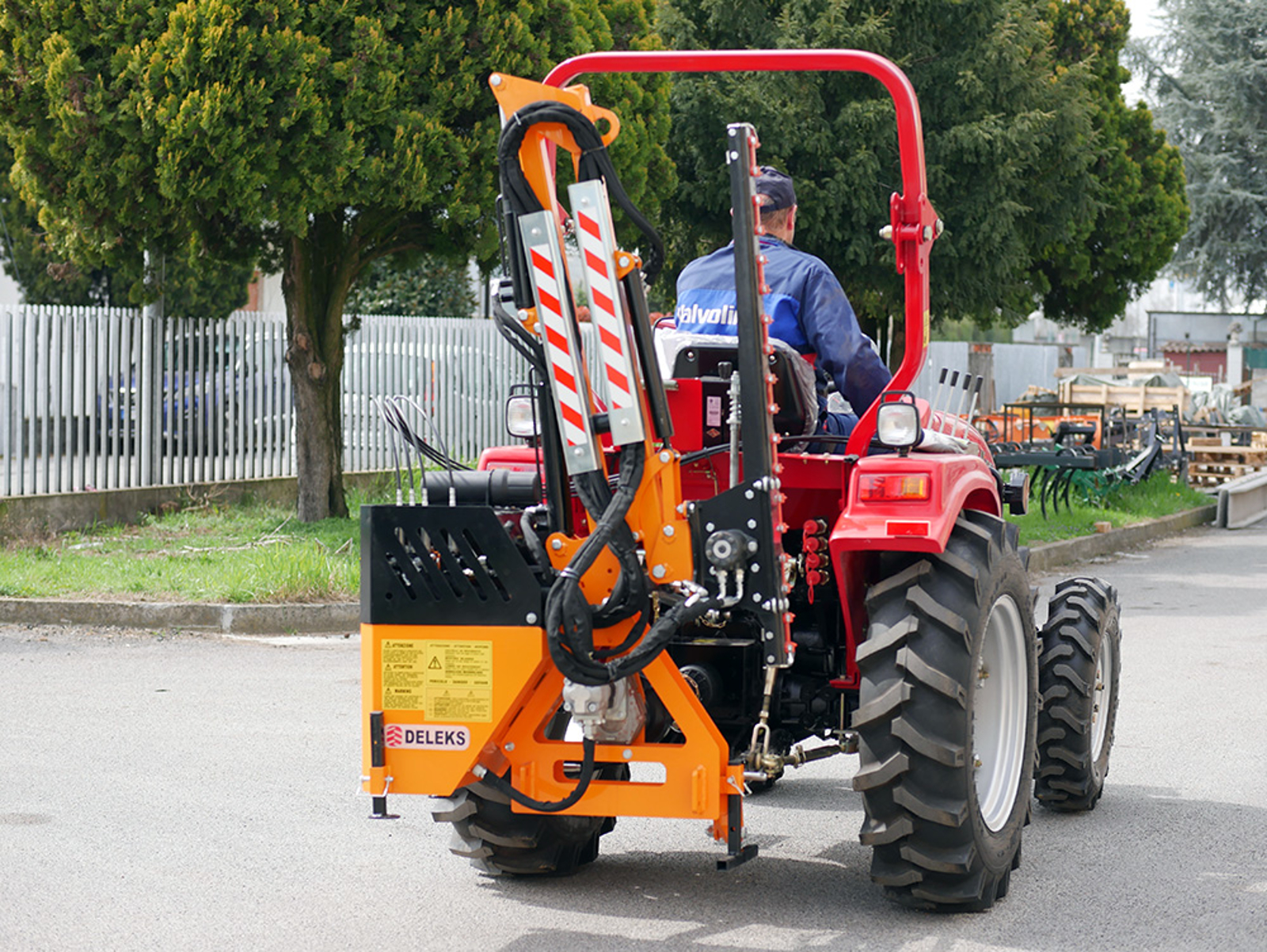

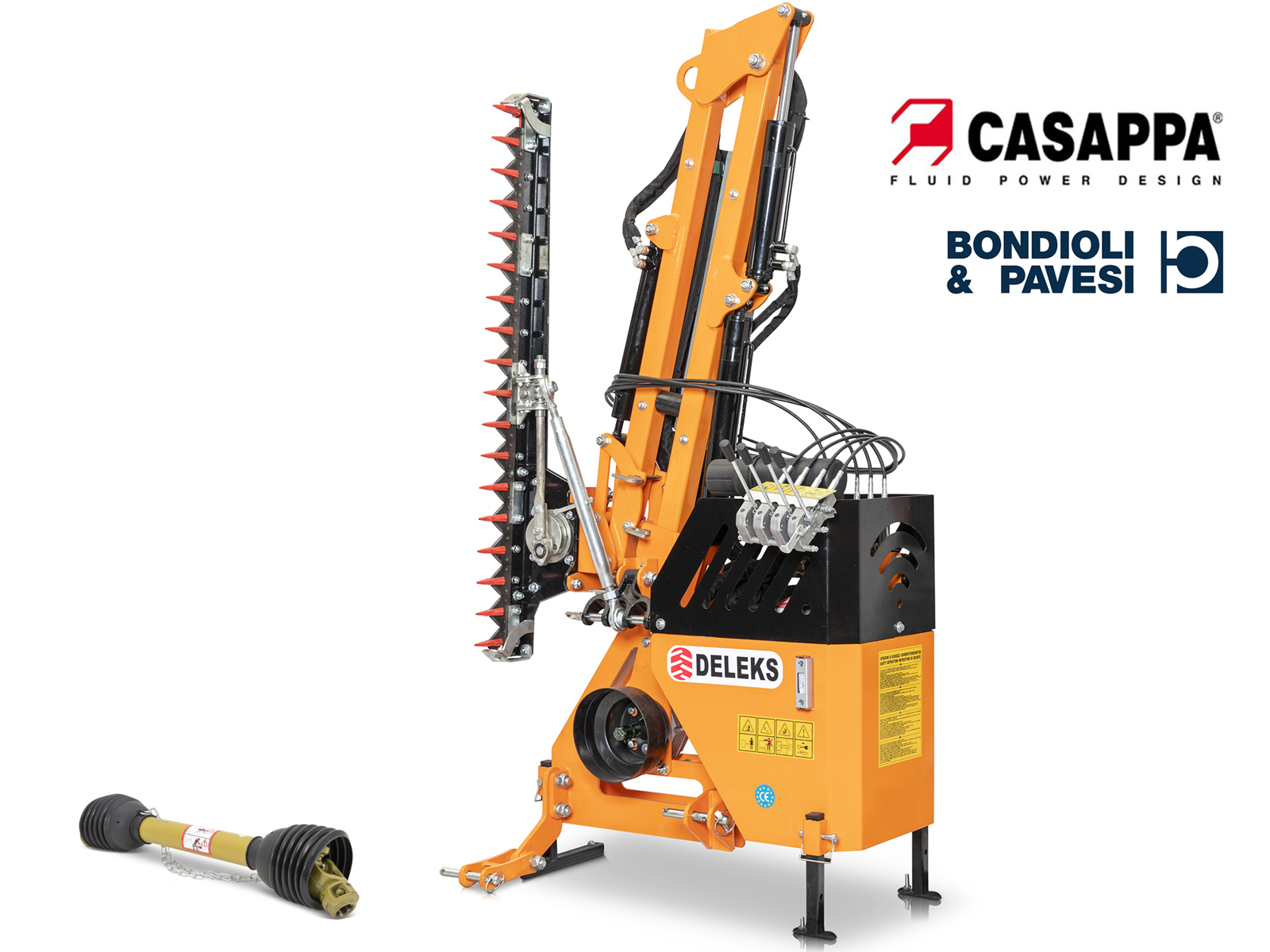

Hedgecutter for tractor, multiple hedge and grass verge rear arm cutter - DELEKS® - own hydraulic system, runs completely off the PTO - Pto shaft CE included.


OVERVIEW

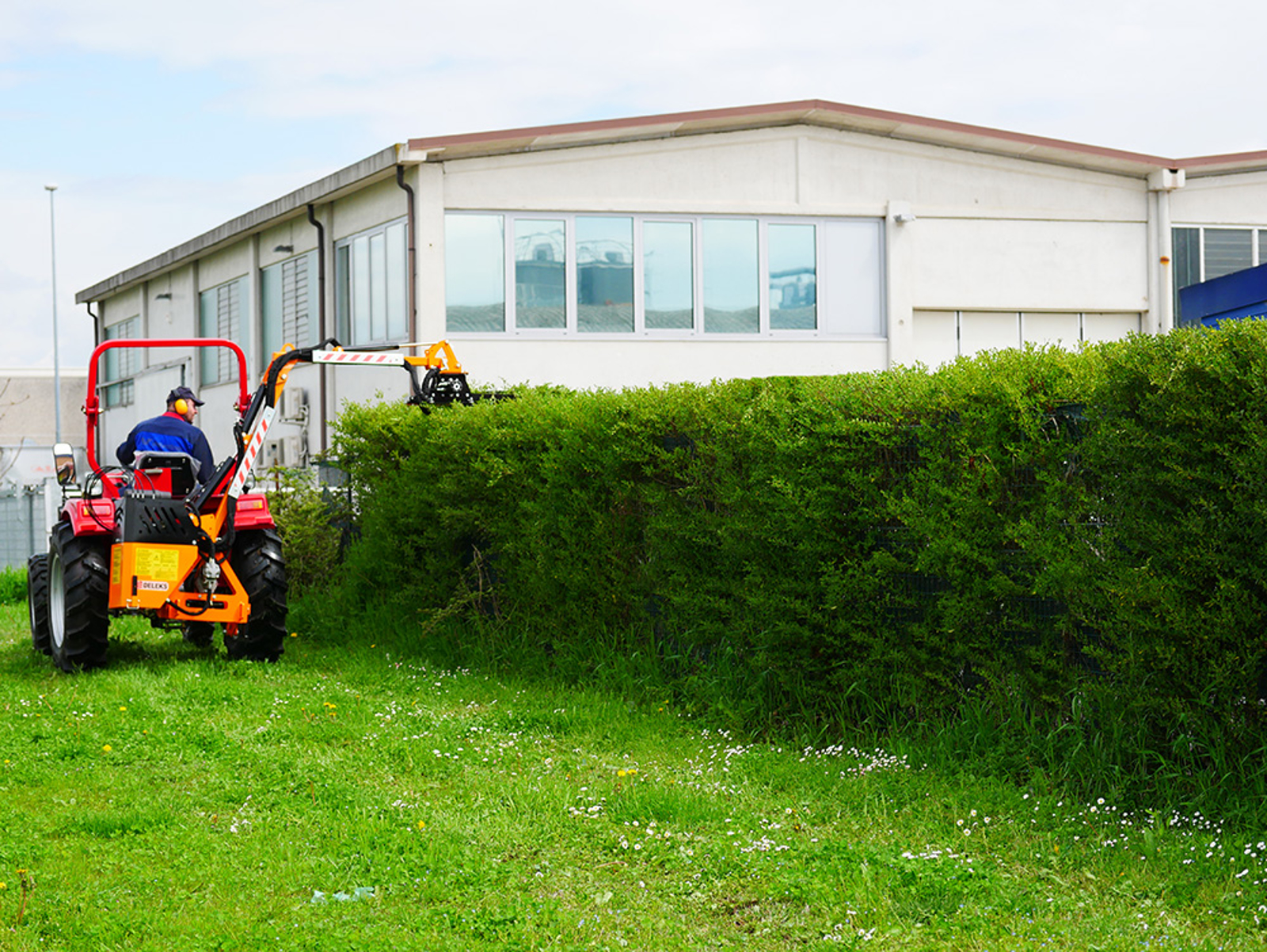

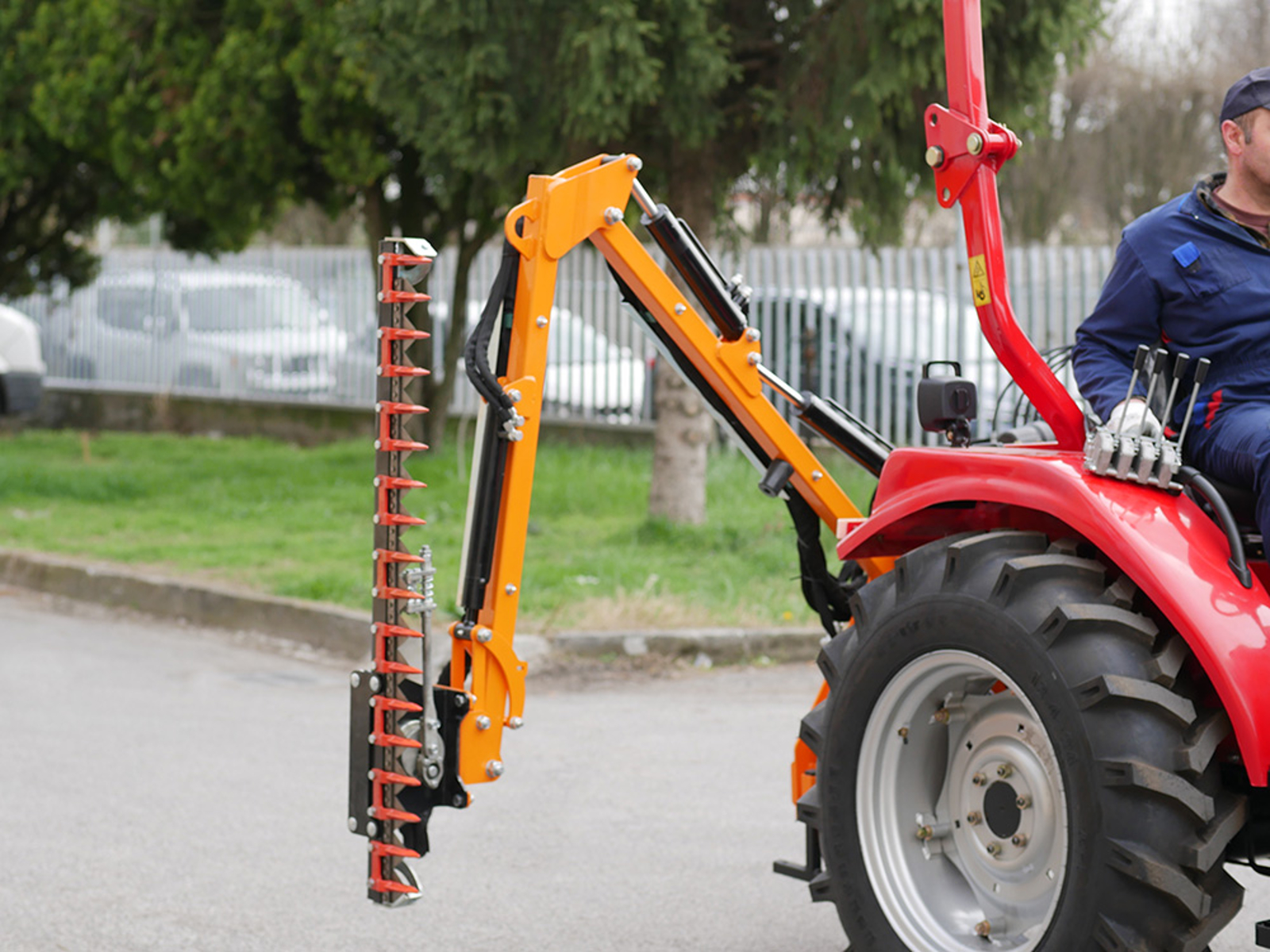

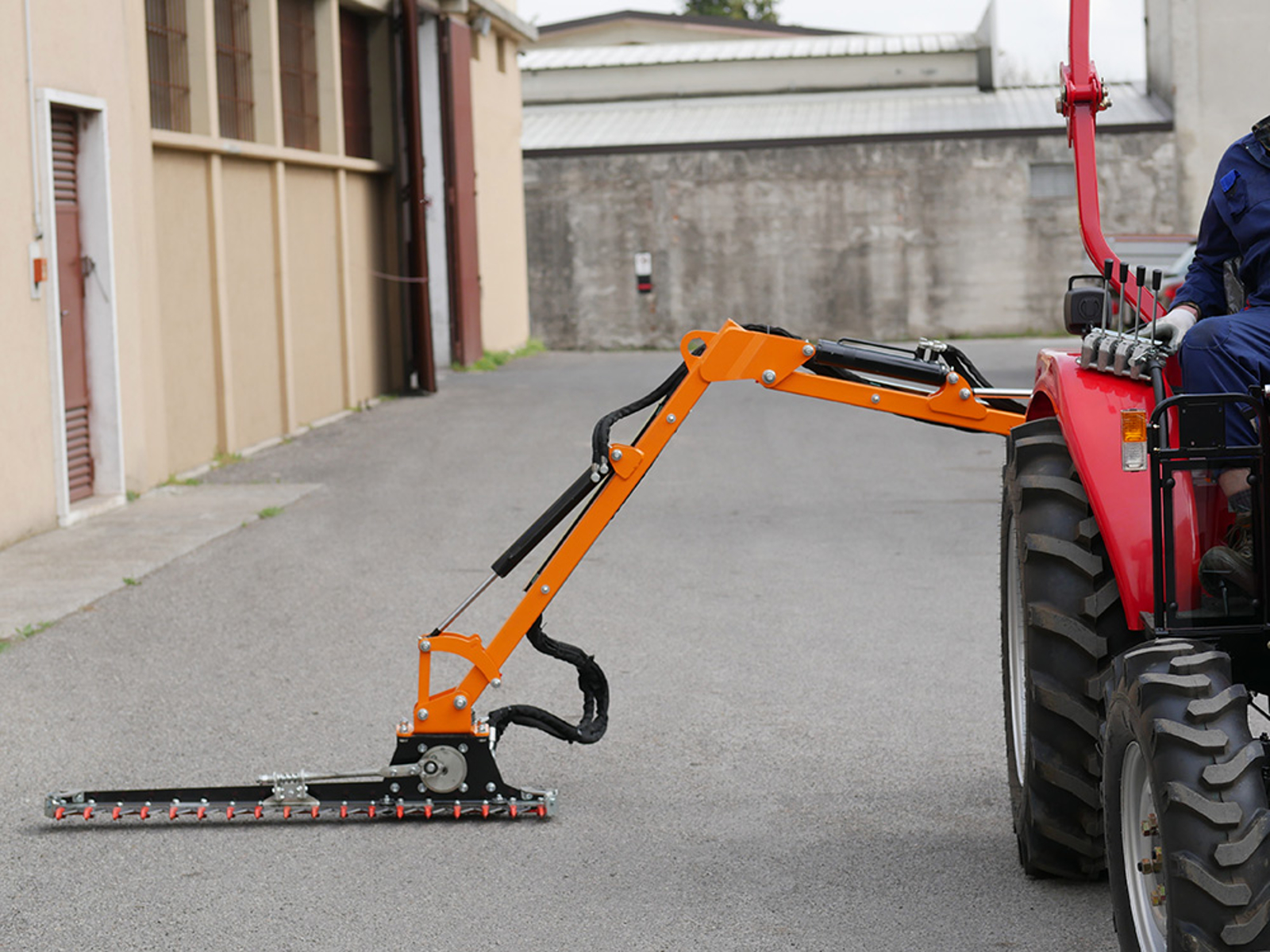

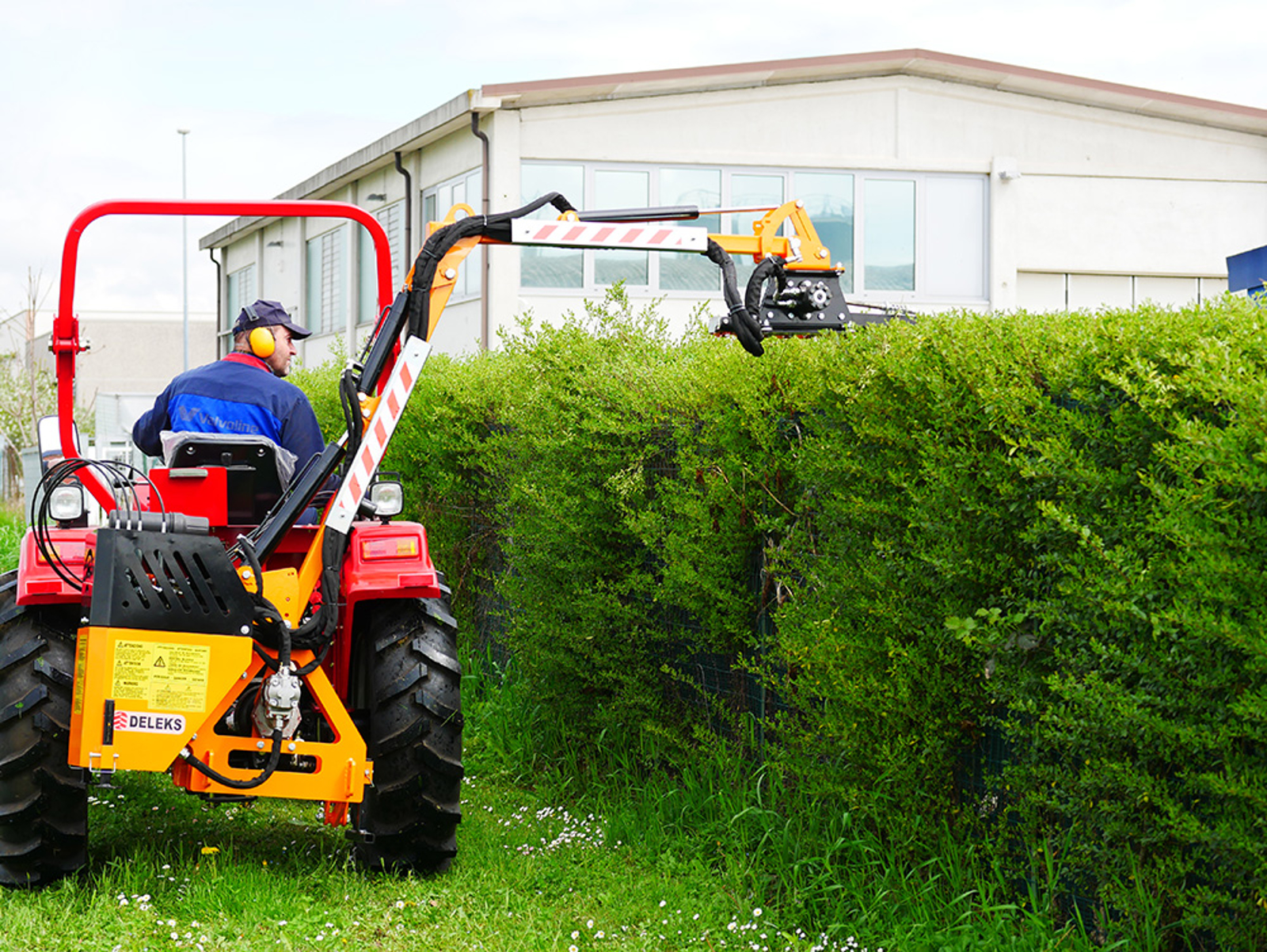

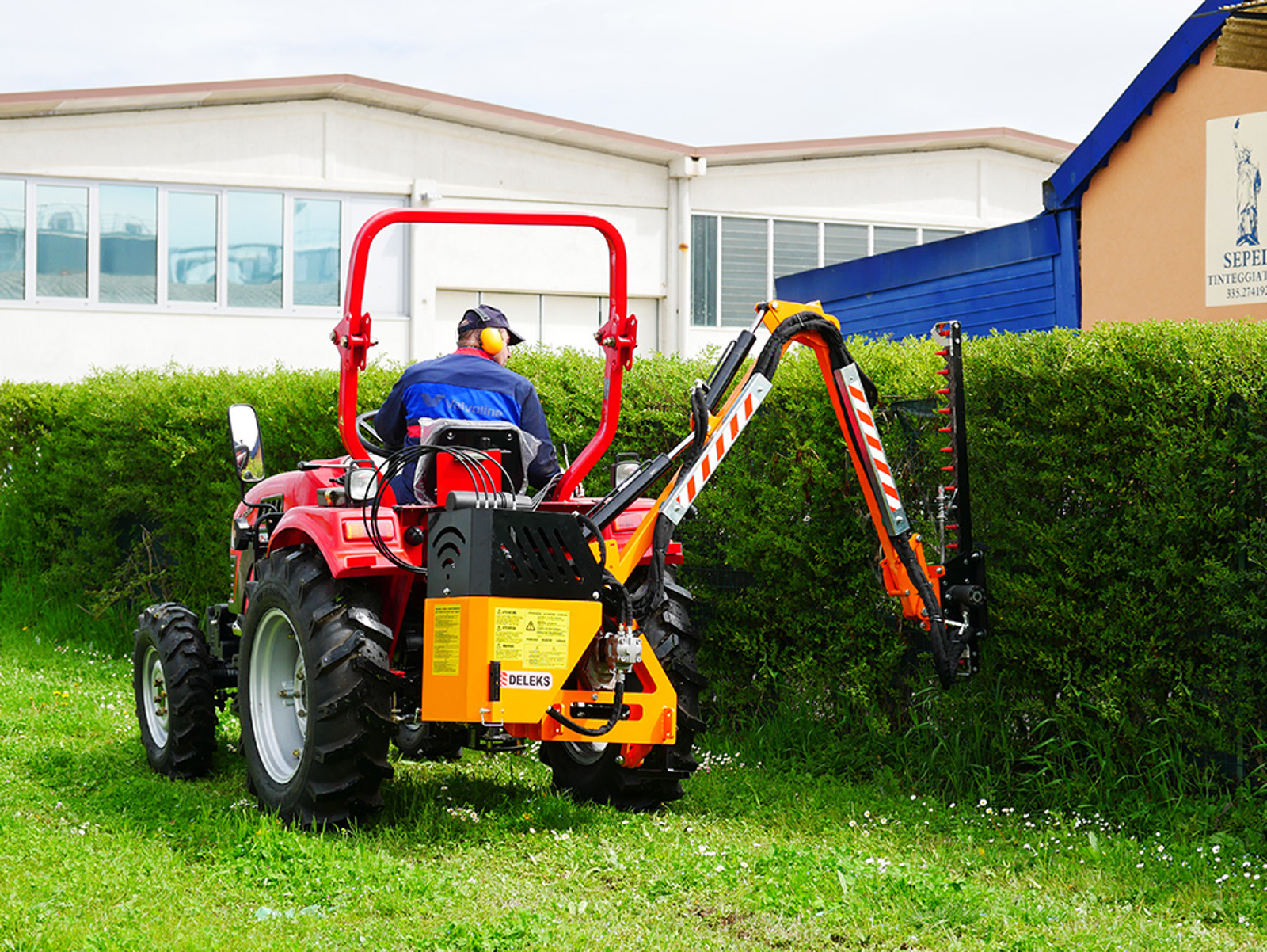

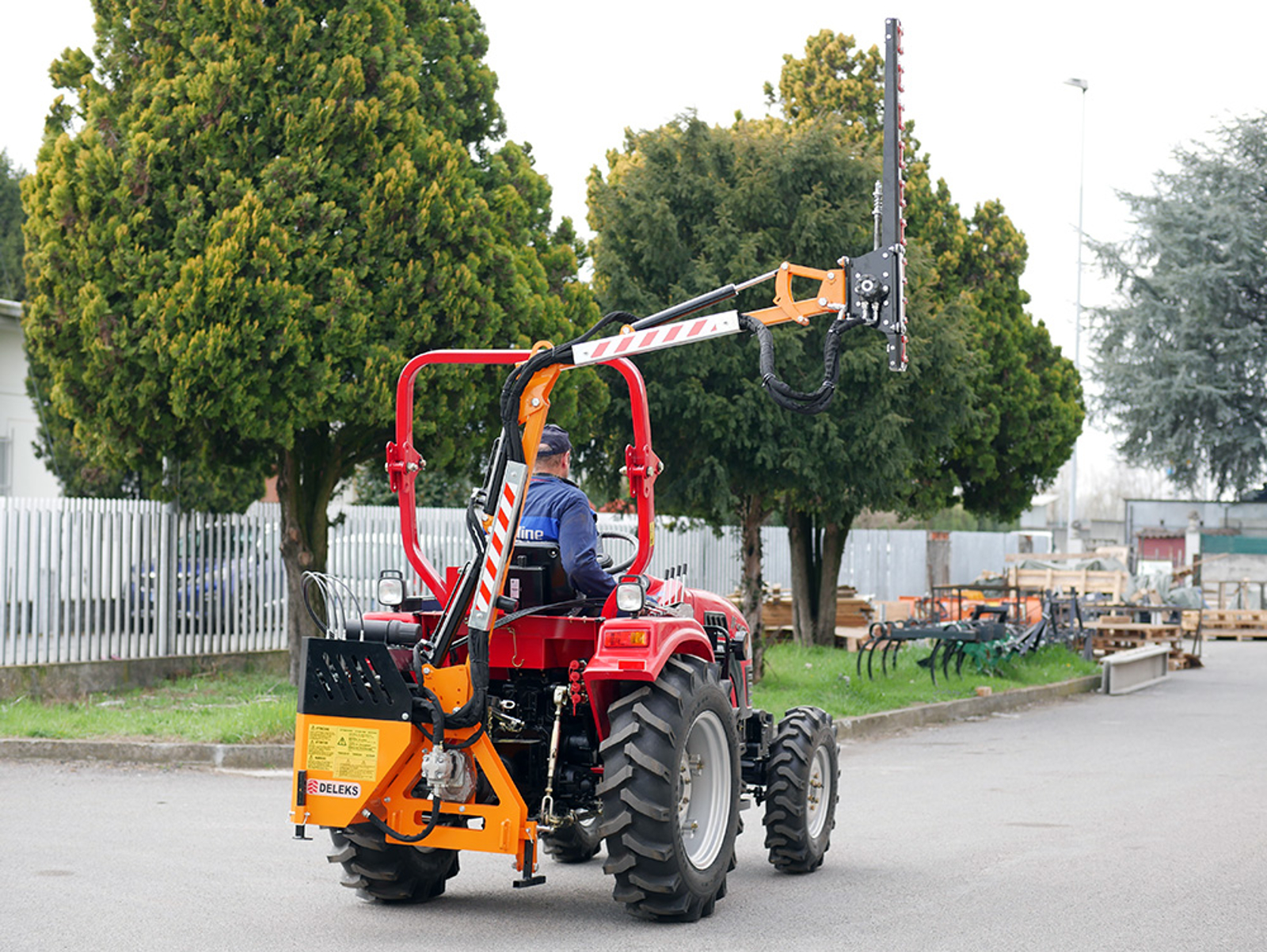

AIRONE-160-TR Hedge cutter has been engineered for clearing overgrowth from highway medians and for initial land clearing for housing, parks and recreational areas. The AIRONE-160-TR is ideal for semi professional use, perfect for maintaining small bushes, trees and pruning edges with a max diameter of 2-3 cm. The hedge cutter itself is powered by a PTO shaft (supplied with the machine) and can be used with all 20-60HP compact tractors e.g Kubota, John Deere 2-3, Ford, McCormick, Iseki, Yanmar, Lamborghini, Goldoni.

Minimum weight of the tractor:  1200kg.




BENEFITS AND FEATURES

Very safe to operate as it does not have high speed flying obstacles from the cutter bar head, unlike a flail therefore it can be used safely without a cab on even the smallest tractors.

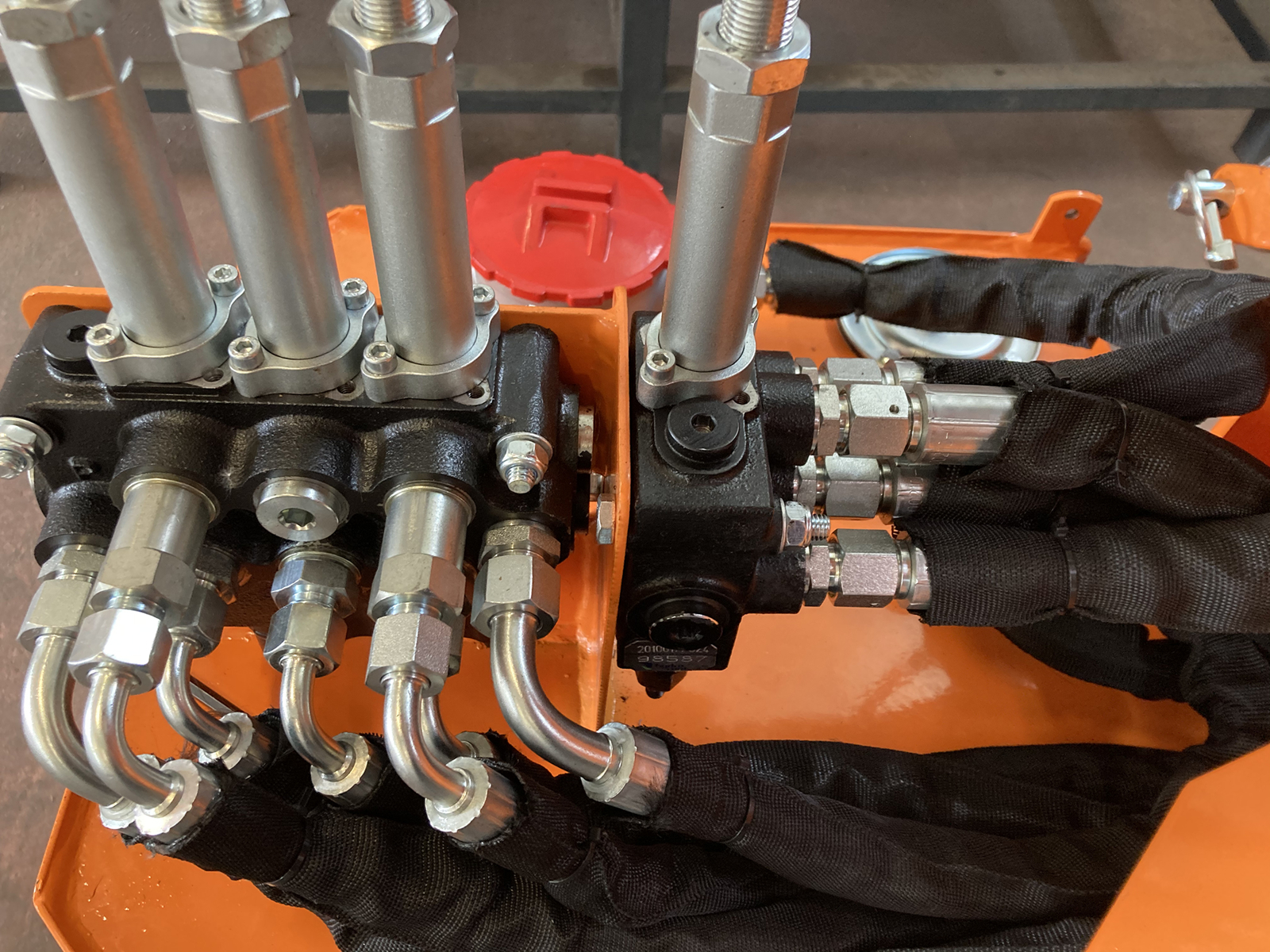

Hydraulic distributor: Hydrocontrol (Made in Italy).

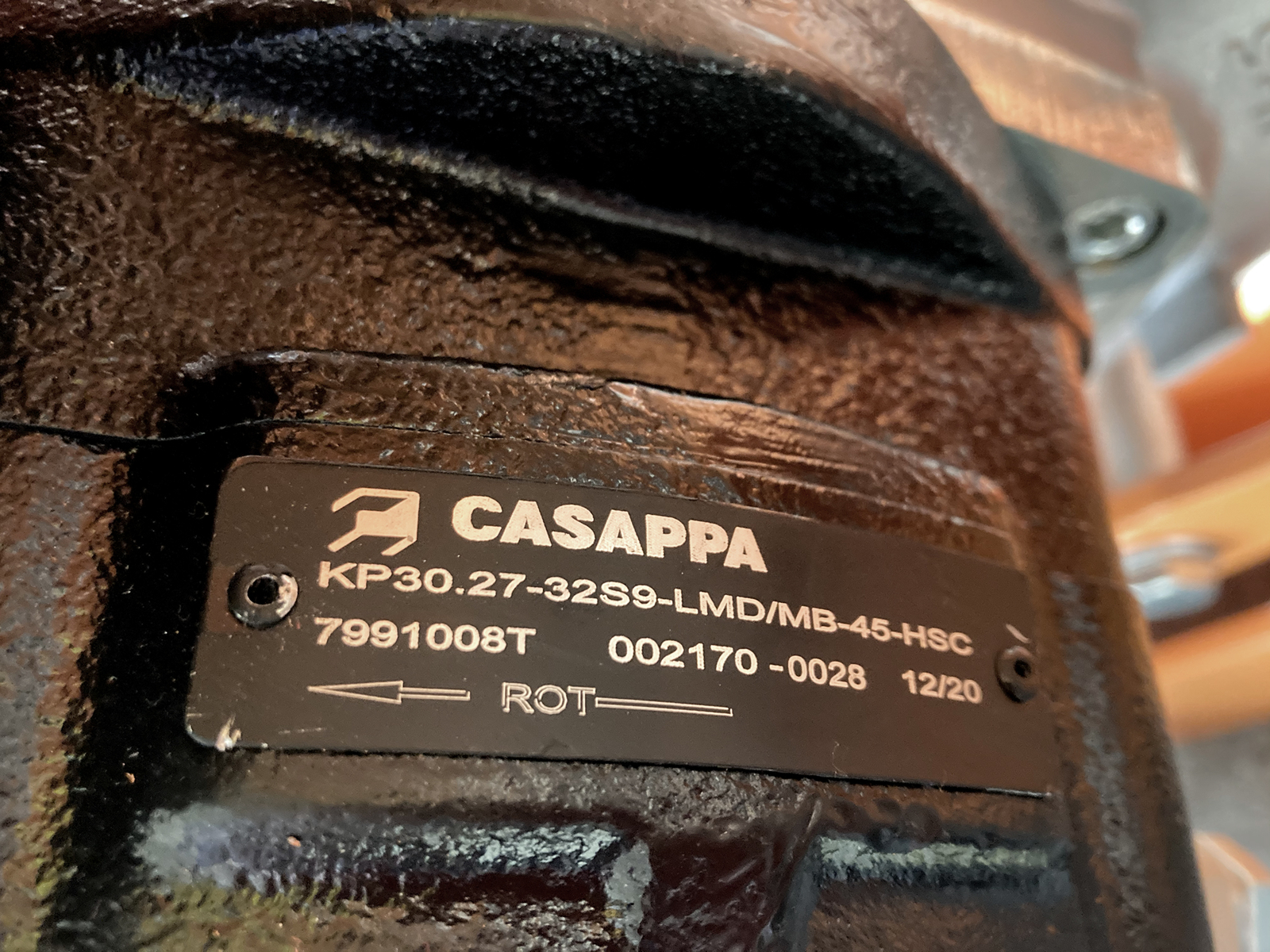

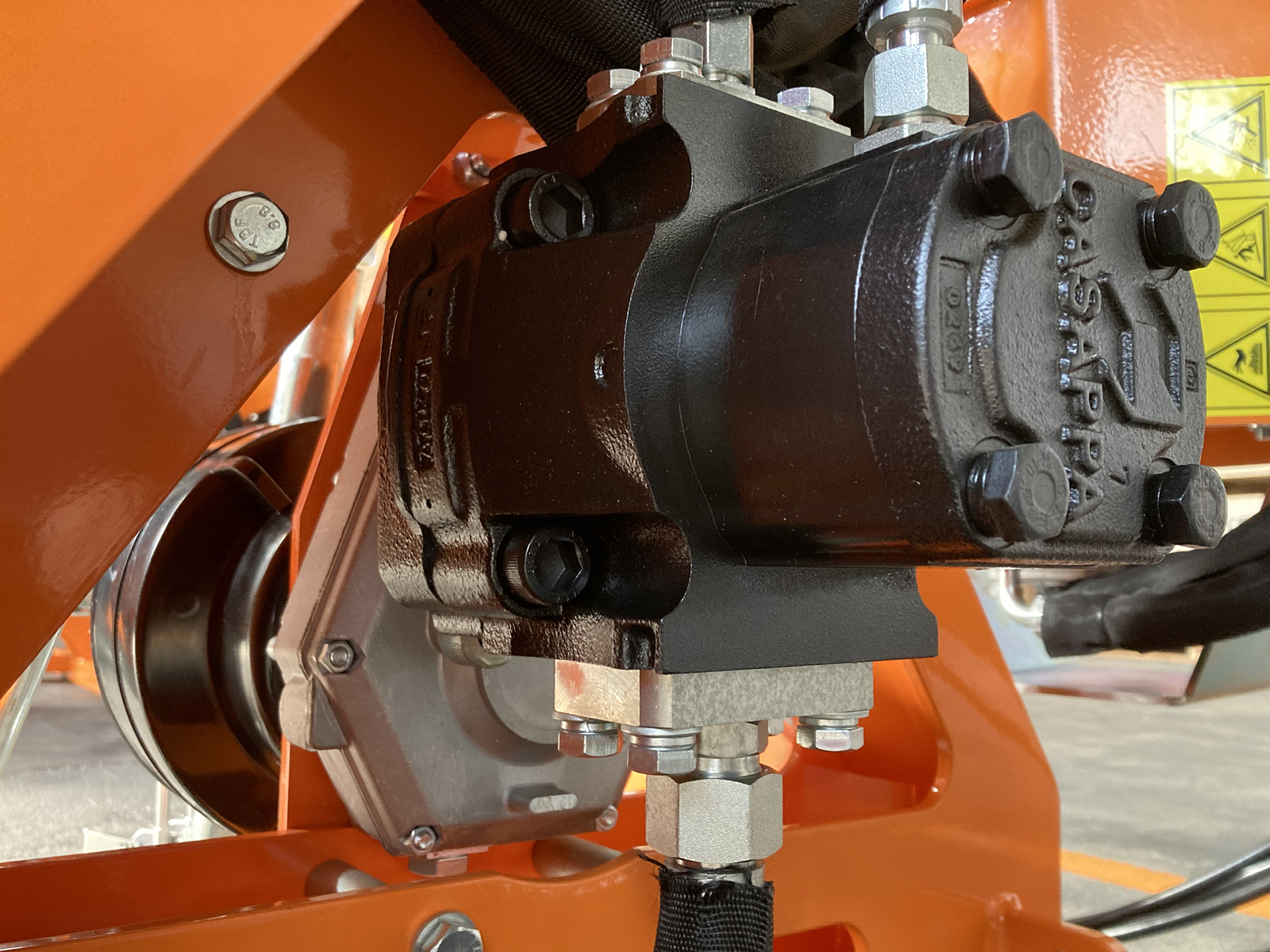

Double hydraulic pump: Casappa (Made in Italy) allows to move together the arm and the cutter bar.

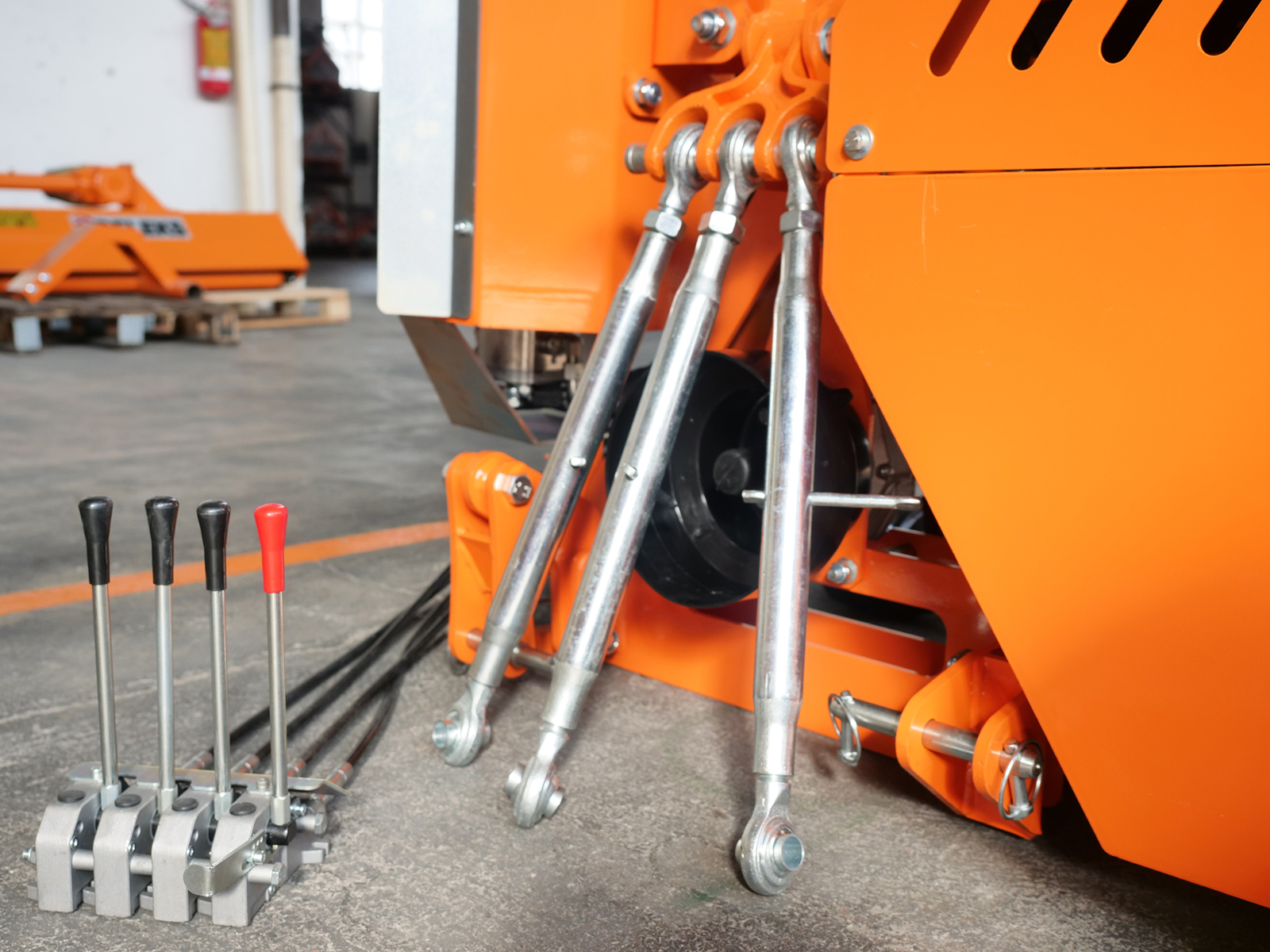

Efficient remote control with 4 levers and flexible hoses.

As a low weight machine, this cutter fits tractors universally, small to large, eg from small Kubota, Iseki, Mitsubishi, right up to 60hp mid size tractors.

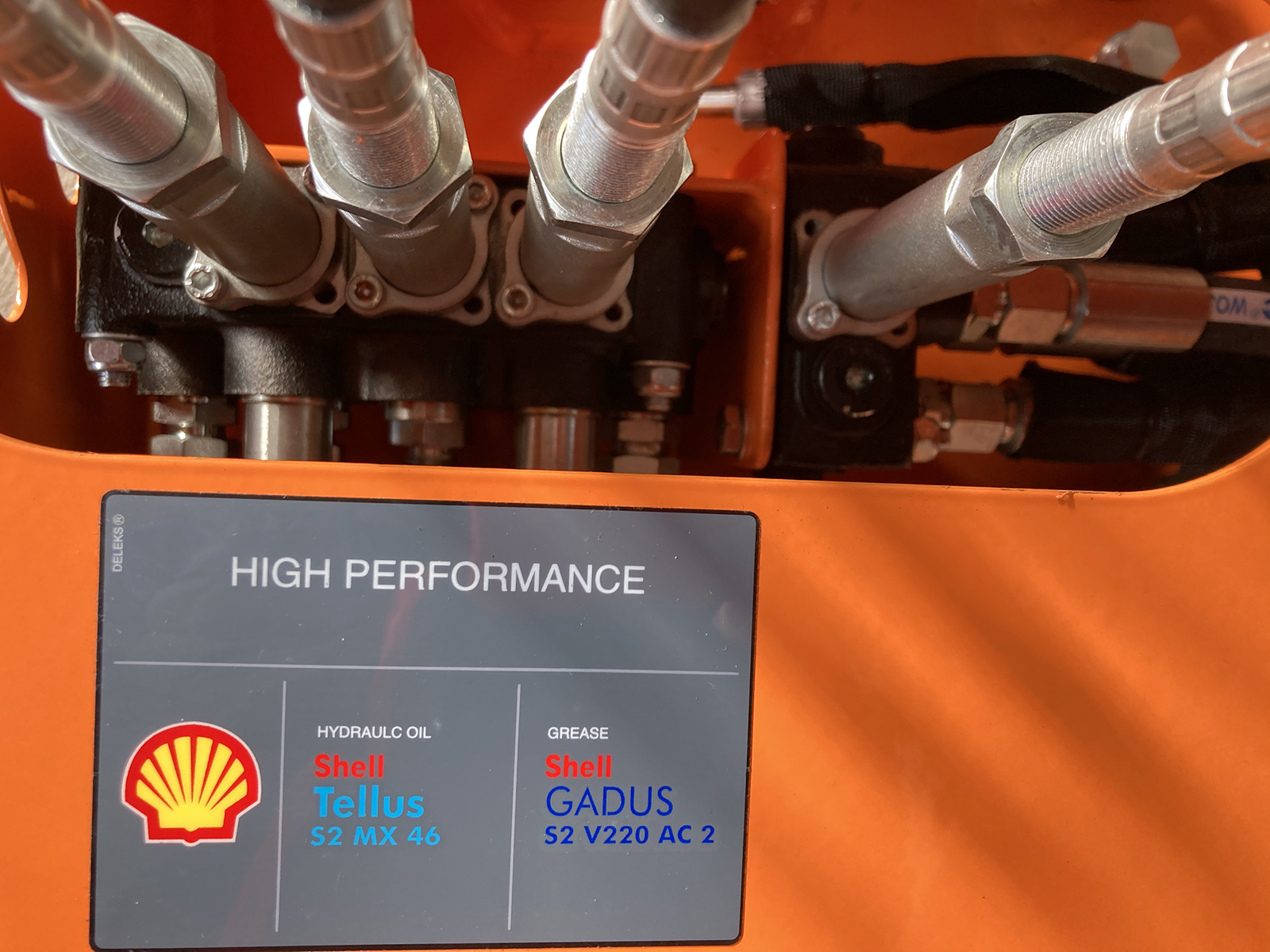

55 liters oil tank (already supplied level: Shell Tellus 46 S2 MX 46).

Pto shaft CE included.


Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual


EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).

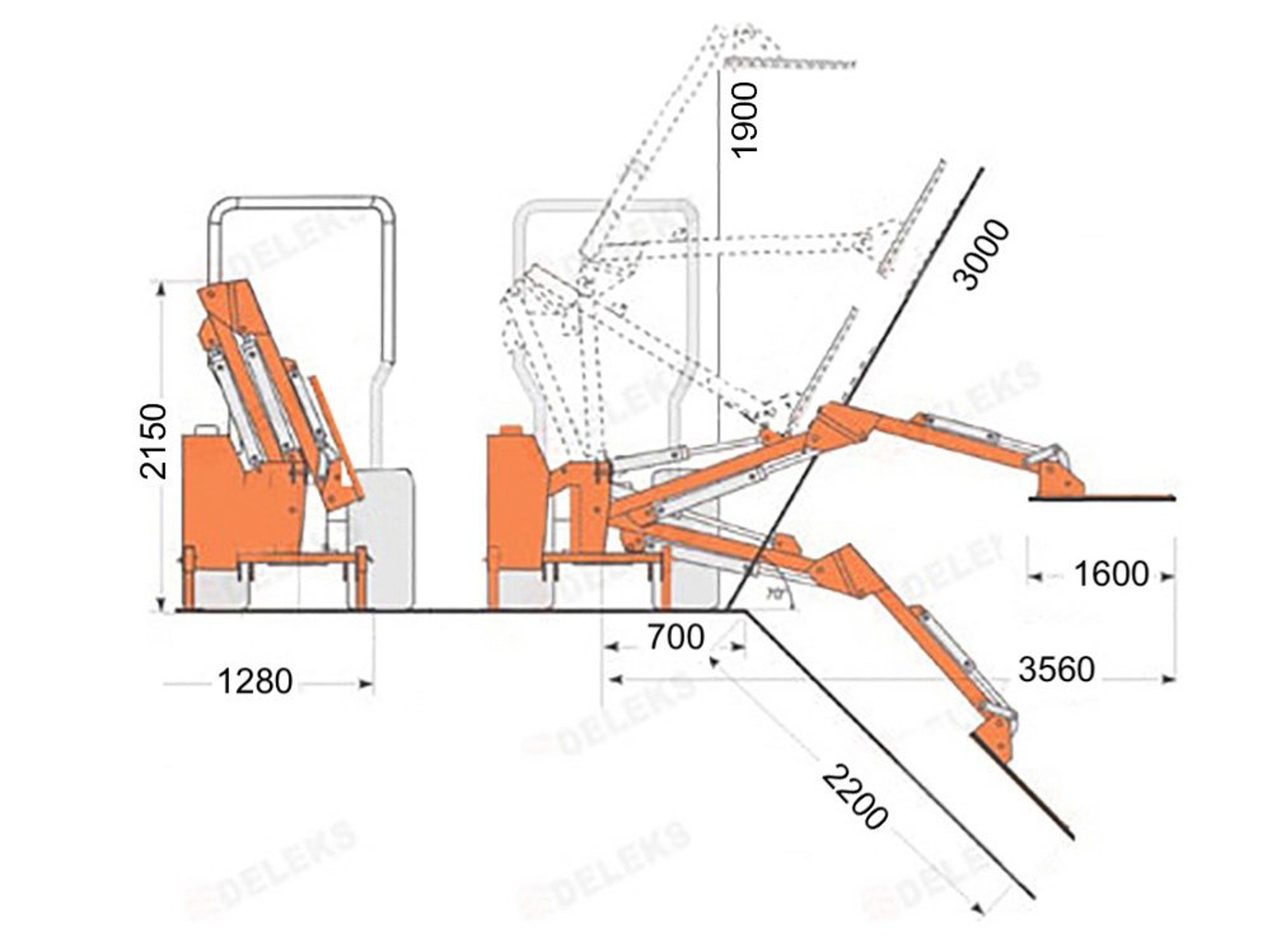

CHARACTERISTICS

Characteristic Units metric Units US
Working width 1600.0 mm 5.25 ft
Overall width 1200.0 mm (closed) 3.94 ft (closed)
Weight 282.0 kg 622.0 lb
Overall height 2010.0 mm 6.60 ft
Tractor Power Range 20-60 Hp 20-60 Hp
3 point linkage Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
Spacing between the 2 lower points 470.0 - 570.0 mm 18.50 - 22.44 in
Maximum cutting diameter 25.0 mm 1.0 in
Overall length 1070.0 mm 3.51 ft
Distance between pto attachment and ground 400.0 mm 15.75 in
Transmission: Drive method Hydraulic Hydraulic
Transmission: PTO 540 r/min 540 r/min
Transmission: Rotation of gearbox Right side Right side
Transmission: Free wheel
Transmission: Oil in the gearbox Yes / SAE 120 - ISO 72925 Yes / SAE 120 - ISO 72925
Number of Blades 21 21
Hydraulic Hoses WP 400 Bar WP 400 Bar
Pto shaft CE 4x700 mm CE 4x700 mm
Displacement 3460.0 mm 11.35 ft
Transmission: Oil in the tank 55.0 lt 55.0 lt
Packing sizes 1280.0*800.0*2150.0 mm 4.20*2.62*7.05 ft
