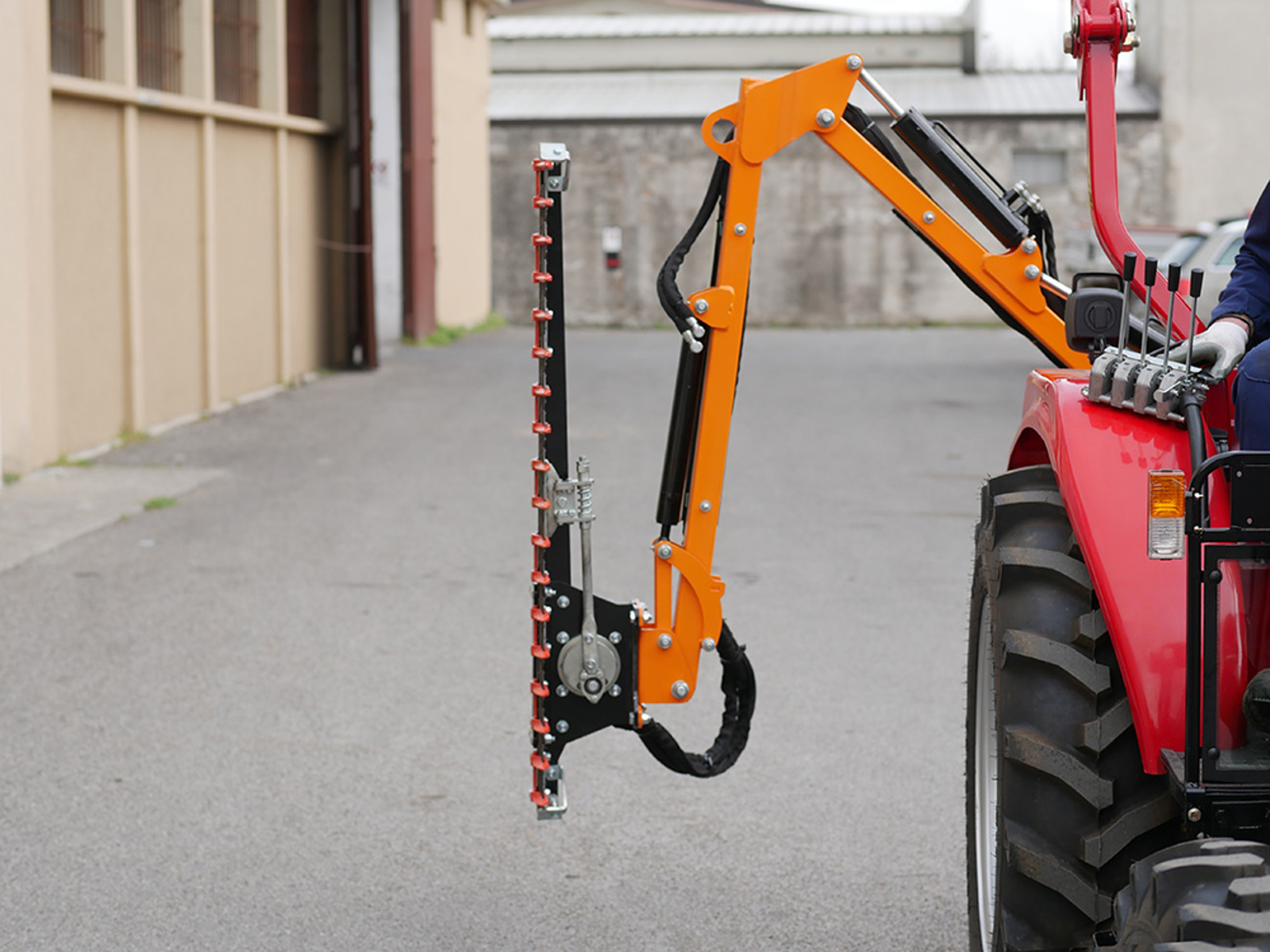

Hydraulic hedge bush cutter for tractor AIRONE-180-TR

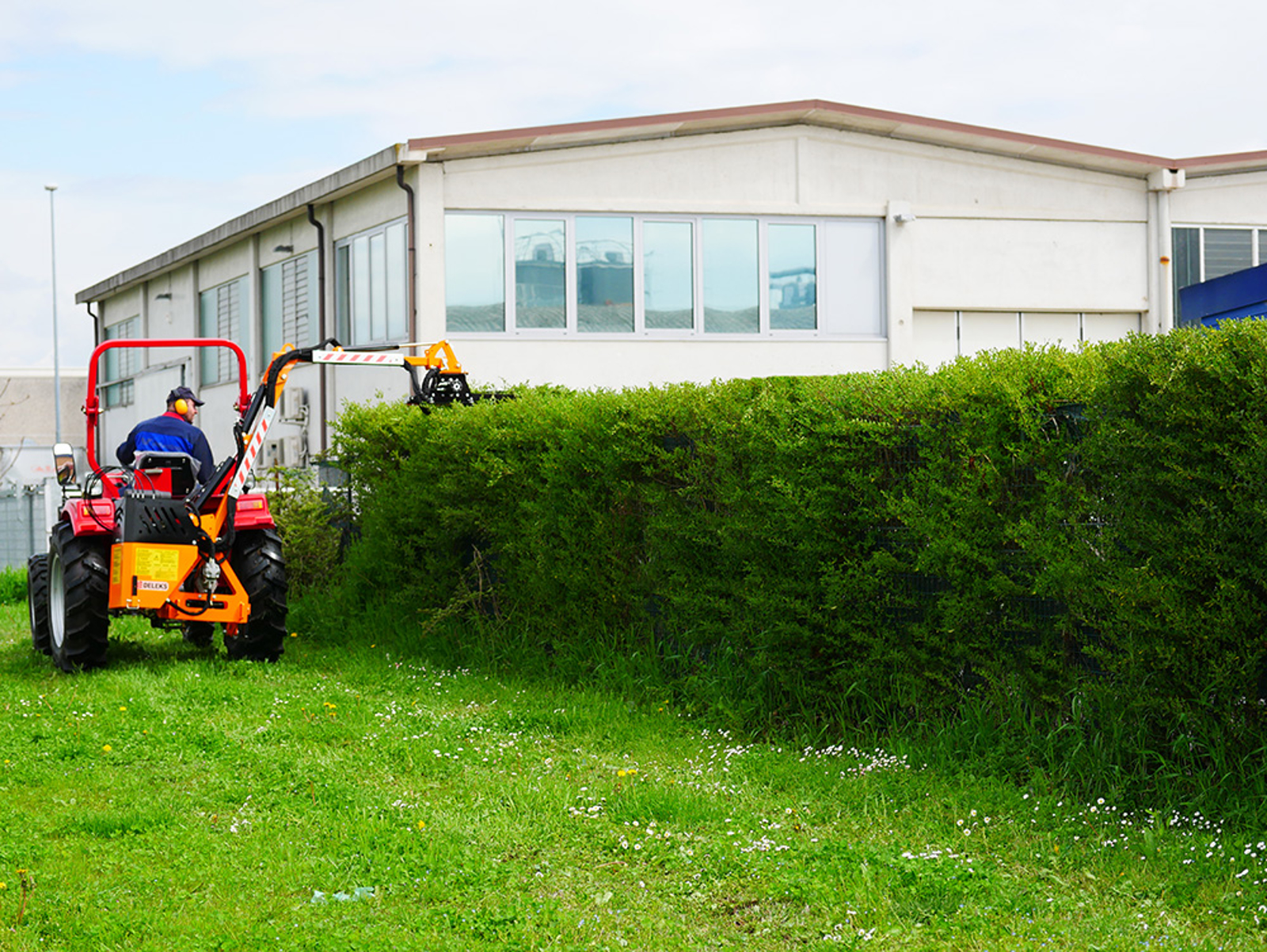

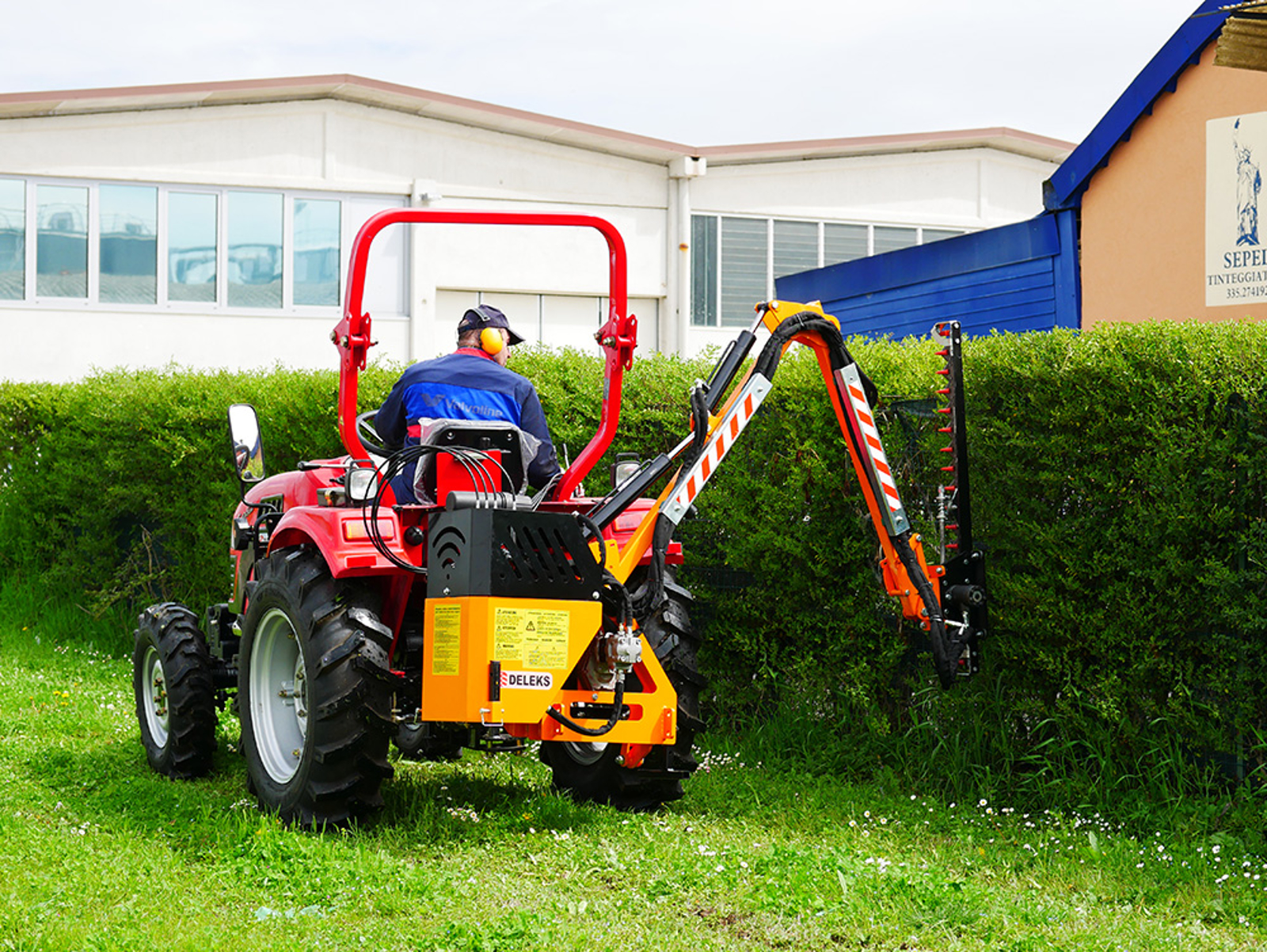

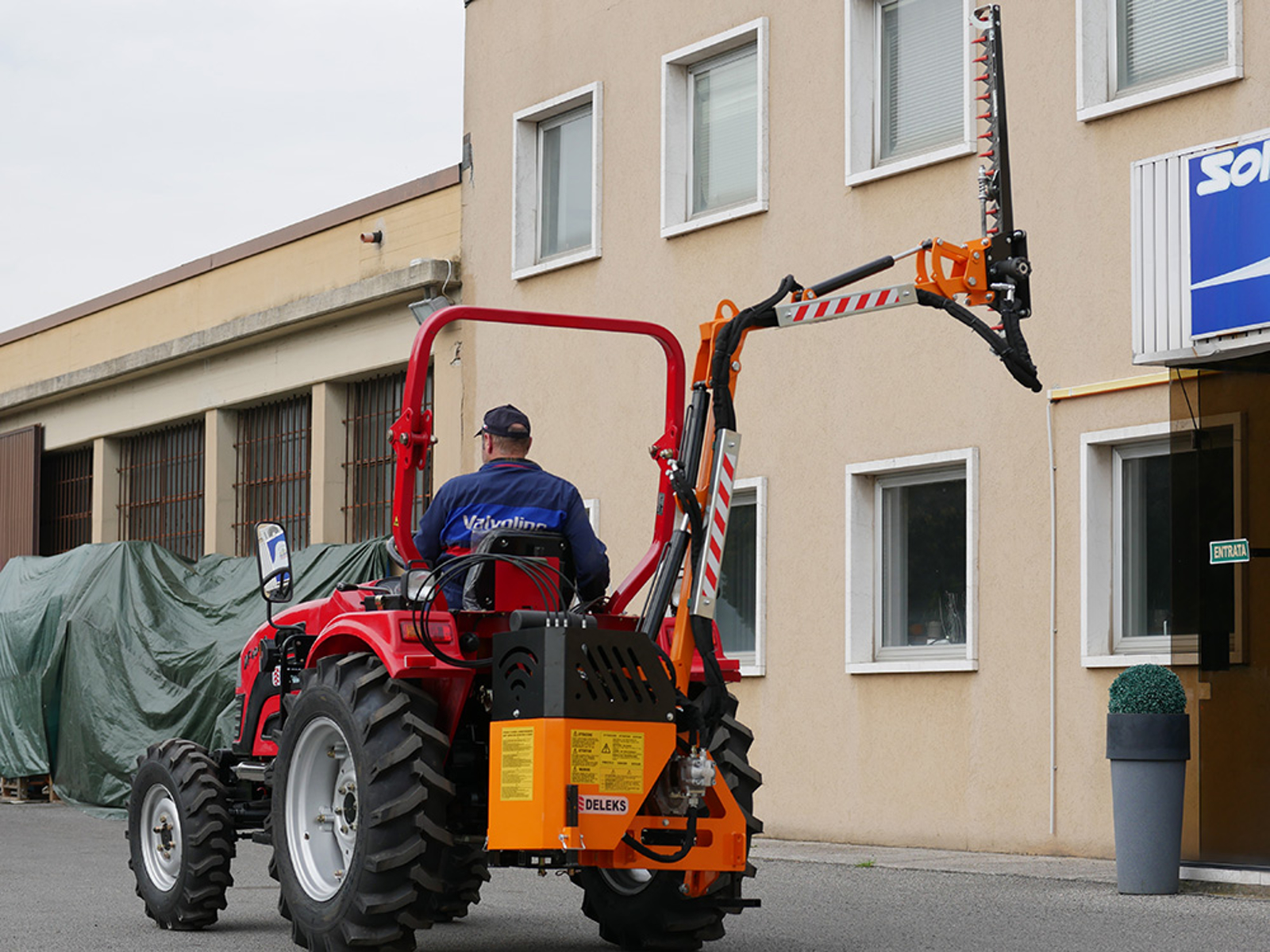

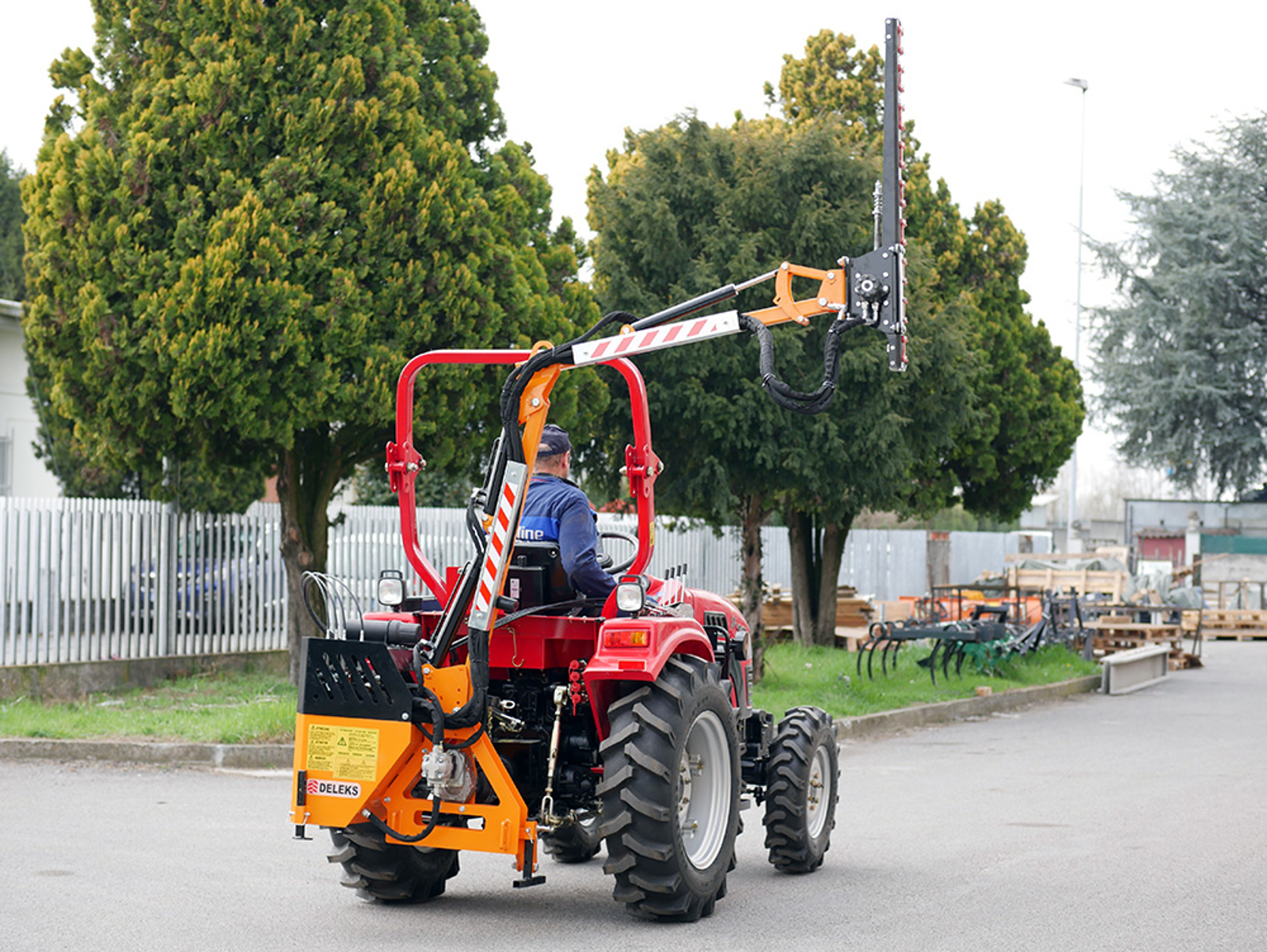

Field test
Review by Edd China (Wheeler Dealers)
DETAILS

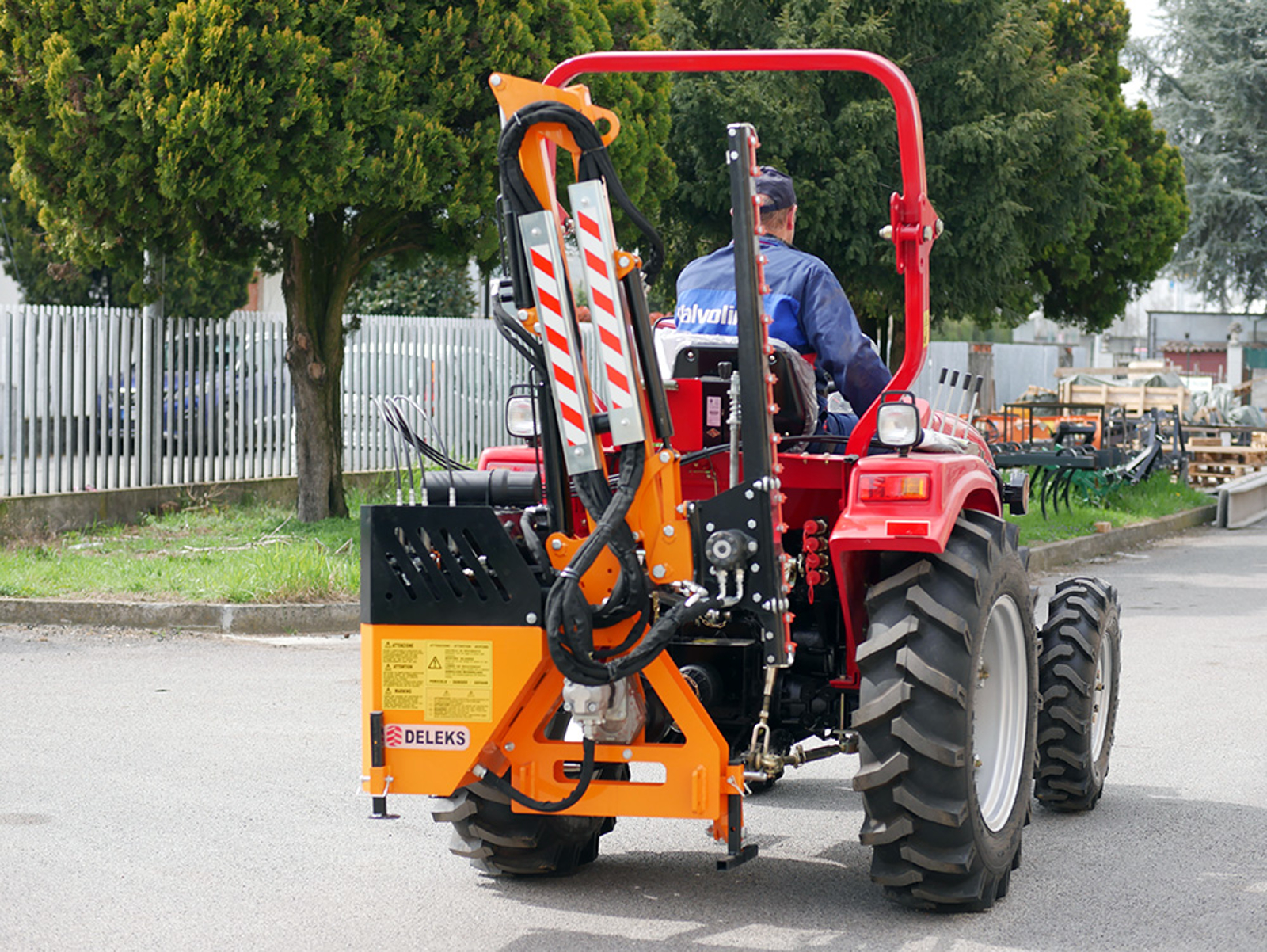

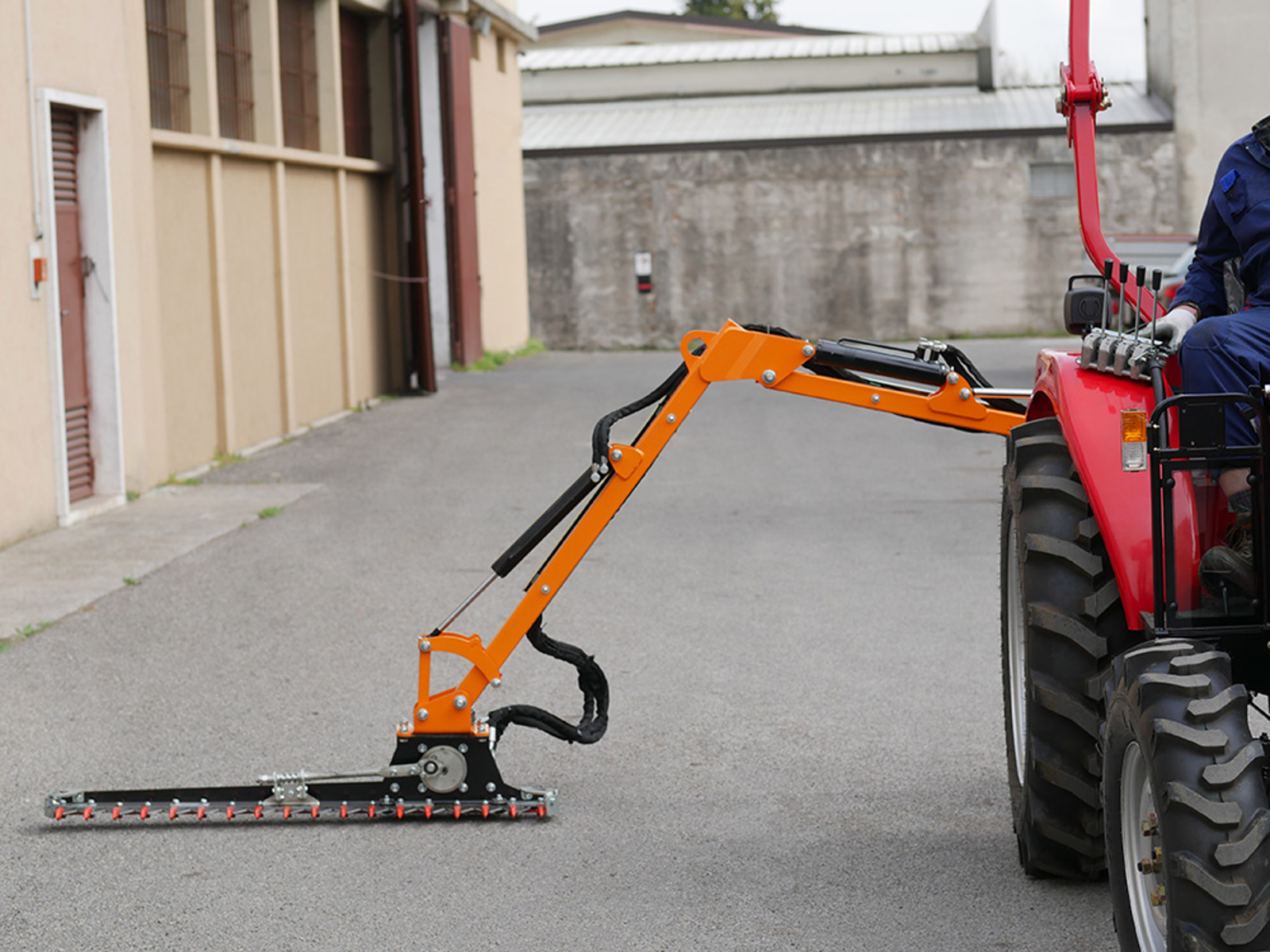

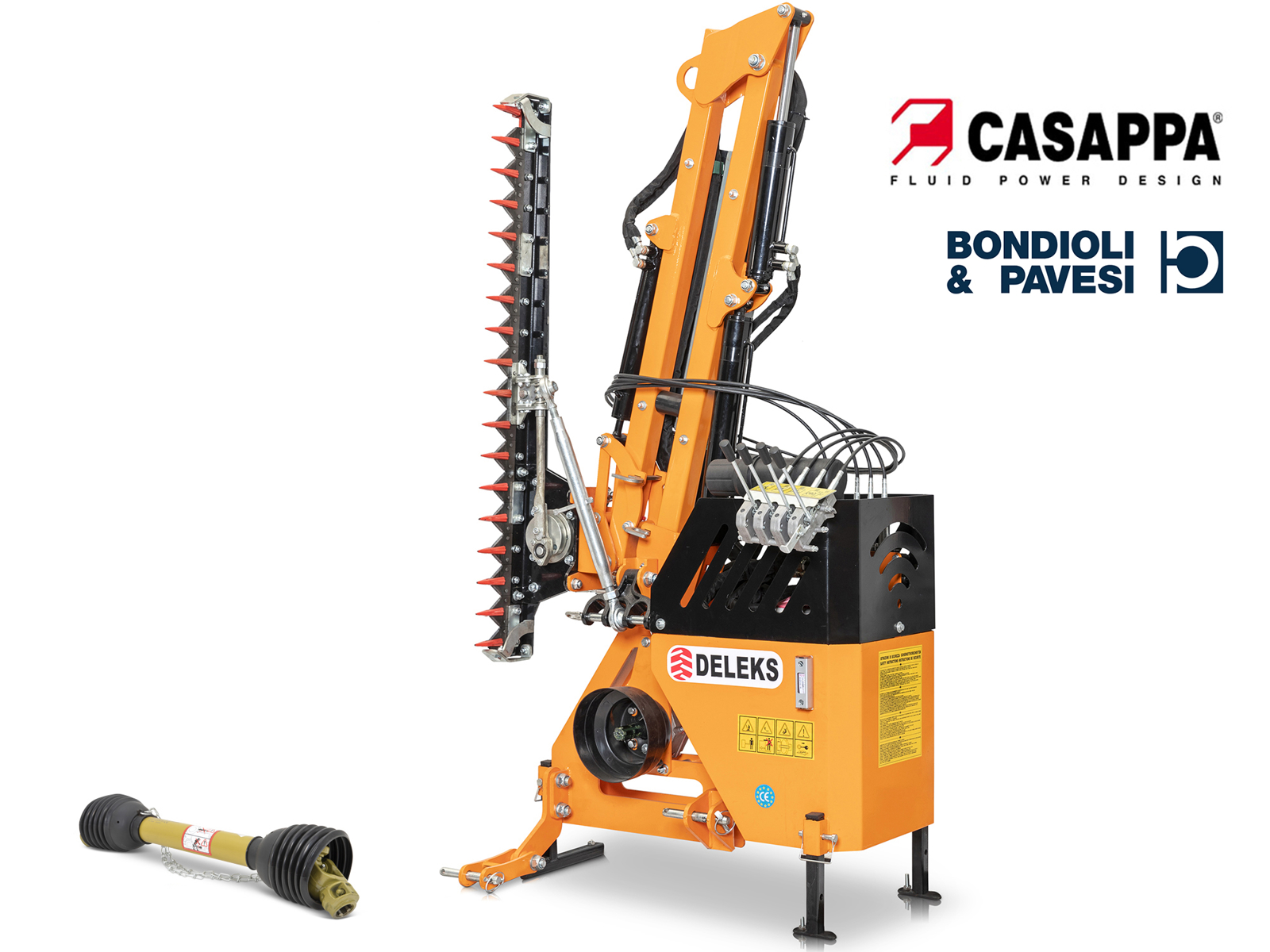

Hedgecutter for tractor, multiple hedge and grass verge rear arm cutter - DELEKS® - own hydraulic system, runs completely off the PTO - Pto shaft CE included.
OVERVIEW
AIRONE-180-TR Hedge cutter has been engineered for clearing overgrowth from highway medians and for initial land clearing for housing, parks and recreational areas. The AIRONE-180-TR is ideal for semi professional use, perfect for maintaining small bushes, trees and pruning edges with a max diameter of 2-3 cm. The hedge cutter itself is powered by a PTO shaft (supplied with the machine) and can be used with all 20-60HP compact tractors e.g Kubota, John Deere 2-3, Ford, McCormick, Iseki, Yanmar, Lamborghini, Goldoni.
Minimum weight of the tractor: 1200kg.
BENEFITS AND FEATURES

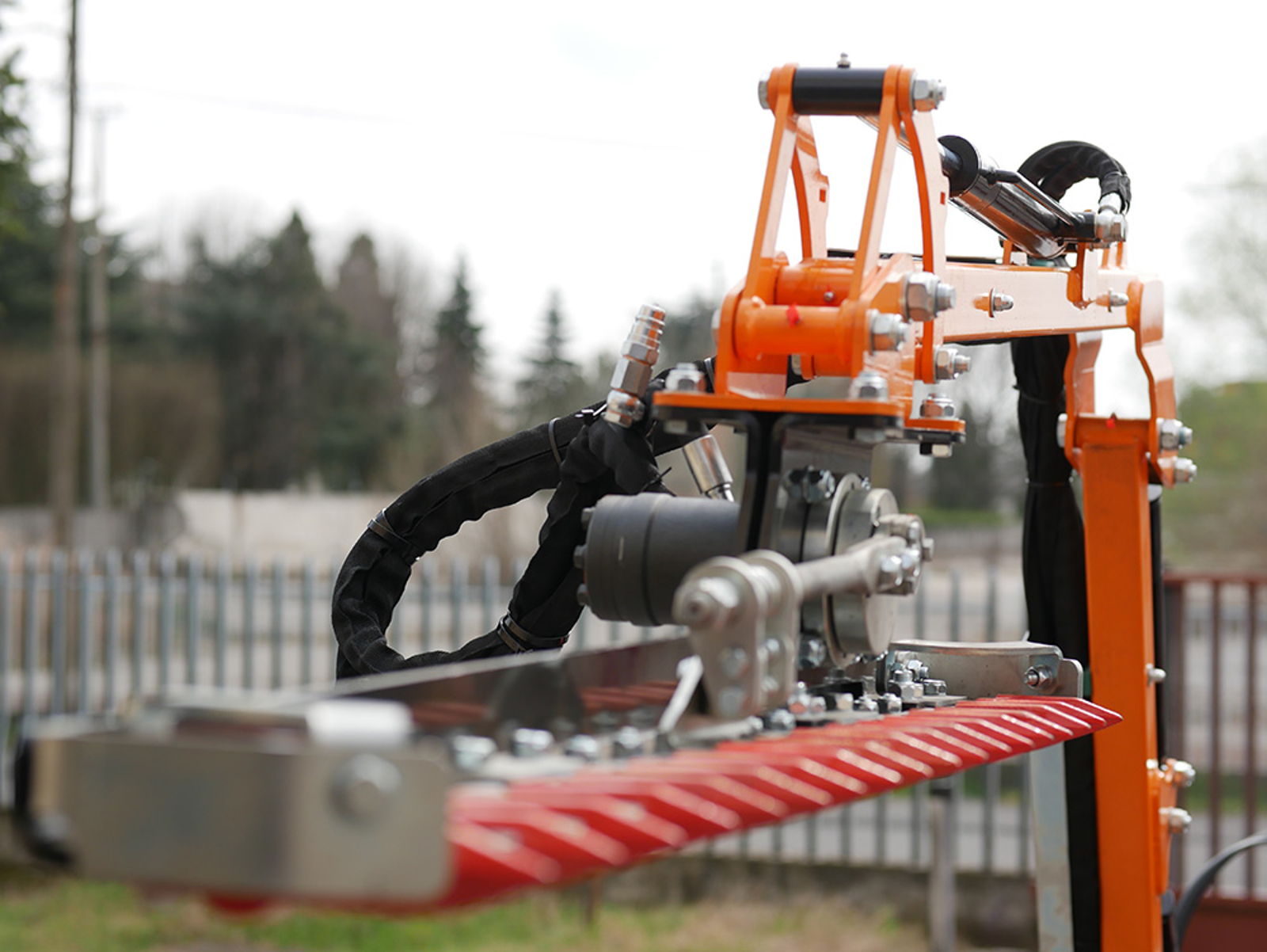

Very safe to operate as it does not have high speed flying obstacles from the cutter bar head, unlike a flail therefore it can be used safely without a cab on even the smallest tractors.

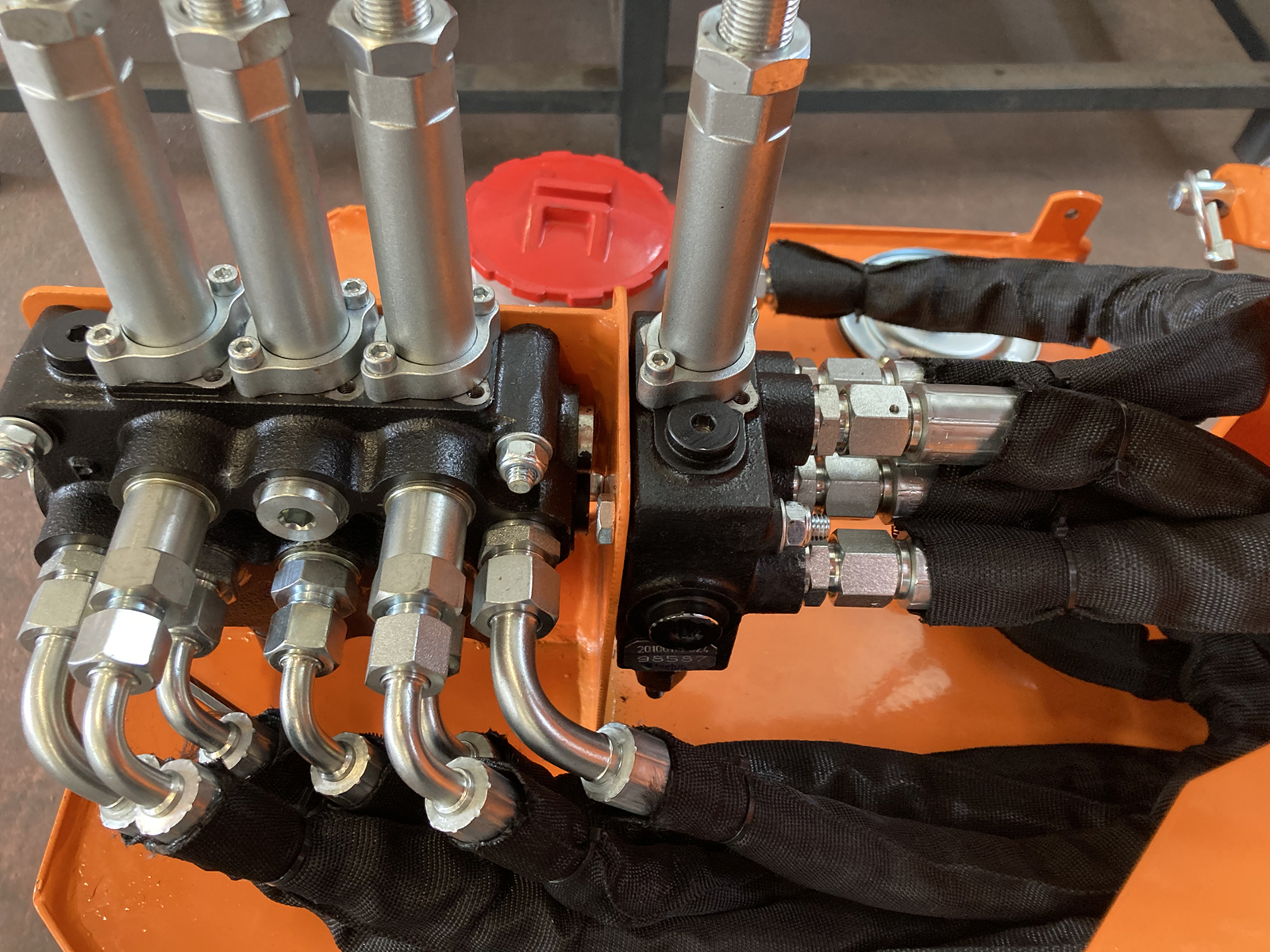

Hydraulic distributor: Bondioli & Pavesi (Made in Italy).

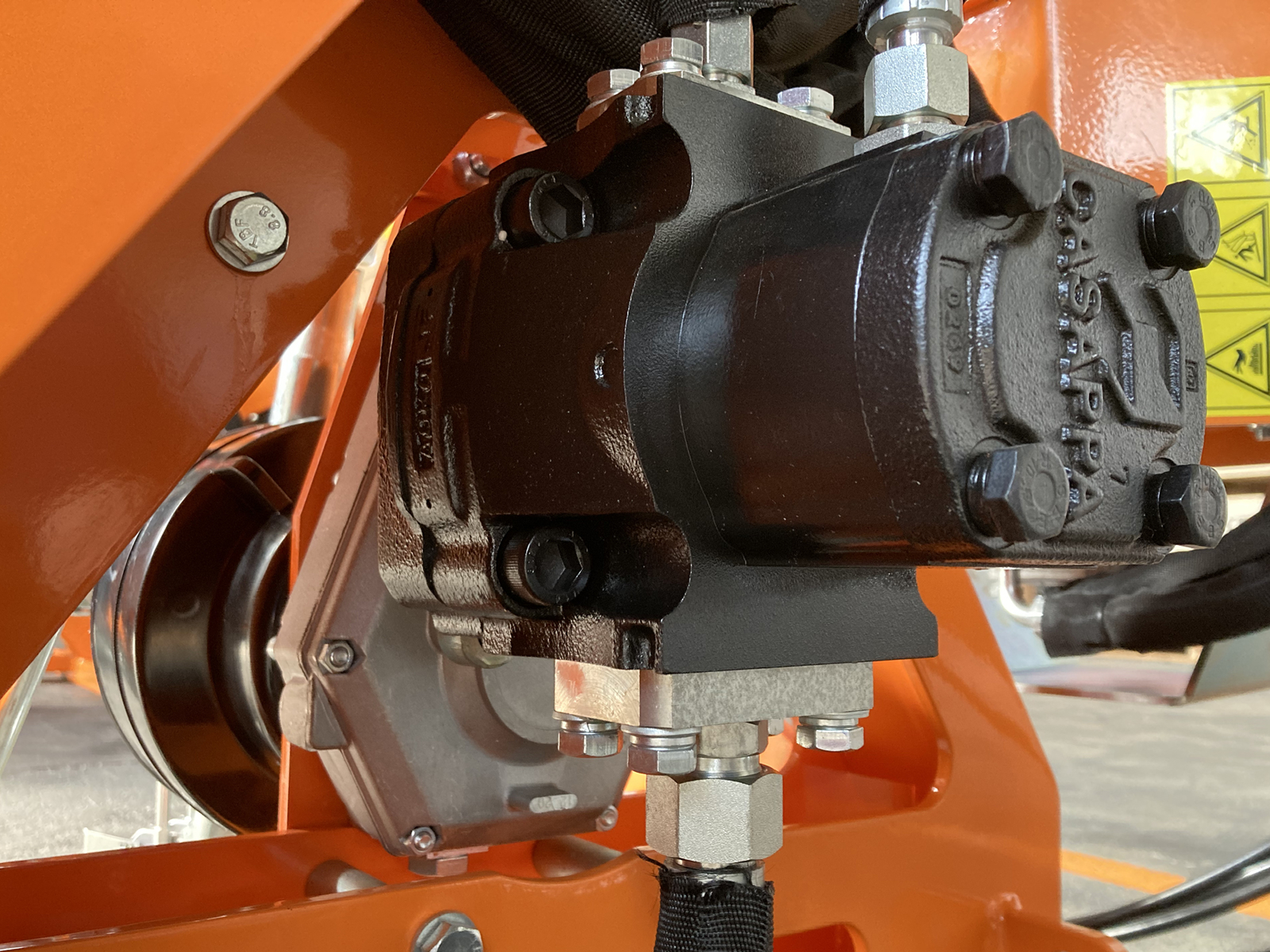

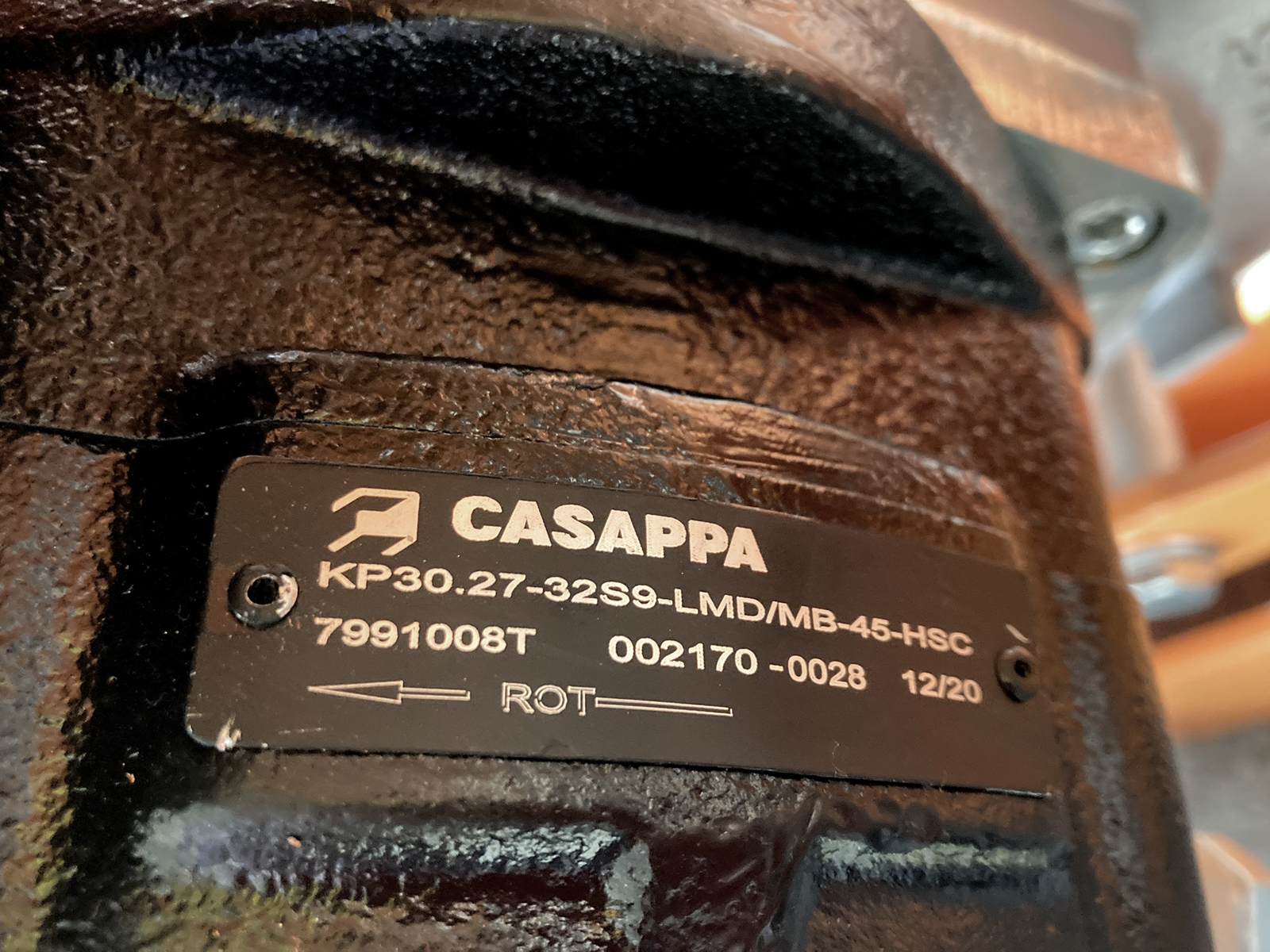

Double hydraulic pump: Casappa (Made in Italy) allows to move together the arm and the cutter bar.

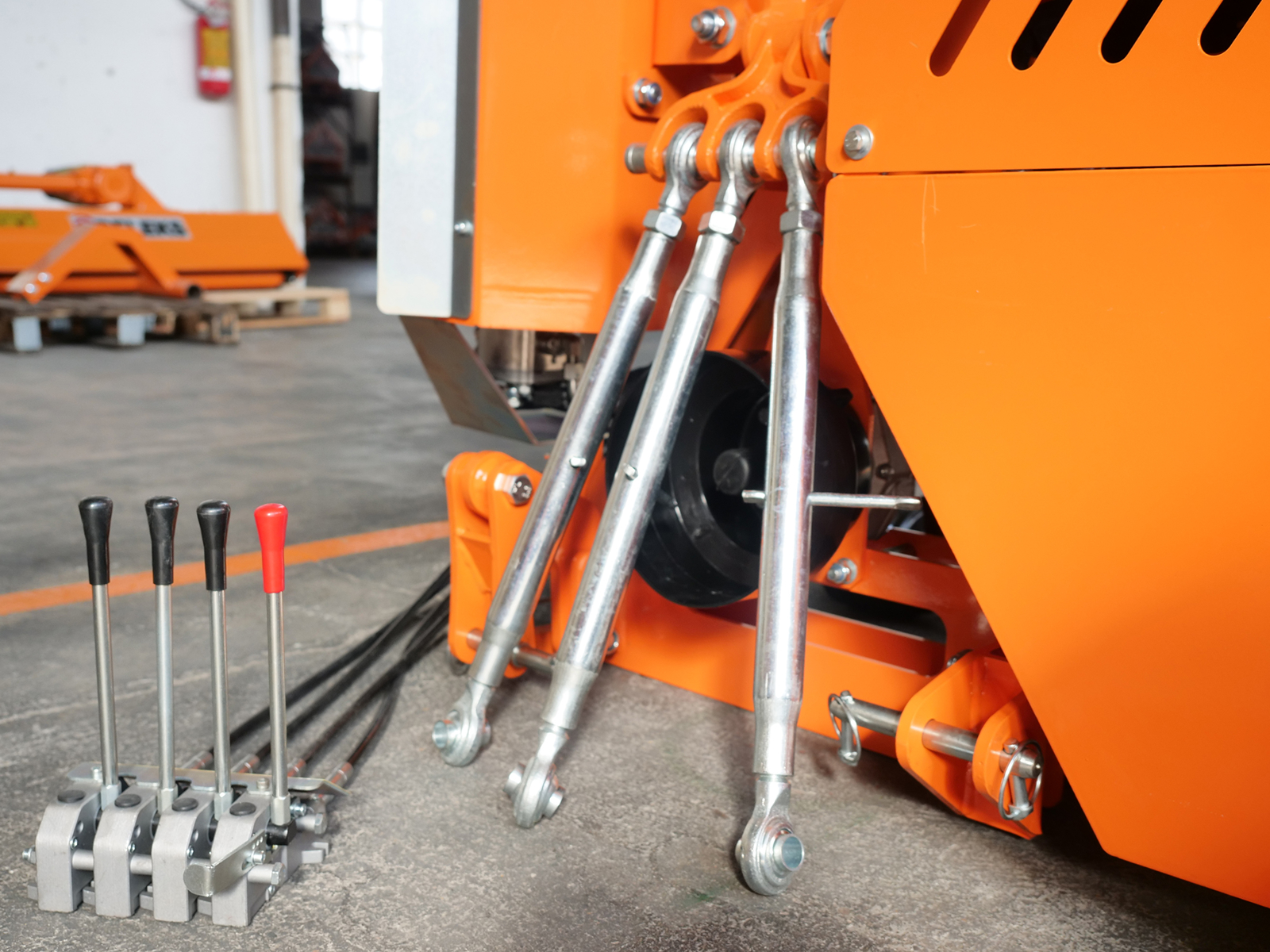

Efficient remote control with 4 levers and flexible hoses.
As a low weight machine, this cutter fits tractors universally, small to large, eg from small Kubota, Iseki, Mitsubishi, right up to 60hp mid size tractors.
55 liters oil tank (already supplied level: Shell Tellus 46 S2 MX 46).
Pto shaft CE included.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1800.0 mm | 5.90 ft |
| Overall width | 1200.0 mm (closed) | 3.94 ft (closed) |
| Weight | 290.0 kg | 640.0 lb |
| Overall height | 2010.0 mm | 6.60 ft |
| Tractor Power Range | 20-60 Hp | 20-60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Spacing between the 2 lower points | 470.0 - 570.0 mm | 18.50 - 22.44 in |
| Maximum cutting diameter | 25.0 mm | 1.0 in |
| Overall length | 1070.0 mm | 3.51 ft |
| Distance between pto attachment and ground | 400.0 mm | 15.75 in |
| Transmission: Drive method | Hydraulic | Hydraulic |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Number of Blades | 24 | 24 |
| Hydraulic Hoses | WP 400 Bar | WP 400 Bar |
| Pto shaft | CE 4x700 mm | CE 4x700 mm |
| Displacement | 3460.0 mm | 11.35 ft |
| Transmission: Oil in the tank | 55.0 lt | 55.0 lt |
| Packing sizes | 1280.0*800.0*2150.0 mm | 4.20*2.62*7.05 ft |
DETAILS
CLOSEHedgecutter for tractor, multiple hedge and grass verge rear arm cutter - DELEKS® - own hydraulic system, runs completely off the PTO - Pto shaft CE included.
OVERVIEW
AIRONE-180-TR Hedge cutter has been engineered for clearing overgrowth from highway medians and for initial land clearing for housing, parks and recreational areas. The AIRONE-180-TR is ideal for semi professional use, perfect for maintaining small bushes, trees and pruning edges with a max diameter of 2-3 cm. The hedge cutter itself is powered by a PTO shaft (supplied with the machine) and can be used with all 20-60HP compact tractors e.g Kubota, John Deere 2-3, Ford, McCormick, Iseki, Yanmar, Lamborghini, Goldoni.
Minimum weight of the tractor: 1200kg.
BENEFITS AND FEATURES
Very safe to operate as it does not have high speed flying obstacles from the cutter bar head, unlike a flail therefore it can be used safely without a cab on even the smallest tractors.
Hydraulic distributor: Bondioli & Pavesi (Made in Italy).
Double hydraulic pump: Casappa (Made in Italy) allows to move together the arm and the cutter bar.
Efficient remote control with 4 levers and flexible hoses.
As a low weight machine, this cutter fits tractors universally, small to large, eg from small Kubota, Iseki, Mitsubishi, right up to 60hp mid size tractors.
55 liters oil tank (already supplied level: Shell Tellus 46 S2 MX 46).
Pto shaft CE included.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).
CHARACTERISTICS
CLOSE| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1800.0 mm | 5.90 ft |
| Overall width | 1200.0 mm (closed) | 3.94 ft (closed) |
| Weight | 290.0 kg | 640.0 lb |
| Overall height | 2010.0 mm | 6.60 ft |
| Tractor Power Range | 20-60 Hp | 20-60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Spacing between the 2 lower points | 470.0 - 570.0 mm | 18.50 - 22.44 in |
| Maximum cutting diameter | 25.0 mm | 1.0 in |
| Overall length | 1070.0 mm | 3.51 ft |
| Distance between pto attachment and ground | 400.0 mm | 15.75 in |
| Transmission: Drive method | Hydraulic | Hydraulic |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Free wheel | √ | √ |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 72925 |
| Number of Blades | 24 | 24 |
| Hydraulic Hoses | WP 400 Bar | WP 400 Bar |
| Pto shaft | CE 4x700 mm | CE 4x700 mm |
| Displacement | 3460.0 mm | 11.35 ft |
| Transmission: Oil in the tank | 55.0 lt | 55.0 lt |
| Packing sizes | 1280.0*800.0*2150.0 mm | 4.20*2.62*7.05 ft |
Technical charts
CLOSE| Shell Tellus S2 MX 46: Specifications | Download PDF |
