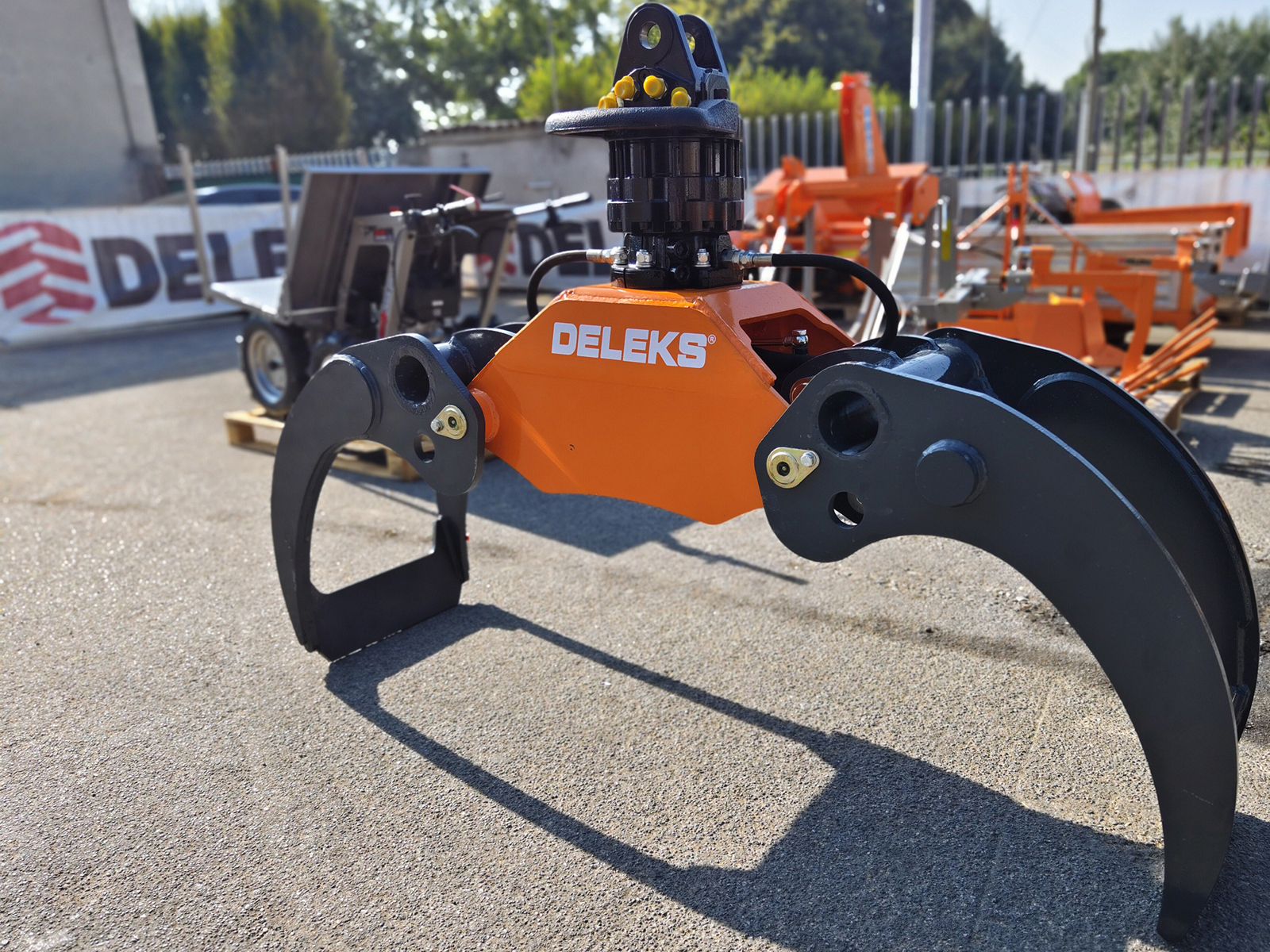

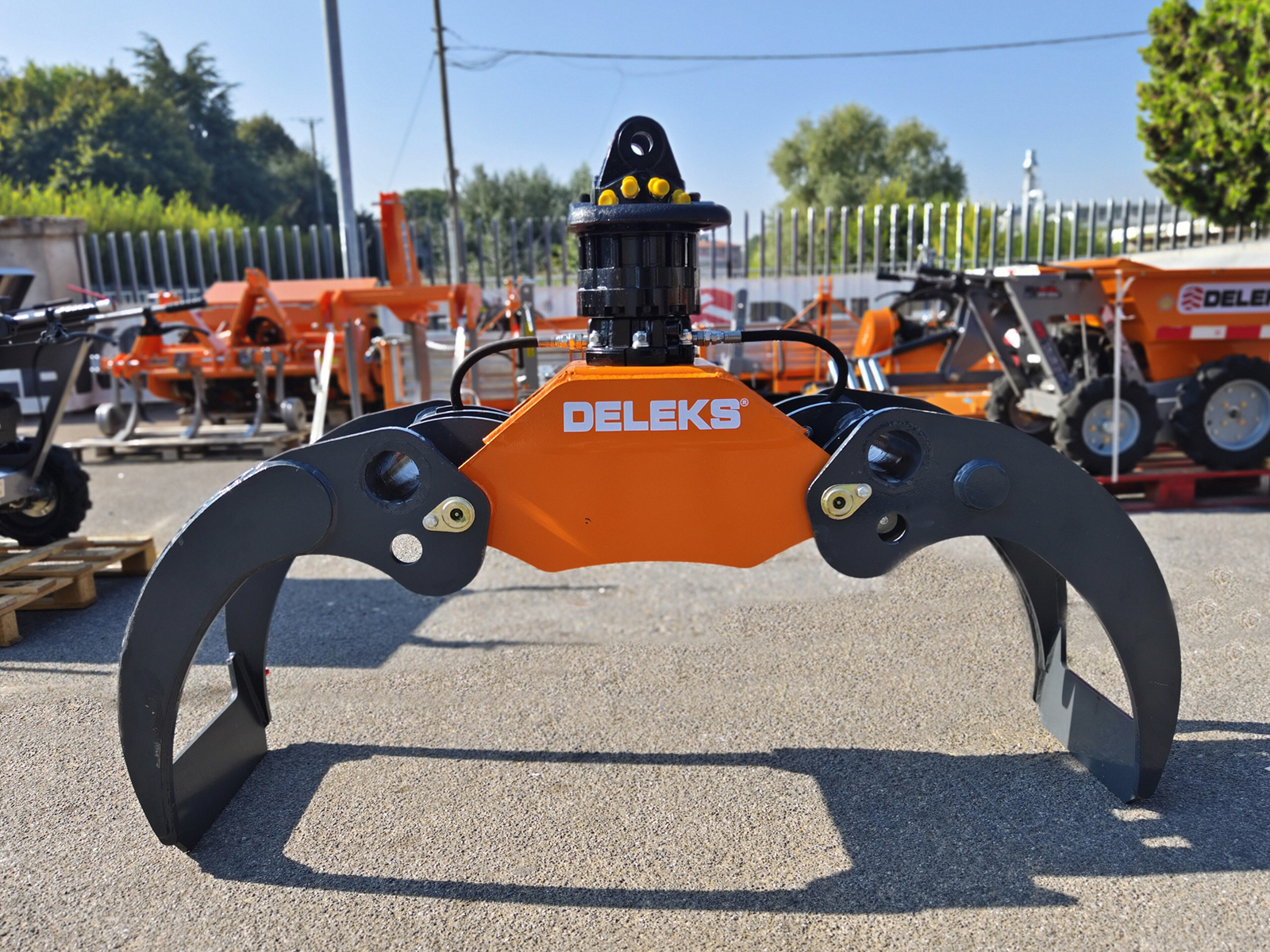

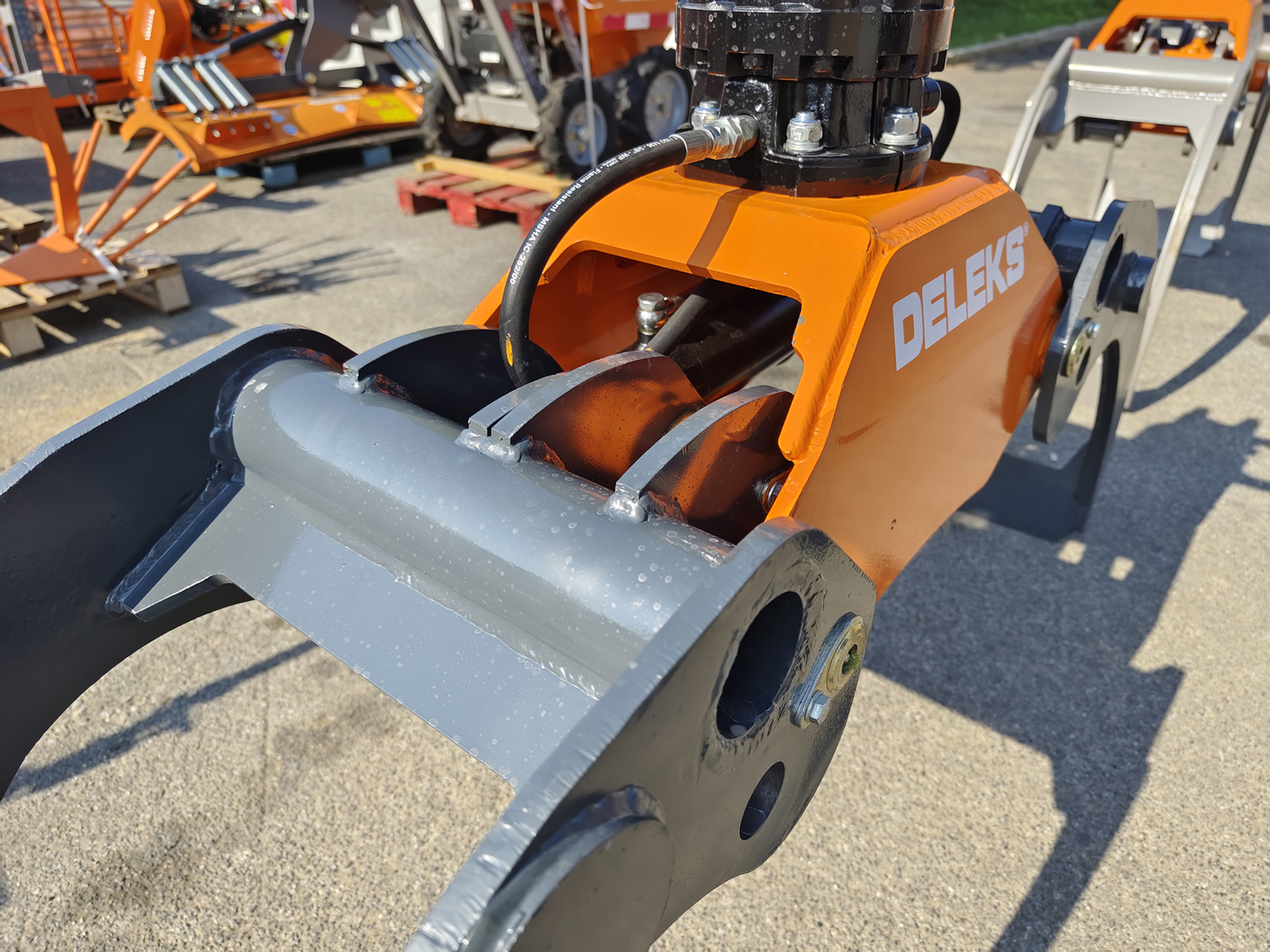

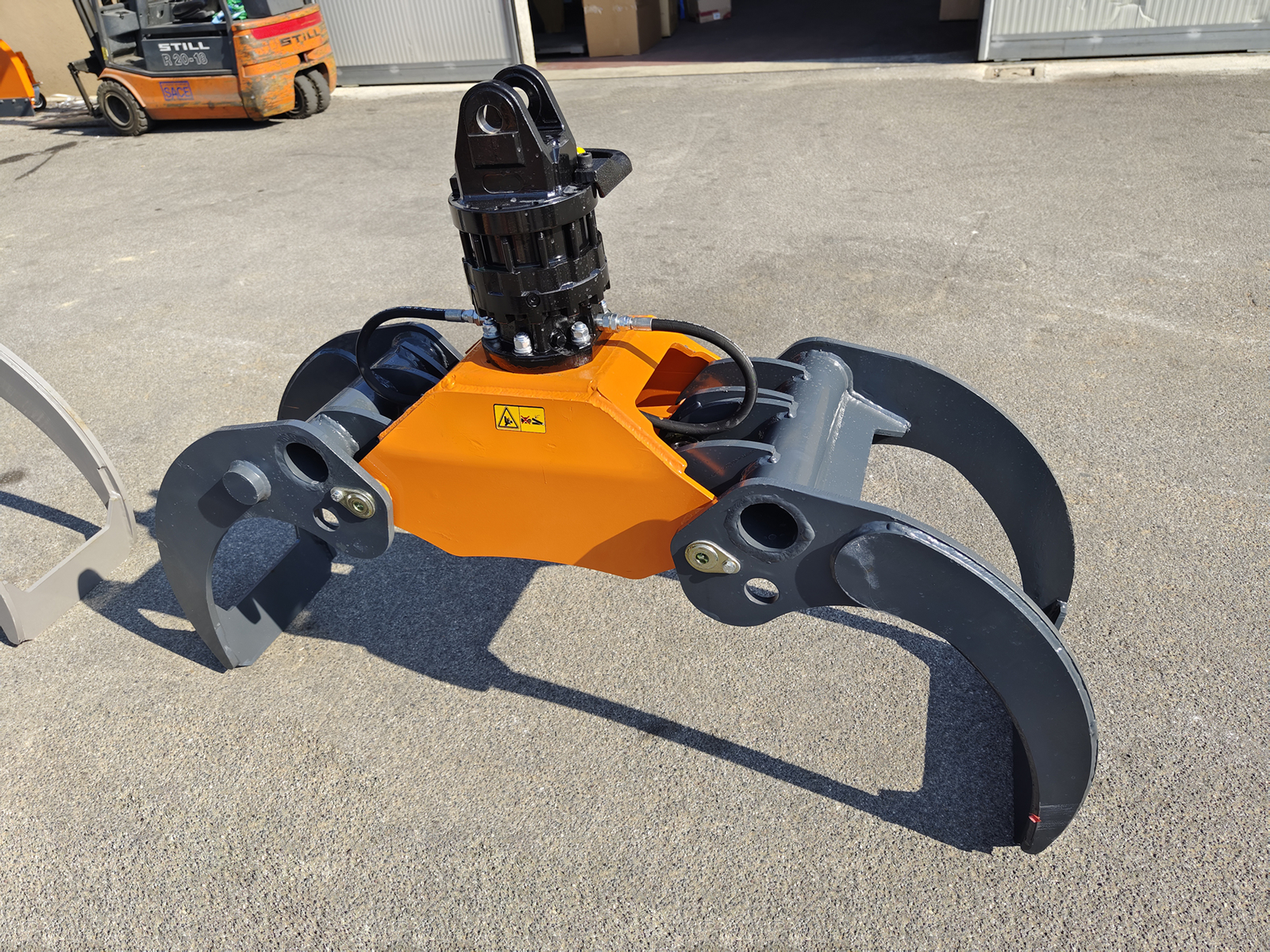

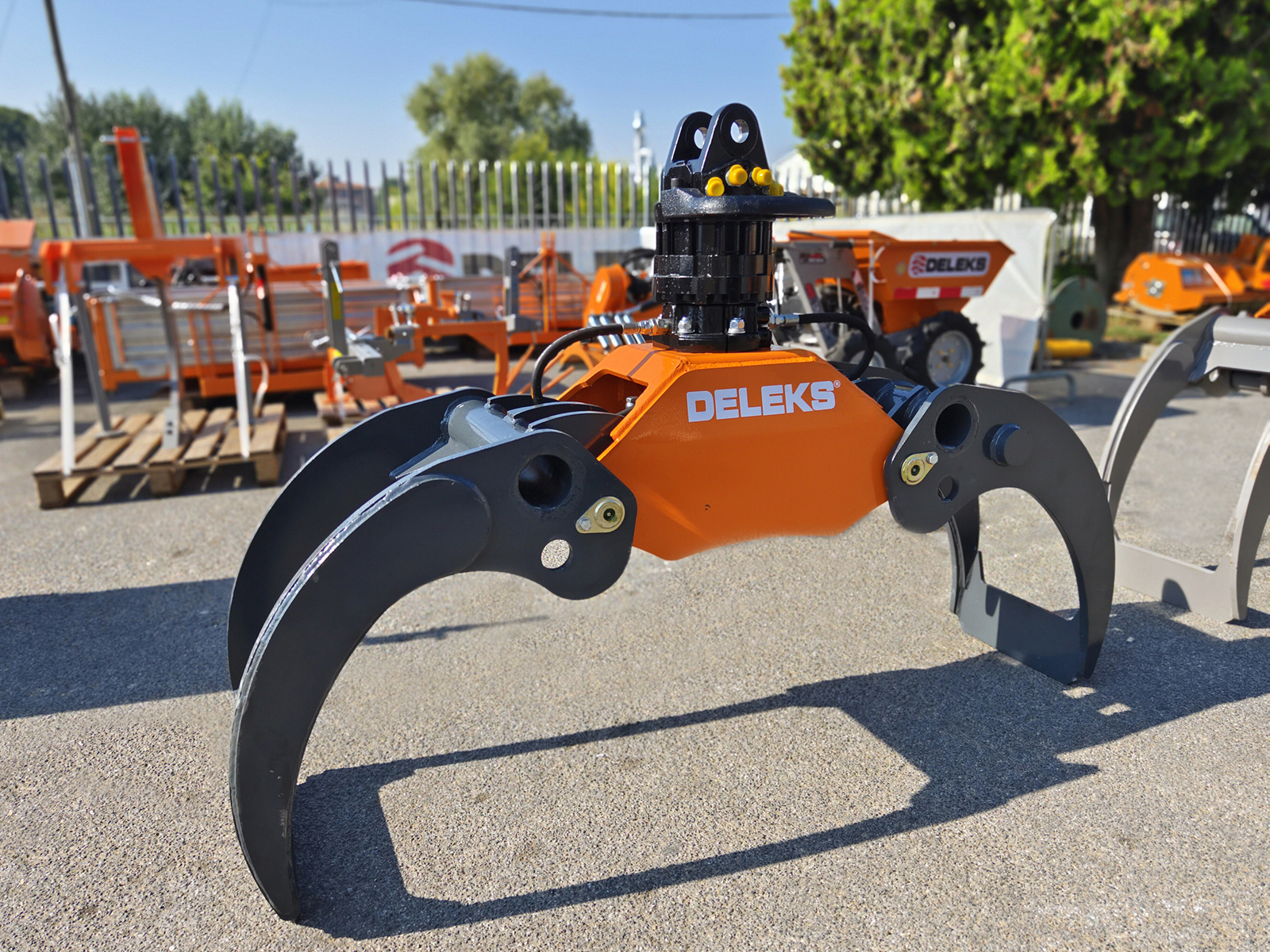

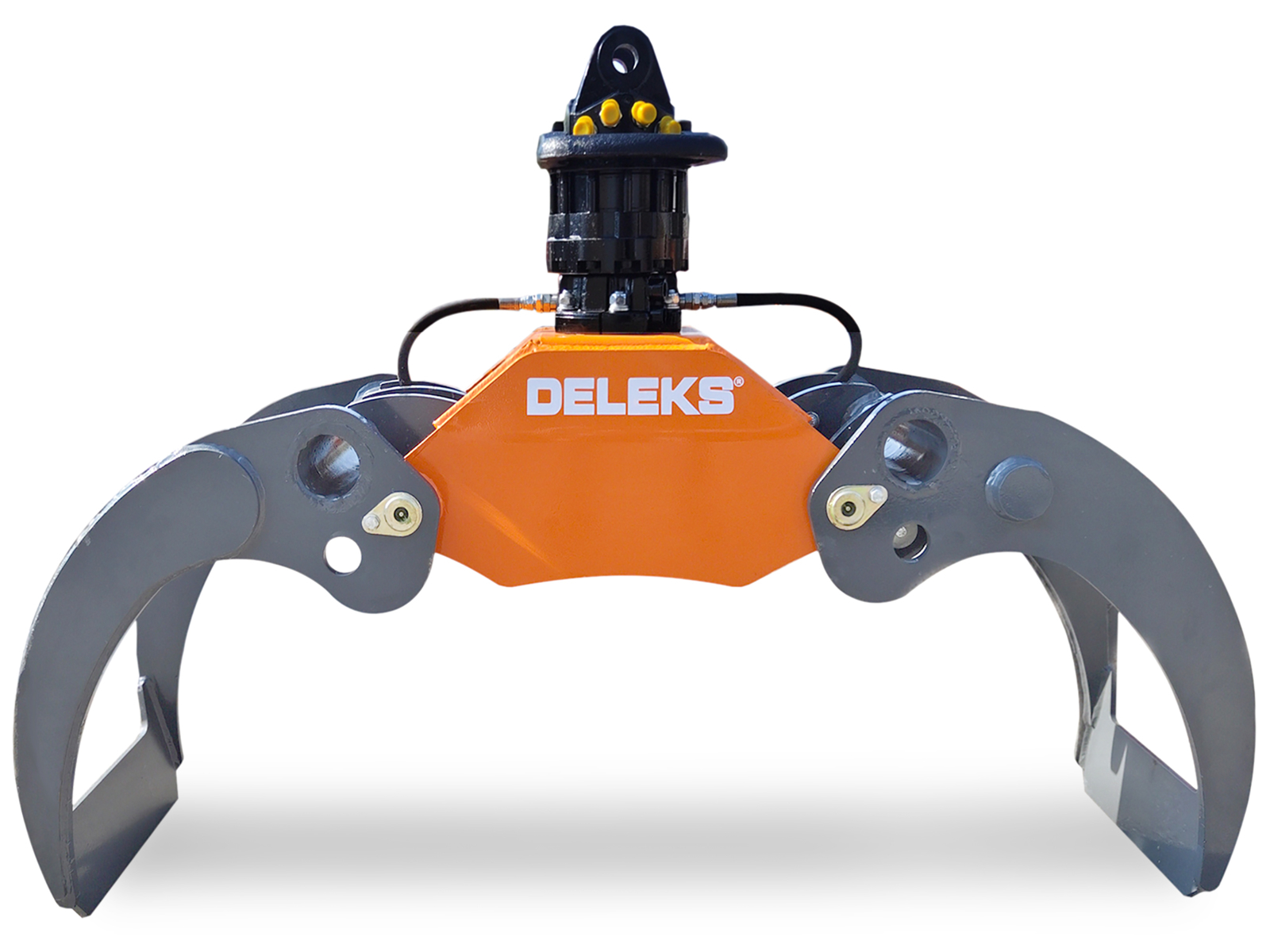

Log grapple with fixed pendulum rotator for mini excavators and forest cranes DK-18 + GR-100F
DETAILS
Log Grapple DELEKS® DK-18 Lombarda Ingranaggi Rotator for Mini Diggers and Forest Cranes 5 – 10 Ton
OVERVIEW
Perfect for carrying logs and timber around your farm or park.
Maximum load 2500.0 kg.
Gripping force: 13.1KN
Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi.

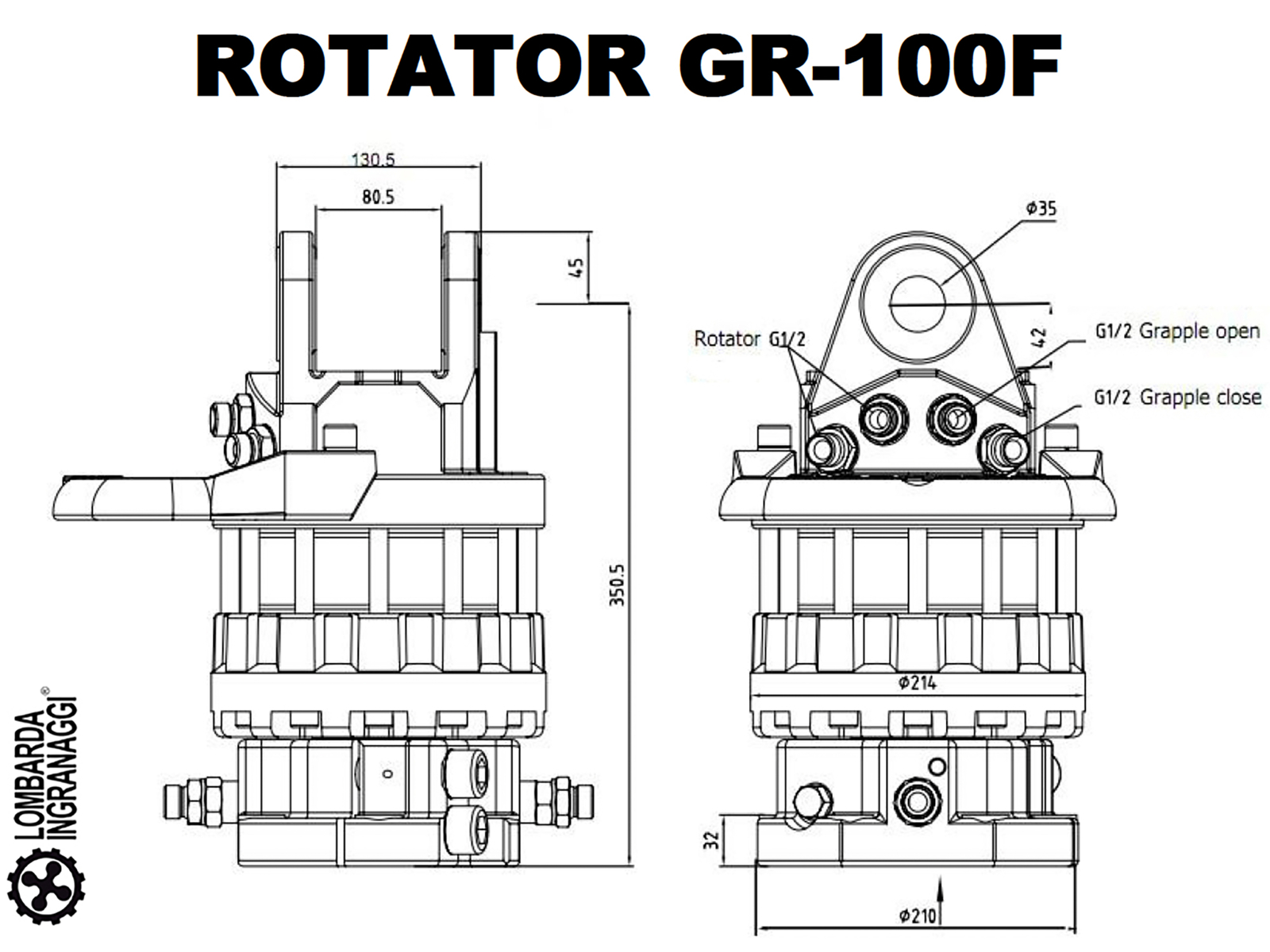

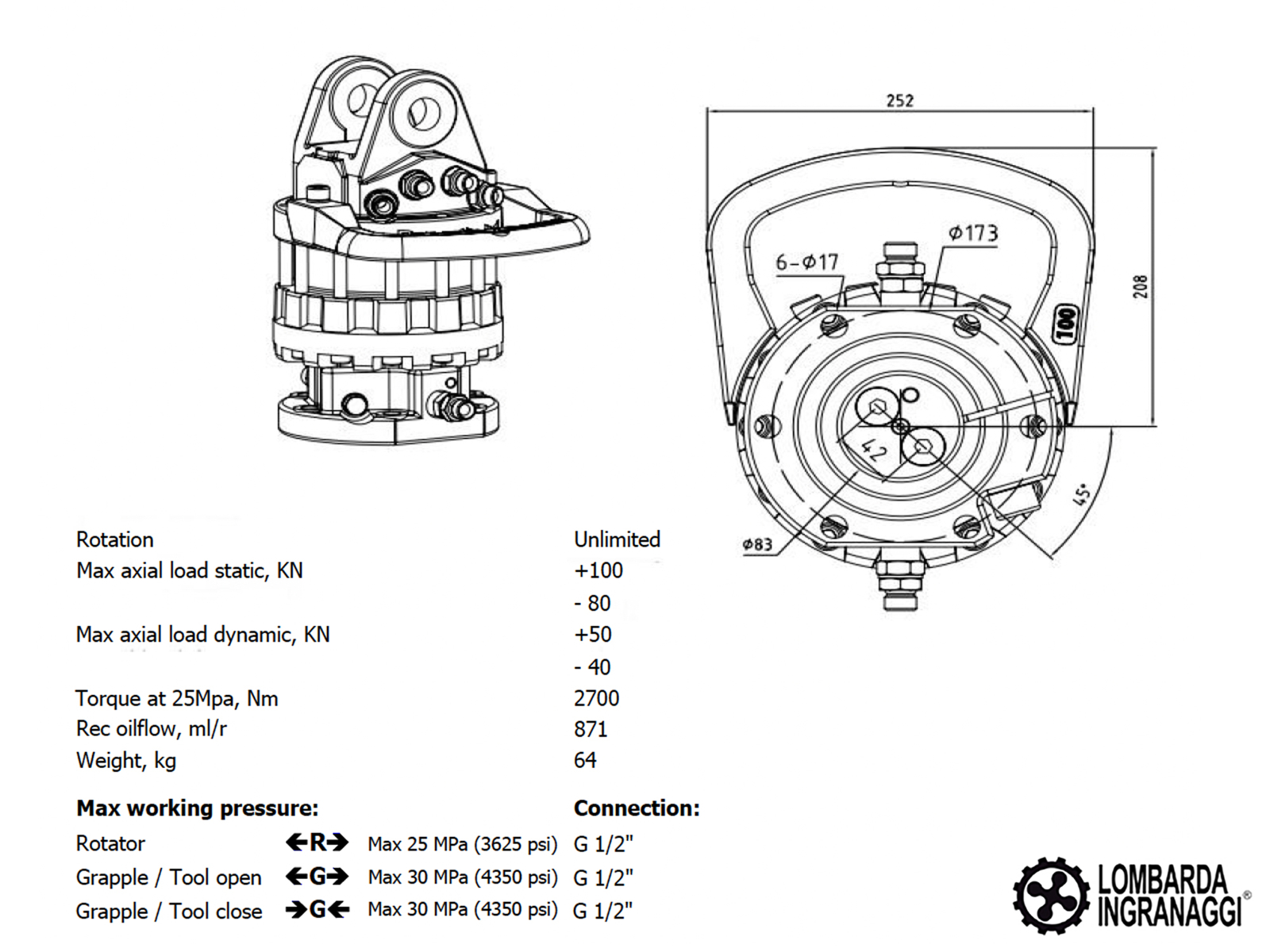

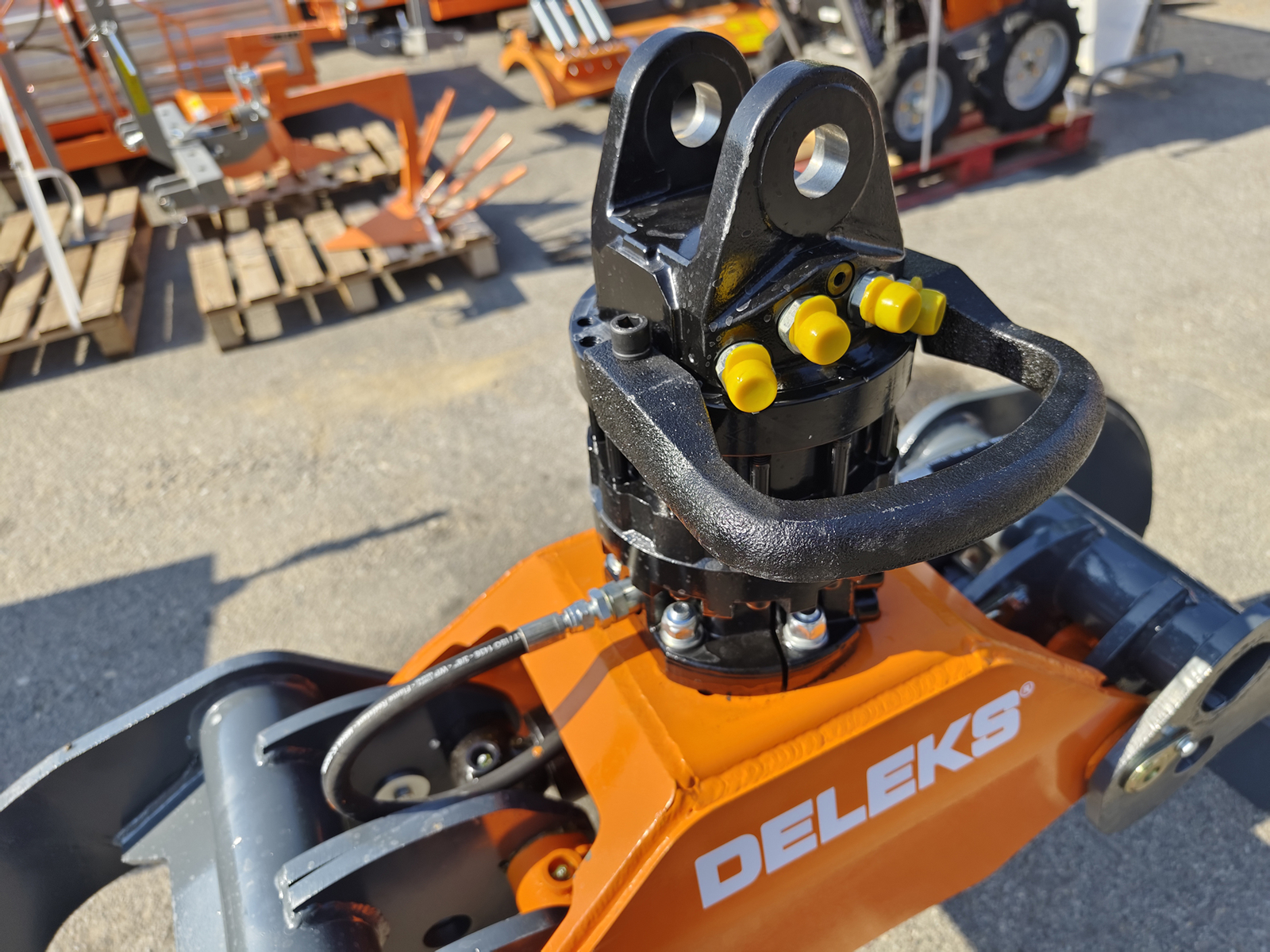

Rotator: Lombarda Ingranaggi's GR100F rotators are powerful, reliable and robust. They are engineered to perform in heavy duty work environments with maximal efficiency and minimal unscheduled downtime as they have a loading capacity 10.000kg. Grapple needs 4 hydraulic outlets to function. EC Conformity, 2 Year Warranty.
BENEFITS & FEATURES
360º continuous rotation.

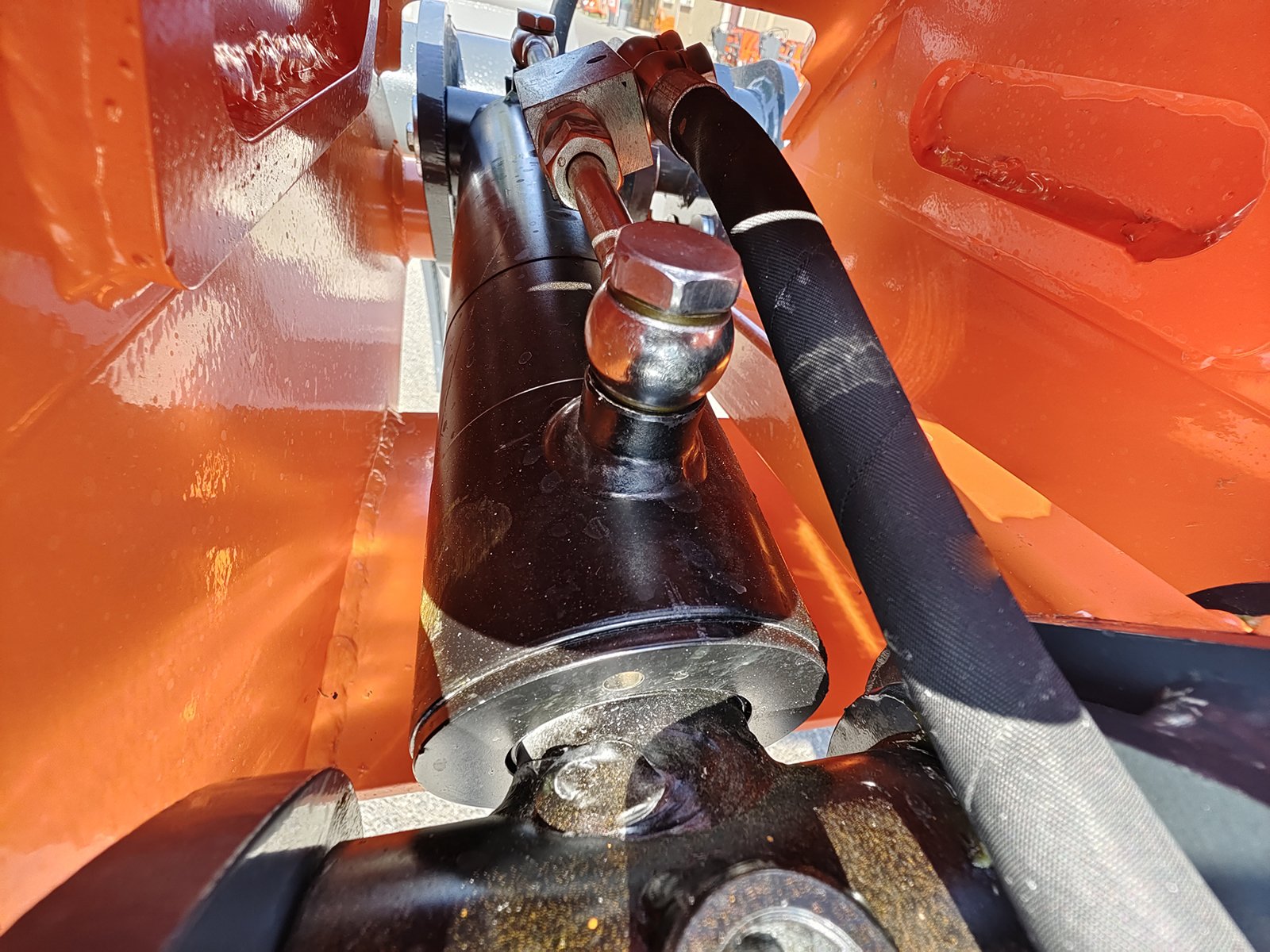

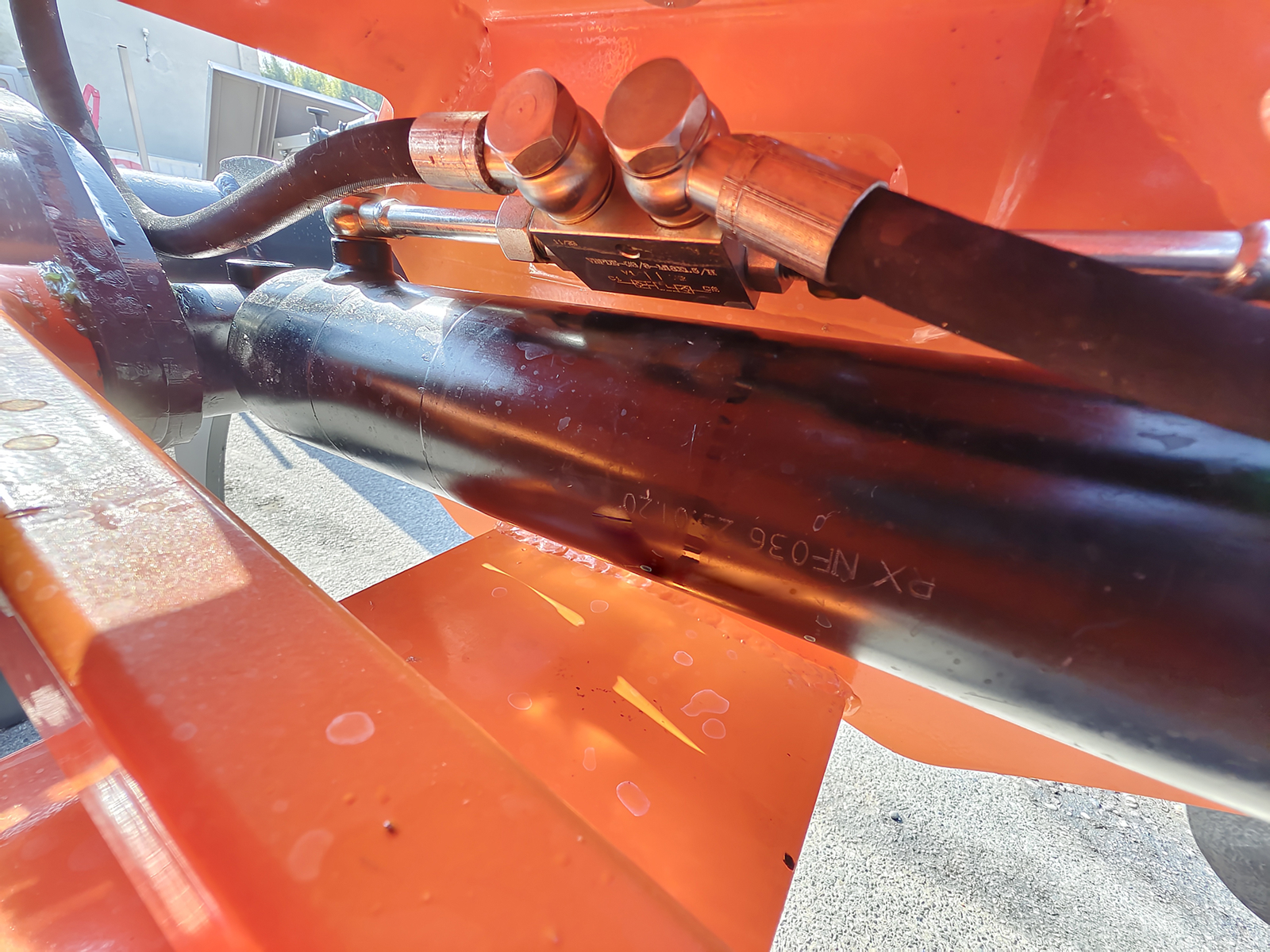

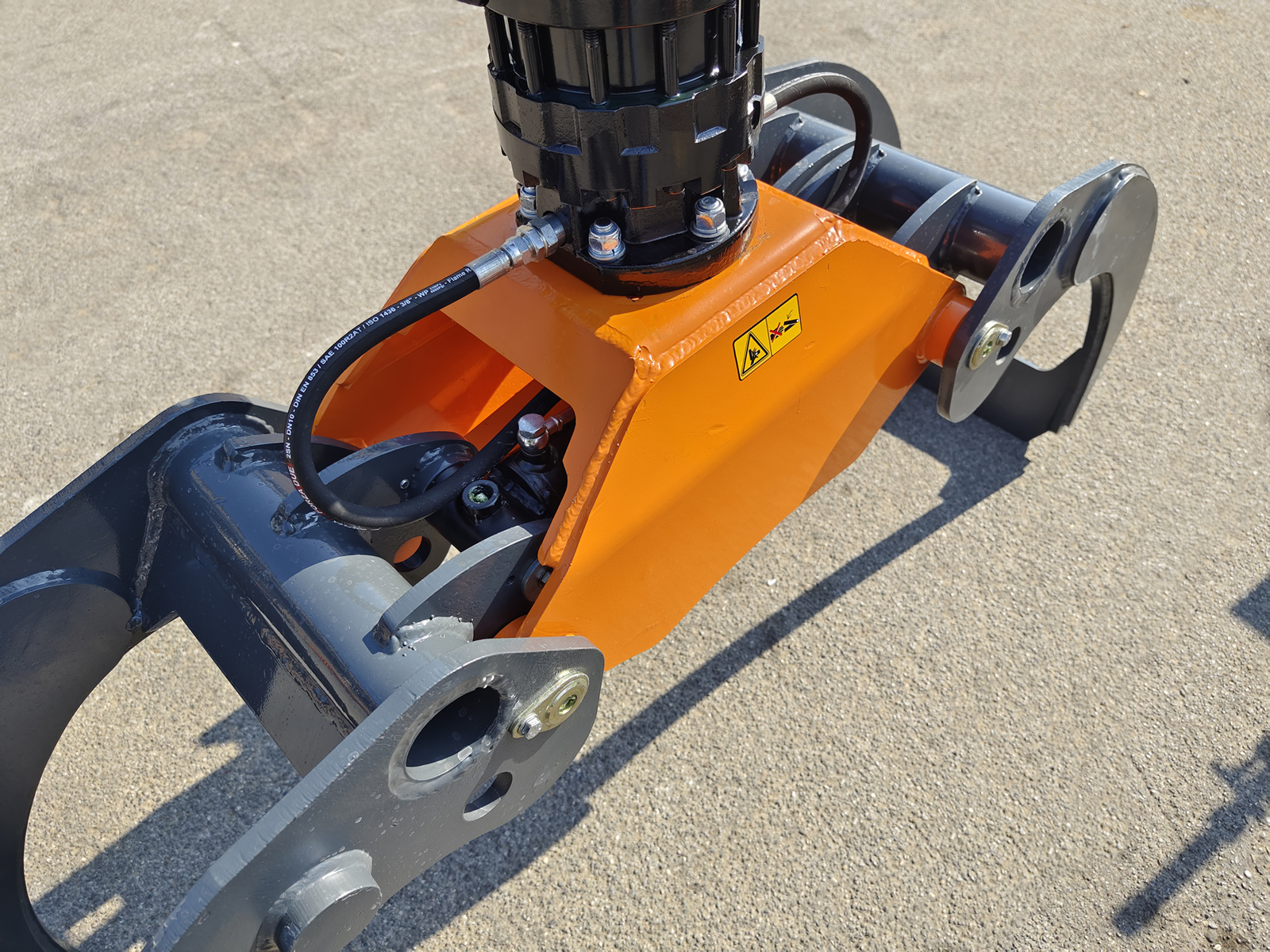

Shut-off valve on the hydraulic cylinder.

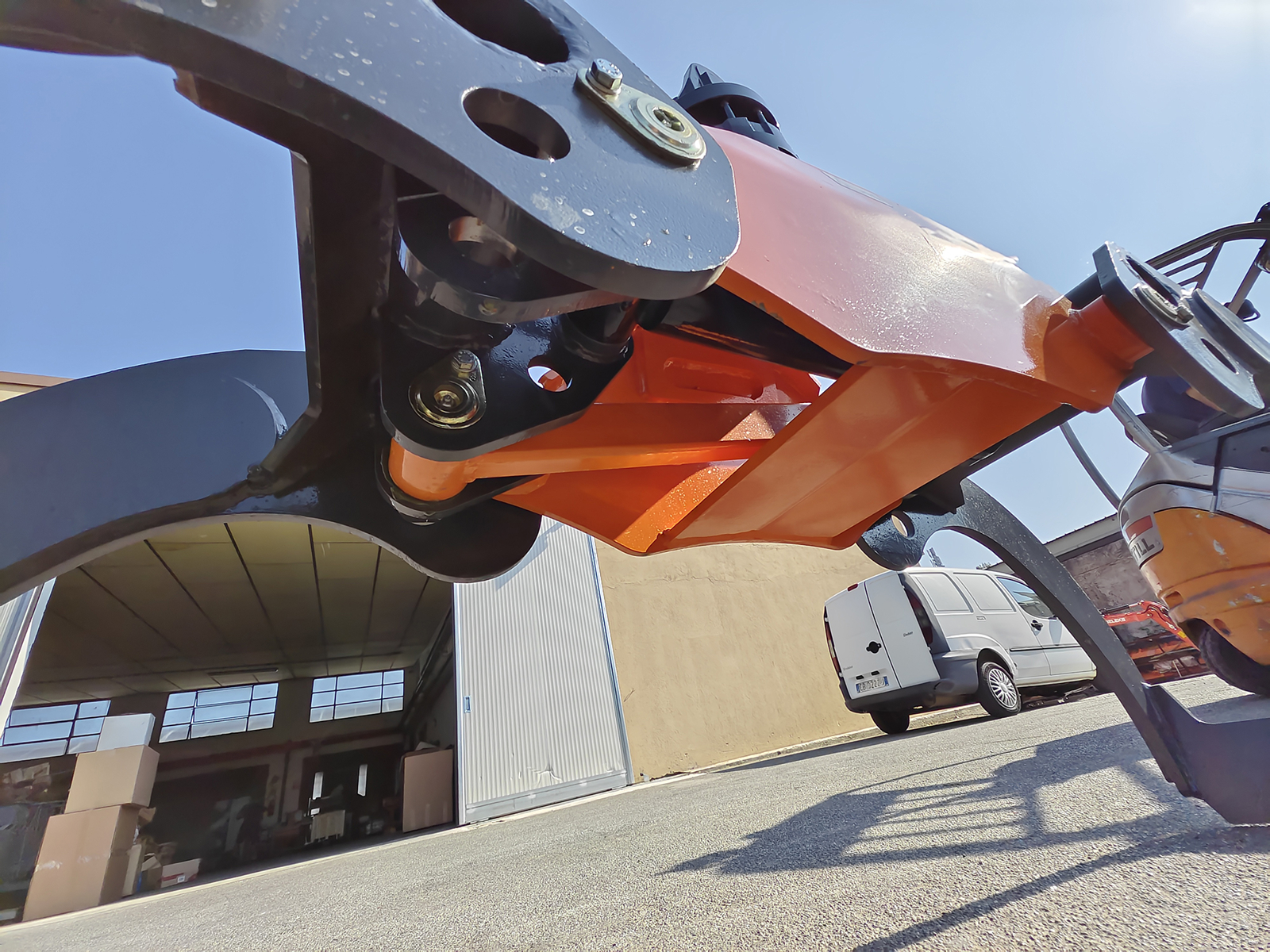

Solid steel bolts with bronze bushings.
Thanks to the DK18's unique design it grips timber, boulders or debris tightly.
High quality steel: code S355 (Claws: S700).
High tensile strength, reinforced grapple tines.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Weight | 302.0 kg | 665.0 lb |
| Load capacity | 2500.0 kg | 5500.0 lb |
| Main hood thickness | 12.0 mm | 0.5 in |
| Min./Max. Relief Pressure | 150 - 220 bar | 150 - 220 bar |
| Min./Max. Flow | 25 - 50 l/min | 25 - 50 l/min |

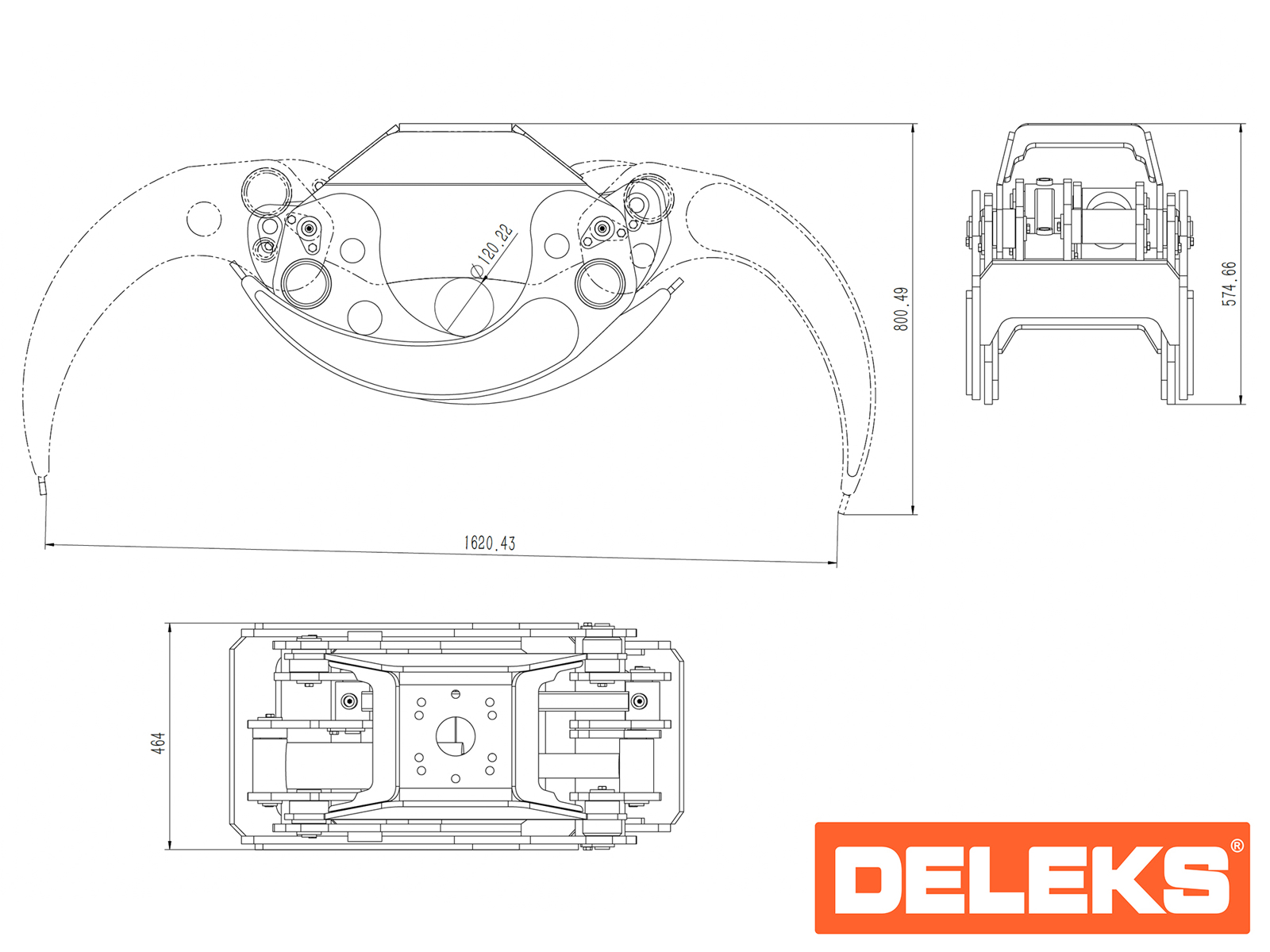

| Other sizes | See pictures | See pictures |
| Hydraulic Hoses | 400 bar pressure | 400 bar pressure |
| Max Opening | 1620.0 mm | 5.30 ft |
| Height, grapple open | 1180.0 mm | 46.50 in |
| Minimum diameter of the log | 40.0 mm | 1.57 in |
| Hydraulic cilinder diameter | 90.0 - 50.0 mm | 3.55 - 1.97 in |
| Max Pressure | 200 Bar | 200 Bar |
| Rotator | Lombarda Ingranaggi GR-100F (10 ton) | Lombarda Ingranaggi GR-100F (10 ton) |
| Compact Excavators Range | 5 - 10 ton | 5 - 10 ton |
| Packing sizes | 1200.0*800.0*1000.0 mm | 3.94*2.62*3.28 ft |
